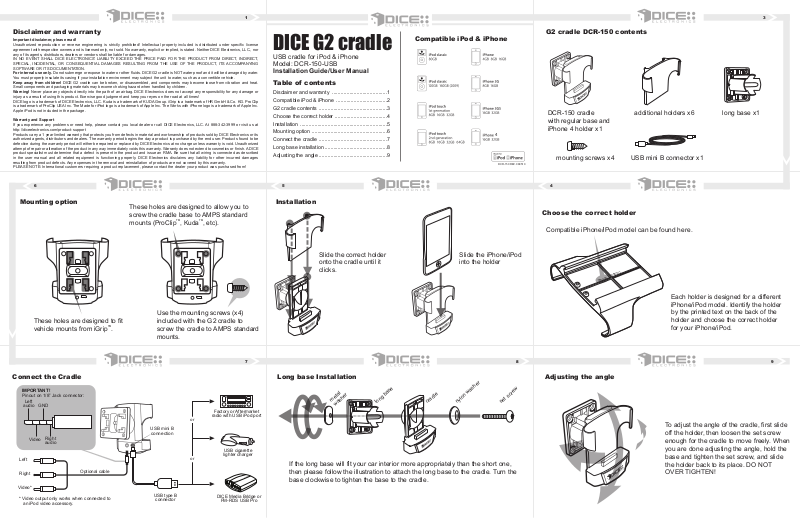

Dice electronic DCR-150 User Manual

1 3

Disclaimer and warranty

Important disclaimer, please read!

Unauthorized reproduction or reverse engineering is strictly prohibited! Intellectual property included is distributed under specific license
agreement with respective owners and is licensed only, not sold. No warranty, explicit or implied, is stated. Neither DICE Electronics, LLC., nor
any of its agents, distributors, dealers or vendors shall be liable for damages.
IN NO EVENT SHALL DICE ELECTRONICS' LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT,
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING
SOFTWARE OR ITS DOCUMENTATION.
For internal use only. Do not submerge or expose to water or other fluids. DICE G2 cradle is NOT water proof and it will be damaged by water.
You must properly insulate its casing if your installation environment may subject the unit to water, such as a convertible vehicle.
Keep away from children! DICE G2 cradle can be broken, or disassembled, and components may become loose from vibration and heat.
Small components and packaging materials may become choking hazard when handled by children.
Warning! Never place any objects directly into the path of an airbag. DICE Electronics does not accept any responsibility for any damage or
injury as a result of using this product. Exercise good judgment and keep your eyes on the road at all times!
DICE logo is a trademark of DICE Electronics, LLC. Kuda is a trademark of KUDA Group. iGrip is a trademark of HR GmbH & Co. KG. ProClip
is a trademark of ProClip USA Inc. The Made for iPod logo is a trademark of Apple Inc. The Works with iPhone logo is a trademark of Apple Inc.
Apple iPod is not included in the package.

Warranty and Support

If you experience any problems or need help, please contact you local dealer or call DICE Electronics, LLC. At 888-342-3999 or visit us at
http://diceelectronics.com/product-support
Products carry a 1 year limited warranty that protects you from defects in material and workmanship of products sold by DICE Electronics or its
authorized agents, distributors and dealers. The warranty period begins the day a product is purchased by the end user. Products found to be
defective during the warranty period will either be repaired or replaced by DICE Electronics at no charge unless warranty is void. Unauthorized
attempt of repair or alteration of the product in any way immediately voids this warranty. Warranty does not extend to cosmetics or finish. A DICE
product specialist must determine that a defect is present in the product and issue an RMA. Be sure that all wiring is connected as described
in the user manual and all related equipment is functioning properly. DICE Electronics disclaims any liability for other incurred damages
resulting from product defects. Any expenses in the removal and reinstallation of products are not covered by this warranty.
PLEASE NOTE: International customers requiring a product replacement, please contact the dealer your product was purchased from!

Mounting option

These holes are designed to allow you to
screw the cradle base to AMPS standard
mounts (ProClip

TM

, KudaTM, etc).

DICE G2 cradle

USB cradle for iPod & iPhone
Model: DCR-150-USB

Installation Guide/User Manual

Table of contents

Disclaimer and warranty

Compatible iPod & iPhone

G2 cradle contents

Choose the correct holder

Installation

Mounting option

Connect the cradle

Long base installation

Adjusting the angle

............................................................5

....................................................6

Installation

......................................1

...................................2

...............................................3

....................................4

...............................................7

...........................................8

...............................................9

Compatible iPod & iPhone

4

DCR-150 REV. 080510

G2 cradle DCR-150 contents

additional holders x6
with regular base and
iPhone 4 holder x1

mounting screws x4 USB mini B connector x1

456

Choose the correct holder

Compatible iPhone/iPod model can be found here.

long base x1DCR-150 cradle

Slide the correct holder
onto the cradle until it

Slide the iPhone/iPod
into the holder

clicks.

iPhone

Use the mounting screws (x4)
These holes are designed to fit
vehicle mounts from iGripTM.

included with the G2 cradle to

screw the cradle to AMPS standard

mounts.

7 8 9

Connect the Cradle Long base Installation Adjusting the angle

IMPORTANT!

Pinout on 1/8” Jack connector:

Left

GND

audio

Right

Video

audio

Left

USB mini B

connection

Factory or Aftermarket

or

or

radio with USB iPod port

USB cigarette

lighter charger

metal

washer

long base

cradle

nylon washer

set screw

If the long base will fit your car interior more appropriately than the short one,

Right

Optional cable

then please follow the illustration to attach the long base to the cradle. Turn the
base clockwise to tighten the base to the cradle.

Video*

* Video output only works when connected to
an iPod video accessory.

USB type B

connector

DICE Media Bridge or

FM-RDS USB Pro

0609r1

Each holder is designed for a different
iPhone/iPod model. Identify the holder
by the printed text on the back of the
holder and choose the correct holder
for your iPhone/iPod.

To adjust the angle of the cradle, first slide
off the holder, then loosen the set screw
enough for the cradle to move freely. When
you are done adjusting the angle, hold the
base and tighten the set screw, and slide
the holder back to its place. DO NOT
OVER TIGHTEN!
