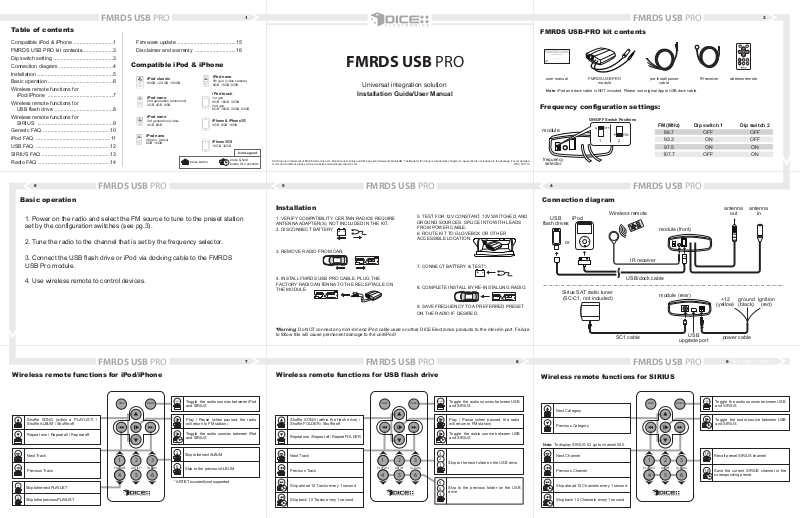

DICE FMRDS USB PRO Installation Guide
FMRDS USB PRO FMRDS USB PRO
1 3
Table of contents
Compatible iPod & iPhone
FMRDS USB PRO kit contents
Dip switch setting
.........................................3
Connection diagram
Installation
Basic operation
....................................................5
.............................................6
...........................1
............................3
.....................................4
Wireless remote functions for
iPod/iPhone
.............................................7
Wireless remote functions for
USB flash drive
........................................8
Wireless remote functions for
SIRIUS
Generic FAQ
iPod FAQ
USB FAQ
SIRIUS FAQ
Radio FAQ
....................................................9
..............................................10
...................................................11
...................................................12
...............................................13
.................................................14
Firmware update
Disclaimer and warrenty
Compatible iPod & iPhone
iPod classic
80GB, 120 GB, 160GB
iPod nano
2nd generation (aluminum)
2GB 4GB 8GB
iPod nano
3rd generation (video)
4GB 8GB
iPod nano
4th gen. (video)
8GB 16GB
........................................15
............................16
press button
FMRDS USB PRO FMRDS USB PROFMRDS USB PRO
Basic operation
1. Power on the radio and select the FM source to tune to the preset station
set by the configuration switches (see pg.3).
2. Tune the radio to the channel that is set by the frequency selector.
3. Connect the USB flash drive or iPod via docking cable to the FMRDS
USB Pro module.
iPod nano
5th gen. (video camera)
8GB 16GB 32GB
iPod touch
1st gen
8GB 16GB 32GB
2nd gen
8GB 16GB 32GB 64GB
iPhone & iPhone 3G
4GB 8GB 16GB
iPhone 3GS
16GB 32GB
Icon Legend
press & hold
button for 2 seconds
FMRDS USB PRO
Universal integration solution
Installation Guide/User Manual
DICE logo is a trademark of DICE Electronics, LLC. SiriusConnect, Sirius and XM logos are trademark of SiriusXM. The Made for iPod logo is a trademark of Apple Inc. Apple iPod is not included in the package. For our detailed
terms and conditions please visit our website at www.diceelectronics.com.
Installation
1. VERIFY COMPATIBILITY. CERTAIN RADIOS REQUIRE
ANTENNA ADAPTER(S), NOT INCLUDED IN THE KIT.
2. DISCONNECT BATTERY
3. REMOVE RADIO FROM CAR.
5. TEST FOR 12V CONSTANT, 12V SWITCHED, AND
GROUND SOURCES. SPLICE INTO WITH LEADS
FROM POWER CABLE.
6. ROUTE KIT TO GLOVEBOX OR OTHER
ACCESSIBLE LOCATION.
7. CONNECT BATTERY & TEST*.
REV. 031710
FMRDS USB-PRO kit contents
DICE interface for iPod
Installation Guide/User Manual
user manual FMRDS USB PRO
Note: iPod and dock cable is NOT included. Please use original Apple USB dock cable.
module
pro-install power
cable
Frequency configuration settings:
module
frequency
selector
456
ON/OFF Switch Positions
OFF
ON
1 2
FM (MHz) Dip switch 1
88.7
93.3
97.5
107.7
Connection diagram
USB
flash drives
iPod
MENU
or
Wireless remote
2 3
4 5 6
1
PLAYLIST ARTIST ALBUM
MENU SOURCE
IR receiver
module (front)
IR receiver
OFF
ON
ON
OFF
MENU SOURCE
1
PLAYLIST ARTIST ALBUM
4 5 6
wireless remote
Dip switch 2
antenna
out
2 3
OFF
OFF
ON
ON
antenna
in
4. Use wireless remote to control devices.
4. INSTALL FMRDS USB PRO CABLE. PLUG THE
FACTORY RADIO ANTENNA TO THE RECEPTACLE ON
THE MODULE.
8. COMPLETE INSTALL BY RE-INSTALLING RADIO.
9. SAVE FREQUENCY TO A PREFERRED PRESET
ON THE RADIO IF DESIRED.
*Warning: Do NOT connect any mini-din and iPod cable used on other DICE Electronics products to the mini-din port. Failure
to follow this will cause permanent damage to the unit/iPod!
FMRDS USB PRO FMRDS USB PROFMRDS USB PRO
7 8 9
Wireless remote functions for iPod/iPhone Wireless remote functions for USB flash drive
SOURCE
Toggle the audio sources between iPod
and SIRIUS
Play / Pause (when paused, the radio
will return to FM station)
Toggle the audio sources between iPod
and SIRIUS
3
Skip to the next ALBUM
6
Skip to the previous ALBUM
* ARTIST is currently not supported
Shuffle SONG (within the flash drive) /
Shuffle FOLDER / Shuffle off
Repeat one / Repeat all / Repeat FOLDER
Next Track
Previous Track
Skip ahead 10 Tracks every 1 second
Skip back 10 Tracks every 1 second
MENU SOURCE
1
2 3
PLAYLIST
ARTIST
4 5 6
ALBUM
Shuffle SONG (within a PLAYLIST) /
Shuffle ALBUM / Shuffle off
Repeat one / Repeat all / Repeat off
Next Track
Previous Track
1
Skip to the next PLAYLIST
4
Skip to the previous PLAYLIST
MENU SOURCE
1
2 3
PLAYLIST
ARTIST*
4 5 6
ALBUM
SOURCE
Toggle the audio sources between USB
and SIRIUS
Play / Pause (when paused, the radio
will return to FM station)
Toggle the audio source between USB
and SIRIUS
3
2
Skip to the next folder on the USB drive
1
6
Skip to the previous folder on the USB
5
drive
4
USB/dock cable
Sirius SAT radio tuner
(SC-C1, not included)
module (rear)
SC1 cable
Wireless remote functions for SIRIUS
MENU SOURCE
Next Category
Previous Category
Note: To display SIRIUS ID, go to channel 000.
Next Channel
Previous Channel
Skip ahead 10 Channels every 1 second
Skip back 10 Channels every 1 second
1
2 3
PLAYLIST
ARTIST
4 5 6
USB
upgrade port
ALBUM
+12
(yellow)
ground
(black)
ignition
power cable
See back for more
SOURCE
Toggle the audio sources between USB
and SIRIUS
Toggle the audio source between USB
and SIRIUS
1-6
Recall preset SIRIUS channel
1-6
Save the current SIRIUS channel in the
corresponding preset.
(red)
FMRDS USB PRO FMRDS USB PROFMRDS USB PRO
10 11 12
Generic FAQ
Questions
Why is static noise heard when
pressing the button?
Why is static noise heard when
iPod/USB is not connected?
Why does the radio display show
“EMPTY/STOP” and no music plays?
Firmware update
iPod FAQ
Answers
This is normal if there is no FM broadcast station on the frequency
tuned. The FM-transmitter is turned off when the iPod/USB device is
paused.
This is normal if there is no FM broadcast station on the frequency
tuned. The FM-transmitter is turned off when the iPod/USB is
detached.
End of a playlist or folder is reached. Please select a new
Playlist or Folder using the wireless remote.
Questions
Why can’t I hear audio from iPod?
How can I switch back to local radio
stations while the iPod/USB is
connected?
Why can’t I browse by ARTIST?
Why can’t I browse USB drive by
PLAYLIST/ALBUM?
How can I charge the iPod/iPhone
and listen to a broad cast radio
station?
Why is music distorted with iPod
connected?
Make sure to select the FM source on the radio and tune to the
correct FM frequency set by the DIP switches (pg. 3). With the ignition
OFF disconnect vehicle harness from module for a few seconds and
reconnect. Reset the iPod. Verify iPod compatibility (pg. 1).
With the pro-install, the iPod/USB device must be disconnected or
paused before the vehicles factory antenna is reactivated.
This feature is currently not supported by iPod/iPhone models.
Browsing by PLAYLIST/ALBUM is only supported by compatible
iPod/iPhone models.
After connecting the device just hit the button.
Make sure all EQ and BASS boost options are turned off on your iPod.
Answers
FMRDS USB PRO FMRDS USB PROFMRDS USB PRO
Radio FAQ
USB FAQ
Questions
Why can’t I get any audio out of my
device through USB?
What size of USB flash drive should I
use?
Why is the interface not controlling
the USB drive?
What if there isn’t enough clearance on
the DICE module to plug in my USB
device?
Why does “Seek” message keep
showing?
131415
SIRIUS FAQ
Answers
Make sure that the device supports playing audio through
USB. Portable hard drive are not supported.
Up to 4GB is recommended for optimal user experience,
however large capacities are supported.
Please make sure that the USB connection is not loose.
Disconnect and reconnect the device. USB device must
be FAT16/32 format and contain supported MP3, WMA or
AAC content without DRM.
Use the supplied USB extension cable for USB device.
Shuffle is implemented by reading the full file system of
the USB drive, and randomizing in memory. The more
content you have the longer the process will take, 30
seconds is not unusual.
STEP 1:
STEP 2:
STEP 3:
STEP 4:
STEP 5:
Disconnect the FMRDS USB PRO module from the vehicle.
Download and install necessary software from www.diceelectronics.com
Open software to follow instructions for updating FMRDS USB PRO unit.
Connect the FMRDS USB PRO via mini USB cable to the computer and update.
Disconnect and reinstall the unit into the vehicle.
Mini USB port for software update
FMRDS USB PRO FMRDS USB PROFMRDS USB PRO
Why does radio display text of prior
content after switching back to an FM
station?
Why does the radio display “Pause”?
Why does radio display incorrect tag
infomation?
My radio is RDS (RDBS) capable,
but why am I not seeing text?
16 17 18
Questions
Disclaimer and warranty Installation notes:
Important disclaimer, please read!
Unauthorized reproduction or reverse engineering is strictly prohibited! Intellectual property included is distributed
under specific license agreement with respective owners and is licensed only, not sold. No warranty, explicit or
implied, is stated. Neither DICE Electronics, LLC., nor any of its agents, distributors, dealers or vendors shall be
liable for damages.
IN NO EVENT SHALL DICE ELECTRONICS' LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT
FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE OR ITS DOCUMENTATION.
Installed by: Illustration:
Installed date:
Other notes:
Answers
If the broadcast FM radio doesn’t send RDS updates or have low
signal, the radio may just show the last RDS stream.
This is an indication that the FMRDS USB PRO unit was deselected
using the button. This text may become overwritten if the
broadcast station transmits RDS text, but pressing the button
again will activate the FMRDS USB PRO unit
It may take a few seconds for the radio to capture new tags once
content is changed.
Some radio have a TEXT/MSG/RDS/INFO button that must be
pressed before text is displayed.
Questions
What type of SIRIUS tuner is
supported?
Why is my SIRIUS portable’s display
and buttons disabled when
connected to FMRDS USB Pro?
Can an XM tuner be connected?
Why is there no recognition of
SIRIUS tuner?
Why is the reception intermittent
when listening to SIRIUS channels?
How do I switch back to FM from
SIRIUS mode?
Answers
SIRIUS SC-C1 tuner or SIRIUS portable models with vehicle dock
(SC-VDOC-1) are supported.
Display and controls of SIRIUS portable units are inactive when
connected to an external module. This is normal operation. Use
the wireless remote for control.
No. Only SIRIUS tuners are supported.
Check connections between the tuner and FMRDS USB PRO
module. Reconnected tuner and/or redock portable tuner. Cycle
ignition for 30 seconds.
Make sure antenna for SIRIUS tuner is located where visibility to
the sky is good. Try relocating to troubleshoot.
Press the SOURCE button. If iPod/USB is attached, press the
button.
Warranty and Support
Products carry a 90 day limited warranty that protects you from defects in material and workmanship of products
sold by DICE Electronics, or its authorized agents, distributors and dealers. The warranty period begins the day a
product is purchased by the end user. Products found to be defective during the warranty period will either be
repaired or replaced by DICE Electronics at no charge unless warranty is void. Unauthorized attempt of repair or
alteration of the product in any way immediately voids this warranty. Warranty does not extend to cosmetics or
finish. A DICE product specialist must determine that defect is present in the product and issue an RMA. Be sure
that all wiring is connected as described in the user manual and all related equipment is functioning properly.
DICE Electronics disclaims any liability for other incurred damages resulting from product defects. Any expenses
in the removal and reinstallation of products are not covered by this warranty.
If experience any problems or need help, please contact your local dealer or call 888-342-3999, or visit our
support site at http://www.diceelectronics.com/support.
Loading...
