AV SURROUND RECEIVER

AVR-18021882

OPERATING INSTRUCTIONS

MODE D’EMPLOI

‘2

FOR ENGLISH READERS PAGE 2 - PAGE 48, 94, 95

N We greatly appreciate your purchase of this unit. N To be sure you take maximum advantage of all the N Pour 6tre stir de profiter au maximum de toutes les

features this unit has to offer, read these instructions carefully and use the set properly. Be sure to keep this instructions et bien utiliser I’appareil. Toujours manual for future reference should any questions or conserver ce mode d’emploi pour s’y referer problems arise. ulterieurement en cas de question ou de probleme.

“SERIAL NO. PLEASE RECORD UNIT SERIAL NUMBER ATTACHED TO THE REAR OF THE CABINET FOR FUTURE REFERENCE”

POUR LES LECTEURS FRANCAIS PAGE 2,49 - PAGE 95

Nous vous remercions pour l’achat de cet appareil.

caracteristiques qu’offre cet appareil, lire avec soin ces

“NO. DE SERIE PRIERE DE NOTER LE NUMERO DE SERIE DE L’APPAREIL INSCRIT A L’ARRIERE DU COFFRET DE FACON A POUVOIR LE CONSULTER EN CAS DE PROBLEME.”

Page 2

n SAFETY PRECAUTIONS

CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

CAUTION:

A A

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, withrn an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a rusk of electric shock to persons.

The exclamation point withrn an equrlateral triangle is intended to alert the user to the presence of important operating and maintenance (servrcing) instructions in the literature accompanying the appliance.

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE

PouR ~VITER LEs CHOCS ~LECTRIQUES, INTERODU~RE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’ AU FOND.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condrtions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This Class 6 digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numerique de la classe B respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.

TO RAIN OR MOISTURE.

n NOTE ON USE / OBSERVATIONS RELATIVES A L’UTILISATION

ATTENTION

Avoid high temperatures. Allow for sufficrent heat drspersron when installed on a rack.

Evrter des temperatures elevees. Tenor cornpte d’une dispersron de chaleur suffrsante lors de I’rnstallatron sur une etagere.

Handle the power cord carefully. Hold the plug when unpluggrng the cord.

Manipuler le cordon d’alimentation avec

precaution. Tenor la prose lors du debranchement du cordon.

Keep the set free from morsture, water, and dust

Proteger I’apparerl contre I’humidrta, I’eau et la poussrere.

Unplug the power cord when not usrng the set

for long periods of trme.

Dobrancher le cordon d’alimentatton lorsque I’appareil n’est pas utilise pendant de longues p&odes

* (For sets with ventilatron holes)

Do not obstruct the ventilation holes.

Ne pas obstruer les trous d’aeratron

Do not let forergn objects in the set.

Ne pas larsser des objets &rangers dans I’appareil.

Do not let inaectictdes, benzene, and thrnner

come In contact wrth the set.

Ne pas mettre en contact des insecticrdes, du benzene et un diluant avec I’appareil

Never disassemble or modify the set in any 1 way.

Ne ]arnars demonter ou modrfrer I’appareil d’une manrere ou d’une autre.

Page 3

SAFETY INSTRUCTIONS

Read Instructions - All the safety and operating

1. instructions should be read before the appliance is operated.

Retain Instructions - The safety and operating instructions should be retained for future reference.

Heed Warnings - All warnings on the appliance and in the

3. operating instructions should be adhered to.

Follow Instructions - All operating and use instructions should be followed.

Water and Moisture - The appliance should not be used

5. near water - for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, and the like.

Carts and Stands -The appliance should be used only with

6. a cart or stand that is recommended by the manufacturer.

An appliance and cart

6A.

combination should be

moved with care.

Quick stops, excessive force, and uneven surfaces may cause the appliance and cart

combination to overturn.

Wall or Ceiling Mounting - The appliance should be

mounted to a wall or ceiling only as recommended by the

manufacturer.

Ventilation - The appliance should be situated so that its

8. location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

Heat - The appliance should be situated away from heat

9. sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

Power Sources - The appliance should be connected to a

IO.

power supply only of the type described in the operating instructions or as marked on the appliance.

Grounding or Polarization - Precautions should be taken so

11. that the grounding or polarization means of an appliance is not defeated.

Arr

Power-Cord Protection - Power-supply cords should be

12. routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

Cleaning - The appliance should be cleaned only as

14. recommended by the manufacturer.

Power Lines -An outdoor antenna should be located away

15. from power lines.

Outdoor Antenna Grounding - If an outside antenna is

16. connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A.

Nonuse Periods - The power cord of the appliance should

17. be unplugged from the outlet when left unused for a long period of time.

Object and Liquid Entry - Care should be taken so that

18. objects do not fall and liquids are not spilled into the enclosure through openings.

Damage Requiring Service - The appliance should be

19. serviced by qualified service personnel when: A. The power-supply cord or the plug has been damaged;

B. gbjects have fallen, or liquid has been spilled into the

appliance; or

C. The appliance has been exposed to rain; or

D. The appliance does not appear to operate normally or

exhibits a marked change in performance; or

E. The appliance has been dropped, or the enclosure

damaged.

Servicing - The user should not attempt to service the

20. appliance beyond that described in the operating

instructions. All other servicing should be referred to

qualified service personnel.

Page 4

INTRODUCTION

Thank you for choosing the DENON A/V Surround receiver. This remarkable component has been engineered to provide superb surround sound listening with home theater sources such as DVD, as well as providing outstanding high fidelity reproduction of your favorite music sources. As this product is provided with an immense array of features, we recommend that before you begin hookup and operation that you review the contents of this manual before proceeding.

TABLE OF CONTENTS

/iJ Before Using .............................................................................................. 4

q Cautions on installation.. q

Cautions on Handling ................................................................................. 5

Features ...................................................................................................... 5

Part Names and Functions.. .................................................................. .6, 7

Read this first..

Setting up the Speaker Systems..

Connections

Using the Remote Control Unit..

Setting up the system

ACCESSORIES

.........................................................................................

........................................................................... .5

...........................................................................................

..............................................................

.......................................................................

Check that the following parts are included in addition to the main unit:

17-21

9-l 5

8 8

Remote Control Unit.. ....................................................................... .22-24

Operation ............................................................................... 25-29

Surround ............................................................................................. 30-34

DSP Surround Simulatron ......................................................... 35-39

Listening to the Radio.. ...................................................................... 40-42

Last Function Memory.. .......................................................................... .43

Initialization of the Microprocessor .................................................... 43

Additional Information.. ...................................................................... 44-46

Troubleshooting ........................................................................................ 47

Specifications ........................................................................................... 48

List of Preset Codes.. ................................................................................ 94, 95

@ Operating instructions ............................................................................ 1

@I Warranty ( for North America model only ) ............................................ 1

@I Service station list.. ................................................................................. 1

@I Remote control unit (RC-897). ............................................................... .l

1 BEFORE USING

Pay attention to the following before using this unit:

l Moving the set

To prevent short circuits or damaged wires in the connection cords, always unplug the power cord and disconnect the connection cords between all other audio components when moving the set.

l Before turning the power operation switch on

Check once again that all connections are proper and that there are

not problems with the connection cords. Always set the power operation switch to the standby position before connecting and disconnecting connection cords.

@ RGP/AA batteries .................................................................................... 2

@ AM loop antenna .................................................................................... 1

0 FM indoor antenna.. ................................................................................ 1

@ FM antenna adaptor..

l Store this instructions in a safe place.

After reading, store this instructions along with the warranty in a safe place.

l Note that the illustrations in this instructions may differ from

the actual set for explanation purposes.

l V. AUX terminal

The AVR-1802’s front panel is equipped with a V. AUX terminal. Remove the cap covering the terminal when you want to use it.

.............................................................................

1’

Page 5

2 CAUTIONS ON INSTALLATION

III

Noise or disturbance of the picture may be generated if this unit or any other electronic equipment using microprocessors is used near a tuner or TV. If this happens, take the following steps:

l Install this unit as far as possible from the tuner or TV. l Set the antenna wires from the tuner or TV away from this unit’s

power cord and input/output connection cords.

l Noise or disturbance tends to occur particularly when using indoor

antennas or 300 n/ohms feeder wires. We recommend using outdoor antennas and 75 Q/ohms coaxial cables.

For heat dispersal, leave at least 0.3 ft (IO cm) of space between the top, back and sides of this unit and the wall or other components.

3 CAUTIONS ON HANDLING

l Switching the input function when input jacks are not

connected A clicking noise may be produced if the input function is switched when nothing is connected to the input jacks. If this happens, either turn down the MASTER VOLUME control or connect components to the input jacks.

l Whenever the power operation switch is in the STANDBY

state, the apparatus is still connected on some AC line voltages. Please be sure to unplug the cord when you leave home for, say, a vacation.

l Muting of PRE OUT jack, HEADPHONE jack and SPEAKER

terminals The PRE OUT jack, HEADPHONE jack and SPEAKER terminals include a muting circuit. Because of this, the output signals are greatly reduced for several seconds after the power operation switch is turned on or input function, surround mode or any other set-up is changed.

If the volume is turned up during this time, the output will be very high after the muting circuit stops functioning. Always wait until the muting circuit turns off before adjusting the volume.

4 FEATURES

1. Dolby Pro Logic II decoder Dolby Pro Logic II is a new format for playing multichannel audio signals that offers improvements over conventional Dolby Pro Logic. It can be used to decode not only sources recorded in Dolby Surround but also regular stereo sources into five channels (front left/right, center and surround left/right). In addition, various parameters can be set according to the type of source and the contents, so you can adjust the sound field with greater precision.

2. Dolby Digital decoder Dolby Digital, a digital discrete system in which the different channels are completely independent, recreates “threedimensional” sound fields (sounds with a sense of distance, movement and position) with no crosstalk between channels for greater reality. In addition, the 5 channels (excluding the 0.1 channel for low frequency effects) have a playback range extending to 20 kHz, the same as the range of CDs, thus resulting in clearer, more richly expressive sound.

3. DTS (Digital Theater Systems) decoder DTS provides up to 5.1 channels of wide-range, high fidelity surround sound, from sources such as laser disc, DVD and specially-encoded music discs.

4. High performance DSP simulates 7 sound fields Playback is possible in 7 surround modes: 5-channel Stereo, Mono Movie, Rock Arena, Jazz Club, Video Game, Matrix and Virtual. You can enjoy a variety of sound effects for different movie scenes and program sources even with stereo sources not in Dolby Surround.

5. Personal Memory Plus function Personal Memory Pius is an advanced version of Personal Memory. With Personal Memory Plus, the set automatically memorizes the surround mode, channel volume, surround parameters, etc., for each of the separate input sources.

6. Remote control unit with pre-memory function This unit comes with a remote control unit equipped with a prememory function. The remote control command codes for DENON remote controllable AV components as well as for DVD players, LD players, video decks, TVs, etc., of other major manufacturers are prestored in the memory.

7. 6CH EXT. IN jack This unit is equipped with 6CH EXT. IN jacks for use with audio formats of the future.

Page 6

5 PART NAMES AND FUNCTIONS

III

l For details on the functions of these parts, refer to the pages given in parentheses ( )

0 Power operation switch @ Headphones jack (PHONES) @ Preset stations selector buttons @ SPEAKER A/B buttons @ INPUT MODE button

@ ANALOG button ................................................................

@ EXT. IN button 0 CINEMA ECI button @ TONE DEFEAT button @ VIDEO SELECT button

@ V. AUX INPUT jacks @ SURROUND MODE button @ SURROUND PARAMETER button

@ SELECT knob @ TONE CONTROL button

...................................................................

..................................................

..............................................

....................................................

............................................... (42)

.................................................

................................................... (26, 29, 33)

.................................................................

.............................................................

............................................................

.............................................................

................................... (27, 31, 33, 38)

.....................................

..........................................................

(18, 25, 40)

(25, 28, 43)

(27, 30, 31, 33, 38)

(28)

(26, 29) (26, 29)

(33) (27)

(28)

(4, IO)

(31, 38)

(27)

@ CH VOL button ........................................................................ (30)

@ MASTER VOLUME control

@’ STATUS button ........................................................................ (28)

@ DIMMER button ...................................................................... (28)

@ Master volume indicator (VOLUME LEVEL).

0) Display

@ TUNING UP/DOWN button ..................................................... (41)

@ MEMORY button ...............................................................

@ MODE button .......................................................................... (41)

@ BAND button ........................................................................... (41)

@ SIGNAL indicators

@ INPUT mode indicators ............................................................ (27)

@ Remote control sensor (REMOTE SENSOR) .......................... (19)

@ Power operation indicator

@ Input source selector buttons ..................................... (26, 31, 33)

....................................................................

......................................................

........................... (27)

(40, 42)

(27)

Page 7

l For details on the functions of these parts, refer to the pages given in parentheses ( ).

VCR-2 TVIDBS

Remote control signal transmitter

buttons .____.................................... (22, 42)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

(16)

1 VIDEO SELECT button .,,,,,.._.__........... (28)

(SYSTEM SET UP)

, 1 System buttons ,Aw i I :

(CD,

MDICDR. DVD/VDP) (22, 24)

I I

Master volume control

buttons . . . . . . . . . . . . . . (27)

MUTING

button . . . . . . . (28)

STATUS button ,,,,,.._.__...._.__................ (28)

Page 8

6 FEAD THIS FIRST

III

This AV Surround Receiver must be setup before use. Following these steps

Step 1

Choose the best location to setup the Speakers and connecting the components.

step

Next, insert the batteries into the remote control unit

(page 8 to

2 (page

Step 3

Finally, setting up the system.

7 SETTING UP THE SPEAKER SYSTEMS

III

W Speaker system layout

Basic system layout

l The following is an example of the basic layout for a system consisting of six speaker systems and a television monitor:

15)

16)

(page

21)

Front speaker systems

Set these at the sides their front surfaces as screen as possible.

Subwoofer

of the TV or screen with flush with the front of the

Center speaker system

Surround speaker systems

Page 9

8 CONNECTIONS

l Do not plug in the power cord until all connections have been

completed.

l Be sure to connect the left and right channels properly (left with

left, right with right).

l Insert the plugs securely. Incomplete connections will result in

the generation of noise.

l Use the AC OUTLETS for audio equipment only. Do not

l Note that binding pin plug cords together with power cords or

placing them near a power transformer will result in generating hum or other noise.

l Noise or humming may be generated if a connected audio

equipment is used independently without turning the power of this unit on. If this happens, turn on the power of this unit.

use them for hair driers, etc.

l Analog recording of signals input to the AVR-1802 in digital format is not possible. To record in analog, also connect the analog signals of the

player to the AVR-1802’s analog input terminals.

l The AVR-1802’s OPTICAL OUT terminal is an optical digital output terminal for connection of a CDR recorder, MD recorder or other digital

recording device. Use

1 Connecting a turntable 1

Connect the turntable’s unit’s PHONO jacks, the L (left1 plug to the L jack, the R (right) plug to the right jack.

This unit cannot be used wth MC cartridges drectly. Use a separate head amplifier or step-up transformer.

r----l

If humming or other noise is generated when the ground wire IS connected. disconnect the ground wire.

for digital recording.

output

cord to this

OUTPU IT Tape deck or CD recorder

1 Connecting a tape deck 1

Connections for recording: Connect the tape deck’s recording input lacks (LINE IN or REC) to this unit’s tape recording (OUT) lacks using pin plug cords. Connection+ for alavback: Connect the tape deck’s playback output jacks (LINE OUT or PB) to this unit’s tape playback (IN1 jacks wng pin plug cords.

Decoders with 6-channel analog outputs, etc.

Use these jacks if y Connect the internal amplifier’s subwoofer to the subwoofer terminal. (Refer to

AC OUTLETS

SWITCHED

(total capacity - 120 W (1 A.)) The power to these outlets is turned on and off in conjunction with the POWER switch on the main unit, and when the power is switched between on and standby from the remote control unit. No power is supplied from these outlets when this unit’s power is at standby. Never connect equipment whose total capacity IS above 120 W (I A.)

NOTE:

Only use the AC OUTLETS for audio equipment. Never use them for hair driers, TVs or other electrical appliances.

amplifier(s) to increase the

AC 12OV. 60Hz

Page 10

CD jacks using pin plug cords.

OPTICAL

PUT) to this unit’s

Use these for connections to audio equipment with digital output. Refer to page 21 for instructions on setting this terminal.

Use 75 n/ohms cable pin cords (sold separately) for coaxial connections.

Use optical cables (sold separately) for optical connections, removing the cap before connecting.

CD recorder, MD recorder or other component equipped with digital output jacks.

CD player, etc. equipped with DIGITAL output

To connect the video signal, connect using a 75 Q/ohms video signal cable cord. Using an improper cable can result in a drop in sound quality

1 Connecting a TV game equipment 1

Connect the TV game equipment’s output jacks to this unit’s V. AUX INPUT lacks.

-----------1

Video camera

f0 OUT’

,...,,a

1 Connecting a video camera equipment 1

Connect the video camera equipment’s output jacks to this unit’s V. AUX INPUT lacks.

3% The V. AUX terminal is covered with a cap.

Remove this cap in order to use the terminal. (See page 4 for instructions on removing the cap.)

Page 11

TV or DBS tuner

Connecting a TV/DBS tuner 1

TVIDBS

Connect the TV’s or DBS tuner’s video output jack (VIDEO OUTPUT) to the m (yellow) TV/DBS IN jack using a coaxial pin plug cord.

Connect the W’s or DES tuner’s audio output jacks (AUDIO

OUTPUT) to the m TV/DBS IN jacks using pin plug cords.

75 Q/ohms video

DVD player or video disc player (VDP)

Connecting a DVD player or a video disc player VDP )

Connect the DVD player’s (video disc player’s) video output jack (VIDEO OUTPUT) to the m (yellow) DVD/VDP IN jack using a 75 R/ohms video coaxial pin plug cord.

Connect the DVD player’s (video disc player’s) analog audio output jacks (ANALOG AUDIO OUTPUT) to the m DVD/VDP IN jacks using pin plug cords.

For better sound quality, we recommend using the DVD player with digital rather than analog connections. DVD players and VDP can also be connected to the VCR terminals.

MONITOR OUT

Connect the TV’s video input jack (VIDEO INPUT) to the m MONITOR OUT jack using a 75 R/ohms video coaxial pin plug cord.

NOTE:

. .

Connection of the video disc Player Equipped with Dolby Digital RF

(AC3RF) Output Jack.

Please use a commercially available adaptor when connecting the Dolby Digital RF fAC3RF) output jack of the video disc player to the digital input jack. Please refer to the instruction manual of the adapter when making connections.

1 Connecting a video decks 1

There are two sets of video deck (VCR) jacks, so two video decks can be connected for srmultaneous recording or video copying.

Video input/output connections:

Connect the video deck’s video output jack (VIDEO OUT) to the m (yellow) VCR-1 IN jack, and the video deck’s video input jack (VIDEO IN) to the m

(yellow) VCR-1 OUT jack using 75 R/ohms video coaxial pin plug cords.

Connecting the audio output jacks:

Connect the video deck’s audio output jacks (AUDIO OUT) to the jm VCR-1 IN jacks, and the video deck’s audio input jacks (AUDIO IN) to the m VCR-1 OUT jacks using pin plug cords.

% Connect the second video deck to the VCR-2 jacks in the same way.

Page 12

l When marking connections, also refer to the operating instructions of the other components.

A note on the S input jacks

The input selectors for the S inputs and pin jack inputs work in conjunction with each other.

Precaution when using S-jacks

This unit’s S-jacks (input and output) and video pin jacks (input and output) have independent circuit structures, so that video signals input from the S-jacks are only output from the S-jack outputs and video signals input from the pin jacks are only output from the pin jack outputs. When connecting this unit with equipment that is equipped with S-jacks, keep the above point in mind and make connections according to the equipment’s instruction manuals.

Monitor TV

( Connecting a monitor TV (

MONITOR OUT

Connect the TV’s or DBS tuner’s S video input (S-VIDEO INPUT) to the m MONITOR OUT jack using a S jack connection cord.

Video deck 1

1 Connecting the video decks 1

Connect the video deck’s S output jack (S-OUT) to the -1 VCR-1 IN jack and the video deck’s S input jack (S-IN) to the

pm VCR-1 OUT jack using S jack connection cords.

Connect the video deck’s S output jack (S-OUT) to the m VCR-2 IN jack and the video deck’s S input jack (S-IN) to the m VCR-2 OUT jack using S jack connection cords.

Video deck 2

;

: : . s

: :

: : V.IIP :

1 Connecting a TV/DBS tuner

Connect the TV’s or DBS tuner’s S video output jack WIDE0 OUTPUT) to the czAnT$):S IN jack using an S jack

DVD player, VDP. etc.

I~IO~~~~~

1 Connecting a DVD player or video disc player WDP) 1

DVDIVDP

Connect the DVD player’s or video disc player’s S-Video output jack to the S-VIDEO DVD/VDP IN jack using an S-Video connection cord.

Connect the components’ audio inputs and outputs as described on page 11.

Page 13

DIRECTION OF BROADCASTING STATION

M ANTENNA

AM LOOP ANTENNA

75 n/ohms COAXIAL CABLE

FM ANTENNA

ADAPTER

FM INDOOR ANTENNA (An Accessory)

AM loop antenna assembly

FEEDER CABLE

Connect to the AM sntanns tcsmindc I

GROUND

Connection of AM antennas

1, Push the lever.

Insert the conductor.

FM antenna adapter assembly

Open the cover

AM OUTDOOR

Return the lever.

and take out the

a. With the antenna

on top any stable surface

b. With the antenna

attached to a wall.

connection line.

Insa& hole Mount on wall, etc.

SC-Z”

75 R/ohms COAXIAL CABLE

SC-2”

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s

attention to Article 820-40 of the NEC which provides guidelines

for proper grounding and, in particular, specifies that the cable

ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Notes:

l Do not connect two FM antennas simultaneously. l Even if an external AM antenna is used, do not disconnect the

AM loop antenna.

l Make sure AM loop antenna lead terminals do not touch metal

parts of the panel.

Page 14

Connect the speaker terminals with the speakers making sure that like polarities are matched (@ with CB. 8 with 8). Mismatching of polarities will result in weak central sound, unclear orientation of the various instruments, and the sense of direction of the stereo being impaired.

When making connections, take care that none of the individual conductors of the speaker cord come in contact with adjacent terminals, with other speaker cord conductors, or with the rear panel.

NOTE!

._- _-.

NEVER touch the speaker terminals when the power is on. Doing so could result in electric shocks.

Connecting the weaker cords

1. Loosen by turning counterclockwise.

2. Insert the cord. 3. Tighten by turning

Speaker impedance

When speaker systems A and B are use separately, speakers with an impedance of 6 to 16 n/ohms can be connected for use as front speakers.

Be careful when using two pairs of front speakers (A + B) at the same time, since use of speakers with an impedance of 12 to 16 R/ohms.

Speakers with an impedance of 6 to 16 R/ohms can be connected for use as center and surround speakers.

The protector circuit may be activated if the set is played for long periods of time at high volumes when speakers with an impedance lower than the specified impedance are connected

clockwise.

Connecting banana plugs

Turn clockwise to tighten, then insert the

banana plug.

FRONT SPEAKER SYSTEMS

System B

FRONT SPEAKER SYSTEMS

System A

CENTER SPEAKER SYSTEM

If a speaker is placed near a TV or video

monitor, the colors on the screen may be disturbed by the speaker’s magnetism. If this should

happen, move

Connection jack for subwoofer with built-in amplifier (super woofer), etc.

I To achieve Dolby Digital (AC-3) playback

effect, use a unit that can sufficiently reproduce frequencies of under 80 Hz.

SURROUND SPEAKER SYSTEMS

Page 15

This unit is equipped with a high-speed protection circuit. The purpose of this circuit is to protect the speakers under circumstances such as when the output of the power amplifier is inadvertently short-circuited and a large current flows, when the temperature surrounding the unit becomes unusually high, or when the unit is used at high output over a long period which results in an extreme temperature rise. When the protection circuit is activated, the speaker output is cut off and the power supply indicator LED flashes. Should this occur, please follow these steps: be sure to switch off the power of this unit, check whether there are any faults with the wiring of the speaker cables or input cables, and wait for the unit to cool down if it is very hot. Improve the ventilation condition around the unit and switch the power back on. If the protection circuit is activated again even though there are no problems with the wiring or the ventilation around the unit, switch off the power and contact a DENON service center.

The protector circuit may be activated if the set is played for long periods of time at high volumes when speakers with an impedance lower than the specified impedance (for example speakers with an impedance of lower than 4 Q/ohms) are connected. If the protector circuit is activated, the speaker output is cut off. Turn off the set’s power, wait for the set to cool down, improve the ventilation around the set, then turn the power back on.

Page 16

9 USING THE REMOTE CONTROL UNIT

Following the procedure outlined below, insert the batteries before using the remote control unit.

Point the remote control unit at the remote control sensor as shown

on the diagram at the left.

NOTES:

l The remote control unit can be used from a straight distance of

approximately 23 feet/7 meters, but this distance will shorten or operation will become difficult if there are obstacles between the remote control unit and the remote control sensor, if the remote control sensor is exposed to direct sunlight or other strong light, or if operated from an angle.

l Neon signs or other devices emitting pulse-type noise nearby may

result in malfunction, so keep the set as far away from such devices as possible.

@ Press as shown by the arrow and slide @ Insert the RGP/AA batteries properly, as

@ Close the lid.

off. shown on the diagram.

NOTES:

l Use only RGP/AA batteries for replacement,

l Be sure the polarities are correct. (See the illustration inside the battery compartment.) l Remove the batteries if the remote control transmitter will not be used for an extended period of time. l If batteries leak, dispose of them immediately. Avoid touching the leaked material or letting it come in contact with clothing, etc. Clean the

battery compartment thoroughly before installing new batteries.

l Have replacement batteries on hand so that the old batteries can be replaced as quickly as possible when the time comes. l Even if less than a year has passed, replace the batteries with new ones if the set does not operate even when the remote control unit is

operated nearby the set. (The included battery is only for verifying operation. Replace it with a new battery as soon as possible.)

Page 17

10 SETTING UP THE SYSTEM

l Once all connections with other AV components have been completed as described in

“CONNECTIONS” (see pages 9 to 15), make the

various settings described below on the display.

These settings are required to set up the listening room’s AV system centered around the this unit.

Set the slide switch to “AUDIO”.

Use the following buttons to set up the system:

1 SYSTEM SETUP button

Press this to display the system setup on the display.

Press this to switch the display.

l System setup items and default values (set upon shipment from the factory)

Speaker

Configuration

Subwoofer Mode

Delay lime

Digltal Input

Channel Level

System setup

Input the combination of speakers in your system and their corresponding sizes (SMALL for regular speakers, LARGE for full-we. full-range) to automatically set the composition of the signals output from the speakers and the frequency response.

This selects the subwoofer speaker for playing deep bass signals.

This parameter IS for optimizing the timing with which the audio signals are produced from the speakers and subwoofer according to the listening positIon.

This assigns the digital Input jacks for the different Input sources.

This adjusts the volume of the signals output from the speakers and subwoofer for the different channels in order to obtan optimum effects.

Front & Subwoofer Center

olgltal Inputs

l”p”t

.xnllr~~

COAXIAL

DVDNDP TVIDBS CDR/TAPE

Front L Front R Subwoofer

0 dB

NOTE:

l The system setup is not displayed when “HEADPHONE ONLY” is selected.

Default settings

Front Sp.

Large

12 ft (3.6 ml 12 ft (3.6 rn)

OPTICAL-’ OPTICAL-2

0 dB 0 dB 0 dB 0 dB

Center Sp.

Small

Subwoofer mode = Normal

Center

S”tro”“d L

Surround Sp.

Small

Surround L & 17

10 ft (3.0 Ill)

S”rro”“d R

OdB

Sub Woofer

Yes

Page 18

Check that all the components are correct, then press the POWER operation switch on the main unit or the POWER button on the remote control unit to turn on the power.

(Mm unit) h3emote control unit)

Press the SYSTEM button to enter the setting.

. . . . ..:.. i”” :. .:

. .-- : : .

:.i.: . . . .

y . . . . . 1 :... i : i

. . . . . . . . . . . . . : . . . . : :

NOTE: Please make sure the “AUDIO” position of the slide switch on the remote control unit.

Press the SELECT or r3 (down) button to switch to the speaker configuration set up.

3 zE&yj&

NOTE: Press the SYSTEM button again to finish system set up. System set up can be finished at any time. The changes to the settings made up to that point are entered.

,..*. 8 *... ..s..

. . . . p. i

. . . . * . . . . . :

i..J i::::

NOTE:

l When “Small” has been selected for the front speakers, “Large” cannot be selected for the center speaker

a[,)

o[,l

Use the Q (left) and r3 (right) buttons to select your front speaker type.

(Initial)

.I : I:::’ i:;:: yi I...! “I”

. . . . . . . . . i : i

’ “’

Press the SELECT or Q (down) button to switch to the center speaker setting.

Use the m (left) and t3 (right) buttons to select your center speaker type.

:.... :.... t. : ..:.. :.... :....

.-..

i . . . . I:::. 1 ‘.I ; I:::. I’:::

.:::.

Press the SELECT or Q (down) button to switch to the surround speaker setting.

Use the m (left) and C3 (right) buttons to select your surround speaker type.

;:I:’ J i i:-> i:-:; :-- i..+ :-.: i i

-::.

. . . . . :...* : . . . : . . .

I.... j:::i /:;:f (iii [;I:

:-- i./i :-.: i i

.:::: 1 . 1 i”‘i i . . . . i . . . .

:: . . . . . : : : : : . . . . i . . . .

. . . . : . : :...: :

Ii!“ii;:E;!::ll~

(left) button (right) button

piqpKqxiq

(left) button

(Initial)

El Q

(Initial)

(right) button

Press the SELECT or Q (down) button to switch to the subwoofer setting.

Page 19

NOTE:

l When “Small” has been selected for the front speakers,

“Large” cannot be selected for the surround speakers.

i :...i i”‘, i”” ?... i”‘:

:--

::j.

. . .

: ....: :: iJJ !,..: :J i”’ 1:::. i’::.

i* j 1:::’ ::::

i ! . . . . . . . . .

(Initial)

pq pij

m &

(left) button (right) button

Press the SELECT or I3 (down) button to enter the settings and switch to the SUBWOOFER MODE

%% setting,

Use the r3 (left) and (3 (right) buttons to select your subwoofer setting.

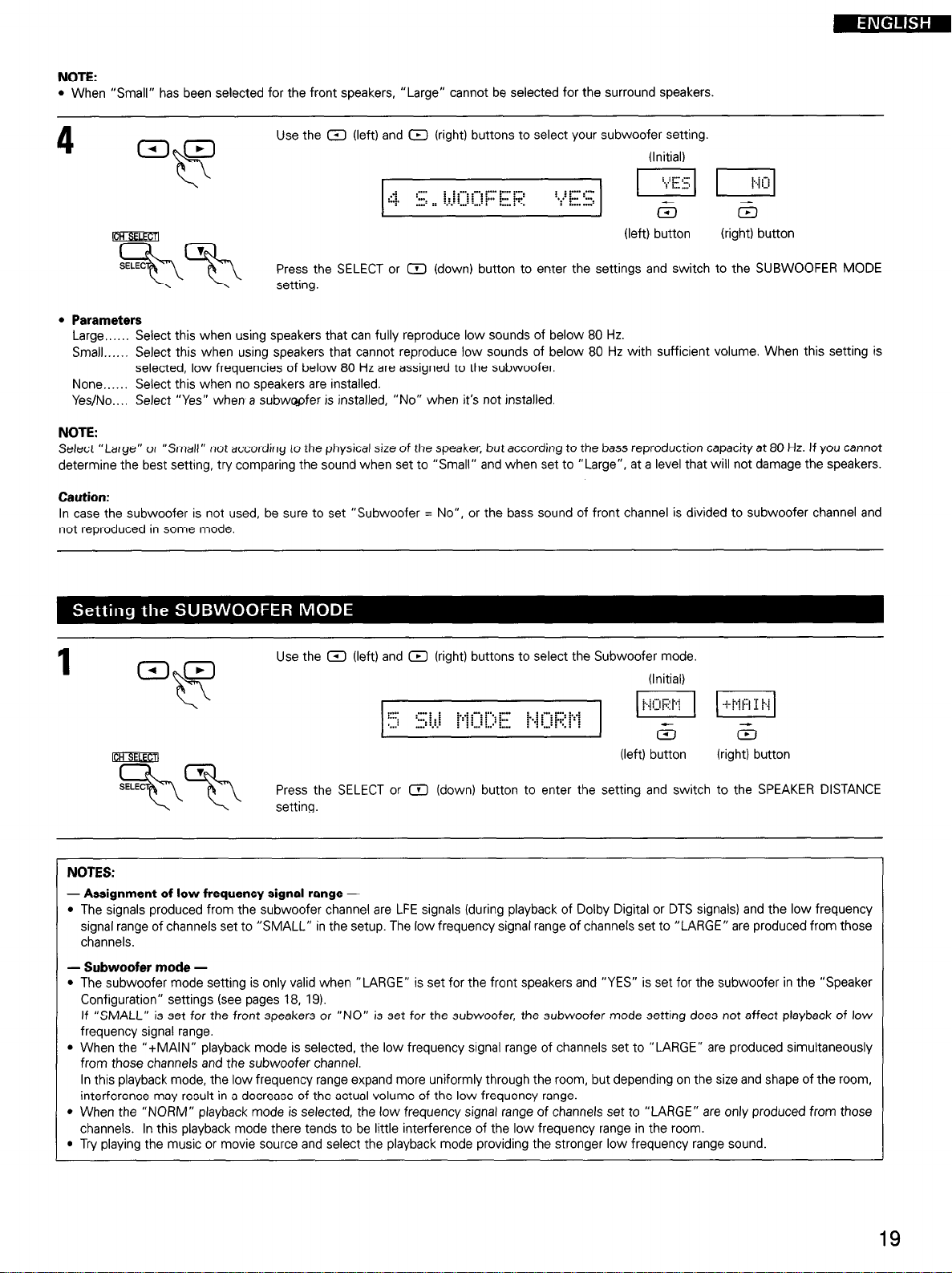

l Parameters

Large,, Select this when using speakers that can fully reproduce low sounds of below 80 Hz.

Small..... Select this when using speakers that cannot reproduce low sounds of below 80 Hz with sufficient volume. When this setting is

selected, low frequencies of below 80 Hz are assigned to the subwoofer.

None.. _. Select this when no speakers are installed.

Yes/No.... Select “Yes” when a subwapfer is installed, “No” when it’s not installed.

NOTE: Select “Large” or “Small” not according to the physical size of the speaker, but according to the bass reproduction capacity at 80 Hz. If you cannot determine the best setting, try comparing the sound when set to “Small” and when set to “Large”,

at a level that will not damage the speakers.

Caution:

In case the subwoofer is not used, be sure to set “Subwoofer = No”, or the bass sound of front channel is divided to subwoofer channel and not reproduced in some mode.

Use the a (left) and rXl (right) buttons to select the Subwoofer mode.

(Initial)

. . . . .

. . . . . 8 :

:...;

. . . . .

1:::: i.!.i

i...i 3-t r’.. i””

1 . 1 I.*.; I...: i”

. . . . .

1.. 1 f-i 1:::: f:.i

i ‘i :...: : . . . i i

Q Q

(left) button (right) button

Press the SELECT or a (down) button to enter the setting and switch to the SPEAKER DISTANCE

%% setting.

NOTES:

- Assignment of low frequency signal range -

l The signals produced from the subwoofer channel are LFE signals (during playback of Dolby Digital or DTS signals) and the low frequency

signal range of channels set to “SMALL” in the setup. The low frequency signal range of channels set to “LARGE” are produced from those channels.

- Subwoofer mode -

l The subwoofer mode setting is only valid when “LARGE” is set for the front speakers and “YES” is set for the subwoofer in the “Speaker

Configuration” settings (see pages 18, 19).

If “SMALL” is set for the front speakers or “NO” is set for the subwoofer, the subwoofer mode setting does not affect playback of low

frequency signal range.

l When the “+MAIN” playback mode is selected, the low frequency signal range of channels set to “LARGE” are produced simultaneously

from those channels and the subwoofer channel. In this playback mode, the low frequency range expand more uniformly through the room, but depending on the size and shape of the room, interference may result in a decrease of the actual volume of the low frequency range.

l When the “NORM” playback mode is selected, the low frequency signal range of channels set to “LARGE” are only produced from those

channels. In this playback mode there tends to be little interference of the low frequency range in the room.

l Try playing the music or movie source and select the playback mode providing the stronger low frequency range sound.

Page 20

Input the distances from the listening position to the speakers and set the surround delay time. Preparations: Measure the distances from the listening position to the speakers (Ll to L3 on the diagram at the right).

Lt: Distance from center speaker to listening position Lz: Distance from front speakers to listening position

L3:

Distance from surround speaker to listening position

CAUTION:

I Set the center speaker at the same distance from the front speakers (left and right) or the subwoofer,

or so that the difference in distance (L2 - Ll) is 5 feet or less.

% Set the surround speakers (left and right) at the same distance from the front speakers (left and right)

or the subwoofer. or so that the difference in distance (L2 - L3) is 15 feet or less.

NOTE:

l The speaker distance can be adjusted between 0 and 60 feet in steps of 1 foot

rEgyj$

Use the m (left) and rX (right) buttons to set the distance from the front speakers and subwoofer to the listening position.

:.... :.... : : ..:.. . . . . : :

p> p l’i:’ i”.; 1 . . ..... .....

l The number changes in units of 1 foot each time one of the buttons is pressed. Select the value closest

to the measured distance. (“/SW” appears only when subwoofer = yes.)

Press the SELECT or m (down) button to switch to the center speaker setting.

Use the rZ (left) and Q (right) buttons to set the distance from the center speakers to the listening position.

. . . . .

. :-. i”” i. i “i” 1:::’ 1::::

i . i”’ : ‘.I i i.... i . .

. . . . . . . . :

l The number changes in units of 1 foot each time one of the buttons is pressed. Select the value closest

to the measured distance.

Press the SELECT or a (down) button to switch to the surround speaker setting.

. . .

. . . : . . . . i : j

.: . . . . . . . . :

: . . 2. “i’:

.i. .::.. i .

.: .-.. . . . :

. . .f “i”

.i. .::.. . . . .

NOTE:

l No setting when “None” has been selected for the center speaker.

Tfigyj$

NOTE:

l No setting when “None” has been selected for the surround speakers

Use the CZI (left) and m (right) buttons to set the distance frgm the surround speakers to the listening position.

:..- j 1 i”‘: i”‘:

:-:

:....

. . . . . . :.:. :.:.

. . . . . . . . . . . . . . : . . I . . ::

l The number changes in units of 1 foot each time one of the buttons is pressed. Select the value closest

to the measured distance.

Press the SELECT or tX (down) button to enter the setting and switch the DIGITAL input (COAX) setting.

.: ..“. . . . :

: : ..: .k “i”

.I. I:..: . . . .

Page 21

Input the type of components connected to the digital input terminals

Use the Q (left) and Q (right) buttons to set the type of device connected to the COAXIAL input (COAXIAL)

lrl[t)

:-..

*-. yi q :...:

. . . .

.“.. :...: i : ( .:

. . . .

.: .-* -:- : :

: : ..:

i-i I:::: “[” 4

.i. ::..r

. . . . . : : .I.

terminal.

l Select “OFF” if nothing is connected.

Press the SELECT or (3 (down) button to switch the optical input 1 (OPT I) setting.

Use the”%3 (left) and Q (right) buttons to set the type of device connected to the OPTICAL input (OPTICAL)

terminal.

l Select “OFF” if nothing is connected.

Press the SELECT or Q (down) button to switch the optical input 2 (OPT 2) setting

:... : : $.., ;...‘1./! I...’

1 i i

. a..

(Initial)

ICB((DUD((;;.i~(I:!CR_I.I(::oR((OFF(

6 Q

(left) button

(Initial)

ICD((C!VD((TI..~IlllcR:Z((CBR((OFFI

6 El

(left) button

(right) button

.I .i :-: i”‘: “I” .“>

iJ i”’ : .:I..

.i. .I. .

Use the a (left) and Q (right) buttons to set the type of device connected to the OPTICAL input (OPTICAL)

terminal.

:-. i”.. p

i . . . . I...: i’:::

l Select “OFF” if nothing is connected.

Press the SELECT or I3 (down) button if you want to start the settings over front the beginning.

~I(l::,u::!((:..iiIIUC:i-I:!Ili..!.l:R:,’~III:iFF

NOTE: PHONO, TUNER and V. AUX cannot be selected.

Press the SYSTEM button to finish system set up.

ISYSTEM

a G

(left) button

(Initial)

(right) button

This completes the system setup operations. Once the system is set up, there is no need to make the settings again unless other components or speakers are connected to or the speaker layout is changed.

Page 22

11 REMOTE CONTROL UNIT

DENON remote-controllable audio components can be controlled using this unit’s remote control unit. Note that some components, however, cannot be operated with this remote control unit.

Z-b-

2-a-

Set the slide switch to the position for the component to be operated (CD or MD/CDR).

Use the buttons shown below to operate the audio component. For details, refer to the respective component’s manual.

a. For CD player and MD/CD recorder

-,m

n b

w,w

DISC SKIPi

Manual search (reverse and forward) stop Play Auto search Pause Switch discs (for CD changers only)

b. For tape deck (TAPE)

Y A”X “CR-1 “CR.* TVIDBS

I4100[71

c. For TUNER

NOTE:

l Tape deck (TAPE) and tuner can be operated when the switch is at “AUDIO” position.

DENON components can be operated by setting the preset n$amory for MD or CDR. Operation in not possible for some models.

Set the slide switch to “MD/CDR”.

4 H

n b

SHIFT

CHANNEL

(+, -4

Rewind

Fast-forward stop Forward play Reverse play

Switch preset channel range

Preset channel up/down

-2

Holding in the PLAY 0) button, press the button for the components you want to set. (Refer to table I.)

Table 1: Combinations of Personal System

Codes

NOTE: .

can only be preset for either the MD or the CDR. reset codes set upon shipment from the factory and when reset.

Page 23

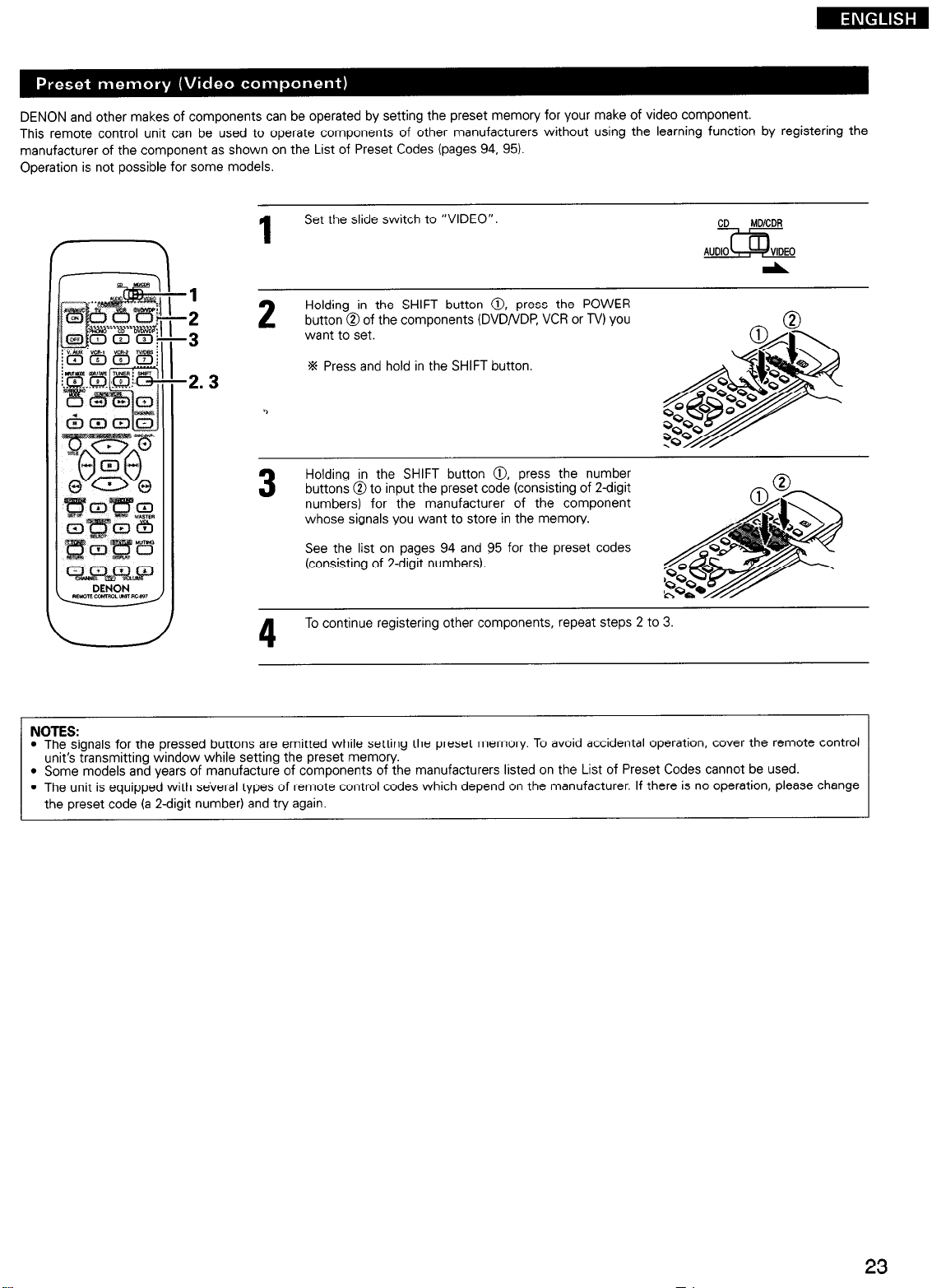

DENON and other makes of components can be operated by setting the preset memory for your make of video component.

This remote control unit can be used to operate components of other manufacturers without using the learning function by registering the

manufacturer of the component as shown on the List of Preset Codes (pages 94, 95). Operation is not possible for some models.

Set the slide switch to “VIDEO”.

-1

-2

-3

Holding in the SHIFT button 0, press the POWER button @ of the components (DVD/VDP, VCR or TV) you

want to set.

+% Press and hold in the SHIFT button.

-2.3

Holding in the SHIFT button @I, press the number buttons @to input the preset code (consisting of Z-digit

numbers) for the manufacturer of the component whose signals you want to store in the memory.

See the list on pages 94 and 95 for the preset codes (consisting of 2-digit numbers).

To continue registering other components, repeat steps 2 to 3.

NOTES:

The signals for the pressed buttons are emitted while setting the preset memory. To avoid accidental operation, cover the remote control unit’s transmitting window while setting the preset memory.

Some models and years of manufacture of components of the manufacturers listed on the List of Preset Codes cannot be used.

The unit is equipped with se’veral types of remote control codes which depend on the manufacturer. If there is no operation, please change the preset code (a 2-digit number) and try again.

Page 24

Set the slide switch to “VIDEO”.

A”D:EEo

Operate the video component.

l For details, refer to the component’s operating instructions.

I Some models cannot be operated with this remote control unit.

a. For DVD player

POWER : Turns power on and off

: stop

: Play

w,D+I : Auto search (cue)

44,)) : Manual search (forward and reverse)

II : Pause

TITLE : Call out title

MENU : Call out menu

DISPLAY : Switch display

SET UP : DVD setup

RETURN : Menu return

4,)

SELECT : Enter setting

NOTE:

Some manufacturers use different names for the DVD remote control buttons, instructions on remote control for that component.

A.7

: Cursor up/down : Cursor left/right

also refer to the

b. For video disc player (VW

POWER : Power on/off

+,H : Manual search

(forward and reverse)

: stop

: Play

l44,HI : Auto search (cue)

: Pause

NOTE:

The TV can be operated when the switch is at any position.

c. For video deck WCR)

POWER

-,H n

b II

CHANNEL

(+, 4

Power on/off Manual search (forward and reverse) stop Play Pause Switch channel

d. For monitor TV

POWER : Power on/off

VOLUME : Volume up/down

(A.V

CHANNEL : Switch channel

(+, 4

Page 25

12 OPERATION

Preparations: Check that all connections are proper.

Turn on the power.

Press ON/STANDBY on the main unit or the AVR/AVC on the

remote control unit to turn on the power

(Main unit)

l ON/STANDBY

When the button is pressed, the power turns on and the display lights after approximately 1 second. When pressed again, the power turns off, the standby

mode is set and the display turns off.

Several seconds are required from the time the power operation switch is set to the “ON” position until sound is output. This is due to the built-in muting circuit that prevents noise when the power switch is turned on and off.

Select the front speakers.

Press SPEAKER A or B turn the speaker on.

-SPEAKER -

(Remote control unit)

(Main unit)

Page 26

Press the button for the program source to be played. EXI: CD

-1

23-

-5

3 %

(Main unit)

(Remote control unit)

EX 2: CDRITAPE

(Main unit)

(Remote control unit)

Select the input mode To select the input mode from main unit.

l Selectino the analog mode.

Press ANALOG to switch to the analog input.

(Matn unit)

l Selecting the external input (EXT. IN) mode.

(In this case play the component connected to the “EXT. IN” terminal.) Press EXT. IN to switch the external

W.W

input.

(Main unit)

l Selecting the AUTO, PCM and DTS modes.

The mode switches as shown below each time INPUT MODE is pressed.

lNP”T MODE

AUTO - PCM

(Man unltl

LDTSJ

To select the input mode from the remote control unit.

l The mode switches as shown below each time INPUT

MODE is pressed.

AUTO - PCM - DTS -ANALOG

-EXT.IN-

INPUTMODE

Input mode selection function Different input modes can be selected for the different input sources. The selected input modes for the separate input sources are stored in the memory. @I AUTO (All auto mode)

In this mode, the types of signals being input to the digital and analog input jacks for the selected input source are detected and

the program in this unit’s surround decoder is selected

automatically upon playback. This mode can be selected for all input sources other than PHONO, CDFVTAPE and TUNER.

The presence or absence of digital signals is detected, the signals

input to the digital input jacks are identified and decoding and playback are performed automatically in DTS, Dolby Digital or PCM (2 channel stereo) format. If no digital signal is being input,

the analog input jacks are selected.

Use this mode to play Dolby Digital signals.

@ PCM (exclusive PCM signal playback mode)

Decoding and playback are only performed when PCM signals are being input. Note that noise may be generated when using this mode to play signals other than PCM signals.

@ DTS (exclusive DTS signal playback mode)

Decoding and playback are only performed when DTS signals are being input.

@ ANALOG (exclusive an&g audio signal playback mode)

The signals input to the analog input jacks are decoded and played.

@ EXT. IN (external decoder input jack selection mode)

The signals being input to the external decoder input jacks are played without passing through the surround circuitry.

NOTE:

l Note that noise will be output when CDs or LDs recorded in DTS

format are played in the “PCM” (exclusive PCM signal playback) or

“ANALOG” (exclusive analog audio signal playback) mode. Select the AUTO or DTS (exclusive DTS signal playback) mode when playing signals recorded in DTS from a laser disc player.

Notes on playing a source encoded with DTS

l Noise may be generated at the beginning of playback and

while searching during DTS playback in the AUTO mode. If

-5

(Remote control unit)

l In some rare cases noise may be generated when you preform

the operation to stop playback of a DTS-CD or DTS-LD.

Page 27

Select the play mode. Press the SURROUND MODE button, then turn SELECT

knob.

(Main unit)

(Remote control unit)

5% To select the surround mode while adjusting

the surround parameters, channel volume or tone control, press the surround mode button then operate the selector.

Start playback on the selected component.

l For operating instructions, refer to the component’s

4 5

manual.

Adjust the volume.

M*STEA”OL”ME

Input mode display

l In the AUTO mode

A”;rO PC% DE+

l In the DIGITAL PCM mode

l In the DIGITAL DTS mode

l In the ANALOG mode

~ NPUT AUTO

~ INPUT ~ AUTO PCM

AUTO PCM DTS

0 0

lNPUT---

DTS

INPV,

0 0

Input signal display

l DOLBY DIGITAL

. DTS

One of these lights, depending on the input signal.

riiGd-km

pimq

piGi%iq

The volume level is displayed on the

master volume level

display.

(Main unit)

(Remote control unlt)

% The volume can be adjusted within the range of -60 to 0 to 18 dB,

in steps of 1 dB. However, when the channel level is set as described on page 30, if the volume for any channel is set at +I dB or greater, the volume cannot be adjusted up to 18 dB. (In this case the maximum volume adjustment range is “18 dB - (Maximum value of channel level)“.)

Input mode when playing DTS sources

l Noise will be output if DTS-compatible CDs or LDs are played in the

“ANALOG” or “PCM” mode. When playing DTS-compatible sources, be sure to connect the source component to the digital input jacks (OPTICAL/COAXIAL) and set the input mode to “DTS”.

[II Adjusting the sound quality (tone)

The tone switches as follows each time TONE CONTROL is

pressed.

BASS - TREBLE

% The -1 indicator lights when digital signals are being input

properly. If the -1 indicator does not light, check whether

the digital input component setup (page 21) and connections are

correct and whether the component’s power is turned on.

NOTE:

l The -1 indicator will light when playing CD-ROMs

containing data other than audio signals, but no sound will be heard.

(Main unit1

With the name of the volume to be

adjusted selected, turn SELECT knob to adjust the level.

l To increase the bass or treble: Turn

the control clockwise. (The bass or

(Main unit)

treble sound can be increased to up to +I2 dB in steps of 2 dB.1

l To decrease the bass or treble: Turn the control

counterclockwise. (The bass or treble sound can be decreased to up to -12 dB in steps of 2 dB.)

If you do not want the bass and treble to be adjusted, turn on the tone defeat mode.

% The signals do not pass through the

bass and treble adiustment circuits, providing higher quality sound

Page 28

[2] Listening over headphones

Connect the headphones to the PHONES jack of the front panel.

PHONES

NOTE: To prevent hearing loss, do not raise the volume level excessively when using headphones.

-I

Press SPEAKER A or B to turn the

speaker off.

Cautions:

l No sound is produced from the headphones when speakers A or B

are turned on.

l When an external power amplifier is connected to the front preout

jacks, turn off the external power amplifier’s speaker switch.

[31 Turning the sound off temporarily (muting)

Use this to turn off the audio output

temporarily.

Press MUTING.

9% Cancelling MUTING mode.

Press the MUTING button again. Muting mode will also be cancelled when MASTER VOL is adjusted up or down.

[41 Combining the currently playing sound with the desired image

Simulcast playback

Use this switch to monitor a

video source other than the audio source.

Press VIDEO SELECT repeatedly until the desired source appears on the display.

% Cancelling simulcast playback.

l Select “SOURCE” using the video select button. l Switch the program source to the component connected to

the video input.

VIDEOSELECT

(Main unit1

0~~~~~~~0

MUTING

IVIDEO sELEcTI

IRemote control unft)

[51 Checking the currently playing program source, etc.

Front panel display

l Descriptions of the unit’s

operations are also displayed on the front

panel display. In addition,

the display can be

switched to check the unit’s operating status while playing a source by pressing STATUS.

Using the dimmer function

l Use this to change the brightness of the

display. The display brightness changes in four steps (bright, medium, dim and off) by pressing the main unit’s DIMMER repeatedly.

% The brightness changes in 3 steps each time the button is

pressed, and finally the display turns off.

STATUS

(Main unit)

(Remote control unft)

DlMMER

IMan unit)

Page 29

Set the external input (EXT. IN) mode.

Press the EXT. IN to switch the external input.

Once this is selected, the input signals connected to the FL (front left), FR (front right), C (center), SL (surround left), and SR (surround right) channels of the EXT. IN jacks are output directly to the front (left and right), center, surround (left and

right) speaker systems without passing through the surround circuitry. In addition, the signal input to the SW (subwoofer) jack is output to the PRE OUT SUBWOOFER jack.

Cancelling the external input mode

To cancel the external input (EXT. IN) setting, press the INPUT

MODE (AUTO, PCM, DTS) or ArPlALOG button to switch to the desired input mode. (See page 26.)

INPUT MODE

%% %

l When the input mode is set to the external input (EXT. IN), the play

mode (STEREO, DOLBY/DTS SURROUND, 5CH STEREO or DSP SIMULATION) cannot be set.

ANALOG

(Mm unit)

EXT. IN

T %

(Main unltj Fiemote control mt)

(Remote control unit)

INPUT MODE

NOTES:

l In play modes other than the external input mode, the signals

connected to these jacks cannot be played. In addition, signals

cannot be output from channels not connected to the input

jacks.

l The external input mode can be set for any input source. To

watch video while listening to sound, select the input source to which the video signal is connected, then set this mode.

Follow step 1 to 3 under “Playing the input source” (page 26,

27).

Start recording on the tape or video deck. For instructions, refer to the component’s operating

instructions.

Simultaneous recording

The signals of the source selected with the function selector button are output simultaneously to the CDR/TAPE and VCR REC OUT jacks. If a total of two tape and/or video decks are connected and set to the recording mode, the same source can be recorded simultaneously on

every decks.

NOTES:

l The AUDIO IN’s signal selected with the function selector button are output to the CDR/TAPE and VCR AUDIO OUT jacks l The DIGITAL IN’s signal selected with the function selector button are output to the DIGITAL OUT (OPTICAL) jack.

Page 30

13 SURROUND

l Before playing with the surround function, be sure to use the test tones to adjust the playback level from each speakers. This adjustment can

be performed from the remote control unit, as described below.

l The adjustment with the test tones is only effective in the DOLBY/DTS SURROUND modes.

The adjusted playback levels for the different surround modes are automatically stored in the memory of each surround modes.

Set the DOLBY/DTS SURROUND (Dolby Pro Logic II or Dolby Digital or DTS) modes.

(Man unit)

Press T. TONE button.

Test tones are output from the different speakers. Use the channel volume adjust buttons to adjust so that the volume of the test tones is the same for all the speakers.

NOTE: Please make sure the “AUDIO” position of the slide

switch on the remote control unit.

l After adjusting using the test tones, adjust the channel levels either according to the playback sources or to suit your tastes, as described below.

Select the speaker whose level you want to adjust.

The channel switches as shown below each time the button

is pressed.

CH “In

y& zq$

(Main unit)

(Remote control untt)

IT.TONEI

RETUR

-3

(Remote control wt)

(Remote control unit)

After completing the adjustment, press T. TONE button again.

RETUR %

(Remote control umt)

1010 . .

0000~0~

c3 0

Yl=

-pvJ-

NOTE: Please make sure the “AUDIO” position of the slide

switch on the remote control unit.

Adjust the level of the selected speaker.

(Main unit)

% The level of the selected speaker can be adjusted within

the range of +I2 to -12 dB using the SELECT (up and down) buttons.

(Remote control unit)

Page 31

Select the function to which the component you want to play is connected.

EX:

DVD / VDP

55 D%

(Main unit)

Select the Dolby Surround Pro Logic II mode.

Select the DOLBY PRO

LOGIC II mode using the

SELECT knob.

(Main unit)

l The Dolby Pro Logic indicator lights

Display

Play a program source with the ml--f mark.

l For operating instructions,

refer to the manuals of the respective components.

(Remote control unit)

1 The surround mode 1 switches when the 1 SURROUND MODE button

I is pressed. Select the I DOLBY PRO LOGIC II I mode.

(Remote control unit1

Light

IIOPRO LOGIC

2 4. 6 2,5,7

4,5,6,7

Select the surround parameter mode.

S”RRO”ND

(Main urvtl

% To perform this operation from the remote control unit,

check that the mode selector switch is set to “AUDIO”.

Select the optimum mode for the source.

(Remote control unit1

SELECT

(Main unit1 mmote control wt)

[r)[,l

{I 11: 1.j /fX: !:‘I Fi

Set the surround parameters according to the mode.

l The mode switches as shown below each time the button

is pressed.

SURROVND

pT y!q7\

(Main unit)

(Remote control unit)

Page 32

Set the various surround parameters.

CINEMA EQ setting

PANORAMA setting

CENTER WIDTH setting

NOTE:

When making parameter settings, the display will return to the

regular condition several seconds after the last button was

pressed and the setting will be completed.

Surround parameters @I Pro Logic II Mode:

The Cinema mode is the standard required mode for all A / V systems. The Music mode is recommended as the standard mode for autosound music systems (no video), and is optional for A / V systems. The Pro Logic mode offers the same robust surround processing as original Pro Logic in case the source contents is not of optimum quality. Select one of the modes (“Cinema”, “Music” or “Pro Logic”).

Panorama Mode: This mode extends the front stereo image to include the surround speakers for an exciting “wraparound” effect with side wall

imaging.

Select “OFF” or “ON”. Dimension Control:

This control gradually adjust the soundfield either towards the front or towards the rear. The control can be set in 7 steps from o to 6.

Center Width Control: This control adjust the center image so it may be heard only from the center speaker; only from the left/right speakers as a phontom image; or from all three front speakers to varying degrees. The control can be set in 8 steps from 0 to 7.

DEFAULT setting

3% Select “Yes” to reset to the factory defaults

I Stop pressing buttons once you have completed setting the

surround parameters. After several seconds the normal display reappears and the settings you have made are automatically set.

Page 33

Select the input source.

1 Playback with a digital input 1

@ Select an input source set to digital (COAXIAL/OPTICAL)

(see page 21).

EX:

DVDNDP.

(Main unit1

(Remote control unit)

@ Set the input mode to “AUTO” or DTS

INPUT MODE

(Main unit1

(Remote control unit)

Select the Dolby/DTS Surround mode

SUz%:ND

R3mote control unit)

When performing this operation from the main unit’s panel,

press SURROUND MODE, then turn SELECT knob and select

“DOLBY/DTS”.

l The following appears on the display. (DOLBY PL II, PRO

LOGIC, DOLBY DIGITAL, DTS SURROUND)

(Man unit)

Play a program source with the onm , m mark

DIGpu

-;+ Light

l The Dolby Digital indicator lights when

playing Dolby Digital sources. DTS sources.

DIOITAL

-4, 5, 6, 7

4,5, 6, 7

l The DTS indicator lights when playing

Set the surround parameter according to the source. First, press the SURROUND button.

NOTE: Please make sure the “AUDIO”

position of the slide switch on the remote control unit.

(Remote control unft)

:-. ‘i’ 1.. 1 1:::’ k:.i f:-

i .,.. .I. i ‘ii .... j ii i

1:::’ f.‘;

I . . . . :.:.:

Use a (left) and Q (right) buttons to

set the CINEMA EQ.

(Initial)

(Remote control unlt)

a Q

(left) button (right) button

:...: i”” :....

i...i i”’ *

. .

The CINEMA EQ mode can be set directly using the main unit’s CINEMA EQ button.

l CINEMA EQ mode turns on and off

each times the CINEMA EQ button

is pressed.

(Main unit)

Page 34

Tqyj$

IRemote control unit)

Press SURROUND or a (down) button to switch to the D.COMP. setting.

=I,]

(Remote control unit)

(Remote control unit1

[rl[,l

(Remote control unit)

q&x

(Remote control unit1

(Remote control unit)

Use Q (left) and m (right) buttons to set the D. COMP.

i-.

:-. I-: rt’l I:::: :: )-J I:::’ I:::

i...’ ::

I . . . . :...I

Press SURROUND or m (down) button to switch to the LFE setting.

Use Q (left) and r3 (right) buttons to set the LFE level.

: :.... :....

: :... :...

l The level can be adjusted in units of 1 dB from -10 to 0 dB.

(The level can be adjusted 1 dB at a time from 0 dB to +I0 dB during DTS play.) Set to the desired level according to the speaker systems being used and the source to be played.

Press SURROUND or t3 (down) button to switch to the default setting.

To reset the settings to the factory defaults, use a (left) and Q (right) buttons to display “Yes”.

I . . . . i i . . . .

:... :.... ,.... . . . . . i i i ..!”

)...I (::-* I”’ )-I 1.J I.... 1

i.i . . . . . !..I

(Initial)

IC:ii-;p-pqIIHi:i:;HI

(left) button

. . . .

: :....

i...;

. . . . . s....

. . . . . . . ..I

i...’

NOTE: This parameter is not displayed during DTS playback.

(left) button

(right) button

Press SURROUND or m (down) button to switch to the CINEMA EQ. setting.

NOTE:

l When making parameter settings, the display will return to the regular condition several seconds after the last button was pressed and the

setting will be completed.

Surround parameters @ CINEMA ED (Cinema Equalizer): The Cinema EQ function gently decreases the level of the extreme high frequencies, compensatingpr overly-bright sounding motion picture

soundtracks, Select this function if the sound from the front speakers is too bright. This function only works in the Dolby Pro Logic, Dolby Digital and DTS Surround modes.

D.COMP. (Dynamic Range Compression):

Motion picture soundtracks have tremendous dynamic range (the contrast between very soft and very loud sounds). For listening late at night, or whenever the maximum sound level is lower than usual, the Dynamic Range Compression allows you to hear all of the sounds in the soundtrack (but with reduced dynamic range). (This only works when playing program sources recorded in Dolby Digital.) Select one of the four

parameters (“OFF”, “LOW ,

LFE (Low Frequency Effect):

Program source and adjustment range

1. Dolby Digital: -10 dB to 0 dB

2. DTS Surround: 0 dB to +I0 dB % When Dolby Digital encoded software is played, it is recommended that the LFE LEVEL be set to 0 dB for correct Dolby Digital

playback. I When DTS encoded movie software is played, it is recommended that the LFE LEVEL be set to 0 dB for correct DTS playback. % When DTS encoded music software is played, it is recommended that the LFE LEVEL be set to -10 dB for correct DTS playback.

” “MID” (middle) or “HI” (high)). Set to OFF for normal listening.

Page 35

14 DSP SURROUND SIMULATION

l This unit is equipped with a high performance DSP (Digital Signal Processor) which uses digital signal processing to synthetically recreate the

sound field. One of 7 preset surround modes can be selected according to the program source and the parameters can be adjusted according

to the conditions in the listening room to achieve a more realistic, powerful sound. These surround modes can also be used for program sources

not recorded in Dolby Surround Pro Logic or Dolby Digital.

In this mode, the signals of the front left channel are output from the left surround channel, the signals of the front

1 5CH STEREO

right channel are output from the right surround channel, and the same (in-phase) component of the left and right channels is output from the center channel. This mode provides all speaker surround sound, but without directional steering effects, and works with any stereo program source.

MONO MOVIE

(NOTE I)

3 ROCK ARENA

JAZZ CLUB

VIDEO GAME

6 MATRIX

VIRTUAL

% Depending on the program source being played, the effect may not be very noticeable.

In this case, try other surround modes, without worrying about their names, to create a sound field suited to your tastes

NOTE 1: When playing sources recorded in monaural, the sound will be one-sided if signals are only input to one channel (left or right), so input

signals to both channels. If you have a source component with only one audio output (monophonic camcorder, etc.) obtain a “Y” adaptor cable to split the mono output to two outputs, and connect to the L and 13 inputs.

NOTE: Only the STEREO mode can be used when playing PCM signals with a sampling frequency of 96 kHz (such as from DVD-Video discs that contain 24 bit, 96 kHz audio). If such signals are input during playback in one of the other surround modes, the mode automatically switches to STEREO.

If the DTS signals are input during playback in VIRTUAL surround mode, the mode automatically switches to STEREO.

Select this when watching monaural movies for a greater sense of expansion.

Use this mote to achieve the feeling of a live concert in an arena with reflected sounds coming from all directions.

This mode creates the sound field of a live house with a low ceiling and hard walls. This mode gives jazz a very vivid realism.

Use this to enjoy video game sources.

Select this to emphasize the sense of expansion for music sources recorded in stereo. Signals consisting of the difference component of the input signals (the component that provides the sense of expansion) processed for delay are output from the surround channel.

Select this mode to enjoy a virtual sound field, produced from the front L-channel speakers.

Personal Memory Plus This set is equipped with a personal memorize function that automatically memorizes the surround modes and input modes selected for the input different sources. When the input source is switched, the modes set for that source last time it was used are automatically recalled.

% The surround parameters, tone control settings and playback level balance for the different output channels are memorized for each

surround mode.

Page 36

l To operate the surround mode and surround parameters from the remote control unit.

Select the surround mode for the input channel

The surround mode switches in the following order each time the SURROUND MODE button is pressed:

STEREO -DOLBY PRO LOGIC - 5CH STEREO

MONO MOVIE -ROCK ARENA-JAZZ CLUB

VIRTUAL

SURROUND

(Remote control unItI

-MATRIX-

To enter the surround parameter setting mode, press the SURROUND button.

l The surround parameter switches in the following order each time the SURROUND button is pressed for the

different surround modes.

VIDEO GAME

l ROCK ARENA l JAZZ CLUB l VIDEO GAME l MONO MOVIE

ROOM SIZE

; rD:yT rD:rf::

EFFECT

DEFAULT

. MATRIX

2 3

l VIRTUAL

3 mr,)

(1) ROOM SIZE

(Remote control unit)

(2) EFFECT LEVEL

Display the Parameter you want to adjust, then use the Q (left) and 13 (right) buttons to set it.

Use the C3 (left) and Q (right) buttons to set the room size.

(1-3 i-i f.‘; pi; :I”:’ ‘i’ y: 1:::

: . . ..i :...I ? . . . . . . 2. ::... i . . . .

Use the Q (left) and a (right) buttons to set the effect level.

i:::’ :.... :.... :.... :.... ..:.. : :.... : : :.... : .: . . . . .

:... f.. i... : i : i... : : :... i : : .‘i

. : . . . . . . . . . : i . . . . : . . . . 7 i . . . . : . . . .

i.... i

i’?‘l i;;;: I:::!

I!jMF:I1..Ll~lIlilEI::!~l

2. ::...

’

(left) button

p-j;IIpq

(left) button

(Initial)

(right) button

(Initial)

(right) button

Page 37

(3) DELAY TIME

(Remote control unit)

(4) DEFAULT

Use the m (left) and a (right) buttons to set the delay time.

[;lim:i:))l

i”. z-- * i:::i i. .i

1 y i:::; :.,. . . . . .

i...’ *r.:. I .... i i i

. . .

. . . . . . . . . . : 1 . . . .

f3 Q

(Initial)

(left) button fright) button

To reset the settings to the factory defaults, use the t3 (left) and a (right) buttons to display “Yes”.

F] (I!01

G El

(left) button fright) button

(Remote control unbt)

C::i IE.: I:::’ (:::i I I f i

. . .- . . . . :

..;..

NOTE:

l When making parameter settings, thetbisplay will return to the regular condition several seconds after the last button was pressed and the

setting will be completed.

Page 38

l Operating the surround mode and surround parameters from the main unit’s panel.

Turn the SELECT knob to select the surround mode.

(Main unit1

l When turned clockwise

STEREO -DOLBY PRO LOGIC-

- VIRTUAL SURROUND

l When turned counterclockwise

-DOLBY PRO LOGIC-

VIRTUAL SURROUND

% To select the surround mode while adjusting the surround parameters, channel volume or tone control, press the surround mode

button then operate the selector.

- MATRIX-VIDEO GAME -JAZZ CLUB

- MATRIX-VIDEO GAME- JAZZ CLUB

5CH STEREO - MONO MOVIE-

5CH STEREO - MONO MOVIE -

“OITT.Y.3

“OT

Press SURROUND PARAMETER. Press and hold in the surround parameter button to select the parameter you want to set.

l The parameters which can be set differ for the different surround modes. (Refer to “Surround Modes and Parameters” on page 39.

(Main unit)

Display the parameter you want to adjust, then turn the SELECT knob to set it.

NOTE:

l When playing PCM digital signals or analog signals in the 5CH STEREO, ROCK, ARENA, JAZZ CLUB, VIDEO GAME, MONO MOVIE or

MATRIX surround modes and the input signal switches to a digital signal encoded in Dolby DiQal, the Dolby surround mode switches automatically. When the input signal switches to a DTS signal, the mode automatically switches to DTS surround.

Page 39

Surround parameters @

ROOM SIZE: This sets the size of the sound field. There are five settings: “small”, “med.s” (medium-small), “medium”, “med.1” (medium-large) and “large”.

“small” recreates a small sound

field, “large” a large sound field.

EFFECT LEVEL: This sets the strength of the surround effect. The level can be set in 15 steps from 1 to 15. When the surround mode is set to “VIRTUAL”, the effect level can be set in steps from 1 to 10.

Lower the level if the sound seems distorted.

DELAY TIME:

In the matrix mode only, the delay time can be set within the range of 0 to 110 ms.

W Surround modes and parameters

Only for 2 ch contents.

0 : Signal 0 : Able x : No signal

Turned on or off by speaker configuration setting

0 : Adjustable X Not adjustable

X : Unable

Parameter (default values are shown in parentheses)

Page 40

15 LISTENING TO THE RADIO

This unit is equipped with a function for automatically searching for FM broadcast stations and storing them in the preset memory.

When the main unit’s power operation switch turn on while

pressing the set’s MEMORY button the unit automatically

begins searching for FM broadcast stations.

ON /STANDBY

When the first FM broadcast station is found, that station is stored in the preset memory at channel Al. Subsequent

stations are automatically stored in order at preset channels A2 to A8, Bl to B8, Cl to C8. Dl to D8 and El to E8, for a

maximum of 40 stations.

Channel Al is tuned in after the auto preset memory

operation is completed.

NOTES:

l If an FM station cannot be preset automatically due to poor

reception, use the “Manual tuning” operation to tune in the station, then preset it using the manual “Preset memory” operation.

l To interrupt this function, press the power operation button.

W DEFAULT VALUE

AUTO TUNER PRESETS

___-____--____--__-------------------------------------------------------------------------------------___-_____-____--____-----------------------------------------------------------------------------------__--____--___---___------------------------------------------------------------------------------------__--___---__----___-------------------------------------------------------------------------------------

___-____-_____--___-------------------------------------------------------------------------------------

Al -A8 87.5/89.1/98.1/107.9/90.1/90.1/90.1/0.1 MHz Bl -88 520/600/l 000/1400/l 500/l 710 kHz/SO. l/90.1 MHz Cl -C8 Dl -D8 90.1 MHz El - E8

90.1 MHz

Page 41

Press TUNER to set the input function to “TUNER”

(Main unit)

Watching the display, press BAND to select the desired band

(AM or FM).

Press MODE to set the auto tunihg mode.

MODE

(Main unit)

\l,

-MO-

:-: 4

’ ’ !I I’:-!

i-II .

1 it

-..

s-1 “1’

:-. :.

.“. . ii

;f; i”, f,.i i.“.i ..l

.- ! ! t / A..

-57

Press TUNING UP or DOWN.

(Main unit)

l Automatic searching begins, then stops when a station is

tuned in.

NOTE:

l When in the auto tuning mode on the FM band, the “STEREO”

indicator lights on the display when a stereo broadcast is tuned in.

At open frequencies, the noise is muted and the “TUNED” and

“STEREO” indicators turn off.

Press TUNER button to set the input function to “TUNER”.

TUNER

(Main unit)

Watching the display, press BAND button to select the desired band (AM or FM).

(Main umt)

Press MODE button to set the manual tuning mode.

Check that the display’s “AUTO” indicator turns off.

(Main unit)

-1

Press TUNING UP or DOWN button to tune in the desired station.

(Mm unit)

l The frequency changes continuously when the button is

held in.

NOTE:

l When the manual tuning mode is set, FM stereo broadcasts are

received in monaural and the “STEREO” indicator turns off.

Page 42

Preparations: Use the “Auto tuning” or “Manual tuning” operation to tune in the station to be preset in the memory.

Press MEMORY button.

cl30

0000000

(Mar unit)

Press SHIFT button and select the desired memory block (A

to E).

(Main unit)

NOTE: Please make sure the “AUDIO” position of the slide

switch on the remote control unit.

Press PRESET UP or DOWN button to select the desired preset channel (1 to 8).

(Man unit)

Press MEMORY button again to store the station in the preset memory.

(Remote control unit)

(Main unit)

%C To preset other channels, repeat steps 1 to 4.

A total of 40 broadcast stations can be preset - 8 stations (channels 1 to 8) in each of blocks A to E.

Watching the display, press SHIFT button to select the preset memory block.

SHIFT

(Main unit)

NOTE: Please make sure the “AUDIO” position of the slide

switch on the remote control unit.

Watching the display, press PRESET UP or DOWN button to select the desired preset channel.

SHIFT

(Remote control unit)

DOWN-UP

(Main unit)

memote control tInIt)

Page 43

16 LAST FUNCTION MEMORY

l This unit is equipped with a last function memory which stores the input and output setting conditions as they were immediately before the

power is switched off.

l The unit is also equipped with a back-up memory, This function provides approximately one week of memory storage when the main unit’s

power switch is off and with the power cord disconnected.

17 INITIALIZATION OF THE MICROPROCESSOR

When the indication of the display is not normal or when the operation of the unit does not shows the reasonable result, the initialization of the microprocessor is required by the following procedure.

Switch off the unit and remove the AC cord from the wall

Hold the following SPEAKER A button and B button, and plug

the AC cord into the outlet.

IrIg

loOOOi ZQ:

I l

Check that the entire display is flashing with an interval of about 1 second, and release your fingers from the 2 buttons

and the microprocessor will be initialized.

NOTES:

l If step 3 does not work, start over from step I.

l If the microprocessor has been reset, all the button settings are

reset to the default values (the values set upon shipment from

the factory)

Page 44

18 ADDITIONAL INFORMATION

Here we describe a number of speaker settings for different purposes. Use these examples as guides to set up your system according to the type of speakers used and the main usage purpose.

(1) Basic setting

Use this setting if your main purpose is to listen to movie music and when using one set (two speakers) of regular single-way or two-way speakers as the surround speakers

l Set the front speakers with their front surfaces as flush with the

TV or monitor screen as possible. Set the center speaker

between the front left and right speakers and no further from

the listening position than the front speakers.

l Consult the owner’s manual for your subwoofer for advice on

Front speaker

Surround speaker

placing the subwoofer within the listening room.

l If the surround speakers are direct-radiating (monopolar) then

place them slightly behind and at an angle to the listening position and parallel to the walls at a position 60 to 90

As sssn from the side

centimeters (2 to 3 feet) above ear level at the prime listening position.

(2) Using diffusion type speakers for the surround speakers

For the greatest sense of surround sound envelopment, diffuse radiation speakers such as brpolar types, or dipolar types, provide a wider

dispersion than is possible to obtain from a direct radiating speaker (monopolar). Place these speakers at either side of the prime listening

position, mounted above ear level.

Path of the surround sound from the speakers to the listening position

l Set the front speakers, center speaker and subwoofer in the

same positions as in example (I 1.

l Set the surround speakers directly at the sides of the listening

Surround speaker

position and 60 to 90 centimeters (2 to 3 feet) above ear level.

l The signals from the surround channels reflect off the walls as

shown on the diagram at the left, creating an enveloping and realistic surround sound presentation.

As seen from the side

As seen from above

This unit is equipped with a digital signal processing circuit that lets you play program sources in the surround mode to achieve the same sense of presence as in a movie theater.

Dolby Surround (I) Dolby Digital (Dolby Surround AC-31

Dolby Digital is the multi-channel digital signal format developed by Dolby Laboratories. Dolby Digital consists of up to “5.1” channels - front left, front right, center, surround left, surround right, and an additional channel exclusively reserved for additional deep bass sound effects (the Low Frequency Effects - LFE - channel, also called the “.I ” channel, containing bass frequencies of up to 120 Hz). Unlike the analog Dolby Pro Logic format, Dolby Digital’s main channels can all contain full range sound information, from the lowest bass, up to the highest frequencies - 22 kHz. The signals within each channel are distinct from the others, allowing pinpoint sound imaging, and Dolby Digital offers tremendous dynamic range from the most powerful sound effects to the quietest, softest sounds, free from noise and distortion.

Page 45

Dolby Digital and Dolby Pro Logic

Comparison of home surround systems No. recorded channels (elements) No. playback channels Playback channels (max.) Audio processing

Digital discrete processing Dolby Digital (AC-31 encoding/decoding

High frequency playback limit of surround channel

Dolby Digital compatible media and playback methods Marks indicating Dolby Digital compatibility: mm and gfFazf

D,(IITAL

Dolby Digital

5.1

L, R, c, SL, SR, SW

kHz

The following are general examples. Also refer to the player’s operating instructions.

Dolby Pro Logic

4 ch

L, R, C, S (SW - recommended)

Analog matrix processing Dolby Surround

kHz

Media

LD (VDP)

DVD

Others

(satellite broadcasts, CAN etc.)

Dolby Digital output jacks

Coaxial Dolby Digital RF output jack

Optical or coaxial digital output

(same as for PCMI

Optical or coaxial digital output

(same as for PCM)

Playback method (reference page)

Set the input mode to “AUTO”.

(Page 26)

Set the input mode to “AUTO”.

(Page 26)

Set the input mode to “AUTO”.

(Page 26)

% 1 Please use a commercially available adapter when connecting the Dolby Digital RF fAC3RFj output jack of the LD player to the digital input

jack. Please refer to the instruction manual of the adapter when making connection.

% 2 Some DVD digital outputs have the function of switching the Dolby Digital signal output method between “bit stream” and “(convert to)

PCM”. When playing in Dolby Digital surround on this unit, switch the DVD player’s output mode to “bit stream”. In some cases players are equipped with both “bit stream + PCM” and “PCM only” digital outputs. In this case connect the “bit stream + PCM” jacks to this unit.

(2) Dolby Pro Logic II

l Dolby Pro-Logic II is a new multi-channel playback format developed by Dolby Laboratories using feedback logic steering technology and

offering improvements over conventional Dolby Pro Logic circuits.

l Dolby Pro Logic II can be used to decode not only sources recorded in Dolby Surround ( *X4) but also regular stereo sources into five channels

(front left, front right, center, surround left and surround right) to achieve surround sound.

l Whereas with conventional Dolby Pro Logic the surround channel playback frequency band was limited, Dolby Pro Logic II offers a wider

band range (20 Hz to 20 kHz or greater). In addition, the surround channels were monaural (the surround left and right channels were the same) with previous Dolby Pro Logic, but Dolby Pro Logic II they are played as stereo signals.

l Various parameters can be set according to the type of source and the contents, so it is possible to achieve optimum decoding (see page

30).

% Sources recorded in Dolby Surround

These are sources in which three or more channels of surround have been recorded as two channels of signals using Dolby Surround encoding technology. Dolby Surround is used for the sound tracks of movies recorded on DVDs, LDs and video cassettes to be played on stereo VCRs, as well as for the stereo broadcast signals of FM radio, TV, satellite broadcasts and cable TV.

Decoding these signals with Dolby Pro Logic makes it possible to achieve multi-channel surround playback. The signals can also be played

on ordinary stereo equipment, in which case they provide normal stereo sound. There are two types of DVD Dolby surround recording signals

@I 2-channel PCM stereo signals @ 2-channel Dolby Digital signals

When either of these signals is input to the AVR-1802, the surround mode is automatically set to Dolby Pro Logic II when the “DOLBY/DTS SURROUND” mode is selected.

Sources recorded in Dolby Surround are indicated with the logo mark shown below. Dolby Surround support mark: ml-=-=+

Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

Page 46

Digital Theater Surround (also called simply DTS) is a multi-channel digital signal format developed by Digital Theater Systems. DTS offers the same “5.1” playback channels as Dolby Digital (front left, front right and center, surround left and surround right) as well as the stereo 2-channel mode. The signals for the different channels are fully independent, eliminating the risk of deterioration of sound quality due to interference between signals, crosstalk, etc. DTS features a relatively higher bit rate as compared to Dolby Digital (1234 kbps for CDs and LDs, 1536 kbps for DVDs) so it operates with a relatively low compression rate. Because of this the amount of data is great, and when DTS playback is used in movie theaters, a separate CDROM synchronized with the film is played. With LDs and DVDs, there is of course no need for an extra disc; the pictures and sound can be recorded simultaneously on the same disc, so the discs can be handled in the same way as discs with other formats. There are also music CDs recorded in DTS. These CDs include 5.1-channel surround signals (compared to two channels on current CDs). They do not include picture data, but they offer surround playback on CD players that are equipped with digital outputs (PCM type digital output required). DTS surround track playback offers the same intricate, grand sound as in a movie theater, right in your own listening room.

DTS compatible media and playback methods

Marks indicating DTS compatibility:

The following are general examples. Also refer to the player’s operating instructions.

Media Dolby Digital output jacks Playback method (reference page)

LD (VDP)

% 1 DTS signals are recorded in the same way on CDs and LDs as PCM signals, Because of this, the un-decoded DTS signals are output as

random “hissy” noise from the CD or LD player’s analog outputs. If this noise is played with the amplifier set at a very high volume, it may possibly cause damage to the speakers. To avoid this, be sure to switch the input mode to “AUTO” or “DTS” before playing CDs or LDs recorded in DTS. Also, never switch the input mode to “ANALOG” or “PCM” during playback. The same holds true when playing CDs or LDs on a DVD player or LD/DVD compatible player. For DVDs, the DTS signals are recorded in a special way so this problem does not occur.

I 2 The signals provided at the digital outputs of a CD or LD player may undergo some sort of internal signal processing (output level

adjustment, sampling frequency conversion, etc.). In this case the DTS-encoded signals may be processed erroneously, in which case they cannot be decoded by this unit, or may only produce noise. Before playing DTS signals for the first time, turn down the master volume to a low level, start playing the DTS disc, then check whether the DTS indicator on this unit (see page 33) lights before turning up the master volume.

I 3 A DVD player with DTS-compatible digital output is required to play DTS DVDs. A DTS Digital Output logo is featured on the front panel

of compatible DVD players. Recent DENON DVD player models feature DTS-compatible digital output - consult the player’s owner’s manual for information on configuring the digital output for DTS playback of DTS-encoded DVDs.

w and m l”LlO”WD

Optical or coaxial digital output

(same as for PCM)

Optical or coaxial digital output

(same as for PCM)

Optical or coaxial digital output

(same as for PCM)

% 2

I 3

Set the input mode to “AUTO” or “DTS” (page 26). Never set the mode to “ANALOG” or “PCM”.

Set the input mode to “AUTO” or “DTS” (page 26).

Z 1

% 1

“DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc.

Page 47

19 TROUBLESHOOTING

If a problem should arisefirst check the following.

1. Are the connections correct 7

2. Have you operated the receiver according to the Operating Instructions 7

3. Are the speakers, turntable and other components operating property 7 If this unit is not operating properly, check the items listed in the table below. Should the problem persist, there may be a malfunction. Disconnect the power immediately and contact your store of purchase.

Symptom Cause

DISPLAY not lit and sound not produced

when power switch set to on.

-ci

DISPLAY lit but sound not produced.

2% .p 3-

$42

z-m

:s s

G ti

DISPLAY not displayed and the

“is

“ON/STANDBY” LED flashes at a high

rate

5 $

F$ g-

Sound produced only from one channel.

Positions of instruments reversed during

stereo playback.

Power cord not plugged in securely.

Measures

Check the insertion of the power cord plug.

Turn the power off with the remote control unit after turning the POWER operation

Page

switch on.

Speaker cords not securely connected.

Improper position of the audio function button.

Volume control set to minimum.

MUTING is on.

Digital signals not input Digital input selected. which digital signals are being input.

Speaker terminals are short-circuited.

Block the ventilation holes of the set.

Connect securely.

Set to a suitable position.

Turn volume up to suitable level.

Switch off MUTING.

Input digital signals or select input jacks to

Switch power off, connect speakers properly, then switch power back on.

Turn off the set’s power, then ventilate it well to cool it down.

14,15

26 27

28 27

14,15

5, 15

Once the set is cooled down, turn the

The unit is operating at continuous high power conditions and/or inadequate

power back on.

Turn off the set’s power, then ventilate it well to cool it down.

5, 15

ventilation. Once the set is cooled down, turn the

power back on.

Incomplete connection of speaker cords.

Incomplete connection of input/output cords.

Reverse connections of left and right speakers or left and right input/output

Connect securely.

Check left and right connections.

14,15

9 - 14

cords.

.+z

E +G

This unit does not operate properly when l Obstacle between this unit and remote

remote control unit is used. control unit.

Batteries dead.

Remote control unit too far from this unit.

Different button is being pressed.

8 and 0 ends of battery inserted in reverse.

Replace with new batteries.

Move closer.

Remove obstacle.

Press the proper button.

Insert batteries properly.

16 16 16

Note:

When a subwoofer has been connected and the virtual surround function is being used, the signal played from the subwoofer channel is LFE

only (only when playing Dolby Digital or DTS signals) for initial factory settings (i.e., the setting of the front speaker is “LARGE” and the setting of the subwoofer mode is “NORM”).

When subwoofer effects are felt to be weak, while in the system setup mode try setting the subwoofer mode to “+MAIN”, or the front speaker

to “SMALL” in the Speaker Configuration settings.

Making these settings will result in the low-frequency sounds of the front channel being played from the subwoofer.

Page 48

20 SPECIFICATIONS

III

Audio section

l Power amplifier

Rated output:

Dynamic power:

Output terminals:

l Analog

LINE input - PRE OUT

Input sensitivity / input impedance: Frequency response: S/N ratio: Total harmonic distortion: Rated output:

Video section

l Standard video jacks

Input / output level and impedance: Frequency response:

l S-video jacks

Input / output level and impedance:

Frequency response:

Front: 80 W + 80 W

Center: 80 W

Surround: 80 W + 80 W

100 W x 2 ch (8 Q/ohms) 145 W x 2 ch (4 R/ohms) 170 W x 2 ch (2 Q/ohms) Front: A or B

Center/Surround:

200 mV / 47 kQ/kohms IO Hz - 100 kHz: +I, -3 dB (TONE DEFEAT ON) 100 dB (IHF-A weighted) (TONE DEFEAT ON)

0.008% (20 Hz - 20 kHz)

1.2 v

1 Vp-p, 75 Q/ohms

5Hz-IOMHz - +I,-3dB

Y (brightness) signal - 1 Vp-p, 75 Q/ohms C (color) signal - 0.286 Vp-p, 75 n/ohms 5 Hz - 10 MHz - +I, -3 dB

115 W + 115W (6 Q/ohms, 1 kHz with 0.7% T.H.D.)

115w

115 W + 115W (6 R/ohms, 1 kHz with 0.7% T.H.D.)

6 to 16 R/ohms

A+B 12 to 16 n/ohms

6 to 16 Q/ohms

(8 Q/ohms, 20 Hz - 20 kHz with 0.08% T.H.D.)

(8 R/ohms, 20 Hz - 20 kHz with 0.08% T.H.D.) (6 Q/ohms, 1 kHz with 0.7% T.H.D.) (8 Q/ohms, 20 Hz - 20 kHz with 0.08% T.H.D.)

N Tuner section

Receiving range: Usable sensitivity: 50 dB quieting sensitivity:

S/N ratio:

Total harmonic distortion:

General

Power supply: Power consumption: Maximum external dimensions: Weight:

H Remote control unit (RC-897)

Batteries: External dimensions:

Weight:

* For purposes of improvement, specifications and design are subject to change without notice.

[FM] (note: uV at 75 R/ohms, 0 dBf = 1 x 10 -15 W)

87.50 MHz - 107.90 MHz 1 .O uV (11.2 dBf)

MONO STEREO 23 uV (38.5 dBf) MONO STEREO 75 dB (IHF-A weighted) MONO STEREO 0.3% (1 kHz)

AC 12OV, 60 Hz

4.5 A

434 (W) x 171 (H) x 417 (D) mm (17-3/32” x 6-47/64” x 16-27/64”)

10.9kg (24 Ibs 0.5 oz)

RGPIAA Type (two batteries)

54 (W) x 172 (H) x 27.2 (D) mm (2-l/8” x 6-49/642” x l-5/64”)

120 g (Approx. 4.2 oz) (including batteries)

1.6 uV (15.3 dBf)

80 dB (IHF-A weighted)

0.15% (1 kHz)

[AMI

520 kHz - 1710 kHz 18 uV

Page 49

Page 50

*[ I : Preset codes set upon shipment from the factory *I I : Les codes pr&bgl& different en fonctiom des livraison de

I’usine.

Page 51

NIPPON COLUMBIA CO., LTD.

14-14, AKASAKA 4-CHOME, MINATO-KU, TOKYO 107-8011, JAPAN

Telephone: (03) 3584-8111

Printed in Korea 511 3800 008

Page 52

DENON SERVICE NETWORK/ f%%%#!#

Please contact one of our overseas service centers, listed below, for follow-up service consultation. Wenden Sie sich fur anfallende Wartungs-bzw. Reparaturarbeiten bitte an eine der folgend aufgefiihrten Kundendienststellen. Adressez-vous a nos centres de service d’outre-mer indiques ci-dessous, pour le service apresvente.

Per il servizio dopo vendita rivolgete Vi al nostro centro di servizio ester0 appropriato della lista seguente.

Para consultas de servicio porfavor dirigirse a cualquiera de nuestros centros de servicio en el extranjero, enlistados abajo.

Neem kontakt op met Cen van onze reparatie-inrichtingen in het buitenland, waarvan hier een lijst volgt, voor na-service. Ta kontakt med nedan angivna servicecentraler for radfragning om servicearbeten efter fiirsaljningen.

Favor contactar urn de nossos centros de serviqos internacionais, abaixo listados, para consulta de serviqos de acompanhamento. ~~~7;R~~U~c’~~~~~~~~J~~~~~fl~~~~ o

Australia Audio Products Australia Pty Ltd. 67 O’Riordan Street, Alexandria NSW 2015, Australia

Belgium Canada

China

Czech0 Denmark

Finland France F.R. Germany

Greece

Hong Kong

liX%?

Israel Indonesia Italy

Korea Malaysia Mexico

Netherlands New Zealand Norway

Poland Portugal Singapore South Africa Spain

Sweden Switzerland Taiwan R.O.C.

%UBB

Thailand United

Kingdom & Eire U.S.A.

* If there IS no service center rn your local area, consult the outlet where the equrpment was purchased. * Falls such rn lhrer Ndhe kerne Kundendienststelle befrndet, wenden Sre such an das Geschaft. wo das Gerat gekauft wurde

* S’II n’y a aucun centre de servrce dans votre regron, consultez votre revendeur. * Se nella Vostra zona non c’e il centro di servrzro. nvolgete Vi al negozro dove avete acqurstato I’apparecchro. * SI no hay centros de servrcro en su area local, consulte en donde haya comprado su equrpo.

* Als er in uw streek geen reparatre-rnnchtrng IS. neemt u kontakt op met de vestrgrng waar u de apparatuur gekocht heeft. * Saknas serwcecentral i narheten dar du bar, bar kontakt tas meddterforsalfaren for apparaten. * Se nao exrstrr urn centro de servrcos em sua area local, consulte o estabelecrmento onde o equrpamento for adqurndo. * iBF%!%flE%@Ji\ ’ Tmi%EAs&o9WMba 0

Tel: (02) 9669-3477 Fax: (02) 9578-0140

Digital-Professional-Audio Vertriebsges.m.b.H., 1170 Wien. Rupertusplatz 3 Tel: 0222-4501006-9, Fax: 0222-457679 Transtel-Sabima P.V.B.A. Harmoniestraat 13, 2018 Antwerpen 1, Belgie Tel: 03-237-3607

Denon Canada Inc. 17 Denison Street, Markham Ontario, Canada L3R 1 B5 Tel: 905-475-4085 Fax: 905-475-4159

$lFJi%S&%Wi%E+~L\ (;lt~X%3%%W=bL~ 1

1% : ( IO) 64015151/64023798 I%@ : ( IO) 64034229

Kw~~~k~~~~~~~~~~~~~~l~~ I’&&~~,‘iz~253~~ $$# : 200062

86-21-6257-9958 @g : 86-21-6260-5645

m& :

EUROSTAR OSTORAVA s.r.0. areal Vodni stavby Praha as., budova A2 Dobronicka 635,148 00 Praha 4 Czech Rep. Tel: 02-611 I-2901 Fax: 02-611 l-2904

Hifi Klubben A/S Dali Alle 1, 9610 Noerager, Denmark Tel: 45-96 72 IO 00 Fax: 45-96 72 10 14

Suomen Hi-Fi Klubi OY Nylandsgatan 4-6, Helsingfors Tel: 0644401

Denon France S.A. 3 Boulevard Ney, 75018 Paris Tel: 44-89-68-69

Denon Electronic GmbH An der Landwehr 19,41334 Nettetal Tel: +49 2157 12 08 78 Fax: +49 2157 12 08 13

KINOTECHNIKI LTD. 14, PYRGOU STR. 166 75, GLYFADA ATHENS Tel: (01)960-1071 Fax: (01)960-1072

DENON ASIA COMPANY LTD. 18/F No.79 Chatham Road South, Tsimshatsur Kowloon, Hong Kong Tel: 852-2516-6862, Fax: 852-2516-5940

~~~$%!i! ( $#M >g’liB’iq ~~~h~~~~~n~~~~~~~+h~+/~~ %.8g : 852-2516-6862 @B : 852-2516-5940

InfoVox Ltd. Terez krt. 31, 1067 Budapest Hungary Tel / Fax: 01-302-2515 Japis Ltd. Brautarholt 2, P.O.Box 396, 121 Reykjavik, Iceland Tel: 354-58009-800 Fax: 354-5800-888

Newpan Ltd. 14 Rosansky st. Rishon Lezion 75706. Tel: 03-9535900 Fax: 03-9616193

PT Autoaccindo Jaya. Cideng Barat No. 7 Jakarta, Indonesia Tel: 633-2730 Audiodelta S.r.l.19 Via Pietro Calvi 20129 Milan Italy

Tel: 39-02-541 l-6008 / 39-02-5412-8253 Fax: 39-02-5518-I 961

SAM WON KOREA Co., Ltd. 1 F, SANG-ROCK BLDG, #1629-3 SEOCHO-DONG, SEOCHO-KU, SEOUL 137-070, KOREA

Tel: 02-52 I-l 404 Fax: 02-3486-2 135

HWEE SENG (ELECTRONICS) SDN BHD. 13-1, Jalan Raja Laut, 50350 Kuala Lumpur Malaysia

Tel: 60-3-4041-8422 Fax: 60-3-4041-0563

Labrador, S.A. de C.V. Zamora No. 154 Col. Condesa 06140 Mexico, D.F. Tel: 286 55 09 Fax: 286 34 62 Penhold B.V. Poppenbouwing 58, NL-4191 NZ Geldermalsen, Netherland Tel: 31-345-588 080 Fax: 31-345-588 085

Avalon Audio Corpn. Limited 630B Great South Road Ellerslie Auckland, New Zealand Tel: 64-g-579-1280 Fax:.64-9-579-3350

Hi-Fi Klubben AS Sandakerveien 64 0483 Oslo Tel: 47 22 79 66 66 Fax: 47 22 79 66 67 HORN DISTRIBUTION S.A. Ulica Kurantow 34, 02-873 Warszawa Poland

Tel: +48 22 649 30 71 Fax: +48 22 649 31 99 Videoacustica Qta. Do Paizinho-Armazem 5-Estrada De Circunvalacao-Apart. 3127 1303 Lisboa Codex Tel: (01)417-00-04/00-96 Fax: (01)418-80-93

Hwee Seng (Electronics) Pte Ltd. 81 Genting Lane #02-02, Everich Industrial Building Singapore 349566

Tel: 65-746-3355 Fax: 65-743-1704

Mandarin Distributors S.A. 10 Thora Crescent, Wynberg Ext.3 Sandton, P.O.Box 5137, Johannesburg Republic of

South Africa Tel: 27-1 l-444-8445 Fax: 27-1 l-444-8363

Gaplasa S.A.AV. Ing. Conde de Torroja, 25, 28022 Madrid Tel: 91-329-29-60 Fax: 91-329-16-75

Sveriges Hi-Fi Klubb Box 5116, S-402 23 Goteborg Tel: 031-200040

Diethelm & Co., AG. Grindelstrasse 5, 8303 Bassersdorf Tel: 01-306-I 61 1 Fax: 01-306-I 690 KOLIN-DENON ENTERTAINEMENTY INC. 5th FL..N0.63, Po-Ai Road, Taioei, Taiwan, R.O.C.

Tel: (0212381-5876 Fax: (02)2381-5811

sw**~~%~%~~w~~Efi~ Mahajak Development Co., Ltd. 46 Mahajak Building, Sukhumvit Soi 3 (Nana-Nua) Klongtoey, Bangkok

Thailand. 10110 Tel: 66-2-256-0020 Fax: 66-2-253-1696

Hayden Laboratories Ltd. Hayden House, Chiltern Hill, Chalfont St Peter, Gerrards Cross, Bucks. SL9 9UG Tel: 01753-888447 Fax: 01753-880109 DENON ELECTRONICS, a Division of Denon Corporation (U.S.A.) 19 Chapin Road, Pine Brook, NJ 07058-9777 Tel: 973-396-7499, Fax: 888-544-8434

~;;l’i~t~~~@i63~10~ %I& : (0212381-5876 {$ig : (02)2381-5811

M3RBPTWd%92M

33~ : I 00007

HOI 004

NIPPON COLUMBIA CO., LTD.

14-14, AKASAKA 4-CHOME, MINATO-KU, TOKYO 107-8011, JAPAN

Telephone: (03) 3584-8111

515 0867 101

Page 53

STAMP

DENON” ELECTRONICS, a Division of Denon Corporation (U.S.A.)

P.O. Box 5370 Parsippany, N.J. 07054

PLACE

HERE

Page 54

DENON@

MODEL NO.

DEALER NAME

DEALER ADDRESS

DEALER TELEPHONE

A) Who/What was the greatest influence in your final decision

to purchase this product?

1. 0 Advertising

2. 0 Denon brand name 6. 0 Product

3. 0 Product features

4. 0 Friend/Relative 8. 0 Other (specify:

B) What other audio equipment do you presently own ? Please

indicate the make and model.

Turntable Cartridge Tonearm Head Amp/Transf. Amplifier Integrated Amp Tuner Receiver Cassette Deck

0 Price

0 Salesperson

Reel-to.Reel Speakers Headphones

Blank Tape

Accessories

Brand Cleaners,

cables, etc.

WARRANTY REGISTRATION

SERIAL NO.

CITY STATE ZIP

AREA CODE PHONE NO.

brochure/literature

Length

DATE SOLD

PURCHASER’S NAME

STREET ADDRESS

C) What equipment do you plan to

purchase in the next 6 months?

Denon AVR-1802, AVR-1882, AVR-882 Operating Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

8 CONNECTIONS
