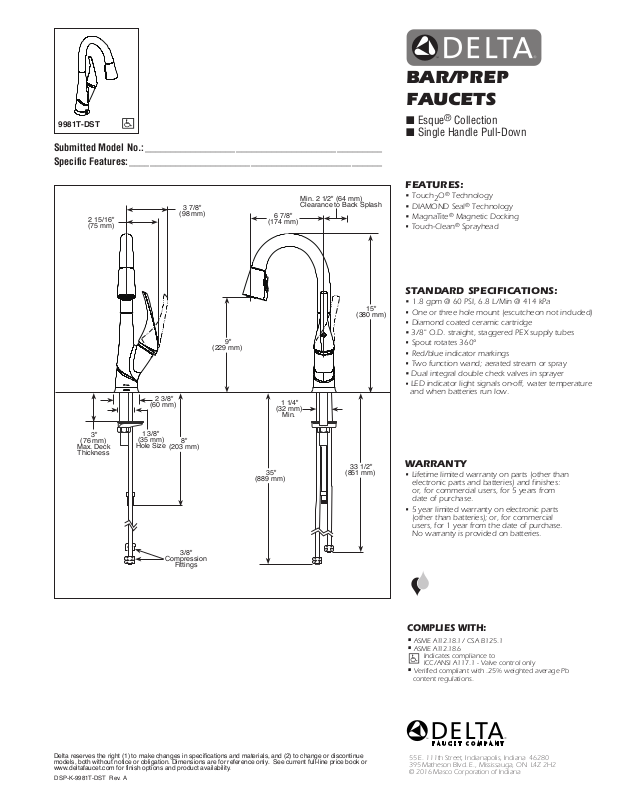

Page 1
BAR/PREP
FAUCETS
9981T-DST
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Min. 2 1/2" (64 mm)
Clearance to Back Splash
6 7/8"
1 1/4"
(32 mm)
Min.
15"
(380 mm)
2 15/16"
(75 mm)
2 3/8"
(60 mm)
3 7/8"
(98 mm)
9"
(229 mm)
(174 mm)
■ Esque® Collection
■ Single Handle Pull-Down
FEATURES:
• Touch2O® Technology
• DIAMOND Seal
• MagnaTite® Magnetic Docking
•
Touch-Clean® Sprayhead
STANDARD SPECIFICATIONS:
• 1.8 gpm @ 60 PSI, 6.8 L/Min @ 414 kPa
•
One or three hole mount (escutcheon not included)
•
Diamond coated ceramic cartridge
• 3/8" O.D. straight, staggered PEX supply tubes
•
Spout rotates 360°
•
Red/blue indicator markings
•
Two function wand; aerated stream or spray
• Dual integral double check valves in sprayer
• LED indicator light signals on-off, water temperature
and when batteries run low.
®
Technology
3"
(76 mm)
Max. Deck
Thickness
1 3/8"
(35 mm)
Hole Size
8"
(203 mm)
3/8"
Compression
Fittings
35"
(889 mm)
33 1/2"
(851 mm)
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.6
Indicates compliance to
ICC/ANSI A117.1 - Valve control only
•
Verified compliant with .25% weighted average Pb
content regulations.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-K-9981T-DST Rev. A
55 E. 111th Street, Indianapolis, Indiana 46280
395 Matheson Blvd. E., Mississauga, ON L4Z 2H2
© 2016 Masco Corporation of Indiana
