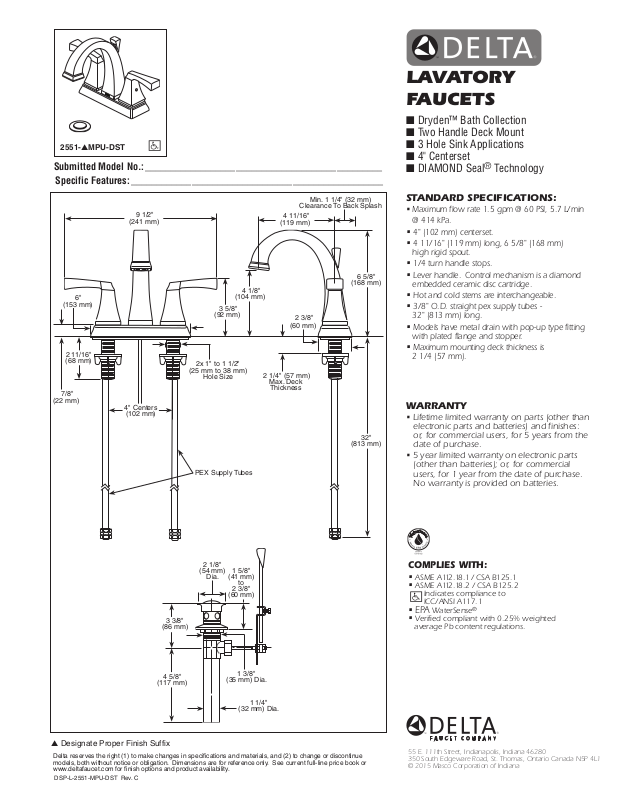

2551-▲MPU-DST
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Min. 1 1/4" (32 mm)
Clearance To Back Splash
4 11/16"
(119 mm)
2 3/8"
(60 mm)
Max. Deck
Thickness
6 5/8"
(168 mm)
32"
(813 mm)
(153 mm)
2 11/16"
(68 mm)
7/8"
(22 mm)
6"
9 1/2"
(241 mm)
4" Centers
(102 mm)
(104 mm)
3 5/8"
(92 mm)
2x 1" to 1 1/2"
(25 mm to 38 mm)
Hole Size
PEX Supply Tubes
4 1/8"
2 1/4" (57 mm)
Lavatory
FaUCEtS
■ Dryden™ Bath Collection
■ Two Handle Deck Mount
■ 3 Hole Sink Applications
■ 4" Centerset
■ DIAMOND Seal
STANDARD SPECIFICATIONS:
• Maximum flow rate 1.5 gpm @ 60 PSI, 5.7 L/min
@ 414 kPa.
•
4" (102 mm) centerset.
•
4 11/16" (119 mm) long, 6 5/8" (168 mm)
high rigid spout.
•
1/4 turn handle stops.
•
Lever handle. Control mechanism is a diamond
embedded ceramic disc cartridge.
•
Hot and cold stems are interchangeable.
•
3/8" O.D. straight pex supply tubes -
32" (813 mm) long.
•
Models have metal drain with pop-up type fitting
with plated flange and stopper.
•
Maximum mounting deck thickness is
2 1/4 (57 mm).
WARRANTy
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from the
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
®
Technology
2 1/8"
Dia.
1 5/8"
(41 mm)
to
2 3/8"
(60 mm)
1 3/8"
(35 mm) Dia.
1 1/4"
(32 mm) Dia.
(54 mm)
3 3/8"
(86 mm)
4 5/8"
(117 mm)
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-L-2551-MPU-DST Rev. C
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC/ANSI A117.1
• EPA
WaterSense
•
Verified compliant with 0.25% weighted
average Pb content regulations.
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, Ontario Canada N5P 4L1
© 2015 Masco Corporation of Indiana
®
