DH 100 P
DH 100 P
Always Dry dehumidifier
with
Condensation Removal System
1
IMPORTANT SAFEGUARD
ENGLISH
SHORT CORD INSTRUCTIONS
- A short power cord is provided to reduce risks resulting from becoming entangled in or
tripping over a longer cord.
- Longer,detachable power supply cords or extension cords are available and may be used if
care is exercised in their use.
- If an extension cord is used, the marked electrical rating should be at least as great as the
electrical rating of the appliance. If the appliance is provided with 3- wire, grounding type
cord, the extension should be a GROUNDING TYPE 3 - WIRE CORD. The longer cord should be
arranged so that it will not drape over the counter-top or table top where it can be pulled on
by children or tripped over.
- Your product is equipped with a polarized alternating current line plug (a plug having one
blade wider than the other).This plug will fit into the power outlet only one way. This is a safety
feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the
plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the polarized plug.
Read all instructions before using this dehumidifier. To reduce the risk of fire, electric shock, or injury to
persons when using your dehumidifier follow basic safety precautions, including the following:
1) Do not store or use gasoline, oil, sulphur or other flammable vapors and liquids in the vicinity of
this or any other appliance. Do not install the appliance near source of heat.Read product labels
carefully. Common sense and caution must de used when installing, operating and maintaining any
appliance.
2) This appliance must be used by adults only. Do not allow children to play with the appliance. Do not
leave children unattended in an area where the appliance is operating. Do not allow them to
sit or stand on the appliance.
3) This appliance is designed to dehumidify domestic living areas, and must not be used for other
purposes. It must be operated in an enclosed area to be most effective. Close all doors,
windows, and other outside openings to the room.
4) The appliance must not be modified in any way, as any modifications may be extremely dangerous.
5) Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or
has been damaged in any manner. Return appliance to the nearest authorized service facility for
examination, repair or adjustment.
6) The use of accessory attachments not recommended by the appliance manufacturer may cause
injuries.
7) Do not use outdoors.
8) For your safety and protection,this dehumidifier is equipped with a three prong grounding plug on the
power cord.
Do not, under any circumstances, cut or remove the round grounding prong from the plug.
9) Your dehumidifier must plug directly into a properly grounded and polarized three-prong receptacle.
If the wall receptacle will not accept a three prong plug,or if you are not sure the outlet is adequately
grounded or protected by a time delay fuse or circuit breaker,have a qualified electrician install the
proper outlet. Do not use an extension cord or an adapter plug.
10) Never unplug the dehumidifier by pulling on the power cord.Always grip the plug firmly and pull
straight out from the receptacle. Do not pinch, bend,or knot the power cord.
11) Always remove the plug from the socket before performing cleaning or maintenance operations
and when not in use.
12) Do not place heavy or hot objects on the top of the appliance.
13) Clean the air filter at least once a week.
14) The appliance must always remain upright or laid on one side during transportation. Remember to
drain the canister before transporting the appliance.
15) After transporting the appliance, wait 24 hours before using it.
THIS PRODUCT IS FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS
Read this instruction booklet carefully before installing and using the
appliance. In this way, you will obtain the best possible results and
maximum operating safety.
The dehumidifier removes humidity from the air in the areas in which it is installed.
The appliance is compact and equipped with wheels and side carry handles which
facilitate its movement.
This appliance is recommended for all rooms in which excessive humidity is liable to
build up, e.g. basements, kitchens, laundry rooms, cellars etc.
2
Presentation
High capacity
Condensation Removal
system
Total Control COMFORT
Easily Portable
Hydrophilic Finned Batteries
Patented Batteries
High
Efficiency
Very
Compact
Humidistat
ENGLISH
3
Description/Accessories
1
2
Air intake
Air outlet
3
7
6
5
1. Control panel
2. Control panel lid
3. Air outlet grille
4. Side carry handle
5. Air intake grille
6. Air filter
7. Tank access door
8. Continuous drainage connection
9. Tank
Accessory
Description No. provided
condensation discharge
hose with snap connector
1 16” (490 cm)
9
4
8
4
Technical characteristics/
Important
Technical characteristics
Coolant R22
Humidistat yes
Capacity of tank 1.32 gallons (6 liters)
Operating limits:
• temperature 64° - 90 °F
• relative humidity 40 - 95 %
Standard operating conditions: 80°F - 60% RH
As far as other technical characteristics are concerned, please see rating label behind the
tank.
When to use your dehumidifier
This dehumidifier is designed to bring humidity level
within a comfort zone (from 40% to 60% relative
humidity.This is the mid range of the humidostat setting).

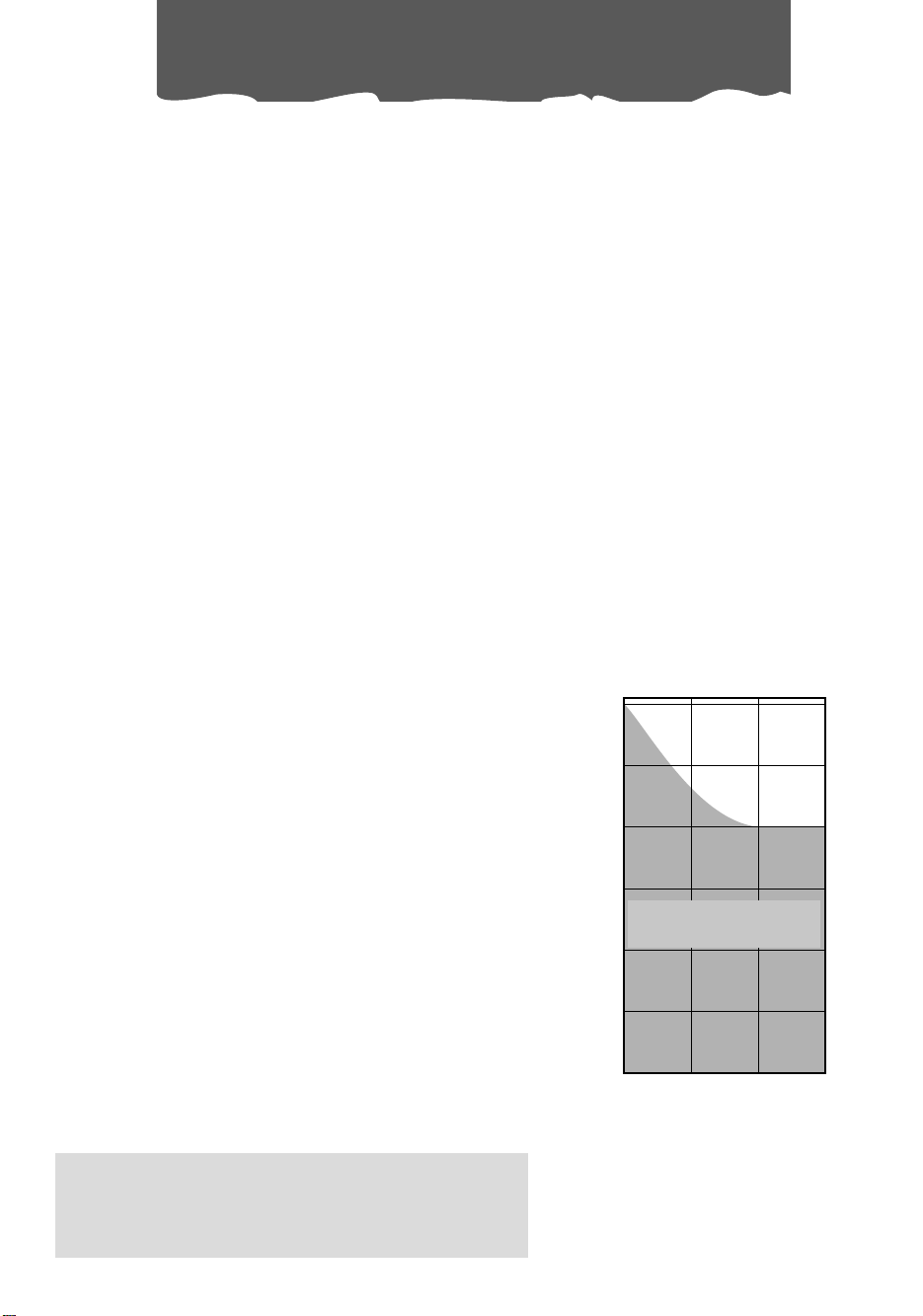

The chart (shaded area) indicates when a
dehumidifier should not be used since the humidity
level is low enough.
Operating a dehumidifier under the conditions
shown in the shaded area may cause frosting or
icing-up of the coils which will prevent the collection
of any moisture.
Experts have established that optimal atmospheric
conditions, both for physical health and the
preservation of furniture and other items, vary
between 45% and 60% relative humidity. It is therefore
advisable to keep rooms within these values.
Caution
Before operating unit check that float is
suspended freely inside the tank
DO NOT USE
IN SHADED AREA
RELATIVE HUMIDITY
TEMPERATURE
16°C 21°C 27°C 32°C
60°F 70°F 80°F 90°F
60%
50%
40%
30%
20%
10%
Place the dehumidifier in a suitable position, a halfway or landing are generally good sites.
The appliance must be positioned so that the air intake and air outlet grills are at least 20 inches
away from any wall or obstacle to ensure adequate ventilation.
Condensate can be drained in one of two ways:
A)
Discharge into the tank
Your unit is supplied with a tank, which is positioned on the left side (Fig. 1) of the unit to
accumulate water removed from the air.
The condensate generated by the dehumidifier can be discharged directly into the tank. The
tank is easy to extract when it needs to be emptied without spilling.
Note: make sure the tank is
in position and the pump
switch is in the OFF position
IMPORTANT: The water collected is not drinkable. Please throw it away.
B) Direct draining
The exclusive Condensation Removal System, allow you to use a hose that extends 16 feet
(4.9 m) in height to drain the water. If you want the water to flow directly to a drain, connect
the condensation discharge tube supplied to the connection pipe located on the lower part
of the unit (Fig.2-3). Turn then the pump switch to ON.
Note: With the condensation discharge hose missing and the pump switched ON, a safety
device will make the machine discharge directly into the tank.
Note: It is possible to install the unit permanently and have the hose passing through an
opening or window. Create a hole with a drill bit 0.035 inches (9mm) in size. At the end of the
season, the hole can be covered with a plastic or rubber stopper.
ENGLISH
5
Installation
fig.1
How to
connect
How to
disconne
fig.3
fig.2
1 PUSH
2
6
Electrical connections/
Description of controls
Tank control system
indicator light
Power-on
Indicator light
Dehumidifying operation
indicator light
pump on/off switch
Condensation Removal
System Indicator light
Humidistat control dial
Tank control system
This dehumidifier is fitted with a special intelligent device to ensure correct operation.
A red indicator light on the control panel comes on to warn the user when:
1. the tank is full . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
empty the tank
2. the tank is missing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .replace the tank
3. the tank is in the wrong position . . . . . . . . . . . . . . . . . . .position the tank correctly
4. in continuous drain: the hose is obstructed or the difference in level is
too high . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
remove the obstruction or reduce
different in level.
Once the cause has been eliminated, the light goes out and the appliance resumes operation.
Electrical connections
Before connecting the appliance to the power outlet make sure you read all the safety
instructions and check the following:
• The main power supply must correspond to the power supply shown on the rating plate.
• The power socket and the electrical circuit must be adequate to supply the appliance.
• The power socket must match the plug. If not, have the plug replaced by qualified
personnel.
• The power socket must be adequately earthed.
The manufacturer accepts no responsibility if these safety regulations are not complied with.
Description of controls
7
ENGLISH
How to dehumidify
1. Plug the appliance into the power outlet.The “POWER ON” light will illuminate.
2. Check that the “TANK ON” light is OFF.
3. Turn the humidistat control dial to the desired range or to “CONTINUOUS” for continuous
operation.The Dehumidifying light will turn on.
4. In order to switch off the appliance, turn the humidistat counter clockwise to the end and
unplug from the power outlet.
If you want to discharge the condensate directly into the tank, please check the pump
switch is OFF. (See page 5 for details).
When the humidity in the room has reached the required level,slowly turn the humidistat knob
counterclockwise until the dehumidifying light goes out. The dehumidifier will then keep the
humidity in the room at the selected level automatically.
Note: When dehumidifying, the appliance not only dehumidifies but also slightly warms the air
(2-4°F /1-2°C hotter than room temperature)
Operating conditions
A dehumidifier will not operate satisfactory if room temperature is 65°F (18°C) or lower, or if
the humidity in the room is low. Under these conditions, the dehumidifier should be turned off.
A dehumidifier will not eliminate frost on window during winter. The dehumidifying coil normally
operates above freezing temperatures and cannot prevent moisture from condensing on the
inside of a window pane that is below freezing.
TIP: It may be helpful to use a dehumidifier in the kitchen or laundry area where the humidity is
high. Reducing humidity in these areas may reduce frost on windows in other parts of the
house.
Selecting operating modes
Cleaning/Warnings
Maintenance
Always remove the plug from the power outlet before performing any cleaning or
maintenance operations. For safety reasons,never wash the
dehumidifier using a water jet.
At the end of the season, to prevent the formation of stagnant
water or dirt residues, the condensation discharge tank
A must
be drained (fig.4).
1. To eliminate the residual water, remove the hose B and
empty the contents of the tank into a container, being
careful not to wet unwanted areas.
2. Replace the hose by pushing it upwards,into the correct
position.
Cleaning the cabinet
• Clean the appliance using a damp cloth then dry with a dry cloth.
• Never use alcohol or solvents to clean the appliance.
• Never spray the appliance with insecticides.These could cause the paint to flake or plastic parts
to warp.
Cleaning the air filter
If the filter is dirty,air circulation is compromised and the efficiency of the dehumidifying and air
purifying functions decreases. Therefore should be cleaned the filter at regular intervals. The
frequency depends on the duration and conditions of operation. If the unit is used constantly
or systematically, you are recommended to clean the filter once a week.
• To remove the air filter, extract by pulling it as shown in fig.5.
• Use a vacuum cleaner to remove dust accumulations from
the filter. If the filter is very dirty, wash in warm water and rinse
several times. The temperature of the water should not
exceed 104° F (40˚C). After washing the filter, allow to dry
completely before putting it back in the appliance.
If the appliance is not used for long periods
• Unplug from the mains outlet and empty the tank.
• Clean and reposition the filter.
• In order to protect the appliance, cover it with a plastic
bag.
Begin of season checks
Check that the power cable and socket are undamaged and that the installation is efficient.
;;;;;;;;;
;;;;;
;
;;;;;;;;
;;;
fig.5
8
fig.4
B
A
9
ENGLISH
Problem Cause Remedy
The appliance does not
work in dehumidifying
mode (the power on
indicator light is off)
The tank light is ON
The appliance operates in
dehumidifying mode (light
on) but the humidity is not
reduced
The pump doesn't work:
•the appliance is not
plugged in
•there is no electricity
•the humidistat is on
minimum
•the tank is full
•the tank is missing
•the tank is improperly
positioned
•the hose is obstructed or
the difference in level is
too high
•filter clogged
•the temperature or
humidity of the home is
too low
•room too large
•too many sources of
humidity in room (boiling
pots etc.)
•there are windows or
doors opened, so new air
comes from outdoors
•plug into the power outlet
•check the power supply
•set the humidistat to the
required level
•empty the tank
•replace the tank
•position the tank correctly
•remove the obstruction or
reduce the difference in
level
•clean the filter
•in certain conditions, it is
normal for the appliance
not to dehumidify (see
“Technical characteristics”
•check that the doors and
the windows are closed.
Carry out the seasonal
maintenance operations
described on the adhesive
label located on the inside
of the access door 7, or in
the paragraph
“Maintenance”.
Check the following points before calling your local Technical Service Centre.
Troubleshooting
Loading...
