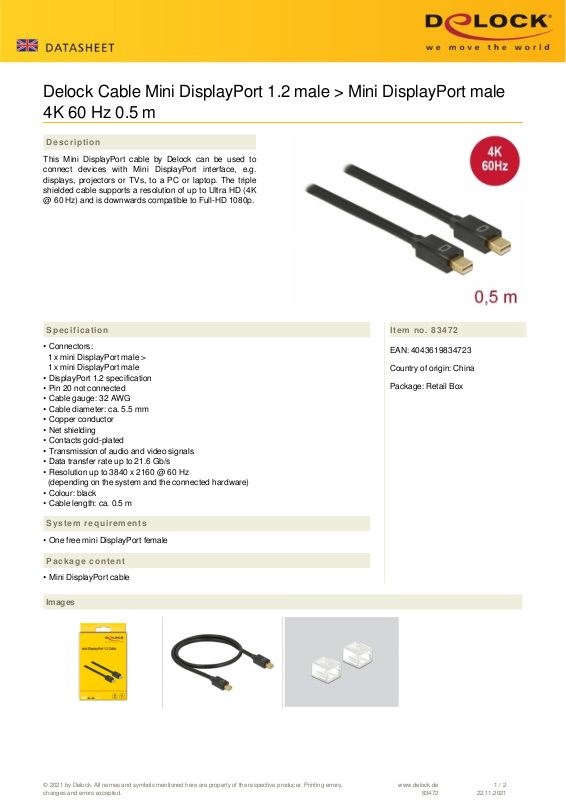

Page 1
Delock Cable Mini DisplayPort 1.2 male > Mini DisplayPort male
4K 60 Hz 0.5 m
Description
This Mini DisplayPort cable by Delock can be used to
connect devices with Mini DisplayPort interface, e.g.
displays, projectors or TVs, to a PC or laptop. The triple
shielded cable supports a resolution of up to Ultra HD (4K
@ 60 Hz) and is downwards compatible to Full-HD 1080p.
Specification
• Connectors:
1 x mini DisplayPort male >
1 x mini DisplayPort male
• DisplayPort 1.2 specification
• Pin 20 not connected
• Cable gauge: 32 AWG
• Cable diameter: ca. 5.5 mm
• Copper conductor
• Net shielding
• Contacts gold-plated
• Transmission of audio and video signals
• Data transfer rate up to 21.6 Gb/s
• Resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Colour: black
• Cable length: ca. 0.5 m
Item no. 83472
EAN: 4043619834723
Country of origin: China
Package: Retail Box
System requirements
• One free mini DisplayPort female
Package content
• Mini DisplayPort cable
Images
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
83472
1 / 2
22.11.2021
Page 2
General
Specification: DisplayPort 1.2
Interface
Connector 1: 1 x mini DisplayPort male
Connector 2: 1 x Mini DisplayPort 20 pin male
Technical characteristics
Data transfer rate: 21,6 Gb/s
Maximum screen resolution: 3840 x 2160 @ 60 Hz
Physical characteristics
Cable diameter: 5.5 mm
Connector finishing: gold-plated
Pin finishing: gold-plated
Conductor material: copper
Conductor gauge: 32 AWG
Shielding: triple
Length: 50 cm
Colour: black
