Page 1
SN65007
One Channel Direct Drive Speech Controller
INTRODUCTION
SN65007 is 7 seconds one-channel single chip voice synthesizer IC which
contains a PWM Direct Drive Circuit. There is one 4-bit I/O port and built in a
tiny controller. By programming through the tiny controller, user’s applications
including section combination, trigger modes, output status, and other logic
functions can be easily implemented.
FEATURES
Single power supply 2.4V – 5.1V
7 seconds voice capacity is provided
Built in a tiny controller
One 4-bit I/O port is provided
32*4 bits RAM are provided
Maximum 16k program ROM is provided
Readable ROM code data
Built in a high quality speech synthesizer
Adaptive playing speed from 2.5k-20kHz is provided
Built in a PWM Direct Drive circuit output BUO1 and BUO2 directly
connected to Speaker for sound output
System clock : 1MHz
PIN ASSIGNMENT
Symbol I/O Function Description
P20 I/O Bit0 of I/O port 2
P21 I/O Bit1 of I/O port 2
P22 I/O Bit2 of I/O port 2
P23 I/O Bit3 of I/O port 2
V
DD
OSC I Oscillation component connection pin
TEST I For testing only
GND I Negative power supply
BUO1 O PWM output 1
BUO2 O PWM output 2
I Positive power supply
1
December 20, 2000
Page 2
One Channel Direct Drive Speech Controller
ABSOLUTE MAXIMUM RATINGS
Items Symbol Min Max Unit.
Supply Voltage VDD-V -0.3 6.0 V
SN65007
Input Voltage V
Operating Temperature T
Storage Temperature T
IN
OP
STG
ELECTRICAL CHARACTERISTICS
Item Sym. Min. Typ. Max. Unit Condition
Operating Voltage V
Standby current I
Operating Current I
Input current of P2 I
Drive current of P2 I
Sink Current of P2 I
Drive current of Buo1 I
Sink Current of Buo1 I
Drive Current of Buo2 I
Sink Current of Buo2 I
Oscillation Freq. F
SBY
OPR
OD
OS
OD
OS
OD
OS
OSC
2.4 3.0 5.1 V
DD
--1.0uAVDD=3V, no load
- - 250
IH
- 3.0 10.0
1.5 2 -
2.0 3 -
100 120 -
100 120 -
100 120 -
100 120 -
-1.0-MHzVDD=3V
GND-0.3 VDD+0.3 V
-20.0 70.0
-55.0 125.0
u
AVDD=3V, no load
u
AVDD=3V,VIN=3V
m
AVDD=3V,VO=2.4V
m
AVDD=3V,VO=0.4V
m
A VDD=3V,Buo1=1.5V
m
A VDD=3V,Buo1=1.5V
m
A VDD=3V,Buo2=1.5V
m
A VDD=3V,Buo2=1.5V
o
o
C
C
2
December 20, 2000
Page 3
APPLICATION CIRCUIT
SN65007
One Channel Direct Drive Speech Controller
Note: Please bonds all of V
and VSS pins.
DD
3
December 20, 2000
Page 4

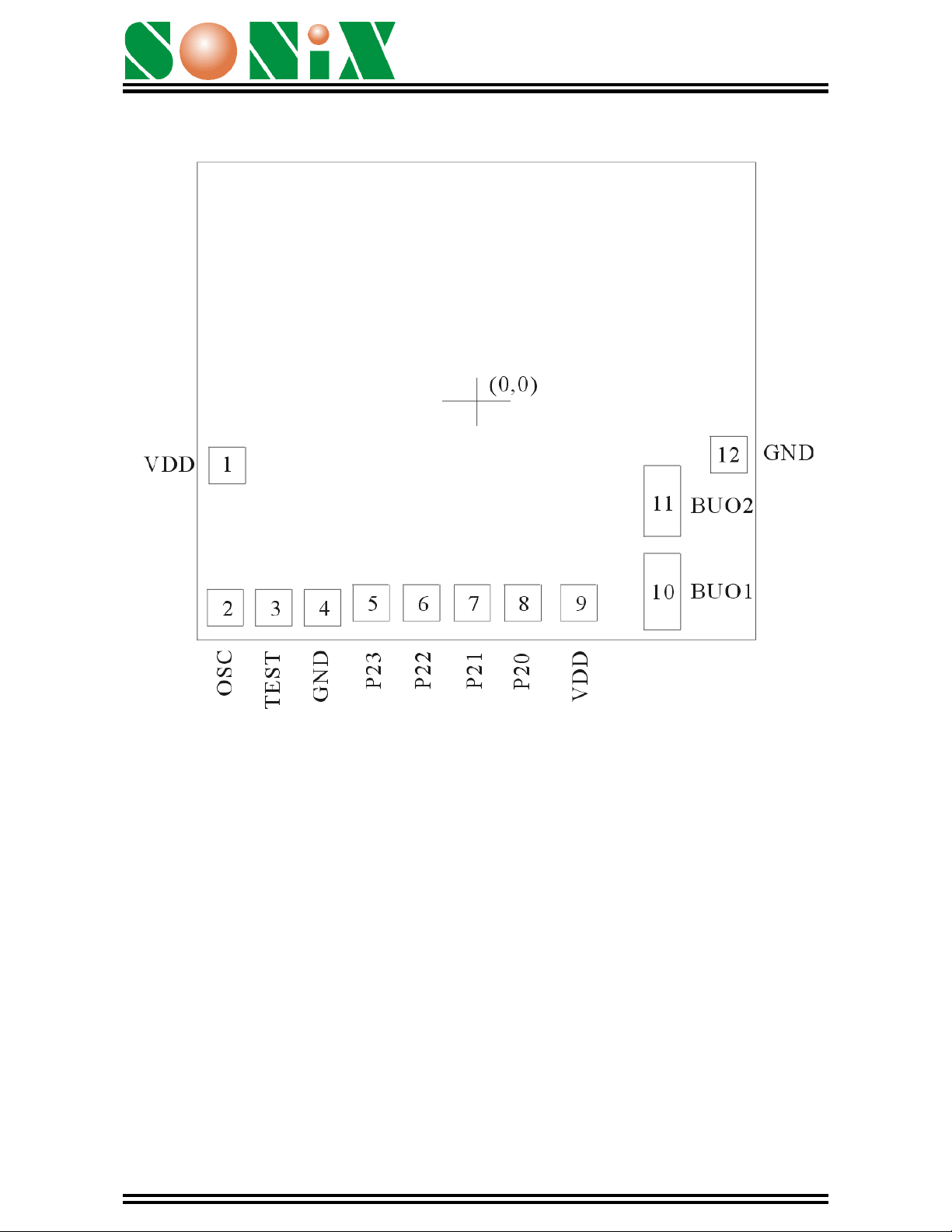

BONDING PAD
SN65007
One Channel Direct Drive Speech Controller
SN65007
Note : The substrate MUST be connected to Vss in PCB layout.
4
December 20, 2000
Page 5
SN65007
One Channel Direct Drive Speech Controller
DISCLAIMER
The information appearing in SONiX web pages (“this publication”) is believed to be
accurate.
However, this publication could contain technical inaccuracies or typographical
errors.
The reader should not assume that this publication is error-free or that it will be
suitable for any particular purpose. SONiX makes no warranty, express, statutory
implied or by description in this publication or other documents which are referenced
by or linked to this publication. In no event shall SONiX be liable for any special,
incidental, indirect or consequential damages of any kind, or any damages
whatsoever, including, without limitation, those resulting from loss of use, data or
profits, whether or not advised of the possibility of damage, and on any theory of
liability, arising out of or in connection with the use or performance of this
publication or other documents which are referenced by or linked to this publication.
This publication was developed for products offered in Taiwan. SONiX may not
offer the products discussed in this document in other countries. Information is
subject to change without notice. Please contact SONiX or its local representative
for information on offerings available. Integrated circuits sold by SONiX are covered
by the warranty and patent indemnification provisions stipulated in the terms of sale
only.
The application circuits illustrated in this document are for reference purposes only.
SONIX DISCLAIMS ALL WARRANTIES, INCLUDING THE WARRANTY OF
MERCHANTABILITY OR FITNESS FOR ANY PURPOSE. SONIX reserves the right
to halt production or alter the specifications and prices, and discontinue marketing
the Products listed at any time without notice. Accordingly, the reader is cautioned
to verify that the data sheets and other information in this publication are current
before placing orders.
Products described herein are intended for use in normal commercial applications.
Applications involving unusual environmental or reliability requirements, e.g. military
equipment or medical life support equipment, are specifically not recommended
without additional processing by SONIX for such application.
5
December 20, 2000
