FEATURES

● WIDEBAND BUFFER: 700MHz, G = +1

● WIDEBAND LINE DRIVER: 200MHz, G = +2

● HIGH OUTPUT CURRENT: 140mA

● LOW SUPPLY CURRENT: 5.5mA/Ch

● ULTRA-SMALL PACKAGE: SOT23-8

● LOW dG/dφ: 0.05%/0.03°

● HIGH SLEW RATE: 335V/µsec

● SUPPLY VOLTAGE: ±3V to ±6V

DESCRIPTION

The OPA2652 is a dual, low-cost, wideband voltage­feedback amplifier intended for price sensitive applica­tions. It features a high gain bandwidth product of 200MHz
on only 5.5mA/chan quiescent current. Intended for op­eration on ±5V supplies, it will also support applications
on a single supply from +6V to +12V with 140mA output
current. Its classical differential input, voltage-feedback
design allows wide application in active filters, integra­tors, transimpedance amplifiers, and differential receiv­ers.

The OPA2652 is internally compensated for unity gain
stability. It has exceptional bandwidth (700MHz) as a unity
gain buffer, with little peaking (0dB typically). Excellent
DC accuracy is achieved with a low 1.5mV input offset
voltage and 300nA input offset current.

Dual, 700MHz, Voltage-Feedback

OPERATIONAL AMPLIFIER

APPLICATIONS

● A/D DRIVERS

● CONSUMER VIDEO

● ACTIVE FILTERS

● PULSE DELAY CIRCUITS

● LOW COST UPGRADE TO THE AD8056

OR EL2210

®

OPA2652

TM

RELATED PRODUCTS

SINGLES DUALS TRIPLES QUADS NOTES

OPA650 OPA2650 — OPA4650 ±5V Spec
OPA680 OPA2680 OPA3680 — +5V Capable
OPA631 OPA2631 — — +3V Capable
OPA634 OPA2634 — — +3V Capable

International Airport Industrial Park • Mailing Address: PO Box 11400, Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 • Tel: [phone]

Twx: 910-952-1111 • Internet: http://www.burr-brown.com/ • Cable: BBRCORP • Telex: 066-6491 • FAX: [phone] • Immediate Product Info: [phone]

For most current data sheet and other product

information, visit www.burr-brown.com

© 2000 Burr-Brown Corporation PDS-1588B Printed in U.S.A. June, 2000

OPA2652

Differential ADC Driver

ADS807

12-Bit

53MHz

+In

CM

–In

+5V

402Ω

+5V

24.9Ω

133Ω

V

IN

200Ω

1/2

OPA2652

1/2

OPA2652

22pF

1.00kΩ

0.1µF

–5V

402Ω

24.9Ω

133Ω

200Ω

–

+

22pF

0.1µF

0.1µF

1.00kΩ

2

®

OPA2652

OPA2652U, E

TYP GUARANTEED

0°C to –40°C to

MIN/

TEST

PARAMETER CONDITIONS +25°C +25°C

(2)

70°C

(3)

+85°C

(3)

UNITS MAX

LEVEL

(1)

SPECIFICATIONS: VS = ±5V

At TA = +25°C, G = +2, RF = 402Ω, and RL = 100Ω, unless otherwise noted. See Figures 1 and 2 for AC performance only.

AC PERFORMANCE

(Figures 1 and 2)

Small-Signal Bandwidth G = +1, R

F

= 25Ω, VO = 200mVp-p 700 MHz typ C

G = +2, V

O

= 200mVp-p 200 MHz typ C

G = +5, V

O

= 200mVp-p 45 MHz typ C
Gain Bandwidth Product G ≥ +10 200 MHz typ C
Bandwidth for 0.1dB Flatness V

O

= 200mVp-p 50 MHz typ C

Peaking at a Gain of +1 G = +1, R

F

= 25Ω,VO = 200mVp-p 0 dB typ C
Slew Rate 4V Step 335 V/µs typ C
Rise/Fall Time 200mV Step 2.0 ns typ C

4V Step 10 ns typ C

Large Signal Bandwidth V

O

= 4Vp-p 50 MHz typ C

SFDR V

O

= 2Vp-p, 5MHz 66 dB typ C
Input Voltage Noise f > 1MHz 8 nV/√Hz typ C
Input Current Noise f > 1MHz 1.4 pA/√Hz typ C
Differential Gain Error NTSC, R

L

= 150Ω 0.05 % typ C

Differential Phase Error NTSC, R

L

= 150Ω 0.03 degrees typ C

Channel-to-Channel Crosstalk f = 5MHz –100 dBc typ C

DC PERFORMANCE

(4)

VCM = 0V
Open-Loop Voltage Gain 63 56 55 54 dB min A
Input Offset Voltage ±1.5 ±7 mV max A
Average Offset Drift 57µV/°C max B
Input Bias Current 4 152025µA max A
Input Bias Current Drift µA/°C max B
Input Offset Current ±0.3 ±1.0 ±1.4 ±2.0 µA max A
Input Offset Current Drift µA/°C max B

INPUT

(4)

Common-Mode Input Range ±4.0 ±3.0 ±2.8 ±2.7 V min A
Common-Mode Rejection Ratio 95 75 dB min A
Input Impedance V

CM

= 0V
Differential 35 || 1 kΩ || pF typ C
Common Mode 18 || 1 MΩ || pF typ C

OUTPUT

Voltage Output Swing 1kΩ Load ±3.0 ±2.4 V min A

100Ω Load ±2.5 ±2.2 V min A

Output Current, Sourcing V

O

= 0V 140 100 85 75 mA min A

Output Current, Sinking V

O

= 0V 140 100 85 75 mA min A

Closed-Loop Output Impedance f < 100kHz 0.06 Ω typ C

POWER SUPPLY

Specified Operating Voltage ±5 V typ C
Maximum Operating Voltage ±6 ±6 ±6 V max A
Maximum Quiescent Current Total Both Channels 11 13.2 14 15.5 mA max A
Minimum Quiescent Current Total Both Channels 11 8.8 8 7.5 mA min A
Power Supply Rejection Ratio (–PSRR) Input Referred 58 54 dB min A

THERMAL CHARACTERISTICS

Specified Operating Temperature Range U, E Package

–40 to +85

°C typ C

Thermal Resistance,

θ

JA

Junction-to-Ambient
U SO-8 125 °C/W typ C
E SOT23-8 150 °C/W typ C

NOTES: (1) Test Levels: (A) 100% tested at 25°C. Over temperature limits by characterization and simulation. (B) Limits set by characterization and simulation.
(C) Typical value only for information. (2) Junction temperature = ambient for 25°C guaranteed specifications. (3) Junction temperature = ambient at low temperature
limit: junction temperature = ambient +23°C at high temperature limit for over temperature guaranteed specifications. (4) Current is considered positive-out-of node.
V

CM

is the input common-mode voltage.

3

®

OPA2652

Supply Voltage ................................................................................. ±6.5V

Internal Power Dissipation ........................... See Thermal Characteristics

Differential Input Voltage .................................................................. ±1.2V

Input Voltage Range ............................................................................ ±V

S

Storage Temperature Range ......................................... –40 °C to +125°C

Lead Temperature (SO-8) ............................................................. +260°C

Junction Temperature (T

J

) ........................................................... +175°C

ESD Rating (Human Body Model) .................................................. 2000V

(Machine Model) ........................................................... 200V

The information provided herein is believed to be reliable; however, BURR-BROWN assumes no responsibility for inaccuracies or omissions. BURR-BROWN assumes no responsibility for the use
of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject to change without notice. No patent rights or licenses to any of the
circuits described herein are implied or granted to any third party. BURR-BROWN does not authorize or warrant any BURR-BROWN product for use in life support devices and/or systems.

ELECTROSTATIC
DISCHARGE SENSITIVITY

Electrostatic discharge can cause damage ranging from per­formance degradation to complete device failure. Burr-Brown
Corporation recommends that all integrated circuits be handled
and stored using appropriate ESD protection methods.

ESD damage can range from subtle performance degradation
to complete device failure. Precision integrated circuits may
be more susceptible to damage because very small parametric
changes could cause the device not to meet published speci­fications.

ABSOLUTE MAXIMUM RATINGS

Top View SO-8

SOT23-8

PIN CONFIGURATION

PACKAGE/ORDERING INFORMATION

PACKAGE SPECIFIED

DRAWING TEMPERATURE PACKAGE ORDERING TRANSPORT

PRODUCT PACKAGE NUMBER RANGE MARKING NUMBER

(1)

MEDIA

OPA2652U SO-8 Surface Mount 182 –40°C to +85°C OPA2652U OPA2652U Rails

" " """OPA2652U/2K5 Tape and Reel

OPA2652E SOT23-8 Surface Mount 348 –40°C to +85°C C52 OPA2652E/250 Tape and Reel

" " """OPA2652E/3K Tape and Reel

NOTE: (1) Models with a slash (/) are available only in Tape and Reel in the quantities indicated (e.g., /3K indicates 3000 devices per reel). Ordering 3000 pieces of
“OPA2652U/3K” will get a single 3000-piece Tape and Reel.

1
2
3
4

8
7
6
5

+V

S

Out B
–In B
+In B

Out A

–In A
+In A

–V

S

OPA2652

C52

Pin 1

SOT23-8 Marking/Pin Orientation

4

®

OPA2652

TYPICAL PERFORMANCE CURVES: VS = ±5V

At TA = +25°C, G = +2, RF = 402Ω, and RL = 100Ω, unless otherwise noted. See Figures 1 and 2.

6
3

0
–3
–6
–9

–12
–15
–18
–21
–24

NON-INVERTING

SMALL-SIGNAL FREQUENCY RESPONSE

Frequency (Hz)

Normalized Gain (dB)

1M 10M 100M 1G

VO = 0.2Vp-p

G = +5

G = +10

G = +1

R

F

= 25Ω

G = +2

6
3

0
–3
–6
–9

–12
–15
–18
–21
–24

INVERTING

LARGE-SIGNAL FREQUENCY RESPONSE

Frequency (Hz)

Normalized Gain (dB)

1M 10M 100M 1G

VO = 0.5Vp-p

G = –1

VO = 1.0Vp-p

VO = 2.0Vp-p

NON-INVERTING PULSE RESPONSE

Time (5ns/div)

Output Voltage (800mV/div)

Output Voltage (50mV/div)

4Vp-p

G = +2

200mVp-p

INVERTING PULSE RESPONSE

Time (5ns/div)

Output Voltage (800mV/div)

Output Voltage (50mV/div)

4Vp-p

G = –1

200mVp-p

6
3

0
–3
–6
–9

–12
–15
–18
–21
–24

NON-INVERTING

LARGE-SIGNAL FREQUENCY RESPONSE

Frequency (Hz)

Normalized Gain (dB)

1M 10M 100M 1G

VO ≤ 1Vp-p

G = +2

VO = 2Vp-p

VO = 4Vp-p

6
3

0
–3
–6
–9

–12
–15
–18
–21
–24

INVERTING

SMALL-SIGNAL FREQUENCY RESPONSE

Frequency (Hz)

Normalized Gain (dB)

1M 10M 100M 1G

VO = 0.2Vp-p

G = –5

G = –10

G = –1

G = –2

5

®

OPA2652

TYPICAL PERFORMANCE CURVES: VS = ±5V (Cont.)

At TA = +25°C, G = +2, RF = 402Ω, and RL = 100Ω, unless otherwise noted. See Figures 1 and 2.

–50

–60

–70

–80

–90

HARMONIC DISTORTION vs FREQUENCY

Frequency (MHz)

0.1 1 10 20

Harmonic Distortion (dBc)

VO = 2Vp-p

3rd Harmonic

2nd Harmonic

–50

–60

–70

–80

–90

HARMONIC DISTORTION vs LOAD RESISTANCE

R

L

(Ω)

100 1000

Harmonic Distortion (dBc)

VO = 2Vp-p
f = 5MHz

3rd Harmonic

2nd Harmonic

–50

–60

–70

–80

–90

HARMONIC DISTORTION vs SUPPLY VOLTAGE

Supply Voltage (V)

±3 ±4 ±5 ±6

Harmonic Distortion (dBc)

VO = 2Vp-p
f

= 5MHz

3rd Harmonic

2nd Harmonic

–50

–60

–70

–80

–90

HARMONIC DISTORTION vs NON-INVERTING GAIN

Gain Magnitude (V/V)

Harmonic Distortion (dBc)

110

V

O

= 2Vp-p

f = 5MHz

2nd Harmonic

3rd Harmonic

–50

–60

–70

–80

–90

HARMONIC DISTORTION vs INVERTING GAIN

Gain Magnitude (V/V)

Harmonic Distortion (dBc)

110

V

O

= 2Vp-p

f = 5MHz

2nd Harmonic

3rd Harmonic

–50

–60

–70

–80

–90

HARMONIC DISTORTION vs OUTPUT VOLTAGE

Output Voltage (Vp-p)

Harmonic Distortion (dBc)

0.1 1 4

f = 5MHz

3rd Harmonic

2nd Harmonic

6

®

OPA2652

TYPICAL PERFORMANCE CURVES: VS = ±5V (Cont.)

At TA = +25°C, G = +2, RF = 402Ω, and RL = 100Ω, unless otherwise noted. See Figures 1 and 2.

2

1

0
–1
–2
–3
–4
–5
–6
–7
–8

FREQUENCY RESPONSE vs CAPACITIVE LOAD

Frequency (Hz)

01G10M 100M

Normalized Gain to Capacitive Load (dB)

G = +2

1/2

OPA2652

R

S

V

O

C

L

1kΩ

CL = 10pF

CL = 22pF

CL = 47pF

CL = 100pF

–50

–60

–70

–80

–90

TWO-TONE, 3rd-ORDER SPURIOUS LEVEL

Single-Tone Load Power (dBm)

–8 –6 –4 –2 0 2 4

3rd-Order Spurious Level (dBc)

1MHz

2MHz

20MHz
10MHz

5MHz

Load Power at matched 50Ω load

0.30

0.25

0.20

0.15

0.10

0.05

0.00

COMPOSITE VIDEO dG/dφ

Number of 150Ω Loads

123 4

dG/dφ (%/°)

dφ, Positive Video

dφ, Negative Video

dG, Positive Video

dG, Negative Video

100

10

1

INPUT VOLTAGE AND CURRENT NOISE DENSITY

Frequency (Hz)

100 1k 10k 100k 1M 10M

Voltage Noise (nV/√Hz)

Current Noise (pA/√Hz)

Voltage Noise = 8.0nV/√Hz

Current Noise = 1.4pA/√Hz

70

60

50

40

30

20

10

0

RECOMMENDED R

S

vs CAPACITIVE LOAD

Capacitive Load (pF)

1 10 100 1000

R

S

(Ω)

–30

–40

–50

–60

–70

–80

–90

CHANNEL-TO-CHANNEL CROSSTALK

Frequency (MHz)

10 100 1000

Crosstalk, Input-Referred (dB)

7

®

OPA2652

TYPICAL PERFORMANCE CURVES: VS = ±5V (Cont.)

At TA = +25°C, G = +2, RF = 402Ω, and RL = 100Ω, unless otherwise noted. See Figures 1 and 2.

5
4
3
2
1

0
–1
–2
–3
–4
–5

OUTPUT VOLTAGE AND CURRENT LIMITATIONS

I

O

(mA)

–200 –150 –100 –50 0 10050 150 200

V

O

(V)

Output Current Limited

1W Internal

Power Limit

1W Internal

Power Limit

Output Current Limit

20Ω Load Line

10Ω Load Line

50Ω Load Line

100Ω

Load Line

5
4
3
2
1

0
–1
–2
–3
–4
–5

INVERTING OVERDRIVE RECOVERY

V

IN

Time (20ns/div)

Input and Output Voltage (V)

V

OUT

G = –1

100

10

1

0.1

0.01

CLOSED-LOOP OUTPUT IMPEDANCE vs FREQUENCY

Frequency (Hz)

10k 400M100k 1M 100M10M

Output Impedance (Ω)

1/2

OPA2652

402Ω

200Ω

402Ω

Z

O

5
4
3
2
1

0
–1
–2
–3
–4
–5

NON-INVERTING OVERDRIVE RECOVERY

V

IN

Time (20ns/div)

Output Voltage (V)

2.5

2.0

1.5

1.0

0

0.50
–0.5
–1.0
–2.0
–2.5

Input Voltage (V)

V

OUT

G = +2

100

90
80
70
60
50
40
30
20
10

0

CMRR AND PSRR vs FREQUENCY

Frequency (Hz)

1k 100M10k 100k 1M 10M

Power Supply Rejection Ratio (dB)

Common-Mode Rejection Ratio (dB)

CMRR

+PSRR

–PSRR

70
60
50
40
30
20
10

0

–10

0
–30
–60
–90
–120
–150
–180
–210
–240

OPEN-LOOP GAIN AND PHASE

Frequency (Hz)

10k 1G100k 10M1M 100M

Open-Loop Gain (dB)

Open-Loop Phase (°)

Open-Loop Gain

Open-Loop Phase

8

®

OPA2652

TYPICAL PERFORMANCE CURVES: VS = ±5V (Cont.)

At TA = +25°C, G = +2, RF = 402Ω, and RL = 100Ω, unless otherwise noted. See Figures 1 and 2.

6
5
4
3
2
1

0
–1
–2
–3
–4
–5
–6

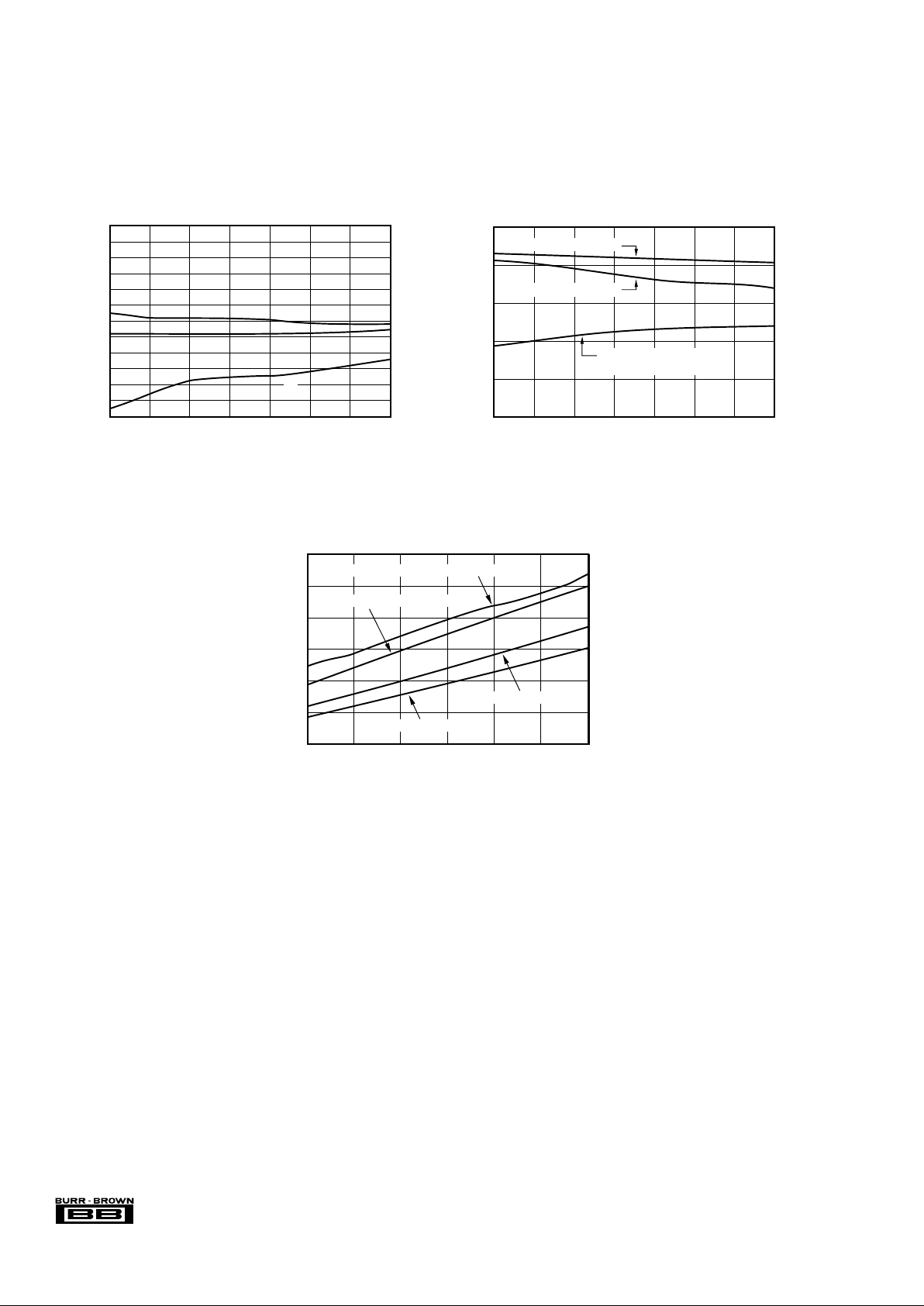

TYPICAL DC DRIFT OVER TEMPERATURE

Ambient Temperature (°C)

–40 –20 0 20 40 60 80 100

Input Offset Voltage (mV)

Input Bias and Offset Current (µA)

I

OS

V

OS

I

B

6

5

4

3

2

1

0

COMMON-MODE INPUT VOLTAGE RANGE

AND OUTPUT SWING vs SUPPLY VOLTAGE

Supply Voltage (V)

±3 ±4 ±5 ±6

Voltage Range (V)

Positive Common-Mode Input Range

Negative Output Voltage Range

Positive Output Voltage Range

Negative Common-Mode Input Range

250

200

150

100

50

0

25

20

15

10

5

0

SUPPLY AND OUTPUT CURRENT vs TEMPERATURE

Ambient Temperature (°C)

–40 –20 0 20 40 60 80 100

Output Current (mA)

Supply Current (mA)

Sourcing Output Current

Quiescent Supply Current

(Both Channels)

Sinking Output Current

9

®

OPA2652

APPLICATIONS INFORMATION

WIDEBAND VOLTAGE FEEDBACK OPERATION

The OPA2652 is a dual low power, wideband voltage
feedback operational amplifier. Each channel is internally
compensated to provide unity gain stability. The OPA2652’s
voltage feedback architecture features true differential and
fully symmetrical inputs. This minimizes offset errors, mak­ing the OPA2652 well suited for implementing filter and
instrumentation designs. As a dual operational amplifier,
OPA2652 is an ideal choice for designs requiring multiple
channels where reduction of board space, power dissipation
and cost are critical. Its AC performance is optimized to
provide a gain bandwidth product of 200MHz and a fast rise
time of 2.0ns, which is an important consideration in high
speed data conversion applications. The low DC input offset
of ±1.5mV and drift of ±5µV/°C support high accuracy
requirements. In applications requiring a higher slew rate
and wider bandwidth, such as video and high bit rate digital
communications, consider the dual current feedback
OPA2658, or OPA2681.

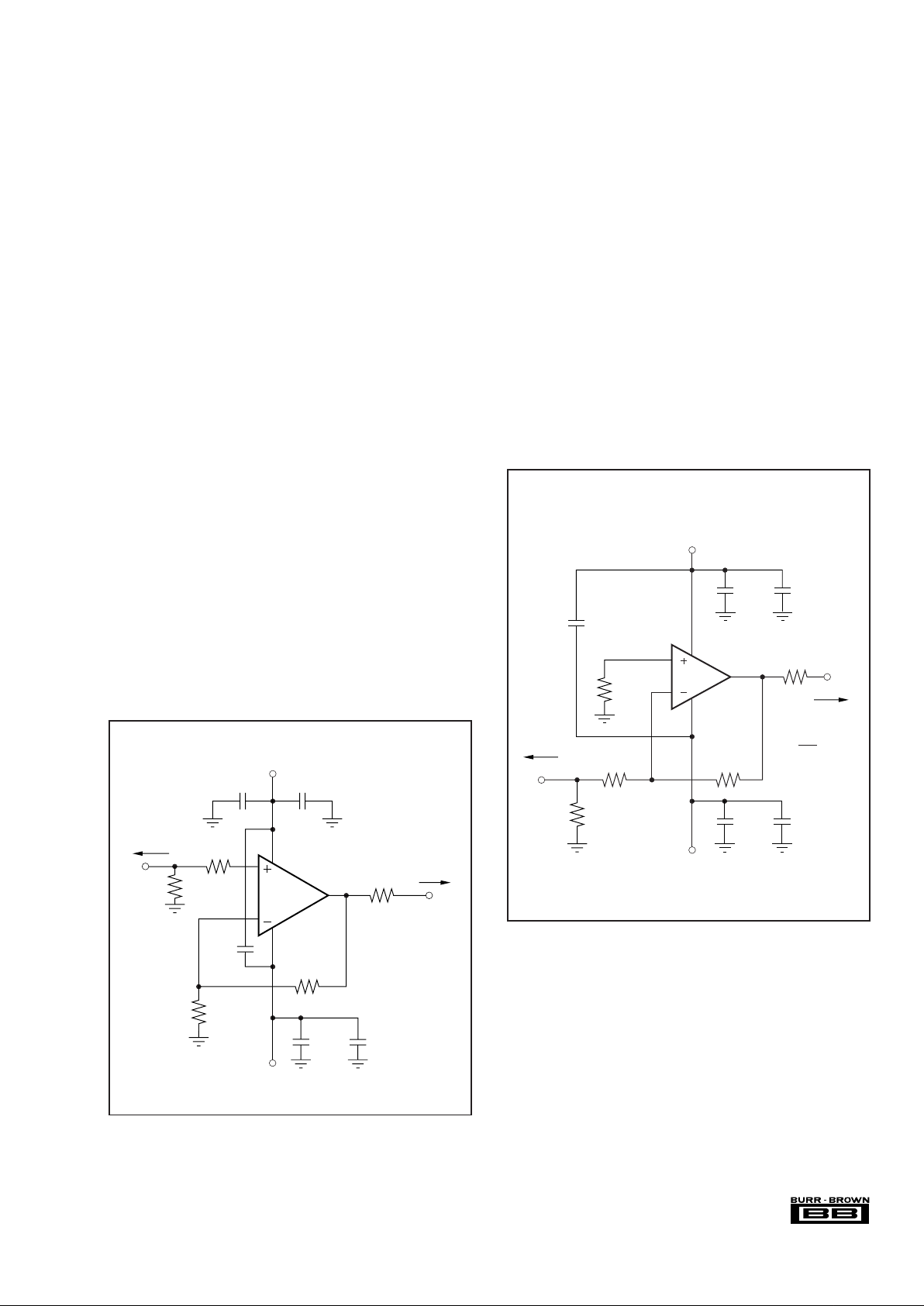

Figure 1 shows the DC-coupled, gain of +2, dual power
supply circuit configuration used as the basis of the ±5V
Specifications and Typical Performance Curves. This is for
one channel. The other channel is connected similarly. For
test purposes, the input impedance is set to 50Ω with a
resistor to ground and the output impedance is set to 50Ω
with a series output resistor. Voltage swings reported in the
specifications are taken directly at the input and output pins,
while output powers (dBm) are at the matched 50Ω load. For
the circuit of Figure 1, the total effective load will be 100Ω
|| 804Ω. Two optional components are included in Figure 1.

An additional resistor (174Ω) is included in series with the
non-inverting input. Combined with the 25Ω DC source
resistance looking back towards the signal generator, this
gives an input bias current cancelling resistance that matches
the 201Ω source resistance seen at the inverting input (see the
DC Accuracy and Offset Control section). In addition to the
usual power supply decoupling capacitors to ground, a 0.1µF
capacitor is included between the two power supply pins. In
practical PC board layouts, this optional-added capacitor will
typically improve the 2nd harmonic distortion performance
by 3dB to 6dB.

Figure 2 shows the DC-coupled gain of –1, bipolar supply
circuit configuration which is the basis of the Specifications
and Typical Performance Curves at G = –1. The input
impedance matching resistor (57.6Ω) used for testing gives a
50Ω input load. A resistor (205Ω) connects the non-inverting
input to ground. This provides the DC source resistance
matching to cancel outputs errors due to input bias current.

1/2

OPA2652

+5V

+

–5V

50Ω Load

49.9Ω

174Ω

49.9ΩV

O

V

I

50Ω Source

R

G

402Ω

R

F

402Ω

+

6.8µF

0.1µF 6.8µF

0.1µF

0.1µF

FIGURE 1. DC-Coupled, G = +2, Bipolar Supply, Specifi-

cation and Test Circuit.

FIGURE 2. DC-Coupled, G = –1, Bipolar Supply, Specifi-

cation and Test Circuit.

1/2

OPA2652

50Ω

R

F

402Ω

R

G

402Ω

R

B

205Ω

R

M

57.6Ω

Source

+5V

–5V

R

O

49.9Ω

0.1µF 6.8µF
+

0.1µF

0.1µF

6.8µF

+

50Ω Load

V

O

V

I

= –1

V

O

V

I

DIFFERENTIAL ADC DRIVER

The circuit on the front page shows an OPA2652 driving the
ADS807 A/D converter differentially, at a gain of +2V/V.
The outputs are AC-coupled to the converter to adjust for the
difference in supply voltages. The 133Ω resistors at the non­inverting inputs minimize DC offset errors. The differential
topology minimizes even-order distortion products, such as
second-harmonic distortion.

10

®

OPA2652

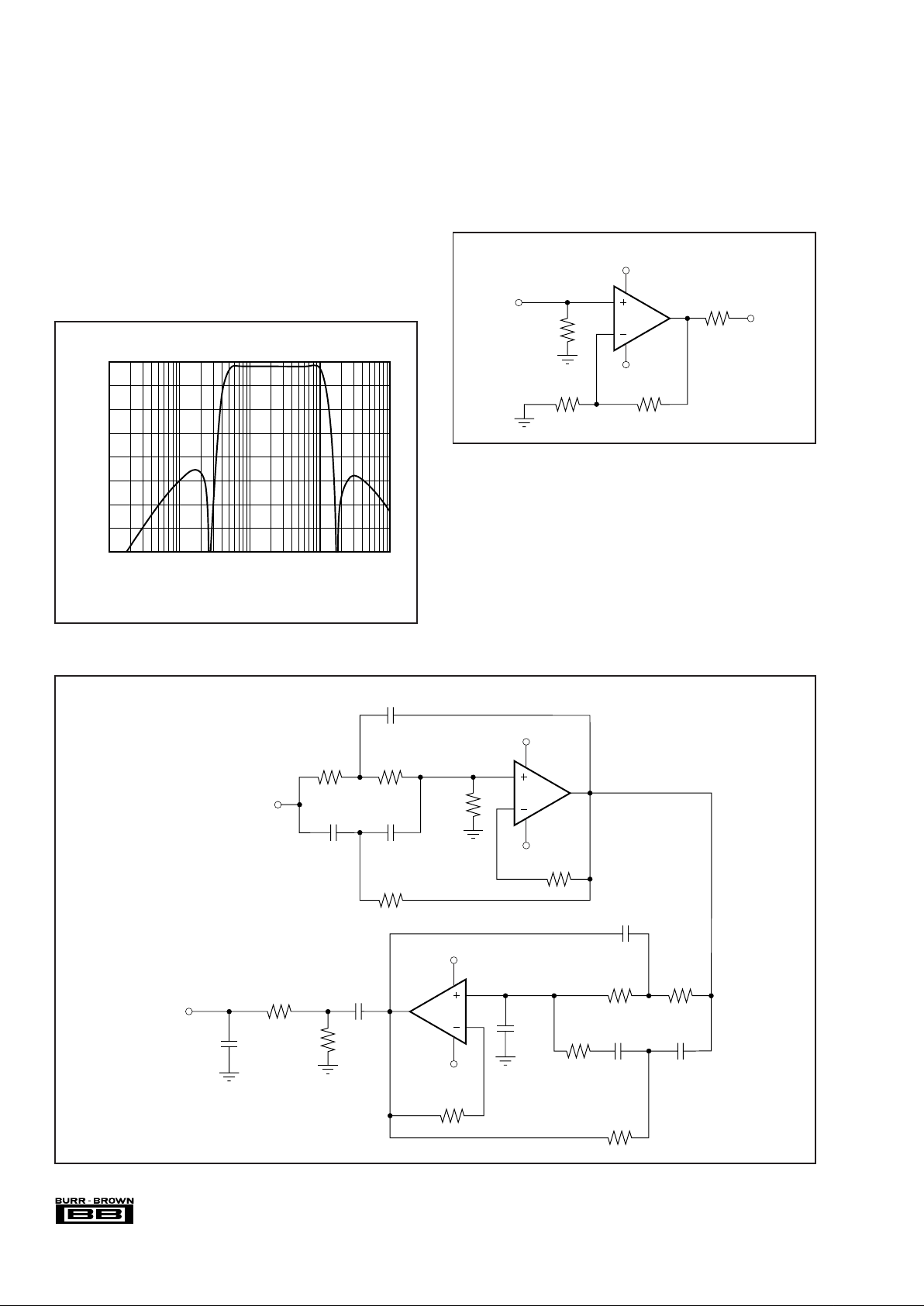

BANDPASS FILTER

Figure 3 shows a single OPA2652 implementing a sixth­order bandpass filter. This filter cascades two second-order
Sallen-Key sections with transmission zeros, and a double
real pole section. It has 0.3dB of ripple, –3dB frequencies of
450kHz and 11MHz, and –23dB frequencies of 315kHz and
16MHz. The 20.0Ω resistor isolates the first OPA2652 out­put from capacitive loading. This improves stability with
minimal impact on the filter response. Figure 4 shows the
nominal response simulated by SPICE.

0

–5
–10
–15
–20
–25
–30
–35
–40

10k 100k 1M 10M 100M

Gain (dB)

Frequency (Hz)

1/2

OPA2652

402Ω402Ω

Video

Input

Video

Output

+5V

–5V

75.0Ω

75.0Ω

1/2

OPA2652

24.9Ω

143Ω

140Ω 2.10kΩ

1.0nF1.0nF

V

IN

+5V

–5V

2.2nF

1.30kΩ

1/2

OPA2652

24.9Ω

200Ω

107Ω

225Ω

20.0Ω

158Ω

150pF12pF

2.7nF

+5V

–5V

180pF

100Ω

100pF

1% Resistors
5% Capacitors

18pF

V

OUT

VIDEO LINE DRIVER

Figure 5 shows the OPA2652 used as a video line driver. Its
outstanding differential gain and phase allow it to be used in
studio equipment, while its low cost and SOT23-8 package
option will support consumer applications.

PULSE DELAY CIRCUIT

Figure 6 shows the OPA2652 used in a pulse delay circuit.
This circuit cascades the two op amps in the OPA2652, each
forming a single pole, active allpass filter. The overall gain
is +1, and the overall delay through the filter is:

tGD = n(2RC), overall group delay

n= 2, the number of cascaded stages

FIGURE 4. Nominal Filter Response.

FIGURE 3. Bandpass Filter.

FIGURE 5. Video Line Driver.

11

®

OPA2652

RF and RG need to be equal to maintain a constant gain
magnitude. The rise and fall times of the input pulses (t

r(IN)

)
should be slow enough to prevent pre-shoot artifacts in the
response.

t

r(IN)

≥ 5RC, minimal pre-shoot

SIMPLE BANDPASS FILTER

Figure 7 shows the OPA2652 used as simple bandpass filter.
The OPA2652 is well suited for this type of circuit because
it is very stable at a noise gain of +1.

MACROMODELS AND APPLICATIONS SUPPORT

Computer simulation of circuit performance using SPICE is
often useful when analyzing the performance of analog
circuits and systems. This is particularly true for Video and
RF amplifier circuits where parasitic capacitance and induc­tance can have a major effect on circuit performance. Check
the Burr-Brown web site (www.burr-brown.com) for avail­able SPICE products (not all parts have models). These
models do a good job of predicting small-signal AC and
transient performance under a wide variety of operating
conditions. They do not do as well in predicting the har­monic distortion or dG/dφ characteristics. These models do
not attempt to distinguish between the package types in their
small-signal AC performance.

OPERATING SUGGESTIONS

OPTIMIZING RESISTOR VALUES

Since the OPA2652 is a unity gain stable voltage feedback
op amp, a wide range of resistor values may be used for the
feedback and gain setting resistors. The primary limits on
these values are set by dynamic range (noise and distortion)
and parasitic capacitance considerations. For a non-inverting
unity gain follower application, the feedback connection
should be made with a 25Ω resistor, not a direct short. This
will isolate the inverting input capacitance from the output
pin and improve the frequency response flatness. Usually,
the feedback resistor value should be between 200Ω and

1.5kΩ. Below 200Ω, the feedback network will present
additional output loading which can degrade the harmonic
distortion performance of the OPA2652. Above 1.5kΩ, the
typical parasitic capacitance (approximately 0.2pF) across
the feedback resistor may cause unintentional band-limiting
in the amplifier response.

A good rule of thumb is to target the parallel combination of
RF and RG (Figure 1) to be less than approximately 300Ω.
The combined impedance RF || RG interacts with the invert­ing input capacitance, placing an additional pole in the
feedback network, and thus a zero in the forward response.
Assuming a 2pF total parasitic on the inverting node, hold­ing RF || RG < 300Ω will keep this pole above 250MHz. By
itself, this constraint implies that the feedback resistor R

F

can increase to several kΩ at high gains. This is acceptable
as long as the pole formed by RF and any parasitic capaci­tance appearing in parallel is kept out of the frequency range
of interest.

1/2

OPA2652

402Ω

C

R

402Ω

1/2

OPA2652

R

G

402Ω

R

F

402Ω

C

V

O

V

IN

+5V

–5V

+5V

–5V

R

V

OUT

V

IN

+5V

–5V

C

2

C

1

402Ω

402Ω

402Ω

1/2

OPA2652

DESIGN-IN TOOLS

DEMONSTRATION BOARDS

PC boards are available to assist in the initial evaluation of
circuit performance using the OPA2652. They are available
free as unpopulated PC boards delivered with descriptive
documentation. The summary information for these boards is
shown below:

FIGURE 6. Pulse Delay Circuit.

FIGURE 7. Inverting Bandpass Filter.

BOARD

PART ORDERING

PRODUCT PACKAGE NUMBER NUMBER

OPA2652U 8-Lead SO-8 DEM-OPA26xU MKT-352
OPA2652E SOT23-8 DEM-OPA2652E MKT-365

Contact the Burr-Brown Applications support line to request
this board.

12

®

OPA2652

BANDWIDTH VS GAIN: NON-INVERTING OPERATION

Voltage feedback op amps exhibit decreasing closed-loop
bandwidth as the signal gain is increased. In theory, this
relationship is described by the Gain Bandwidth Product
(GBP) shown in the specifications. Ideally, dividing GBP by
the non-inverting signal gain (also called the Noise Gain, or
NG) will predict the closed-loop bandwidth. In practice, this
only holds true when the phase margin approaches 90°, as it
does in high gain configurations. At low gains (increased
feedback factor), most amplifiers will exhibit a wider band­width and lower phase margin. The OPA2652 is compen­sated to give a flat response in a non-inverting gain of 1
(Figure 1). This results in a typical gain of +1 bandwidth of
700MHz, far exceeding that predicted by dividing the
200MHz GBP by NG = 1. Increasing the gain will cause the
phase margin to approach 90° and the bandwidth to more
closely approach the predicted value of (GBP/NG). At a gain
of +5, the 45MHz bandwidth shown in the Typical Specifi­cations is close to that predicted using this simple formula.

INVERTING AMPLIFIER OPERATION

Since the OPA2652 is a general purpose, wideband volt­age feedback op amp, all of the familiar op amp applica­tion circuits are available to the designer. Inverting opera­tion is one of the more common requirements and offers
several performance benefits. Figure 2 shows a typical
inverting configuration.

In the inverting configuration, three key design consider­ation must be noted. The first is that the gain resistor (RG)
becomes part of the signal channel input impedance. If input
impedance matching is desired (which is beneficial when­ever the signal is coupled through a cable, twisted pair, long
PC board trace or other transmission line conductor), R

G

may be set equal to the required termination value and R

F

adjusted to give the desired gain. This is the simplest
approach and results in optimum bandwidth and noise per­formance. However, at low inverting gains, the resultant
feedback resistor value can present a significant load to the
amplifier output. For an inverting gain of –1, setting RG to
50Ω for input matching eliminates the need for RM but
requires a 50Ω feedback resistor. This has the interesting
advantage that the noise gain becomes equal to 2 for a 50Ω
source impedance—the same as the non-inverting circuits
considered above. However, the amplifier output will now
see the 50Ω feedback resistor in parallel with the external
load. In general, the feedback resistor should be limited to
the 200Ω to 1.5kΩ range. In this case, it is preferable to
increase both the RF and RG values as shown in Figure 2, and
then achieve the input matching impedance with a third
resistor (RM) to ground. The total input impedance becomes
the parallel combination of RG and RM.

The second major consideration, touched on in the previous
paragraph, is that the signal source impedance becomes part
of the noise gain equation and influences the bandwidth. For
the example in Figure 2, the RM value combines in parallel
with the external 50Ω source impedance, yielding an effec-

tive driving impedance of 50Ω || 57.6Ω = 26.8Ω. This
impedance is added in series with RG for calculating the noise
gain (NG). The resultant NG is 1.94 for Figure 2, (an ideal 0Ω
source would cause NG = 2.00).

The third important consideration in inverting amplifier
design is setting the bias current cancellation resistor on the
non-inverting input (RB). If this resistor is set equal to the
total DC resistance looking out of the inverting node, the
output DC error, due to the input bias currents, will be
reduced to (Input Offset Current) • RF. If the 50Ω source
impedance is DC-coupled in Figure 2, the total resistance to
ground on the inverting input will be 429Ω. Combining this
in parallel with the feedback resistor gives 208Ω, which is
close to the RB = 205Ω used in Figure 2. To reduce the
additional high frequency noise introduced by this resistor,
it is sometimes bypassed with a capacitor. As long as R

B

<300Ω, the capacitor is not required since its total noise
contribution will be much less than that of the op amp’s
input noise voltage.

OUTPUT CURRENT AND VOLTAGE

The OPA2652 specifications in the spec table, though famil­iar in the industry, consider voltage and current limits sepa­rately. In many applications, it is the voltage • current, or V­I product, which is more relevant to circuit operation. Refer
to the “Output Voltage and Current Limitations” plot in the
Typical Performance Curves. The X and Y axes of this graph
show the zero-voltage output current limit and the zero­current output voltage limit, respectively. The four quadrants
give a more detailed view of the OPA2652’s output drive
capabilities, noting that the graph is bounded by a “Safe
Operating Area” of 1W maximum internal power dissipation
(500mW for each channel). Superimposing resistor load
lines onto the plot shows that the OPA2652 can drive ±2.2V
into 50Ω or ±2.5V into 100Ω without exceeding the output
capabilities, or the 1W dissipation boundary line.

To maintain maximum output stage linearity, no output
short-circuit protection is provided. This will not normally
be a problem since most applications include a series match­ing resistor at the output that will limit the internal power
dissipation if the output side of this resistor is shorted to
ground. However, shorting the output pin directly to the
adjacent positive power supply pin will, in most cases,
destroy the amplifier. Including a small series resistor (5Ω)
in the power supply line will protect against this. Always
place the 0.1µF decoupling capacitor directly on the supply
pins.

DRIVING CAPACITIVE LOADS

One of the most demanding and yet very common load
conditions for an op amp is capacitive loading. Often, the
capacitive load is the input of an A/D converter—including
additional external capacitance which may be recommended
to improve A/D linearity. A high speed amplifier like the
OPA2652 can be very susceptible to decreased stability and
closed-loop response peaking when a capacitive load is

13

®

OPA2652

placed directly on the output pin. When the amplifier’s
open-loop output resistance is considered, this capacitive
load introduces an additional pole in the signal path that can
decrease the phase margin. Several external solutions to this
problem have been suggested. When the primary consider­ations are frequency response flatness, pulse response fidel­ity and/or distortion, the simplest and most effective solution
is to isolate the capacitive load from the feedback loop by
inserting a series isolation resistor between the amplifier
output and the capacitive load. This does not eliminate the
pole from the loop response, but rather shifts it and adds a
zero at a higher frequency. The additional zero acts to cancel
the phase lag from the capacitive load pole, thus increasing
the phase margin and improving stability.

The Typical Performance Curves show the recommended
RS versus capacitive load and the resulting frequency re­sponse at the load. Parasitic capacitive loads greater than
2pF can begin to degrade the performance of the OPA2652.
Long PC board traces, unmatched cables, and connections to
multiple devices can easily exceed this value. Always con­sider this effect carefully, and add the recommended series
resistor as close as possible to the OPA2652 output pin (see
Board Layout Guidelines).

DISTORTION PERFORMANCE

The OPA2652 provides good distortion performance into a
100Ω load on ±5V supplies. Increasing the load impedance
improves distortion directly. Remember that the total load
includes the feedback network; in the non-inverting configu­ration (Figure 1) this is sum of RF + RG, while in the
inverting configuration, it is just RF. Also, providing an
additional supply decoupling capacitor (0.1µF) between the
supply pins (for bipolar operation) improves the 2nd-order
distortion slightly (3dB to 6dB).

It is also true that increasing the output voltage swing
increases harmonic distortion.

NOISE PERFORMANCE

The OPA2652 input-referred voltage noise (8nV/√Hz), and
the two input-referred current noise terms (1.4pA/√Hz), com­bine to give low output noise under a wide variety of operating
conditions. Figure 8 shows the op amp noise analysis model
with all the noise terms included. In this model, all noise terms
are taken to be noise voltage or current density terms in either
nV/√Hz or pA/√Hz.

The total output spot noise voltage can be computed as the
square root of the sum of all squared output noise voltage
contributors. Equation 1 shows the general form for the
output noise voltage using the terms shown in Figure 10.

Equation 1:

Dividing this expression by the noise gain ( NG = 1+RF/RG)
will give the equivalent input-referred spot noise voltage at
the non-inverting input, as shown in Equation 2.

Equation 2:

Evaluating these two equations for the OPA2652 circuit and
component values shown in Figure 1 will give a total output
spot noise voltage of 17nV/√Hz and a total equivalent input
spot noise voltage of 8.4nV/√Hz. This is including the noise
added by the bias current cancellation resistor (205Ω) on the
non-inverting input. This total input-referred spot noise
voltage is only slightly higher than the 8nV/√Hz specifica­tion for the op amp voltage noise alone. This will be the case
as long as the impedances appearing at each op amp input
are limited to the previously recommend maximum value of
300Ω. Keeping both (RF || RG) and the non-inverting input
source impedance less than 300Ω will satisfy both noise and
frequency response flatness considerations. Since the resis­tor-induced noise is relatively negligible, additional capaci­tive decoupling across the bias current cancellation resistor
(RB) for the inverting op amp configuration of Figure 2 is not
required.

DC ACCURACY AND OFFSET CONTROL

The balanced input stage of a wideband voltage feedback op
amp allows good output DC accuracy in a wide variety of
applications. Although the high speed input stage does
require relatively high input bias current (typically 4µA out
of each input terminal), the close matching between them
may be used to significantly reduce the output DC error
caused by this current. This is done by matching the DC
source resistances appearing at the two inputs. This reduces
the output DC error due to the input bias currents to the
offset current times the feedback resistor. Evaluating the
configuration of Figure 1, using worst-case +25°C input
offset voltage and current specifications, gives a worst-case
output offset voltage equal to:

±(NG • V

OS(MAX)

) ± (RF • I

OS(MAX)

)

= ±(1.94 • 7.0mV) ± (402Ω • 1.0µA)
= ±14.0mV

(NG = non-inverting signal gain)

A fine scale output offset null, or DC operating point
adjustment, is often required. Numerous techniques are
available for introducing DC offset control into an op amp

EN= E

NI

2

+ IBNR

S

()

2

+4kTRS+

I

BIRF

NG







2

+

4kTR

F

NG

EO= E

NI

2

+ IBNR

S

()

2

+4kTR

S

()

NG2+ IBIR

F

()

2

+4kTRFNG

4kT

R

G

R

G

R

F

R

S

1/2

OPA2652

I

BI

E

O

I

BN

4kT = 1.6x10

–20

J

at 290°K

E

RS

E

NI

4kTRS√

4kTRF√

FIGURE 8. Op Amp Noise Analysis Model.

14

®

OPA2652

circuit. Most of these techniques add a DC current through
the feedback resistor. In selecting an offset trim method, one
key consideration is the impact on the desired signal path
frequency response. If the signal path is intended to be non­inverting, the offset control is best applied as an inverting
summing signal to avoid interaction with the signal source.
If the signal path is intended to be inverting, applying the
offset control to the non-inverting input may be considered.
However, the DC offset voltage on the summing junction
will set up a DC current back into the source which must be
considered. Applying an offset adjustment to the inverting
op amp input can change the noise gain and frequency
response flatness. For a DC-coupled inverting amplifier,
Figure 9 shows one example of an offset adjustment tech­nique that has minimal impact on the signal frequency
response. In this case, the DC offset current is brought into
the inverting input node through resistor values that are
much larger than the signal path resistors. This will insure
that the adjustment circuit has minimal effect on the loop
gain and hence the frequency response.

Note that it is the power in the output stage, and not into the
load, that determines internal power dissipation.

As an example, compute the maximum TJ using an
OPA2652E (SOT23-8 package) in the circuit of Figure 1
operating at the maximum specified ambient temperature of
+85°C and with both outputs driving 2.5VDC into a grounded
100Ω load.

PD = 10V • 15.5mA + 2 [52/(4•(100Ω || 804Ω))] = 296mW
Maximum TJ = +85°C + (0.30W • 150°C/W) = 130°C.

This absolute worst-case condition meets the specified maxi­mum junction temperature. Actual PDL will almost always
be less than that considered here. Carefully consider maxi­mum TJ in your application.

BOARD LAYOUT GUIDELINES

Achieving optimum performance with a high frequency
amplifier like the OPA2652 requires careful attention to
board layout parasitics and external component types. Rec­ommendations that will optimize performance include:

a) Minimize parasitic capacitance to any AC ground for all
of the signal I/O pins. Parasitic capacitance on the output
and inverting input pins can cause instability: on the non­inverting input, it can react with the source impedance to
cause unintentional bandlimiting. To reduce unwanted ca­pacitance, a window around the signal I/O pins should be
opened in all of the ground and power planes around those
pins. Otherwise, ground and power planes should be unbro­ken elsewhere on the board.

b) Minimize the distance (<0.25") from the power supply
pins to high frequency 0.1µF decoupling capacitors. At the
device pins, the ground and power plane layout should not
be in close proximity to the signal I/O pins. Avoid narrow
power and ground traces to minimize inductance between
the pins and the decoupling capacitors. The power supply
connections should always be decoupled with these capaci­tors. An optional supply decoupling capacitor (0.1µF) across
the two power supplies (for bipolar operation) will improve
2nd harmonic distortion performance. Larger (2.2µF to

6.8µF) decoupling capacitors, effective at lower frequency,
should also be used on the main supply pins. These may be
placed somewhat farther from the device and may be shared
among several devices in the same area of the PC board.

c) Careful selection and placement of external compo-

nents will preserve the high frequency performance of
the OPA2652. Resistors should be a very low reactance

type. Surface-mount resistors work best and allow a tighter
overall layout. Metal film or carbon composition axially­leaded resistors can also provide good high frequency per­formance. Again, keep their leads and PC board traces as
short as possible. Never use wirewound type resistors in a
high frequency application. Since the output pin and invert­ing input pin are the most sensitive to parasitic capacitance,
always position the feedback and series output resistor, if

FIGURE 9. DC-Coupled, Inverting Gain of –2, with Offset

Adjustment.

R

F

1kΩ

±200mV Output Adjustment

= – = –2

Supply Decoupling

Not Shown

5kΩ

5kΩ

328Ω

0.1µF

R

G

500Ω

V

I

20kΩ

10kΩ

0.1µF

–5V

+5V

1/2

OPA2652

+5V

–5V

V

O

V

O

V

I

R

F

R

G

THERMAL ANALYSIS

Heatsinking or forced airflow may be required under ex­treme operating conditions. Maximum desired junction tem­perature will set the maximum allowed internal power dis­sipation as described below. In no case should the maximum
junction temperature be allowed to exceed 175°C.

Operating junction temperature (TJ) is given by TA + PD•

θ

JA

.
The total internal power dissipation (PD) is the sum of
quiescent power (PDQ) and additional power dissipated in
the output stage (PDL) to deliver load power. Quiescent
power is simply the specified no-load supply current times
the total supply voltage across the part. PDL will depend on
the required output signal and load but would, for a grounded
resistive load, be at a maximum when the output is fixed at
a voltage equal to 1/2 of either supply voltage (for equal
bipolar supplies). Under this condition, PDL = V

S

2

/(4•RL)

where RL includes feedback network loading.

15

®

OPA2652

any, as close as possible to the output pin. Other network
components, such as non-inverting input termination resis­tors, should also be placed close to the package. Where
double-side component mounting is allowed, place the feed­back resistor directly under the package on the other side of
the board between the output and inverting input pins. Even
with a low parasitic capacitance shunting the external resis­tors, excessively high resistor values can create significant
time constants that can degrade performance. Good axial
metal film or surface-mount resistors have approximately

0.2pF in shunt with the resistor. For resistor values >1.5kΩ,
this parasitic capacitance can add a pole and/or zero below
500MHz that can effect circuit operation. Keep resistor
values as low as possible consistent with load driving con­siderations. The 402Ω feedback used in the typical perfor­mance specifications is a good starting point for design.
Note that a 25Ω feedback resistor, rather than a direct short,
is suggested for the unity gain follower application. This
effectively isolates the inverting input capacitance from the
output pin that would otherwise cause additional peaking in
the gain of +1 frequency response.

d) Connections to other wideband devices on the board
may be made with short direct traces or through on-board
transmission lines. For short connections, consider the trace
and the input to the next device as a lumped capacitive load.
Relatively wide traces (50 to 100mils) should be used,
preferably with ground and power planes opened up around
them. Estimate the total capacitive load and set RS from the
plot of Recommended RS vs Capacitive Load. Low parasitic
capacitive loads (<5pF) may not need an RS since the
OPA2652 is nominally compensated to operate with a 2pF
parasitic load. Higher parasitic capacitive loads without an
RS are allowed as the signal gain increases (increasing the
unloaded phase margin) If a long trace is required, and the
6dB signal loss intrinsic to a doubly terminated transmission
line is acceptable, implement a matched impedance trans­mission line using microstrip or stripline techniques (consult
an ECL design handbook for microstrip and stripline layout
techniques). A 50Ω environment is normally not necessary
on board, and in fact, a higher impedance environment will
improve distortion as shown in the distortion versus load
plots. With a characteristic board trace impedance defined
(based on board material and trace dimensions), a matching
series resistor into the trace from the output of the OPA2652
is used as well as a terminating shunt resistor at the input of
the destination device. Remember also that the terminating
impedance will be the parallel combination of the shunt
resistor and the input impedance of the destination device;
this total effective impedance should be set to match the
trace impedance. The high output voltage and current capa-

bility of the OPA2652 allows multiple destination devices to
be handled as separate transmission lines, each with their
own series and shunt terminations. If the 6dB attenuation of
a doubly terminated transmission line is unacceptable, a
long trace can be series-terminated at the source end only.
Treat the trace as a capacitive load in this case and set the
series resistor value as shown in the plot of Recommended
RS vs Capacitive Load. This will not preserve signal integ­rity as well as a doubly terminated line. If the input imped­ance of the destination device is low, there will be some
signal attenuation due to the voltage divider formed by the
series output into the terminating impedance.

e) Socketing a high speed part like the OPA2652 is not
recommended. The additional lead length and pin-to-pin
capacitance introduced by the socket can create an ex­tremely troublesome parasitic network which can make it
almost impossible to achieve a smooth, stable frequency
response. Best results are obtained by soldering the OPA2652
onto the board.

INPUT AND ESD PROTECTION

The OPA2652 is built using a very high speed complemen­tary bipolar process. The internal junction breakdown volt­ages are relatively low for these very small geometry de­vices. These breakdowns are reflected in the “Absolute
Maximum Ratings” table. All device pins are protected with
internal ESD protection diodes to the power supplies as
shown in Figure 10.

These diodes provide moderate protection to input overdrive
voltages above the supplies as well. The protection diodes
can typically support 30mA continuous current. Where higher
currents are possible (e.g., in systems with ±15V supply
parts driving into the OPA2652), current-limiting series
resistors should be added into the two inputs. Keep these
resistor values as low as possible since high values degrade
both noise performance and frequency response.

External

Pin

+V

CC

–V

CC

Internal
Circuitry

FIGURE 10. Internal ESD Protection.
