Datasheet ICS514M Datasheet (ICST)

ICS514

LOCO™ PLL Clock Generator

Description

The ICS514 LOCO™ is the most cost effective
way to generate a high quality, high frequency
clock output from a 14.31818 MHz crystal or
clock input. The name LOCO stands for LOw
Cost Oscillator, as it is designed to replace crystal
oscillators in many electronic systems. Using
Phase-Locked-Loop (PLL) techniques, the device
uses a standard, inexpensive crystal to produce
output clocks up to 66.66 MHz.

Stored in the chip’s ROM is the ability to generate
5 different output frequencies, allowing one chip
to work in different speed processor systems.

The device also has a power down mode that turns
off the clock outputs when both select pins are low.
In this mode, the internal PLL is not running.

Block Diagram

Features

• Packaged as 8 pin SOIC

• ICS’ lowest cost PLL clock plus reference

• Produces common computer frequencies

• Input crystal frequency typically 14.3182 MHz

• Output clock frequencies up to 66.66 MHz

• Low jitter - 40 ps one sigma

• Compatible with all popular CPUs

• Duty cycle of 45/55

• Custom frequencies available

• Operating voltages of 3.0 to 5.5 V

• Power down mode turns off chip

• 25mA drive capability at TTL levels

• Advanced, low power CMOS process

14.31818 MHz
crystal or clock

X1/ICLK

X2

S1, S0

VDD GND

2

Crystal

Oscillator

Optional crystal capacitors

PLL

Clock

Synthesis

and Control

Circuitry

Output

Buffer

Output

Buffer

CLK

REF

MDS 514 B 1Revision 080699 Printed 11/13/00

Integrated Circuit Systems • 525 Race Street • San Jose•CA • 95126 • [phone]tel• [phone]fax

ICS514

p

p

LOCO™ PLL Clock Generator

Pin Assignment

X1/ICLK

VDD
GND

REF

18

2
3
4

X2

7

S1

6

S0

5

CLK

14.31818MHz Crystal or Clock Input

S1 S0 CLK Multiplier Accuracy

0 0 Power Down CLK - -

0 1 25 1.746 1 ppm
M 0 33.33 2.328 0.008%
M 1 40 2.794 1 ppm

1 0 50 3.492 1 ppm

1 1 66.66 4.656 0.008%

0 = connect directly to ground.
1 = connect directly to VDD.
M = leave unconnected (floating).
CLK and REF sto

low in power down state.

Pin Descriptions

Number Name Type Description

1 X1/ICLK I Crystal connection to 14.31818 MHz crystal or clock input.
2 VDD P Connect to +3.3V or +5V.
3 GND P Connect to ground.
4 REF O Reference 14.31818 MHz crystal oscillator buffered clock output.
5 CLK O Clock output per table above.
6 S0 TI Select 0 for output clock. Connect to GND or VDD or float. See table above.
7 S1 TI Select 1 for output clock. Connect to GND or VDD or float. See table above.
8 X2 O Crystal connection to 14.31818 MHz crystal. Leave unconnected for clock input.

Clock Decoding Table (MHz) with

Key: I = Input, TI = Tri-Level Input, O = output, P = power supply connection

Notes: 1. With S1 = S0 = 0, the internal PLL is turned off and the CLK output stops low.

The crystal oscillator and REF output are still active.

2. With a clock input, the phase relationship between the input and output clocks can
change each time the device is powered on. If a fixed phase relationship is required,

lease use our ICS571 or other zero delay multipliers.

MDS 514 B 2Revision 080699 Printed 11/13/00

Integrated Circuit Systems • 525 Race Street • San Jose•CA • 95126 • [phone]tel• [phone]fax

ICS514

LOCO™ PLL Clock Generator

Electrical Specifications

Parameter Conditions Minimum Typical Maximum Units
ABSOLUTE MAXIMUM RATINGS (stresses beond these can permanentl damage the device)

Supply Voltage, VDD Referenced to GND 7 V
Inputs Referenced to GND -0.5 VDD+0.5 V
Clock Output Referenced to GND -0.5 VDD+0.5 V
Ambient Operating Temperature 0 70 °C
Soldering Temperature Max of 10 seconds 260 °C
Storage temperature -65 150 °C

DC CHARACTERISTICS (VDD = 5.0 V unless otherwise noted)

Operating Voltage, VDD 3 5.5 V
Input High Voltage, VIH, ICLK only ICLK (Pin 1) (VDD/2)+1 VDD/2 V
Input Low Voltage, VIL, ICLK only ICLK (Pin 1) VDD/2 (VDD/2)-1 V
Input High Voltage, VIH S0 2 V
Input Low Voltage, VIL S0 0.8 V
Input High Voltage, VIH S1 VDD-0.5 V
Input Low Voltage, VIM S1 VDD/2 V
Input Low Voltage, VIL S1 0.5 V
Output High Voltage, VOH IOH=-25mA 2.4 V
Output Low Voltage, VOL IOL=25mA 0.4 V
IDD Operating Supply Current No Load, 66.66MHz 20 mA
IDD Power Down Supply Current, 3.3 V S1 = S0 = 0 1.5 mA
Short Circuit Current CLK output ±70 mA
On-Chip Pull-up Resistor Pin 6 270 kΩ
Input Capacitance, S1, S0 Pins 6, 7 4 pF

AC CHARACTERISTICS (VDD = 5.0 V unless otherwise noted)

Input Frequency, crystal input 5 14.31818 27 MHz
Input Frequency, clock input 2 14.31818 50 MHz
Output Frequency VDD = 4.5 to 5.5 V 14 66.66 140 MHz
Output Frequency VDD = 3.0 to 3.6 V 14 66.66 100 MHz
Output Clock Rise Time 0.8 to 2.0V 1 ns
Output Clock Fall Time 2.0 to 0.8V 1 ns
Output Clock Duty Cycle 1.5V, up to 140 MHz 45 49 to 51 55 %
Power up time, from PD to outputs stable 5 10 ms
Power down time, from running to PD state 50 ns
Absolute Clock Period Jitter Deviation from mean ±110 ps
One Sigma Clock Period Jitter 40 ps

MDS 514 B 3Revision 080699 Printed 11/13/00

Integrated Circuit Systems • 525 Race Street • San Jose•CA • 95126 • [phone]tel• [phone]fax

ICS514

Q

p

LOCO™ PLL Clock Generator

External Components / Crystal Selection

The ICS514 requires a 0.01µF decoupling capacitor to be connected between VDD and GND. It must be
connected close to the ICS514 to minimize lead inductance. No external power supply filtering is required
for this device. A 33Ω terminating resistor can be used next to the CLK and REF pins. The total on-chip
capacitance is approximately 12 pF, so a parallel resonant, fundamental mode crystal should be used. For
crystals with a specified load capacitance greater than 12 pF, crystal capacitors should be connected from
each of the pins X1 and X2 to Ground as shown in the Block Diagram on page 1. The value (in pF) of
these crystal caps should be = (CL-12)*2, where CL is the crystal load capacitance in pF. These external

capacitors are only required for applications where the exact frequency is critical. For a clock input,
connect to X1 and leave X2 unconnected (no ca

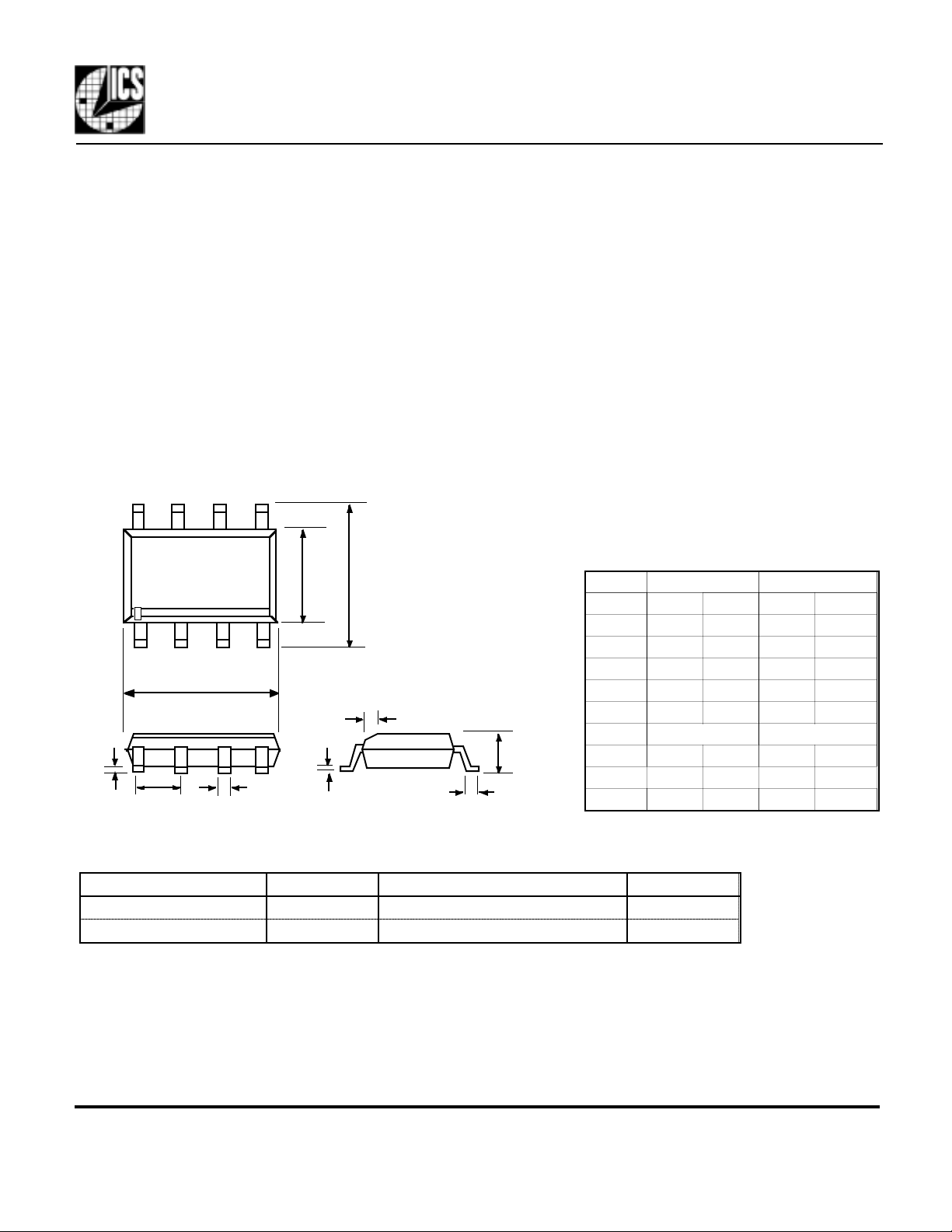

Package Outline and Package Dimensions

acitors on either).

8 pin SOIC

E H

Inches Millimeters

A 0.055 0.068 1.397 1.7272
b 0.013 0.019 0.330 0.483

D 0.185 0.200 4.699 5.080

E 0.150 0.160 3.810 4.064

H 0.225 0.245 5.715 6.223

e .050 BSC 1.27 BSC
h 0.015 0.381
L 0.016 0.035 0.406 0.889

0.004 0.01 0.102 0.254

Q

Pin 1

e

D

Symbol Min Max Min Max

h x 45°

A

c

b

L

Ordering Information

Part/Order Number Marking Package Temperature

ICS514M ICS514M 8 pin SOIC 0-70°C

ICS514MT ICS514M 8 pin SOIC on tape and reel 0-70°C

While the information presented herein has been checked for both accuracy and reliability, Integrated Circuit Systems, Incorporated (ICS) assumes no responsibility for either its
use or for the infringement of any patents or other rights of third parties, which would result from its use. No other circuits, patents, or licenses are implied. This product is
intended for use in normal commercial applications. Any other applications such as those requiring extended temperature range, high reliability, or other extraordinary
environmental requirements are not recommended without additional processing by ICS. ICS reserves the right to change any circuitry or specifications without notice. ICS does
not authorize or warrant any ICS product for use in life support devices or critical medical instruments.

LOCO is a trademark of ICS

MDS 514 B 4Revision 080699 Printed 11/13/00
