Datasheet ICS05S23F15A2IO Specification

Page 1
IBS04, ICS05 IO-Link 3-wire DC
Miniaturized proximity inductive sensors with IO-Link communication
Benets
A complete family. Available in Ø4 and M5 male
thread robust stainless steel housings with an operating distance of 0.8 to 1.3 mm.
High speed detection. IBS04 and ICS05 inductive
proximity sensors can reach an operating frequency of
up to 6 kHz.
Easy to install. The active face can be installed ush
with the surrounding area. The user can choose between 2 m PVC cable and M8-disconnect plug versions.
High precision. The onboard advanced microcontroller
ensures better stability with respect to environmental
inuences, with highly reliable repeatable measurements
between -25 and +70°C.
Easy customization to specic OEM requests:
di󰀨erent cable lengths and materials, special labelling,
customized pig-tail solutions with special cables and connectors are possible on request.
Description
The IBS04 and ICS05 series represent the optimal solution for industrial automation equipment in applications where space is limited, including tool­selection, robotic position-sensing and control of micro-mechanisms. The advanced electronics is enclosed in a robust stainless steel housing. The availability of the M8-plug and 2m-PVC cable
connection allow exible mounting.
On-board IO-Link communication opens up many
possibilities, such as easy conguration and set-
Only for IO-Link sensors
The output can be operated either as a switching output
or in IO-Link mode.
Fully congurable via IO-Link v1.1. Electrical outputs
can be congured as PNP/NPN/Push-pull, normally
open or normally closed.
Timer functions can be set, such as switch-on and
switch-o󰀨 delay
Adjustable sensing distance and hysteresis: sensing
distance can be set to 62% or 100% of the maximum
sensing distance
Temperature monitoring: over or under-run temperature
alarms can be set
up of the devices and advanced parameter setting.
Applications
Non contact detection of metal objects in general position-sensing and presence-sensing in industrial applications
Particularly suitable for rotational speed monitoring thanks to the high operating frequency
Main functions
Integrated diagnostic function with ashing LED in the event of a short circuit or overload
IBS04, ICS05 IO-Link 3-wire DC DS EN10/07/2018
Carlo Gavazzi Automation S.p.A.
1
Page 2
IBS04, ICS05 IO-Link 3-wire DC
IO-Link sensors
The devices can be operated in IO-Link mode once connected to an IO-Link master, or in standard I/O mode.
In IO-Link mode the switching signals of the sensor are made available in the process data via the IO-Link interface.
Several sensor functions can be set via the IO-Link interface:
Adjustable switching distance: 62% or 100% of the maximum switching distance. Adjustable hysteresis: standard or increased value. Divider function: the sensor gives a signal after a specied number of actuation pulses has been
reached.
► Switch-on delay: the switching pulse is generated after the sensor actuation. Switch-o󰀨 delay: the generation of the switch signal is delayed by the set time after sensor actuation. Temperature error: temperature is out of specications. Temperature over-run and under-run: temperature is out of the limits dened by the user.
References
Order code
I S F
Enter the code option instead of
Code Option Description
I - Inductive sensor
B Cylindrical housing with smooth barrel C Cylindrical housing with threaded barrel
S - Stainless steel housing
F - Flush
04 Ø4 housing 05 M5 housing
S Short housing with smooth barrel
S23 Short housing with thread length of 23 mm
08 Sensing distance 0.8mm
15 Sensing distance 1.3mm M5 M8 plug A2 2 m PVC cable NO NPN – normally open output NC NPN – normally closed output PO PNP – normally open output PC PNP – normally closed output
IO IO-Link programmable version
Additional characters can be used for customized versions.
IBS04, ICS05 IO-Link 3-wire DC DS EN10/07/2018
Carlo Gavazzi Automation S.p.A.
2
Page 3
Selection guide
Ø4 Standard and extended range, short housing
IBS04, ICS05 IO-Link 3-wire DC
Con-
nec-
tion
Cable 0.8 mm IBS04SF08A2NO IBS04SF08A2PO IBS04SF08A2NC IBS04SF08A2PC
Plug 0.8 mm IBS04SF08M5NO IBS04SF08M5PO IBS04SF08M5NC IBS04SF08M5PC
Cable 1.3 mm IBS04SF15A2NO IBS04SF15A2PO IBS04SF15A2NC IBS04SF15A2PC
Plug 1.3 mm IBS04SF15M5NO IBS04SF15M5PO IBS04SF15M5NC IBS04SF15M5PC
Rated
operating
distance
Sn
Ordering no.
NPN,
Normally open
Ordering no.
PNP,
Normally open
Ordering no.
NPN,
Normally closed
Ordering no.
PNP,
Normally closed
M5 Standard and extended range, short housing
Con-
nec-
tion
Cable 0.8 mm ICS05S23F08A2NO ICS05S23F08A2PO ICS05S23F08A2NC ICS05S23F08A2PC
Plug 0.8 mm ICS05S23F08M5NO ICS05S23F08M5PO ICS05S23F08M5NC ICS05S23F08M5PC
Cable 1.3 mm ICS05S23F15A2NO ICS05S23F15A2PO ICS05S23F15A2NC ICS05S23F15A2PC
Plug 1.3 mm ICS05S23F15M5NO ICS05S23F15M5PO ICS05S23F15M5NC ICS05S23F15M5PC
Rated
operating
distance
Sn
Ordering no.
NPN,
Normally open
Ordering no.
PNP,
Normally open
Ordering no.
NPN,
Normally closed
Ordering no.
PNP,
Normally closed
IO-Link types
Con-
nec-
tion
Cable Ø4
Plug Ø4 IBS04SF15M5IO
Cable M5 ICS05S23F15A2IO
Plug M5 ICS05S23F15M5IO
Body
style
IBS04, ICS05 IO-Link 3-wire DC DS EN10/07/2018
Rated operating distance
Sn
Congurable: 0.8 or 1.3mm
Factory setting: 1.3mm
Output type Ordering no.
Congurable: NPN/PNP/push-pull
NO/NC
Factory setting: PNP, NO
IBS04SF15A2IO
Carlo Gavazzi Automation S.p.A.
3
Page 4
A
A
A
B B
B
C
C
Structure
IBS04
IBS04, ICS05 IO-Link 3-wire DC
Element Component Function
A Sensing face Flush
B LED
C M8, 3 pin, male connector For plug versions only
ICS05
A AB B
Element Component Function
A Sensing face Flush B 2 nuts For sensor mounting
C LED
D M8, 3 pin, male connector For plug versions only
C C D
Yellow LED: Output ashing: short circuit or
overload indication
A
B
C
D
Yellow LED: Output ashing: short circuit or
overload indication
IBS04, ICS05 IO-Link 3-wire DC DS EN10/07/2018
Carlo Gavazzi Automation S.p.A.
4
Page 5
Y
S
T
Distance [Thou]
[Thou]
[mm]
Distance [mm]
-4 412202836445260
-118
-94,4
-70,8
-47,2
-23,6
0
23,6
47,2
70,8
94,4
118
-3
-2,5
-2
-1,5
-1
-0,5
0
0,5
1,5
2,5
3
-0,1 00,1 0,20,3 0,40,5 0,60,7 0,80,9 11,1 1,21,3 1,41,5 1,6
Distance [Thou]
[Thou]
[mm]
Distance [mm]
1
2
S
T
Sensing
Detection
IBS04, ICS05 IO-Link 3-wire DC
Rated operating distance S
n
0.8 mm standard range or 1.3 mm extended range
The operating distance is measured according to IEC 60947-5-2, using a
standard target moving axially.
This target is square shape 1 mm thickness, made of steel e.g. type Fe 360
Reference target
as dened in ISO 630 and it shall be of the rolled nish.
The length of the side of the square is equal to
– the diameter of the circle inscribed on the active surface of the sensing face,
or
– three times the rated operating distance Sn whichever is greater
Assured operating sensing distance (Sa)
0 ≤ Sa ≤ 0.81 x Sn (e.g. with Sn of 1.3 mm, Sa is 0 ... 1.053 mm)
E󰀨ective operating distance (Sr) 0.9 x Sn ≤ Sr ≤ 1.1 x S Usable operating distance (Su) 0.9 x Sr ≤ Su ≤ 1.1 x S
Temperature drift ≤ +/-10% Hysteresis (H) 1...20%
X
-3,9 03,9 7,811,715,619,523,427,331,235,1
2,5
2
1,5
1
0,5
0
S
-0,5
-1
-1,5
-2
-2,5
-0,1 00,1 0,20,3 0,40,5 0,60,7 0,80,9
T
98,4
73,8
49,2
24,6
0
-24,6
-49,2
-73,8
-98,4
S: sensor T: target
n
r
Fig. 1 Ø4 standard range Fig. 2 Ø4 extended range
IBS04, ICS05 IO-Link 3-wire DC DS EN10/07/2018
Carlo Gavazzi Automation S.p.A.
5
Page 6
Distance [Thou]
[Thou]
[mm]
Distance [mm]
Distance [Thou]
[Thou]
[mm]
Distance [mm]
-3,9 03,9 7,811,715,619,523,427,331,235,1
3
2,5
2
1,5
1
0,5
0
S
-0,5
-1
-1,5
-2
-2,5
-3
-0,1 00,1 0,20,3 0,40,5 0,60,7 0,80,9
Fig. 3 M5 standard range Fig. 4 M5 extended range
Sensors with IO-Link communication
T
118
94,4
70,8
47,2
23,6
0
-23,6
-47,2
-70,8
-94,4
-118
IBS04, ICS05 IO-Link 3-wire DC
-4 412202836445260
3,5
3
2,5
2
1,5
1
0,5
0
S
-0,5
-1
-1,5
-2
-2,5
-3
-3,5
-0,1 00,1 0,20,3 0,40,5 0,60,7 0,80,9 11,1 1,21,3 1,41,5 1,6
T
138
115
92
69
46
23
0
-23
-46
-69
-92
-115
-138
Rated operating distance S
n
Programmable via IO-Link: 62% or 100% of the maximum Sn=1.3mm
Hysteresis (H) Programmable via IO-Link: standard or increased
Correction factors
The specic operating distance Sn refers to dened measuring conditions. The following data have to be
considered as general guidelines.
Fe360 : Steel
CrNi : Chrome-nickel
CuZn : Brass Al : Aluminium Cu : Copper
Sr : E󰀨ective operating distance
Fig. 5 The rated operating distance is reduced by the use of metals and alloys other than Fe360. The most important reduction factors for inductive prox-
imity sensors are shown in the gure.
Accuracy
Repeat accuracy (R) ≤ 5%
IBS04, ICS05 IO-Link 3-wire DC DS EN10/07/2018
Carlo Gavazzi Automation S.p.A.
6
Page 7
IBS04, ICS05 IO-Link 3-wire DC
Features
Power Supply
Rated operational voltage (Ub) 10 to 30 VDC (ripple included) Ripple (U No load supply current (Io) ≤ 15 mA Power ON delay (tv) ≤ 50 ms
Output functions NPN or PNP by sensor type
Output conguration N.O. and N.C. by sensor type
Output current (Ie) ≤ 100 mA OFF-state current (Ir)
(only for PNP or NPN output) Voltage drop (Ud) Max. 1.2 VDC @ 100 mA Protection Short-circuit, reverse polarity and transients Voltage transient 1 kV/0.5 J
) ≤ 10%
rpp
Outputs
Standard sensors IO-Link sensors
Congurable via IO-Link: PNP, NPN
or push-pull
Factory setting: PNP Congurable via IO-Link: N.O. or N.C.
Factory setting: N.O.
≤ 100 μA
Response times
Operating frequency (f)
≤ 6 KHz Ø4, M5 standard range (Sn: 0.8mm) ≤ 4.5 KHz Ø4, M5 extended range (Sn: 1.3mm)
Indication
Standard IO mode:
Yellow LED Output Description
OFF OFF
ON ON
Blinking
f: 2Hz Short-circuit or overload f: 1Hz Temperature alarm (if enabled)
N.O. output, target not present N.C. output, target present
N.O. output, target present N.C. output, target not present
IO-Link mode:
LED is ON for 0.75 s and OFF for 0.075 s
IBS04, ICS05 IO-Link 3-wire DC DS EN10/07/2018
Carlo Gavazzi Automation S.p.A.
7
Page 8
Possibility to disable the LED
Environmental
IBS04, ICS05 IO-Link 3-wire DC
Ambient temperature
Ambient humidity
Vibration
Shock 30 G /11 ms. 10 shocks in X, Y and Z direction IEC 60068-2-27 Degree of protection IP67 IEC 60529; EN 60947-1
Operating: -25° to +70°C (-13° to +158°F) Storage: -30° to +80°C (-22° to +176°F) Operating: 35% to 95% Storage: 35% to 95% 10 to 55 Hz, amplitude 1.0 mm; sweep cycle 5
min; in X, Y and Z direction
IEC 60068-2-6
Compatibility and conformity
8 kV air discharge 4 kV contact discharge
3 V/m
3 V
30 A/m
EMC protection
MTTF
d
Approvals
IEC 61000-4-2 Electrostatic discharge
IEC 61000-4-3 Radiated radiofre­quency
IEC 61000-4-4 Burst immunity 2 kV IEC 61000-4-6 Conducted radio fre-
quency IEC 61000-4-8 Power frequency mag-
netic elds 4467 years @ 50°C (122°F)
®
CCC is not required for products rated ≤ 36 V
Mechanical data
Weight (including 2 nuts and the packaging) max.
Mounting Flush mountable
Material
Max tightening torque
(for ICS05 only)
Cable version: Ø4: 33.1g; M5: 35.4g Plug version: Ø4: 5.6g; M5: 7.6g
Housing: stainless steel AISI304 Front cap: nylon polymite 66 (PA66)
1.5 Nm
Electrical connection
Cable Ø4 and M5: 2m, 3 x 0.13 mm2, Ø3.2 mm, PVC, grey, oil proof
Plug M8 x 1 quick disconnect, 3 pin, male connector
IO-Link version only
Communication Via IO-Link V1.1 or via standard I/O
IBS04, ICS05 IO-Link 3-wire DC DS EN10/07/2018
Carlo Gavazzi Automation S.p.A.
8
Page 9
+
-
+
-
+
-
1 BN
4 BK
3 BU
+
-
+
-
1 BN
4 BK
3 BU
Out/IO-Link
Connection Diagrams
IBS04, ICS05 IO-Link 3-wire DC
1 BN
4 BK
3 BU
Fig. 6 NPN - Normally open Fig. 7 NPN - Normally closed
1 BN
4 BK
3 BU
1 BN
4 BK
3 BU
Fig. 8 PNP - Normally open
BN: brown BK: black BU: blue
Fig. 10 IO-Link
Colour code
Fig. 9 PNP - Normally closed
IBS04, ICS05 IO-Link 3-wire DC DS EN10/07/2018
Carlo Gavazzi Automation S.p.A.
9
Page 10
Ø
17.7
2 x Lock washer
2 x Lock washer

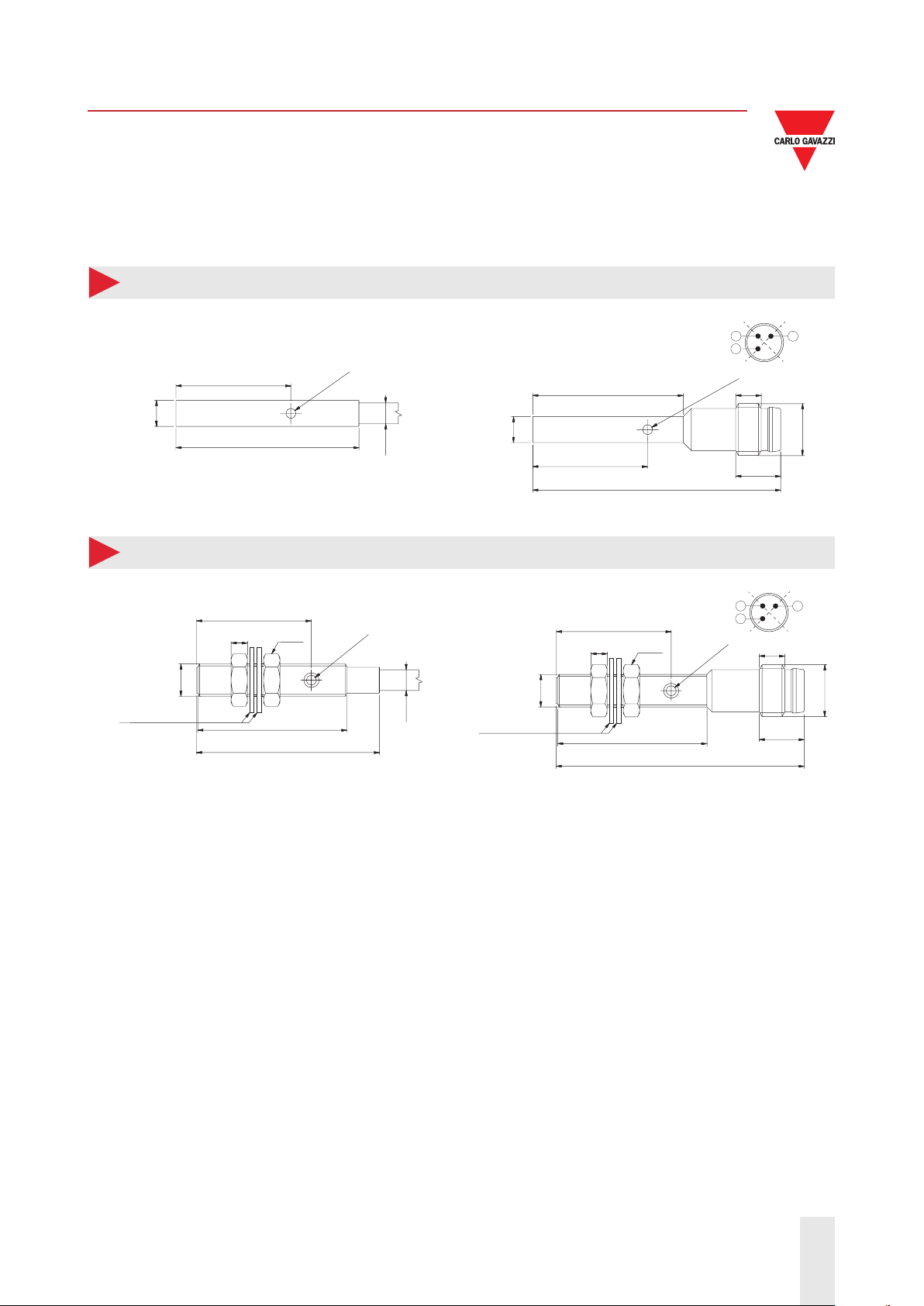

Dimensions [mm]
IBS04 [mm]
IBS04, ICS05 IO-Link 3-wire DC
4 1
17.7
28.2
Ø1
5 LED
.
5 LED
23.2 3.9
3.2
17.7
38.2
Ø1
.
6.9
Fig. 11 Short body, ush version, cable Fig. 12 Short body, ush version, plug
ICS05 [mm]
4
5 LED
.
1
2.5 SW 7
x 5.0 5
M
23
28.2
Ø1
5 LED
.
Ø3.2
x 5.0 5M
17.7
2.5 SW 7
Ø1
23
38.2
Fig. 13 Short body, ush version, cable Fig. 14 Short body, ush version, plug
3.9
6.9
3
x1 8M
3
x1 8M
IBS04, ICS05 IO-Link 3-wire DC DS EN10/07/2018
Carlo Gavazzi Automation S.p.A.
10
Page 11
ddd
≥ 6 x Sn

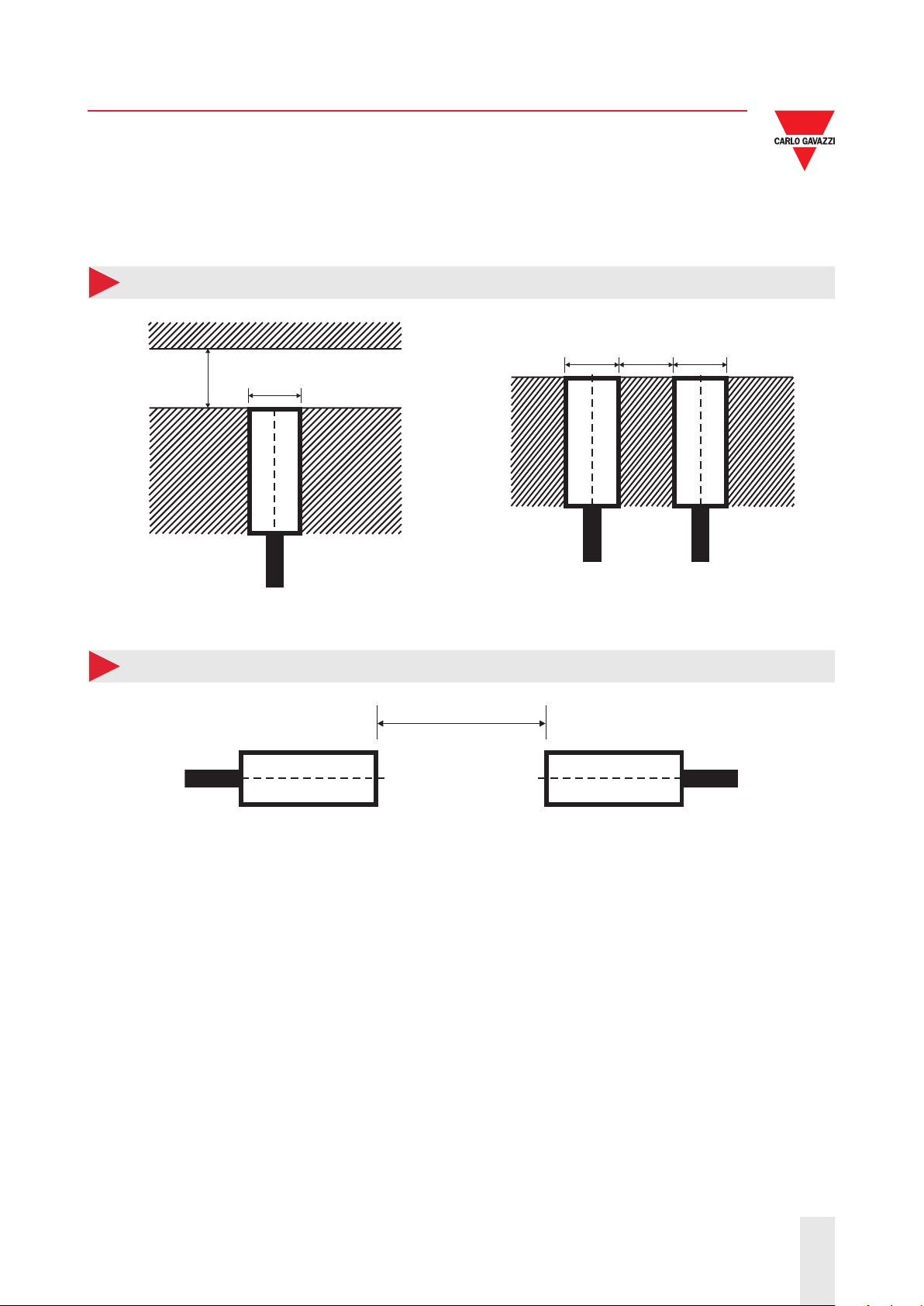

Installation
Ø4, M5 ush
IBS04, ICS05 IO-Link 3-wire DC
≥ 3 x Sn
Fig. 15 Flush sensor, when installed in damping
Sensors installed opposite each other
Fig. 17 For sensors installed opposite each other, a minimum space of 6 x Sn (the nominal sensing dis-
d
material
**
Fig. 16 Flush sensors, when installed together in
damping material
tance) must be observed
** Free zone or non-damping material
Sn: nominal sensing distance d: sensor diameter: 4 mm for IBS04, 5 mm for ICS05
IBS04, ICS05 IO-Link 3-wire DC DS EN10/07/2018
Carlo Gavazzi Automation S.p.A.
11
Page 12
IBS04, ICS05 IO-Link 3-wire DC
Delivery contents and compatible components
Delivery contents
Inductive proximity switch
2 xing nuts (only for ICS05)
2 lock washers (only for ICS05)
Packaging: plastic bag
CARLO GAVAZZI compatible components
Connector type: CONB53... series to be purchased separately
Further reading
Information Where to nd it QR
IO-Link manual http://www.productselection.net/MANUALS/UK/IOL_IM.pdf
Connectors http://www.productselection.net/Pdf/UK/CONB5.pdf
COPYRIGHT ©2018
Content subject to change. Download the PDF: www.productselection.net
IBS04, ICS05 IO-Link 3-wire DC DS EN10/07/2018
Carlo Gavazzi Automation S.p.A.
12
Loading...
