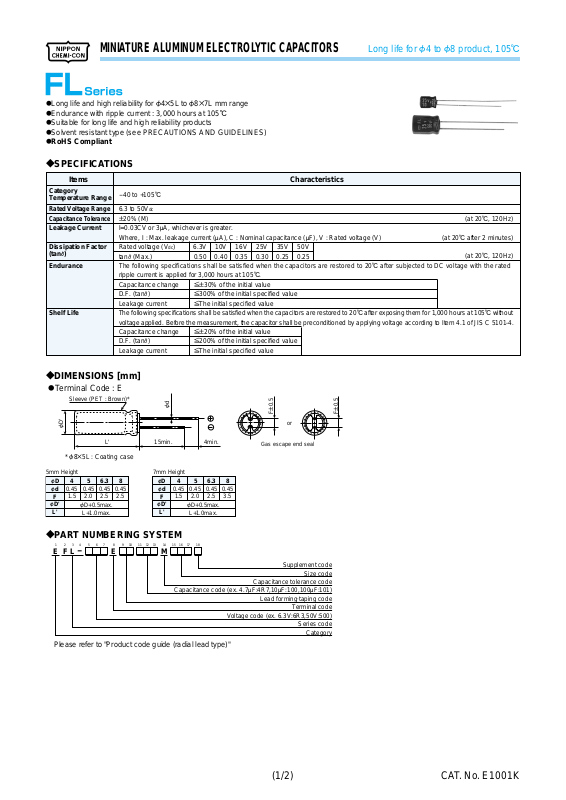

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
@Long life and high reliability for F4B5L to F8B7L mm range
@Endurance with ripple current : 3,000 hours at 105C
@Suitable for long life and high reliability products
@Solvent resistant type (see PRECAUTIONS AND GUIDELINES)
@RoHS Compliant
SPECIFICATIONS
?
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tane)
Endurance
Shelf Life
-
40 to +105C
6.3 to 50Vdc
P20% (M)
I=0.03CV or 3MA, whichever is greater.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)
Rated voltage (V
tanE (Max.)
The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
ripple current is applied for 3,000 hours at 105C.
Capacitance change [P30% of the initial value
D.F. (tanE) [300% of the initial specified value
Leakage current [The initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
dc)
6.3V
10V
16V
0.50
0.40
0.35
25V
0.30
Characteristics
35V
50V
0.25
0.25
Long life for F4 to F8 product, 105
(at 20C, 120Hz)
(at 20C after 2 minutes)
(at 20C, 120Hz)
C
DIMENSIONS [mm]
?
@Terminal Code : E
Sleeve (PET : Brown)*
FD'
L'
* F8B5L : Coating case
5mm Height
fD
fd
F
fD'
L'
PART NUMBERING SYSTEM
?
13426789105121311 16 17 181514
E F L-A A A E A A A A A A A A DM
4
0.45
1.5
5
0.45
2.0
FD+0.5max.
L+1.0max.
6.3
0.45
2.5
8
0.45
2.5
Please refer to "Product code guide (radial lead type)"
Fd
15min. 4min.
7mm Height
fD
fd
F
fD'
L'
5
4
0.45
1.5
Capacitance code (ex. 4.7MF:4R7,10MF:100,100MF:101)
0.45
0.45
2.0
FD+0.5max.
L+1.0max.
FP0.5
Gas escape end seal
8
6.3
0.45
3.5
2.5
Supplement code
Capacitance tolerance code
Lead formingยทtaping code
Voltage code (ex. 6.3V:6R3,50V:500)
FP0.5
or
Size code
Terminal code
Series code
Category
(1/2)
CAT. No. E1001K
Page 2
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
STANDARD RATINGS
?
Long life for F4 to F8 product, 105
C
WV
(
V
6.3
10
16
25
35
50
SS
dc
Cap
)
(mF)
33 4B5 0.50 5.4 37
47 4B7 0.50 4.5 44
56 5B5 0.50 3.1 57
82 5B7 0.50 2.5 70
100 6.3B5 0.50 1.7 82
150 6.3B7 0.50 1.3 116
220 8B5 0.50 1.5 110
270 8B7 0.50 0.90 162
22 4B5 0.40 5.4 37
33 4B7 0.40 4.5 44
33 5B5 0.40 3.1 57
47 5B7 0.40 2.5 70
68 6.3B5 0.40 1.7 82
100 6.3B7 0.40 1.3 116
150 8B5 0.40 1.5 110
220 8B7 0.40 0.90 162
15 4B5 0.35 5.4 37
22 4B7 0.35 4.5 44
22 5B5 0.35 3.1 57
33 5B7 0.35 2.5 70
47 6.3B5 0.35 1.7 82
68 6.3B7 0.35 1.3 116
100 8B5 0.35 1.5 110
150 8B7 0.35 0.90 162
10 4B5 0.30 5.4 37
15 4B7 0.30 4.5 44
15 5B5 0.30 3.1 57
22 5B7 0.30 2.5 70
33 6.3B5 0.30 1.7 82
56 6.3B7 0.30 1.3 116
68 8B5 0.30 1.5 110
100 8B7 0.30 0.90 162
10 5B5 0.25 3.1 57
10 5B7 0.25 2.5 70
22 6.3B5 0.25 1.7 82
22 6.3B7 0.25 1.3 116
33 8B5 0.25 1.5 110
47 8B7 0.25 0.90 162
10 6.3B5 0.25 2.9 63
15 6.3B7 0.25 2.2 90
22 8B5 0.25 2.6 84
22 8B7 0.25 1.6 120
: Enter the appropriate lead forming or taping code.
Case size
fDbL(mm)
4.7 4B5 0.25 5.4 37
6.8 4B7 0.25 4.5 44
1.0 4B5 0.25 19 18
2.2 4B5 0.25 14 22
3.3 4B5 0.25 11 26
4.7 4B7 0.25 9.0 30
4.7 5B5 0.25 6.0 40
6.8 5B7 0.25 4.8 50
tane
Impedance
(omax/20c, 100kHz)
Rated ripple current
(mArms/105c,100kHz)
Part No.
EFL-6R3ESS330MD05D
EFL-6R3ESS470MD07D
EFL-6R3ESS560ME05D
EFL-6R3ESS820ME07D
EFL-6R3ESS101MF05D
EFL-6R3ESS151MF07D
EFL-6R3ESS221MH05G
EFL-6R3ESS271MH07D
EFL-100ESS220MD05D
EFL-100ESS330MD07D
EFL-100ESS330ME05D
EFL-100ESS470ME07D
EFL-100ESS680MF05D
EFL-100ESS101MF07D
EFL-100ESS151MH05G
EFL-100ESS221MH07D
EFL-160ESS150MD05D
EFL-160ESS220MD07D
EFL-160ESS220ME05D
EFL-160ESS330ME07D
EFL-160ESS470MF05D
EFL-160ESS680MF07D
EFL-160ESS101MH05G
EFL-160ESS151MH07D
EFL-250ESS100MD05D
EFL-250ESS150MD07D
EFL-250ESS150ME05D
EFL-250ESS220ME07D
EFL-250ESS330MF05D
EFL-250ESS560MF07D
EFL-250ESS680MH05G
EFL-250ESS101MH07D
EFL-350ESS4R7MD05D
EFL-350ESS6R8MD07D
EFL-350ESS100ME05D
EFL-350ESS100ME07D
EFL-350ESS220MF05D
EFL-350ESS220MF07D
EFL-350ESS330MH05G
EFL-350ESS470MH07D
EFL-500ESS1R0MD05D
EFL-500ESS2R2MD05D
EFL-500ESS3R3MD05D
EFL-500ESS4R7MD07D
EFL-500ESS4R7ME05D
EFL-500ESS6R8ME07D
EFL-500ESS100MF05D
EFL-500ESS150MF07D
EFL-500ESS220MH05G
EFL-500ESS220MH07D
RATED RIPPLE CURRENT MULTIPLIERS
?
@Frequency Mul ti pli ers
Capacitance(mF)
4.7 to 6.8
10 to 150
220 to 270
Frequency(Hz)
to 3.3
120
0.20
0.35
0.40
0.50
1k
0.66
0.70
0.75
0.85
10k
0.90
0.90
0.90
0.94
100k
1.00
1.00
1.00
1.00
The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5C rise.
When long life performance is required in actual use, the rms ripple current has to be reduced.
(2/2)
CAT. No. E1001K
