Datasheet CDS1402MM, CDS1402MC Datasheet (DATEL)

1 OFFSET ADJUST V1
2 DO NOT CONNECT
3 ANALOG INPUT 1
4 ANALOG INPUT 2
5 ANALOG GROUND
6 S/H1 OUT
7 S/H1 ROUT
8 S/H2 SUMMING NODE

9 OFFSET ADJUST V2
10 DO NOT CONNECT
11 S/H1 COMMAND
12 S/H2 COMMAND

INPUT/OUTPUT CONNECTIONS

24 +5V ANALOG SUPPLY
23 ANALOG GROUND
22 V OUT
21 ANALOG GROUND
20 A/D CLOCK2
19 A/D CLOCK2
18 A/D CLOCK1
17 A/D CLOCK1
16 +5V DIGITAL SUPPLY
15 DIGITAL GROUND
14 ANALOG GROUND
13 –5V ANALOG SUPPLY

FEATURES

• Use with 10 to 14-bit A/D converters

• 5 Megapixels/second minimum throughput (14 bits)

• ±2.5V input/output ranges, Gain = –1

• Low noise, 200µVrms

• Two independent S/H amplifiers

• Gain matching between S/H's

• Offset adjustments for each S/H

• Four external A/D control lines

• Small package, 24-pin ceramic DDIP

• Low power, 350mW

• Low cost

GENERAL DESCRIPTION

The CDS-1402 is an application-specific, correlated double
sampling (CDS) circuit designed for electronic-imaging
applications that employ CCD’s (charge coupled devices) as
their photodetector. The CDS-1402 has been optimized for
use in digital video applications that employ 10 to 14-bit A/D
converters. The low-noise CDS-1402 can accurately
determine each pixel’s true video signal level by sequentially
sampling the pixel’s offset signal and its video signal and
subtracting the two. The result is that the consequences of
residual charge, charge injection and low-frequency “kTC”
noise on the CCD’s output floating capacitor are effectively
eliminated. The CDS-1402 can also be used as a dual
sample-hold amplifier in a data acquisition system.

The CDS-1402 contains two sample-hold amplifiers and
appropriate support/control circuitry. Features include
independent offset-adjust capability for each S/H, adjustment
for matching gain between the two S/H’s, and four control

PIN FUNCTION PIN FUNCTION

INNOVATION and EX C ELL E N C E

® ®

CDS-1402

14-Bit, Faster-Settling

Correlated Double Sampling Circuit

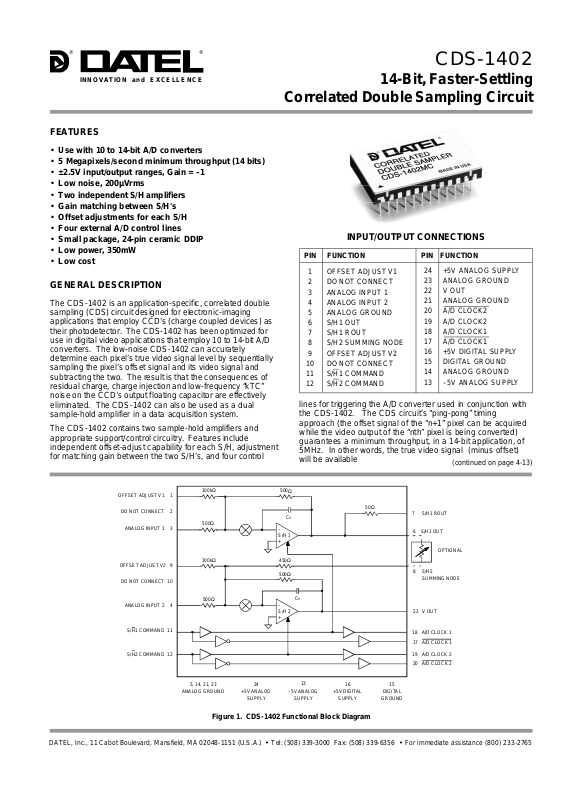

Figure 1. CDS-1402 Functional Block Diagram

lines for triggering the A/D converter used in conjunction with
the CDS-1402. The CDS circuit’s “ping-pong” timing
approach (the offset signal of the “n+1” pixel can be acquired
while the video output of the “nth” pixel is being converted)
guarantees a minimum throughput, in a 14-bit application, of
5MHz. In other words, the true video signal (minus offset)
will be available

(continued on page 4-13)

S/H 2

OFFSET ADJUST V1 1

DO NOT CONNECT 2

ANALOG INPUT 1 3

OFFSET ADJUST V2 9

DO NOT CONNECT 10

ANALOG INPUT 2 4

S/H1 COMMAND 11

S/H2 COMMAND 12

5, 14, 21, 23

ANALOG GROUND24+5V ANALOG

SUPPLY

16

+5V DIGITAL

SUPPLY

15

DIGITAL

GROUND

7 S/H1 ROUT

8 S/H2
SUMMING NODE

22 V OUT

18 A/D CLOCK 1

6 S/H1 OUT

OPTIONAL

17 A/D CLOCK 1
19 A/D CLOCK 2

20 A/D CLOCK 2

100k

Ω

100k

Ω

450

Ω

500

Ω

13

–5V ANALOG

SUPPLY

–

+

S/H 1

–
+

500

Ω

500

Ω

500

Ω

50

Ω

CH

CH

DATEL, Inc., 11 Cabot Boulevard, Mansfield, MA 02048-1151 (U.S.A.) • Tel: [phone] Fax: [phone] • For immediate assistance [phone]

2

CDS-1402

® ®

+25°C 0 to +70°C –55 to +125°C

ANALOG INPUTS ➀ MIN. TYP. MAX. MIN. TYP. MAX. MIN. TYP. MAX. UNITS

Input Voltage Range ±2.5 — — ±2.5 — — ±2.5 — — Volts
Input Resistance — 500 — — 500 — — 500 — Ohms
Input Capacitance — 7 15 — 7 15 — 7 15 pF

DIGITAL INPUTS

Logic Levels

Logic "1" +2.0 — — +2.0 — — +2.0 — — Volts
Logic "0" — — +0.8 — — +0.8 — — +0.8 Volts
Logic Loading "1" — — +10 — — +10 — — +10 µA
Logic Loading "0" — — –10 — — –10 — — –10 µA

PERFORMANCE

Sample Mode Offset Error - S/H1 — ±3 — — ±4 — — ±5 — mV
Gain Error - S/H1 — ±0.1 — — ±0.2 — — ±0.4 — %
Pedestal - S/H1 — ±10 — — ±10 — — ±15 — mV
Sample Mode Offset Error - S/H2 — ±3 — — ±4 — — ±5 — mV
Gain Error - S/H2 — ±0.1 — — ±0.2 — — ±0.4 — %
Pedestal - S/H2 — ±10 — — ±10 — — ±15 — mV
Sample Mode Offset Error - CDS — ±1 — — ±4 — — ±5 — mV
Differential Gain Error - CDS — ±0.1 — — ±0.2 — — ±0.4 — %
Pedestal - CDS — ±10 — — ±10 — — ±15 — mV
Pixel Rate (14-bit settling) ➁ 5 — — 5 — — 5 — — MHz
Input Bandwidth, ±2.5V

Small Signal (–20dB input) — TBD — — TBD — — TBD — MHz
Large Signal (–0.5dB input) — TBD — — TBD — — TBD — MHz

Slew Rate — ±500 — — ±500 — — ±500 — V/µs
Aperture Delay Time — 10 — — 10 — — 10 — ns
Aperture Uncertainty — 5 — — 5 — — 5 — ps rms
S/H Acquisition Time ➀

(to ±0.01%, 5V step) — 100 — — 100 — — 100 — ns

Hold Mode Settling Time

(to ±0.15mV) — TBD — — TBD — — TBD — ns

Noise — 200 — — 200 — — 200 — µVrms
Feedthrough Rejection — TBD — — TBD — — TBD — dB
Overvoltage Recovery Time — 200 — — 200 — — 200 — ns
S/H Saturation Voltage — ±3.2 — — ±3.2 — — ±3.2 — V
Droop Rate — ±5 — — ±10 — — ±25 — mV/µs

ANALOG OUTPUTS ➂

Output Voltage Range ±2.5 — — ±2.5 — — ±2.5 — — Volts
Output Impedance — 0.5 — — 0.5 — — 0.5 — Ohms
Output Current — — ±20 — — ±20 — — ±20 mA

DIGITAL OUTPUTS

Logic Levels

Logic "1" +3.9 — — +3.9 — — +3.9 — — Volts
Logic "0" — — +0.4 — — +0.4 — — +0.4 Volts
Logic Loading "1" — — –4 — — –4 — — –4 mA
Logic Loading "0" — — +4 — — +4 — — +4 mA

PARAMETERS LIMITS UNITS

+5V Analog Supply (Pin 24) 0 to +6.3 Volts
–5V Analog Supply (Pin 13) 0 to –6.3 Volts
+5V Digital Supply (Pin 16) 0 to +6 Volts
Digital Inputs (Pins 11, 12) –0.3 to +V

DD +0.3 Volts

Analog Inputs (Pins 3, 4) ±3.2 Volts
Lead Temperature (10 seconds) 300 °C

ABSOLUTE MAXIMUM RATINGS

➀ Pins 3 and 4. ➁ See Figure 5 for relationship between input voltage, accuracy, and acquisition time. ➂ Pins 6 and 22.

FUNCTIONAL SPECIFICATIONS

(TA = +25°C, ±VCC = ±5V, +VDD = +5V, pixel rate = 5MHz, and a minimum warmup time of two minutes unless otherwise noted.)

PARAMETERS MIN. TYP. MAX. UNITS

Operating Temp. Range, Case

CDS-1402MC 0 — +70 °C
CDS-1402MM –55 — +125 °C

Thermal Impedance

θjc — 5 — °C/W
θca — 22 — °C/W

Storage Temperature Range –65 — +150 °C
Package Type 24-pin, metal-sealed, ceramic DDIP

Weight 0.42 ounces(12 grams)

PHYSICAL/ENVIRONMENTAL

3

® ®

CDS-1402

+25°C 0 to +70°C –55 to +125°C

POWER REQUIREMENTS MIN. TYP. MAX. MIN. TYP. MAX. MIN. TYP. MAX. UNITS

Power Supply Ranges

+5V Analog Supply +4.75 +5.0 +5.25 +4.75 +5.0 +5.25 +4.75 +5.0 +5.25 Volts
–5V Analog Supply –4.75 –5.0 –5.25 –4.75 –5.0 –5.25 –4.75 –5.0 –5.25 Volts
+5V Digital Supply +4.75 +5.0 +5.25 +4.75 +5.0 +5.25 +4.75 +5.0 +5.25 Volts

Power Supply Currents

+5V Analog Supply — +35 +45 — +35 +45 — +35 +45 mA
–5V Analog Supply — –35 –45 — –35 –45 — –35 –45 mA
+5V Digital Supply — +2 +5 — +2 +5 — +2 +5 mA

Power Dissipation — 350 450 — 350 450 — 350 450 mW
Power Supply Rejection — 60 — — 60 — — 60 — dB

GENERAL DESCRIPTION (continued)

at the output of the CDS-1402 every 200ns. This correlates
with the fact that an acquisition time of 100ns is required for
each internal S/H amplifier (5V step acquired to ±0.003%
accuracy). The input and output of the CDS-1402 can swing
up to ±2.5 Volts.

The functionally complete CDS-1402 is packaged in a single,
24-pin, ceramic DDIP. It operates from ±5V analog and +5V
digital supplies and consumes 350mW. Though the CDS­1402’s approach to CDS appears straightforward (see
Description of Operation), the circuit actually exploits an
elegant architecture whose tradeoffs enable it to offer wide­bandwidth, low-noise and high-throughput combinations
unachievable until now. The CDS-1402, a generic type of
circuit, can be used with most 10 to 14-bit A/D converters.
However, DATEL offers A/D converters optimized for use with
CDS-1402.

FUNCTIONAL DESCRIPTION
Correlated Double Sampling

All photodetector elements (photodiodes, photomultiplier tubes,
focal plane arrays, charge coupled devices, etc.) have unique
output characteristics that call for specific analog-signal­processing (ASP) functions at their outputs. Charge coupled
devices (CCD’s), in particular, display a number of unique
characteristics. Among them is the fact that the “offset error”
associated with each individual pixel (i.e., the apparent
photonic content of that pixel after having had no light incident
upon it) changes each and every time that particular pixel is
accessed.

Most of us think of an offset as a constant parameter that
either can be compensated for (by performing an offset
adjustment) or can be measured, recorded, and subtracted
from subsequent readings to yield more accurate data.
Contending with an offset that varies from reading to reading
requires measuring and recording (or capturing and storing)
the offset each and every time, so it can be subtracted from
each subsequent data reading.

The “double sampling” aspect of CDS refers to the operation of
sampling and storing/recording a given pixel’s offset and then
sampling the same pixel’s output an instant later (with both the
offset and the video signal present) and subsequently
subtracting the two values to yield what is referred to as the
“valid video” output for that pixel.

The “correlated” in CDS refers to the fact that the two samples
must be taken close together in time because the offset is
constantly varying. Reasons for this phenomena are
discussed below.

At the output of all CCD’s, transported pixel charge (electrons)
is converted to a voltage by depositing the charge onto a
capacitor (usually called the output or “floating” capacitor).
The voltage that develops across this capacitor is obviously
proportional to the amount of deposited charge (i.e., the
number of electrons) according to ∆V = ∆Q/C. Once settled,
the resulting capacitor voltage is buffered and brought to the
CCD’s output pin as a signal whose amplitude is proportional
to the total number of photons incident upon the relevant pixel.

After the output signal has been recorded, the floating
capacitor is discharged (“reset”, “clamped”, “dumped”) and
made ready to accept charge from the next pixel. This is
when the problems begin. (This is a somewhat oversimplified

TECHNICAL NOTES

1. To achieve specified performance, all popwer supply pins
should be bypassed with 2.2µF tantalum capacitors in
parallel with 0.01µF ceramic capacitors. All ANALOG
GROUND (pins 5, 14, 21 and 23) and DIGITAL GROUND
(pin 15) pins should be tied to a large analog ground plane
beneath the package.

2. In the CDS configuration, to avoid saturation of the S/H
amplifiers, the maximum analog inputs and conditions are
as follows:

ANALOG INPUT 1 < ±3.2V
(ANALOG INPUT 1 – ANALOG INPUT 2) < ±3.2V

3. The combined video and reference/offset signal from the
CCD array must be applied to S/H2, while the reference/
offset signal is applied to S/H1.

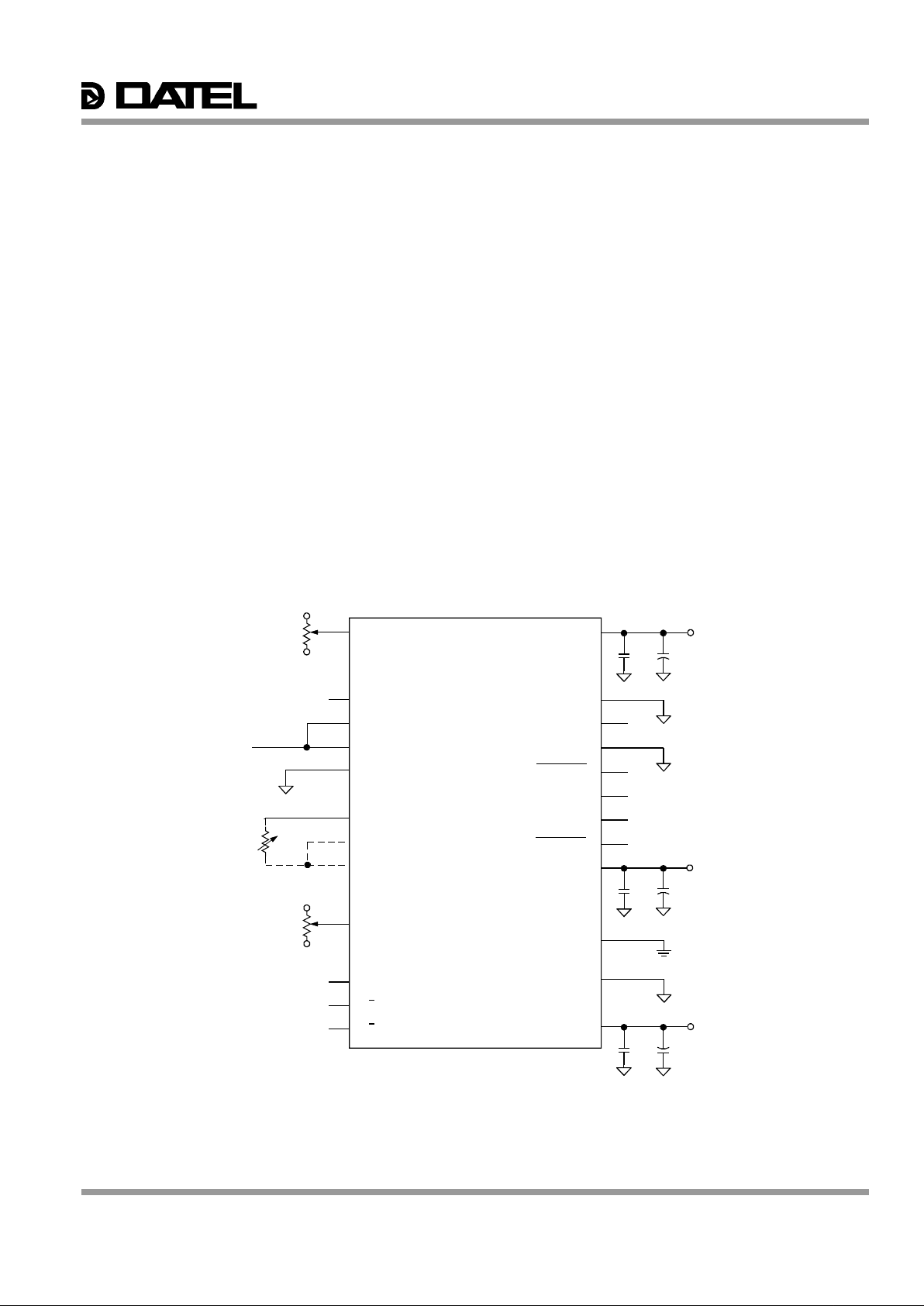

4. To use as a CDS circuit, tie pin 8 (S/H2 SUMMING NODE)
to either pin 6 (S/H1 OUT), through a 100 Ohm
potentiometer, or directly to pin 7 (S/H1 ROUT). In both
cases, the CCD's output is tied to pins 3 (ANALOG INPUT

1) and 4 (ANALOG INPUT 2). As shown in Figure 5, the
100Ω potentiometer is for gain matching.

5. To use as a dual S/H, leave pin 7 (S/H1 ROUT) and pin 8
(S/H2 SUMMING NODE) floating. Pin 6 (S/H1 OUT) will
be the output of S/H1 and pin 22 (V OUT) will be the output
of S/H2.

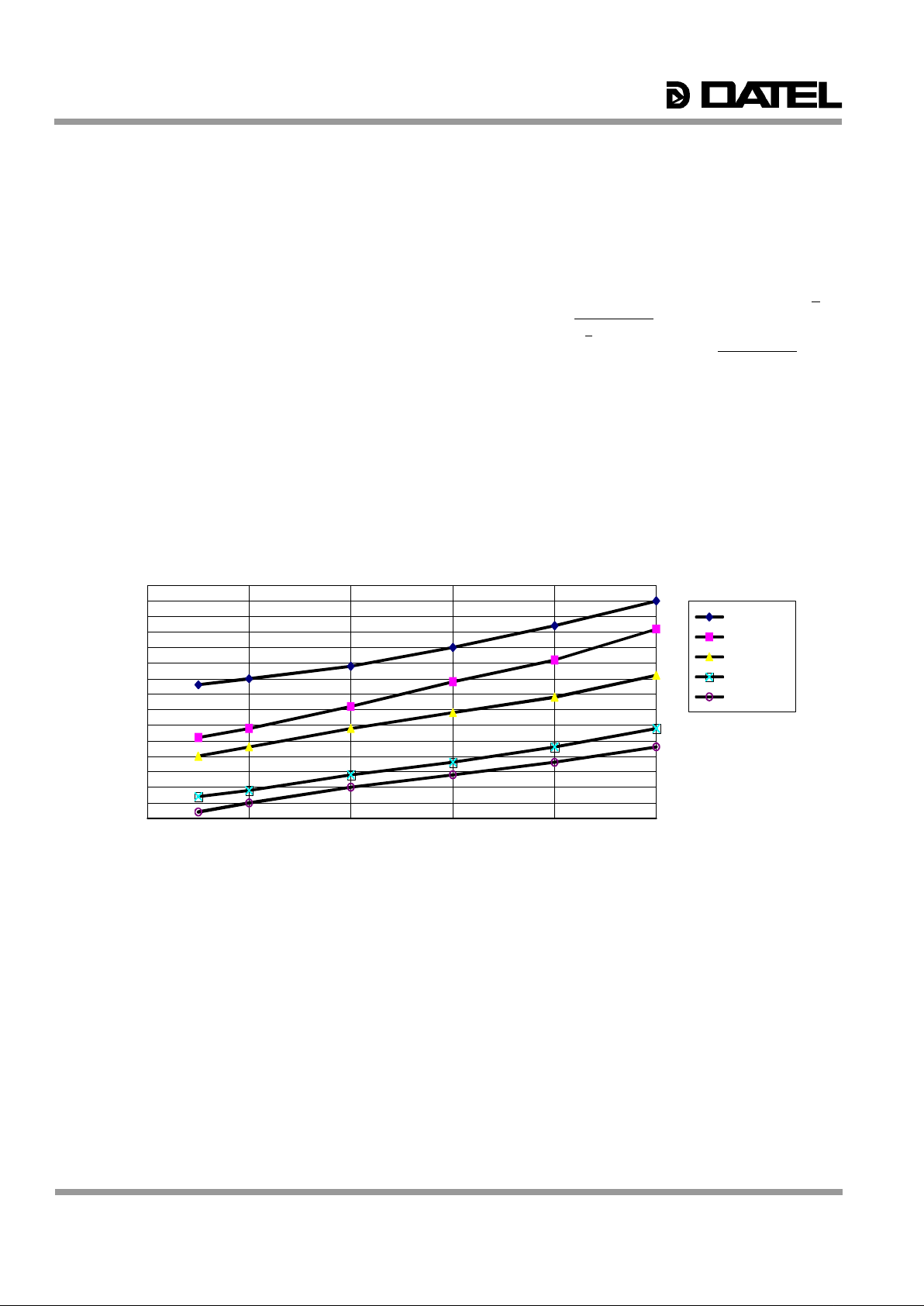

6. See Figure 4 for acquisition time versus accuracy and input
voltage step amplitude.

4

CDS-1402

® ®

stored on) its parasitic junction capacitances changes. The
result is an “injection” of excess charge onto the floating cap
causing a voltage step normally called a “pedestal”.

The fourth major contributor to pixel offset is a low-frequency
noise component (usually called 1/f noise or pink noise)
associated with the CCD’s output buffer amplifier.

Due to all of these contributing factors, "pixel offsets" vary
from sample to sample in an inconsistent, unpredictable
manner.

Traditional Approach to CDS

There are a number of techniques for dealing with the varying­offset idiosyncrasy of CCD’s. The most prevalent has been
what can be called the “sample-sample-subtract” technique.
This approach requires the use of two high-speed sample-hold
(S/H) amplifiers and a difference amplifier. The first S/H is
used to acquire and hold a given pixel’s offset. Immediately
after that, the second S/H acquires and holds the same pixel’s
offset+video signal. After both the S/H outputs have fully
settled, the difference amplifier subtracts the offset from the
offset+video yielding the valid video signal.

CDS-1402 Approach (See Figure 1)

The DATEL CDS-1402 takes a slightly different, though clearly
superior, approach to CDS. It can be called the “sample­subtract-sample” approach.

Note that the CDS-1402 has been configured to offer the
greatest amount of user flexibility. Its two S/H circuits function
independently. They have separate input and output pins.
Each has its own independent control lines. The control-line

“on” resistance. When the switch is on, its effective series
resistance exhibits thermal noise (Johnson noise) due to the
random motion of thermally energized charge. Because the
shunt switch is in parallel with the floating capacitor, the
instantaneous value of the thermal noise (expressed in either
Volts or electrons) appears across the cap. When the shunt
switch is opened, charge/voltage is left on the floating cap.

The magnitude of this “captured noise voltage” is a function of
absolute temperature (T), the value of the floating capacitor
(C) and Boltzman’s constant (k). It is commonly referred to as
“kTC” noise.

The second contributor to the constantly varying pixel offsets
is the fact that, at high pixel rates, the floating capacitor never
has time to fully discharge (charge) during the period in which
its shunt switch is closed. There is always some “residual”
charge left on the cap, and the amount of this charge varies
as a function of what was the total charge held during the
previous pixel. This amount of residual charge is, in fact,
deterministic (if you know the previous charge and the number
of time constants in the discharge period), however, it is less
of a contributor than kTC noise.

The third major contributor to pixel offset is the fact that as the
shunt FET is turned off, the voltage across (and the charge

explanation in that the floating capacitor is not usually
“discharged” but, in fact, “recharged” to some predetermined
dc voltage, usually called the “reference level”. The pixel offset
appears as an output deviation from that reference level.)

The floating capacitor is normally discharged (charged) via a
shunt switch (typically a FET structure) that has a non-zero

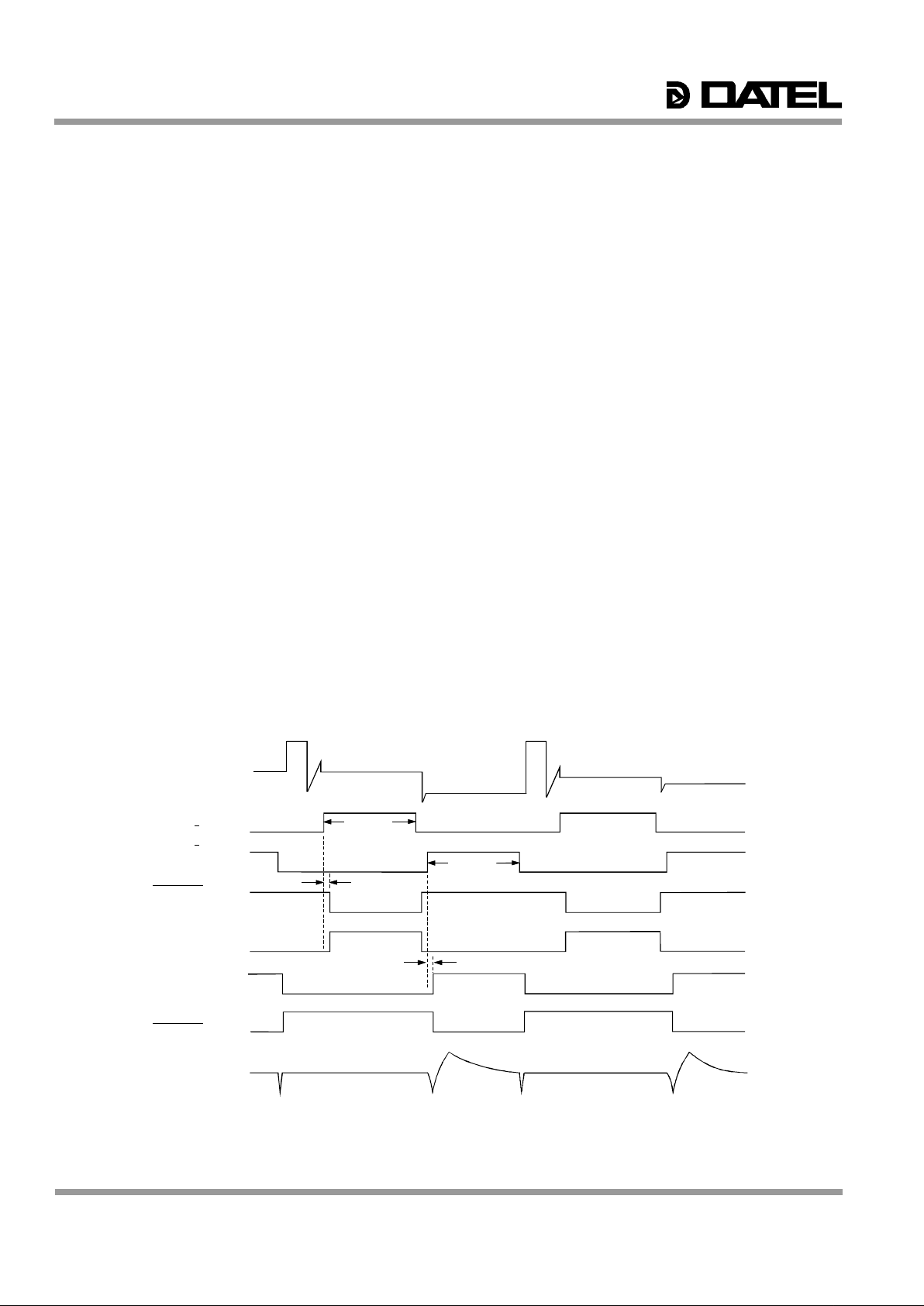

Figure 2. CDS-1402 Typical Timing Diagram

ANALOG INPUT

FOR CDS (Pins 3 and

4 are tied)

S/H1 (Pin 11)

A/D CLOCK 1 (Pin 17)

S/H2 (Pin 12)

A/D CLOCK 1 (Pin 18)
A/D CLOCK 2 (Pin 19)

A/D CLOCK 2 (Pin 20)

VOLTAGE OUTPUT

VIDEO SIGNAL N-1 VIDEO SIGNAL N

(CCD OUTPUT)

100ns typ.

30ns typ.

30ns typ.

NOTE: Not Drawn to Scale

RESET N

OFFSET N

OFFSET +

VIDEO N

RESET N+1

OFFSET N+1

OFFSET +

VIDEO N+1

100ns typ.

HOLD

HOLD

5

® ®

CDS-1402

signals are delayed, buffered, and brought back out of the
package so they can be used to control other circuit
functions. Each S/H has two pins for offset adjusting (if
required), one for current and one for voltage.

In normal operation, the output signal of the CCD is applied
simultaneously to the inputs (pins 3 and 4) of both S/H
amplifiers. S/H1 will normally be used to capture and hold
each pixel’s offset signal. Therefore, S/H1 is initially in its
signal-acquisition mode (logic “1” applied to pin 11, S/H1
COMMAND). This is also called the sample or track mode.
Following a brief interval during which the output of the CCD
and the output of S/H1 are allowed to settle, S/H1 is driven
into its hold mode by applying a logic “0” to pin 11. S/H1 is
now holding the pixel’s offset value.

In most straightforward configurations, the output of S/H1 is
connected to the summing node of S/H2 by connecting pin 7
(S/H1 ROUT) to pin 8 (S/H2 SUMMING NODE).

When the offset+video signal appears at the output of the
CCD, S/H2 is driven into its signal acquisition mode by
applying a logic “1” to pin 12 (S/H2 COMMAND).
S/H2 employs a current-summing architecture that subtracts
the output of S/H1 (the offset) from the output of the CCD
(offset+video) while acquiring only the difference signal (i.e.,
the valid video). A logic “0” subsequently applied to pin 12
drives S/H2 into its hold mode, and after a brief transient
settling time, the valid video signal appears at pin 22 (V
OUT).

Timing Notes

See Figure 2, Typical Timing Diagram. It is advisable that
neither of the CDS-1402's S/H amplifiers be in their sample/

track mode when large, high-speed transients (normally
associated with clock edges) are occurring throughout the
system. This could result in the S/H amplifiers being driven into
saturation, and they may not recover in time to accurately
acquire their next signal.

For example, S/H1 should not be commanded into the sample
mode until all transients associated with the opening of the
shunt switch have begun to decay. Similarly, S/H2 should not
be driven into the sample mode until all transients associated
with the clocking of pixel charge onto the output capacitor have
begun to decay. Therefore, it is generally not a good practice
to use the same clock edge to drive S/H1 into hold (holding the
offset) and S/H2 into sample (to acquire the offset + video
signal).

S/H's that are in their signal-acquisition modes should be left
there as long as possible (so all signals can settle) and be
driven into their hold modes before any system transients
occur. In Figure 2, S/H1 is driven into the sample mode shortly
after the transient from the shunt switch has begun to decay.
S/H1 is then kept in the sample mode while the offset signal
and the S/H output settle. S/H1 is driven into hold just prior to
the system clock pulse(s) that transfers the next pixel charge
onto the output capacitor.

As soon as the transients/noise associated with the charge
transport begins to decay, S/H2 can be driven into the sample
mode. S/H2 can then be left in the sample mode until just
before the reset pulse for the output capacitor.

In Figure 2, S/H's 1 and 2 both have the same acquisition time.
If the pixel-to-pixel amplitude variation of offset signals is much
less than that of video signals, it may not be necessary for the
allocated acquisition time of S/H1 to be as long as that of S/H2.

S/H1

S/H2

START CONVERT

EOC

OUTPUT

DATA

DATA N-1 VALID DATA N VALID

30ns typ.

35ns typ.

50ns max.

ANALOG INPUT

FOR CDS

(Pins 3 and 4 are tied)

(CCD OUTPUT)

100ns

100ns

OFFSET (N+1)

OFFSET +

VIDEO (N+1)

OFFSET (N+2)

OFFSET +

VIDEO (N+2)

150ns

DATA N+1 VALID

10ns min.

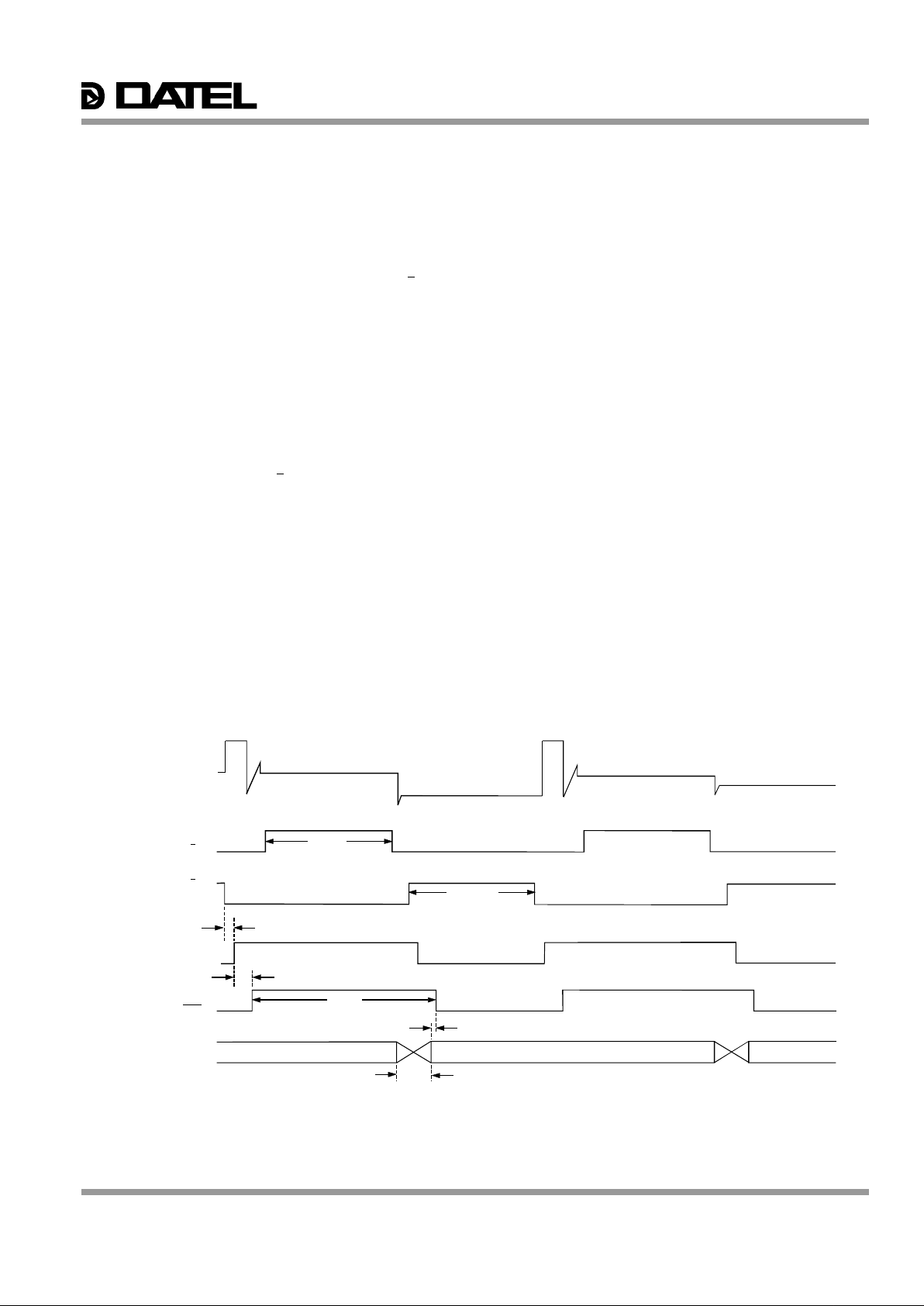

Figure 3. CDS-1402 in Front of DATEL's ADC-944 at f

CLK

= 4MHz

6

CDS-1402

® ®

For most sampling A/D's, the rising edge of the start-convert
pulse drives the internal S/H into the hold mode under the
assumption the S/H has already fully acquired and is tracking
the input signal. In this case, the same edge can not be used

to drive S/H2 into the hold mode and simultaneously initiate
the A/D conversion. The output of S/H2 needs time to settle
its sample-to-hold switching transient, and the input S/H of the
A/D needs time to fully acquire its new input signal.

As shown in Figure 1, output line A/D CLOCK1 (pin 18) is a
slightly delayed version of the signal applied to pin 11 (S/H1
COMMAND), and A/D CLOCK1 (pin 17) is its complement.
A/D CLOCK2 (pin 19) is a delayed version of the signal
applied to pin 12 (S/H2 COMMAND), and A/D CLOCK2 (pin

20) is its complement. Any one of these signals, as
appropriate, may be used to trigger the A/D conversion.

Figure 3 is a typical timing diagram for a CDS-1402 in front of
DATEL's 14-bit, 5MHz sampling A/D, the ADS-944.

Figure 4. Acquisition Time versus Accuracy and Step Size

As shown in the plot (Figure 4) of acquisition times vs. input
signal step size, the S/H's internal to the CDS-1402 acquire
smaller-amplitude signals quicker than they acquire larger­amplitude signals. In "maximum-throughput" applications,
assuming "asymmetric" timing can be accommodated, each
S/H should only be given the time it requires, and no more, to
acquire its input signal. Leaving a S/H amp in the sample
mode for a longer period of time has little added benefit.

As an example, the graph shows that it takes 32ns to acquire
a 500mV step to within 10mV of accuracy and 73ns to acquire
a 500mV step to within 0.5mV of accuracy. The figures in this
graph are typical values at room temperature.

The CDS-1402 brings out 4 control lines that can be used to
trigger an A/D converter connected to its output. If the A/D is a
sampling type, system timing should be such that the A/D's
input S/H amplifier is acquiring the output of the CDS-1402 at
the same time the output is settling to its final value.

30

35

40

45

50

55

60

65

70

75

80

85

90

95

100

105

Acquisition Time (ns)

1mV accuracy
2mV accuracy
5mV accuracy
10mV accuracy

Input Step Size (Volts)

A

c

q

u

i

s

i

t

i

o

n

T

i

m

e

(

n

s

)

105
100

95
90
85
80
75
70
65
60
55
50
45
40
35
30

0 1 2 3 4 5

±0.5mV accuracy
±1mV accuracy
±2mV accuracy
±5mV accuracy
±10 mV accuracy

7

® ®

CDS-1402

CALIBRATION PROCEDURE

Offset Adjust (Figure 5)

Offset and pedestal errors may be compensated for by
applying external voltages to pin 1 (OFFSET ADJUST V1) and/
or pin 9 (OFFSET ADJUST V2) using either voltage-output
DAC’s or potentiometers configured to appear as voltage
sources.

1. Connect pin 8 (S/H2 SUMMING NODE) either directly to
pin 7 (S/H1 ROUT) or through a 100 Ohm potentiometer to
pin 6 (S/H1 OUT).

2. Tie pins 3 (ANALOG INPUT 1) and 4 (ANALOG INPUT 2)
to pin 5 (ANALOG GROUND).

3. Adjust OFFSET ADJUST V1 (while S/H1 is in the hold
mode) until pin 6 (S/H1 OUT) equals 0V.

4. Adjust OFFSET ADJUST V2 (while S/H2 is in the hold
mode) until pin 22 (V OUT) equals 0V.

5. To negate the effect of output droop on the offset-adjust
process, each S/H must be continually switched between
its sample and hold modes and adjusted so its output
equals zero immediately after going into the hold mode.

Figure 5. CDS-1402 Typical Connection Diagram

The sensitivity of the voltage offset adjustments is

5mV per

Volt

. Pins 1 and 9 should be left open (floating) when not

being used for offset adjustment.

Gain Matching Adjustment (Differential Gain)
between S/H1 and S/H2

The user can adjust the gain matching (differential gain)
between S/H1 and S/H2 by leaving pin 7 (S/H1 ROUT) floating
(open) and connecting a 100 Ohm potentiometer between pin
6 (S/H1 OUT) and pin 8 (S/H2 SUMMING NODE). Note, offset
adjustment should take place before gain matching
adjustment.

Apply a full-scale input to both pin 3 (ANALOG INPUT 1) and
pin 4 (ANALOG INPUT 2). Adjust the 100 Ohm potentio­meter (with both S/H's in the sample mode) until pin 22
(V OUT) is 0V.

If gain matching adjustment is not required, leave pin 6 (S/H1
OUT) floating (open) and tie pin 7 (S/H1 ROUT) to pin 8 (S/H2
SUMMING NODE).

OFFSET ADJUST V1

1

+5V

–5V

DO NOT CONNECT

2

ANALOG INPUT 1

3

ANALOG INPUT 2

4

ANALOG GROUND

5

S/H1 OUT

6

S/H1 ROUT

7

S/H2 SUMMING NODE

8

OFFSET ADJUST V2

9

+5V

–5V

DO NOT CONNECT

10

S/H1 COMMAND

11

S/H2 COMMAND

12

100

Ω

0.1µF 2.2µF

+5V

+

0.1µF

2.2µF

+

–5V

0.1µF 2.2µF

+5V

+

24

23

22

21

20

19

18

17

16

15

14

13

ANALOG GROUND

V OUT

ANALOG GROUND

A/D CLOCK 2

A/D CLOCK 2

A/D CLOCK 1

A/D CLOCK 1

+5V DIGITAL SUPPLY

DIGITAL GROUND

ANALOG GROUND

–5V ANALOG SUPPLY

+5V ANALOG SUPPLY

CDS-1402

MECHANICAL DIMENSIONS INCHES (mm)

24-PIN DDIP

24-PIN SURFACE MOUNT

0.200 MAX.
(5.080)

0.235 MAX.
(5.969)

0.600 ±0.010
(15.240)

0.80 MAX.
(20.32)

0.100 TYP.
(2.540)

0.100

(2.540)

0.018 ±0.002

(0.457)

0.100

(2.540)

0.040

(1.016)

1.31 MAX.
(33.27)

1 12

13

24

1.100

(27.940)

0.190 MAX.
(4.826)

0.010

(0.254)

+0.002
–0.001

SEATING

PLANE

0.025

(0.635)

Dimension Tolerances

(unless otherwise indicated):
2 place decimal (.XX) ±0.010 (±0.254)
3 place decimal (.XXX) ±0.005 (±0.127)

Lead Material:

Kovar alloy

Lead Finish:

50 microinches (minimum) gold plating

over 100 microinches (nominal) nickel plating

0.80 MAX.
(20.32)

0.015

(0.381)

MAX. radius

for any pin

1.31 MAX.
(33.02)

0.100 TYP.

(2.540)

0.100

(2.540)

0.210 MAX.

(5.334)

0.040

(1.016)

0.020 TYP.
(0.508)

0.020

(0.508)

24

13

121

PIN 1

INDEX

0.130 TYP.
(3.302)

Dimension Tolerances

(unless otherwise indicated):

2 place decimal (.XX) ±0.010 (±0.254)
3 place decimal (.XXX) ±0.005 (±0.127)

Lead Material:

Kovar alloy

Lead Finish:

50 microinches (minimum) gold plating

over 100 microinches (nominal) nickel plating

0.060 TYP.
(1.524)

0.010 TYP.
(0.254)

® ®

INNOV A TION and EX CELLENCE

DATEL, Inc. 11 Cabot Boulevard, Mansfield, MA 02048-1151
Tel: [phone] / Fax: [phone]
For immediate assistance: [phone]

DATEL makes no representation that the use of its products in the circuits described herein, or the use of other technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein

do not imply the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without notice. The DATEL logo is a registered DATEL, Inc. trademark.

DS-0345 10/96

DATEL (UK) LTD. Tadley, England Tel: [phone]
DATEL S.A.R.L. Montigny Le Bretonneux, France Tel: [phone]
DATEL GmbH Munchen, Germany Tel: [phone]
DATEL KK Tokyo, Japan Tel: [phone], Osaka Tel: [phone]

ISO 9001

ISO 9001

REGISTERED

OPERATING ANALOG PACKAGE

MODEL TEMP. RANGE INPUT TYPE
CSD-1402MC 0 to +70°C ±2.5V DDIP
CDS-1402MM –55 to +125°C ±2.5V DDIP

ORDERING INFORMATION

Accessories
HS-24 Heat Sink for CDS-1402 DDIP models

Receptacles for pc board mounting can be ordered through Amp Inc., part number 3-331272-8 (component lead socket), 24 required.
For MIL-STD-883 products, or availability of surface mount packaging, contact DATEL.

CDS-1402

® ®
