29319.29B

3968

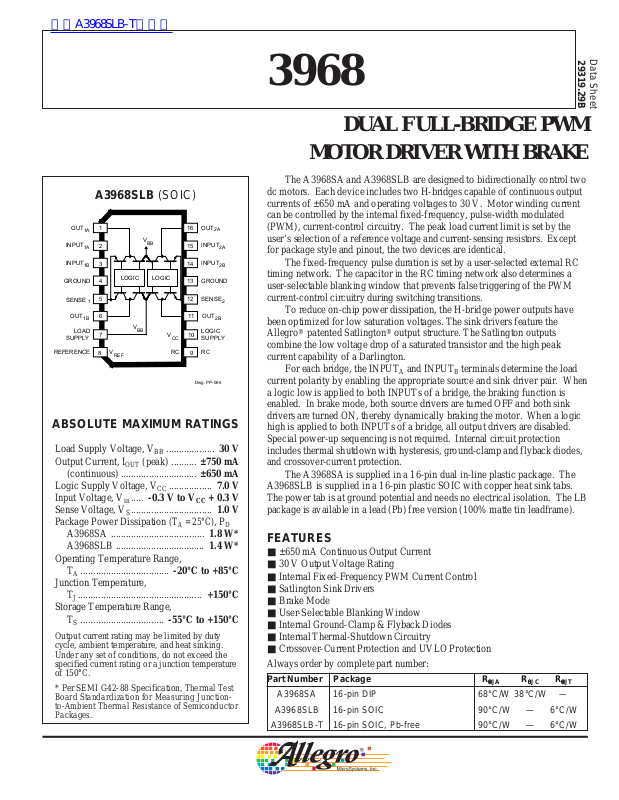

DUAL FULL-BRIDGE PWM

MOTOR DRIVER WITH BRAKE

The A3968SA and A3968SLB are designed to bidirectionally control two
dc motors. Each device includes two H-bridges capable of continuous output
currents of ±650 mA and operating voltages to 30 V. Motor winding current
can be controlled by the internal fixed-frequency, pulse-width modulated
(PWM), current-control circuitry. The peak load current limit is set by the
user’s selection of a reference voltage and current-sensing resistors. Except
for package style and pinout, the two devices are identical.

The fixed-frequency pulse duration is set by a user-selected external RC
timing network. The capacitor in the RC timing network also determines a
user-selectable blanking window that prevents false triggering of the PWM
current-control circuitry during switching transitions.

To reduce on-chip power dissipation, the H-bridge power outputs have
been optimized for low saturation voltages. The sink drivers feature the
Allegro
combine the low voltage drop of a saturated transistor and the high peak
current capability of a Darlington.

current polarity by enabling the appropriate source and sink driver pair. When
a logic low is applied to both INPUTs of a bridge, the braking function is
enabled. In brake mode, both source drivers are turned OFF and both sink
drivers are turned ON, thereby dynamically braking the motor. When a logic
high is applied to both INPUTs of a bridge, all output drivers are disabled.
Special power-up sequencing is not required. Internal circuit protection
includes thermal shutdown with hysteresis, ground-clamp and flyback diodes,
and crossover-current protection.

A3968SLB is supplied in a 16-pin plastic SOIC with copper heat sink tabs.
The power tab is at ground potential and needs no electrical isolation. The LB
package is available in a lead (Pb) free version (100% matte tin leadframe).

FEATURES

■ ±650 mA Continuous Output Current

■ 30 V Output Voltage Rating

■ Internal Fixed-Frequency PWM Current Control

■ Satlington Sink Drivers

■ Brake Mode

■ User-Selectable Blanking Window

■ Internal Ground-Clamp & Flyback Diodes

■ Internal Thermal-Shutdown Circuitry

■ Crossover-Current Protection and UVLO Protection

Always order by complete part number:

Part Number Package R

®

patented Satlington® output structure. The Satlington outputs

For each bridge, the INPUTA and INPUTB terminals determine the load

The A3968SA is supplied in a 16-pin dual in-line plastic package. The

θθ

θJA

θθ

R

A3968SA 16-pin DIP 68°C/W 38°C/W —

A3968SLB 16-pin SOIC 90°C/W — 6°C/W

A3968SLB-T 16-pin SOIC, Pb-free 90°C/W — 6°C/W

θθ

θJC

θθ

R

θθ

θJT

θθ

Data Sheet

3968

DUAL FULL-BRIDGE
PWM MOTOR DRIVER
WITH BRAKE

FUNCTIONAL BLOCK DIAGRAM

(one-half of circuit shown)

INPUT

UVLO
& TSD

INPUT

GROUND

A

LOGIC

SUPPLY

V

PWM LATCH

Q

OSC

C

T

CC

BLANKING

GATE

R

S

A

CONTROL LOGIC

B

SOURCE

ENABLE

RC

R

T

OUT

V

CURRENT-SENSE

COMPARATOR

TO OTHER
BRIDGE

TO OTHER
BRIDGE

BB

B

OUT

LOAD

SUPPLY

+

SENSE

+
–

TO OTHER
BRIDGE

÷4

REFERENCE

R

S

Dwg. FP-036-4

SENSE

OUT

LOAD

SUPPLY

REFERENCE

RC

LOGIC

SUPPLY

OUT

SENSE

A3968SA (DIP)

1

1

2

1B

3

V

4

REF

RC

5

V

6

CC

7

2B

8

2

V

LOGIC

BB

LOGIC

16

15

14

13

12

11

10

9

Dwg. PP-066-3

TRUTH TABLE

INPUT

1B

INPUT

1A

OUT

1A

GROUND

GROUND

OUT

2A

INPUT

2A

INPUT

2B

115 Northeast Cutoff, Box 15036
Worcester, Massachusetts 01615-0036 [phone]

Copyright © 1997, 2003 Allegro MicroSystems, Inc.

INPUTAINPUT

OUT

B

LLLLBrake mode

L H L H “Forward”
H L H L “Reverse”
H H Z Z Disable

Z = High impedance

OUT

A

B

Description

3968

DUAL FULL-BRIDGE

PWM MOTOR DRIVER

WITH BRAKE

ELECTRICAL CHARACTERISTICS at T
V

= 0 V, 56 kΩ & 680 pF RC to Ground (unless noted otherwise)

S

= +25°C, V

A

= 30 V, VCC = 4.75 V to 5.5 V, V

BB

REF

= 2 V,

Limits

Characteristic Symbol Test Conditions Min. Typ. Max. Units

Output Drivers

Load Supply Voltage Range V

Output Leakage Current I

Output Saturation Voltage V

CE(SAT)

Clamp Diode Forward Voltage V

Motor Supply Current I
(No Load)

BB(ON)

I

BB(OFF)

BB

CEX

F

Operating, I

V

= 30 V — <1.0 50 µA

OUT

V

= 0 V — <-1.0 -50 µA

OUT

Source Driver, I

Source Driver, I

Sink Driver, I

Sink Driver, I

= ±650 mA, L = 3 mH V

OUT

= -400 mA — 1.7 2.0 V

OUT

= -650 mA — 1.8 2.1 V

OUT

= +400 mA, VS = 0.5 V — 0.3 0.5 V

OUT

= +650 mA, VS = 0.5 V — 0.7 1.3 V

OUT

CC

—30 V

IF = 400 mA — 1.1 1.4 V

IF = 650 mA — 1.4 1.6 V

Both bridges ON (forward or reverse) — 3.0 5.0 mA

All INPUTs = 2.4 V — <1.0 200 µA

Control Logic

Logic Supply Voltage Range V

Logic Input Voltage V

V

Logic Input Current I

Reference Input Volt. Range V

Reference Input Current I

Reference Divider Ratio V

REF/VTRIP

Current-Sense Comparator V

IN(1)

IN(0)

IN(1)

I

IN(0)

REF

CC

REF

IO

Operating 4.75 — 5.50 V

V

IN

V

IN

Operating 0.1 – 2.0 V

V

REF

Input Offset Voltage

Current-Sense Comparator V

S

Operating -0.3 — 1.0 V

Input Voltage Range

Sense-Current Offset I

SO

IS – I

NOTES: 1. Typical Data is for design information only.

2. Negative current is defined as coming out of (sourcing) the specified device terminal.

2.4 — — V

— — 0.8 V

= 2.4 V — <1.0 20 µA
= 0.8 V — <-20 -200 µA

-2.5 0 1.0 µA

3.8 4.0 4.2 —

= 0.1 V -6.0 0 6.0 mV

, 50 mA ≤ I

OUT

≤ 650 mA 12 18 24 mA

OUT

www.allegromicro.com

3968

DUAL FULL-BRIDGE
PWM MOTOR DRIVER
WITH BRAKE

ELECTRICAL CHARACTERISTICS at T
V

= 0 V, 56 kΩ & 680 pF RC to Ground (unless noted otherwise) (cont.)

S

= +25°C, V

A

= 30 V, VCC = 4.75 V to 5.5 V, V

BB

REF

= 2 V,

Limits

Characteristic Symbol Test Conditions Min. Typ. Max. Units

Control Logic (continued)

PWM RC Frequency f

PWM Propagation Delay Time t

Cross-Over Dead Time t

Propagation Delay Times t

Thermal Shutdown Temp. T

Thermal Shutdown Hysteresis ∆T

UVLO Enable Threshold V

UVLO Hysteresis V

Logic Supply Current I

PWM

codt

T(UVLO)+

T(UVLO)hys

CC(ON)

I

CC(OFF)

I

CC(BRAKE)

osc

pd

J

J

CT = 680 pF, R

Comparator Trip to Source OFF — 1.0 1.4 µs
Cycle Reset to Source ON — 0.8 1.2 µs
1 kΩ Load to 25 V 0.2 1.8 3.0 µs

I

= ±650 mA, 50% to 90%:

OUT

Disable OFF to Source ON — 100 — ns
Disable ON to Source OFF — 500 — ns
Disable OFF to Sink ON — 200 — ns
Disable ON to Sink OFF — 200 — ns
Brake Enable to Sink ON — 2200 — ns
Brake Enable to Source OFF — 200 — ns

Increasing V

Both bridges ON (forward or reverse) — — 50 mA

All INPUTs = 2.4 V — — 9.0 mA

All INPUTs = 0.8 V — — 95 mA

= 56 kΩ 22.9 25.4 27.9 kHz

T

— 165 — °C
—15—°C

CC

— 4.1 4.6 V

0.1 0.6 — V

NOTES: 1. Typical Data is for design information only.

2. Negative current is defined as coming out of (sourcing) the specified device terminal.

115 Northeast Cutoff, Box 15036
Worcester, Massachusetts 01615-0036 [phone]

FUNCTIONAL DESCRIPTION

3968

DUAL FULL-BRIDGE

PWM MOTOR DRIVER

WITH BRAKE

Internal PWM Current Control. The A3968SA and
A3968SLB dual H-bridges are designed to bidirectionally
control two dc motors. An internal fixed-frequency PWM
current-control circuit controls the load current in each
motor. The current-control circuitry works as follows:
when the outputs of the H-bridge are turned on, current
increases in the motor winding. The load current is sensed
by the current-control comparator via an external sense
resistor (R

). Load current continues to increase until it

S

reaches the predetermined value, set by the selection of
external current-sensing resistors and reference input
voltage (V

where I

) according to the equation:

REF

= I

I

TRIP

is the sense-current error (typically 18 mA) due

SO

+ ISO = V

OUT

REF

/(4RS)

to the base-drive current of the sink driver transistor.

At the trip point, the comparator resets the source­enable latch, turning off the source driver of that H-bridge.
The source turn off of one H-bridge is independent of the
other H-bridge. Load inductance causes the current to
recirculate through the sink driver and ground-clamp
diode. The current decreases until the internal clock
oscillator sets the source-enable latches of both H-bridges,
turning on the source drivers of both bridges. Load current
increases again, and the cycle is repeated.

The frequency of the internal clock oscillator is set by

INPUT

A

the external timing components RTCT. The frequency can
be approximately calculated as:

= 1/(RT CT + t

f

osc

where t

is defined below.

blank

The range of recommended values for R

blank

)

and CT are

T

20 kΩ to 100 kΩ and 470 pF to 1000 pF respectively.
Nominal values of 56 kΩ and 680 pF result in a clock
frequency of 25.4 kHz.

Current-Sense Comparator Blanking. When the
source driver is turned on, a current spike occurs due to
the reverse-recovery currents of the clamp diodes and
switching transients related to distributed capacitance in
the load. To prevent this current spike from erroneously
resetting the source enable latch, the current-control
comparator output is blanked for a short period of time
when the source driver is turned on. The blanking time is
set by the timing component C

according to the equa-

T

tion:

t

= 1900 CT (µs).

blank

A nominal C

value of 680 pF will give a blanking

T

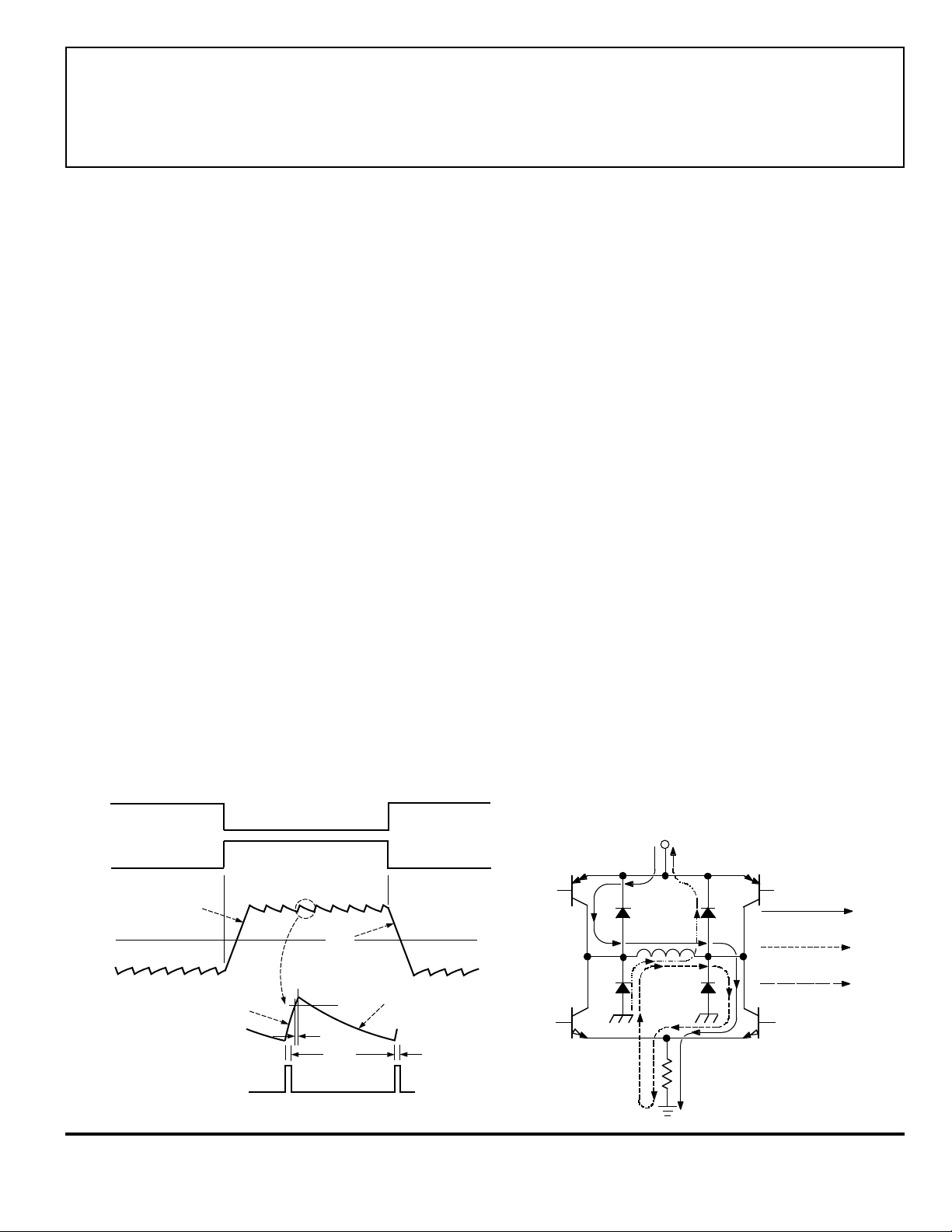

time of 1.3 µs.

The current-control comparator is also blanked when
the load current changes polarity (direction or phase
change). This internally generated blank time is approxi­mately 1.8 µs.

INPUT

B

BRIDGE

+

I

0

OUTB

–

www.allegromicro.com

ON

BRIDGE

INTERNAL

OSCILLATOR

ON

"FORWARD" "REVERSE"

ALL

OFF

SOURCE

I

TRIP

OFF

t

d

R C

T T

t

blank

Dwg. WM-003-3

V

BB

BRIDGE ON

SOURCE OFF

ALL OFF

R

S

Dwg. EP-006-16

3968

DUAL FULL-BRIDGE
PWM MOTOR DRIVER
WITH BRAKE

FUNCTIONAL DESCRIPTION (continued)

Load Current Regulation. Due to internal logic and

switching delays (t
slightly higher than the I

), the actual load current peak may be

d

value. These delays, plus the

TRIP

blanking time, limit the minimum value the current control
circuitry can regulate. To produce zero current in a
winding, the INPUTA and INPUTB terminals should be
held high, turning off all output drivers for that H-bridge.

Logic Inputs. The direction of current in the motor
winding is determined by the state of the INPUT

A

and
INPUTB terminals of each bridge (see Truth Table). An
internally generated dead time (t

) of approximately

codt

1.8 µs prevents cross-over current spikes that can occur
when switching the motor direction.

A logic high on both INPUTs turns off all four output
drivers of that H-bridge. This results in a fast current
decay through the internal ground clamp and flyback
diodes.

The appropriate INPUT

or INPUTB can be pulse-

A

width modulated for applications that require a fast cur­rent-decay PWM. The internal current-control logic can
be disabled by connecting the RTCT terminal to ground.

A logic low on the INPUTA and the INPUTB terminals
will place that H-Bridge in the brake mode. Both source
drivers are turned OFF and both sink drivers are turned
ON. This has the effect of shorting the dc motor’s back­EMF voltage, resulting in a current flow that dynamically
brakes the motor.

Note that during braking the internal current-control
circuitry is disabled. Therefore, care should be taken to
ensure that the motor’s current does not exceed the abso­lute maximum rating of the A3968.

The REFERENCE input voltage is typically set with a
resistor divider from V

. This reference voltage is

CC

internally divided down by 4 to set up the current-com­parator trip-voltage threshold. The reference input voltage
range is 0 to 2 V.

Output Drivers. To minimize on-chip power dissipa­tion, the sink drivers incorporate a Satlington structure.
The Satlington output combines the low V

CE(sat)

features
of a saturated transistor and the high peak-current capa­bility of a Darlington (connected) transistor. A graph
showing typical output saturation voltages as a function
of output current is on the next page.

Miscellaneous Information. Thermal protection
circuitry turns off all output drivers should the junction
temperature reach +165°C (typical). This is intended
only to protect the device from failures due to excessive
junction temperatures and should not imply that output
short circuits are permitted. Normal operation is resumed
when the junction temperature has decreased about 15°C.

The A3968 current control employs a fixed-fre­quency, variable duty cycle PWM technique. If the duty
cycle exceeds 50%, the current-control-regulation fre­quency may change.

To minimize current-sensing inaccuracies caused by
ground trace I

drops, each current-sensing resistor

R

should have a separate return to the ground terminal of
the device. For low-value sense resistors, the I x R drops
in the printed-wiring board can be significant and should
be taken into account. The use of sockets should be
avoided as their contact resistance can cause variations in
the effective value of RS.

The LOAD SUPPLY terminal, VBB, should be
decoupled with an electrolytic capacitor (47 µF recom­mended) placed as close to the device as physically
practical. To minimize the effect of system ground I x R
drops on the logic and reference input signals, the system
ground should have a low-resistance return to the load
supply voltage.

The frequency of the clock oscillator will determine
the amount of ripple current. A lower frequency will
result in higher current ripple, but reduced heating in the
motor and driver IC due to a corresponding decrease in
hysteretic core losses and switching losses respectively.
A higher frequency will reduce ripple current, but will
increase switching losses and EMI.

115 Northeast Cutoff, Box 15036
Worcester, Massachusetts 01615-0036 [phone]

Typical output saturation

voltages showing Satlington

sink-driver operation.

DUAL FULL-BRIDGE

PWM MOTOR DRIVER

WITH BRAKE

2.5

TA = +25°C

2.0

1.5

1.0

0.5

SINK DRIVER

OUTPUT SATURATION VOLTAGE IN VOLTS

0

200

OUTPUT CURRENT IN MILLIAMPERES

500

3968

SOURCE DRIVER

600

007004300

Dwg. GP-064-1A

MOTOR

1

+5 V

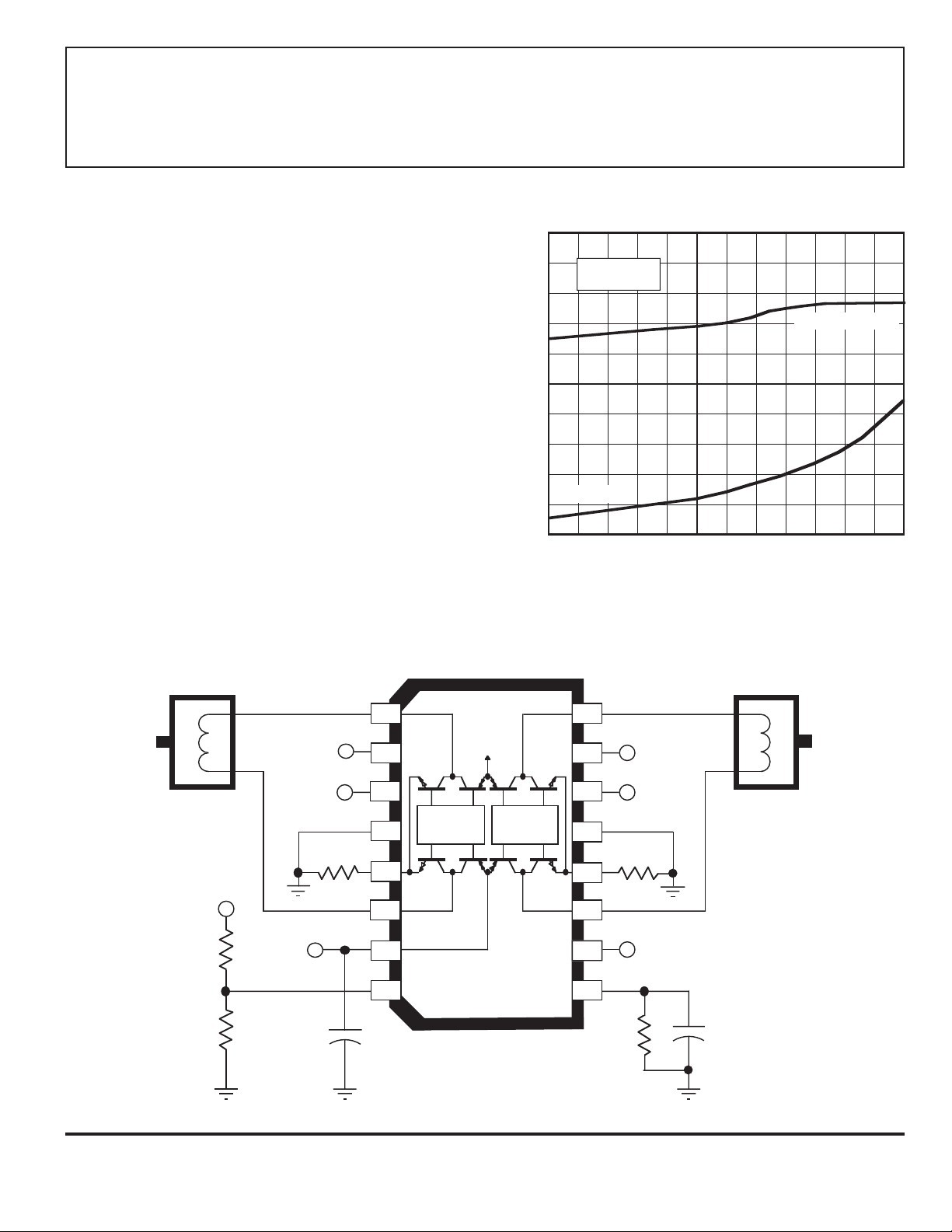

TYPICAL APPLICATION

MOTOR

1

V

INPUT

1A

INPUT

1B

0.5 Ω

+24 V

39 kΩ

47 μF

10 kΩ

2

3

4

5

6

V

REF

+

BB

LOGICLOGIC

V

BB

16

15

14

13

12

11

CC

RC

017

98

V

INPUT

INPUT

0.5 Ω

+5 V

56 kΩ

2A

2B

680 pF

2

www.allegromicro.com

Dwg. EP-047-6

3968

DUAL FULL-BRIDGE
PWM MOTOR DRIVER
WITH BRAKE

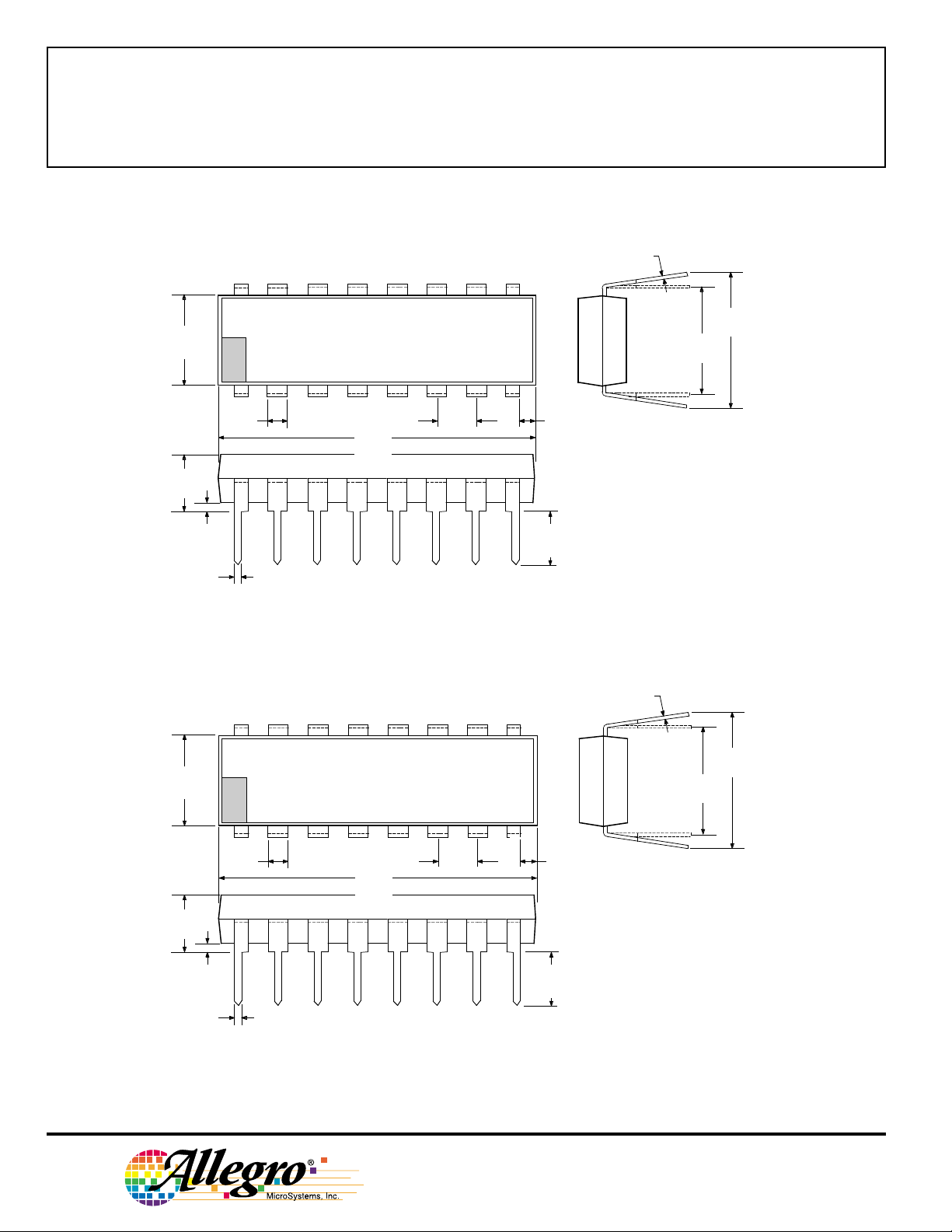

16

0.280

0.240

A3968SA (DIP)

Dimensions in Inches

(controlling dimensions)

9

0.014

0.008

0.300

BSC

0.430

MAX

0.210

MAX

7.11

6.10

0.015

MIN

1

0.070

0.045

16

1

1.77

1.15

0.022

0.014

0.100

0.775

0.735

BSC

Dimensions in Millimeters

(for reference only)

2.54

19.68

18.67

BSC

8

0.005

MIN

0.150

0.115

Dwg. MA-001-16A in

0.355

9

8

0.13

MIN

0.204

7.62

BSC

10.92

MAX

5.33

MAX

0.39

MIN

0.558

0.356

3.81

2.93

NOTES: 1. Exact body and lead configuration at vendor’s option within limits shown.

2. Lead spacing tolerance is non-cumulative.

3. Lead thickness is measured at seating plane or below.

4. Supplied in standard sticks/tubes of 25 devices.

115 Northeast Cutoff, Box 15036
Worcester, Massachusetts 01615-0036 [phone]

Dwg. MA-001-16A mm

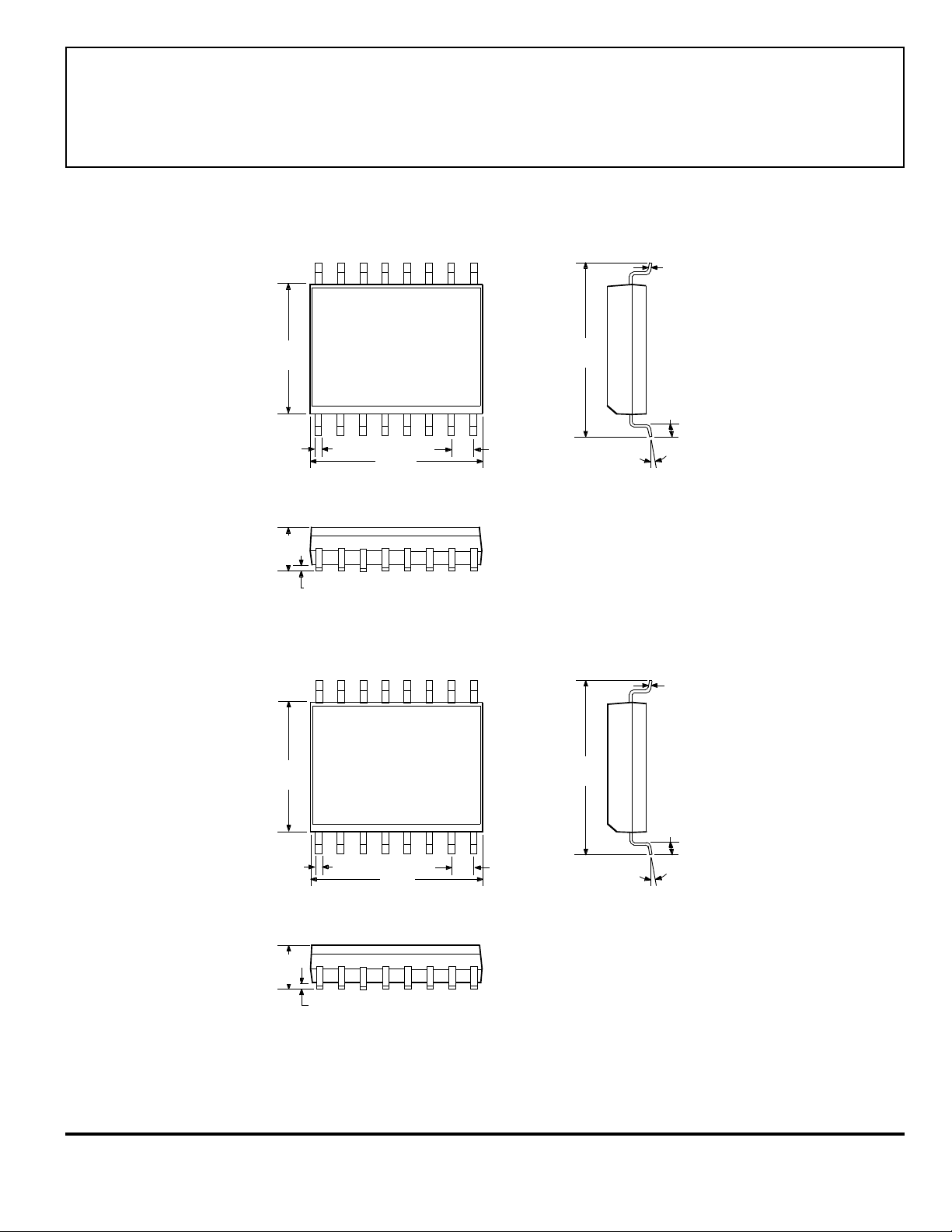

A3968SLB (SOIC)

Dimensions in Inches

(for reference only)

16 9

3968

DUAL FULL-BRIDGE

PWM MOTOR DRIVER

WITH BRAKE

0.0125

0.0091

0.2992

0.2914

0.020

0.013

0.0926

0.1043

7.60

7.40

1 2

0.0040

MIN.

3

0.4133

0.3977

0.050

Dimensions in Millimeters

(controlling dimensions)

916

BSC

0.419

0.394

0.050

0.016

0° TO 8°

Dwg. MA-008-16A in

0.32

0.23

10.65

10.00

0.51

0.33

2.65

2.35

1 2

0.10

MIN.

3

10.50

10.10

1.27

BSC

NOTES: 1. Exact body and lead configuration at vendor’s option within limits shown.

2. Lead spacing tolerance is non-cumulative.

3. Webbed lead frame. Leads 4 and 13 are internally one piece.

4. Supplied in standard sticks/tubes of 47 devices, or add “TR” to part number for tape and reel.

www.allegromicro.com

1.27

0.40

0° TO 8°

Dwg. MA-008-16A mm

3968

DUAL FULL-BRIDGE
PWM MOTOR DRIVER
WITH BRAKE

The products described here are manufactured under one or more
U.S. patents or U.S. patents pending. Satlington® is a registered
trademark of Allegro MicroSystems, Inc. (Allegro), and Satlington
devices are manufactured under U. S. Patent No. 5,684,427.

Allegro MicroSystems, Inc. reserves the right to make, from time to
time, such departures from the detail specifications as may be
required to permit improvements in the performance, reliability, or
manufacturability of its products. Before placing an order, the user is
cautioned to verify that the information being relied upon is current.

Allegro products are not authorized for use as critical components
in life-support devices or systems without express written approval.

The information included herein is believed to be accurate and
reliable. However, Allegro MicroSystems, Inc. assumes no responsi­bility for its use; nor for any infringement of patents or other rights of
third parties which may result from its use.

115 Northeast Cutoff, Box 15036
Worcester, Massachusetts 01615-0036 [phone]
