Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty

Operators Manual

Tank 60”

WARNING

READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL

BEFORE ATTEMPTING TO OPERATE THIS MACHINE.

FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

Printed In USA

Form No. 769-05067



(January 7, 2010)

To The Owner

Thank You

Thank you for purchasing a Cub Cadet Commercial Zero-Turn tractor. It was carefully engineered to provide excellent performance when properly operated and maintained.

Please read this entire manual prior to operating the equipment.

It instructs you how to safely and easily set up, operate and maintain your machine. Please be sure that you, and any other persons who will operate the machine, carefully follow the recommended safety practices at all times. Failure to do so could result in personal injury or property damage.

All information in this manual is relative to the most recent product information available at the time of printing. Review this manual frequently to familiarize yourself with the machine, its features and operation. Please be aware that this Operator’s

Manual may cover a range of product specifications for various models. Characteristics and features discussed and/or illustrated in this manual may not be applicable to all models.

1

We reserve the right to change product specifications, designs and equipment without notice and without incurring obligation.

If you have any problems or questions concerning the machine, phone your local Cub Cadet dealer or contact us directly. Cub

Cadet’s Customer Support telephone numbers, website address and mailing address can be found on this page. We want to ensure your complete satisfaction at all times.

Throughout this manual, all references to right and left side of the machine are observed from the operating position.

Table of Contents

Safe Operation Practices.........................................

3

Troubleshooting.....................................................

39

Set-Up.......................................................................

10

Replacements Parts................................................

41

Controls & Features................................................

14

Attachments & Accessories...................................

43

Operation................................................................

17

Specifications.........................................................

44

Maintenance & Adjustments................................

25

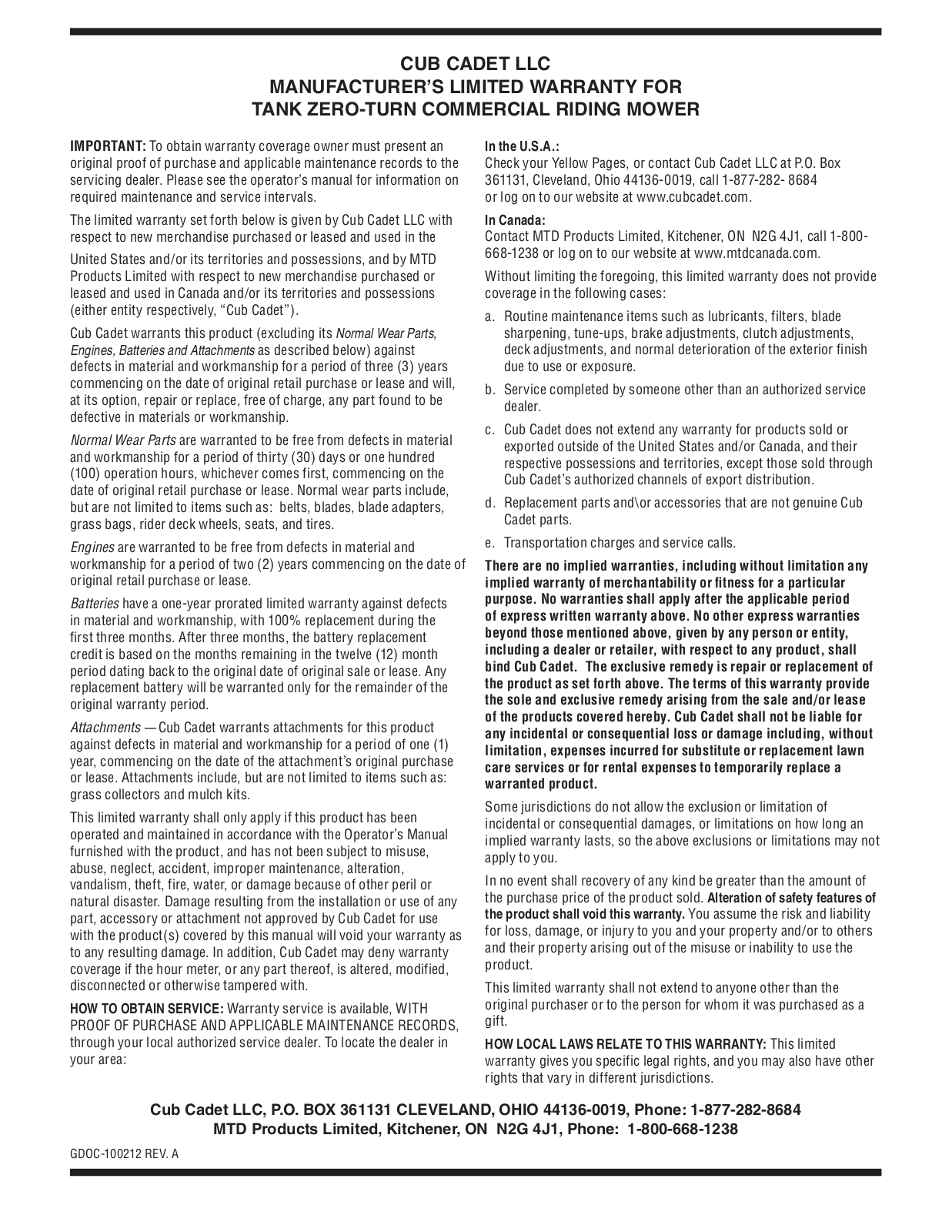

Warranty.................................................................

46

Service.....................................................................

35





Record Product Information

Model Number

















Before setting up and operating your new equipment, please





































































locate the model plate on the equipment and record the



































information in the provided area to the right. Pivot the seat





































































assembly forward to locate the model plate on the frame under

Serial Number

















the seat. This information will be necessary, should you seek

















technical support via our web site or with your local Cub Cadet





































































dealer.

















































































































































Customer Support

If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of this machine, you can seek help from the experts. Choose from the options below:

Visit us on the web at www.cubcadet.com

Locate your nearest Cub Cadet Dealer at (877) 282-8684

Write us at Cub Cadet LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019

2

Important Safe Operation Practices

2







WARNING! This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow

all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.

When you see this symbol. HEED ITS WARNING!

California Proposition 65

WARNING! Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to State of California to cause cancer and birth defects or other reproductive harm.

WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling

Spark Arrestor

Warning! This machine is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-covered or grass-covered land unless

the engine’s exhaust system is equipped with a spark arrestor meeting applicable local or state laws (if any).

If a spark arrestor is used, it should be maintained in effective working order by the operator. In the

State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands.

A spark arrestor for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.

DANGER! This machine was built to be operated according to the safe operation practices in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

General Operation

1.Read, understand, and follow all instructions on the machine and in the manual(s) before attempting to assemble and operate. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.

2.Be familiar with all controls and their proper operation. Know how to stop the machine and disengage them quickly.

3.Do not allow anyone to operate or maintain this machine who has not read the manual. Never permit children under the age of 16 to operate this machine.

4.Do not remove any shields, guards, decals or safety devices. If a shield, guard, decal or safety device is damaged or does not function, repair or replace it before operating the machine.

5.To help avoid blade contact or a thrown object injury, keep bystanders, helpers, children and pets at least 75 feet from the machine while it is in operation. Stop machine if anyone enters the area.

6.Thoroughly inspect the area where the equipment is to be used. Remove all stones, sticks, wire, bones, toys, and other foreign objects which could be picked up and thrown by the blade(s). Thrown objects can cause serious personal injury.

3

7.Plan your mowing pattern to avoid discharge of material toward roads, sidewalks, bystanders and the like. Also, avoid discharging material against a wall or obstruction which may cause discharged material to ricochet back toward the operator.

8.Always wear safety glasses, long pants, gloves, hearing protection and safety shoes when operating or maintaining this unit. Do not wear loose-fitting clothing and do not operate the machine for more than 2 hours without hearing protection.

9.Be aware of the mower and attachment discharge direction and do not point it at anyone. Do not operate the mower without the discharge cover or entire grass catcher in its proper place.

10.Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade(s) can amputate hands and feet.

11.A missing or damaged discharge cover can cause blade contact or thrown object injuries.

12.Stop the blade(s) when crossing gravel drives, walks, or roads and while not cutting grass.

13.Watch for traffic when operating near or crossing roadways. This machine is not intended for use on any public roadway.

14.Do not operate the machine while under the influence of alcohol or drugs.

15.Mow only in daylight or good artificial light.

16.Never carry passengers.

17.Back up slowly. Always look down and behind before and while backing to avoid a back-over accident. Be aware and pay attention to the safety system function that stops power to the blades when driving in reverse. If not

fuctioning properly, contact an authorized dealer for safety system inspection and repair.

18.Slow down before turning. Operate the machine smoothly.

Avoid erratic operation and excessive speed.

19.Disengage blade(s), set parking brake, stop engine and wait until the blade(s) come to a complete stop before removing grass catcher, emptying grass, unclogging chute, removing any grass or debris, or making any adjustments.

20.Never leave a running machine unattended. Always turn off blade(s), place drive control levers in neutral, set parking brake, stop engine and remove key before dismounting.

21.Use extra care when loading or unloading the machine into a trailer or truck. This machine should not be driven up or down ramp(s), because the machine could tip over, causing serious personal injury. The machine must be pushed manually on ramp(s) to load or unload properly.

22.Muffler and engine become hot and can cause a burn. Do not touch.

23.Check overhead clearances carefully before driving under low hanging tree branches, wires, door openings etc., where the operator may be struck or pulled from the machine, which could result in serious injury.

24.Disengage all attachment clutches, set the parking brake to the ‘on’ position and move the RH and LH drive control levers to the neutral position and lock before attempting to start the engine.

25.Do not attempt to mow through unusually tall, dry grass (e.g., pasture) or piles of dry leaves. Dry grass or leaves may contact the engine exhaust and/or build up on the mower deck presenting a potential fire hazard.

26.Never attempt to operate the traction unit without the mowing deck attached.

27.Keep the machine and especially the engine/pump and hydraulic components clean and free of grease, grass and leaves to reduce the potential for over heating and fire.

28.Use only accessories and attachments approved for this machine by the machine manufacturer. Read, understand and follow all instructions provided with the approved accessory or attachment.

29.Data indicates that operators, age 60 years and above, are involved in a large percentage of riding mower-related injuries. These operators should evaluate their ability

to operate the riding mower safely enough to protect themselves and others from serious injury.

30.If situations occur which are not covered in this manual, use care and good judgment. Contact your customer service representative for assistance.

31.Do not operate or start machines if there are fuel or oil leaks or spillage. Clean it up.

32.Do not stop or park machine over dry leaves, grass, debris, etc. that could be combustible.

33.Do not operate machines that have been damaged or have not been properly maintained. If the machine has been damaged, then have it repaired.

34.When looking for oil leaks, never run your hand over hydraulic hoses, lines or fittings. Never tighten or adjust hydraulic hoses, lines or fittings while the system is under pressure. If high-pressure oil penetrates the skin, the oil must be removed within a few hours by a doctor familiar with this form of injury or gangrene may result. Do not check for hydraulic leaks with any part of the body.

35.When operating this machine in the forward direction, do not allow the ground speed control levers to return to the neutral position on their own. Always maintain a firm grip on the levers, operate them smoothly and avoid any sudden movements of the levers when starting or stopping.

Slope Operation

Slopes are a major factor related to loss of control and tip-over accidents which can result in severe injury or death. All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it.

For your safety, use the slope gauge included as part of this manual to measure slopes before operating this machine on a sloped or hilly area. If the slope is greater than 15 degrees as

shown on the slope gauge, do not operate this machine on that area or serious injury could result.

Do:

1.Mow across slopes, not up and down. Exercise extreme caution when changing direction on slopes.

2.Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could overturn the machine. Tall grass can hide obstacles.

4



Section 2 — Important Safe Operation Practices









3.Use slow speed. Choose a low enough speed so that you will not have to stop while on the slope. Avoid starting or stopping on a slope. If the tires are unable to maintain traction, disengage the blades and proceed slowly and carefully straight down the slope.

4.Follow the manufacturer’s recommendations for wheel weights or counterweights to improve stability.

5.Use extra care with grass catchers or other attachments. These can change the stability of the machine.

6.Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or direction. Rapid acceleration or deceleration could cause the front of the machine to lift and rapidly flip over backwards, which could cause serious injury.

Do Not:

1.Do not turn on slopes unless necessary; then turn slowly uphill and use extra care while turning.

2.Do not mow near drop-offs, ditches or embankments. The mower could suddenly turn over if a wheel is over the edge of a cliff, ditch, or if an edge caves in.

3.Do not try to stabilize the machine by putting your foot on the ground.

4.Do not use a grass catcher on steep slopes.

5.Do not mow on wet grass. Reduced traction could cause sliding.

6.Do not tow heavy pull behind attachments (e.g. loaded dump cart, lawn roller, etc.) on slopes greater than 5 degrees. When going down hill, the extra weight tends to push the tractor and may cause you to loose control

(e.g. tractor may speed up, braking and steering ability are reduced, attachment may jack-knife and cause tractor to overturn).

Children

1.Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. They do not understand the dangers. Never assume that children will remain where you last saw them.

a.Keep children out of the mowing area and in watchful care of a responsible adult other than the operator.

b.Be alert and turn machine off if a child enters the area.

c.To avoid back-over accidents, always look behind and down for small children.

d.Never carry children, even with the blade(s) shut off. They may fall off and be seriously injured or interfere with safe machine operation.

e.Use extreme care when approaching blind corners, doorways, shrubs, trees or other objects that may block your vision of a child who may run into the path of the machine.

f.Keep children away from hot or running engines. They can suffer burns from a hot muffler.

g.Remove key when machine is unattended to prevent unauthorized operation.

2.Never allow children under 16 years of age to operate this machine. Children 16 and over should read and understand the instructions and safe operation practices in this manual and on the machine and should be trained and supervised by an adult.

Towing

1.Do not tow on slopes exceeding 5 degrees.

2.Tow only with a machine that has a hitch designed for towing. Do not attach towed equipment except at the hitch point.

3.Follow the manufacturers recommendation for weight limits for towed equipment and towing on slopes.

4.Never allow children or others in or on towed equipment.

5.On slopes, the weight of the towed equipment may cause loss of traction and loss of control.

6.Travel slowly and allow extra distance to stop.

7.Do not shift to neutral and coast downhill.

Transporting Machines

1.Machines operated on public roads must comply with state

& local ordinances, SAE J137, and ANSI/ASABE S279.

2.Use care when loading or unloading machines onto trailers and trucks.

3.If ramps are used, they must be full width, and secured to the trailer or truck.

4.Machines must be secured onto trailers and trucks with straps, chains, cables, ropes, or other means deemed adequate for that purpose. The front and rear of the machines must be secured to the trailer or truck in both the lateral and vertical directions.

Operator Protective System (OPS)

1.This machine is equipped with an Operator Protective System (OPS), which includes:

a.A Roll Over Protective Structure (ROPS) or Operator Protective Device (OPD) of the fixed or folding configuration.

b.Seat belt assembly with retractable function.

2.ROPS and OPDs are structures designed to provide a crush-resistant space for the operator when properly seat-belted within the designated seating area of the machine in the event of a machine tip-over or roll-over.

Folding ROPS and OPDs shall be used in their fully upright and locked configurations except in those circumstances whereby they need to be momentarily folded-down to avoid contact with items such as tree limbs, clothes lines, guy wires, buildings, etc. At other times and conditions,

ROPS and OPDs shall be in their fully upright and locked configurations.

DANGER: Damaged ROPS and OPDs must be replaced prior to operator use!

Section 2 — Important Safe Operation Practices



5









3.Seat belts shall be used and shall be properly fastened about the operator’s waist at all times, except when the ROPS or OPDs are:

a.Not properly installed and/or not properly secured onto the machine.

b.Damaged in such manner that their structural integrity has been compromised.

c.Not in their fully upright and locked position.

4.Seat belts are attached to the movable portion of the seat when suspension seats are utilized, and therefore the seatmounting base must be secured to its pivot means and the pivot means latched to the frame of the machine. Seat belts are attached to the seat or the frame of the machine when non-suspension (standard) seats are provided, however, if a suspension kit is added to a seat, the seat belt must be attached to the movable portion of the seat or suspension mechanism, the seat-mounting base must be secured to its pivot means, and the pivot means be latched to the frame of the machine.

DANGER: If ROPS and OPDs are folded down or missing, seat belts shall not be fastened. Worn or damaged seat belt assemblies must be replaced prior to operator use.

5.Brush Guards and canopies can afford additional protection for the operator. The Brush Guard can deflect tree limbs, clothes lines, and other obstacles that otherwise could come in contact with the ROPS and OPDs. Contact of ROPS and OPDs by items such as tree limbs, clothes lines, guy wires, and buildings, could create hazardous conditions whereby the machine could experience a tipover or roll-over. The canopy can provide protection for the operator from some environmental exposure (sunlight, rain, etc.). Work lights may be available.

6.The ROPS and seat belt are integral parts of this machine and should not be tampered with, modified in any manner, or removed.

7.The ROPS extends above and behind the operator position, and therefore the operator must be aware of potential contact of the ROPS with items such as trees, buildings, doorways, clothes lines, utility wires, etc., that could cause the machine to upset or rollover. Use caution in (or avoid) areas where the ROPS could come in contact with any structures, trees, etc.

8.The ROPS and seat belt add additional mass that elevates the machine’s Center of Gravity (C.G.) which negatively affects the machine’s stability and traction. Use extra caution when operating on slopes.

9.Inspect the ROPS and seat belt assemblies on a regular basis for damage and improper operation. Replace all components that are damaged or are not functioning properly with authorized replacement parts.

10.Failure to use the seat belt properly could result in serious injury or death if an accidental overturn occurs. In order for the ROPS to be effective, the seat belt must be securely fastened around the operator at all times when the operator is on the machine. Contact with the ROPS during an overturn could cause serious injury or death.

11.The ROPS will not prevent the machine from upsets or roll overs.

12.Only approved attachments should be used on this machine.

Hydraulic Devices and Systems

Hydraulic fluid escaping under pressure may have sufficient force to penetrate skin and to cause serious injury. If foreign fluid is injected into the skin, it must be surgically removed within a few hours by a doctor familiar with this form of injury, or gangrene

may result.

Warning: Keep body and hands away from pinholes or nozzles that could eject hydraulic fluid under high pressure. Use paper or cardboard, not hands, to search for leaks!

Safely relieve all pressure in the system before performing any work on the system, and make sure that:

The ignition switch is OFF

The key is removed

The engine spark plug wire(s) removed

All connections to the negative terminal of the battery are removed

The park brake is set

All by-pass valves, if so equipped, are open

Hydraulic controls are actuated to release pressure on pumps, cylinders, etc. If “float” positions are available, they should be used.

After the above operations are completed, it should be safe to begin disconnecting the lines or components. It is still a good idea to cover the connection with a cloth shield and then gently

loosen connections.

Warning: Make sure all hydraulic fluid connections are tight and all hydraulic hoses and lines are in good condition before applying pressure to the system.

Service

Safe Handling of Gasoline:

1.To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes which can ignite. Wash your skin and change clothes immediately.

a.Use only an approved gasoline container.

b.To prevent static discharge, never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling.

c.When practical, remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.

6



Section 2 — Important Safe Operation Practices









d.To avoid static discharge, keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.

e.Extinguish all cigarettes, cigars, pipes and other sources of ignition.

f.Never fuel machine indoors near an open flame, spark or pilot light as on a water heater, space heater, furnace, clothes dryer or other gas appliances.

g.If the fuel container spout will not fit inside the fuel tank opening, use a funnel.

h.Never remove gas cap or add fuel while the engine is hot or running. Allow engine to cool at least two minutes before refueling.

i.Never over fill fuel tank. Fill tank to no more than 1 inch below bottom of filler neck to allow space for fuel expansion.

j.Replace gasoline cap and tighten securely.

k.If gasoline is spilled, wipe it off the engine and equipment. Move machine to another area. Wait 5 minutes before starting the engine.

l.To reduce fire hazards, keep machine free of grass, leaves, or other debris build-up. Clean up oil or fuel spillage and remove any fuel soaked debris.

m.Never operate/store the machine or fuel container inside where there is an open flame, spark or pilot light as on a water heater, space heater, furnace, clothes dryer or other gas appliances.

n.Allow a machine to cool at least five minutes before storing.

o.Do not use gasoline fuel classified above E-10 (I.E., E-15 through E-85) as it could cause severe damage to the engine and fuel system.

General Service

1.Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless, and deadly gas.

2.Before cleaning, repairing, or inspecting, make certain the blade(s) and all moving parts have stopped. Disconnect the spark plug wires and remove the key from the ignition to prevent unintended starting.

3.Periodically check to make sure the blades come to complete stop within approximately (5) five seconds after operating the blade disengagement control. If the blades do not stop within the this time frame, your machine should be serviced.

4.Regularly check the safety interlock system for proper function, as described later in this manual. If the safety interlock system does not function properly, have your machine serviced.

5.Check the blade(s) and engine mounting bolts at frequent intervals for proper tightness. Also, visually inspect blade(s) for damage (e.g., excessive wear, bent, cracked). Replace the blade(s) with the original equipment manufacturer’s (O.E.M.) blade(s) only, listed in this manual. “Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!”

6.Mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.

7.Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.

8.Never tamper with the safety interlock system or other safety devices. Check their proper operation regularly.

9.After striking a foreign object, stop the engine, disconnect the spark plug wire(s) and ground against the engine. Thoroughly inspect the machine for any damage. Repair the damage before starting and operating.

10.Never attempt to make adjustments or repairs to the machine while the engine is running.

11.Grass catcher components and the discharge cover are subject to wear and damage which could expose moving parts or allow objects to be thrown. For safety protection, frequently check components and replace immediately with original equipment manufacturer’s (O.E.M.) parts only, listed in this manual. “Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!”

12.Do not change the engine governor settings or over-speed the engine. The governor controls the maximum safe operating speed of the engine.

13.Maintain or replace safety and instruction labels, as necessary.

14.Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment.

Do not modify engine

To avoid serious injury or death, do not modify engine in any way. Tampering with the governor setting can lead to a runaway engine and cause it to operate at unsafe speeds. Never tamper with factory setting of engine governor.

Notice Regarding Emissions

Engines which are certified to comply with California and federal

EPA emission regulations for SORE (Small Off Road Equipment) are certified to operate on regular unleaded gasoline, and may include the following emission control systems: Engine

Modification (EM) and Three Way Catalyst (TWC) if so equipped.

Section 2 — Important Safe Operation Practices



7









Safety Symbols

This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

Symbol

Description

READ THE OPERATOR’S MANUAL(S)

Read, understand, and follow all instructions in the manual(s) before attempting to assemble and operate

WARNING— ROTATING BLADES

Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade(s) can amputate hands and feet.

WARNING—THROWN OBJECTS

This machine may pick up and throw and objects which can cause serious personal injury.

WARNING—THROWN OBJECTS

This machine may pick up and throw and objects which can cause serious personal injury.

BYSTANDERS

Keep bystanders, helpers, children and pets at least 75 feet from the machine while it is in operation.

WARNING— SLOPE OPERATION

Do not operate this machine on a slope greater than 15 degrees.

DANGER — ROTATING BLADES

To reduce the risk of injury, keep hands and feet away. Do not operate unless discharge cover or grass catcher is in its proper place. If damaged, replace immediately.

Warning! Your Responsibility—Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine.

SAVE THESE INSTRUCTIONS!

8



Section 2 — Important Safe Operation Practices









Sight and hold this level with a vertical tree...

or a corner of a building...

or a fence post

Fold

along

dotted line

(represents

a 15°

slope)

15°

Section 2 — Safe Operation Practices 9

Use this page as a guide to determine slopes where you may not operate safely.

WARNING! Do not operate your lawn mower on such slopes. Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A riding mower could overturn and cause serious injury. Operate riding mowers up and down slopes, never across the face of slopes.

Operate TANK zero turn tractors across the face of slopes rather than up and down. Begin with the first pass across the bottom of the slope and turn uphill at the end of each pass whenever possible.

Assembly & Set-Up

3







Contents of Crate



One Lawn Tractor

One Oil Drain Hose

One Deck Wash Hose Coupler

One Tank Operator’s Manual

One Engine Operator’s Manual





Tractor Preparation

Remove the upper crating material from the shipping pallet, and cut any bands or tie straps securing the tractor to the pallet.

Use the lift handle to raise the deck to its highest position. Locate the valves on the hydraulic pump. Using a 15mm wrench, loosen jam nut, then loosen the inner bolt with an 8mm wrench (1⁄2 turn). There are two by-pass valves, one for each pump. After pushing the mower to the desired location, return both valves to the operating position by turning the bolt clockwise, but do not overtighten. See Fig. 3-1.

Inner Bolt

Jam Nut

Figure 3-1

Remove the deck wash system nozzle adapter from the manual bag and store for future use. Cut the wire tie holding the chute deflector up and discard any packing material.

Install Roll Over Protective System (ROPS)

The Roll Over Protective System (ROPS) has not been installed on your unit for shipping purposes. Using the hardware found in the Roll Over Protective System container, install it on your unit as follows:

1.Insert each of the lower section ROPS posts into the brackets welded to the main frame. See Fig. 3-2.

ROPS Posts





Carriage

Washer

Bolts



Nut



Frame Brackets

Figure 3-2

NOTE: The ROPS pivot holes should be positioned toward the rear of the tractor.

2.Insert the carriage bolts (1⁄2-13 x 3.00) (two per side) from the front toward the rear. Alternately from the rear toward the front if access is restricted.

NOTE: The mounting hardware is accessible from the rear of the machine with the use of extensions. Also, access can be gained by reaching in from the sides over the tires and under the fuel tanks.

3.Three holes are provided on each side. Use the Upper hole and one of the other two remaining holes that is easily accessible. Install the retaining nuts, but do not tighten.

10

4.Install the upper ROPS section onto the lower ROPS posts. Install the (1⁄2-13 x 3.25) HHCS bolts, nuts and washers. See Fig. 3-3.

8. Move the upper ROPS section to the upright position, and insert the locking pins with their retainer hairpin clips. See Fig. 3-6.

Hex Bolts

Washers

Nuts

Lower ROPS Posts

Figure 3-3

5.Tighten Upper ROPS section bolts after both RH & LH hardware is installed.

6.Tighten the frame mounting hardware to 80-90 lb.-ft. torque. See Fig. 3-2.

NOTE: Make sure tubular upright posts are absolutely tight within welded bracket.

7.Insert rubber plugs into each side of the upper ROPS. See Fig. 3-5.

Rubber Plug

Hairpin

Clips

Locking Pin

Figure 3-6

Position Drive Control levers

The drive control levers of the tractor are lowered for shipping purposes. Using the hardware found in the manual bag, the control levers must be repositioned to operate the tractor. To reposition the control levers for operation, proceed as follows:

1.Lift and swing the control levers up into the operating position.

2.From the outside, insert the bolts through the hourglass spacers and the holes of the pivot bracket. Secure with the flange lock nuts. See Fig. 3-7.

Bolt

Nut



Hourglass

Spacer

Figure 3-5

Figure 3-7

3.Refer to “Adjusting the Drive Control Levers” in the Maintenance & Adjustments section for instructions on the final adjustment of the levers.

Section 2 — Assembly & Set-Up



11









Adjusting Drive Control Levers

The RH and LH drive control levers can be adjusted up or down and fore-and-aft for the comfort of the operator. Proper drive control lever and seat adjustment will result in the following:

In the neutral position with hands on the control levers,

Operator’s upper arms should be relaxed and approximately vertical.

Operator’s forearms should be approximately horizontal.

In the full forward position,

Operator’s back should stay in contact with the seat back.

Control levers should not contact operator’s legs.

In the full reverse position,

Control levers should not contact the operator’s legs or torso.

Set the seat to the preferred operating position.

Adjustment lever is located under the front edge of the seat.

The seat has five inches of front-to-rear adjustment available.

Check factory settings of control levers for the conditions listed above.

NOTE: If control lever adjustments are required, height adjustments should be made prior to angular adjustments.

To adjust the height of the drive control levers:

1.Remove the nuts from the control lever mounting bolts.

See Fig. 3-7.

Drive Control

Lever Mounting

Bolts & Nuts

Figure 3-7

2.Remove the bolts and control lever and reposition to the second set of holes in the mounting block.

3.Reinstall the bolts and nuts, and tighten to 28-34 ft-lbs.

4.If angular adjustments are also required, nuts can be tightened until snug at this point.

The same adjustments should be made to both sides of the mower.

To adjust the front-to-rear angle of the control levers:

1.Loosen the nuts on the control lever mounting bolts, leaving the bottom one fairly snug. The top hole is slotted, allowing the control lever to pivot on the bottom bolt.

2.Move control lever to the desired angle and tighten the nuts to 28-34 ft-lbs.

NOTE: In the neutral position, the handles of the control levers should be aligned with approximately a one inch gap between the tips. Widen the gap by adding shim washers to the top mounting bolt between the lap bar and the mounting block.

3.Check the results of any adjustments to the conditions described above. Repeat any adjustment procedures as required until all conditions are met.

Suspension Seat

1.This unit is equipped with an adjustable suspension seat system, which includes a fold-forward seat with retractable seat belt assembly, a low profile mechanical suspension, and an Operator Presence Sensor (OPS).

2.The seat bottom is covered with a heavy-duty vinyl fabric and integrates the EVC cushion comfort system that provides up to 1-3⁄8” dampered (for shock isolation) suspension travel. An OPS in the form of a switch, is integrated into the seat bottom and is connected to the machine electrical system. The seat back is also covered

with a heavy-duty vinyl fabric, it adjusts to recline up to 16 degrees, and it will fold forward for transport or protection from the elements of weather (lever actuated on operator’s left side). The armrests are adjustable for operator comfort (knob inside armrests actuated from the bottom). Roller bearing single-locking tracks provide easy repositioning fore/aft up to 5” (lever actuated on lower right).

3.A mechanical suspension mechanism incorporates weight/ ride adjustment controls for operators in the 125 to 275 lb. weight range (turn the knob on the front of the seat clockwise to increase the weight capacity and counterclockwise to decrease. Self-lubricating bearings are utilized throughout the suspension mechanism that provides an additional 2” of suspension travel.

4.A retractable seat belt assembly with inertia-lock is attached to the “ride” portion of the seat frame. The seat frame is attached to the mechanical suspension, which is attached to the roller tracks that are bolted to the seat base in one of the three (3) locations - the seat assembly can

be detached and re-installed 1” forward or 1” aft from the factory installed position.

5.When the seat latch is released, the complete seat assembly and seat base can be pivoted forward onto the foot platform - this provides access to the battery, hydraulic reservoir and filter, as well as some of the electrical system and control linkages. The seat base must be secured with the latch prior to machine operation.

NOTE: The seat base must be secured by the latch, otherwise, the seat assembly could tilt forward. The Operator Presence Sensor must be connected to the electrical wiring harness.

12 Section 2— Assembly & Set-Up

Connecting the Battery Cables

California Proposition 65 Warning!

Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

Caution: When attaching battery cables, always connect the POSITIVE (Red) wire to its terminal first,

followed by the NEGATIVE (Black) wire.

For shipping reasons, both battery cables on your equipment may have been left disconnected from the terminals at the factory. To connect the battery cables, proceed as follows:

NOTE: The positive battery terminal is marked Pos. (+). The negative battery terminal is marked Neg. (–).

NOTE: If the positive battery cable is already attached, skip ahead to step 2.

1.Remove the plastic cover, if present, from the positive battery terminal and attach the red cable to the positive battery terminal (+) with the bolt and hex nut. See Fig. 3-8.

Figure 3-8

2.Remove the plastic cover, if present, from the negative battery terminal and attach the black cable to the negative battery terminal (–) with the bolt and hex nut. See Fig. 3-8.

3.Position the red rubber boot over the positive battery terminal to help protect it from corrosion.

NOTE: If the battery is put into service after the date shown on top/side of battery, charge the battery as instructed in the

Maintenance section your Operator’s Manual prior to operating the tractor.

Section 2 — Assembly & Set-Up



13









Cub cadet Tank 60 User Manual

Controls and Features

4







ROPS (Roll Over Protective System)

Fuel Shut-Off Valve

Digital Tachometer

& Hour Meter

Fuel Tank Cap

Cup Holder

WARNIN

AV ID ERI

IN RY R DEAT





START

EREVERS

“N” NEUTRAL

RWARDFO





Choke





START



PTO

Lever









Switch



RH Drive





















Control Lever

LH Drive

Parking Brake













CHOKE ON

CHOKE OFF

Control Lever













RUN









OFF

START

FAST

SLOW









Throttle

Deck Height

Deck Lift







Index

Pedal





Ignition Control







Switch

Figure 4-1

NOTE: References to LEFT, RIGHT, FRONT, and REAR indicate that

Deck Lift Pedal

position on the tractor when facing forward while seated in the

The deck lift pedal is located on the right front corner of the foot

operator’s seat.

Deck Height Index

platform, and is used to raise and lower the mower deck.

To raise the mowing deck to the transport position, push the



upper part of the pedal all the way forward and place the clevis



pin in furthest hole from you and secure with the cotter pin.





To lower the deck, remove the clevis pin and reinsert it in the



desired cutting height and secure with cotter pin.

The deck height index consists of several holes located on the front/right of the foot platform. Each hole corresponds to a 1⁄4” change in the deck height position ranging from 1” at the lowest notch to 5” at the highest notch.

RH and LH Drive Control Levers

The RH and LH control levers are located on each side of the operator’s seat. These hinged levers pivot outward to open space to permit the operator to either sit in the tractor seat, or to dismount the tractor. The levers must be in the neutral position and locked to start the tractor engine.

Each lever controls the respective RH or LH transmission.

Consequently, these levers control all of the movements of the tractor. Driving and steering utilizing these control levers is quite different from conventional tractors, and will take some practice to master. Refer to Operation for instructions on using the control levers.

14

Ignition Switch

The ignition switch is located on the RH console to the right of the operator’s seat. The ignition switch has three positions as follows:

OFF — The engine and electrical system is turned off.

RUN — The tractor electrical system is energized.

OFF

RUN

START

START — The starter motor will turn

over the engine. Release the key immediately when the engine starts

NOTE: To prevent accidental starting and/or battery discharge, remove the key from the ignition switch when the tractor is not in use.

PTO (Power Take-Off) Switch

The PTO switch is located on the RH console to the right of the operator’s seat next to the ignition switch.

The PTO switch operates the electric PTO clutch mounted on the bottom of the engine crankshaft. Pull the switch knob upward to

engage the PTO clutch, or push the knob

downward to disengage the clutch.

The PTO switch must be in the “disengaged” position when starting the engine.

Digital Tachometer & Hour Meter

The tachometer/hour meter panel is located on the RH console to the right of the operator’s seat. The hour meter records the hours that the tractor has been operated in the digital display.

The tachometer provides engine speed (RPM), and service reminders (oil, lube) in the digital display.

The tachometer/hour meter is activated all the time, and engine speed is indicated when the engine is running. The hourmeter only records when the engine is running. Keep a record of the actual hours of operation to assure all maintenance procedures are completed according to the instructions in this manual and the engine manual.

Throttle Control

The throttle control is located on the LH console to the left of the operator’s seat. When set in a given position, a uniform engine speed will be maintained.

Push the throttle control handle forward to increase the engine speed. The tractor is designed to operate with the throttle control in the fast position (full throttle) when the tractor is being driven and the mower deck is engaged.

Pull the throttle control handle rearward to decrease the engine speed.

Choke Lever

The Choke lever is located on the left side of the mower next to the operator’s seat. The Choke is operated manually when the lever is moved forward past the detent. Having the Choke in the ON position helps the engine to start during initial start-up. During normal operation the Choke should be OFF.

Parking Brake Engagement Lever

ON

POSITION

START

PARK BRAKE

The parking brake engagement lever is located on the LH console to the left of the operator’s seat., and when pulled to the rear, engages the parking brake.

NOTE: If the LH and RH drive control levers are not in the neutral position and locked when engaging the parking brake, the engine will stop. The parking brake must be placed in the engaged position and the control levers in neutral and locked when starting the engine.

Fuel Tank Cap

The fuel tank cap is located on top of the fuel tank(s). Turn the fill cap counter-clockwise and pull upward to remove.

Push the cap downward on the fuel tank fill neck and turn clockwise to tighten. Always re-install the fuel cap tightly onto the fuel tank after removing.

Warning! Never fill the fuel tank when the engine is running. If the engine is hot from recently running, allow to cool for several minutes before refueling.

Highly flammable gasoline could splash onto the engine and cause a fire.

Section 4 — Controls and Features



15









Loading...
+ 33 hidden pages
