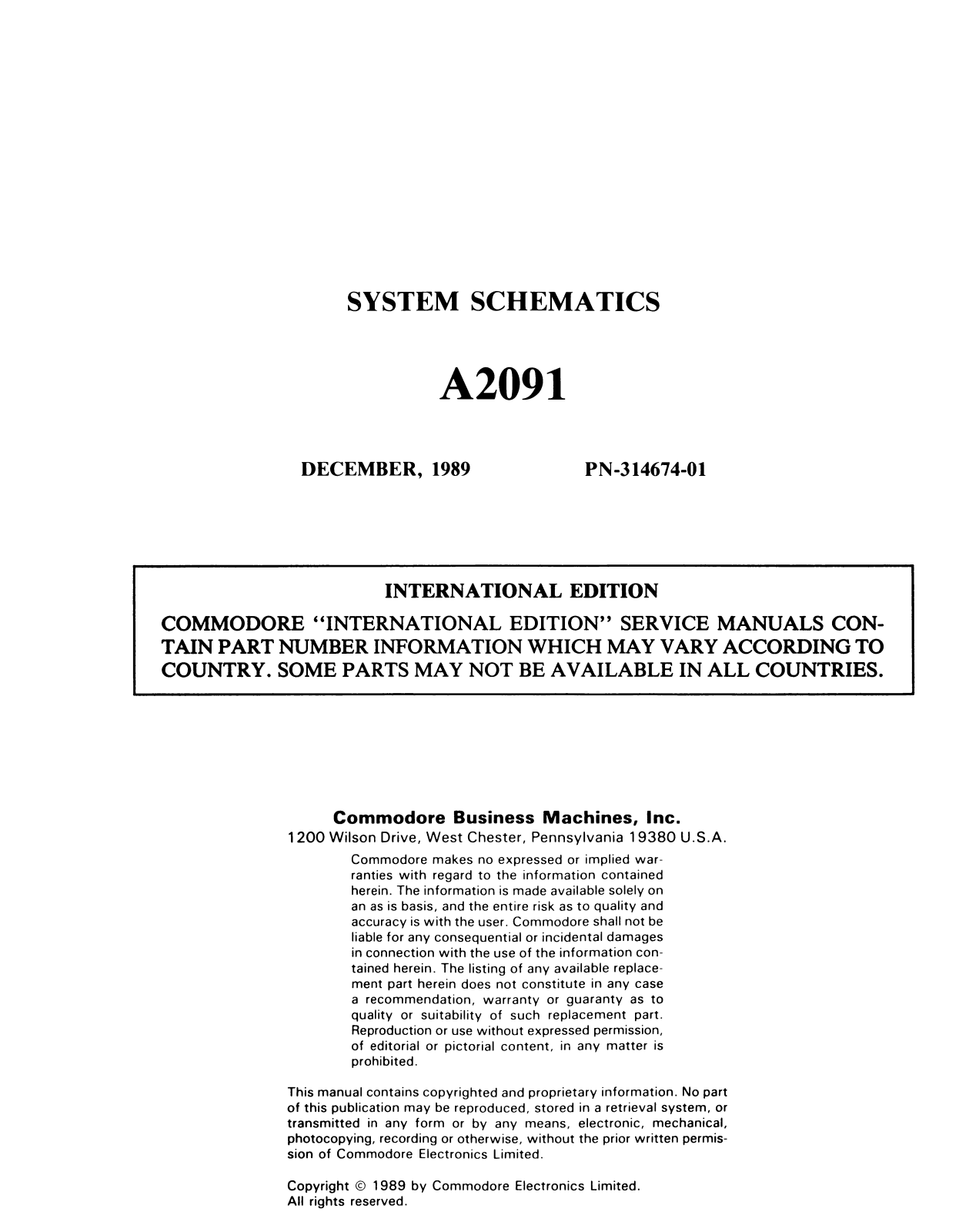

SYSTEM SCHEMATICS

A2091

DECEMBER, 1989 PN-314674-01

INTERNATIONAL EDITION

COMMODORE “INTERNATIONAL EDITION” SERVICE MANUALS CON
TAIN PART NUMBER INFORMATION WHICH MAY VARY ACCORDING TO
COUNTRY. SOME PARTS MAY NOT BE AVAILABLE IN ALL COUNTRIES.

Commodore Business Machines, Inc.

1200 Wilson Drive, West Chester, Pennsylvania 19380 U.S. A.

Commodore makes no expressed or implied war
ranties with regard to the information contained
herein. The information is made available solely on
an as is basis, and the entire risk as to quality and
accuracy is with the user. Commodore shall not be
liable for any consequential or incidental damages
in connection with the use of the information con
tained herein. The listing of any available replace
ment part herein does not constitute in any case
a recommendation, warranty or guaranty as to
quality or suitability of such replacement part.
Reproduction or use without expressed permission,
of editorial or pictorial content, in any matter is
prohibited.

This manual contains copyrighted and proprietary information. No part
of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical,
photocopying, recording or otherwise, without the prior written permis
sion of Commodore Electronics Limited.

Copyright © 1989 by Commodore Electronics Limited.
All rights reserved.

A2091 SYSTEM SCHEMATICS

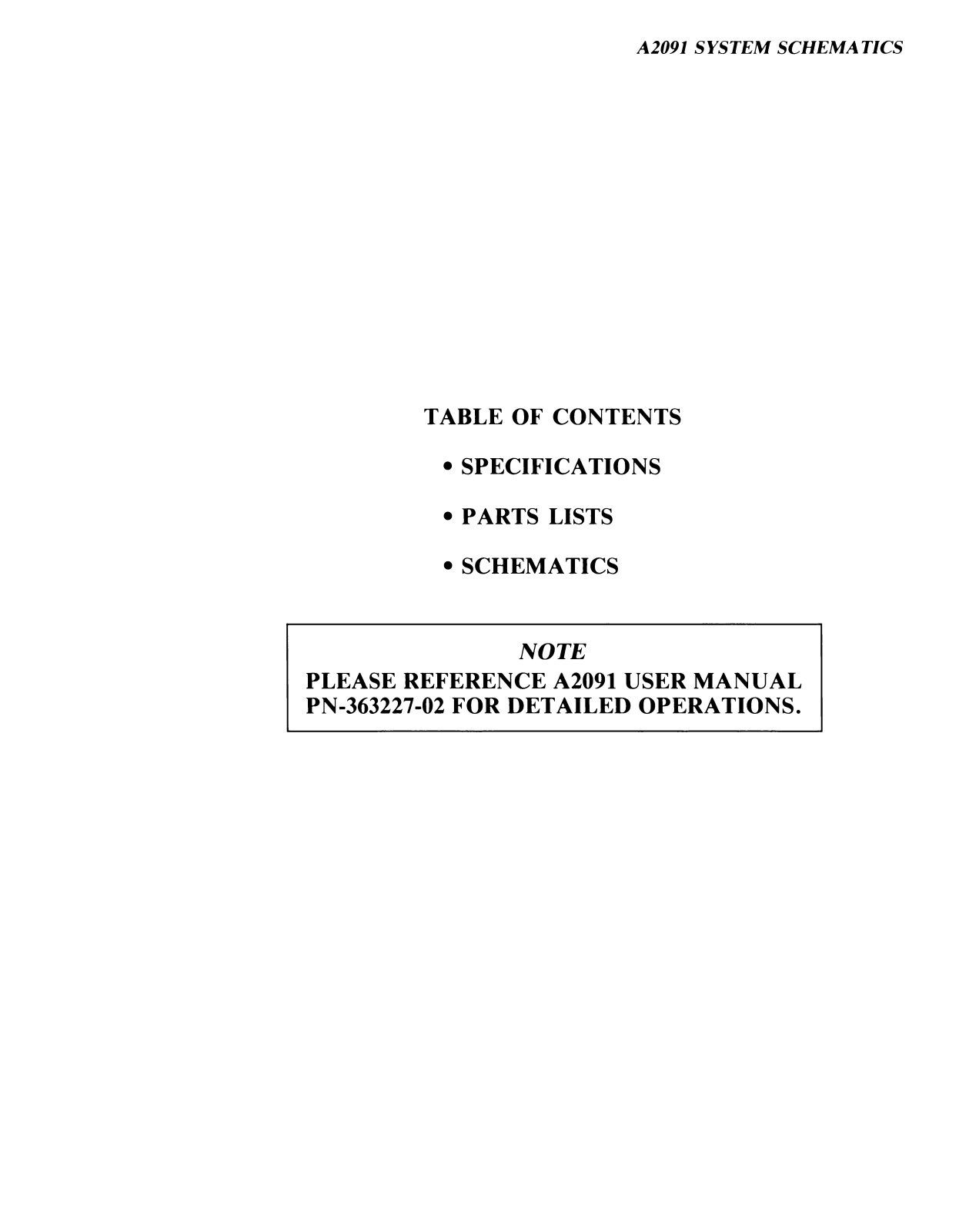

TABLE OF CONTENTS

• SPECIFICATIONS

• PARTS LISTS

• SCHEMATICS

NOTE

PLEASE REFERENCE A2091 USER MANUAL
PN-363227-02 FOR DETAILED OPERATIONS.

A2091 SYSTEM SCHEMATICS

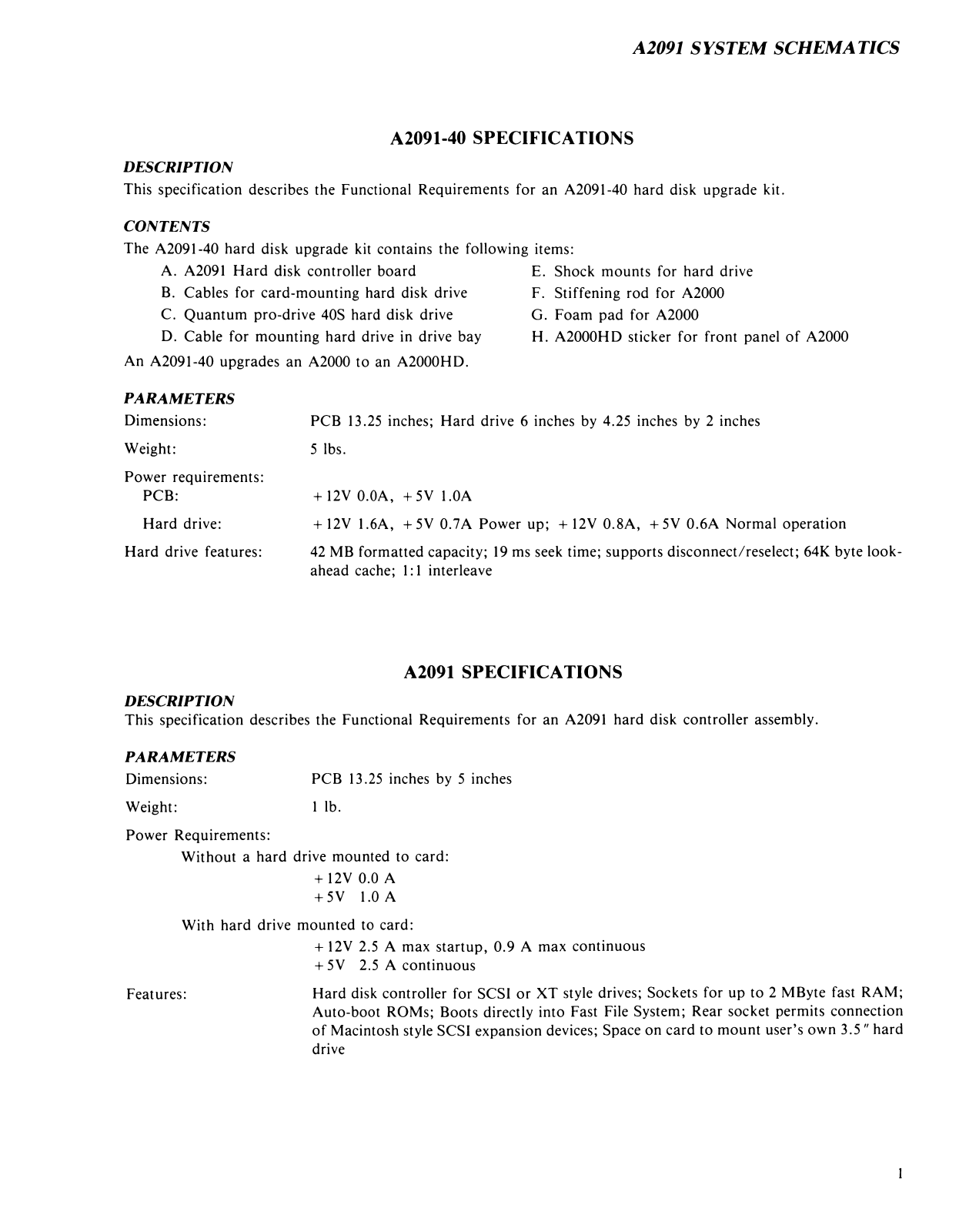

A2091-40 SPECIFICATIONS

DESCRIPTION

This specification describes the Functional Requirements for an A2091-40 hard disk upgrade kit.

CONTENTS

The A2091-40 hard disk upgrade kit contains the following items:

A. A2091 Hard disk controller board
B. Cables for card-mounting hard disk drive
C. Quantum pro-drive 40S hard disk drive
D. Cable for mounting hard drive in drive bay

An A2091-40 upgrades an A2000 to an A2000HD.

E. Shock mounts for hard drive
F. Stiffening rod for A2000
G. Foam pad for A2000
H. A2000HD sticker for front panel of A2000

PARAMETERS

Dimensions:
Weight:
Power requirements:

PCB:
Hard drive:

Hard drive features:

PCB 13.25 inches; Hard drive 6 inches by 4.25 inches by 2 inches
5 lbs.

+ 12V 0.0A, +5V 1.0A
+ 12V 1.6A, +5V 0.7A Power up; + 12V 0.8A, + 5V 0.6A Normal operation

42 MB formatted capacity; 19 ms seek time; supports disconnect/reselect; 64K byte look
ahead cache; 1:1 interleave

A2091 SPECIFICATIONS

DESCRIPTION

This specification describes the Functional Requirements for an A2091 hard disk controller assembly.

PARAMETERS

Dimensions: PCB 13.25 inches by 5 inches
Weight: 1 lb.
Power Requirements:

Without a hard drive mounted to card:

+ 12V 0.0 A
+ 5V 1.0 A

With hard drive mounted to card:

+ 12V 2.5 A max startup, 0.9 A max continuous
+ 5V 2.5 A continuous

Features: Hard disk controller for SCSI or XT style drives; Sockets for up to 2 MByte fast RAM;

Auto-boot ROMs; Boots directly into Fast File System; Rear socket permits connection
of Macintosh style SCSI expansion devices; Space on card to mount user’s own 3.5" hard
drive

1

A2091 SYSTEM SCHEMATICS

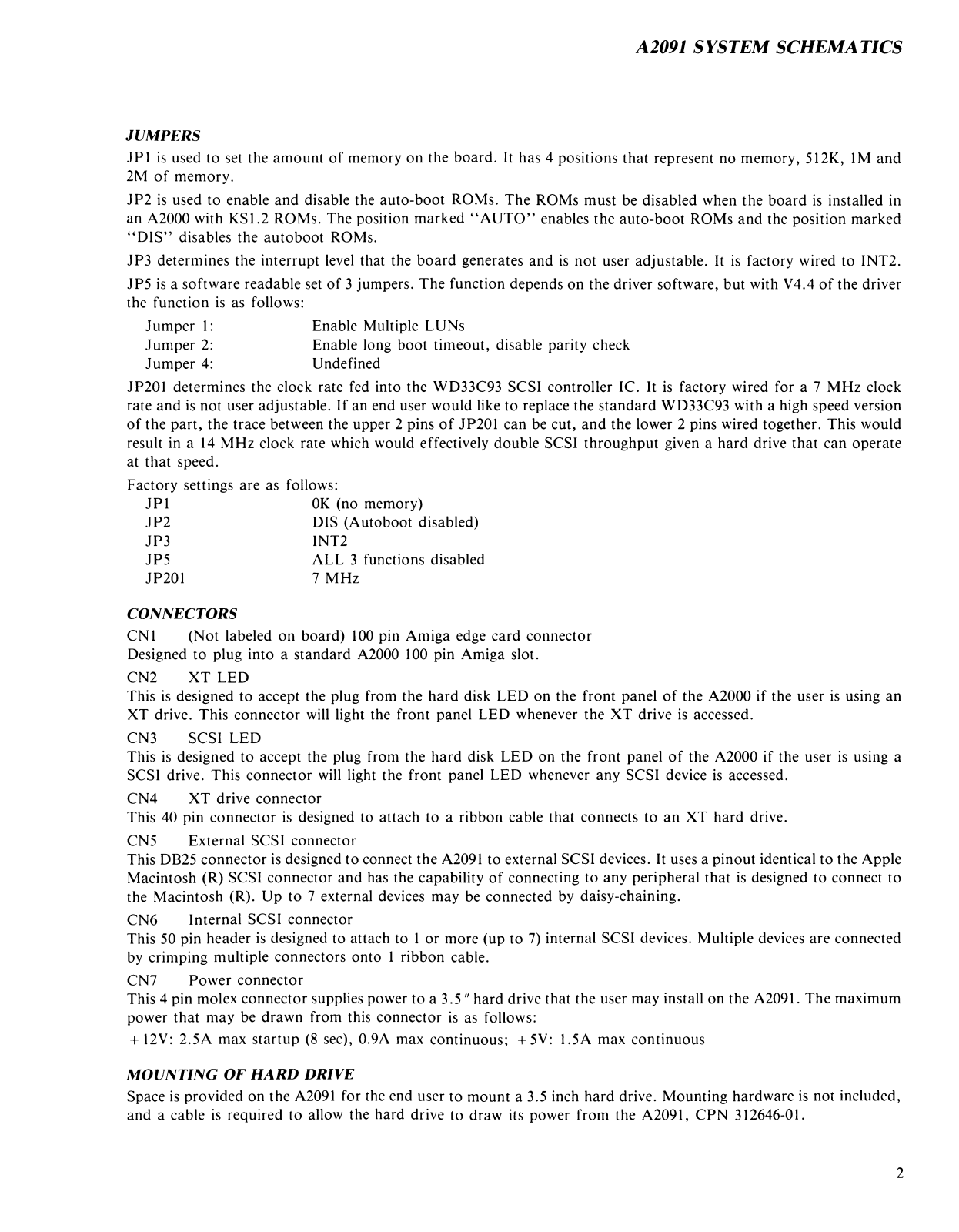

JUMPERS

JP1 is used to set the amount of memory on the board. It has 4 positions that represent no memory, 512K, 1M and
2M of memory.

JP2 is used to enable and disable the auto-boot ROMs. The ROMs must be disabled when the board is installed in
an A2000 with KS1.2 ROMs. The position marked “ AUTO” enables the auto-boot ROMs and the position marked

“ D1S” disables the autoboot ROMs.
JP3 determines the interrupt level that the board generates and is not user adjustable. It is factory wired to INT2.
JP5 is a software readable set of 3 jumpers. The function depends on the driver software, but with V4.4 of the driver

the function is as follows:

Jumper 1: Enable Multiple LUNs
Jumper 2: Enable long boot timeout, disable parity check
Jumper 4: Undefined

JP201 determines the clock rate fed into the WD33C93 SCSI controller IC. It is factory wired for a 7 MHz clock
rate and is not user adjustable. If an end user would like to replace the standard WD33C93 with a high speed version
of the part, the trace between the upper 2 pins of JP201 can be cut, and the lower 2 pins wired together. This would
result in a 14 MHz clock rate which would effectively double SCSI throughput given a hard drive that can operate
at that speed.

Factory settings are as follows:

JP1

OK (no memory)

JP2

DIS (Autoboot disabled)

JP3

INT2

JP5 ALL 3 functions disabled
JP201

7 MHz

CONNECTORS

CN1 (Not labeled on board) 100 pin Amiga edge card connector
Designed to plug into a standard A2000 100 pin Amiga slot.

CN2 XT LED
This is designed to accept the plug from the hard disk LED on the front panel of the A2000 if the user is using an
XT drive. This connector will light the front panel LED whenever the XT drive is accessed.

CN3 SCSI LED
This is designed to accept the plug from the hard disk LED on the front panel of the A2000 if the user is using a
SCSI drive. This connector will light the front panel LED whenever any SCSI device is accessed.

CN4 XT drive connector
This 40 pin connector is designed to attach to a ribbon cable that connects to an XT hard drive.

CN5 External SCSI connector
This DB25 connector is designed to connect the A2091 to external SCSI devices. It uses a pinout identical to the Apple
Macintosh (R) SCSI connector and has the capability of connecting to any peripheral that is designed to connect to
the Macintosh (R). Up to 7 external devices may be connected by daisy-chaining.

CN6 Internal SCSI connector

This 50 pin header is designed to attach to 1 or more (up to 7) internal SCSI devices. Multiple devices are connected

by crimping multiple connectors onto 1 ribbon cable.
CN7 Power connector

This 4 pin molex connector supplies power to a 3.5" hard drive that the user may install on the A2091. The maximum
power that may be drawn from this connector is as follows:

+ 12V: 2.5A max startup (8 sec), 0.9A max continuous; +5V: 1.5A max continuous

MOUNTING OF HARD DRIVE

Space is provided on the A2091 for the end user to mount a 3.5 inch hard drive. Mounting hardware is not included,
and a cable is required to allow the hard drive to draw its power from the A2091, CPN 312646-01.

2

A2091 SYSTEM SCHEMATICS

313441-01

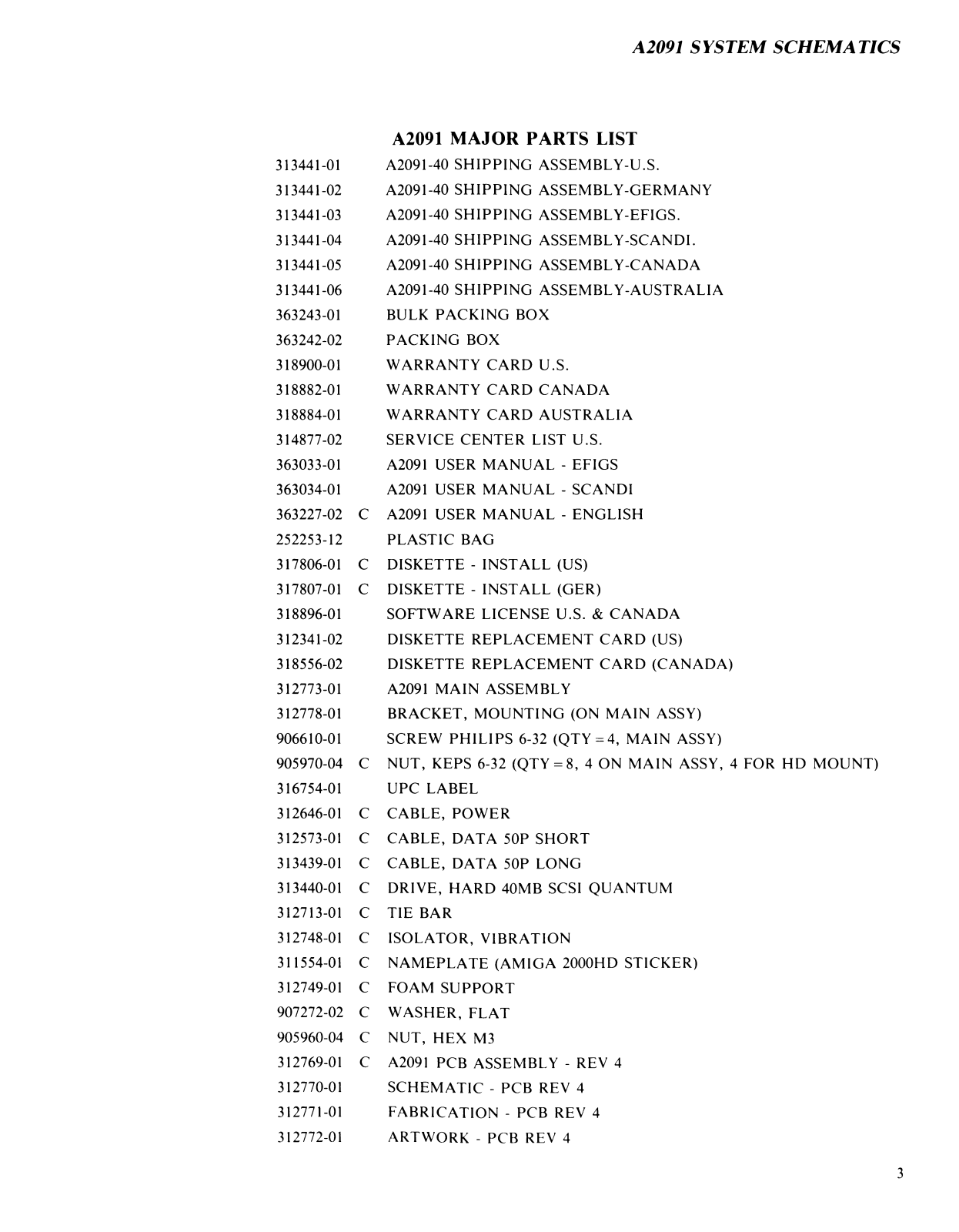

A2091 MAJOR PARTS LIST

A2091-40 SHIPPING ASSEMBLY-U.S.
313441-02 A2091-40 SHIPPING ASSEMBLY-GERMANY
313441-03

A2091-40 SHIPPING ASSEMBLY-EF1GS.
313441-04 A2091-40 SHIPPING ASSEMBLY-SCANDI.
313441-05

A2091-40 SHIPPING ASSEMBLY-CANADA
313441-06

A2091-40 SHIPPING ASSEMBLY-AUSTRALIA
363243-01

BULK PACKING BOX
363242-02

PACKING BOX
318900-01

WARRANTY CARD U.S.
318882-01

WARRANTY CARD CANADA
318884-01

WARRANTY CARD AUSTRALIA
314877-02 SERVICE CENTER LIST U.S.
363033-01 A2091 USER MANUAL - EFIGS
363034-01

A2091 USER MANUAL - SCANDI
363227-02 C A2091 USER MANUAL - ENGLISH
252253-12 PLASTIC BAG

317806-01 C

DISKETTE - INSTALL (US)

317807-01 c DISKETTE - INSTALL (GER)

318896-01

SOFTWARE LICENSE U.S. & CANADA
312341-02 DISKETTE REPLACEMENT CARD (US)
318556-02 DISKETTE REPLACEMENT CARD (CANADA)
312773-01 A2091 MAIN ASSEMBLY
312778-01

BRACKET, MOUNTING (ON MAIN ASSY)

906610-01 SCREW PHILIPS 6-32 (QTY =4, MAIN ASSY)

905970-04 c

NUT, KEPS 6-32 (QTY = 8, 4 ON MAIN ASSY, 4 FOR HD MOUNT)
316754-01 UPC LABEL

312646-01 c CABLE, POWER
312573-01 c

CABLE, DATA 50P SHORT

313439-01 c

CABLE, DATA 50P LONG

313440-01 c

DRIVE, HARD 40MB SCSI QUANTUM
312713-01

c TIE BAR

312748-01

c

ISOLATOR, VIBRATION

311554-01 c

NAMEPLATE (AMIGA 2000HD STICKER)

312749-01 c

FOAM SUPPORT

907272-02 c

WASHER, FLAT
905960-04

c

NUT, HEX M3

312769-01 c

A2091 PCB ASSEMBLY - REV 4

312770-01

SCHEMATIC - PCB REV 4

312771-01

FABRICATION - PCB REV 4

312772-01

ARTWORK - PCB REV 4

3

A2091 SYSTEM SCHEMATICS

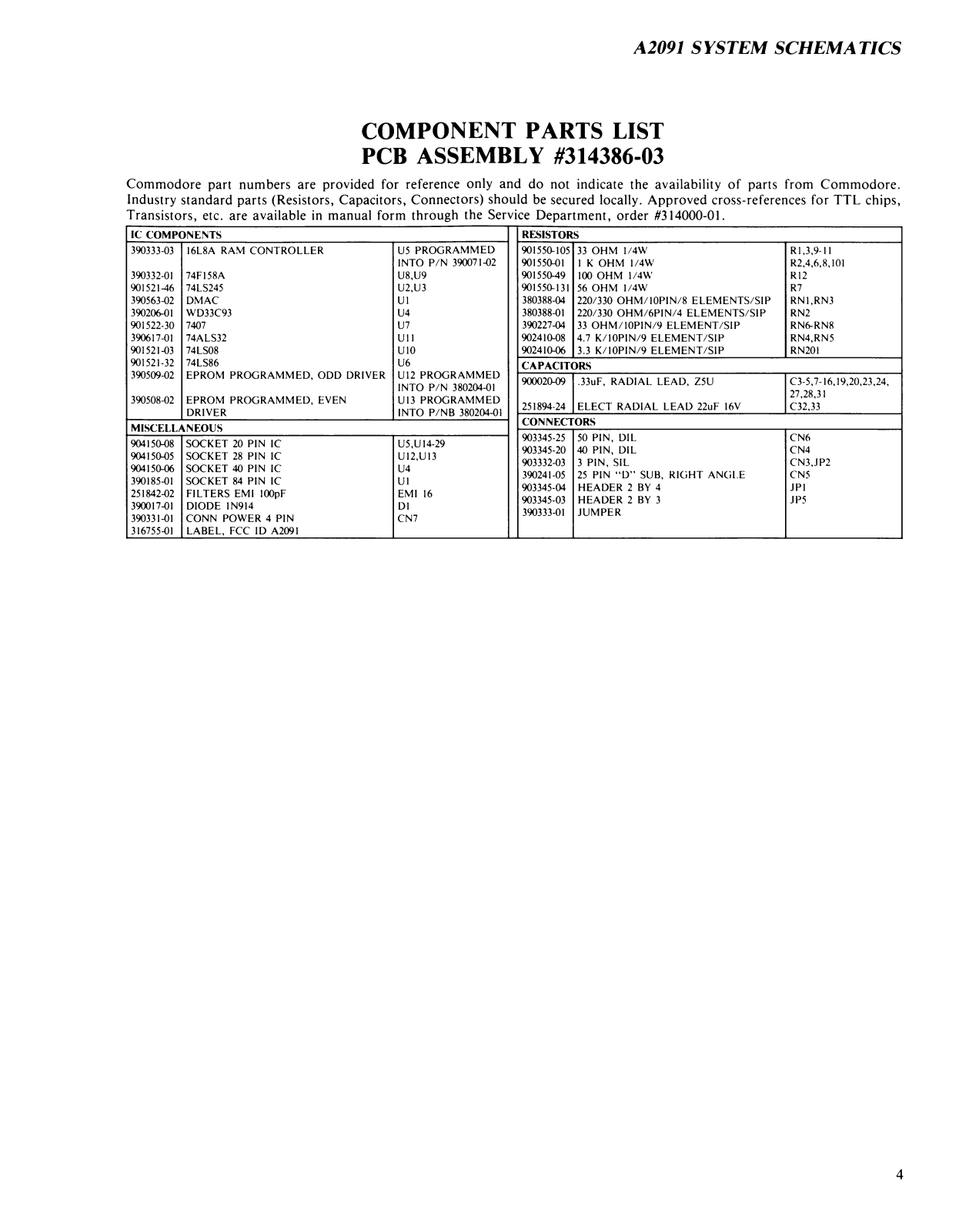

COMPONENT PARTS LIST
PCB ASSEMBLY #314386-03

Commodore part numbers are provided for reference only and do not indicate the availability of parts from Commodore.

Industry standard parts (Resistors, Capacitors, Connectors) should be secured locally. Approved cross-references for TTL chips,

Transistors, etc. are available in manual form through the Service Department, order #314000-01.

IC COMPONENTS

390333-03

16L 8 A R A M C O N T R O L L E R

U5 P R O G R A M M E D
IN T O P / N 390071-02

390332-01

74 F158A

U8 ,U 9

901521-46

74 LS2 4 5 U2,U 3
390563-02 D M A C U1
390206-01

W D 3 3 C 9 3

U4

901522-30

7407 U7

390617-01

74ALS32

U l l

901521-03

74L S08 U10
901521-32 7 4 LS86 U6

390509-02 EP R O M P R O G R A M M E D , O D D D R I V E R

U1 2 P R O G R A M M E D
IN T O P / N 380204-01

390508-02 EP R O M P R O G R A M M E D , E V E N U13 P R O G R A M M E D

D R I V E R IN T O P /N B 380204-01

MISCELLANEOUS

904150-08

S O C K E T 20 P I N I C U5 ,U 14-29
904150-05

S O C K E T 28 P I N 1C

U 12,U 13
904150-06 S O C K E T 40 PIN I C U4
390185-01 S O C K E T 84 P IN I C

U1
251842-02 F I L T E R S E M I lOOpF

EM I 16

390017-01 D I O D E 1N914 D1
390331-01 C ON N P O W E R 4 P IN CN 7
316755-01 L A B E L , F C C ID A2091

RESISTORS

901550-105 33 O H M 1/4W R 1,3,9-11
901550-01 1 K O H M 1/4W R2,4 ,6,8,101
901 5 5049

100 O HM 1/4W

R12

901550-131 56 O HM 1/4W

R7

380388-04

220/33 0 O H M /10 P I N /8 E L E M E N T S / S IP

RN 1 ,RN 3

380388-01

220/33 0 O H M /6 P IN /4 E L E M E N T S / S I P

RN2

390227-04

33 O H M / l O P IN /9 E L E M E N T /S IP RN6-R N8

902410-08

4.7 K / 1 0 PIN /9 E L E M E N T / S IP RN 4 ,R N 5

902410-06

3.3 K /1 0PIN / 9 E L E M E N T /S I P

RN201

CAPACITORS

900020-09 .33u F , R A D IA L L E A D , Z 5 U C3-5,7 - 16,1 9,20,23 ,24,

27,28,31

251894-24 E L E C T R A D I A L L E A D 22uF 16V C3 2 ,3 3

CONNECTORS

903345-25

50 P IN , D IL CN 6

903345-20 40 P IN , D I L

CN 4

903332-03

3 P IN , S I L

C N 3,J P 2

390241-05

25 P IN “ D ” SU B , R I G H T A N G L E

CN 5
903345-04 H E A D E R 2 B Y 4 JP1
903345-03

H E A D E R 2 BY 3 JP5

390333-01 J U M P E R

4

SEE NOTE 1

SEE NOTE 3

NOTES: (UNLESS OTHERWISE SPECIFIED)

1) SET ONE JUMPER ON JP1 IN “OK” POSITION.

2) SET ONE JUMPER ON JP2 IN “AUTO” POSITION.

3) SET THREE JUMPERS ON JP5 BUT ONLY ON 1 PIN.

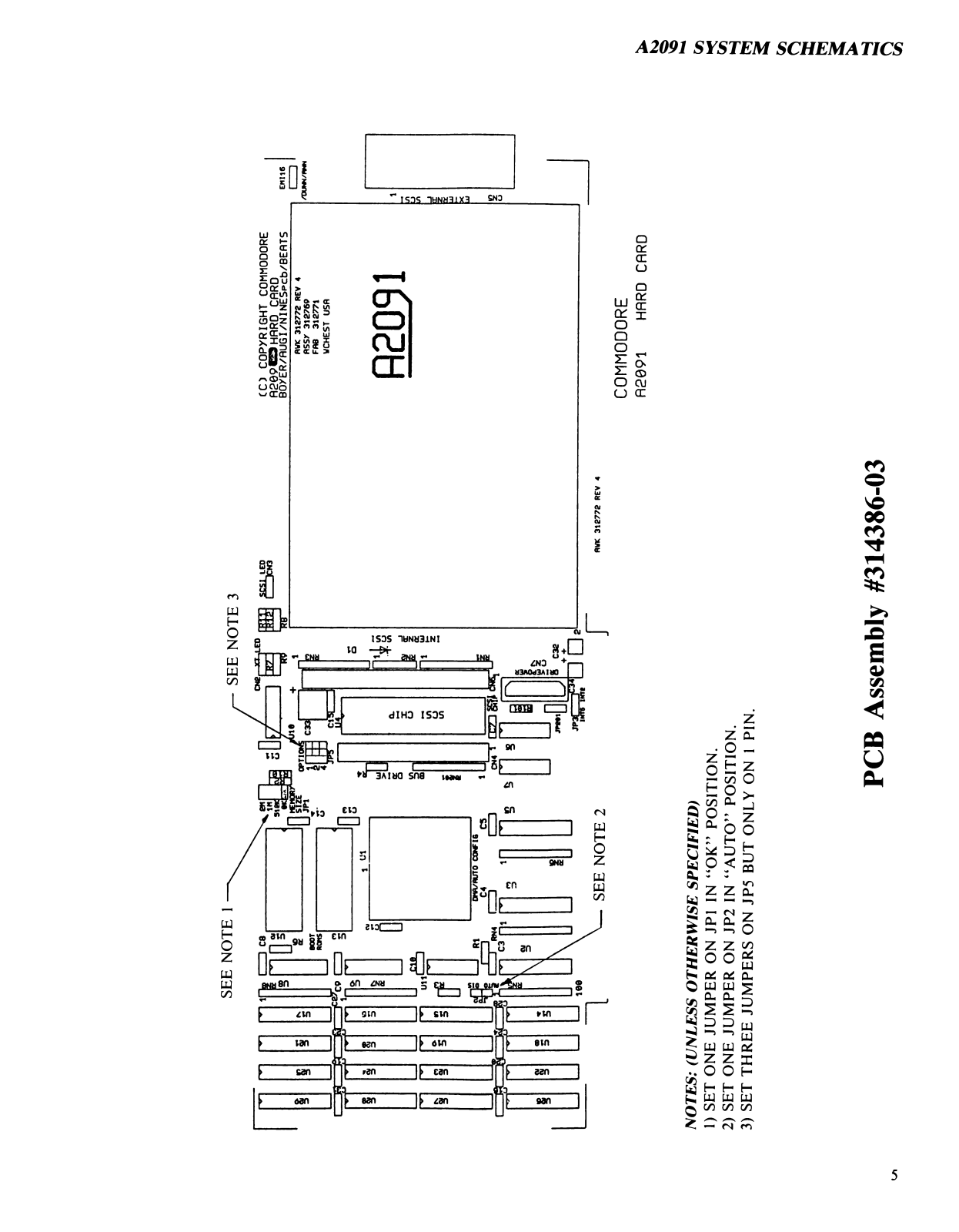

PCB Assembly #314386-03

A2091 SYSTEM SCHEMATICS

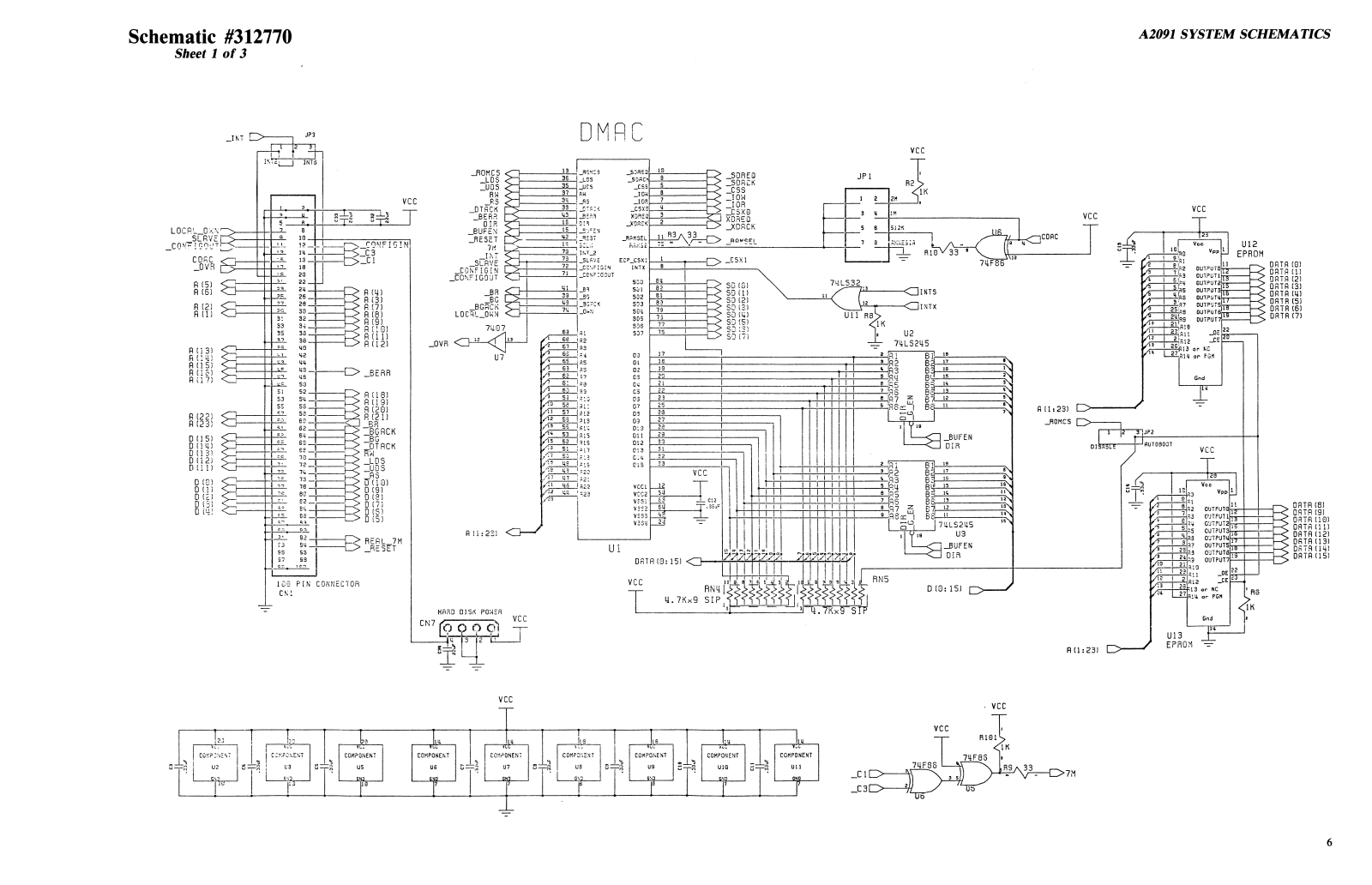

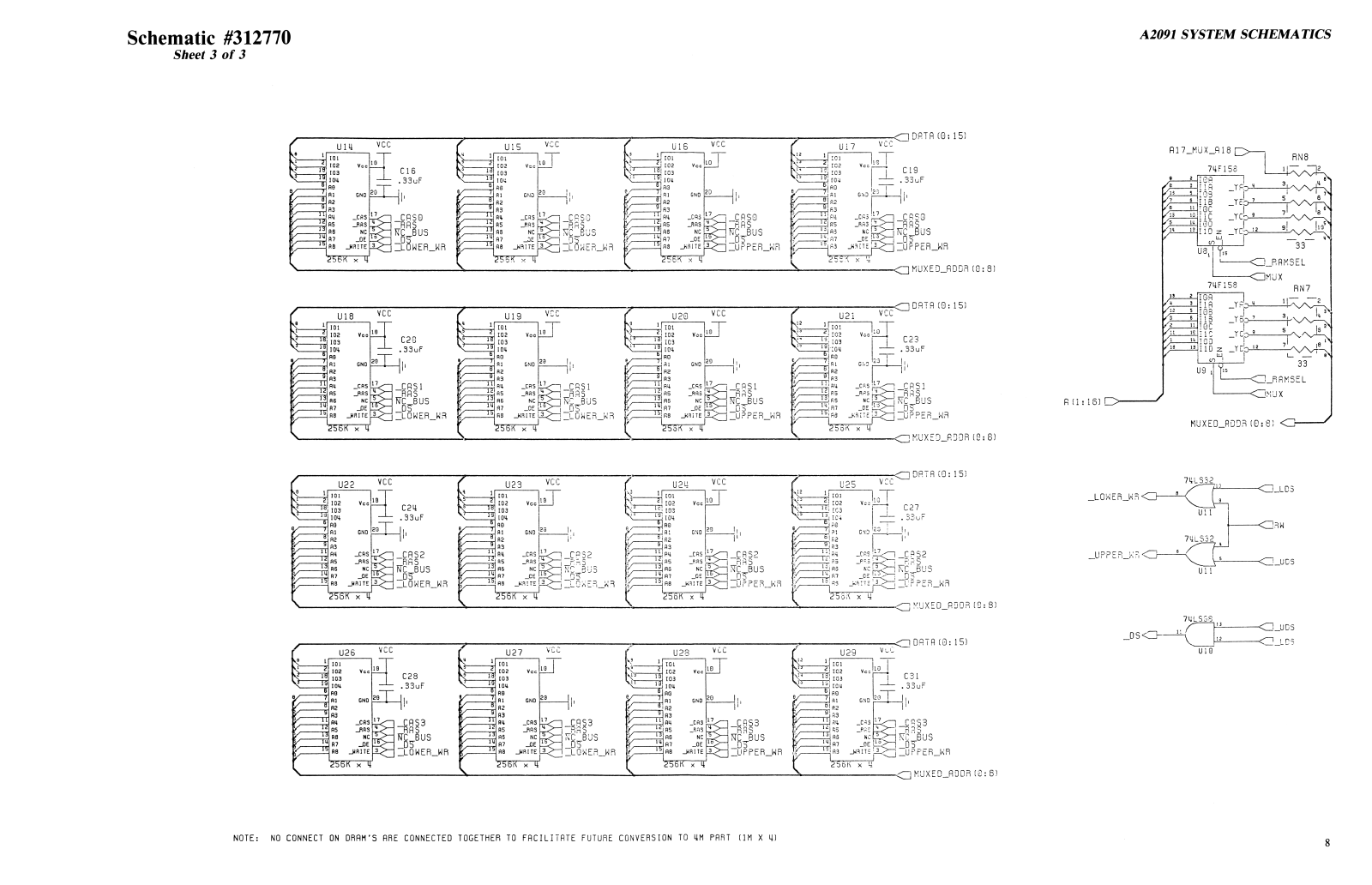

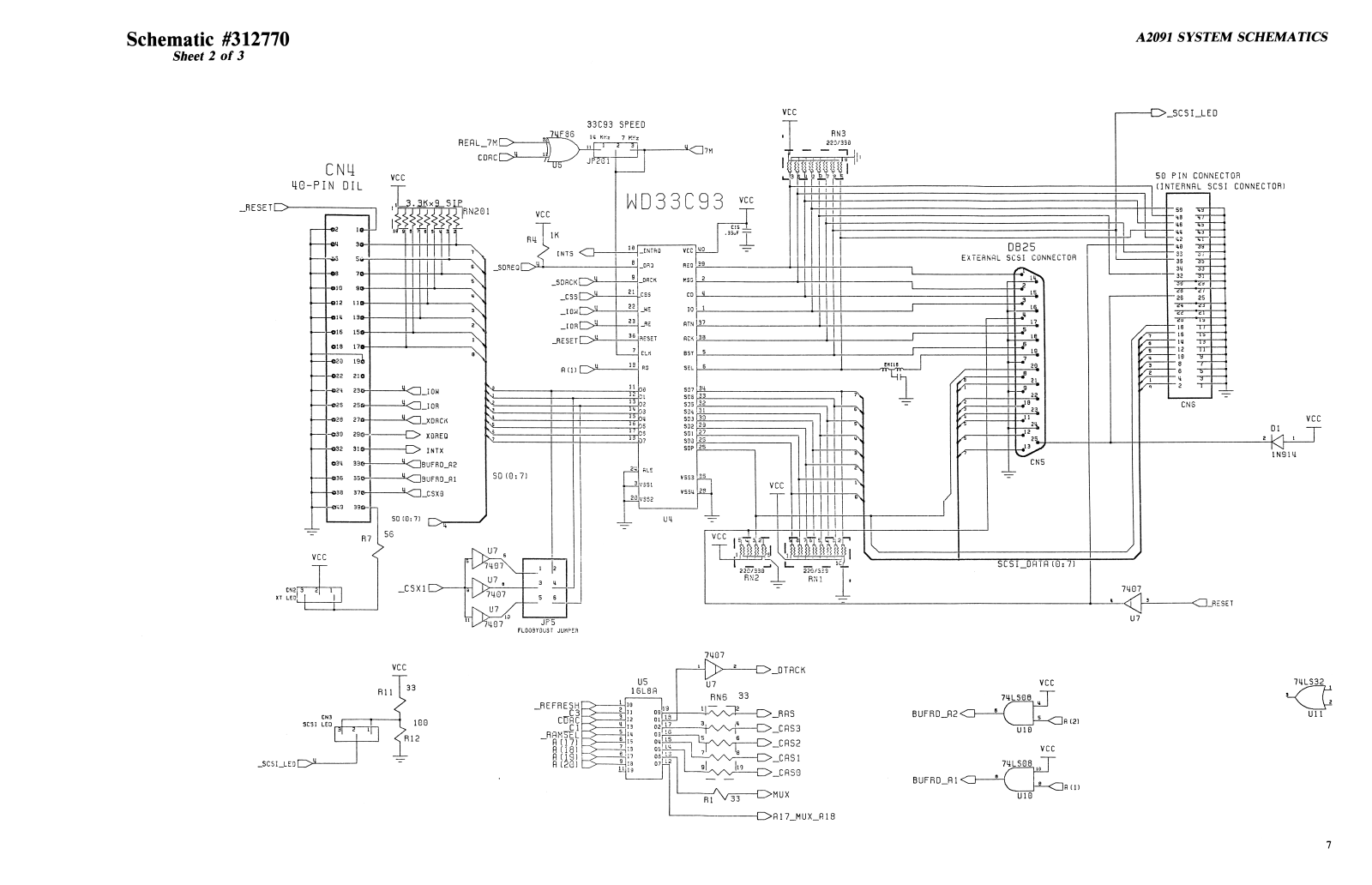

Schematic #312770

Sheet 1 of 3

A2091 SYSTEM SCHEMATICS

r '

i

L

VCC

LOCft*__OX S'

_S L R VE

C0NF I GOL1 T

%% s

fi (5)

fi ( 5 )

R (2)
R (1)

R (13)
R (14)
R (15)
R (16)
R (17)

R (22) <Z\
R (23) < 3

D (15)
D (14)

0(13)

D (12)

D (i 1)

D (G)
0 (1)

0 ( 2)

D (3)
0 (4)

R (18)

R (19)
R (20)
R (21)

_

B R

_BGRC K

_BG

1—> _DTR CK

RH

_LD S

_U G 5
_R5

0 ( 10)

D (9)
D (35
D (7)

0 (S)

D (5)

T_<> RERL_7 M

RE SE T

_C 0 N F IG I N

_CONrI GOUT

LOCRL_OWN

_OVn < I>

_R0MC5

_LDS
JJD S

RW

_ R 5 ^

JDTRCK C S -

_BERR ~> -

DIR < n -

_BUFEN < -

_RE Sc T ^

7M

_r NT

_SLRV E

_BR

_BG

_

BGRtK

74 G 7

fill:

r

<51

/&-
/* r

/\T

_3 5_

_37_

JEi_

i t

*•1.

_2L_

_§ 3 _

SB

_62_

_s l _ ;

___

_li I

_53_

_U3_

_M1_

JE3_

Js!L

_rgm:s

_LDS
_UCS

nW

_B 5

_BEP.3

DIP

_5’j r EN
_RE ST

IS7_p

jSLfiVE

_ c c :.f ig : n
_CCNFIGOUT

_E=»

_35

_3G-CK

_ 0*><

S3

! S3

S1Q

p i :

P12

P13

fiU

P.15

P15

*17

r 13

SIS

= 20

521

522

523

DRTR (8)
DRTR (9)
ORTR (10)
ORTR (11)
DRTR (12)
DRTR (13)
DRTR (14)
DRTR (15)

-------

com p;

100 PIN CONNECTOR

CN1

HhP.0 d i s k p ower

CN7

fy c,

T H

v;

U2
C

iij

j <

> c l

i t 1

12 Ll_

I

L

VCC

VCC

16

YLZ

COMPONENT

U9

GN3

3

Vu

COMPONENT

U1Q

______

GVQ

:u

7

______

------

fZi

COMPONENT

Ull

____GNQ

m

______

7

• VCC

fl (1:2 3)

EPROM —

6

Schematic #312770

Sheet 2 of 3

A2091 SYSTEM SCHEMATICS

vcc

.RE F R E S H

JC 3

CtTRC

RRMETEL

R (171
R (1 8)
R (1 9)

fl (20)

Cl

74Q7

JDTRCK

0 _ R R S
0 _ C R S 3

0 _ C R S 2

0_CRS1

O >_ CRS0

OMU X

O R1 7_M UX_R1 8

B UFRD _ f l 2 <3

B U F R D _ R l O

74L S 0 8| u~[~

< □

U10

74LSQ8

< 1 :

U10

VCC

vcc

74LS 3 2

Ull

JR (1)

7

Schematic #312770

S/ieef 3 of 3

A2091 SYSTEM SCHEMATICS

U 1 4

101
IC2

Vcc

103
104
no
HI GNO
H2
R3

94

_CAS
ns _RAS
AS
A7

_0E

A8

_

H RITE

25FTT

U18

101

Vco

102
103

1014
no
HI

GNO
02
H3
HU _CflS

_RAS

H5
A6 NC
A7

JDE

98 _HRITE

2 5 E K X 4

VCC

£

_CRS G

NC

« U S

ZL ^ W E R J

.MR

90

fll

fl2

A3
94

R5

3S

(R7

38

101

roa

103

lOli

U 1 5

VCC

_CP S

C1_cps0

_RPS

NC

_3 E

_WRITE

___

1 > “ > L 0 W E R_W R

u

Rh S

ttc bu s

_os

U 1 6

101
102
103

I OH.
aa
q l
fl2
fi3
94
95 _R3S
ns NC
37 _0E
93 _>ir» I TE

7 5 E K

GND

_C95

x 4

Vcc

VCC

~RRS

TTC BUS

_DTT _
_U P P E R_W R

CRS0

7~

XU
L n

V

U i 7

101

IG2

j rc3

~T5j

rou

A3

~w

. 92

IT

1 1 RU

iu

_cs5 i-<c C R S 0

3 95

_RP3 R R s

33
P,7

33

_w.3iTip^]-UPPER_HR

V

< -]D A TA (Gs 15)

VCC

C 19

. 33uF

"c & C jfr C BUS

-<□ MUXED_RDDR (0:8)

fll 7_M U X_ R18

Tefl

Cjr

/T

/T

/TL

/ 5

I i 0 -TRdJ’

lie
100
11D 2

u37^7

74F158

----------

CO I

!

_Tc-b-Z—

TCc 9

|

TDc !2

7 4 F 158

IGA

VCC

C2G

. 33uF

_CR S 1

RRS

PTC BUS

DH

“ LOWER WR

-----< “ ] DP.TR ( 0 : 15)

V C C ^

-G 8 ?1

NC^BUS
“ UPPER WR

TT

------

< □ MUXED_RQDR (0 :8 )

R (1 : 15) E >-

/ t
/l3

/ “

11A YR>
IGB
113
IQC
I1C
IGO
I ID

co ! I

U9 ,

yb!>

_T Cp>

2 Ylc-

0-1. 1

______

t

1

|
|

r

MUXED_RDDR ( 0 :8 ) < Q

/ v w k w ? / q & z r \ / 'W W T F I ^ T \

U22

101
102 Vcc

103
1014
no

CND

fll
H2
fl3
34

_CAS

35 J A S

A6 NC

_0E

A7

R8 _WRITE

■256K"“ ir

U26

101

Vc c

10 2

10 3
IO U
30

GN O

31
32
33

_ C A S

34

_ R A 3

35

NC

A8
A7 J O E

_

W R I TE

A8

7 5 W

VCC

VCC

e h

FTC BUS

_DS"

C24

. 33uF

CRS2

RfiS

LOWER WR

C28

. 33uF

.CAS3

WC BUS
_D 5

_LOWER_l«IR

7 "

6=

k

£

P

r "

_k

U23

101

102

103

1014

R0

fll

A2

R3

0*4

fl5
36

.WRITE

T

25 6 K x 4

U27

101
102 Vcc
103

104
AO
fll

A2

A3

A4 _C3S

A5 _R9S

ns NC

37

38 JJRITE

_CnS

_RflS

_C£

GNO

JOE

x 4

— < □ ORTA ( 0: 15)

C27

-< □ MUXEDJAu QR (G: 8)

Vcc

GNO

_GE

_W RITE

VCC

ML

\13

. PG

y

•/

-/

y

/

NC

.J5*

UPPER_WR

**/

V

/

X .

U25

102
lc ‘ IC3
l = ,;C4

?IP1
b I 92

9j**

1 U 94
l“'i 95

*'■> 97
1 5: qc;

2 5 o A x 4

VCC

\3 1
V*

C \

0 /

¥

¥

■ /

NC

;l o w e r _ wr

y

V

■ /

¥

---

U 2 *4

[01

2|

102

1

1 c:]

; 103

IS

104

s

90

r

91

§
92

9

93

11

P4 _CRS

12

95 _R9S

13

35

14

| A7

15

P

25FfT

74LS32

7ULSCS

_osO-

U 1 0

_CR S 3

RRS

PTC BUS

D5
i

LQWER_WR

N L

v~

c-

y i

y

k

U23

101

Vcc

IG2
103
104

30

GNO

31
32
33
34 _C93
95

_R3S
36
37

_0E

38 .WRITE
256TT

x 4

VCC

_CAS3

NC

RRS

TTC BUS

_DH
_UPPER_WR

£

t F

y~

k .

/ “

U29

101
IC2
103
104

R0

fl 1

A2

93
94 _C33

_

95
93
37 _0E
33 JJR ITE

2 b 6 K x '4

■<-"1 DATA (Q: 15)

LO

Vcc

GNO

R S

KC

! i o'
iT C
r

2eT

L7_

C 3 1

. 33ur

_U P Pl R_WR

-<□ MUXED_RODR (G: 8)

NOTE: NO CONNECT ON DRAM'S ARE CONNECTED TOGETHER TO F A C I LI T A T E FUTURE CONVERSION TO 4M PART (1M X 4)

8

r

o Commodore

Computer Systems Division

1200 Wilson Drive

West Chester, PA 19380

V.

This was brought to you

from the archives of

http://retro-commodore.eu
