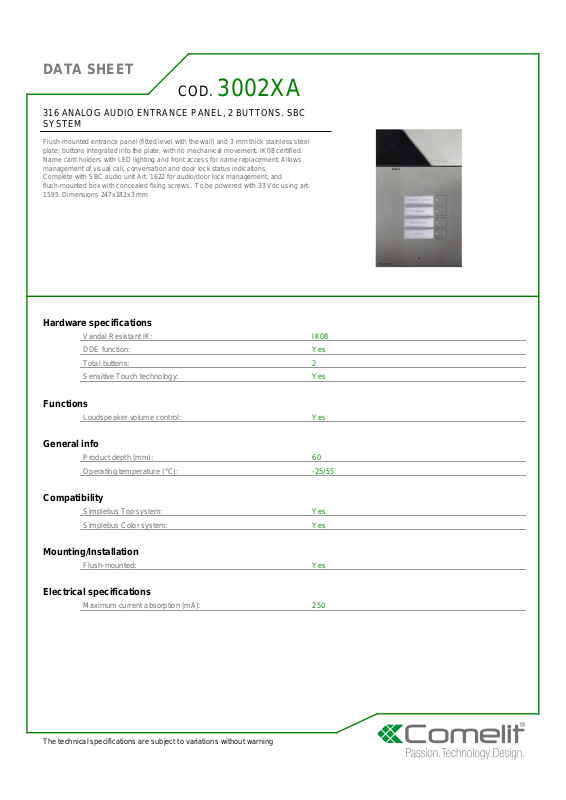

DATA SHEET

COD.

3002XA

316 ANALOG AUDIO ENTRANCE PANEL, 2 BUTTONS. SBC
SYSTEM

Flush-mounted entrance panel (fitted level with the wall) and 3 mm thick stainless steel
plate; buttons integrated into the plate, with no mechanical movement. IK08 certified.
Name card holders with LED lighting and front access for name replacement. Allows
management of visual call, conversation and door lock status indications.
Complete with SBC audio unit Art. 1622 for audio/door lock management, and
flush-mounted box with concealed fixing screws. To be powered with 33 Vdc using art.

1595. Dimensions 247x182x3 mm

Hardware specifications

Vandal Resistant IK: IK08
DDE function: Yes
Total buttons: 2
Sensitive Touch technology: Yes

Functions

Loudspeaker volume control: Yes

General info

Product depth (mm): 60
Operating temperature (°C): -25/55

Compatibility

Simplebus Top system: Yes
Simplebus Color system: Yes

Mounting/Installation

Flush-mounted: Yes

Electrical specifications

Maximum current absorption (mA): 250

The technical specifications are subject to variations without warning
