H I G H

RED-1

WHT-2

–

123456789

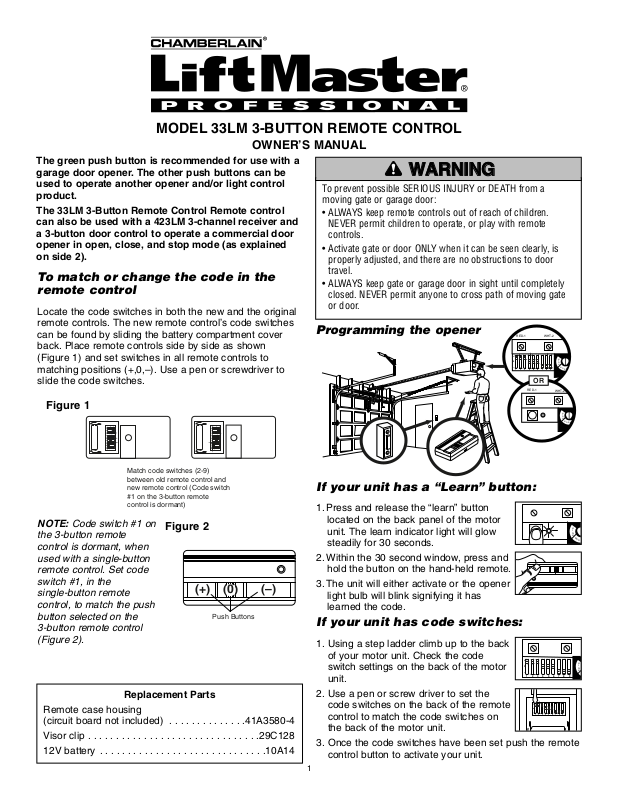

MODEL 33LM 3-BUTTON REMOTE CONTROL

OWNER’S MANUAL

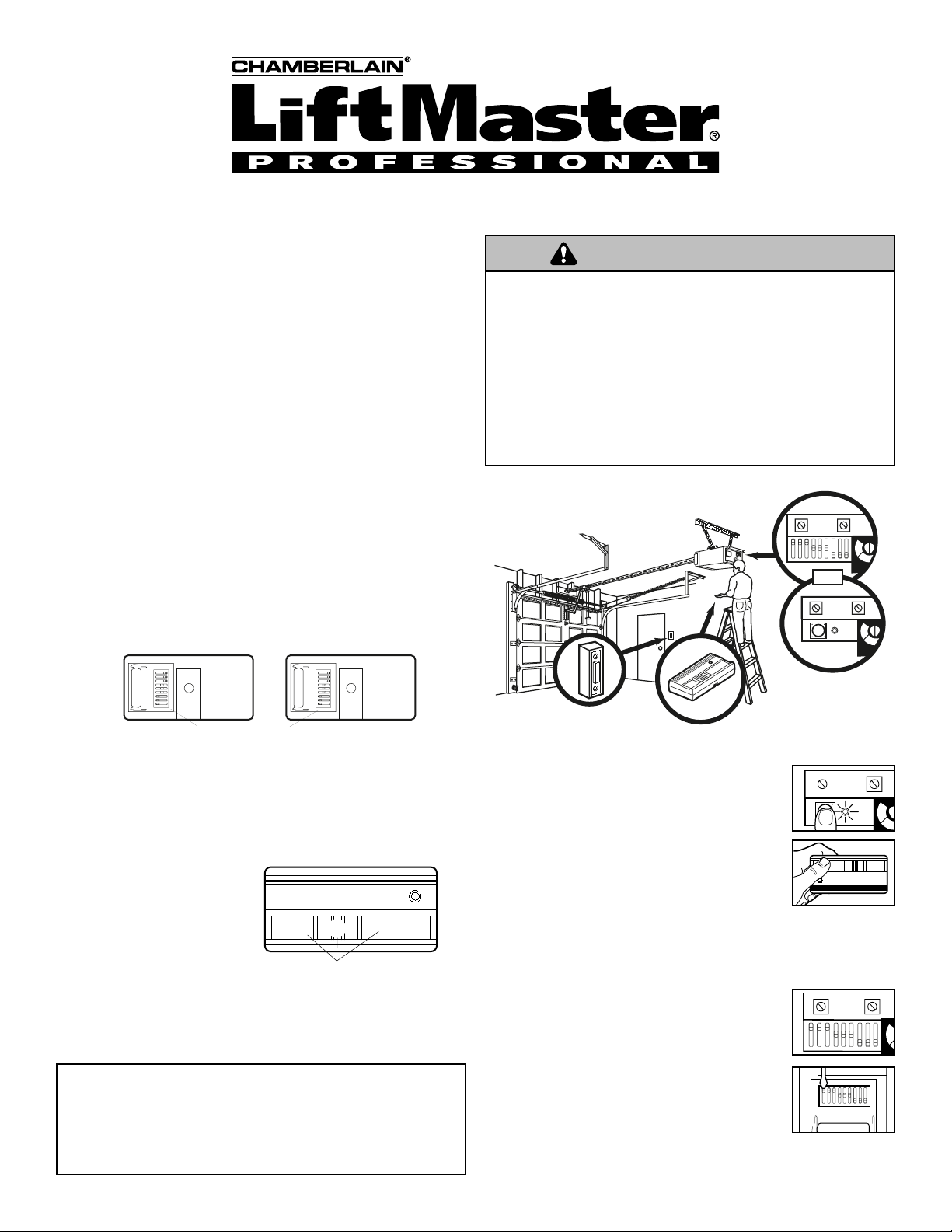

Programming the opener

The green push button is recommended for use with a garage door opener. The other push buttons can be used to operate another opener and/or light control product.

The 33LM 3-Button Remote Control Remote control can also be used with a 423LM 3-channel receiver and a 3-button door control to operate a commercial door opener in open, close, and stop mode (as explained on side 2).

To match or change the code in the remote control

Locate the code switches in both the new and the original remote controls. The new remote control’s code switches can be found by sliding the battery compartment cover back. Place remote controls side by side as shown (Figure 1) and set switches in all remote controls to matching positions (+,0,–). Use a pen or screwdriver to slide the code switches.

NOTE: Code switch #1 on the 3-button remote control is dormant, when used with a single-button remote control. Set code switch #1, in the single-button remote control, to match the push button selected on the 3-button remote control (Figure 2).

To prevent possible SERIOUS INJURY or DEATH from a moving gate or garage door:

• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote controls.

• Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.

• ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door.

WARNING

If your unit has a “Learn” button:

1. Press and release the “learn” button located on the back panel of the motor unit. The learn indicator light will glow steadily for 30 seconds.

2. Within the 30 second window, press and hold the button on the hand-held remote.

3. The unit will either activate or the opener light bulb will blink signifying it has learned the code.

If your unit has code switches:

1. Using a step ladder climb up to the back of your motor unit. Check the code switch settings on the back of the motor unit.

2. Use a pen or screw driver to set the code switches on the back of the remote control to match the code switches on the back of the motor unit.

3. Once the code switches have been set push the remote control button to activate your unit.

Replacement Parts

Remote case housing

(circuit board not included) . . . . . . . . . . . . . .41A3580-4

Visor clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29C128

12V battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10A14

Figure 1

Figure 2

WARNING

+0–

1 2 3 4 5 6 7 8 9

Match code switches (2-9) between old remote control and new remote control (Code switch #1 on the 3-button remote control is dormant)

+0–

1 2 3 4 5 6 7 8 9

(+) (–)

(0)

Push Buttons

–

123456789

—

123456789

H I G H

Replacing the remote control battery

The 12 volt battery should produce power for 1 year. To replace the battery, slide the battery compartment cover.

Dispose of old batteries properly.

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.

• If battery is swallowed, immediately notify doctor.

WARNING

NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or modifications of this receiver and/or remote control are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Install the control station and receiver where the door is visible, but away from the door and its hardware. When a receiver is used to activate a commercial door opener, a reversing edge MUST be installed on the bottom of the door. Failure to install a reversing edge under these circumstances may result in SERIOUS INJURY or DEATH to persons trapped beneath the door.

WARNING

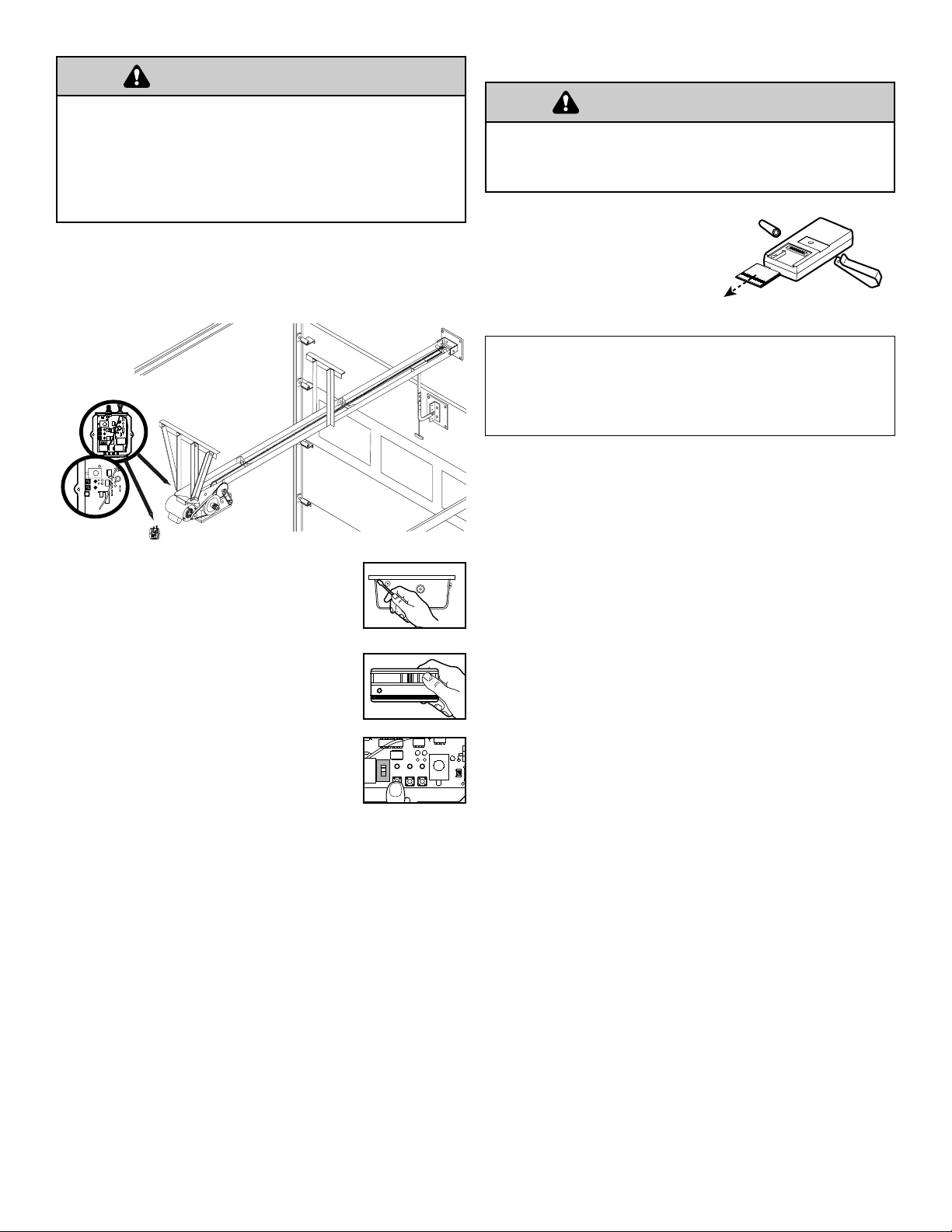

To use the remote control with a 3-channel receiver and 3-button door control to operate a commercial door opener

1. Use a screwdriver to pry open the receiver cover (see illustration).

NOTE: The slide switch is factory set to the N.C. position (otherwise the opener will not operate). Verify this setting.

2. Select a remote control push button to STOP the opener. (RED is recommended.) Press and hold the selected remote push button.

3. Then press and release the “learn” button labeled “A” on the receiver. The adjacent indicator light will FLASH. Release the remote push button.

Repeat the procedure above with the yellow remote push button and receiver “learn” button “B” to program the CLOSE operation; and again with the green remote push button and receiver “learn” button “C” to program the OPEN function of the opener.

Return the front cover to the receiver. (For this application, code switch settings need not be

changed.)

NOTE: If a remote control push button is not pressed within 30 seconds, the indicator light adjacent to the selected “learn” button will turn OFF. In that case, repeat the programming.

ABC

FOR SERVICE DIAL OUR TOLL-FREE NUMBER: 1-800-528-2817

3 Channel Receiver

ABC

WARNING
