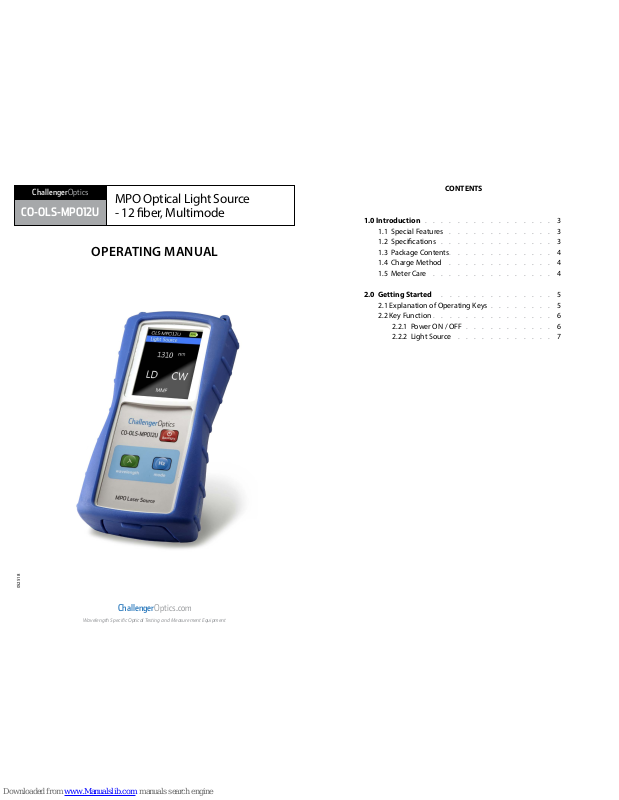

ChallengerOptics CO-OLS-MPO12U Operating Manual

ChallengerOptics.com

Wavelength Specic Optical Testing and Measurement Equipment

OPERATING MANUAL

1.0 Introduction . . . . . . . . . . . . . . . . 3

1.1 Special Features . . . . . . . . . . . . . 3

1.2 Specications . . . . . . . . . . . . . . 3

1.3 Package Contents. . . . . . . . . . . . . 4

1.4 Charge Method . . . . . . . . . . . . . 4

1.5 Meter Care . . . . . . . . . . . . . . . 4

2.0 Getting Started . . . . . . . . . . . . . . 5

2.1 Explanation of Operating Keys . . . . . . . . 5

2.2 Key Function . . . . . . . . . . . . . . . 6

2.2.1 Power ON / OFF . . . . . . . . . . . 6

2.2.2 Light Source . . . . . . . . . . . . 7

CONTENTS

052518

MPO Optical Light Source

- 12 ber, Multimode

ChallengerOptics

CO-OLS-MPO12U

ChallengerOptics.com

Wavelength Specic Optical Testing and Measurement Equipment

ChallengerOptics.com

Wavelength Specic Optical Testing and Measurement Equipment

Chapter 1.0 - Introduction / 04Chapter 1.0 - Introduction / 03

1. Introduction

1.1 Special Features

- 12 Fiber

- CW (Continuous Wavelength),
Modulation (270Hz,1KHz, 2KHz) mode

- Compact size, one button operation

- Color LCD for graph display

- Light weight for easy eld use

- Quick start: Minimal warm-up

1.2 Specications

Channels 12 Fiber

Wavelength / Source 850, 1310 nm / DFB

Fiber Type MM

Modulation CW, 270 Hz, 1 KHz, 2 KHz

Output Power > -10 dBm

Output Stability ±0.2 dBm

Optical Connector MPO Flat, unpinned

Battery / Power Rechargeable Lithium-Polymer – 5 hr.

Display 2.8” TFT-LCD, 16 bit Color

Operating Temperature -20° ~ +55° C

Weight 13 oz*

Dimensions h / w / d 7 x 3.25 x 1.5 (inches)*

*w/boot

1.3 Package Contents

Description Quantity

Body 1 ea
Body Rubber Case 1 ea
USB Data cable 1 ea
Charger 1 ea
User’s Manual - USB stick 1 ea

1.4 Charge Method

The CO-OLS-MPO12U has a rechargeable battery. A USB power adapter and
micro USB cable are provided for charging. Typical charge time is three hours.

Charging conditions:

LED Color Conditions for battery charge

Red Charging

Green Fully charged

1.5 Meter Care

Do not subject the CO-OLS-MPO12U to strong impact.
The CO-OLS-MPO12U is not water resistant or waterproof
Do not disassemble.
Always properly clean the ber interfaces before taking a measurement.
Always replace the Dust Cap for dust protection.

ChallengerOptics.com

Wavelength Specic Optical Testing and Measurement Equipment

ChallengerOptics.com

Wavelength Specic Optical Testing and Measurement Equipment

Chapter 2.1 - Explanation of Operating Keys / 06Chapter 2.1 - Explanation of Operating Keys / 05

2. Getting Started

2.1 Explanation of Operating Keys

Key Function

Backlight Power On/O, Backlight On/O

λ Change wavelength

Hz Change modulation (O, CW, 270Hz, 1Kz, 2KHz)

2.2 Key Function

2.2.1 Power ON / OFF

To turn on and o.

Press the button for
more than 2 seconds, the logo
shown appears. The meter then
displays the channel with the
highest power level.

Press the button for
more than 2 seconds to turn
the power o.

Backlight

Backlight

ChallengerOptics.com

Wavelength Specic Optical Testing and Measurement Equipment

Chapter 2.2 - Key Function / 07

2.2.2 Light Source

Press to change
modulation.
(O, CW, 270Hz, 1KHz, 2KHz)

Press to change
wavelength.

Hz

λ
