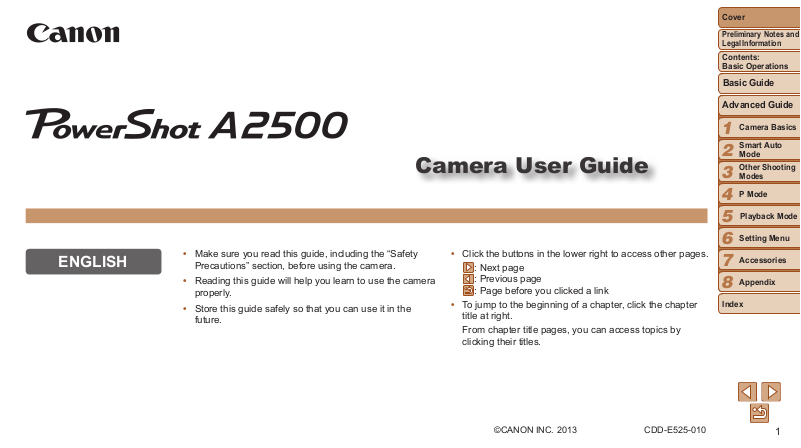

Camera User Guide
ENGLISH
•Make sure you read this guide, including the “Safety Precautions” section, before using the camera.
•Reading this guide will help you learn to use the camera properly.
•Store this guide safely so that you can use it in the future.
•Click the buttons in the lower right to access other pages.
: Next page
: Previous page
: Page before you clicked a link
•To jump to the beginning of a chapter, click the chapter title at right.
From chapter title pages, you can access topics by clicking their titles.
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
©CANON INC. 2013 |
CDD-E525-010 |
1 |
Package Contents
Before use, make sure the following items are included in the package. If anything is missing, contact your camera retailer.
|
Battery Pack |
Battery Charger |
Camera |
NB-11L |
|
|
CB-2LF/CB-2LFE |
|
|
|
Warranty Card |
Wrist Strap |
Getting Started |
|
WS-800 |
|
|
• A memory card is not included.
Compatible Memory Cards
The following memory cards (sold separately) can be used, regardless of capacity.
•SD memory cards*
•SDHC memory cards*
•SDXC memory cards*
•Eye-Fi cards
*Cards conforming to SD standards. However, not all memory cards have been verified to work with the camera.
About Eye-Fi Cards
This product is not guaranteed to support Eye-Fi card functions (including wireless transfer). In case of an issue with an Eye-Fi card, please check with the card manufacturer.
Also note that an approval is required to use Eye-Fi cards in many countries or regions. Without approval, use of the card is not permitted. If it is unclear whether the card has been approved for use in the area, please check with the card manufacturer.
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
2
Preliminary Notes and Legal
Information
•Take and review some test shots initially to make sure the images were recorded correctly. Please note that Canon Inc., its subsidiaries and affiliates, and its distributors are not liable for any consequential damages arising from any malfunction of a camera or accessory, including memory cards, that result in the failure of an image to be recorded or to be recorded in a way that is machine readable.
•Images recorded by the camera are intended for personal use. Refrain from unauthorized recording that infringes on copyright law, and note that even for personal use, photography may contravene copyright or other legal rights at some performances or exhibitions, or in some commercial settings.
•The camera warranty is valid only in the area of purchase. In case of camera problems while abroad, return to the area of purchase before contacting a Canon Customer Support Help Desk.
•Although the LCD monitor is produced under extremely high-precision manufacturing conditions and more than 99.99% of the pixels meet design specifications, in rare cases some pixels may be defective or may appear as red or black dots. This does not indicate camera damage or affect recorded images.
•The LCD monitor may be covered with a thin plastic film for protection against scratches during shipment. If covered, remove the film before using the camera.
•When the camera is used over an extended period, it may become warm. This does not indicate damage.
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
3
Part Names and Conventions in This Guide
Speaker |
Power button |
|
Zoom lever |
Microphone |
|
Shooting: <i(telephoto)> / |
Flash |
|
<j(wide angle)> |
Tripod socket |
|
Playback: <k(magnify)> / |
Memory card/battery cover |
|
<g(index)> |
||
DC coupler cable port |
||
Lens |
||
Strap mount |
||
Shutter button |
||
AV OUT (Audio/video output) / |
||
Lamp |
||
DIGITAL terminal |
||
|
•In this guide, icons are used to represent the corresponding camera buttons on which they appear, or which they resemble.
•The following camera buttons and controls are represented by icons.
<o> Up button on back <q> Left button on back <r> Right button on back <p> Down button on back
•Shooting modes and on-screen icons and text are indicated in brackets.
Screen (LCD monitor) |
<1(Playback)> button |
|
Movie button |
< (Help)> button |
|
<A(Auto)> / |
FUNC./SET button |
|
<a(Single-image erase)> / |
<h(Flash)> / Right button |
|
Up button |
<l(Display)> / |
|
< > / Left button |
||
Down button |
||
Indicator |
<n> button |
•: Important information you should know
•: Notes and tips for expert camera use
•=xx: Pages with related information (in this example, “xx” represents a page number)
•Instructions in this guide apply to the camera under default settings.
•For convenience, all supported memory cards are simply referred to as the “memory card”.
•The tabs shown above titles indicate whether the function is used for still images, movies, or both.
Still Images : Indicates that the function is used when shooting or viewing still images.
Movies : Indicates that the function is used when shooting or viewing movies.
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
4
Table of Contents
Package Contents.......................... |
2 |
Compatible Memory Cards............. |
2 |
Preliminary Notes and Legal |
|
Information...................................... |
3 |
Part Names and Conventions |
|
in This Guide.................................. |
4 |
Table of Contents........................... |
5 |
Contents: Basic Operations............ |
6 |
Safety Precautions......................... |
7 |
Basic Guide...................... |
9 |
Initial Preparations........................ |
10 |
Trying the Camera Out................. |
14 |
Using the Software....................... |
17 |
System Map.................................. |
21 |
Advanced Guide............. |
22 |
1 Camera Basics..................... |
22 |
On/Off........................................... |
23 |
Shutter Button.............................. |
24 |
Shooting Display Options............. |
24 |
FUNC. Menu................................. |
25 |
MENU Menu................................. |
26 |
Indicator Display........................... |
27 |
2 |
Smart Auto Mode................. |
28 |
|
Shooting (Smart Auto).................. |
29 |
|
Common, Convenient Features... |
32 |
|
Image Customization Features.... |
36 |
|
Helpful Shooting Features............ |
37 |
|
Customizing Camera Operation... |
38 |
3 |
Other Shooting Modes........ |
39 |
|
Specific Scenes............................ |
40 |
|
Applying Special Effects............... |
42 |
|
Special Modes |
|
|
for Other Purposes....................... |
45 |
4 |
P Mode.................................. |
47 |
|
Shooting in Program AE |
|
|
([P] Mode)..................................... |
48 |
|
Image Brightness |
|
|
(Exposure Compensation)............ |
48 |
|
Color and Continuous Shooting... |
51 |
|
Shooting Range and Focusing..... |
52 |
|
Flash............................................. |
56 |
|
Using Eco Mode........................... |
57 |
|
Other Settings.............................. |
57 |
5 |
Playback Mode..................... |
60 |
|
Viewing......................................... |
61 |
|
Browsing and Filtering Images..... |
62 |
|
Image Viewing Options................. |
64 |
|
Protecting Images........................ |
65 |
|
Erasing Images............................ |
67 |
|
Rotating Images........................... |
68 |
|
Editing Still Images....................... |
69 |
6 |
Setting Menu........................ |
72 |
|
Adjusting Basic Camera |
|
|
Functions...................................... |
73 |
7 |
Accessories.......................... |
79 |
|
Optional Accessories.................... |
80 |
|
Using Optional Accessories.......... |
81 |
|
Printing Images............................ |
83 |
|
Using an Eye-Fi Card................... |
90 |
8 |
Appendix............................... |
92 |
|
Troubleshooting............................ |
93 |
|
On-Screen Messages................... |
95 |
|
On-Screen Information................. |
97 |
|
Functions and Menu Tables.......... |
99 |
|
Handling Precautions................. |
103 |
|
Specifications............................. |
103 |
|
Index........................................... |
106 |
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
5
Contents: Basic Operations
4 Shoot
zzUse camera-determined settings (Auto Mode)..................................... 29
Shooting people well |
|
|
|
I |
|
P |
|
Portraits |
Against Snow |
||
(=40) |
|
(=40) |
|
Matching specific scenes |
|
|
|
|
|
t |
|
Low Light |
Fireworks |
|
|
(=40) |
|
(=40) |
|
Applying special effects |
|
|
|
Vivid Colors |
|
Poster Effect |
Fish-Eye Effect |
(=42) |
|
(=42) |
(=42) |
Miniature Effect |
Toy Camera Effect |
Monochrome |
|
(=43) |
|
(=44) |
(=44) |
zzWhile adjusting image settings (Live View Control) |
.............................. 41 |
zzFocus on faces......................................................................... |
29, 40, 53 |
zzWithout using the flash (Flash Off)....................................................... |
34 |
zzInclude yourself in the shot (Self-Timer)......................................... |
33, 45 |
zzAdd a date stamp................................................................................. |
35 |
1 View |
|
zzView images (Playback Mode)............................................................. |
61 |
zzAutomatic playback (Slideshow)........................................................... |
64 |
zzOn a TV................................................................................................ |
81 |
zzOn a computer...................................................................................... |
18 |
zzBrowse through images quickly............................................................ |
62 |
zzErase images........................................................................................ |
67 |
E Shoot/View Movies |
|
zzShoot movies........................................................................................ |
29 |
zzView movies (Playback Mode).............................................................. |
61 |
c Print |
|
zzPrint pictures......................................................................................... |
83 |
Save |
|
zzSave images to a computer.................................................................. |
18 |
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
6
Safety Precautions
•Before using the product, please ensure that you read the safety precautions described below. Always ensure that the product is used correctly.
•The safety precautions noted on the following pages are intended to prevent injuries to yourself and other persons, or damage to the equipment.
•Be sure to also check the guides included with any separately sold accessories you use.
Warning Denotes the possibility of serious injury or death.
•Do not trigger the flash in close proximity to people’s eyes.
Exposure to the intense light produced by the flash could damage eyesight.
In particular, remain at least 1 meter (39 inches) away from infants when using the flash.
•Store this equipment out of the reach of children and infants.
Strap: Putting the strap around a child’s neck could result in asphyxiation.
•Use only recommended power sources.
•Do not attempt to disassemble, alter or apply heat to the product.
•Avoid dropping or subjecting the product to severe impacts.
•To avoid the risk of injury, do not touch the interior of the product if it has been dropped or otherwise damaged.
•Stop using the product immediately if it emits smoke, a strange smell, or otherwise behaves abnormally.
•Do not use organic solvents such as alcohol, benzine, or thinner to clean the product.
•Do not let the product come into contact with water (e.g. sea water) or other liquids.
•Do not allow liquids or foreign objects to enter the camera.
This could result in electrical shock or fire.
If liquids or foreign objects come into contact with the camera interior, immediately turn the camera off and remove the battery.
If the battery charger becomes wet, unplug it from the outlet and consult your camera retailer or a Canon Customer Support Help Desk.
•Use only the recommended battery.
•Do not place the battery near or in direct flame.
•Unplug the power cord periodically, and using a dry cloth, wipe away any dust and dirt that has collected on the plug, the exterior of the power outlet, and the surrounding area.
•Do not handle the power cord with wet hands.
•Do not use the equipment in a manner that exceeds the rated capacity of the electrical outlet or wiring accessories. Do not use if the power cord or plug are damaged, or not fully plugged into the outlet.
•Do not allow dirt or metal objects (such as pins or keys) to contact the terminals or plug.
The battery may explode or leak, resulting in electrical shock or fire. This could cause injury and damage the surroundings. In the event that a battery leaks and the battery electrolyte contacts eyes, mouth, skin or clothing, immediately flush with water.
• Turn the camera off in places where camera use is prohibited.
The electromagnetic waves emitted by the camera may interfere with the operation of electronic instruments and other devices. Exercise adequate caution when using the camera in places where use of electronic devices is restricted, such as inside airplanes and medical facilities.
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
7
Caution Denotes the possibility of injury.
•When holding the camera by the strap, be careful not to bang it, subject it to strong impacts or shocks, or let it get caught on other objects.
•Be careful not to bump or push strongly on the lens.
This could lead to injury or damage the camera.
• Be careful not to subject the screen to strong impacts.
If the screen cracks, injury may result from the broken fragments.
•When using the flash, be careful not to cover it with your fingers or clothing.
This could result in burns or damage to the flash.
•Avoid using, placing or storing the product in the following places:
-Places subject to direct sunlight
-Places subject to temperatures above 40 °C (104 °F)
-Humid or dusty areas
These could cause leakage, overheating or an explosion of the battery, resulting in electrical shock, fire, burns or other injuries.
High temperatures may cause deformation of the camera or battery charger casing.
Caution Denotes the possibility of damage to the equipment.
•Do not aim the camera at bright light sources (such as the sun on a clear day).
Doing so may damage the image sensor.
•When using the camera on a beach or at a windy location, be careful not to allow dust or sand to enter the camera.
This may cause the product to malfunction.
•In regular use, small amounts of smoke may be emitted from the flash.
This is due to the high intensity of the flash burning dust and foreign
materials stuck to the front of the unit. Please use a cotton swab to remove dirt, dust or other foreign matter from the flash to prevent heat build-up and damage to the unit.
•Remove and store the battery when you are not using the camera.
If the battery is left inside the camera, damage caused by leakage may occur.
•Before you discard the battery, cover the terminals with tape or other insulators.
Contacting other metal materials may lead to fire or explosions.
•Unplug the battery charger from the power outlet after charging is complete, or when you are not using it.
•Do not place anything, such as cloth, on top of the battery charger while it is charging.
Leaving the unit plugged in for a long period of time may cause it to overheat and distort, resulting in fire.
• Do not place the battery near pets.
Pets biting the battery could cause leakage, overheating or explosion, resulting in fire or damage.
•Do not sit down with the camera in your pocket.
Doing so may cause malfunctions or damage the screen.
•When putting the camera in your bag, ensure that hard objects do not come into contact with the screen.
•Do not attach any hard objects to the camera.
Doing so may cause malfunctions or damage the screen.
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
8
Basic Guide
4 Gives basic instructions, from initial preparations to shooting, playback, and saving on a computer
Initial Preparations................... |
10 |
Trying the Camera Out............. |
14 |
Using the Software................... |
17 |
System Map............................... |
21 |
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
9
Initial Preparations
Prepare for shooting as follows.
Attaching the Strap
Attach the strap.
zzThread the end of the strap through the strap hole (), and then pull the other end of the strap through the loop on the threaded end ().
Holding the Camera
zzPlace the strap around your wrist.
zzWhen shooting, keep your arms close to your body and hold the camera securely to prevent it from moving. Do not rest your fingers on the flash.
Charging the Battery
Before use, charge the battery with the included charger. Be sure to charge the battery initially, because the camera is not sold with the battery charged.
1 Insert the battery.
|
zzAfter aligning the ▲ marks on the battery |
|
and charger, insert the battery by pushing |
|
it in ( ) and down ( ). |
|
2 Charge the battery. |
|
zzCB-2LF: Flip out the plug ( ) and plug |
|
the charger into a power outlet ( ). |
CB-2LF |
zzCB-2LFE: Plug the power cord into the |
charger, then plug the other end into a |
|
|
power outlet. |
|
XXThe charging lamp turns orange and |
|
charging begins. |
|
XXWhen charging is finished, the lamp turns |
CB-2LFE |
green. |
|
|
|
3 Remove the battery. |
|
zzAfter unplugging the battery charger, |
|
remove the battery by pushing it in ( ) |
|
and up ( ). |
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
10
• To protect the battery and keep it in optimal condition, do not charge it continuously for more than 24 hours.
• For battery chargers that use a power cord, do not attach the charger or cord to other objects. Doing so could result in malfunction or damage to the product.
• |
For details on charging time and the number of shots and recording time |
|
|
|
possible with a fully charged battery, see “Number of Shots/Recording Time, |
|
|
|
Playback Time” (=104). |
|
|
• |
Charged batteries gradually lose their charge, even when they are not used. |
|
|
|
Charge the battery on (or immediately before) the day of use. |
|
|
• |
The charger can be used in areas with 100 – 240 V AC power (50/60 Hz). |
|
|
|
For power outlets in a different format, use a commercially available adapter |
|
|
|
for the plug. Never use an electrical transformer designed for traveling, which |
|
|
|
may damage the battery. |
Terminals |
Battery |
|
|
||
Inserting the Battery and Memory Card |
|
Lock |
|
|
|
Insert the included battery and a memory card (sold separately).
Note that before using a new memory card (or a memory card formatted in another device), you should format the memory card with this camera (=74).
1 Check the card’s write-protect tab.
zzRecording is not possible on memory cards with a write-protect tab when the tab is in the locked (downward) position. Slide the tab up until it clicks into the unlocked position.
Label |
2 Open the cover.
zzSlide the cover () and open it ().
3 Insert the battery.
zzWhile pressing the battery lock in the direction of the arrow, insert the battery as shown and push it in until it clicks into the locked position.
zzIf you insert the battery facing the wrong way, it cannot be locked into the correct position. Always confirm that the battery is facing the right way and locks when inserted.
4 Insert the memory card.
zzInsert the memory card facing as shown until it clicks into the locked position.
zzMake sure the memory card is facing the right way when you insert it. Inserting memory cards facing the wrong way may damage the camera.
5 Close the cover.
zzLower the cover () and hold it down as you slide it, until it clicks into the closed position ().
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
11
• For guidelines on how many shots or hours of recording can be saved on one memory card, see “Number of 4:3 Shots per Memory Card” (=104).
Removing the Battery and Memory Card Remove the battery.
zzOpen the cover and press the battery
lock in the direction of the arrow. XXThe battery will pop up.
Remove the memory card.
zzPush the memory card in until it clicks, and then slowly release it.
XXThe memory card will pop up.
Setting the Date and Time
Set the current date and time correctly as follows if the [Date/Time] screen is displayed when you turn the camera on. Information you specify this way is recorded in image properties when you shoot, and it is used when you manage images by shooting date or print images showing the date.
You can also add a date stamp to shots, if you wish (=35).
1 Turn the camera on. zzPress the power button.
XXThe [Date/Time] screen is displayed.
2 Set the date and time.
zzPress the <q><r> buttons to choose an option.
zzPress the <o><p> buttons to specify the date and time.
zzWhen finished, press the <m> button.
3 Set the home time zone.
zzPress the <q><r> buttons to choose your home time zone.
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
12
4 Finish the setup process.
zzPress the <m> button to complete the setting. The setting screen is no longer displayed.
zzOnce the date and time have been set, the [Date/Time] screen is no longer displayed.
zzTo turn off the camera, press the power button.
• Unless you set the date and time, the [Date/Time] screen will be displayed each time you turn the camera on. Specify the correct information.
• To set daylight saving time (1 hour ahead), choose [] in step 2 and then choose [] by pressing the <o><p> buttons.
Changing the Date and Time
Adjust the date and time as follows.
1 Access the camera menu. zzPress the <n> button.
2 Choose [Date/Time].
zzMove the zoom lever to choose the [3] tab.
zzPress the <o><p> buttons to choose [Date/Time], and then press the <m> button.
3 Change the date and time.
zzFollow step 2 in “Setting the Date and Time” (=12) to adjust the settings.
zzPress the <n> button to close the menu.
•Date/time settings can be retained for about 3 weeks by the camera’s built-in date/time battery (backup battery) after the battery pack is removed.
•The date/time battery will be charged in about 4 hours once you insert a charged battery or connect the camera to an AC adapter kit (sold separately, =80), even if the camera is left off.
•Once the date/time battery is depleted, the [Date/Time] screen will be displayed when you turn the camera on. Follow the steps in “Setting the Date and Time” (=12) to set the date and time.
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
13
Display Language
Change the display language as needed.
1 Enter Playback mode. zzPress the <1> button.
2 Access the setting screen.
zzPress and hold the <m> button, and then press the <n> button.
3 Set the display language.
zzPress the <o><p><q><r> buttons to choose a language, and then press the <m> button.
XXOnce the display language has been set, the setting screen is no longer displayed.
• You can also change the display language by pressing the <n> button and choosing [Language ] on the [3] tab.
Still Images |
Movies |
Trying the Camera Out
Follow these instructions to turn the camera on, shoot still images or movies, and then view them.
Shooting (Smart Auto)
For fully automatic selection of the optimal settings for specific scenes, simply let the camera determine the subject and shooting conditions.
1 Turn the camera on. zzPress the power button.
XXThe startup screen is displayed.
2 Enter [] mode.
zzPress the <o> button repeatedly until [] is displayed.
zzAim the camera at the subject. The camera will make a slight clicking noise as it determines the scene.
XXA scene icon is displayed in the upper right of the screen.
XXFrames displayed around any detected subjects indicate that they are in focus.
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
14
3 Compose the shot.
zzTo zoom in and enlarge the subject, move the zoom lever toward <i> (telephoto), and to zoom away from the subject, move it toward <j> (wide angle).
4 Shoot.
Shooting Still Images
Focus.
zzPress the shutter button lightly, halfway down. The camera beeps twice after focusing, and AF frames are displayed to indicate image areas in focus.
Shoot.
zzPress the shutter button all the way down.
XXAs the camera shoots, a shutter sound is played, and in low-light conditions, the flash fires automatically.
zzKeep the camera still until the shutter sound ends.
XXYour shot is only displayed until the camera is ready to shoot again.
Shooting Movies Start shooting.
zzPress the movie button. The camera
|
beeps once as recording begins, and |
|
Elapsed Time |
[ Rec] is displayed with the elapsed time. |
|
XXBlack bars displayed on the top and |
||
|
||
|
bottom edges of the screen indicate |
|
|
image areas not recorded. |
|
|
XXFrames displayed around any detected |
|
|
faces indicate that they are in focus. |
|
|
zzOnce recording begins, take your finger |
|
|
off the movie button. |
|
|
Finish shooting. |
zzPress the movie button again to stop shooting. The camera beeps twice as recording stops.
Viewing
After shooting images or movies, you can view them on the screen as follows.
1 Enter Playback mode. zzPress the <1> button. XXYour last shot is displayed.
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
15
2 Browse through your images.
zzTo view the previous image, press the <q> button. To view the next image, press the <r> button.
zzPress and hold the <q><r> buttons to browse through images quickly. Images appear grainy at this time.
zzMovies are identified by a [] icon. To play movies, go to step 3.
3 Play movies.
zzPress the <m> button, press the <o><p> buttons to choose [ ], and then press the <m> button again.
XXPlayback now begins, and after the movie is finished, [] is displayed.
zzTo adjust the volume, press the <o><p> buttons.
• To switch to Shooting mode from Playback mode, press the shutter button halfway.
Erasing the Images
You can choose and erase unneeded images one by one. Be careful when erasing images, because they cannot be recovered.
1 Choose an image to erase.
zzPress the <q><r> buttons to choose an image.
2 Erase the image. zzPress the <o> button.
zzAfter [Erase?] is displayed, press the <q><r> buttons to choose [Erase], and then press the <m> button.
XXThe current image is now erased.
zzTo cancel erasure, press the <q><r> buttons to choose [Cancel], and then press the <m> button.
• You can also erase all images at once (=67).
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
16
Still Images |
Movies |
Accessing the Help Menu
Access on-screen descriptions of scenes detected by the camera, shooting advice, and playback instructions as follows.
zzPress the <> button to access the Help menu.
zzPress the <> button again to return to the original display.
zzIn Shooting mode, a description of the scene detected by the camera is displayed. Shooting advice is also displayed depending on the scene.
zzIn Playback mode, press the <o><p> buttons and choose an item. The zoom lever and buttons are displayed
overlaying the illustration of the camera.
zzChoose an item and press the <r> button. An explanation of the item is displayed. To continue reading the explanation, press the <o><p> buttons to scroll up or down the screen. Press the <q> button to return to the left hand screen.
• The Help menu can also be used in shooting modes other than [], and in those modes it will display the same as when in Playback mode.
Using the Software
The software available for download from the Canon website is introduced below, with instructions for installation and saving images to a computer.
Software
After downloading the software from the Canon website and installing it, you can do the following things on your computer.
CameraWindow
zzImport images and change camera settings
ImageBrowser EX
zzManage images: view, search, and organize zzPrint and edit images
• Internet access is required, and any ISP account charges and access fees must be paid separately.
Software Guide
Refer to this guide when using the software. The guide can be accessed from the help system of software (some software excluded).
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
17
System Requirements
The software can be used on the following computers.
Operating
System
Computer
Processor
RAM
Interfaces
Free Hard Disk
Space
Display
Windows |
Macintosh |
|
Windows 8 |
Mac OS X 10.6 |
|
Windows 7 SP1 |
||
Mac OS X 10.7 |
||
Windows Vista SP2 |
||
Mac OS X 10.8*1 |
||
Windows XP SP3 |
|
Computers running one of the above operating systems (preinstalled), with an included USB port and Internet connection
Still images |
Mac OS X 10.7 – 10.8: |
|
1.6 GHz or higher |
Core 2 Duo or higher |
|
Movies |
Mac OS X 10.6: |
|
Core 2 Duo 1.66 GHz or higher |
Core Duo 1.83 GHz or higher |
|
Still images |
|
|
Windows 8 (64 bit), |
|
|
Windows 7 (64 bit): 2 GB or |
|
|
more |
Mac OS X 10.7 – 10.8: |
|
Windows 8 (32 bit), |
||
2 GB or more |
||
Windows 7 (32 bit), Windows |
||
Mac OS X 10.6: 1 GB or more |
||
Vista: 1 GB or more |
||
|
||
Windows XP: 512 MB or more |
|
|
Movies |
|
|
1 GB or more |
|
|
USB |
|
|
440 MB or more*2 |
550 MB or more*2 |
|
1024 x 768 resolution or higher |
|
*1 Information on computer models compatible with Mac OS X 10.8 is available on the Apple website.
*2 Includes Silverlight 5.1 (max. 100 MB). Additionally, in Windows XP, Microsoft .NET Framework 3.0 or later (max. 500 MB) must be installed. Installation may take some time, depending on computer performance.
• Check the Canon website for the latest system requirements, including supported OS versions.
Installing the Software
Windows 7 and Mac OS X 10.6 are used here for the sake of illustration.
What you will need: zzComputer
zzUSB cable (camera end: Mini-B)
1 Download the software.
zzWith a computer connected to the Internet, access http://www.canon.com/icpd/.
zzAccess the site for your country or region. zzDownload the software.
2Begin the installation. zzOpen the downloaded file.
zzClick [Easy Installation] and follow the on-screen instructions to complete the installation process.
3When a message is displayed
prompting you to connect the camera, connect it to a computer.
zzWith the camera turned off, open the cover (). With the smaller plug of the USB cable in the orientation shown, insert the plug fully into the camera terminal ().
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
18
zzInsert the larger plug of the USB cable in the computer’s USB port. For details about USB connections on the computer, refer to the computer user manual.
4 Install the files.
zzTurn the camera on, and follow the on-screen instructions to complete the installation process.
XXThe software will connect to the Internet to update to the latest version and download new functions. Installation may take some time, depending on computer performance and the Internet connection.
zzClick [Finish] or [Restart] on the screen after installation.
zzTurn the camera off and disconnect the cable.
• Using the software, you can update to the latest version, and download new functions via the Internet (some software excluded).
•The first time you connect the camera to the computer, drivers will be installed, so it may take a few minutes until camera images are accessible.
•Because the content and functions of software vary according to the camera model, if you have several cameras, you must use each camera to update to its latest version of the software.
Saving Images to a Computer
Windows 7 and Mac OS X 10.6 are used here for the sake of illustration. For other functions, refer to the help system of the relevant software (some software excluded).
1Connect the camera to the computer.
zzFollow step 3 in “Installing the Software” (=18) to connect the camera to a computer.
2 Turn the camera on to access CameraWindow.
zzPress the <1> button to turn the camera on.
zzOn a Macintosh computer, CameraWindow is displayed when a connection is established between the camera and computer.
zzFor Windows, follow the steps introduced below.
zzIn the screen that displays, click the [] link to modify the program.
zzChoose [Downloads Images From Canon Camera using Canon CameraWindow] and then click [OK].
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
19
zzDouble click [].
CameraWindow |
3 Save the images to the |
|
|
|
computer. |
|
zzClick [Import Images from Camera], and |
|
then click [Import Untransferred Images]. |
|
XXImages are now saved to the Pictures |
|
folder on the computer, in separate |
|
folders named by date. |
|
zzAfter images are saved, close |
|
CameraWindow, press the <1> button |
|
to turn the camera off, and unplug the |
|
cable. |
|
zzFor instructions on viewing images on |
|
a computer, refer to the Software Guide |
|
(=17). |
|
|
• In Windows 7, if the screen in step 2 is not displayed, click the [] icon in the taskbar.
•To start CameraWindow in Windows Vista or XP, click [Downloads Images From Canon Camera using Canon CameraWindow] on the screen displayed when you turn the camera on in step 2. If CameraWindow is not displayed, click the [Start] menu and choose [All Programs] ► [Canon Utilities] ► [CameraWindow] ► [CameraWindow].
•On a Macintosh computer, if CameraWindow is not displayed after step 2, click the [CameraWindow] icon in the Dock (the bar at the bottom of the desktop).
•Although you can save images to a computer simply by connecting your camera to the computer without using the software, the following limitations apply.
-It may take a few minutes after you connect the camera to the computer until camera images are accessible.
-Images shot in vertical orientation may be saved in horizontal orientation.
-Image protection settings may be cleared from images saved to a computer.
-Some problems may occur when saving images or image information, depending on the operating system version, the software in use, or image file sizes.
-Some functions provided by the software may not be available, such as movie editing.
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
20
System Map
Included Accessories
Wrist Strap |
Battery Pack |
Battery Charger |
|
NB-11L*1 |
CB-2LF/CB-2LFE*1 |
||
WS-800 |
|
|
|
|
USB Cable (camera end: Mini-B)*2 |
|
|
|
Memory Card |
Card Reader |
Windows/Macintosh |
|
Cable |
Compute |
|
|
|
||
Power |
|
|
|
|
AV Cable AVC-DC400 |
TV/ |
|
|
|
|
Video System |
|
Flash Unit |
Canon-brand PictBridge- |
|
AC Adapter Kit |
|
Compatible Printers |
|
ACK-DC90 |
|
|
|
|
High-Power Flash |
|
|
|
HF-DC2*3 |
|
|
*1 Also available for purchase separately.
*2 A genuine Canon accessory is also available (Interface Cable IFC-400PCU). *3 High-Power Flash HF-DC1 also supported.
Use of genuine Canon accessories is recommended.
This product is designed to achieve excellent performance when used with genuine Canon accessories.
Canon shall not be liable for any damage to this product and/or accidents such as fire, etc., caused by the malfunction of non-genuine Canon accessories (e.g., a leakage and/or explosion of a battery pack). Please note that this warranty does not apply to repairs arising out of the malfunction of non-genuine Canon accessories, although you may request such repairs on a chargeable basis.
Note that availability varies by area, and some accessories may no longer be available.
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
21
Advanced Guide
1
4 Camera Basics
Practical guide that introduces other camera basics and describes shooting and playback options
On/Off......................................... |
23 |
Shutter Button........................... |
24 |
Shooting Display Options........ |
24 |
FUNC. Menu.............................. |
25 |
MENU Menu............................... |
26 |
Indicator Display....................... |
27 |
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
22
On/Off
Shooting Mode
zzPress the power button to turn the
camera on and prepare for shooting.
zzTo turn the camera off, press the power button again.
Playback Mode
zzPress the <1> button to turn the camera on and view your shots.
zzTo turn the camera off, press the <1> button again.
• To switch to Playback mode from Shooting mode, press the <1> button.
•To switch to Shooting mode from Playback mode, press the shutter button halfway (=24).
•The lens will be retracted after about one minute once the camera is in Playback mode. You can turn the camera off when the lens is retracted by pressing the <1> button.
Power-Saving Features (Auto Power Down)
As a way to conserve battery power, the camera automatically deactivates the screen (Display Off) and then turns itself off after a specific period of inactivity.
Power Saving in Shooting Mode
The screen is automatically deactivated after about one minute of inactivity. In about two more minutes, the lens is retracted and the camera turns itself off. To activate the screen and prepare for shooting when the screen is off but the lens is still out, press the shutter button halfway (=24).
Power Saving in Playback Mode
The camera turns itself off automatically after about five minutes of inactivity.
• You can deactivate Auto Power Down and adjust the timing of Display Off, if you prefer (=76).
•Power saving is not active while the camera is connected to a computer (=19).
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
23
Shutter Button
To ensure your shots are in focus, always begin by holding the shutter button halfway down, and once the subject is in focus, press the button all the way down to shoot.
In this manual, shutter button operations are described as pressing the button halfway or all the way down.
1 Press halfway. (Press lightly to focus.)
zzPress the shutter button halfway. The camera beeps twice, and AF frames are displayed around image areas in focus.
2 Press all the way down. (From the halfway position, press fully to shoot.)
XXThe camera shoots, as a shutter sound is played.
zzKeep the camera still until the shutter sound ends.
• Images may be out of focus if you shoot without initially pressing the shutter button halfway.
•Length of shutter sound playback varies depending on the time required for the shot. It may take longer in some shooting scenes, and images will be blurry if you move the camera (or the subject moves) before the shutter sound ends.
Shooting Display Options
Press the <p> button to view other information on the screen, or to hide the information. For details on the information displayed, see “On-Screen Information” (=97).
Information is displayed |
No information is |
|
displayed |
|
|
• Screen brightness is automatically increased by the night display function when you are shooting under low light, making it easier to check how shots are composed. However, on-screen image brightness may not match the brightness of your shots. Note that any on-screen image distortion or jerky subject motion will not affect recorded images.
• For playback display options, see “Switching Display Modes” (=62).
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
24
FUNC. Menu
Configure commonly used functions through the FUNC. menu as follows.
Note that menu items and options vary depending on the shooting mode (=100) or playback mode (=102).
Options
Menu Items
1Access the FUNC. menu. zzPress the <m> button.
2Choose a menu item.
zzPress the <o><p> buttons to choose a menu item, and then press the <m> or <r> button.
zzIn some menu items, functions can be specified simply by pressing the <m> or <r> button, or another screen is displayed for configuring the function.
3 Choose an option.
zzPress the <o><p> buttons to choose an option.
zzOptions labeled with a [] icon can be configured by pressing the <n> button.
zzTo return to the menu items, press the <q> button.
4 Finish the setup process. zzPress the <m> button.
XXThe screen before you pressed the <m> button in step 1 is displayed again, showing the option you configured.
•To undo any accidental setting changes, you can restore the camera’s default settings (=78).
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
25
MENU Menu
Configure a variety of camera functions through other menus as follows.
Menu items are grouped by purpose on tabs, such as shooting [4], playback [1], and so on. Note that available settings vary depending on the selected shooting or playback mode (=101 – 102).
1 Access the menu. zzPress the <n> button.
2 Choose a tab.
zzMove the zoom lever to choose a tab.
zzAfter you have pressed the <o><p> buttons to choose a tab initially, you can switch between tabs by pressing the <q><r> buttons.
3 Choose a setting.
zzPress the <o><p> buttons to choose a setting.
zzTo choose settings with options not shown, first press the <m> or <r> button to switch screens, and then press the <o><p> buttons to select the setting.
zzTo return to the previous screen, press the <n> button.
4 Choose an option.
zzPress the <q><r> buttons to choose an option.
5 Finish the setup process.
zzPress the <n> button to return to the screen displayed before you pressed the <n> button in step 1.
• To undo any accidental setting changes, you can restore the camera’s default settings (=78).
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
26
Indicator Display
The indicator on the back of the camera (=4) lights up or blinks depending on the camera status.
Color |
Indicator |
Camera Status |
|
Status |
|||
|
|
||
|
On |
Connected to a computer (=19), or display off |
|
|
(=23, 35, 57, 76) |
||
Green |
|
||
Blinking |
Starting up, recording/reading/transmitting images, or |
||
|
|||
|
shooting long exposures (=46) |
||
|
|
||
|
|
|
• When the indicator blinks green, never do any of the following things, as they may corrupt images, or damage the camera or memory card.
-Turn the camera off
-Shake or jolt the camera
-Open the memory card/battery cover
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
27
2
Smart Auto Mode
Convenient mode for easy shots with greater control 4 over shooting
Shooting (Smart Auto).............. |
29 |
Customizing Camera |
|
Common, Convenient |
32 |
Operation................................. |
38 |
Features................................... |
|
|
|
Image Customization |
36 |
|
|
Features................................... |
|
|
|
Helpful Shooting Features....... |
37 |
|
|
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
28
Still Images |
Movies |
Shooting (Smart Auto)
For fully automatic selection at optimal settings for specific scenes, simply let the camera determine the subject and shooting conditions.
1 Turn the camera on. zzPress the power button.
XXThe startup screen is displayed.
2 Enter [ |
] mode. |
zzPress the <o> button repeatedly until
[ |
] is displayed. |
zzAim the camera at the subject. The camera will make a slight clicking noise as it determines the scene.
XXA scene icon is displayed in the upper right of the screen (=31).
XXFrames displayed around any detected subjects indicate that they are in focus.
3 Compose the shot.
zzTo zoom in and enlarge the subject, move
|
the zoom lever toward <i> (telephoto), |
|
|
and to zoom away from the subject, move |
|
Zoom Bar |
it toward <j> (wide angle). (A zoom bar |
|
showing the zoom position is displayed.) |
||
|
4 Shoot.
Shooting Still Images
Focus.
zzPress the shutter button halfway. The camera beeps twice after focusing, and AF frames are displayed to indicate image areas in focus.
XXSeveral AF frames are displayed when multiple areas are in focus.
Shoot.
zzPress the shutter button all the way down.
XXAs the camera shoots, a shutter sound is played, and in low-light conditions, the flash fires automatically.
zzKeep the camera still until the shutter sound ends.
XXYour shot is only displayed until the camera is ready to shoot again.
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
29
Shooting Movies Start shooting.
zzPress the movie button. The camera
|
beeps once as recording begins, and |
Elapsed Time |
[●Rec] is displayed with the elapsed time. |
XXBlack bars displayed on the top and bottom edges of the screen indicate image areas not recorded.
XXFrames displayed around any detected faces indicate that they are in focus.
zzOnce recording begins, take your finger off the movie button.
Resize the subject and recompose the shot as needed.
zzTo resize the subject, repeat the operations in step 3 (=29).
However, note that the sound of camera operations will be recorded, and movies shot at zoom factors shown in blue will look grainy.
zzWhen you recompose shots, the focus, brightness, and colors will be automatically adjusted.
Finish shooting.
zzPress the movie button again to stop shooting. The camera beeps twice as recording stops.
XXRecording will stop automatically when the memory card becomes full.
Still Images/Movies
• If the camera is turned on while the <p> button is held down, the camera will no longer sound. To activate sounds again, press the <n> button and choose [Mute] on the [3] tab, and then press the <q><r> buttons to choose [Off].
Still Images
• A flashing [] icon warns that images are more likely to be blurred by camera shake. In this case, mount the camera on a tripod or take other measures to keep it still.
•If your shots are dark despite the flash firing, move closer to the subject. For details on the flash range, see “Flash Range” (=104).
•The subject may be too close if the camera only beeps once when you press the shutter button halfway. For details on the focusing range (shooting range), see “Shooting Range” (=104).
•To reduce red-eye and to assist in focusing, the lamp may be activated when shooting in low-light conditions.
•A blinking [h] icon displayed when you attempt to shoot indicates that shooting is not possible until the flash has finished recharging. Shooting can resume as soon as the flash is ready, so either press the shutter button all the way down and wait, or release it and press it again.
• You can change how long images are displayed after shots (=59).
Cover
Preliminary Notes and
Legal Information
Contents:
Basic Operations
Basic Guide
Advanced Guide
1 |
Camera Basics |
2 |
ModeSmart Auto |
3 |
Other Shooting |
Modes |
|
4 |
P Mode |
5 Playback Mode |
|
6 |
Setting Menu |
7 |
Accessories |
8 |
Appendix |
Index
30
