KE-430D BE-438D
PARTS BOOK
ELECTRONIC DIRECT DRIVE LOCKSTITCH BAR TACKER ELECTRONIC DIRECT DRIVE LOCKSTITCH BUTTON SEWER
Parts Navigation http://partsbook.brother.co.jp/partsnavi/jpn/ The latest parts information, refer to the Parts Navigation. http://partsbook.brother.co.jp/partsnavi/eng/
Notes for using this parts book
1.This book was prepared based on information available in December 2007.
2.Parts are subject to changes in design without prior notice.
3.Parts supplied as complete assemblies are circled by a dotted line.
|
CONTENTS |
|
A. Machine body ................................................... |
1 |
|
B. Upper shaft and needle bar mechanism ........... |
3 |
|
C. Feed mechanism .............................................. |
5 |
|
D. Work clamp lifter mechanism ........................... |
9 |
|
E. Button clamp mechanism (BE-438D) ............... |
11 |
|
F. Lower shaft mechanism .................................... |
13 |
|
G. Lubrication ........................................................ |
15 |
|
H. Threading mechanism ...................................... |
17 |
|
J. Bobbin winder mechanism ............................... |
19 |
|

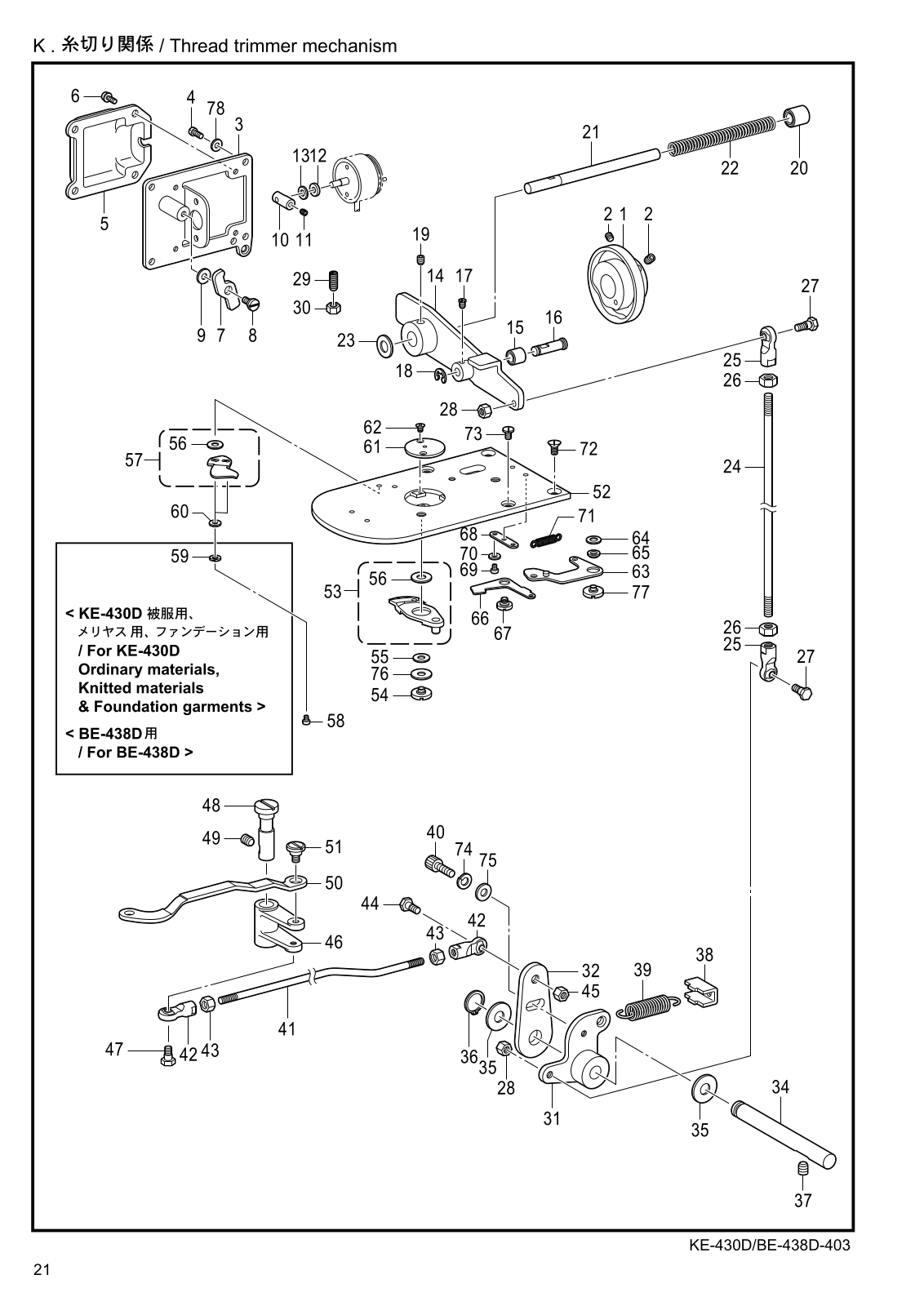

K. Thread trimmer mechanism .............................. |
21 |
|
L. Thread wiper mechanism ................................. |
25 |
|
M. Tension release mechanism ............................. |
27 |
|
N. Thread nipper mechanism ................................ |
29 |
|
P1. |
Control box mechanism .................................... |
31 |
P2. |
Control box (PCB) mechanism ......................... |
33 |
Q. |
Power switch mechanism ................................. |
35 |
R. |

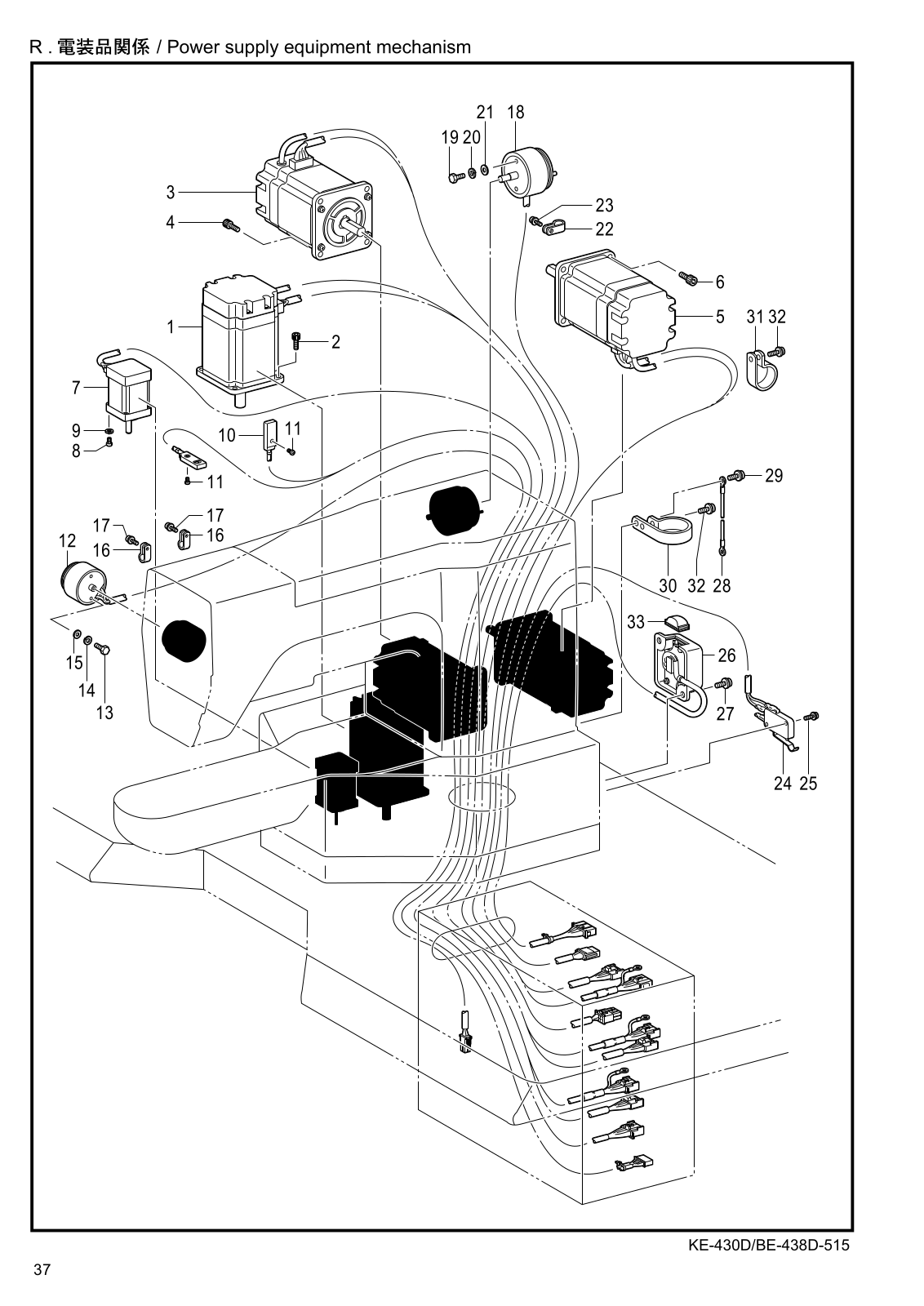

Power supply equipment mechanism ............... |
37 |
S. |
Operation panel mechanism ............................. |
39 |
T. |
Motor mechanism ............................................. |
41 |
U. |
Foot switch pedal mechanism .......................... |
43 |
V1. |
Auxiliary device |
|
|
(Option parts for BE-438D ) ............................. |
45 |
V2. |

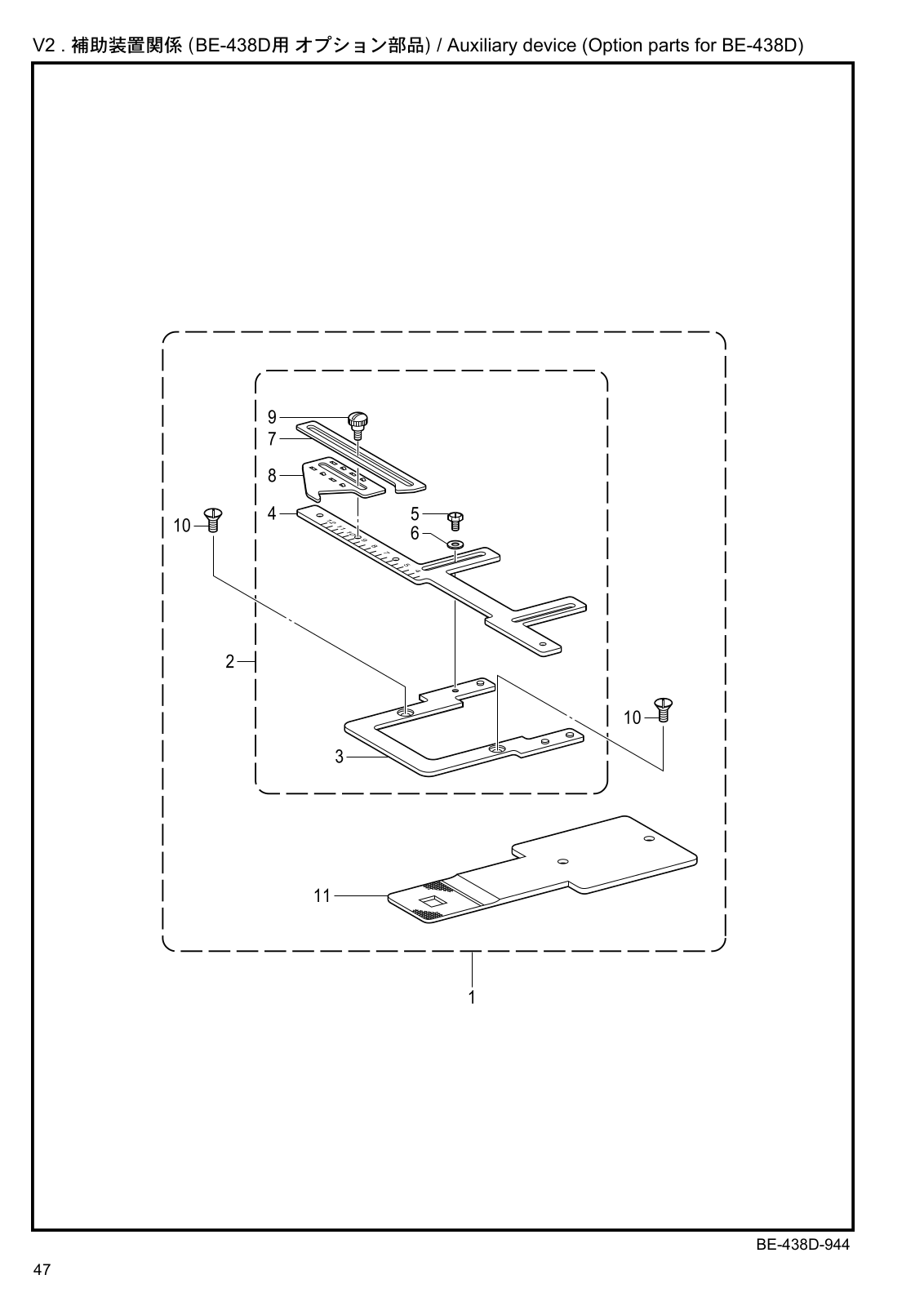

Auxiliary device |
|
|
(Option parts for BE-438D ) ............................. |
47 |
Z. Accessories ...................................................... |
49 |
|
Sp. Different parts list .............................................. |
53 |
|
Ga. Gauge parts list ................................................ |
55 |
|
Wa. Warning labels .................................................. |
58 |
|
|
Index ................................................................. |
59 |
1 |
A. |
/ Machine body |
|
|
|
||
|
|
|
|
|
|
|
REF.NO |
CODE |
Q'TY |
|
|
NAME OF PARTS |
RM |
1 |
140392009 |
1 |
|
|
OIL CAP |
|
2 |
117934001 |
3 |
|
|
RUBBER CAP, 13.5 |
|
3 |
104821001 |
5 |
|
|
RUBBER CAP, 10.5 |
|
4 |
140392009 |
1 |
|
|
OIL CAP |
|
5 |
SA3260001 |
1 |
|
|
FRAME SIDE COVER |
|
6 |
062061016 |
4 |
|
|
SCREW, PAN M6X10 |
|
7 |
SA3199001 |
1 |
|
|
FACE PLATE |
|
8 |
104449001 |
1 |
|
|
RUBBER CAP, 15.5 |
|
9 |
062501016 |
3 |
|
|
SCREW, PAN M5X10 |
|
10 |
SA3262101 |
1 |
|
|
SHUTTLE RACE COVER |
|
11 |
SA3263001 |
1 |
|
|
SHUTTLE RACE COVER HOOK D |
|
12 |
004300513 |
2 |
|
|
SCREW, FLAT M3X5 |
|
13 |
SA3264001 |
1 |
|
|
NUT PLATE |
|
14 |
SA3265001 |
2 |
|
|
SHOULDER SCREW, 8-2 |
|
15 |
109239002 |
2 |
|
|
WASHER, WAVE SPRING |
|
16 |
SA3266101 |
1 |
|
|
SHUTTLE RACE COVER HOOK U |
|
17 |
062300416 |
2 |
|
|
SCREW, PAN M3X4 |
|
18 |
025030236 |
2 |
|
|
WASHER, PLAIN M 3 |
|
19 |
SA3200101 |
1 |
|
|
THREAD TAKE-UP COVER |
|
20 |
062401006 |
1 |
|
|
SCREW, PAN M4X10 |
|
|
|
|
|
|
<Except for China> |
|
21 |
SA2040001 |
1 |
|
|
LABEL, CAUTION JPN/ENG |
|
|
|
|
|
|
<For China Only> |
|
21 |
SA2041001 |
1 |
|
|
LABEL, CAUTION CHN/ENG |
|
22 |
S37060001 |
1 |
|
|
LABEL, GROUNDING |
|
23 |
S28044001 |
1 |
|
|
RUBBER CAP, 20.8 |
|
24 |
117608001 |
1 |
|
|
DOWEL PIN |
|
25 |
S20878000 |
4 |
|
|
RUBBER CAP, 5.3 |
|
26 |
S20878000 |
2 |
|
|
RUBBER CAP, 5.3 |
|
|
|
|
|
|
|
|
KE-430D/BE-438D-050
2
3 |
B. |
|
/ Upper shaft and needle bar mechanism |
|
||||||
|
|
|
|
|
|
|
|
|
|
REF.NO |
CODE |
Q'TY |
|
|
|
|
|
NAME OF PARTS |
RM |
1 |
SA3201101 |
1 |
|
|
|
|
|
UPPER SHAFT |
|
2 |
SA3499001 |
1 |
|
|
|
|
|
CRANK ROD ASSY |
|
3 |
018501636 |
2 |
|
|
|
|
|
BOLT, SOCKET M5X16 |
|
4 |
SA4172001 |
1 |
|
|
|
|
|
NEEDLE BEARING |
|
4 |
SA4173001 |
1 |
|
|
|
|
|
NEEDLE BEARING |
|
4 |
SA4174001 |
1 |
|
|
|
|
|
NEEDLE BEARING |
|
4 |
SA4175001 |
1 |
|
|
|
|
|
NEEDLE BEARING |
|
5 |
062300416 |
1 |
|
|
|
|
|
SCREW, PAN M3X4 |
|
6 |
SA3206001 |
1 |
|
|
|
|
|
BALL BEARING BUSH |
|
7 |
SA4179001 |
1 |
|
|
|
|
|
BALL BEARING, 6904DDUNR |
|
8 |
SA4180001 |
1 |
|
|
|
|
|
BALL BEARING, RADIAL 6904DDU |
|
9 |
S23651001 |
2 |
|
|
|
|
|
SET SCREW, SOCKET (FT) M6X6 |
|
10 |
SA3206001 |
1 |
|
|
|
|
|
BALL BEARING BUSH |
|
11 |
SA4177001 |
1 |
|
|
|
|
|
BALL BEARING, 6004DDUNR |
|
12 |
S23651001 |
2 |
|
|
|
|
|
SET SCREW, SOCKET (FT) M6X6 |
|
|
|
|
|
|
|
|
|
<For KE-430D> |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
13 |
SA3210001 |
1 |
|
|
|
|
|
JOINT, A |
|
|
|
|
|
|
|
|
|
<For BE-438D> |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
13 |
SA3589001 |
1 |
|
|
|
|
|
JOINT, B |
|
14 |
SA4178001 |
1 |
|
|
|
|
|
BALL BEARING 6204DDUNR |
|
15 |
S23651001 |
4 |
|
|
|
|
|
SET SCREW, SOCKET (FT) M6X6 |
|
16 |
S25235001 |
1 |
|
|
|
|
|
SCREW, M8 |
|
|
|
|
|
|
|
|
|
<For KE-430D> |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
17 |
SA3497001 |
1 |
|
|
|
|
|
THREAD TAKE-UP CRANK, C |
|
18 |
SA6563001 |
1 |
|
|
|
|
|
THREAD TAKE-UP LEVER, A SET |
|
|
|
|
|
|
|
|
|
<For BE-438D> |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
17 |
SA3591001 |
1 |
|
|
|
|
|
THREAD TAKE-UP CRANK, B |
|
18 |
SA4327001 |
1 |
|
|
|
|
|
THREAD TAKE-UP LEVER B SET |
|
19 |
S23651001 |
4 |
|
|
|
|
|
SET SCREW, SOCKET (FT) M6X6 |
|
20 |
110367001 |
1 |
|
|
|
|
|
WASHER, PLAIN SPECIAL 8 |
|
21 |
012300336 |
1 |
|
|
|
|
|
SET SCREW, SOCKET (FT) M3X3 |
|
22 |
SA2958001 |
1 |
|
|
|
|
|
SCREW, FLAT M5X6 |
|
23 |
012500536 |
1 |
|
|
|
|
|
SET SCREW, SOCKET (FT) M5X5 |
|
24 |
012300336 |
1 |
|
|
|
|
|
SET SCREW, SOCKET (FT) M3X3 |
|
25 |
145465001 |
1 |
|
|
|
|
|
SCREW, SM3.57-40X6 L |
|
26 |
012060636 |
2 |
|
|
|
|
|
SET SCREW, SOCKET (FT) M6X6 |
|
27 |
SA3488001 |
1 |
|
|
|
|
|
SLIDE BLOCK |
|
28 |
SA3528001 |
1 |
|
|
|
|
|
SLIDE BLOCK GUIDE |
|
29 |
018401636 |
2 |
|
|
|
|
|
BOLT, SOCKET M4X16 |
|
30 |
SA3222001 |
1 |
|
|
|
|
|
NEEDLE BAR, A |
|
31 |
144458001 |
1 |
|
|
|
|
|
SET SCREW, SM3.57-40X4.5 |
|
32 |
SA3223001 |
1 |
|
|
|
|
|
NEEDLE BAR BUSH, U |
|
33 |
SA3224001 |
1 |
|
|
|
|
|
NEEDLE BAR BUSH, D |
|
35 |
SA3225101 |
1 |
|
|
|
|
|
PULLEY |
|
36 |
SA3025001 |
3 |
|
|
|
|
|
SCREW, PAN (S/P WASHER) M4X10 |
|
37 |
012500536 |
2 |
|
|
|
|
|
SET SCREW, SOCKET (FT) M5X5 |
|
38 |
S38713100 |
1 |
|
|
|
|
|
FAN |
|
39 |
062400806 |
3 |
|
|
|
|
|
SCREW, PAN M4X8 |
|
40 |
018501636 |
4 |
|
|
|
|
|
BOLT, SOCKET M5X16 |
|
41 |
062400816 |
1 |
|
|
|
|
|
SCREW, PAN M4X8 |
|
|
|
|
|
|
|
|
|
|
|
KE-430D/BE-438D-123
4
5 |
C. |
/ Feed mechanism |
|
|
|
||||||
|
|
|
|
|
|
|
||||
REF.NO |
CODE |
Q'TY |
|
|
|
|
|
|
NAME OF PARTS |
RM |
1 |
SA3363001 |
1 |
|
|
|
|
|
|
X-FEED LEVER BUSH |
|
2 |
SA3364001 |
1 |
|
|
|
|
|
|
X-FEED LEVER |
|
3 |
SA3533001 |
1 |
|
|
|
|
|
|
T-LENGTH REGULATOR BLOCK ASSY |
|
4 |
012500536 |
1 |
|
|
|
|
|
|
SET SCREW, SOCKET (FT) M5X5 |
|
5 |
SA3366001 |
1 |
|
|
|
|
|
|
X-FEED GEAR |
|
6 |
018063036 |
1 |
|
|
|
|
|
|
BOLT, SOCKET M6X30 |
|
7 |
XC5780001 |
2 |
|
|
|
|
|
|
BEARING 10, LINER |
|
8 |
012060636 |
2 |
|
|
|
|
|
|
SET SCREW, SOCKET (FT) M6X6 |
|
9 |
SA3367001 |
1 |
|
|
|
|
|
|
Y-FEED RACK SHAFT |
|
10 |
SA3368001 |
1 |
|
|
|
|
|
|
Y-CONNECTING PIN |
|
11 |
153113001 |
1 |
|
|
|
|
|
|
THRUST WASHER |
|
12 |
048060342 |
2 |
|
|
|
|
|
|
RETAINING RING, E6 |
|
13 |
012060636 |
2 |
|
|
|
|
|
|
SET SCREW, SOCKET (FT) M6X6 |
|
14 |
SA4197001 |
2 |
|
|
|
|
|
|
FEED GEAR |
|
15 |
012060636 |
4 |
|
|
|
|
|
|
SET SCREW, SOCKET (FT) M6X6 |
|
16 |
SA3370001 |
1 |
|
|
|
|
|
|
ECCENTRIC SHAFT |
|
17 |
070608800 |
2 |
|
|
|
|
|
|
BALL BEARING RADIAL 608ZZ |
|
18 |
048080142 |
1 |
|
|
|
|
|
|
RETAINING RING, EXTERNAL C8 |
|
19 |
012060636 |
1 |
|
|
|
|
|
|
SET SCREW, SOCKET (FT) M6X6 |
|
20 |
SA3371001 |
1 |
|
|
|
|
|
|
FEED BAR SUPPORT PLATE |
|
21 |
018401036 |
3 |
|
|
|
|
|
|
BOLT, SOCKET M4X10 |
|
22 |
SA3372001 |
1 |
|
|
|
|
|
|
FEED BAR COVER |
|
23 |
SA3538001 |
6 |
|
|
|
|
|
|
SCREW, M4X8 |
|
|
|
|
|
|
|
|
|
|
<For BE-438D> |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
24 |
SA3604001 |
1 |
|
|
|
|
|
|
FEED BAR SUB ASSY B |
|
|
|
|
|
|
|
|
|
|
<For KE-430D> |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
25 |
SA3373001 |
1 |
|
|
|
|
|
|
FEED BAR SUB ASSY A |
|
26 |
SA3534001 |
1 |
|
|
|
|
|
|
T-WIDTH REGULATOR BROCK ASSY |
|
27 |
012060636 |
1 |
|
|
|
|
|
|
SET SCREW, SOCKET (FT) M6X6 |
|
28 |
* P. 54-56 |
1 |
|
|
|
|
|
|
FEED PLATE |
|
29 |
153057101 |
2 |
|
|
|
|
|
|
SCREW, ROUND W/SOCKET SM4.37 |
|
30 |
SA3381001 |
1 |
|
|
|
|
|
|
X-MOTOR SETTING PLATE |
|
31 |
018061236 |
2 |
|
|
|
|
|
|
BOLT, SOCKET M6X12 |
|
32 |
025060236 |
3 |
|
|
|
|
|
|
WASHER, PLAIN M 6 |
|
33 |
SA3708001 |
1 |
|
|
|
|
|
|
COLLAR |
|
34 |
018063536 |
1 |
|
|
|
|
|
|
BOLT, SOCKET M6X35 |
|
35 |
SA3382001 |
1 |
|
|
|
|
|
|
Y-MOTOR SETTING PLATE |
|
36 |
018061236 |
2 |
|
|
|
|
|
|
BOLT, SOCKET M6X12 |
|
37 |
025060236 |
2 |
|
|
|
|
|
|
WASHER, PLAIN M 6 |
|
|
|
|
|
|
|
|
|
|
<For KE-430D> |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
38 |
SA3419101 |
1 |
|
|
|
|
|
|
WORK CLAMP ARM |
|
39 |
SA3420001 |
1 |
|
|
|
|
|
|
WORK CLAMP ARM LEVER, R |
|
40 |
SA3421001 |
1 |
|
|
|
|
|
|
WORK CLAMP ARM LEVER, L |
|
41 |
SA3422001 |
1 |
|
|
|
|
|
|
WORK CLAMP ARM LEVER SHAFT |
|
42 |
110367001 |
1 |
|
|
|
|
|
|
WASHER, PLAIN SPECIAL 8 |
|
43 |
048060346 |
1 |
|
|
|
|
|
|
RETAINING RING, E6 |
|
44 |
SA3231001 |
1 |
|
|
|
|
|
|
SET SCREW COLLAR, B |
|
45 |
012060536 |
2 |
|
|
|
|
|
|
SET SCREW, SOCKET (FT) M6X5 |
|
46 |
012500536 |
1 |
|
|
|
|
|
|
SET SCREW, SOCKET (FT) M5X5 |
|
47 |
SA3423001 |
2 |
|
|
|
|
|
|
WORK CLAMP LEVER SUPPORT |
|
48 |
018500836 |
2 |
|
|
|
|
|
|
BOLT, SOCKET M5X8 |
|
49 |
028050246 |
2 |
|
|
|
|
|
|
WASHER, SPRING 2-5 |
|
50 |
025050236 |
2 |
|
|
|
|
|
|
WASHER, PLAIN M 5 |
|
51 |
SA3424001 |
2 |
|
|
|
|
|
|
WORK CLAMP GUIDE BRACKET, A |
|
52 |
SA3425001 |
1 |
|
|
|
|
|
|
WORK CLAMP GUIDE BRACKET, B |
|
53 |
SA3426001 |
6 |
|
|
|
|
|
|
SCREW, FLAT M3.5 |
|
54 |
SA3208201 |
2 |
|
|
|
|
|
|
WORK CLAMP ARM LEVER PLATE |
|
55 |
146354002 |
2 |
|
|
|
|
|
|
WASHER, PLAIN 5 |
|
56 |
018500836 |
2 |
|
|
|
|
|
|
BOLT, SOCKET M5X8 |
|
57 |
SA3427101 |
2 |
|
|
|
|
|
|
SPRING GUIDE ROD |
|
|
|
|
|
|
|
|
|
|
|
|
KE-430D/BE-438D-202
6
C . |
/ Feed mechanism |
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
66 |
|
|
|
|
< KE-430D |
|
|
||
|
|
|
|
|
|
|
|
|
73 |
|
/ For KE-430D > |
||||
< |
|
/ Option parts > |
|
|
|
|
|
|
|
|
|
|
|
||
|
48 |
|
72 |
|
|
|
|
67 |
|
|
|
|
|||
|
|
|
|
50 |
|
|
|
|
|
|
|
|
|||
|
74 |
|
43 42 |
|
|
40 |
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
76 |
49 |
|
|
|
64 |
|
59 |
|
57 |
|
|
|
|
75 |
|
|
47 |
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
41 |
46 |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
60 |
61 |
|
|
|
|
|
|
|
|
63 |
38 |
|
45 |
|
54 |
|
58 |
||
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
29 |
|
53 |
|
69 |
|
|
4544 |
|
|
|
|
|
|
|
|
|
51 |
|
|
|
|
|
|
|
55 |
|
|||
|
|
|
|
|
52 |
51 |
|
|
|
|
|
|
|
56 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
63 65 |
|
|
|
|
|
||
|
28 |
|
|
|
|
|
68 |
|
|
|
47 |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
70 |
|
39 |
|
50 |
|
|
|
|
|
|
|
|
62 |
|
|
|
|
49 |
|
|
||
|
|
|
|
|
|
|
|
71 |
|
|
|
|
48 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
22 |
|
|
|
23 |
36 |
37 |
35 |
|
|
19 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
15 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
14 |
|
16 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
|
13 |
|
|
|
|
|
|
17 |
18 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 |
|||
|
|
|
|
13 |
|
|
|
|
|
|
|
|
7 |
|
|
|
|
|
|
|
12 |
|
|
15 |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10 |
|
|
|
|
|
|
|
|
|
|
< BE-438D |
24 |
|
|
|
|
|
|
|
|
|
|
|
8 |
|
|
|
|
27 |
|
|
|
|
|
|
|
|
|
|
||
|
/ For BE-438D > |
|
|
11 |
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
30 |
|||
|
|
|
|
26 |
|
12 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
21 |
|
|
20 |
|
|
|
|
|
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
32 |
|
|
33 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
32 |
|
|
|
|
|
|
|
|
|
|
4 |
|
|
31 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
34 |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
15 |
15 |
|
|
|
25 |
|
|
|
|
|
|
|
|
|
|
|
||
|
< KE-430D |
|
|
|
|
|
|
|
|
|
|
14 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
/ For KE-430D > |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
KE-430D/BE-438D-202 |
||||
7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C. |
/ Feed mechanism |
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
REF.NO |
CODE |
Q'TY |
|
|
|
|
|
|
|
NAME OF PARTS |
RM |
||
|
|
|
|
|
|
|
|
|
|
|
|
<For KE-430D> |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
58 |
SA1179002 |
2 |
|
|
|
|
|
|
|
|
|
SHOULDER SCREW, M5 |
|
59 |
153568001 |
2 |
|
|
|
|
|
|
|
|
|
PRESSER SPRING, A |
|
60 |
152788000 |
2 |
|
|
|
|
|
|
|
|
|
PRESSER SPRING SPACER |
|
61 |
153567000 |
2 |
|
|
|
|
|
|
|
|
|
PRESSER SPRING COLLAR |
|
62 |
SA4130001 |
1 |
|
|
|
|
|
|
|
|
|
FINGER GUARD |
|
63 |
SA2626001 |
2 |
|
|
|
|
|
|
|
|
|
SET SCREW, (CP) M3.5 |
|
64 |
SA3428001 |
1 |
|
|
|
|
|
|
|
|
|
SUPPORT SHAFT, W-CLAMP |
|
65 |
012500536 |
1 |
|
|
|
|
|
|
|
|
|
SET SCREW, SOCKET (FT) M5X5 |
|
66 |
SA3487001 |
1 |
|
|
|
|
|
|
|
|
|
WORK CLAMP ARM SUPPORT PLATE |
|
67 |
SA4145001 |
1 |
|
|
|
|
|
|
|
|
|
SPACER, W-CLAMP |
|
68 |
* P. 54-56 |
1 |
|
|
|
|
|
|
|
|
|
WORK CLAMP, RIGHT |
|
69 |
* P. 54-56 |
1 |
|
|
|
|
|
|
|
|
|
WORK CLAMP, LEFT |
|
70 |
018061636 |
2 |
|
|
|
|
|
|
|
|
|
BOLT, SOCKET M6X16 |
|
71 |
025060236 |
2 |
|
|
|
|
|
|
|
|
|
WASHER, PLAIN M 6 |
|
72 |
018400836 |
2 |
|
|
|
|
|
|
|
|
|
BOLT, SOCKET M4X8 |
|
73 |
071031840 |
7 |
|
|
|
|
|
|
|
|
|
BEARING BALL, 1/8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
<Option parts> |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
74 |
SA4198001 |
1 |
|
|
|
|
|
|
|
|
|
H-POSITION STANDARD PLATE ASSY |
|
75 |
S42903001 |
1 |
|
|
|
|
|
|
|
|
|
H-POSITION STANDARD PLATE |
|
76 |
S49955101 |
2 |
|
|
|
|
|
|
|
|
|
SCREW, W/SOCKET SM4.37 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
KE-430D/BE-438D-202
8
9 |
D. |
/ Work clamp lifter mechanism |
|
|
||||||
|
|
|
|
|
|
|
|
|
|
REF.NO |
CODE |
Q'TY |
|
|
|
|
|
NAME OF PARTS |
RM |
|
|
|
|
|
|
|
|
<For KE-430D> |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
SA3432001 |
1 |
|
|
|
|
|
WORK CLAMP LIFTER PLATE |
|
4 |
047602042 |
1 |
|
|
|
|
|
PIN, SPRING ROLL AW6 |
|
|
|
|
|
|
|
|
|
<For BE-438D> |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
SA3628001 |
1 |
|
|
|
|
|
BUTTON CLAMP ROD |
|
6 |
SA3434001 |
1 |
|
|
|
|
|
LIFTER LEVER |
|
7 |
152744001 |
1 |
|
|
|
|
|
PIN |
|
8 |
102630001 |
1 |
|
|
|
|
|
NEEDLE BAR GUIDE SLIDE BLOCK |
|
9 |
SA3435001 |
1 |
|
|
|
|
|
LEVER SHAFT |
|
10 |
S20356001 |
1 |
|
|
|
|
|
WASHER, PLAIN 10 |
|
11 |
048080342 |
1 |
|
|
|
|
|
RETAINING RING, E8 |
|
12 |
012500536 |
1 |
|
|
|
|
|
SET SCREW, SOCKET (FT) M5X5 |
|
13 |
012060636 |
1 |
|
|
|
|
|
SET SCREW, SOCKET (FT) M6X6 |
|
14 |
SA3436001 |
1 |
|
|
|
|
|
W-CLAMP LIFTER LEVER BUSH |
|
15 |
SA3437001 |
1 |
|
|
|
|
|
LINK |
|
16 |
SA3438001 |
2 |
|
|
|
|
|
LINK SHOULDER SCREW |
|
17 |
SA3439001 |
1 |
|
|
|
|
|
DRIVE LEVER W-CLAMP LIFTER |
|
18 |
070696800 |
1 |
|
|
|
|
|
BALL BEARING, RADIAL 696ZZ |
|
19 |
SA3441001 |
1 |
|
|
|
|
|
W-CLAMP LIFTER ROLLER SHAFT |
|
20 |
012500536 |
1 |
|
|
|
|
|
SET SCREW, SOCKET (FT) M5X5 |
|
21 |
SA3442001 |
1 |
|
|
|
|
|
CAM LEVER SHAFT |
|
22 |
012060636 |
2 |
|
|
|
|
|
SET SCREW, SOCKET (FT) M6X6 |
|
23 |
S20356001 |
2 |
|
|
|
|
|
WASHER, PLAIN 10 |
|
24 |
048080342 |
1 |
|
|
|
|
|
RETAINING RING, E8 |
|
25 |
012500536 |
1 |
|
|
|
|
|
SET SCREW, SOCKET (FT) M5X5 |
|
26 |
SA3443101 |
1 |
|
|
|
|
|
CAM GEAR |
|
27 |
047301042 |
1 |
|
|
|
|
|
PIN, SPRING ROLL AW3 |
|
28 |
012060636 |
2 |
|
|
|
|
|
SET SCREW, SOCKET (FT) M6X6 |
|
29 |
SA3444001 |
1 |
|
|
|
|
|
CAM SHAFT |
|
30 |
048060346 |
1 |
|
|
|
|
|
RETAINING RING, E6 |
|
31 |
SA3231001 |
1 |
|
|
|
|
|
SET SCREW COLLAR, B |
|
32 |
012060536 |
2 |
|
|
|
|
|
SET SCREW, SOCKET (FT) M6X5 |
|
33 |
070688850 |
2 |
|
|
|
|
|
BALL BEARING, RADIAL 688ZZ |
|
34 |
SA3445001 |
1 |
|
|
|
|
|
MOTOR BRACKET |
|
35 |
018061236 |
2 |
|
|
|
|
|
BOLT, SOCKET M6X12 |
|
36 |
SA3446001 |
1 |
|
|
|
|
|
SPRING |
|
37 |
SA3707001 |
1 |
|
|
|
|
|
GEAR 16 |
|
38 |
012060536 |
2 |
|
|
|
|
|
SET SCREW, SOCKET (FT) M6X5 |
|
|
|
|
|
|
|
|
|
<For BE-438D> |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
39 |
SA3629001 |
1 |
|
|
|
|
|
BUTTON CLAMP ROLLER SHAFT |
|
40 |
107744001 |
1 |
|
|
|
|
|
ROLLER |
|
41 |
025040236 |
1 |
|
|
|
|
|
WASHER, PLAIN M 4 |
|
42 |
021400216 |
2 |
|
|
|
|
|
NUT, 2 M4 |
|
43 |
SA3630001 |
1 |
|
|
|
|
|
BUTTON CLAMP LEVER HOLDER |
|
44 |
018061636 |
2 |
|
|
|
|
|
BOLT, SOCKET M6X16 |
|
45 |
025060236 |
2 |
|
|
|
|
|
WASHER, PLAIN M 6 |
|
46 |
SA3631001 |
1 |
|
|
|
|
|
BUTTON CLAMP LEVER |
|
47 |
153838001 |
1 |
|
|
|
|
|
BUTTON CLAMP LEVER SHAFT |
|
48 |
012060636 |
1 |
|
|
|
|
|
SET SCREW, SOCKET (FT) M6X6 |
|
49 |
SA4072001 |
1 |
|
|
|
|
|
STOPPER |
|
50 |
062061016 |
1 |
|
|
|
|
|
SCREW, PAN M6X10 |
|
|
|
|
|
|
|
|
|
|
|
KE-430D/BE-438D-204
10
11 |
E. (BE-438D) / Button clamp mechanism (BE-438D)
REF.NO |
CODE |
Q'TY |
|
NAME OF PARTS |
RM |
1 |
153830100 |
1 |
|
BUTTON CLAMP HOLDER |
|
2 |
153827001 |
1 |
|
BUTTON CLAMP HOLDER SHAFT |
|
3 |
014680632 |
2 |
|
SET SCREW SOCKET SM4.37-40X6 |
|
4 |
151968001 |
1 |
|
BUTTON CLAMP HOLDER HOOK ASSY |
|
5 |
151969001 |
1 |
|
B-CLAMP HOLDER HOOK |
|
6 |
107744001 |
2 |
|
ROLLER |
|
7 |
153484001 |
1 |
|
WASHER, PLAIN 4.76 |
|
8 |
105234003 |
2 |
|
NUT SM4.37 |
|
9 |
014760632 |
1 |
|
SET SCREW SOCKET SM5.95-28X6 |
|
10 |
017711412 |
2 |
|
BOLT SM4.76-32X14 |
|
11 |
146354001 |
2 |
|
WASHER, PLAIN 5 |
|
12 |
146994001 |
2 |
|
NUT, ROUND SM6.35-40 |
|
13 |
115148201 |
1 |
|
ADJUSTING SCREW SM6.35-40 |
|
14 |
115147001 |
1 |
|
COMPRESSION SPRING |
|
15 |
S49998001 |
1 |
|
FINGER GUARD |
|
16 |
011679312 |
2 |
|
SET SCREW, (FT) SM3.57 |
|
18 |
SA9288001 |
1 |
|
BUTTON CLAMP BASE |
|
21 |
SA9291001 |
2 |
|
BUTTON CLAMP GUIDE PIN |
|
22 |
047250642 |
2 |
|
PIN SPRING ROLL AW2.5 |
|
25 |
062400416 |
2 |
|
SCREW, PAN M4X4 |
|
26 |
SA9294001 |
2 |
|
SHOULDER SCREW 4 |
|
53 |
SA9302001 |
1 |
|
BUTTON CLAMP PLATE CAM |
|
27 |
SA9301001 |
1 |
|
BUTTON CLAMP M |
|
54 |
062400816 |
2 |
|
SCREW PAN M4X8 |
|
30 |
SA9296001 |
1 |
|
SCREW 4 |
|
31 |
SA9297001 |
1 |
|
NUT ROUND 4 |
|
32 |
115163001 |
1 |
|
BUTTON CLAMP PLATE SPRING |
|
34 |
SA9299001 |
1 |
|
SHOULDER SCREW 4 |
|
35 |
SA9300001 |
1 |
|
SHOULDER SCREW 4 |
|
36 |
S52072101 |
1 |
|
BUTTON CLAMP SPACER BL |
|
37 |
S52076101 |
1 |
|
BUTTON CLAMP SPACER BR |
|
38 |
S01694001 |
2 |
|
SCREW, FLAT SM2.38X4 |
|
17 |
SA9287001 |
1 |
|
<For button size 8 - 20> |
|
|
BUTTON CLAMP ASSY S |
|
|||
19 |
SA9289001 |
1 |
|
BUTTON CLAMP L-S |
|
20 |
SA9290001 |
1 |
|
BUTTON CLAMP R-S |
|
23 |
SA9292001 |
1 |
|
BUTTON CLAMP L PLATE SPRING S |
|
24 |
SA9293001 |
1 |
|
BUTTON CLAMP R PLATE SPRING S |
|
33 |
SA9298001 |
1 |
|
BUTTON CLAMP ADJUSTING PLATE |
|
|
|
|
|
<Option parts> |
|
47 |
SA9303001 |
1 |
|
<For button size 15 - 30> |
|
|
BUTTON CLAMP ASSY L |
|
|||
48 |
SA9304001 |
1 |
|
BUTTON CLAMP L-L |
|
49 |
SA9305001 |
1 |
|
BUTTON CLAMP R-L |
|
50 |
SA9306001 |
1 |
|
BUTTON CLAMP L PLATE SPRING L |
|
51 |
SA9307001 |
1 |
|
BUTTON CLAMP R PLATE SPRING L |
|
52 |
SA9308001 |
1 |
|
BUTTON CLAMP ADJUSTING PLATE |
|
|
|
|
|
<Option parts> |
|
39 |
S52071101 |
1 |
|
BUTTON CLAMP SPACER AL |
|
40 |
S52075101 |
1 |
|
BUTTON CLAMP SPACER AR |
|
43 |
S52073101 |
1 |
|
BUTTON CLAMP SPACER CL |
|
44 |
S52077101 |
1 |
|
BUTTON CLAMP SPACER CR |
|
45 |
S52074101 |
1 |
|
BUTTON CLAMP SPACER DL |
|
46 |
S52078101 |
1 |
|
BUTTON CLAMP SPACER DR |
|
BE-438D-214
12
13 |
F. |
/ Lower shaft mechanism |
|
|
||
|
|
|
|
|
|
REF.NO |
CODE |
Q'TY |
|
NAME OF PARTS |
RM |
1 |
SA3226001 |
1 |
|
SHOULDER SCREW |
|
2 |
SA3227001 |
1 |
|
NUT (FT), M6 |
|
3 |
SA3228101 |
1 |
|
ROCK GEAR |
|
4 |
SA4068101 |
1 |
|
ROCK GEAR SHAFT, A |
|
5 |
SA3231001 |
1 |
|
SET SCREW COLLAR, B |
|
6 |
012060536 |
2 |
|
SET SCREW, SOCKET (FT) M6X5 |
|
7 |
SA3233001 |
1 |
|
SET SCREW COLLAR |
|
8 |
S23651001 |
2 |
|
SET SCREW, SOCKET (FT) M6X6 |
|
9 |
012060636 |
2 |
|
SET SCREW, SOCKET (FT) M6X6 |
|
10 |
SA3234101 |
1 |
|
LOWER SHAFT ASSY |
|
11 |
012500536 |
1 |
|
SET SCREW, SOCKET (FT) M5X5 |
|
12 |
012400436 |
2 |
|
SET SCREW, SOCKET (FT) M4X4 |
|
13 |
SA3237001 |
1 |
|
LOWER SHAFT BUSH |
|
14 |
SA4187001 |
4 |
|
NEEDLE BEARING |
|
14 |
SA4188001 |
4 |
|
NEEDLE BEARING |
|
14 |
SA4189001 |
4 |
|
NEEDLE BEARING |
|
14 |
SA4190001 |
4 |
|
NEEDLE BEARING |
|
15 |
SA3273001 |
1 |
|
LOWER SHAFT COLLAR |
|
16 |
012060636 |
1 |
|
SET SCREW, SOCKET (FT) M6X6 |
|
17 |
SA3238101 |
2 |
|
ADJUSTING STUD |
|
18 |
081003670 |
2 |
|
O RING, PW3 |
|
19 |
SA3239201 |
1 |
|
SHUTTLE RACE BASE ASSY |
|
20 |
S02429201 |
1 |
|
SHUTTLE RACE THREAD GUIDE |
|
21 |
SA4199001 |
2 |
|
SCREW, M3X4 |
|
22 |
SA3241001 |
2 |
|
S-RACE BASE SETTING CLAW |
|
23 |
152684101 |
2 |
|
COMPRESSION SPRING |
|
24 |
026030136 |
2 |
|
WASHER, PLAIN S 3 |
|
25 |
062300616 |
2 |
|
SCREW, PAN M3X6 |
|
26 |
SA9396001 |
2 |
|
FELT |
|
27 |
SA3242001 |
1 |
|
FELT HOLDER |
|
28 |
SA9191001 |
2 |
|
SCREW M3X5.5 |
|
29 |
SA3274101 |
1 |
|
FELT HOLDER |
|
30 |
S47307001 |
2 |
|
SCREW, M3X4 |
|
31 |
SA3275001 |
1 |
|
FELT, T |
|
32 |
S59886001 |
3 |
|
FELT, L=360 |
|
51 |
SA9397001 |
2 |
|
RUBBER CAP 5.5 |
|
33 |
SA3276001 |
2 |
|
SPACER, A |
|
34 |
SA3277001 |
2 |
|
RETAINING RING |
|
35 |
012060636 |
1 |
|
SET SCREW, SOCKET (FT) M6X6 |
|
36 |
SA3278001 |
1 |
|
COLLAR |
|
37 |
048070342 |
1 |
|
RETAINING RING, E7 |
|
38 |
SA3284201 |
1 |
|
DRIVER D |
|
39 |
018501232 |
1 |
|
BOLT, SOCKET M5X12 |
|
40 |
* P. 53 |
1 |
|
SHUTTLE RACE BASE |
|
41 |
* P. 53 |
1 |
|
BOBBIN CASE ASSY |
|
42 |
* P. 53 |
1 |
|
TENSION SPRING |
|
43 |
* P. 53 |
1 |
|
SCREW |
|
44 |
* P. 53 |
1 |
|
ANTI-SPIN SPRING |
|
45 |
* P. 53 |
1 |
|
BOBBIN |
|
46 |
SA3283101 |
1 |
|
SET SCREW COLLAR, R |
|
47 |
012500536 |
1 |
|
SET SCREW, SOCKET (FT) M5X5 |
|
48 |
* P. 53 |
1 |
|
SHUTTLE HOOK ASSY, W/BOX |
|
49 |
SA6128001 |
1 |
|
SHUTTLE RACE BASE SET |
|
50 |
SA6129001 |
1 |
|
LOWER SHAFT BUSH ASSY |
|
|
|
|
|
|
|
KE-430D/BE-438D-305
14
15 |
G. |
/ Lubrication |
|
|
|
||
|
|
|
|
|
|
|
REF.NO |
CODE |
Q'TY |
|
|
NAME OF PARTS |
RM |
1 |
SA3244001 |
1 |
|
|
SET SCREW |
|
2 |
SA3245001 |
1 |
|
|
CRANK COVER |
|
3 |
062061016 |
3 |
|
|
SCREW, PAN M6X10 |
|
4 |
SA3279001 |
1 |
|
|
FELT |
|
5 |
SA3503201 |
1 |
|
|
LOWER SHAFT WICK SUPPORT |
|
6 |
SA3504201 |
1 |
|
|
LOWER SHAFT GEAR FELT |
|
7 |
062400616 |
2 |
|
|
SCREW, PAN M4X6 |
|
8 |
SA3282001 |
1 |
|
|
CORD HOLDER, A |
|
9 |
062060816 |
1 |
|
|
SCREW, PAN M6X8 |
|
10 |
SA3249001 |
1 |
|
|
OIL TUBE SUPPORT |
|
11 |
062400616 |
1 |
|
|
SCREW, PAN M4X6 |
|
12 |
S49992000 |
1 |
|
|
OIL GAUGE WINDOW |
|
13 |
SA3379001 |
1 |
|
|
FELT |
|
14 |
S50529000 |
2 |
|
|
OIL TUBE, L=320 |
|
15 |
S28415000 |
1 |
|
|
OIL TUBE (L=225) |
|
16 |
S45849000 |
1 |
|
|
WICK, L=300 |
|
17 |
153922001 |
1 |
|
|
WICK, L=500 |
|
18 |
SA1302001 |
1 |
|
|
VINYL TUBE |
|
19 |
S56877000 |
1 |
|
|
OIL TUBE |
|
20 |
SA8010001 |
1 |
|
|
FELT L=180 |
|
21 |
143671000 |
1 |
|
|
OIL TUBE |
|
22 |
SA3287001 |
1 |
|
|
X-FEED LEVER FELT |
|
23 |
S07333001 |
1 |
|
|
OIL FEEDING PIPE, S |
|
24 |
146080000 |
1 |
|
|
CORD BUSH |
|
25 |
SA3246001 |
1 |
|
|
GEAR WICK SUPPORT |
|
26 |
SA3280001 |
1 |
|
|
GEAR FELT |
|
27 |
SA4221001 |
1 |
|
|
CORD HOLDER, B |
|
28 |
062060816 |
1 |
|
|
SCREW, PAN M6X8 |
|
29 |
SA4222001 |
1 |
|
|
FELT |
|
30 |
153050000 |
4 |
|
|
S-RACE BASE FELT |
|
|
|
|
|
|
|
|
KE-430D/BE-438D-350
16
17 |
H. |
/ Threading mechanism |
|
|
||
REF.NO |
CODE |
Q'TY |
|
NAME OF PARTS |
RM |
1 |
SA3250001 |
1 |
|
ARM THREAD GUIDE, A |
|
2 |
062500616 |
1 |
|
SCREW, PAN M5X6 |
|
3 |
SA4333001 |
1 |
|
ARM THREAD GUIDE, B |
|
4 |
062500616 |
1 |
|
SCREW, PAN M5X6 |
|
5 |
SA3252001 |
1 |
|
ARM THREAD GUIDE, C |
|
6 |
062500616 |
1 |
|
SCREW, PAN M5X6 |
|
7 |
153049001 |
1 |
|
UPPER THREAD GUIDE STUD |
|
8 |
SA3254001 |
1 |
|
TENSION BRACKET |
|
9 |
* P. 53 |
1 |
|
THREAD TAKE-UP SPRING |
|
10 |
S12699000 |
1 |
|
TENSION RELEASE PIN |
|
11 |
SA3255001 |
1 |
|
TENSION STUD |
|
12 |
S31032001 |
1 |
|
TENSION NUT |
|
13 |
S12441001 |
1 |
|
WASHER |
|
14 |
* P. 53 |
1 |
|
TENSION SPRING |
|
15 |
159805001 |
1 |
|
TENSION DISC PRESSER |
|
16 |
145446001 |
2 |
|
DISC, TENSION |
|
17 |
100402004 |
1 |
|
SET SCREW, SM3.57 |
|
18 |
SA4143001 |
1 |
|
SET SCREW, (FT) M6X6 |
|
19 |
SA3256001 |
1 |
|
TENSION STUD, A |
|
20 |
100136001 |
1 |
|
TENSION NUT |
|
21 |
SA4146001 |
1 |
|
SUB TENSION SPRING |
|
22 |
145446001 |
2 |
|
DISC, TENSION |
|
23 |
159224001 |
1 |
|
THREAD GUIDE, ARM |
|
|
|
|
|
<For KE-430D |
|
|
|
|
|
Ordinary materials, Knitted materials & |
|
|
|
|
|
Foundation garments> |
|
|
|
|
|
<For BE-438D> |
|
24 |
SA3635101 |
1 |
|
NEEDLE BAR THREAD GUIDE, B |
|
|
|
|
|
<For KE-430D Denim> |
|
25 |
SA3257101 |
1 |
|
NEEDLE BAR THREAD GUIDE, A |
|
26 |
SA3258001 |
1 |
|
N-BAR BUSH THREAD GUIDE, D |
|
27 |
152881001 |
1 |
|
NEEDLE COOLER ASSY |
|
28 |
012060636 |
1 |
|
SET SCREW, SOCKET (FT) M6X6 |
|
29 |
152883000 |
1 |
|
FELT, 8X15.5 |
|
30 |
152884001 |
1 |
|
NEEDLE COOLER THREAD GUIDE |
|
31 |
062670412 |
1 |
|
SCREW, PAN SM3.57-40X4 |
|
KE-430D/BE-438D-401
18
Loading...
