DIDO
Micro
SD/SDHC Card
DDNS Server
Recording
Software
64Ch
POE

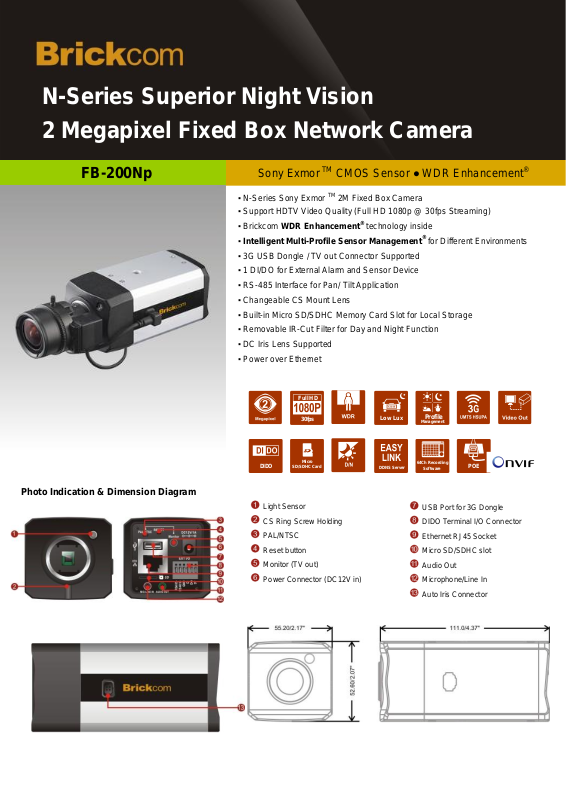

N-Series Superior Night Vision
2 Megapixel Fixed Box Network Camera
▪ N-Series Sony Exmor
TM
2M Fixed Box Camera
▪ Support HDTV Video Quality (Full HD 1080p @ 30fps Streaming)
▪ Brickcom WDR Enhancement® technology inside
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ 3G USB Dongle / TV out Connector Supported
▪ 1 DI/DO for External Alarm and Sensor Device
▪ RS-485 Interface for Pan/ Tilt Application
▪ Changeable CS Mount Lens
▪ Built-in Micro SD/SDHC Memory Card Slot for Local Storage
▪ Removable IR-Cut Filter for Day and Night Function
▪ DC Iris Lens Supported
▪ Power over Ethernet
Light Sensor
CS Ring Screw Holding
PAL/NTSC
Reset button
Monitor (TV out)
Power Connector (DC12V in)
USB Port for 3G Dongle
DIDO Terminal I/O Connector
Ethernet RJ45 Socket
Micro SD/SDHC slot
Audio Out
Microphone/Line In
Auto Iris Connector
FB-200Np
Photo Indication & Dimension Diagram
Full HD
30fps
Low Lux
Profile
Management
Sony Exmor
TM
CMOS Sensor ● WDR Enhancement®
Communication
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Power Input
DC12V/ 1A(Power Supply)
PoE:802.3af Compliant
Interface
RJ45 Ethernet Cable Connector
General I/O Terminal Block(DI/DO, RS485
included)
External MIC/Line Input
External Audio Output
Reset Button
Micro SD/SDHC memory card slot
TV out
3G USB Dongle
Max. Power
Consumption
6 watts
Viewing System
Requirements
OS: Microsoft Windows 7/Vista/XP/2000
Browser: Mozilla Firebox, Internet Explorer 7/8
or above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Environment
Operating Temperature
0°C ~ 50°C (32°F ~122°F),
Operating Humidity :
10% ~ 80%
Dimension
111 (L) X55.2 (W) X 52.6 (H) mm
Weight
332g (Without Lens)/ 0.73lb
Certification
FCC, CE
Warranty
Limited 2-year warranty
Hardware System
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/2.8” Sony Exmor
TM
CMOS
Sensor
Sensor Resolution : 1920x1080 pixel
SNR: > 50db
Minimum
Illumination
0.3 lux (F1.3, B/W)
1 lux (F1.3, Color)
Compression
Streaming
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Video Setting
Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Auto Exposure Control
Manual Exposure Control: 1/24000~1/5s
Manual Gain Control: 1X ~ 15X
Manual White Balance Control: 2000K~7000K
S/N Ratio
>50 dB
Image Resolution
2M (Full HD): 1920x1080 @30fps
1M (HDTV): 1280x720 @ 30fps
Events
Motion Detection/ Schedule/ Audio Detection/
Digital Input
Alarm
Stream/Snapshot to FTP/Email/Samba/SD-Card
HTTP/Email Notification/ Digital Output
Audio Streaming
2-way Audio Support
Audio Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Line in/ Line out
M13VG288IR
2.2x Manual zoom/focus, DC iris
M13VM288IR
2.2x,Manual zoom/focus, Manual iris
YV2.1x2.8SR4A-SA2L
2.1x,Manual zoom/ focus, DC iris
DWRT-600N
Dual Band Wireless Router
PoE16U
PoE Injector
PS-7242IL-AF
24-port 10/ 100M PoE Web Smart Ethernet
Switch
Camera
General
Video
Network Equipment Options
Copyright 2012 Brickcom Corporation. All rights reserved. All other company
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.
info@brickcom.com
Camera Accessories Options
Work Best With
