Brickcom CB-100A series User Manual

Megapixel Cube Network Camera

CB-100A series

User’s Manual

Quality Service Group

- -

Product name:

Megapixel Cube Network Camera (CB-100A series)

Release Date:

2010/

Manual Revision:

V1.1
Web site:

www.brickcom.com

Email:

[e-mail]

[e-mail]

Made in Taiwan.

© 2009 Brickcom Corporation. All Rights Reserved

- -

Table of Contents

Before You Use This Product .......................................................................................... 0

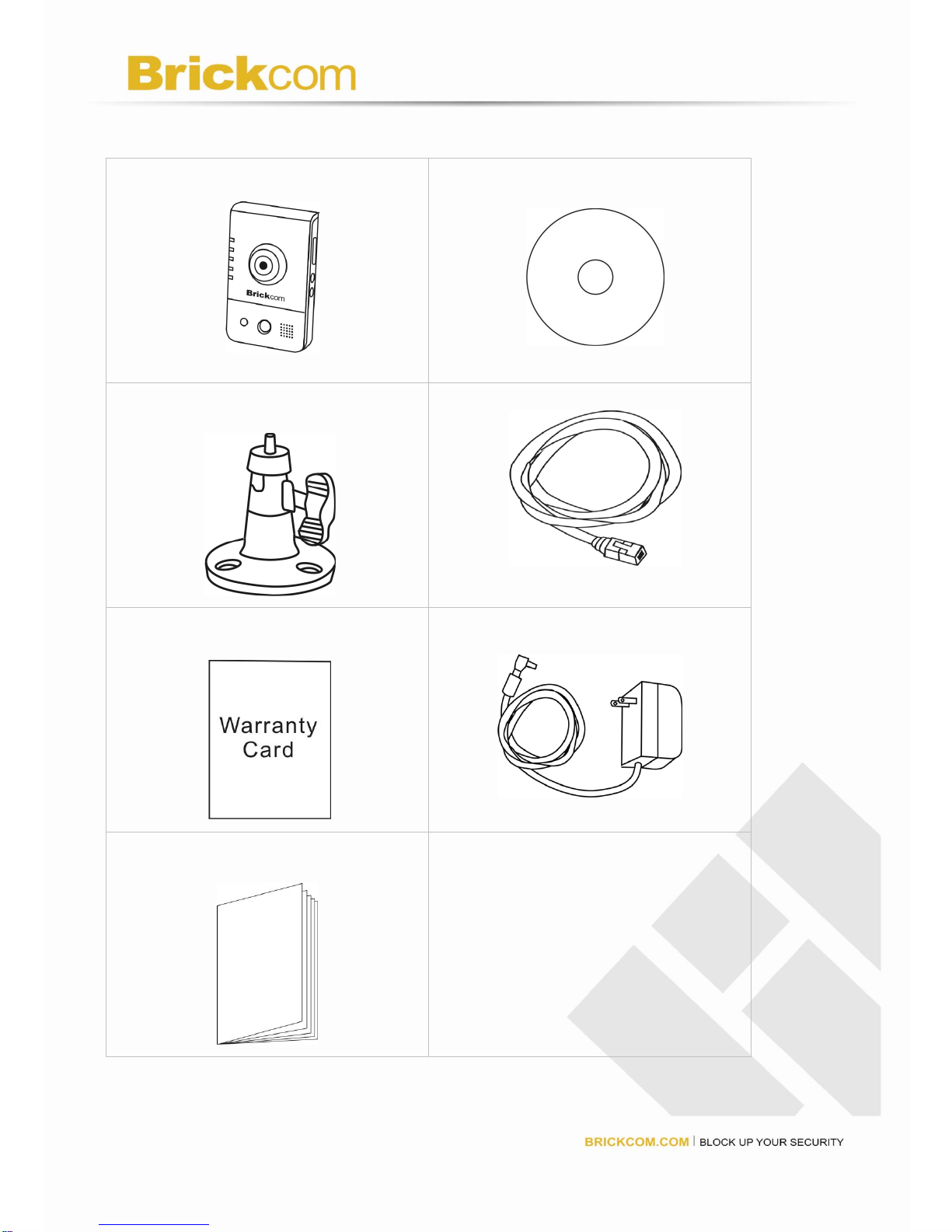

Package Contents ........................................................................................................... 0

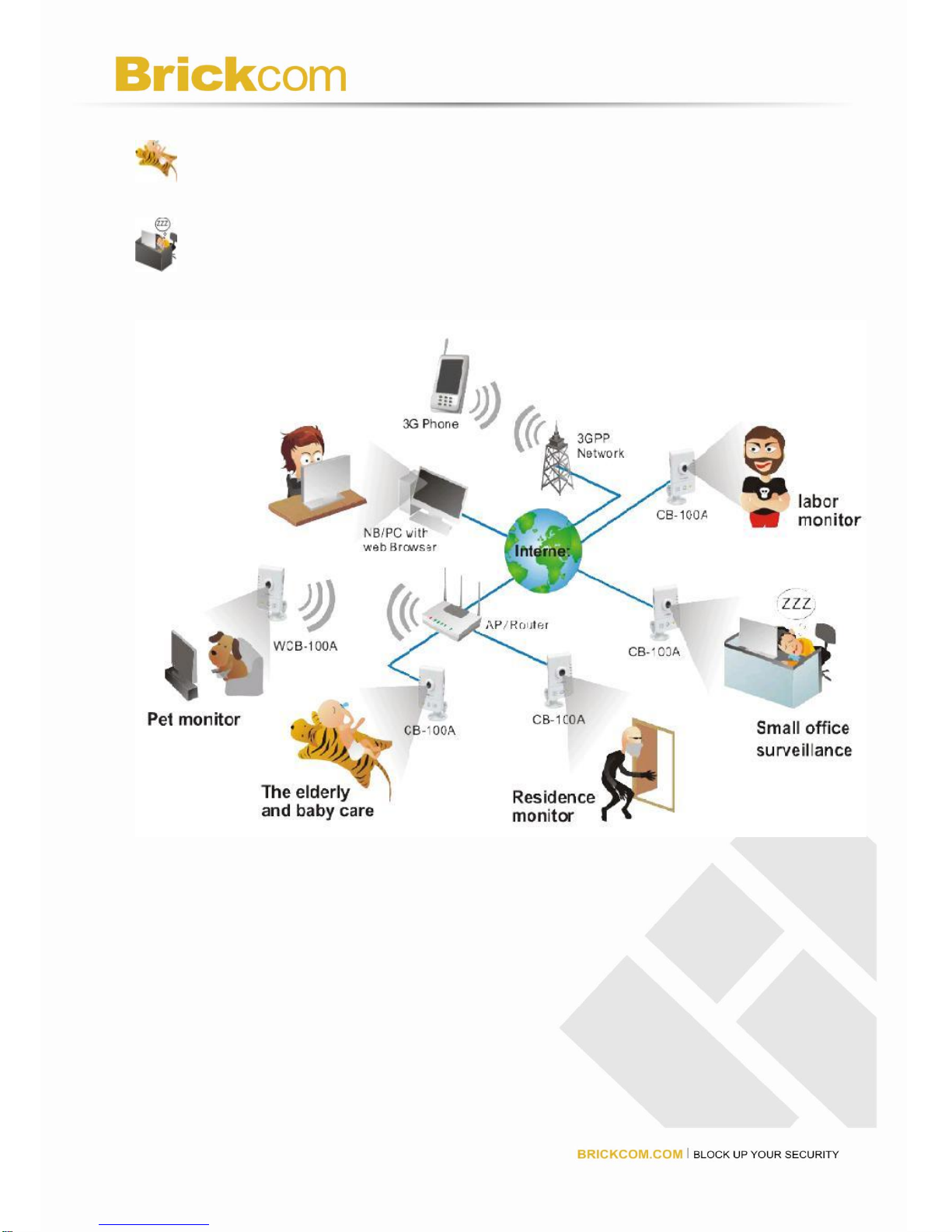

Cube Network Camera Overview .................................................................................... 1

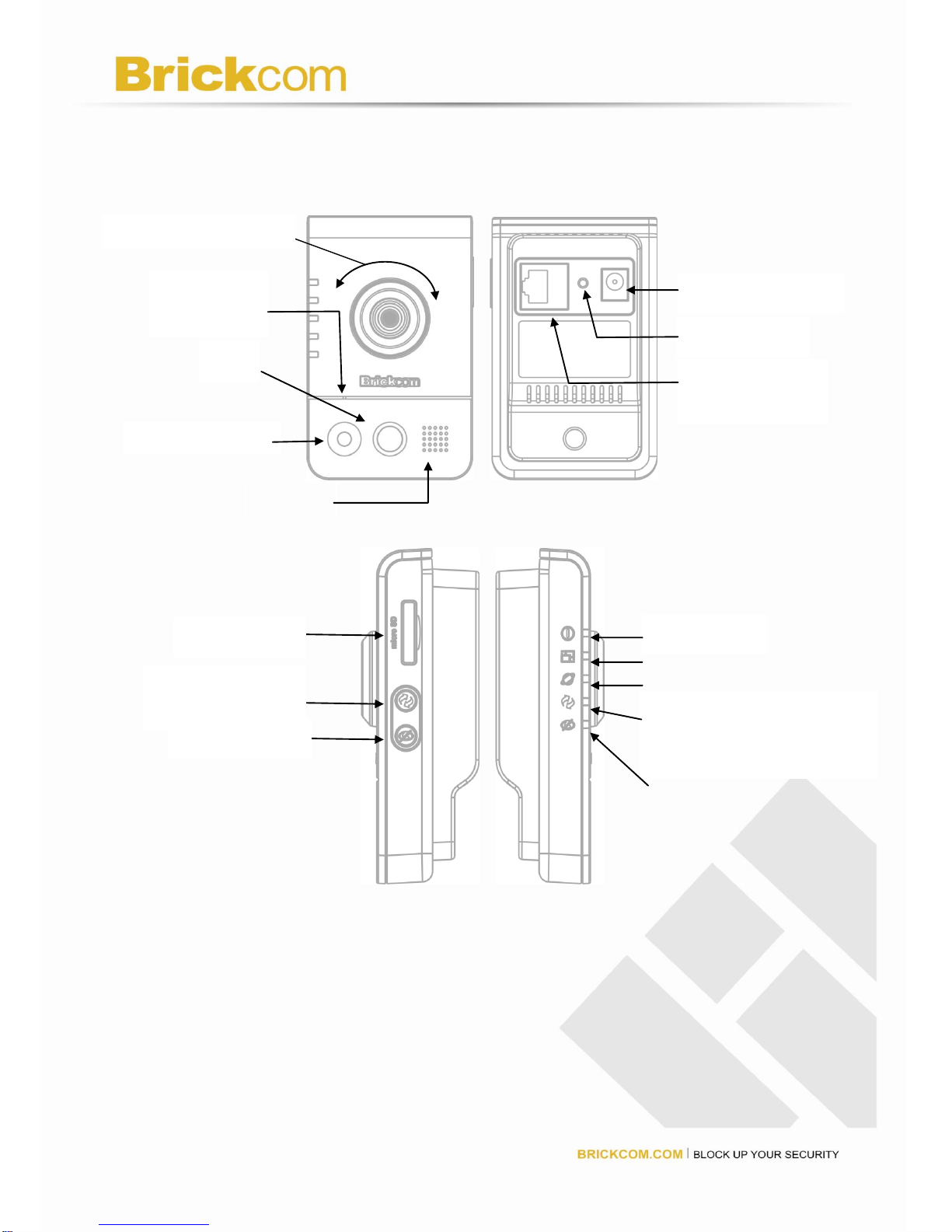

Device Appearance Description ...................................................................................... 3

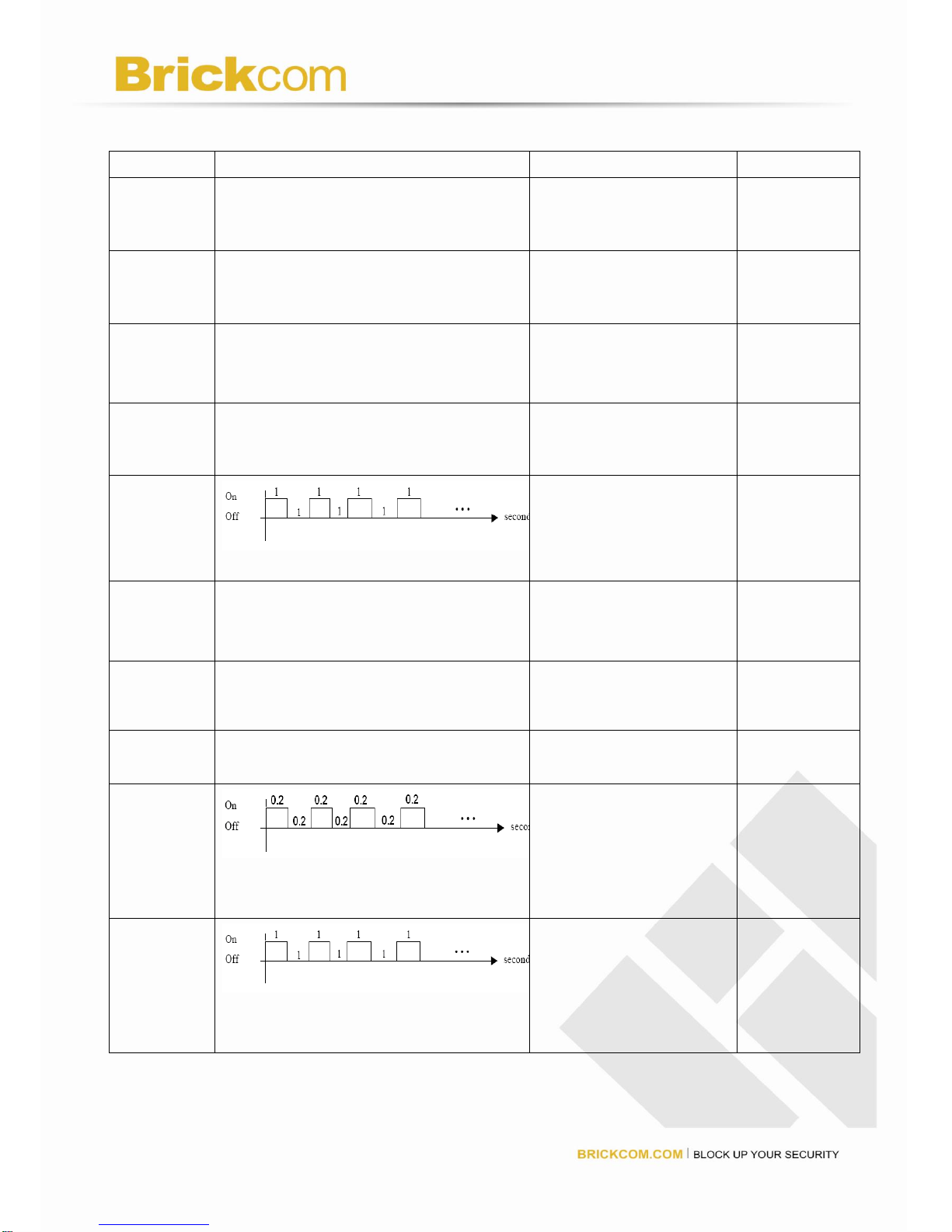

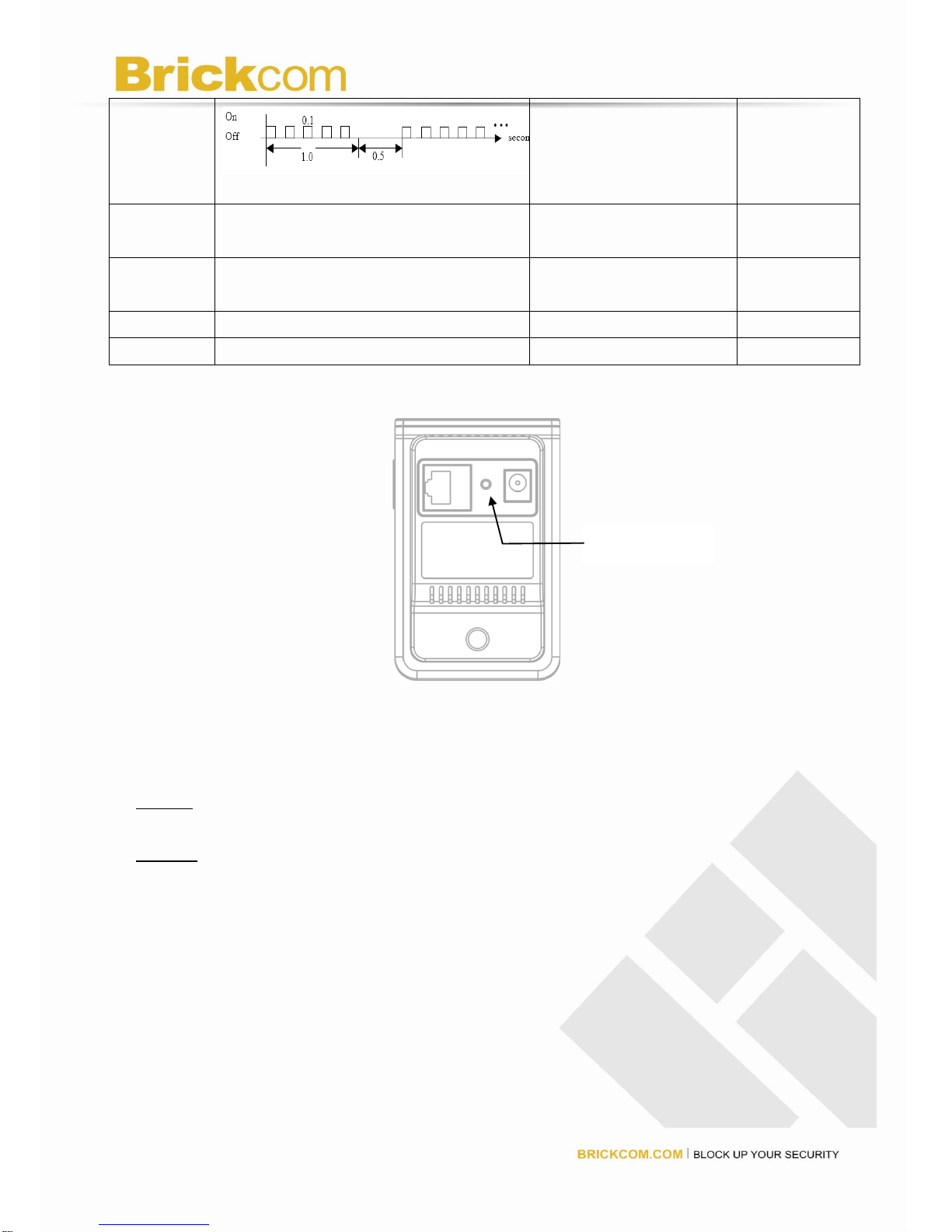

LED Behavior .................................................................................................................. 4

Installation ....................................................................................................................... 6

System Requirements .............................................................................................. 6

Camera Connection ................................................................................................. 7

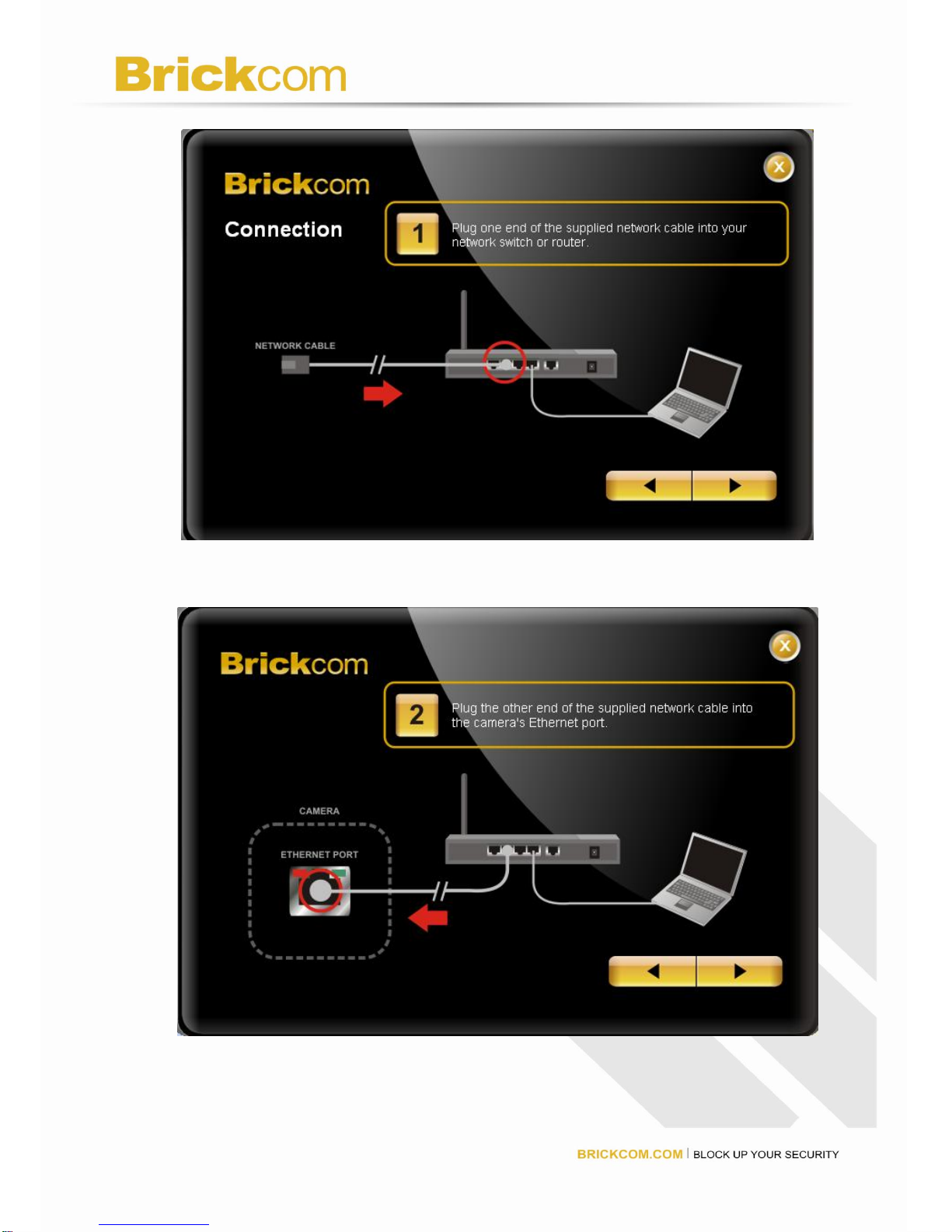

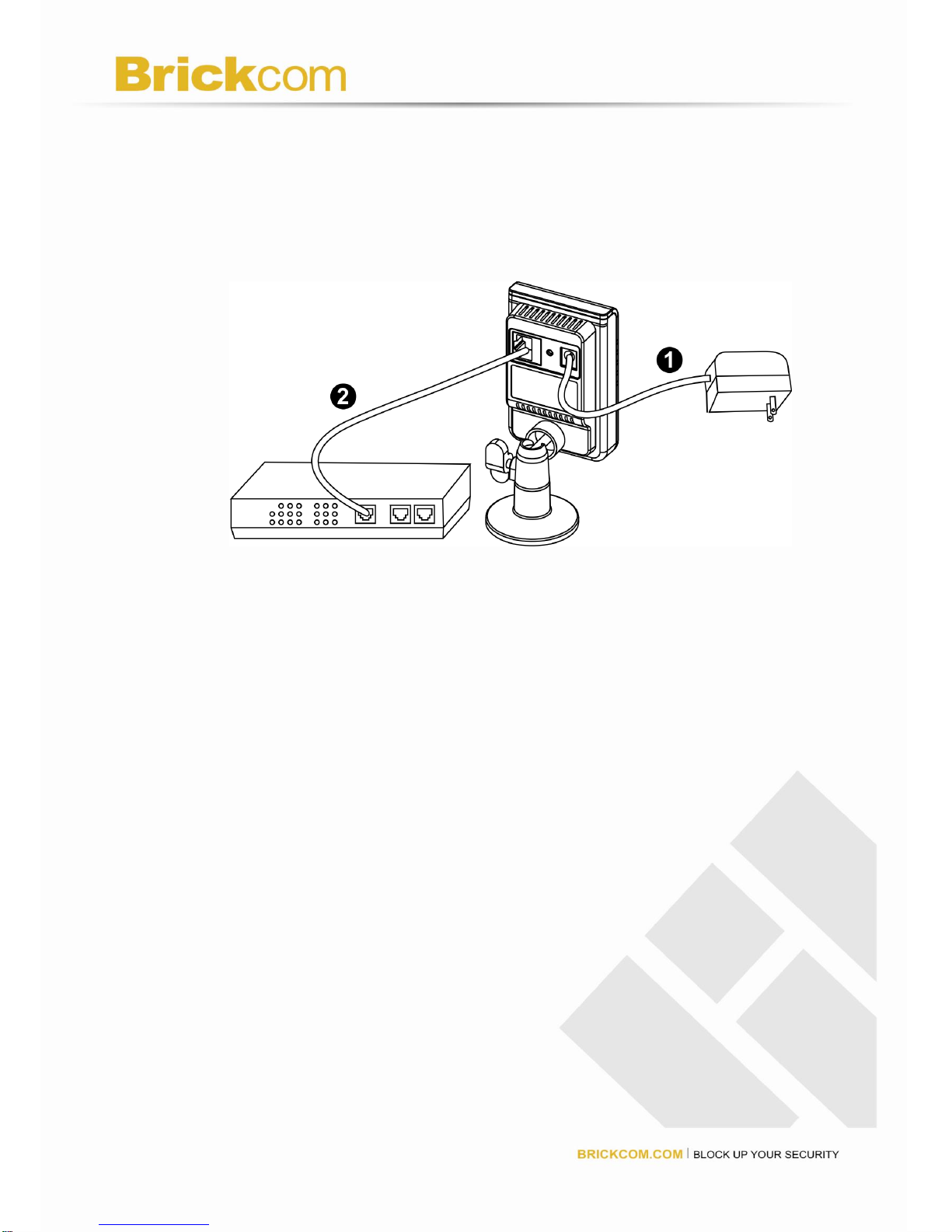

Basic Connection ............................................................................................... 7

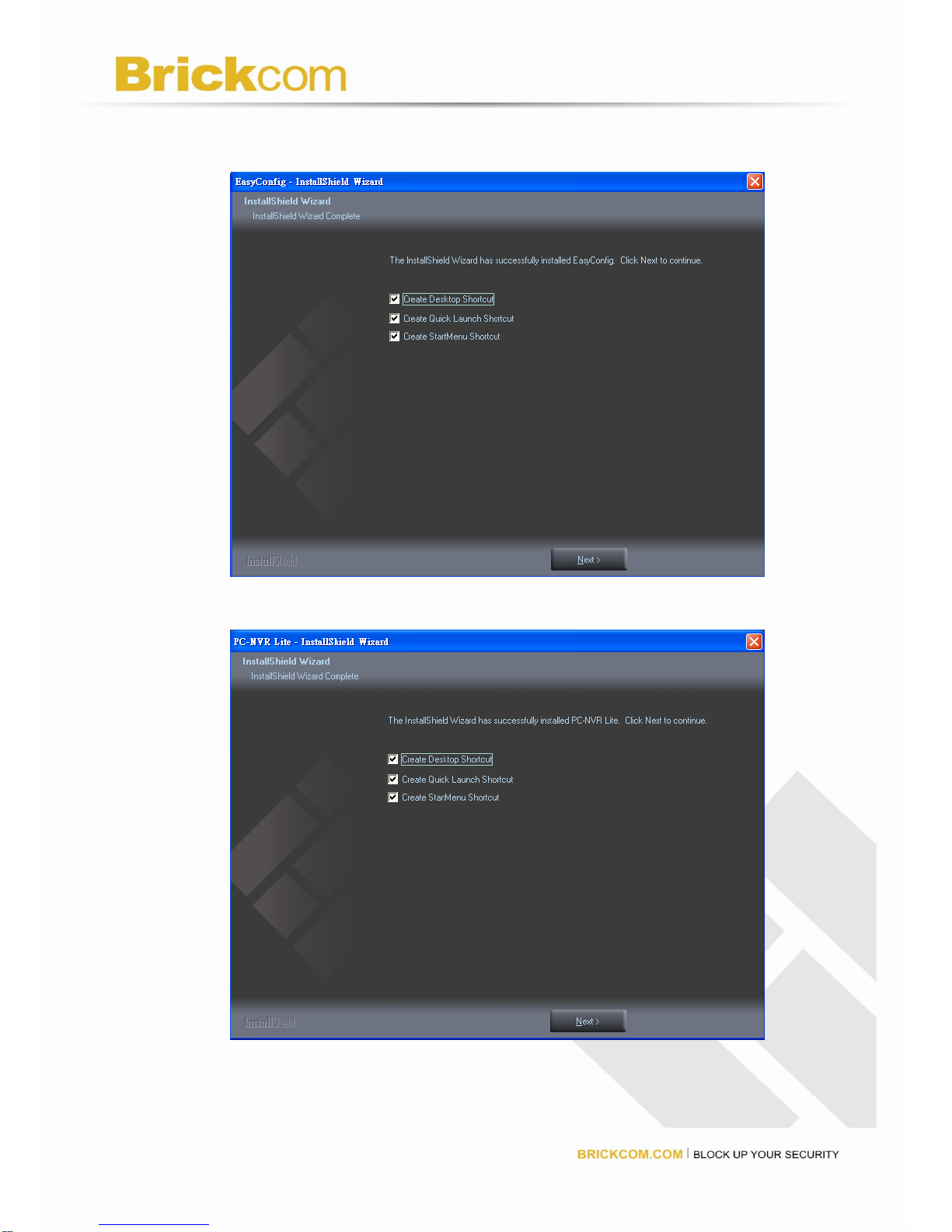

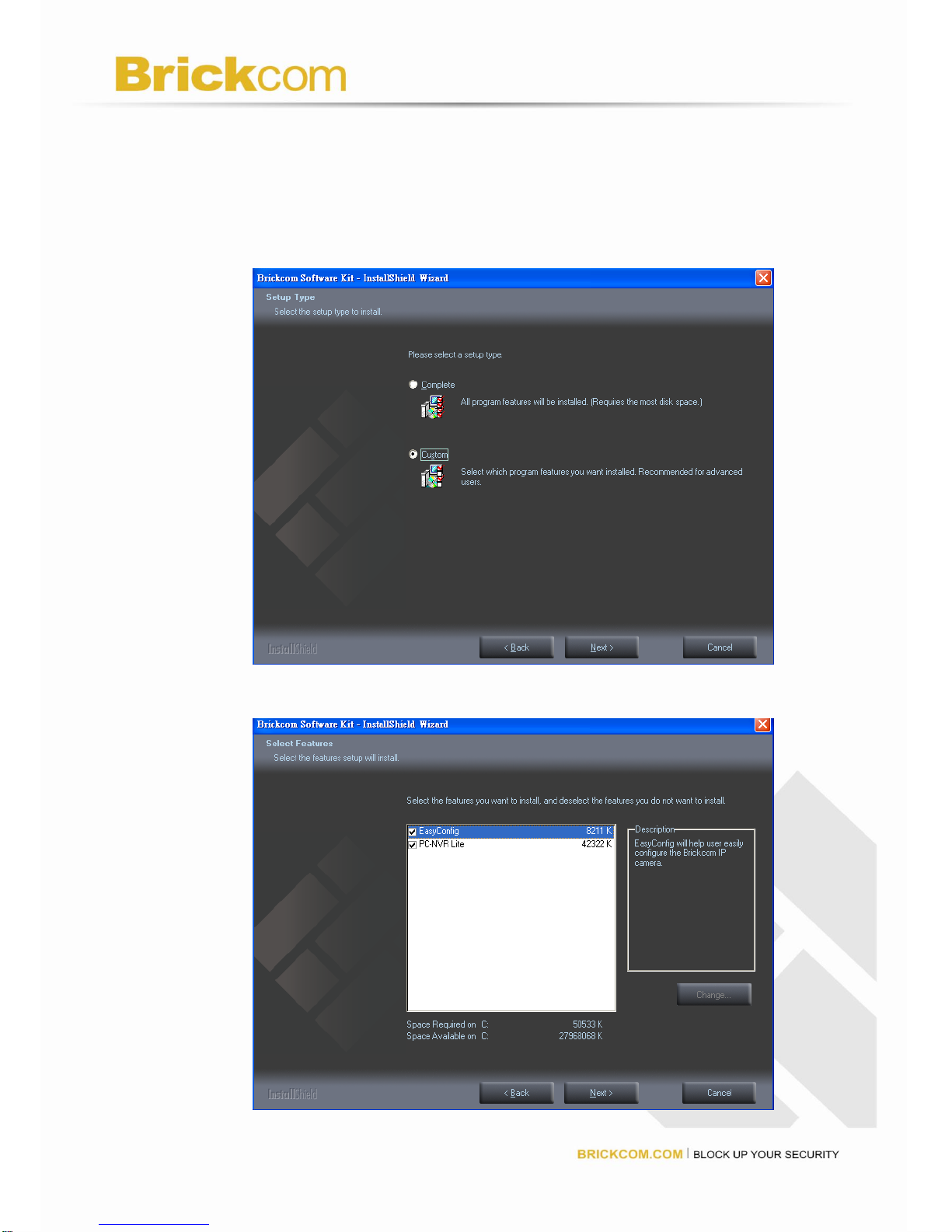

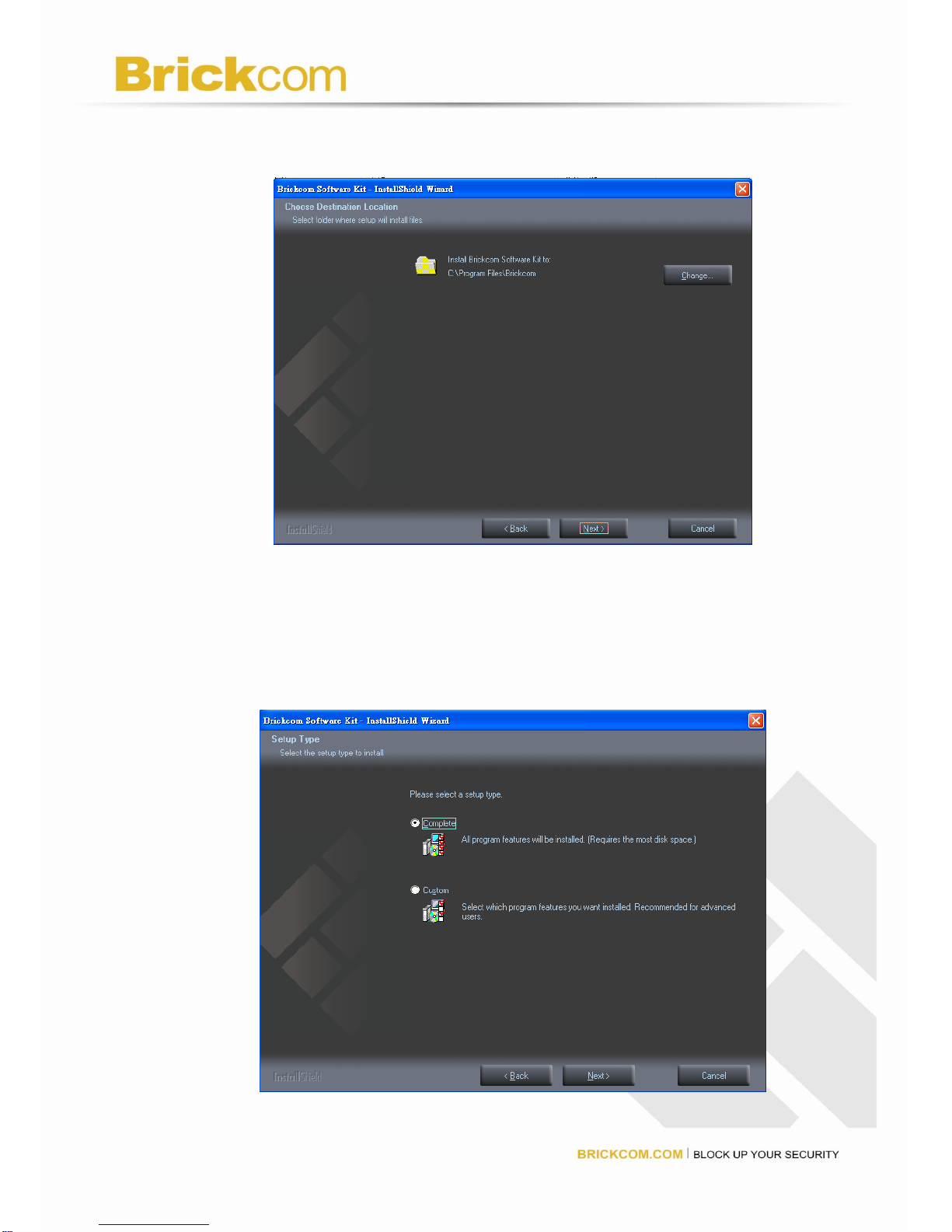

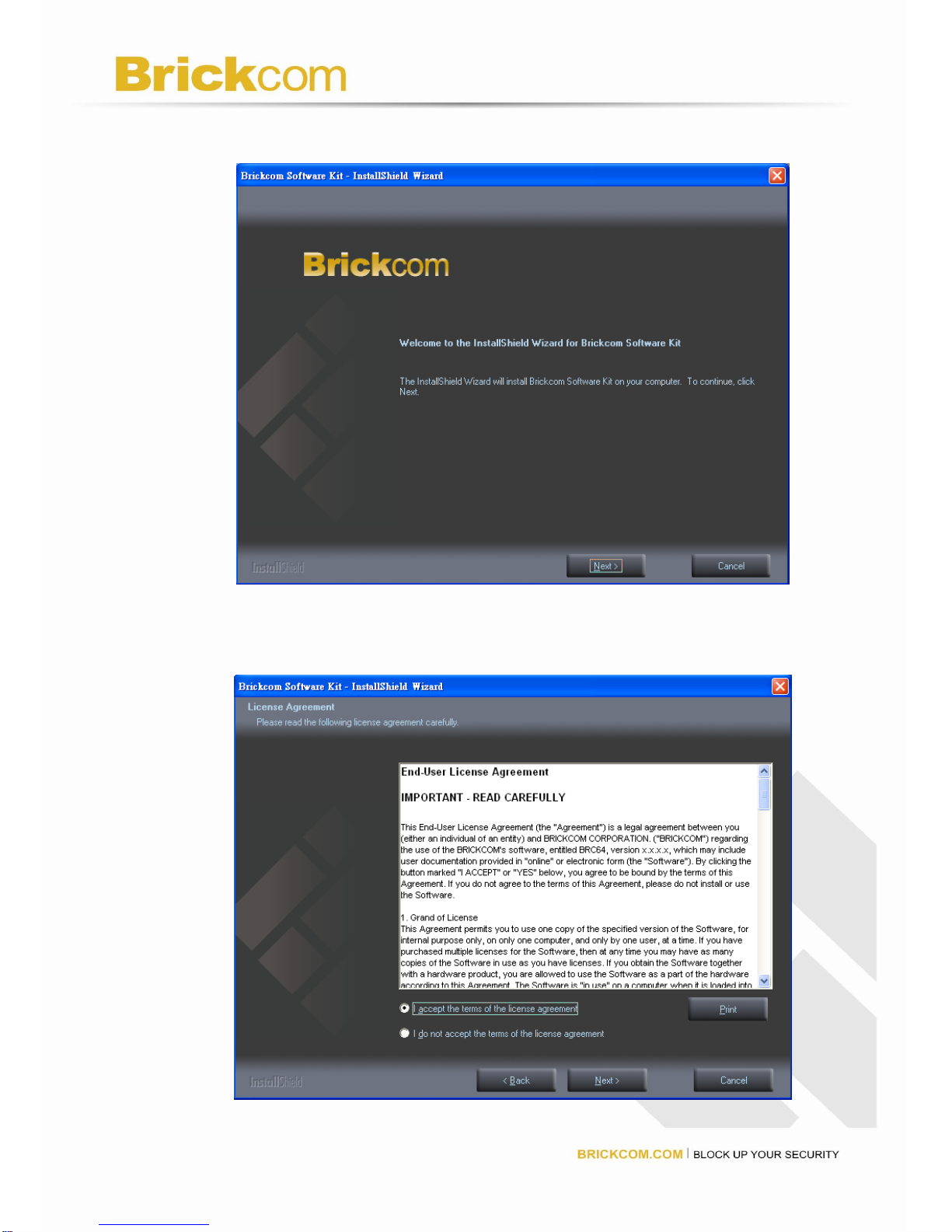

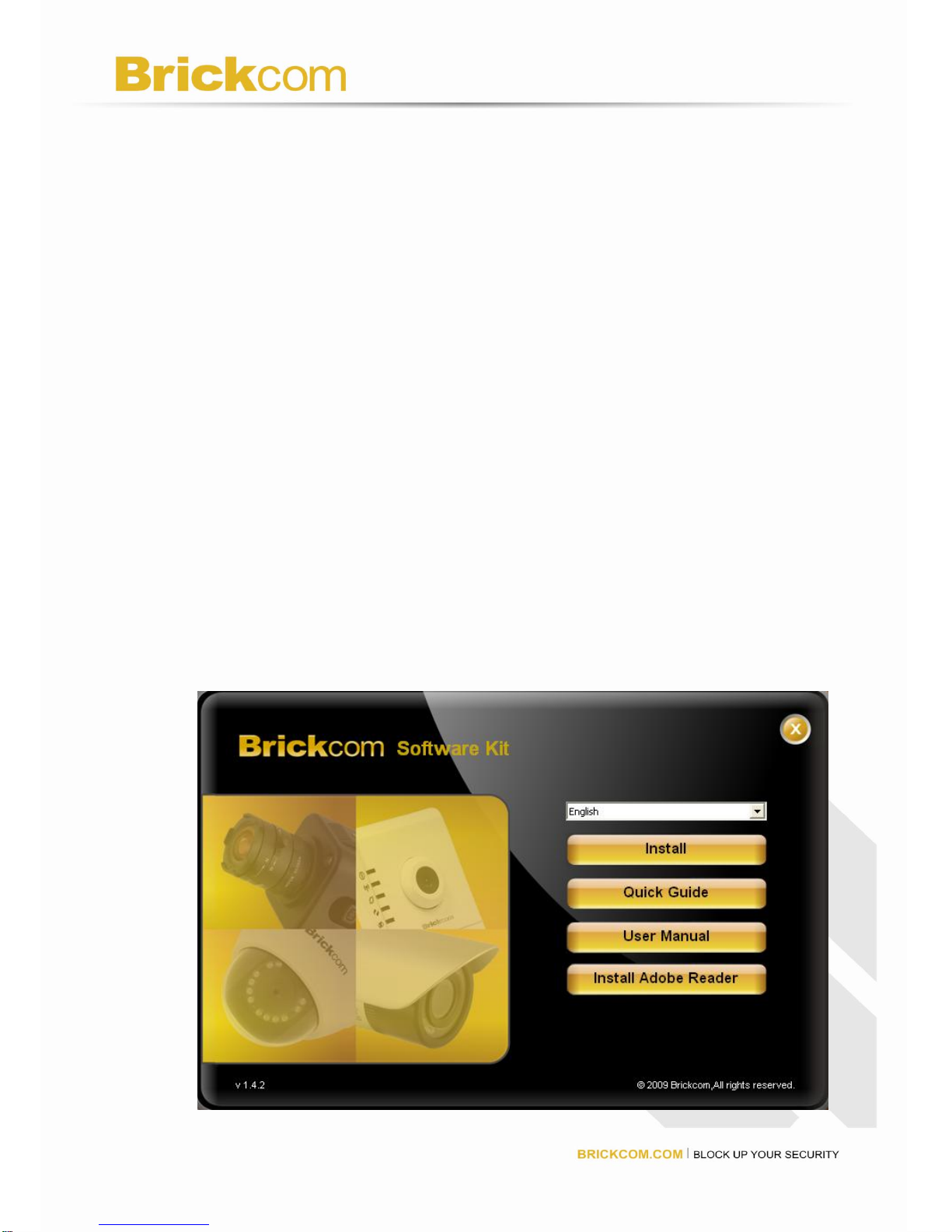

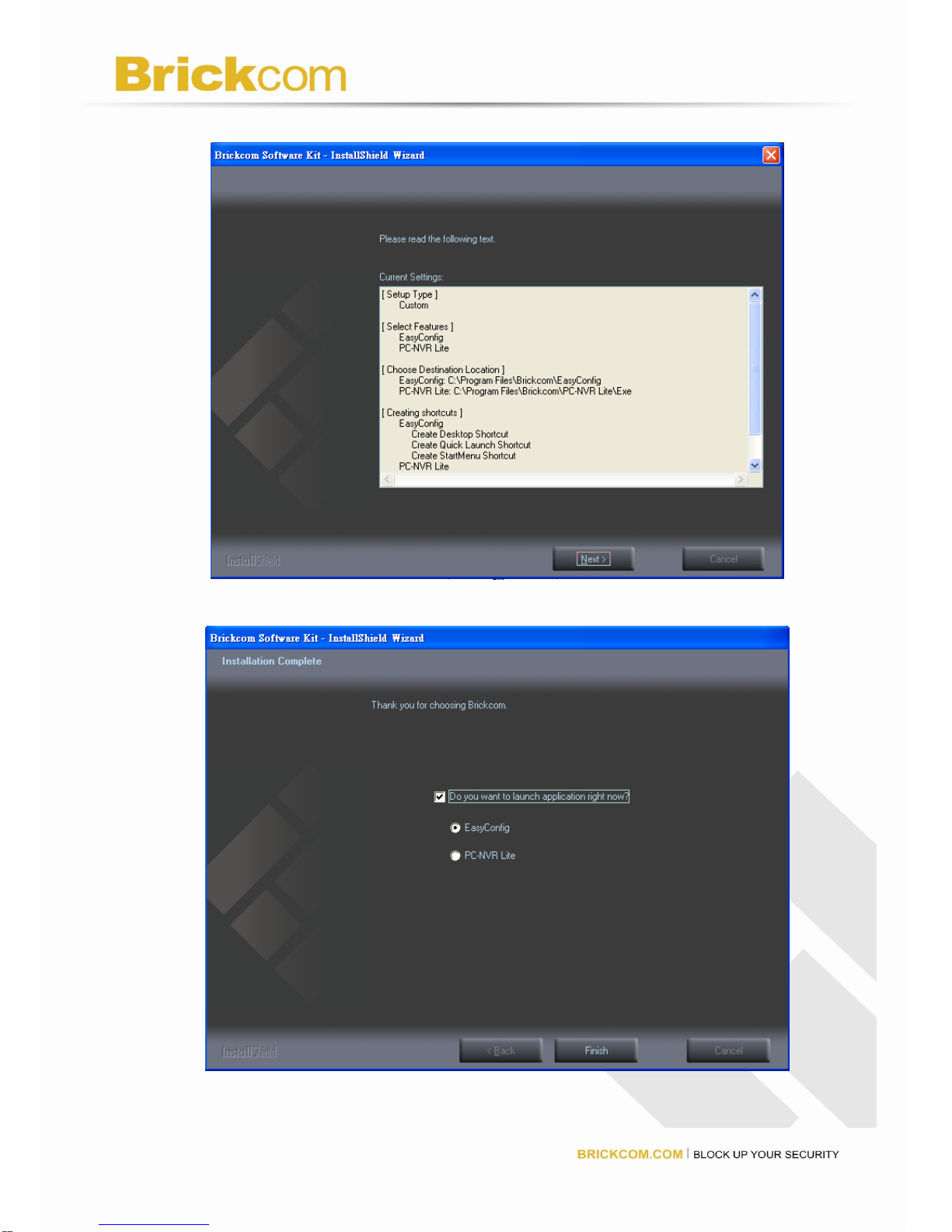

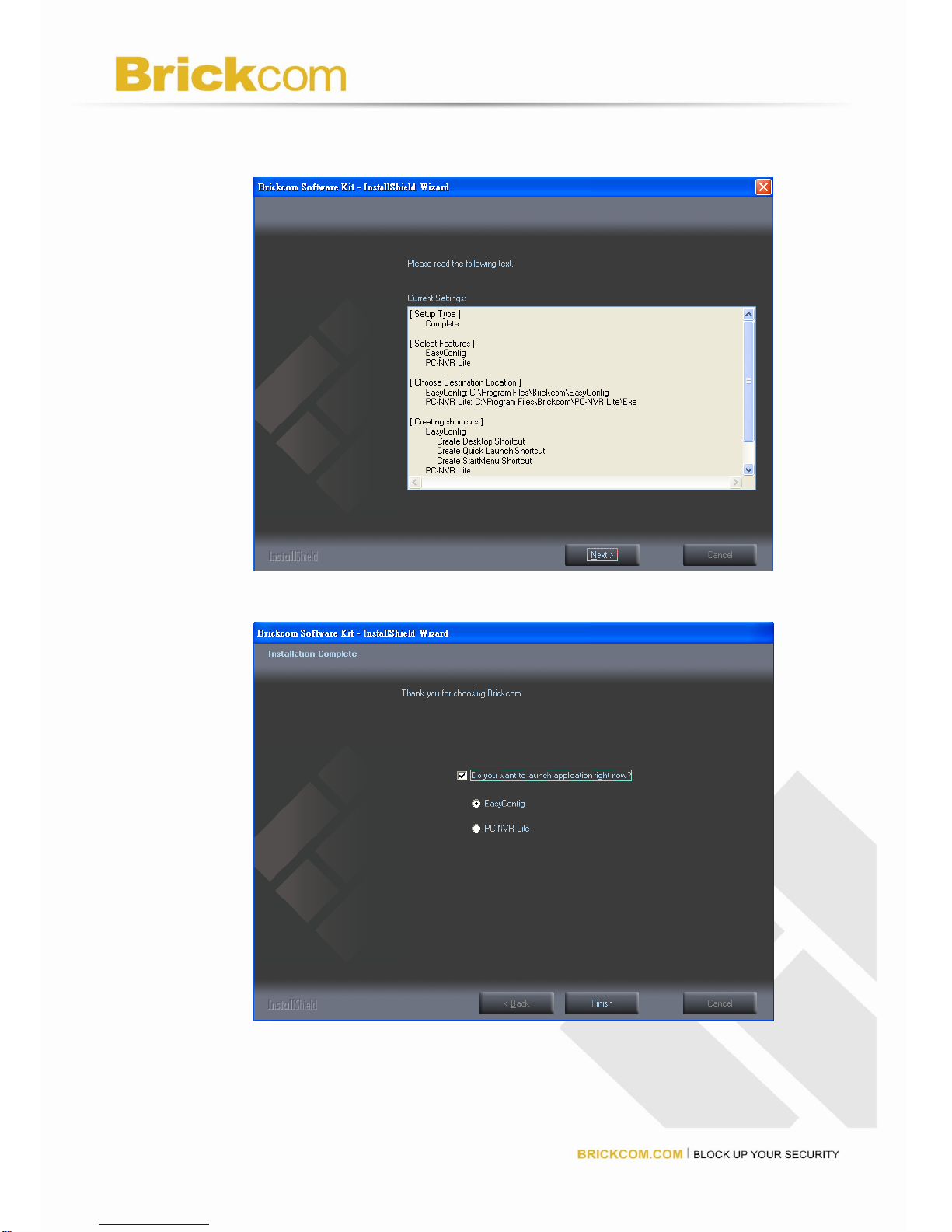

Software Installation ................................................................................................. 8

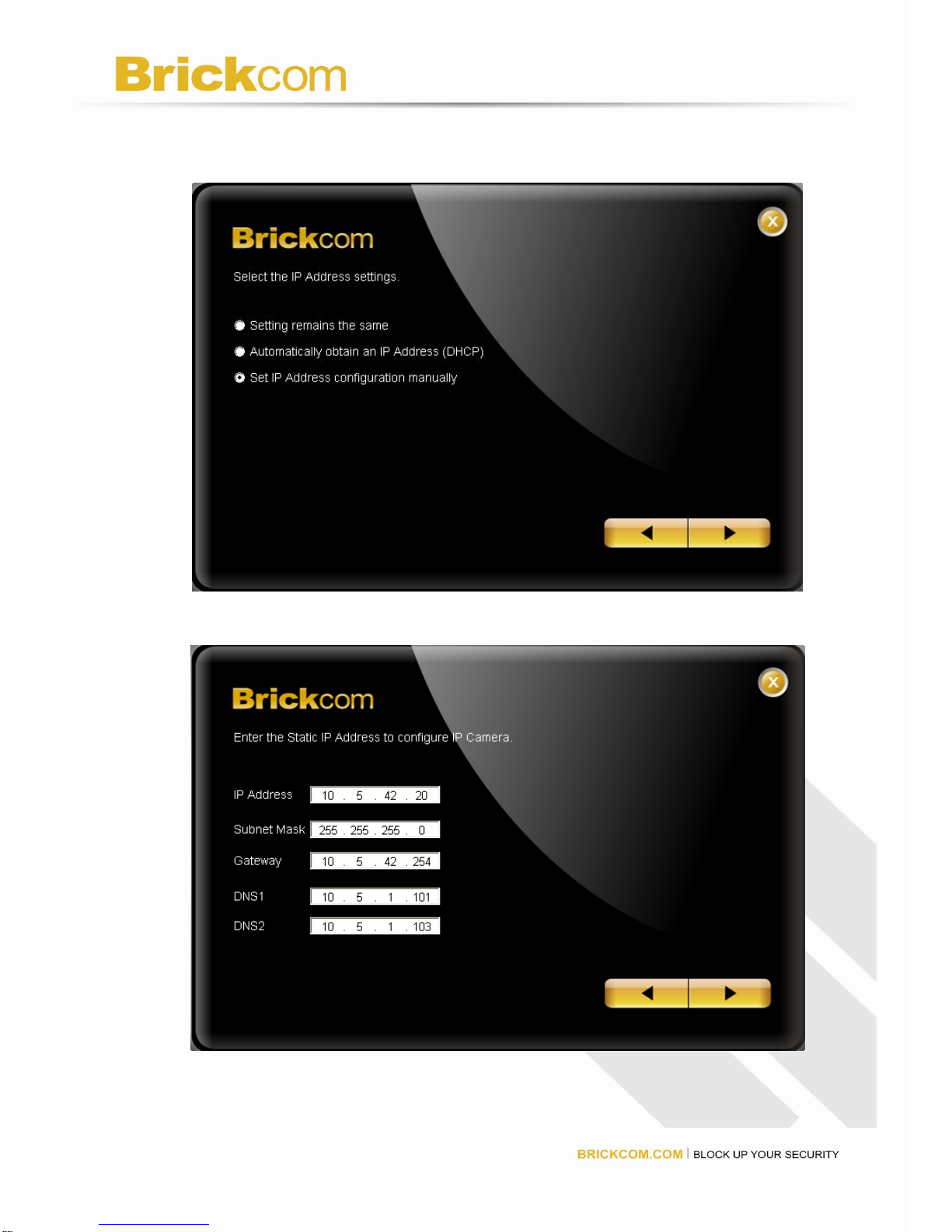

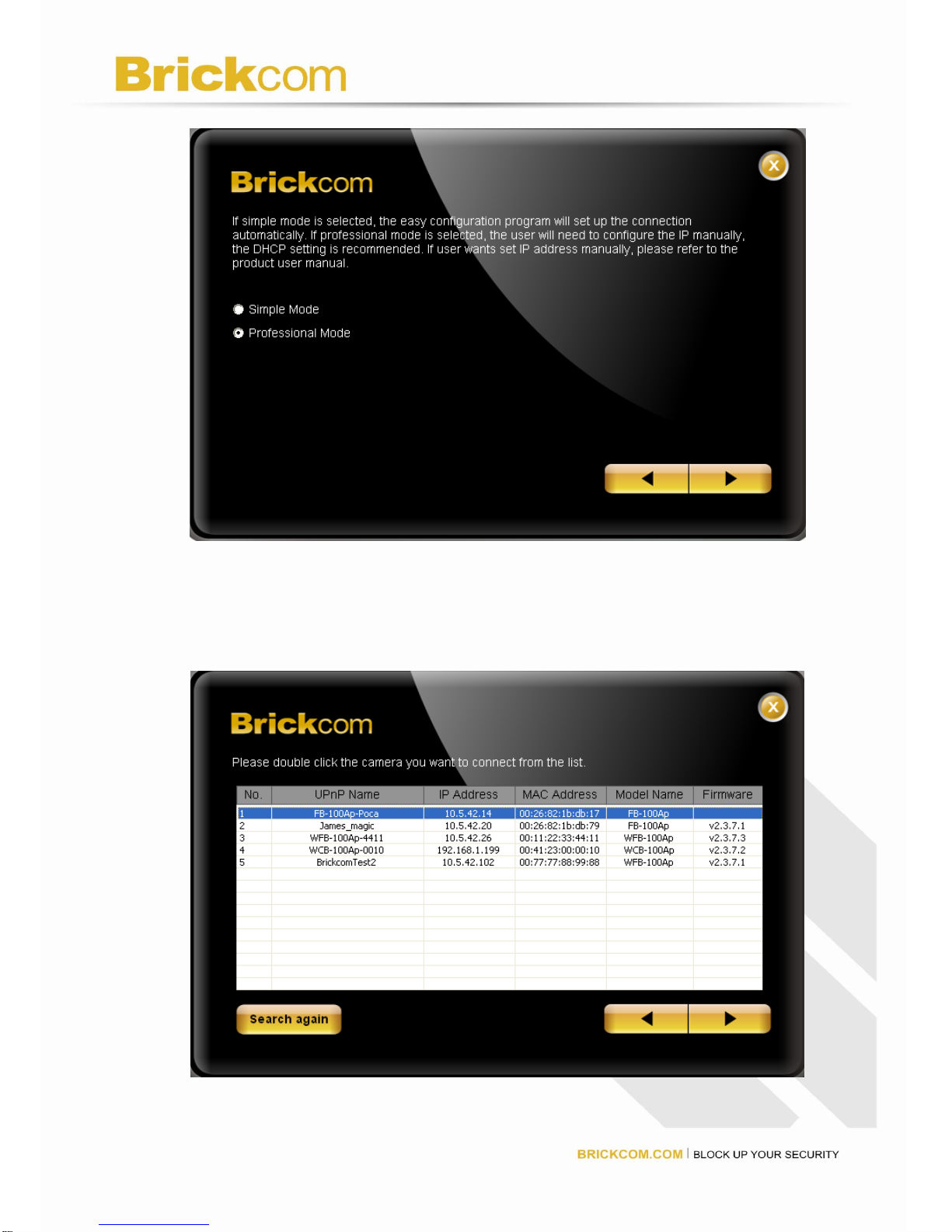

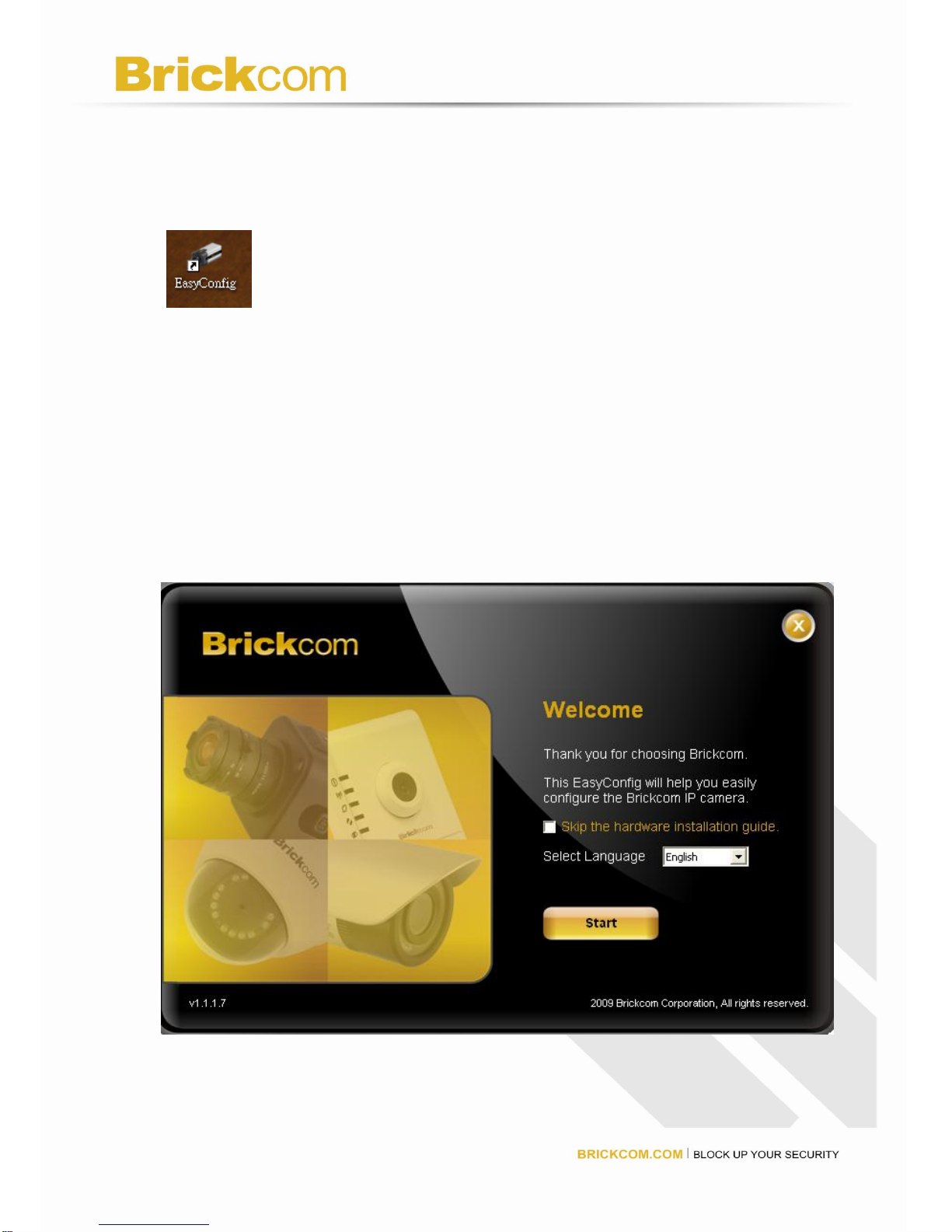

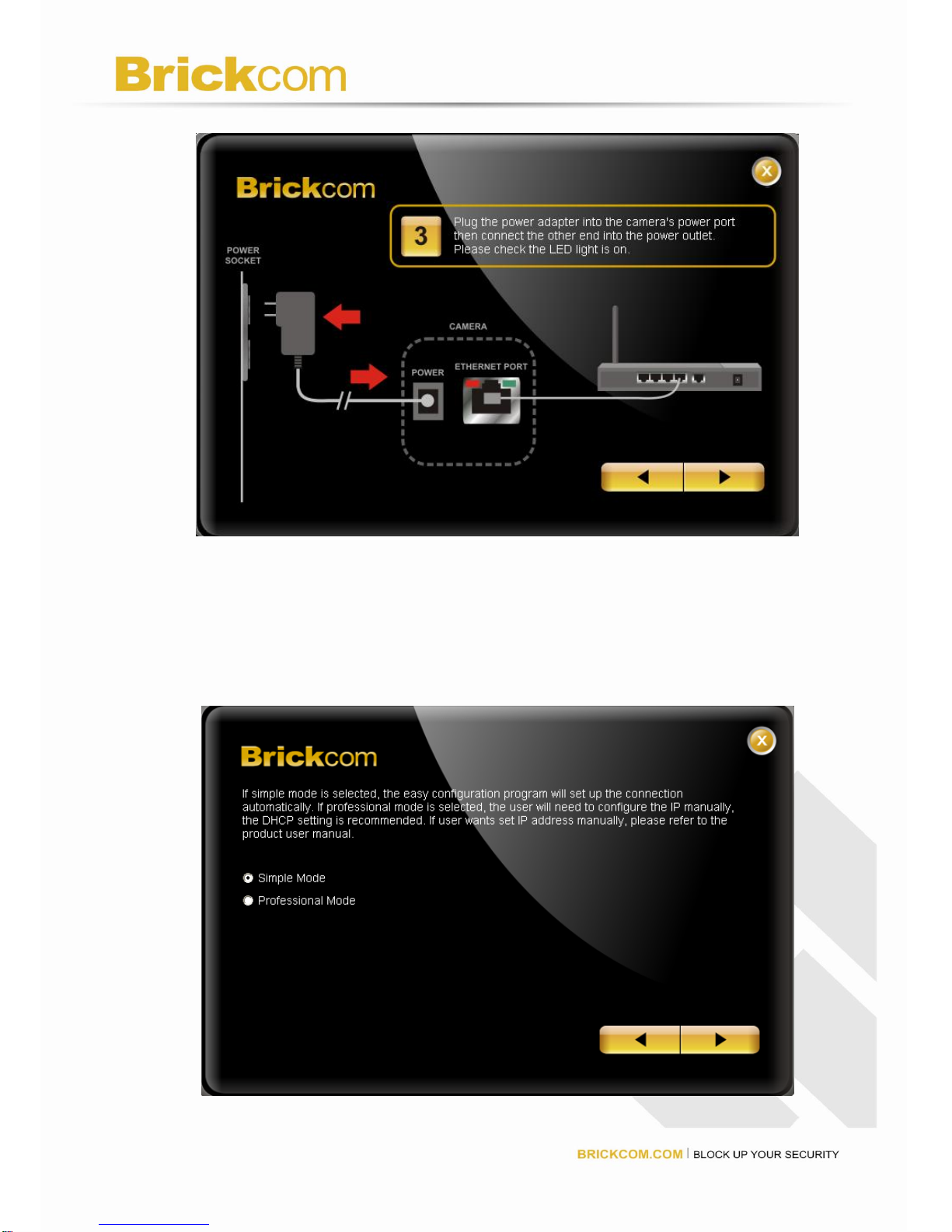

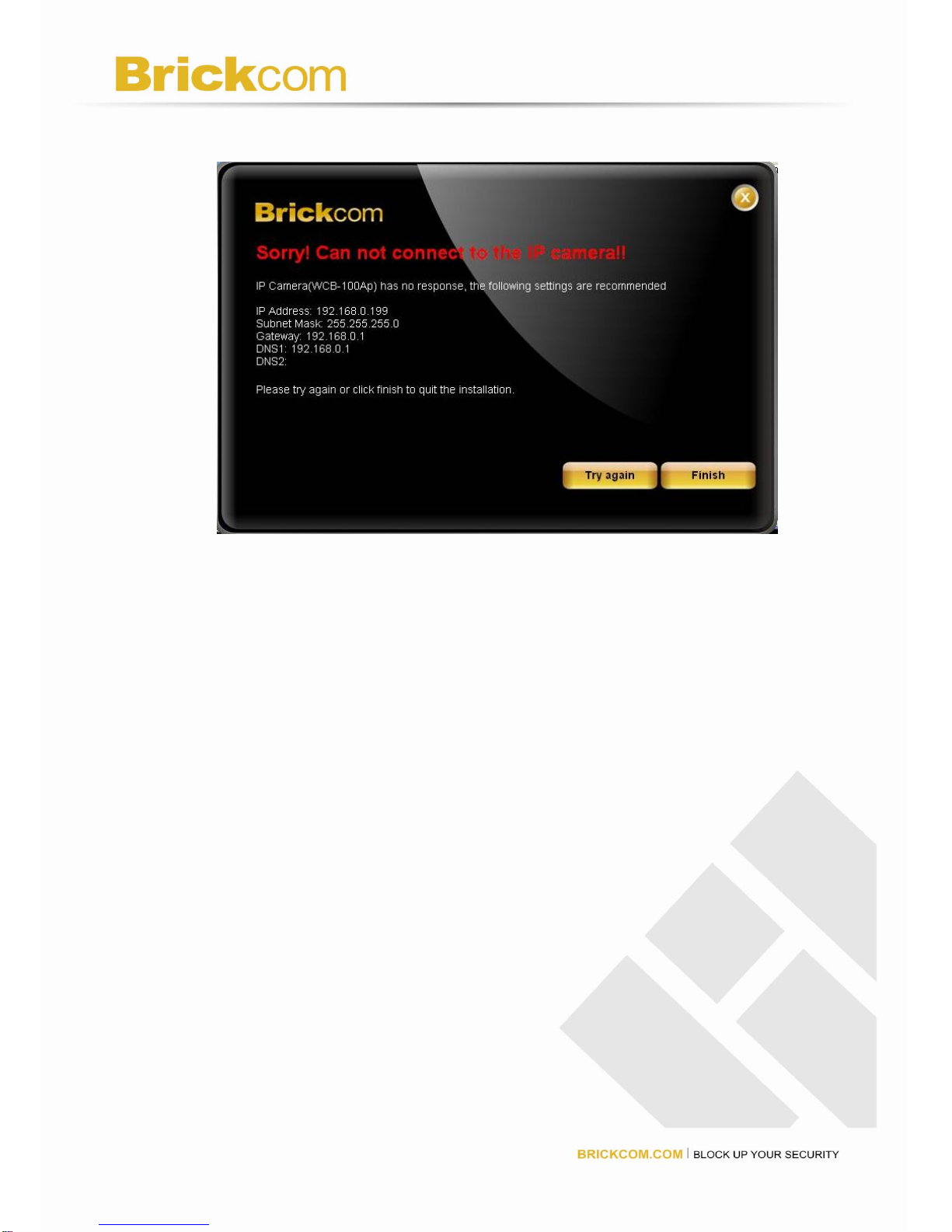

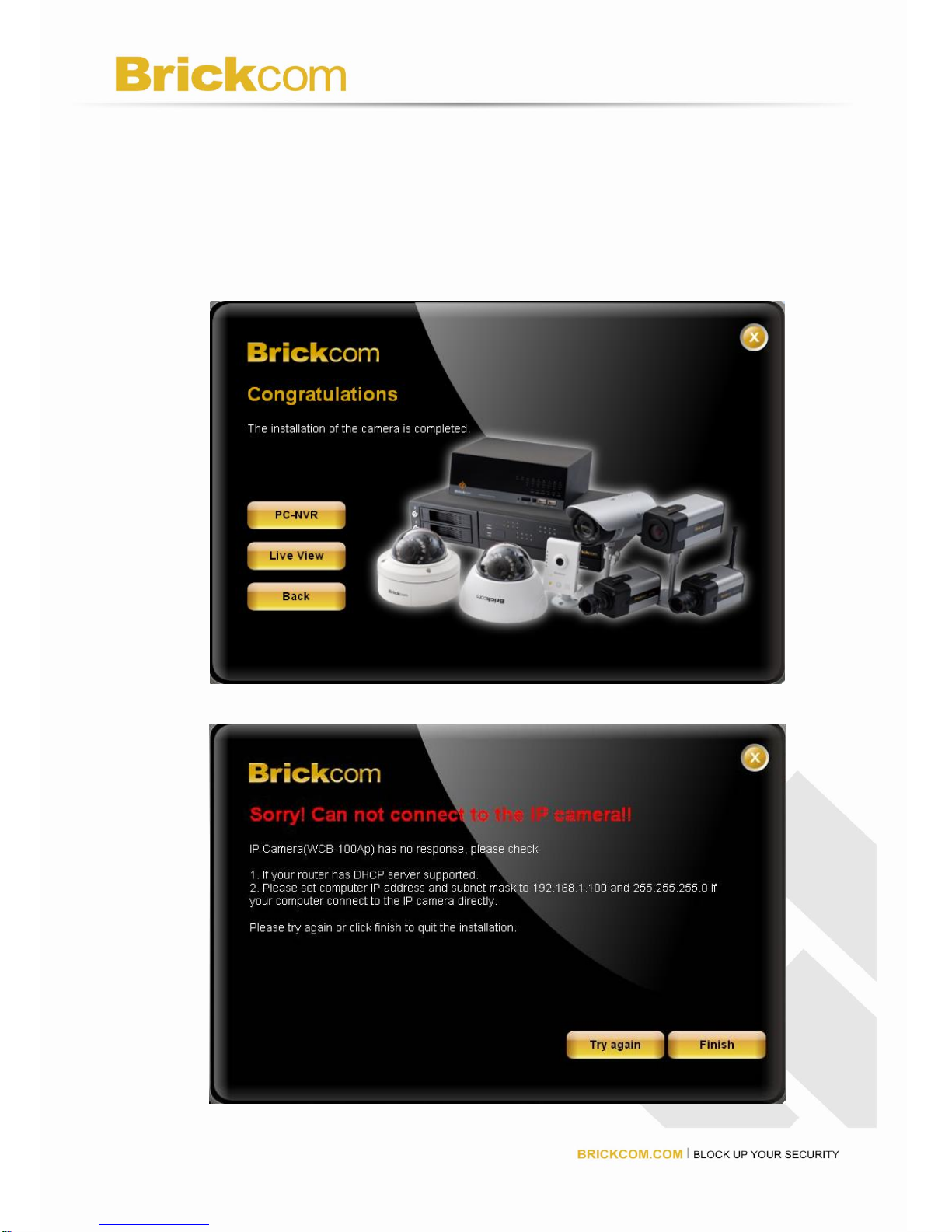

EasyConfig ...................................................................................................... 15

Access to the Network Camera..................................................................................... 24

Check Network Settings ......................................................................................... 24

Add Password to prevent Unauthorized Access ..................................................... 24

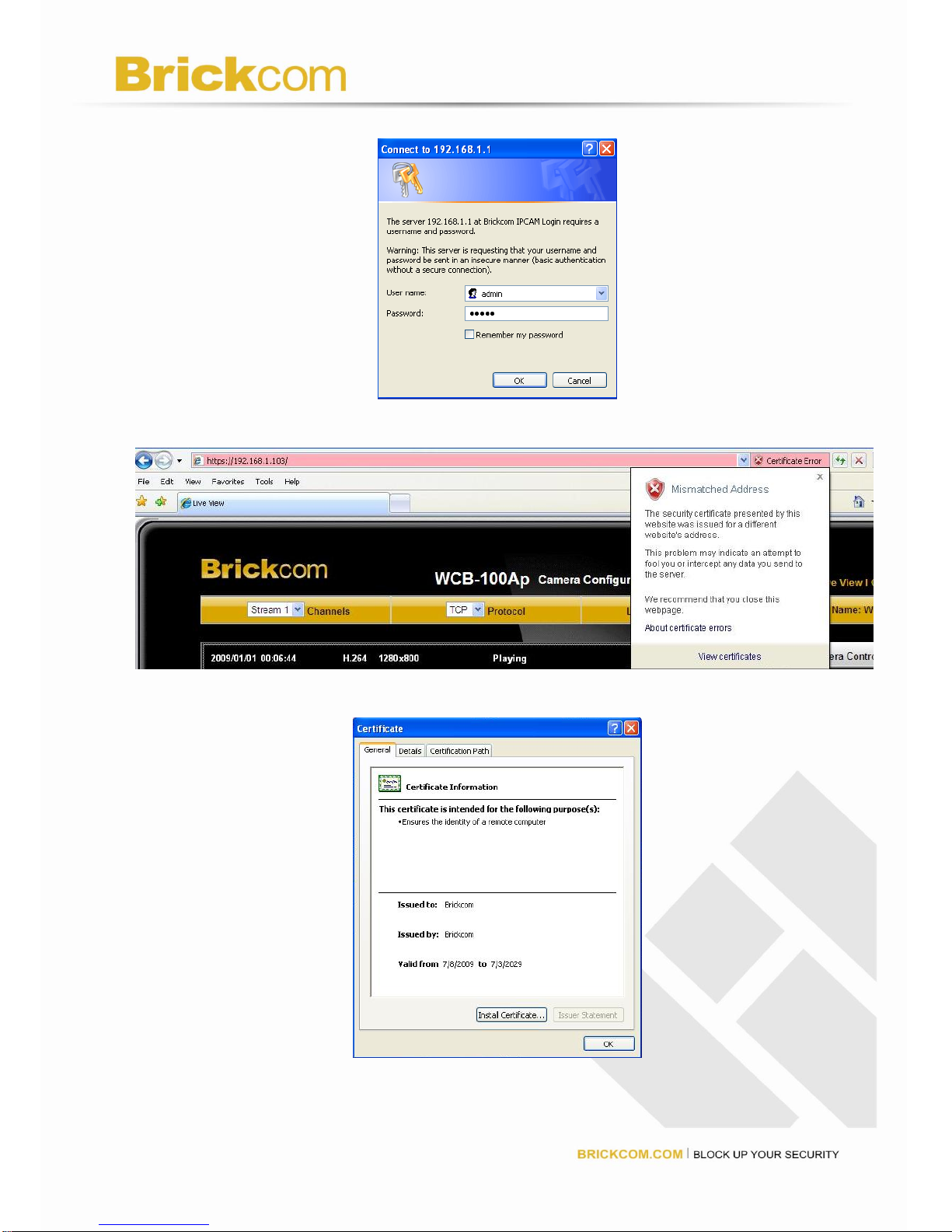

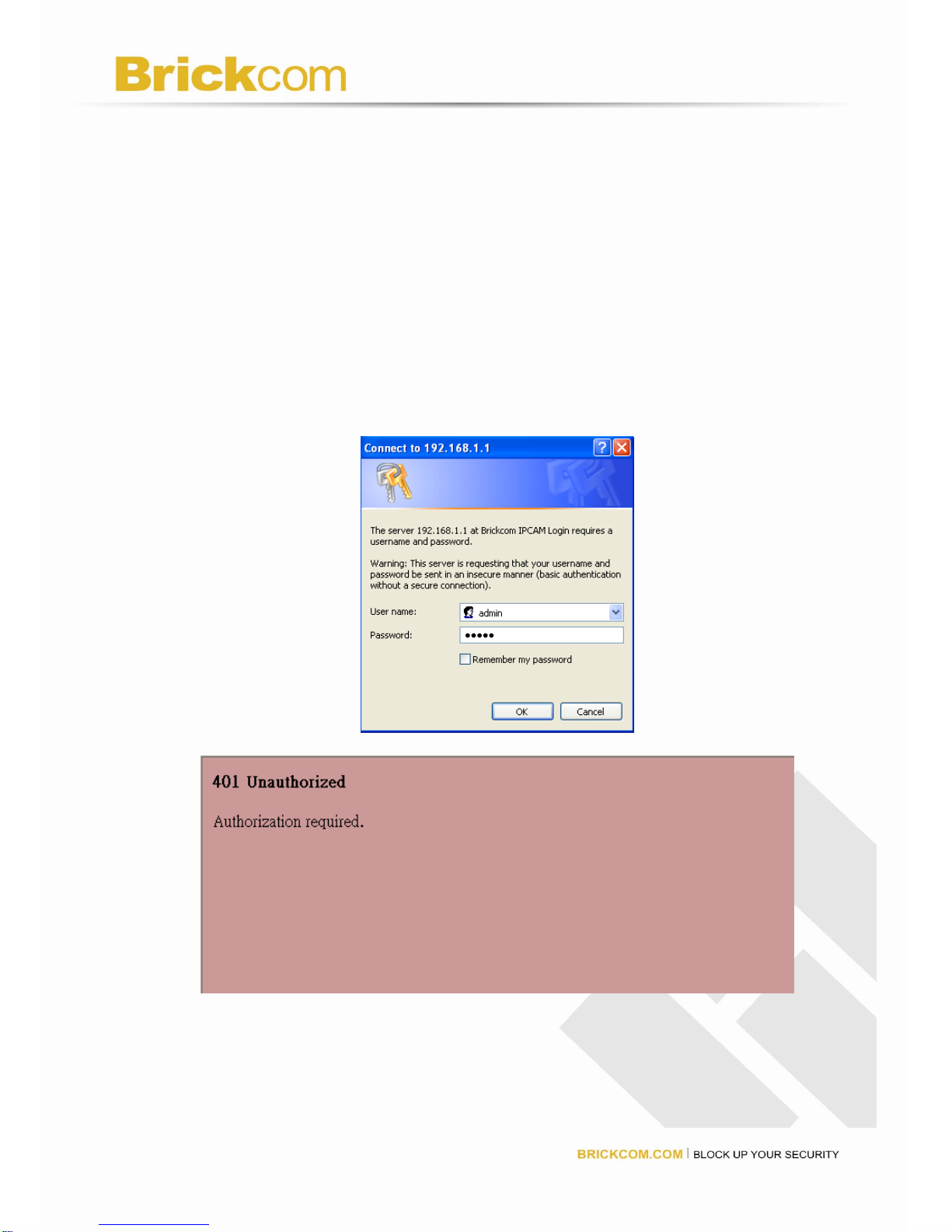

Authentication ......................................................................................................... 25

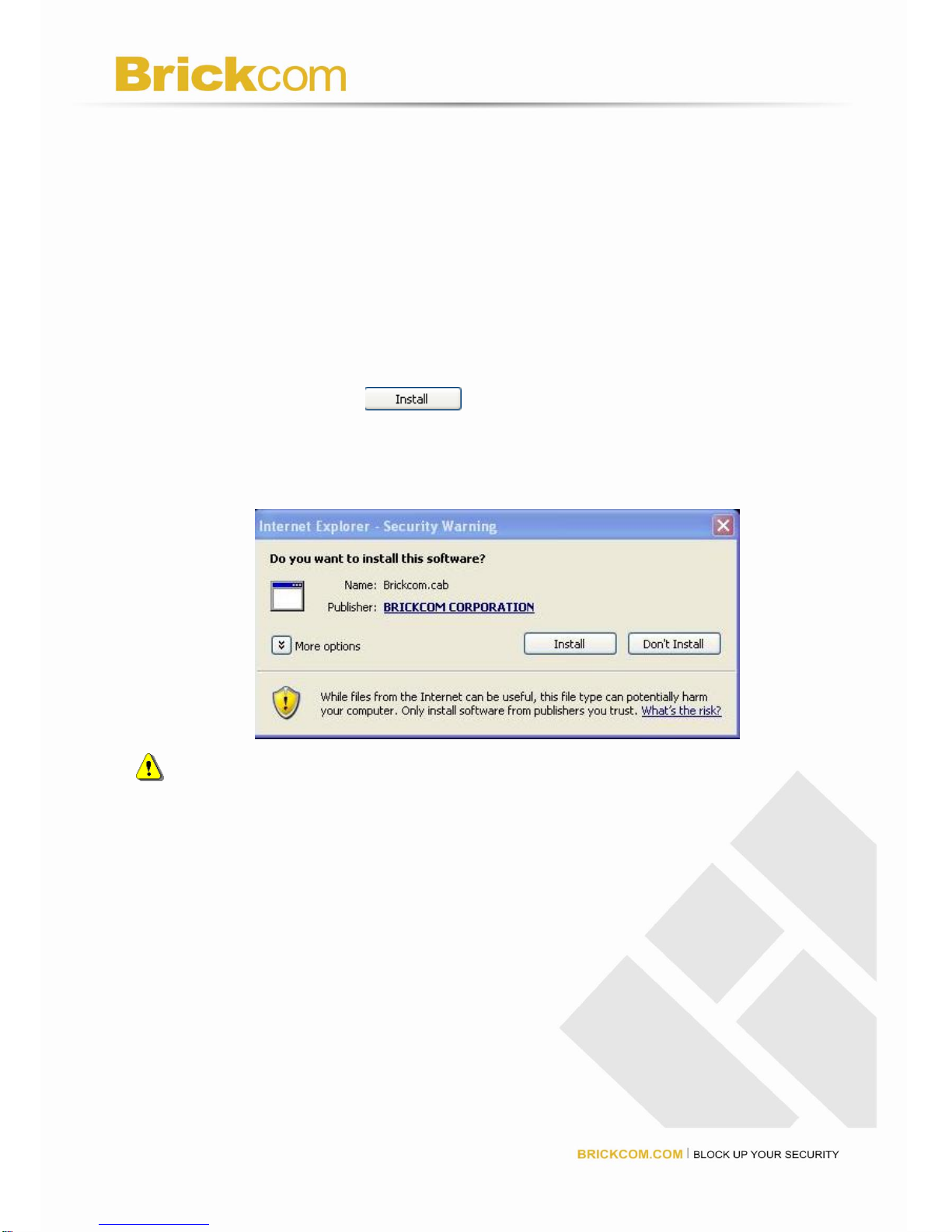

Installing plug-in ..................................................................................................... 26

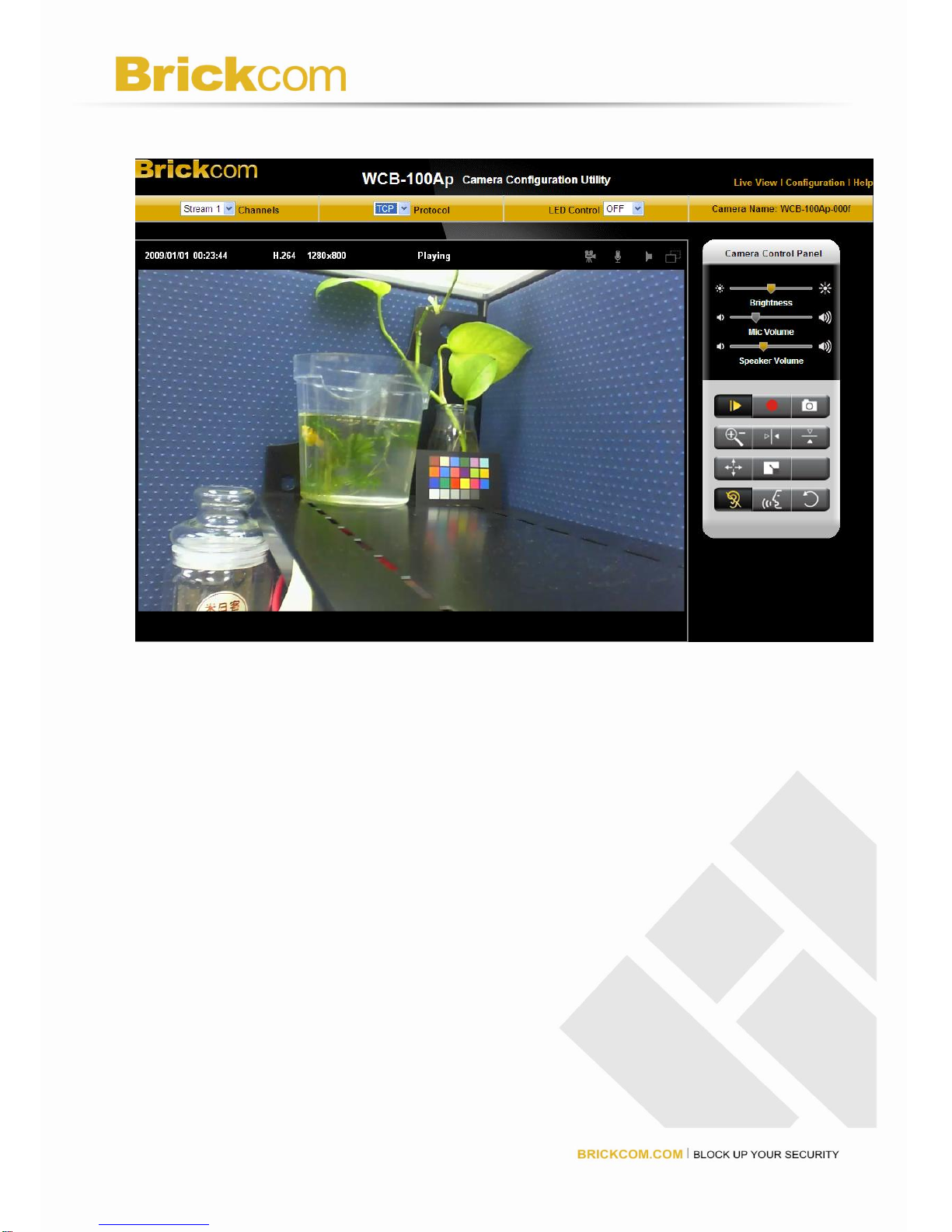

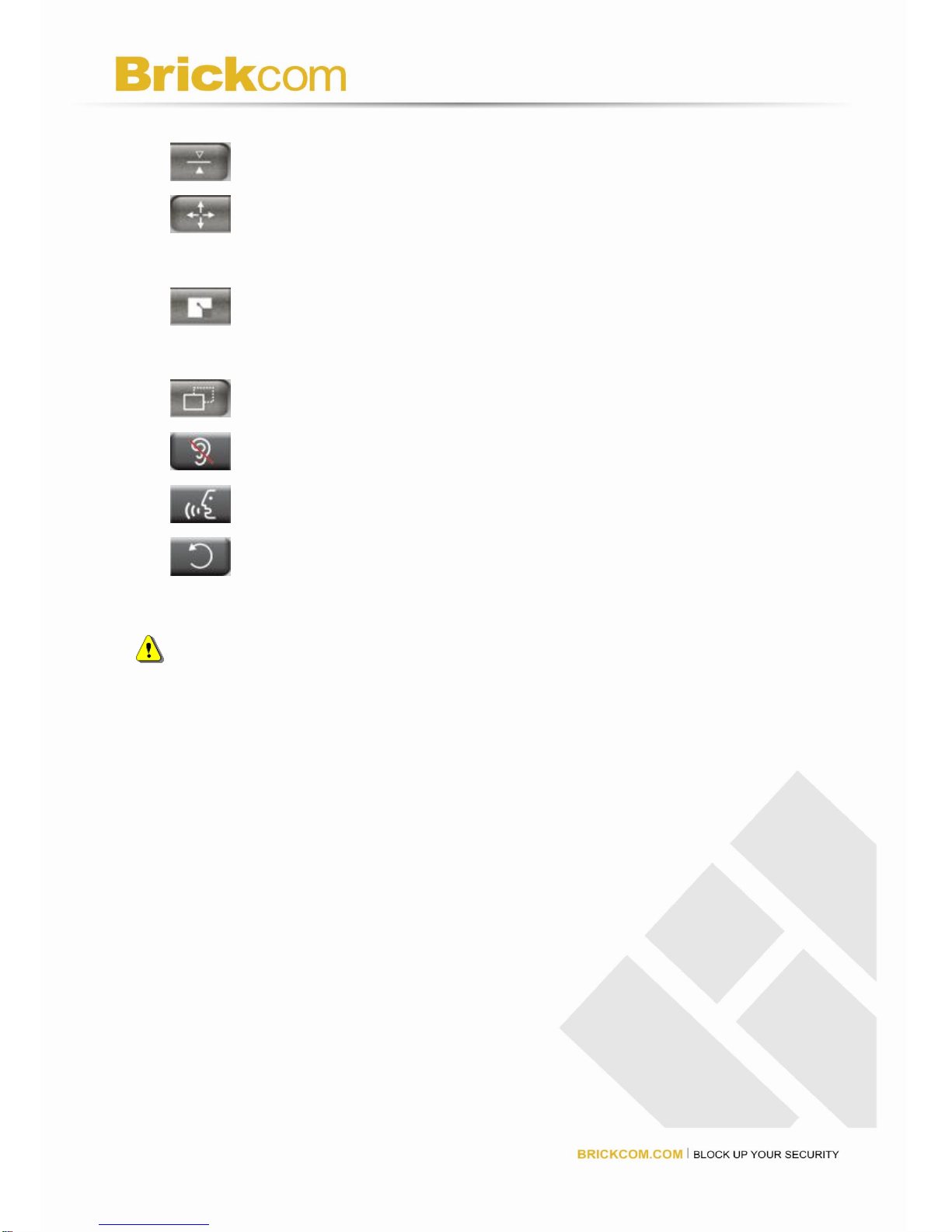

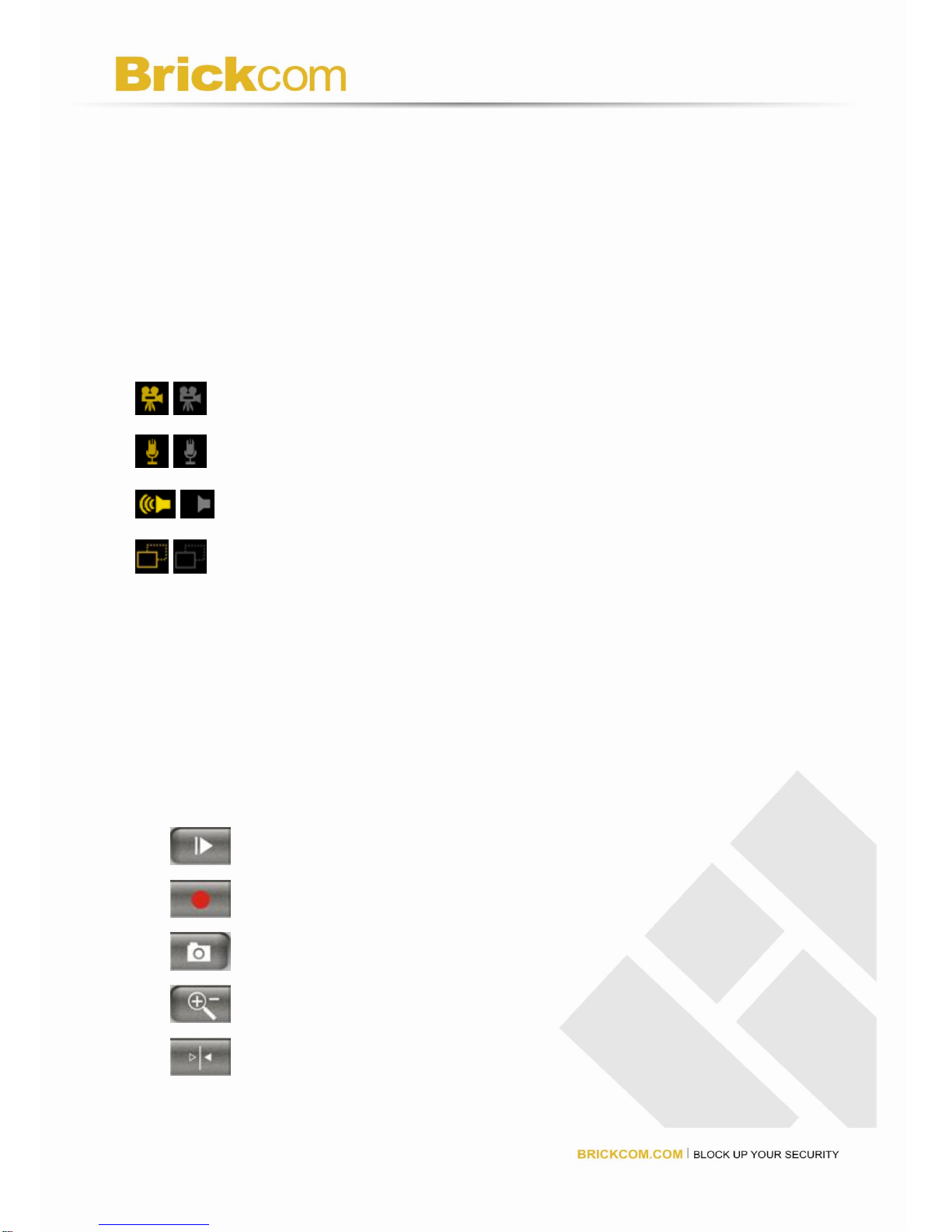

Live View ....................................................................................................................... 27

Configuration................................................................................................................. 30

Camera/Video/Audio .............................................................................................. 30

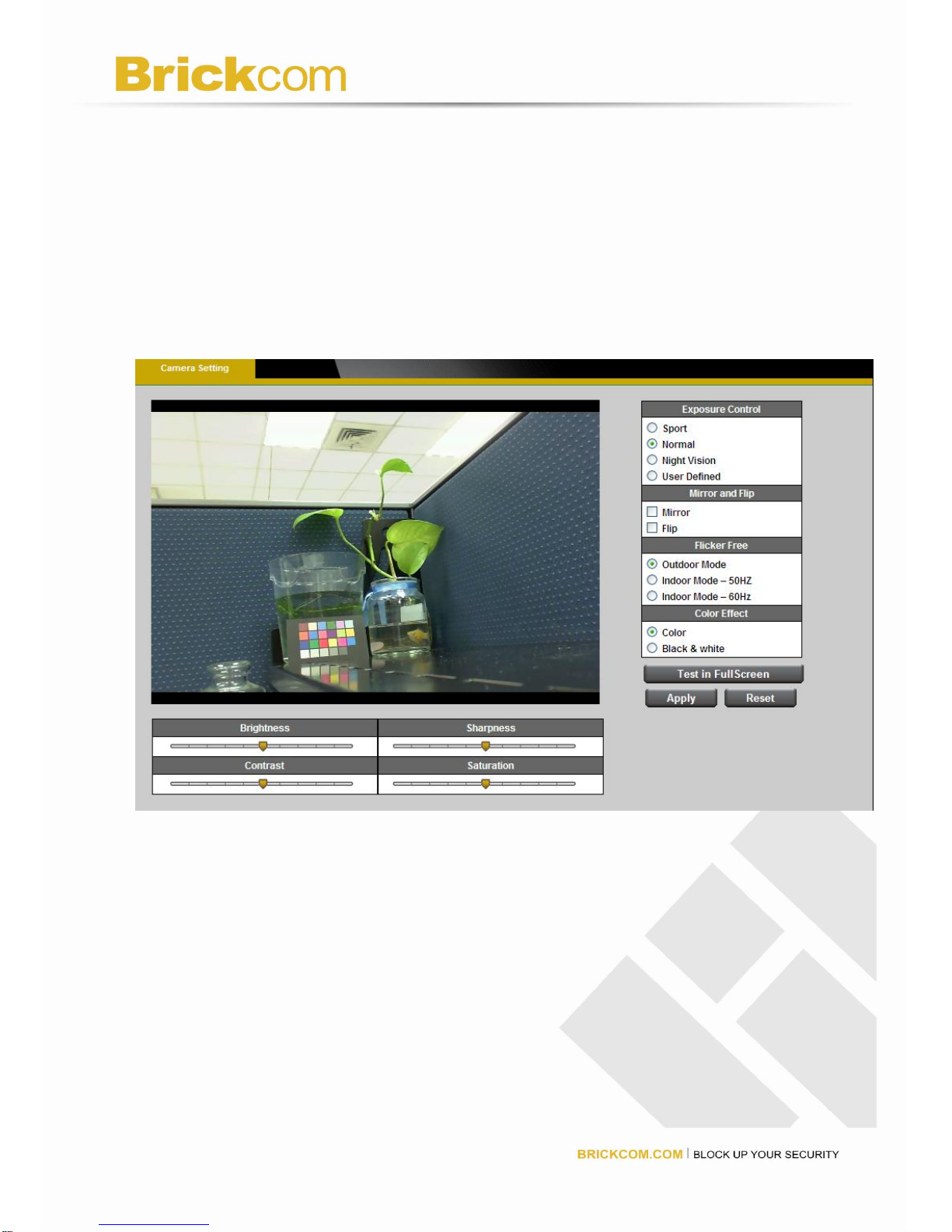

Camera ............................................................................................................ 30

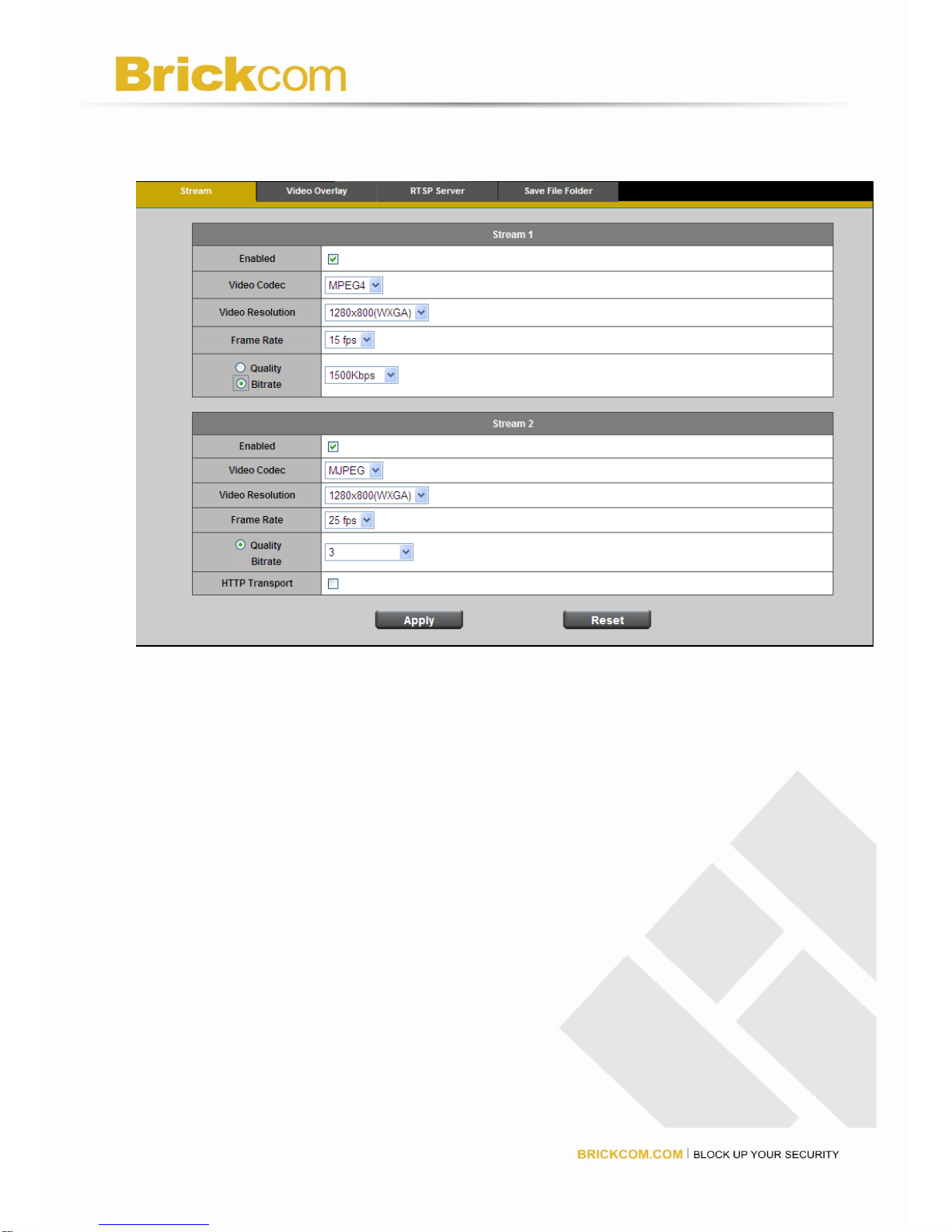

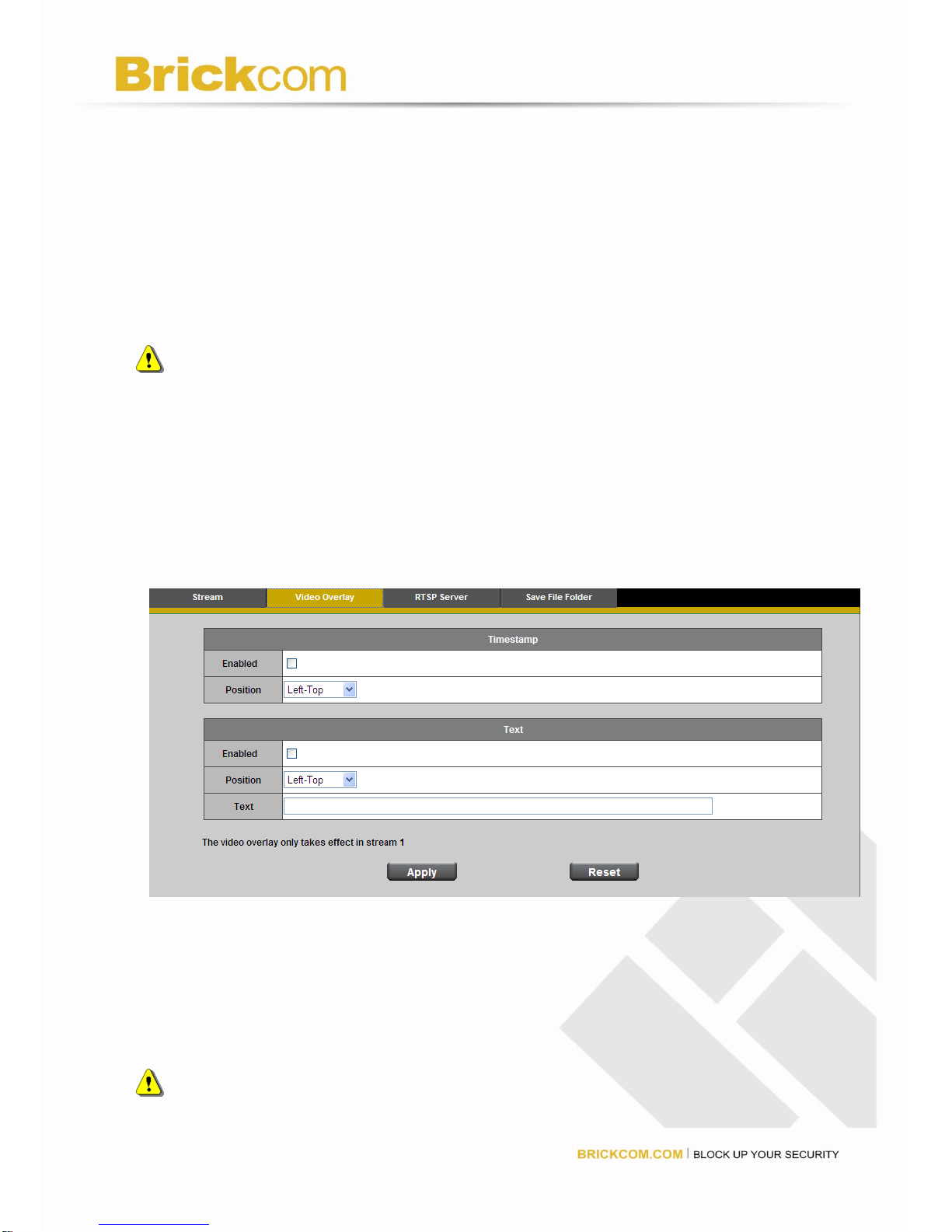

Video................................................................................................................ 32

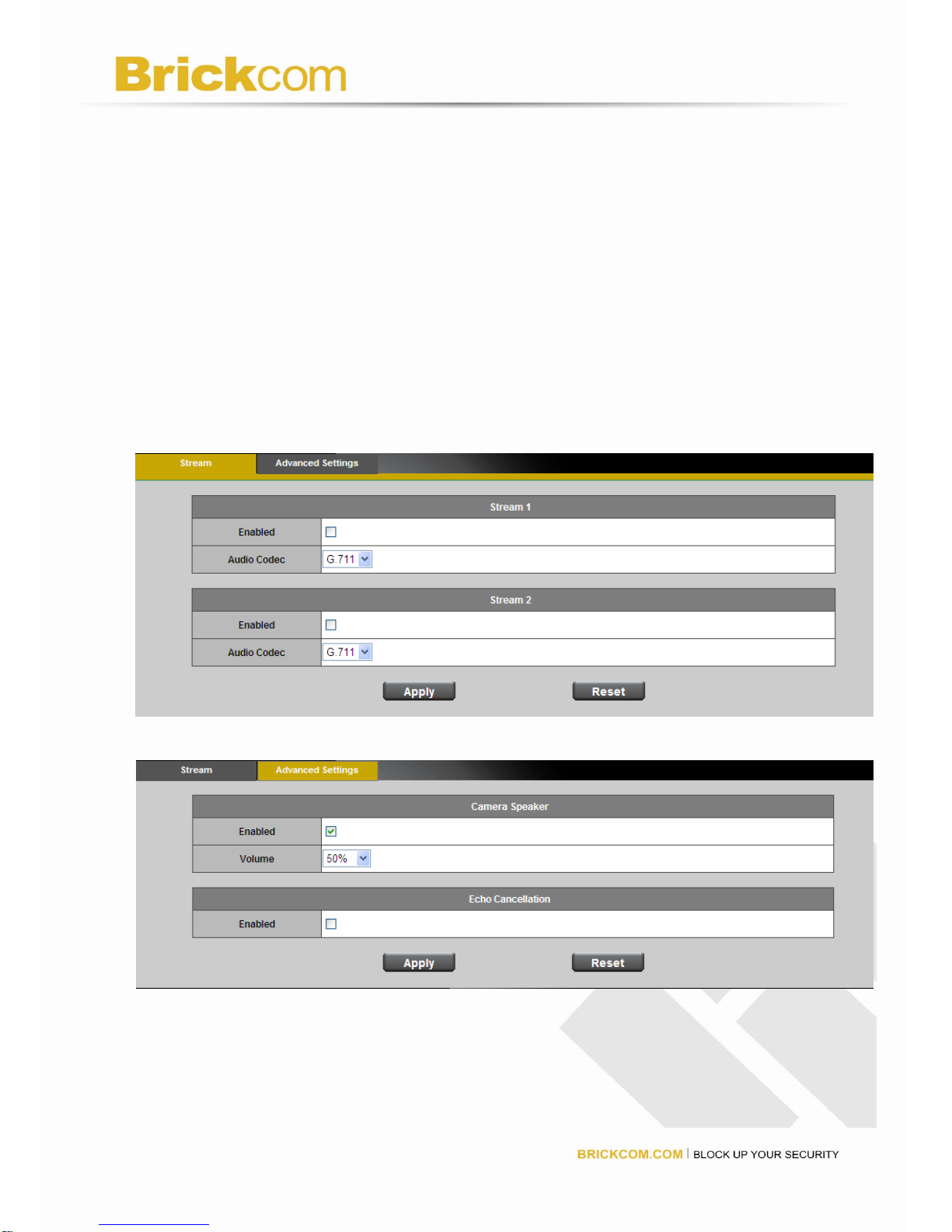

Audio................................................................................................................ 35

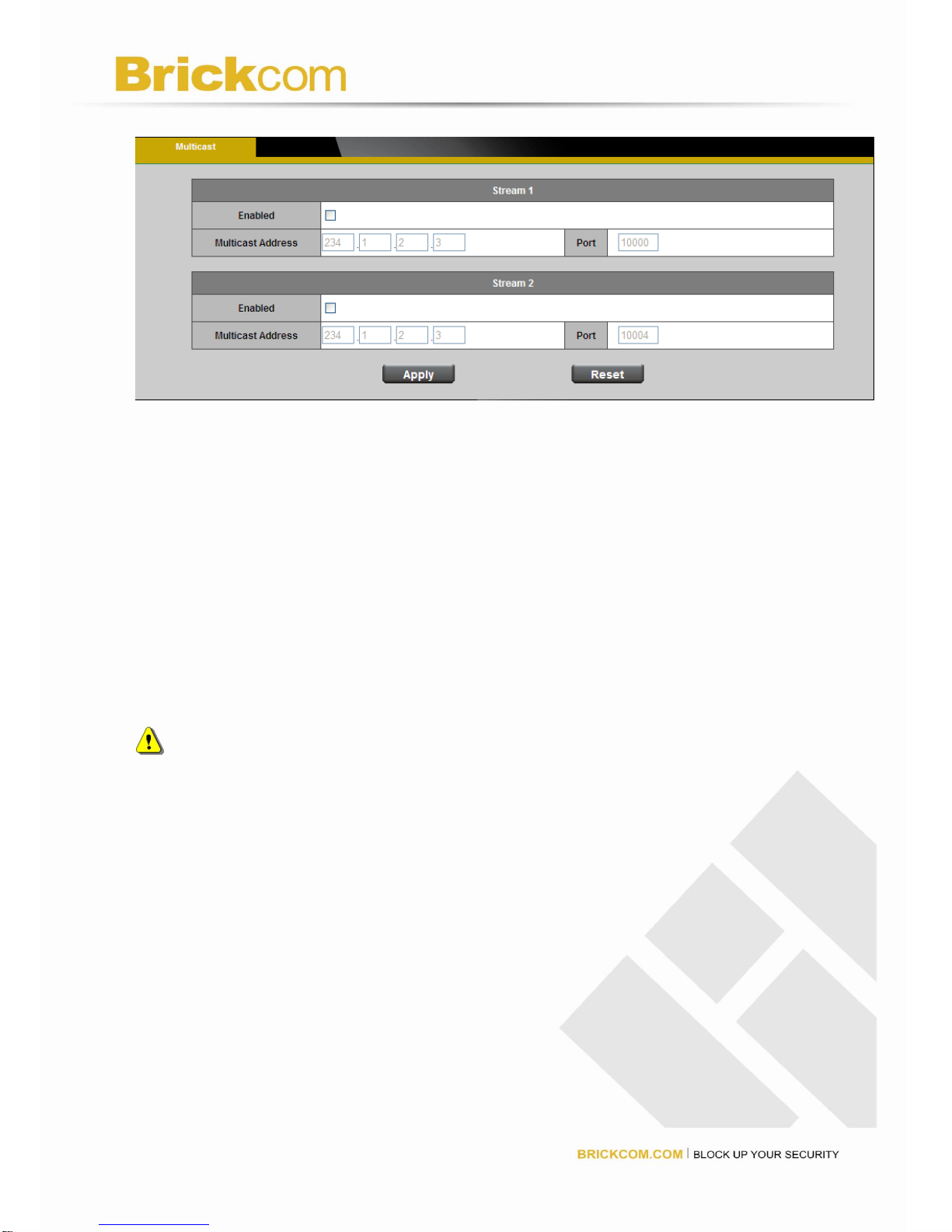

Multicast ........................................................................................................... 36

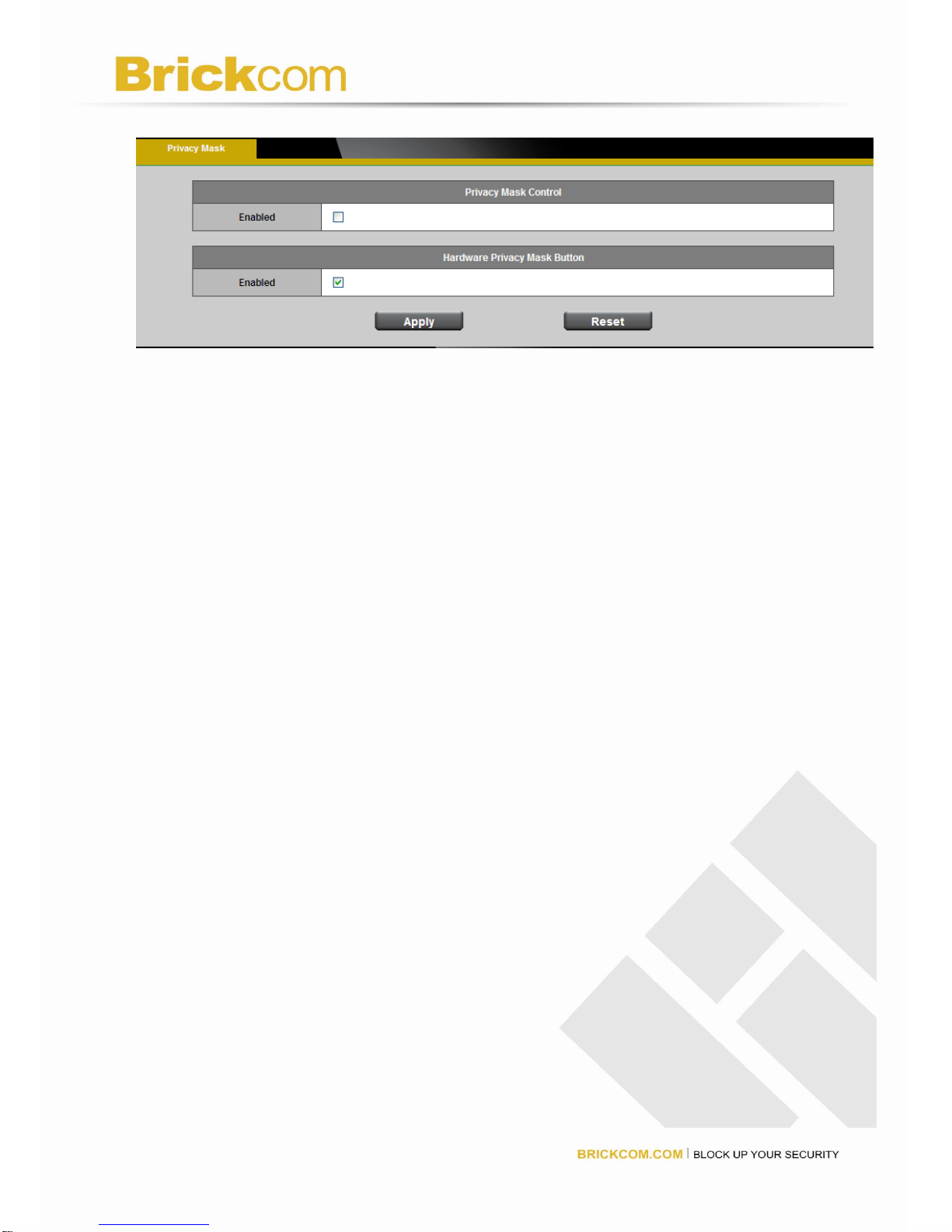

Privacy Mask Control ....................................................................................... 37

Network .................................................................................................................. 38

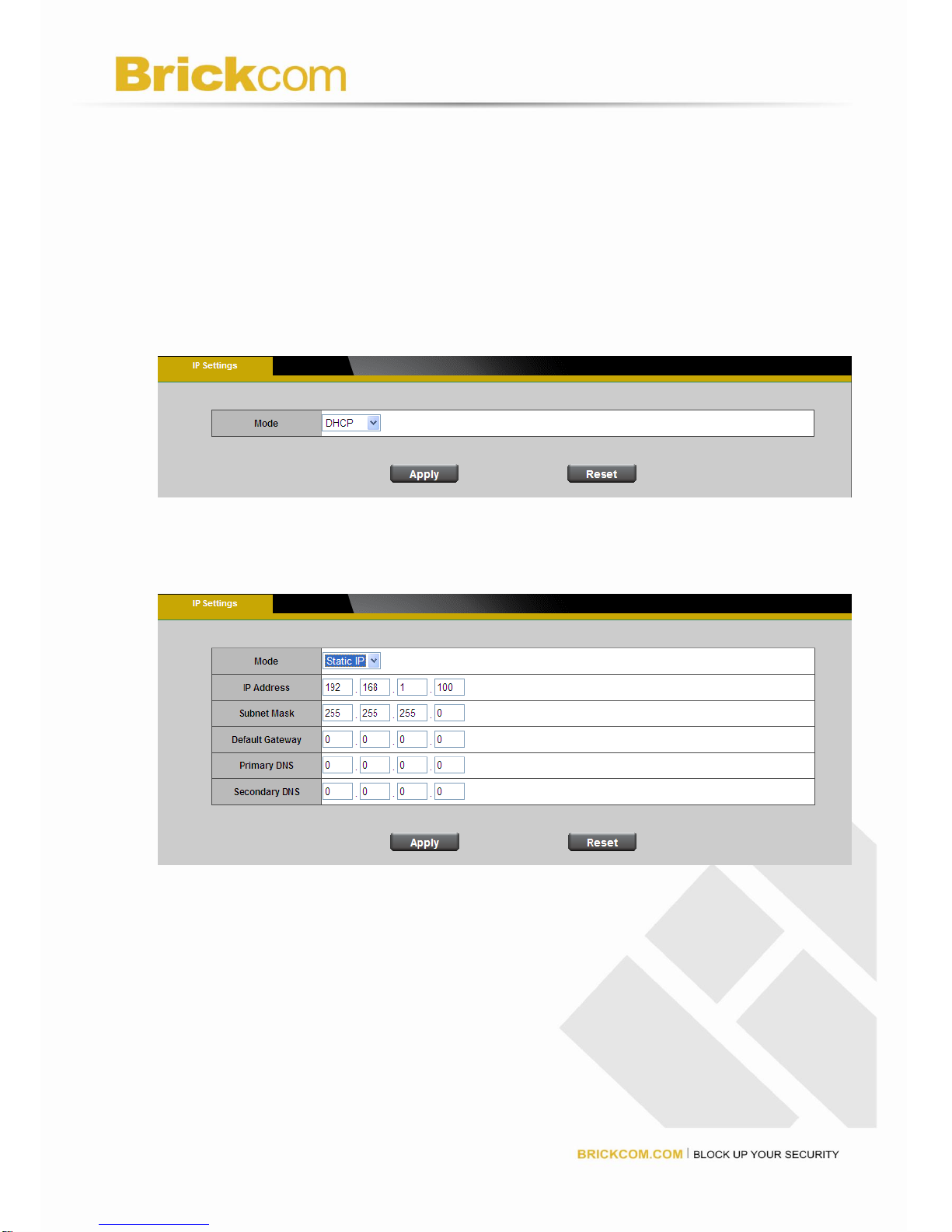

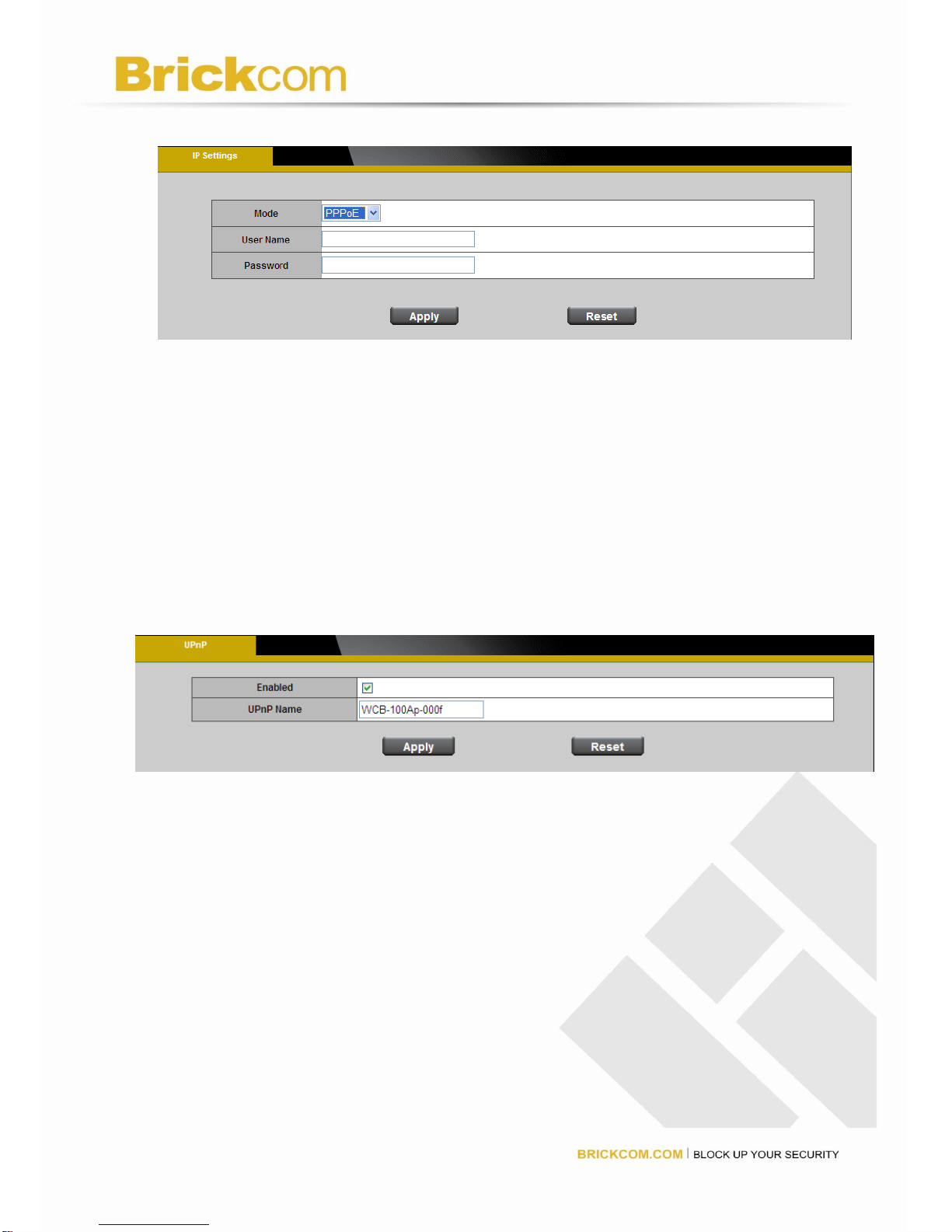

IP Settings ....................................................................................................... 38

UPnP ............................................................................................................... 39

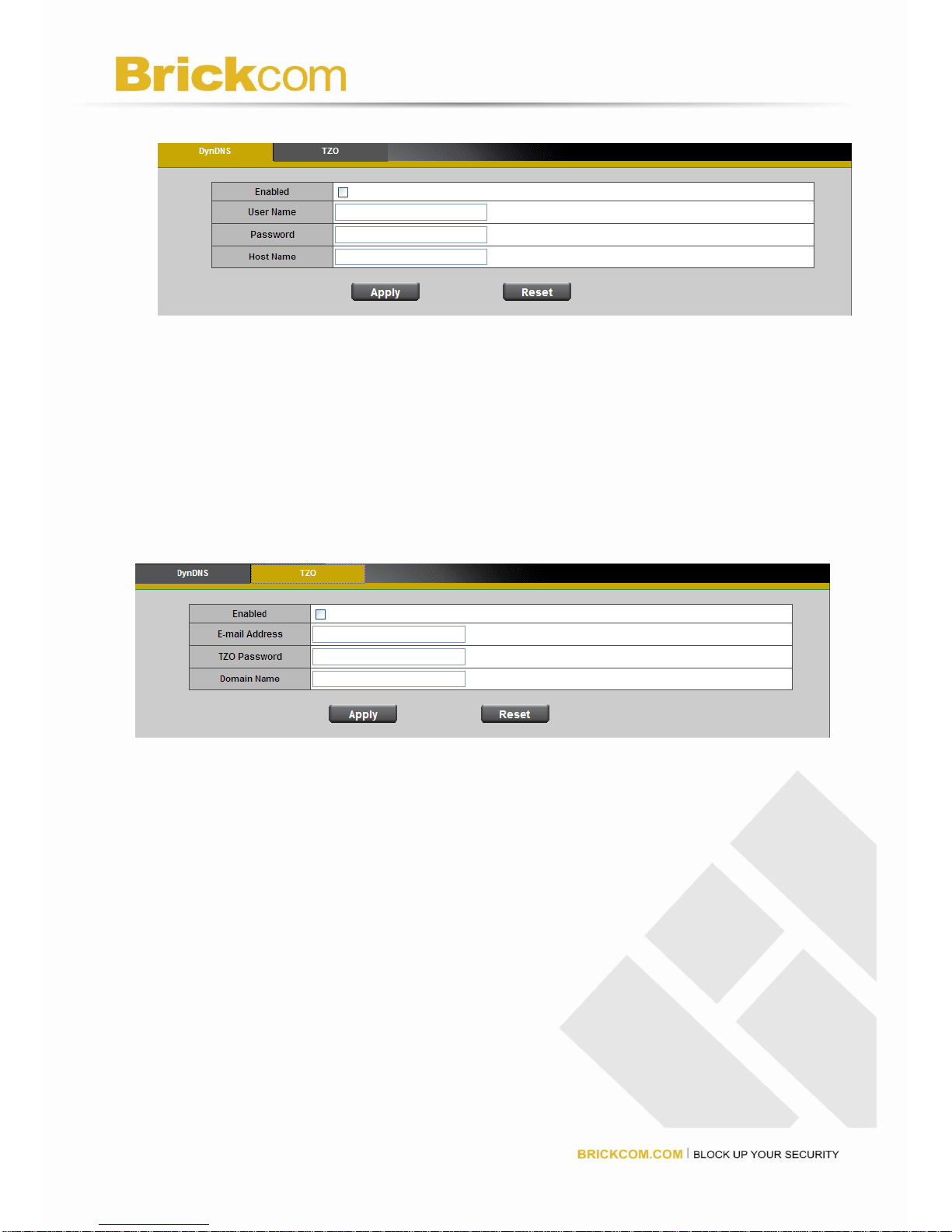

DDNS (dynamic domain name service) ........................................................... 40

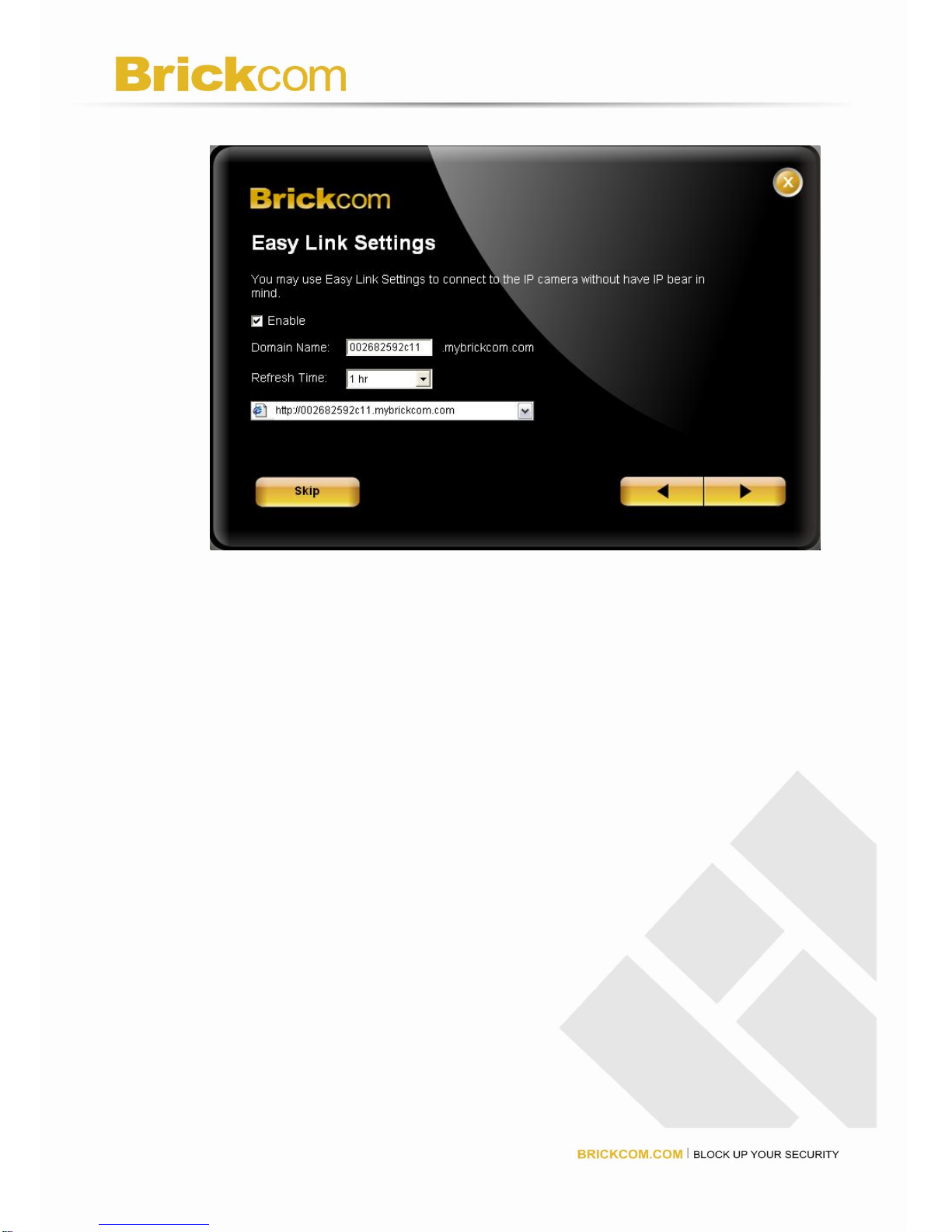

Easy Link ......................................................................................................... 41

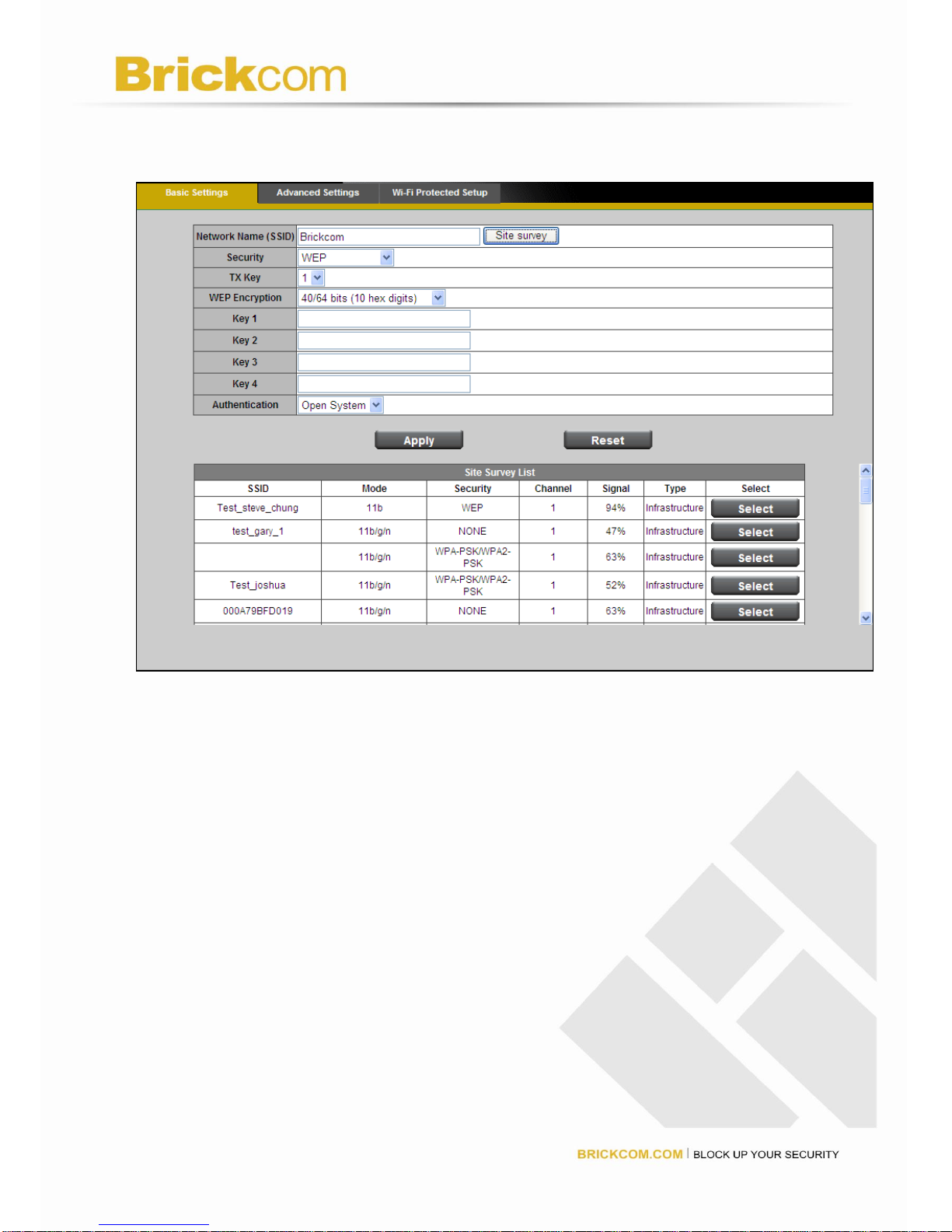

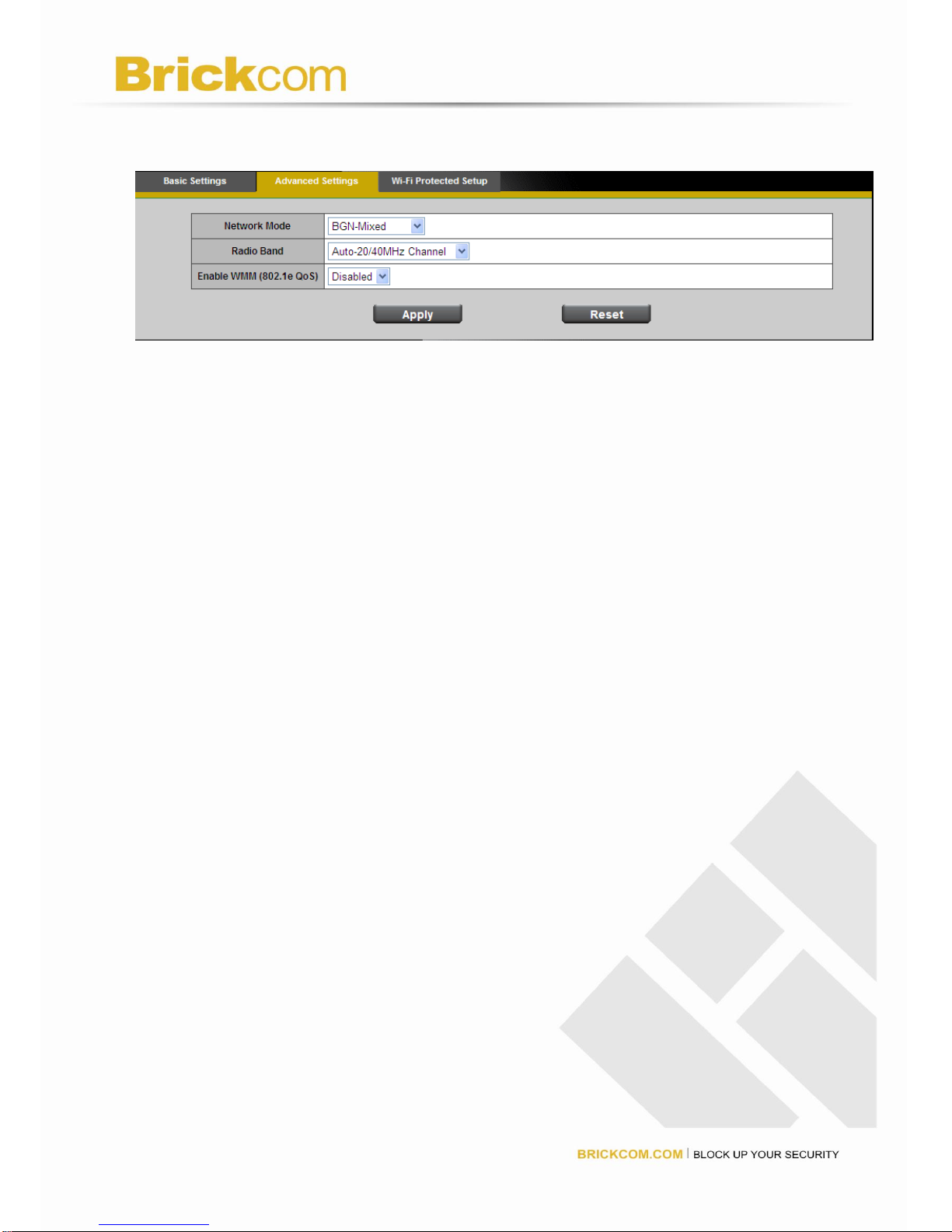

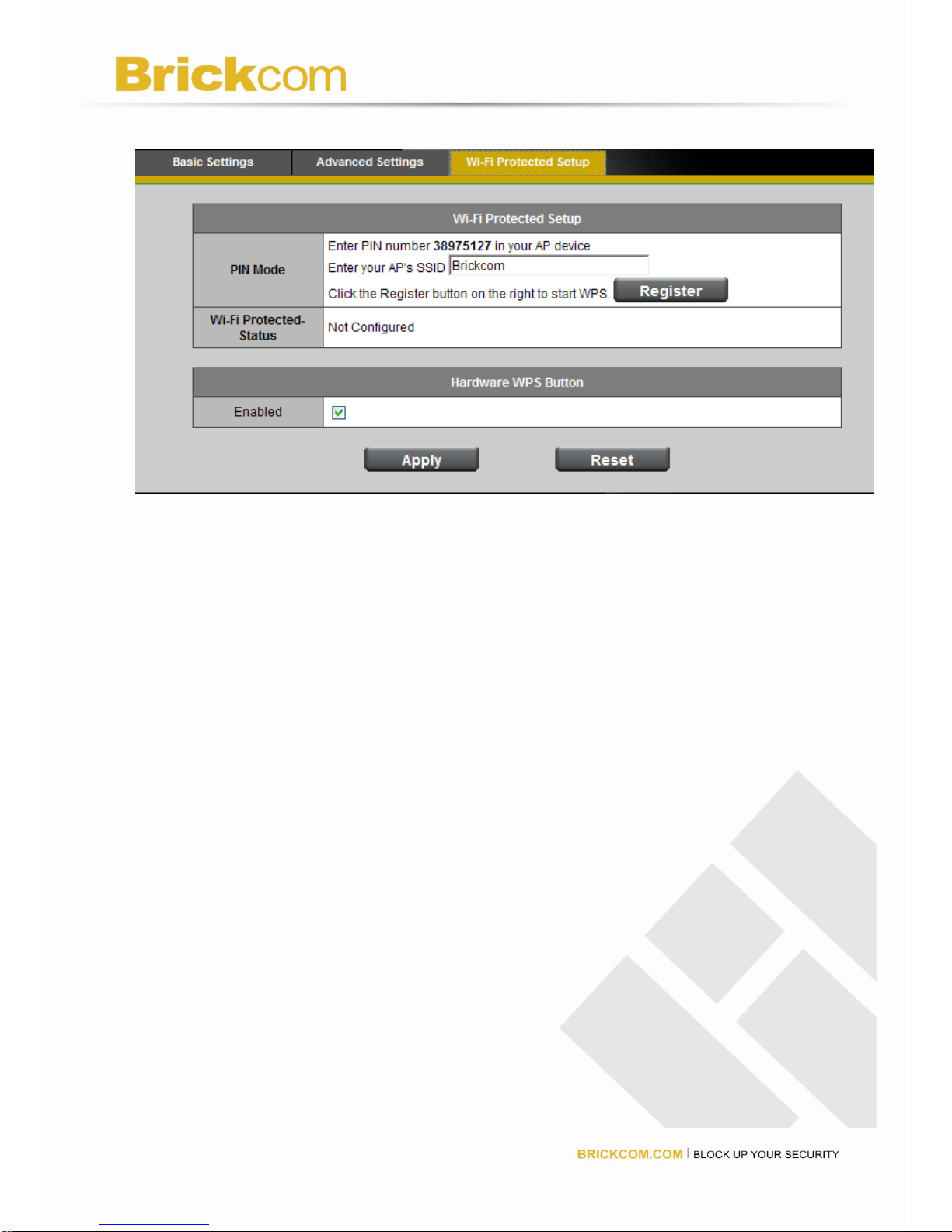

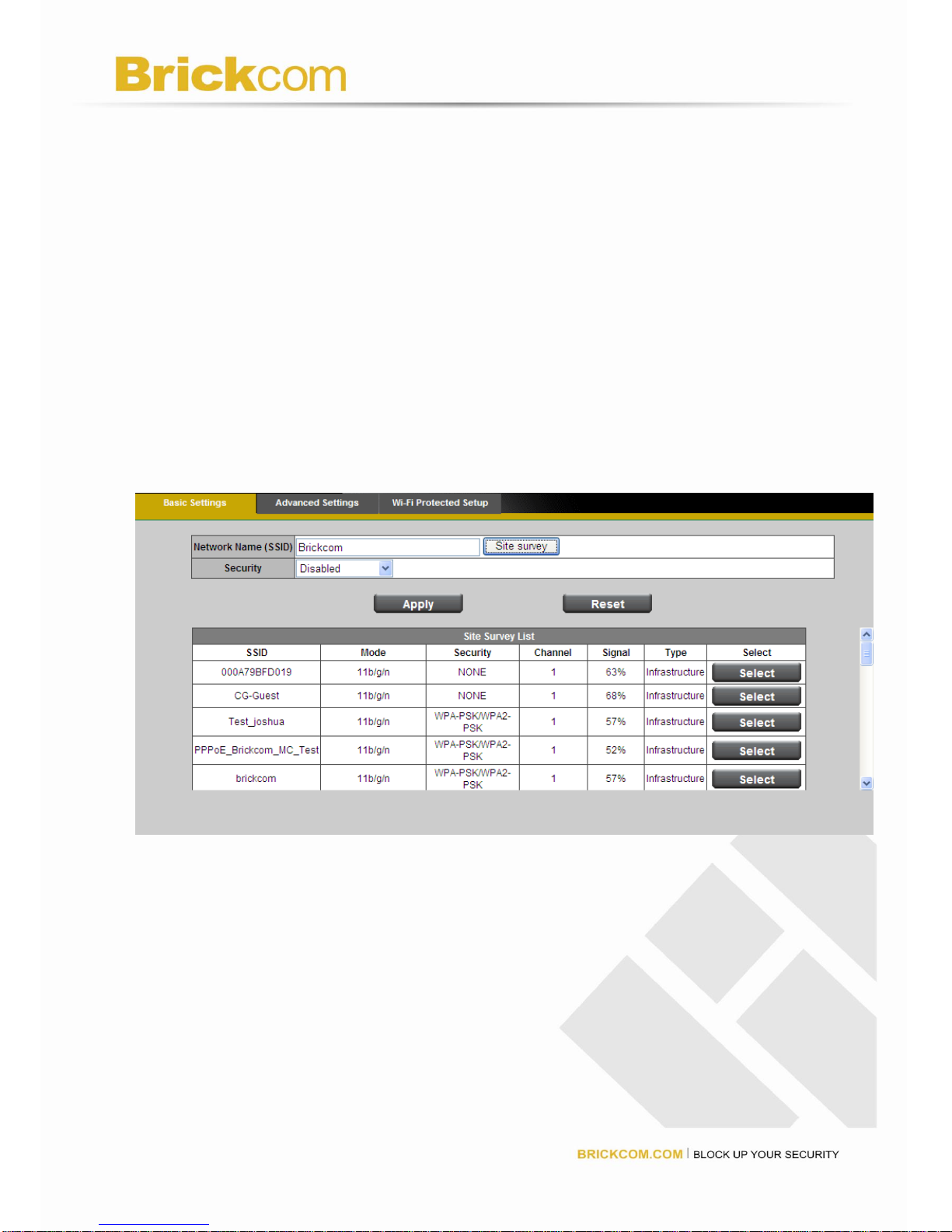

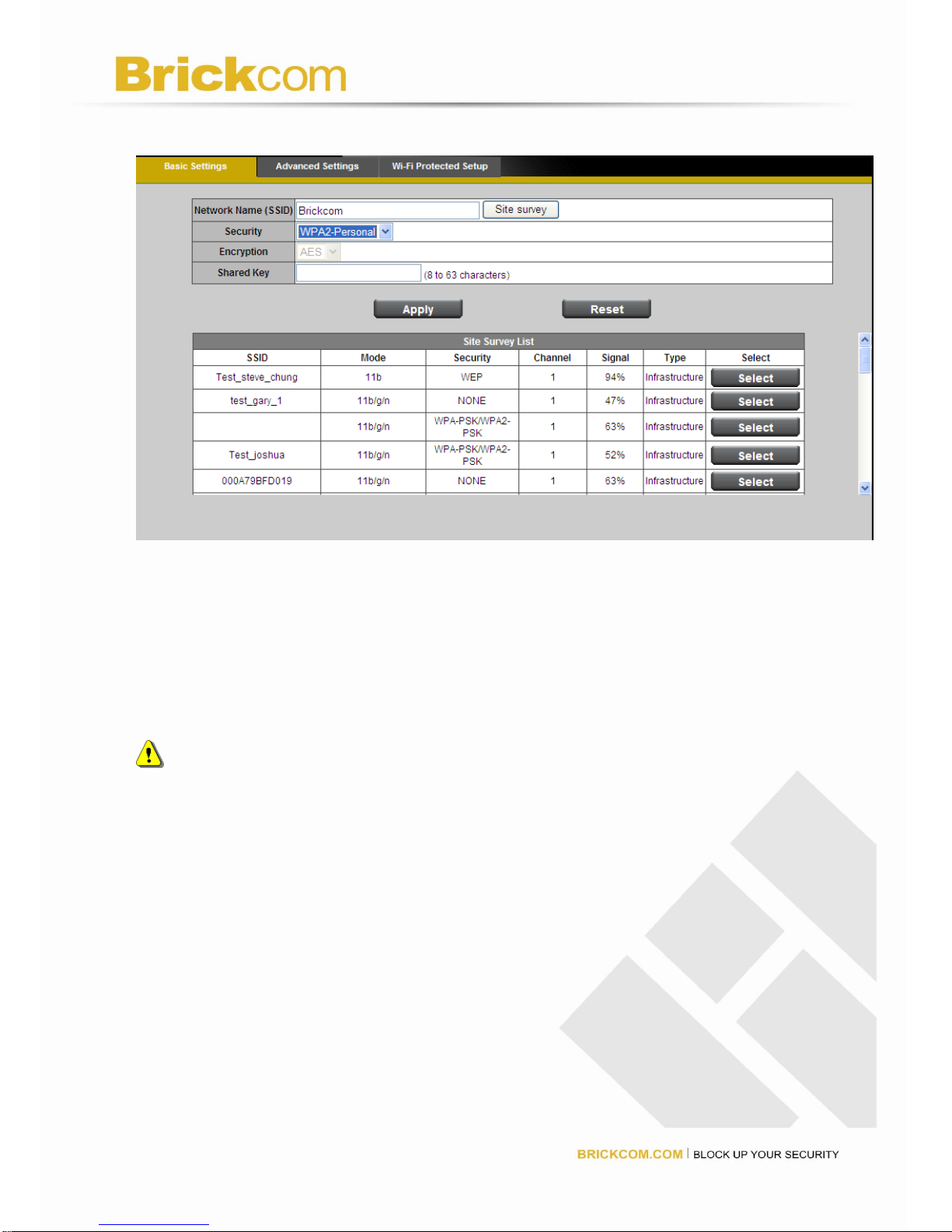

Wireless ........................................................................................................... 42

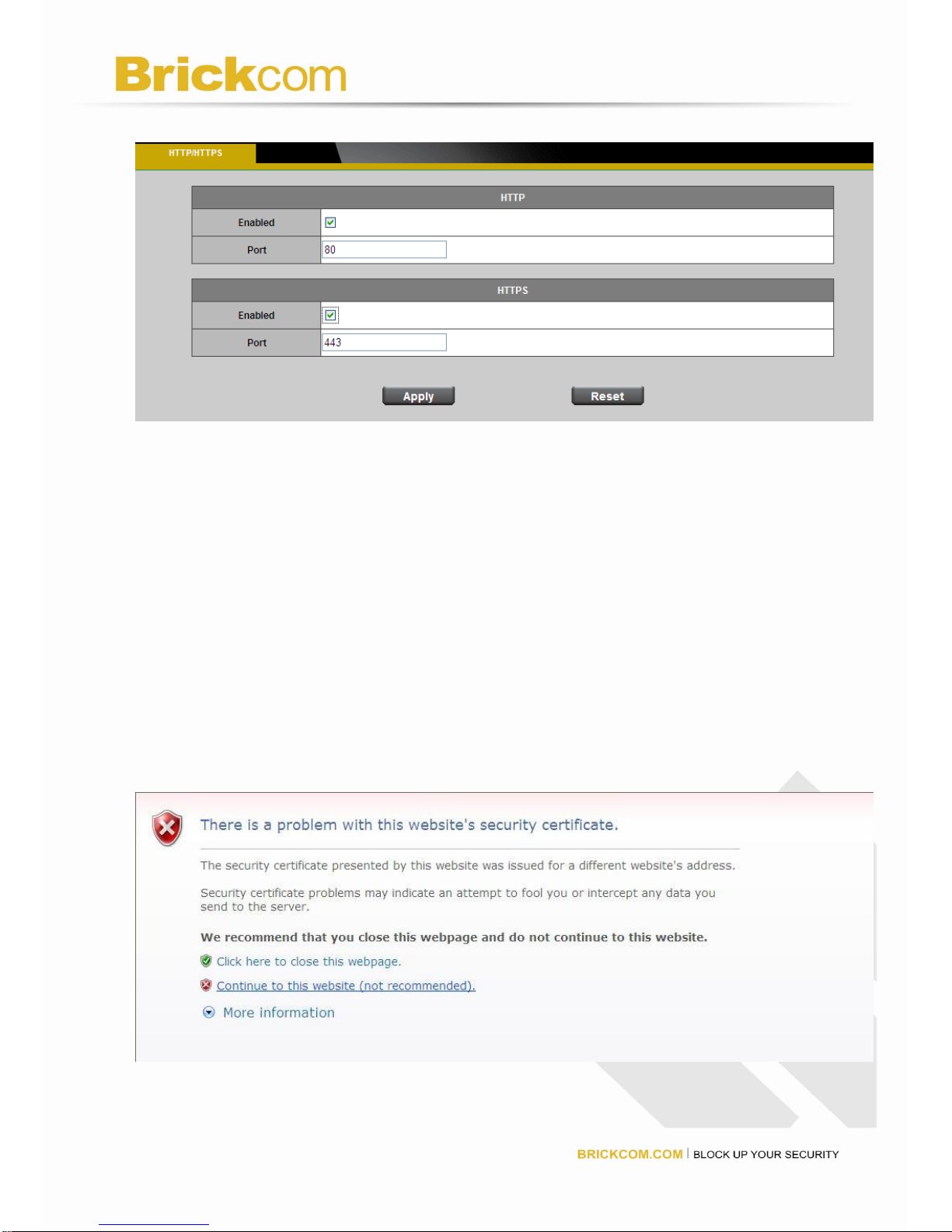

HTTP/HTTPS ................................................................................................... 49

Event ................................................................ ...................................................... 51

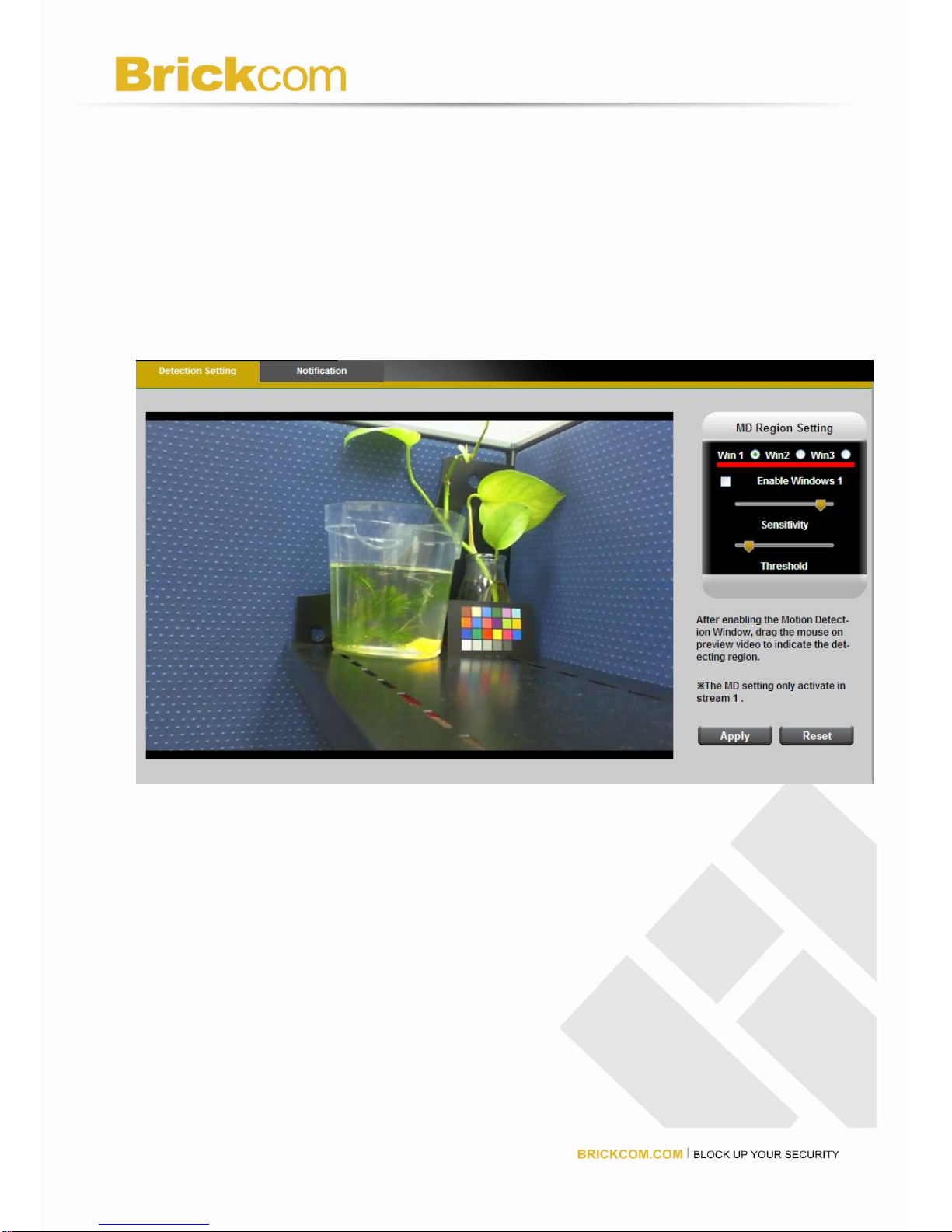

Motion Detection .............................................................................................. 51

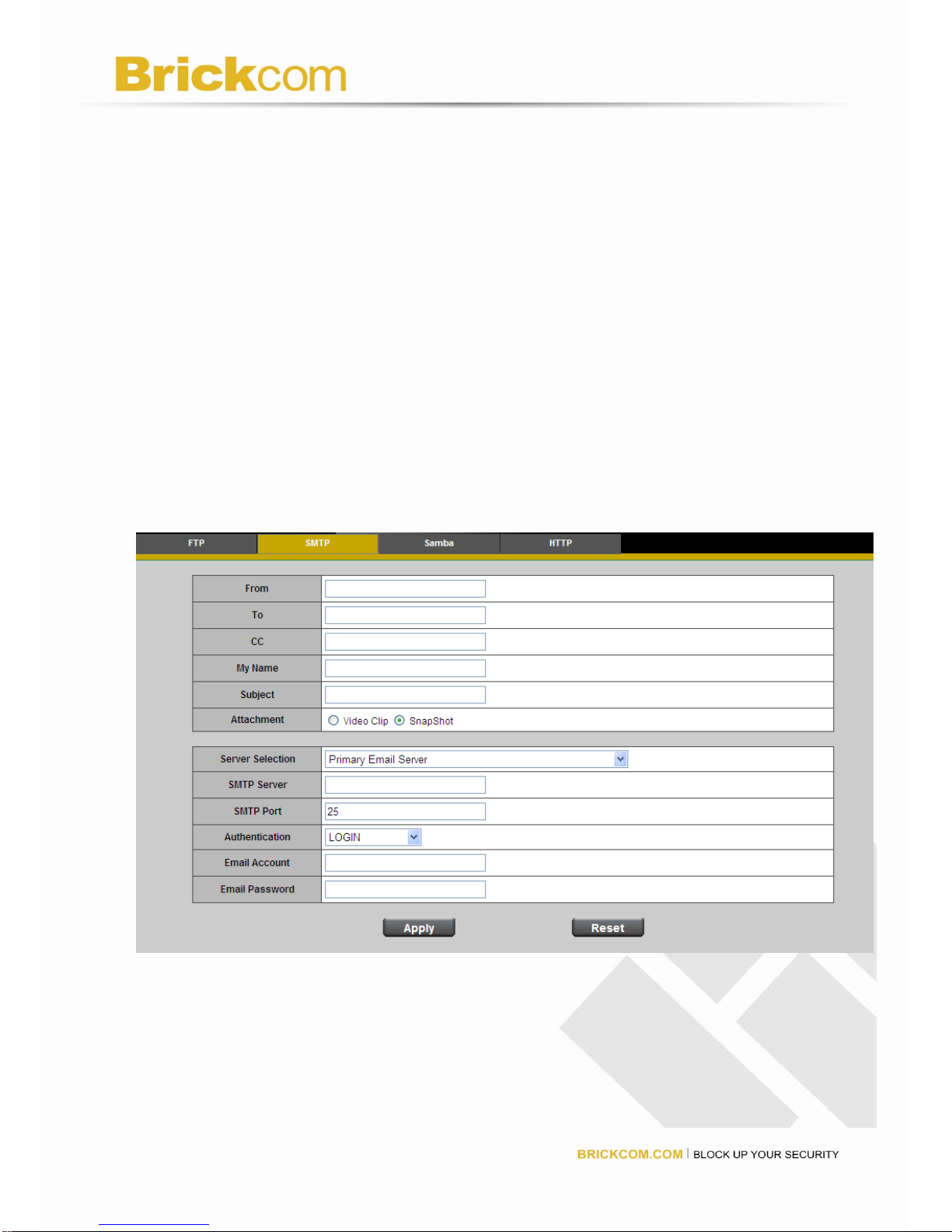

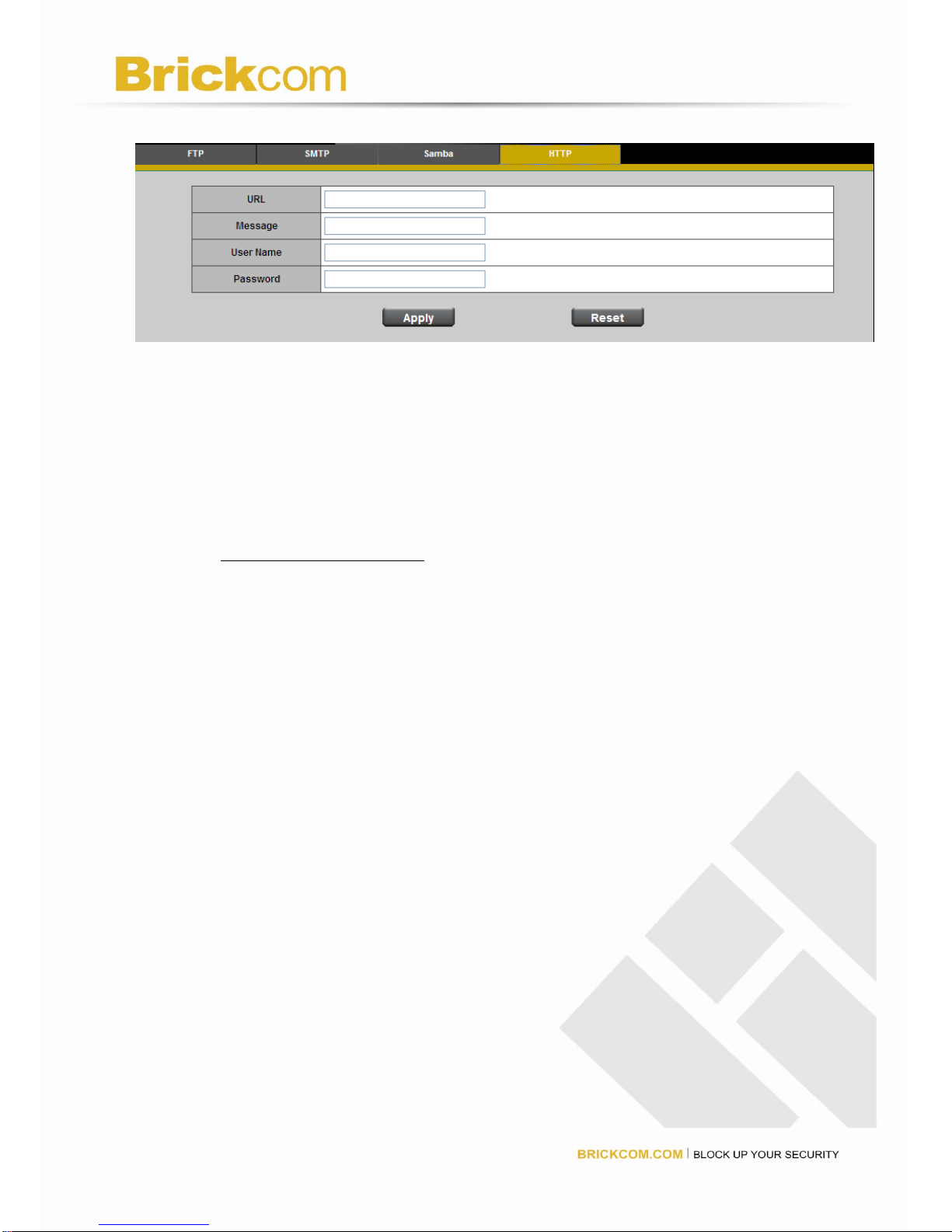

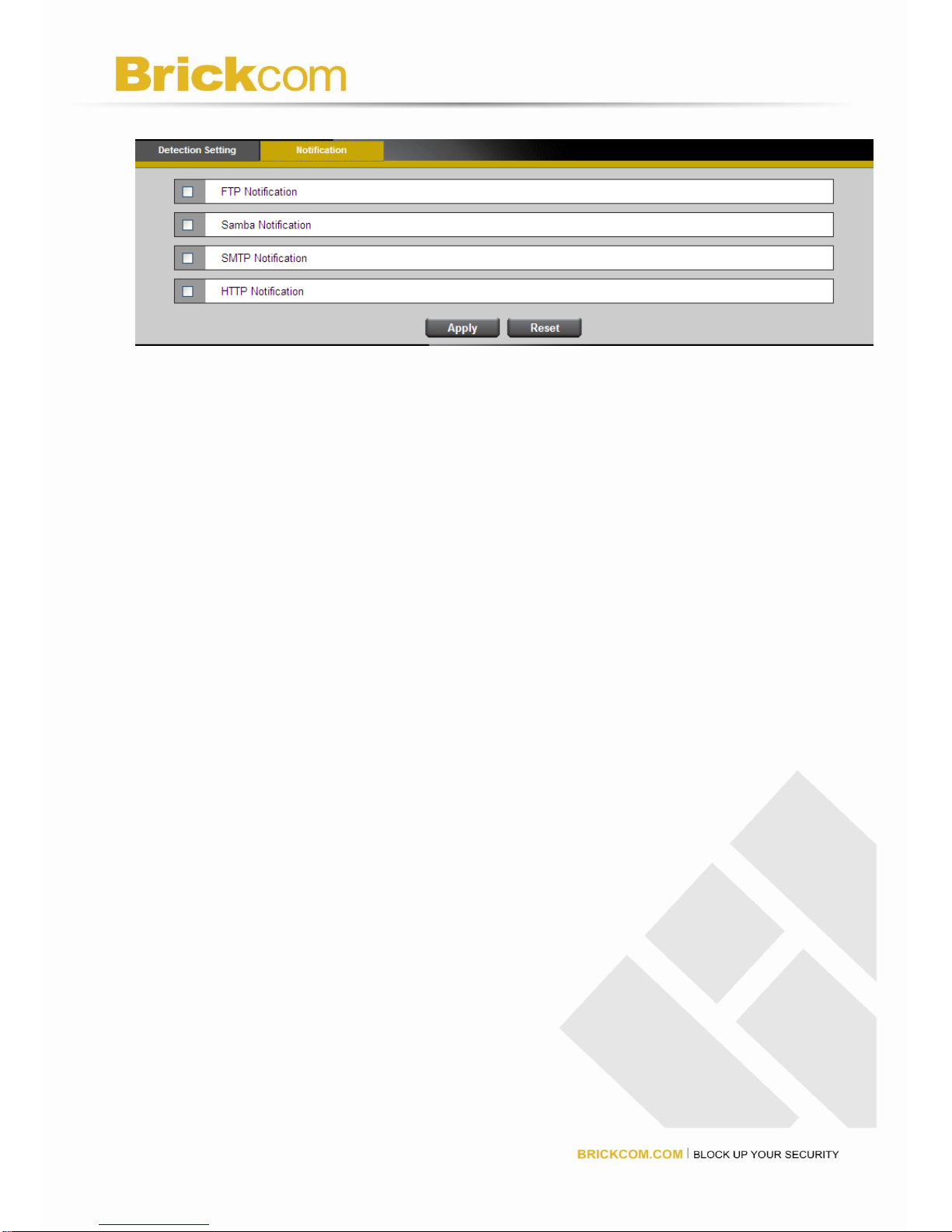

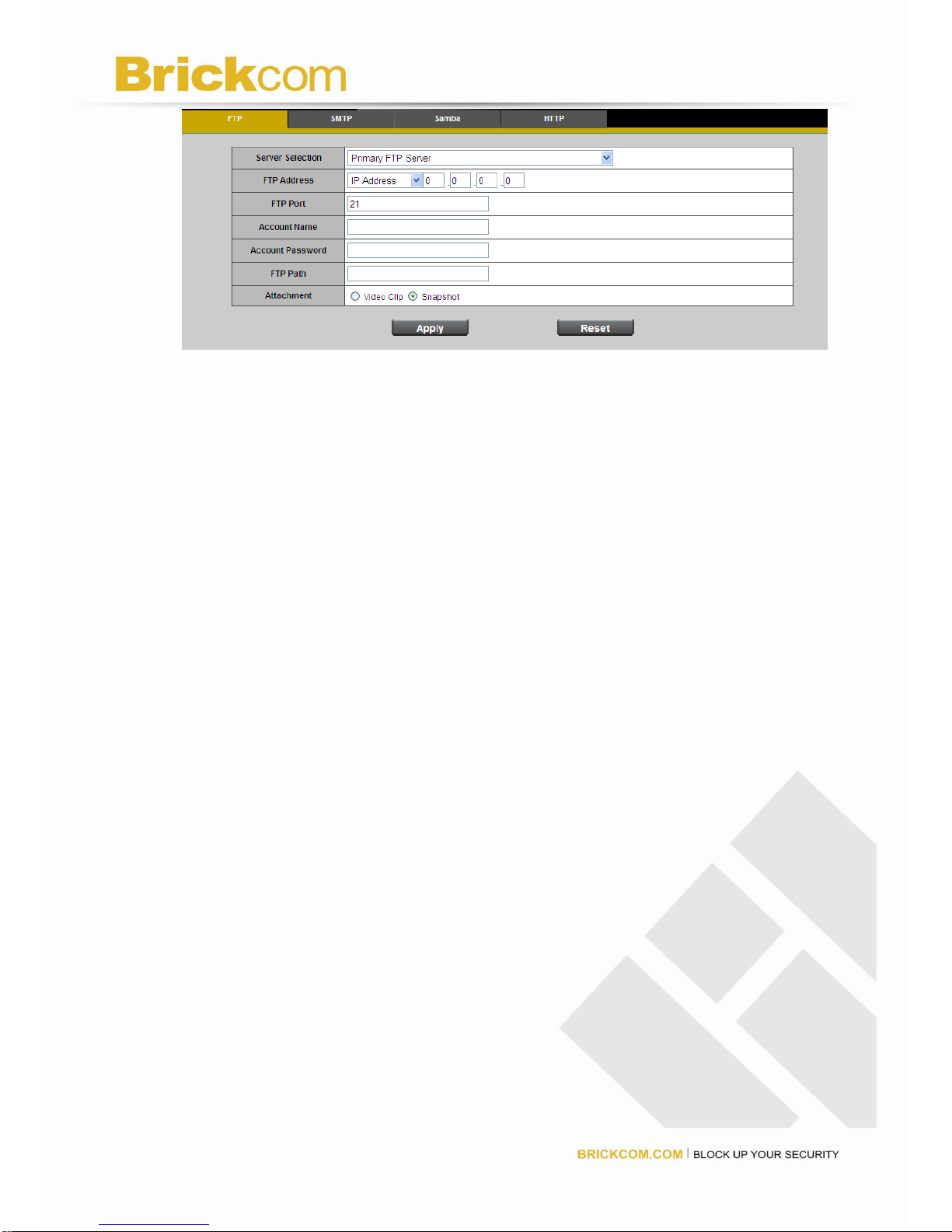

Notification Settings ................................ ......................................................... 52

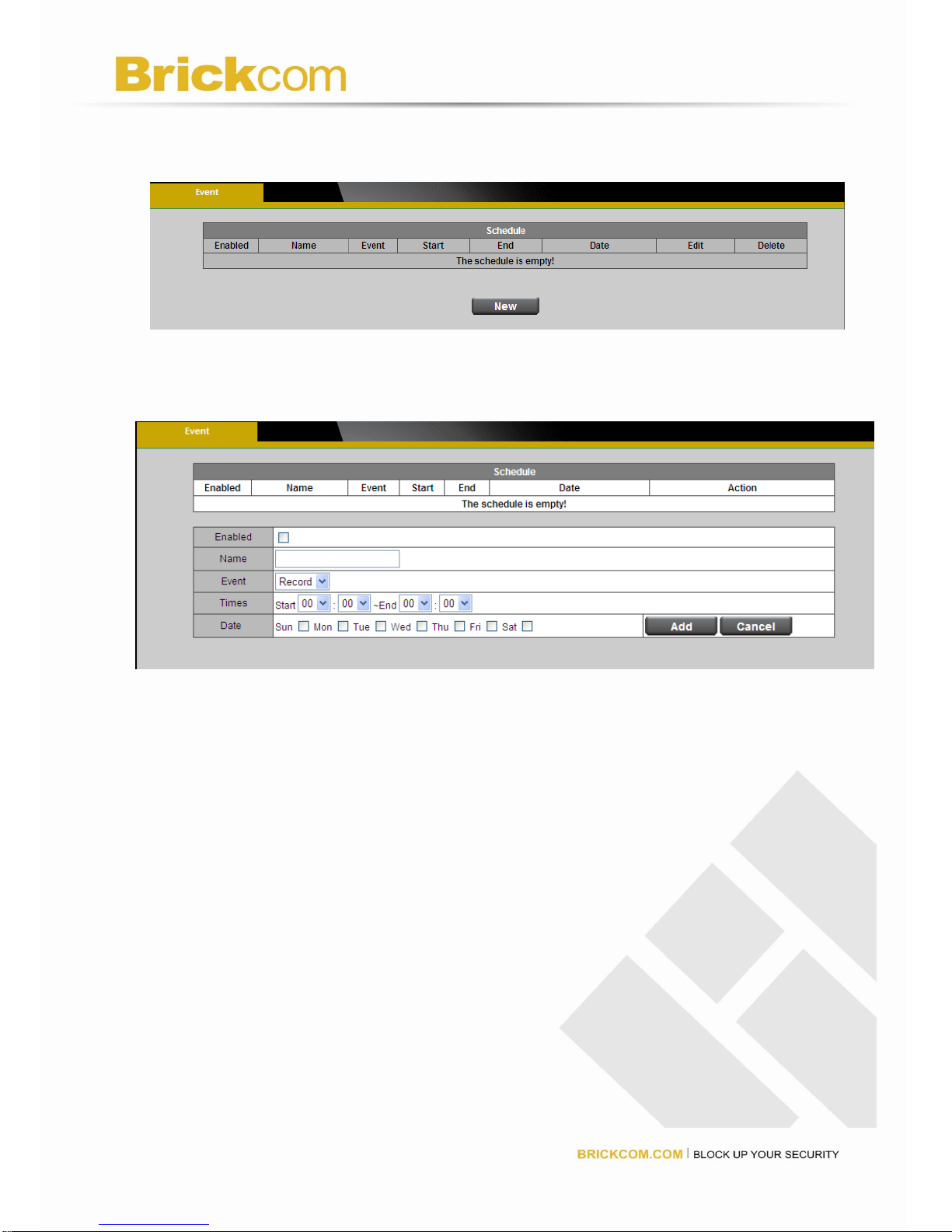

Scheduled Event .............................................................................................. 57

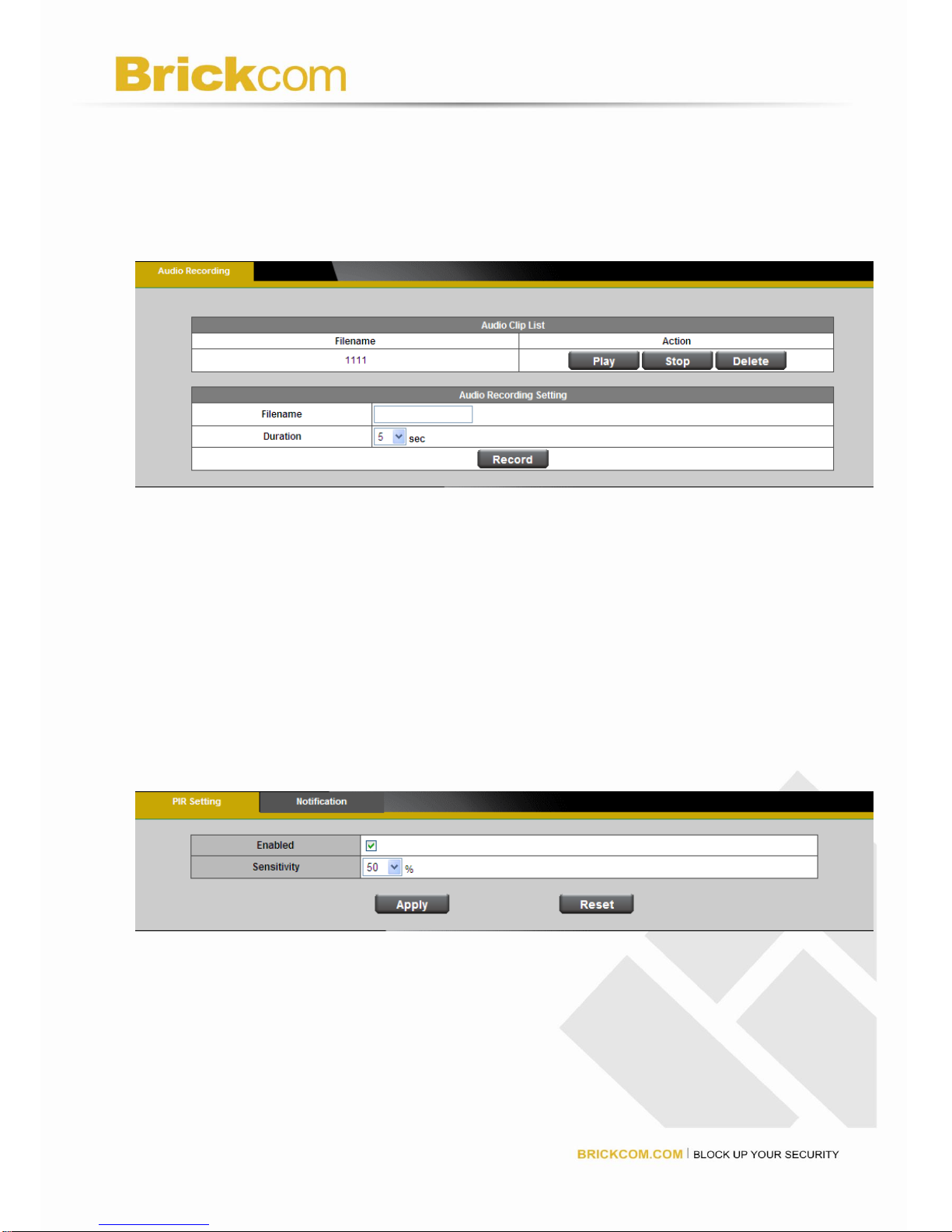

Audio Clip ........................................................................................................ 58

- -

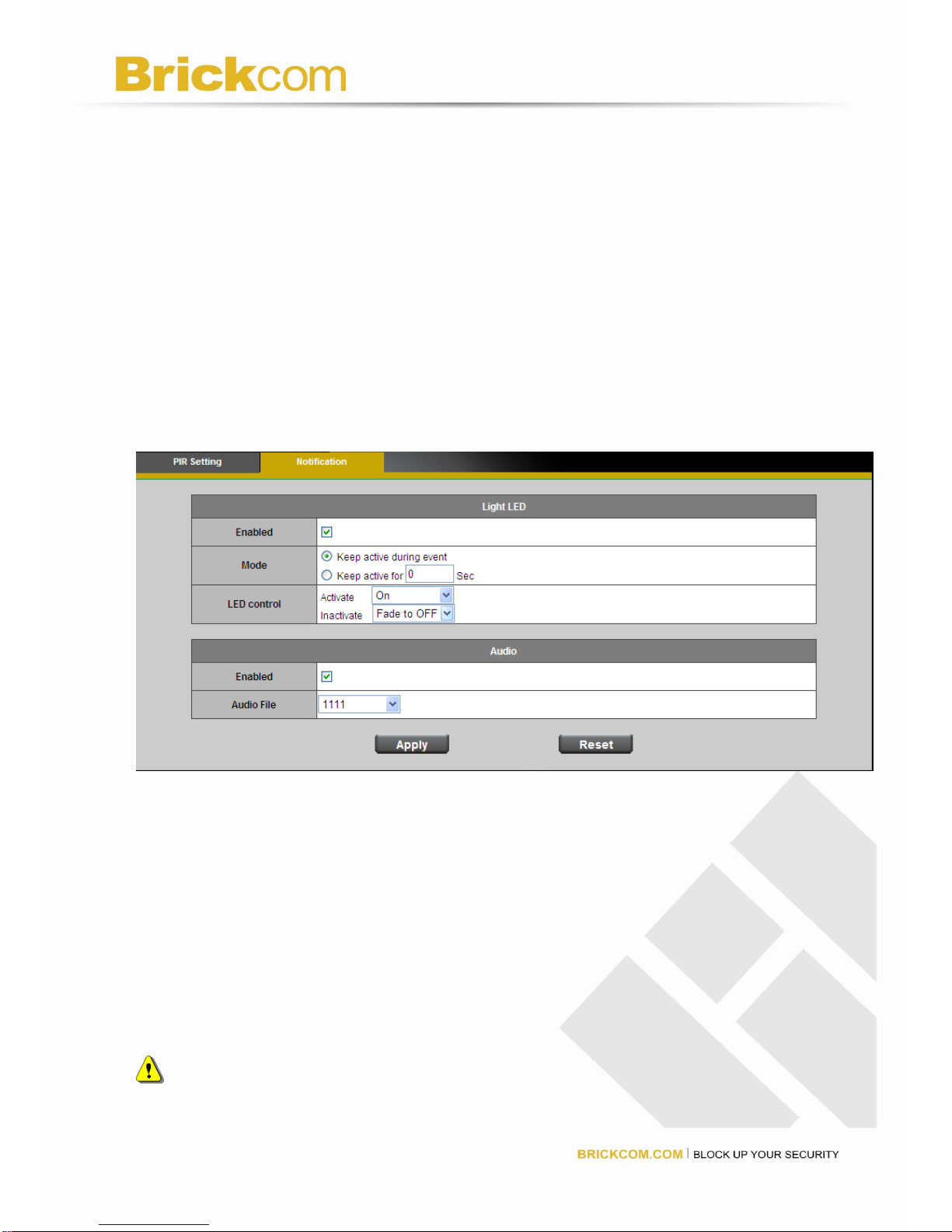

PIR ................................................................................................................... 58

System ................................................................................................................... 60

System Log ...................................................................................................... 60

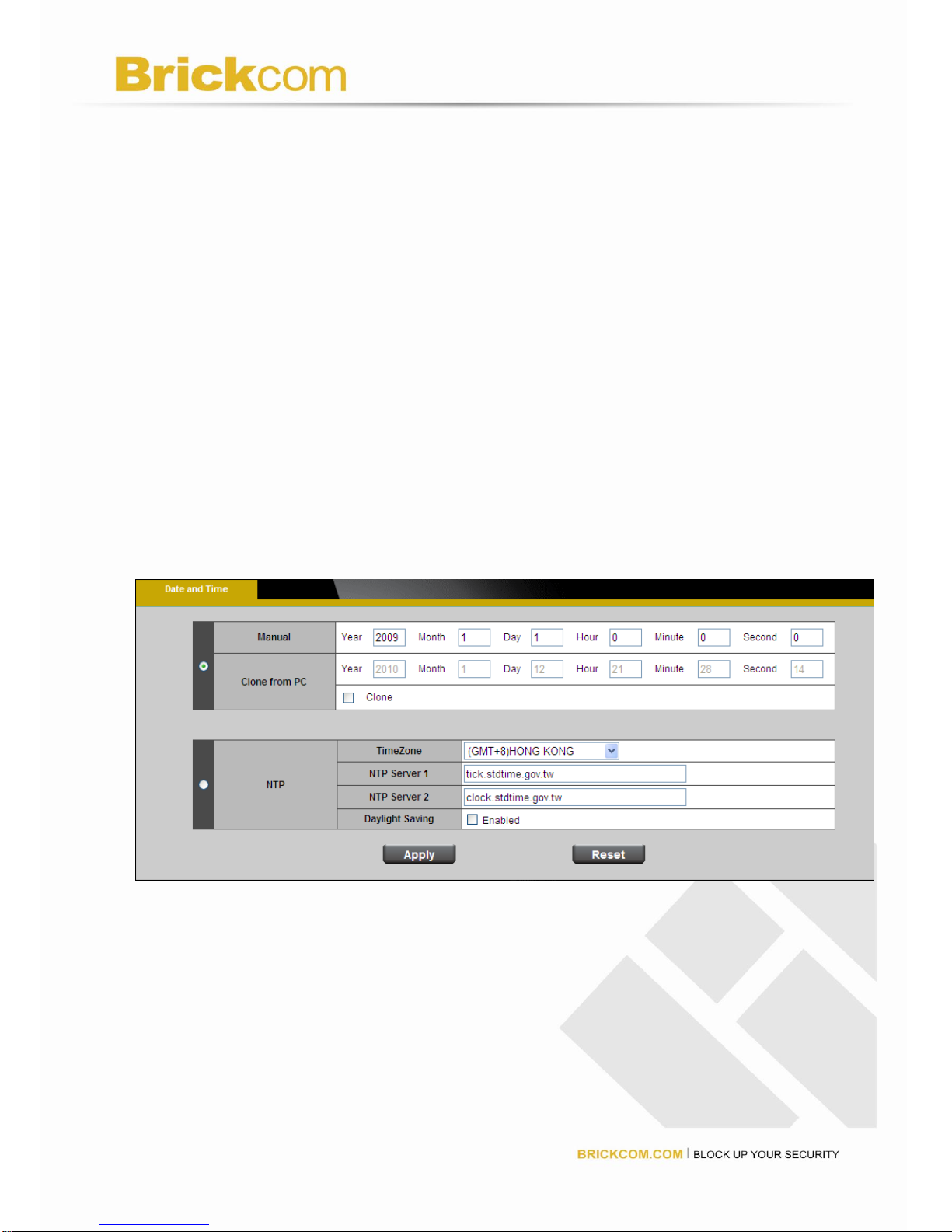

Date & Time ..................................................................................................... 61

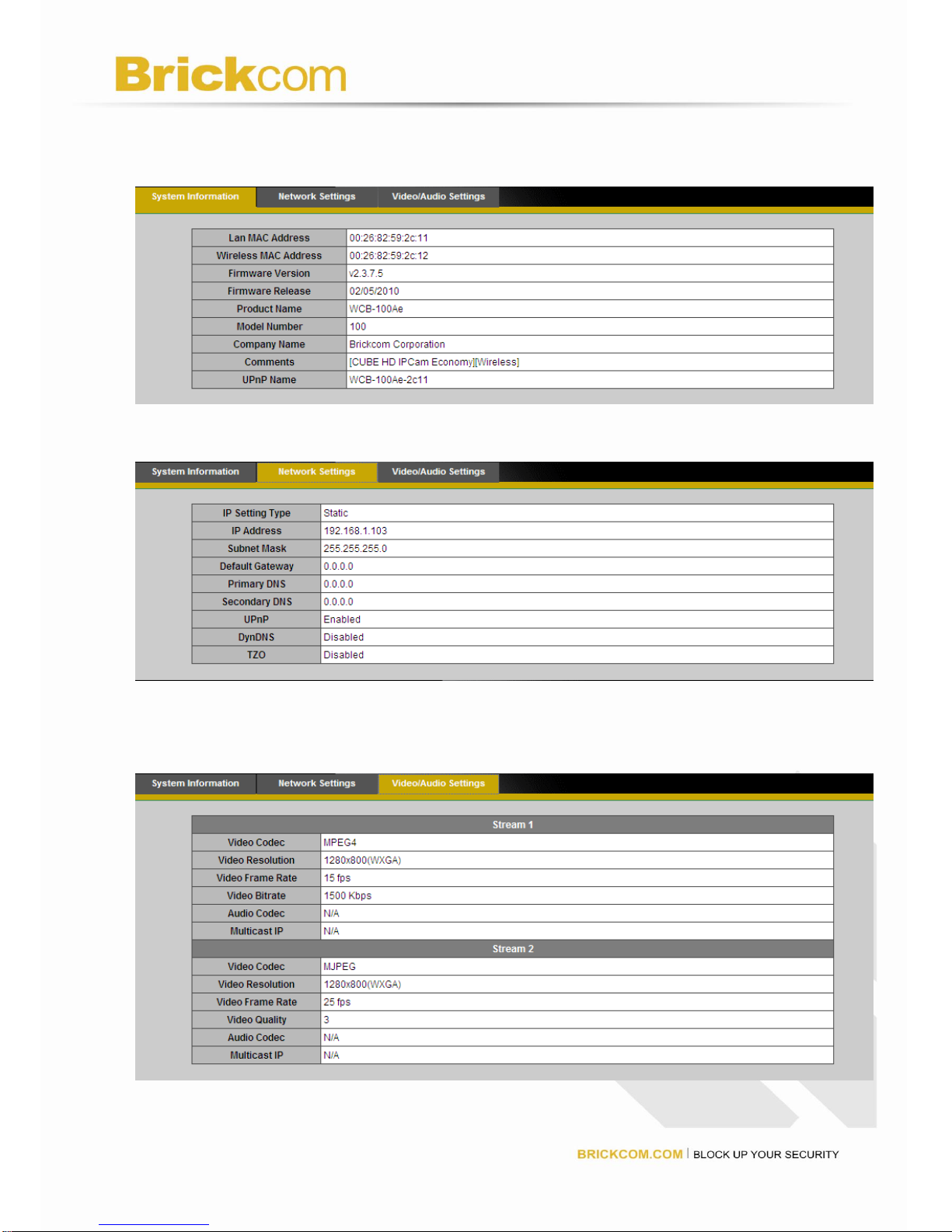

Device Information ........................................................................................... 62

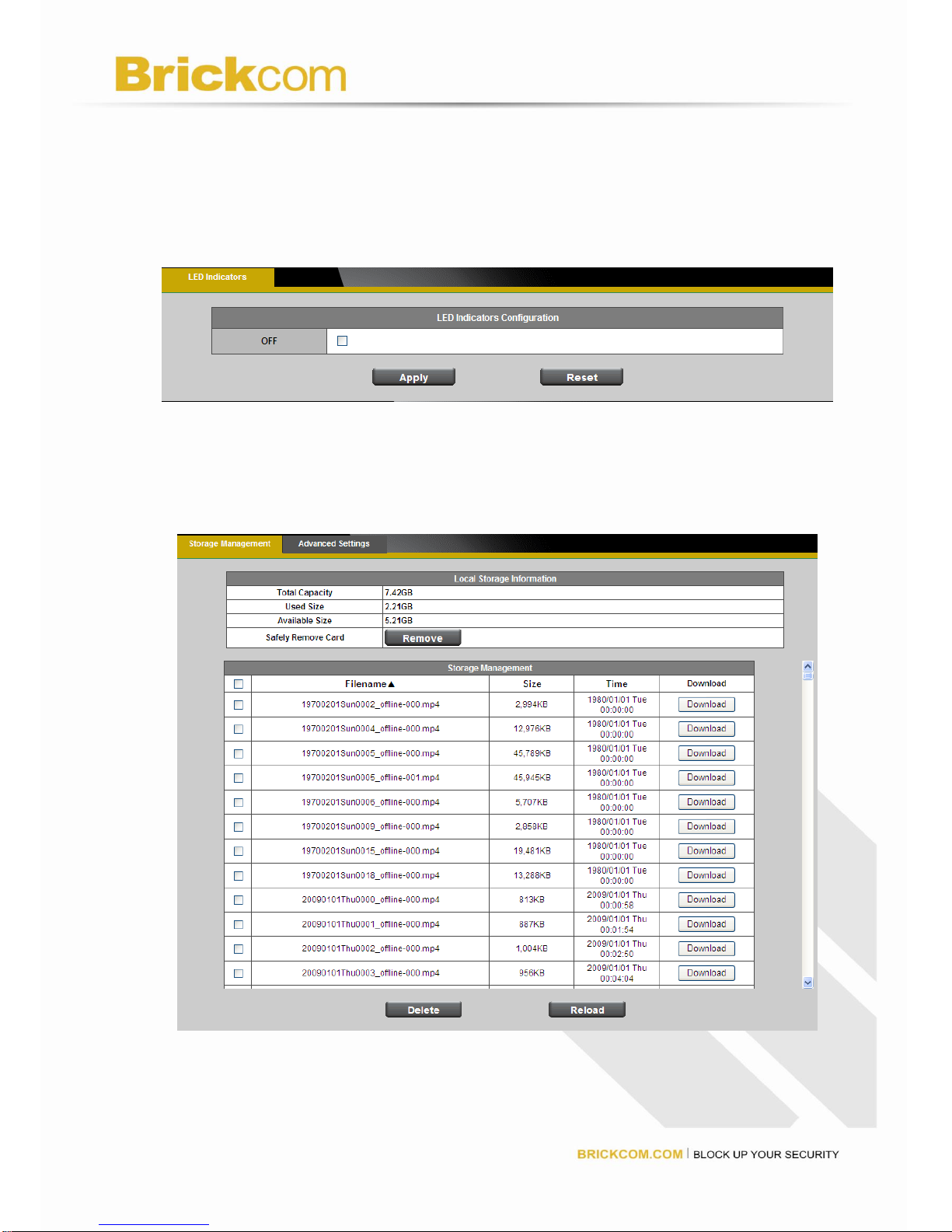

LED Indicators ................................................................................................. 63

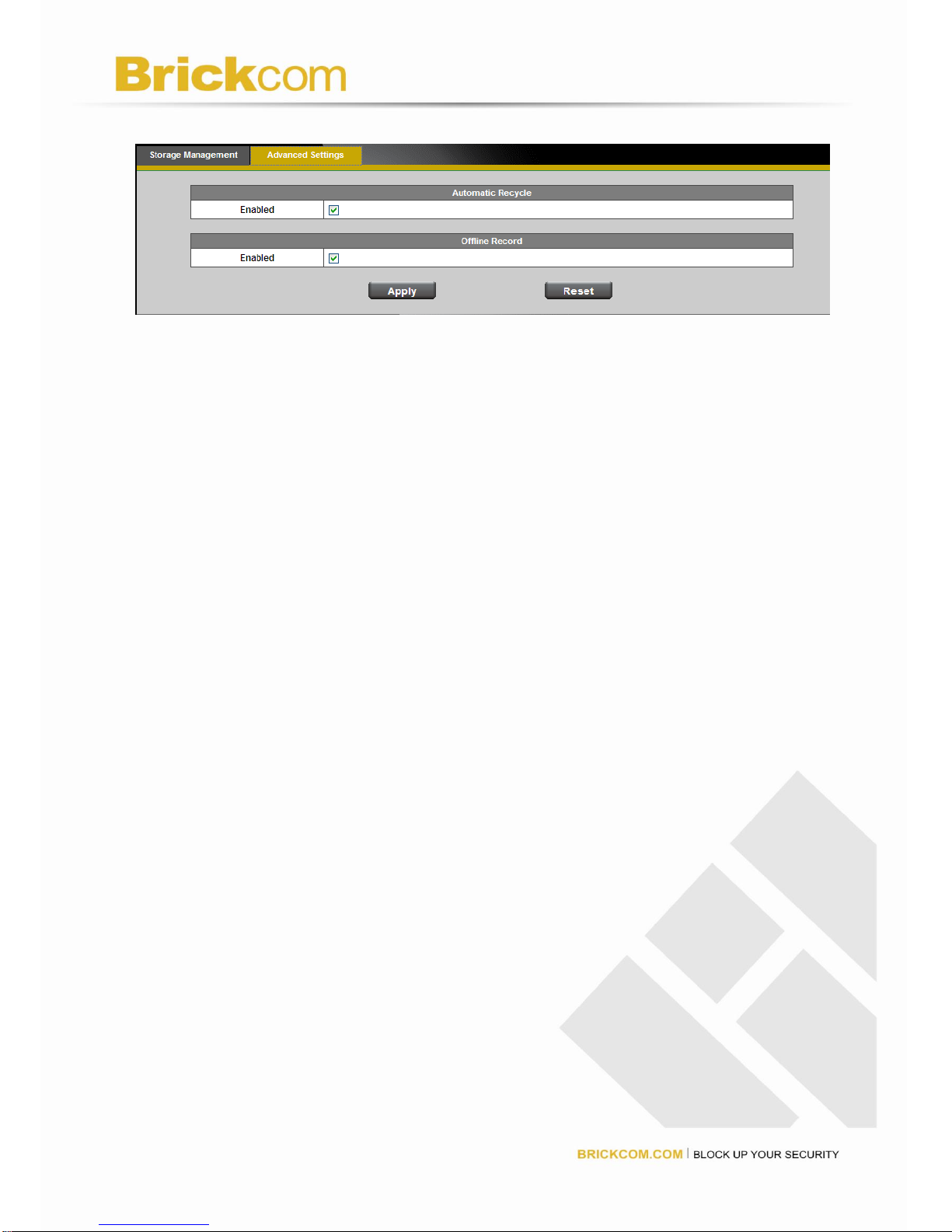

Storage Management ...................................................................................... 63

Maintenance ................................................................ ................................ ........... 65

User Management ........................................................................................... 65

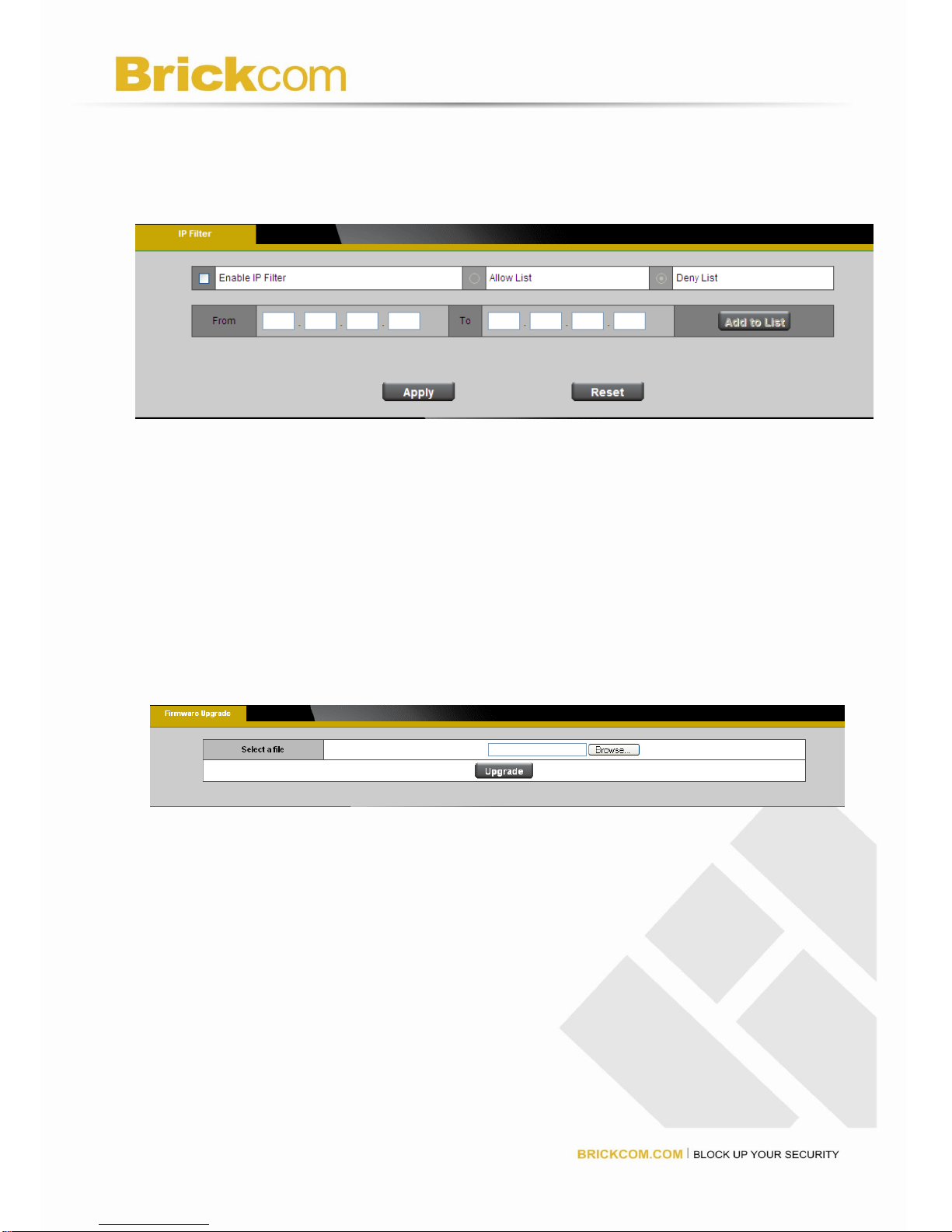

IP Filter ............................................................................................................ 66

Firmware Upgrade ........................................................................................... 66

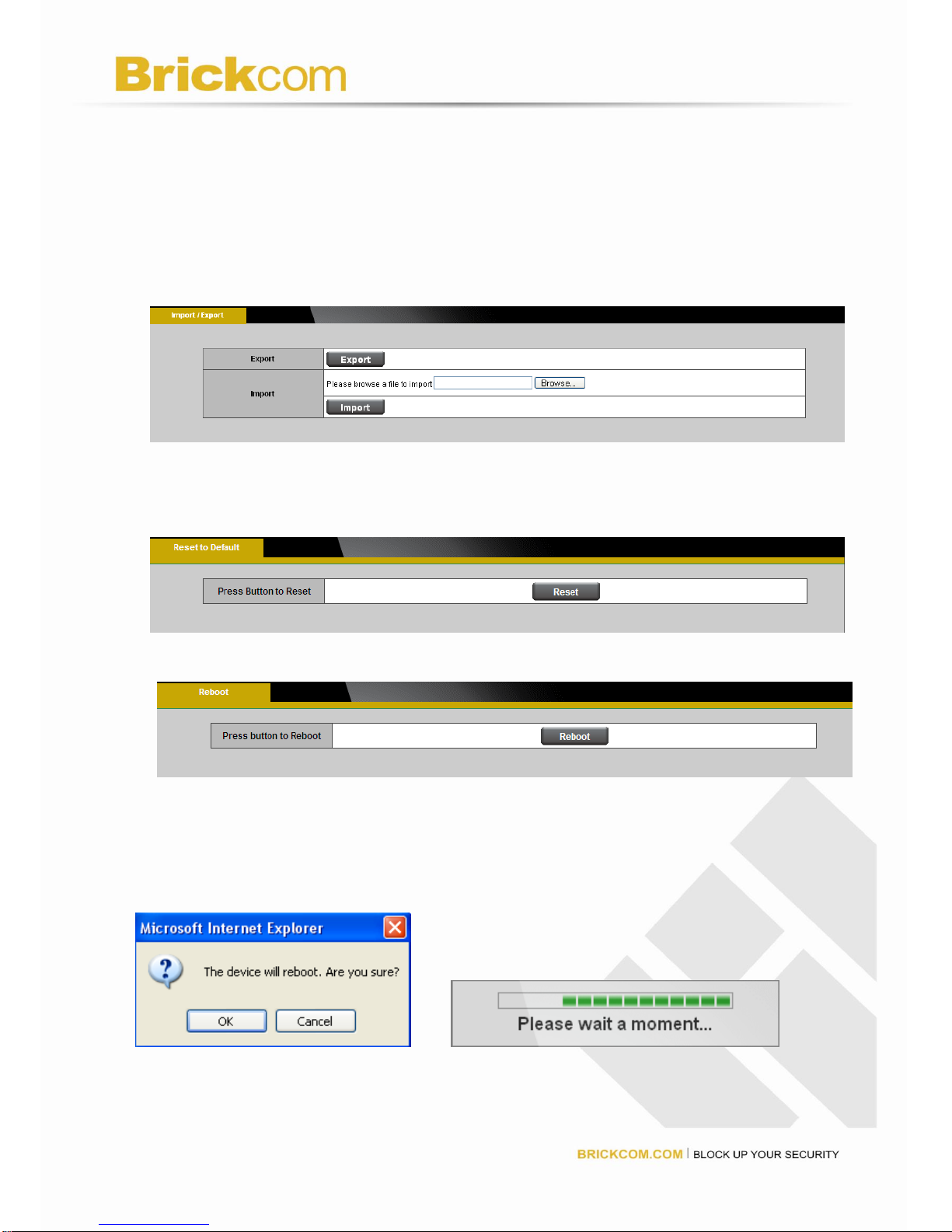

Configuration ................................................................................................... 67

Reset to Default ............................................................................................... 67

Reboot ............................................................................................................. 67

FCC Caution ................................................................................................................. 68

BRICKCOM IPCAM HTTP API ..................................................................................... 69

Preface ................................................................................................................... 69

Overview ................................................................................................................ 69

HTTP API Transaction .................................................................................................. 70

API Categories .............................................................................................................. 72

Streaming API ............................................................................................................... 73

1.1 getChannels .............................................................................................. 77

1.2 getChannel ................................................................................................ 78

1.3 addChannel ............................................................................................... 79

1.4 updateChannel .......................................................................................... 81

1.5 updateChannels ........................................................................................ 82

1.6 getStream .................................................................................................. 83

Camera API................................................................................................................... 84

2.1 setWhiteBalance ....................................................................................... 89

2.2 getWhiteBalance ....................................................................................... 90

2.3 setBrightness ............................................................................................ 90

2.4 getBrightness ............................................................................................ 90

2.5 setColorSaturation ..................................................................................... 91

2.6 getColorSaturation .................................................................................... 91

2.7 setMirrorFlip .............................................................................................. 91

2.8 getMirrorFlip .............................................................................................. 92

2.9 setSharpness ............................................................................................ 92

2.10 getSharpness ............................................................................................ 92

- -

2.11 setContrast ................................................................................................ 93

2.12 getContrast ................................................................................................ 93

2.13 setFrequcny .............................................................................................. 93

2.14 getFrequency ............................................................................................ 94

2.15 setEffect .................................................................................................... 94

2.16 getEffect .................................................................................................... 94

2.17 setEnvMode .............................................................................................. 95

2.18 getEnvMode .............................................................................................. 95

2.19 setIRCutFilter ............................................................................................ 95

2.20 getIRCutFilter ................................................................ ............................ 96

2.21 setIRLED ................................................................................................... 96

2.22 getIRLED ................................................................................................... 96

2.23 setVideoOverlay ........................................................................................ 97

2.24 getVideoOverlay ........................................................................................ 97

2.25 setAutoIris ................................................................................................. 98

2.26 getAutoIris ................................................................................................. 98

2.27 setCameraSetting ...................................................................................... 99

2.28 getCameraSetting ................................................................................... 100

Audio API .................................................................................................................... 102

3.1 setAudioDevice ....................................................................................... 103

3.2 getAudioDevice ....................................................................................... 103

3.3 setAudioMuteState .................................................................................. 103

3.4 getAudioMuteState .................................................................................. 104

3.5 setAudioVolume ...................................................................................... 104

3.6 getAudioVolume ...................................................................................... 104

Network API ................................................................................................................ 105

4.1 setBasicNetwork....................................................................................... 112

4.2 getBasicNetwork ...................................................................................... 113

4.3 setUPnP ................................................................................................... 113

4.4 getUPnP ................................................................................................... 113

4.5 setDDNS .................................................................................................. 114

4.6 getDDNS .................................................................................................. 115

4.7 setEthernet ............................................................................................... 115

4.8 getEthernet ............................................................................................... 116

4.9 setWIFI ..................................................................................................... 116

4.10 getWIFI ..................................................................................................... 117

4.11 setIPFilter ................................................................................................. 118

4.12 getIPFilter ................................................................................................. 119

- -

Storage API (TBD) ...................................................................................................... 120

System API ................................................................................................................. 121

5.1 getDeviceInfo .......................................................................................... 125

5.2 setTimeSetting ........................................................................................ 125

5.3 getTimeSetting ........................................................................................ 126

5.4 setSyslogSetting...................................................................................... 127

5.5 getSyslogSetting ..................................................................................... 127

5.6 getSyslogFile ........................................................................................... 128

5.7 syslogClear ............................................................................................. 128

Admin API ................................................................................................................... 129

6.1 addUser ................................................................................................... 131

6.2 deleteUser ............................................................................................... 132

6.3 getUsers .................................................................................................. 132

6.4 updateUser .............................................................................................. 133

6.5 setHTTP .................................................................................................. 133

6.6 setHTTP/HTTPS ..................................................................................... 134

6.7 getHTTP .................................................................................................. 134

6.8 setHTTPS ................................................................................................ 134

6.9 getHTTPS ............................................................................................... 135

6.10 resetToDefault ......................................................................................... 135

6.11 upgradeFirmware .................................................................................... 135

6.12 reboot ...................................................................................................... 135

6.13 importConfigFile ...................................................................................... 136

6.14 exportConfigFile ...................................................................................... 136

6.15 setPWDComplexity ................................................................................. 136

6.16 getPWDComplexity ................................................................................. 137

Capability API (TBD) ................................................................................................... 138

7.1 getCapability............................................................................................ 138

Motion detection API ................................................................................................... 140

8.1 setMotionDetection .................................................................................. 142

8.2 getMotionDetection ................................................................................. 143

8.3 getMotionDetections ................................................................................ 144

Event API .................................................................................................................... 145

9.1 setEventSetting ....................................................................................... 151

9.2 addEventSetting ...................................................................................... 152

9.3 updateEventSetting ................................................................................. 152

9.4 removeEventSetting ................................................................................ 153

9.5 getEventPolicy ........................................................................................ 153

- -

9.6 getEventRule ........................................................................................... 153

9.7 setEmailSetting ....................................................................................... 154

9.8 getEmailSetting ....................................................................................... 155

9.9 setFTPSetting ......................................................................................... 155

9.10 getFTPSetting ......................................................................................... 156

9.11 setAlarmMediaInfo .................................................................................. 157

9.12 getAlarmMediaInfo .................................................................................. 157

9.13 setSamba ................................................................................................ 158

9.14 getSamba ................................................................................................ 158

I/O Control API ............................................................................................................ 159

10.1 setGPIOSetting ....................................................................................... 159

10.2 getGPIOSetting ....................................................................................... 160

10.3 getGPIOStatus ........................................................................................ 160

MSN API ..................................................................................................................... 161

11.1 setMSNBot .............................................................................................. 162

11.2 getMSNBot .............................................................................................. 163

Before You Use This Product

The use of surveillance devices may be prohibited by law in your country. The Network
Camera is not only a high-performance web-ready camera but also can be part of a

flexible surveillance system. It is the user’s responsibility to ensure that the operation of

such devices is legal before installing this unit for its intended use.

It is important to first verify that all contents received are complete according to the list

in the "Package Contents" chapter. Take notice of the warnings in “Quick installation

guide” before the Network Camera is installed, then carefully read and follow the

instructions in the “Installation” chapter to avoid damages due to faulty assembly and

installation.

Package Contents

a. CB-100A/ WCB-100A

b. Product CD

c. Camera Stand

d. White Flat RJ-45 cable(1.5m)

e. Warranty Card

f. Power Adapter

g. Quick Guide

- 1 -

Cube Network Camera Overview

Compact designed Brickcom CB-100A/ WCB-100A offers high video quality surveillance
solution for residences and small businesses. Unlike general webcam, Brickcom CB-100A/
WCB-100A camera is a standalone complete system that does not need to be connected to a
computer. The built-in web server allows user to access over local area network (LAN) and
through the internet via a web browser for live viewing and intercom functions. Enhanced
facility for user, live viewing can also be supported via 3GPP phone and MSN.

Wireless capacity makes it easy to mount the device anywhere such as wall or desktop.

802.11b/g/n wireless with WPS and Ethernet connectivity can be integrated with an existing

network environment. “Easy Installation Wizard” also allows user to configure device easily,

even without IT background. Furthermore, the fashionable and streamline shape let the
CB-100A/ WCB-100A not only a network camera, but also a decoration device.

The CB-100A/ WCB-100A helps user monitor closely on family members, pets, offices,
properties or anything valuables.
Pet monitor - Office workers can monitor pet in the house anytime, and also deliver

voice by built-in speaker to let pet feel that the Owner is nearby

Residence monitor - Built-in PIR sensor can detect stranger intruding, which can trigger

illumination LED, and send alert with snapshot in email or MMS to user’s portable

device.

Labor monitor - Labor can be monitored when user is outside, and images also can be

recorded and stored in micro SD.

- 2 -

The elderly and baby care - The elderly and baby can be cared easily by live view and

intercom.

Small office surveillance - Employees working status can be monitored by portal device.

- 3 -

Device Appearance Description

< Front & Rear view >

<Side view>

Power Connector

Reset Button

Ethernet RJ45
10/100 Socket

Illumination LED

Speaker

PIR

Built-in

Microphone

Adjustable focal Lens

Micro SD slot

Privacy button

WPS button

(WCB-100A Only)

Power LED

WPS LED (WCB-100A )
Firmware upgrade LED

(CB-100A)

Status LED

Internet LED

Privacy LED

- 4 -

LED Behavior

Function

LED Behavior

Description

Remark

Power

Steady On

Normal Operation

Top
(Blue)

Power

Unlighted

Power off

Top
(Blue)

Status

Steady On

1. Connect to switch by
Ethernet or WiFi.

2. Reset to default.

Second (Blue)

Status

Unlighted

1. Power off

2. No connection

Second (Blue)

Status

1.While F/W upgrading

2.While WiFi site survey

performing

Second (Blue)

Status

Blinking

1.While network
connection in progress

2. Restoring settings.

Second (Blue)

Internet

Steady On

Connect to Internet

Third (Blue)

Internet

Unlighted

1. Power off

2. No connection

Third (Blue)

WPS

WPS in progress

WCB-100A
Fourth (Blue)

WPS

WPS Error

WCB-100A
Fourth (Blue)

- 5 -

WPS

Session overlap detected

WCB-100A
Fourth (Blue)

WPS

Unlighted

WPS Success

WCB-100A
Fourth (Blue)

Firmware
Upgrade

Steady On

Firmware Upgrade
Success

CB-100A
Fourth (Blue)

Privacy

Steady On

Privacy mask active

Bottom(Red)

Privacy

Unlighted

Privacy mask inactive

Bottom(Red)

Hardware Reset

The reset button is used to reset the system or restore the factory default settings. Sometimes
resetting the system can return the camera to normal operation. If the problems remain after
reset, please restore the factory settings and install it again.
Reboot - Please press and release the indented reset button within 1 second with paper clip
or thin object. Wait for the network camera to reboot.
Restore - Please press and hold the reset button until the status of LED turns off. It takes
about 10 seconds. Please note that all settings will be restored to factory default. Upon
successful restore, the status of LED will be blue again during normal operation.

Micro-SD Card Capacity

The network camera is compliant with Micro-SD (Maximum 32GB) cards.

Reset Button

- 6 -

Installation

System Requirements

Operating System
Microsoft Windows XP Home Edition SP2
Microsoft Windows XP Professional SP2
Computer
IBM PC/AT Compatible
CPU
Pentium 3GHz or faster
Memory
1024 MB or more
Monitor
1024 x 768 pixels or more, 24-bit True color or better
Network Interface
10/100Mbps Network interface card must be installed
Web Browser
Microsoft Internet Explorer 6.0 SP2
CD-ROM Drive
It is necessary to read the operating instructions in the provided CD-ROM.
Adobe Reader
It is necessary to read the operating instructions in the provided CD-ROM.

 Audio function will not be working if a sound card is uninstalled on PC. Audio may be

interrupted depending on the network environment.

- 7 -

Camera Connection

Basic Connection

1. Connect the supplied power cable from the camera to the power outlet.

2. Connect the camera to a switch via Ethernet cable.

Please check your product package contains all the accessories listed in the foregoing
Package Contents. Upon powering up, the power LED will become lighted first and then
the device will go through booting process. The status LED will be steady amber for getting
IP address. After getting IP Address, the link LED will blink orange while network
connection is processing.

- 8 -

Software Installation

In this manual, "User" refers to whoever has access to the Network Camera, and
"Administrator" refers to the person who can configure the Network Camera and grant user
access to the camera.
After hardware connection checking, the users can run the Installation Wizard program
included in the product CDROM to automatically search for the Network Camera in the
Intranet. There may be many Network Cameras in the local network. Users can differentiate
the Network Cameras with the serial number. The serial number is printed on the labels on the
carton and the bottom of the Network Camera body.

Insert the Installation CD into the CD-ROM driver. Run Auto run Tool from the CD-ROM
directly to start the installation. For the first time of installing Brickcom software kit, select a
desired language for the interface. The available languages are listed in the scroll box.
Click “Install” and follow the steps to install the easy configuration wizard on user’s computer.

- 9 -

In the Install Shield Wizard dialog box, click <Next> to continue.

Check the option “I accept the terms of the license agreement”.
Click <Next> to continue.

- 10 -

Select appointed folder where setup will install files to. Click <Change> to modify the
installation directory. Click <Next> to continue.

Select either “Complete” setup type or “Custom” setup type to install the System. If
COMPLETE SETUP TYPE is selected, install all program features into the default
directory. Check the option “Complete”, and then click <Next>. All program features
will be installed.

- 11 -

Display the installation information. Click <Next> to continue.

Select either EasyConfig or PC-NVR to launch.

- 12 -

If CUSTOM SETUP TYPE is selected

Install the system to a preferred directory. Or select whichever program feature(s) to
install. This is recommended for advanced users.
Check the option “Custom”, and then click <Next>.

Select the features you want to install. Click <Next> to continue.

- 13 -

Select to create the EasyConfig shortcuts, click <Next> to continue.

Select to create the PC-NVR Lite shortcuts, click <Next> to continue.

- 14 -

Display the installation information. Click <Next> to continue.

Select either EasyConfig or PC-NVR to launch.

- 15 -

EasyConfig

Double click on the shortcut icon on the desktop. Note that this is only available if the” Shortcut
Selection” component is installed.

Do not checks the option box if user would like to check the hardware installation settings,
Otherwise checks <Skip the hardware installation> to skip the hardware connection
checking, the program will automatically search for the Network Camera in the Intranet.
Click <Start> to continue.

- 16 -

- 17 -

User can either select simple mode or professional mode for network camera IP setting. If
simple mode is selected, the easy configuration program will set up the connection
automatically. If professional mode is selected, the user will need to configure the IP
manually.

- 18 -

There may be many Network Cameras in the local network. Users can differentiate the
Network Cameras with the UPnP name. Select the Network Camera you want to connect from
the survey list.

- 19 -

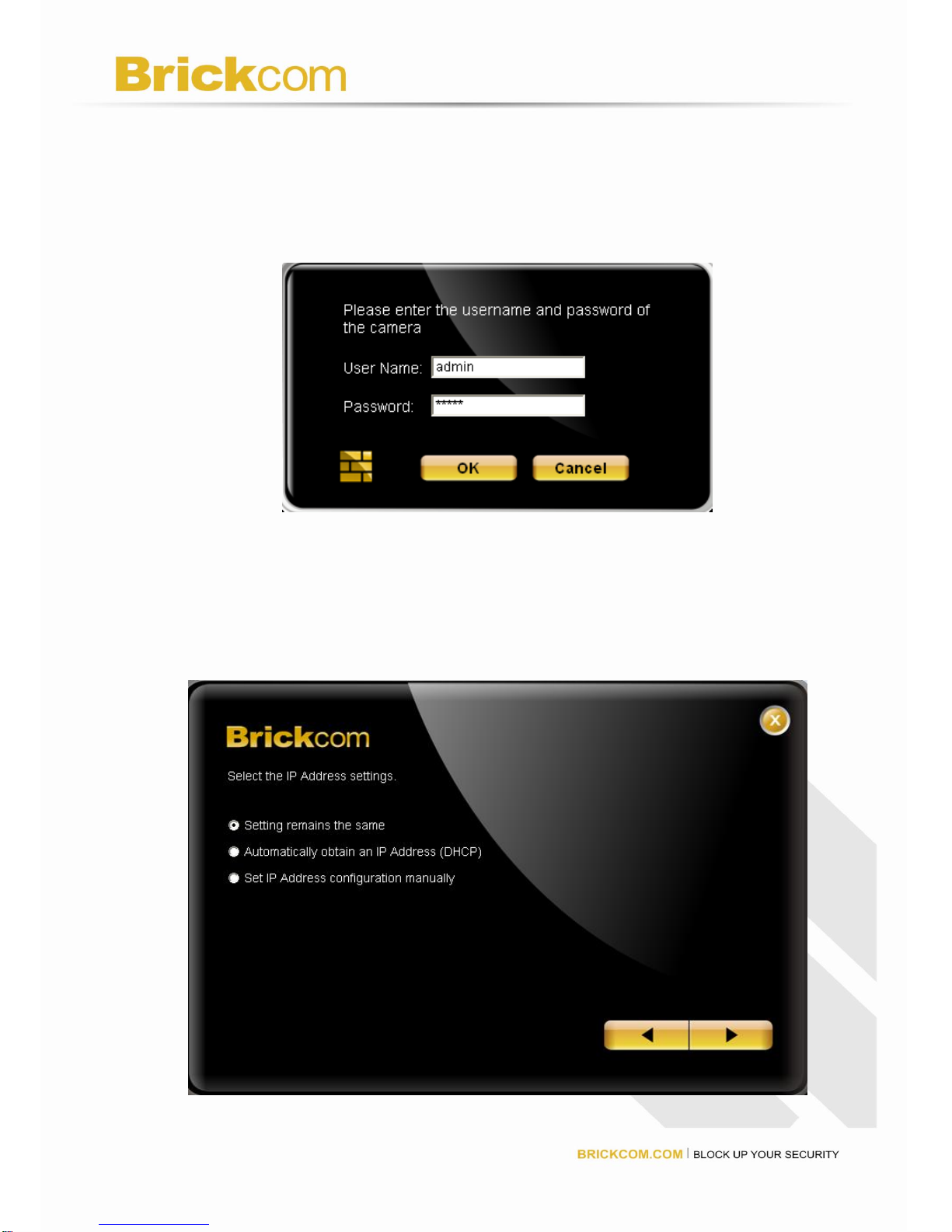

Please enter the username and password if other than default setting. The username and
password are assigned as “admin/admin” as default.

The DHCP setting is recommended. User can either select <Setting Remains the
same> or set IP address manually, if user wants set IP address manually, please refer to
the product user manual.

- 20 -

If <Set IP Address Configuration manually> is selected, the following pages will be
displayed.

- 21 -

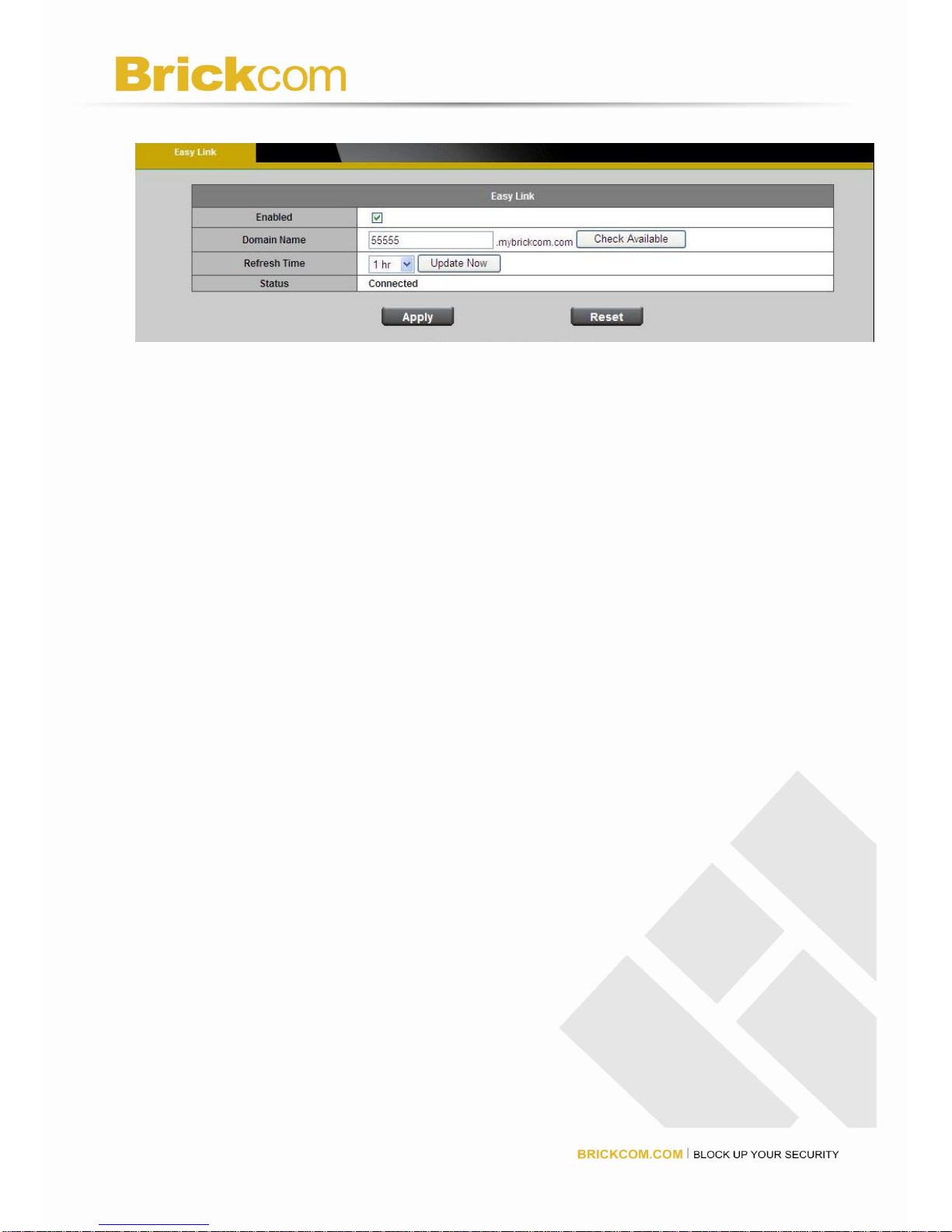

If device supports Easy Link function, the following page will be displayed.

Easy Link - Enables network camera comes with everything you need to quickly add a
surveillance camera to your home or small office network. To view what the camera is
seeing, simply log on to mybrickcom.com, choose your device domain name which you
created, and start viewing – there is no need to configure your router to open up ports or
remember hard-to-memorize Internet addresses.
As a mybrickcom-enabled device, the camera can be accessed anytime; anywhere you
have an Internet connection by simply logging on to the mybrickcom website and
selecting your camera.
Click to enable and enter the domain name, which length should be between 5-32
characters.
Select refresh time from the drop-down menu to confirm the connection status.
Click <Skip> to skip this setting or click <Next> to continue.

- 22 -

After finish setting, the connection successful or fail showed. If connection failed, user
can either try again or quit the installation. User can either select PC-NVR or Live View to
continue or click <X> on the top right of the screen to finish the installation. Click <Live
View> to view the live video of connected IP Camera. Click <PC-NVR> to start the
PC-NVR program.

If DHCP is selected, the failure page will be displayed as below.

- 23 -

If Static IP is selected, the failure page will be displayed as below.

Once installation is completed, the Administrator should proceed to the next section
"Access to the Network Camera" for necessary checks and configurations.

- 24 -

Access to the Network Camera

Check Network Settings

The Network Camera can be connected either before or immediately after software
installation onto the Local Area Network. The Administrator should complete the network
settings on the configuration page, including the correct subnet mask and IP address of
gateway and DNS. Ask your network administrator or Internet service provider for the detail
information.

Add Password to prevent Unauthorized Access

The Administrator should immediately implement a new password as a matter of
prudent security practice. The user name and password for the Administrator are assigned

as “admin/admin”. Once the Administrator’s password is saved, the Network Camera will ask
for the user’s name and password before each access. The Administrator can set up a

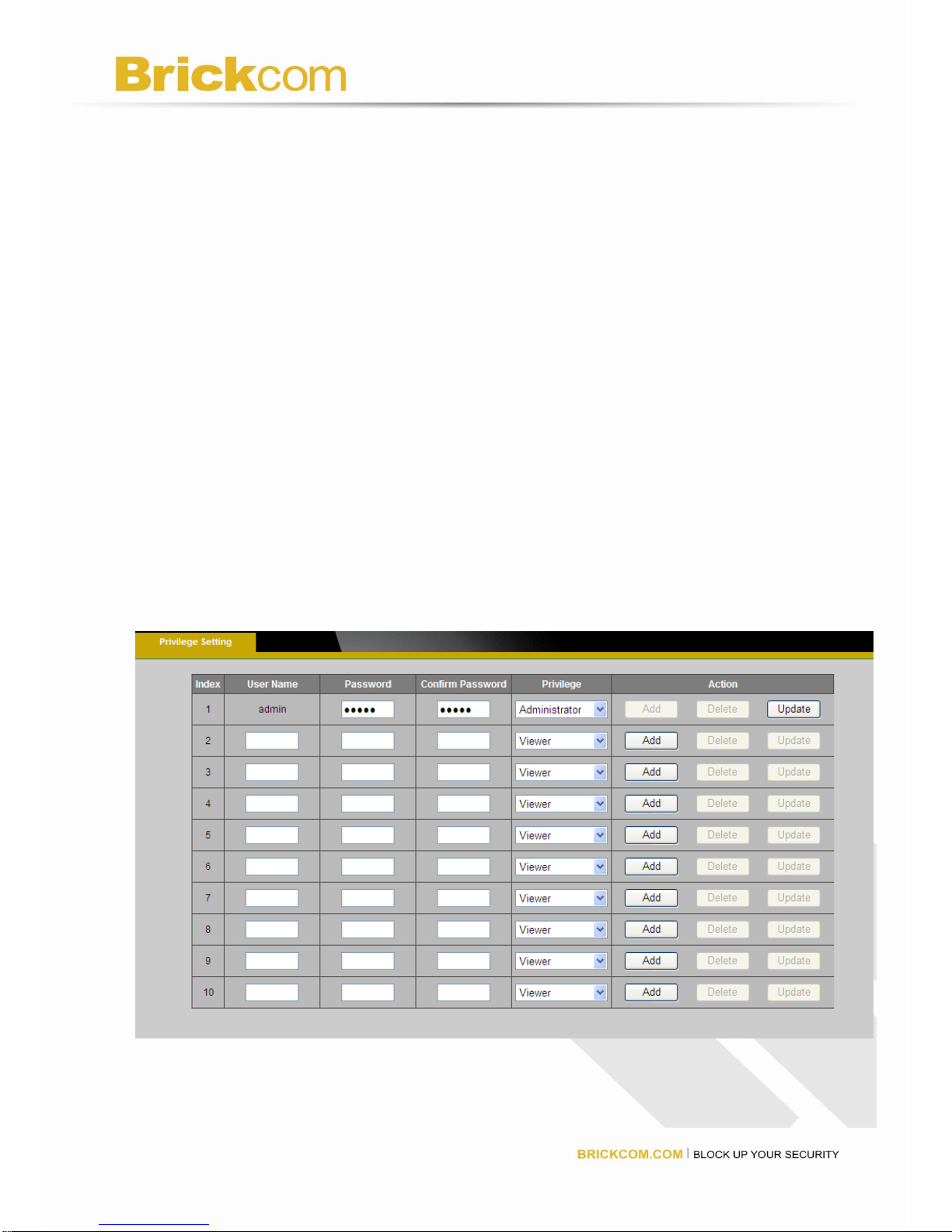

maximum of ten (10) user accounts. Each user can access the Network Camera except to
perform system configuration. Once the password is changed, the browser will display an
authentication window to ask for the new password. Once the password is set, there is no

provision to recover the Administrator’s password. The only option is to restore to
the original factory default settings.

- 25 -

Authentication

After opening the Web browser and typing in the URL of the Network Camera, a dialogue
window pops up to request a username and password. The user name and password for the
Administrator are assigned as “admin/admin”. Upon successful authentication, the following
figure is displayed.
The foreground is the login window and the background shows the message if authentication
fails. The user may check the option box to save the password for future convenience. This
option is not available to the Administrator for obvious reason.

- 26 -

Installing plug-in

For the initial access to the Network Camera in Windows, the web browser may prompt for
permission to install a new plug-in for the Network Camera on the Internet Explorer.

Permission request depends on the Internet security settings of the user’s PC or notebook. If

the highest security level is set, the computer may prohibit any installation and execution
attempt. This plug-in has been registered for certificate and is used to display the video in the

browser. Users may click on to proceed. If the web browser does not allow the
user to continue to install, check the Internet security option and lower the security levels or

contact your IT or networking supervisor for help.

NOTE – If error or fail occurred, it is because of the version of the Electronic Signature is
newly released, VeriSign has not submitted to Microsoft Windows update for validation.
Therefore, user default will not have its root certificate. If IE discovers that there is no root
certificate after user’s PC connected to IPCam, it will automatically redirect to VeriSign Web
site to download and install the latest root certificate to make the installation successfully. If
the user’s computer is able to connect to IPCam, but unable to access to the internet, then it
would not be able to download the latest root certificate, therefore the installation will fail.
This problem can be resolved if computer can be connected to both internet and IPCam at the
same time and will not recur when Windows update patches become available.

- 27 -

Live View

Live View is the default page that opens when accessing the Network Camera. Live video is

displayed directly in the browser window.
 Stream1/Stream2 Channels
The network camera offers simultaneous dual stream for optimized quality and bandwidth. To
configure the codec compression and video resolution, please go to the
Configuration->Camera/Video/Audio->Video to make the changes, or refer to the Video
configuration on page 32.

 TCP/UDP protocol
TCP - This protocol guarantees the complete delivery of streaming data and thus provides

better video quality. Nevertheless, the downside with this protocol is that its real-time effect is
not as good as that of the UDP protocol.

- 28 -

UDP - This protocol allows for more real-time audio and video streams. However, network

packets may be lost due to network burst traffic and images may be broken. Activate UDP
connection when occasions require time-sensitive responses and the video quality is less
important.
 LED Control – Select from the drop-down menu to adjust the brightness of the camera’s

LED.

/ Recording on/off - shows the status of recording video

/ MIC on /off - shows the status of MIC volume

/ Speaker on/off - shows the status of Speaker

/ MD on/off - shows the status of Motion Detection

 Brightness - Drag the slider bar to adjust the image brightness level.
 Mic volume - Drag the slider bar to adjust the Mic volume.
 Speaker volume - The built-in speaker plays the sound of an audio clip from computer

MIC when it is enabled.

For more Audio setting, please refer to the Audio configuration on page 35.

Play or Stop - Click this button to play or stop the video.

Recording - Click this button to record video to your computer.

Snapshot - Click this button to capture and save still images.

Digital Zoom - Click this button to enable the zoom operation.

Mirror - horizontally reflect the display of the live video.

- 29 -

Flip - vertically reflect the display of the live video.

Real Size - click this button to view the object in real size. Press this button again

to switch back to normal mode.

Full Screen - Click this button to switch to full screen mode. Press “Esc” key to

switch back to normal mode.

Motion Detection Alert - Click this button to enable motion detection alert function.

Mute – No sound.

Talk – Click this button to speak to the computer MIC.

Set Default – Click this button to reset to default setting.

NOTE

1. The <Camera Control Panel> function has no effect on the recorded video. Whatever
changes made to the <Camera Control Panel> will not be applied to the recorded video.

2. The LED is not for continuous use and has an estimated life span of 30000 hours.

3. The LED can not be replaced.

- 30 -

Configuration

Click Configuration on the main page to enter the camera setting pages. Note that only
Administrators can access the configuration page.

Camera/Video/Audio

Camera

Brightness - Drag the slider bar to adjust the image brightness level, which ranges from -5 to

+5.

Contrast - Drag the slider bar to adjust the image contrast level, which ranges from -5 to +5.
Sharpness - Drag the slider bar to adjust the image sharpness level, which ranges from -5 to

+5.
Saturation - Drag the slider bar to adjust the image saturation level, which ranges from -5 to
+5.

- 31 -

Exposure Control
Sport – Select this option when detecting the fast moving object.
Normal – Select this option with normal detection.
Night Vision – Select this option when detecting at night or at low lighting conditions.
User Defined – Select this option if user wants to define manually.

AGC (Auto Gain Control) - Set the Gain rate higher for a better video illumination.

However, higher gain rate may cause bigger judder on fast moving images or blurring
problems.

Shutter Speed
Fast – As sport exposure function.

Normal – As normal exposure function.
Slow – As night vision exposure function.
AE Lock (Auto Exposure)
The camera fixed the auto exposure even when change of the ambient light.

Mirror and Flip
Mirror - Enable to horizontally reflect the display of the live video.
Flip - Enable to vertically reflect the display of the live video.

Flicker-Free – eliminate the problem of flicker.

Click radio button to select either outdoor or indoor mode based on the environment.

Color Effect - Select to display colorful or black and white video streams.
Click Apply or Reset to take effect.

- 32 -

Video

You can set up two separate streams for the Network Camera for different viewing devices.

Stream 1 & Stream 2

Video Codec - The Network Camera offers three choices of video codec standards for

real-time viewing: H.264, MPEG-4 and MJPEG.

(Note - WCB-100Ae does not support H.264 codec.)

Video Resolution - Select from the drop-down menu to choose the best resolution that fit
your need.
Frame Rate - Select from the drop-down menu of the frame rate, which ranges from 2 to 30
fps when H.264 or MJPEG is selected. Only 3 to 15 fps can be chosen when MPEG-4 is
selected. Set the frame rate higher for a smoother video quality.

Video quality and bit rate - User can either choose “quality” or “bitrate” to control the
video quality with video codec at H.264 or MPEG4. Only “quality” can be chosen when

- 33 -

video codec at MJPEG is selected. Set the bitrate higher for a better video quality.
However, high bitrate may cost high network bandwidth resources.
The video qualities are selectable at the following settings: Level 1 to Level 6, Level 6 gives
the best image quality.
HTTP Transport – Enable to use HTTP protocol for video/audio communication.
Click Apply or Reset to take effect.

NOTE - For best recording experience, configure your IP camera to one of the following
frame rates based on the Flicker-Free setting:

Flicker-Free Frame Rate

------------------------------------ ----------------------------------

Outdoor 25, 10, 7, 5, 3, 2

Indoor (50/60 Hz ) 25, 20, 10, 7, 5, 3, 2

Video Overlay

Check to enable the timestamp function and select display position from the drop-down menu if
user wants date and time to be shown on the screen of the live video. User may also enable and
enter the video description in text box; and select display position from the drop-down menu if
user wants to make a note about the network camera. Click Apply or Reset to take effect.

NOTE - The video overlay only takes effect in stream 1.

- 34 -

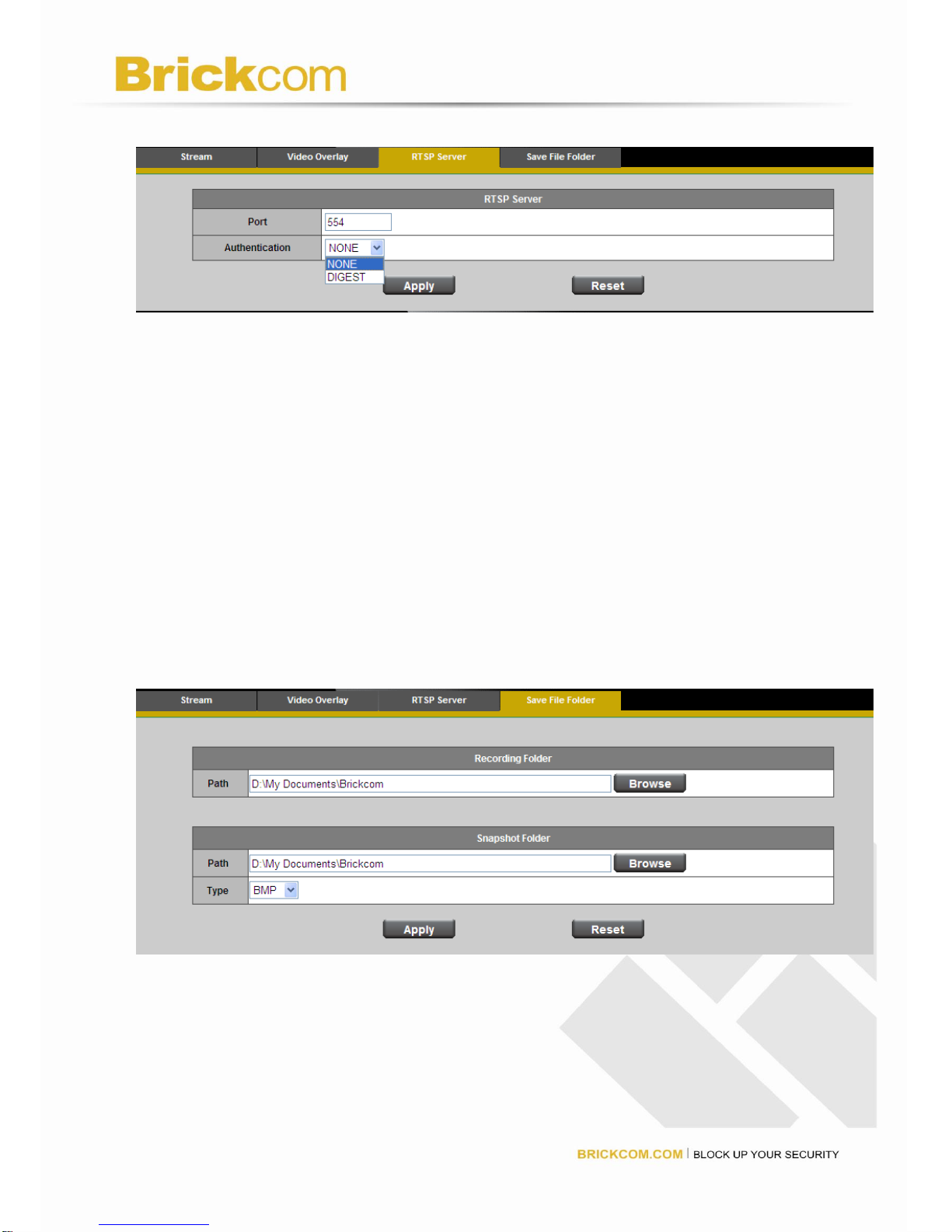

RTSP Server

To utilize RTSP authentication, make sure that you have set a password for the Network
Camera first.
RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default the
port number is set to 554.
Authentication - Depending on your network security requirements, the Network Camera
provides two types of security settings for streaming via RTSP protocol: NONE and DIGEST.
If DIGEST authentication is selected, user credentials are encrypted using MD5 algorithm, thus
providing better protection against unauthorized access.

Save file folder

- 35 -

Recording folder path - The destination for saving the recording video files. Click browse

to specify the saving path.
Snapshot folder path - The destination for saving the snapshot files. Click browse to
specify the saving path and select saving type from the drop-down menu.

Click Apply or Reset to take effect.
Audio
You can set up two separate streams for the Network Camera for different viewing devices.
User can either enable or disable the audio function. If audio enable is selected, select the
Audio codec from the drop-down menu.

Advanced Settings

Camera Speaker – If speaker enable is selected, select the volume from the drop-down menu.
(Note - WCB-100Ae does not support this function)
Echo cancellation Enabled - Enable to avoid an echo. Click Apply or Reset to take effect.

- 36 -

Multicast

Multicast sends a stream to the multicast group address and allows multiple clients to acquire
the stream at the same time by requesting a copy from the multicast group address. Therefore,
multicast can effectively save Internet bandwidth. The RTSP (Real-Time Streaming Protocol)
controls the delivery of streaming media. Click to enable Multicast stream 1 / Multicast stream 2.
The default value for multicast address and port are 234.1.2.3 and 10000. Use different port
number for different stream. Use default value is recommended if you are not sure how to
setting.

NOTE - Using the IP address of the camera enables you to view the video.
Example: rtsp://192.168.1.1/channel1
Click Apply or Reset to take effect.

- 37 -

Privacy Mask Control

Privacy Mask Control - Enable to concealment of parts of the image that are not to be

viewable.
Hardware Privacy Mask Button – Check to enable hardware Privacy Mask Button.
(Note - WCB-100Ae does not support this function)

- 38 -

Network

IP Settings

This section explains how to configure wired network connection for the Network Camera.

There are several ways to setup the Network Camera over the Internet. The first way is to

obtain an available dynamic IP address assigned by a DHCP server. The second way is to

utilize a static IP. The third way is to use PPPoE. Select IP settings from the drop-down menu.

DHCP - Get IP address automatically. Select this option to obtain an available dynamic IP
address assigned by a DHCP server each time the camera is connected to the LAN.

Static IP - Select this option to manually assign a static IP address to the Network Camera.
Enter the static IP address, Subnet mask, Default Gateway, Primary and Secondary DNS
provided by your ISP.

- 39 -

PPPoE - (Point-to-point over Ethernet): Choose this connection type if you are connected

to the Internet via a DSL Line. Note that to utilize this feature, it requires an account
provided by your ISP. Enter the user name and password provided by your ISP.
Click Apply or Reset to take effect.

UPnP

Only UPnP discovery supported. Enable this function to allow the user to search for devices of
interest on the network. Enter the UPnP name as you wish to show on the intranet.

Click Apply or Reset to take effect.

- 40 -

DDNS (dynamic domain name service)

DynDNS - Enable the DDNS service allows your Network Camera, especially when assigned

with a dynamic IP address, to have a fixed host and domain name. Note that before utilizing this
function; please apply a dynamic domain account first. Enter the username, password and
hostname when enabled the DDNS.
Click Apply or Reset to take effect.

TZO

TZO is one kind of the DDNS providers. User can refer to the TZO.com: visit

http://www.tzo.com/ to apply a dynamic domain account when selecting this DDNS provider.

Enter the e-mail address, password and domain name when enabled the TZO.
Click Apply or Reset to take effect.

- 41 -

Easy Link

Easy Link - Enables network camera comes with everything you need to quickly add a
surveillance camera to your home or small office network. To view what the camera is seeing,
simply log on to mybrickcom.com, choose your device domain name which you created, and
start viewing – there is no need to configure your router to open up ports or remember
hard-to-memorize Internet addresses.
As a mybrickcom-enabled device, the camera can be accessed anytime; anywhere you have
an Internet connection by simply logging on to the mybrickcom website and selecting your
camera.
Click to enable and enter the domain name, which length should be between 5-32 characters.
Click “Check Available” to check the usability of domain name and select refresh time from the
drop-down menu to confirm the connection status.
Click Apply or Reset to take effect.

- 42 -

Wireless

These settings control how the camera interacts with the wireless network. Apart from
identifying the wireless network, it is also possible to enable wireless encryption.
(Note – For WCB Models only); With the W- variants optionally offering wireless connectivity
for added flexibility.

Basic Settings

Network Name (SSID) - The SSID is the network name shared among all points in a wireless

network. The SSID must be identical for all devices in the wireless network. It is case-sensitive
and can be up to 32 characters in length. Make sure this setting is the same for all points in your
wireless network.
Wireless devices have a default wireless network name or Service Set Identifier (SSID) set by
the factory, Brickcom wireless products use Brickcom as the default wireless network name.
You should change the wireless network name to something unique to distinguish your wireless
network from other wireless networks that may exist around you, but do not use personal
information, because this information may be available for anyone to see when browsing for
wireless networks.

- 43 -

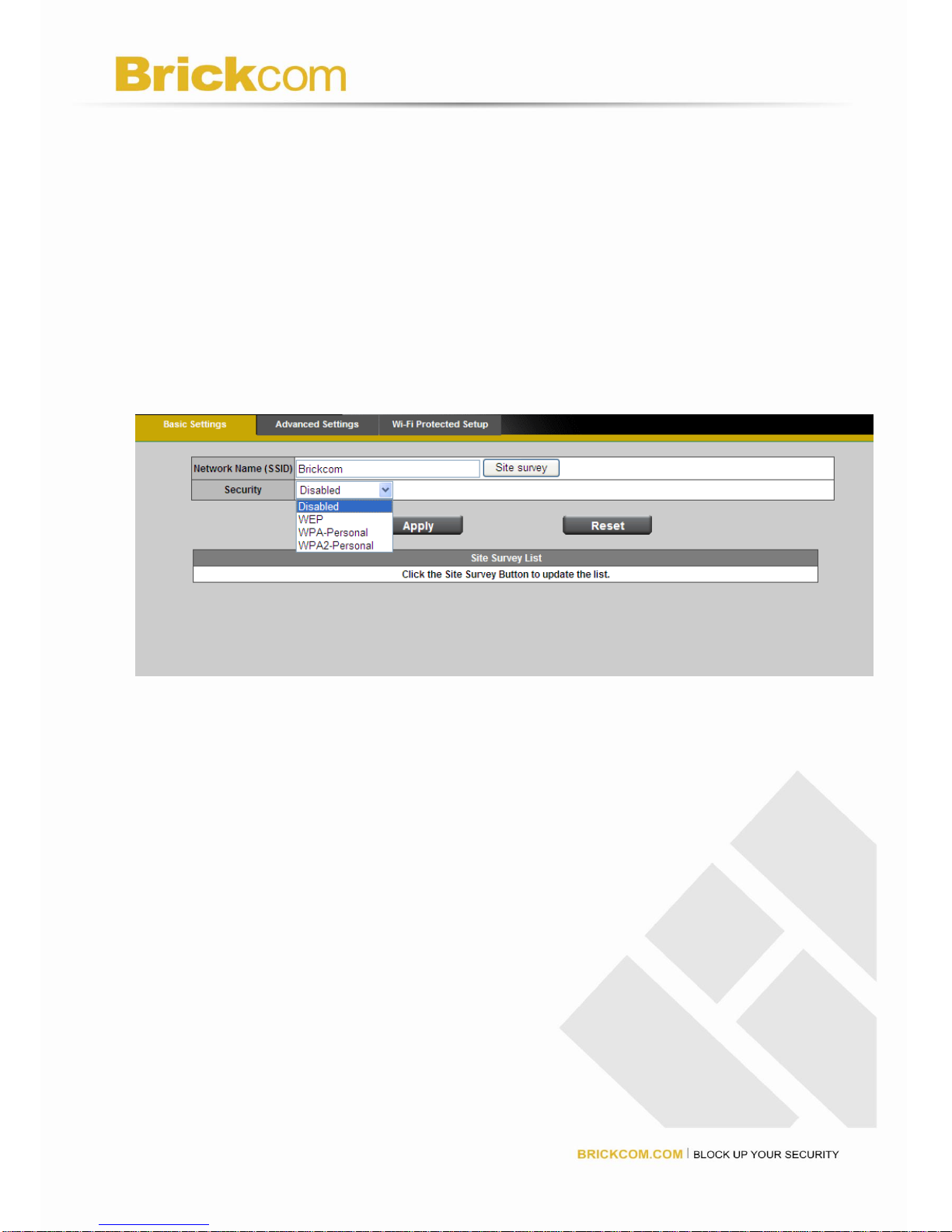

Security - Encryption protects data transmitted over a wireless network. Wi-Fi Protected

Access (WPA-Personal/WPA2-personal) and Wired Equivalent Privacy (WEP) offer different
levels of security for wireless communication. A network encrypted with
WPA-Personal/WPA2-personal is more secure than a network encrypted with WEP, because
WPA-Personal/WPA2-personal uses dynamic key encryption. To protect the information as it
passes over the airwaves, you should enable the highest level of encryption supported by
your network equipment.

Site Survey

SSID Broadcast, when wireless clients survey the local area for wireless networks to
associate with, they will detect the SSID broadcast of the camera.

- 44 -

WEP

WEP is a basic encryption method that is not as secure as WPA.

Tx Key - Select a key from the drop-down menu.
WEP Encryption - Select a level of WEP encryption, 64 bits 10 hex digits or 128 bits 26 hex

digits. The default is 64 bits 10 hex digits.

Key 1-4 - Enter the WEP key(s) manually.
Authentication - The default is set to open system, which allows either Shared Key or Auto

authentication to be used. With Open System authentication, the sender and the recipient do
NOT use a WEP key for authentication. With Shared Key authentication, the sender and
recipient use a WEP key for authentication.
Click Apply or Reset to take effect.

- 45 -

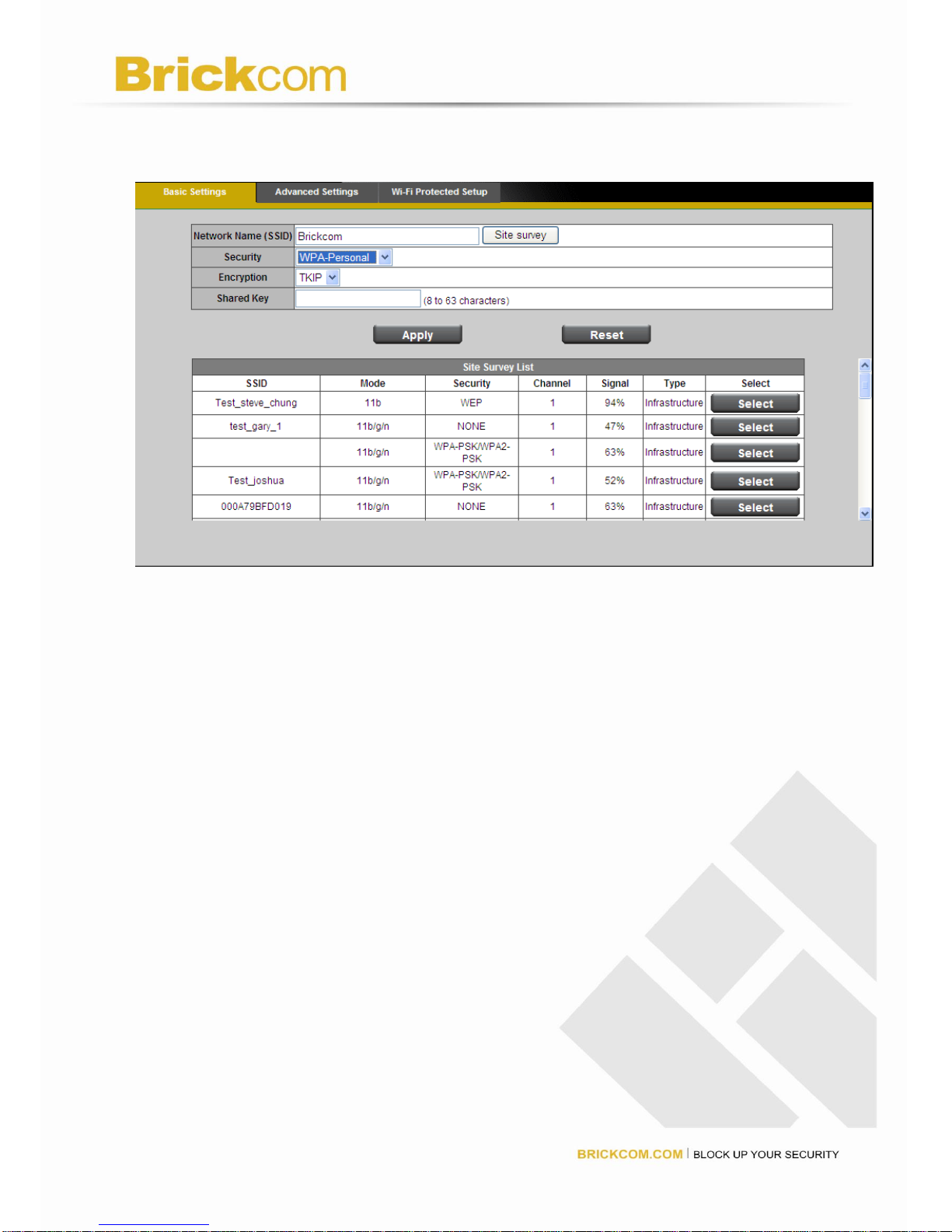

WPA-Personal

WPA supports two encryption methods, TKIP and AES, with dynamic encryption keys. Select
the type of algorithm, TKIP or AES. The default is TKIP.
Shared Key - Enter the key shared between the Router and the server keys. Enter a
passphrase of 8-63 characters.
Click Apply or Reset to take effect.

- 46 -

WPA2-Personal

WPA2 supports AES encryption method with dynamic encryption keys.
Shared Key - Enter the key shared between the Router and the server keys. Enter a
passphrase of 8-63 characters.

NOTE - If you are using WPA or WPA2, each device in your wireless network MUST use
the same WPA or WPA2 method and shared key, or else the network will not function properly.

- 47 -

Advanced Settings

Network Mode - From this drop-down menu, you can select the wireless standards running on

your network. If you have both Wireless-B, Wireless-G and Wireless-N (2.4GHz) devices in your
network, keep the default setting, BGN-Mixed. If you have both Wireless-B, Wireless-G devices
in your network, select BG-Mixed. If you have only Wireless-B devices, select Wireless-B Only.
If you have only Wireless-G devices, select Wireless-G Only. If you have only Wireless-N
(2.4GHz) devices, select Wireless-N Only.
Radio Band - The settings are available for the Auto-20/40MHz channel and Standard-20 MHz
channel. The Auto-20/40MHz channel set up a network using the 20/40MHz band, and the
Standard-20 MHz channel set up a network using the 20 MHz band.
Enable WMM (802.1e QoS) - WMM is a wireless Quality of Service feature that improves
quality for audio, video, and voice applications by prioritizing wireless traffic. To use this feature,
your wireless client devices in your network must support Wireless WMM. If you would like to
disable this feature, select Disabled. Otherwise, keep the default, Enabled.

- 48 -

Wi-Fi Protected Setup

Use this method if your client device has a Wi-Fi Protected Setup PIN number.

1. Enter the SSID from the device in the field.

2. Click <Register> to start WPS.
Click to Enable the Hardware WPS Button.
Click Apply or Reset to take effect.

- 49 -

HTTP/HTTPS

HTTP - This protocol allows the same quality as TCP protocol without needing to open specific

ports for streaming under some network environments. Users inside a firewall can utilize this
protocol to allow streaming data through.
HTTPS - (Hypertext Transfer Protocol over SSL) - This section explains how to enable
authentication and encrypted communication over SSL (Secure Socket Layer). It helps protect
streaming data transmission over the Internet on higher security level.
Click to enable and click Apply or Reset to take effect.
To enable HTTPS, you have to create and install certificate first. Click “Continue to this website”
to install.

- 50 -

Enter the User name and Password of the camera

Click “Certificate Error” on the top right of the window to view the certificate.

Click “Install Certificate” and follow the steps to finish the installation.

- 51 -

Event

Motion Detection

Motion can be detected by measuring change in speed or vector of an object or objects in the
field of view. This section explains how to configure the Network Camera to enable motion
detection. There are three motion detection windows can be configured.

Detection Setting - Select and enable the motion detection windows function. Easier to
trigger event by higher the sensitivity value and lower the Threshold value.

- 52 -

Notification - To react in response to particular events. A typical application is that when a

motion is detected, the Network Camera sends buffered images to a FTP server, Samba,
SMTP, or HTTP as notifications. In this page, you can specify which notification messages will
be sent when a trigger is activated. Click Apply or Reset to take effect.

Notification Settings

When an event is triggered, you can specify what kind of action will be performed. You can
attach video clip to your email address, FTP site, and samba or use URL to send HTTP
requests as notification.

FTP - File Transfer Protocol (FTP) is often used as an application component to
automatically transfer files for program internal functions. Select to send the media files to a
FTP server when a trigger is activated. Enter the FTP IP address or hostname; by default,
the FTP port server is set to 21, enter account name, password and FTP Path to configure
the setting. There are two choices of media types available; video clip and SnapShot.

- 53 -

Click Apply or Reset to take effect.

- 54 -

SMTP - Select to send the media files via Email when a trigger is activated.

From - Enter the email address of the sender.
To - Enter the email address of the recipient. Many recipients are separated by commas.
My name - The title shown in the email.
Subject - Enter the subject of the email.
Attachment - There are two choices of media types available; video Clip and SnapShot.
SMTP Server and port number - Enter the server host name and port number of the email
server.
Authentication - Select the authentication type from the drop-down menu.
Email Account - Enter the user name of the email account if necessary.
Email Password - Enter the password of the email account if necessary.

Click Apply or Reset to take effect.

- 55 -

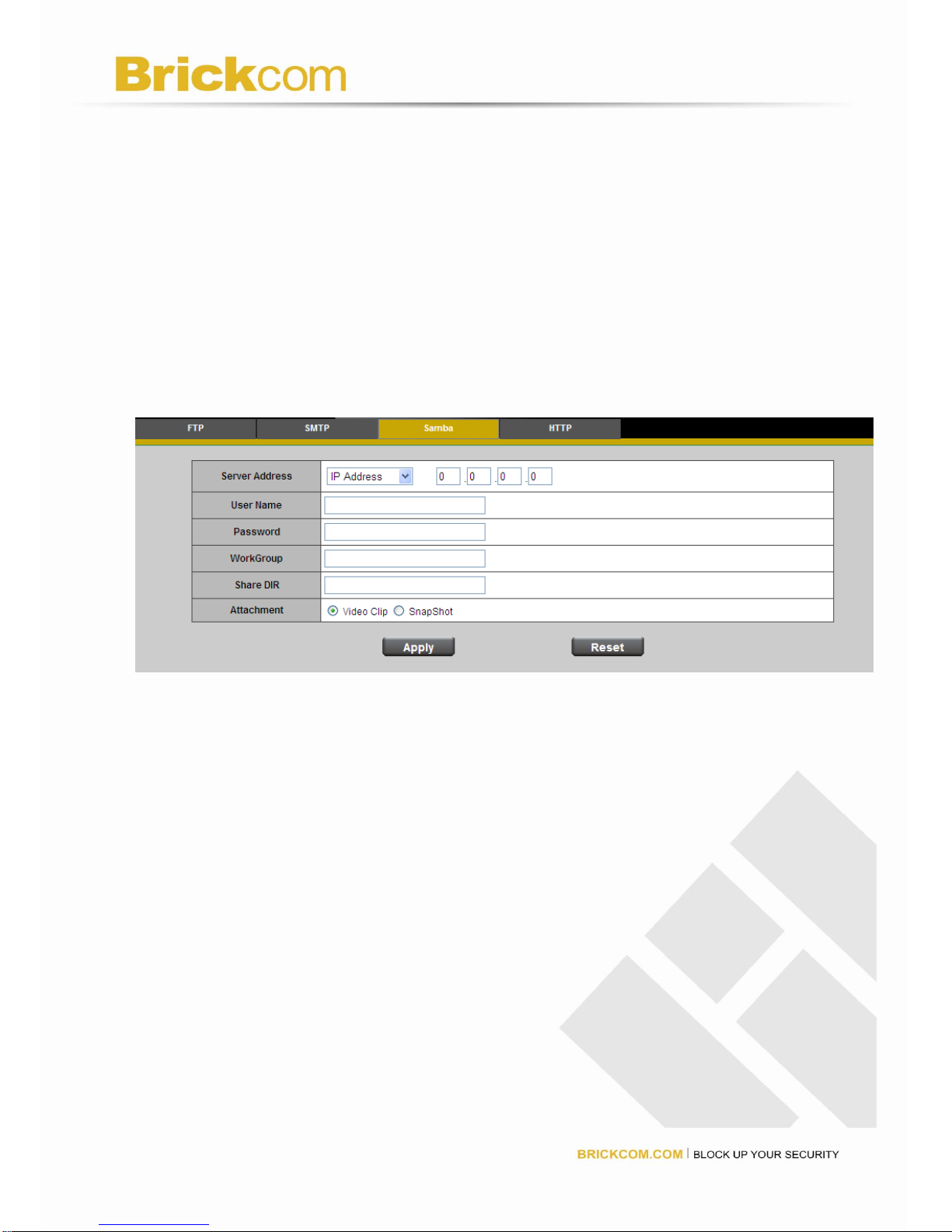

Samba - Select to send the network file system media files via network neighborhood when

a trigger is activated.
IP Address - Enter the IP address of the samba server.
User Name - Enter the user name of the samba server.
Password - Enter the password of the samba server.
Workgroup - Enter the workgroup of the samba server.
Share DIR - Enter the share DIR of the samba server.
Attachment - There are two choices of media types available; video Clip and SnapShot.

Click Apply or Reset to take effect.

- 56 -

HTTP - Select to send the HTTP notification when a trigger is activated.

URL – Specify the URL to send HTTP requests, the URL is normally written as follows:

http://ip_address/ notification.cgi?parameter

ip_address – type the IP address or host name of the host to which you want to connect.
Parameter – type the notification parameter if necessary.

Example
URL - http://192.168.1.1/xxxx.cgi
Message - name1=value1&name2=vlaue2
Result - http://192.168.1.1/xxxx.cgi? name1=value1&name2=vlaue2
Ex:
https://192.168.1.1/notification.cgi?event=MD&camera=FB-100A
Message - Enter the message notification that informs you when a trigger is activated.
Enter the user name and password if necessary.
Click Apply or Reset to take effect.

- 57 -

Scheduled Event

(Note - WCB-100Ae does not support this function)

Click New to open the recording setting page. In this page, you can define the recording
schedule and recording capacity.

Name - Enter a descriptive name for the recording setting.
Event - Select from the drop-down menu for the recording event.
Time - Specify the recording duration.

■ Select the time for recording in 24-hr time format. End time must be more than start time.

■ Select the days on weekly basis.

When completed, Click Add to have recording name appears in the recording list on the
recording page. Select Enabled; the system begins recording and send recorded file to the
Network Storage. To edit a recording setting; click Edit to modify. Upon the completion, click
update to finish the modification. To remove a recording setting from the list, select a recording
name from the list and then click Delete. Click New to add more events.

- 58 -

Audio Clip

(Note - WCB-100Ae does not support this function)
Audio clips are created by recording sound using the camera’s microphone. Audio clips can
be played when an event occurs.

To record a new clip using the camera's microphone:

1. Enter a filename.

2. Duration - Enter the number of seconds to record.

3. Click Record.
Click Play/Stop/Delete for the audio clip if necessary.

PIR

(Note - WCB-100Ae does not support this function)

Enable PIR sensor to detect a moving infrared object such as a person in the dark. It can be
used as an intruder alarm when, for example, a thief tries to break into a house at night.
Sensitivity - is used to adjust the sensitivity of the PIR Sensor from 10 - 100%. The default
sensitivity is 50%.

- 59 -

By increasing the sensitivity, the range of the PIR Sensor is also increased. The PIR Sensor can
be configured to detect movement in the dark up a maximum range of 6 meters. Select from the
drop-down menu to adjust the PIR Sensor’s sensitivity.

Notification

(Note - WCB-100Ae does not support this function)
A triggered event using the PIR Sensor can be configured so that when an alarm is activated,
the camera can play an audio clip and flash the LED.

Light LED Mode - to illuminate the scene. The brightness of light source can be manually
selected.
LED Control - The LED on the front of the camera can be set to flash at a configurable interval
(or to not light up at all) when the event is triggered.
Select an Audio file from the drop-down menu to play an audio clip when an alarm is
activated.

Click Apply or Reset to take effect.

NOTE – Please record an audio file at the Audio Clip page first.

- 60 -

System

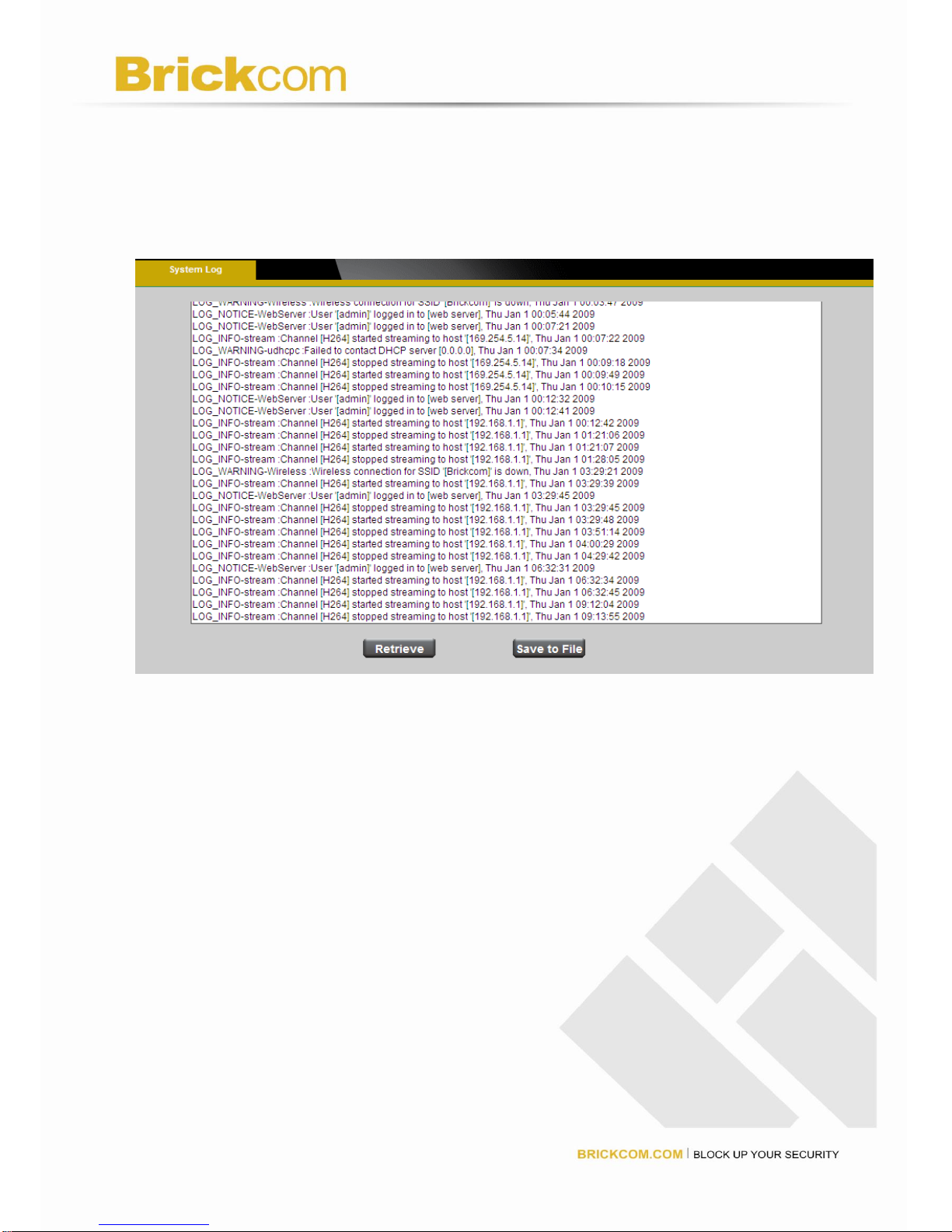

System Log
Log - To send a system log to the network camera when a trigger is activated.

This page displays the system’s log in chronological order. The system log is stored in the

Network Camera’s buffer area and will be overwritten when reaching a certain amount.

Click Retrieve to retrieve the log, or click Save to file to save the file in the specify location.

- 61 -

Date & Time
Manual - The user enters the date and time manually.

Clone from PC - Sync with computer time; check clone box to synchronize the date and

time of the Network Camera with the local computer. The read-only date and time of the PC
is displayed as updated.
NTP - Select to update the time with the NTP server on hourly, daily, weekly, or monthly
basis.

Time Zone - According to your local time zone, select one from the drop-down menu.
NTP Server 1 and Server 2 - Enter the address of the NTP server.
Daylight Saving - Enable this option to retain the Daylight Saving Time changes
automatically.

Click Apply or Reset to take effect.

- 62 -

Device Information
System Information - To view the entire system information about the network camera.

Network Settings - To view the entire network setting information about the network camera.

Video/Audio Settings - To view the entire video/audio setting information about the network
camera

- 63 -

LED Indicators

The LED on the front of the camera can be configured to be unlit to prevent the others noticing
the camera is being using. Check option OFF to enable this function.
Click Apply or Reset to take effect.

Storage Management

(Note - WCB-100Ae does not support this function)
To view the entire recorded files in the Micro-SD card.

Click Remove to safely remove the storage device. Click Delete to delete the recorded file.
Click Reload to view the list. Click Download to save the file in the desired folder.

- 64 -

Advanced Settings

Automatic Recycle – Enable to automatically overwritten when size of Micro-SD card is full.
(Note - WCB-100Ae does not support this function)

Offline Record – Enable to keep recording while the network camera offline.

Keeps the default setting, Enable is recommended.
Click Apply or Reset to take effect.

- 65 -

Maintenance

User Management
This section explains how to enable password protection and create multiple accounts.

Privilege Setting - Enter the new user’s name and password. Select the privilege for

new user account. Click Add to take effect. The administrator account name is “admin”,
which is permanent and can not be deleted.
Access rights are sorted as following (Viewer, Administrator and Remote Viewer). Only
administrators can access the Configuration page. Viewers can access the main page for
live viewing only. The privilege of Remote Viewer is same as viewer except TCP protocol
can only be selected for live viewing page. Administrators can add up to 10 user accounts.
Administrator also can change user’s access rights or delete user accounts. Select an
existing account to modify and make necessary changes; then click Update or Delete to
take effect.

- 66 -

IP Filter

Enable the IP filter and set of allow or deny IP address range to server. Click Add to list to
add the IP range to the IP filter list.

Click Apply or Reset to take effect.

Firmware Upgrade

This feature allows you to upgrade the firmware on your Network Camera. It takes about few
minutes to complete the process. Note that do not power off the Network Camera during the
upgrade.

Upgrade - Click Browse… and specify the firmware file. Click Upgrade. The Network
Camera starts to upgrade and will reboot automatically when the upgrade completes.

- 67 -

Configuration

This feature allows you to export/import the configuration files of the network camera.

Import/Export - Click export to pop up a dialog to indicate the location and file to export.
Click browse to indicate the location and file of the camera configuration and click import
to import the configuration file back into the network camera.

Reset to Default
Click Reset to restore the network camera to factory default setting.

Reboot

This feature allows you to reboot the Network Camera, which takes about one minute to
complete. When completed, the live video page will be displayed in your browser. The following
message will show during the rebooting process.

- 68 -

FCC Caution

This device complies with Part 15 of FCC rules.
Operation is subject to the following two conditions;
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause

undesired operations.

- 69 -

BRICKCOM IPCAM HTTP API

Preface

This document specifies the Brickcom IPCAM HTTP API which enables applications to
access and/or configure the IP Cameras manufactured by Brickcom over a TCP/IP capable
network. Developers who wish to write their own utility should follow the API specification
herein.

Overview

Brickcom IPCAM HTTP API is the proprietary network control protocol designed by Brickcom
Technology to enable applications to access IP Cameras manufactured by Brickcom. The API
allows for configuration of the settings and inquiry of current status on these IP Cameras. The
API is structured and transmitted over HTTP protocols and hence is given the name HTTP
API.

The complete API is further divided into several categories for ease of management. We
dedicate one chapter for each API category to better expound on that API subset.

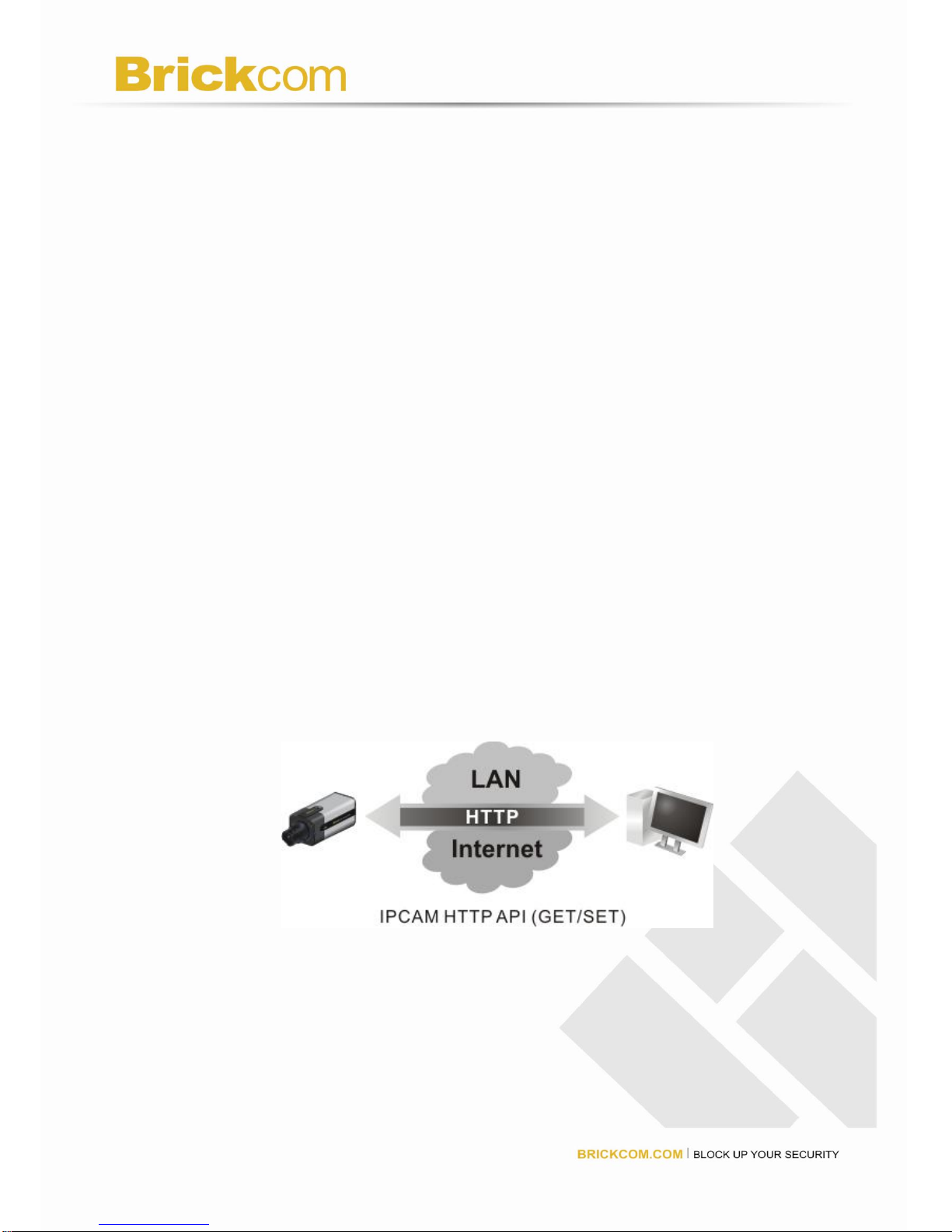

Figure 1, Illustration of API generic transactions

- 70 -

HTTP API Transaction

An HTTP API transaction is always started with a request from a client application, which is
received by the Web server on the IP Camera device and processed by the IP Camera and
finally ends with a response sent back to the requesting client.

The client HTTP request takes in either one of the two forms:

 HTTP GET: Normally used to retrieve the settings or status of the IP Camera
 HTTP POST: Normally used to configure the settings of the IP Camera

If the request is successfully received by the IP Camera, the response will contain a HTTP
header with a 200 OK response code and the HTTP body with the actual response data or
other value if error occurs. An example is provided for each request type below:

Illustration 1, Get the network setting from the IP Camera

Client request

GET http://<IP Camera address>/network.cgi HTTP/1.0

…

Server response

HTTP/1.0 200 OK
Content-Type: text/plain

IPAddress=192.168.1.1
SubnetMask=255.255.255.0

…

Illustration 2, Set the network setting from the IP Camera

Client request

POST http://<IP Camera address>/network.cgi HTTP/1.0

IPAddress=192.168.1.1
SubnetMask=255.255.255.0

- 71 -

Server response

HTTP/1.0 200 OK
…

Error Response

If the IP Camera is unable to handle the client HTTP API request due to certain conditions
such as system busy, incorrect parameters, or any other reason, an appropriate HTTP status
code 400 Bad Request is returned accompanied with an error code and error string that
explains the failure.

Client request

GET/POST …

Server response

HTTP/1.0 400 Bad Request

…
ErrorCode=XXX
ErrorString=Invalid IP Address

- 72 -

API Categories

The API categories are listed in the table below.

Table 1, API Categories

API Category

Description

Streaming

Enable users to set/get the setting about multimedia
streaming.

Camera

Enable users to set/get the camera/lens setting.

Audio

Enable user to set/get the audio devices’ setting.

Network

Enable users to set/get the network setting.

Event

Enable users to register to listen for notification coming from
IPCAM.

Storage

Enable users to configure storage device for storing media
content.

System

Enable users to set/get miscellaneous system settings.

Admin

Enables users to perform administrative tasks over the IP
Camera.

Capability

Provide users with the list of available features supported by
the IP Camera.

Motion
detection

Enable user to set/get the motion detection setting and
add/delete/update detection region.

Event

Enable user to set/get the event setting and set/get the
notification setting.

I/O control

Enable user to control I/O status

Ps: Fields marked in gray are reserved.

- 73 -

Streaming API

Streaming API allows applications to

1) set/get the IP Camera streaming setting

2) help users to view video streaming

Data structures

Data Structure

Description

SVideoFormatSetting

The selected video codec format, encode rate, etc.

SAudioFormatSetting

The selected audio codec format, encode rate, etc.

STransportSetting

The selected network transport.

SVideoSessionSetting

The selected setting of video session used for
streaming

SAudioSessionSetting

The selected setting of audio session used for
streaming

SChannelSetting

The selected setting of media session (audio+video)
used for aggregate streaming.

SChannelSetSetting

The set of available channels on this IPCam

enum _ConstantBitrate{
VBR = 0,
CBR,
};

enum _bitrateKbps{
kbps_64 = 64,
kbps_128 = 128,
kbps_256 = 256,
kbps_384 = 384,
kbps_512= 512,
kbps_768 = 768,
kbps_1500 = 1500,
kbps_2000 = 2000,
kbps_4000 = 4000,
kbps_6000 = 6000,

- 74 -

kbps_8000 = 8000,
kbps_10000 = 10000,
kbps_12000 = 12000,
kbps_15000 = 15000,
};

/* SVideoFormatSetting */
typedef struct _videoFormatSetting {
int sourceDevice; // reserved
char codecType [16]; //
char codecSubType [16];
int constantBitrate; // 0:enabled 1:disabled
int bitrateInKbps; // Kbps
int resolutionWidth;
int resolutionHeight;
int quality; // JPEG Specific
int frameRate; // FPS
int gop; // (reserved)

} SVideoFormatSetting;

typedef struct _audioFormatSetting {
int sourceDevice; // reserved
char codecType[16]; // G711
char codecSubType[16]; // AUTO
int numberOfChannel; // (reserved) Mono, Stereo =>0
int sampleRate; // (reserved) 8KHZ
int frameIntervalMS; //(reserved) 10MS
int sampleSizeBit; //(reserved)16 Bit

} SAudioFormatSetting;

/* SMetaFormatSetting */
typedef struct _metaFormatSetting {
int mdAlarmEnabled;
} SMetaFormatSetting;

- 75 -

/* STransportSetting */
typedef struct _transportSetting {
int multicastEnabled;
char multicastAddress[16];
int multicastPort;
int ttl; // 0-255
} STransportSetting;

/* SVideoSessionSetting */
typedef struct _videoSessionSetting {
int enabled;
SVideoFormatSetting format;
STransportSetting transport;
} SVideoSessionSetting;

/* SAudioSessionSetting */
typedef struct _audioSessionSetting {
int enabled;
SAudioFormatSetting format;
STransportSetting transport;
} SAudioSessionSetting;

/* SMetaSessionSetting */
typedef struct _metaSessionSetting {
int enabled;
SMetaFormatSetting format;
STransportSetting transport;
} SMetaSessionSetting;

/* SChannelSetting */
typedef struct _channelSetting {
int enabled;

- 76 -

int index; // (Unique) 0: reserved. 1+: valid index

char name[16];
int transportType;
SVideoSessionSetting video;
SAudioSessionSetting audio;

SMetaSessionSetting meta;

} SChannelSetting;

/* SChannelSetting */
enum _TransportType {
TRANSPORT_TYPE_RTSP_RTP=0,
TRANSPORT_TYPE_RTP_ONLY=1,
TRANSPORT_TYPE_HTTP=2,
TRANSPORT_TYPE_MSN=3,
};

typedef struct _channelSetting {
int enabled;
int index; // (Unique) 0: reserved. 1+: valid index
char name[16];
int transportType; // enum _TransportType
SVideoSessionSetting video;
SAudioSessionSetting audio;
SMetaSessionSetting meta;
} SChannelSetting;

typedef struct _SChannelSetList {
int size;
SChannelSetting channels[5];
}SChannelSetList;

/* SChannelSetSetting */
typedef struct _channelSetSetting {
SChannelSetList channelList;
} SChannelSetSetting;

- 77 -

ActionEvents

ActionEvent

Description

getChannels

Get all available channels

getChannel

Get a channel info

addChannel

Add a new channel

updateChannel

Update an existing channel

updateChannels

Update all existing channels

deleteChannel

Delete a channel

getStream

Request to receive a RTSP streaming session

1.1 getChannels

ActionEvent: getChannels

Request

http://<IP>/cgi-bin/channels.cgi&action=get

Response

size =
CH1.index=1
CH1.enabled=
CH1.name=
CH1.transportType=
CH1.video.enabled=
CH1.video.format.sourceDevice=
CH1.video.format.codecType=
CH1.video.format.codecSubType=
CH1.video.format.constantBitrate=
CH1.video.format.bitrateInKbps=
CH1.video.format.resolutionWidth=
CH1.video.format.resolutionHeight=
CH1.video.format.frameRate=
CH1.video.format.gop=
CH1.video.format.quality=
CH1.video.transport.multicastEnabled=
CH1.video.transport.multicastAddress=
CH1.video.transport.multicastPort=
CH1.video.transport.ttl=
CH1.audio.enabled=

- 78 -

CH1.audio.format.codecType=
CH1.audio.format.codecSubType=
CH1.audio.transport.multicastEnabled=
CH1.audio.transport.multicastAddress=
CH1.audio.transport.multicastPort=
CH1.audio.transport.ttl=
CH1.meta.enabled=
CH1.meta.format.mdAlarmEnabled=
CH1.meta.transport.multicastEnabled=
CH1.meta.transport.multicastAddress=
CH1.meta.transport.multicastPort=
CH1.meta.transport.ttl=

Ch2.index=2
….

Comment

Method

GET

1.2 getChannel

ActionEvent: getChannel

Request

http://<IP>/cgi-bin/channels.cgi?action=getChannel&index=<index>

Response

enabled=
name=
transportType=
video.enabled=
video.format.codecType=
video.format.codecSubType=
video.format.constantBitrate=
video.format.bitrateInKbps=
video.format.resolutionWidth=
video.format.resolutionHeight=
video.format.frameRate=

- 79 -

video.format.gop=
video.format.quality=
video.transport.multicastEnabled=
video.transport.multicastAddress=
video.transport.multicastPort=
video.transport.ttl=
audio.enabled=
audio.format.codecType=
audio.format.codecSubType=
audio.transport.multicastEnabled=
audio.transport.multicastAddress=
audio.transport.multicastPort=
audio.transport.ttl=
meta.enabled=
meta.format.mdAlarmEnabled=
meta.transport.multicastEnabled=
meta.transport.multicastAddress=
meta.transport.multicastPort=
meta.transport.ttl=

Comment

Method

GET

1.3 addChannel

ActionEvent: addChannel

Request

http://<IP>/cgi-bin/channels.cgi
action=add
index=<index>
enabled=
name=
transportType=
video.enabled=
video.format.codecType=
video.format.codecSubType=
video.format.constantBitrate=
video.format.bitrateInKbps=
video.format.resolutionWidth=

- 80 -

video.format.resolutionHeight=
video.format.frameRate=
video.format.gop=
video.format.quality=
video.transport.multicastEnabled=
video.transport.multicastAddress=
video.transport.multicastPort=
video.transport.ttl=
audio.enabled=
audio.format.codecType=
audio.format.codecSubType=
audio.transport.multicastEnabled=
audio.transport.multicastAddress=
audio.transport.multicastPort=
audio.transport.ttl=
meta.enabled=
meta.format.mdAlarmEnabled=
meta.transport.multicastEnabled=
meta.transport.multicastAddress=
meta.transport.multicastPort=
meta.transport.ttl=

Response

Comment

Method

POST

- 81 -

1.4 updateChannel

ActionEvent: updateChannel

Request

http://<IP>/cgi-bin/channels.cgi
action=update
index=<index>
enabled=
name=
transportType=
video.enabled=
video.format.codecType=
video.format.codecSubType=
video.format.constantBitrate=
video.format.bitrateInKbps=
video.format.resolutionWidth=
video.format.resolutionHeight=
video.format.frameRate=
video.format.gop=
video.format.quality=
video.transport.multicastEnabled=
video.transport.multicastAddress=
video.transport.multicastPort=
video.transport.ttl=
audio.enabled=
audio.format.codecType=
audio.format.codecSubType=
audio.transport.multicastEnabled=
audio.transport.multicastAddress=
audio.transport.multicastPort=
audio.transport.ttl=
meta.enabled=
meta.format.mdAlarmEnabled=
meta.transport.multicastEnabled=
meta.transport.multicastAddress=
meta.transport.multicastPort=
meta.transport.ttl=

- 82 -

Response

Comment

Method

POST

1.5 updateChannels

ActionEvent: updateChannels

Request

http://<IP>/cgi-bin/channels.cgi
action=updateAll
c1Enable=&
c1Name=&
c1TransportType=&
c1VideoEnabled=&
c1VideoFormatCodecType=&
c1VideoFormatCodecSubType=&
c1VideoFormatConstantBitrate=&
c1VideoFormatBitrateInKbps =&
c1VideoFormatResolutionWidth=&
c1VideoFormatResolutionHeight=&
c1VideoFormatFrameRate=&
c1VideoFormatGop=&
c1VideoFormatQuality =&
c1VideoTransportMulticastEnabled=&
c1VideoTransportMulticastAddress=&
c1VideoTransportMulticastPort=&
c1VideoTransportTtl=&
c1AudioEnabled=&
c1AudioFormatCodecType=&
c1AudioFormatCodecSubType =&
c1AudioTransportMulticastEnabled=&
c1AudioTransportMulticastAddress=&
c1AudioTransportMulticastPort=&
c1AudioTransportTtl=&
c1MetaEnabled=&
c1MetaFormatMdAlarmEnabled =&
c1MetaTransportMulticastEnabled=&

- 83 -

c1MetaTransportMulticastAddress=&
c1MetaTransportMulticastPort=&
c1MetaTransportTtl=&
c2Enable=&…….

Response

Comment

Method

POST

ActionEvent: deleteChannel

Request

http://<IP>/cgi-bin/channels.cgi
action=delete&index=<index>

Response

Comment

Method

POST

1.6 getStream

ActionEvent: getStream

Request

rtsp://<IP>/channel<index>

Response

Comment

<Index> is the index number of the SChannelSetting.

Method

- 84 -

Camera API

Camera API allows applications to set/get the Camera/lens setting.

Data structures

Data Structure

Description

SWhiteBalanceSetting

White balance setting of the Camera

SBrightnessSetting

Brightness setting of the Camera

SColorSaturationSetti
ng

Color Saturation setting of the Camera
SMirrorFlipSetting

MirrorFlip setting of the Camera

SSharpnessSetting

Sharpness setting of the Camera

SContrastSetting

Contrast setting of the Camera

SFrequencySetting

50Hz / 60Hz switching

SEffectSetting

Special Effect switching

SEnvModeSetting

Indoors / Outdoor switching

SIRCutFilterSetting

IR cut-off filter setting

SIRLEDSetting

IR LED setting

SVideoOverlaySetting

Video overlay setting

/* SWhiteBalanceSetting */
enum WhiteBalanceMode {
WB_MODE_OFF=0,
WB_MODE_SIMPLE,
WB_MODE_ADVANCED,

};
/* SAutoExposureSetting */
enum AutoExposureMode {
AE_MODE_OFF=0,
AE_MODE_AEC,
AE_MODE_AGC,
};

- 85 -

/* SExposureSetting */
typedef struct _ExposureSetting {
int mode; // enum AutoExposureMode
} SExposureSetting;

/* SWhiteBalanceSetting */
typedef struct _whiteBalanceSetting {
int mode; // enum WhiteBalanceMode
int level; //
} SWhiteBalanceSetting;

/* SBrightnessSetting */
typedef struct _brightnessSetting {
int level; //
} SBrightnessSetting;

/* SColorSaturationSetting */
typedef struct _colorSaturationSetting {
int level; //
} SColorSaturationSetting;

/* MirrorFlipSetting */
typedef struct _MirrorFlipSetting {
int mirror_enabled;
int flip_enabled;
} SMirrorFlipSetting;

/* SSharpnessSetting */
typedef struct _sharpnessSetting {
int level; //
} SSharpnessSetting;

/* SContrastSetting */
typedef struct _contrastSetting {
int level; //
} SContrastSetting;

enum Frequency {

- 86 -

FREQ_60HZ=0,
FREQ_50HZ,
};

/* SFrequencySetting */
typedef struct _frequencySetting {
int freq; // 60Hz : 0 , 50Hz : 1
} SFrequencySetting;

enum SpecialEffectMode {
EFFECT_MODE_DISABLED=0,
EFFECT_MODE_NEGATIVE,
EFFECT_MODE_BLACKWHITE,
};

enum IndoorOutdoorMode {
MODE_OUTDOOR=0,
MODE_INDOOR,
};

typedef struct _effectSetting {
int effectMode; // enum SpecialEffectMode
} SEffectSetting;

typedef struct _EnvModeSetting {
int envMode; // enum IndoorOutdoorMode
} SEnvModeSetting;

/* SIRCutFilterSetting */
enum IRCutMode {
IRCUT_MODE_OFF=0,
IRCUT_MODE_ON,
IRCUT_MODE_AUTO,
};

- 87 -

typedef struct _IRCutFilterSetting {
int mode; // enum IRCutMode
int thresholdLevel; // (reserved) 0-100
} SIRCutFilterSetting;

/* SIRLEDSetting */
enum IRLEDMode {
IRLED_OFF=0,
IRLED_ON,
IRLED_MODE_AUTO,

};

typedef struct _IRLEDSetting {
int mode; // enum IRCutMode
int thresholdLevel; // (reserved) 0-100
} SIRLEDSetting;

/*SAutoIris*/
enum AutoIrisMode {
AUTOIRIS_DISABLED=0,
AUTOIRIS_ENABLED,
};
typedef struct _autoIris {
int enabled; //enum AutoIrisMode
}SAutoIris;

/* SVideoOverlaySetting */
enum TimeStampMOde{
TimeStamp_off=0,
TimeStamp_on,
};
enum UseImage{
NO_IMAGE = 0,

- 88 -

UPLOAD_IMAGE,
};

typedef struct _OsdPalette {
int y; //Range:0~255
int Cb; //Range:0~255
int Cr; //Range:0~255
} SOsdPalette;
typedef struct _OsdWindow {
int x; //Range:depends on resolution
int y; //Range:depends on resolution
int transparent;//Range:0~3
} SOsdWindow;

/* SVideoOverlaySetting */
typedef struct _VideoOverlaySetting {
int useTimestamp; // 0: no timestamp, 1: use timestamp
char displayString[50];
int useImage; // 0: no image, 1: use uploaded image.
int enabled;
SOsdPalette osdPalette1;
SOsdPalette osdPalette2;
SOsdWindow osdWindow1;
SOsdWindow osdWindow2;

} SVideoOverlaySetting;

ActionEvents

ActionEvent

Description

setWhiteBalance

Set white balance

getWhiteBalance

Get white balance

setBrightness

Set brightness

getBrightness

Get brightness

setColorSaturation

Set Color Saturation

getColorSaturation

Get Color Saturation

- 89 -

setMirrorFlip

Set MirrorFlip

getMirrorFlip

Get MirrorFlipof

setSharpness

Set Sharpness

getSharpness

Get Sharpness

setContrast

Set Contrast

getContrast

Get Contrast

setFrequency

Set Frequency

getFrequency

Get Frequency

setEffect

Set Effect

getEffect

Get Effect

setEnvMode

Set EnvMode

getEnvMode

Get EnvMode

setIRCutFilter

Set IR cut Filter

getIRCutFilter

Get IR cut filter

setIRLED

Set IR LED

getIRLED

Get IR LED

setVideoOverlay

Set video overlay

getVideoOverlay

Get video overlay

setCameraSetting

Set all camera setting.

getCameraSetting

Get all camera setting.

2.1 setWhiteBalance

ActionEvent: setWhiteBalance

Request

http://<IP>/cgi-bin/camera.cgi
action=setWhiteBalance
mode=
level=

Response

Comment

Method

POST

- 90 -

2.2 getWhiteBalance

ActionEvent: getWhiteBalance

Request

http://<IP>/cgi-bin/camera.cgi?action=getWhiteBalance

Response

mode=
level=

Comment

Method

GET

2.3 setBrightness

ActionEvent: setBrightness

Request

http://<IP>/cgi-bin/camera.cgi
action= setBrightness
level=

Response

Comment

Method

POST

2.4 getBrightness

ActionEvent: getBrightness

Request

http://<IP>/cgi-bin/camera.cgi?action=getBrightness

Response

level=

Comment

Method

GET

- 91 -

2.5 setColorSaturation

ActionEvent: setColorSaturation

Request

http://<IP>/cgi-bin/camera.cgi
action= setColorSaturation
level=

Response

Comment

Method

POST

2.6 getColorSaturation

ActionEvent: getColorSaturation

Request

http://<IP>/cgi-bin/camera.cgi?action=getColorSaturation

Response

level=

Comment

Method

GET

2.7 setMirrorFlip

ActionEvent: setMirrorFlip

Request

http://<IP>/cgi-bin/camera.cgi
action= setMirrorFlip
mirrorEnabled =
flipEnabled=

Response

Comment

Method

POST
