English
Braun VitalScan Plus is a blood pressure monitor that has been developed for easy and accurate blood pressure measurements from the wrist. The measuring accuracy of Braun VitalScan Plus was tested at the time of manufacture and was proven by clinical research in accordance with AAMI/ANSI-SP10.
What you should know about blood pressure
Blood pressure constantly changes throughout the day. It rises sharply in the early morning and declines during the late morning. Blood pressure rises again in the afternoon and finally drops to a low level at night. Also, it may vary in a short period of time. Therefore, readings from successive measurements can fluctuate.
SYS |
140 |
|
|
|
|
mm HG |
120 |
|
|
|
|
|
100 |
|
|
|
|
DIA |
80 |
|
|
|
|
mm HG |
60 |
|
|
|
|
|
|
|
|
|
|
|
6 |
12 |
18 |
0 |
5 h |
Blood pressure readings from a healthy 31-year old male, measured at 5-minute intervals
Blood pressure measured in a doctor's office only provides a momentary value. Repeated measurements at home better reflect one's actual blood pressure values under everyday conditions.
Moreover, many people have a different blood pressure when they measure at home, because they tend to be more relaxed than when in the doctor's office.

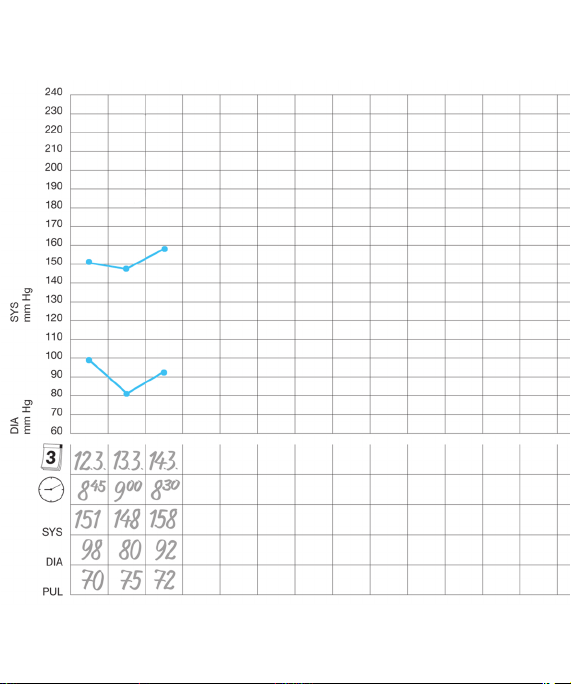

Regular blood pressure measurements taken at home can provide your doctor with valuable information on your normal blood pressure values under actual «everyday» conditions.
The World Health Organisation (WHO) has set up the following standard blood pressure values when measured at resting pulse.
4
Blood |
Normal values |
Mild hypertension |
Severe |
||
pressure (mmHg) |
|
|
|
hypertension |
|
SYS = systole |
up to 140 |
140 |
– 180 |
over 180 |
|
|
= upper value |
|
|
|
|
DIA = diastole |
up to 90 |
90 |
– 110 |
over 110 |
|
|
= lower value |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
•To ensure accurate measuring results, carefully read these use instructions.
•This product is intended for household use only. Keep product and batteries away from children.
•People suffering from cardiac arrhythmia, vascular constriction, arteriosclerosis in extremities, diabetes or users of cardiac pacemakers should consult their doctor before measuring their blood pressure themselves, since deviations in blood pressure values may occur in such cases.
•If you are under medical treatment or taking any medication, please consult your doctor first.
•The use of this blood pressure monitor is not intended as a substitute for consultation with your doctor.
5
SYS mm Hg
DIA mm Hg
Product description
ADisplay
BMemory button («memo»)
CTime/date button (BP 1650 only)
DStart/stop button
EBattery compartment
FBattery compartment cover
GCuff
Inserting batteries
•Use alkaline batteries, type LR 03 (AAA) as supplied with this product.
•Remove the battery compartment cover (F) and insert two batteries with correct polarity (see symbol in the battery compartment (E)).
•New batteries will provide approximately 200 measurements.
•Only discard empty batteries. They should not be disposed of in the household waste, but at appropriate collection sites or at your retailer.
Key rules for accurate blood pressure measurement
•Always take readings at the same time of day, ideally in the morning, under the same conditions.
•Do not measure within 30 minutes after smoking, coffee or tea consumption.
•Take off wrist watch and jewelry before fitting the monitor on the measuring arm.
•While taking a measurement, sit down, relax, keep still, especially the hand of the measuring arm, do not move or speak.
6
2 cm
SYS mm Hg
DIA mm Hg
memo
•Hold the monitor at heart level.
•Wait approximately 3 minutes before repeating a measurement.
Taking a measurement
1.Fasten the monitor on the palm side of your wrist, roughly 2 cm below the palm line.
Make sure that the cuff (G) fits tightly.
2. Press the red start/stop button (D).
3.Hold the monitor at heart level.
The measurement starts automatically. While measurement is in progress, do not move or speak.
7
SYS mm Hg
DIA mm Hg
Puls
1/min
SYS mm Hg
DIA mm Hg
memo

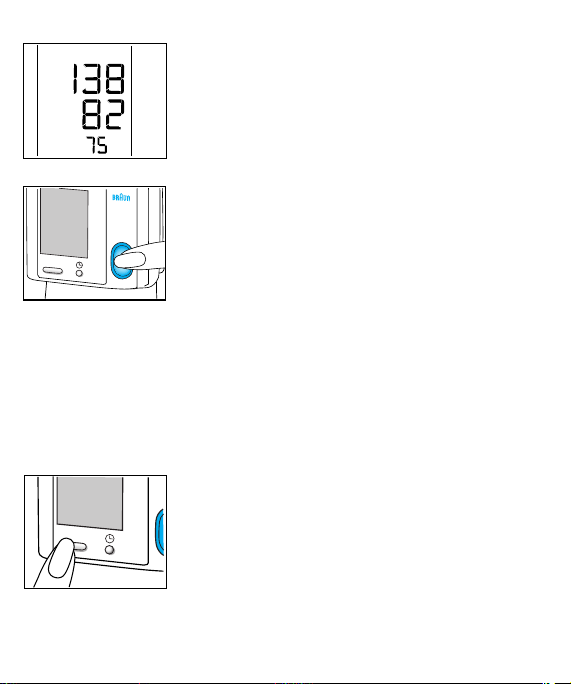

4.At the end of the measurement, a beep sounds and the reading is displayed:
Upper (systolic) value Lower (diastolic) value Pulse
5.Press the start/stop button to turn the product off. Otherwise the product will turn off automatically after 2 minutes.
If at any time, you want to stop the measurement, press the red start/stop button.
DIA mm Hg
memo
Memory function
After each measurement, the blood pressure monitor automatically stores the reading in memory.
Please note that stored data will be erased if changing batteries takes longer than 15 seconds.
Recalling stored readings
•To recall stored readings, first turn the device off.
•Then press the memory button («memo») (B). The latest reading will be displayed.
•Repeatedly pressing the memory button will call up one by one all stored readings.
•To exit the memory mode, turn the device off by pressing the start/stop button.
8
BP 1600: The readings of the last 10 measurements are stored in memory.
BP 1650: The readings of the last 20 measurements with time and date are stored in memory. The lower display line successively shows date, time and pulse of the respective measurement.
Date |
|
|
|
Puls |
|
|
Time |
|
|
|
|
|
1/min |
|
|
|
|
|
|
Setting time and date (BP 1650 only)
•Push the time/date button (C). The lower display line shows «Time» and flashing digits in the «hour» position. To adjust the hours, repeatedly push the «memo» button.
Time
memo
mm Hg
Time
Time
memo
DIA mm Hg
•Push button (C) again: The minutes digits will flash. Again, repeatedly push the «memo» button to adjust the minutes.
•Push button (C) again to adjust the date: The lower display line shows «Date» and flashing digits in the month position. Adjust the month by repeatedly pushing the «memo» button.
•Push button (C) again: The day digits will flash. Again, repeatedly push the «memo» button to adjust the day.
•To exit the time and date setting mode, push button (C).
•Otherwise the device automatically turns off after 2 minutes and activates the settings made so far.
9
Storage and cleaning
Clean the product with a soft, slightly damp cloth. Stains on the cuff (G) can be carefully removed with a damp cloth. Do not wash or dry clean the cuff. Do not store the product in a place exposed to direct sunlight or high humidity.
Calibration
This product has been calibrated at the time of manufacture. If used according to the use instructions, periodic re-calibration is not required.
If at any time you question the measuring accuracy, please call at 1-888-848-2572.
What to do if ...
Problem |
Reason |
Solution |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Batteries are flat. |
Insert new batteries. |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ERR |
Measurement / |
Repeat measurement as |
||||||
|
|
|
|
|
|
|
handling error |
described under «Taking a |
|
|
|
|
|
|
|
|
measurement». If problem |
|
|
|
|
|
|
|
|
persists, contact a Braun Service |
|
|
|
|
|
|
|
|
Centre or call the Braun Helpline. |
|
|
|
|
|
|
|
|
|
– – – |
Inflation above |
Repeat measurement. |
||||||
|
|
|
|
|
|
|
320 mmHg |
|
|
|
|
|
|
|
|
|
|
While measuring |
The device works with a |
none |
||||||
(during deflation |
special deflation |
|
||||||
of the cuff), |
procedure (stepwise |
|
||||||
you can hear a |
deflation). |
|
||||||
clicking sound |
|
|
||||||
with every |
|
|
||||||
detected |
|
|
||||||
heartbeat. |
|
|
||||||
|
|
|
|
|
|
|
|
|
10
Problem |
Reason |
Solution |
|
|
|
Readings from |
Blood pressure is a |
none |
repeated meas- |
fluctuating value. For |
|
urements differ |
healthy adults, deviations |
|
considerably. |
of 10 to 20 mmHg are |
|
|
possible. |
|
|
Cuff is not properly |
Ensure that the monitor is fitted as |
|
fitted. |
follows: |
|
|
- on the palm side of your wrist |
|
|
- approx. 2 cm away from the |
|
|
palm line. |
|
Readings were not |
For each measurement, hold the |
|
consistently taken at |
monitor at heart level. |
|
heart level. |
|
|
Talking, coughing, |
While measuring, relax, keep still, |
|
laughing, moving etc. |
do not move or speak. |
|
when measuring will |
|
|
influence the reading. |
|
|
|
|
Specifications
Model: |
BP1650 / BP1600 |
Operation principle: |
Oscillometric method |
Display: |
Liquid Crystal Display |
Measuring range: |
0–320 mmHg (cuff pressure) |
|
40–199 / min (pulse rate) |
Blood pressure |
|
measurement: |
20 mmHg (minimum diastolic value) |
|
300 mmHg (maximum systolic value) |
Laboratory accuracy: |
± 3 mmHg (cuff pressure) |
|
± 5 % of reading (pulse rate) |
11
Clinical accuracy: |
According to AAMI-SP10 with auscultatory reference: |
|
< 5 mmHg systematic offset |
|
< 8 mmHg standard deviation |
Inflation: |
Automatic |
Deflation: |
Step valve |
Power supply: |
2 batteries, type LR 03 (AAA) |
Operating temperature: |
+ 10 °C to + 40 °C |
Storage temperature: |
– 20 °C to + 60 °C |
Humidity: |
Up to 85% RH |
Cuff: |
Suitable for wrist circumference of 13 to 21 cm |
Clinical validation: |
According to AAMI-SP10 with auscultatory reference. |
|
(Please note that a validation against intra-arterial |
|
measurements can lead to different results for devices |
|
which are calibrated against auscultatory reference.) |
If device is not used within specified temperature and humidity ranges the technical accuracy can not be ensured.
Type BF equipment
Blood pressure measurements determined with this device are equivalent to those obtained by a trained observer using cuff/stethoscope auscultation method, within the limits prescribed by the American National Standard, Electronic or automated sphygmomanometers.
Subject to change without notice.
This device conforms to the following standards:
DIN EN 60601-1: 3/96 «Medical electrical equipment» – Part 1: General requirements for safety
DIN EN 1060-1: 12/95, AMD 1 09/02 «Non-invasive sphygmomanometers» – Part 1: General requirements
DIN EN 1060-3: 9/97 «Non-invasive sphygmomanometers» –
Part 3: Supplementary requirements for electro-mechanical blood pressure measuring systems
