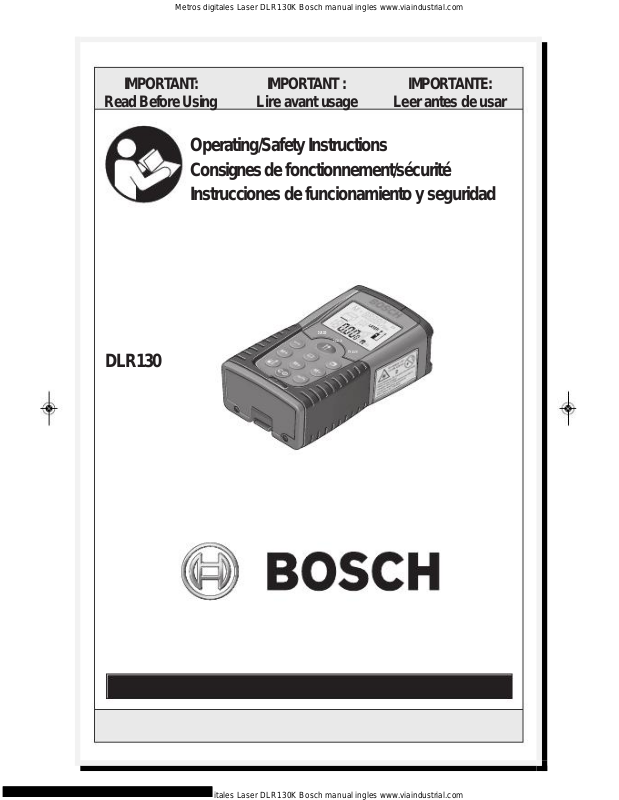

IMPORTANT: |
IMPORTANT : |
IMPORTANTE: |
Read Before Using |
Lire avant usage |
Leer antes de usar |
Operating/Safety Instructions
Consignes de fonctionnement/sécurité
Instrucciones de funcionamiento y seguridad
DLR130
Distance
Measurer
DLR130
itales Laser DLR130K Bosch manual ingles www.viaindustrial.com
Metros digitales Laser DLR130K Bosch manual ingles www.viaindustrial.com
|
|
|
A |
24 |
14 |
|
|
|
|
19 |
|
15
|
18 |
16 |
|
|
|
|
|
17 |
B |
|
C |
1.6 ftt
1.6 ft
D E
0.8f t
2.45ft
-2-
itales Laser DLR130K Bosch manual ingles www.viaindustrial.com
Metros digitales Laser DLR130K Bosch manual ingles www.viaindustrial.com
a
b
i
f
13
10 11 12
9
8
b c d |
e |
f |
f
h g
7
8
DLR 130
Dis tan
surer
6
4 5
3
2
1
-3-
itales Laser DLR130K Bosch manual ingles www.viaindustrial.com
Metros digitales Laser DLR130K Bosch manual ingles www.viaindustrial.com
20
(DLA001)
21
(DLA002)
23
(1609203R97) 22
(6 035 961 236)
-4-
itales Laser DLR130K Bosch manual ingles www.viaindustrial.com
Metros digitales Laser DLR130K Bosch manual ingles www.viaindustrial.com
General Safety Rules
! |
DANGER |
LASER RADIATION. AVOID DIRECT EYE |
|
EXPOSURE. DO NOT stare into the laser light |
|||
|
|
source. Never aim light at another person or object other
than the workpiece. Laser light can damage your eyes.
! WARNING instructions listed below may result in electric Read all instructions. Failure to follow all
shock, fire and/or serious injury.
Safety Rules for Distance Measurer
Working safely with the Distance Measurer is possible only when the operating and safety information are read completely and the instructions contained therein are strictly followed. Never make warning labels on the Distance Measurer unrecognizable.
Never aim the beam at a workpiece with a reflective surface. Bright shiny reflective sheet steel or similar reflective surfaces are not recommended for laser use. Reflective surfaces could direct the beam back toward the operator.
Take care to recognize the accuracy and range of the device.
Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
The use of optical instruments with this product will increase eye hazards.
Have the Distance Measurer repaired only through qualified specialists using original spare parts. This ensures that the safety of the Distance Measurer is maintained.
Do not allow children to use the Distance Measurer without supervision. They could unintentionally blind other persons.
Do not point the laser beam at persons or animals and do not look into the laser beam yourself, not even from a large distance.
Do not use the laser viewing glasses as safety goggles. The laser viewing glasses are used for improved visualization of the laser beam, but they do not protect against laser radiation.
Do not use the laser viewing glasses as sun glasses or in traffic. The laser viewing glasses do not afford complete UV protection and reduce color perception.
Safe Operating Procedures
WARNING: Be sure to read and understand all instructions in this manual before using this product. Failure to follow all instructions may result in hazardous radiation exposure, electric shock, fire, and/or bodily injury.
CAUTION: Use of controls or adjustments or performance of procedures other than those specified in this manual, may result in hazardous radiation exposure.
CAUTION: The use of optical instruments with this product will increase eye hazard.
IMPORTANT: The following labels are on your laser tool for your convenience and
safety. They indicate where the laser light is emitted by the level. ALWAYS BE AWARE of their location when using the level.
ALWAYS make sure that any bystanders in the vicinity of use are made aware of the dangers of looking directly into the laser tool.
DO NOT remove or deface any warning or caution labels. Removing labels increases the risk of exposure to laser radiation.
DO NOT stare directly at the laser beam or project the laser beam directly into the eyes of others. Serious eye injury could result.
-5-
