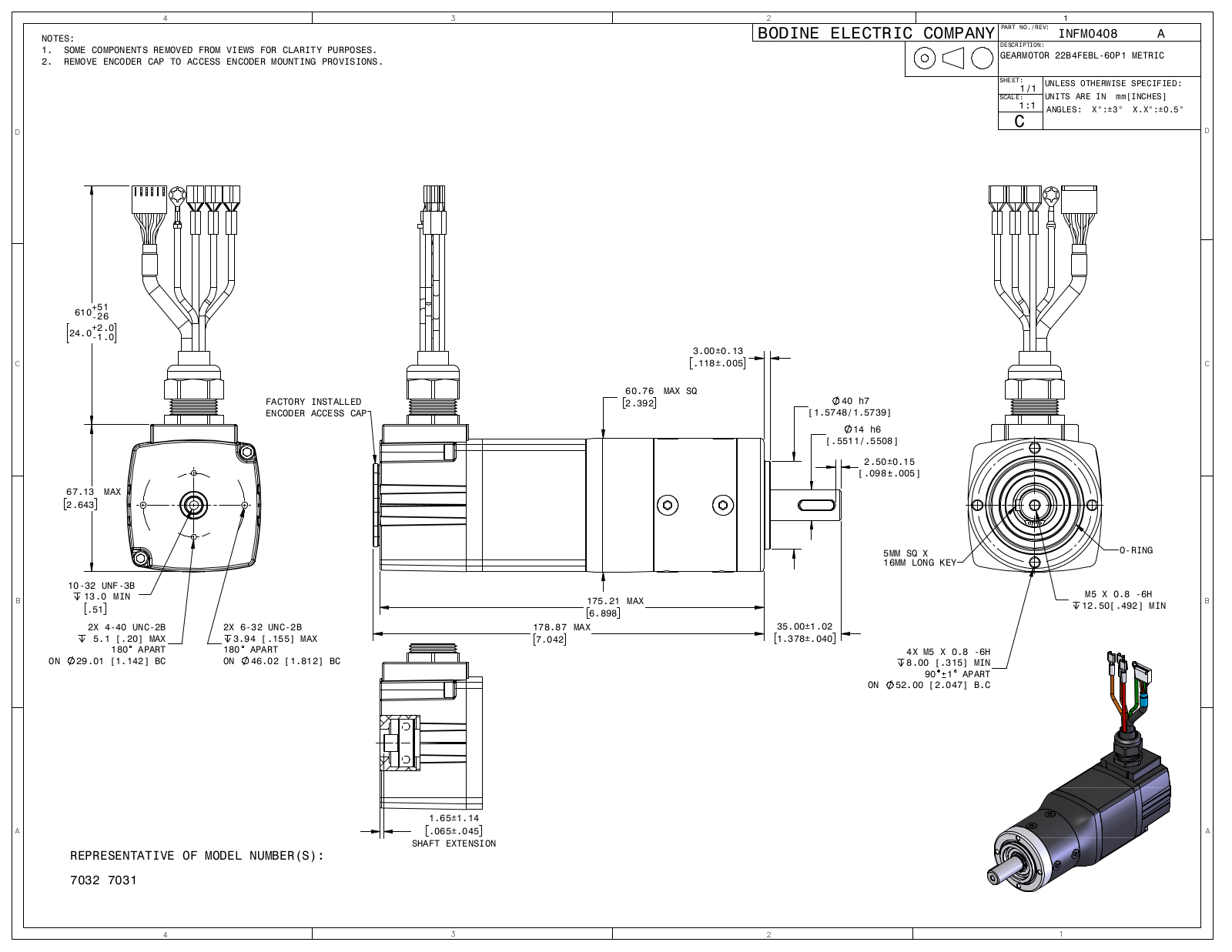

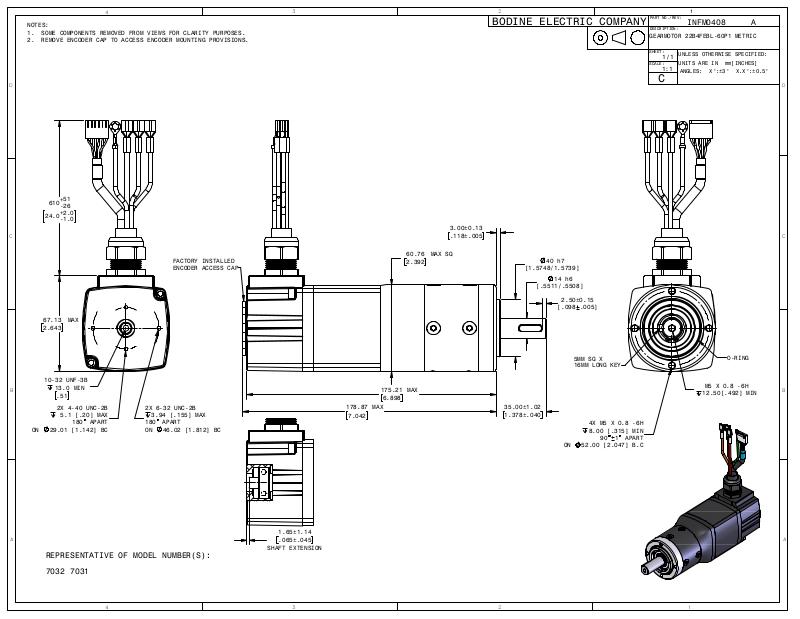

Bodine 7032, 7031 Reference Drawing
NOTES:
SOME COMPONENTS REMOVED FROM VIEWS FOR CLARITY PURPOSES.1.
REMOVE ENCODER CAP TO ACCESS ENCODER MOUNTING PROVISIONS.2.
4
3
2
PART NO./REV:
BODINE ELECTRIC COMPANY
DESCRIPTION:
1
INFM0408
A
GEARMOTOR 22B4FEBL-60P1 METRIC
SHEET:
1/1
SCALE:
1:1
UNLESS OTHERWISE SPECIFIED:
UNITS ARE IN mm[INCHES]
ANGLES: X°:±3° X.X°:±0.5°
C
D
D
51
+
610
26
+-2.0
24.0
1.0
3.00±0.13
C
FACTORY INSTALLED
60.76
2.392
MAX SQ
ENCODER ACCESS CAP
.118±.005
40 h7
[1.5748/1.5739]
C
14 h6
[.5511/.5508]
2.50±0.15
.005]
67.13
[.098
MAX
2.643
5MM SQ X
O-RING
16MM LONG KEY
10-32 UNF-3B
B
ON
13.0
29.01 [1.142] BC
MIN
.51
2X 4-40 UNC-2B
5.1 [.20] MAX
APART
180
2X 6-32 UNC-2B
3.94 [.155] MAX
APART
180
ON
46.02 [1.812] BC
178.87
7.042
MAX
175.21
6.898
MAX
35.00±1.02
1.378±.040
ON
4X M5 X 0.8 -6H
8.00 [.315] MIN
1 APART
90
52.00 [2.047] B.C
M5 X 0.8 -6H
12.50[.492] MIN
B
1.65±1.14
A
.065±.045
A
SHAFT EXTENSION
REPRESENTATIVE OF MODEL NUMBER(S):
7032 7031
4
3
2
1
