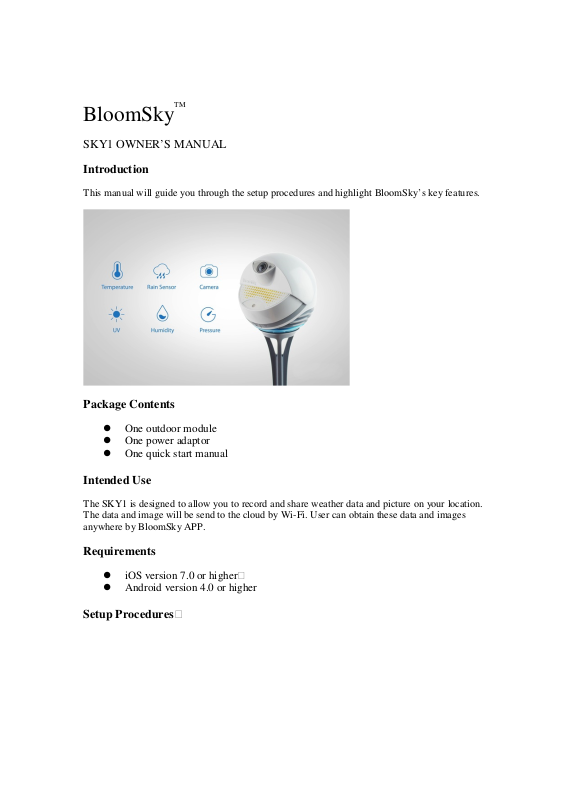

TM
BloomSky
SKY1 OWNER’S MANUAL
Introduction
This manual will guide you through the setup procedures and highlight BloomSky’s key features.
Package Contents
One outdoor module
One power adaptor
One quick start manual
Intended Use
The SKY1 is designed to allow you to record and share weather data and picture on your location.
The data and image will be send to the cloud by Wi-Fi. User can obtain these data and images
anywhere by BloomSky APP.
Requirements
iOS version 7.0 or higher
Android version 4.0 or higher
Setup Procedures
Step 1:
Install the BloomSky APP
to p
Then t
Fi setting mode.
app
After that the
several minutes and upload wea
Key operation and LED indication:
ress
：
when the device is powered on
: Charger LED
flash once when power on
about 3 seconds
means the device
to create an account and
Fi automatically
y Cloud.
seconds to clean
Step 2:
Press the power button
LED will flash once.
enters the Wi-
Step 3:
Launch the BloomSky
register the SKY1.
Key：
Power Button：P
Network Button
record
LED：
ower on the SKY1. Waiting for
he right red LED will begin to flash. That
and follow the on-screen instructions
SKY1 will connect to your Wi-
ther data and picture to BloomSk
this button to power on/off the device.
Press this button more than 5
.
，the left green
every
up the Wi-Fi
: Power LED
Power LED
:Network LED
。
Power LED flash 3 times every 10 seconds when battery low.
Charger LED will light on solid when charging.
Network LED will show red color and flash when network is not configured.
Network LED will show green color and flash when network is configured
successfully.
Network LED will show solid green when device in normal work mode and network is
configured successfully.
Network LED will show solid red color when device in normal work mode and
network is down.
Technical Specifications
Model: SKY1
Classification: lithium-ion battery or External power
Power Adapter Model: Input: 100-240V~50/60Hz Output: DC 12V--- 2A
Wi-Fi-connected to BloomSky Cloud.
WLAN Standard: Single-band 2.4GHz IEEE 802.11b/g/n
Frequency Range: 2.400 GHz ~ 2.497 GHz (2.4 GHz ISM Band)
Number of Channels: 2.4GHz:Ch1 ~ Ch11
Water, dust, UV-resistant body.
5-in-1 sensors measure temperature, humidity, barometric pressure, UV exposure,
and precipitation with excellent accuracy.
Ultra-wide angle HD camera built-in with 45-degree adjustable shooting angle.
Smart photometric sensor measures daylight brightness and ensures correct
exposure. Smart camera turns on at dawn and off at dusk.
Smart rain sensor distinguishes precipitation from other moisture and responses
instantly when rain starts to fall.
Powered by a rechargeable lithium-ion battery. Chargeable Option 1: through
A/C Input: 100-220V(worldwide use), operating time up to 20 days per charge.
Chargeable Option 2: through solar panel.
Low battery alert sends push notifications on mobile apps.
Wireless, no wires to run. Easy to stand upright on stake apparatus for insertion
in patio and garden.
Operating temperature range: -13°F (-25°C) to 149°F (65°C) (± 0.72°F (0.4°C)
accuracy)
Battery charging temperature range: 32°F (0°C) to 113°F (45°C)
Temperature Resolution: 1°F
Humidity Resolution: 1%
Humidity Range: 1% to 99% RH (± 5% accuracy)
UV exposure range: 280nm - 400nm (UV-A, UV-B)
Barometric pressure Resolution: 1hPa
Rain sensor minimum detectable threshold: 1mm/1hr
Rechargeable Lithium polymer battery.
General Safety and Precautions
1. Read all of the information in the owner’s manual and other included product
information in the packaging before operating the product.
2. The SKY1 will not operate within a Faraday cage.
3. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Cet appareil est conforme à la section 15 des réglementations de la FCC. Le
fonctionnement de l’appareil est sujetaux deux conditions suivantes :
(1) cet appareil ne doit pas provoquer d’interférences néfastes, et
(2) cet appareil doit tolérer les interférences reçues, y compris celles qui risquent de
provoquer un fonctionnement indésirable.
Note: This product has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
product generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this product does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Please take attention that changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
This equipment should be installed and operated with a minimum distance 20cm
between the radiator and your body
Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le
radiateur et votre corps
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radioexempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by
Industry Canada. To reduce potential radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.)
is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur r
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé
l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
à l'intention des autres utilisateurs, il faut choisir le t
pas l'intensité nécessaire à
This device complies with the
:2006+A11:2009+A1:2010+A12:2011.
Care and Maintenance
Do not attempt to disassemble the device.
Clean the product with a soft damp cloth. Do not use abrasive or solvent
Warranty Information
For detailed operating instructions and updates, please visit
year warranty in general in all countries, or a 2
where is required by your local Consumer Law.
your local Consumer Law. The warranty becomes void if any components of the system
qualified technicians. You are entitled to a replacement or refund
for a major failure of the product. You are also entit
replaced if the goods fail to be of acceptable quality and the failure does not amount
to major failure. Please refer to the Warranty or Terms and Conditions for more details.
Explanation of Symbols
Symbol for the “Owner’s M
Symbol for “Caution”
Symbol for “TYPE BF APPLIED PARTS”
puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse
l'établissement d'une communication satisfaisante.
www.bloomsky.com
No warranty may be excluded under
led to have goods repaired or
pour
adio peut
radioélectrique
son gain de sorte que la
4.
60950-1
cleaners.
products come with a 1-
ype d'antenne et
essential requirements and other
-based
. Our
-year warranty
are opened by non-
anual – Must be read”
Symbol for “ENVIRONMENT PROTECTION
be disposed of with household waste. Please recycle where facilities exist. Check with
Authority or retailer for recycling advice.”
Manufactured for iSmart Alarm, Inc.
N.Shoreline Blvd,Mountain View,CA 94043
BloomSky is the trademark
iPhone is a trademark of Apple Inc. registered in the U.S. and
Android is a trademark of Google Inc.
. All rights reserved.
Waste electrical products should not
other countries.
–
your local
723
www.bloomsky.com
©2015 BloomSky, Inc
of BloomSky, Inc.
