Page 1
USE & CARE GUIDE

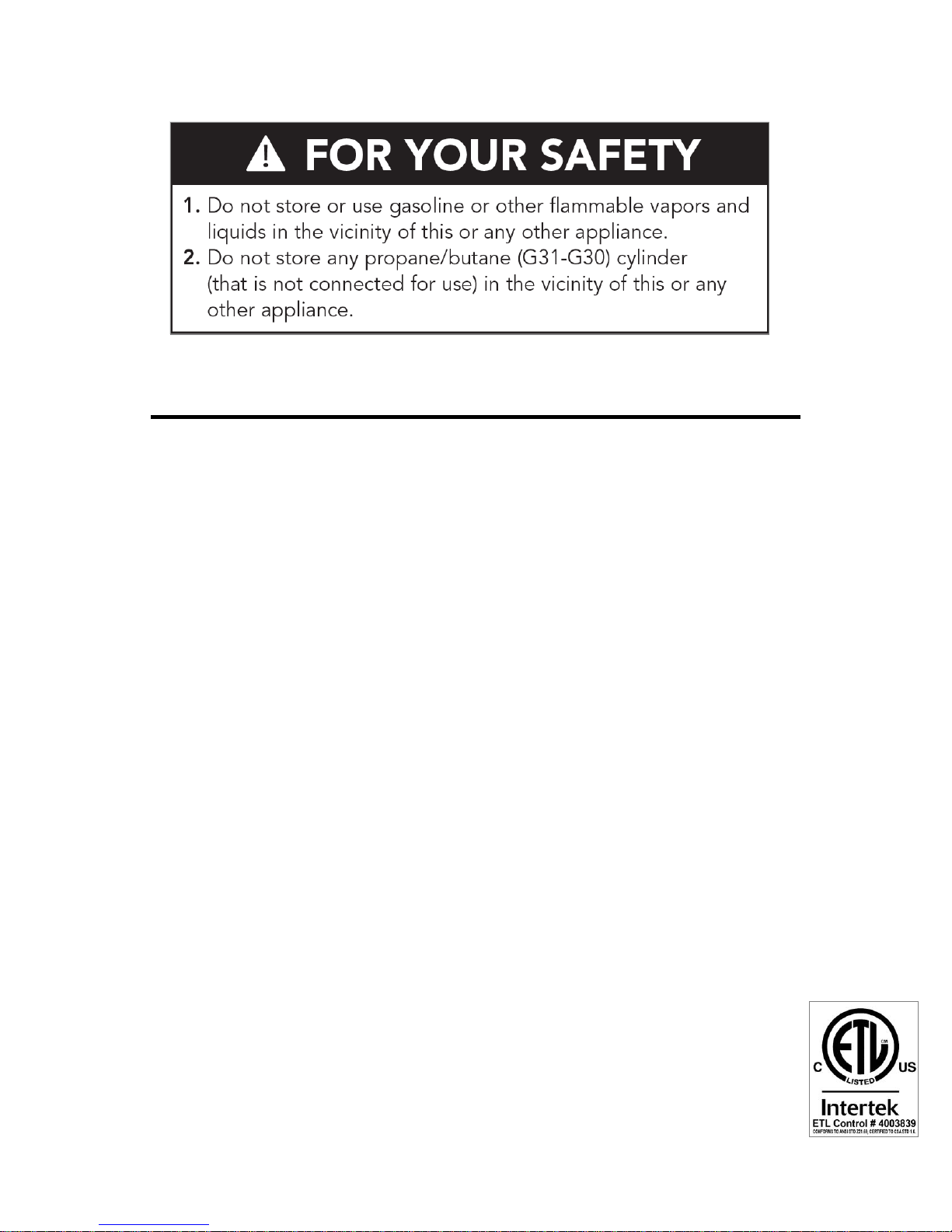

WARNING
I) Do not store or use gasoline or other flammable
liquids or vapor in the vicinity of this or any other
appliance
2) A LP cylinder not connected for use shall not be
stored in the vicinity of this or any other appliances.
DANGER - IF YOU SMELL GAS:
I) Shut off the gas supply to the appliance at its source.
2) Extinguish any open flames.
3) Open grill hood to release any accumulation of gas
vapor.
4) If a gas odor persists, Keep away from your
appliance and contact your gas supplier or fire
department immediately.
GAS GRILLS BLZ-3(NG/LP), BLZ-4(NG/LP), BLZ-5(NG/LP),
SIDE BURNERS BLZ-SB1 (NG/LP), BLZ-SB2 (NG/LP)
ATTENTION INSTALLER:
PLEASE LEAVE THESE INSTRUCTIONS WITH THE CONSUMER.
ATTENTION CONSUMER:
PLEASE READ & RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE AND BEFORE INSTALLING
OR OPERATING.
Blaze Outdoor Products: 10920 Coursey Blvd, Baton Rouge, LA 70816 USA
Version 1.0
Phone: 866-976-9510 email: CustomerService@BlazeGrills.com
Blaze Outdoor Products Instructional Book
- CONTACT INFORMATION -
BLAZEGRILLS.COM
Page | 1
Page 2
THIS MANUAL APPLIES TO THE FOLLOWING BLAZE GRILLS & SIDE BURNERS:
Model: BLZ-4LP / BLZ-4NG 4 BURNER
Cutout Dimensions
30 5/8”W x 21 1/4”D x 8 1/2”H
BTU Output
12,000 BTU per Burner x4
Infrared Back Burner
12,000 BTU
Total BTU
60,000
Primary Ignition
Push N’ Turn Flame Thrower
Secondary Ignition
Flash Tube
Cooking Grid
Dimensions
30 1/4" x 18 1/4"
Total Cooking Area
740sq.in
(includes warming rack)
Flame Tamer
Flame Stabilizer Grid
Zone Cooking
Removable Heat Zone
Separators
Rotisserie Kit
(Motor & Forks)
Optional
Burner
Commercial Quality Cast
Stainless Steel
Gas Type
All grills are shipped NG.
Each shipment contains an LP
Conversion Kit
Warranty
*Lifetime – Defects in
manufacturing and
workmanship. Cooking grids,
stainless housing as well as the
stainless burners against rustthrough.
*15 Years – Control valves
*1 Year – all other components
*Grills must be registered within
30 days of purchased to
validate this warranty.
*See page 28 for full warranty
details.
Model: BLZ-3LP / BLZ-3NG 3 BURNER
Cutout Dimensions
23 1/4”W x 21 1/4”D x 8 1/2”H
BTU Output
12,000 BTU per Burner x3
Infrared Back Burner
None
Total BTU
36,000
Primary Ignition
Push N’ Turn Flame Thrower
Secondary Ignition
Flash Tube
Cooking Grid
Dimensions
22 1/2" x 18 1/4"
Total Cooking Area
560sq.in
(includes warming rack)
Flame Tamer
Flame Stabilizer Grid
Zone Cooking
Removable Heat Zone
Separators
Rotisserie Kit
(Motor & Forks)
Optional
Burner
Commercial Quality Cast
Stainless Steel
Gas Type
All grills are shipped NG.
Each shipment contains an LP
Conversion Kit
Warranty
*Lifetime – Defects in
manufacturing and
workmanship. Cooking grids,
stainless housing as well as the
stainless burners against rustthrough.
*15 Years – Control valves
*1 Year – all other components
*Grills must be registered within
30 days of purchased to
validate this warranty.
*See page 28 for full warranty
details.
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 2
Page 3
Model: BLZ-5LP / BLZ-5NG 5 BURNER
Cutout Dimensions
38 5/8”W x 21 1/4"D x 8 1/2”H
BTU Output
12,000 BTU per Burner x5
Infrared Back Burner
12,000 BTU
Total BTU
72,000
Primary Ignition
Push N’ Turn Flame Thrower
Secondary Ignition
Flash Tube
Cooking Grid
Dimensions
37 1/4" x 18 1/4"
Total Cooking Area
950sq.in
(includes warming rack)
Flame Tamer
Flame Stabilizer Grid
Zone Cooking
Removable Heat Zone
Separators
Rotisserie Kit
(Motor & Forks)
Optional
Burner
Commercial Quality Cast
Stainless Steel
Gas Type
All grills are shipped NG.
Each shipment contains an LP
Conversion Kit
Warranty
*Lifetime – Defects in
manufacturing and
workmanship. Cooking grids,
stainless housing as well as the
stainless burners against rustthrough.
*15 Years – Control valves
*1 Year – all other components
*Grills must be registered within
30 days of purchased to
validate this warranty.
*See page 28 for full warranty
details.
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 3
Page 4
Model: BLZ-SB1-LP / BLZ-SB1-NG 1 BURNER
Cutout Dimensions
11”W x 17 3/4"D x 4 1/2"H
Total BTU Output
12,000BTU(1Bnr)
Number of Burners
1
Burner
Aluminum & Brass
Ignition
Peizo Ignition System
Warranty
1 year
Gas Type
Burners are shipped NG.
Each shipment contains an LP
Conversion Kit
Model: BLZ-SB2-LP / BLZ-SB2-NG2 BURNER
Cutout
Dimensions
10 3/4"W x 20 3/4"D x 8 1/2"H
Total BTU Output
24,000BTU(2Bnr)
Number of
Burners
2
Burner
Aluminum & Brass
Ignition
Peizo Ignition System
Warranty
1 year
Gas Type
Burners are shipped NG.
Each shipment contains an LP
Conversion Kit
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 4
Page 5
Safety and Installation Instructions
When using your Blaze grill, please read and follow these basic precautions:
GRILL INSTALLATION
This gas grill must be installed in accordance with all local codes.
If installation is planned in an area with no local codes, the gas grill must be installed in
accord with the National Fuel Gas Code ANSI Z223.1 and storage and handling of liquefied
petroleum gases, ANSI/NFPA 58 or CSA B149.1 natural gas and propane installation code.
CALIFORNIA PROPOSITION 65 WARNING
The burning of gas cooking fuel generates some by-products which are on the list of
substances which are known by the State of California to cause cancer or reproductive harm.
California law requires businesses to warn customers of potential exposure to such
substances. To minimize exposure to these substances, always operate the unit according to
the use and care manual, ensuring you provide good ventilation when cooking.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause
injury or property damage. Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 5
Page 6
Safety and Installation Instructions
Location of your Barbecue
Most importantly, this is an outdoor appliance. Ensure your barbecue is positioned
safely away from anything that can catch fire.
Under no circumstance is this barbecue to be used indoors. This includes garages or
any other enclosed area.
Clearance from Combustibles: Ensure your barbecue remains at a distance of at least 18”
from any combustible material such as wood, gyprock, paper and plants. Do not store
combustible materials, gasoline or flammable liquids or vapors around the barbecue.
Adequate Ventilation: Ensure there is adequate ventilation for both the barbecue and
cylinder. This is required not only for proper combustion, but also to prevent gas build up.
Firm Level Surface: Use your barbecue only on a firm level surface. This barbecue is not
designed for recreational vehicles, and should not be installed on a boat or marine craft.
Protection from Weather: Keep the barbecue protected from adverse weather, including rain
and high winds. Polyvinyl covers are available that have been specially designed for this
range of barbecues. Allow clear access to the entire gas supply hose and regulator.
Maintenance Access: When your barbecue is installed, you should be able to access the
gas supply line including the gas piping or hose, gas regulator, gas cylinder and any shut off
valves.
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 6
Page 7
Partial Enclosures: Many backyards have areas that are partially closed off, such as
balconies and pergolas. In some cases, it is hard to decide whether these partially enclosed
areas should be classified as indoor areas, particularly in terms of permanent (non-closable)
ventilation. The gas safety authorities have agreed on the definition of partial enclosures
below.
IMPORTANT: Consult the AHJ (Authority Having Jurisdiction) or local contractor of any
uncertainty.
Safety and Installation Warnings
Please read all instructions before installing or operating your gas grill to prevent injury and
appliance damage.
Before installation or service, disconnect the power supply to the work area by removing the
fuse, "tripping" the circuit breaker, or unplugging the unit.
All gas grills will get hot during use. Use extreme caution when operating the grill.
Do not touch hot surfaces. Always use the handle to open or close the grill.
Close supervision is necessary when this or any appliance is used near children. Keep
children away from the grill during operation and until the grill has cooled off.
Do not store any LP cylinder or tank not connected for use with the grill, in the area of this grill
or any other appliance. Never store an LP cylinder or tank indoors, or within the reach of
children.
Keep any electrical supply cord and fuel supply hose away from any heated surfaces, sharp
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 7
Page 8
edges and dripping grease.
RATING PLATE LOCATION
Be certain your appliance is properly installed and grounded by a qualified technician in
accordance with applicable codes. To guarantee the electrical safety of this appliance,
continuity must exist between the appliance and an effective grounding system. It is
imperative that this basic safety requirement be met. The manufacturer cannot be held
responsible for damages caused by the lack or inadequacy of an effective grounding system.
Do not twist the gas supply hose.
Before each use, visually inspect the gas supply hose for cracks, cuts or excessive wear.
Replace the hose if necessary.
Never test the grill for gas leaks using a lighted match or any other open flame; see leak test
procedures using soap/water solutions - included in following pages of this manual.
The use of accessories, regulators, or components not recommended by the appliance
manufacturer may cause injuries and will void warranty.
Never light the grill with the hood closed and be certain that the burners are positioned and
seated over the gas valves and on the burner support.
Never lean over the cooking surface when lighting or operating the grill.
Use barbecue tools with wood handles and insulated oven mitts when operating the grill.
Gas Specifications: Be sure that the gas supplied to the grill conforms to the model you
purchased. A Natural Gas grill requires natural gas to operate; an LP grill requires liquid
propane gas to operate.
Check the rating label on the left hand side of the unit.
Never connect the appliance to an unregulated gas supply line. Grills operated without a
regulator are unsafe and will not be serviced until installed properly and safely. Unsafe
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 8
Page 9
operation without a gas regulator will void warranty of the grill.
Grills operated with NG (natural gas) gas must be installed with the NG regulator supplied
with the unit and set to 4.0" water column pressure.
Grills operated with LP (liquid propane) gas must be installed with an LP regulator not
supplied with the unit and set to 11" water column pressure.
The gas valves used in the grills are preset at the factory for Natural Gas operation. Please
contact your dealer and use a licensed contractor or installer to convert your grill to the
different gas type.
The self-contained LP system barbeque grill is design certified to be used with a standard 20
lb., 12 1/4" diameter; 18" high cylinder with right handed connection threads and this is the
maximum size LP tank to be used. The cylinder must be marked in accordance with the latest
U.S. Department of Transportation specifications for LP gas cylinders. (DOT. CFR49 or
National Standards of Canada CAN/CSA-B359 Cylinders, Spheres and Tubes for the
Transportation of Dangerous Goods) a Propane Tank with an ODP) Overfill Prevention
Device) must be used at all times.
Natural Gas Requirements
Always check the Rating Plate to make sure the gas supply you are hooking up to is the gas
type the grill is manufactured for.
IMPORTANT: Never connect the grill to an unregulated gas supply.
The installation of this appliance must conform with local codes or in the absence of local
codes, to the national fuel gas code, ANSI Z223.1a-1998. Installation in Canada must be in
accordance with the standard CAN/CGA-B149.2, Propane Installation Code.
A licensed contractor or local gas company representative must perform all natural gas
connections.
Ensure that the service supplying the grill is fitted with a shut off valve conveniently positioned
near the grill and giving ease of access.
The grill must be isolated from the gas supply piping system by closing its individual manual
shutoff valve during any pressure testing of the gas supply piping system at test pressures
equal to or less than 0.5 psi (3.5 kPa).
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 9
Page 10
The grill and its individual shutoff valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressure in excess of 0.5 psi (3.5
kPa).
Connection
Slide the grill forward to gain access to the regulator and gas connection point in the rear.
Connect a suitable natural gas flex connector to the grill regulator.
Check the grill controls to ensure all control valves are in the full OFF position.
Turn on the main gas supply and check all connections for leaks using soapy water as
described in the leak testing procedure section.
Warning: If you see bubbles in the soapy solution at any of the connections, turn off
the gas supply and tighten the connection. If tightening the connection does not seal
the leak, it may be necessary to replace the flex hose.
Checking for Gas Leaks
Perform a leak test at least once a year whether the gas supply cylinder has been
disconnected or not. In addition, whenever the gas cylinder is connected to the regulator or
whenever any part of the gas system is disconnected or replaced, perform a leak test.
As a safety precaution, remember to always leak test your grill outdoors in a well-ventilated
area. Never smoke or permit sources of ignition in the area while doing a leak test. Do not
use a flame, such as a lighted match to test for leaks. Use a solution of soapy water.
Prepare a leak testing solution of soapy water by mixing in a spray bottle one part liquid soap
to one part water.
Make sure all the control knobs are in the OFF position .
Blaze Outdoor Products Instructional Book
Page | 10
Version 1.0
Page 11
Turn on the gas
On Natural Gas systems, turn the main feed valve to the grill.
On LP systems, turn the cylinder valve knob counter clockwise one turn to open.
Apply the leak-testing solution by spraying it on joints of the gas delivery system.
Blowing bubbles in the soap solution indicates that a leak is present.
Stop a leak by tightening the loose joint or by replacing the faulty part with a replacement part
recommended by the manufacturer. Do not attempt to repair the cylinder valve if it is
damaged. The cylinder must be discarded to a proper LP tank location and then replaced.
Turn all control knobs back to the full OFF position.
If you are unable to stop a leak turn all control knobs back to the full OFF position, shut off the
gas supply to the grill and release pressure in the hose and manifold by pushing in and
turning any of the control valves one quarter turn counter-clockwise.
On LP systems, remove the cylinder from the grill.
Call an authorized gas appliance service technician or an LP gas dealer.
Do not use the appliance until the leak is corrected.
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 11
Page 12
Liquid Propane (LP) Gas Requirements
LP TANK REQUIREMENTS:
- A collar to protect the cylinder threads on the customer supplied tank.
- An arrangement for gas vapor withdrawal.
- A safety relief device having direct communication with the vapor space of the cylinder.
- A method of mounting.
- When not in use, the tank shut off valve should be turned off.
Filling and Refilling LP Gas Cylinders:
WARNING
All purging and refilling of LP gas cylinders must be performed by qualified personnel
in the LP gas industry. Never store a spare LP gas cylinder under or near this
appliance.
Never fill the LP gas cylinder beyond 80 percent full. Failure to follow these
instructions may result in explosion, personal injury or death.
- Turn control knobs and cylinder valve to the OFF position. Unscrew valve.
- Remove cylinder and have it filled at your local qualified propane dealer.
- Once filled, carefully connect the valve and make sure it is secure and not leaking.
- With the control knobs in the OFF position, turn on the cylinder valve.
If you smell gas or hear a hiss of gas escaping from the tank, get away from the tank and do
not attempt to correct the problem yourself. Call the Fire Department immediately.
If your grill has no leak at the cylinder, then re-check for loose connections and retest for
leaks using the method detailed in the following pages with soapy solution.
Do not subject your LP gas cylinder to excessive heat, and always store the cylinder in an
upright position. Never store your LP cylinders indoors.
Make sure that when attaching components, all connections are secured and fully tightened
to prevent leakage.
If one is not already available, it is recommended that an ON-OFF shutoff valve be installed at
the gas supply source, and that the gas supply be turned off when either Natural Gas or LP
Gas grills are not in use.
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 12
Page 13
Transporting and Storing LP Gas
Transport only one cylinder at a time. Ensure the cylinder is secured in an upright position
with the control valve turned off and the dust cap in place. Store cylinders outdoors and out of
the reach of children. Do not store cylinders in a building, garage, or any other enclosed area.
Leak Testing
All gas piping and connections must be tested for leaks after installation or service. All leaks must
be corrected immediately. Remember-before exchanging an empty bottle for a new one;
make sure all control valves are in the “off” position.
Open the valve (shut-off or ‘ON’ LP tank). Test for leaks by applying liquid soap solution to all joints.
Bubbles forming indicate gas leak.
NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS.
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 13
Page 14
Installing the Grill in a BBQ Island
You will need a second person to help you avoid damaging the grill or your barbecue
island.
Before installing a grill in any island or cut out, make sure that the opening is not bigger than
the outside frame of the grill unit. The grill should rest on the lip of the frame.
Pay careful attention to the location of the gas line. It should be routed away from sources of
heat, sharp edges and should make as few bends as possible.
Check to see if the gas line connection will be accessible when grill is installed.
If the gas line connection is not easily accessible when the grill is installed, support the grill
above counter level and attach the gas line to the grill. When the gas connection is made,
slide the grill into the cut out. If the gas line connection is accessible when the grill installed,
slide the grill into the cut out and then attach the gas line.
Be very careful not to kink the gas line when lowering the grill into the cut out.
Keep your fingers away from where the grill will be supported on counter. Your fingers could
become trapped and serious injury could occur.
Check to make sure the grill is level and is supported around the entire outside edge. If the
grill is not level or is unstable, use non-combustible shims under the outside lip to stabilize it.
Perform the leak test procedure as described earlier in this manual.
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 14
Page 15
BUILDING BBQ SPECIFICATIONS
MODEL
DESCRIPTION
WIDTH
DEPTH
HEIGHT
BLZ-3
25” 3 Burner
23 1/4”
21 1/4”
8 1/2”
BLZ-4
32” 4 Burner
30 5/8”
21 1/4”
8 1/2”
BLZ-5
40” 5 Burner
38 5/8”
21 1/4”
8 1/2”
BLZ-SB2-NG
2 Side Burner
10 3/4”
20 3/4”
8 1/2”
BLZ-SB1
1 Side Burner
11”
17 3/4”
4 1/2"
ALL BBQ ISLANDS MUST BE MANUFACTURED FROM “NON-COMBUSTIBLE” MATERIAL.
Minimum clearance to adjacent combustible construction at 14” from sides & 16” from back
Blaze Outdoor Products Instructional Book
Version 1.0
Page | 15
Page 16
Installation Method for Propane
Installation Method for Natural Gas
Connection Method for Dual Side Burner
When connecting your Side Burner to LP or NG No Regulator is required on the Side Burner.
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 16
Page 17
BBQ SPECIFICATIONS
NOTE: Check with City and Fire department for Local Building Codes. A Permit may be
required for outdoor Kitchen Construction.
NOTE: “ALWAYS” have equipment measured by Contractor before building.
Blaze Outdoor Products Instructional Book
Version 1.0
Page | 17
Page 18
ELECTRICAL PRECAUTIONS
Extension cords are available and may be used if care is exercised in their use.
If an extension cord is used:
the marked electrical rating of the cord set or extension cord should be at least as
great as the electrical rating of the appliance, and,
the cord should be arranged so that it will not touch hot surfaces, sharp edges or
drape over the countertop or tabletop (where it can be pulled or tripped over
unintentionally).
Outdoor extension cords should be used with products suited for outdoor use. They are
surface marked with suffix letters "W" or "W-A" and with a tag stating "Suitable for Use with
Outdoor Appliances".
To protect against electrical shock, the power cord and plug should be kept dry and off of the
ground.
Do not clean this product with water spray; do not spray cleaners into the lamp socket area.
Do not operate any appliance with a damaged power cord or power plug, and do not operate
any appliance after the appliance malfunctions or has been damaged in any manner. If this
should occur, return the appliance to the nearest authorized service facility for examination,
repair or adjustment.
Be certain your appliance is properly installed and grounded by a qualified technician in
accordance with applicable codes. To guarantee the electrical safety of this appliance,
continuity must exist between the appliance and an effective grounding system. It is
imperative that this basic safety requirement be met. The manufacturer cannot be held
responsible for damages caused by the lack or inadequacy of an effective grounding system.
This appliance conforms to all uniform electrical safety codes and electrical grounding
regulations. Install unit according to I.A.W. local codes or with National Electrical Code
ANSI/NFPA 70 or CSA C22.1 in their absence.
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 18
Page 19
General Safety and Care
NOTE: The manufacturer cannot be held responsible for damage or injury caused by
improper use of this appliance.
Gasoline, lighter fluid or other flammable liquids and vapors should never be stored in the
area of this grill or any other appliance.
Do not store anything in the grill. Make sure food is not forgotten in the grill; forgotten
items could melt or catch fire when the appliance is turned on.
To prevent injuries, do not use accessories that are not recommended by the
manufacturer.
Before cleaning the appliance, disconnect the rotisserie and "trip" the circuit breaker.
Always open the grill hood carefully, using only the handle - the hood may be hot.
Children should not be left alone or unattended in an area where any appliance is in use.
They should never be allowed to touch, sit or stand on any part of the appliance.
Do not store items of interest to children in cabinets above the grill or in the grill. Children
climbing on the appliance to reach these items could be seriously injured.
Wear proper clothing when operating appliances. Loose-fitting or hanging garments
should never be worn while using the grill.
Do not leave the grill unattended while in use.
Do not use water on grease fires! A violent steam explosion may result. Instead, smother
the fire with a dry chemical or foam fire extinguisher.
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 19
Page 20
Safety and Installation Instructions
UNIT INSTALLATION:
Your Blaze Series Grill comes pre-assembled and requires very little setup. We do however;
recommend the use of professional help during the installation of your unit as improper
installation may affect your warranty.
Remove the unit from the box along with all accessories and check that no damage has
occurred to the unit or any parts.
Burners: Check the burner tubes and remove any obstructions that may be in the ports or
holes. Using cold water and a brush will be sufficient. Make sure all foreign particles are
removed from the burner before use. Make sure the air shutter on the burners is slightly
opened (to about 1/8" for NG and 1/4" for LP).
WARNING
For proper operation, burners must be aligned with the valve orifice and seated in the
bracket slot.
This is accomplished by first placing the burner tube shutter hole securely over the
valve orifice and then secure with the cotter pin at the rear of the barbecue.
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 20
Page 21
Lighting Instructions
Caution: Never operate the grill unattended.
Prior to using your grill, verify that all of the following is correct:
The burner tube is free of any debris or obstruction.
Installation of the proper gas type and regulator settings.
The proper gas connection is complete.
Minimum clearances are maintained.
All packaging has been removed.
All parts and components are properly in place.
An installer-supplied manual gas shut-off valve is fully accessible.
LP hose is clean and inspected for cuts, wear, abrasion, or leaks. Replace if
necessary with a suitable UL, ETL or CSA Listed part with internally threaded connector.
LIGHTING YOUR GRILL
Become familiar with the safety instructions at the front of this manual. Do not smoke
while lighting the grill or checking the gas supply connections.
Make sure that all gas connections are securely tightened and have been leak-tested
with a soapy water solution - never with a flame!
FIRST TIME OPERATION
Before cooking with your grill for the first time, burn off any foreign matter and rid the unit of
any odors by burning the unit on HIGH with the lid down for about 10 minutes. When lit, the
flame should have a bluish color to it. It may have a tint of yellow and adjustment to the air
shutters can be made to obtain a blue flame and proper gas glow. This grill should be
preheated with the main burner control settings on HIGH for five minutes with the hood
closed.
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 21
Page 22
Lighting the Grill
1. Open the hood.
2. Use caution when lighting burners by standing as far away from the burners as possible.
3. To ignite burners, push the burner knob in and slowly rotate counter-clockwise to the high
position.
4. You will hear a loud click as the electronic lighter produces a spark. Listen for the sound
of the gas igniting and look for a flame through the cooking grids. If the burner does not
light on the first try, repeat immediately.
5. If the burner does not light in 5 seconds then wait five minutes until the gas clears before
attempting to light it again. Repeat the procedure or try the manual lighting procedure
below.
6. Upon successful lighting, repeat the process on the other burners you wish to light.
7. To shut off the burners, rotate the knob and turn to OFF.
8. It is normal to hear a popping sound when the burners are turned off.
Manually Lighting the Grill
WARNING: Do not use standard matches or cigarette lighters to perform match-lighting
procedures. Serious burns can occur and lighters can explode.
1. Open the hood.
2. If you have just attempted to light the burner, allow five minutes for any accumulated gas
to dissipate.
3. Use caution by standing as far away from the burners as possible.
4. Light and insert a long stem match, holding it near the Lighting Tube.
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 22
Page 23
5. Push in and turn the control knob to HIGH.
6. If the burner does not light after five seconds, turn the control knobs to the OFF position.
7. Wait five minutes until the gas clears before attempting to light it again.
8. If the burner does not light after several attempts, immediately close all gas valves and
consult an authorized service technician.
WARNING: “Flashback” may occur in or around the burner tubes. Flashback exhibits a
characteristic “whooshing” sound. If this should occur, immediately turn off your burners,
then remove and clean them with soap and water and a brush until all foreign objects are
removed.
Fuel Conversion – Gas Regulator:
Currently all grills are supplied with a regulator set at 4” of water column pressure which is
appropriate for use with Natural Gas.
When converting to Propane Gas, the most common Propane canister used is a smaller sized
portable canister (typically 5 gallons or 20 pounds).
The pre-installed regulator will need to be removed and replaced with a low pressure hose
and regulator with an outbound pressure set to approximately 11" of water column pressure. If
an individual is intending on using Propane provided from a larger tank permanently installed
on location, the regulator included with the grill can be converted for use with LP fuel (see
NG-LP Regulator Conversion below).
Please be aware that this included regulator can only withstand an inbound pressure of .5 PSI
or roughly 14 inches of water column pressure. Any higher pressure on location will have to
be further regulated before connecting to the regulator on the appliance. Please consult your
local Propane gas provider to confirm the gas pressure on the supply line feeding the grill.
With either setup, remember to always check for gas leaks after the job is complete (see
checking for gas leaks).
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 23
Page 24
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 24
Page 25
Low flame setting
screw
Fuel (Gas) Conversion Instructions for BLAZE Gas grills.
CAUTION: This should only by performed by a licensed gas professional.
FUEL CONVERSION - Main Burners:
1. You must remove all cooking grids and flame tamers to expose the main burners in the
grill.
2. On the bottom rear of each burner is a cotter pin. Remove cotter pin.
3. To remove burner, pull rod upwards and slide burner toward the rear of the grill. Repeat
for each burner.
4. Where the burner was previously located, connecting to the main valve through the hole
in the basin should now be empty space.
5. Inside the space you will find the end of the valve (toward the front of grill), with an orifice
(brass fitting), screwed into the end of the valve stem.
6. Carefully remove the orifice with a 7mm socket set and extension. (These are extremely
fragile! When unscrewing, be extremely gentle, for you could easily break the brass fitting
and have to replace the valve).
7. Once the old orifice is removed, replace it with the new orifice, (repeat for all burners).
When re-installing orifice, do not over tighten or you will strip the brass fitting. Little
pressure is needed!!!
8. Replace burners and test for proper flame height. Flame should stand between ½” - 1” on
LOW and 1.5” - 2” on HIGH. (To adjust the LOW flame setting simply light the grill on the
LOW setting and adjust the screw located under the knob on the front of the valve using a
flat head screwdriver as seen in the diagram below.)
9. Inspect burners for proper flame appearance. The ideal flame appearance is one that is
mostly blue and not lifting off of the burner surface. There is an air shutter found at the
end of the burner (close to the valve) which can be either opened or closed to make
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 25
Page 26
adjustments to the flame's appearance. To adjust, remove the burner from the grill and
loosen the phillips head screw holding the air shutter to the burner. If the flame is yellow,
open the air shutter to make the flame bluer. If the flame is lifting off of the burner surface,
slightly close the air shutter. Re-tighten the phillips head screw and re-install the burner to
recheck the flame appearance. Repeat if necessary.
Rear Burner
For the Blaze 4 & 5 Burner, replace the back burner orifice by removing the plate on the rear
of the BBQ and carefully removing the fitting. Replace with the provided conversion back
burner orifice – large brass fitting (differs from small BBQ burner orifice).
Optional Infrared Sear Burner
How to Replace Conventional Burner with Infrared Sear Burner
1. To install the optional infrared burner, begin by removing the far left cooking grid, flame
stabilizing grid and zone divider.
2. Remove conventional burner by first removing the cotter pin that holds it in place,
located on the bottom rear of the burner. With the cotter pin removed, remove the
conventional burner.
3. Remove crossfire by removing the Phillips head screw in the middle that holds it in
place. With the crossfire removed, place the infrared burner in place, leaving off the
crossfire and flame tamer.
4. Replace the heat zone divider and cooking grid.
Note: It is critical that the end of the infrared burner is installed appropriately onto the gas
valve to ensure gas flows safely into the burner.
For additional information, contact us at 866-976-9510 or go to Blazegrills.com.
Preheating the Infrared Burner
Always preheat the entire grill before cooking. If the grill is already hot from cooking, you
should still preheat the infrared burner for 3 minutes. Never place food over the burner until it
is fully preheated to avoid clogging the tiny ports and damaging the burner from grease
drippings and food particles.
Infrared Burner Cleaning
To keep your infrared burner operating at maximum performance after each use, turn it on
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 26
Page 27
HIGH for 5-7 minutes with the hood open. This allows any food particles or grease drippings
to burn away. Once your grill has cooled completely, use a soft brush or vacuum to remove
any ash accumulation on the burner if necessary.
Cleaning Your Grill
NOTE: You should clean your grill after each use to maintain the overall appearance over the
life of your grill. After the first use, it is normal for your grill to become discolored in certain
areas from the heat produced by the burners.
Exterior Cleaning
When cleaning your grill, always scrub and polish in the direction of the stainless steel grain.
Wipe down the exterior of the grill to remove any splatter or grease. Do not use harsh
abrasives. Use a stainless steel cleaner to clean the exterior surface for a polished look. To
remove baked-on foods, use a fine to medium grit non-metallic abrasive pad with a stainless
steel cleaner to avoid specks of grease collecting in the grain causing the appearance of rust.
Before installing the cover, always allow the surface to dry. DO NOT cover a damp grill.
Drip Tray
Clean the drip try after each use. Once the grill has cooled completely, remove the tray by
pulling it all the way out until it comes free. Clean the tray with hot soapy water and re-install.
If using an oven cleaning agent, be sure to carefully follow the manufacturer’s instructions to
avoid damage to the stainless steel.
Heat Separators, Grilling and Warming Racks
To clean after each use, turn the grill on HIGH for 5-7 minutes with the hood closed. This
allows any food particles or grease drippings to burn away. Brush components to remove any
remaining charred materials.
Cast Stainless Steel Burners
The grill must be completely cooled before proceeding. Make sure the gas supply is off and
all control knobs are in the “OFF” position. You must remove all cooking grids and flame
tamers to expose the main burners in the grill. On the bottom rear of each burner is a cotter
pin. Remove cotter pin. To remove burner, pull rod upwards and slide burner toward the rear
of the grill. Repeat for each burner. To clean the burners, use a wire brush to clean the
exterior of the burner. Free all clogged ports of obstructions with a small metal object. Clean
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 27
Page 28
out any debris through the air shutter and inspect the burner inlet to ensure it is free of any
obstructions. Use a rod or pipe cleaner to remove any debris within the burner if necessary.
NOTE: Make sure each burner is properly placed after cleaning. It is very important to
ensure the end of the burner is installed appropriately onto the gas valve to ensure gas flows
safely into the burner. Failure to meet these conditions can cause dangerous conditions that
can cause personal injury and/or property damage.
Warranty Registration
If you have purchased a Blaze Series Grill you must register your product within 30 days of
purchase to validate the warranty and maintain your original receipt to get parts for the grill.
You may register your grill at blazegrills.com by selecting Contact Us, and then selecting
Register your Product. You may also fill out page 34 and mail to the address located at the
bottom of the form. The warranty is for original owners only and cannot be transferred to new
owners. You must retain your sales slip or invoice.
Installation, repair and maintenance work should be performed by an authorized service
technician. Work by unqualified persons could be dangerous and will void the warranty. All
Natural and LP Gas grills must have a qualified installer complete the installation for the
warranty to be in effect. The incorrect installation of the Blaze gas grill will void the warranty.
Please call Blaze Outdoor Products for more information on correct installation of the gas grill.
Blaze Outdoor Products shall not be liable under this or any implied warranty for incidental or
consequential damages and Blaze Outdoor Products liability is limited to the purchase price
of the barbecue only. This warranty gives you specific legal rights, and you may also have
other rights, which may vary from state to state. This warranty is applicable in the United
States and Canada only. No one else is authorized to perform any obligations under this
warranty.
High cooking temperatures, excessive humidity, chlorine, fertilizers, lawn pesticides
and salt can affect the Stainless Steel components and for these reasons, the limited
warranties DO NOT COVER DISCOLORATION OR RUST, unless there is a loss of
structural integrity on the grill components.
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 28
Page 29
WARRANTY ON PARTS:
Burners - Lifetime
Cooking Grills - Lifetime
Valves - 15 years
Exterior Construction - Lifetime
All other parts - 1 year
Contact Blaze Outdoor Products directly for all warranty parts and questions. Consumers are
responsible for all labor and shipping cost associated with warranty parts. Please make sure
to have your sales receipt information and product serial number located inside the grill on the
left side panel.
All replacement parts can be purchased through Blaze Outdoor Products or your local
stocking dealer.
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 29
Page 30
BBQ PARTS – WARRANTY ORDER
2 Side Shelves of Control Panel
BLZ-32-003
3 Burner Hood Handle
BLZ-26-001
3 Burner Hood
BLZ-26-002
4 Burner Hood Handle
BLZ-32-001
4 Burner Hood
BLZ-32-002
5 Burner Hood Handle
BLZ-40-001
5 Burner Hood
BLZ-40-002
4 Burner Rotis Burner
BLZ-32-041
3 Burner Firebox Cover
BLZ-26-006
5 Burner Rotis Burner
BLZ-40-041
4 Burner Firebox Cover
BLZ-32-006
Warming Rack Holder
BLZ-32-024
5 Burner Firebox Cover
BLZ-40-006
Assemble Back Panel
BLZ-32-026
Copper Connector
BLZ-32-040
Valve
BLZ-32-028
3 Burner Warming Rack
BLZ-26-033
Hood Spacer
BLZ-32-015
4 Burner Warming Rack
BLZ-32-033
Control Knob
BLZ-32-037
5 Burner Warming Rack
BLZ-40-033
Knob Bezel
BLZ-32-038
Rotis Valve
BLZ-32-029
SUS Fixed Pin for Flame Tamer
BLZ-32-046
Cast Stainless Steel Burner
BLZ-32-030
Lighting Tube
BLZ-32-045
2 Side Shelves of Back Cover
BLZ-32-011
Regulator
BLZ-32-050
Temperature Gauge
BLZ-32-031
Stainless Steel Flame Tamer
BLZ-32-051
Gauge Bezel
BLZ-32-032
Crossfire Panel
BLZ-32-044
Hood Rubber Pad
BLZ-32-012
Logo Plate
BLZ-32-049
Cooking Grill
BLZ-32-034
Hood Roller Bearing
BLZ-32-048
3 Burner Back Cover Liner
BLZ-26-007
4 Burner Stainless Steel Flexline
BLZ-32-039
4 Burner Back Cover Liner
BLZ-32-007
5 Burner Stainless Steel Flexline
BLZ-40-039
5 Burner Back Cover Liner
BLZ-40-007
Thumbscrew
BLZ-32-RE
Rotis Igniter Cover
BLZ-32-016
Key Washer
BLZ-32-RG
3 Burner Rotis Spit Rod
BLZ-26-RC
3 Burner Control Panel
BLZ-26-005
4 Burner Rotis Spit Rod
BLZ-32-RC
4 Burner Control Panel
BLZ-32-005
5 Burner Rotis Spit Rod
BLZ-40-RC
5 Burner Control Panel
BLZ-40-005
3 Burner Drip Tray
BLZ-26-022
3 Burner Gas Manifold
BLZ-26-036
4 Burner Drip Tray
BLZ-32-022
4 Burner Gas Manifold
BLZ-32-036
5 Burner Drip Tray
BLZ-40-022
5 Burner Gas Manifold
BLZ-40-036
3 Burner Drip Tray Handle
BLZ-26-023
3 Burner Control Panel Liner
BLZ-26-020
4 Burner Drip Tray Handle
BLZ-32-023
4 Burner Control Panel Liner
BLZ-32-020
5 Burner Drip Tray Handle
BLZ-40-023
5 Burner Control Panel Liner
BLZ-40-020
4 Burner Electrode Wire
BLZ-32-042
3 Burner Firebox
BLZ-26-020
5 Burner Electrode Wire
BLZ-40-042
4 Burner Firebox
BLZ-32-020
Shaft Collar
BLZ-32-RF
5 Burner Firebox
BLZ-40-020
Motor Bracket
BLZ-32-RB
Rotis Motor
BLZ-32-RA
Fork
BLZ-32-RD
Rotis Handle
BLZ-32-RH
Counter Balance
BLZ-32-RI
Email Orders to: customerservice@BlazeGrills.com
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 30
Page 31
BLAZE 3 Burner
BLAZE 4 & 5 Burner
Note: Add one burner, one flame tamer, one heat separator and one grid for the Blaze 5 Burner.
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 31
Page 32
Blaze Side Burner – 1 Burner
Blaze Side Burner – 2 Burners
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 32
Page 33
Locating the Product Serial Number:
The serial number for your BLAZE appliance is located on the left hand side of the Firebox.
You will need this number to properly register your grill and activate coverage. Write this
information in the space provided below for your records
Barbecue model:
Barbecue serial number:
Type of fuel being used: □
Propane
□
Natural Gas
Date purchased:
Date installed:
Blaze dealer’s name & address:
_______________________________________________________________________
Blaze dealer’s phone number:
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 33
Page 34
Blaze Product Registration
Please take a minute to let us know what you bought. This makes sure we keep you up to date and
have your info ready if you ever need warranty help!
Name
First Last
Email
Phone
Street Address
Address Line 2
City State / Province / Region
Zip / Postal Code Country
What is the model number of the Blaze Product purchased?
What is the serial number on the Blaze product (only on grills and side burners)?
Where did you buy your Blaze product?
Mail To:
Blaze Outdoor Products
Warranty Registration
10920 Coursey Blvd
Baton Rouge, LA 70816
Version 1.0
Blaze Outdoor Products Instructional Book
Page | 34
Loading...
