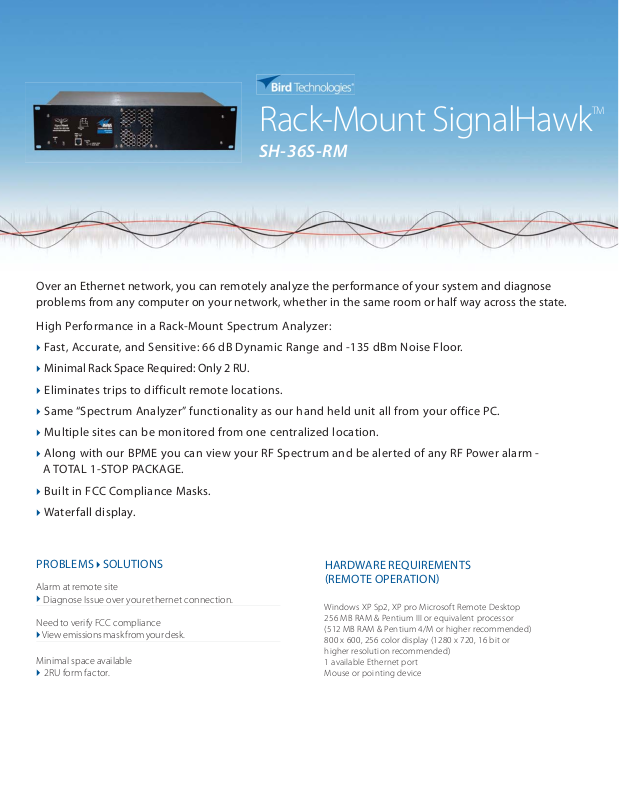

Rack-Mount SignalHawk
TM
SH-36S-RM
Over an Ethernet network, you can remotely analyze the performance of your system and diagnose
problems from any computer on your network, whether in the same room or half way across the state.
High Performance in a Rack-Mount Spectrum Analyzer:
}
Fast, Accurate, and Sensitive: 66 dB Dynamic Range and -135 dBm Noise Floor.
}
Minimal Rack Space Required: Only 2 RU.
}
Eliminates trips to difficult remote locations.
}
Same “Spectrum Analyzer” functionality as our hand held unit all from your office PC.
}
Multiple sites can be monitored from one centralized location.
}
Along with our BPME you can view your RF Spectrum and be alerted of any RF Power alarm -
A TOTAL 1-STOP PACKAGE.
}
Built in FCC Compliance Masks.
}
Waterfall display.
PROBLEMS } SOLUTIONS
Alarm at remote site
}
Diagnose Issue over your ethernet connection.
Need to verify FCC compliance
}
View emissions mask from your desk.
Minimal space available
} 2RU form factor.
HARDWARE REQUIREMENTS
(REMOTE OPERATION)
Windows XP Sp2, XP pro Microsoft Remote Desktop
256 MB RAM & Pentium III or equivalent processor
(512 MB RAM & Pentium 4/M or higher recommended)
800 x 600, 256 color display (1280 x 720, 16 bit or
higher resolution recommended)
1 available Ethernet port
Mouse or pointing device
Page 2
SPECIFICATIONS
Frequency Range 100 kHz to 3.6 GHz
Frequency Resolution 1 Hz
Frequency Uncertainty ± 1 ppm
Reference Aging ± 1 ppm / year
Temperature Drift ± 1 ppm / °C
Spectral Purity -85 dBc @ 30 kHz
Sweep Time 2 s, full span; 1 ms, zero span
Resolution Bandwidth 100 Hz to 1 MHz RBW
Video Bandwidth 10 Hz to 300 kHz VBW
Amplitude Accuracy ± 1.0 dB typ, ± 1.5 dB max
Dynamic Range 66 dB, intermod-free
Noise Floor -135 dBm DANL
Attenuator 0, 10, 20, or 30 dB; internal
Pre-Amplier +24 dB gain, internal
Data Points 705 displayed (settable)
Single Button
Measurement
Occ BW, Channel Power, ACPR, Field
Strength, AM/FM Demod, C/I
CE Compliant YES
RF Input, N(F) +20 dBm (100 mW) max
Connectivity Ethernet and USB 1.1
Operating & Store Temp 0° to 50°C oper; -20° to +80°C st
Humidity & Altitude 95% humidity; 4600 m altitude
Size and Weight 19” x 10” x 3.5”, 10 lbs
Emissions Mask IBOC, Analog FM, DTV and many others
Internal Storage 140 Gb
30303 Aurora Rd. Solon, OH 44139 866.695.4569 www.bird-technologies.com
Rack-Mount SignalHawk
TM
SH-36S-RM
STANDARD ACCESSORIES
920-SHPC-OPS Operators Manual
920-SHPC-REF Start-Up Instructions
4421-055 AC Power Cord
5A2744-07 Ethernet Cable
5A2653-10 USB Cable, 10 ft, USB A (M) to USB B (M)
7002A148 CD, PC SignalHawk Emulator
OPTIONAL ACCESSORIES
100-SA-MFN-40 Attenuator, 100W, 40 dB, N(M) to N(F),
2.4 GHz
50-A-MFN-30 Attenuator, 50W, 30 dB, N(M) to N(F), 4 GHz
25-A-MFN-30 Attenuator, 25W, 30 dB, N(M) to N(F), 4 GHz
10-A-MFN-30 Attenuator, 10W, 30 dB, N(M) to N(F), 4 GHz
5-A-MFN-20 Attenuator, 5W, 20 dB, N(M) to N(F), 4 GHz
2-A-MFN-20 Attenuator, 2W, 20 dB, N(M) to N(F), 4 GHz
PA-MNME Adapter, N(M) to 7/16 DIN(M)
PA-FNME Adapter, N(F) to 7/16 DIN(M)
PA-MNFE Adapter, N(M) to 7/16 DIN(F)
PA-FNFE Adapter, N(F) to 7/16 DIN(F)
4240-550 Adapter Kit, 7/16 DIN
4240-500-1 Adapter Kit, N(F) to N(F)
4240-500-6 Adapter, N(F) to N(F)
4240-500-10 Adapter, N(M) to SMA(F)
Spare standard accessories are available as optional accessories.
Manuals and software/rmware updates available at
www.bird-technologies.com
