Beyond LED Technology BJON1058 Specifications

LED Area Light

Bear Series

LED AREA LIGHTS

1

Bear Series

Beyond LED Technology’s Newest Bear Series Area light is the most unique and revolutionary
product of 2021. It’s the worlds first Wattage and CCT Adjustable Area light. Our 300 Watt
light’s Wattage can be adjusted to 200 Watts and 240 Watts. Our 150 Watt light’s Wattage
can be adjusted to 120 Watts and 100 Watts. Also our Bear Series offers CCT adjustment
to 4000K, 5000K, and 5700K. Our Bear Series Area Lights have a new heat sink design that
ensures that the light stays cool and extends its life.

• High Efficiency BridgeLux Chips

• Ultra thin sleek design

• Up to 135 lumens per watt

• Optional 3 pin Screw-in photocell

• Built-in 10KV Surge protector

• Several bracket options

Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087

Due to continuous product improvement, information in this document is subject to change.

• Heat resistant polycarbonate optical lens

• Die Cast Aluminum housing

• Available in Black Housing

• IP65 Rated

• Universal 100-277Vac / 480Vac optional

• UL & DLC Approved

LED Area Light

LED Shoebox Light Page

2of3

SPECIFICATIONS

OPTICAL

Input Power (Tolerance : ±10%)

150W

Color Temperature

4000K

5000K

5700K

Lumen (Tolerance : -10%)

20000LM

22000LM

20000LM

Efficacy (Tolerance : -3%)

135LM/W

145LM/W

135LM/W

CRI

>70

Color Consistency

＜6 Steps (or ＜6 SDCM)

BUG

B4-U0-G5

Distribution Pattern

Type Ⅲ

Beam Angle (50%) (Tolerance : ±15%)

155*110 Degree

Input Voltage and Frequency

120-277Vac 50/60Hz

PF (Tolerance : -3%)

≥0.9

THD (Tolerance : +5%)

≤20%

Flicker Percent

5%

Driver Brand

Sosen

Driver Model

SS-150VA-56B

Driver Surge protection

L/N-PE: 10kV, L-N: 6kV

Dimming

1-10V dimming standard

Optional Accessory

Photocontrol, Surge-protective Device, Motion Sensor

LED Brand

Bridgelux

LED Type

SMD3030

LED QTY

308 PCS

Housing

Die-cast aluminum

Housing Color

Brown, Black, or Customized

EPA

1.62ft²

Waterproof Rating

WET（IP65

Operating Temperature

Storage Temperature

-40℃TO 80

Operating Humidity

20％- 90％RH

Storage Humidity

10％- 95％RH

Warranty

5 years warranty with 24/7 operating hours Luminaire lifetime at 25℃.

2of3

150W

4000K

5000K

5700K

20000LM

22000LM

20000LM

135LM/W

145LM/W

135LM/W

>70

6 Steps (or＜6 SDCM)

B4-U0-G5

Type

155*110 Degree

2of3

300W

4000K

5000K

5700K

40000LM

43500LM

40000LM

135LM/W

145LM/W

135LM/W

>70

6 Steps (or＜6 SDCM)

B4-U0-G5

Type

155*110 Degree

LED Shoebox Light Page

2of3

Input Power (Tolerance : ±10%)

300W

Color Temperature

4000K

5000K

5700K

Lumen (Tolerance : -10%)

40000LM

43500LM

40000LM

Efficacy (Tolerance : -3%)

135LM/W

145LM/W

135LM/W

CRI

>70

Color Consistency

＜6 Steps (or ＜6 SDCM)

BUG

B4-U0-G5

Distribution Pattern

Type Ⅲ

Beam Angle (50%) (Tolerance : ±15%)

155*110 Degree

Bear Series

SKU # Model # Housing Watts Lumens CCT IP Input Voltage Certifications

151630 BLT-S-GB-150W Black

151631 BLT-S-GB-300W Black

Specifications

Adjustable Wattage 120W/100W

150W

300W

Adjustable Wattage 240W/200W

21750Lm

43500Lm

5700K

Adjustable CCT 4K/5K

5700K

Adjustable CCT 4K/5K

IP65 120-277Vac UL, DLC

IP65 120-277Vac UL, DLC

Optional Photocell

SKU #151636

ELECTRICAL

MATERIALS

OTHERS

<7 Steps (or <7 SDCM)

＜

B3-U0-G3

Ⅲ

140 X 100°

1. The color temperature of the lamp turns to 4000K when

2. The color temperature of the lamp turns to 5000K when

3. The color temperature of the lamp turns to 5700K when

Note: Please turn off the power before adjusting the color

Color tunable instruction:

the switch is set to 4000K

the switch is set to 5000K

the switch is set to 5700K

temperature.

＜

150W: SS-150VA-56B | 300W: SS-320VP-56BH

150W: 1-10V Dimming | 300W: 0-10V Dimming

）

Without Motion Sensor: -40°F to 113°F; With Motion Sensor: -31°F to 113°F

Without Motion Sensor: -40℃ TO 45℃; With Motion Sensor: -35℃ TO 45℃

Motion Sensor, PIR sensor

150W: 308 PCS | 300W: 616PCS

150W: 1.62ft² | 300W: 2.15 ft²

℃

135LM/W146LM/W135LM/W

<7 Steps (or <7 SDCM)

＜

B3-U0-G3

Ⅲ

140 X 100°

Adjustable Wattage

150W/120W/100W | 300W/240W/200W

Black

-40°F to 176°F

Wattage adjustable instruction:

Turn the wattage adjustable knob to a certain wattage gear,

and the power of the lamp

will change to the corresponding wattage.

(Adjustable wattage range 66%-100%)

Note: Please turn off the power before adjusting the

wattage.

CORRELATED COLOR

TEMPERATURE (CCT)

LED AREA LIGHTS

Mounting Options

Slip Fitter

SKU #151632

Due to continuous product improvement, information in this document is subject to change.

Straight Arm

SKU #151633

[phone] • www.BeyondLEDTechnology.com

5 years warranty with 24/7 operating hours Luminaire lifetime at 77°F.

Yoke Mount

SKU #151634

Optional

U-Bracket Mount

2

LED Shoebox Light Page 3 of 4

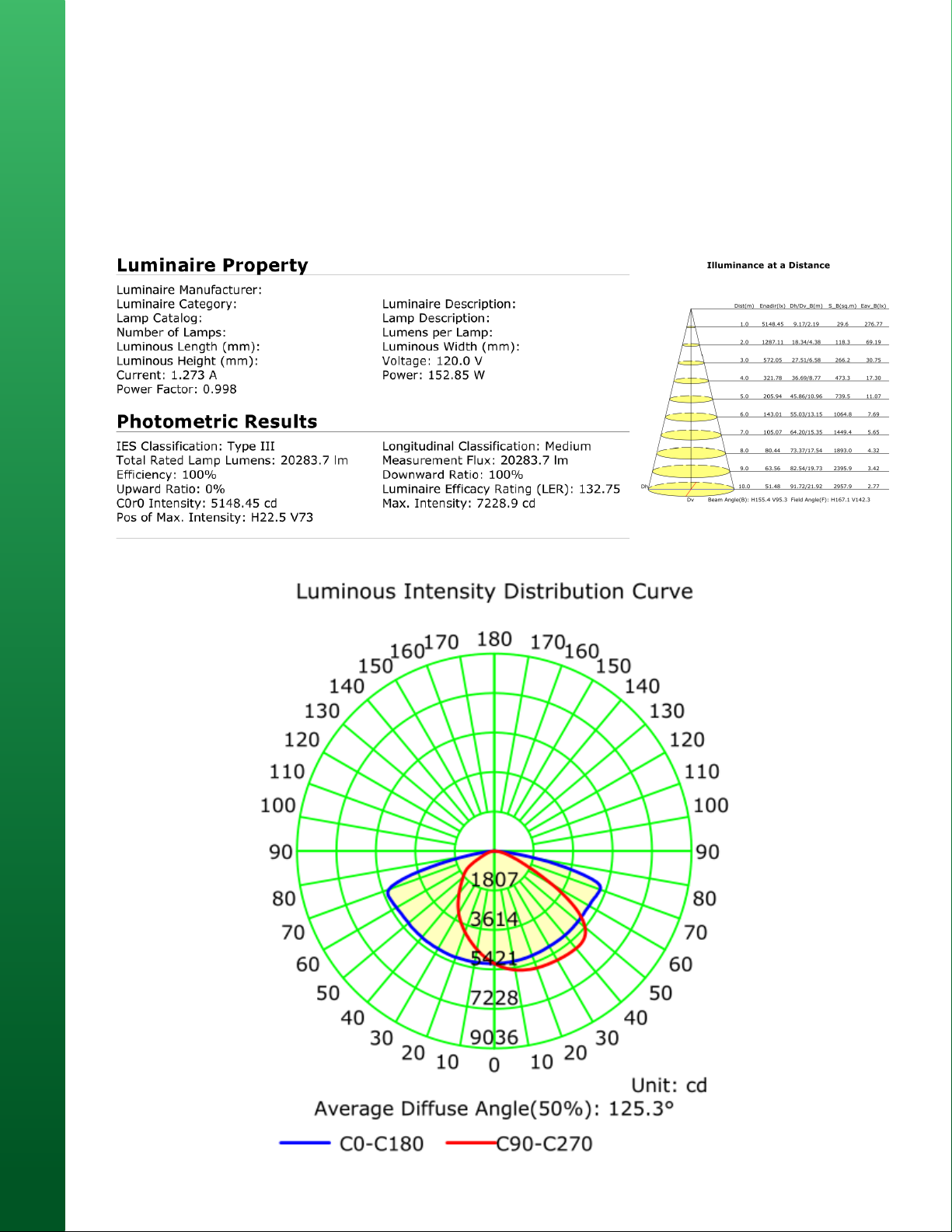

LIGHT DISTRIBUTION TESTING PARAMETERS

LED Area Light

Bear Series

150W Distribution Diagram

LED AREA LIGHTS

3

Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087

Due to continuous product improvement, information in this document is subject to change.

LED Shoebox Light Page 3 of 4

LIGHT DISTRIBUTION TESTING PARAMETERS

LED Area Light

Bear Series

300W Distribution Diagram

LED AREA LIGHTS

[phone] • www.BeyondLEDTechnology.com

Due to continuous product improvement, information in this document is subject to change.

4

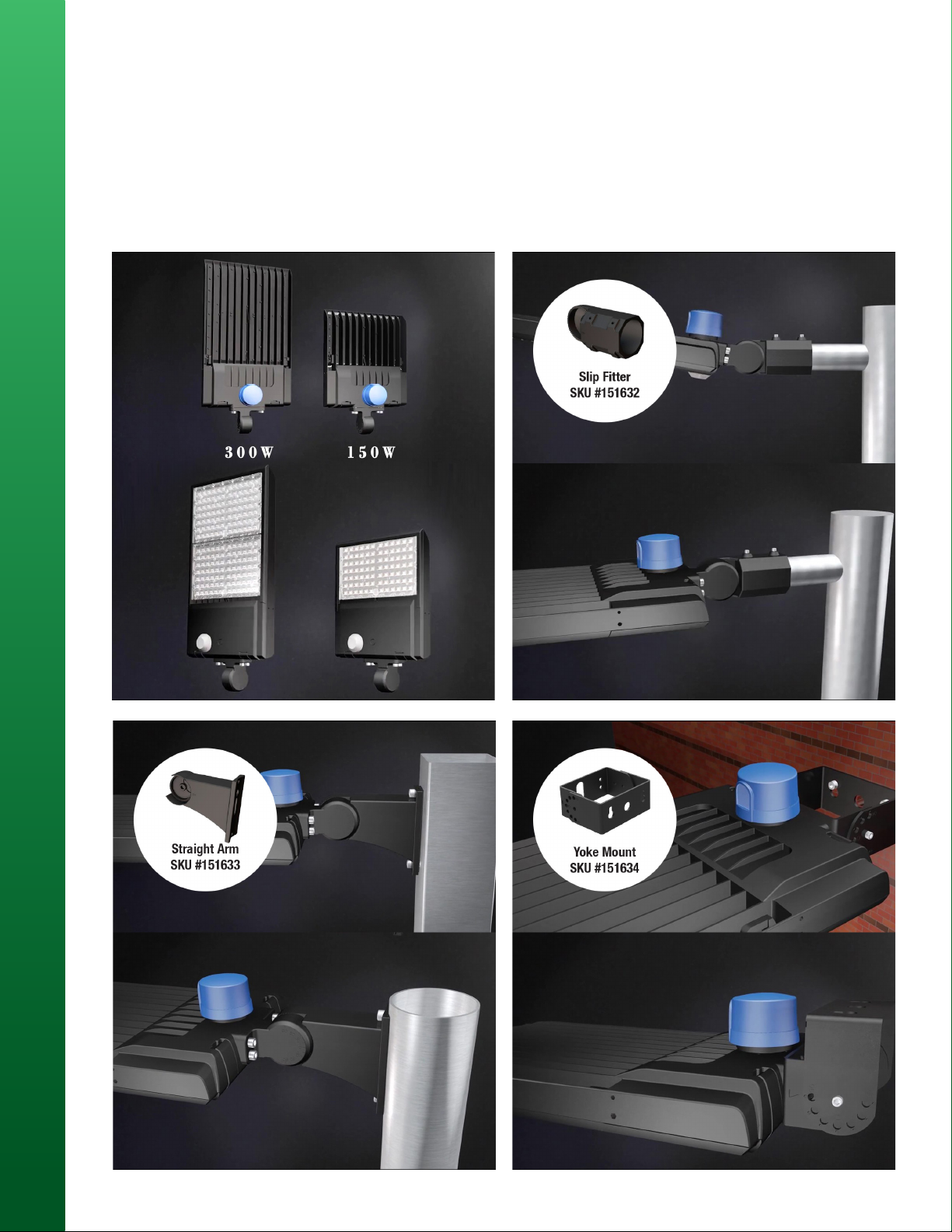

Mounting Options

LED Area Light

Bear Series

LED AREA LIGHTS

5

Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087

Due to continuous product improvement, information in this document is subject to change.

LED Area Light

Bear Series

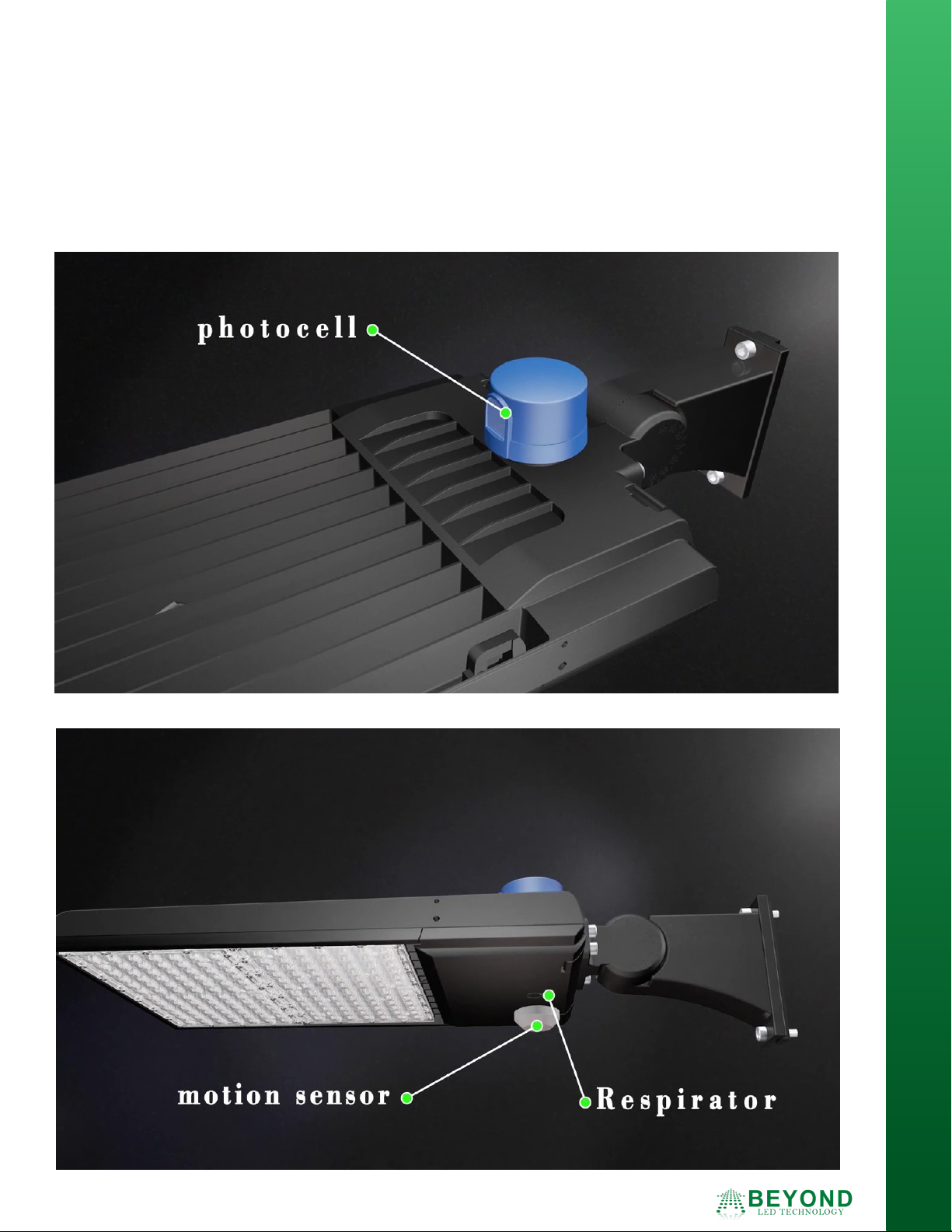

Optional Photocell or Motion Sensor

LED AREA LIGHTS

[phone] • www.BeyondLEDTechnology.com

Due to continuous product improvement, information in this document is subject to change.

6

Dimensions

LED Area Light

Bear Series

150W 300W

21.9685”

13.1102”

Slip Fitter

SKU #151632

23.1102”

13.1102”

Straight Arm

LED AREA LIGHTS

SKU #151633

3.4252”

29.685”

13.1102”

3.4252”

30.8268”

13.1102”

7

Yoke Mount

SKU #151634

6.29921”

19.4094” 27.126”

13.1102”

2.75591”

Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087

Due to continuous product improvement, information in this document is subject to change.

13.1102”

6.29921”

2.75591”

TECHNICAL DATA SHEET

Stent

Type

Lamps Net Weight

Size

Qty/ Carton

Weight/ Carton

AM

8.78KG

840*385*155mm

1

DM

9.26KG

840*385*155mm

1

YM

9.3KG

840*385*155mm

1

A&D

9.6KG

840*385*155mm

1

FM

8.3KG

730*400*155MM

1

LED Area Light

TECHNICAL DATA SHEET

Bear Series

Packaging

SKU # Model # Pcs/Box Dimensions Weight Pallet Quantity Pallet Weight Pallet Dimensions

151630 BLT-S-GB-150W 1

151631 BLT-S-GB-300W 1

151632 Slip Fitter Mount 1

151633 Straight Arm Mount 1

151634 Yoke Mount 1

User Notice

• Please turn off the
power before installing or
changing assembly parts.

• The input voltage
and lamps should
be matching. Before
connecting the power
line, please make sure
the wiring section is
insulated.

20” X 16” X 7” 14 Lb

LED AREA LIGHTS

28” X 16” X 7” 21 Lb

10” X 5” X 5” 6 Lb

10” X 5” X 5” 6 Lb

10” X 5” X 5” 4 Lb

• Only professionals should
install and disassemble
the lamps.

Trouble Shooting

• Flickering light - Turn off the power and turn on again in 3 minutes. If the same phenomena

occurs, then call Support.

• Not working - Please check all power connections.
