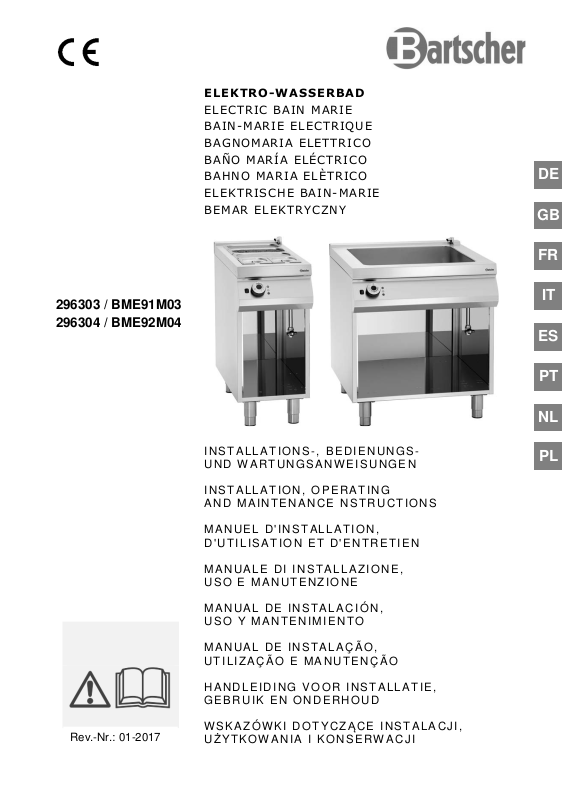

Bartscher 296303, BME91M03, 296304, BME92M04 Operating instructions

ELEKT R O - W A SSER B A D

ELECTRIC BAIN MARIE
BAIN-MARIE ELECTRIQUE
BAGNOMARIA ELETTRICO
BAÑO MARÍA ELÉCTRICO
BAHNO MARIA ELÈTRICO
ELEKTRISCHE BAIN-MARIE

DE

296303 / BME91M03
296304 / BME92M04

Rev.-Nr.: 01-2017

BEMAR ELEKTRYCZNY

IN S T ALLA T I O NS- , BEDI E N UNGS -
UN D W AR T UNGS A NW EI S UNG E N

IN S T ALLA T I O N, O P E RAT I N G
AND M AIN T E N ANC E NST R U C TIO N S

MA N U E L D' I N STA L L ATI O N ,
D' U T I LIS A T I ON E T D'E N T R ETI E N

MA N U A LE D I I NS T A L LAZI O NE,
US O E MA N U TENZ I O NE

MA N U A L DE I NST A L A CIÓ N ,
US O Y MA N T E NIM I E N TO

MA N U A L DE I NST A L A ÇÃ O ,
UT I L I ZAÇÃ O E MA N U TEN Ç Ã O

HA N D L EIDI N G VO O R I NS T A L LAT I E ,
GE B R UIK E N OND E R H OUD

W SK A ZÓW K I D OT YCZĄCE I NST A L A CJI,
UŻYT K OW AN IA I K O NS E RW A CJI

GB

FR

IT

ES

PT

NL

PL

DE

TECHNISCHE ÄNDERUNGEN VORBEHALTEN!

GB

FR

IT

ES

PT

NL

TECHNICAL CHANGES RESERVED!

SOUS RÉSERVE DE MODIFICATIONS TECHNIQUES !

CI RISERVIAMO LA POSSIBILITÀ DI INTRODURRE MODIFICHE TECNICHE!

¡SE RESERVA EL DERECHO A INTRODUCIR MODIFICACIONES TÉCNICAS!

SUJEITO A ALTERAÇÕES TÉCNICAS!

TECHNISCHE WIJZIGINGEN VOORBEHOUDEN!

PL

WPROWADZANIE ZMIAN TECHNICZNYCH ZASTRZEŻONE!

ENGLISH

1. TABLE OF CONTENTS

1. TABLE OF CONTENTS ..................................................................................................................... 1

2. INDEX ................................................................................................................................................. 2

3. SAFETY .............................................................................................................................................. 3

4. GENERAL INFORMATION AND WARNINGS ................................................................................... 4

4.1. General guidelines ................................................................................................................... 4

4.2. Description of the appliance ..................................................................................................... 4

4.3. Index plate ................................................................................................................................ 4

4.4. Exchange of components (service technician) ........................................................................ 5

4.5. Elements and accessories ....................................................................................................... 5

4.6. Protection devices .................................................................................................................... 5

5. USE AND OPERATION ..................................................................................................................... 6

5.1. Description of the controls. ....................................................................................................... 6

5.2. Device switching on and off ..................................................................................................... 6

5.3. Emptying of tanks ..................................................................................................................... 7

5.4. Guidelines on how to use the appliance .................................................................................. 7

6. CLEANING AND MAINTENANCE ..................................................................................................... 7

6.1. Guidelines on cleaning and maintenance ................................................................................ 7

6.2. Correct maintenance (service technician) ................................................................................ 8

6.3. Cleaning of the container ......................................................................................................... 8

7. TROUBLESHOOTING ....................................................................................................................... 8

8. INSTALLATION .................................................................................................................................. 9

8.1. Packaging and unpacking ........................................................................................................ 9

8.2. Installation (service technician) ................................................................................................ 9

8.3. Water properties ..................................................................................................................... 10

8.4. Connection to the mains (service technician) ........................................................................ 10

8.5. Installation of the appliance in a line ...................................................................................... 11

8.6. Check-up ................................................................................................................................ 11

9. SETTINGS ........................................................................................................................................ 12

10. APPLIANCE DISPOSAL .................................................................................................................. 12

ATTACHMENTS ....................................................................................................................................... I

GB

1

ENGLISH

2. INDEX

GB

A

APPLIANCE DISPOSAL 12

C

Check-up 11
Cleaning of the container 8
Connection to the mains 10
Correct maintenance 8

D

Description of the appliance 4
Description of the controls 6
Device switching on and off 6

E

Elements and accessories 5
Emptying of tanks 7
Exchange of components 5

G

General guidelines 4
Guidelines on cleaning 7
Guidelines on how to use the appliance 7
Guidelines on regular use of the appliance 7

I

Index plate 4
Installation 9
Installation of the appliance in a line 11

L

Longer interval in the use of the appliance 7

M

Maintenance 7

P

Packaging 9
Protection devices 5

S

SAFETY 3

T

TROUBLESHOOTING 8

U

Unpacking 9

W

Water properties 10

2

3. SAFETY



 Read carefully the guidelines and



instructions in the instruction manual
before you use the appliance.

The instruction manual contains general
information on how to safely use and maintain the
appliance. Retain the manual for future reference.



 Electric installation conforms to CEI EN



60335-1 and 60335-2-50 regulation.

To prevent any hazard, the damaged

mains power cable may be replaced by the
manufacturer or service personnel only.

The manufacturer took extra care when designing
and manufacturing to prevent any safety or health
hazard to the personnel operating the appliance.

Please read carefully the guidelines in the
instruction manual and instructions placed directly
onto the appliance. Above all, observe all the
safety instructions.

Do not intervene in or remove the protective
devices installed in the appliance. Non­compliance may lead to severe safety and health
hazard against people. We recommend to perform
a few tests to know the layout and main functions
of the control panel, particularly those to switch
the appliance on and off.

The appliance is intended only for the use it has
been designed for and any other use is
considered as the use not in compliance with the
intended use.

The manufacturer is not liable for material
damage or damage to person caused by
misapplication or incorrect application of the
appliance.

Any maintenance work that requires special
technical licence or special skills may be
performed by qualified personnel only.

ENGLISH

To provide hygiene and protect foods from dirt, all
the elements that have direct or indirect contact
with the foods and all border areas must be
thoroughly cleaned. Use only the cleaning agents
intended for use in contact with food and avoid
using flammable agents or harmful to health.

After each use of the appliance make sure that all
the heating elements and control elements have
been switched off and the cable unplugged.

In case of prolonged interval in using the
appliance disconnect all power supply cables and
thoroughly clean the inside and outside elements
of the appliance.

In direct connection to the mains the

safety switch should be supplied where
wire joints dilation is large enough to
secure disconnection in category III
overvoltage, which is in accordance with
the installation rules.



 In case of connecting articulated



joints to the water network with use of
construction kit use only new kit, supplied
with the device.



 You must not clean the appliance with

 

the direct stream of water.

GB

3

GB

5

ENGLISH

4. GENERAL INFORMATION AND WARNINGS

4.1. General guidelines

The manual has been edited by the manufacturer
to provide the authorized personnel with the
information necessary to work with the appliance.
We recommend the intended readers to read the
manual carefully and comply with the information.
By reading the information contained in the
manual, hazards against people health and safety
may be prevented.

Retain the manual in an easily available place
throughout the time of use of the appliance to
have access and refer to the required information
at any time.

4.2. Description of the appliance

The device called bain marie has been designed
and manufactured for professional gastronomy for
heating the food products in the bain marie. There
is one or two-container option available depending
on the need.

1) Tank

2) Inspection flap

3) Adjustable feet

4) Water filling button: for filling tank
with water

5) Temperature adjustment knob
adjusts temperature in the tank

6) Control knob

7) Water level indicator

8) Water supply: Fills the tank with water:

Special symbols, described below, have been
used to stress important information or draw
attention to essential data:

Warning

Indicate important safety

instructions. You should acquire the
proper conduct to prevent hazard against
people health and safety or not to cause
any damage.

Caution



 Indicate essentials technical data that



you cannot ignore.

4

8

7

1

6

2

3

5

4.3. Index plate

The index plate indicated in the drawing is
mounted directly onto the appliance. There are all
guidelines and information on the plate required
for safe use.

1) EAN-No.

2) Code-No. / Model-No.

3) Connection: power / supply frequence /

supply voltage

4) Date of production

5) Serial-No.

6) WEEE symbol

7) CE-marking

4

2
3
4

7

1

6

1



4.4. Exchange of components (service technician)



 We are not liable for personal injury or

Before exchange of the component

switch on all the existing protection
devices.



 In particular, switch off the electric



supply with the electrical potential switch.
If necessary, exchange the used components
to the original spare parts.

4.5. Elements and accessories

On demand we can provide the following
accessories:

1. Container GN 1/1 T150

2. Container GN 1/2 T150

3. Container GN 1/3 T150

4. Container GN 1/4 T150

5. Container GN 1/6 T150

4.6. Protection devices

The device is equipped with the following
protection systems:

1. Safety thermostat: it blocks the electric
power supply in the case of over-heating.

When the safety thermostat is on it is indicated by
the red control light. The drawing safety the
protective thermostats layout.



damage to the components that arise due to
application of other spare parts than original
or intervention into the appliance without the
manufacturer’s consent that may have altered
the safety requirements.

6. Lid GN 1/1

7. Lid GN 1/2

8. Lid GN 1/3

9. Lid GN 1/4

10. Lid GN 1/6

ENGLISH

GB

Check every day that the protection

devices are mounted correctly and
operational.

5

F

ENGLISH

5. USE AND OPERATION

5.1. Description of the controls.

The elements controlling the essential functions
are located on the control panel of the device.

A) Temperature adjustment knob: For

switching the heating coils on and off

B) Green control light: Indicates power

supply

C) White control light: Indicates heating of

the device.

Operational

A

Deactivation

symbol

control lights

D) Red control light: Indicates activation of

safety thermostats.

E) Water filling button: allows for filling tank

with water.

F) Water drain valve: allows for draining

water from the tank.

E

B

GB

Temperature

scale

5.2. Device switching on and off

SWITCHING ON:

A) Start the automatic switch-off to turn on

the electrical connection.

B) Fill the tank with water by pressing

appropriate button (E).

OFF

A) To switch off the electric heating coils

set the knob (A) at the position 0.
The control (B) is off.

B) Start the automatic switch-off to turn

off the electrical connection.

C

D

A

C) Turn the temperature control knob (A)

clockwise to desired position. Green (B)
and white (C) control lights are on. When
water reaches required temperature the
white control light C goes off.

C) Empty the tank as required

(see section 5.3).

A

B

A

C

B, C,

D

6

5.3. Emptying of tanks

To drain water from the tanks proceed in the
following way:

Wait for water to cool down.
Open the door (S).
To drain tank put the container of sufficient

volume (B) under the drain valve (A).
Open the drain valve (A).

ENGLISH

A

Before refilling the tank check if the

drain valve is closed.

5.4. Guidelines on how to use the appliance

Longer interval in the use of the appliance

When you plan not to use the appliance for the
prolonged time, follow the instructions below:

1. Turn on the automatic switch-off to disconnect
from the mains.

2. Thoroughly clean the appliance and
surrounding areas.

3. Apply the vaseline oil on the stainless steel
surfaces.

4. Perform all maintenance works;

5. Do not cover the appliance and leave the

container open.

When finished using the appliance,

always empty the container.

6. CLEANING AND MAINTENANCE

S

B

GB

Guidelines on regular use of the appliance

To ensure correct use of the device follow the
guidelines below:

 Before filling the tank check if the drain valve

is closed;

 Make sure that the water level is above the

minimum level marked in the tank;

 Use only accessories provided by the

manufacturer;

Never use the device without water

in the tank. It may cause total damage of
the device.

6.1. Guidelines on cleaning and maintenance

Before you start maintenance

works, turn on all the mounted protective
devices.

In particular, disconnect the electric
power supply by means of the automatic
switch-off.

7

GB

ENGLISH

6.2. Correct maintenance (service technician)

The correct maintenace covers everyday clearing
of all the elements that are in contact with foods.

Careful maintenance ensures the best
performance, longer life of the appliance and
proper operation of the protective devices.

Never direct the water stream or high pressure jet
towards the appliance.

To clean the stainless steel, do not use iron wool
or iron brush as they may leave iron particles on
the surface that form rust in result of oxidation.

Use the wooden or plastic spatula, or soft
cleaning sponge to remove the dried remains.

In the case of prolonged intervals in the use of the
appliance, apply the vaseline oil onto all the
stainless steel surfaces.

contain substances hazardous or harmful
to health (solvents, petrol. etc.).

At the end of the working day clean:

 tank
 device.

Regularly instruct the specialist personnel to
perform the following maintenance works:

 check the electric installation;
 check the safety thermostats.

6.3. Cleaning of the container

Follow the guidelines.

Do not use any clearing agents that

 Turn off the device and leave to cool down.
 Turn on the switch-off to disconnect from the

electrical supply.

 Drain water from the tank (see section 5.3).
 Clean the tank interior using the cleaning

agent intended for contact with food.

7. TROUBLESHOOTING

The information below is provided to recognize
and repair any failures that may occur when
operating the appliance.

Problem Cause Solution

No water after opening the
water valve.

Incorrect water connection.

The electrical connection is not
correct.

 Rinse with clean water, empty, and dry.
 After use wash the equipment parts in suitable

cleaning agent or in the dishwasher.

Some of the failures can be repaired by the user,
others require thorough specialist knowledge.
Such problems may be solved exclusively by the
qualified personnel.

Check water connection.



 Contact the service company.



Check the electrical connection.

The heating coils do not
heat up.

Safety thermostats are on.

Damaged temperature
controller.

8

Reset the device (see special
section).

Replace switch.



 Contact the service company.



THIS

8. INSTALLATION

8.1. Packaging and unpacking

During unloading and when installing the
appliance follow the information from the
manufacturer placed directly on the packaging
and in this manual.

To lift and transport the product plan to use a fork
lift or stacker, and pay attention to even weight
distribution to avoid a risk of tilting of the
packaging (avoid excessive incline!).

When using the lifting equipment

pay attention to the mains cable, water
supply and discharge pipes and feet
position.

The packaging consists of the carton packaging
and wooden pallet. There are symbols printed on
the carton packaging that according to the
international agreements inform about the
regulations to follow when loading and unloading,
transporting and storing the appliance.

FRAGILE KEEP DRY

SIDE UP

ENGLISH

When collecting the goods check if the packaging
is complete and has not been damaged during
transport.

Any damage should be immediately reported to
the shipping company.

Unpack the appliance as soon as possible to
check if the appliance is not damaged.

Do not use a sharp object to cut the carton box. It
may damage the stainless steel inside the box.

Remove the carton packaging from bottom to top.
When unpacked check if the appliance is

according to the order.
In case of any difference inform the sales agent

immediately.

Do not store the packaging

materials (nylon bags, polystyrene foam,
clips ...) in the reach of children!

Remove the protective PVC layer from the out
and inner surfaces. If possible, do not use any
metal tools.

GB

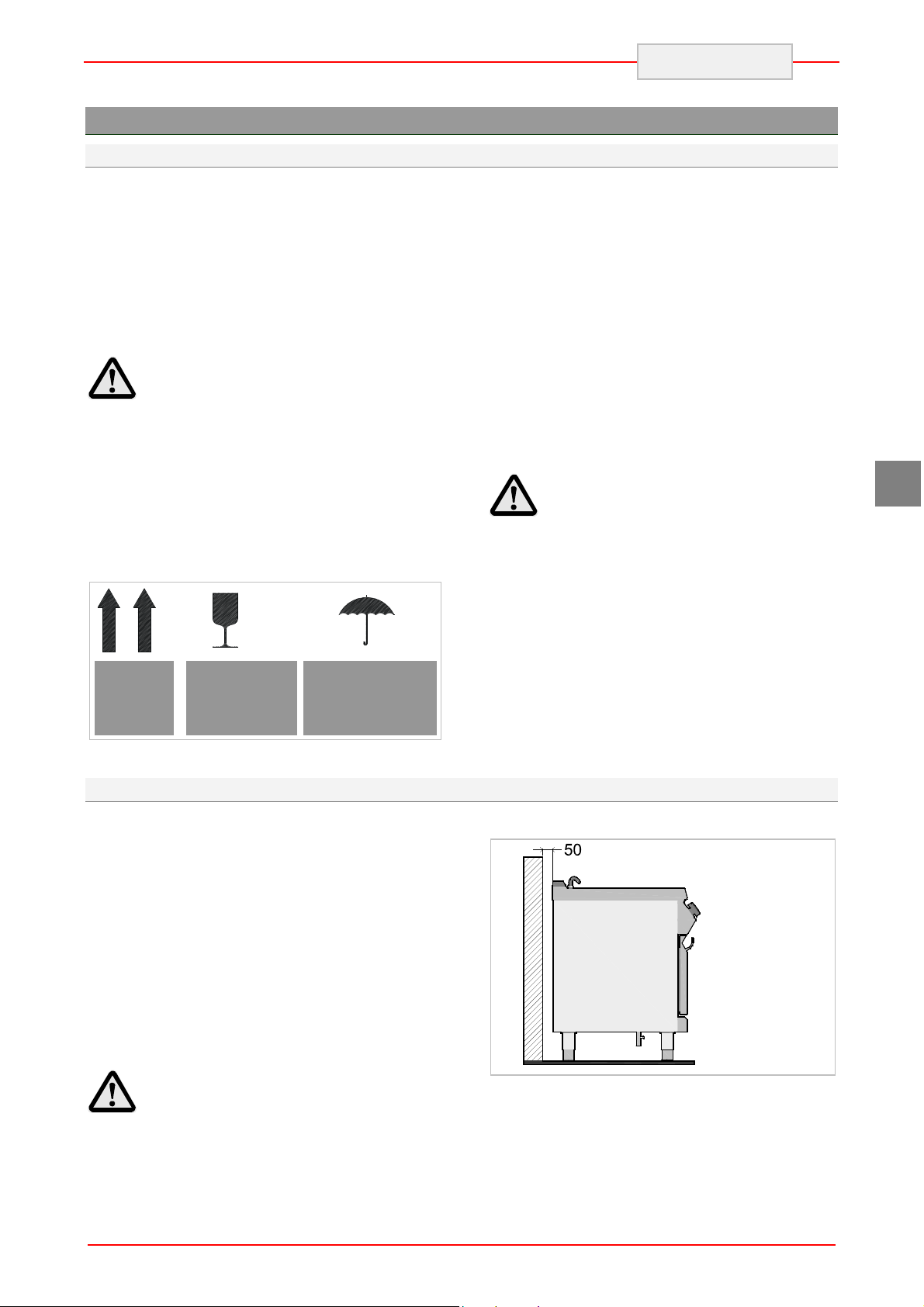

8.2. Installation (service technician)

All the stages of the installation must be carefully
planned.

The location should be equipped with all supply
connections and production waste outlet. The
location should also be properly lit and comply
with all hygiene and sanitary requirements
according to the binding regulations.

The appliance should be installed with the
minimum 5 cm clearance from the wall, if the wall
is not resistant to the minimum temperature of
150°C.

Locate the appliance in the horizontal position by
adjusting the single feet.

To ensure the correct operation of

the appliance, the appliance must be
installed and operated in the thoroughly
ventilated room only.

9

GB

A

A

ENGLISH

8.3. Water properties

Description Value

Use only potable water. Limit values

for the potable water specified by the
European Union are listed in the table.

Pressure 150÷300 kPA

pH 6.5÷8
Hardness 8÷15°F

Iron < 0.2 mg/l
Manganese < 0.05 mg/l
Chlorine < 0.25 mg/l
Sulphur < 0.25 mg/l

8.4. Connection to the mains (service technician)

The device may be connected to the power supply
only by the authorized and qualified personnel,
when the valid regulations are followed and when
appropriate material is used in accordance to the
regulations.

The device is delivered with the following
connection values:

 220-240 V~ 50-60 Hz for version L=400
 380-415 V 2N~ 50-60 Hz for version

L=800.

To correctly connect the device, follow the
guidelines below.

 Remove the cover from the terminal strip (A).

1.5÷3 bar

(80÷1500 ppm CaCO3)

For direct connection to the

network install the protective switch
having spacing of contact large enough
for disconnection in conditions of
overvoltage category III, which conforms
to the installation principles.

Correct cross section of supply cables is specified
below:

 Models 3,5 kW, single phase, cable

3 x 1.5 mm2

 Models 7 kW 380-415 V 2N~  cable

5 x 1.5 mm2

To prevent any risks the

damaged supply cable must be
replaced only by the manufacturer or
expert.

 Connect the switch-off to the terminal strip

(B) of the device, as shown in the drawing
and block diagram (see the attachment).
Preferably use cable H07RN-F type or better,
which is resistant to high temperature min. up
to 80 °C.

10

M

B

C

A

A

B

C

C

The device is equipped with the equipotential
clamp (M).

Respectively to the clamp used a special sticker is
envisaged:

ENGLISH

 Tighten the cable endings (C).

 Replace the terminal strip cover.

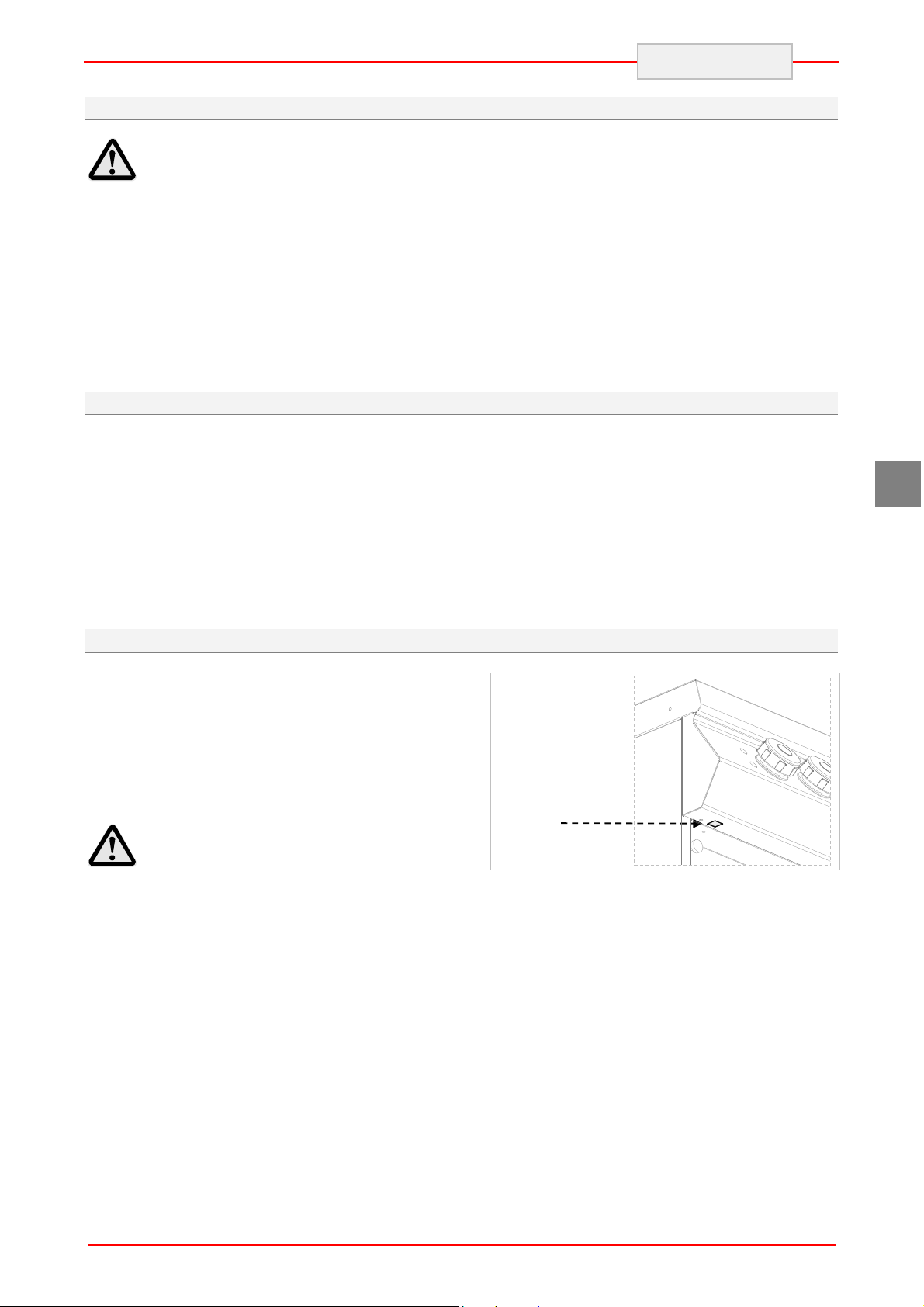

8.5. Installation of the appliance in a line

To fix the appliance in a line (neighbouring) follow
the steps:

1. Dismantle the control panel, and remove the
cast iron frame from the chimney if necessary.

2. Apply the sealing tape (A) onto the joining
sides.

GB

3. Place the appliances next to each other and in
a horizontal position (by adjusting the feet).

4. Connect the appliances with the joining
elements.

8.6. Check-up

Before starting the appliance the installation
check-up should be run to evaluate the working
conditions of every single component and
recognize any errors.

It is recommended to run the following check-ups:

1. Check that the energy supply voltage is the
same as of the appliance voltage.

2. Turn on the automatic switch-off to check the
electrical connections.

Check that the protection devices work correctly.

11

GB

ENGLISH

9. SETTINGS

There are no special default settings of the
appliance.

10. APPLIANCE DISPOSAL



 The appliance is marked in conformity



with the European Directive 2002/96/EG
WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT (WEEE).

By disposing the appliance in

accordance with the regulations the user
contributes towards prevention of adverse
effects on environment and health.

The symbol on the product or
attached manual indicates that the product cannot
be considered as ordinary household waste and
should be transferred to a special collection point
for electrical and electronic appliances for
recycling.

The only settings are those set up by the user
while using the appliance.

Local waste management regulations should be
observed.

Further information on procedure, reusing and
recycling of the product is available in local
offices, waste management unit or with the
product sales agent.

12

ANLAGEN

ATTACHMENTS

ANNEXES

ALLEGATI

ANEXOS

ANEXOS

BIJLAGEN

ZAŁĄCZNIKI

I

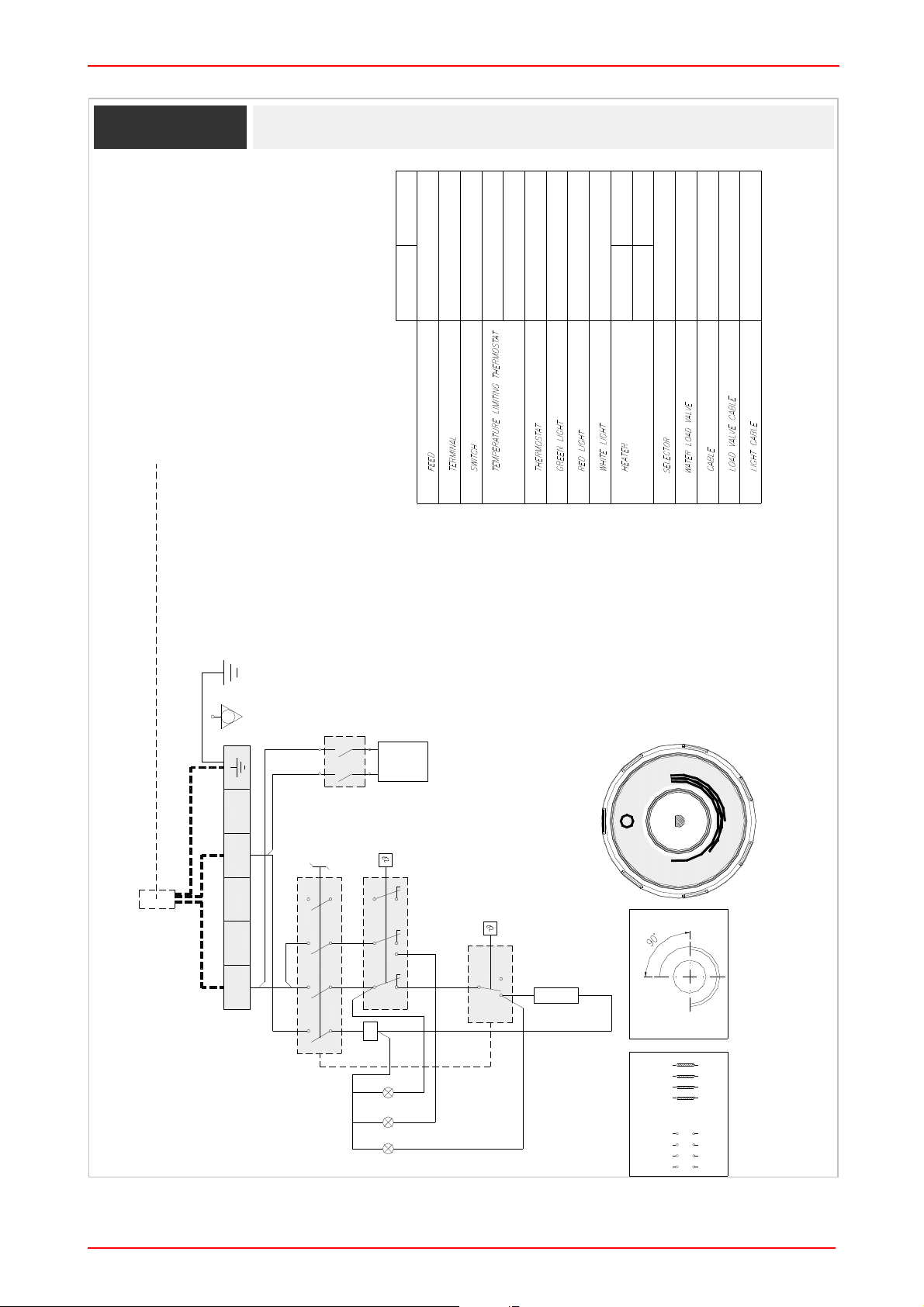

ANSCHLUSSSCHEMA

BME91M03

- CONNECTION CARD - FICHE DES RACCORDEMENTS -

SCHEDA ALLACCIAMENTI - FICHA DE ENLACES - ESQUEMA DAS CONEXÕES -

PLAN AANSLUITINGEN SCHEMAT PODŁĄCZENIA

Elektroanschluss
Electric Connection
Branchement Electrique
Allacciamento Elettrico



Conexiòn elètrica
Ligação Elétrica
Elektrische aansluiting
Przyłącze elektryczne

Wasseranschluss
Water connection
Raccordement d'eau
Allacciamento dell’acqua



Conexión del agua
Ligação de água
Wateraansluiting
Przyłącze wody

Wasserablass
Water drain
Robinet d’eau
Scarico dell’acqua



Descarga del agua
Drenagem de água
Afwatering
Spust wody







220-240V~

50/60 Hz

3/4" F

R 1/2"

Modell

Model

Modèle

Modello

Modelo

Modelo

Model

Model

BME91M03

Leistung Daten zu Elektrik

Power Electrical connection

Puissance Données électrique

Potenza Dati electrici
Potencia Datos eléctricos
Potência Dados Elétricos

Vermogen

Moc Dane dot. instalacji elektrycznej
watt V Hz

3500 220-240V~ 50/60

Gegevens van de elektrische

installatie

III

ANSCHLUSSSCHEMA

BME92M04

- CONNECTION CARD - FICHE DES RACCORDEMENTS -

SCHEDA ALLACCIAMENTI - FICHA DE ENLACES - ESQUEMA DAS CONEXÕES -

PLAN AANSLUITINGEN SCHEMAT PODŁĄCZENIA

Elektroanschluss
Electric Connection
Branchement Electrique
Allacciamento Elettrico



Conexiòn elètrica
Ligação Elétrica
Elektrische aansluiting
Przyłącze elektryczne

Wasseranschluss
Water connection
Raccordement d'eau
Allacciamento dell’acqua



Conexión del agua
Ligação de água
Wateraansluiting
Przyłącze wody

Wasserablass
Water drain
Robinet d’eau
Scarico dell’acqua



Descarga del agua
Drenagem de água
Afwatering
Spust wody







380 - 415V

2N~

50/60 Hz

3/4" F

R 1/2"

Modell

Model

Modèle

Modello

Modelo

Modelo

Model

Model

BME91M04

Leistung Daten zu Elektrik

Power Electrical connection

Puissance Données électrique

Potenza Dati electrici
Potencia Datos eléctricos
Potência Dados Elétricos

Vermogen

Moc Dane dot. instalacji elektrycznej
watt V Hz

7000 380-415V 2N~ 50/60

Gegevens van de elektrische

installatie

IV

111 608

27

SCHALTPLAN

Revision 04

- ELECTRIC DIAGRAM – SCHÉMA ÈLECTRIQUE - SCHEMA ELETTRICO -

ESQUEMA ELÉCTRICO - ELEKTRISCH SCHEMA - SCHEMAT IDEOWY

2500 watt

3500 watt

230V 10.9A

BME91

230V 15.2A

55.32532.805

55.32524.160

EGO 49.41015.300

220-240V~ 50/60 Hz

4 Poli 16A 250V T150

FV122 6 POLI - 40 A - 450 V

BME71

B1 = COMMUTATORE

ALIMENTAZIONE

M = MORSETTIERA

BME71 : 3x1.5 mmq 10.9 A

BME91 2.5kW : 3x1.5 mmq 10.9 A

BME91 3.5kW : 3x1.5 mmq 15.2 A

EGO 55.19219.810

(T120) Silicon Leads

(T120) Silicon Leads

T=160°C -17K 16A

T=135°C -12K 16A

16A 250V [30°C-90°C]

SIGNAL LUX Mod 21.3 230V

S1 = LIMITATORE DI TEMPERATURA

LV = LAMPADA VERDE

T1 = TERMOSTATO

(T120) Silicon Leads

SIGNAL LUX Mod 21.3 230V

SIGNAL LUX Mod 21.3 230V

2500 watt

LB = LAMPADA BIANCA

LR = LAMPADA ROSSA

R1,R2,R3 = RESISTENZE

230V 16A FASTON 4.8

230V 10.9A

P1 = PULSANTE CARICO ACQUA SXL4 427H110000

EV = VALVOLA CARICO ACQUA

Section 1 mmq

CAVO H05SJ-K

CAVO H05SJ-K

CAVO H05SJ-K

Section 1.5 mmq

Section 0.75 mmq

CABLAGGIO ELETTROVALVOLA

CABLAGGIO LAMPADE

CABLAGGIO

PE

P1

4

5

2

1

EV

-

220-240V 1+N~ 50-60 Hz

B1

P4P3P2P1

4321

L1 - - N

M

S1

T1

3

11 21 31

12 22 3224

1

2

R1

M1

90

8

0

7

0

60

5

0

4

0

30

30°C ±5K

T1

90°C ±3K

55.19214.80349.41015.300

4 3 2 1

35°-318°

P4 P3 P2 P1

B1

1

P2 P1

LB LR LV

0

4 3 2

P4 P3

V

111 608

30

SCHALTPLAN

Revision 06

BME72 : 4G x 2.5 mmq In=18.8 A

BME92 2.5kW : 4G x 2.5 mmq In=18.8 A

BME92 3.5kW : 4G x 4 mmq In=26.3 A

- ELECTRIC DIAGRAM – SCHÉMA ÈLECTRIQUE - SCHEMA ELETTRICO -

ESQUEMA ELÉCTRICO - ELEKTRISCH SCHEMA - SCHEMAT IDEOWY

2500 watt

3500 watt

230V 10.9A

230V 15.2A

PE

55.32532.805

55.32524.160

EGO 49.41015.300

4 Poli 16A 250V T150

220-240V 3~ 50-60Hz

380-415V 3N~ 50-60Hz

FV122 6 POLI - 40 A - 450 V

BME72 BME92

B1 = COMMUTATORE

ALIMENTAZIONE

M = MORSETTIERA

EGO 55.34014.190

(T120) Silicon Leads

(T120) Silicon Leads

T=160°C -17K 16A

T=135°C -12K 16A

16A 400V [30°C-90°C]

SIGNAL LUX Mod 21.3 230V

S1 = LIMITATORE DI TEMPERATURA

LV = LAMPADA VERDE

T1 = TERMOSTATO

(T120) Silicon Leads

SIGNAL LUX Mod 21.3 230V

SIGNAL LUX Mod 21.3 230V

2500 watt

230V 10.9A

LB = LAMPADA BIANCA

LR = LAMPADA ROSSA

R1,R2,R3 = RESISTENZE

CAVO H05SJ-K

SXL4 427H110000

230V 16A FASTON 4.8

CABLAGGIO

P1 = PULSANTE CARICO ACQUA

EV = VALVOLA CARICO ACQUA

Section 1 mmq

Section 2.5 / 4 mmq

CAVO H05SJ-K

CAVO H05SJ-K

Section 1.5 mmq

Section 0.75 mmq

CABLAGGIO ELETTROVALVOLA

CABLAGGIO LAMPADE

L1 L1 L2 L2 L3

220-240V 3~ 50-60Hz

BME72 : 5G x 1.5 mmq In=10.9 A

BME92 2.5kW : 5G x 1.5 mmq In=10.9 A

BME92 3.5kW : 5G x 1.5 mmq In=15.2 A

380-415V 3N~ 50-60Hz

M

PE

P1

4

5

2

1

EV

90

8

0

7

0

60

5

S1

T1

B1

P4P3P2P1

4321

24

L1 L2 L3 N N

M

11 21 31

12 22 32

M1

22

11 21 31

12 32

R2R1

T1

55.34014.19049.41015.300

0

4

0

30

30°C ±5K

90°C ±3K

4 3 2 1

LR

LV

LB

P4 P3 P2 P 1

B1

0 35°-318°

4 3 2 1

P4 P3 P2 P1

VI

NOTE

VII

DE

LAUT GESETZLICHER VORSCHRIFT STEHT DIESES HANDBUCH UNTER EIGENTUMS­VORBEHALT UND DARF AUS DIESEM GRUND NICHT OHNE UNSERE GENEHMIGUNG
VERVIELFÄLTIGT UND/ODER IN JEGLICHER FORM AN DRITTE WEITERGEGEBEN WERDEN!

GB

IN COMPLIANCE WITH THE LAW IN FORCE,IT IS PROHIBITED TO REPRODUCE AND/OR
DISTRIBUTE THIS MANUAL IN ANY WAY WITHOUT THE AUTHORISATION OF THE PROPRIETOR!

FR

AUX TERMES DE LA LOI, LA PROPRIETE DE CETTE NOTICE EST RESERVEE. IL EST DONC
INTERDIT DE LA REPRODUIRE ET/OU DE LA DISTRIBUER SOUS QUELQUE FORME QUE CE SOIT
SANS NOTRE AUTORISATION!

IT

A TERMINI DI LEGGE È RISERVATA LA PROPRIETÀ DI QUESTO MANUALE CON DIVIETO DI
RIPRODURLO E/O DISTRIBUIRLO IN QUALSIASI FORMA SENZA NOSTRA AUTORIZZAZIONE!

ES

DE ACUERDO CON LOS TÉRMINOS DE LA LEY ESTÁ RESERVADA LA PROPIEDAD DE ESTE
MANUAL CON EXPRESA PROHIBICIÓN DE REPRODUCIRLO Y /O DISTRIBUIRLO EN CUALQUIER
FORMA SIN NUESTRA AUTORIZACIÓN!

PT

A PROPRIEDADE DESTE MANUAL É RESERVADA POR LEI, SENDO PROIBIDA A SUA
REPRODUÇÃO E/OU DISTRIBUIÇÃO EM QUALQUER FORMA SEM A NOSSA AUTORIZAÇÃO!

NL

DE FABRIKANT BEHOUDT ZICH HET RECHT VOOR OM DE KENMERKEN VAN DE
TOESTELLEN DIE IN DEZE PUBLICATIE WORDEN VOORGESTELD TE WIJZIGEN ZONDER
VOORAF TE VERWITTIGEN!

PL

ZGODNIE Z PRZEPISAMI PRAWNYMI NINIEJSZA INSTRUKCJA JEST NASZĄ WŁASNOŚCIĄ
I Z TEGO POWODU NIE MOŻE BYĆ BEZ NASZEJ ZGODY POWIELANA I / LUB PRZEKAZYWANA
W JAKEJKOLWIEK FORMIE OSOBOM TRZECIM!
