Bartscher AGN1500-1/1 Operating instructions

AGN1500-1/1

300107

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany

Phone: [phone]
Fax: [phone]
Service hotline: [phone]
www.bartscher.com

Version: 1.0
Date of preparation: 2022-05-18

Original instruction manual

EN

EN

Name:

Gastronorm trolley AGN1500-1/1

Art. No.:

300107

Material:

stainless steel

Designed for:

1/1GN, 1/2GN, 1/3GN

Number of guide rail pairs:

15

Distance between guide rail pairs, in
mm:

80

Max. GN container depth, in mm:

65

Load-bearing capacity per guide pair,
max. in kg.:

10

Total load-bearing capacity, max. in kg:

150

Number of swivel casters:

4

Locking swivel casters:

2

Diameter of casters in mm:

100

Number of caster dampers:

4

Material of caster dampers:

plastic

Dimensions (W x D x H), in mm:

440 x 615 x 1710

Weight, in kg:

20,6

Technical Data

We reserve the right to implement technical modifications.

Version / Characteristics

• Delivery form: self-assembly set, simple assembly

• Area of application: clearing

• Version: GN guides

• May be loaded from both sides

• The set does not include:
– GN containers
– sheets
– grates

• Features:
– one container lock per front and rear of the trolley

300107 3 / 8

EN

– special design makes it possible to slide 2 or more AGN1500-1/1

Gastronorm trolleys one into another, which provides for saving of space
during storage

– square tubing frame, 25.4 x 25.4 mm section

<Endergebnis>

Intended Use

As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.

The following is an intended use:

– cleaning and transportation of dishes in GN containers,
– storage of dishes in GN containers.

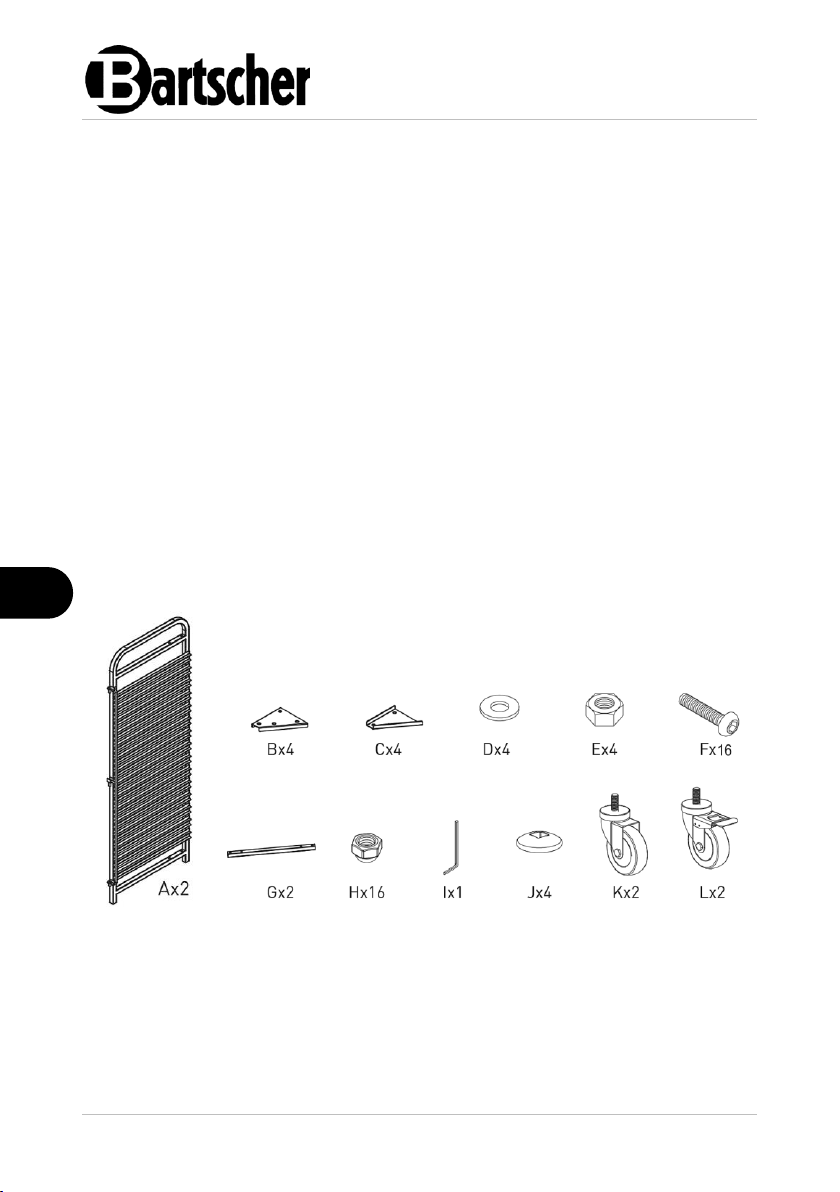

Scope of Delivery / Part Name

• Unpack the Gastronorm trolley and remove the packing material pursuant to

environmental regulations.

• Check completeness of delivery according to the list below:

4 / 8 300107

EN

Compo-

nent

Name

Compo-

nent

Name

A

Lateral sections with 15 pre­installed guides and 1
container lock

G

Connecting strut

B

Top bracket

H

Dome nut

C

Bottom bracket

I

Allen wrench

D

Washer

J

Swivel caster dampers

E

Nut K Non-locking swivel caster

F

Screw

L

Locking swivel caster

Fig. 1

Assembly

1. First, fix 1 bracket each, (B) and (C), at the top and bottom of both lateral

sections, using 2 screws each (F) and 2 dome nuts each (H). Use Allen wrench
(I) and tighten screws.

NOTE!
Fix brackets to square tubing of lateral sections, without container

locking.

300107 5 / 8

EN

Fig. 2

2. Slid the connecting strut (G) in between brackets, (B) and (C), in top part of both

lateral sections (A). Fix the connecting strut (G) to the assembled brackets using
4 screws each (F) and 4 dome nuts (H), and Allen wrench (I).

Proceed the same way to fix the connecting strut (G) at the bottom of lateral
sections (A).

6 / 8 300107

EN

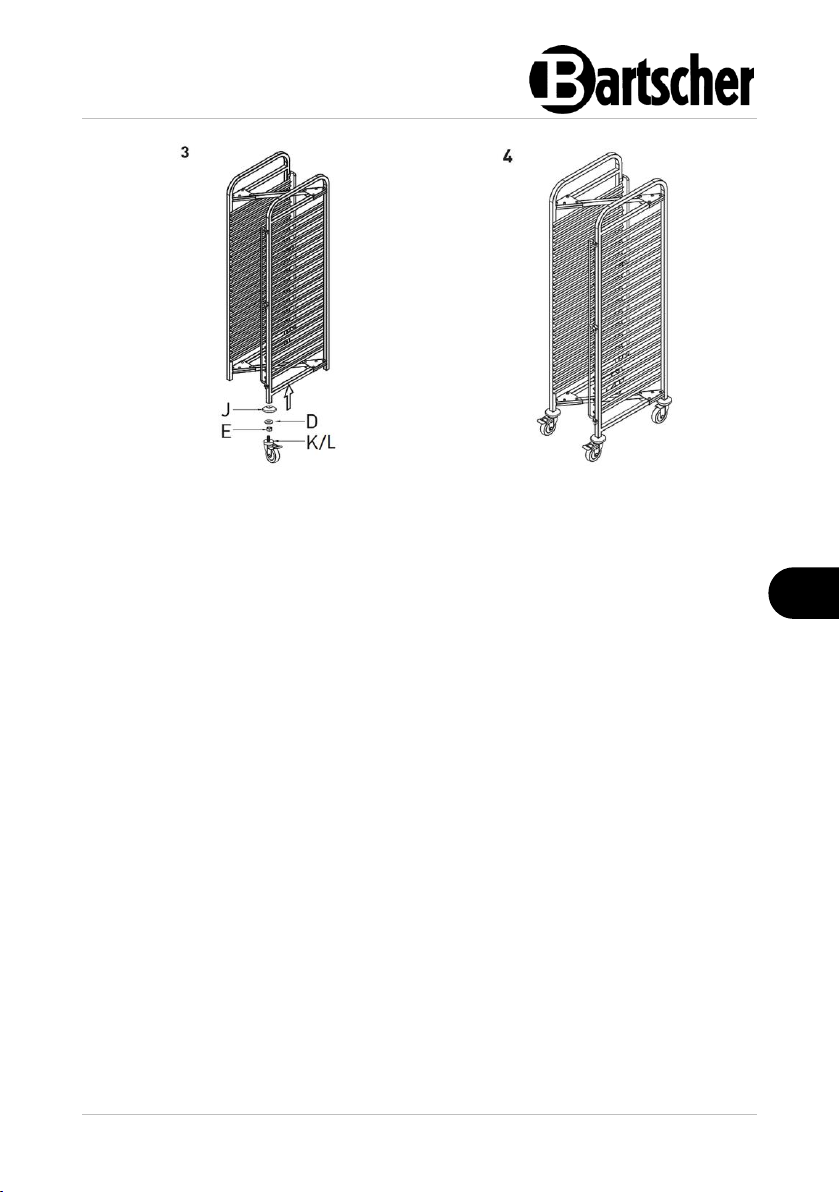

Fig. 3

Fig. 4

3. Fix 4 swivel casters, (K) and (L), on lateral sections. Place 1 nut (E), 1 washer

(D), and 1 damper (J) on swivel casters and screw them into the square tubing
of lateral sections (Fig. 3).

Make sure that 2 identical swivel casters are assembled at the front and at the
rear (with locking or without locking) (Fig. 4).

Installation

1. Set the Gastronorm trolley on swivel casters and check its stability.

2. The Gastronorm trolley may be levelled through screwing in and out swivel

casters.

3. After setting the Gastronorm trolley in a designated place, lock 2 swivel casters

with lockings to prevent accidental relocation or overturn of the Gastronorm
trolley.

300107 7 / 8

EN

1. Place required number of suitable
GN containers in guides.

2. Secure GN containers at front and
rear with container lockings, lifting
them slightly up and closing before
GN containers (see Fig. to the left).

Fig. 5

ATTENTION!

Scrubbing agents, washing agents with solvents or caustic substances
may damage the surface.

For cleaning, use only agents suitable for stainless steel.

Container Safeguard

Cleaning

1. Clean the Gastronorm trolley regularly with warm water and a soft, damp cloth.
Use a mild cleaning agent if required.

2. Dry the Gastronorm trolley with a soft cloth.
