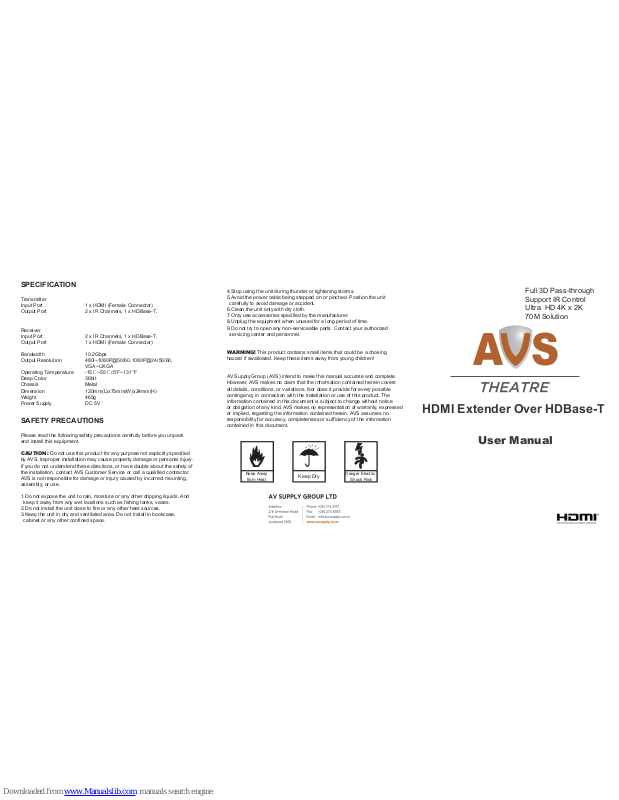

Page 1
SPECIFICATION
HDMI Extender Over HDBase-T
User Manual
Full 3D Pass-through
Support IR Control
Ultra HD 4K x 2K
70M Solution
Transmitter
Input Port
Output Port
Receiver
Input Port
Output Port
Bandwidth
Output Resolution
Operating Temperature
Deep Color
Chassis
Dimension
Weight
Power Supply
1 x HDMI (Female Connector)
2 x IR Channels, 1 x HDBase-T,
2 x IR Channels, 1 x HDBase-T,
1 x HDMI (Female Connector)
10.2Gbps
480i~1080P@50/60,1080P@24/50/60,
VGA~UXGA
-15℃~55℃/5°F~131°F
36bit
Metal
120mm(L)x75mm(W)x24mm(H)
465g
DC 5V
Please read the following safety precautions carefully before you unpack
and install this equipment.
CAUTION: Do not use this product for any purpose not explicitly specified
by AVS. Improper installation may cause property damage or personal injury.
If you do not understand these directions, or have doubts about the safety of
the installation, contact AVS Customer Service or call a qualified contractor.
AVS is not responsible for damage or injury caused by incorrect mounting,
assembly, or use.
1.Do not expose the unit to rain, moisture or any other dripping liquids. And
keep it away from any wet locations such as fishing tanks, vases.
2.Do not install the unit close to fire or any other heat sources.
3.Keep the unit in dry and ventilated area. Do not install in bookcase,
cabinet or any other confined space.
SAFETY PRECAUTIONS
Danger Electric
Shock Risk
Keep Dry
Keep Away
from Heat
4.Stop using the unit during thunder or lightening storms.
5.Avoid the power cable being stepped on or pinched. Position the unit
carefully to avoid damage or accident.
6.Clean the unit only with dry cloth.
7.Only use accessories specified by the manufacturer.
8.Unplug the equipment when unused for a long period of time.
9.Do not try to open any non-serviceable parts. Contact your authorized
servicing center and personnel.
WARNING! This product contains small items that could be a choking
hazard if swallowed. Keep these items away from young children!
AV Supply Group (AVS) intend to make this manual accurate and complete.
However, AVS makes no claim that the information contained herein covers
all details, conditions, or variations. Nor does it provide for every possible
contingency in connection with the installation or use of this product. The
information contained in this document is subject to change without notice
or obligation of any kind. AVS makes no representation of warranty, expressed
or implied, regarding the information contained herein. AVS assumes no
responsibility for accuracy, completeness or sufficiency of the information
contained in this document.
Page 2
PANEL DESCRIPTIONINTRODUCTION
•1 x HDMI Transmitter unit, 1x HDMI Receiver unit
•1 x 12V DC power supply
•1 x User Manual
•HDMI, HDCP 1.2 and DVI Compliant
•Support full 3D pass-through
•Support 4k x 2k high resolution
•Super IR control system, IR transport channel can be forward or backward
per your installation
•70M extension with a Cat5e/6 over HDBase-T technology
•Support POE
•Support CEC bypass
•External and internal EDID settings
FEATURES
PACKAGE CONTENTS
INSTALLATION
CONNECTION DIAGRAM
This HDMI HDBase-T extender uses single CAT-5E/6/7 cable to extend 3D
TV over 70m away from the source. It supports resolutions up to 4k x 2k
full HD and high bit-rate audio formats such as Dolby True-HD and DTS-HD
Master Audio. Support IR control system, IR transport channel can be forward
or backward, IR blaster and receiver pigtails are needed.
By using standard CAT6 cable(recommended), it makes HDMI signal
extension easier to install within a room or through walls. The Extender’s
digital transmission uncompressed method insures 100% signal integrity.
•Connect HDMI input port on transmitter to the signal source equipment
such as DVD player.
•Connect the HDMI output on receiver to the display.
•Connect the HDBase-T output of the transmitter with a CAT5e/6/7 cable
to the HDBase-T input of the receiver.
•Plug the 12VDC power supply into the unit and connect the adaptor to
AC outlet.
To use Bi-directionol IR control function:
1. If you want to control source equipment at the display end, Connect IR
blaster cable (not included in the package)to the IR TX port on Transmitter for
signal transmission. Place the IR blaster in direct line-of-sight of the equipment
to be controlled.Connect IR receiver cable (not included in the package) to the
IR RX port on Receiver for signal reception. Place the IR receiver indirect
line-of-sight of remote.
2. If you want to control the display at the source end, Connect IR blaster
cable (not included in the package) to the IR TX port on Receiver for signal
transmission. Place the IR receiver indirect line-of-sight of remote. Connect IR
receiver cable (not included in the package)to the IR RX port on Transmitter for
signal reception. Place the IR blaster in direct line-of-sight of the equipment
to be controlled.

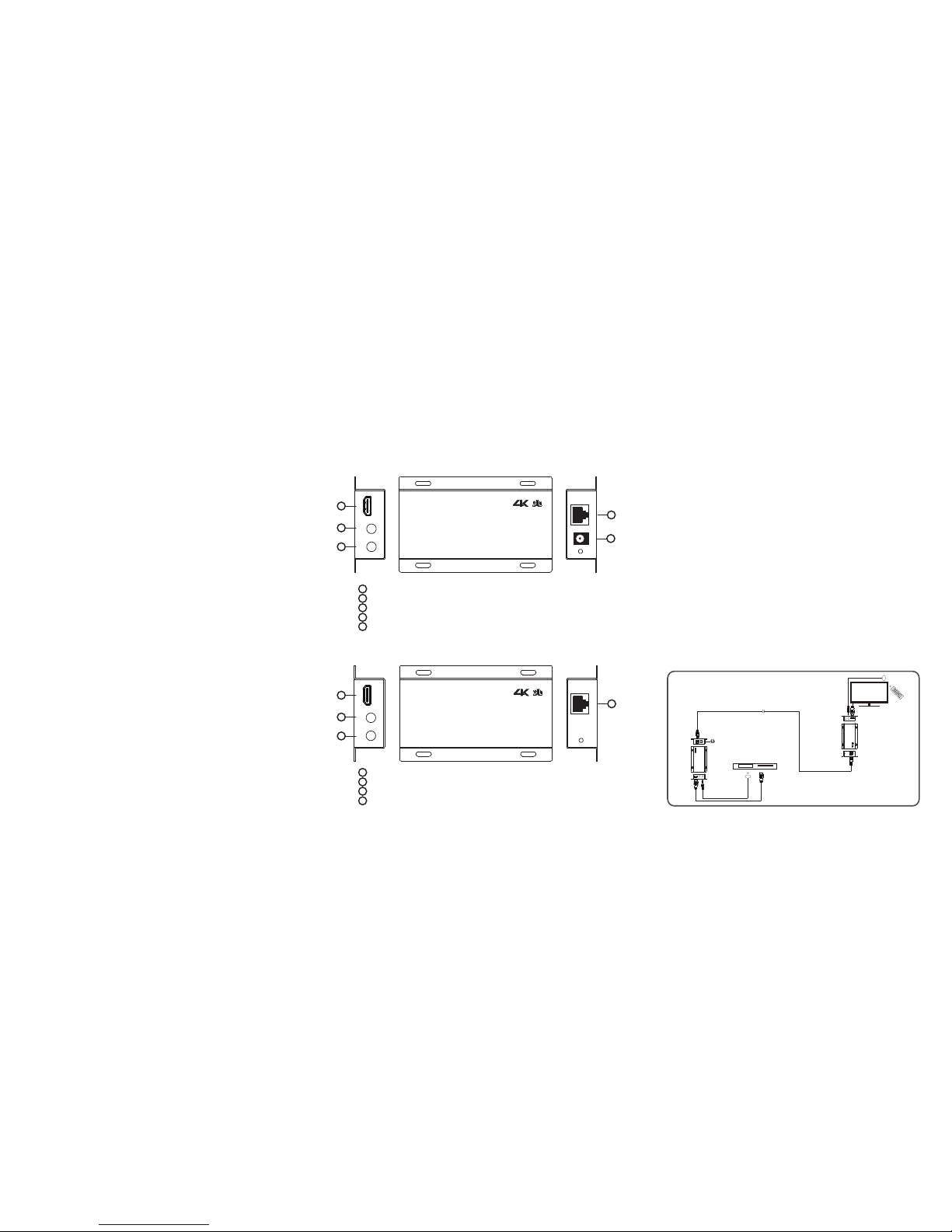

Transmitter Unit
Receiver Unit
1 HDMI INPUT
2 IR RX PORT
3 IR TX PORT
4 CAT5E/6 HDBase-T OUTPUT
5 POWER SUPPLY INPUT
HDMI HDBase-T Extender
TX
Cat5e/6DC 12V
HDMI IN IR-RX IR-TX
HDMI HDBase-T Extender
RX
HDMI OUT
IR-RX IR-TX
Cat5e/6
1
2
3
4
5
1
2
3
4
1 HDMI OUTPUT
2 IR RX PORT
3 IR TX PORT
4 CAT5E/6 HDBase-T INPUT
DC 12V
70 M Extension Over HDBase-T
08：08
PLAY
HDMI HDBase-T Extender
TX
Cat5e/6DC 12V
HDMI IN IR-RX IR-TX
HDMI HDBase-T Extender
RX
HDMI OUT
IR-RX IR-TX
Cat5e/6
