User’s Manual
Wireless Headphone
MODEL:M09
2. Package Contents
3. Product Overview
1. Introduction
- Wireless headphone*1
- Micro USB charging cable*1
- 3.5mm audio cable*1
- User’s manual*1
EN-1
Micro USB Charging Cable 3.5mm Audio Cable
Thank you for purchasing the AUSDOM M09 Wireless Headphone.
M09 has fashionable appearance and eco-friendly package design.
The headphone provides foldable design for easy storage and
carrying. Artificial protein leather of earmuffs is simulated to human
skin texture, giving you a long-time comfort. Built-in rechargeable
battery provides more music playing and standby time.
M09 also can be used both wired and wireless via Wireless
V4.2 to communicate with your Wireless-enabled device till 10
meters range. Its powerful and rich bass speaker brings you
amazing and unprecedented audio enjoyment.
Note: Please read the user’s manual carefully before using,
and keep it properly for future reference.
Micro USB interface
for charging
Microphone
LED Indicator
3.5mm line-in jack
TF Card Slot
Next track/V+
Previous track/V-
Power button
EN-2
5-1 Pairing the headphone with a computer
Before pairing the headphone with your computer, please
make sure your computer or laptop has the built-in Wireless
feature. If not, you must purchase a Wireless dongle, preferably
version 2.1 or above.
1.Make sure the headphone is off.
2.Start the Wireless program in the computer.
3.The “Search new device” screen will be displayed.
4.Do not place both devices more than one meter away from
each other.
5.Press and hold the power button on the headphone until it
powers on but don't let go just yet. Continue holding down on
5. Pairing with Wireless Devices
4. Charging the Battery

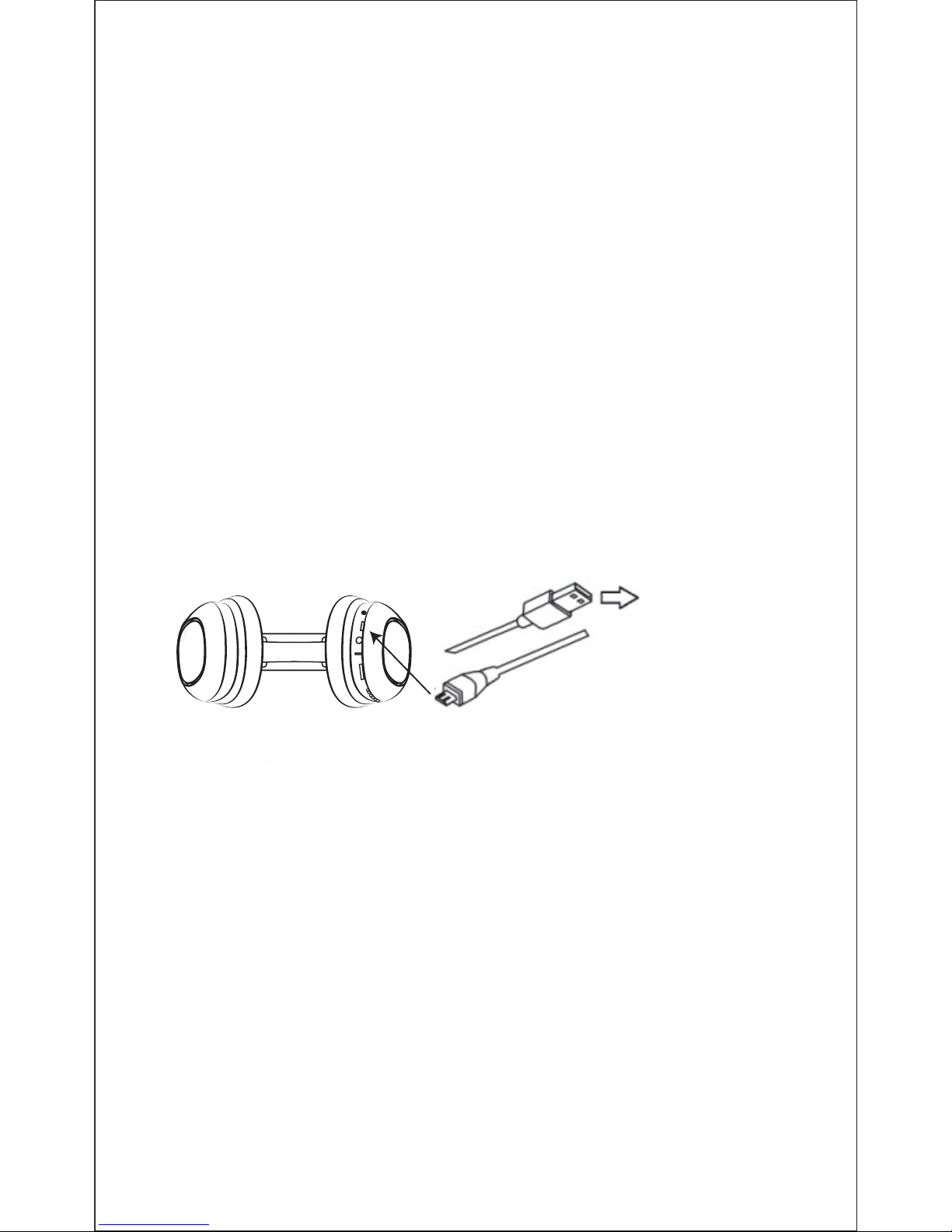

Any power
source for USB use
Micro USB charging cable to
the USB Interface for charging
Connect the micro USB charging cable to any power source
and the USB interface located on the side of ear cup for
charging. The headphone LED turns to solid red during
charging. It takes about 2 hours for the first charge and after
charging for as long as 1-1.5 hours. When the battery is fully
charged the LED turns off.
You can also use the Wireless function during charging but will
extend the charging time. If you use the audio cable or turn the
headphone off for charging that will not affect the charging
time.
When the battery is low, the LED keeps red light. At the same
time the headphone also provides a low battery warning tone.
Note: It is strongly recommended fully charging for the first
use. Playtime varies according to volume level and audio
content .
EN-3
the power button until you see the LED indicator flashes blue
and red alternately, which means your headphone is in
"pairing mode" waiting to be paired with your device. The
voice prompts "Pairing."
6.As soon as the computer system detects the new device
and select “AUSDOM M09". Once successfully paired, the
LED turns to solid blue. You will hear “Connected”.
5-2 Pairing the headphone with a phone
1.Make sure the headphone is off.
2.Do not place both devices more than one meter away from
each other.
3.Press and hold the power button on the headphone until it
powers on but don't let go just yet. Continue holding
down on the power button until you see the LED indicator
flashes blue and red alternately, which means your
headphone is in "pairing mode" waiting to be paired with your
device. The voice prompts "Pairing."
4.Start Wireless function on your phone and search for new
devices.
5.Select the “AUSDOM M09” to pair. Once successfully
paired, the LED turns to solid blue. You will hear “Connected”.
5-3 Connecting to paired devices
AUSDOM M09 will pair with the paired device automatically
when turning on. Because of different systems, some
computers or laptops may need to be manually paired every
time.
EN-4
6-1 Making a call
1.Make sure the headphone is pairing to the mobile phone.
Dial through the mobile phone and press the call button on the
phone.
2.To end a call, press the power button once again or also end
the call directly by the phone.
6-2 Answering a call
Make sure the Headphone is pairing with your phone. Please
refer to chapter 5. Pairing with Wireless devices.
1.When a call is incoming. The LED keeps solid red.
2.Press the power button on your headphone or the answer
button on your phone to answer the call. If there is the music
playback, it will pause.
3.To end a call, press the power button once again or also end
the call directly by the phone.
4.As soon as the call is ended, the music will continue to play
automatically.
Note:
The microphone can't work when using as wired headphone.
6. Making and Answering a Call
7. Using a Wired Headphone
The M09 provides a 3.5mm audio jack located on the side of
ear cup and an included audio cable for wired use.
This allows you to use the audio function with other devices
without having wireless function. When the headphone's
battery is low, you can still enjoy the music without worrying
battery dead.
EN-5

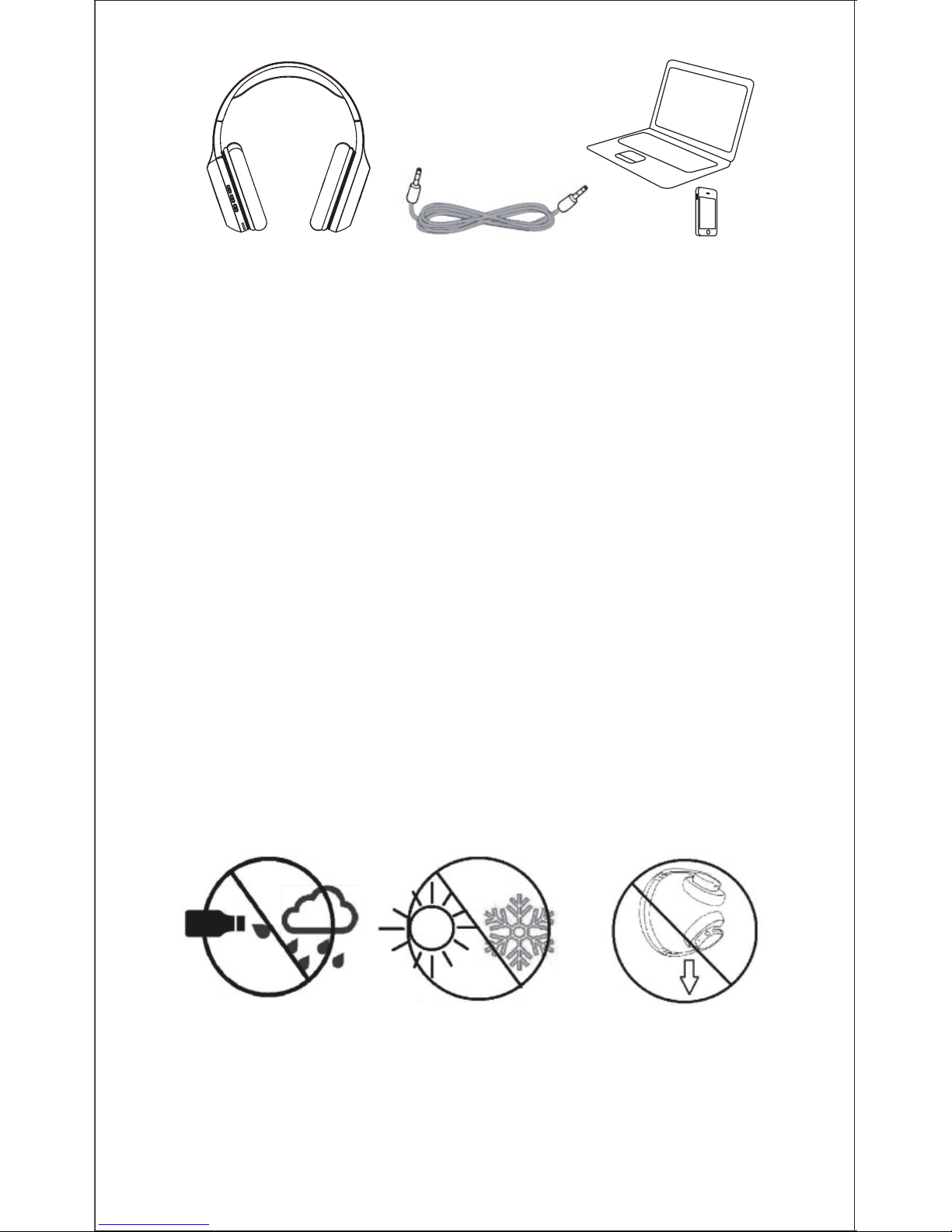

Avoid exposing to
liquids and rain
Avoid exposing to
extremely temperature
Avoid dropping
from high places
Using as a wired headphone with a 3.5mm audio cable
- Store the Headphone with power off and in a dry environment.
- If you don’t use the headphone for a long period, charging
the battery every 2 months for 1-2 hours.
- Use a dry cloth for cleaning if needed.
- Avoid dropping the headphone from high places or on hard
surfaces.
- Avoid exposing the headphone to extreme temperature.
(Recommended Storage temperature is -40˚C-80˚C.)
- The headphone is NOT waterproof. Avoid exposing the
headphone to rain or getting liquids into any button port or
other openings.
- Please don’t twist or bend the headphone. This may cause
permanent deformation.
- The built-in battery can’t be disposed in the fire to avoid
explosion.
8. Take Care Your Headphone
EN-6
10. Control Instructions
Function Operation
Power on
When the headphone is on, press and hold the
power button 2 seconds. And the LED flashes
red and sounds “Power off”.
When the headphone is off, press and hold the
power button 2 seconds. And the LED flashes
blue and sounds “Power on”. Then flashes blue
every second.
When the headphone is off, press and hold the
power button for about 8 seconds until the LED
flash blue and red alternatively, then select the
“AUSDOM M09” to pair.
Pairing with wireless
devices
Press the Volume Up V+ button
Press the Volume Down V- button
Press the power button
Press the power button
Press and hold the V+ button for 2s
Press and hold the V- button for 2s
Power off
Increase volume
Decrease volume
Play media
Pause/restart media
playback
Skip to next track
Skip to previous track
Answer a call
When a call is coming, press the power button to
answer the call. Then the blue LED lights .
End a call
When a call is on line, press the power button
to end.
9. Protecting your Hearing
The Headphone is held close to your ears, so loud sounds
pose a potential hearing risk. It is highly recommended that
setting low volume level before putting on the headphone and
avoiding exposing yourself continuously to high volumes. If
you need to use the headphone for a long period, rest ten
minutes for a half hour using.
EN-7
Note:
-There will be a alert tone when the volume reaches the
minimum or maximum level.
-When the TF card insert, the headphone will default to play
the music in TF card.
TF Card/Wireless
Mode Exchange
1.In wireless mode, press the power button twice,
change to TF card mode, you will hear the prompt
“play by TF card”.
If no TF card insert, it will reconnect the device.
2.In TF card mode, press the power button twice,
then you will hear the voice “connected”. The
blue LED lights twice.
If the TF card insert, it will default to play by TF
card.
When the headphone is off, press the power
button 2 seconds to power on, it will automatically
play the music in TF card, then the blue LED
lights.
When in pause mode, press the power button
once to play music; then press once again to
pause.
Power on
Play/pauseTF
Card
Play
Mode
Skip to next
track
Skip to
previous track
Decrease
volume
Increase
volume
Press and hold the V+ button for 2s
Press and hold the V- button for 2s
Press the Volume Up V+ button
Press the Volume Down V- button
EN-8
11. Troubleshooting
Q: The headphone cannot be turned on.
A: The battery may be flat. Please recharge the battery and try
again. Refer to chapter 4. Charging the Battery.
Q: Why doesn’t the headphone pair with the mobile
phone?
A: Please check the followings.
- Check that the headphone is charged and is in pairing mode.
- Make sure that the mobile phone's Wireless function is on.
- Make sure the two devices are in the effective pairing range.
(10 meters).
- Make sure that there is no obstacle between the headphone
and the mobile phone, such as electronic equipment and a
wall.
- Furthermore, you can try restarting the headphone and
pairing it with the mobile phone again.
- Make sure the paired device’s wireless function is turned off.
Q: There is some noise.
- A: Wireless is a radio technology, so it is sensitive to
obstacles between the headphone and the pairing device.
Please make sure that there is no obstacle between the two
devices and is within 10 meters.
Q: I can't hear sound.
A: Please check the followings.
- Try increase the volume.
- Make sure that the Wireless function is on and whether the
two devices are connecting and within 10 meters.
EN-9
12. Warranty
The M09 is covered by a 1-year manufacturer warranty. For
more information, visit: www.ausdom.com/warranty.
Q: My mobile phone or computer cannot find the headphone.
A: Please check that the headphone is in pairing mode. Refer
to chapter 5. Pairing with Wireless devices. Sometimes when
the headphone is connected too many Wireless devices, it
cannot search and pair effectively. Or your mobile phone and
computer are already connected to many other devices. Try
removing some connections before searching the headphone.
EN-10
Microphone
Spec.
Microphone Unit 4*1.5mm
Omni-directional
-42dB
≤2.2KΩ
100Hz-10000Hz
Speaker Spec.
Wireless Spec.
Battery Spec.
Directivity
S.P.L
32ΩImpedance
108dB±3dBS.P.L
＜4%
THD
Impedance
Φ40mm
Speaker diameter
2.402GHz-2.48GHz
Transmission
frequency
20Hz-20000Hz
Frequency
response
4.2Wireless version
HSP/HFP/A2DP/AVRCPSupport profile
Built-in 240mah rechargeable
lithium battery
Battery type
AUSDOM M09Pairing name
Micro USB 5V/1ACharging port
About 8 hours talking/About 8
hours music playing time
Running time
10mWireless distance
Standby time
Charging time
Operating
temperature
More than 2000 hours
About 2 hours
-10˚C-45˚C
Frequency response
2VOperating voltage
Note:
-Features and technical specifications are subject to change
without notice, we apologize for any inconvenience.
13. Specifications
WARRANTY CARD
ATTENTIONS:
- Please read the return procedures and warranty policy
carefully on www.ausdom.com/warranty before sending items
back to point-of-purchase.
- Please fill the card and send it to your reseller together with
the product if your product's warranty is valid.
S.N:
Date of Purchase:
Product Model:
RMA Number:
Return Reason:
Customer Name:
TEL:
E-mail:
Address:
For more information, please visit our official website
www.ausdom.com
Your valuable comments and suggestions on improving
AUSDOM products are welcomed!
Loading...
