Ausa C 400 H, C 400 HI, C 500 H, C 500 HI OPERATOR’S MANUAL

Download

C 400 H C 400 HI C 400 H x4 C 400 HI x4 C 500 H C 500 HI C 500 H x4 C 500 HI x4

OPERATOR’S MANUAL

ENGLISH

ORIGINAL MANUAL

AUSA Forklift

C 400 H C 400 HI C 400 H x4 C 400 HI x4 C 500 H C 500 HI C 500 H x4 C 500 HI x4

Above chassis number 30365171

Original Manual

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Foreword

 Thank you for choosing this AUSA forklift truck (hereinafter forklift). The purpose of this Operator’s and Safety Manual is to provide you, the user , with instructions concerning the productive, safe and efficient use of this forklift. Y ou should read and understand this Operator’s and Safety Manual before operating the forklift. The Operator’s and Safety Manual contains safety messages concerning the use of the forklift. Remember that “you” are the key to safety.

The preservation of these qualities over a long period of time is in your hands. The correct use of your forklift will allow you to make the most of the resultant benefits.

The Operator’s and Safety Manual also contains instructions for some adjustments and for maintenance of this forklift. Follow these instructions carefully while performing routine maintenance checks and keep a record of all maintenance. As wide variations in operating conditions may be experienced, you are urged to contact your AUSA Distributor to resolve any operational or service problems.

Please have all operators of this forklift read and understand this Operator’s and Safety Manual.

Any damage resulting from the incorrect use of the forklift shall not be considered to be the responsibility of AUSA. In the event of query, complaint or to place an order for spares, please contact your Official AUSA Dealer.

This forklift is designed and intended for off highway use. If it is temporarily operated on any public street or highway, the state and local laws governing speed, size, weight, brakes and lighting must be complied with.

For further information you may write, FAX or E-mail to:

AUSA Center, S.L.U.

P.O.B. 194

08243 MANRESA (Barcelona) SPAIN

Tel. 34 - 93 874 75 52 / 93 874 73 11

Fax 34 - 93 873 61 39 / 93 874 12 11 / 93 874 12 55

E-mail: ausa@ausa.com

Web: http://www.ausa.com

AUSA is continuously trying to improve the efficiency, productivity and safety of its products and reserves the right to make such improvements without incurring any obligation to make changes to forklifts previously sold. Because of this policy of striving for constant product improvement, the specifications and operating instructions shown in this Operator’s and Safety Manual may be different from prior forklift models. As such, we will not accept claims that are based on the data, illustrations or descriptions included in these instructions.

Only original AUSA spare parts should be used. This is the only way to guarantee that AUSA machinery has the same operational level as at the time of delivery. No alterations should be made to the forklift without the prior authorization of the manufacturer.

When this Operator’s and Safety Manual is not used should be kept stored in the place provided on the support of the handling control valve. To access this space, tilt the mast forwards and tip the cabin (fig. 1).

(fig. 1)

MOP 240112 02

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Contents

Uses and improper uses of the forklift .................................................................... 5

Identification of the forklift truck .............................................................................. 6

Technical specifications .......................................................................................... 7

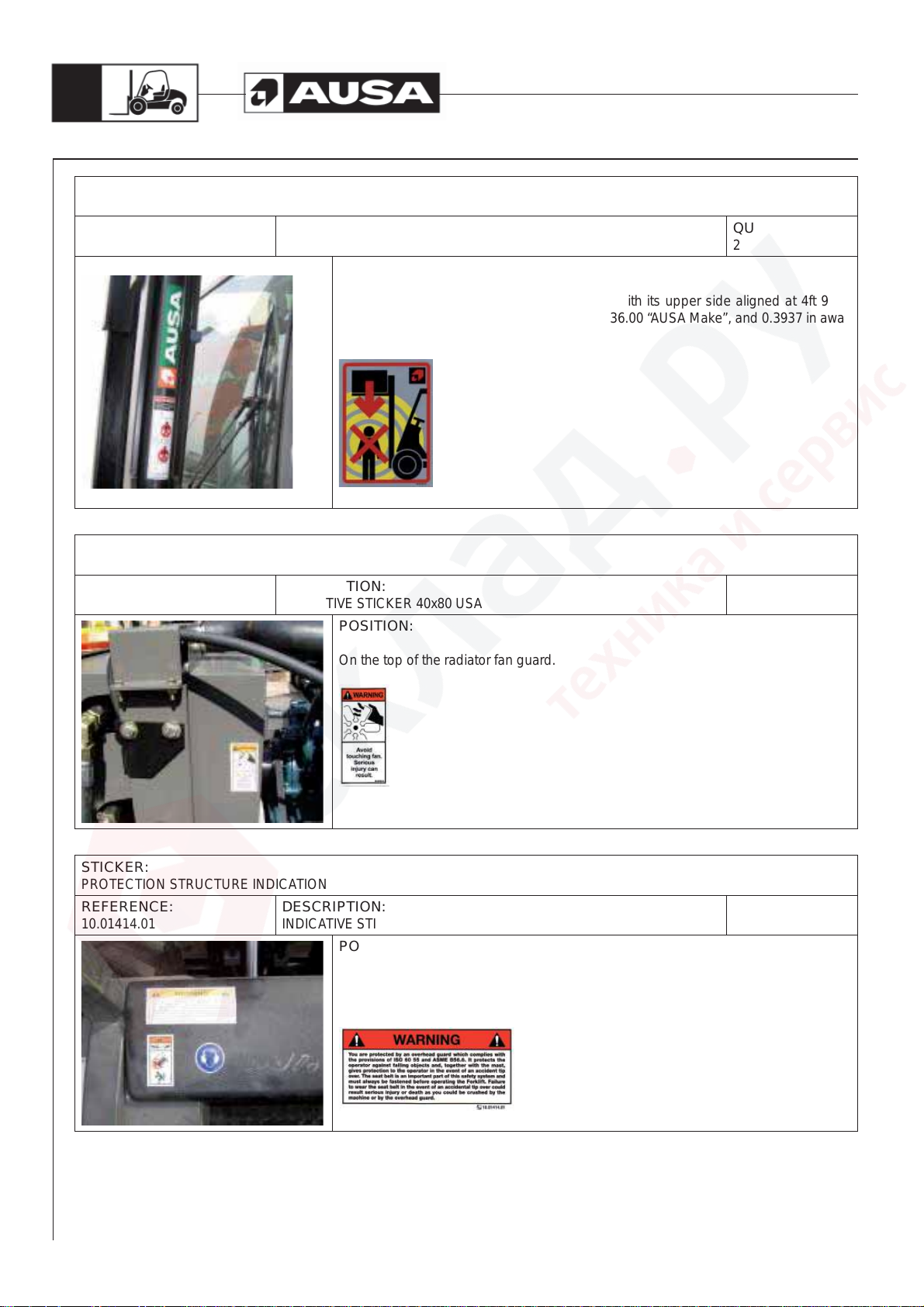

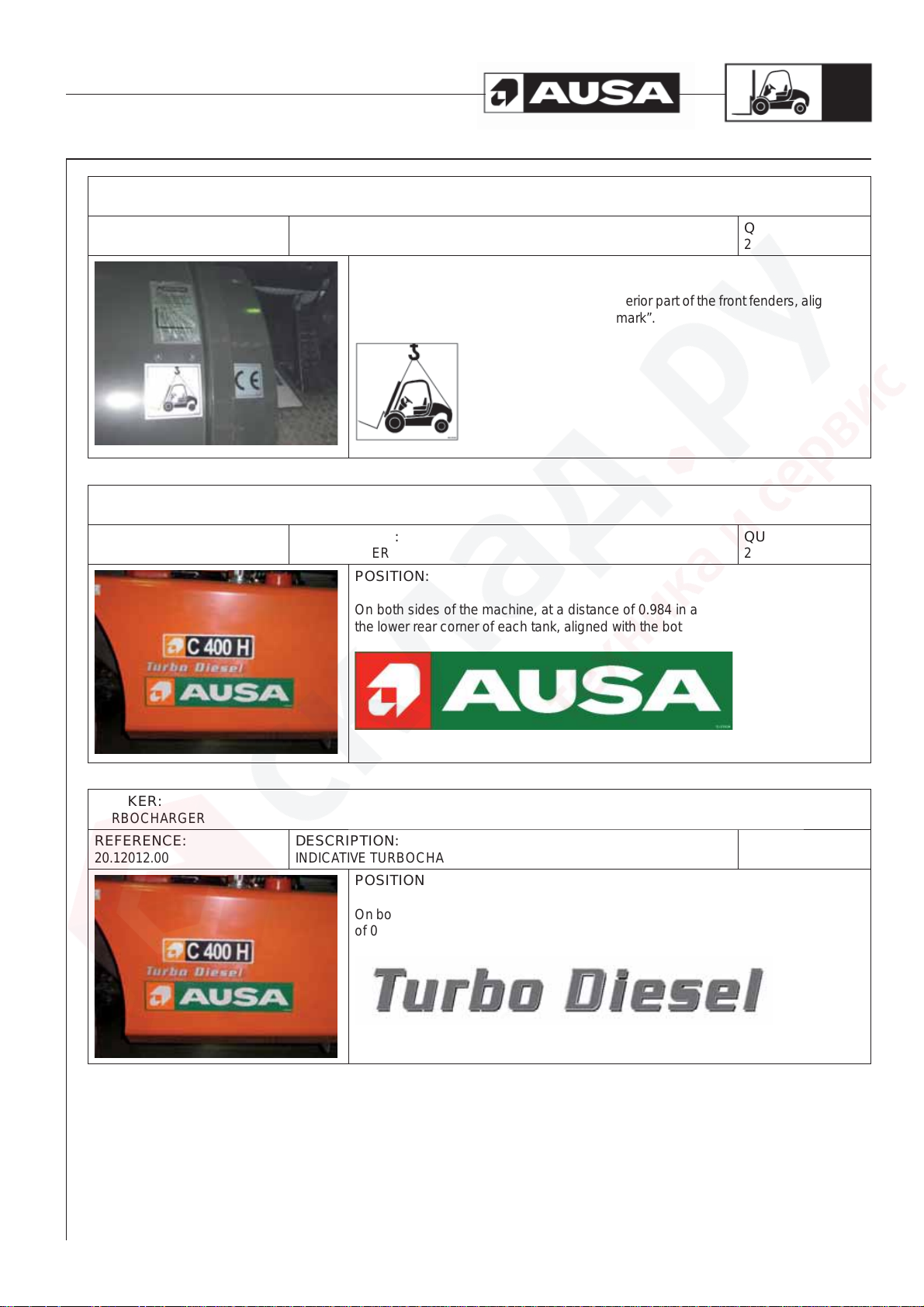

Decals / Labels / Identification plates ..................................................................... 24

Special Safety Messages ........................................................................................ 50

Controls / Instruments / Equipments ...................................................................... 59

Operating the forklift ................................................................................................ 67

Special procedures ................................................................................................. 71

Recommended fluids and lubricants ...................................................................... 73

Maintenance Chart .................................................................................................. 75

Periodic Maintenance Operations ........................................................................... 77

Transporting the forklift ............................................................................................ 99

Electrical circuit diagram ......................................................................................... 102

Hydraulic circuit diagram ........................................................................................ 108

Transmission troubleshooting ................................................................................. 112

EC Certificate of conformity ................................................................................... 113

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Uses and improper

uses of the forklift

 Uses for which the forklift is designed

Forklifts C 400/500H-HI, and C 400/500H-HI x4 have been designed and manufactured for lifting, handling and transporting loads on rough ground and industrial use. The safety of individuals and of the loads carried must be ensured through the use of forks or other accessories and equipment.

ROUGH TERRAIN USE (C400/500H)

This forklift truck is designed for transporting and lifting loads on grounds not in good condition, roughly flat, not too steep slopes and small obstacles, so that the stability conditions are not optimal.

INDUSTRIAL USE (C400/500HI)

This forklift truck is designed for transporting and lifting loads on good condition floors, that means flat, levelled and paved ground, so that there are optimal stability conditions.

Any use other than that described above shall be considered inappropriate and therefore improper. Strict adherence to the operating, maintenance and repair conditions specified by the manufacturer are essential in order to maintain the forklift in good working order. Driving, maintenance and repair of the forklift should only be carried out by suitably qualified personnel, with the necessary tools and knowledge of the control and safety procedures relative to the forklift. When handling loads or carrying out maintenance and/or repair work, the occupational health and safety regulations, together with those relative to accident prevention, should be observed. When driving with the forklift on public highways, special care should be taken to ensure compliance with the current legislation for this type of vehicle (Highway Code). AUSA does not assume responsibility for any damage resulting from modifications made to the forklift without express authorization.

The texts following this symbol provide information on recycling and protecting the

environment.

 Improper use

Improper use is understood to mean the use of the forklift in a manner not in keeping with the criteria and instructions given in this Operator’s and Safety Manual and in a way which might cause damage to persons or objects. Some of the more common and dangerous examples of improper use are given below:

- Carrying persons other than the operator on the forklift.

- Not strictly observing the instructions for use and maintenance given in this Operator’s and Safety Manual.

- Exceeding the limits for load and centre of gravity given in the relevant load charts.

- Working on unstable, unshored grounds or at the edges of trenches and ditches.

- Working on excessively steep slopes.

- The use of accessories or equipment for purposes other than those for which they have been designed.

- The use of accessories or equipment not manufactured or authorized by AUSA.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Identification of

the forklift truck

Important!

When contacting either AUSA or their dealers on matters regarding the forklift, the following information should be given: Model, date of purchase, chassis number and engine number. This data is given on the identification plate. For ease of access, write this information in the spaces given below:

Forklift model: ......................................................................

Date of purchase:................................................................

Chassis serial number: .......................................................

Engine serial number: .........................................................

 Machine identification plate: (fig. 1) This is located on the left-hand side of the driver’s seat. It includes the CE mark.

 Chassis serial number: (fig. 2) This is engraved on the right-hand strut of the chassis.

 Engine serial number: (figs. 3, 4) This is engraved on the right-hand side of the engine, below the exhaust manifold and is also given on a label on the rocker arm cover .

 Identification plates of the principal components: The identification plates corresponding to all those components not directly constructed by AUSA (for example: engines, pumps, etc.) are located on the components themselves, in the positions in which the respective manufacturers originally placed them. For further information see the section DECALS / LABELS / IDENTIFICATION PLATES.

(fig. 4) (fig. 3) (fig. 2) (fig. 1)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Technical

specifications

DIMENSIONS

A 2335 7ft 6.6 in 2335 7ft 6.6 in 2335 7ft 6.6 in 2335 7ft 6.6 in B 280 9.1 in 280 9.1 in 280 9.1 in 280 9.1 in C 300 9.8 in 300 9.8 in 300 9.8 in 300 9.8 in D 1640 5ft. 3.8 in 1700 5ft. 5.7 in 1640 5ft. 3.8 in 1700 5ft. 5.7 in E

(Only C400-500H and C400-500H x4)

(Only C400-500HI and C400-500HI x4)

F 3560 11ft 6.7 in 4770 15ft 6.4 in 3560 11ft 6.7 in 4770 15ft 6.4 in G 3050 10ft 3205 10ft 6.2 in 3050 10ft 3205 10ft 6.2 ft

I 120 3.9 in 120 3.9 in 130 4.2 in 130 4.2 in J 50 1.6 in 50 1.6 in 60 1.9 in 60 1.9 in K 718 2ft 3.5 in 718 2ft 3.5 in 728 2ft 3.8 in 728 2ft 3.8 in L 4568 14ft 9.8 in 4568 14ft 9.8 in 4623 15ft 1.6 in 4623 15ft 1.6 in

M 660 2ft 1.6 in 600 1ft 9.6 in 705 2ft 3.1 in 645 2ft 1.1 in N 1990 6ft 5.2 in 2050 6ft 7.2 in 1990 6ft 5.2 in 2050 6ft 7.2 in O 1200 3 ft 9.3 in 1200 3 ft 9.3 in 1200 3 ft 9.3 in 1200 3 ft 9.3 in

P 5680 18ft 6.3 in 6820 22ft 3.7 in 5680 18ft 6.3 in 6820 22ft 3.7 in

Maximum lifting heigh Free lift

mm in mm in mm in mm in

3700 12ft 2in 100 3.2 in 2750 9ft 0.2 in 4585 15ft 0.4 in 4500 14ft 9in 100 3.2 in 3150 10ft 3.3in 5385 17ft 6.6in 4250 13ft 11in 1393 4ft 5.7 in 2350 7ft 7in 5262 17ft 2.6in 5400 17ft 8in 1793 5ft 8.8 in 2750 9ft 0.2 in 6462 21ft 20in 6800 22ft 4in 2243 7ft 3.5 in 3200 10ft 4.9in 7812 25ft 6.2in

Maximum lifting heigh Free lift

mm in mm in

3700 12ft 2in 100 12ft 1.3in 4500 14ft 9in 100 14ft 7.6in 4000 3510 7738 4800 10582 4250 13ft 11in 1393 13ft 9.4in 4000 3695 8146 5000 11023 5400 17ft 8in 1793 17ft 8.8in 1200 1115 2458 1500 3307 6800 22ft 4in 2243 22ft 3in

C400H-HI C400H-HI x4 C500H-HI C500H-HI x4

mm in mm in mm in mm in

2000 6ft. 5.6 in 2000 6ft. 5.6 in 2000 6ft. 5.6 in 2000 6ft. 5.6 in

1880 6ft. 2 in 1880 6ft. 2 in 1880 6ft. 2 in 1880 6ft. 2 in

Machine height (H) with mast retracted Machine height (H) with mast extended

ALL MODELS ALL MODELS

Load at max. height

C400H / C400H x4 C500H / C500H x4

500 mm. load centre 600 mm. (24 in) load centre 600 mm. ( 24 in) load centre

kg kg lbs kg lbs

4000 3695 8146 5000 11023

450 415 915 600 1323

Load at max. height

Maximum lifting heigh Free lift

500 mm. load centre 600 mm. (24 in) load centre 600 mm. ( 24 in) load centre

mm in mm in

3700 12ft 2in 100 12ft 1.3in 4500 14ft 9in 100 14ft 7.6in 4000 3695 8146 4900 11023 4250 13ft 11in 1393 13ft 9.4in 4000 3695 8146 5000 11023 5400 17ft 8in 1793 17ft 8.8in 3400 3140 6920 4250 9370 6800 22ft 4in 2243 22ft 3in

4000 3695 8146 5000 11023

2400 2220 4895 3000 6610

C400HI / C400HI x4 C500HI / C500HI x4

kg kg lbs kg lbs

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Technical

specifications

 Diesel engine

KUBOTA V3600T – E3B. 85.6 HP / 63 kW at 2600 rpm according to SAE 1995 J Norm. Four cylinder, four stroke, water cooled. Mixed water / oil cooler. Electrical starter.

 Transmission

Hydrostatic system, with variable flow pump and inching function. Hydrostatic motor with variable flow. Maximum operating pressure: 6092 psi. (420 bar). Ful lGrip® 4WD on-demand system with immediate engagement and disengagement device

 Directional control

The selection of movement mode (forwards/ backwards) is made using a switch on the lower part of the joystick. A lamp in the shape of an arrow lights up on the top of it when a movement mode is selected.

 Steering

Hydraulic powered. Drive is in the rear axle, through a double acting hydraulic cylinder. Operating pressure: C400H-HI / C500H-HI: 2175 psi (150 bar) C400H-HI x4 / C500H-HI x4: 2465 psi (170 bar)

 External turning circle

C400H-HI / C500H-HI: 11 ft 6.7 in (3560 mm) C400H-HI x4 / C500H-HI x4: 15 ft 6.5 in (4770 mm)

 Brakes

Multi-disc sealed brakes oil inmmersed in the front axle.

Service brakes: Hydraulic actuated. Parking brake: Negative brake system, spring applied, hydraulically released.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Technical

specifications

 Wheels Dimensions

Dimensions Front wheels Rear wheels C400H 18R – 19’5TL (16 PR) 8’15 - 15 (14 PR) C400H x4 18R – 19’5TL (16 PR) 10.0 / 75 – 15’3 (14 PR) C500H 18R – 19’5TL (16 PR) 8’15 - 15 (14 PR) C500H x4 18R – 19’5TL (16 PR) 10.0 / 75 – 15’3 (14 PR) C400HI 315/80R22’5TL 8’15 - 15 (14 PR) C400HI x4 315/80R22’5TL 8’15 - 15 (14 PR) C500HI 315/80R22’5TL 8’15 - 15 (14 PR) C500HI x4 315/80R22’5TL 8’15 - 15 (14 PR)

Pressures

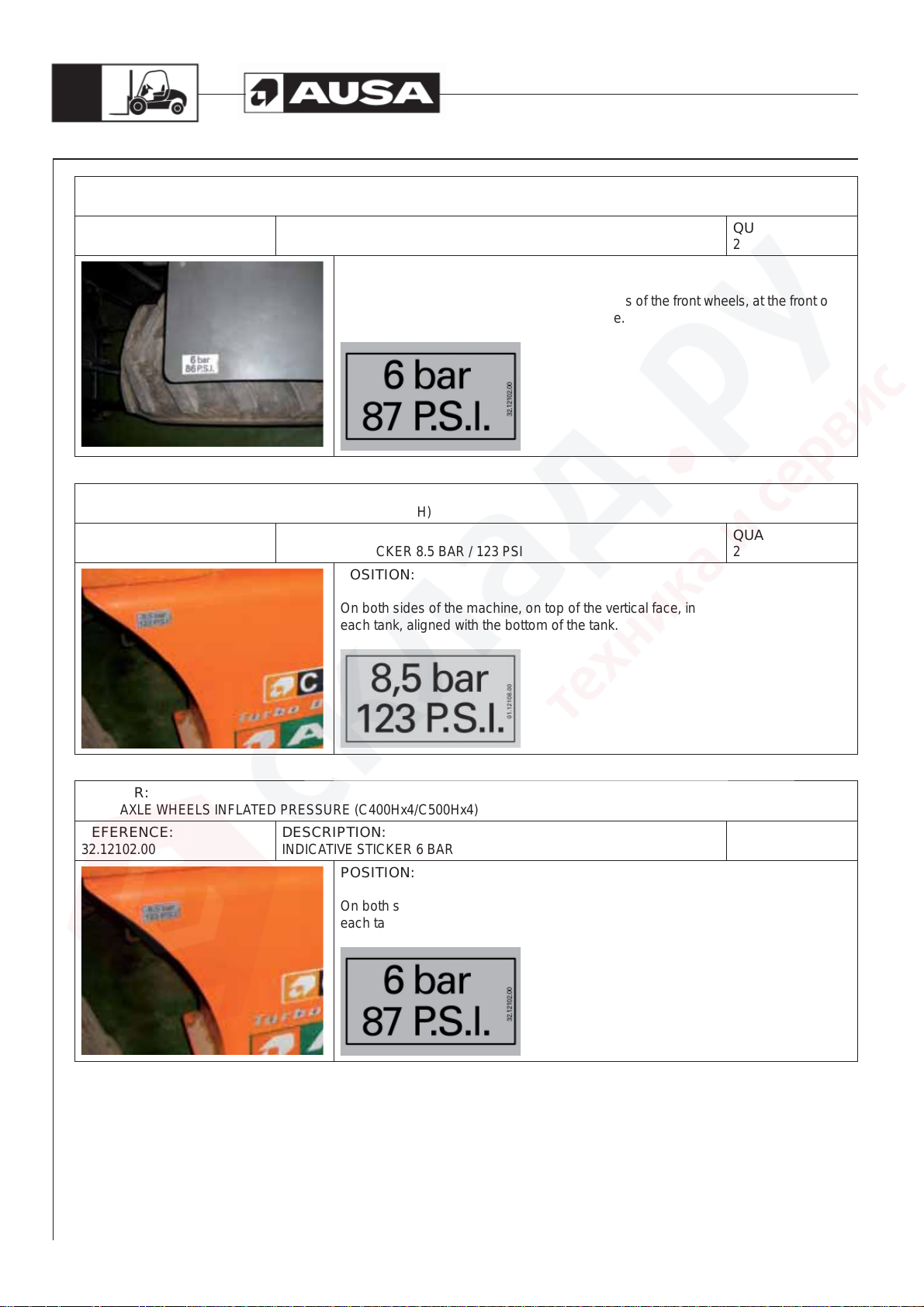

Pressures Front wheels Rear wheel C400H 87 psi (6 bar) 123 psi (8.5 bar) C400H x4 87 psi (6 bar) 87 psi (6 bar) C500H 87 psi (6 bar) 123 psi (8.5 bar) C500H x4 87 psi (6 bar) 87 psi (6 bar) C400HI 123 psi (8.5 bar) 123 psi (8.5 bar) C400HI x4 123 psi (8.5 bar) 123 psi (8.5 bar)) C500HI 123 psi (8.5 bar) 123 psi (8.5 bar) C500HI x4 123 psi (8.5 bar) 123 psi (8.5 bar)

 Operating temperature

From 5º F to 104 ºF (from -15ºC to 40ºC)

 Vibration and sound levels Sound on the operator’s site:

Warranteed sound power (according to 2000/14/CE): LwA = 102 dB (A)

A weighted sound pressure in the operator’s ear measured following norms EN 12053 and ISO 4871): LpA = 84 dB (A) Measurement uncertainty: 2,5 dB (A)

Vibration level produced by the machine:

Root-mean-square frequency-weighted, hand-arm vibration acceleration value: < 2,5 m/s2

Root-mean-square frequency-weighted, whole body vibration acceleration value: < 0,5 m/s2

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Technical

specifications

 Hydraulic circuit

Activated by double gear pump; one gear for the drive circuit and one for the hydraulic steering, connected to the hydrostatic pump of the transmission.

Pump flows:

11.8 - 4.6 US gal/min (45 - 16 l/min) at 1500 rpm.

Operating pressure

C400H-HI / C400H-HI x4: 3191 psi (220 + 5 bar) C500H-HI / C500H-HI x4: 3336 psi (230 + 5 bar)

Monoblock control valve with two spools and selectable solenoid for side-shift. Restrictor valve to control the speed of the mast lowering with load. Oil tank capacity: 25’1 US Gal (95 l.)

 Electrical equipment

Starter motor 3.0 kW, pre-heating glow plugs, 12V / 720W alternator and regulator, 12 V / 92Ah / 760A battery , rotating beacon, horn, back -up alarm, audible warning for: engine oil pressure, hydraulic oil level, battery charge and coolant temperature.

 Weights Unladen weight (with full tanks):

C400H-HI: 14770 lbs (6700 kg) C400H-HI x4: 14991 lbs (6800 kg) C500H-HI: 16534 lbs (7500 kg) C500H-HI x4: 16755 lbs (7600 kg)

Fully laden weight:

C400H-HI: 23589 lbs (10700 kg) C400H-HI x4: 23810 lbs (10800 kg) C500H-HI: 27558 lbs (12500 kg) C500H-HI x4: 27779 lbs (12600 kg)

 Load capacity

C400H-HI / C400H-HI x4: 8818 lbs (4000 kg) With load center of gravity at 20 in (500 mm) and 8150 lbs (3695 kg) with load center of gravity at 24 in (600 mm) (see load chart in this section) C500H-HI / C500H-HI x4: 13396 lbs (5000 kg) With load centre of gravity at 24 in (600 mm) (see load chart in this section)

 Standard mast

Side-shift. Lifting height: 12ft 14in (3,7 m) Length of forks: 48 in (1200 mm) Tilting forward (working position): 10º Tilting forward (transport position) 32º

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Technical

specifications

C400-500H-HI (in.)

MÁSTIL Lift height (in) h1 (in) h2 (in) h3 (in) h4 (in)

DUPLEX 12ft 14in 9ft 3,93in 11ft 97in 15ft

DUPLEX () TRIPLEX () TRIPLEX () TRIPLEX ()

() OPTIONAL

MÁSTIL Lift height (mm) h1 (mm) h2 (mm) h3 (mm) h4 (mm)

DUPLEX 3700 2750 100 3650 4585

DUPLEX () TRIPLEX () TRIPLEX () TRIPLEX ()

() OPTIONAL

14ft 76in 10ft 33in 3,93in 14ft 59in 17ft 66in 13ft 94in 7ft 7in 4ft 57in 13ft 78in 17ft 26in 17ft 88in 9ft 5ft 88 in 17ft 71in 21ft 02in 22ft 30in 10ft 49in 7ft 35in 22ft 14in 25ft 62in

C400-500H-HI (in.)

4500 3150 100 4450 5385 4250 2350 1393 4200 5262 5450 2750 1793 5400 6462 6800 3200 2243 6750 7812

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Technical

specifications

WARNING

This forklift is not designed to travel with elevated load or with the mast tilted forward. Do not tilt forward the mast with the forks elevated except to pick up or deposit the load. The fully forward tilting mast angle is only intended to transport the forklift on a truck bed, always without load. For operating with load do not exceed 10º for the forward tilting mast angle.

 Carriage way and forks

FEM III class (C400H-HI / C400H-HI x4) FEM IV class (C500H-HI / C500H-HI x4)

 Lifting speed

Unladen: 21.65 in/sec (0.55 m/s) Laden: 20.47 in/sec (0.52 m/s)

 Lowering speed

Unladen: 22.44 in/sec (0.37 m/s) Laden: 18.34 in/sec (0.466 m/s)

 Control panel and controls

The controls, switches and warning lights are incorporated into the steering column and below the joystick.

 Lighting ()

Operating lights, park lights, indicators and hazard warning light equipment.

 Overhead guard

Constructed in accordance with ISO 3449 / ISO 3471 and ASME B56.6 standards.

WARNING

The operator is protected by an overhead guard which complies with the ISO 3449 / ISO 3471 and ASME B56.6 standards. It provides protection against falling objects and together with the mast, provides protection should the forklift overturn. The seat belt is an important part of the safety system and should always be fastened before starting to operate the forklift. In the event of the forklift overturning, if the seat belt is not fastened the operator may suffer serious injury or even loss of life as a result of crushing from the forklift or even the overhead guard itself.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Technical

specifications

ROUGH TERRAIN USE (C400/500H)

Load charts for C 400H / C 400H x4 (500 mm. load centre)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Technical

specifications

Load charts for C 400H / C 400H x4 (600 mm load centre)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Technical

specifications

Load charts for C 400H / C 400H x4 (24 in load centre)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Technical

specifications

Load charts for C 500H / C 500H x4 (600 mm. load centre)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Technical

specifications

Load charts for C 500H / C 500H x4 (24 in load centre)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Technical

specifications

INDUSTRIAL USE (C400/500HI)

This forklift truck is designed for transporting and lifting loads on good condition floors, that means flat, levelled and paved ground, so that there are optimal stability conditions.

Load charts for C 400HI / C 400HI x4 (500 mm. load centre)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Technical

specifications

Load charts for C 400HI / C 400HI x4 (600 mm. load centre)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Technical

specifications

Load charts for C 400HI / C 400HI x4 (24 in load centre)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Technical

specifications

Load charts for C 500HI / C 500HI x4 (600 mm. load centre)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Technical

specifications

Load charts for C 500HI / C 500HI x4 (24 in load centre)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Technical

specifications

 Optional equipment

Optional equipment is marked with an asterisk (). Optional equipment is only supplied at the express wish of the customer, for certain versions of forklift or even only in certain countries.

- 4th valve for accessories.

- Duplex masts:

- 14 ft 9 in (4500 mm) lift height.

- Triplex masts:

- 13ft 11 in (4250 mm) lift height with 4ft 57 in (1393 mm) free lift.

- 17ft 8 in (5400 mm) lift height with 5ft 8.8 in (1793 mm) free lift.

- 22ft 4 in (6800 mm) lift height with 7ft 35 in (2243 mm) free lift.

- Catalytic converter.

- Exhaust spark arrestor.

- Semi-closed or full cabin with heater.

- 28.3 cu.ft, (800 l), 35.5 cu.ft (1000 l) and 53 cu.ft (1500 l) hydraulic buckets.

- Lighting system (front and rear).

- Radio.

- Load guard.

Where the forklift comes equipped with accessories mounted at factory , please read the relevant Instruction Manual for each accessory carefully before use. Each accessory has its own Instruction Manual issued by the manufacturer, and this is provided with the forklift Operator’s and Safety Manual.

Where accessories and equipment are fitted to the basic chassis or fork carriage plate at a later date by companies other than the manufacturer , the specifications and limitations of the forklift with respect to weight and dimensions, the adjustment and effectiveness of the lighting system, the protective system requirements, or any additional systems required to guarantee vehicle safety should be taken into consideration.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Decals / labels / identification plates all markets (except USA)

STICKER:

JOYSTICK FUNCTION

REFERENCE:

10.15003.01

DESCRIPTION:

INDICATIVE STICKER 60X75

POSITION:

Stuck on the inside of the right front fender, in the top center position. Just above sticker ref. 10.15005.01, at 0.1969 in.

QUANTITY:

STICKER:

JOYSTICK FUNCTION BUTTONS

REFERENCE:

10.15005.01

STICKER:

DANGEROUS AREA

REFERENCE:

45.01352.00

DESCRIPTION:

INDICATIVE STICKER MAST SIDE SHIFT

POSITION:

Stuck on the inside of the right front fender, in the top center position. Just above sticker ref. 10.15003.01, at 0.1969 in.

DESCRIPTION:

INDICATIVE STICKER

POSITION:

On both sides of the mast, above the beam, with its upper side aligned at 4ft 92 in from the ground, below the sticker ref. 13.12136.00 “AUSA Make”, and 0.3937 in away from it.

QUANTITY:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

STICKER:

TO HOIST MACHINE

REFERENCE:

58.01353.01

STICKER:

AUSA

REFERENCE:

13.12136.00

DESCRIPTION:

INDICATIVE STICKER 105X100

POSITION:

On both sides of the machine, at the lower exterior part of the front fenders, aligned on its upper side with sticker 45.19101.00 “EC mark”.

DESCRIPTION:

AUSA STICKER

POSITION:

QUANTITY:

STICKER:

TURBOCHARGER

REFERENCE:

20.12012.00

On both sides of the machine, at a distance of 0.984 in and a height of 1.969 in from the lower rear corner of each tank, aligned with the bottom of the tank.

DESCRIPTION:

INDICATIVE TURBOCHARGER STICKER

POSITION:

On both sides of the machine, above the AUSA sticker (ref. 13.12136.00) at a distance of 0.1969 in height and aligned on the left side.

QUANTITY:

STICKER:

FRONT AXLE WHEELS INFLATED PRESSURE (C400/500H-C400-500H x4)

REFERENCE:

32.12102.00

STICKER:

REAR AXLE WHEELS INFLATED PRESSURE (C400/500H)

REFERENCE:

01.12108.00

DESCRIPTION:

INDICATIVE STICKER 6 BAR / 87 PSI

POSITION:

On both sides of the machine, above the fenders of the front wheels, at the front outer end of the fenders, aligned with the outer edge.

DESCRIPTION:

INDICATIVE STICKER 8.5 BAR / 123 PSI

POSITION:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

QUANTITY:

On both sides of the machine, on top of the vertical face, in the upper rear position of each tank, aligned with the bottom of the tank.

STICKER:

REAR AXLE WHEELS INFLATED PRESSURE (C400Hx4/C500Hx4)

REFERENCE:

32.12102.00

DESCRIPTION:

INDICATIVE STICKER 6 BAR / 87 PSI

POSITION:

On both sides of the machine, on top of the vertical face, in the upper rear position of each tank, aligned with the bottom of the tank.

QUANTITY:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

STICKER:

FRONT AXLE WHEELS INFLATED PRESSURE (C400/500HI-C400-500HI x4)

REFERENCE:

01.12108.00

STICKER:

REAR AXLE WHEELS INFLATED PRESSURE (C400HI/500HI-C400-500HI x4)

REFERENCE:

01.12108.00

DESCRIPTION:

INDICATIVE STICKER 8.5 BAR / 123 PSI

POSITION:

On both sides of the machine, above the fenders of the front wheels, at the front outer end of the fenders, aligned with the outer edge.

DESCRIPTION:

INDICATIVE STICKER 8.5 BAR / 123 PSI

POSITION:

QUANTITY:

STICKER:

FUEL TYPE INDICATION

REFERENCE:

43.01356.00

On both sides of the machine, on top of the vertical face, in the upper rear position of each tank, aligned with the bottom of the tank.

DESCRIPTION:

INDICATIVE STICKER 90x45 FUEL

POSITION:

On the right tank of the machine, next to the fuel cap, aligned with the vertical outer wall of the tank.

QUANTITY:

STICKER:

EC INDICATION

REFERENCE:

45.19101.00

STICKER:

HYDRAULIC OIL TYPE

REFERENCE:

43.01352.20

DESCRIPTION:

INDICATIVE STICKER 70x70

POSITION:

On both sides of the machine, at the bottom inner side of the front fenders, aligned on its upper side with mark id 58.01353.01 “To hoist machine”.

DESCRIPTION:

INDICATIVE STICKER 70x32 HYDRAULIC OIL

POSITION:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

QUANTITY:

STICKER:

ENGINE OIL TYPE

REFERENCE:

43.01170.02

On the left-hand side tank, below the filler cap, aligned with the inner edge of the tank, and centered with the cap.

DESCRIPTION:

INDICATIVE STICKER 90x45

POSITION:

On top of part ref. 57.08011.00 “fixed part of the cab lock” on the right-hand side (in forward direction of machine), easily legible with the cab raised.

QUANTITY:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

STICKER:

MACHINE MODEL INDICATION (C400H – C400H x4)

REFERENCE:

30.12001.00

STICKER:

MACHINE MODEL INDICATION (C500H – C500H x4)

REFERENCE:

30.12002.00

DESCRIPTION:

INDICATIVE STICKER 68x267 MODEL C400H

POSITION:

On both sides of the machine, at a distance of 0.984 in and a height of 5.906 in from the lower rear corner of each tank, aligned with the bottom of the tank.

DESCRIPTION:

INDICATIVE STICKER 68x267 MODEL C500H

POSITION:

QUANTITY:

On both sides of the machine, at a distance of 1.969 in and a height of 5.906 in from the lower rear corner of each tank, aligned with the bottom of the tank.

STICKER:

MACHINE MODEL INDICATION (C400 HI – C400HI x4)

REFERENCE:

30.12001.01

DESCRIPTION:

INDICATIVE STICKER 68x267 MODEL C400HI

POSITION:

On both sides of the machine, at a distance of 1.969 in and a height of 5.906 in from the lower rear corner of each tank, aligned with the bottom of the tank.

QUANTITY:

STICKER:

MACHINE MODEL INDICATION (C500 HI – C500HI x4)

REFERENCE:

30.12002.01

STICKER:

CHARACTERISTICS PLATE

REFERENCE:

01.00779.26

DESCRIPTION:

INDICATIVE STICKER 68x267 MODEL C500HI

POSITION:

On both sides of the machine, at a distance of 1.969 in and a height of 5.906 in from the lower rear corner of each tank, aligned with the bottom of the tank.

DESCRIPTION:

PLATE CHARACTERISTICS 100x130

POSITION:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

QUANTITY:

STICKER:

AUSA ANAGRAM

REFERENCE:

46.08099.00

Riveted on top of the engine bulkhead, on its rear upper left-hand side (in forward direction of machine), in the holes prepared. Etched according to assembly instruction.

DESCRIPTION:

AUSA ANAGRAM

POSITION:

Embedded in the cab front panel, on its outer side, in the upper left-hand part (in forward direction of machine).

QUANTITY:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

STICKER:

WARNING IN CASE OF OVERTURNING THE MACHINE

REFERENCE:

12.12010.00

STICKER:

ACOUSTIC OPERATOR PROTECTION

REFERENCE:

01.00757.00

DESCRIPTION:

SAFETY STICKER

POSITION:

Top left-hand corner of the dashboard, under sticker ref. 02.00774.00 “Do not use” and aligned with this on its left side.

DESCRIPTION:

INDICATIVE STICKER D40

POSITION:

QUANTITY:

STICKER:

POINT HOISTED MACHINE

REFERENCE:

09.15720.00

Top left-hand corner of the instrument panel, under sticker 02.00774.00 “Do not use”, aligned with this on its right side and centered with sticker ref. 12.12010.00.

DESCRIPTION:

INDICATIVE STICKER 35x35

POSITION:

Above each of the four eyebolts at the bottom of the frame for lifting the machine.

QUANTITY:

STICKER:

MAXIMUM SOUND LEVEL

REFERENCE:

09.12014.00

DESCRIPTION:

STICKER NOISE 104 DB

POSITION:

On the inside of the right front wheel arch, aligned with the cab floor.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

QUANTITY:

STICKER:

FUILL GRIP®. (C400-500H x4 / C400-500HI x4)

REFERENCE:

43.00397.00

STICKER:

MAST LOWERING MARKER (MACHINES WITH SEMI-CLOSED AND FULL CAB)

REFERENCE:

57.12010.00

DESCRIPTION:

INDICATIVE STICKER 110x110

POSITION:

On both sides of the machine, next to the AUSA sticker (ref. 13.12136.00) and aligned on the right side.

DESCRIPTION:

INDICATIVE STICKER LOWERING MAST

POSITION:

On the rear window of the cab, centered with the cab opening lever, aligned with the bottom of the window, 0.3937 in away from the rubber surround.

QUANTITY:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

STICKER:

NON MOVEMENTS WITH LOAD OFFCENTERED (MASTS OF MORE THAN 3,7M / 12ft 2 in)

REFERENCE:

43.02187.02

DESCRIPTION:

INDICATIVE STICKER 70x210 ENGLISH

POSITION:

In the upper part of the dashboard, next to the sticker ref. 02.00777.00 “Do not use” aligned with this on its upper side.

* In heated enclosed cab, position at the bottom left-hand side of the window 0.3937 in away from the edge (bottom left side).

n away from the edge (bottom left side).

QUANTITY:

* Cab heated

STICKER:

AUSA STICKER

REFERENCE:

13.12136.00

DESCRIPTION:

AUSA STICKER

POSITION:

On both sides of the mast, above the beam, with its lower side aligned at 4ft 95 in from the ground, above the sticker ref. 45.01352.00 “Dangerous area”, and 0.3937 in away from it.

QUANTITY:

STICKER:

INDICATION FullGrip SYSTEM® OIL. (C400-500Hx4 / C400-500HI x4)

REFERENCE:

43.00396.02

STICKER:

NOT USE WITHOUT AUTHORIZATION

REFERENCE:

45.01352.00

DESCRIPTION:

INDICATIVE STICKER 60x95

POSITION:

At the top of the transfer case with the text facing the oil filler cap. Centered with the casting lugs.

DESCRIPTION:

INDICATIVE STICKER 50x120 ENGLISH

POSITION:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

QUANTITY:

STICKER:

BRAKE FLUID INDICATION

REFERENCE:

43.70780.01

T op left-hand corner of the dashboard, aligned on its left side with sticker nº 12.12010.00 “Safety warning”.

DESCRIPTION:

INDICATIVE STICKER 60x100 BRAKE

POSITION:

In the engine compartment, on the left side of the brake fluid bottle, aligned with this bottle. Trim the foam rubber covering if necessary.

QUANTITY:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

STICKER:

HOT PARTS INDICATION

REFERENCE:

02.00765.00

DESCRIPTION:

INDICATIVE STICKER 40x80 ENGLISH

POSITION:

Inside the counterweight, near the exhaust manifold, easily readable when trying to work on the engine.

QUANTITY:

STICKER:

LOAD CHART PLATE

REFERENCE:

43.01350.28 / 30.12004.00

DESCRIPTION:

INDICATIVE PLATE 91x156 LOAD CHARTS

POSITION:

Riveting in 4 holes provided, in the central outer part the left-hand front fender. Etched according to assembly instruction.

* Add another unit at the top in the event of installing a mast higher than 12ft 14 in.

QUANTITY:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Decals / labels / identification plates (USA Market)

STICKER:

JOYSTICK FUNCTION BUTTONS. SUBSTITUTE REF. 10.15005.01

REFERENCE:

10.15005.01

DESCRIPTION:

INDICATIVE STICKER MAST SIDE-SHIFT (USA)

POSITION:

Stuck on the inside of the right front fender, in the top center position. Just above sticker ref. 10.15006.01, at 0.1969 in.

QUANTITY:

STICKER:

TO HOIST MACHINE

REFERENCE:

58.01353.01

STICKER:

AUSA (C400/500H-Hx4)

REFERENCE:

13.12136.00

DESCRIPTION:

INDICATIVE STICKER 105X100

POSITION:

On both sides of the machine, at the lower exterior part of the front fenders, aligned on its upper side with sticker 45.19101.00 “EC mark”.

DESCRIPTION:

AUSA STICKER

POSITION:

On both sides of the machine, at a distance of 0.984 in and a height of 1.969 in from the lower rear corner of each tank, aligned with the bottom of the tank.

QUANTITY:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

STICKER:

TURBOCHARGER

REFERENCE:

20.12012.00

STICKER:

FRONT AXLE WHEELS INFLATED PRESSURE (C400/500H – C400/500H x4)

REFERENCE:

32.12102.00

DESCRIPTION:

INDICATIVE TURBOCHARGER STICKER

POSITION:

On both sides of the machine, above the AUSA sticker (ref. 13.12136.00) at a distance of 0.1969 in height and aligned on the left side.

DESCRIPTION:

INDICATIVE STICKER 6 BAR 87 PSI

POSITION:

QUANTITY:

On both sides of the machine, above the fenders of the front wheels, at the front outer end of the fenders, aligned with the outer edge.

STICKER:

REAR AXLE WHEELS INFLATED PRESSURE (C400/500H)

REFERENCE:

01.12108.00

DESCRIPTION:

INDICATIVE STICKER 8.5 BAR / 123 PSI

POSITION:

On both sides of the machine, on top of the vertical face, in the upper rear position of each tank, aligned with the bottom of the tank.

QUANTITY:

STICKER:

REAR AXLE WHEELS INFLATED PRESSURE (C400Hx4/C500Hx4)

REFERENCE:

32.12102.00

STICKER:

FRONT AXLE WHEELS INFLATED PRESSURE (C400/500HI-C400-500HI x4)

REFERENCE:

01.12108.00

DESCRIPTION:

INDICATIVE STICKER 6 BAR / 87 PSI

POSITION:

On both sides of the machine, on top of the vertical face, in the upper rear position of each tank, aligned with the bottom of the tank.

DESCRIPTION:

INDICATIVE STICKER 8.5 BAR / 123 PSI

POSITION:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

QUANTITY:

On both sides of the machine, above the fenders of the front wheels, at the front outer end of the fenders, aligned with the outer edge.

STICKER:

REAR AXLE WHEELS INFLATED PRESSURE (C400HI/500HI-C400-500HI x4)

REFERENCE:

01.12108.00

DESCRIPTION:

INDICATIVE STICKER 8.5 BAR / 123 PSI

POSITION:

On both sides of the machine, on top of the vertical face, in the upper rear position of each tank, aligned with the bottom of the tank.

QUANTITY:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

STICKER:

FUEL TYPE INDICATION

REFERENCE:

43.01356.00

STICKER:

EC INDICATION

REFERENCE:

45.19101.00

DESCRIPTION:

INDICATIVE STICKER 90x45 FUEL

POSITION:

On the right tank of the machine, next to the fuel cap, aligned with the vertical outer wall of the tank.

DESCRIPTION:

INDICATIVE STICKER 70x70

POSITION:

QUANTITY:

On both sides of the machine, at the bottom inner side of the front fenders, aligned on its upper side with mark id 58.01353.01 “To hoist machine”.

STICKER:

MACHINE MODEL INDICATION (C400H – C400H x4)

REFERENCE:

30.12001.00

DESCRIPTION:

INDICATIVE 68x267 MODEL C400H

POSITION:

On both sides of the machine, at a distance of 0.984 in and a height of 5.906 in from the lower rear corner of each tank, aligned with the bottom of the tank.

QUANTITY:

STICKER:

MACHINE MODEL INDICATION (C500H – C500H x4)

REFERENCE:

30.12002.00

STICKER:

MACHINE MODEL INDICATION (C400HI – C400HI x4)

REFERENCE:

30.12001.01

DESCRIPTION:

INDICATIVE 68x267 MODEL C500H

POSITION:

On both sides of the machine, at a distance of 1.969 in and a height of 5.906 in from the lower rear corner of each tank, aligned with the bottom of the tank.

DESCRIPTION:

INDICATIVE STICKER 68x267 MODEL C400HI

POSITION:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

QUANTITY:

On both sides of the machine, at a distance of 1.969 in and a height of 5.906 in from the lower rear corner of each tank, aligned with the bottom of the tank.

STICKER:

MACHINE MODEL INDICATION (C500HI – C500HI x4)

REFERENCE:

30.12002.01

DESCRIPTION:

INDICATIVE STICKER 68x267 MODEL C500HI

POSITION:

On both sides of the machine, at a distance of 1.969 in and a height of 5.906 in from the lower rear corner of each tank, aligned with the bottom of the tank.

QUANTITY:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

STICKER:

AUSA ANAGRAM

REFERENCE:

46.08099.00

STICKER:

WARNING IN CASE OF OVERTURNING THE MACHINE

REFERENCE:

12.12010.00

DESCRIPTION:

AUSA ANAGRAM

POSITION:

Embedded in the cab front panel, on its outer side, in the upper left-hand part (in forward direction of machine).

DESCRIPTION:

SAFETY STICKER

POSITION:

QUANTITY:

STICKER:

OPERATOR ACOUSTIC PROTECTION

REFERENCE:

01.00757.00

DESCRIPTION:

INDICATIVE STICKER D40

Top left-hand corner of the dashboard, under sticker ref. 02.00774.00 “Do not use” and aligned with this on its left side.

QUANTITY:

POSITION:

Top left-hand corner of the instrument panel, under sticker 02.00774.00 “Do not use”, aligned with this on its right side and centered with sticker ref. 12.12010.00.

STICKER:

POINT HOISTED MACHINE

REFERENCE:

09.15720.00

STICKER:

MAXIMUM SOUND LEVEL

REFERENCE:

09.12014.00

DESCRIPTION:

INDICATIVE STICKER 35x35

POSITION:

Above each of the four eyebolts at the bottom of the frame for lifting the machine.

DESCRIPTION:

ADHESIVE NOISE 104 DB

POSITION:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

QUANTITY:

On the inside of the right front wheel arch, aligned with the cab floor.

STICKER:

FUILL GRIP®. (C400-500H x4 / C400-500HI x4)

REFERENCE:

43.00397.00

DESCRIPTION:

INDICATIVE STICKER 110x110

POSITION:

On both sides of the machine, next to the AUSA sticker (ref. 13.12136.00) and aligned on the right side.

QUANTITY:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

STICKER:

MAST LOWERING MARKER (MACHINES WITH SEMI-CLOSED AND FULL CAB)

REFERENCE:

57.12010.00

STICKER:

NON MOVEMENTS WITH LOAD OFFCENTERED (MASTS OF MORE THAN 12ft 2 in). SUBSTITUTE REF. 43.02187.02

REFERENCE:

43.02187.02

DESCRIPTION:

INDICATIVE STICKER LOWERING MAST

POSITION:

On the rear window of the cab, centered with the cab opening lever, aligned with the bottom of the window, 0.3937 in away from the rubber surround.

DESCRIPTION:

INDICATIVE STICKER 70x210 ENGLISH

POSITION:

QUANTITY:

* Cab heated

On top of the tablier, next to the adhesive ref. 10.01414.01 “Indication structure,” aligned with it by their side.

* In heated enclosed cab, position at the bottom left-hand side of the window 0.3937 in away from the edge (bottom left side).

STICKER:

AUSA STICKER

REFERENCE:

13.12136.00

DESCRIPTION:

AUSA STICKER

POSITION:

On both sides of the mast, above the beam, with its lower side aligned at 4ft 95 in from the ground, above the sticker ref. 45.01352.00 “Dangerous area”, and 0.3937 in away from it.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

QUANTITY:

STICKER:

FullGrip® SYSTEM OIL (C400-500Hx4 / C400-500HIx4)

REFERENCE:

43.00396.02

STICKER:

BRAKE FLUID INDICATION

REFERENCE:

43.70780.01

DESCRIPTION:

INDICATIVE STICKER 60x95

POSITION:

At the top of the transfer case with the text facing the oil filler cap. Centered with the casting lugs.

DESCRIPTION:

INDICATIVE STICKER 60x100 BRAKE

POSITION:

In the engine compartment, on the left side of the brake fluid bottle, aligned with this bottle. Trim the foam rubber covering if necessary.

QUANTITY:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

STICKER:

HOT PARTS INDICATION

REFERENCE:

02.00765.00

DESCRIPTION:

INDICATIVE STICKER 40x80 ENGLISH

POSITION:

Inside the counterweight, near the exhaust manifold, easily readable when trying to work on the engine.

QUANTITY:

STICKER:

LOAD CHART PLATE

REFERENCE:

43.01350.28

STICKER:

REFLECTIVE TRIANGLE WITH PLATE. (MACHINE WITH OPEN CAB) (USA)

REFERENCE:

10.15120.00

DESCRIPTION:

INDICATIVE PLATE 91x156 LOAD CHARTS

POSITION:

Riveting in 4 holes provided, in the central outer part the left-hand front fender. Etched according to assembly instruction. * Add another unit at the top in the event of installing a mast higher than 12ft 14 in.

DESCRIPTION:

INDICATIVE STICKER 350x400

POSITION:

QUANTITY:

Fixed at the bottom edge of the cab rear opening, centered horizontally, aligned with the lower edge of the cab opening.

STICKER:

REFLECTIVE TRIANGLE (MACHINES WITH SEMI-CLOSED AND FULL CAB)) (USA)

REFERENCE:

10.15122.00

DESCRIPTION:

INDICATIVE STICKER 356x356

POSITION:

On the cab rear window, centered horizontally on the glass, aligned with the lower edge 0.3937 in away from it.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

QUANTITY:

STICKER:

JOYSTICK. FUNCTION SUBSTITUTE REF. 10.15003.01

REFERENCE:

10.15006.01

STICKER:

CHARACTERISTICS PLATE. SUBSTITUTE REF. 01.00779.26

REFERENCE:

01.00779.23

DESCRIPTION:

INDICATIVE STICKER, LEVER LOW CONTROL

POSITION:

Stuck on the inside of the right-hand front fender, top center position.

DESCRIPTION:

CHARACTERISTICS PLATE 100x130 SPECIAL

POSITION:

QUANTITY:

Riveted on the engine bulkhead, on its rear side in the holes provided. Etched according to assembly instruction.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

STICKER:

NOT USE WITHOUT BEING AUTHORIZED. SUBSTITUTE REF. 02.00777.00

REFERENCE:

02.00777.04

STICKER:

ENGINE OIL TYPE. SUBSTITUTE REF. 43.01170.02

REFERENCE:

43.01170.03

DESCRIPTION:

INDICATIVE STICKER 216x250

POSITION:

On top of the vertical face of the engine bulkhead, easily readable before getting into the machine, aligned with the cab floor.

DESCRIPTION:

INDICATIVE STICKER 90x45

POSITION:

QUANTITY:

On top of part ref. 57.08011.00 “fixed part of the cab lock” on the right-hand side (in forward direction of machine), easily legible with the cab raised.

STICKER:

HYDRAULIC OIL TYPE (USA). SUBSTITUTE REF. 43.01352.20

REFERENCE:

60.01352.01

DESCRIPTION:

INDICATIVE STICKER 40x87 HYDRAULIC OIL

POSITION:

On the left-hand side tank, below the filler cap, aligned with the inner edge of the tank, and centered with the cap.

QUANTITY:

STICKER:

DANGEROUS AREA. SUBSTITUTE REF. 45.01352.00

REFERENCE:

45.01352.01

DESCRIPTION:

INDICATIVE STICKER 68x210

POSITION:

On both sides of the mast, above the beam, with its upper side aligned at 4ft 92 in from the ground, below the sticker ref. 13.12136.00 “AUSA Make”, and 0.3937 in away from it.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

QUANTITY:

STICKER:

NOT TO TOUCH INDICATION

REFERENCE:

02.00766.00

STICKER:

PROTECTION STRUCTURE INDICATION

REFERENCE:

10.01414.01

DESCRIPTION:

INDICATIVE STICKER 40x80 USA

DESCRIPTION:

INDICATIVE STICKER 60x125 USA

QUANTITY:

POSITION:

On the top of the radiator fan guard.

QUANTITY:

POSITION:

In the upper left-hand corner of the dashboard, aligned at the left with the adhesive ref.

10.01414.01 “Warning Security”.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

STICKER:

CALIFORNIA INDICATION (USA)

REFERENCE:

43.01171.00

DESCRIPTION:

INDICATIVE STICKER 42x77

POSITION:

In the upper right-hand corner of the dashboard, aligned at the top with the bend in the dashboard.

QUANTITY:

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Special

Safety

Messages

WARNING

Do not operate this machine unless you have read and understand the safety and operational instructions contained in this Operator’s and Safety Manual and have been instructed and trained in the safe operation of this Forklift. REMEMBER THAT “YOU” ARE THE KEY TO SAFETY.

 General comments Operator responsibilities

Before using the forklift that is initially unfamiliar, you should read the Operator’s and Safety Manual carefully and resolve any doubts with a supervisor (fig. 1). It is your responsibility to read and understand this Operator’s and Safety Manual before operating any rough terrain forklift. This Operator’s and Safety Manual takes you step by step through your working day. In order to help you better understand the text, graphics have been provided in this Operator’s and Safety Manual. It’s important that you know and apply all applicable laws and rules including OSHA requirements for operator training and certification. The forklift must only be used by authorized and correctly trained personnel AUSA manufactures its forklifts in accordance with ASME B56.6 and the corresponding International Standards. The Occupational Safety and Health Administration (OSHA) enforces federal laws that apply to safety of operation, application and maintenance of equipment on a worksite. Because it is an employer’s responsibility to apply these laws, an OSHA representative may periodically inspect a worksite to see that these laws are being followed. There may also be local or state/provincial laws that apply to this equipment and its use along with specific worksite or employer rules. It is important that you know and apply all applicable laws and rules. Any danger resulting from improper use, not complying with these provisions or others which are specifically provided with the machinery , shall be the responsibility of the user and not of AUSA. This section provides instructions on the use of the forklift, in accordance with that established by ASME B56.6, normative 2006/42/EC and OSHA documents..

Description of a forklift truck

A forklift truck is a powered vehicle used for transporting or handling loads with the aid of tools specific to the task to be carried out. The forklift is able to lift loads. It consists of a resistant chassis resting upon two axles. The front axle is the drive axle and the rear axle the steering axle, although versions exist in which both axles are driving axles. At the front of the forklift there is a mast, along it moves the front carriage. The unit formed by both is designed to lift and tilt the load forwards and backwards, making handling easier .

(fig. 1)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Special

Safety

Messages

 General recommendations for driving a forklift truck Basic information for starting up a forklift truck

Entering and leaving the operator cabin, do not hold or pull the steering wheel to enter the driver cabin, use the handles provided on the front structure of the overhead guard. Always place one foot on the tread of the sill to prevent slipping when climbing in or out (fig. 1). Never start or operate any of the controls unless seated on the driver’s seat. Keep the driver’s cab free of objects and tools. These may move around, block a control or a pedal, and prevent a manoeuvre or stop the forklift. Before starting to work with the forklift, clean any oil or fuel spills, clean and remove grease from hands and the soles of shoes (fig. 2). Do not forget to carry out the operations and daily checks listed in the “General maintenance chart” on this Operator’s and Safety Manual. Check the correct position and fastening of all the guards, caps and safety stops. Check that all the controls are operating correctly. Check that informative and safety plates on the forklift are clean and in good condition. If they are not in good condition, replace them. Wear suitable protective that will protect you in the working environment. This may include a helmet, ear plugs, protective goggles or reflective clothing (fig. 3). Do not wear loose clothing or jewellery or long hair as these could become entangled in the controls, in moving parts or edges of the machine and prove dangerous. If working in an enclosed area make certain there is sufficient ventilation to prevent excessive build-up of exhaust fumes. Under this conditions always stop this engine when not in use. Before starting the forklift be certain to check or test the following items:

- Check for any leaks in the fuel, hydraulic or cooling system.

- Clean any oil or fuel leaks that may exist on the forklift controls or operating area.

- Check tire conditions and pressures.

- Re-tight wheel nuts if necessary.

- Check that all controls are working correctly.

- Check the operator seat belt and its attachments. Ensure seat belt is properly latched. Inspect carefully the condition of this security

system with special attention to:

- cuts or damages in the belt.

- wear or damages in the metallic parts including the anchorage elements.

- badly functioning of the buckle.

- seams or free points of sewing. Check brake pedal travel and effectiveness. Check the following fluid levels:

- Fuel

- Braking fluid

- Hydraulic fluid

- Cooling system fluid

- Engine oil Check the horn. Check that lighting and signalling systems are clean and work correctly. If they do not work check the corresponding fuses and bulbs as shown in MAINTENANCE OPERATIONS on this Operator’s and Safety Manual.

Jumping on or off the forklift can cause serious injury . Always face the machine and use rails and steps to slowly get on and slowly get off the forklift. Adjust seat position so you are comfortable and can easily reach all the controls. Now fasten your seat belt. Always stop the engine and do not smoke when fuelling the machine. (fig. 4) Follow the instructions given in the section “Fuel” on this Operator’s and Safety Manual.

(fig. 4) (fig. 1)(fig. 2)(fig. 3)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Special

Safety

Messages

Before starting and operating the forklift

- Stay alert. Concentrate fully on your work. Your safety and that of others depends on the care you take when operating this forklift.

- Remember that you are the key to safety. Good safety practices not only protect you but also the people around you.

The surrounding area

Be careful around any pedestrians in the surrounding area This forklift was designed to lift loads not people. Never transport people on any part of the forklift. Do not let people ride on the forks (fig. 1). Do not let people stand or walk under raised forks, loaded or unloaded (fig. 2). Give way to the right to pedestrians found in your path. Do not drive rapidly. Driving too fast is dangerous to the driver and to the load. The speed at which the forklift is operated should always be suited to the working conditions and to the space available for manoeuvring. Always drive smoothly and not in a jerky fashion. Never put any part of your body between the fork mast and the forklift body. (fig. 3). Be careful around any load edges, pressure zones or revolving movements and extensions. Be certain you have good visibility at all times. It is important that you can see clearly both forward and backward when operating the forklift. If the load does not allow clear forward visibility, then drive with caution in reverse. (fig. 4). This forklift is not designed to be used as a tow truck or tow vehicle. However if the forklift is to be towed to or from work location, see the section “Towing the forklift” on this Operator’s and Safety Manual.

Work circuit

The movement of loads within an installation or enclosure must be carried out following certain instructions concerning the circulation of forklifts and pedestrians. If you are not aware of these regulations, please check with your supervisor. Study the movements of the forklift to avoid making manoeuvres which are unnecessary, or involve risk to the surrounding areas. Find out which paths are suited to the type of vehicle you are driving and the load carried. If it is necessary to drive along public highways, first check that the forklift complies with current regulations of the country. Highway use of this off-road equipment may be restricted or prohibited by the laws of a State or Province.

Work cycle

(fig. 2)(fig. 3)(fig. 4) (fig. 1)

If it is necessary to move loads continuously and repeatedly, try to do so with the minimum number of movements necessary, where possible. Reducing the number of movements saves fuel and reduces the emission of exhaust fumes. If the work is very intense, remember to check the instrument panel from time to time, especially in extreme climates, as the engine will be working in particularly hard conditions.

Forklift truck circulation

When approaching a junction with poor visibility, reduce speed, emit acoustic warnings and proceed slowly according to the available visibility. The speed of the forklift should at all times be adapted to the working conditions and the surrounding area. Systematically driving at the maximum speed permitted by the machine may put the operator and the surrounding area at risk.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Special

Safety

Messages

Driving in reverse

Ensure good visibility of the path to be taken. If the load being carried obstructs visibility , drive in reverse with the utmost of caution. Before reversing, the operator should ensure that this does not involve risks for the forklift, people or objects in the surrounding area (fig. 1).

Driving on gradients

Special care should be taken when driving on gradients: move slowly, avoid placing the machine across the gradient and do not work on higher gradients than those recommended. The maximum permitted gradient does not imply that it is possible to manoeuvre here in absolute safety under full load, ground and operating conditions. Gradients should be descended in reverse, with the load facing the direction of greatest stability (fig. 2).

Rudiments of static equilibrium

In order that the forklift is able to handle loads in a stable and safe manner, certain equilibrium conditions must exist and be maintained between the load and the machinery . Therefore, the forklift is fitted with counterweights at the rear. These are designed to compensate for the weight of the load being carried, as long as the centre of gravity of the load and the forklift are within certain established limits. In order to calculate the values of the transportable weight and the position of the centre of gravity permitted for the forklift see the Load Charts in the section “Operating the Machine” on this Operator’s and Safety Manual .

Rudiments of dynamic equilibrium

While the forklift is moving, and as it gains speed, the equilibrium conditions of the load-forklift unit are modified as the centre of gravity shifts. This is accentuated on lifting loads, turning, braking, etc. In these conditions it is necessary to take the utmost care to ensure that the centre of gravity of the load is maintained within the specifications showed on the load chart plate.

Static equilibrium of a conventional forklift

The forklift counterweight produces a situation of imbalance when the forklift is unloaded. The centre of gravity is maintained low and close to the rear of the forklift. When the load is collected, the imbalance is corrected and the centre of gravity shifts forward. If the load is within the margins given on the load chart, equilibrium is maintained. As the load is lifted, the centre of gravity also rises, shifting upwards. At the moment that the centre of gravity shifts beyond the forklift, the equilibrium is lost and the forklift becomes unstable. Therefore, the forklift should not move while the load is raised.

Stability

Do not carry unstable or loose loads, or loads which are oversized with respect to the forklift. If very large or wide loads must be carried, every precaution must be taken to prevent bumps or other possible accidents. When carrying out lifting manoeuvres, particularly at height, ensure that the forklift is on stable ground as levelled as possible. Do not drive over objects which may endanger the stability of the machine.

(fig. 1)(fig. 2)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Special

Safety

Messages

The triangle of horizontal stability

To prevent the loads which are being transported from falling, it is necessary to consider the triangle of horizontal stability (fig. 1). This is an imaginary inverted triangle, with the lower end located on the centre of the rear axle and the two upper vertices on each of the front wheels. Stability is guaranteed when the centre of gravity of the combination load

(c)+ machine (m) remains within the limits of this imaginary triangle. Longitudinal stabilization

The risk of longitudinal overturning increases if the forklift is driven while the load is raised. Sharp braking and accelerating or rapid tilting movements decrease stability.

Transversal stability

The risk of overturning sideways increases on turning at incorrect speeds, while the forklift is unloaded or when the load is raised. Rough ground, sharp braking or accelerating or shifts in the load make these conditions worse.

Centre of gravity and the capacity of the forklift truck

Do not overload the forklift or handle loads which shift the centre of gravity beyond that for which it is designed. Manoeuvre slowly, especially when changing direction on slippery ground . Do not handle loads that are unstable, loose or disproportionate to the size of the forks and the forklift machine itself. Make certain that long or wide loads are fastened together so as to be stable and secure.

The load and counterweight

The load should be lifted and lowered with the mast in vertical position or slightly tilted backwards. The raised load should only be tilted forwards when it is about to be unloaded. Tilting the load forwards or backwards (swinging) is very useful for collecting or positioning the load, but affects the longitudinal and lateral stability. Therefore, when handling raised loads, do not swing the mast more than is absolutely essential. The forklift may tip forwards when carrying a raised load with the mast tilted forwards, or in the event of sudden braking or accelerating while the load is raised. If using an accessory , attachment or tool, first check the permitted load. The combination of the weight of the forklift plus the weight of the accessory or attachment reduces the nominal load.

(fig. 1)

WARNING

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Special

Safety

Messages

 Load handling

• Know the lifting capacity of your forklift and operate within those limits. See the Load Limit Charts shown in the section TECHNICAL SPECIFICATIONS on this Operator’s Safety Manual and shown in a plate on the left mudguard.

• Never transport loads with the forks raised -keep them as low as possible to attain maximum stability-. The risk of overturning increases when the forklift is driven with the load raised. Keep it low when in transit. (fig. 1, 2)

• Do not drive on surfaces that could affect the stability of the machine.

• Only raise the forks when the machine is on a level, flat surface.

• If necessary to temporarily operate the forklift in rough, unimproved areas, be very careful when operating near an open trench, a high bank or an overhang that can fall and cause a roll over with the potential of serious injury or death. Y ou must make a careful judgement whether you and your forklift can be safely operated near any of these areas.

• Stay off steep inclines and slopes. Hillside operation can be very dangerous due to the constant potential of rollovers.

• When operating on modest inclines or slopes:

- Move very carefully and slowly.

- Keep the forks and load low.

- Keep the forks facing uphill at all times. This means driving in backwards down a

slope to maintain maximum load stability.

- Always travels directly up or down the slope.

- Do not travel across an incline.

- Never position the forklift sideways on a slope.

• Forks should only be raised on level stable ground. You must be the judge whether ground conditions will permit the safe operation of the forklift. Operation on an incline can be very dangerous. Rain, snow, loose gravel or soft ground can be factors which may prevent the use of the forklift.

• Keep the forks and the loads away from overhead obstructions.

• Never operate the forklift near or close to overhead power lines.

• If the forklift is operated in an enclosed area, use ventilation systems to replace the exhaust fumes with fresh air.

• Use ventilation systems to remove any flammable dust or steam in the working area.

• Do not overload the forklift and do not allow the load centre to move. Always manoeuvre slowly and smoothly especially when changing direction.

• Keep the forks facing uphill at all times. This means reversing backwards down a slope to maintain maximum load stability.

• When depositing a load to a height, tilt the mast forward just enough to leave the load on a shelf or pile. When taking a load from a shelf, tilt the mast back just enough to stabilise the load on the forks.

• Always operate the fork tilt lever slowly and smoothly. (fig. 2).

• Always drive with the forks in the low position and with the mast tilted slightly back.

• Make certain that long or wide loads are fastened together so as to be stable and secure.

(fig. 1)(fig. 2)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Special

Safety

Messages

 Critical speed

The speed at which the forklift moves affects its stability. When turning, braking, or accelerating, the centre of gravity shifts within the triangle of stability. Sharp turns, sudden braking or accelerating cause the centre of gravity to shift sharply and it may fall outside the triangle. This is the moment when the stability of the forklift and the load are not guaranteed and there is a risk of accident. When manoeuvring reduce the speed of the forklift and avoid turning the steering wheel sharply. Do not drive the forklift at a fast speed and then attempt a turn as the forklift may tip over . Always drive slowly when making a turn and keep the forks low when turning (fig. 1).

 Accesses and doors

Make sure that the passages and doors along the route are sufficiently high to allow all the forklift to pass. When carrying out lifting manoeuvres, pay special attention to the height of the roof, lighting and other overhead installations.

 Ground surface

Check that the ground is strong enough to bear the forklift when loaded, especially when approaching bridges, the edges of embankments, concrete floors elevators, etc. (fig.

2).

 Lighting

The forklift working area should be adequately lit to prevent the risk of accident, running over persons or colliding with obstacles. As soon as the daylight fades, the forklift lighting system should be switched on. If the forklift is not equipped with lighting, make sure that the working area is adequately lit. If this is not possible, do not continue working with the forklift, this may result in an accident.

 Loading bay. Communication. Shelving and installations. The load

The loading bay or area where the loads are handled should be correctly equipped and signposted. The operating area of the forklift should be free of obstacles and pedestrians, however if their presence is necessary, the pedestrians should move in areas which have been duly marked as such and they should be easily distinguished, for example, by wearing reflective jackets. If the area is closed it should be well-ventilated and the forklift must be equipped with lighting and exhaust gas purifier systems. The forklift operator should be able to communicate normally with pedestrians. If the surrounding area is excessively noisy, pedestrians should refrain from walking in the immediate vicinity. If this is unavoidable, the utmost care should be taken. Radio communication equipment should not be handled while driving the forklift. If it is necessary to use the radio, pull over to one side and signal the position of the forklift, using the lights or hazard warning lights. Shelving for the loads have a series of marked passageways. The width of these should be at least the width of the forklift plus 40 in (1 m). If the passageway is two-way, the width must be sufficient to allow two forklifts to pass plus an additional 55 in (1,5 m). Before using the forklift to handle loads check the load and ensure that the weight does not exceed the forklift capacity. At the same time, check that the load is stabilized and correctly secured, to ensure that no part of the load falls off during transportation.

 Order and cleanliness

(fig. 1)(fig. 2)

Carrying out a series of checks before starting the forklift and keeping the operator cab clean help to make the work safer. To do so, follow the MAINTENANCE CHART given in this Operator’s and Safety Manual strictly, and keep the operator cab clean and free of earth, gravel, mud, oil or other objects which may cause falls. Do not carry objects in the operator cab. These may injure the operator or accidentally activate the forklift controls.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Special

Safety

Messages

 Overhead Guard

WARNING

Y ou are protected by an overhead guard which complies with the provisions of ISO 3449 / ISO 3471 and ASME B56.6. It protects the operator against falling objects and, together with the mast, gives protection to the operator in the event of an accidental tip over. The seat belt is an important part of this safety system and must always be fastened before operating the forklift. Failure to wear the seat belt in the event of an accidental tip over could result serious injury or death as you could be crushed by the machine or by the overhead guard.

The above decal is located on the side of the machine. Overhead Guard must be weekly inspected for excessive damage cracks permanent deformation or signs of potential cracks. If these incidents appear, structure must not be repaired but replaced for a new one.

 When leaving / parking the forklift (fig. 1, 2, 3) A poorly parked forklift truck is a risk. Park the forklift in the areas provided for this purpose, without obstructing the passage of others, exits or entrances to stairs and emergency equipment.

• Place the forks or attachment in the fully lowered position.

• Set all the controls in the “0” neutral position.

• Apply the parking brake.

• Do not park the forklift on a slope. If it is necessary to park the forklift on a gradient, in addition to using the parking brake, place chocks against the wheels.

• Stop the engine and cut the ignition circuit. Remove the ignition key.

• Lock all mechanisms to prevent any unauthorised person from using the machine.

• Remember that you are the key to safety. Good safety practices not only protect you but also the people around you.

(fig. 1)(fig. 3) (fig. 2)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Special

Safety

Messages

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Controls Instruments Equipments

 Vehicle Forklift truck: general points

The terms such as right, left, front and rear when used in this Operator’s and Safety Manual indicate the right and left sides of the machine and the front and back of the machine, as viewed from the operator’s seat looking forward.

Description of parts

1- Lifting Mast 2- Lighting equipment () 3 - Joystick 4 - Operator overhead guard 5 - Rotating beacon 6 - Diesel tank (placed symmetrically to the hydraulic oil tank) 7 - Hydraulic oil tank 8 - Operator’s seat with seatbelt 9 - Mast forks

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Controls

Instruments

Equipments

a b c

 Pedals (fig. 1) a- Inching pedal.

When the pedal is depressed the machine stops, allowing the engine to accelerate for faster operation of the mast. When the pedal is slowly released the machine will start to move again.

WARNING

The inching pedal also acts on the parking brake when it is kept fully depressed.

b- Service brake pedal.

Acts on a pump located below the pedal.

c- Accelerator pedal.

Acts on the engine through a cable.

 Emergency brake

In the event of emergency use the inching pedal.

(fig. 1)

 Parking brake (fig. 2)

The parking brake is operated electronically using the switch (d). It is also operated electronically when the inching pedal is kept fully depressed.

 Joystick (fig. 3)

Forward and backward directional travel control

The direction of travel is changed using the electric switch (e) located on the lower part of the joystick. In each case the corresponding arrow showing the direction of travel lights up. When the direction arrows are not lit, the direction of travel control is at the stop position (neutral). By pressing the front of the switch the machine travels forwards and by pressing the rear of the switch the machine travels backwards.

(fig. 2)

Safety: When the parking brake is not on and/or the operator is not sitting in the driver’s seat, the direction arrows are also switched off and the direction of travel control is disconnected.

CAUTION

(fig. 3)

When the parking brake is not on and/or the operator is not sitting in the driver’s seat, the direction arrows are also switched off and the direction of travel control is disconnected.

 Back-up alarm

It sounds when reverse is selected.

WARNING

If the forklift is equipped with lighting, the back-up alarm is disconnected when the lights are switched on. However, the rear white reversing lights continue to work.

 Horn (fig. 4)

The horn is operated using the button (f) located on the right of the joystick.

(fig. 4)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Controls

Controls Instruments

Instruments Equipments

Equipments

 4x4 connection (FullGrip® System) (fig. 1) Connecting the 4x4

The 4x4 connects by pressing yellow switch (g) located underneath the joystick at the right side.

Disconnecting the 4x4 The 4x4 disconnects just leaving yellow switch (g) on its rest position.

DANGER

Do not conect the 4x4 driving at high speed

(fig. 1)

REMARK: red switch (h) located underneath the joystick at the left side does not have any function. Moreover, some models may differ from (fig. 1) and assemble a plastic plug instead of red switch (h).

 Load handling controls (fig. 2)

The mast and the load are moved by using the joystick.

Raising and lowering the mast.

If the joystick is pulled backwards the mast and the forks lift and if pushed forwards the mast and the forks lower.

Tilting the forks.

If the joystick is pulled to the left, the mast forks tilt backwards (forks lift) and if pushed to the right, they tilt forward (forks lower).

Side-shift.

By holding down button (5) on the joystick and pulling the joystick to the left, the forks move to the left. By holding down button (5) and pushing the joystick to the right the forks move to the right. Always centre the carriage when in transit or when transporting a load.

Additional hydraulic control for attachments () (fig. 3).

By holding down button (6) of the joystick and pulling it to the left (towards the operator), or pushing it to the right, pressure is supplied to the quick hydraulic couplings located on the left-hand side of the mast.

(fig. 2)

(fig. 3)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Controls

Instruments

Equipments

 Instrument panel: Components Note: For ease of understanding, the diagram is given with the steering wheel removed.

(fig. 1)

1- Multi-function instrument 2- Lights switch 3- Heating switch () 4- Horn switch 5- Parking brake 6- Windscreen wiper switch () 7- Rotating beacon switch 8- Indicators switch ) 9- Working light switch () 10- Hazard lights switch ()

2 3 4

10 9 8 7 6 5

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Controls Instruments Equipments

 Starter switch (fig. 1) To start the engine see the section “Starter”.

a- In this position the ignition and the engine are disconnected. b- Ignition on. The engine pre-heating system and the lamp on the control panel are

activated for a few seconds.

c- Starter. Turning the key to position (c) starts the engine.

Before re-starting the engine, the key should first be switched to position (a).

 Fuse box (fig. 2)

This is located at the right of the steering column, next to the starter switch. See the section “Electrical circuit diagram” in this Operator’s and Safety Manual to identify the number and function of each fuse.

 Instrument panel: Operation (fig. 3) 1- Multi-function instrument. See the section “Multi-function instrument”.

2- Light switch. This switch has two positions, the first switches on the low beam

and the second switches on the high beam.

3- Heating switch (). This has two positions to give two fan speeds. 4- Horn switch. To activate the horn, press the switch. 5- Parking brake. To activate the forklift parking brake, press the switch. 6- Windscreen wiper switch (). To switch on the windscreen wiper, press the

switch. To activate the windscreen wiper washer pump, press the same switch again.

7- Rotating beacon switch. To switch on, press the button and it will light up. To

switch off, press the button again.

8- Indicators switch (). The turning indicators are switched on by pressing the

switch to the left or to the right.

9- Working light switch (). To connect the front lights switch turn on the switch. 10- Hazard lights switch (). To switch on, press the button and it will blink. To

switch off, press the button again.

(fig. 3)

(fig. 1)

2 3 4

10 9 8 7 6 5

(fig. 2)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Controls

Instruments

Equipments

Multi-function instrument (fig. 1)

(fig. 1)

A- Hourmeter. This gauge indicates the total running time of the forklift engine to

enable servicing of the engine at proper intervals. (See the section MAINTENANCE

CHART for servicing frequency). B- Fuel level. This gauge indicates the diesel fuel level in the tank. C- Fuel reserve warning lamp. This lights up when the level of diesel in the tank

falls into reserve. D- Air filter warning lamp. When the air filter of the diesel engine becomes clogged

with dirt, this lamp will light. The air filter should be immediately cleaned or serviced.

The filter element should be cleaned or replaced immediately. E- Preheating warning lamp. When this lamp glows it indicates that the engine

pre-heat plugs are in operation and heating the combustion chamber to the

temperature required in order to start the engine. F- Hydraulic oil level warning lamp. This lights up and emits an audible warning

when the hydraulic oil level is at the minimum level. Oil should be added to top up

the level to the correct level. G- Engine oil pressure warning lamp. When the ignition is on, this lamp lit and

turns off when the engine is running. If this lamp turns on and a warning signal is

emitted while the engine is running, the engine must be stopped immediately to

prevent damages. Check the level and add oil if necessary.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Controls Instruments Equipments

H- Battery charge warning lamp. When the ignition is on, this lamp lit when the

alternator does not charge the battery and turns off when the engine speed exceeds the idle speed. If this lamp turns on while the engine is running, the engine should be stopped and determine the cause.

I- Engine temperature warning lamp. If this lights up and emits an audible

warning, this implies that the engine temperature (coolant) is too high. Stop immediately to investigate the problem. It may due to a low level of coolant, dirt in the radiator, that the thermostat does not work correctly or there is a break in the alternator belt.

J- Not applicable to this model. K- High beam lamp. This lamp is lit when high beam is selected. () L- Indicators warning lamp. This warning light flashes while the turning indicators

are switched on ()

 Fuel

Handling

- Only use the fuel type authorized by AUSA. Do not use fuel mixed with oil, other fuels or unsuitable additives.

- The correct fuel for the forklift is diesel. For further details regarding fuel type and required specifications see the section FLUIDS AND LUBRICANTS.

- Do not allow the fuel to come into contact with the skin and avoid inhaling the fumes, which are toxic. High concentrations of fuel vapour may cause sickness, loss of consciousness or even loss of life in the event of prolonged exposure. If you experience symptoms such as sickness or loss of consciousness seek medical advice immediately.

- Do not store fuel in closed places. The fuel vapours will alter the atmosphere of the enclosure and may cause a fire or explosion.

- Use suitable impermeable clothing, safety glasses and gloves when handling fuel. When refuelling from a tank, bucket or barrel using a siphon, the following precautions should be taken.

- If refuelling is by gravity, from a raised tank, open the fuel output valve of the tank slowly.

- If the tank or barrel does not have an output valve use a suitable vacuum pump.

Controls

Instruments

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

WARNING

Equipments

Never suck the fuel into the pipe by mouth to start the siphoning. The fuel and its vapours are highly toxic.

- In the event of fuel spillage, please inform the supervisor, mark the area suitably and cover the spillage with absorbent material.

- Take suitable measures to avoid risk until the remains of the fuel have been completely removed.

 Refuelling

WARNING

Smoking, naked flames or sparks are not permitted in the refuelling area. Fuel vapours can be explosive.

- Refuel in a well-ventilated area.

- Position the forklift as close as possible to the fuel pump so that the filler hose reaches the opening of the tank comfortably.

- Apply the parking brake, switch off the engine and lights, including the rotating beacon.

Note: If the fuel pump is equipped with a vehicle earth connection, connect this to an unisolated metal component of the forklift.

- Clean the fuel cap and surrounding area with a cloth if they have been dirtied. Do not allow dust, water, or any other substance to enter the tank.

- Open the fuel cap using the key and turning to the left.

- Fill the tank without exceeding the volume specified for the forklift (21’2 US Gal). Take care not to spill fuel outside the tank. If you do, clean immediately and dry the surface well.

- Close the tank using the key and remove it from the cap. Check that the cap is correctly closed.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Operating the

forklift

 Entering and leaving the operator cabin

Do not hold or pull the steering wheel to enter the driver cabin, use the handles provided on the front structure of the overhead guard. Always place one foot on the tread of the sill to prevent slipping when climbing in or out (fig. 1).

 Adjusting the seat and steering wheel (fig. 2, 3, 4, 5)

Before using the forklift, adjust the seat and steering wheel to a comfortable driving position.

On all machines the operator is able to adjust the seat in the fore-aft direction by lifting knob (a) and sliding seat to the desired position, then releasing the knob to lock the seat into position. The seat may be adjusted for drivers weight by lifting or lowering lever (b) downwards to the relevant position, as indicated by the scale in de middle of the seat. It is also possible to adjust the seat backrest angle. The seat backrest tilts forward or backwards by lifting knob (c).

The position of the steering wheel is adjusted by inclining the steering column. The lever (d) unblocks the steering column and can be adjusted to the correct position. To block again bolt the lever.

(fig. 1)

(fig. 2)

(fig. 3)

(fig. 4)

(fig. 5)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Operating the

forklift

 Starter:

WARNING

For reasons of safety, the operator should be seated, the seatbelt fastened, and the parking brake applied.

Starting engine when the operator is seated:

The direction of travel control switch should be in neutral or the parking brake switch is on.

Starting engine when the operator is not seated:

The direction of travel control switch or the parking brake switch can be in any position.

- Place the key in the ignition switch and turn to position (b) ignition. Wait a few moments until the engine preheating light goes out.

- Press the accelerator pedal 1/4 of the way and turn the key to position (c) to start the engine. Do not hold the key in this position for more than 15 seconds.

- If the engine does not start, repeat the above steps and wait 30 seconds between each attempt. Before re starting the engine, the key should first be switched to position (a).

 Checks

With the engine running and the forklift at idle, carry out the following checks and tests.

- Check the instrument panel controls.

- Check the steering by turning it gently to the left and right.

- Lift the forks off the ground 6 in (150 mm).

- Check the parking brake.

- Check that the brake pedal action is firm.

(fig. 1)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Operating the

forklift

1 m

500 mm

load center

1 m

600 mm

load center

39 in.

 Parking the forklift and stopping the engine Note: Make certain that the forklift is parked on level ground when leaving it overnight.

Also park it on level ground before any scheduled maintenance is attempted.

- Lower the forks to the ground, apply the parking brake and push directional switch to neutral.

- Run the engine at idle for 1 minute if the engine has been working at full load -as this procedure will cool down the engine components evenly.

- T urn off the key switch in a counterclockwise motion to position to stop the engine (a) (fig. 1 previous page).

- Remove the key from the ignition and take it with you. Never leave the key in a parked machine.

 Forklift nominal load (fig. 1)

The Rated Capacity of this forklift is the weight the machine is capable of lifting under safe operating conditions. The lifting capacity of a forklift is determined by the height and weight limits of the load. Poor ground conditions as well as shape of the load may reduce the weight that can be safely lifted. Overloading the forks can make the forklift unstable, hard to handle, and may be in danger of tipping over. Inspect the load you intend to lift and make certain it is within the limits of the Load Capacity Chart located on the left hand side mudguard.

Rough terrain use:

With load center at 20in (500 mm) from vertical face of the forks, the C400H and C400H

(fig. 1) C400H / C400H x4

x4 has a rated capacity of 8818lbs (4000 kg) With a load center at 24in (600 mm) from the vertical face of the forks, the C400H and C400H x 4 has a rated capacity of 8146lbs (3695 kg) and the C500H and C500H x 4 has a rated capacity of 11023lbs (5000 kg).

Industrial use:

With load center at 20in (500 mm) from vertical face of the forks, the C400HI and C400HI x4 has a rated capacity of 8818lbs (4000 kg) With a load center at 24in (600 mm) from the vertical face of the forks, the C400HI and C400HI x 4 has a rated capacity of 8146lbs (3695 kg) and the C500HI and C500HI x 4 has a rated capacity of 11023lbs (5000 kg). If the load is too heavy split it and re-stack it. Use of attachments other than the pallet forks that came with this machine may reduce lifting capacity and affect other machine

(fig. 1) C500H / C500H x4

handling characteristics. Reproduced copies of the Load Capacity Charts are included in the section “Tecnical Specifications” on this Operator’s and Safety Manual. Study the Load Capacity Chart of your machine carefully and make certain you understand it before lifting loads on the forks.

39 in.

24 in. load center

1- Fork Face 2- Load Center

 Load Center (fig. 1, 2)

To rate the lifting capacity of forklifts manufacturers have standardized on a certain size of load. The rated capacity of this forklift is based on a cube measuring 39in (1 m.), in all three dimensions with the center of gravity in the center of this cube. This is known as 24in (600 mm) load center o 19in (500 mm) from both the vertical face of the mast and from the lifting surface of the forks). lt is important to keep load center in mind for as the load center increases the lifting capacity of the forklift decreases.

(fig. 1)

(fig. 2)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Operating the

forklift

 Alteration to the forklift / load relation

The relationship between the forklift and the load is altered by changes in:

- Removable attachments (see load limit charts).

- Height of the forks.

- Changes in the motion of the machine and the grade of the ground on which it is moving.

- Smoothness and stability of the ground.

- Machine stability must be maintained while these factors change constantly during forklift operation.

This requires careful judgement on the part of the operator.

 Lifting Capacity

Machine stability is maintained only when the forklift handles loads within its rated lifting capacity. The Load Capacity Charts are included in the section TECHNICAL SPECIFICATIONS on this Operator’s and Safety Manual. The lifting capacity of the machine is determined by the safe height and weight limits of the load. An overload on the forks makes the forklift unstable, hard to handle, and will present the danger of tipping over.

 Load charts (fig. 1, 2, 3)

The charts you can see in the section TECHNICAL SPECIFICATIONS on this Operator’s and Safety Manual shows how much your forklift can lift as the load centre increases out to 4in. Note how the lift capacity decreases as the load centre increases. This chart is reproduced as a machine decal and is located on both the right and the left side of the mast and at the driver seat for ease of reference during machine operation. The charts you can see in the section TECHNICAL SPECIFICATIONS on this Operator’s and Safety Manual represents the load that can be lifted on a level surface, with the load evenly displaced (like a square box with the weight centred), at certain lift height (depending on the mast height and use) . The horizontal axis “D” (often referred to as the “X” axis), represents the distance in inches that the load centre is moved forward from the face of the forks. The vertical axis “G” (often referred to as the “Y” axis), shows the load weight in pounds o kilos.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Special procedures

 Engine overheating

If the engine overheats and the engine temperature warning light on the control panel lights up, try the following:

- Check and clean the radiator coolant blades. See the section “Periodic maintenance operations” in this Operator’s and Safety Manual.

- Slow down the speed but keep the forklift moving in order to allow air to circulate around the radiator.

- If the engine is still overheating after approximately one minute, stop driving the forklift, set the forward / backwards directional travel control switch to neutral, apply the parking brake and stop the engine.

WARNING

The radiator may be extremely hot. Use gloves before touching the radiator.

- Allow the engine to cool down. Check the coolant level and refill if necessary.

- If the engine continues to overheated, pls. contact to an authorized AUSA dealer as soon as possible.

 After-use care

When the forklift is used in salt water areas (beach areas, etc.), rinse the machine with fresh water to protect the forklift and its components from rust. We recommend lubricating the metal components. This should be carried out at the end of every day after using the forklift. When the forklift has been working in muddy areas, it should be washed with fresh water to protect the forklift and keep the lights clean.

Note: Never use high-pressure water to clean the forklift. ONL Y USE LOW -PRESSURE WATER. High-pressure water may cause electrical and mechanical damage.

 Overturning (fig. 1)

In the event of the forklift overturning, the driver must avoid being trapped between the machine and the ground. Therefore, we recommend:

- Try to remain inside the operator cabin.

- Hold onto the steering wheel tightly.

- Lean feet firmly onto the floor of the overhead guard.

- Try to keep as far away as possible from the point of impact.

(fig. 1)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Special procedures

When the forklift overturns or is knocked onto one side, restore it to normal operating position (on all four wheels).

WARNING

DO NOT TRY TO START THE FORKLIFT without first checking with an authorized AUSA dealer.

- Remove the four glow plugs.

- T urn the key in the ignition to position (c). Hold the key in position until the oil has come out of the combustion chamber.

WARNING

The oil will come out of the combustion chambers at high pressure and may cause injury.

- Re-assemble the four glow plugs.

- Check the engine oil level and refill if necessary.

- If the engine oil pressure warning light remains lit after starting the engine, stop immediately to prevent internal damages and refer contact to an authorized AUSA dealer as soon as possible.

 Immersion of the forklift

If the forklift becomes submerged under water, it will be necessary to take it to an authorized AUSA dealer as soon as possible.

WARNING

DO NOT START THE ENGINE. Immersion of the forklift may cause serious damage to the engine if the start-up procedures are not followed correctly.

- Arrange for an authorized AUSA dealer to carefully inspect the supply system as shown in the MAINTENANCE CHART.

 Storage and pre-parking preparation.

When the forklift is not to be used for more than a month it should be stored correctly. When the forklift is brought out for use again after a period of storage, special preparation is required. Ask an authorized AUSA dealer about the appropriate procedures.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Recommended

fluids and

lubricants

 Lubricant and fluid products This section specifies the recommended fluids and lubricants. See the section “Periodic Maintenance Operations” in this Operator’s and Safety Manual for procedures to

check fluid levels and changes.

Table of fluids and lubricants (references and capacities)

FLUID OR

LUBRICANT

FUEL

ENGINE OIL

ENGINE COO-

LANT

HYDRAULIC

CIRCUIT

FRONT AXLE

DIFF.

FRONT AXLE

PLANETARY REDUCTION

REAR AXLE

DIFF. 4x4

4x4 REAR AXLE PLANE- TARY REDUC-

TION

4x2 TRANS-

FER BOX

4x4 TRANS-

FER BOX

(FullGrip

SYSTEM)

BRAKE FLUID AND INCHING

WINDSCREEN

WIPER WAS-

HER

BATTERY

ELECTROLYTE

REAR AXLE

ARTICULA-

TION POINTS

GREASING

POINTS

SPECIFICATION REMARKS AUSA P/N

Use clean auto diesel

(class A), preferably in

accordance with Directive

98/70/EEC modified by directive 2003/17 or Stan- dard EN 590 equivalent to

the same.

Engine oil in accordance

with MIL- 2104C / API CD

or higher

Ethylene glycol antifreeze

with corrosion inhibitors for aluminum engines with internal combustion. 50%

glycol / 50% distilled water

in Standard machine.

Transmission oil SAE

80W90 in

accordance with API GL5 /

MIL L-2105-B with additive

for oil-bath brakes

Transmission oil SAE

80W90 in accordance with

API GL5 / MIL L-2105-B

with additive for oil-bath

brakes

Transmission oil

SAE 80W90 in

accordance with

API GL4 / MIL L-2105

Transmission oil

SAE 80W90 in

accordance with

API GL4 / MIL L-2105

Transmission oil

SAE 90

in accordance with

API GL4 / MIL L- 2105B

Oil for COMPEN AUSA 461.00004.01 0,6 2,25

SAE 10W Hydraulic Oil or

ATF fluid in accordance

with CAT TO-4 / TO-2 o

ALLISON C-4 / C-3.

Distilled Water

MOLIKOTE grease

Calcic grease NLGI-3

consistency

See section “FUEL” in this

section

See “ENGINE OIL” in this

section

See “ENGINE COOLANT”

in this section

See

“HYDRAULIC CIRCUIT

OIL”

in this section

See “FRONT AXLE AND

FullGrip SYSTEM”

in this section

See “FRONT AXLE AND

FullGrip SYSTEM”

in this section

See “FRONT AXLE AND

FullGrip SYSTEM” in this

section

See section “BRAKE

FLUID AND INCHING” in

this section

Freezing point

temperature: - 20ºC

See section “BATTERY ELECTROLYTE” in this

section

Lubricating compound

containing molybdenum

disulphide, used to

lubricate articulation pins

and to prevent sticking and oxidation of parts that there are not lubricated on

a regular basis.

See section

“LUBRICATION POINTS”

in this Operator’s and

Safety Manual. Applied to

bearings, sliding parts and

used to lubricate seals or

parts during assembly.

461.00099.01 2,38 9

45.00075.01 3,9 15

461.00099.06 25,1 95

461.00099.09 1,92

461.00099.09 0,22 0,85

461.00004.01 0,95 3,6

461.00004.01 0,1 0,35

461.00099.09 0,46 1,75

461.00099.07 0,26 1

465.00016.00 0,4 1,5

461.00009.00

CAPACITY

(US Gal.)

31,7 120

CAPACITY

(liters)

7,3

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Recommended

fluids and

lubricants

 Engine oil

Use 4-stroke engine oil in accordance with MIL-L-2104C / API CD or superior. Verify always the quality in the attached etiquette in the container of the oil to make sure that the quality is the required. Your machine leaves the factory with SAE 15W40 viscosity. However, depending on the environment temperatures, refer to the following chart (fig. 1) to select the proper viscosity. If you use oils of different brands, drain completely the oil pan before adding the new oil. AUSA recommends oil REPSOL AUSA EFFICIENT for Diesel engines p/n 461.00099.01

 Hydraulic Oil

- VG 32 for environment temperatures usually below 50ºF (10ºC)

- VG 46 for environment temperatures between 50F to 120ºF (10ºC to 40ºC)

- VG 68 for environment temperatures above 120ºF (40ºC)

 Front axle and FullGrip® System

Use oil for COMPEN AUSA which meets with the following characteristics:

- Friction coefficient modifying additives

- “Extreme Pressure” and anti-wear capacity

- Good antirust and anticorrosion characteristics

- Excelent thermal stability

- Avoids vibrations and noise

 Brake and inching fluid

Only use SAE 10W Hydraulic Oil or ATF Fluid

Caution:

To avoid serious damage to the brake system or inching system do not use fluids other than the recommended one, or mix different fluids for topping up.

 Battery electrolyte

This dumper is equipped with a type battery that requires maintenance. Add distilled water for missing electrolyte.

(fig. 1)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Maintenance Chart

EVERY

LUBRICATION AND MAINTENANCE CHART C400H-HI / C500H-HI / C400H-HI x4 / C500H-HI x4

I: Inspect, verify, clean, lubricate, replace if necessary C: Clean L: Lubricate R: Replace

ENGINE

Oil (1) R R R USER Oil filter (1) R R USER Alternator Belt (1) I I R R DEALER Valve Clearance (2) I DEALER Turbo charger (2) I DEALER

FUEL SYSTEM

External air filter element (4) C R(6) R USER Internal air filter element (4) C R(6) R USER Intake air line I R USER Fuel pipes and clamps I R(2) USER Fuel filter cartridge R USER Prefiltro combustible (1) R R USER Fuel tank C USER Fuel injection nozzle injection pressure (2) I DEALER Injection pump (timing) (2) I DEALER Fuel injection timer (2) I DEALER

COOLING SYSTEM

Radiator hoses and clamps bands I R USER Water jacket (radiator interior) C DEALER Cooling system pressure test I USER Radiator (exterior) (4) C USER Coolant I R USER

ELECTRICAL SYSTEM

Battery electrolyte I I USER Battery connections I USER Dash panel indicators / Warning lights (3) I USER Battery I R USER Electric harness and loose connections I USER

HYDRAULIC CIRCUIT

Oil and strainer (3) R/C R/C I DEALER Hydraulic filter cartridge R R USER Mast operations (3) I USER Pipes, hoses and fittings damages or leaks I USER Hoses REPLACE EVERY 6 YEARS DEALER Steering (3) I USER

(1) Initial inspection. The initial maintenance is very important and must not be neglected. (2) To be performed by an authorized AUSA dealer. (3) Daily inspection item. (4) More often under severe use such dusty areas, sand, snow, wet or muddy conditions. (5) ... or at least once a year.

(6) ....or after cleaning 6 times.

100 h.

250 h.

400 h.

Initial Inspection (50 h)

500 h.

800 h.

1000 h.

1500 h.

3000 h.

Week

Month

Year

2 Years

To be performed by

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

EVERY

LUBRICATION AND MAINTENANCE CHART C400H-HI / C500H-HI / C400H-HI x4 / C500H-HI x4

I: Inspect, verify, clean, lubricate, replace if necessary C: Clean

L: Lubricate R: Replace GREASING POINTS

Mast profiles C/L USER Nipples (see section "Greasing points" in this Manual) L USER Cables and articulations (throttle, lifting rams...) L USER

TRANSFER BOX

4x2 models Oil (1) R R I R USER

4x4 models FULL GRIP Oil leaks I USER Screws and nuts torque I I USER

AXLES (FRONT AND REAR)

Differential Oil (1) R R I R USER Planetary reduction (1) R I R USER Oil leaks I USER Fixation wheel nuts torque I USER Chassis fixation screws (torque) I DEALER Cardan joints fixation screws (torque) I DEALER Flange fixation nut (torque) I DEALER Condition of tires and pressures I USER

BRAKES

Brake fluid (3) R I R USER Brake pedal and master cylinder clearance (3) I I USER Service brake adjustment I DEALER Negative brake adjustment I I DEALER

BODY / FRAME

FOPS / ROPS frame I USER Seat belt (3) I USER Access steps and handles (3) I/C USER Guards and covers (3) I USER Plates and decals (3) I/C USER Safety systems / open cabin gas struts and safety prop I USER Close cabin lock (3) I USER

(6) ....or after cleaning 6 times.

SYSTEM Oil (1) R R I R USER

100 h.

250 h.

400 h.

Initial Inspection (50 h)

500 h.

800 h.

1000 h.

1500 h.

3000 h.

Week

Month

Year

2 Years

To be performed by

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

 General comments

Only original AUSA spare parts should be used during maintenance operations. This is the only way to guarantee that the AUSA machinery will have the same operational level that it had upon delivery. This forklift contains parts and systems which are subject of wearing and could require re-adjusting, in order to keep reliability of the machine and the safety of the operator , the environment and the surrounding area, such as for example, exhaust gas emissions. The necessary maintenance should be carried out regularly in order to ensure similar conditions to those existing on leaving the factory. All repair and maintenance operations should be made while the forklift is unloaded, the parking brake applied and the wheels blocked in order to keep the forklift stationary . Disconnect the battery (fig. 1) before carrying out any work on the electrical system. Never use a flame to check fluid levels.

Respect the environment When changing oil or other fluids use a suitable container to collect the old fluid. Take care not to cause damage to the environment and take all the replaced materials (batteries, coolant, etc) to the appropriate recycling centres. In the event of leaks of substances which may be harmful to persons or to the environment, immediately take the necessary measures to reduce their impact, for example in the case of oil leaks, plug the leak, use a recipient to collect the oil, sprinkle absorbent material or collect up and remove the contaminated soil if necessary.

 Access to engine and transmission for maintenance

The engine, the transmission, the engine oil and hydraulic reservoirs and filters, and the engine coolant reservoir are located beneath the floor (cabin floor) of the operator’s compartment (also referred to as the “operator’s cabin”) (fig. 2). Use the following procedures to access them:

(fig. 1)(fig. 3)

(fig. 2)

- With the operator’s sat, start the machine and tilt the mast fully forwards.

- Stop the engine and remove the key from the ignition.

- Move the joystick to the right until reaching the maximum forward tilt.

- Stop the engine and remove the key from the ignition switch.

- Get down from the driver’s cabin.

- Pull lever (a) located at the rear of the cabin, behind the seat (fig. 3) to unlock the latch of the cabin, then lift and tilt it forward.

- The operator’s compartment is tilted forward and upward by a gas strut on each side of the operator’s compartment.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

- To prevent the falling down of the cabin during carrying out maintenance operations it should be secured using the safety lock (fig. 1, 2). This will prevent it from lowering and causing accident.

REMARK

Whenever the cabin is raised, the safety lock must be on. This prevents the cabin from causing an accident on descending.

To access the upper part of the engine, after raising and securing the operator cabin, lift the inspection cover (fig. 3)(a) by pulling on the lock (fig. 3)(b).

To access the sides of the engine, undo the bolt (fig. 4)(c) and nut (fig. 4)(d) and remove the rear wheel cover. There is a wheel cover on each side of the machine.

 Daily checks

- Before starting to work with the forklift, clean any oil or fuel spills, clean and remove grease from hands and the soles of shoes and do not forget to make the following checks:

- Condition of the lifting chains

- Tyre pressure and condition of the tread.

- Brakes.

- Leaks in the hydraulic, coolant, fuel circuits, etc.

- Check the correct position and fastening of all the guards, caps and safety stops.

- Absence of cracks or other structural defects visible at first glance.

(fig. 4) (fig. 3) (fig. 2) (fig. 1)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

- Check that all the controls are operating correctly.

- Check fluid levels:

- fuel.

- brake and inching fluid.

- hydraulic circuit fluid.

- coolant circuit fluid.

- Check that alarm and signaling devices are operating correctly (for example: acoustic warning, air intake filter blocked warning, etc.)

- Check that informative and safety plates on the forklift are clean and in good condition.

- Clean and check lighting and signaling system are operating correctly.

- Check electrical battery connections and level of electrolyte.

- Adjust the seat to your build.

Daily checks of the seatbelt for defects, such as:

- Cuts, loose threads & poor stitching.

- Wear or damage to anchor points.

- Poor operation of the seatbelt buckle or retracting roller.

Correct any problems before using the forklift. When necessary, refer the problem to an authorized AUSA dealer.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

 Engine

For operating instructions, list of spare parts and general maintenance, see the engine User’s Manual or the MAINTENANCE CHART.

 Alternator belt

Check the tension of the alternator belt regularly . Also check for cracks or other damage. Refer to an authorized AUSA dealer for the replacement of the alternator belt.

 Engine oil Oil level: Checking

With the forklift on a level surface, while the engine is cold and switched off, check the oil level as follows:

- Pull out the dipstick and clean it with a clean cloth.

- Set the dipstick into its casing.

- Remove again and check the oil level. This should be at the upper level (fig.1).

a- Full b- Add oil c- Operating range

- Add oil until the level reaches the upper level.

Oil level: Correct

- Remove the dipstick and place a funnel in the opening of the oil filler neck located above the rocker arm cover.

CAUTION

Do not exceed the maximum level mark. Starting the engine with incorrect oil levels may cause serious damage. Clean up any spillage. Check the oil level often and top up where necessary.

- Top up with oil gradually until the level is correct.

(fig. 1)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

Engine oil: Draining

The oil change should be made when the oil is warm.

WARNING

The engine oil may be very hot. To avoid the risk of burns, do not remove the drain plug or unscrew the filter if the engine is hot. Wait until the engine oil is cooler.

- Make sure the forklift is on level ground.

- Remove the dipstick.

- Clean the area around the oil drain hose.

- Place a container below the oil drain hose (fig. 1).

- Unscrew the oil drain hose (a).

- Allow all the oil to drain from the engine.

- Clean the oil drain hose area.

- Screw on the plug and tighten.

Oil filter cartridge: Replacing

The oil filter cartridge (fig. 2)(b) is located on the left-hand side of the engine.

- Unscrew the oil filter cartridge by turning it to the left.

- Clean the base of the filter and oil the seal of the new filter element.

- Screw on the new filter element and tighten it by hand, without using mechanical means.

Dispose of the used oil filter cartridge in an authorized centre for this purpose.

Engine oil: Filling up

- Remove the dipstick and place a funnel in the opening of the oil filler neck located above the rocker arm cover.

- Fill the engine to the recommended oil level. See FLUIDS AND LUBRICANTS CHART (references and capacities) in this Operator’s and Safety Manual for oil specifications and capacity.

- Start the engine and leave idling for a few minutes. Check the areas around the oil filter and oil drain plug for leaks.

(fig. 1)

- Switch off the engine.

(fig. 2)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

- Wait a few seconds to allow the oil to flow towards the engine oil pan and then check the level.

CAUTION

Do not exceed the maximum level mark. Starting the engine with incorrect oil levels may cause serious damage. Clean up any spillage. Check the oil level often and top up where necessary.

- Top up if necessary.

Waste used oil in authorized centres.

 Coolant system Level of coolant: Checking

WARNING

Never remove the coolant reservoir cap while the engine is hot. Wait until the engine has cooled down.

The level of coolant should be between the “MIN” and “MAX” marks on the coolant reservoir (fig. 1).

If the coolant level is below the “MIN” mark, top up the expansion tank with coolant. Check the engine, hoses and radiator for possible coolant leaks.

Coolant circuit: Draining

The coolant should be changed according to FLUIDS AND LUBRICANTS CHART (references and capacities), or when the circuit is drained for repair purposes. To do so, proceed as follows:

- Place a container below the radiator.

- Disconnect the lower radiator hose in order to drain the radiator here.

Coolant circuit: Filling and bleeding

- Before filling the circuit, re-connect the lower radiator hose.

- The circuit is filled through the coolant reservoir.

Proportions of coolant and distilled water:

Temperatures from -35 ºC to 145 ºC: 50 % glycol and 50 % distilled water.

- Start the engine until the thermostat opens.

FULL LOW

(fig. 1)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

- Then, when the engine is cold, check the level of coolant in the coolant reservoir .

- If necessary, bleed the coolant air circuit using the bleeder located on the radiator hose (fig. 1).

Dispose of used coolant in authorized centres.

 Air filter Replacing

The air intake in the engine is through a dry filter (fig. 2, 3) with double element. The life of the engine and its performance largely depend on the correct maintenance of this filter. The filters should be changed and cleaned as shown in the MAINTENANCE CHART. If the forklift is working in a dusty atmosphere the filter element should be replaced more often than that specified.

NOTE: The intake filter includes a filter blocked clogged indicator. If the warning light on the control panel lights up, the filter element should be cleaned or replaced as soon as possible.

(fig. 1)

Do not start the engine when there is water inside the air filter casing. When there are fluids or dirt inside the casing, the filter cartridges should be inspected, drained or replaced.

CAUTION

- Undo the left and right-hand staples of the filter cover and remove the cover.

- To clean the filter element, blow high-pressure air (maximum 72’5 PSI) through the element from the inside to the outside while turning.

- Also clean the interior of the filter casing.

Air filter blocked warning light. check the working.

(fig. 2)

(fig. 3)

- Disconnect the wiring from the air filter clogged indicator.

- Make a bridge between the connector contacts using, for example, a small diameter piece of electrical cable.

- The air filter blocked warning light on the multi-function instrument should light up.

- If the warning light does not light up, contact a AUSA dealer.

(fig. 4)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

 Fuel pre-filter Replacing

The fuel pre-filter is located next to the fuel tank, on the inside of the chassis.

WARNING

Always replace this component. Never try to clean it.

a- Brackets b- Fuel pre-filter

- Remove the fastening brackets and the filter.

- Make sure that the new filter is fitted in the correct direction as shown by the arrow on the body of the filter.

Dispose of remains of fuel in authorized centres.

 Fuel filter

- Unscrew, by turning to the left, the cartridge (c) of the fuel filter (fig. 2) located on the left-hand side of the engine and remove it from the support.

- Clean the base and oil the seal of the new filter.

- Screw on the new filter element and tighten by hand, without using mechanical means.

Dispose of remains of fuel in authorized centres.

WARNING

(fig. 1)

Take care to correctly tighten the filter element otherwise the circuit may suction air from the outside, causing faults in the supply to the engine.

(fig. 2)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

Drain the water from the fuel filter (fig. 1)

The fuel used may contain water which is deposited on the lower part of the filter element. To protect the fuel injection system it is essential to drain the water from the filter element regularly as shown in the MAINTENANCE CHART.

- Unscrew the drainage cap (a) located on the lower part of the filter element.

- Wait until all the water in the filter has drained off.

- Tighten the drainage cap (a).

Dispose of remains of fuel in authorized centres.

WARNING

Take care to correctly tighten the drainage cap. If it is loose, unwanted air may enter the injection system and cause the engine to operate incorrectly.

 Tilting the mast while the engine is stopped (emergency movement)

It is possible to tilt the mast of the forklift (emergency movement) forwards with the ignition off. To do so, proceed as follows:

- Locate the emergency movement connector under the dash panel, next to the steering column (fig. 2).

- Remove the protective cover from the connector by lifting the locking tab and moving it forwards.

- With the help of an external battery supply the connector with + 12V DC and earth ( - ) as follows:

Connector, contact 1: + 12V DC

(fig. 1)

Note: To help this movement, we recommend applying a small load on the end of the forks.

(fig. 2)

Connector, contact 2: earth (-)

- Push the joystick (fig. 3) to the right in order to tilt the mast.

(fig. 3)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

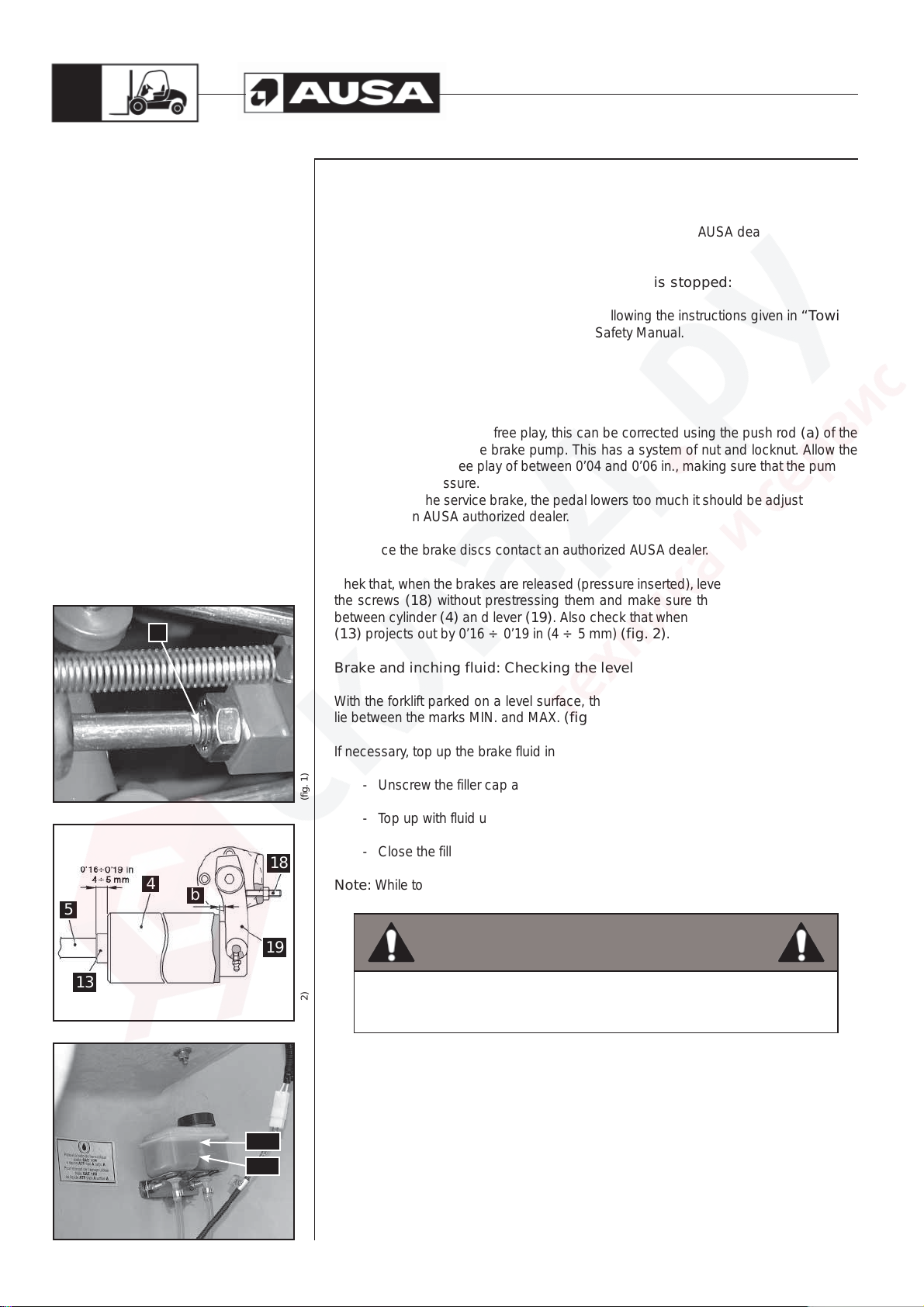

 Parking brake Oil: Replacing

If the brake pedal lowers excessively, refer to the authorized AUSA dealer for adjusting, bleeding or replacement of the inner discs.

Releasing the parking brake while the engine is stopped:

- This operation should be carried out following the instructions given in “Towing the forklift” in this Operator’s and Safety Manual.

 Service brake Adjusting (fig. 1)

If the pedal has excessive free play, this can be corrected using the push rod (a) of the pedal which operates the brake pump. This has a system of nut and locknut. Allow the push rod to have a free play of between 0’04 and 0’06 in., making sure that the pump is free of internal pressure. If, on applying the service brake, the pedal lowers too much it should be adjusted. To do so, contact an AUSA authorized dealer.

To replace the brake discs contact an authorized AUSA dealer. Chek that, when the brakes are released (pressure inserted), levers (19) do lean against

the screws (18) without prestressing them and make sure that a clearance (b) is left between cylinder (4) an d lever (19). Also check that when pressure is released, piston

(13) projects out by 0’16 ÷ 0’19 in (4 ÷ 5 mm) (fig. 2). Brake and inching fluid: Checking the level

With the forklift parked on a level surface, the level of the brake fluid in the tank should lie between the marks MIN. and MAX. (fig. 3).

If necessary, top up the brake fluid in the tank:

(fig. 1)

- Unscrew the filler cap and use a funnel to prevent spillage.

- Top up with fluid until the level reaches the MAX. mark.

- Close the filler cap by screwing it on again.

Note: While topping up, do not exceed the MAX. mark.

If it becomes necessary to top up the brake fluid frequently , it is possible that the

(fig. 2)

brake system has a leak. Park the forklift correctly (See the section PARKING

THE FORKLIFT TRUCK) and consult an authorized AUSA dealer.

Brake an inching fluid: Replacing

The replacement of brake fluid or any repair to the brake system should be carried out by an authorized AUSA dealer.

WARNING

MÁX MÍN

(fig. 3)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

 Transfer box oil level Checking

- To check the oil level unscrew the cap (b)(fig. 2).

Draining

- To drain the oil, unscrew the plug located on the lower part (c)(fig. 3).

Topping up

- Top up with the specified oil through the filler cap (a) (fig. 1) bleeder located on the upper part. See the FLUIDS AND LUBRICANTS CHART (references and capacities) in this Operator’s and Safety Manual for oil specs. and capacity.

Dispose of used oil in authorized centres.

(fig. 1)

(fig. 2)

(fig. 3)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

 Oil level on front axles

This should be checked while the forklift is on flat ground. The oil of the differentials and the final drive is connected internally . (Fig. 4) (a) filling / (b) checking hole; (c) draining hole.

Differential: Topping up

- Fill with the specified oil through the opening of the plug (a). See the FLUIDS AND LUBRICANTS CHART (references and capacities) in this Operator’s and Safety Manual for oil specs. and capacity. (fig. 4)(a).

Differential: Checking the level

- To check the oil level in the differentials use the cap (fig. 4)(b).

Differential: Draining

- To check the oil level in the differentials use the cap (fig. 4)(c).

Dispose of used oil in authorized centres.

 Oil level in the rear axles differential (4x4 models) This should be checked while the forklift is on flat ground. (Fig. 5) Filling / checking hole

(a and b); draining hole (c). Checking

- T o check the oil level unscrew the cap (a-b) (fig. 5). The oil should be at the level of the casing.

Draining

- To drain the oil, unscrew the plug (c) located on the lower part.

Topping up

- Fill with the specified oil through the opening of the plug (a-b). See the FLUIDS AND LUBRICANTS CHART (references and capacities) in this Operator’s and

Safety Manual for oil specs. and capacity.

Dispose of used oil in authorized centres.

(fig. 4)

a-b

(fig. 5)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

 Oil level in planetary reductions (front and rear axles)

WARNING

Never remove the drain plug of the final reductions when the oil is hot. The gases formed in the interior may cause injury.

Planetary reduction: Checking the level

- Turn the wheel until the mark “Oil Stand Level” on the reducer is horizontal.

- To check the oil level in the final reductions use the cap (fig. 1) (a).

Planetary reductions: Draining

- Remove the wheel.

WARNING

If is necessary to remove the drain plug while the oil is still hot, place it on the upper part of the wheel hub, and remove the plug carefully covering it with a cloth or similar.

- To drain the oil, turn the wheel hub until plug (fig. 2)(b) is located on the lower part of the wheel hub.

Dispose of used oil in authorized centres.

Planetary reduction: Topping up

- Turn the wheel until the mark “Oil Stand Level” on the reducer is horizontal.

- Fill with the specified oil through the opening of the plug (b). See the FLUIDS

AND LUBRICANTS CHART (references and capacities) in this Operator’s and

(fig. 1)

Safety Manual for oil specs. and capacity.

 Hydraulic oil Level: checking

This should be checked while the forklift is on flat ground, the forks are lowered to rest position and the engine is switched off.

(fig. 2)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

Note: The oil tank is equipped with an oil level low warning light. When this level is

reached, the light on the multi-function instrument lights up and an acoustic warning is emitted. Add oil immediately to prevent damage to the hydraulic pumps.

- Loosen the plug (fig. 1)(a).

- Check the oil level by checking the level indicator (Fig. 3) (c) placed over the step.

- If necessary, top up with oil through the plug hole.

Draining

- The tank is drained through plug (fig. 2)(b) on the lower part of the tank.

Dispose of used oil in authorized centres.

Topping up

Fill with the specified oil through the plug hole (Fig. 1) (a). See FLUIDS AND LUBRICANTS CHART (references and capacities) in this Operator’s and Safety Manual

for oil specs. and capacity.

(fig. 1)

Clean the hydraulic oil strainer

There is a oil strainer filter located on the interior of the tank in the hydraulic circuit. This is a metal filter which should be cleaned every time the hydraulic oil is drained.

- To do so, remove the 6 screws (d) from the plate (fig. 4).

- Before assembling, check the condition of the seal and replace if necessary.

 Hydraulic hoses

(fig. 2)

All the hydraulic hoses should be replaced at least every 6 years.

(fig. 3)

(fig. 4)

(fig. 5)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

 Hydraulic system safety valves: trimming There are two safety valves for preventing overpressure: one on the steering circuit and one on the mast operating circuit. The first is located on the hydraulic steering (fig. 1) and the second on the control valve (fig. 2). These valves are set to the correct pressure in the factory, but their trim should be checked regularly and adjusted accordingly. The trimming should be carried out by personnel with a good knowledge of hydraulics and suitable tools. The pressures should never exceed those given in the section

TECHNICAL SPECIFICATIONS in this Operator’s and Safety Manual.

Hydraulic steering valve

- Remove the plug (fig. 1) (a).

- To increase the hydraulic pressure turn the interior screw clockwise using a screwdriver. To reduce the pressure, turn the interior screw in the opposite direction.

Control valve

- Remove the seal.

- Remove the plastic cover.

- Unscrew the metal cap (fig. 2) (b) and loosen the locknut.

- T o increase the hydraulic pressure turn the screw clockwise using an allen key. T o reduce the pressure, turn the interior screw in the opposite direction.

 Hydrostatic transmission filter: Replacing The hydrostatic circuit has a cartridge filter (fig. 3) which should be replaced regularly (See MAINTENANCE CHART).

- Undo the cartridge filter by turning it to the left.

(fig. 2)

- Clean the base of the filter and oil the seal of the new filter element.

- Screw on the new filter element and tighten by hand, without using mechanical means.

Check whether the filter needs replacing (vacuometer).

The filter support has a filter clogged indicator (fig. 4). When the engine is running the needle should lie in the green zone, or at a maximum, in the yellow zone. If the needle approaches or lies in the red zone, replace the cartridge filter as soon as possible.

(fig. 3) (fig. 1)

WARNING

Take care to correctly tighten the filter element otherwise the circuit may suction air from the outside, causing faults in the transmission.

(fig. 4)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

 Wheels

WARNING

Unless it is imperative for the work to be carried out, given that the machine does not have suspension, the use of solid tyres is not recommended, as this increases the effect of impacts on the transmission and the operator.

Tyre pressure: Checking

If possible, the tyres should be inflated by specialised personnel. The following operations are recommended, in particular for the front wheels:

Checking and inflating tyres: Safety measures

WARNING

The tyre pressures of the forklift are very high. Inflating the wheels could be dangerous if not performed with care.

- Inflate the forklift tyres when cold to the pressure given by AUSA before starting the day’s work (See the section TECHNICAL SPECIFICATIONS in this Operator’s and Safety Manual).

- Checking tyre pressures and inflation should be carried out with a manometer in good condition fitted with a nozzle with safety clip. The safety clip is essential for preventing the manometer nozzle from coming off the tyre valve during inflation, which could cause serious injury to the operator.

- Use gloves to protect hands.

Wheel mounted on the machine

This should be checked while the forklift is on flat ground, the forks are lowered to rest position and the engine is switched off.

Wheel dismounted

- Place the tyre in a cage or other device suitable for inflating tyres of this nature.

Wheel nuts: Tightening torque

The tightening torque of the wheel nuts should be checked every week. The exact values of the wheel nut torques are given in the attached table.

- Use a torque wrench in good condition to check the tightening torque of the wheel nuts.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

- If pneumatic wrenches have been used, the torques should still be checked using a torque wrench.

- Do not force the torque wrench by using extensions (pipes or similar).

Tightening Torque

Front wheels Rear wheels C400H-HI / C500H-HI (Nm) 650 ± 100 Nm 350 ± 30 Nm C400H-HI x4 / C500H-HI x4 (Nm) 650 ± 100 Nm 470 ± 30 Nm C400H-HI / C500H-HI (lbf·ft) 480 ± 74 lbf ft 258 ± 22 lbf ft C400H-HI x4 / C500H-HI x4 (lbf·ft) 480 ± 74 lbf ft 346 ± 14 lbf ft

 Mast: tension and length of mast chains The tension and length of the mast chains should be checked regularly. They stretch gradually due to the strain applied to them. The mast chains should be replaced when their nominal length has increased by 3%. Length can be checked by counting the links in 39.4in (1m) of 1” (25.4mm) chain. Nominally there should be the length of 39 links. The change should be made when there is the length of 40 links.

The chain is tensioned by turning the stop nut (fig. 1) of the tensioning rods.

(fig. 1)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

 Lubrication

Rear axle C400H-HI / C500H-HI

1 nipple on the central articulation of the axle (fig. 1).

2 nipples, one on each wheel pivot (fig. 2).

C400H-HI x4 / C500H-HI x4

2 nipples on the central articulation of the axle (fig. 3). 4 nipples, two on each wheel reduction joint (fig. 4).

Cardan shafts All models

2 nipples, one on each cross (fig. 5). 1 nipple on the grooving (fig. 5).

Brake cylinder pins

All models

2 nipples, one on each side (fig. 6 and fig. 7)

(fig. 1)

(fig. 2) (fig. 3) (fig. 4)

(fig. 5)

(fig. 6) (fig. 7)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

 Mast articulation supports (fig. 1)

2 nipples, one on each pin of the mast articulation.

 Mast articulation with the tilting cylinder (fig. 1)

2 nipples, one on each support of the articulation.

 Tilting cylinder articulation with the chassis (fig. 1)

2 nipples, one on each support.

 Articulations of the controls (fig. 2)

Inching pedal. Brake pedal.

(fig. 1)(fig. 2)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

 Lighting and signaling system ()

Indicator, parking, reverse, left and right side light bulbs: replacing (fig. 1).

- Undo bolts (a) and remove the lens.

- Remove the bulb by pressing it gently inwards and turning it to the left at the same time in order to release it from the lamp holder.

- Replace the bulb with a new bulb of the same type and power.

Operating beacon bulbs: replacing (fig. 2).

- Undo bolts (b) and remove the rear housing of the operating beacon.

Operating beacon bulb:

- Remove the connector from the bulb.

- Undo the clip fastening the bulb by pressing it inwards and to the right at the same time.

- Replace the bulb with a new bulb of the same type and power.

CAUTION

Do not touch the surface of the glass of the bulb. If it is dirty wipe gently using a clean dry cloth.

- Secure the clip again by pressing it inwards and to the left at the same time.

Indicator bulb:

- Remove the connector from the bulb.

(fig. 1)

- Remove the bulb by pressing it gently inwards and turning it to the left at the same time in order to release it from the lamp holder.

- Replace the bulb with a new bulb of the same type and power.

(fig. 2)

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

Rotating beacon bulb: replacing (fig. 1, 2)

- Turn the amber cover (a) of the rotary beacon to the left and remove.

- Unhook the plate (b) holding the bulb by pressing it inwards and to the left at the same time.

- Replace the bulb with a new bulb of the same type and power.

CAUTION

Do not touch the surface of the glass of the bulb. If it is dirty wipe gently using a clean dry cloth.

- Fasten the plate holding the bulb by pressing it inwards and to the right at the same time.

 Electrical system Steering column fuses: checking (fig. 3)

(fig. 1)

- Switch off the ignition.

- Remove the protective cover from the fuses by pulling it outwards.

- The burnt fuse can be recognised as the metal strip which is visible in the centre of each fuse will have melted (viewing window).

- Remove the burnt fuse and replace with a new fuse of the same type.

CAUTION

(fig. 2)(fig. 3)(fig. 4)

Do not use fuses of a higher value, this could cause major damage.

Battery fuses: checking (fig. 4)

- Switch off the ignition.

- Remove the protective cover from the fuses (c).

- The burnt fuse can be recognised as the metal strip which is visible in the centre of each fuse will have melted (viewing window).

- Remove the burnt fuse and replace with a new fuse of the same type.

CAUTION

Do not use fuses of a higher value, this could cause major damage.

C 400 H / C 400 HI / C 400 H x4 / C 400 HI x4 C 500 H / C 500 HI / C 500 H x4 / C 500 HI x4

Periodic

Maintenance

Operations

 Windscreen wiper blade (): replacing (fig. 1)

- Loosen screws (a) to remove the blade from the windscreen wiper arm.

- Replace blade.

- Check that the screws (a) hold the blade tightly to the wiper arm.

(fig. 1)

Ausa C 400 H, C 400 HI, C 500 H, C 500 HI OPERATOR’S MANUAL

Specifications and Main Features

Frequently Asked Questions

User Manual
