The Warning and Caution boxes throughout this manual are there to protect you and
your equipment. Pay close attention to these boxes as you follow the manual.
WARNING
Indicates a MECHANICAL
hazard of INJURY OR
DEATH. Gives instructions
to avoid the hazard.
INSTRUCTIONS CLOSELY.
CAUTION
Indicates a MECHANICAL hazard
of DAMAGE to your operator or
equipment. Gives instructions to
avoid the hazard.
WARNING
Indicates an ELECTRICAL
hazard of INJURY OR
DEATH. Gives instructions
to avoid the hazard.
CAUTION
Indicates an ELECTRICAL hazard
of DAMAGE to your operator or
equipment. Gives instructions to
avoid the hazard.
PRODUCT FEATURES
3
The purpose of this booklet is to provide assembly,
installation and operation information concerning the
Model AUD-S Commercial Vehicular Garage Door
Operators and related Accessory Products.
NOTICE
IT IS IMPORTANT THAT THIS INSTRUCTION
MANUAL BE READ AND UNDERSTOOD
COMPLETELY BEFORE INSTALLATION OR
OPERATION IS ATTEMPTED. IT IS INTENDED
THAT THE INSTALLATION OF THIS UNIT WILL BE
DONE ONLY BY PERSONS TRAINED AND
QUALIFIED IN THE INSTALLATION, ADJUSTMENT
AND SERVICE OF COMMERCIAL OVERHEAD
DOORS AND DOOR OPERATORS AND BY
QUALIFIED ELECTRICIANS.
NOTICE
THE IMPORTANT SAFEGUARDS AND
INSTRUCTIONS IN THIS MANUAL CANNOT COVER
ALL POSSIBLE CONDITIONS AND SITUATIONS
WHICH MAY OCCUR DURING ITS USE. IT MUST
BE UNDERSTOOD THAT COMMON SENSE AND
CAUTION MUST BE EXERCISED BY THE PERSON
(S) INSTAL- LING, MAINTAINING AND OPERATING
THE EQUIPMENT DESCRIBED HEREIN. DO NOT
USE THIS EQUIPMENT FOR ANY OTHER THAN ITS
INTENDED PURPOSE - OPERATING OVERHEAD
COMMERCIAL VEHICULAR GARAGE DOORS.
STANDARD FEATURES:
Solid State Controls: The openers employ solid state
technology with advanced standard features to provide
for a complete commercial door operating system.
MODEL AUD-S OPERATOR APPLICATIONS:
Drawbar operators are for commercial and industrial
use on sectional overhead doors which use horizontal
track with normal radius. A draw bar operator is not
suitable for doors with high lift exceeding 24 inches or
vertical lift doors. The installation requires a minimum
clearance of 5 inches above the high arc of the door
(the highest point reached by the door at any part of its

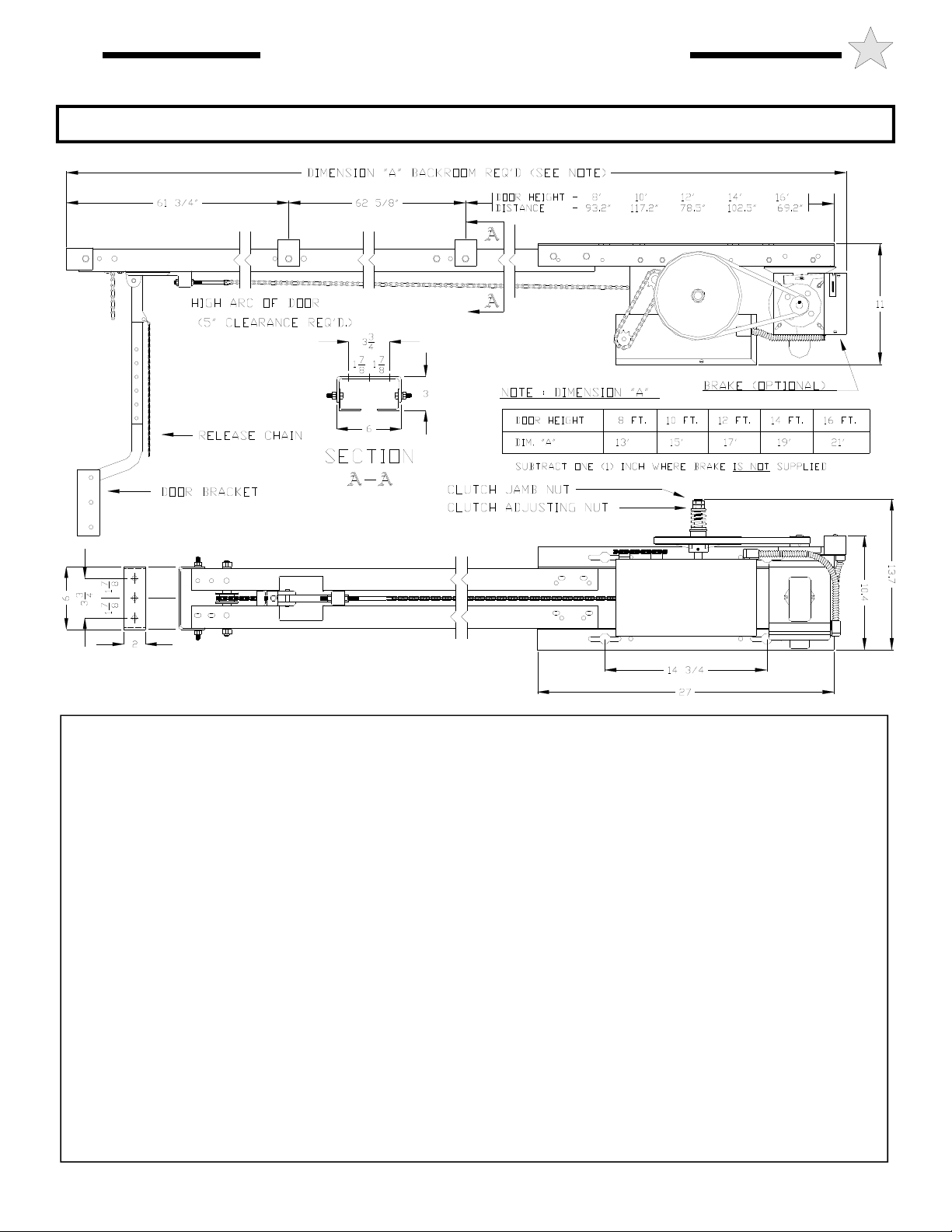

travel). For back-room requirement refer to Figure 24, Page 22. When properly installed a drawbar operator
effectively locks the door in the closed position.
The Model AUD drawbar operators are used in the
following applications:
-Continuous Duty, Medium Cycle Commercial
installations only
-Indoor Use Only
-Up to 22 foot high doors with a maximum area of
480 square feet for 3/4 HP, 280 square feet for 1/2
HP and 200 square feet for 1/3 HP - maximum area
slightly higher for lighter doors - consult factory
-Use with foam or pneumatic reversing edge door
components - REQUIRED where the 3 button
station is out of sight of the door or any other
automatic, remote or manual control is used to
activate the door.
Switch Selectable Operating Modes: Six distinct base
operation modes can be selected by resetting the switches
on the motor control board: a standard Open, Close, Stop
(B2, momentary button push); three constant pressure
modes (C2, D1, and E2); two Timer to Close modes (T
and TS). See page 14 for complete description of the
modes.
Switch Selectable Characteristic Modes: Five different
operating characteristics can be activated and/or modified
through the switches on the motor control board: Delay
On Reverse, Close Limit Delay, Mid Stop Travel, Timer
to Close, Maximum Run Timer.
Limit Switches: Driven limit switches, easily adjusted
over a wide range. The motor may be removed without
affecting the limit switch adjustments
Manual Release: Permits manual operation of the door
in the event of a power failure.
Control Circuit: Standard three button open, close and
stop. 5 Volts DC.

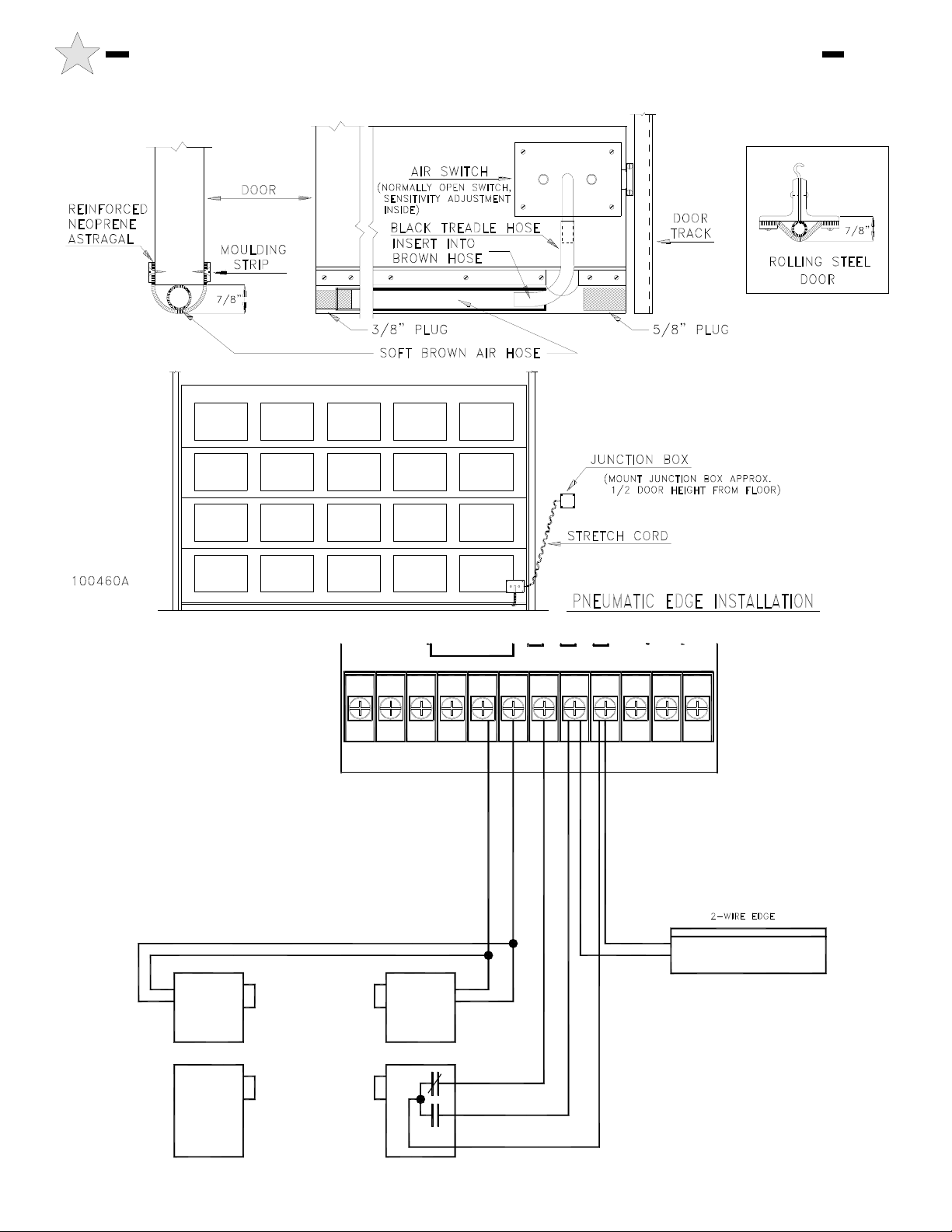

Connections For Auxiliary Entrapment Protection
Devices: Use with foam or pneumatic reversing door
edge components or a photoelectric beam (across the
opening).
OPTIONAL FEATURES:
Digital Radio Controls: Open, Close and Stop
operation. Radio units are available to control up to 27
doors from one transmitter
Keyless Entry System: Connection terminals provided
for hard wired or wireless keyless entry system.
Brake: Optional on 1/3 & 1/2HP, Standard on 3/4 HP.
Can be added in the field.
4
PREPARATION
WARNING
ELECTRIC DOOR OPENERS ARE DESIGNED
FOR DOORS IN GOOD WORKING CONDITION,
PROPERLY COUNTERBALANCED AND
PROPERLY ADJUSTED IN ACCORDANCE WITH
THE DOOR MANUFACTURER'S INSTALLATION
INSTRUCTIONS.
Before starting the installation of the operator, the door must be in
good working condition and properly counterbalanced. Inspect the
door and track for loose or missing hardware. Test the door
manually for balance and ease of operation. Lubricate door hinges
and rollers. If necessary, adjust the springs for proper
counterbalance of the door.
Before removing the operator powerhead from the shipping carton,
inspect the nameplate on the cover of the operator control box to
verify that it is the correct model for the intended application and
that the voltage and phase are in accordance with electrical power
provided at the job site.
The rails and drawbar chain/hardware package are shipped
separately from the powerhead. Warning: Rope off the area
to keep personnel and vehicles clear of the door and floor
space in the vicinity of the operator during the
installation.
WARNING
SPRINGS ARE SUBJECT TO VERY
HIGH FORCES AT ALL TIMES AND
ADJUSTMENTS MUST BE MADE ONLY
BY A QUALIFIED PROFESSIONAL
DOOR INSTALLER.
WARNING
REMOVE OR DISABLE ANY LOCKING
DEVICES FROM DOOR AND REMOVE
ALL ROPES
COMPONENT IDENTIFICATION PICTORIAL
107100
Figure 1
IMPORTANT INSTALLATION WARNINGS
WARNING
5
TO REDUCE THE RISK OF SEVERE INJURY
OR DEATH: READ AND FOLLOW ALL
INSTALLATION INSTRUCTIONS!
• Install only on a properly balanced garage
door. An improperly balanced door could cause
severe injury. Have a qualified service person
make repairs to cables, spring assemblies and
other hardware before installing the opener.
• Remove all ropes and remove or make
inoperative all locks (unless mechanically and/or
electrically interlocked to the power unit) that are
connected to the garage door before installing the
opener.
• Lightweight doors (fiberglass, aluminum etc.)
must be reinforced to avoid door damage. Check
the door manufacturer’s instruction manual for a
bracing procedure or the availability or a
Reinforcement Kit. See Page 9.
• Model AUD-S is a Commercial Vehicular
Door Operator and as such IS NOT recommended
for pedestrian traffic. In installations where it is
known that pedestrians will be nearby ensure a
pedestrian door is available for entrance and exit
to the building. In addition YOU MUST install an
auxiliary entrapment protection device (reversing
door edge or photoelectric beam device).
• Connect an auxiliary entrapment protection
device (reversing edge or photoelectric device
across the door opening). a device of this type is
STRONGLY ADVISED FOR ALL commercial
operator installations. An auxiliary entrapment
protection device is REQUIRED when the three
button control station is out of sight of the door
or any other automatic or manual control is
used.
• Install the opener at least 8 feet or more
above the floor.
• Do not connect the opener to the source of
power until instructed to do so.
• Locate the control station:
a) within sight of the door and;
b) at a minimum height of five feet above
the floor and;
c) away from all moving parts of the door.
• Do not overtighten the clutch adjustment to
compensate for a poorly working door.
• Securely attach any WARNING signs or
placards to either the door or above the control
station as directed.
• After installing the opener, all safety features
must be tested for proper operation (see page
19).
COMPONENT IDENTIFICATION LISTING
ITEM # PART# DESCRIPTION QUAN.
1 Operator Power Head 1
2 Track Rails 2
7 006031 3/8-16 Keps Hex Nut 6
8 101315 3/8 - 16 X 6-1/2 Hex Head Blot 1
9 107049 Track Bracket AR
10 006034 1/2 - 15 Hex Nut 2
11 006049 1/2 Split Lockwasher 2
12 106265 Front Idler Assembly 1
13 Chain For Track Rail 1
14 3 Piece Chain Connecting Link 1
15 006084 Chain Tension Adjustment Bolt 1
16 006031 3/8 - 16 Keps Hex Nut 2
17 100512 Track Trolley 1
—— AR - As Required
ITEM # PART# DESCRIPTION QUAN
18 005031 3 Button Station 1
19 100513 Release Door Arm 1
20 100236 Extension Door Arm 2
21 100235 Curved Door Arm 1
22 100108 Door Bracket 1
23 100469 Hardware Pkg Com. Door Arm 1
26 3/8 - 16 X 2-1/2 Carriage Bolt 2
16 3/8 - 16 X 1 Hex Head Bolt 1
27 3/8 Nylon Insert Locknut 1
28 5/16 - 18 X 1-1/4 Hex Head Bolt 4
29 5/16 - 18 Keps Hex Nuts 4
25 100468 Hardware Pkg Com. Track Assy 1
4 3/8 - 16 Hex Nut AR
5 3/8 Split Lockwasher AR
6 3/8 - 16 X 1-1/2 Hex Head Bolt AR
6
RAIL/CHAIN ASSEMBLY INSTRUCTIONS
RAIL/CHAIN ASSEMBLY
Refer to Figure 1 parts illustrations. The part names and item numbers are
referenced identically to the part names and numbers in the assembly procedures
that follow. Before starting assembly of the operator track check for the
proper length. The tracks are supplied for 8 Foot, 10/12/14 Foot,
16/18 Foot and 20/22 Foot high doors. The tracks should be
three (3) feet longer than the door height. If the tracks
supplied with the operator are longer than the door
height plus 3 feet, it will be necessary to cut off two
feet (or 4 feet for 10 Foot rail) from the power head
mounting end as shown in Figure 2.
CAUTION
CUT THE TRACK ENSURE THE
ENDS ARE LINED UP AS IN
FIGURE 2.
1) Assemble the
operator track by
assembling the items
as shown in Figure 2.
2) After the track is assembled, position track assembly onto
the operator power head and attach with four 3/8”-16 x 1” bolts,
lock washers and nuts (supplied in a separate hardware package
#100470).
3) Referring to Figure 1 , 2 and 3 (below) , slide the trolley
onto the track with the chain take up bolt lug (C) toward the
power head. Thread one 3/8-16 keps nut (attached star washer)
onto the Chain take up bolt with the keps part (attached star
washer) away from the chain attachment end. Insert the chain
take up bolt threaded end through the lug hole on the trolley (C)
just far enough to start a second 3/8-16 keps nut. Attach one end
of the chain to the opposite end of the threaded stud using a 3piece chain link (provided). See Figure 3.
: WHEN NECESSARY TO
48” FOR 10FT RAIL
107068
the connecting link. One-third horsepower operators use the
narrower #65 chain and the use of the spacers is not required.
Install chain around drive sprocket at operator head then around
idler at front end of rail and thread through opening at front end
of carrier. If the rail is equipped with a chain guide-spacer near
its center (12 foot rail or longer only) pass the chain over it in one
direction and under it in the other direction to separate the two
lengths of chain. Apply initial tension by pushing forward on the
carrier while pulling chain tight through opening in the carrier in
the direction of D. When maximum tension has been applied by
this means, swing chain forward and insert retaining plate, E, in
place. Insert 1/4-20 x 5/8 hex head machine screw through
retaining plate, E, and tighten plate in place. Make final
adjustment of chain tension to remove excess sag by adjusting
nuts on threaded rod at chain lug, C.
Figure 2
NOTE: To keep #41 chain (used
on 1/2 and 3/4 H.P. operators) centered
on the threaded stud, place a .065" thick flat
washer (provided) on each side of the flat, as
indicated by the arrows in Figure 4, when installing
100461
Figure 3
Figure 4
INSTALLATION INSTRUCTIONS
7
TO AVOID DAMAGE TO DOOR AND OPERATOR
ENSURE ALL DOOR LOCKS ARE DISABLED.
USE AN INTERLOCK SWITCH IF A LOCK IS
REQUIRED TO RETAIN FUNCTIONALITY.
1) Locate the center of the door and mark a line on the wall
directly above the door. Extend this line approximately 20” up
the wall. See Figure 5.
CAUTION
107094
A MINIMUM OF TWO PERSONS ARE
REQUIRED FOR OPERATOR
3) Using the projected lines for location, mount a suitable
wood block or angle iron, depending on the structure of the
building, to the wall above the door opening as shown in Figure
7. Ensure the block or angle iron used will provide a sound and
secure mounting pad for the operator rail front mounting bracket,
see CAUTION warning below.
ENSURE A SAFE RIGID WORKING
PLATFORM IS AVAILABLE.
CAUTION
INSTALLATION.
107096
Figure 5
2) Slowly raise the garage door and observe the action of the
top section. When the top section reaches the highest point
(high arc), use a level and project a line from this point to the
center of the door. See Figure 6.
107095
Figure 6
Figure 7
THE FRONT MOUNTING SURFACE FOR THE
OPERATOR MUST BE SOUND AND SECURE.
IF NECESSARY PROVIDE REINFORCEMENT
IN THIS AREA BEFORE MOUNTING THE
OPERATOR RAIL FRONT MOUNTING
CAUTION
BRACKET.
8
INSTALLATION INSTRUCTIONS
4) Mount the front mounting bracket (Item 9) to the mounting
pad as shown in Figure 8. The location of the door’s torsion
shaft may prevent you from placing the mounting pad in the
location shown. Mount the pad as close as possible to three (3)
inches above the door’s high arc point.
107051
6) Swing the operator to a horizontal position above the door
guide rails (high enough to raise the door) and temporarily
secure by suspending from the ceiling with a suitable rope or
chain or support from the floor to the operator. Now open the
garage door slowly, being careful not to dislodge the temporary
support. Lower the operator until it is level. Make sure the
operator is aligned with the center of the door and the bottom of
the rail is at least 2” above the high arc of the door. See Figure
10.
WARNING
FAILURE TO SUSPEND THE OPERATOR
SECURELY MAY RESULT IN SERIOUS
PERSONAL INJURY OR DEATH.
Figure 8
5) With the door in the down position, loosely attach the rail
support to the mounting bracket using two (2) bolts, lockwashers
and nuts (Items 4, 5, 6). See Figure 9.
107053
Figure 9
SPRINGS, PULLEYS, CABLES AND MOUNTING HARDWARE USED TO
BALANCE YOUR GARAGE DOOR ARE UNDER EXTREME TENSION AT
ALL TIMES AND CAN CAUSE SEVERE INJURY OR DEATH IF DISTURBED.
WARNING
DO NOT ATTEMPT ADJUSTMENT.
107052
Figure 10
7) Tighten securely the two (2) bolts, nuts and washers that
were loosely attached in Step 5. See Figure 11.
107054
Figure 11
INSTALLATION INSTRUCTIONS
9
8) Figure 12 details a typical method of hanging the operator
from the ceiling. Each installation will vary due to the
difference in building structures; but in all installations side
braces should be used to further strengthen the installation. If
the operator track (rail) is longer than 15 feet a mid support is
recommended.
107141
107142
Figure 12
9) Fully close the door and move the trolley to within 2
inches of the idler sprocket. Using Figure 13 as a guide,
connect the release arm (Item 19) to the trolley. Connect the
two extension arms (Item 20) and the door curved arm (Item 21)
to the door release arm with 5/16 inch bolts and keps nuts
(Items 28 & 29).
10) Refer to Figure 14. Attach the door bracket (Item 22) to
the curved arm using a 3/8 bolt and locknut (Items 16 & 27).
Tighten the bolt until snug then back off 1/4 to 1/2 turns so as to
allow the arm to pivot on the bolt freely. Position the door
bracket to the scribed center line on the door. Use suitable
hardware to attach the door bracket to the door.
IMPORTANT
TO AVOID DAMAGE TO THE DOOR TOP
SECTION REINFORCE THE CENTER STILE
WITH A VERTICAL BRACE. ADDITIONAL
BRACING/REINFORCEMENT MAY BE
REQUIRED WHEN THE DOOR IS
CONTROLLED BY AN AUTOMATIC DOOR
OPERATOR; CONSULT THE DOOR
MANUFACTURER FOR INSTRUCTIONS.
Figure 13
107143
Figure 14
NOTE
BEFORE PROCEEDING RECHECK ALL
BOLTS, NUTS AND LAG SCREWS AND
ENSURE THEY ARE TIGHT.
10
ELECTRICAL WIRING INSTRUCTIONS
WARNING
TO PREVENT THE RISK OF PERSONAL INJURY
OR DEATH :
• DISCONNECT POWER AT THE FUSE BOX
BEFORE PROCEEDING.
• ELECTRICAL CONNECTIONS MUST BE MADE
BY A QUALIFIED INDIVIDUAL.
• OBSERVE LOCAL ELECTRICAL CODES WHEN
WIRING THE OPERATOR.
WARNING: The AUD-S Series operators have been designed
and constructed for use with voltages from 115 Volts AC to
480 Volts AC, in single or three phase. Check the operator
nameplate label on the control box cover for the proper
voltage and phase. The application of an improper input
voltage or phase will result in catastrophic failure to the
internal electrical components.
Observe local electrical codes when wiring the operator.
When hard wiring, observe state and local electrical codes. A
wiring diagram is attached to the inside of the control box cover.
Connect the appropriate voltage and phase power leads to the
appropriate terminals as per the wiring diagram and connect a
ground wire to the grounding screw. On three phase units,
incorrect phasing of the power supply will cause the motor to
rotate in the wrong direction (open when CLOSE button is pushed
and vice versa). To correct this, interchange any two of the
incoming three phase conductors.
The wiring diagram attached inside the cover of the control box
details all of the field wiring terminal connections for the operator.
Always connect the wires to the push-button controls and auxiliary
devices exactly as shown.
Warning: Control voltage of the opener is 5 volts DC, Class 2.
Do not run the power leads and control circuit wiring in the same
electrical conduit.
WARNING
TO PREVENT THE RISK OF PERSONAL
INJURY AND/OR DAMAGE TO DOOR OR
PROPERTY, ONLY OPERATE DOOR
CONTROL WHEN DOOR IS IN CLEAR VIEW.
IF CONTROL STATION CANNOT BE
LOCATED WHERE THE DOOR IS VISIBLE
OR IF ANY OTHER DEVICE IS USED TO
CONTROL THE DOOR AN AUXILIARY
ENTRAPMENT DEVISE (DOOR EDGE OR
PHOTOELECTRIC) MUST BE CONNECTED.
WARNING
RISK OF ENTRAPMENT THAT MAY
RESULT IN SERIOUS PERSONAL INJURY
OR DEATH. DISCONNECT POWER TO
THE OPENER BEFORE AND DURING
INSTALLATION OF AN ACCESSORY
REVERSING DOOR EDGE OR
PHOTOELECTRIC DEVICE. DO NOT
RECONNECT POWER TO OPENER UNTIL
INSTRUCTED TO DO SO. ENSURE
DOORWAY IS CLEAR BEFORE STARTING
TESTING OF UNIT.
Note: AUD-S Series model openers are pre-wired for door
reversing edge components. To comply with code requirements,
the door reversing edge components must be installed and wired
to the opener. Refer to Figure 15 Door Edge component
installation and Figure 16 for Door Edge and photoelectric
device wiring.
If a Safe-Finish™ or Access Alliance Safe-Finish II™ photobeam is connected and the photo-beam detects an obstruction or
becomes inactive, an opening door continues to open and a
closing door stops, pauses and starts open. While in this mode,
if a problem is detected while the opener is stopped, a close
action will require constant activation of the push button. If the
photo-beam is attached and is properly working for 1 second, it
will be auto detected and the monitored function will be turned on. Once the monitoring function is active, it will remain
active even if the power is removed and the photo-beam is
disconnected and power is restored. While in this mode, if a
problem is detected while the opener is stopped, a close will
require constant activation.
Openers which are equipped with a reversing edge circuit may
have one or more additional means of control which should be
wired in accordance with the diagram supplied in the opener
and also illustrated on Pages 20 & 21. To add a second three
button station, refer to Figure 18.
Number 22 gauge wire or heavier must be used for wiring
the control stations and auxiliary control devices to the
operator. Smaller gauge wire will cause operational
problems, especially when multiple push-button stations are
used or during summer months.
TO AVOID DAMAGE TO DOOR AND OPERATOR
ENSURE ALL DOOR LOCKS ARE DISABLED.
USE AN INTERLOCK SWITCH IF A LOCK IS
REQUIRED TO RETAIN FUNCTIONALITY.
CAUTION
PNEUMATIC DOOR EDGE INSTALLATION - FIELD WIRING
11
TB1
MOTOR
CONTROL
BOARD
Figure 16
COM
ILOCK
24 VAC
Door Edge and Photoelectric Wiring
See text on page 10 for operation when Safe-Finish™ or Access
Alliance Safe-Finish II™ photo-beams are connected.
SINGLE
COM
Figure 15
STOPCLOSEOPEN
COM
NC REV
NO REV
STOP
OPEN
CLOSE
SAFE FINISH PHOTOBEAM
3-WIRE PHOTOBEAM
Note: When adding a
photocell device with a
Normally Closed output
remove the factory installed
jumper from the connection
terminals.
12
P
3/SINGLE BUTTON STATION / INTERLOCK FIELD WIRING
R84
U5
PB1PB2PB3
NC REV
MOTOR
R2
R3
C25
CONTROL
BOARD
STOPCLOSEOPEN
COM
NO REV
STOP
C1
D12
PCB 112695 REV B TSLK
OPEN
CLOSE
Single 3 Button Station
Figure 17
R5
D3
R65
C10
D2
MOTOR
U1
CONTROL
R38
R87
R94
R95
R2
R3
C25
PB1PB2PB3
STOPCLOSEOPEN
NC REV
NO REV
C3
C11
C9
BOARD
U4
R26
R29
COM
STOP
R25
C24
D8
D12
CLOSE
R57
RADIO
24V
COM
RM3
RM2
RM1
VCC
P7
R54
R55
R30
R56
C1C8
PCB 112695 REV B TSLK
OPEN
Multiple 3 Button Station
Figure 18
MOTOR
CONTROL
BOARD
D1
CDOMCB 2005
c.p. ALLSTAR COR
TB1
COM
ILOCK
24 VAC
R93
R4
R8
C21
R24
P5
U5
Figure 19
Single Button and External Interlock Wiring
COM
SINGLE
Note: When adding an External Interlock
remove the factory installed jumper from
EXTERNAL INTERLOCK
the connection terminals.
TURNING ON THE POWER TO THE OPERATOR
NOTE: It is now necessary to turn on the power in order to change the Operating Mode (if
applicable), program any changes desired to the operator’s other settings, check for proper
performance of all the operator’s features to include the brake (if applicable) and clutch
(adjusting settings if necessary); and to set and finalize any adjustments to the limit settings.
Before doing so, ensure that all mounting hardware are installed and properly tightened, that all
electrical connections are per local code requirements, and that proper wiring practices have been
followed. Also, double-check that all ropes have been removed from the door and that the
doorway is clear.
OPERATION AND ADJUSTMENT INSTRUCTIONS
13
IMPORTANT SAFETY INSTRUCTIONS FOR OWNER
TO REDUCE THE RISK OF SEVERE INJURY OR
WARNING
• Understand all of the operating features of your door control system at the
time of its installation. Your installing dealer will demonstrate them for you.
• NEVER let children operate or play with door controls. Keep the Remote
Control away from children.
• ALWAYS keep a moving door in sight and keep people and objects away from
the door area until the door is completely closed. NO ONE SHOULD CROSS
THE PATH OF A MOVING DOOR.
• TEST THE DOOR OPENER’S REVERSING FEATURE (where applicable)
MONTHLY. The door MUST reverse upon contact with a 4” high object on the
floor. After adjusting the force setting (clutch) or the limit of travel, ALWAYS
RETEST the Opener. Failure to ADJUST THE OPENER PROPERLY may result
in SERIOUS INJURY OR DEATH.
DEATH: READ AND FOLLOW ALL INSTRUCTIONS!
• If possible, USE THE MANUAL RELEASE only when the door is closed. Use
caution when using the Release with the door open. WEAK OR BROKEN
SPRINGS MAY ALLOW THE DOOR TO CLOSE RAPIDLY, CAUSING SEVERE
INJURY OR DEATH.
• KEEP THE GARAGE DOOR PROPERLY BALANCED. See the door owner's
manual. An improperly balanced door MAY CAUSE SEVERE INJURY OR
DEATH. Have a QUALIFIED SERVICE PERSON MAKE REPAIRS TO CABLES,
SPRING ASSEMBLIES AND OTHER HARDWARE. SAVE THIS INSTRUCTION
MANUAL FOR END USER
• Inspect and maintain your door system as described in this manual.
WARNING
AVOID ELECTROCUTION:
DO NOT ROUTE LOW VOLTAGE WIRES IN
SAME CONDUIT AS HIGH VOLTAGE
WIRES. FOLLOW ALL LOCAL
ELECTRICAL CODES OR THE NATIONAL
ELECTRICAL CODE.
WARNING
FAILURE TO TEST REVERSING
SYSTEM COULD RESULT IN DEATH
OR SERIOUS INJURY. TEST THIS
SYSTEM ONCE A MONTH.
14
US
LD4
OFF
S4
S3
S2
S1
R61
R60
R5
SW1
R83
R28
R27
OPERATION AND ADJUSTMENT INSTRUCTIONS
SETTING THE SWITCH SELECTABLE OPERATING MODES
Changing the Switch Selectable Operation Modes
The following modes are selected by setting the on-board dip
switches, Figure 20 at right shows where the switches are
located on the operator control board. For each Operational
Mode, the switches are set to either ON or OFF according to the
table at right below. For all the modes, if a reversing device is
attached, it will function as noted. If a monitored reversing
device has been recognized and becomes inactive then the mode
will default to constant pressure activation for close regardless
of the dip switch setting. The switches must be set to one of the
six Operational Mode combinations for the operator to function.
C2 Operation (Factory default)
Open Button: Momentary activation; open override of closing
door.
Settable
P4
Switches
Location
HIGH VOLTAGE
EDGE
P6
CDOMCB 2005
c.p. ALLSTAR CORP.
TB1
K6
P1
TR3
MO4
MO3
MO2
MO1
R89
TR1
ILK
24V
COM
R48
C13
TR2
R52
C14
TR4
R31
FRA
VCC
C30
COM
S1
24V
R58
C12
Q1
C7
D1
R8
R24
P5
P2 P3
R49
R62
R47
R51
R19
R17
R13
R1
RO1
R85
R11R12
R90
R93
R4
C21
OLS
CLS
COM
R10
R22
C16
C6
R20
R18
R14
R21
C2
R16R15
R7R6
R84
U5
COM
POWER
PB1 PB2 PB3
K2K4K3K5
STATUS
LD2
R34
R33
R23
R9
R82
D3
R65
C10
D2
U1
R38
R87
R94
R95
R2
R3
C25
SW1
S4
S3
LD3
LD4
S2
OFF
S1
R27
R28
C3
C11
C9
U4
STOPCLOSEOPEN
R53
R83
R61
R46
R60
R45
R5
R57
R25
RADIO
C24
24V
D8
COM
RM3
RM2
RM1
VCC
P7
R54
R55
R30
R26
R29
R56
C1C8
D12
PCB 112695 REV B TSLK
Close Button: Constant activation, door will stop when butto full
open (ignores mid-stop) unless stopped by stop pushbutton
input.
Mid-Stop: Activation stops an opening door; momentary contact
Figure 20
COM
24 VAC
MOTOR CONTROL BOARD
COM
ILOCK
SINGLE
COM
STOP
OPEN
NC REV
NO REV
CLOSE
of open button at mid stop will restart door to full open position;
if door is moving open, constant pressure on open button will
bypass mid-stop.n is released.
Stop Button: Momentary activation; stops open, close or reverse
Operating
Mode
Switch 1 Switch 2 Switch 3 Switch
4
action.
Single Button: Momentary activation to open; open override of
closing door.
Reverse: Momentary activation will reverse a closing door,
reverse to
C2 Operation OFF OFF OFF OFF
B2 Operation ON OFF OFF OFF
D1 Operation OFF ON OFF OFF
Auto Close Timer: N/A.
B2 Operation
Open Button: Momentary activation; open override of closing
door.
Close Button: Momentary activation.
Stop Button: Momentary activation; stops open, close or reverse
action.
Single Button: Momentary activation to open; open override of
closing door, closes door from mid-stop or open limit.
Reverse: Momentary activation will reverse a closing door,
reverse to full open (ignores mid-stop) unless stopped by stop
pushbutton input.
Mid-Stop: Activation stops an opening door; momentary contact
of open button at mid stop will restart door to full open position;
if door is moving open, constant pressure on open button will
bypass mid-stop.
Auto Close Timer: N/A.
D1 Operation
Open Button: Constant activation; open override of closing
door.
Close Button: Constant activation, door will stop when button is
released.
Stop Button: Momentary activation; stops open, close or reverse
action (not required).
Single Button: N/A.
Reverse: Momentary activation will stop a closing door.
E2 Operation ON ON OFF OFF
TS Operation OFF OFF ON OFF
T Operation ON OFF ON OFF
Mid-Stop: Activation stops an opening door; after the door stops
at the mid stop, constant contact of open button at mid stop will
restart door to full open position.
Auto Close Timer: N/A.
E2 Operation (roll-back)
Open Button: Momentary activation; open override of closing
door.
Close Button: Constant activation, door will reverse to full open
(ignores mid-stop) when button is released.
Stop Button: Momentary activation; stops open, close or reverse
action.
Single Button: N/A.
Reverse: Momentary activation to reverse a closing door,
reverse to full open (ignores mid-stop) unless stopped by stop
pushbutton input.
Mid-Stop: Activation stops an opening door; momentary contact
of open button at mid stop will restart door to full open position;
if door is moving open, constant pressure on open button will
bypass mid-stop.
Auto Close Timer: N/A
OPERATION AND ADJUSTMENT INSTRUCTIONS
15
TS Operation
Open Button: Momentary activation; open override of closing
door.
Close Button: Momentary activation.
Stop Button: Momentary activation; stops open, close or reverse
action.
Single Button: Momentary activation to open; open override of
closing door, closes door from mid-stop or open limit.
Reverse: Momentary activation will reverse a closing door,
reverse to full open (ignores mid-stop) unless stopped by stop
pushbutton input.
Mid-Stop: Activation stops an opening door; momentary contact
of open button at mid stop will restart door to full open position;
if door is moving open, constant pressure on open button will
bypass mid-stop.
Auto Close Timer: Closes door from mid-stop or open limit after
pre-set time. Stop will deactivate the auto close timer. Open will
reactivate the auto close timer or reset the auto close timer when
the door is at the mid-stop or open limit. Single button will reset
the auto close timer from the mid-stop or open limit. Reverse
will reactivate the auto close timer or reset the auto close timer
when the door is at the mid-stop or open limit.
T Operation, Dip-Switch Setting
Open Button: Momentary activation; open override of closing
door.
Close Button: Momentary activation.
Stop Button: Momentary activation; stops open, close or reverse
action.
Single Button: Momentary activation to open; open override of
closing door, closes door from mid-stop or open limit.
Reverse: Momentary activation will reverse a closing door,
reverse to full open (ignores mid-stop) unless stopped by stop
pushbutton input.
Mid-Stop: Activation stops an opening door; momentary contact
of open button at mid stop will restart door to full open position;
if door is moving open, constant pressure on open button will
bypass mid-stop.
Auto Close Timer: Closes door from mid-stop or open limit after
pre-set time. Stop will deactivate the auto close timer. Open will
reactivate the auto close timer or reset the auto close timer when
the door is at the open limit. Single button will reset the auto
close timer from the mid-stop or open limit. Reverse deactivates
the auto close timer if the door is closing. Reverse will reset the
auto close timer at the mid-stop or open limit if the auto close
timer has not been previously deactivated.
SETUP MODES
Setup Modes
Various operating characteristics can be modified via the setup
modes. The operator is moved to the close limit position and
the on-board dip switches (see Figure 20, page 14) are
TEMPORARILY set according to the table at right to enter a
Setup Mode. The on board OPEN and STOP buttons are used
to modify the characteristic. Once set, the values are stored in
non-volatile memory.
These values are set to factory defaults that should be
satisfactory for many applications. All values as described here
can be reset to the factory defaults as follows:
Remove 24 VAC power from the control board.
Press and hold the on-board stop button.
Re-apply 24 VAC while holding the on-board stop button.
After completing the procedure to modify the operating
characteristic the switches must be returned to the originally set
Operating Mode setting (see section previous).
Delay on Reverse Setup
To help prevent stress on the door components, this feature
allows for a delay time between the door stopping and reversing
when a command to reverse is received as the door is closing.
The factory default time is 0.75 seconds; the minimum time is
0.4 seconds; the maximum time is 2 seconds.
After moving the door to the close position and temporarily
setting the switches to the appropriate settings in the table,
pressing STOP will reset the time to the minimum setting.
Every time OPEN is pressed, 200 mS is added to the time (up to
the maximum).
Changing the dip-switch setting to any other setting will save
the new time. Return the dip switches to the originally set
Setup Mode Switch 1 Switch 2 Switch 3 Switch
4
Delay on Reverse ON ON ON ON
Close Limit Delay OFF ON ON ON
Mid-Stop Limit ON OFF ON ON
Auto Close Timer OFF OFF ON ON
Maximum Run
OFF ON OFF ON
Time
Operating Mode setting (see section previous).
Close Limit Delay Setup
To provide for irregularities in the floor, this feature allows for
the door to continue to travel down after the Reverse Cutout
Limit is activated. The factory default time is 0.32 seconds; the
minimum time is 0.12 seconds; the maximum time is 0.66
seconds.
After moving the door to the close position and temporarily
setting the switches to the appropriate settings in the table,
pressing STOP will reset the time to the minimum setting.
Every time OPEN is pressed, 0.02 seconds are added to the time
(up to the maximum).
Changing the dip-switch setting to any other setting will save
the new time. Return the dip switches to the originally set
Operating Mode setting (see section previous).
16
OPERATION AND ADJUSTMENT INSTRUCTIONS
Mid-Stop Limit Setup
This features provides a timing function to stop a door as it is
traveling open at a Mid Stop position instead of the full open
position. The door can then be moved to the full open position
if desired by pressing the Open button. A single button input
when the door is at the mid stop position will cause the door to
begin moving in the close direction. The factory default is not
set; the minimum run time to mid-stop limit is 6 seconds.
After moving the door to the close position and temporarily
setting the switches to the appropriate settings in the table,
pressing STOP will remove the mid-stop limit setting.
Pressing OPEN will start the door open. When the door reaches
the desired mid-stop position, press STOP.
Changing the dip-switch setting to any other setting will save
the mid-stop limit position. Return the dip switches to the
originally set Operating Mode setting (see section previous).
Note: The door must move a sufficient distance to fully
disengage the Reverse Cutout Limit nut from the Reverse Cutout
Limit switch to set the mid-stop limit.
Auto Close Timer Setup
This feature allows for a modification of the amount of time
between the door reaching either the Mid Stop or the Full Open
position and automatically starting in the close direction. The
Auto Close feature is only active when the operator is set to the
T or TS Operating Mode (see section previous). The factory
default is 30 seconds; the minimum time is 5 seconds; the
maximum time is 5 minutes.
After moving the door to the close position and temporarily
setting the switches to the appropriate settings in the table,
pressing STOP will clear and turn off the auto close timer.
Every time OPEN is pressed, 5 seconds is added to the time.
Changing the dip-switch settings to any other settings will save
the new time. Return the dip switches to the originally set
Operating Mode setting (see section previous).
Maximum Run Time Setup
This feature provides for a maximum amount of time the motor
will be energized after an input is recognized. The factory
default time is 30 seconds; the maximum time is 60 seconds.
After moving the door to the close position and temporarily
setting the switches to the appropriate settings in the table,
pressing STOP will reset the time to the factory default setting.
Pressing OPEN will start the door open. The run time will be
recorded when the door reaches the open limit. To prevent
nuisance problems, 0.75 seconds are added to this time. Pressing
stop before the door reaches the open limit will stop the door
and reset the time to the factory default.
Changing the dip-switch setting to any other setting will save
the new time. Return the dip switches to the originally set
Operating Mode setting (see section previous).
BRAKE ADJUSTMENT
The solenoid operated brake may require
occasional adjustment. Adjustment is necessary
if door tends to drift downward after reaching the
open limit. Follow the instructions below and
use Figure 21 as a guide.
(1) Loosen shoe adjusting screw and bottom
bracket arm of solenoid.
(2) Move tab until drum has a slight drag.
(3) Reverse drag slightly from tab and tighten
shoe adjustment screw.
107103
Figure 21
OPERATION AND ADJUSTMENT INSTRUCTIONS
WARNING
TO AVOID RISK OF ENTRAPMENT AND
POSSIBLE DAMAGE TO THE DOOR AND
OPERATOR THE CLUTCH MUST BE
ADJUSTED AND ANY ENTRAPMENT
PRTOTECTION DEVICES CONNECTED
BEFORE APPLYING POWER TO THE
OPERATOR TO SET THE LIMITS.
SETTING THE LIMIT SWITCHES
1) With the cover open on the electrical enclosure, reference
Figure 23 below. There are two (2) switches (A and B) mounted
to the ‘V’ bracket (F). The switches are activated by the two limit
nuts (C and E) on the threaded shaft which move laterally along
the shaft as the operator opens and closes the door. When a limit
nut nears the end of the shaft it activates a switch, that send a
message back to the motor control board to stop the door. Follow
either 2 or 2A below depending on how the door and trolley are
orientated.
2) For original installation setting, the door (connected as
normal to the operator trolley) should be positioned approximately
4 inches shy of the fully closed position. If this is the case, depress
the Limit Nut Retention Plate (D) so it disengages from the slots
in the limit nuts and move the Close Limit Nut (C) on the shaft
until it engages the Close limit
Limit Switch (B) (see Step 5 for an
explanation of the Close limit
function). You will need to listen
for an audible click. Move the
Open Limit Nut (E) to the center of
the threaded shaft. Release the
retaining bracket and be sure that it
engages in slots of both limit nuts.
A
17
remember to use the STOP button to stop the door at the Fully
Open Position.
4) Depress the limit nut retaining plate (D) so it disengages
from the slots in the limit nuts. Turn the OPEN limit nut (E) on
the shaft until it engages the Open Limit Switch (A). You will
need to listen for an audible click. Release the retaining bracket
and be sure that it engages in slots of both limit nuts.
5) With all due care use the built-in three button station on
the motor control board or the wall mounted three button station
to lower the door to approximately 4 inches shy of the fully
closed position and repeat Step #4 with the Close Limit nut (C)
and the Close Limit switch (B). The actual Close Limit position
is a timed function whereas the door continues to run for a
certain period of time after the Close Limit switch is activated.
This amount of time (Close Limit Delay) is factory set to 0.32
seconds and will provide reversing cutout of approximately 4
inches from the floor for a door traveling at 12 inches per
seconds. If the door fails to reverse when an object at least four
inches high is placed in its path (see Testing, page 19) it may be
necessary to adjust the Close Limit Delay time, see procedure
on page 15.
6) Move the door to the fully open position then the fully
closed position and observe the stopping position. Reset the
Limit Nut(s) per above instructions if desired.
7) A fine adjustment can be done (if necessary) by loosening
the screws holding the Limit Switches to the V bracket and
moving the switch within the slots on the bracket.
E
D
C
113116
B
2A) If the door and operator
trolley are at some other position
other than fully closed, depress the
Limit Nut Retention Plate (D) so it
disengages from the slots in the
limit nuts and move the BOTH the
Limit nuts to the center of the
threaded shaft. Release the
retaining bracket and be sure that it
engages in slots of both limit nuts.
3) With all due care use the
built-in three button station on the
motor control board or the wall
mounted three button station to
raise the door to the fully open
position. You will need to
A - OPEN LIMIT SWITCH
B - CLOSE LIMIT SWITCH
C - CLOSE LIMIT NUT
D - LIMIT NUT RETAINING PLATE
E - OPEN LIMIT NUT
F - “V” BRACKET
Figure 22
Limit Assembly
F
18
OPERATION AND ADJUSTMENT INSTRUCTIONS
CLUTCH ADJUSTMENT
WARNING
RISK OF ENTRAPMENT THAT MAY
RESULT IN SERIOUS PERSONAL
INJURY OR DEATH. DISCONNECT
POWER TO THE OPENER BEFORE
SERVICING OR MAKING
ADJUSTMENTS. ENSURE DOORWAY
IS CLEAR BEFORE STARTING TESTING
OF OPERATOR.
The clutch serves to protect the door, the electric operator and
other equipment from undue stress or damage caused by starting
forces and/or an obstruction to the door. It should be set no
tighter than is necessary to smoothly and consistently move the
door throughout its full range of travel. When properly set, it will
slip freely if the door should encounter an obstruction, and it
should be possible to stop the travel of the door by hand.
WARNING: Before adjustment remove power to the
operator.
To adjust the clutch, loosen the jamb nut, , and turn the adjusting
nut, as shown at right Make adjustments in 1/4 turn increments.
Always re-tighten the jamb nut before running the operator to
prevent clutch from changing its setting.
CAUTION
NEVER COMPRESS CLUTCH SPRING BEYOND
POINT LIMITED BY THE DESIGN OF THE
OPERATOR OR REPLACE IT WITH A
HEAVIER SPRING
Due to changing conditions of the door and normal wear, it may
be necessary to occasionally readjust the clutch to obtain
dependable operation.
WARNING: BEFORE DOING SO BE CERTAIN THAT
THE DOOR IS IN GOOD WORKING CONDITION,
PROPERLY COUNTERBALANCED AND THAT THE
CLUTCH IS NOT SLIPPING BECAUSE OF LOOSE OR
MISSING HARDWARE, BINDING IN THE TRACK,
RUBBING AGAINST THE DOOR STOPS OR DEFECTIVE
OR MISADJUSTED SPRINGS. ANY SERVICE
REQUIRED TO THE DOOR, DOOR SPRINGS OR DOOR
OPERATOR MUST BE PREFORMED BY A QUALIFIED
PROFESSIONAL DOOR INSTALLER.
The fiber disk will wear during normal operation and should be
replaced when it becomes difficult or impossible to sufficiently
tighten the clutch to obtain smooth operation of the door when it
is in good working condition. To replace the fiber disk, first
loosen the motor mounting bolts and remove the V-belt then the
clutch adjusting nuts, spring and clutch pulley. Check condition
of V-belt before reassembly and replace if required. After
reassembly, adjust clutch as described above.
107101
Figure 23
WARNING
IMPROPER ADJUSTMENT OF CLUTCH
SETTING COULD CAUSE ENTRAPMENT,
INJURY OR DEATH.
SET CLUTCH ADJUSTMENT FOR JUST
ENOUGH FORCE TO OPERATE THE DOOR
RELIABLY, BUT NO STRONGER. Contact a
service professional to correct any binding,
sticking or other door problems. DO NOT
OVER-ADJUST CLUTCH SETTING TO
COMPENSATE FOR A POORLY WORKING
DOOR.
OPERATION AND ADJUSTMENT INSTRUCTIONS
TESTING
19
Following installation, the operator MUST be tested and
respond correctly to all controls as specified on the wiring
diagram. Keep personnel and equipment clear of the area
beneath the door when performing the tests. When testing the
3-button wall station, first observe that each button operates the
door in the direction indicated and that the STOP button
performs that function. With the door stopped at its full open
position, the OPEN button should be inoperative. This should
be verified and, likewise, the CLOSE button should be
inoperative with the door fully closed.
Certain operator control circuits use only a single button or a
two button control station and may be designed to function
differently than the more common three-button circuit
described above. Test the controls in accordance with the
description of operation as indicated on the wiring diagram and
as selected on pages 14, 15, and 16, Operating & Set-Up
Modes.
Observe the door when traveling in each direction for
smoothness of operation. Test the setting of the clutch by
restraining the door by hand. The clutch should slip. Re-check
the limit settings. The door should close tightly at the floor
without excessive impact. Likewise, it should fully clear the
door opening without the carrier striking the stops on the rail.
The AU-S series operators are equipped with a reversing edge
circuit and to conform with code, need to be connected to a
pneumatic or foam door edge or photoelectric device. To test an
edge for proper reversal, place an object beneath the leading
edge of the door. To test a photoelectric device for proper
reversal, start the door down and obstruct the beam. The door
CAUTION
DO NOT STAND UNDER DOOR
TO TEST REVERSING EDGE
USE A CORRUGATED BOX
OR OTHER SIMILAR OBJECT
should instantly reverse when it comes into contact with the
object provided the height of the object exceeds the cut out point
built into the close limit switch (approx. four (4) inches).
If the operator is equipped with other means of control, such as
additional 3 button stations or radio controls, each of these should
be tested separately for proper operation.
Test the manual disconnect with the door in the fully closed
position. The door arm should freely fall away from the carrier
when the release chain is pulled. If it is difficult to release and the
door arm appears to be under compression, reset the CLOSE limit
slightly to reduce the travel of the carrier in the close direction.
WARNING
ALWAYS DISCONNECT POWER TO
THE OPERATOR BEFORE SERVICING,
CONNECTING ACCESSORY DEVICES
OR MAKING ADJUSTMENTS.
MAINTENANCE
Normally, very little maintenance is required. A monthly visual
inspection must be made for loose or missing hardware and for
excessive slack in the V-Belt and drawbar chain. The clutch
must be tested periodically and adjustments made if necessary
(see page 18). The brake (where applicable) is adjusted at the
factory and will need periodic adjustment for wear. When
adjustment becomes necessary see Figure 21 on page 16 for
the adjustment procedure.
Test the reversing edge circuit at least once a month by
permitting the door to contact an obstruction while closing. To
test a pneumatic or foam door edge for proper reversal, place an
object beneath the leading edge of the door. To test a
photoelectric device for proper reversal, start the door down
and obstruct the beam. The door should instantly reverse when
it comes into contact with the object provided the height of the
object exceeds the cut out point built into the close limit switch
(approx. four (4) inches).
CAUTION
DO NOT STAND UNDER DOOR
TO TEST REVERSING EDGE
USE A CORRUGATED BOX
OR OTHER SIMILAR OBJECT
Lubrication of the operator is not required. It is important, for
trouble free service from the operator, that the door be kept free
from binding, properly counter balanced and periodically
lubricated. An annual inspection of the door by a qualified
overhead door professional is recommended.
Warning: Repairs and adjustments to the door and operator
should be performed only by someone qualified to service
commercial overhead doors and operators.
20
WIRING DIAGRAM/SCHEMATIC - SINGLE PHASE
BRAKE
L1
N
GROUND
RUN
START
OVERLOAD
DEVICE
LINE
24 VAC
TRANSFORMER
LOAD
WHITE
BLACK
WHITE
WHITE
RED
BLUE
YELLOW
P4
HIGH VOLTAGE
P1
MO4
MO3
MO2
MO1
ILK
24V
COM
C13
C14
R31
EDGE
FRA
VCC
COM
24V
P6
CDOMCB 2005
c.p. ALLSTAR CORP.
TB1
CLOSE LIMIT
GREY
GREY
ORANGE
ORANGE
COM
NO
COM
NO
OPEN LIMIT
K6
TR3
R89
TR1
R48
TR2
R52
TR4
C30
S1
R58
C12
Q1
C7
D1
R8
R24
P5
COM
P2 P3
R49
R62
R47
R51
R19
R17
R13
R1
RO1
R85
R11R12
R90
R93
R4
C21
OPEN CLOSE
K4K3K5
OPERATING MODES
SW1
COM
OLS
CLS
POWE
S4
R10
R22
C16
C6
R20
R18
R14
R21
C2
R16R15
R7R6
S3
S2
S1
R82
D3
R65
C10
D2
U1
R38
R87
R3
C25
C24
C11
D8
C9
U4
R26
R29
PB3PB2PB1
SWITCH SETTINGS
MODE S1 S2 S3 S4
C2 OFF OFF OFF OFF
B2 ON
OFF
R46
R45
D1
R57
E2 ON ON OFF OFF
RADIO
24V
TS
COM
T ON OFF ON OFF
RM3
RM2
RM1
VCC
P7
R54
R55
R30
R56
ON BOARD OPEN/CLOSE/
C1C8
STOP CONTROL BUTTONS
OFF OFF OFF
OFF ON OFF OFF
OFF OFF ON OFF
STOP
OPEN
COM
YELLOW
YELLOW
SINGLE BUTTON
EXTERNAL INTERLOCK
SAFE FINISH
PHOTOBEAM
3-WIRE
PHOTOBEAM
MOTOR WIRING CHART
CDO OPERATORS WITH CDO-MCB MOTOR CONTROL SYSTEM
A.O. SMITH
SINGLE VOLTAGE - 115 VAC, 1P MOTOR
RED (AU)
BLUE (T,J,H)
YELLOW
BLUE (AU)
RED (T,J,H)
WHITE
3
2
1
4
RED
BLUE
BLACK
YELLOW
BL/BLK
BL/BLK
TO REVERSE MOTOR, SWITCH LEADS 1 & 3
RED (AU)
BLUE (T,J,H)
YELLOW
BLUE (AU)
RED (T,J,H)
BRAKE
WHITE
TO REVERSE MOTOR, SWITCH LEADS 3/4 & 2/1
L1
RED
3
4
BLUE
ORANGE
BLACK
12
WHITE
YELLOW
L2
Wire Nut Connection
208/230 VOLTS, 3 PHASE460 VOLTS, 3 PHASE
DUAL VOLTAGE MOTOR
YELLOWYELLOW
BLUE (AU)
RED (T,J,H)
RED (AU)
BLUE (T,J,H)
TO REVERSE MOTOR DIRECTION, SWITCH
ANY TWO INCOMING LEADS.
BL/BLK
BL/BLKBL/BLK
DUAL VOLTAGE MOTOR
BLUE (AU)BLUE (AU)
RED (T,J,H)
BRAKE
RED (AU)
BLUE (T,J,H)
TO REVERSE MOTOR DIRECTION, SWITCH
ANY TWO INCOMING LEADS.
BL/BLK
BL/BLK
BL/BLK
CLOSE
24 VAC
SINGLE
COM
ILOCK
COM
STOP
OPEN
NC REV
NO REV
*
CLOSE
2-WIRE EDGE
REMOVE FACTORY JUMPER
IF USING NC REV INPUT
*
STOP
SINGLE PHASE
CAPACITOR START
MOTOR - 120 VAC
RED (AU)
BLUE (T,J,H)
WHITE
BRAKE
YELLOW
TO REVERSE MOTOR, SWITCH LEADS L1 & L2
L1
3
4
L2
Wire Nut Connection
RED
BLUE
ORANGE
BLACK
WHITE
YELLOW
BL/BLK
BL/BLK
575 VOLTS, 3 PHASE
SINGLE VOLTAGE MOTOR
YELLOW
RED (T,J,H)
BRAKE
RED (AU)
BLUE (T,J,H)
TO REVERSE MOTOR DIRECTION, SWITCH
ANY TWO INCOMING LEADS.
BL/BLK
BL/BLK
DUAL VOLTAGE MOTOR - 115V 1P
BRAKE
TO REVERSE MOTOR DIRECTION, SWITCH
INCOMING LEADS TO TERMINALS 5 AND 8.
DUAL VOLTAGE MOTOR - 230V 1P
BRAKE
TO REVERSE MOTOR DIRECTION, SWITCH
INCOMING LEADS TO TERMINALS 5 AND 8.
YELLOW
BLUE (AU)
RED (T,J,H)
RED (AU)
BLUE (T,J,H)
YELLOW
RED (AU)
BLUE (T,J,H)
WHITE
WHITE
BALDOR
31
5
8
4
2
BALDOR
1
5
2
8
4
BL/BLK
BL/BLK
BL/BLK
BRAKE
3
BL/BLK
BRAKE
WIRING DIAGRAM/SCHEMATIC - THREE PHASE
21
BRAKE +
L3
L1
L2
GROUND
OVERLOAD
DEVICE
LINE
24 VAC
TRANSFORMER
LOAD
WHITE
RED
BLUE
+CONNECTION SHOWN FOR 208 &
230V - FOR 460V SEE MOTOR DIAG.
ON INSIDE OF CONT. BOX COV ER
ORANGE
P4
BLACK
WHITE
HIGH VOLTAGE
P1
MO4
MO3
MO2
MO1
R89
ILK
24V
COM
R48
C13
R52
C14
R31
EDGE
FRA
VCC
C30
COM
24V
P6
CDOMCB 2005
c.p. ALLSTA R CORP.
OVERLOAD
DEVICE
TB1
CLOSE LIMIT
GREY
GREY
ORANGE
ORANGE
COM
NO
COM
NO
OPEN LIMIT
K6
TR3
TR1
TR2
TR4
S1
R58
C12
Q1
C7
D1
R8
R24
P5
COM
P2 P3
R49
R62
R47
R51
R19
R17
R13
R1
RO1
R85
R11R12
R90
R93
R4
C21
OPEN CLOSE
K4K3K5
OPERATING MODES
SW1
COM
OLS
CLS
POWE
S4
R10
R22
C16
C6
R20
R18
R14
R21
C2
R16R15
R7R6
S3
S2
S1
R82
D3
R65
C10
D2
U1
R38
R87
R3
C25
C24
C11
D8
C9
U4
R26
R29
PB3PB2PB1
SWITCH SETTINGS
MODE S1 S2 S3 S4
C2 OFF OFF OFF OFF
B2 ON
OFF
R46
R45
D1
R57
E2 ON ON OFF OFF
RADIO
24V
TS
COM
T ON OFF ON OFF
RM3
RM2
RM1
VCC
P7
R54
R55
R30
R56
ON BOARD OPEN/CLOSE/
C1C8
STOP CONTROL BUTTONS
OFF OFF OFF
OFF ON OFF OFF
OFF OFF ON OFF
STOP
OPEN
COM
YELLOW
YELLOW
24 VAC
SINGLE BUTTON
EXTERNAL INTERLOCK
SAFE FINISH
PHOTOBEAM
3-WIRE
PHOTOBEAM
MOTOR WIRING CHART
CDO OPERATORS WITH CDO-MCB MOTOR CONTROL SYSTEM
A.O. SMITH
SINGLE VOLTAGE - 115 VAC, 1P MOTOR
RED (AU)
BLUE (T,J,H)
YELLOW
BLUE (AU)
RED (T,J,H)
WHITE
3
2
1
4
RED
BLUE
BLACK
YELLOW
BL/BLK
BL/BLK
TO REVERSE MOTOR, SWITCH LEADS 1 & 3
RED (AU)
BLUE (T,J,H)
YELLOW
BLUE (AU)
RED (T,J,H)
BRAKE
WHITE
TO REVERSE MOTOR, SWITCH LEADS 3/4 & 2/1
L1
RED
3
4
BLUE
ORANGE
BLACK
12
WHITE
YELLOW
L2
Wire Nut Connection
208/230 VOLTS, 3 PHASE460 VOLTS, 3 PHASE
DUAL VOLTAGE MOTOR
YELLOWYELLOW
BLUE (AU)
RED (T,J,H)
RED (AU)
BLUE (T,J,H)
TO REVERSE MOTOR DIRECTION, SWITCH
ANY TWO INCOMING LEADS.
BL/BLK
BL/BLKBL/BLK
DUAL VOLTAGE MOTOR
BLUE (AU)BLUE (AU)
RED (T,J,H)
BRAKE
RED (AU)
BLUE (T,J,H)
TO REVERSE MOTOR DIRECTION, SWITCH
ANY TWO INCOMING LEADS.
ILOCK
BL/BLK
BL/BLK
BL/BLK
COM
SINGLE
COM
NC REV
STOP
NO REV
*
*
RED (AU)
BLUE (T,J,H)
WHITE
BRAKE
YELLOW
TO REVERSE MOTOR, SWITCH LEADS L1 & L2
575 VOLTS, 3 PHASE
YELLOW
RED (T,J,H)
BRAKE
RED (AU)
BLUE (T,J,H)
TO REVERSE MOTOR DIRECTION, SWITCH
ANY TWO INCOMING LEADS.
L1
4
3
L2
Wire Nut Connection
SINGLE VOLTAGE MOTOR
CLOSE
OPEN
CLOSE
STOP
2-WIRE EDGE
REMOVE FACTORY JUMPER
IF USING NC REV INPUT
THREE PHASE
MOTOR
208/230/460 VAC
BL/BLK
RED
BLUE
ORANGE
BLACK
WHITE
YELLOW
BL/BLK
BL/BLK
BL/BLK
BRAKE
BRAKE
DUAL VOLTAGE MOTOR - 115V 1P
YELLOW
BLUE (AU)
RED (T,J,H)
RED (AU)
BLUE (T,J,H)
WHITE
TO REVERSE MOTOR DIRECTION, SWITCH
INCOMING LEADS TO TERMINALS 5 AND 8.
31
BL/BLK
5
8
4
2
BL/BLK
BALDOR
BALDOR
DUAL VOLTAGE MOTOR - 230V 1P
YELLOW
RED (AU)
BLUE (T,J,H)
WHITE
TO REVERSE MOTOR DIRECTION, SWITCH
INCOMING LEADS TO TERMINALS 5 AND 8.
13 107144 Primary Chain, #65, 17” with Master Link
15 105385 Brake Solenoid, 115 VAC
105386 Brake Solenoid, 230 VAC (also used on 460 VAC)
17 110042 Brake Shoe
18 106806 Brake Drum with 4L Pulley, 5/8” Bore
19 009087 V Belt, 4L350
20 009155 Clutch Pulley with Bushing, 4L
21 009028 Clutch Fiber Disk
22 100133 Clutch Plate
23 105308 Clutch Spring
24 100636 Clutch Lock Nut
25 107517 Clutch Adjusting Nut
SPECIFICATIONS
MODEL : AUD_ _ _ _S HP:_____
VOLTS : _____ PHASE : _____
* UL AND CANADIAN UL LISTED
* HIGH STARTING TORQUE, CONTINUOUS DUTY MOTOR
* MOTOR OVERLOAD PROTECTION
* CLASS 2 (24 VOLT) CONTROL CIRCUIT
* SOLENOID BRAKE (STANDARD ON 3/4 HP, OPTIONAL
ON 1/3 HP AND 1/2 HP)
* SOLID STATE MOTOR CONTROL CIRCUITRY WITH
ADVANCED OPERATIONAL FEATURES STANDARD
* THREE BUTTON CONTROL: OPEN, CLOSE, STOP
* WIRED TO ACCEPT REVERSING EDGE INPUT
* HEAVY GAUGE, POWDER-COATED STEEL FRAME
RAILS AND CONTROL BOX
* ALL SPROCKETS AND PULLEYS PINNED OR KEYED,
SOLID STEEL DRIVE SHAFTS
* FULLY ADJUSTABLE FRICTION CLUTCH
* MANUAL DOOR DISCONNECT
* FULLY ADJUSTABLE, INTERNAL, SHAFT DRIVEN LIMITS
24
Manufacturer’s Limited Warranty
Linear LLC warrants its Allstar brand commercial door operators to be free from defect in material and workmanship for a period of two (2)
years from the date of purchase. To obtain service contact your dealer.
To obtain service under this warranty the buyer must obtain authorization instructions for the return of any goods from Linear before
returning the goods. The goods must be returned with complete identification, with copy of proof-of-purchase, freight prepaid and in
accordance with Linear’s instructions or they will not be accepted. In no event will Linear be responsible for goods returned without proper
authorization or identification.
Goods returned to Linear for warranty repair within the warranty period, which upon receipt by Linear are confirmed to be defective and
covered by this limited warranty, will be repaired or replaced at Linear’s sole option, at no cost and returned pre-paid. Defective parts will
be repaired or replaced with new or factory rebuilt parts at Linear’s sole option.
This limited warranty does not cover non-defect damage, damage caused by unreasonable use, damage caused by improper installation or
care, vandalism or lightning, fire or excessive heat, flood or other acts of God (including, but not limited to misuse, abuse or alterations,
failure to provide reasonable and necessary maintenance), labor charges for dismantling or reinstalling a repaired or replaced unit, or
replacement batteries.
These warranties are in lieu of all other warranties, either expressed or implied. All implied warranties of merchantability and/or fitness for a
particular purpose are hereby disclaimed and excluded. Under no circumstances shall Linear be liable for consequential, incidental or special
damages arising in connection with the use or inability to use this product. In no event shall Linear’s liability for breach of warranty, breach
of contract, negligence or strict liability exceed the cost of the product covered hereby. No person is authorized to assume for Linear any
other liability in connection with the sale of this product.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Warranty effective after
October 1st 2007.
