ARX GRAPHIC EQUALIZER OWNER’S MANUAL

INTERNATIONAL LIMITED WARRANTY

ARX Systems (ARX) warrants to the first purchaser of any ARX equipment that it is free from defects in materials and workmanship under normal use and service. ARX’s sole obligation under this warranty shall be to provide, without charge, parts and labour necessary to remedy defects, if any, which appear within twelve (12) months from date of purchase, and for a further twelve (12) months supply parts only.

This is our only warranty. It does not cover finish or appearance items, or if the equipment has been, in ARX’s sole judgement:

•Subjected to misuse, abuse, negligence or accident;

•Repaired, worked on, or altered by persons not authorized by ARX;

•Connected, installed, adjusted or used for a purpose other than that for which it was designed.

This warranty gives you and us specific legal rights and you may also have other rights which may apply.

GRAPHIC

EQUALIZER

OWNER’S

Warranty Service Procedure

Should it become necessary to have your equipment serviced under the terms of the warranty, please follow these steps:

1. Call your ARX distributor for a Return Authorization (RA) number;

2. Carefully repack the unit, in its original packaging where possible, including a note with a description of the problem, and a copy of the receipt showing date of purchase. Attach these to the actual unit itself. Don’t forget to write your name and address clearly, and include a phone number where you can be contacted during normal business hours. Make it easy for our service technicians to contact you if they have a question. Also, use plenty of packing material - better to be safe than sorry.

3. Send the unit freight prepaid to ARX Systems, at the address given you with your RA number. We will pay the return freight when the serviced unit is returned to you.

4. We strongly recommend you insure the package. We can’t fix it if it gets lost! Send it by UPS, Fedex, or any similar service that can track the package. Parcel Post is not recommended

If Warranty Registration Card is missing, please write to ARX in the country of purchase, stating model and where purchased, or to ARX, PO Box 15, Cheltenham, Victoria 3192, Australia.

Or you can Email us at: info@arx.com.au

MANUAL

ARX Systems Pty Ltd, PO Box 15,

Cheltenham, Victoria 3192, Australia

Phone: 03 - 9555 7859 Fax: 03 - 9555 6747

International Fax: +61-3 -9555 6747

On the Web: http://www.arx.com.au

Email: info@arx.com.au

IMPORTANT -

This is a dual voltage unit. It is essential that you check that the voltage

on the fuseholder cover below the AC connector on the rear of the chassis

is set correctly before connecting it to AC power.

THIS IS SET FOR

100 V AC TO 120 V

AC OPERATION

To change, pull fuseholder out and rotate 180o, then push in again. Do not insert power cable into unit until voltage has been correctly set. Do not plug power cable into AC power until voltage has been correctly set

PLEASE READ THIS FIRST

THIS IS SET FOR

220 V AC TO 240 V

AC OPERATION

WARNING SYMBOLS USED ON THIS EQUIPMENT

This symbol is intended to alert you to the presence of important operating instructions contained in this owner's manual

This symbol is intended to alert you to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

This symbol indicates that a Slow Blow fuse is used in this equipment. Replace with same type and value only

Complies with 89/336/EEC Electromagnetic Compatibility Directive, amended by 92/31/ EEC and 93/68/EEC and meets the following standards:EN 55013 : 1990, Sections

3.2 and 3.5 EN 55020 : 1988, Sections 4.3,

5.4, 6.2, 7.0, 8.0.

EQ15 Specifications

Input Impedance Balanced 20 K ohms

Unbalanced 10 K ohms Input Headroom + 23 dB CMRR >52 dB, 20 Hz to 20KHz Output Impedance Balanced 300 ohms

Unbalanced 150 ohms Output Level (Max) + 23 dB Filter Two thirds octave, 15 x ISO standard

frequencies per channel Filter Type R/C active, MFB bandpass, Constant Q Centre Frequency accuracy ±2% of nominal Maximum Cut/Boost ±15 or 6 dB, switchable Frequency Response 10 Hz to 20 KHz, ±.25 dB Signal to Noise ratio -93 dB Unweighted

-98 dB ‘A’ weighted

(All controls centred) High Pass Filter -3dB @ 30 Hz, switchable Distortion .0035% THD @ 0dB,1KHz Dynamic Range 116 dB

Power Requirements 100/120 V AC 50 - 60 Hz

220/240 V AC 50 - 60 Hz

20 Watts (20 VA) Weight 8 lbs/3.75 Kg Dimensions 19"W x 3½"H x 9"D

482 x 89 x 230mm Input Connector type Jack and XLR Output Connector type Jack and XLR

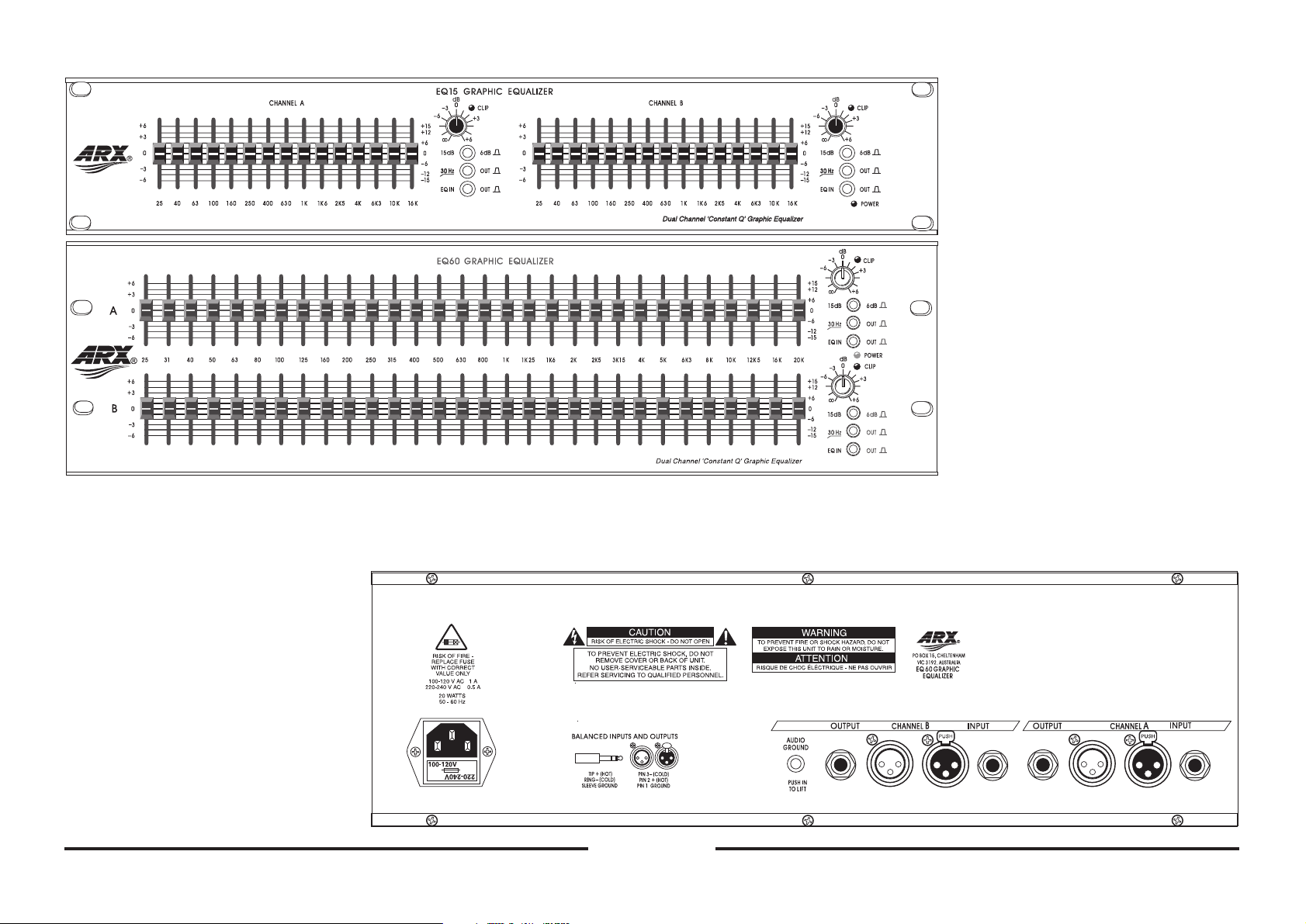

Rear Panel Connectors

Front Panel Controls

1. 15 or 30 maximum throw, well damped, centre grounding sliders per channel, on standard ISO frequencies

2. Clip LED indicates onset of clipping, monitored at all vital stages throughout the EQ circuitry

3. Input Gain control, from infinity through 0dB to +6dB

4. 15 dB/6 dB EQ range switch

5. 30 Hz High Pass Filter IN/OUT switch

6. Equalizer IN/OUT switch

7. Power LED indicates Equalizer is connected to AC power

• Balanced Input TRS socket Channel A. Tip HOT, Ring COLD,-Sleeve GROUND

• Balanced Input XLR type Channel A.

Pin 2 HOT, Pin 3 COLD, Pin 1 GROUND

• Balanced Output XLR type Channel A (same wiring as Input)

• Balanced Output TRS socket Channel A (same wiring as Input)

• Audio Ground Lift switch

Channel B connectors identical to Channel A

• IEC 3 pin AC connector and integral fuseholder. Replace fuse with correct

value only: 100 - 120 V AC 1 amp, 220-240

V AC 0.5 amp. Please also refer to voltage

details on Page 2

EQ60 Specifications

Input Impedance Balanced 20 K ohms

Unbalanced 10 K ohms Input Headroom + 23 dB CMRR >52 dB, 20 Hz to 20KHz Output Impedance Balanced 300 ohms

Unbalanced 150 ohms Output Level (Max) + 23 dB Filter One third octave, 30 x ISO standard

-98 dB ‘A’ weighted

(All controls centred) High Pass Filter -3dB @ 30 Hz, switchable Distortion .0035% THD @ 0dB,1KHz Dynamic Range 116 dB

Power Requirements 100/120 V AC 50 - 60 Hz

220/240 V AC 50 - 60 Hz

20 Watts (20 VA) Weight 10 lbs/4.5 Kg Dimensions 19"W x 5¼"H x 9"D

482 x 132 x 230mm Input Connector type TRS Jack and XLR Output Connector type TRS Jack and XLR

EQ30 specifications electronically identical except that it’s a single channel unit

Introduction

Thank you for choosing this ARX Graphic Equalizer. We hope you enjoy using it as much as we enjoyed creating it. As with all ARX equipment, it has undergone extensive factory calibration and ‘burn in’ before shipping. To ensure continued trouble free use, please familiarise yourself with the contents of this manual before using.

About ARX Graphic Equalizers

ARX graphic equalizers are designed to give flawless performance, yet take up the minimal rack space commensurate with total operator control. The EQ30 and EQ60 are uncompromisingly professional third octave equalizers that are equally at home with applications ranging from Compact Disc mastering and Broadcasting to high level Studio room tuning and Concert Sound. The EQ15 is targeted at installations where the program material is predominantly pre-recorded and pre-processed, such as Disco and Karaoke, or where budget constraints preclude the use of a dual 30 band equalizer.

Rigorous analysis and testing of equalizer requirements, and the limitations of existing designs, has led ARX design engineers to develop and refine the innovative ‘Constant Q’ circuitry featured in these equalizers. Constant Q is a true WYSIWYG (What You See Is What You Get) design concept that allows far more accuracy in EQ control.

Each channel has a Gain recovery control with up to 6 dB of gain; a Clip LED to indicate circuit overload; 30 or 15 maximum throw, well damped, centre grounding sliders, switchable to either +/-15 dB, or +/-6 dB for accurate fine tuning. As well there is a switchable 30 Hz High Pass filter, and an IN/OUT hardwire bypass switch which removes the EQ completely from the circuitry.

Other features include true differential balanced Inputs and servo balanced Outputs on both XLR and TRS connectors, plus an audio ground lift switch.

With their compact High Density design, cool good looks, and precision electronics, ARX Graphic Equalizers provide attractive solutions for all equalization applications.
