Arrow Sheds AR1012 User Manual

Owner's Manual & Assembly Instructions

SR01

Model No. AR1012-B

CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES

712761102

BUILDING DIMENSIONS

Exterior Dimensions Interior Dimensions Door
*Approx. Foundation Storage Area (Roof Edge to Roof Edge) (Wall to Wall) Opening
Size Size Sq. Ft. Cu. Ft. Width Depth Height Width Depth Height Width Height

10' x 12' 121" x 143 1/4" 115 686 123 1/4" 145 3/4" 81 3/8" 118 1/4" 140 1/2" 80 1/8" 55 1/2" 60"

3,0m x 3,6m 307cm x 364cm 10,7m2 19,4m3 313cm 370cm 207cm 300cm 357cm 204cm 141cm 152cm

* Size rounded off to the nearest foot

TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.

BEFORE YOU BEGIN....

A2

Owner's Manual

Before beginning construction, check local building codes regarding footings, location
and other requirements. Study and understand this owner's manual.
Important information and helpful tips will make your construction easier and more
enjoyable.

Assembly Instructions: Instructions are supplied in this manual and contain all

appropriate information for your building model. Review all instructions before you begin,
and during assembly, follow the step sequence carefully for correct results.

Foundation and Anchoring: Your storage building must be anchored to pre vent wind

damage. A f oundation is also necessary as a base in order to construct a square and lev el
building. Anchoring and foundation materials are not included with your building. We
recommend the combined use of an Arrow Floor Foundation Kit and an Arrow
Anchoring Kit as an effective method of secur ing your building to the ground (Available
by mail order or at your local dealer) or you may construct the foundation and anchoring
system of your choice. Your assembly instructions provide information on a few methods
commonly used to secure and level a storage building.

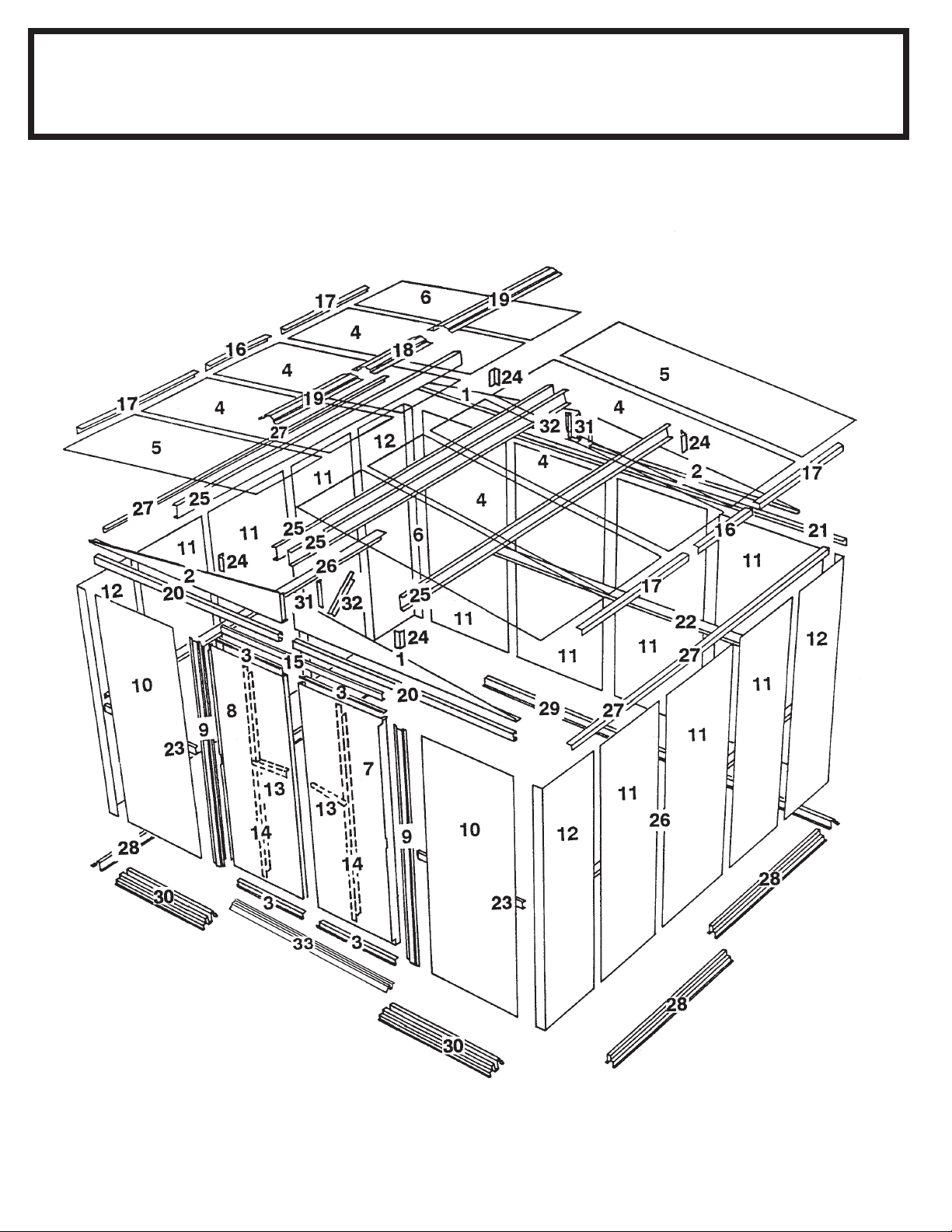

Parts and Parts List: Check to be sure that you have all the necessary parts for your

building.

•All part numbers can be found on the parts. All of these numbers (before the -) must agree with the
numbers on the parts list. The parts list is located on page 12.

•If you find that a part is missing, include the model number of your building and contact:

Arrow Group Industries, Inc. Customer Service Department
Route 50 East Breese, Illinois 62230
1-800-851-1085

•Separate contents of the carton by the part number while reviewing parts list. The first few steps
show how to join related parts to make larger sub assemblies which will be used later.

•Familiarize yourself with the hardware and fasteners for easier use during construction. These are
packaged within the carton. Note that extra fasteners have been supplied for your convenience.

2

PLAN AHEAD....

A3

W atch the W eather: Be sure the da y you select to install y our building is dry and calm.

Do not attempt to assemble your building on a windy day. Be careful on wet or muddy
ground.

Teamwork: Whenever possible, two or more people should work together to assemble

your building. One person can position parts or panels while the other is able to handle
the fasteners and the tools.

Tools and Materials: These are some basic tools and materials you will need for the

construction of your building. Decide which method of anchoring and the type of
foundation you wish to use in order to form a complete list of the mater ials you will need.

Required

• Eye Goggles

• No. 2 Phillips Screwdriver

(With Hardened Magnetic Tip)
Note: A power screwdriver or vari­able speed drill with Phillips-tip at­tachment can speed assembly by
as much as 40%.

• Work Gloves

• Step Ladder

• Utility Knife / Scissors

• Pliers

• Carpenter's Level

• Tape Measure

Required

Optional Time-Savers

• Wrench / Nut Driver

• Electric / Cordless Drill

• Square

• String (for squaring frame)

Foundation Preparation

• Hammer and Nails

• Spade or Shovel

• Hand Saw / Power Saw

• Lumber and/or Concrete

Selecting and Preparing Your Site: Before assembly, you will want to decide on

a location for your building. The best location is a level area with good drainage.

•Allow enough working space for ease of moving parts into position during assembly. Be sure there
will be enough space at entrance for doors to open fully and enough space around the building to
be able to fasten the panel screws from the outside.

•Before you begin the first steps in assembling your parts, a foundation should be constructed and
an anchoring system should be ready to use.

3

SAFETY FIRST....

A4

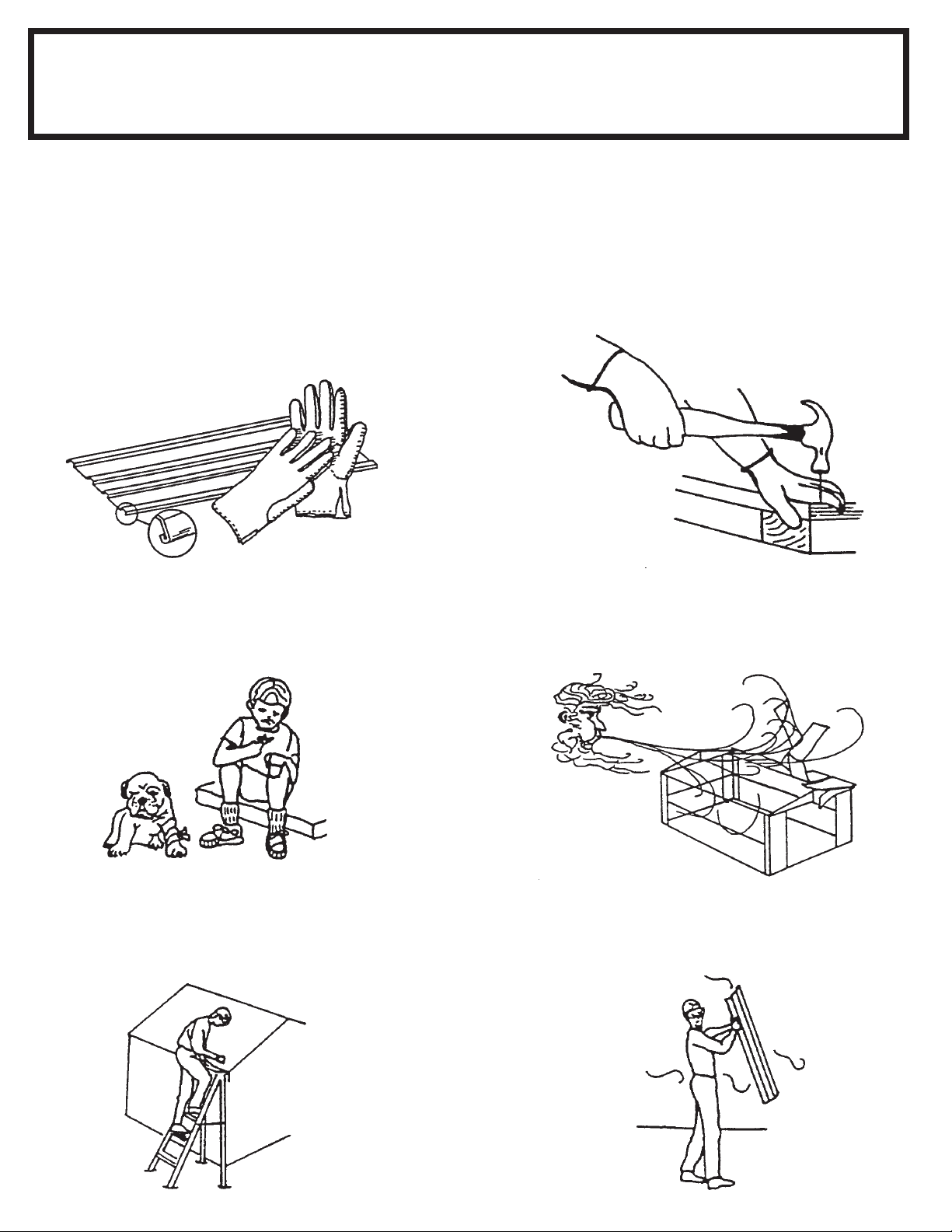

Safety precautions are important to follow throughout the construction of your building.

•Care must be taken when handling various
pieces of your building since some contain
sharp edges. Please wear work gloves, eye
protection and long sleeves when assembling
or performing any maintenance on your build­ing.

safety edge

sharp edge

sharp edge

safety edge

•Keep children and pets away from worksite to
avoid distractions and any accidents which
may occur.

•Practice caution with the tools being used in the
assembly of this building. Be familiar with the
operation of all power tools.

•Do not attempt to assemble the building if parts
are missing because any building left partially
assembled may be seriously damaged by light
winds. Call 1-800-851-1085

•Never concentrate your total weight on the
roof of the building. When using a step ladder
make sure that it is fully open and on even
ground before climbing on it.

4

•Do not attempt to assemble the building on a
windy day, because the large panels acting as a
"sail", can be whipped about by the wind making
construction difficult and unsafe.

CARE & MAINTENANCE....

A5 Web

Finish: For long lasting finish, periodically clean and wax the exter ior surface. Touch-

up scratches as soon as you notice them on your unit. Immediately clean the area with
a wire brush; wash it and apply touch-up paint per manufacturer's recommendation.

Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy

amounts of snow on roof can damage building making it unsafe to enter. In snow country,
Roof Strengthening Kits are available for most Arrow Buildings for added protection
against heavy snow accumulation.

Doors: Alwa ys k eep the door tr acks clear of dirt and other debris that prevent them from

sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep
doors closed and locked to prevent wind damage.

Fasteners: Use all washers supplied to protect against weather infiltration and to protect

the metal from being scratched by screws . Regularly check your building f or loose scre ws ,
bolts, nuts, etc. and retighten them as necessary.

Moisture: A plastic sheet (vapor barrier) placed under the entire floor area with good

ventilation will reduce condensation.

Other Tips....

• Wash off inked part numbers on coated panels with soap and water.

• Silicone caulking may be used for watertight seals throughout the building.

Do not store swimming pool chemicals in your building. Combustibles and
corrosives must be stored in air tight approved containers.

Keep this Owner's Manual and Assembly Instructions for future reference.

5

ACCESSORIES....

A6 WEB

ROOF STRENGTHENING (heavy snow load) KITS Extra roof beams and gable braces

designed for added protection against heavy snow accumulation. Increases the strength of your roof by 50%.

ANCHOR KIT

ANCHOR KIT

Model No. AK4

Anchor Kit contains heavy-duty steel
augers, 60' (18m) of steel cable and 4 cable
clamps. No digging or concrete
pouring, just insert cable under roof,
over roof beams, into augers and twist
augers into the ground. For buildings

larger than 10'x9', use 2 kits.

Model No. AK100

New concrete anchor system permits
anchoring any size Arrow building
directly to a concrete slab. Each kit
contains heavy-duty, hot-dipped
galvanized steel corner gussets and
perimeter clips which fit over the floor
frame and lag bolt into a concrete slab.
Full assembly instructions and a 1/4"
masonary drill bit are included.

FLOOR FOUNDATION KITS

MODELS FB47410, FB5465, FB106-A

FB109-A, FB1010 AND FB1014-A

A simple new floor frame system made of heavy-duty, hot-dipped
galvanized steel. Use as foundation for plywood, sand or stone.

TOOL HANGING RACK

Model No. TH100

The perfect tool organizer. Twin
25 1/2" (65cm) steel channels
plus five heavy-duty snap-in
hangers and a small tool holder for
screwdrivers, pliers, etc. Holders
slide along channel for fully
adjustable spacing. Great for
garage, basement, or the back
of any door. Fits all Arrow
storage buildings.

6

ATTIC KIT / WORKBENCH KIT

Heavy-duty galvanized steel bars that
fit all 10' wide Arrow buildings. They
install quickly and easily to help
organize space and create more
useable space as an attic or
workbench. Will hold up to 250 lbs.
(113kg) evenly distributed.

Model No. Fits Shipping Weight

10' Long, 250 lb. (113kg) load+

Fits all Arrow 10' wide buildings.

Must be drilled for use as workbench in Estator.
+ Even weight distribution.

16 lbs. (7kg)AT101

SHELF UNITS

Heavy-duty, galvanized steel shelf units help organize storage
space. They easily mount on the wall or sit on the floor. Fits all
Arrow buildings.*

Model No. SS404

• Makes 8" to 12" (20-30cm)
wide shelves in any length.

• Brackets, braces,
hardware included.
Lumber is not included.

* Some drilling required to fit buildings without mid-wall bracing.

Model No. SS900-A

• Grey color

• 3 shelves

• Holds up to 85 lbs. (38kg)
(even weight distribution)

THIS

PAGE

WAS

LEFT

BLANK

INTENTIONALLY

7

THIS

PAGE

WAS

LEFT

BLANK

INTENTIONALLY

8

Foundation

AQ9

The Foundation For Your Building

OPTION 1: ARROW FLOOR FOUNDATION KIT: (Order No. FB1014-A or 68387-A)

Arrow has the best base for your building in this simple kit. It keeps stored items above the ground .
This foundation should be used with one of the following:

A. To support a plywood deck B. To be filled with sand. We recommend the combined use of

1. an ARROW FLOOR FOUNDATION KIT and 2. an ARROW ANCHORING KIT as an effective method of securing the building to the
ground. Allow 1 - 2 hours for construction.

OPTION 2: Wood Platform

If you decide to build your own foundation, be sure to select the appropriate materials.
These are the recommended materials for your foundation:

● 2 x 4's (5cm x 10cm) Pressure Treated Lumber ● 5/8" (1,5cm) 4 x 8 (122cm x 244cm) Plywood-exterior grade

● 10 & 4 penny Galvanized Nails ● Concrete Blocks (optional)

The platform should be level and flat (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.

To construct the foundation follow instructions and diagram.

Construct frame (using 10 penny galvanized nails)
Measure 16"/24" (40,6cm/61cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)

Allow 6 - 7 hours for construction.

OPTION 3: Concrete Slab

The slab should be at least 3" to 4" (8-10cm) thick. It must be level and flat to provide good support for the frame.
The following are the recommended materials for your foundation.

● 1 x 4's (2,5cm x 10cm) (will be removed once the concrete cures)

● Concrete ● Sheet of 6 mil plastic

● We recommend for a proper strength concrete to use a mix of:
1 part cement ● 3 parts pea sized gravel ● 2 1/2 parts clean sand

Prepare the Site/Construct a Foundation

1. Dig a square, 6" (15cm) deep into the ground (remove grass).

2. Fill up to 4" (10cm) in the square with gravel and tamp firm.

3. Cover gravel with a sheet of 6 mil plastic.

4. Construct a wood frame using four planks of 1x4 (2,5cm x 10cm)
lumber.

5. Pour in concrete to fill in the hole and the frame giving a
total of 4" (8-10cm) thick concrete. Be sure surface is level.

Allow 3 - 5 hours for construction and a week for concrete curing time.

FRONT

(DOOR)

Note: Platform/Slab will extend 9/16" (1,4cm) beyond floor

frame on all four sides. Seal this 9/16" of wood with a

roofing cement (not included), or bevel this 9/16" of

concrete when pouring, for good water drainage.

FRONT

(DOOR)

16"/24"

40,6cm/61cm

121"

3,1m

121"

3,1m

Note: Finished Slab dimensions, with lumber removed.

143 1/4"

3,6m

143 1/4"

3,6m

9

Anchoring

A10

Anchoring Down The Building

It is important that the entire floor frame be anchored after the building is erected.

Below are recommended ways of anchoring.

Arrow Anchoring Kit: (Model No. AK4 or 60298)

Recommended for use with any suggested base.
Contains: 4 Anchors with Cable, Clamps and

installation instruction.

Anchoring into Wood/Post:

Use 1/4" Wood Screws. There are 1/4" (0,63cm) dia.
holes provided in the frames for proper anchoring.

1. 2.

OVER THE BEAMS

AND INTO THE GROUND

Arrow Anchoring Kit: (Model No. AK100 or 68383)

Recommended for use with the concrete foundation.
Contains: Corner gussets, perimeter clips, hardware,

1/4" masonary drill bit and installation instruction.

Anchoring into Concrete:

1. For poured concrete slab or footing or patio blocks:
Use 1/4" x 2" Lag Screws.

2. For Anchor Post of Concrete poured after building is
erected: Use 1/4" x 6" Lag Screws.

1.

2.

10

SR11

#8-32 Hex Nut (184)

65103

Hardware

Remove from bag of screws

and save for the last step

65900A

#10Bx1/2" Black Screw (4)

(Packed with Screws)

65923

#8-32x3/8" Bolt (184)

65004

#8Ax5/16" Screw (416)

66045

Handle (2)

66242

Door Slide (4)

66646

Washer (429)

(11 sheets of 40)

66382

Lower Door Guide (4)

65109

#8-32 Acorn Nut (4)

(Packed with Screws)

66183

Roof Trim Cap

(2 right & 2 left)

67468

Peak Cap (2)

(Arrow Logo)

67545

Weather Stripping (1)

6228

Track Support (2)

11

SR12

Parts List

Parts in Carton One

Assembly Part Part Quantity Check
Key No. Number Description in Carton List
1 8576 Right Gable 2
2 8577 Left Gable 2
3 6264 Horizontal Door Brace 4
4 7743 Roof Panel 6
5 9086 Right Roof Panel 2
6 9087 Left Roof Panel 2
7 8538 Right Door 1
8 8539 Left Door 1
9 9369 Door Jamb 2
10 9373 Front Wall Panel 2
11 6515 Wall Panel 10
12 6514 Corner Panel 4
13 3719 Door Handle Brace 2
14 6278 Vertical Door Brace 2
15 6403 Door Track Splice 1
16 6014 Side Roof Trim 2
17 6015 Side Roof Trim 4
18 6868 Ridge Cap 1
19 6869 Ridge Cap 2
20 9366 Door Track 2

Parts in Carton Two
Assembly Part Part Quantity Check
Key No. Number Description in Carton List
21 5986 Rear Wall Angle 2
22 10389 Rear Wall Channel 2
23 9365 Front Wall Channel 2
24 6635 Roof Beam Bracket 4
25 10397 Roof Beam 8
26 10390 Side Wall Channel 4

12

27 10394 Side Wall Angle 4
28 10392 Side Floor Frame 4
29 8936 Rear Floor Frame 2
30 9367 Front Floor Frame 2
31 9009 Gable Brace 2
32 9204 Roof Beam Brace 2
33 8934 Ramp 1

SR13

Assembly by Key No.

13

Step 1

SV14

The front floor frame is made up of
three pieces. The side floor frames
and the rear floor frame are made up
of two pieces. The holes in these
pieces will align when the pieces are
positioned with correct amount of
overlap. The illustrations below show
the proper overall length for the sides,
rear and front. Proceed as follows:

● Parts Needed For ●

Floor Frame Assemblies

9367

8934

10392

●●

● 8934 Ramp (1)

●●

●●

● 9367 Front Floor Frame (2)

●●

●●

● 8936 Rear Floor Frame (2)

●●

●●

● 10392 Side Floor Frame (4)

●●

9367

8936

1 Place the front floor frames as

shown. Center the ramp, with drain
holes facing outside, on top of the two
front floor frames. Join the frames by
inserting eight screws.

2 Overlap the side floor frames and

the rear floor frames as shown. The
holes in these pieces will align when
the pieces are positioned with cor­rect amount of overlap. See the illus­trations below for the proper overall
length of the side and rear floor frames.
Join the frames by inserting four/five
bolts into each frame set as shown.

3 Double check the length of each

and set these pieces aside for later
use.

STEP

1

STEP

2

9367

10392

8934

DRAIN HOLES FACE

OUTSIDE

Side Floor Frame 141 5/8" 3,6m

10392

Rear Floor Frame 119 3/8"

8936 8936

Front Floor

Frame Assembly

119 3/8" 3,0m

9367

3,0m

14

STEP

3

141 5/8" 3,6m

Sides

141 5/8" 3,6m

119 3/8" 3,0m

Front & Rear

119 3/8" 3,0m

Step 2

SR15

The main frame pieces reinforce the
walls. These pieces will later be in­stalled in the center and at the top
edge of the side walls and the rear
wall. Proceed as follows:

1 Overlap the rear wall channel

pieces as shown in the figure and
fasten the two pieces together with

eight bolts

as shown.

● Parts Needed For ●

Frame Assemblies

10389

10390

●●

● 5986 Rear Wall Angle (2)

●●

●●

● 10389 Rear Wall Channel (2)

●●

●●

● 10390 Side Wall Channel (4)

●●

● ●

● 10394 Side Wall Angle (4)

● ●

Rear Wall Channel

118 1/8" 3,0m

10389

Side Wall Channels

140 3/8" 3,6m

2 Make two side wall channels by

overlapping the side wall channel
pieces as shown. Fasten each set
together with

eight bolts

as shown.

3 Overlap the rear wall angle

pieces as shown in the figure and
fasten them together with

one bolt in

the center hole.

4 Make two side wall angles by

overlapping the side wall angle
pieces as shown. Fasten each set
together with

ond large hole from the end of each
part.

one bolt thru the sec-

STEP

1

STEP

3

STEP

5986

STEP

10390

2

Rear Wall Angle
118 1/8" 3,0m

5986

10394

10394

Side Wall Angles

140 3/8" 3,6m

4

Rear Wall Channel 118 1/8" 3,0m
Side Wall Channels 140 3/8" 3,6m (2 Assemblies)

5 Set the assemblies aside. You will

use them later.

Rear Wall Angle 118 1/8" 3,0m
Side Wall Angles 140 3/8" 3,6m (2 Assemblies)

STEP

5

15

Step 3

SV16

The roof beams join the two gables
and support the roof panels. The main
roof beam is made up of four pieces
overlapped back to back at the cen­ter. The left and right roof beam as­semblies are made up of two pieces.
Hint: These pieces are force-fitted,
so you may have to press hard to join
them together.

● Parts Needed For ●

Roof Beam Assemblies

10397

●●

● 10397 Roof Beam (8)

●●

10397

1 Place one end of a roof beam

inside another roof beam so that the
six holes in each piece align. Make
four sets of roof beams by repeating
this procedure.

Do not insert bolts

yet.

2 Take two of the pressed-together

roof beams and join them as shown
to form the main roof beam assembly.
Hold the assembly together and fas­ten with 14 bolts. Build

only one

Doubled Beam Assembly.

3 Fasten the other two pressed-

together roof beams with eight bolts
to make the left and right roof beam
assemblies.

STEP

1

STEP

2

STEP

Assembled

End

View

142 3/8" 3,6m

Build

one

Doubled Main Roof

Beam Assembly for Peak in Roof

4 Set these pieces aside for later

assembly.

16

Build

3

two

Single Beam

Assemblies

142 3/8"
3,6m

142 3/8"
3,6m

Step 4

SO17

The door track assembly supports
the sliding doors and reinforces the
front wall. It is made up of three pieces.

1 Using the door track splice,

(painted), join the door track
(galvanized) pieces end-to-end as
shown.

2 Insert four screws

side only.

Hint: The holes in the top side of the
door track assembly are for fastening
the gable to the top of the front wall in
a later step.

from the under-

● Parts Needed For ●

Door Track Assembly

Door Track Splice (painted part)

6403

9366

9366

STEP

1

STEP

2

6403

NOTE:

●●

● 6403 Door Track Splice (1)

●●

●●

● 9366 Door Track (2)

●●

66242

Long Leg
on Top

Short Leg
on Bottom

9366

3 Position door slides onto the legs,

from the end of door track
assembly, as shown in the end view.
NOTE: Flat side on top, pins and
holes

must

be oriented as shown.

4 Set this piece aside for later use.

END VIEW

66242

118 1/8" 3m

STEP

3

118 1/8" 3m

118 1/8" 3m

9366

STEP

4

17

Step 5

SW18

● Parts Needed For ●

Floor Frame

●●

● Front Floor Assembly (1)

●●

●●

● Side Floor Assembly (2)

●●

●●

● Rear Floor Assembly (1)

●●

RIGHT
REAR

10392

1 Place the floor frame pieces that

you assembled earlier on the foun­dation. Assemble the four corners of
the floor frame using two screws at
each corner as shown. At the front
corners fasten bolts through from
the bottom with nuts on top.

2 Measure the floor frame diago-

nally. When the diagonal measure­ments are equal, the floor frame is
square.

NOTE

If using a wood platform or

concrete slab do not fasten the

floor frames to your base at this

time. You will anchor the

building after it is erected.

STEP

1

FRONT

8936

RIGHT
FRONT

10392

9367

When Diagonal Measurements
are Equal the Floor Frame
is Square.

STEP

2

Level

NOTE

If you have purchased a Floor

Foundation Kit you need to

install it at this time.

The floor frame

and level

18

or holes will not align.

must be square

Step 6

SR19

● Parts Needed For ●

Corners

●●

● 6515 Wall Panel (2)

●●

●●

● 9373 Front Wall Panel (2)

●●

●●

● 6514 Corner Panel (4)

●●

NOTE

The remainder of the building assembly

requires many hours and more than one

person. Do not continue beyond this point

if you do not have enough time to com-

plete the assembly today. A partially

assembled building can be severely

damaged by light winds.

Each screw and bolt in the wall re­quires a washer.

1 Position a corner panel at the

corner of the floor frame as shown.
The widest part of each corner panel
must be placed along the side of the
building for all four corners. Fasten
the corner panel to the floor frame
with one screw.

Support the corner panel with a step
ladder until a wall panel is attached.

STEP

1

SIDE

6514

6514

Wide Side

6515

Narrow
Side

REAR

TOP VIEW

FRONT

6514

SIDE

6514

6515

2 Attach the front wall panels to the

front corner panels, as shown. A small
gap will exist between front wall panel
and ramp.

3 Attach the wall panels to the rear

corner panels, as shown.

NOTE

Be careful to install the correct

panel in each position as shown

4 Double-check the part numbers of

the wall panels, before proceeding.

The floor frame

and level

or holes will not align.

must be square

STEP

4

9373

6514

9373

STEP

2

6514

STEP

3

6515

9373

6515

6514

6514

Crimped Rib
Underneath

Panels rest on
frame as shown

9373

Washer

19

Step 7

SR20

The mid frame pieces give rigidity to
the side and rear walls.

1 Fasten the rear wall channel

across the middle of the rear wall
using screws.

2 Fasten the side wall channels

across the middle of the side panels
using screws. Fasten overlaps in
rear corners with bolts and nuts, at
two locations. See the figure.

● Parts Needed For ●

Mid Frames

●●

● Rear Wall Channel Assembly (1)

●●

●●

● Side Wall Channel Assembly (2)

●●

NOTE

The wall channels behind the

front wall panels will be installed

in a later step.

STEP

2

10390

STEP

1

10389

20

FRONT

Step 8

SR21

The top frame pieces give rigidity to
the walls and provide a surface for
attaching the gables which support
the roof.

1 Fasten the rear wall angle across

the inside top of the rear wall using
screws.

2 Fasten the side wall angles across

the inside top of the side panels us­ing screws. Side wall angles must
overlap rear wall angle in corners.

3 Fasten the door track assembly

(holes on top) across the top of the
front wall panels using screws. See
the figure.

STEP

● Parts Needed For ●

Top Frames

Wall Angles
Must Face
Inside
Building

5986

STEP

1

●●

● Door Track Assembly (1)

●●

●●

● Rear Wall Angle Assembly (1)

●●

●●

● Side Wall Angle Assembly (2)

●●

Long Leg

on Top

Opening
facing in

STEP

3

9366

2

10394

DOOR TRACK ASSEMBLY

Short Leg
on Bottom

FRONT

21

Step 9

SR22

Each wall panel has a crimped rib on
one side. The crimped rib should go
under the rib of the panel that follows
it.

1 Locate all of the wall panels and

set each one alongside the building.

2 Fasten the wall panels at the top

and bottom with screws.

3 Fasten the center of each panel to

the wall channel with screws.

● Parts Needed For ●

Wall Panels

Crimped Rib
Underneath

●●

● 6515 Wall Panel (8)

●●

STEP

4

6515

Detail Showing
Center of Panel
Screwed to
Wall Channel

STEP

2

4 Fasten overlapping ribs as before.

Panels rest on
frame as shown

6515

STEP

STEP

1

Bolt and nut
does not go

3

thru wall
channel at
overlap

22

Use bolts and nuts
thru wall angle
overlap at the top
of panel at rear.

Step 10

SO23

Front Channel/Door Jamb

The door jambs reinforce the door
opening and provide an attractive
trim. Follow these steps for both
door jambs.

● Parts Needed For ●

9365

●●

● 9369 Door Jamb (2)

●●

●●

● 9365 Front Wall Channel (2)

●●

1 Fasten the front wall channels

in their positions between the end of
the side wall channel and the cor­ner panel using screws. Do not put
a screw in the hole at the end be­hind the door opening at this time.

2 Fasten a door jamb to the front

panel with two bolts, nuts and acorn
nuts, as shown.

3 Fasten the center of the door

jamb to the front wall panel and the
front wall channel with two screws.

Acorn Nut

Hex Nut

Acorn Nut

STEP

1

STEP

2

9369

FRONT

FRONT

INSIDE OF
BUILDING

(2) bolts

Bolt

Screw

TOP VIEW

Door Track

TOP VIEW

Front Wall Channel

9369

Front Wall Channel
Cross-Section
Top View

Screw

STEP

3

4 Fasten the top of the door jamb to

the door track with two screws. Do
the same for the bottom into frame.

Repeat steps 2 through 4 for the

opposite

door jamb.

STEP

4

Screw

TOP VIEW

Door Track

Screw

23

Step 11

SR24

The gables go on top of the front and
rear walls to support the roof beams.

NOTE

The gables are packed nested

together and might be mistaken

as one piece. Carefully separate

them before continuing.

1 Attach the four roof beam

brackets to the gables using two

bolts, washers and nuts.

NOTE

Mounting leg of bracket must

face toward center of gable.

● Parts Needed For ●

Gable Assemblies

●●

● 8576 Right Gable (2)

●●

●●

● 8577 Left Gable (2)

●●

●●

● 6635 Roof Beam Bracket (4)

●●

6635

Roof Beam Brackets

STEP

1

8576

FRONT

8577

Washer

6635

Roof Beam Brackets

24

Step 12

SR25

1 Lift and fasten a right and left

gable, under angle at corner, to the
door track and rear wall angle with
screws.

Hint: On the front gable, leave out 2
screws closest to center gable leg.
On the rear gable, use a bolt and nut
at the overlapping rear wall angle.

2 Join the left and right gables

together with a gable brace using a
bolt and nut in the second hole from
the bottom

only.

● Parts Needed For ●

Gables/Braces

●●

● Left Gable Assemblies (2)

●●

●●

● Right Gable Assemblies (2)

●●

●●

● 9009 Gable Brace (2)

●●

Repeat Steps 1 & 2 for the opposite
side of building.

3 Fasten the track supports to the

front gable assembly only as shown.

STEP

3

STEP

1

Gable

Track Supports 6228

9009 Gable Brace

STEP

2

25

Step 13

SR26

● Parts Needed For ●

Roof Beam//Braces

●●

● Roof Beam Assemblies (4)

●●

●●

● 9204 Roof Beam Brace (2)

●●

1 Wrap the weather stripping tape

around the two joined edges of the
left and right gables. See diagram.
Cut the weather stripping to length
and repeat on next gable set.

2 Spread the two halves of the double

roof beam and fasten to the gable
brace of the front gable.

3 Fasten the other end of the double

roof beam to the gable brace of the
rear gable.

4 Fasten the single roof beams,

small holes on top, as shown using
bolts and nuts.

STEP

1

Weather Stripping

Spread Two Halves

Of Roof Beams

STEP

STEP

2

3

Roof Beam (Double)

5 Fasten a roof beam brace to the

double roof beam behind the front
gable by placing the tab on the end of
the brace
Align the tab with the
and fasten the brace with a bolt and
nut.

between

the roof beams.

second

hole

6 Fasten the lower end of the roof

beam brace to the track support with
a bolt and nut.

7 Fasten a roof beam brace be-

tween the rear gable and the roof
beam at the

first

hole, as shown.

STEP

5

STEP

STEP

4

Roof Beam (Single)

Roof Beam Brace 9204

Roof Beam Brace 9204

STEP

7

6

26

Step 14

SR27

Installing the roof panels is best done
with a step ladder. Install the first roof
panel at the back right corner of the
building. Each screw and bolt in the
roof requires a washer.

● Parts Needed For ●

Right Roof Panel

●●

● 9086 Right Roof Panel (1)

●●

NOTE

Measure the building diagonally

again and make adjustments to

make sure the building is square

and level. This will make the roof

panels fit better, and holes will

align. Don't anchor the floor frame.

NOTE

If a Roof Beef-Up Kit was

purchased, assemble prior to

attaching the roof panels.

1 Locate the roof panels and find the

right roof panel part number 9086.

2 Position the right roof panel at the

back right corner and fasten to the
gable with five bolts and nuts and
roof beams using eight screws.

not fasten the lower end of the panel
to the side wall angle at this time.

Do

STEP

1

STEP

2

(8) Screws

9086

9086 Right Roof Panel

1

2

Nut

Washer

Bolt

Gable

(5)

3

4

5

FRONT

(4) Screws

27

Step 15

SR28

● Parts Needed For ●

Ridge Cap & Panels

●●

● 9087 Left Roof Panel (1)

●●

●●

● 7743 Roof Panel (2)

●●

●●

● 6869 Ridge Cap (1)

●●

1 Install a left roof panel 9087 at the

left rear corner of the roof.

2 Cover the joint at the peak with

weather stripping tape. Unroll the
tape and press it down over the open­ing at the ridge as you install each
roof panel. Do not cut the tape at this
time.

3 Install two roof panels 7743 work-

ing side to side.

lower end of the panels to the side
wall angles at this time.

weather stripping the ridge opening.

Narrow roof panel crimped rib is

overlapped by wide rib of

adjacent panel where possible

Do not fasten the

Continue

NOTE

Fasten at

Overlap With

Bolt

Screws To
Roof Beam

Screws To
Roof Beam

Do not fasten

at this time

STEP

Fasten At

Overlap With

Bolt

STEP

4 Install the first ridge cap 6869 on

the completed roof section using bolts
and nuts. Do not fasten the ends of
the ridge cap at this time.

5 Fasten the roof panel ribs, peak

cap and ridge cap together using

bolts and nuts.

STEP

1

9087 Left Roof Panel

7743

Weather

Stripping

Tape

STEP

2

4

6869

5

7743
Roof Panel

STEP

28

3

Step 16

SR29

1 Install the second ridge cap 6868

overlapping the first ridge cap while
installing two roof panels 7743.

The bolts on the ridge cap need to be
left loose to move the ridge cap to the
side and overlap the ribs of the next
roof panel.

ping the ridge.

If roof beam holes do not line up

with the roof panel holes, shift the
If this does not help, your building

may not be level. Shim the
corners until holes line up.

Continue weather strip-

NOTE

building from left to right.

Hint:

● Parts Needed For ●

Ridge Cap & Panels

●●

● 7743 Roof Panel (2)

●●

●●

● 6868 Ridge Cap (1)

●●

Weather Stripping Tape

7743 Roof Panel

6868

7743 Roof Panel

29

Step 17

SR30

1 Install the third ridge cap 6869

overlapping the second ridge cap
while installing the remaining two

roof panels 7743.

the ridge cap need to be left loose to
move the ridge cap to the side and
overlap the ribs of the next roof panel.

Continue weather stripping the ridge.

2 Install the left 9087 and right roof

panel 9086 as you unroll the weather

stripping tape, and press it down.
Fasten the lower end of the panels to
the side wall angles using screws
and washers.

Hint: The bolts on

● Parts Needed For ●

Ridge Cap & Panels

●●

● 6869 Ridge Cap (1)

●●

●●

● 7743 Roof Panel (2)

●●

● ●

● 9087 Left Roof Panel (1)

● ●

● ●

● 9086 Right Roof Panel (1)

● ●

3 Fasten the roof panel ribs, peak

cap and ridge cap together using

bolts and nuts.

STEP

1

STEP

2

7743

9086

Peak Cap

STEP

6869

7743

9087

Cut

Weather Stripping

and Fold Under

30

3

STEP

2

Step 18

SQ31

1 Attach the side roof trim pieces to

the lower end of the roof panels on
each side of the building using screws
at each panel overlap.

NOTE

A single screw fastens both trim

pieces at the overlap.

2 Using your thumb and index fin-

ger, overbend the bottom flange of
the roof panel rib at the corner inward
enough so the right and left roof trim
caps fit onto right and left corners.

● Parts Needed For ●

Roof T rim

●●

● 6015 Side Roof Trim (4)

●●

● ●

● 6014 Side Roof Trim (2)

● ●

3 Fasten the roof trim caps to the

side trim using a screw.

STEP

3

6014

6015

Roof Trim Cap

6015

6015

Roof Trim
6014

STEP

6015

1

STEP

2

Tuck Flange
Inward to Fit

Inside of

Roof Trim Cap

31

Step 19

SO32

The steps on this page tell how to
assemble the right door. You will
perform exactly the same procedures
for the left door. Each bolt and screw
in the door requires a washer. Pro­ceed as follows:

1 Attach the door handle brace and

handle to the door with 1 bolt as

shown.

Don't tighten the bolt yet.

● Parts Needed For ●

Door Assembly

6264

6278

66045

3719

●●

● 3719 Door Handle Brace (2)

●●

●●

● 8538 Right Door (1)

●●

●●

● 8539 Left Door (1)

●●

●●

● 6264 Horizontal Door Brace (4)

●●

●●

● 6278 Vertical Door Brace (2)

●●

66045

3719

2 Swing the door handle brace up to

the hole on the center of the door and
insert a screw.

3 Hold the vertical door brace

against the center of the inside sur­face of the door and turn the screw to
hold the vertical door brace and door
handle brace in place. Fasten to
door above and below center
connection using 2 screws.

4 Insert a second bolt in the door

handle and tighten both bolts.

5 Put a horizontal door brace onto

the top edge and bottom edge and
fasten

with 1 bolt in the center.

6 Attach the lower door guides as

shown.

66382

6278

66382

STEP

2

STEP

3

Right Door

STEP

1

6264

STEP

4

STEP

5

6264

7 Repeat steps 1 through 6 for the

left door.

32

66382

STEP

6

END VIEW
SHOWING:

Horizontal

Door Brace

Guide

Door
Washer

Step 20

SQ33

● Parts Needed For ●

Door Installation & Adjustment

●●

● Right Door Assembly (1)

●●

●●

● Left Door Assembly (1)

●●

1 From inside the building, put the

bottom of the right door assembly (on
your left when you are inside the
building) behind door jamb into the
front frame track.

2 Position the top of the door so that

the holes in the door line up with the
holes in the door slides.

3 Fasten the door to the door slides

using a #10Bx1/2" screw.

Gable

Door Track

Door Slide

Front Floor Frame Assembly

Horizontal Door Brace

Door

STEP

1

STEP

2

Door Slide

NOTE

The four holes in the top of each

door allow you to adjust the

doors. Place the door slide in

the middle 2 holes.

4 Repeat steps 1 through 3 for the

left door.

Adjustment Holes

Adjustment Holes Allow

Doors to Meet Evenly

Along Their Length

#10Bx1/2" Screw

STEP

3

Right Door Left Door

STEP

4

33

SO34

SOME FACTS ABOUT RUST

SOME FACTS ABOUT RUST

Rusting is a natural oxidizing process that occurs
when bare metal is exposed to moisture. Problem
areas include screw holes, unfinished edges, or
where scrapes and nicks occur in the protective
coating through normal assembly, handling and
use. Identifying these natural rusting problem areas
and taking some simple rust protection precautions
can help to stop rust from developing, or stop it
quickly as soon as it appears.

1. Avoid nicking or scraping the coating surface,
inside and out.

2. Use all the washers supplied. In addition to pro­tecting against weather infiltration, the washers pro­tect the metal from being scraped by the screws.

3. Keep roof, base perimeter and door tracks free of
debris and leaves which may accumulate and retain
moisture. These can do double damage since they
give off acid as they decay.

4. Touch up scrapes or nicks and any area of visible
rust as soon as possible. Make sure the surface is
free of moisture, oils, dirt or grime and then apply an
even film of high quality touch-up paint.

34
