Arrow BDBL1003 Installation & Assembly

Download

Page 1

717740514

Owner’s Manual & Assembly Guide

Gloves must be worn at all times to reduce risk of injury!

* See Inside for Detailed Safety Information.

COMMANDER

MOUNTAINEER

01H

™

SERIES

™

SERIES

All Sizes

10x10

Customer Service:

1-800-851-1085 or assist@arrowsheds.com

BASE BUILDING DIMENSIONS

Approx.

3,0 m x 3,1 m 9,4 m2 19,7 m

Each Module adds an additional 57 1/2” (146,1 cm) in length, 47.2 Sq. Ft. (4,4 m2) additional storage area, and 324 Cu. Ft. (9,2 m3) additional storage volume.

†

Size

10’ x 10’ 101 Sq. Ft. 697 Cu. Ft. 123 1/4” 128 3/4” 92 1/2” 118 1/4” 123 1/2” 91 1/4” 98 1/4” 72 3/4”

Storage

Area

†

Size rounded off to the nearest foot

Exterior Dimensions

(Roof Edge to Roof Edge)

Width Depth Height

313,1 cm 327,0 cm 235,0 cm 300,4 cm 313,7 cm 231,8 cm 249,6 cm 184,8 cm

Base Size

Additional per Module

Interior Dimensions

(Wall to Wall)

Width Depth Height

122 1/4” x 127 1/2”

310,5 cm x 323,9 cm

122 1/4” x 57 1/2”

310,5 cm x 146,1 cm

For proper base construction see page 5

Width Height

www.arrowsheds.com

Door

Opening

Page 2

SAFETY PRECAUTIONS...

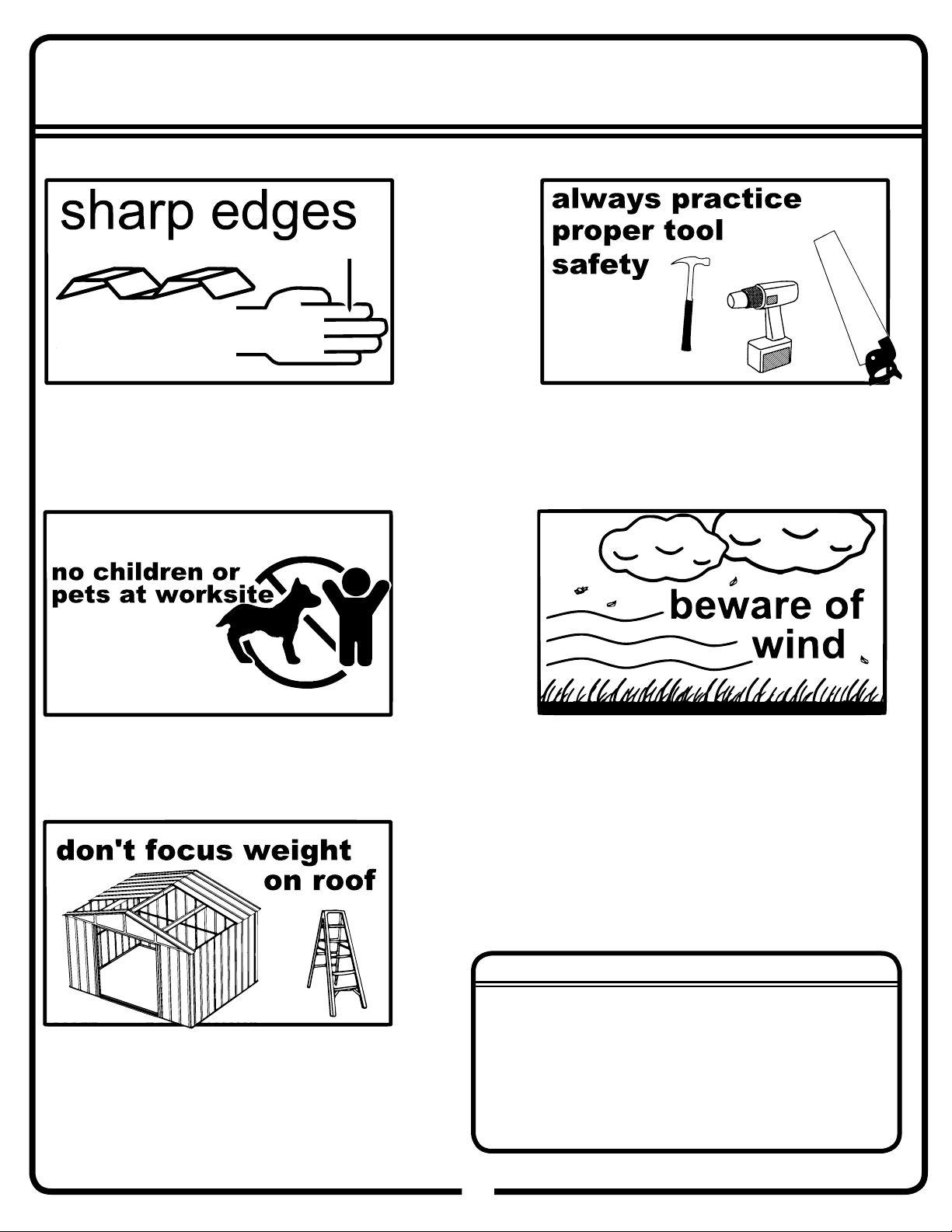

Safety precautions MUST be followed at all times throughout the construction of your building!

02H

Care must be taken when handling various pieces of your building since many contain sharp edges. Please wear work gloves, eye protection and long sleeves when assembling or performing any maintenance on your building.

Keep children and pets away from the worksite during construction and until the building is completely assembled. This will help avoid distractions and any accidents which may occur.

Practice caution with the tools being used in the assembly of this building. Be especially familiar with the operation of all power tools.

Do NOT attempt to assemble your building on a windy day. The large panels can catch the wind like a “sail”, causing them to be whipped around making

construction difﬁ cult and unsafe.

Do NOT attempt to assemble your building before double checking that you have all the parts indicated in the parts lists, as well as all hardware (page 6-11). Any building left partially assembled may be seriously damaged by even light winds.

NEVER concentrate your weight on the roof of the building. When using a step ladder make sure that it is fully open and on even ground before climbing on it.

IMPORTANT NOTE ON ANCHORING

• Your building MUST be anchored to prevent wind

damage. An anchoring kit is not supplied with your building and you have many options when it comes to anchoring. See anchoring page for more info.

• If you need to take a break from assembly, place sandbags or other weights on the ﬂ oor frame to

temporarily anchor it.

Page 3

ASSEMBLY TIPS & TOOLS

Watch the Weather Closely: Be sure the day you choose to install your building is dry and calm.

Do NOT attempt to assemble your building on a windy day. Be careful on wet or muddy ground.

Use Teamwork: Two or more people are required to assemble your building. One person can hold

the parts or panels in place while the other person fastens them together and handles the tools. This makes the process of assembling your building faster and safer.

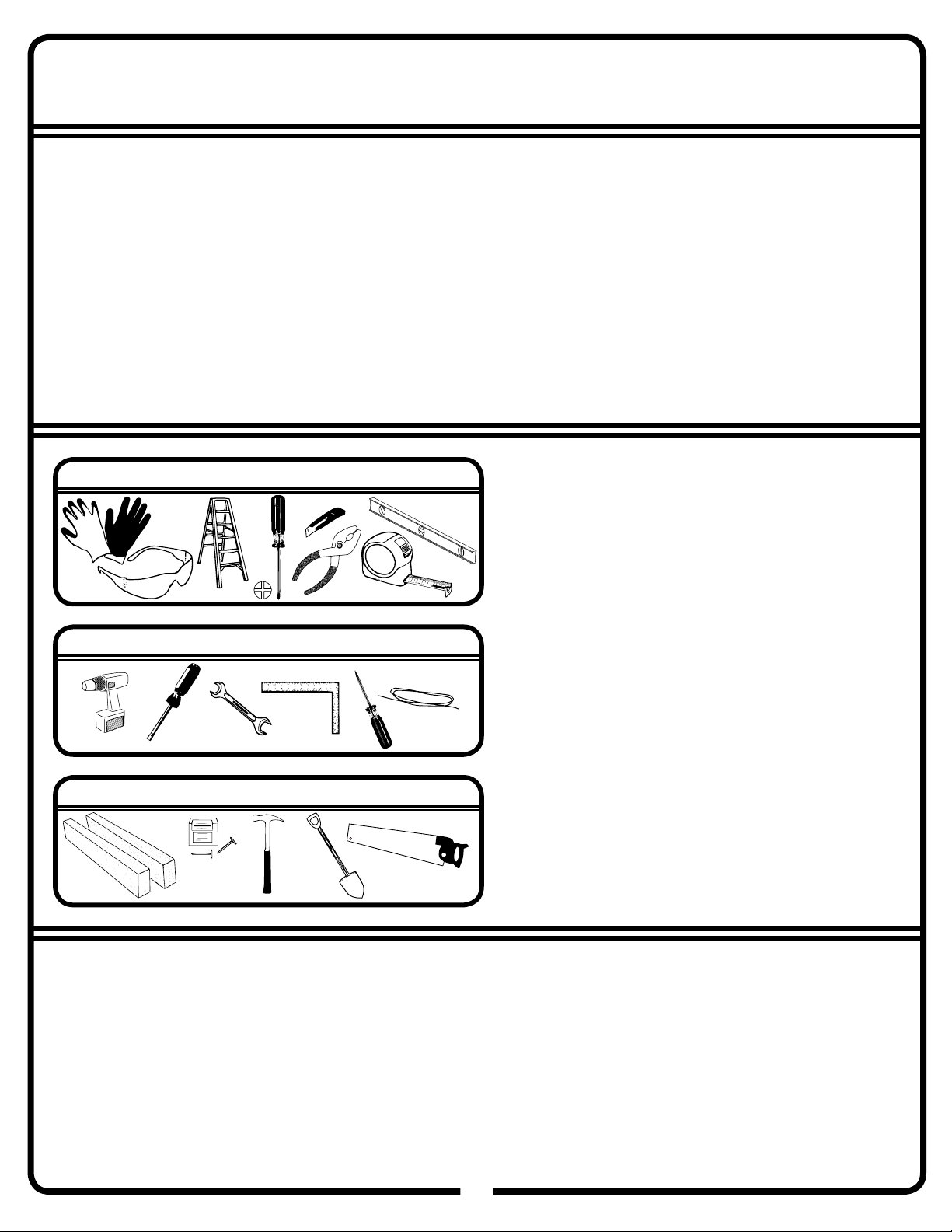

Tools and Materials: Here is a list of some basic tools and materials you will need to assemble

your building. Decide which method of anchoring and the type of base you will use to make a complete list of the materials you will need.

03A

WHAT YOU NEED

RECOMMENDED TIME SAVERS

BASE PREPARATION TOOLS

• Work Gloves

• Safety Glasses

• Step Ladder

• No. 2 Phillips Screwdriver (Magnetic Tip Preferred)

• Utility Knife or Scissors

• Pliers

• Carpenter’s Level

• Tape Measure

• Power Drill (Cordless, Variable Speed)

• Nut Driver or Wrench

• Square

• String (for squaring the frame)

• Awl (to align holes)

• Lumber and/or Concrete

• Hammer and Nails

• Spade or Shovel

• Hand Saw or Power Saw

How to Select and Prepare Your Building Site: Before you start to assemble your

building, you will want to decide on a good location. The best location is a level area with good drainage.

• Allow enough working space so it is not difﬁ cult to move parts into position for assembly. Be sure there will be enough

space at the entrance for the doors to completely open. Also, there needs to be enough space outside the building to be able to fasten the panel screws from the outside.

• Before assembling any parts, your base should be constructed and an anchoring system should be ready to use.

Page 4

04H

BEFORE YOU BEGIN...

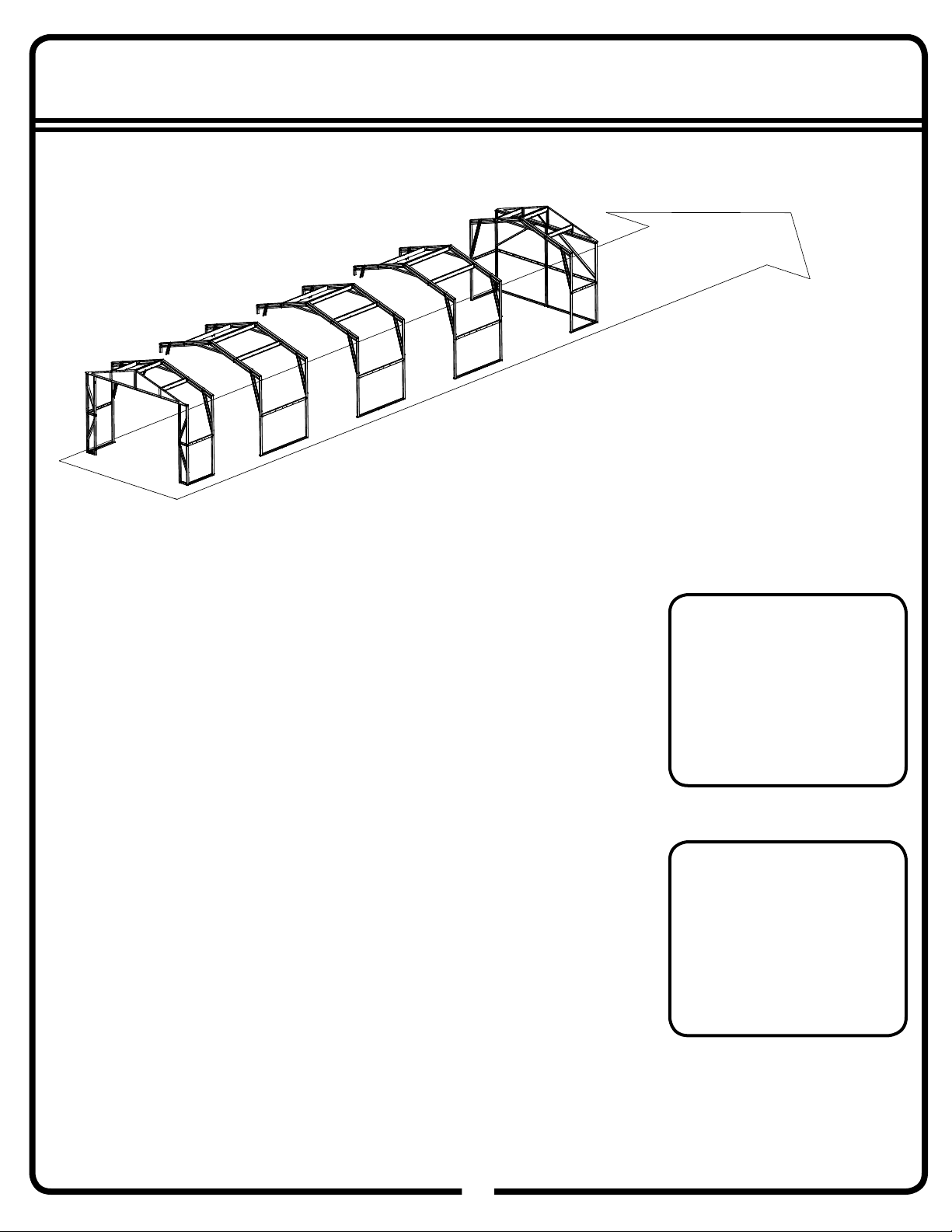

Your Commander™ / Mountaineer™ Shed has a Modular Design.

This means your shed can be

extended to virtually any length with

the addition of Extension Modules. Extension

Modules can be installed when you ﬁ rst construct your

building, or they can be added to it later.

How you assemble your building will depend upon how many

Extension Modules you have purchased. See below to see how many Modules are included in your building.

How your building was shipped.

Now that you have received your building you need to take inventory of what you have to ensure nothing is missing.

Depending on the size building you purchased, your building arrived in two or more cartons. Locate the carton label; you should have one carton labeled C1GA and one labeled C2GA. Also, if you purchased a building 15’ (4,6 m) in length or longer, you should have at least one carton labeled GA5M.

C1GA -

C2GA -

GA5M -

Please note: Most illustrations in this assembly manual depict a 10’x10’

(3,0 m x 3,1 m) building. A 10’x10’ (3,0 m x 3,1 m) building contains a front and rear wall section and one truss section (see page 9). Each

additional Extension Module simply adds one more truss section to the

building (see page 11). Every truss section is identical to every other truss section and the instructions clearly indicate how to assemble any length building. Read all instructions carefully.

This carton contains the painted parts needed to erect

a 10’ (3,1 m) building. You should have one C1GA

carton.

This carton contains the un-painted parts needed to erect a 10’ (3,1 m) building. You should have one C2GA carton.

This carton contains the Extension Module. Review the

chart to the right to determine how many GA5M cartons you should have received.

Nominal

Size

10’x10’ 0 10’x15’ 1 10’x20’ 2 10’x25’ 3 10’x30’ 4

Nominal

Size

3,0 m x 3,1 m 0 3,0 m x 4,6 m 1 3,0 m x 6,1 m 2 3,0 m x 7,5 m 3 3,0 m x 9,0 m 4

Extension

Modules

Extension

Modules

Page 5

CONSTRUCTING A BASE...

Before you assemble your building, you must construct a base.

The length of your base, shown as “L” in the diagrams below, will depend on the length of your building. See below.

05H

Nominal Size # of Modules Length “L”

10’x10’ 3,0 m x 3,1 m 0 127 1/2” 323,9 cm

10’x15’ 3,0 m x 4,6 m 1 185” 469,9 cm

10’x20’ 3,0 m x 6,1 m 2 242 1/2” 616,0 cm

10’x25’ 3,0 m x 7,5 m 3 300” 762,0 cm

10’x30’ 3,0 m x 9,0 m 4 357 1/2” 908,1 cm

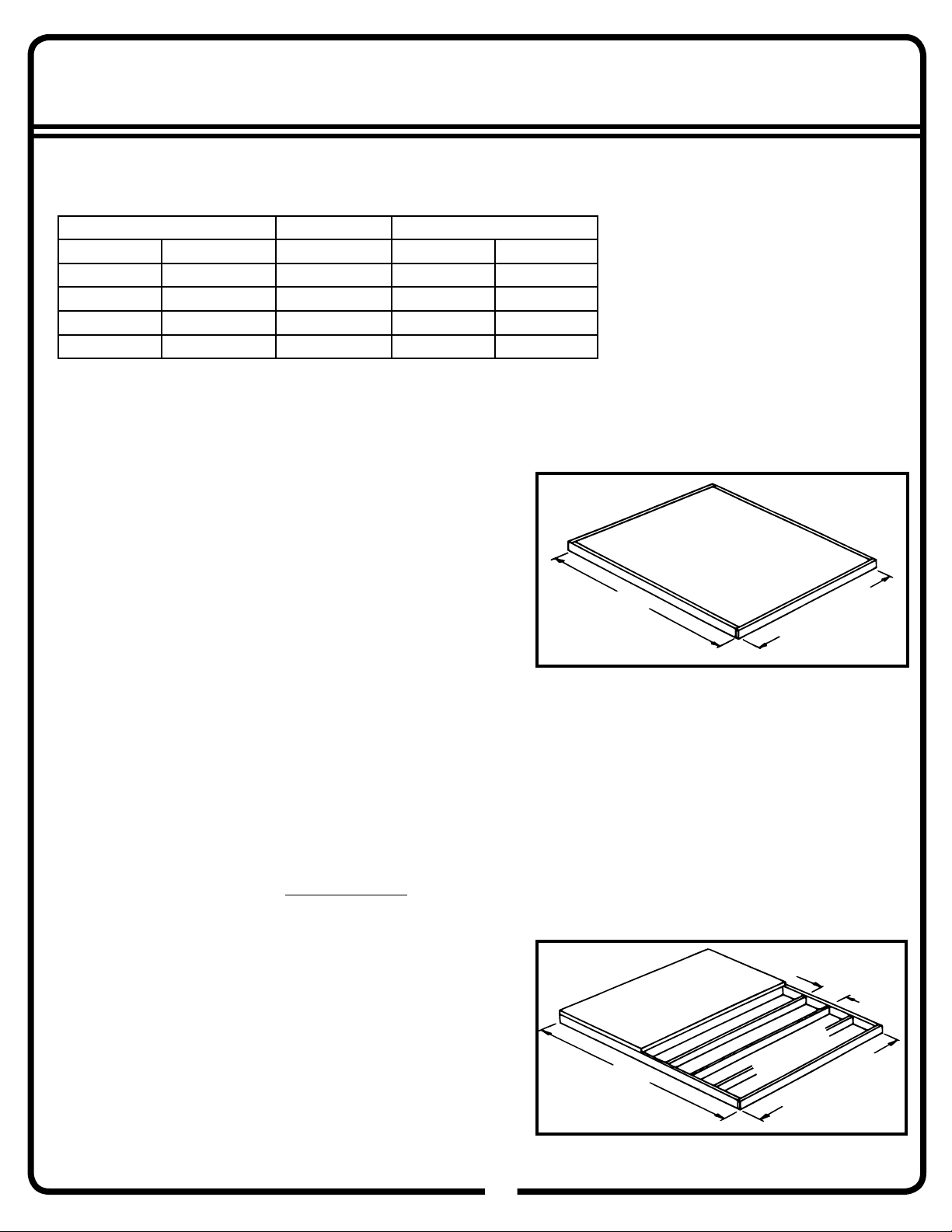

OPTION 1: Concrete Slab

The slab should be at least 4” (10,2 cm) thick. It must be level

and ﬂ at to provide good support for the frame.

The following are the recommended materials for your base.

• 1 x 4’s (19 mm x 89 mm) (will be removed once the concrete cures)

• Concrete • Sheet of 6 mil plastic

• We recommend for a proper strength concrete to use a mix of: 1 part cement • 3 parts pea sized gravel • 2 1/2 parts clean sand

Prepare the Site/Construct a Base

1. Dig a square, 6” (15,2 cm) deep into the ground (remove grass).

2. Fill up to 4” (10,2 cm) in the square with gravel and tamp ﬁ rm.

3. Cover gravel with a sheet of 6 mil plastic.

4. Construct a wood frame using four planks of 1x4 (19 mm x 89 mm) lumber.

5. Pour in concrete to ﬁ ll in the hole and the frame giving a

total of 4” (10,2 cm) thick concrete. Be sure surface is level.

Allow 3 - 5 hours for construction and a week for curing time.

For each additional module beyond the lengths listed, increase the length of your base by 57 1/2” (146,1 cm).

IMPORTANT: When deciding on a base

for your building you must take into consideration use and permit requirements. A concrete base is best for most purposes, but a wood platform may be suitable for light use. Before beginning construction, check local building codes regarding footings, location and other requirements.

REAR

Note: Finished Slab dimensions, with lumber removed.

Platform/Slab will extend 2” (5 cm) beyond ﬂ oor frame on all four sides. Seal this 2” (5 cm) of wood with a rooﬁ ng

cement (not included), or bevel concrete when pouring for good water drainage.

FRONT

122 1/4"

310,5 cm

OPTION 2: Wood Platform

These are the recommended materials for your base:

• 2 x 4's (38 mm x 89 mm) Pressure Treated Lumber • 5/8" (15,5 mm) 4 x 8 (1220 mm x 2440 mm) Plywood-exterior grade

• 10 & 4 penny Galvanized Nails • Concrete Blocks (optional)

NOTE: Pressure Treated Lumber must not be used where it will make contact with your storage building. The properties of Pressure Treated Lumber will cause accelerated corrosion. If Pressure Treated Lumber comes in contact with your storage

building your warranty will be voided.

16"/24"

The platform should be level and ﬂ at (free of bumps, ridges etc.)

to provide good support for the building. The necessary materials may be obtained from your local lumber yard.

To construct the base follow instructions and diagram.

Construct frame (using 10 penny galvanized nails)

Measure 16"/24" (40,6 cm/61,0 cm) sections to construct

inside frame (see diagram) Secure plywood to frame (using 4 penny galvanized nails)

Allow 6 - 7 hours for construction.

REAR

40,6 cm/61,0 cm

FRONT

122 1/4"

310,5 cm

Page 6

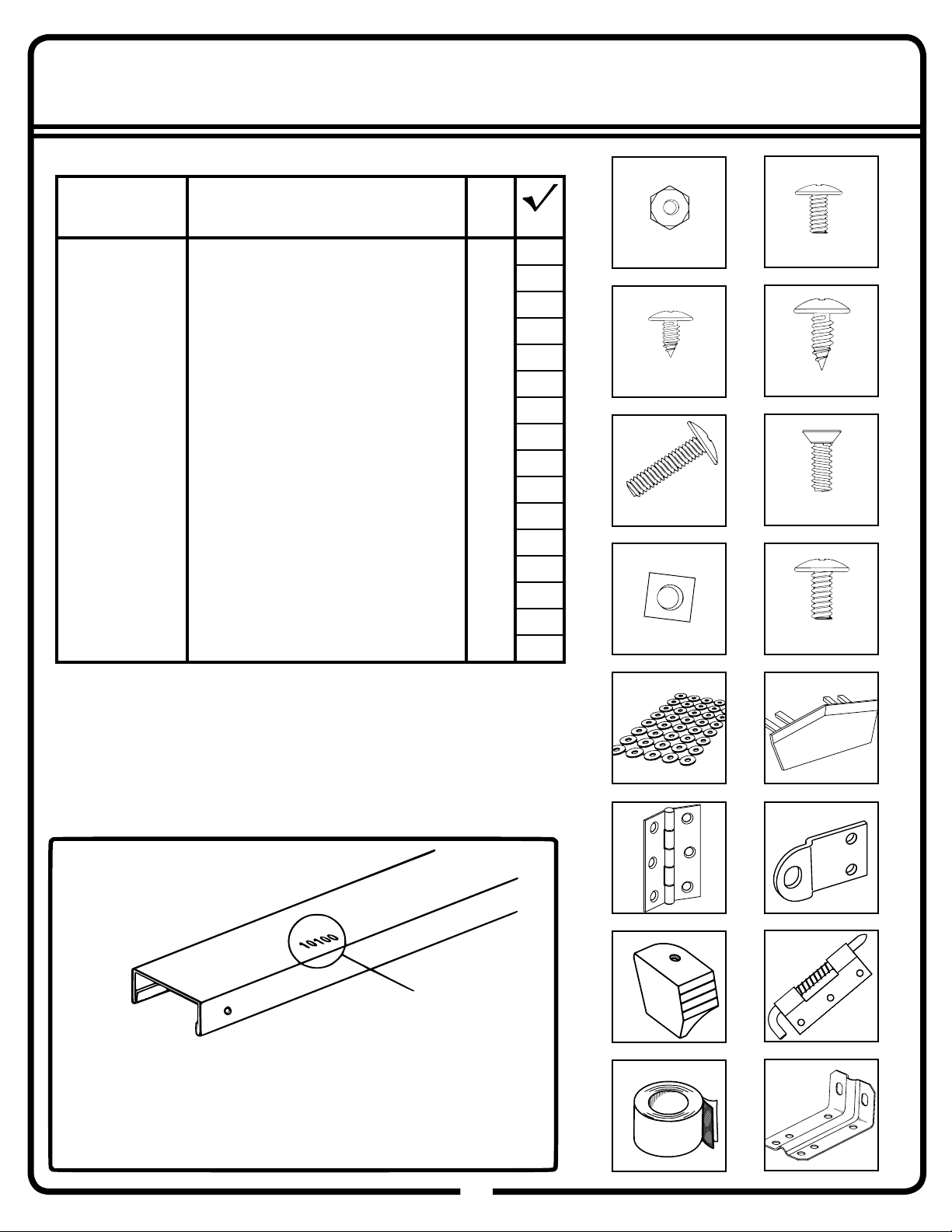

HARDWARE - C1GA

06H

C1GA Hardware

Key Part Part Qty. No. No. Description List

1 65103 Hex Nut (#8-32) 292 2 65923 Small Bolt (#8-32 x 3/8) (10 mm) 256 3 65004 Small Screw (#8AB x 5/16) (8 mm) 354 4 66611 Large Screw (#10AB x 1/2) (13 mm) 209 5 66625 Long Bolt (#10-32 x 3/4) (19 mm) 2 6 66783 Flat Head Screw 7 65106 Square Nut (#10-32) 20 8 65943 Large Bolt (#10-32 x 7/16) (11 mm) 14

9 66646 Washer Sheet 12 10 67468 Peak Cap (Arrow Logo) 2 11 66609 Hinge 6 12 66778 Lock Eyelet 1 13 66183L/R Roof Trim Cap 4 14 66781 Spring Latch 1

(#8-32 x 1/2) (13 mm) 36

11/32 Hex.

#2 Phillips

LNB

#2 Phillips

15 67545B Weather Stripping 1 16 6228 Track Support 4

Conﬁ rm that all hardware and parts are present

before attempting to assemble your building.

For missing or damaged parts, contact Customer Service. Do not return to store.

Part Numbers

Part Number

1. Each part has an identifying part number on it.

2. Part Numbers are referenced in each step.

3. Unpainted parts have a stamped in number and painted parts have a number that is inked on.

#10-32

#2 Phillips

Remove inked on numbers with soap and water after assembly.

Page 7

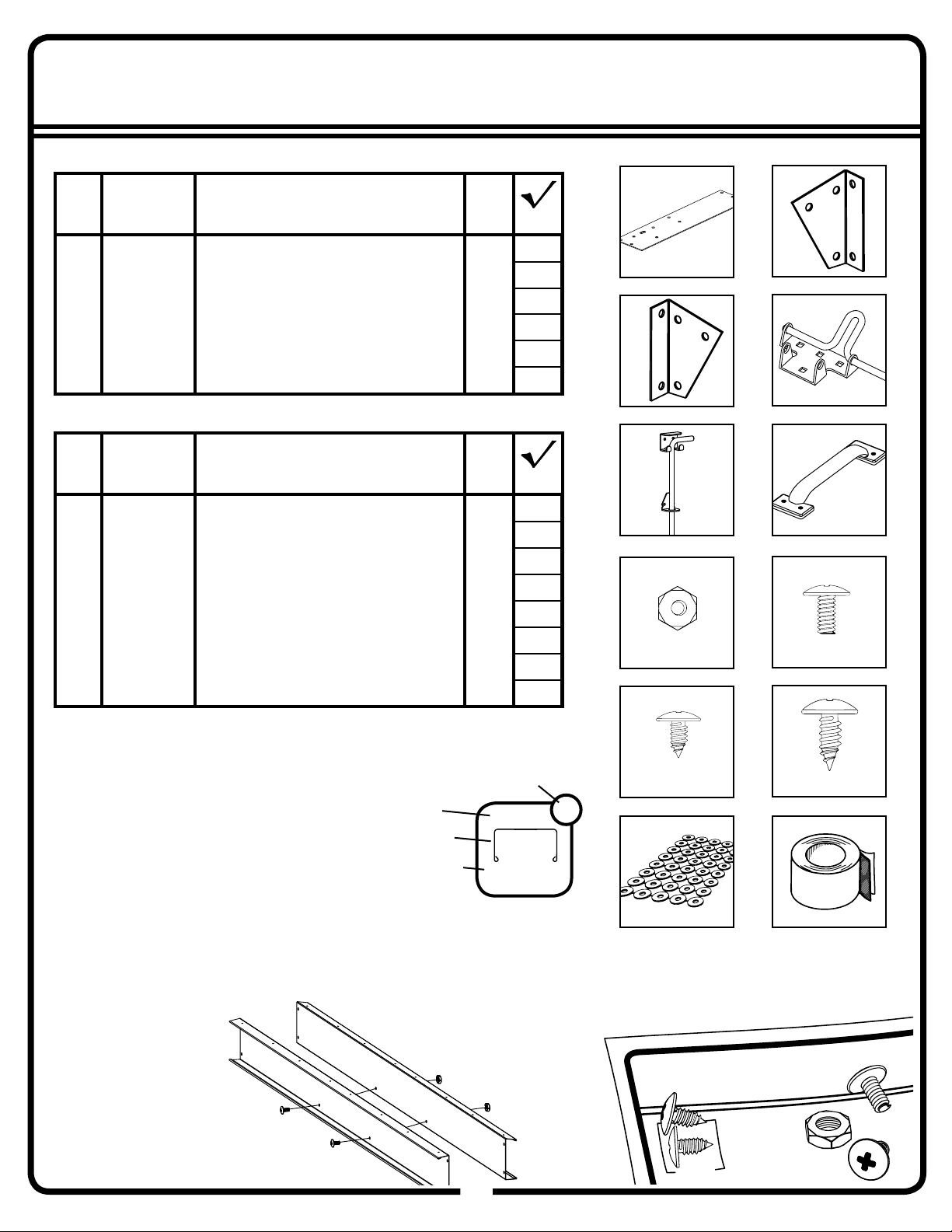

07H

HARDWARE -

C2GA / GA5M

C2GA Hardware *Packed loose in carton

Key Part Part Qty. No. No. Description List

1 10651 Latch Plate * 3 2 7003 Shear Plate LT 3 7004 Shear Plate RT 4 66779 Slide Bolt 5 66780 Cane Bolt 6 66782 Door Handle

* 8

* 1

* 2

GA5M Hardware

Key Part Part Qty. No. No. Description List

2 7003 Shear Plate LT * 4 3 7004 Shear Plate RT 7 65103 Hex Nut (#8-32) 92 8 65923 Small Bolt (#8-32 x 3/8) (10 mm) 92

* 4

9 65004 Small Screw (#8AB x 5/16) (8 mm) 180 10 66611 Large Screw (#10AB x 1/2) (13 mm) 40 11 66646 Washer Sheet 7 12 67293B Weather Stripping 1

Some Tips for Assembly:

At the top of each page you will see one or more Part Cues like the one to the right. These Part Cues are designed to help you quickly identify the parts needed for each step.

Various fasteners are used throughout the

construction of your building. In each step you

will see the abbreviations listed below used in the illustrations to help you identify which fastener to use.

SB - Small Bolt SS - Small Screw LB - Large Bolt LS - Large Screw FS - Flat Head Screw LNB - Long Bolt

Quantity Needed

Part No.

End View

Part Name

11/32 Hex.

#2 Phillips

10629

Rear Frame

The fasteners used in each step are shown actual

size at the top of each page. If you are unsure

which fastener to use, hold it up to the picture and use the one that matches.

SS LS

QTY 18

#2 Phillips

Page 8

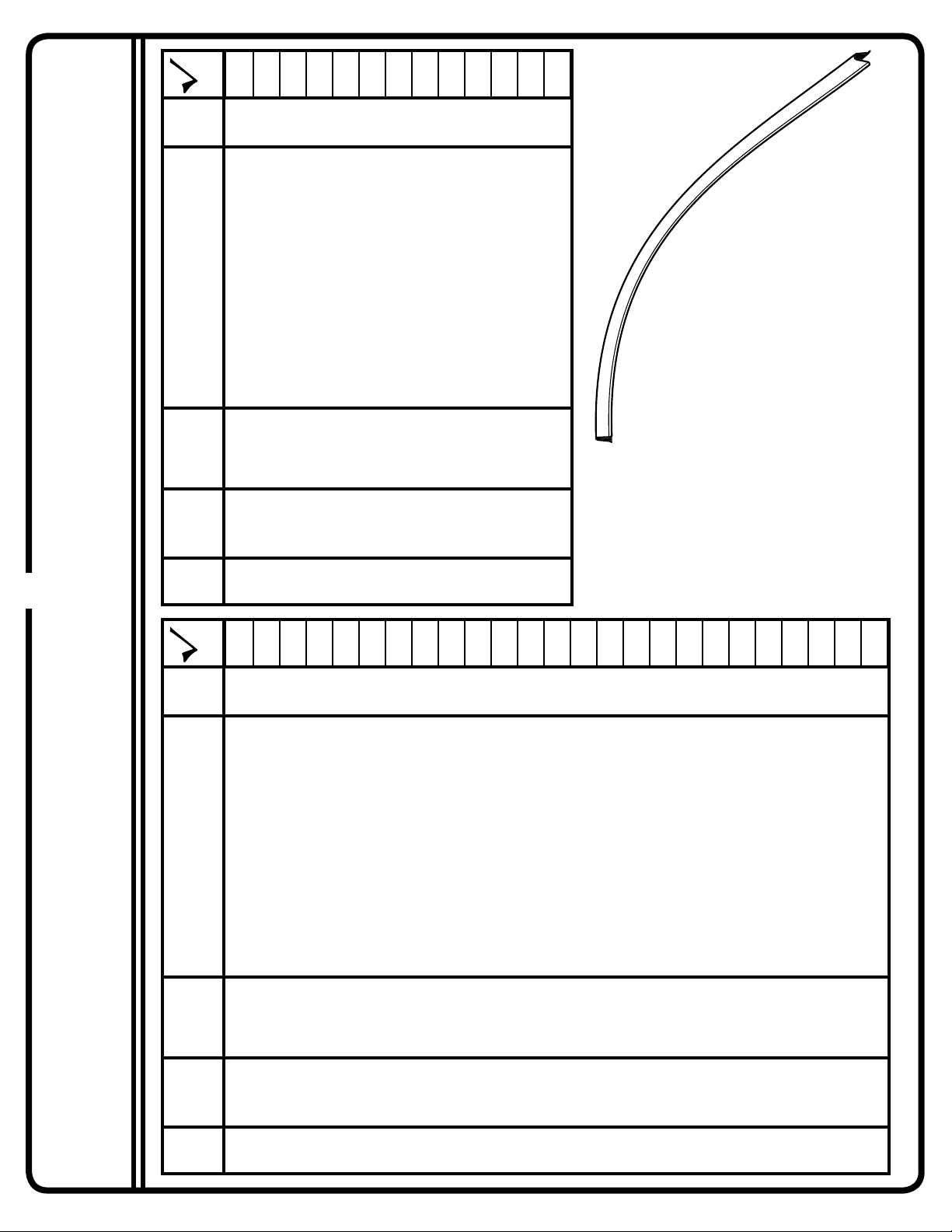

08H

QTY: 4

Length: 65 3/4” (167,0 cm)

Green Plastic Edge Trim is also included

in carton C1GA and must be used when

assembling your building.

26 C2GA 10638 Long Fascia 1

27 C2GA 10639 Short Fascia 1

28 C2GA 10640 Wall Post 5

29 C2GA 10641 Truss Post 4

30 C2GA 10642 Truss Post Insert 4

31 C2GA 10643 Upper Chord Truss 4

32 C2GA 10644 Lower Chord Truss 4

33 C2GA 10645 Truss Splice 2

34 C2GA 10646 Knee Brace 8

35 C2GA 10649 Front and Rear Roof Beam 8

36 C2GA 10650 Mid Roof Beam 4

37 C2GA 10652 Wall Post (Hinge) 2

Key Carton Part Part Qty.

No. No. No. Description List

38 C2GA 10673 Front Frame 2

1 C1GA 7743 Roof Panel 8

2 C1GA 7822 Wall Panel 12

3 C1GA 8576 Right Gable 2

4 C1GA 8577 Left Gable 2

5 C1GA 8578 Right Roof End Panel 2

6 C1GA 8579 Left Roof End Panel 2

7 C1GA 10618 Front Wall Panel 2

8 C1GA 10619 Corner Panel 4

Key Carton Part Part Qty.

PARTS LIST - MAIN BUILDING

No. No. No. Description List

9 C1GA 10620 Right Roof Trim 2

11 C1GA 10622 Right Door Jamb 1

10 C1GA 10621 Front and Rear Ridge Cap 2

12 C1GA 80017 Left Roof Trim 2

13 C1GA 80037 Left Door Jamb 1

14 C2GA 6635 Roof Beam Bracket 4

15 C2GA 9009 Gable Brace 2

16 C2GA 9204 Roof Beam Brace 2

17 C2GA 10625 Side Wall Angle 4

18 C2GA 10627 Front Wall Channel 6

19 C2GA 10628 Front Wall Diagonal 4

20 C2GA 10629 Rear Frame 4

21 C2GA 10630 Rear Wall Channel 2

22 C2GA 10631 Rear Wall Diagonal 2

23 C2GA 10632 Side Frame 4

24 C2GA 10633 Front and Rear Side Wall Channel 4

25 C2GA 10634 Mid Side Wall Channel 2

Page 9

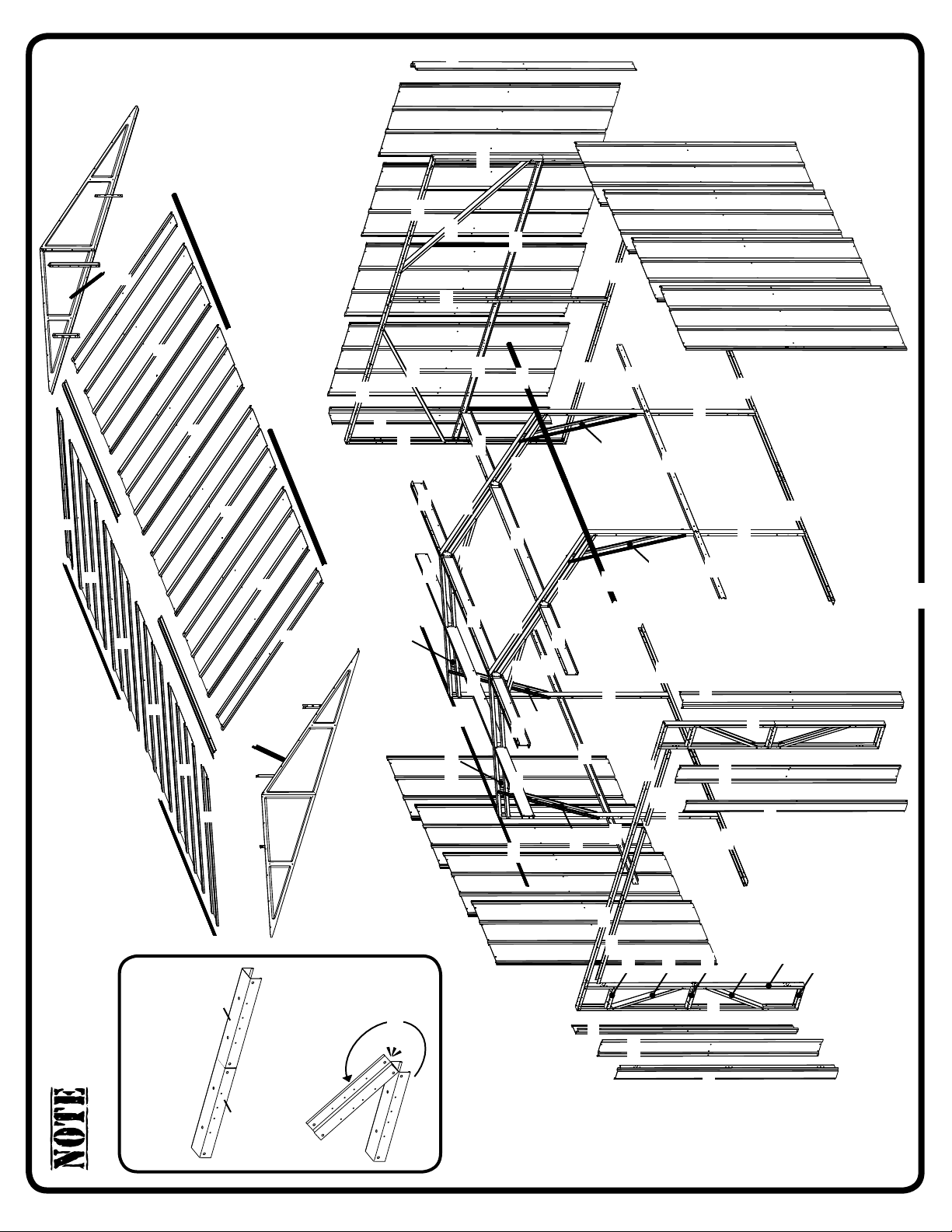

09H

31/32

Part No. 30 (Truss Post Insert) ﬁ ts inside Part

No. 29 (Truss Post) and is not shown below.

Part 10627 Front Wall

Channel (No. 18) may be

joined in pairs.

10627

Bend to separate.

SNAP

Page 10

10H

12 GA5M 7822 Wall Panel 4

13 GA5M 7743 Roof Panel 4

14 GA5M 6015 Roof Trim 2

15 GA5M 10680 Mid Ridge Cap 1

16 GA5M 10625 Side Wall Angle 2

17 GA5M 10632 Side Frame 2

18 GA5M 10634 Mid Side Wall Channel 2

19 GA5M 10650 Mid Roof Beam 4

20 GA5M 10641 Truss Post 2

21 GA5M 10642 Truss Post Insert 2

22 GA5M 10643 Upper Chord Truss 2

Key Carton Part Part Qty.

No. No. No. Description List

23 GA5M 10644 Lower Chord Truss 2

24 GA5M 10645 Truss Splice 1

25 GA5M 10646 Truss Knee Brace 4

1 C1GA 10623 Door Panel (Hinge) 2

2 C1GA 10624 Right Door Panel 1

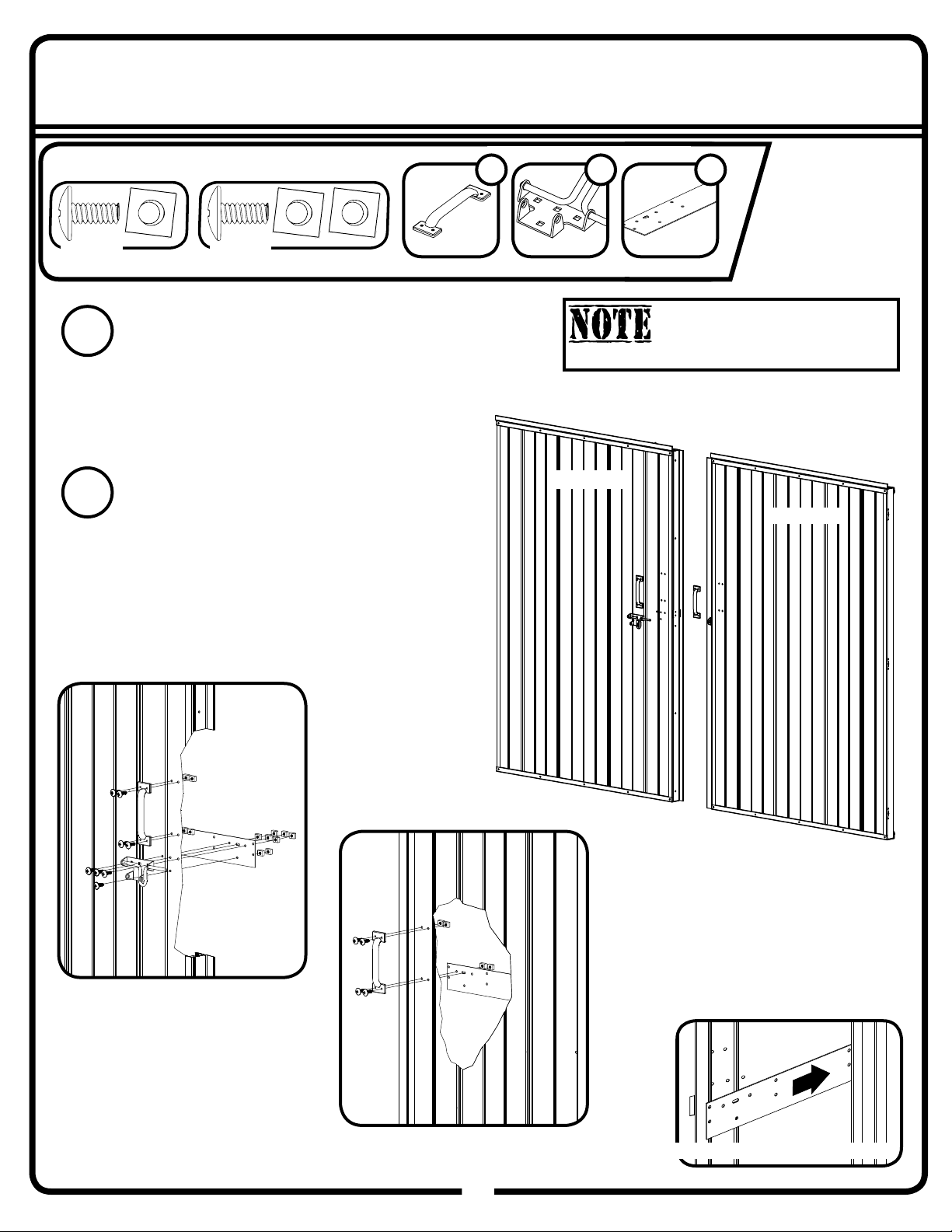

PARTS LIST - DOORS & MODULE

Key Carton Part Part Qty.

No. No. No. Description List

DOORS EXTENSION MODULE

3 C1GA 80051 Left Door Panel 1

4 C1GA 10635 Horizontal Door Brace 4

5 C1GA 10678 Vertical Door Brace (Latch) 2

6 C1GA 10637 Vertical Door Brace (Hinge) 2

7 C1GA 10647 Top Door Trim 2

8 C1GA 10648 Door Astragal 2

9 C2GA 10626 Door Diagonal Brace 8

11 C2GA 10675 Cane Bolt Bracket 2

10 C2GA 10636 Vertical Door Brace 4

Page 11

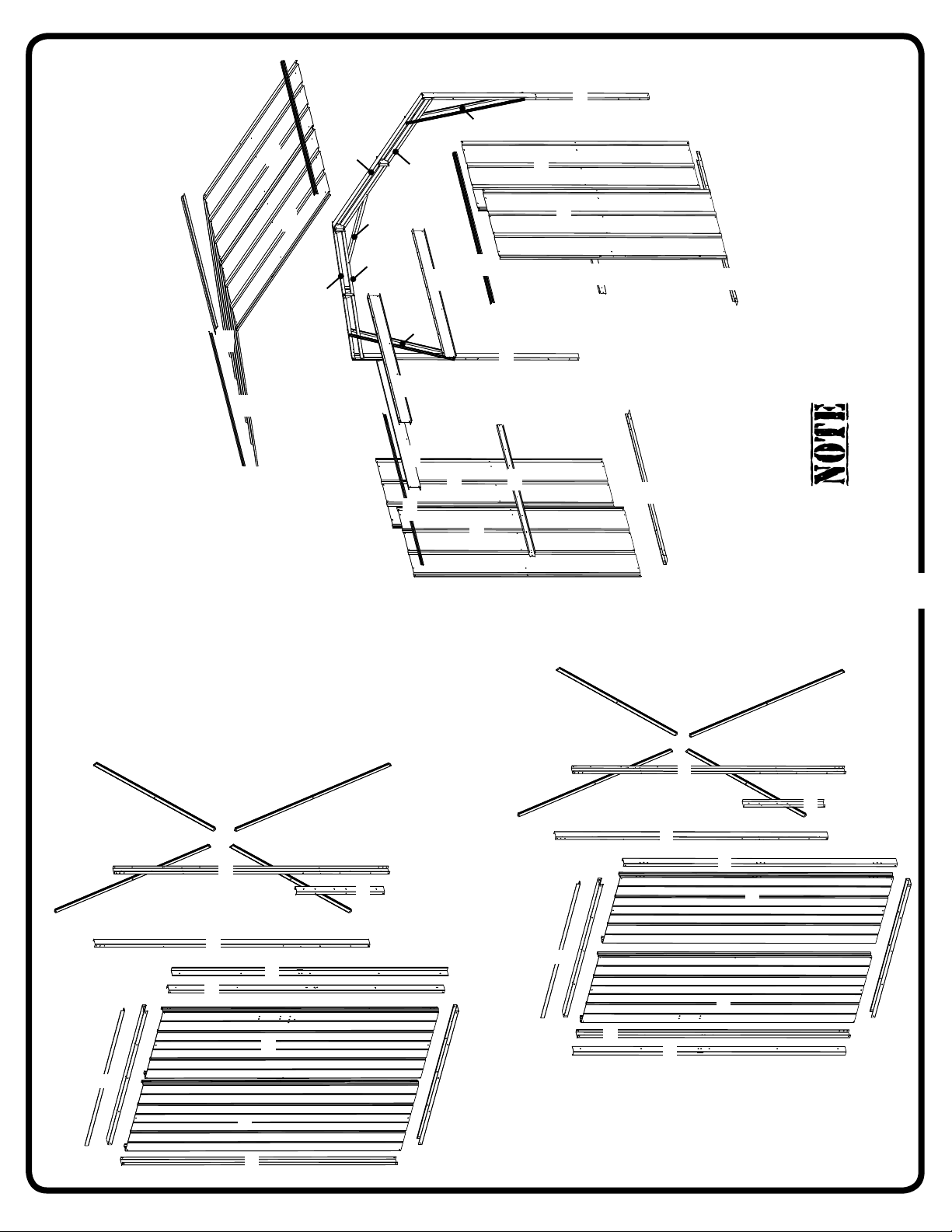

11H

Extension Module

Part No. 21 (Truss Post Insert) ﬁ ts inside Part

No. 20 (Truss Post) and is not shown above.

Left Door

Right Door

Page 12

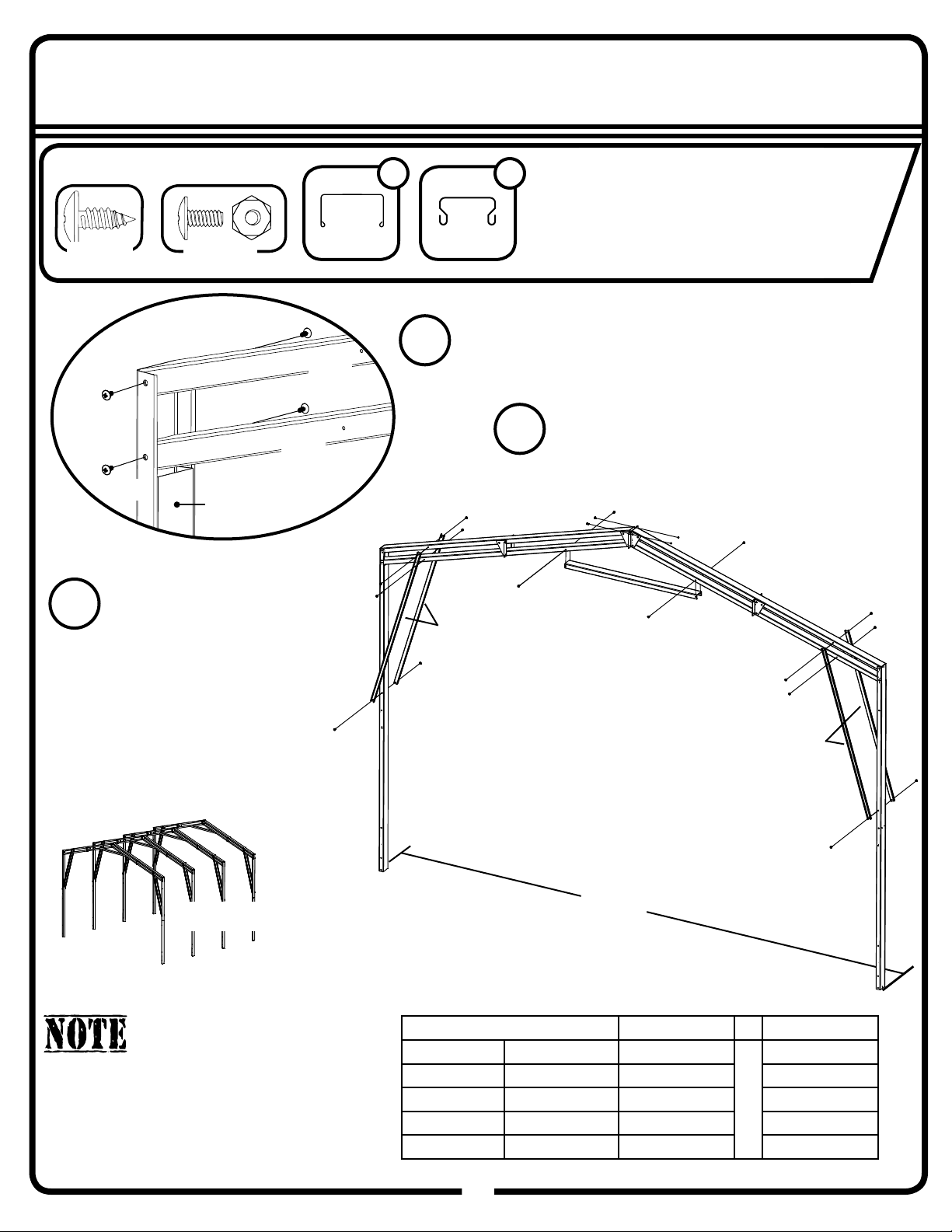

Step 1: Trusses

12H

You will need for this page:

SBLS

(QTY: 12)

Washers are to be used on painted parts only. Washers are not necessary on unpainted parts and there are not enough to use on every Screw and Bolt.

10641

10642

(QTY: 24)

where holes align.

10641

10642

10641

Truss Post

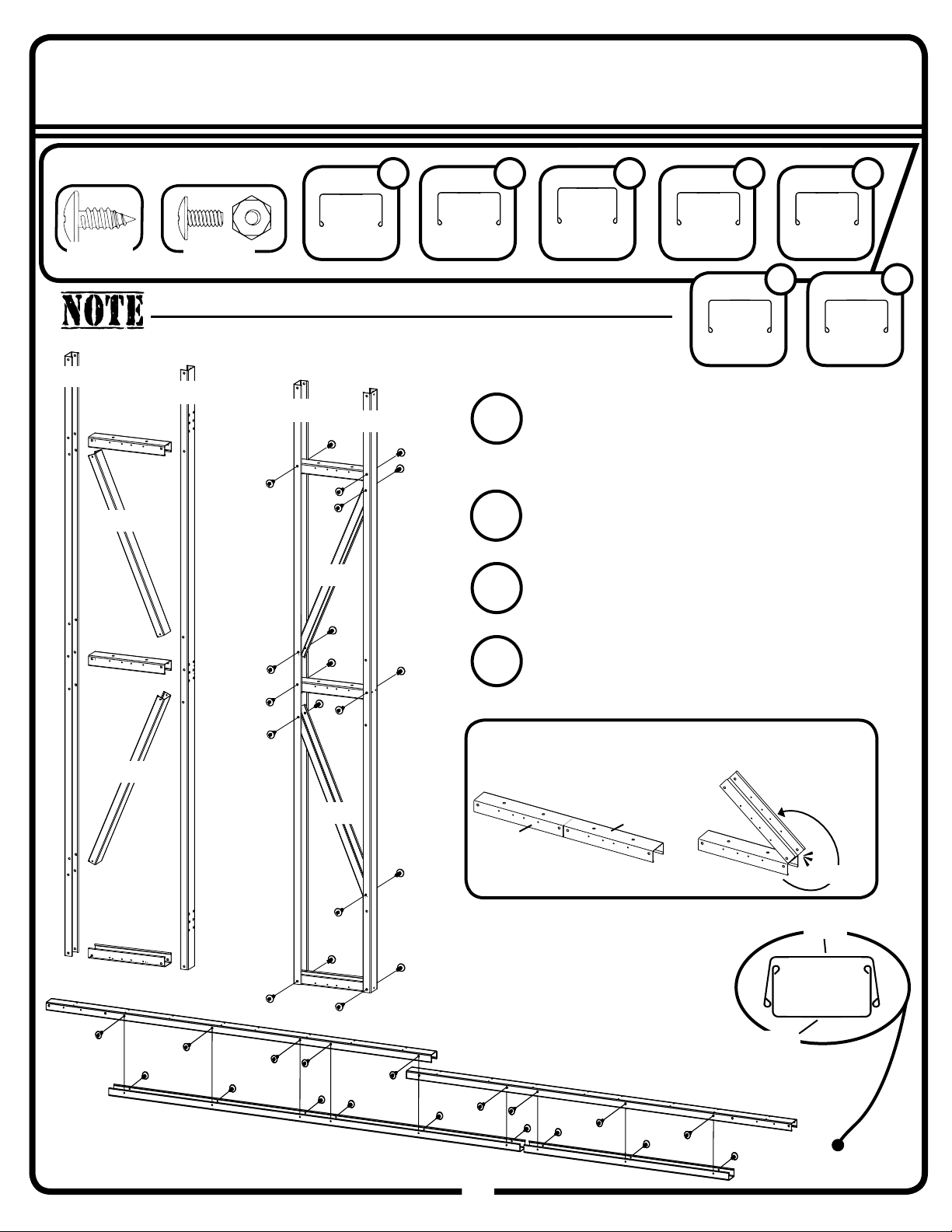

Align the bottoms of the Truss Post and Truss

Post Insert and join as shown. Insert Large Screws along both sides of the Truss Post

Repeat instruction 1 to build a second Truss Post Assembly. Set aside for use on next

page.

10642

Truss Post

Insert

Plates using Small Bolts and Nuts to Upper Chord

ﬁ rst, then to the Lower Chord. Do not tighten at this time.

10643

Upper Chord

Truss

With the Upper and Lower Chord Trusses positioned as shown below, attach Shear Plates where indicated below. Attach Shear

Lower Chord

10644

Truss

7003

Left Shear

Plate

7004

Right Shear

Plate

Leave top holes open.

Build two Assemblies.

10641

10642

Truss Post Insert ﬁ ts INSIDE

Truss Post as shown.

10643

10644

Repeat instruction 3 to build a second Chord Truss Assembly. Set aside for use on next page.

7004

Build two Assemblies.

7003

Holes must align in this direction.

10643

10644

10643

10644

Not this direction

7004

7003

CORRECT

INCORRECT

Page 13

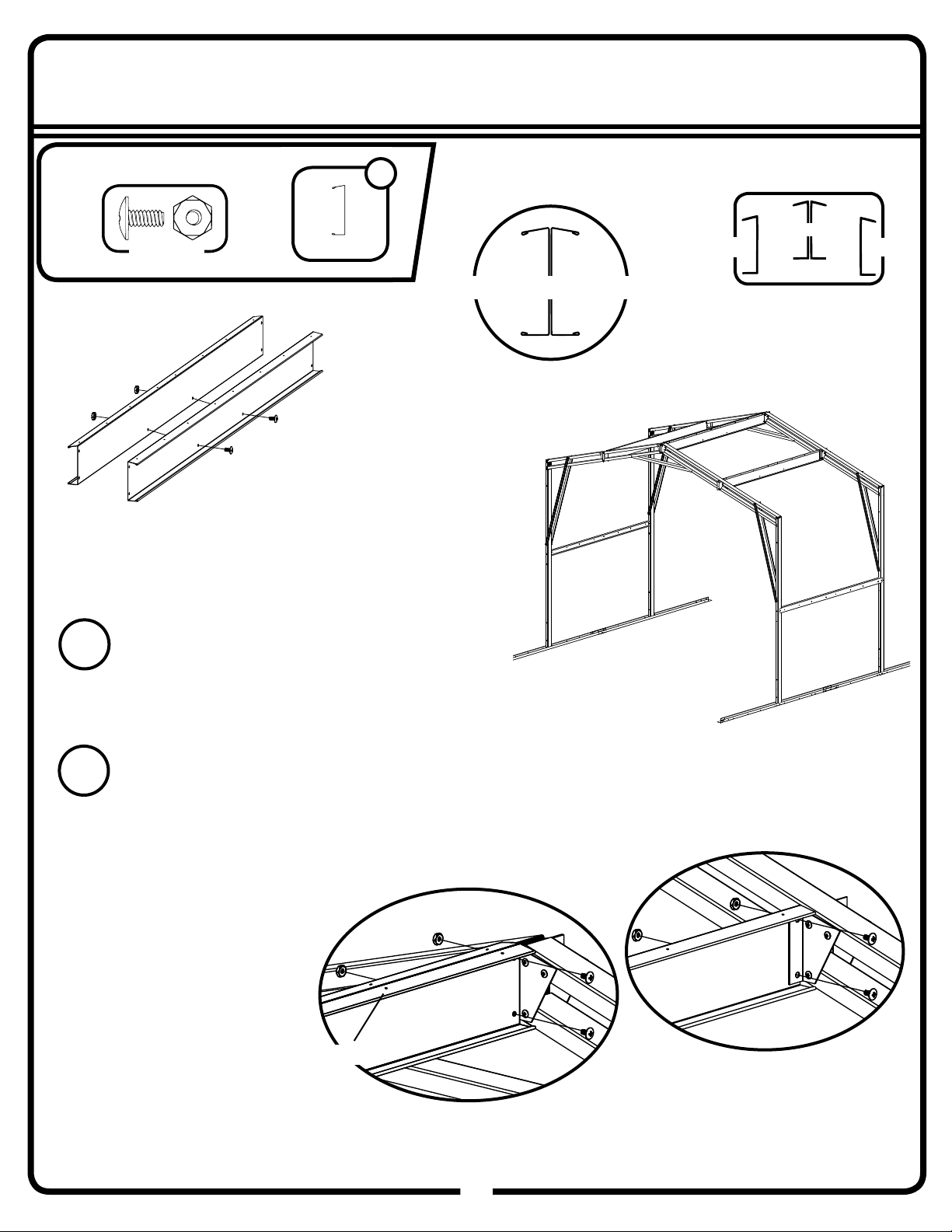

Step 1: Continued

13H

You will need for this page:

LS SB

(QTY: 12)

10641

Attach Knee Braces to Truss using Large Screws

as shown. Do not tighten at this time. With the Truss assembled, check that the width of the Truss is 118 1/4” (300,4 cm) across the top and bottom of the Truss. If so, tighten all fasteners. Repeat steps to build additional Trusses.

(QTY: 14)

10642

Truss Splice

10643

10644

10645

10646

Knee Brace

Next, insert the Upper/Lower Chord Truss Assembly into the Truss Post Assembly as shown. Secure with Small Bolts and Nuts. Do

not tighten at this time. Repeat for other side.

10646

Truss using two Small Bolts and Nuts as shown.

Assemblies from previous page:

• Truss Post Assembly (2)

• Chord Truss Assembly (2)

Attach Truss Splice to Truss using Small Bolts and Nuts as shown below, but do not tighten at

this time. Temporarily secure the peak of the

10645

10646

Repeat for Additional Trusses

The number of Trusses you will

need to construct your building will depend on the size of your building. All buildings require at least two Trusses. See the chart to the right to determine the number of Trusses needed for your building.

118 1/4”

300,4 cm

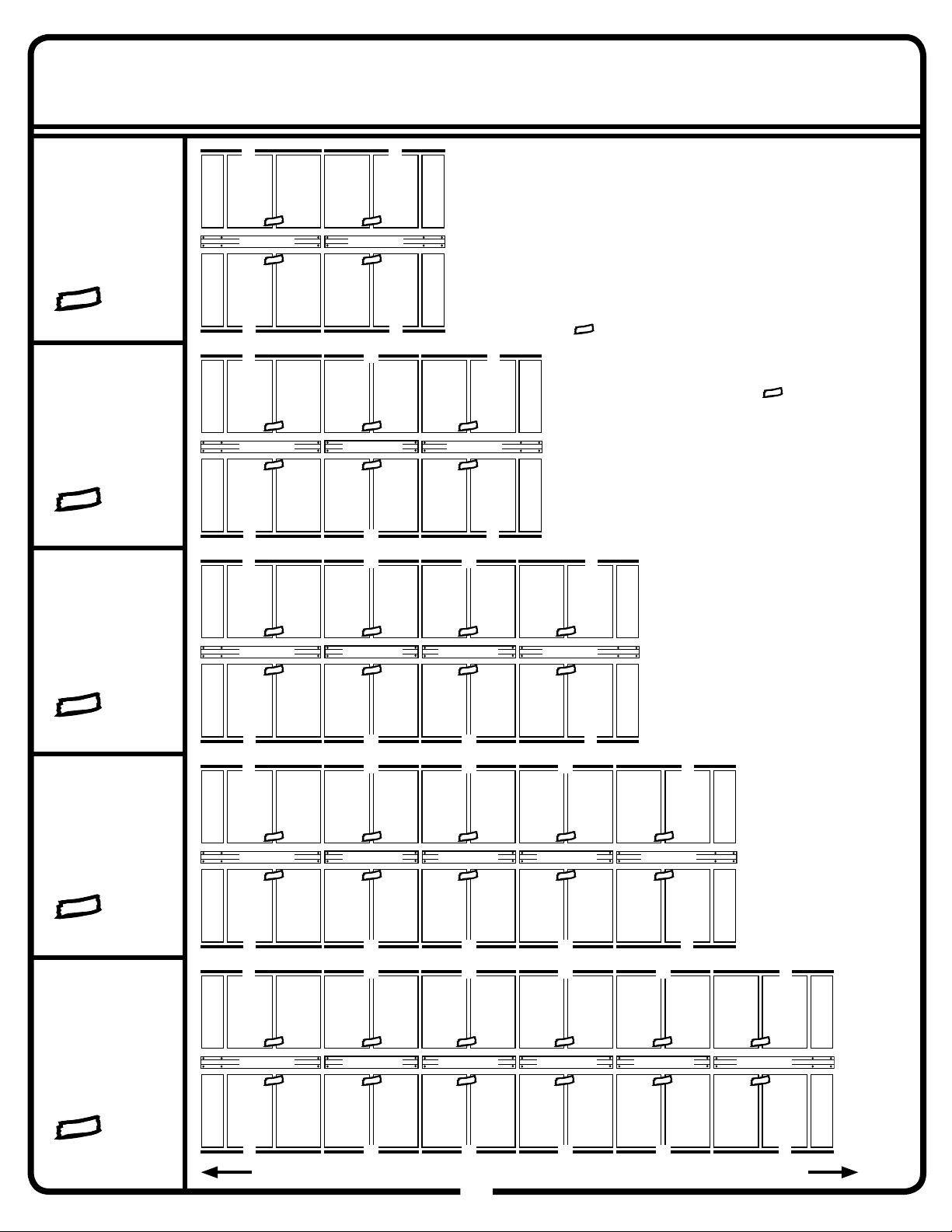

Number of Trusses Needed

Nominal Size # of Modules # of Trusses

10’x10’ 3,0 m x 3,1 m 0 2

10’x15’ 3,0 m x 4,6 m 1 3

10’x20’ 3,0 m x 6,1 m 2 4

10’x25’ 3,0 m x 7,5m 3 5

10’x30’ 3,0 m x 9,0 m 4 6

Page 14

Step 2: Rear Wall

14H

You will need for this page:

LS SB

(QTY: 8)

(QTY: 15)

If you purchased a Door Kit, skip this page and move on to page 16.

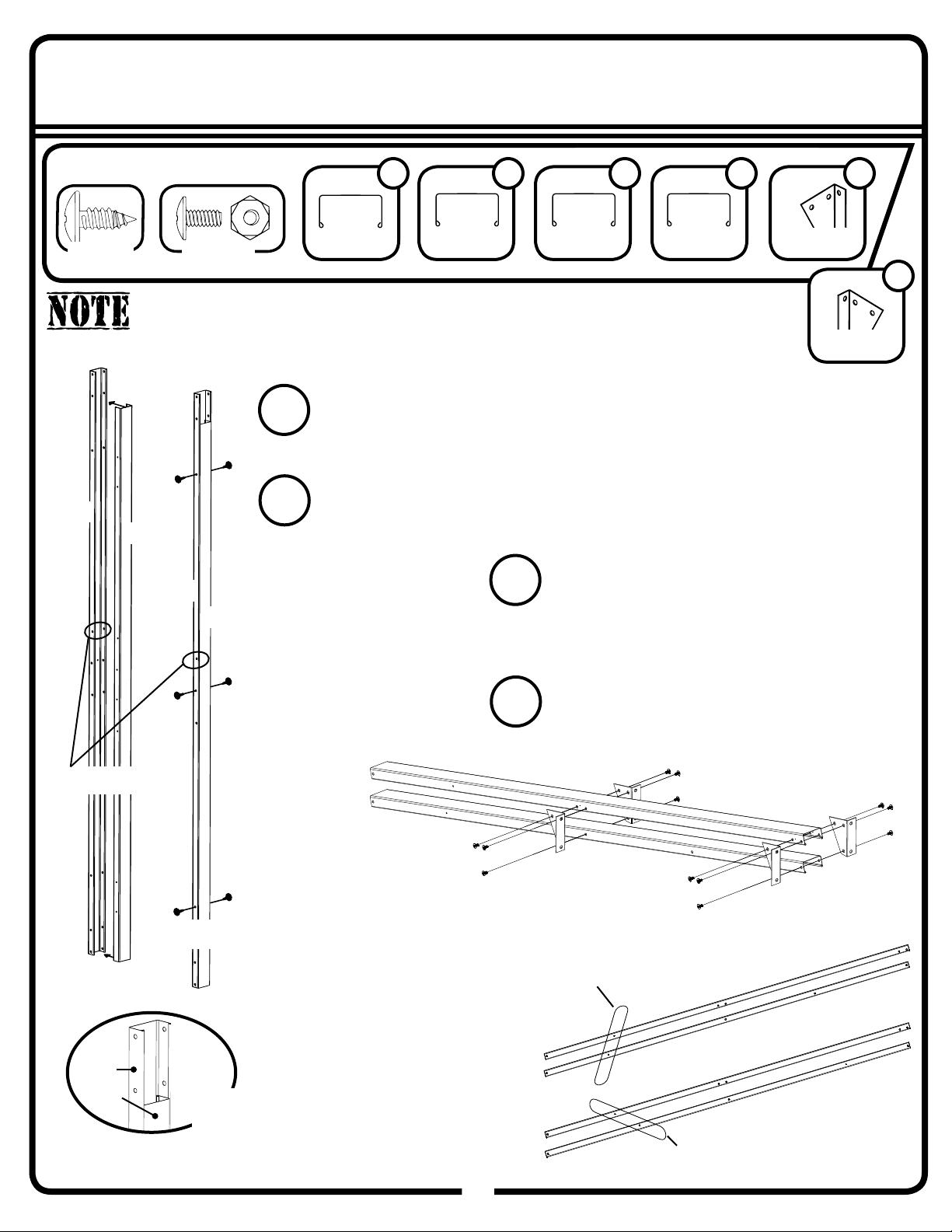

Lay out the parts and position them as shown. Overlap the Rear Frames by 4” (10,2 cm) and connect them to the Wall Post in the center of the Rear Wall using Small Bolts and Nuts as shown. Do not tighten at this time.

Attach other two Wall Posts at the sides of the Rear Wall using Small Bolts

and Nuts as shown. Attach both Rear Wall Channels using Small Bolts and Nuts. Slide the Rear Wall Diagonals into the Frame and secure with Large Screws.

10629

Rear Frame

10631

10630

Rear Wall

Channel

10629

10631

Rear Wall

Diagonal

10640

Wall Post

overlap length:

4” (10,2 cm)

OUTSIDE

10629

10640

10630

INSIDE

10629

10640

10630

10631

10640

10629

Page 15

Step 2: Continued

15H

You will need for this page:

(QTY: 30)

INSIDE

10619

7822

Wall Panel

10619

Corner Panel

10619

7822

10630

10619

7822

LEAVE HOLES OPEN

ALONG SIDE OF WALL

OUTSIDE

Using Small Screws, attach a Wall Panel and Corner Panel to each corner of the Rear Wall as shown. The

Corner Panel should only be secured to the Wall Panel where the Panels overlap. Do not secure the Corner Panel to the Rear Wall itself, this will be done in Step 5.

Carefully set the Rear Wall Assembly aside for use in Step 5.

will help to prevent leaks and corrosion.

7822

Place Washers on all Bolts and Screws used on painted parts. This

Page 16

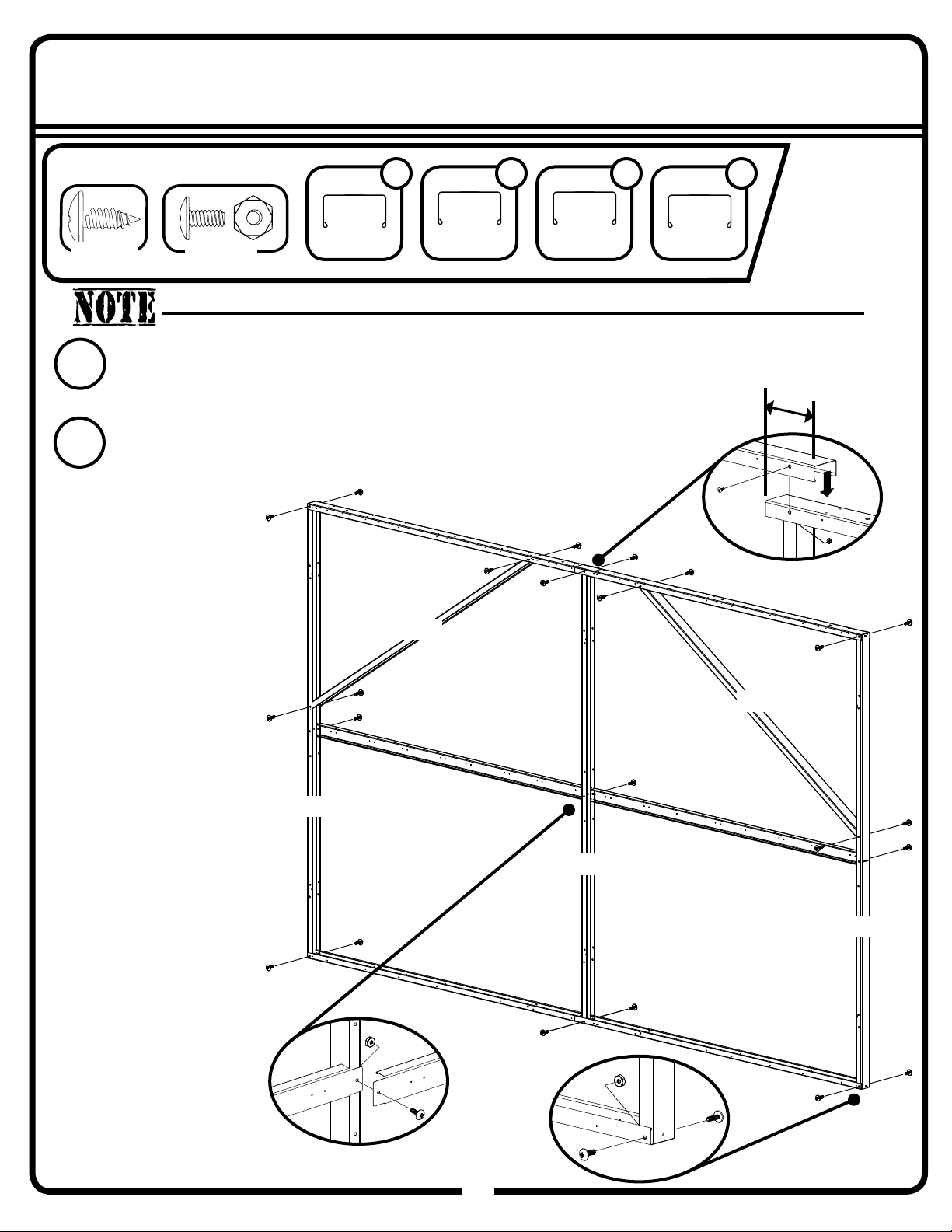

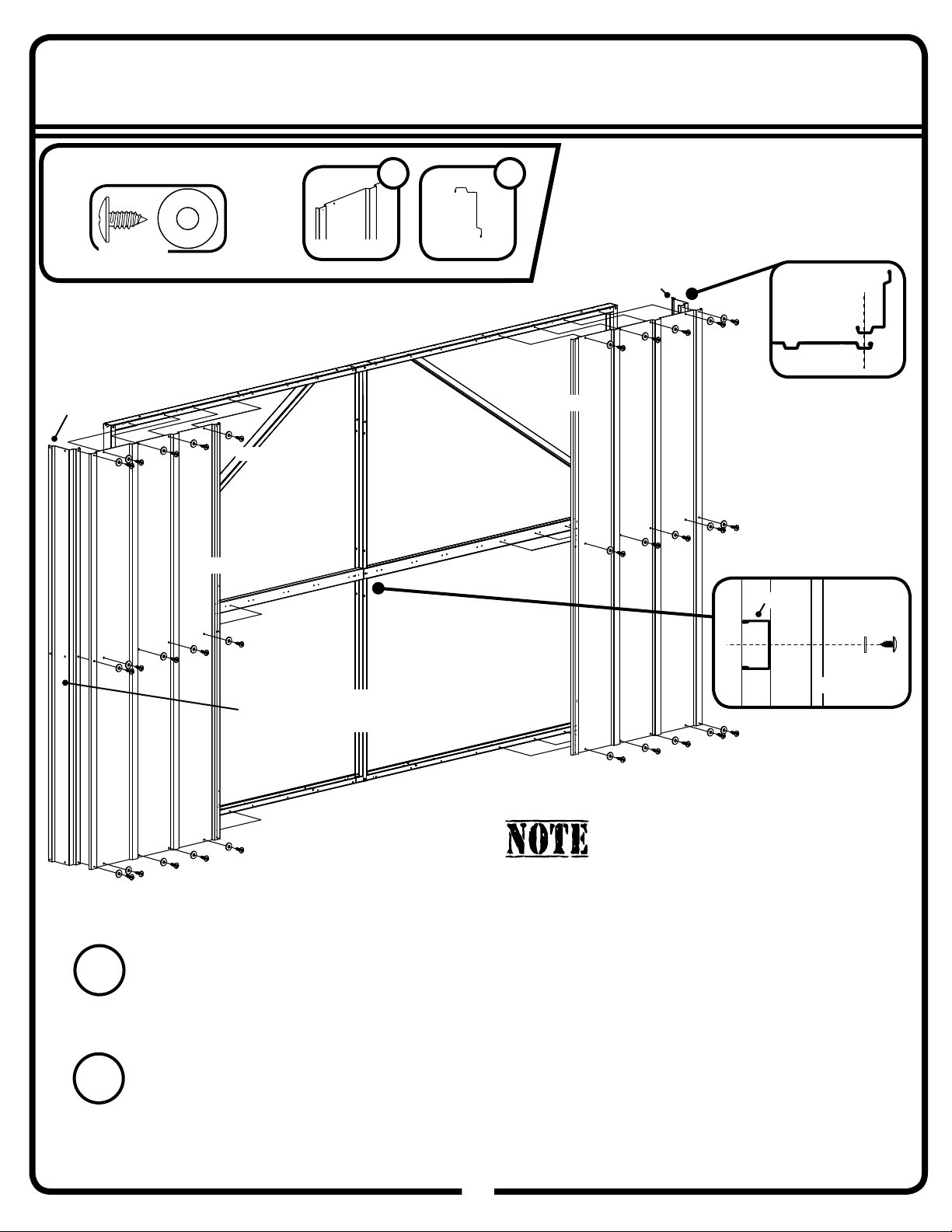

Step 3: Front Wall

16H

You will need for this page:

LS SB

(QTY: 34)

(QTY: 24)

If you purchased a Door Kit, build two Front Walls.

Left Front Wall Assembly

10640

10628

10627

10628

10652

10627

10652

10640

Wall Post

10652

Wall Post

(Hinge)

Right Front Wall Assembly

10640

10628

(Hinge) is most likely upside-down.

Part 10627 Front Wall Channel may be joined in pairs. Bend to separate.

10627

Front Wall

Channel

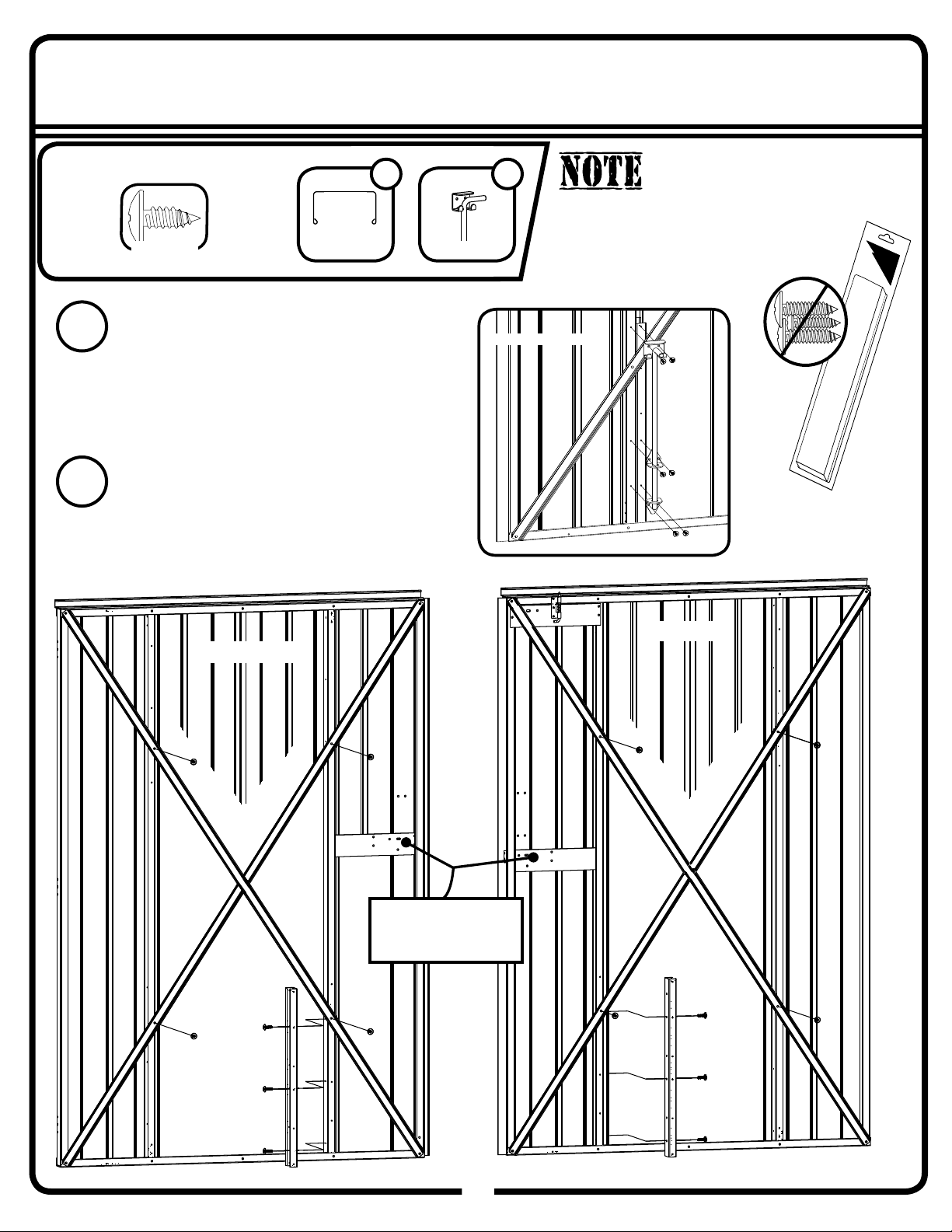

Lay out the parts and position them as shown. Double check that holes align as

shown. If holes do not align, the Wall Post

Insert the Front Wall Channels into the Wall

Post and Wall Post (Hinge) as shown and secure with Small Bolts and Nuts.

Insert Front Wall Diagonals into the Front Wall Assembly as shown and secure with Large Screws.

Assemble two Front Frames together with the Long and Short Fascias as shown below and secure using Large Screws.

10628

Front Wall

Diagonal

10638

Long Fascia

10673

Front Frame

10639

Short Fascia

10627

10673

10638

10628

Door Header Assembly

10627

SNAP

10673

Fascia pieces should ﬁ t inside

Front Frame as shown.

10639

10673

10639

Page 17

Step 3: Continued

17H

You will need for this page:

SB SS

(QTY: 12)

(QTY: 8)

Left Front Wall Assembly

10619

10618

Front Wall

Panel

Right Front Wall Assembly

Assemblies from previous page:

10619

Corner Panel

pieces are joined, take care when moving them as the Door Header may bend.

should only be secured to the Front Wall Panel where the Panels overlap. Do not secure the Corner Panel to the Front Wall itself, this will be done in Step 6. Also, leave the holes closest to the Door open in the Front

Wall Panel. These will be used to attach the Door Jambs in Step 6.

• Left Front Wall Assembly

• Right Front Wall Assembly

• Door Header Assembly

Slide the Door Header Assembly down onto the Front Wall Assemblies as shown and secure with Small Bolts and Nuts. Once these

Using Small Screws, attach a Front Wall Panel and Corner Panel to each corner of the Front Wall as shown. The Corner Panel

IMPORTANT: A minimum

of two people should be used at all times when handling or maneuvering the Front Wall Assembly. When installing the Front Wall Assembly in the building, two people should hold the Assembly in place until it is secure. Failure to do so could result in bending the Front Frame and Fascia pieces.

LEAVE HOLE OPEN

10618

LEAVE HOLE OPEN

10619

10618

LEAVE HOLES OPEN

ALONG SIDE OF WALL

10619

10618

Page 18

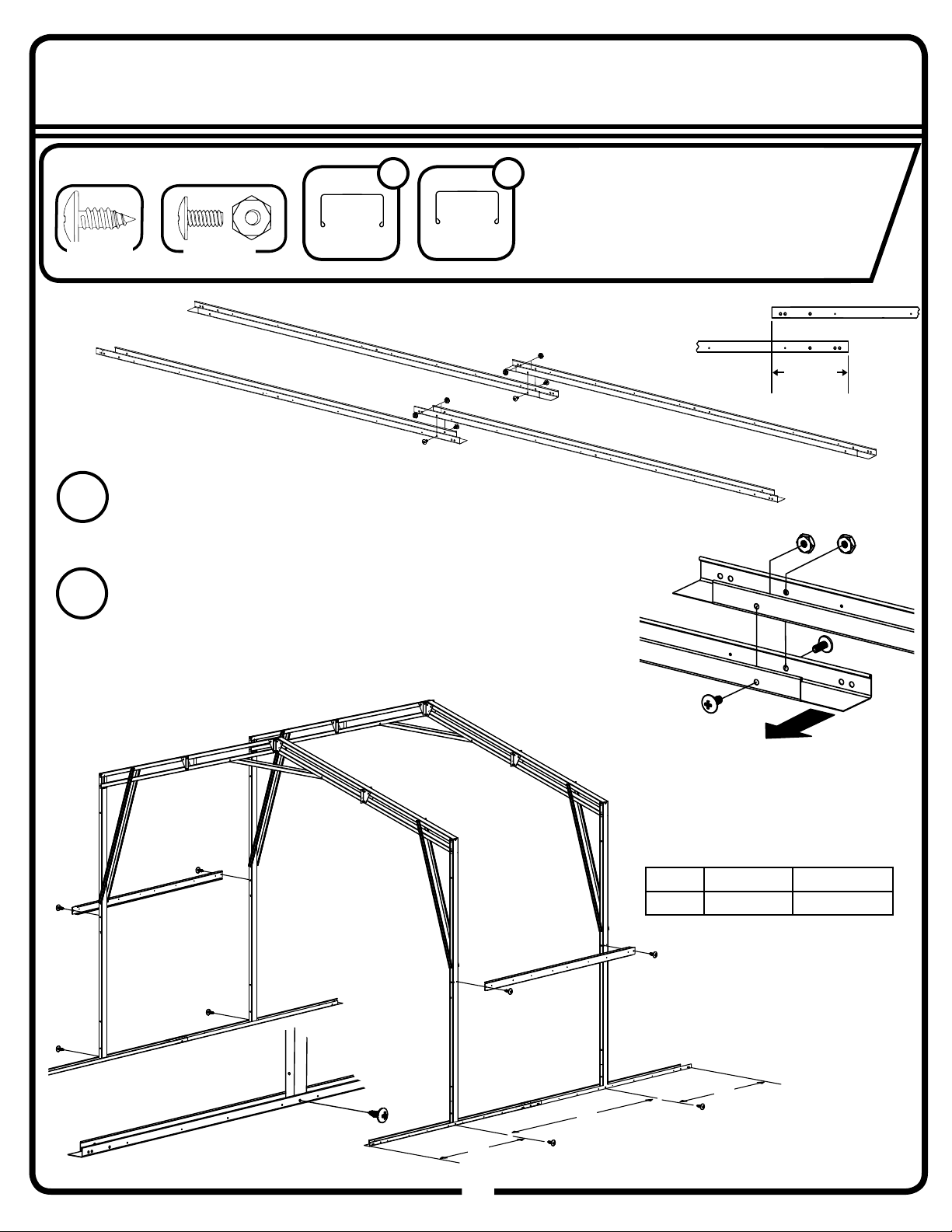

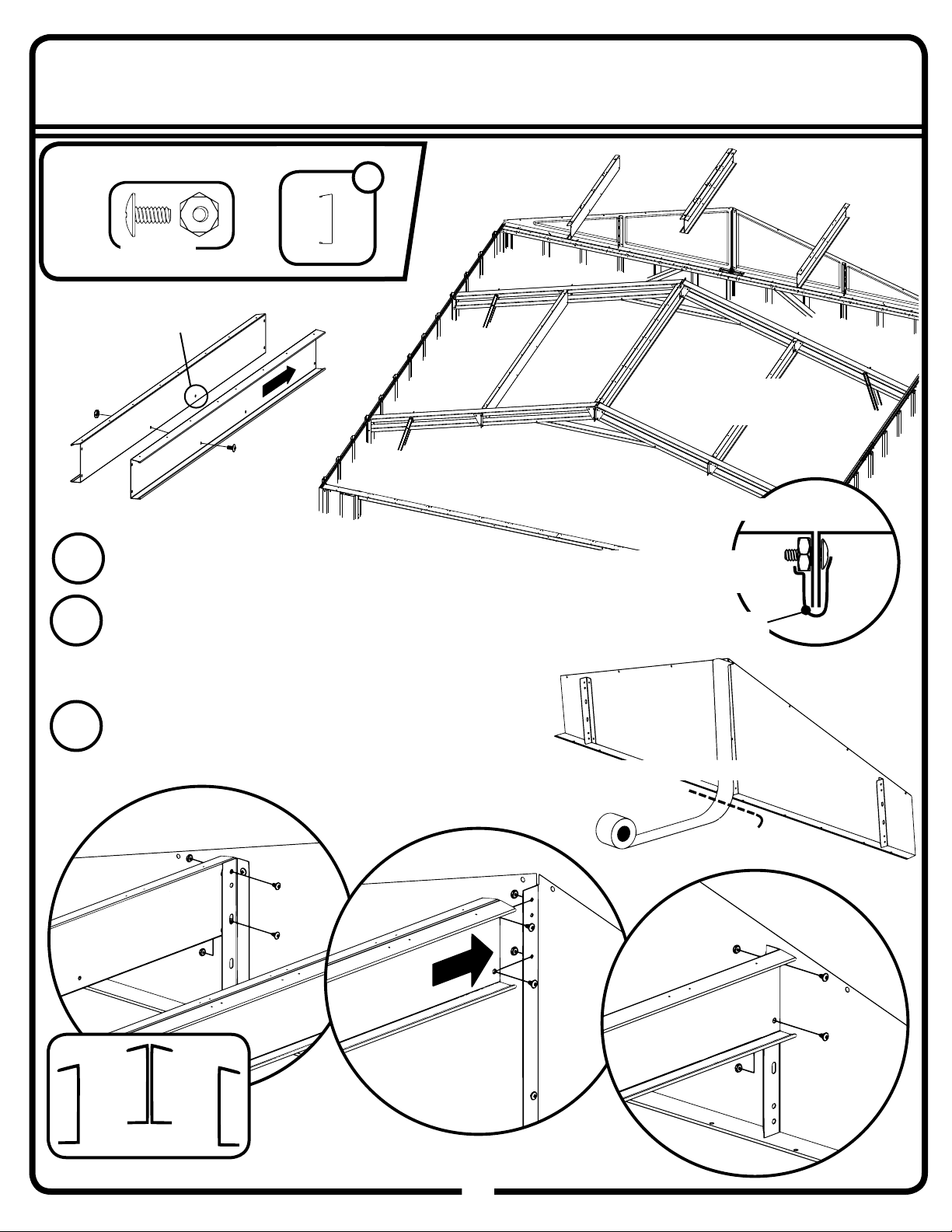

Step 4: Truss Installation

18H

You will need for this page:

10632

LS SB

(QTY: 8)

10632

Assemble two sets of Side Frames by overlapping them by 8 1/4” (21,0 cm) and inserting two Small Bolts and Nuts as shown

above. These will form the left and right Floor Frames.

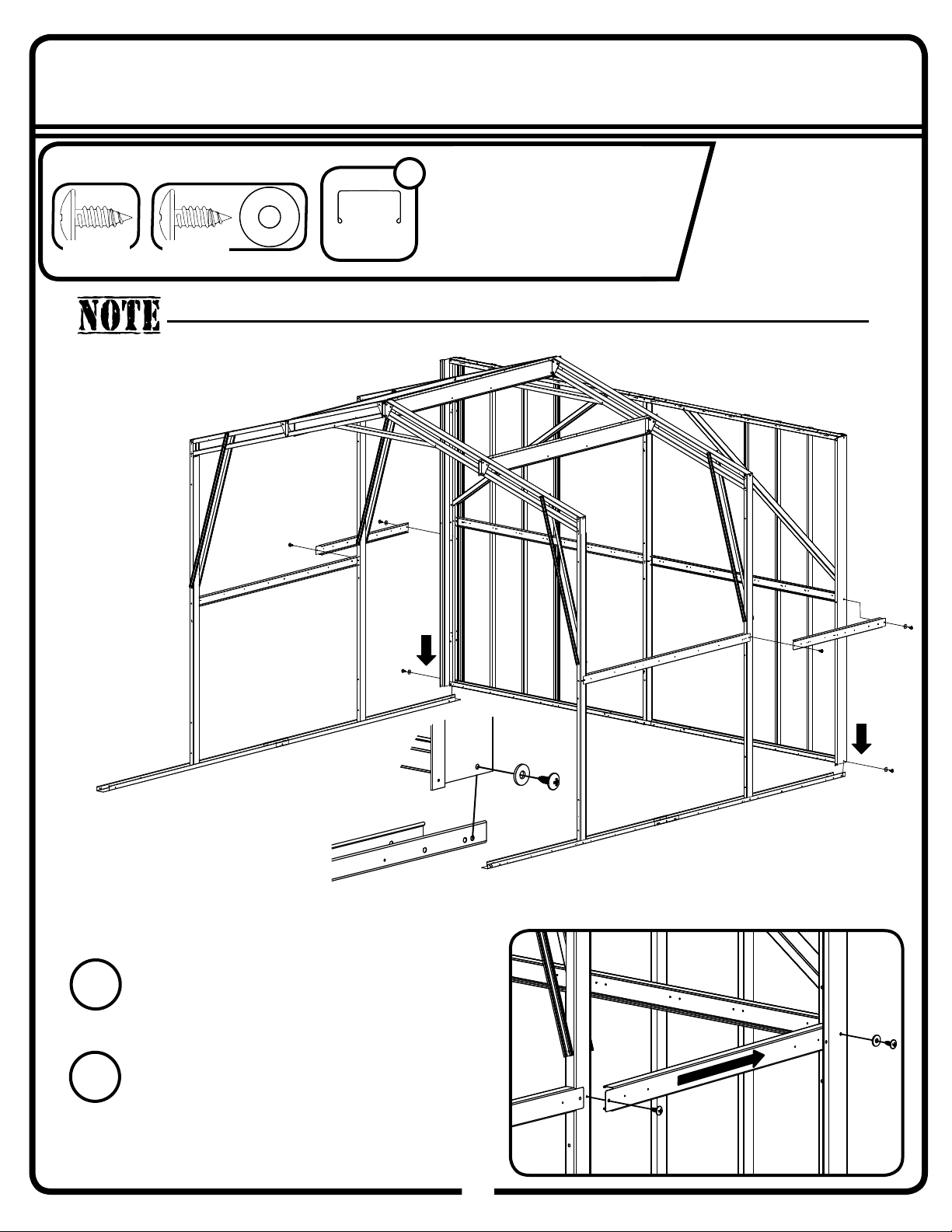

32 7/8” (83,5 cm) from the edge of each Floor Frame, erect a Truss Assembly and secure using a Large Screw on each side. Once two

Truss Assemblies are in place, connect them with a Mid Side Wall Channel and secure with Large Screws.

Support Trusses until Mid Side Wall Channels are in place.

(QTY: 4)

10632

Side Frame

10634

Side Wall

Channel

Assemblies from Step 1:

• Truss Assemblies (2)

Overlap Length

8 1/4”

21,0 cm

10632

Notched side of Frame must face inside building.

10632

10634

10632

10634

Truss Spacing

32 7/8” 83,5 cm

57 1/2” 146,1 cm

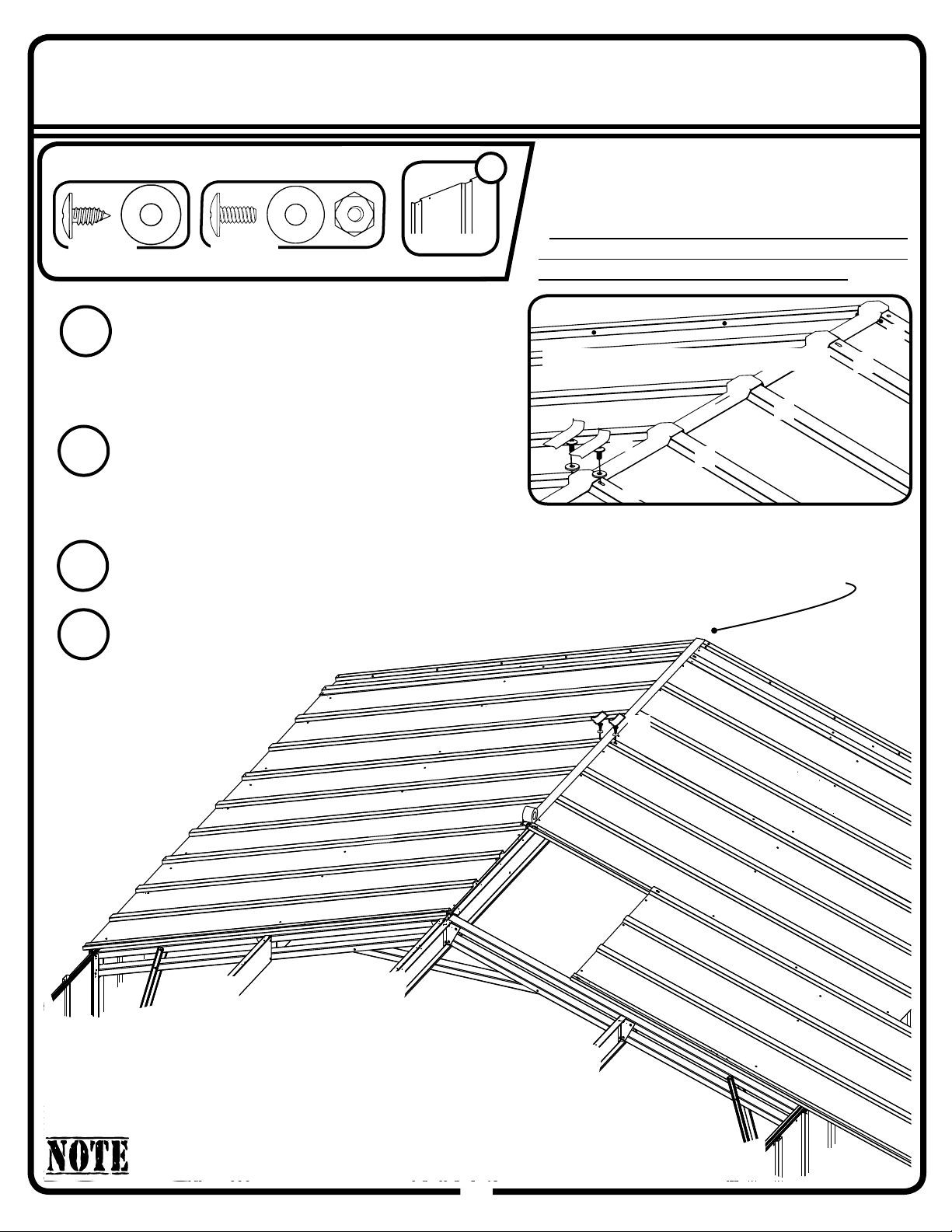

Page 19

Step 4: Continued

19H

You will need for this page:

(QTY: 14 )

10650

Roof Beam

Main Roof Beam

Side of Beams with small holes must face up.

End View of Double Beam

10650

Outer

10650

Main

Outer

Main

Outer

10650

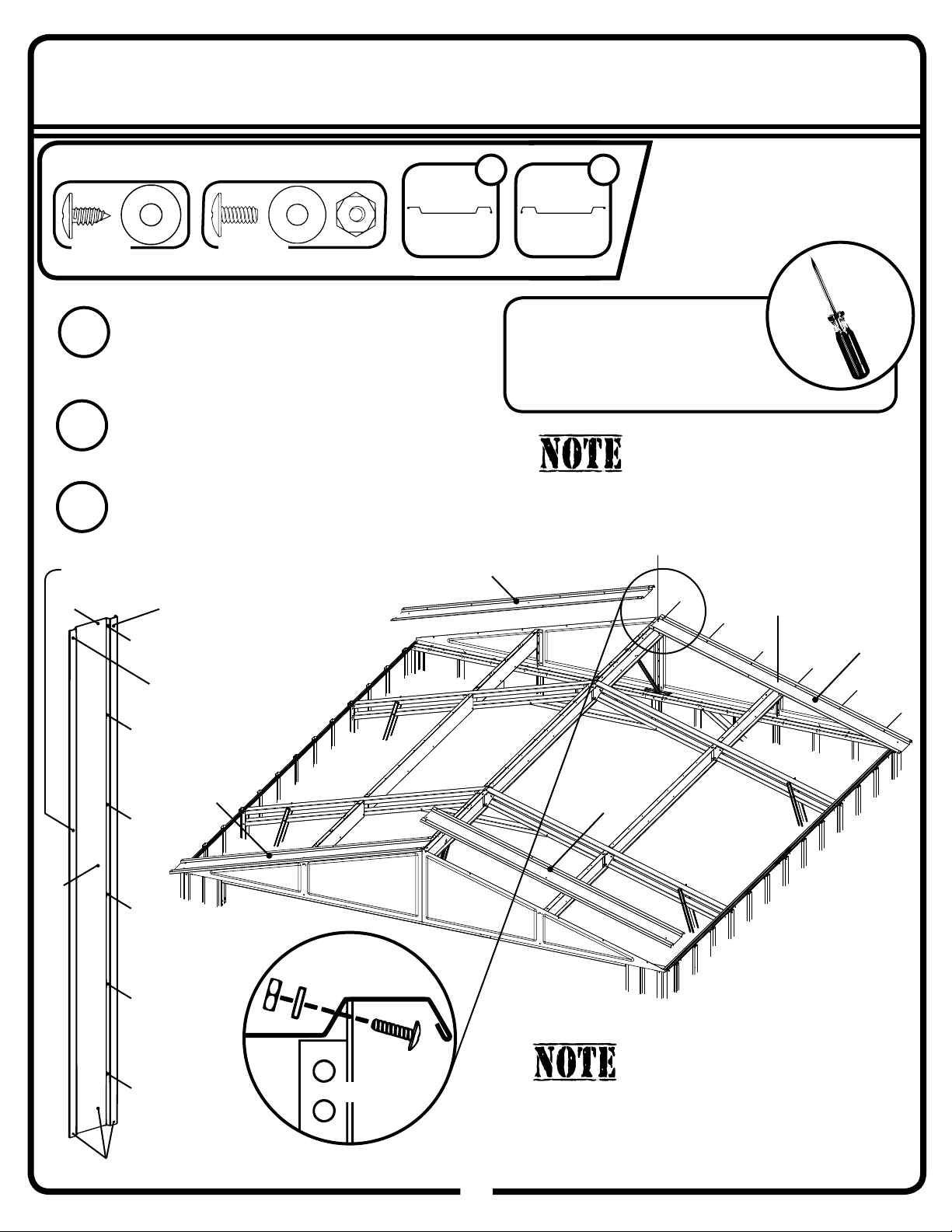

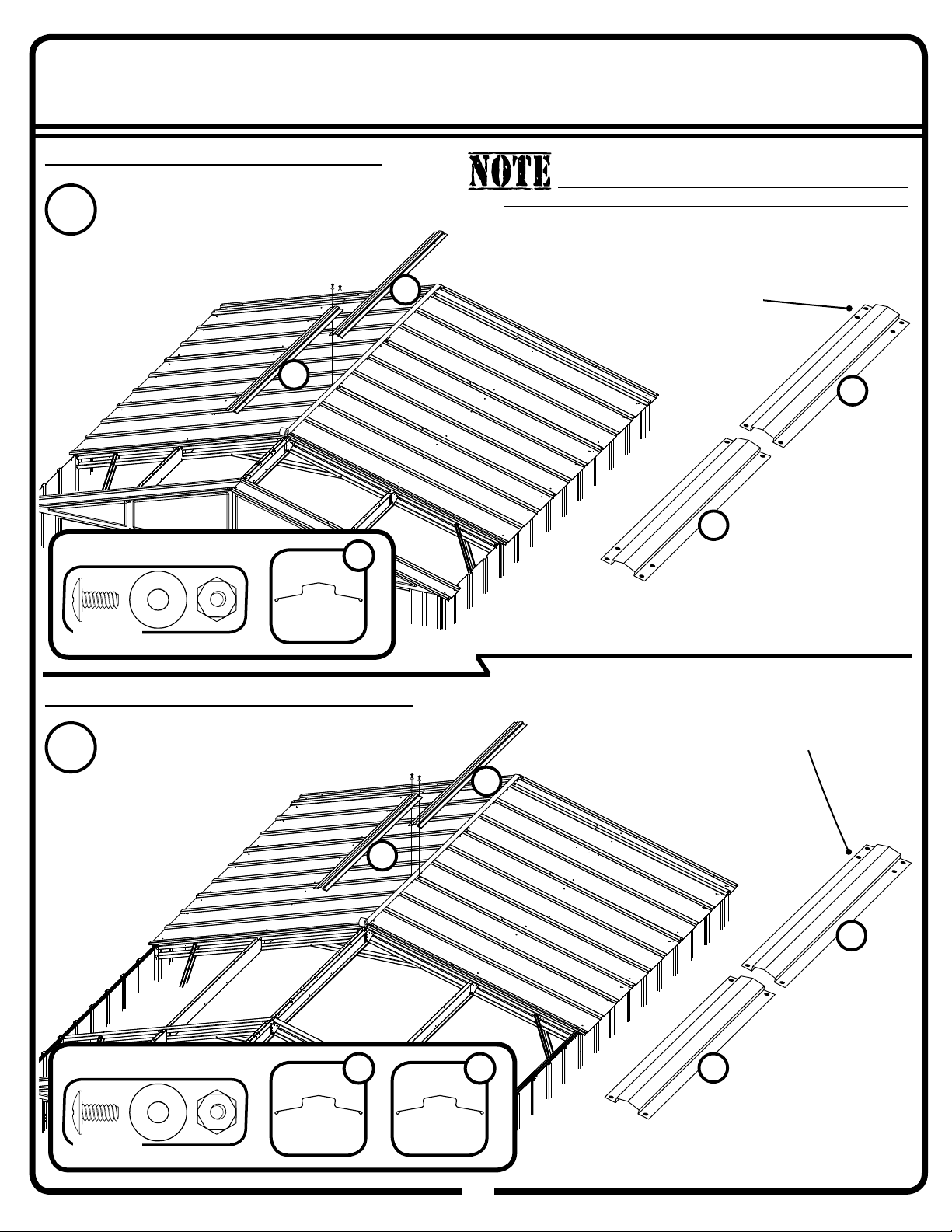

Remove Bolts holding Truss peaks together (from Step 1-6). Next, place two Middle Roof Beams back-to-back and secure with two Small Bolts and

Nuts as shown above. This is the Main Roof Beam.

Install the Main Roof Beam and secure with two Small Bolts and Nuts at each end. Next, install the outer Roof Beams in the same manner.

Small holes in tops of beams.

Page 20

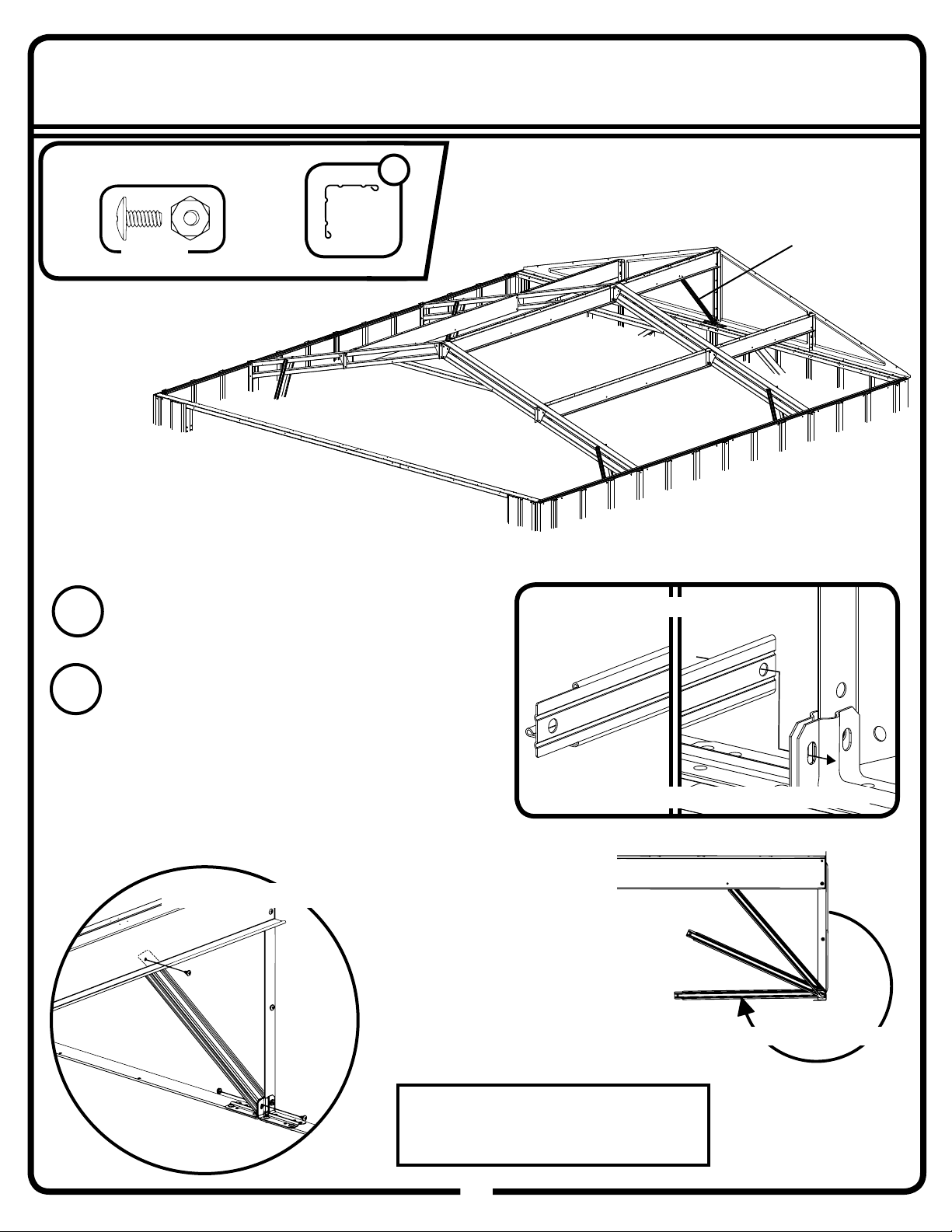

Step 4: Continued for Extension Modules

20H

You will need for this page:

LS SB

(QTY: 6+)

(QTY: 18+)

If you are erecting a 10’x10’ (3,0 m x 3,1 m) building, skip this page and move on to page 21.

10632

Side Frame

10634

Side Wall

Channel

One Side Frame per side is added for each additional Extension Module.

10650

Roof Beam

per side for each additional Module. Overlap Side Frames by 8 1/4” (21,0 cm). Refer to page 13 to see how many Trusses should be included in your building.

Assemblies from Step 1:

• All remaining Truss

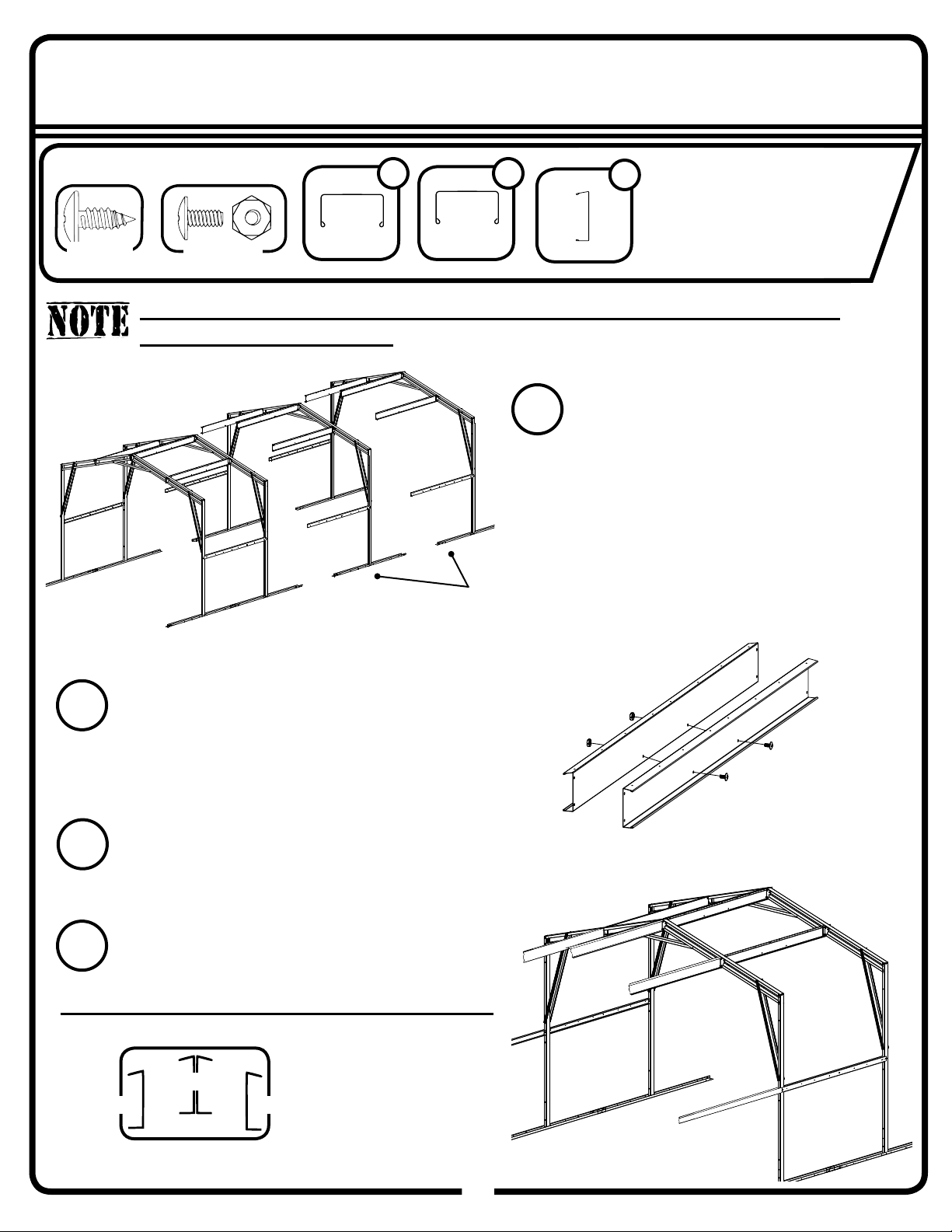

All Truss Sections are assembled in the same manner as the Truss Section just

erected. Install one additional Side Frame

Assemblies

57 1/2” (146,1 cm) behind the previous Truss, erect a Truss Assembly and secure using a Large

Screw on each side. Once two Truss Assemblies are in place, connect them with a Mid Side Wall Channel and secure with Large Screws. Support Trusses until Mid Side Wall Channels are in place.

Remove Bolts holding Truss peaks together (from

Step 1-6). Next, place two Middle Roof Beams

back-to-back and secure with two Small Bolts and Nuts as shown. This is the Main Roof Beam.

Install the Main Roof Beam and secure with two

Small Bolts and Nuts at each end. Next, install

the outer Roof Beams in the same manner.

Repeat until all Trusses have been installed.

Main

Outer

10650

Outer

10650

Main Roof Beam

Main

Outer

10650

Side of Beams with small holes must face up.

Page 21

Step 5: Rear Wall Install

You will need for this page:

10633

LS LS

Assemblies from Step 2:

21H

Side Wall

(QTY: 4)(QTY: 2)

Channel

• Rear Wall Assembly

If you purchased a Door Kit, skip this page and move on to page 22.

10633

10’x10’ (3,0 m x 3,1 m) building shown.

Carefully position the Rear Wall Assembly in place at the rear of the building and secure to Side Frame with one Large Screw per

side as shown.

Slide one end of the Front and Rear Side Wall Channel behind the Corner Panel

and secure with a Large Screw. Secure the other end with a Large Screw when done. Repeat for the other Front and Rear Side Wall Channel.

10633

Page 22

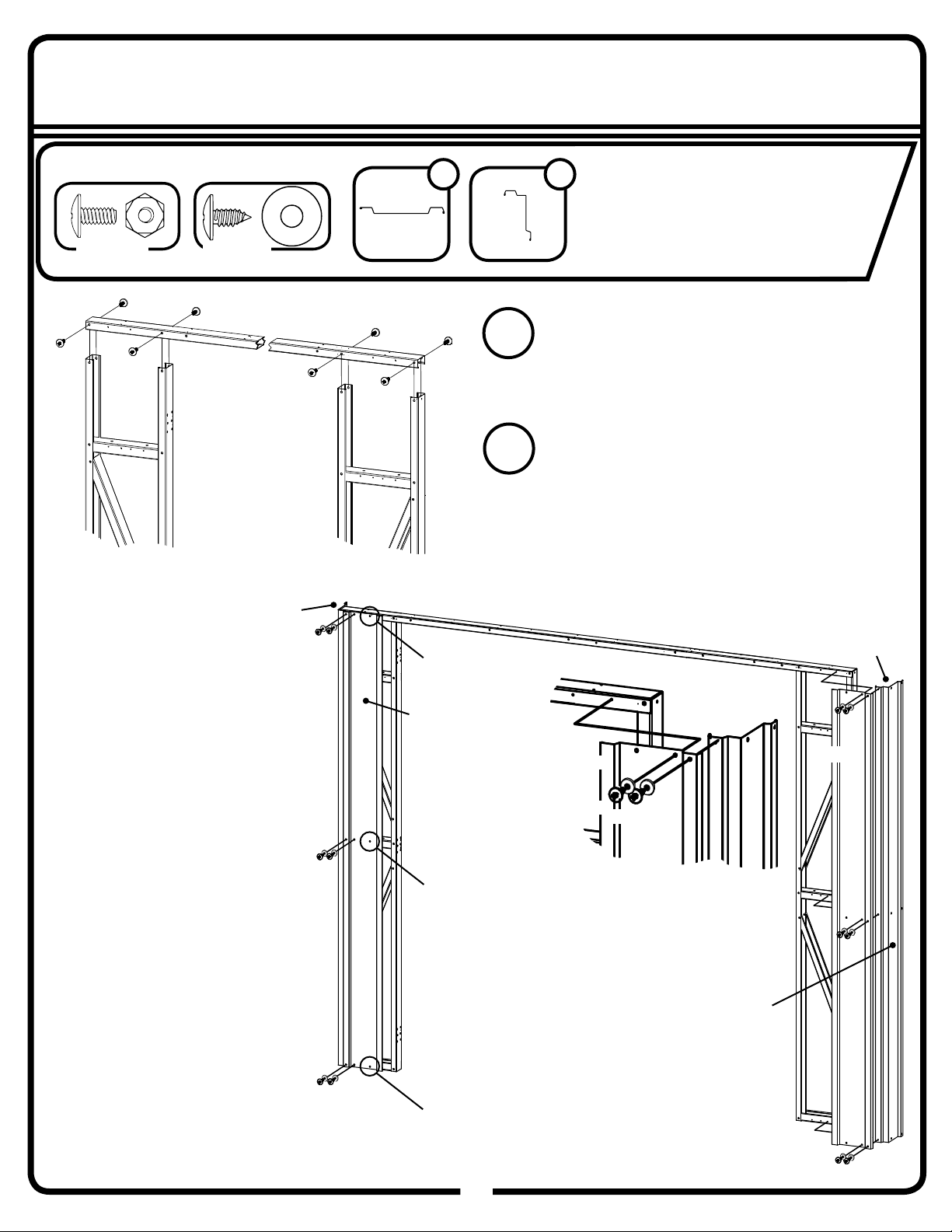

Step 6: Front Wall Install

You will need for this page:

LS LS

10633

10622

80037

Assemblies from Step 3:

22H

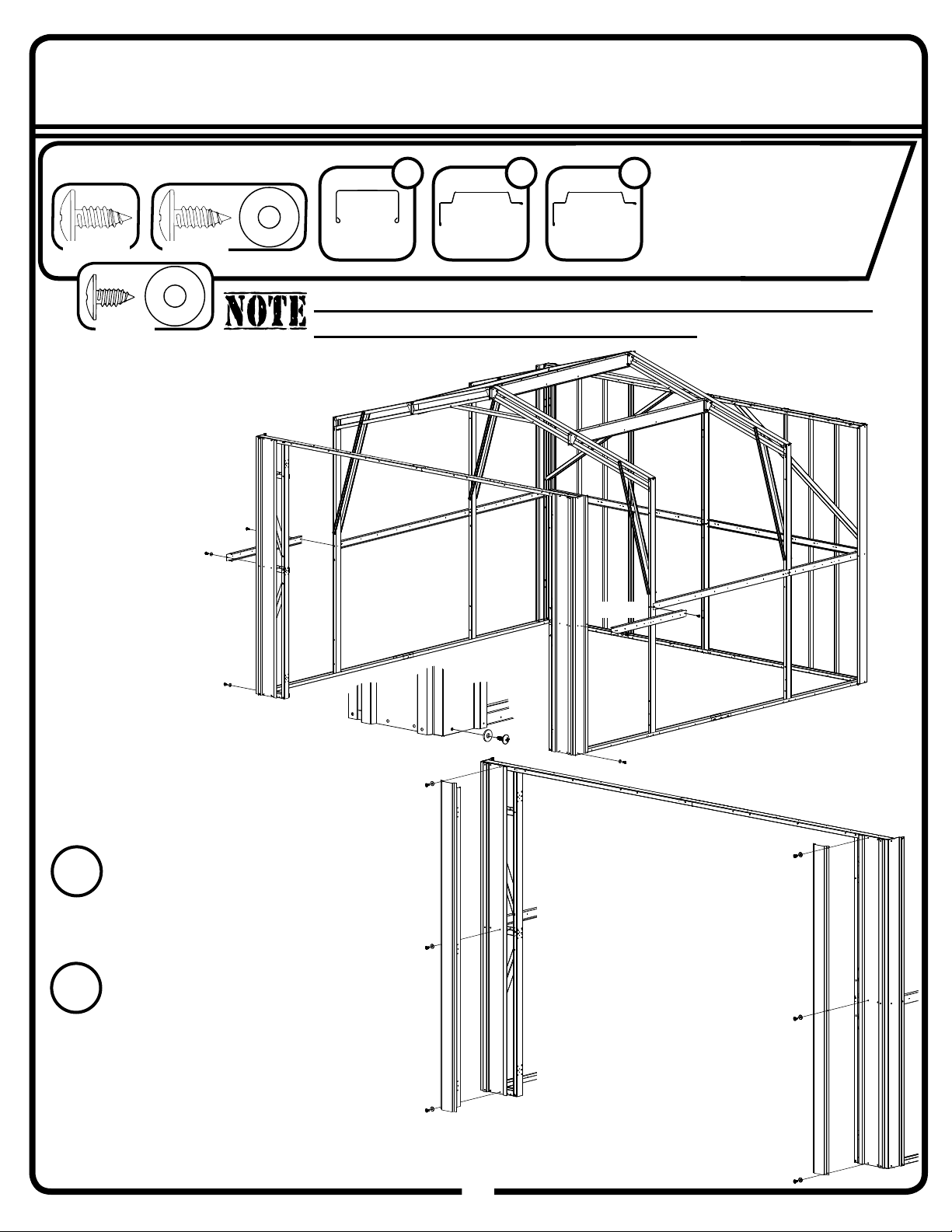

(QTY: 4)(QTY: 2)

(QTY: 6)

10’x10’ (3,0 m x 3,1 m) building shown.

10633

Side Wall

Channel

Right Door

Jamb

Left Door

Jamb

• Front Wall Assembly

If you purchased a Door Kit, install second Front Wall Assembly on the rear of the building.

10633

Just as in the rear, carefully position the Front Wall Assembly as shown and secure with a Large Screw on

both sides. Install Front and Rear Side Wall Channels using Large Screws.

Position the Door Jambs as shown and secure to the Front Wall Panel

using Small Screws. Double check that the holes in the Door Jamb line up with the holes in the Wall Post (Hinge). If they do not, the Left and Right Door Jambs are most likely switched.

IMPORTANT: When installing the Front Wall Assembly in the building, two people should position and hold the Assembly in place until it is secure. Failure to do so could result in bending the Front Frame and Fascia pieces.

1062280037

Page 23

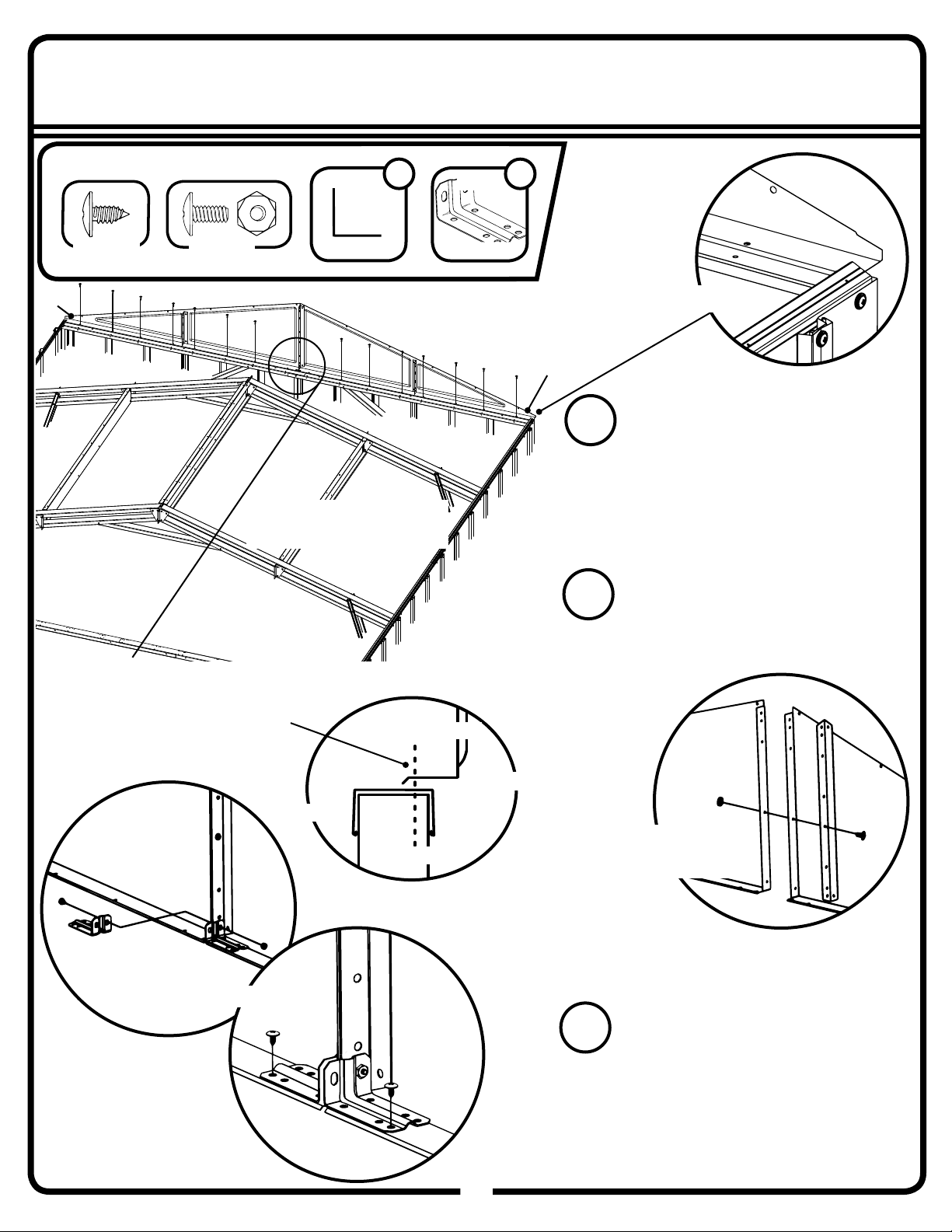

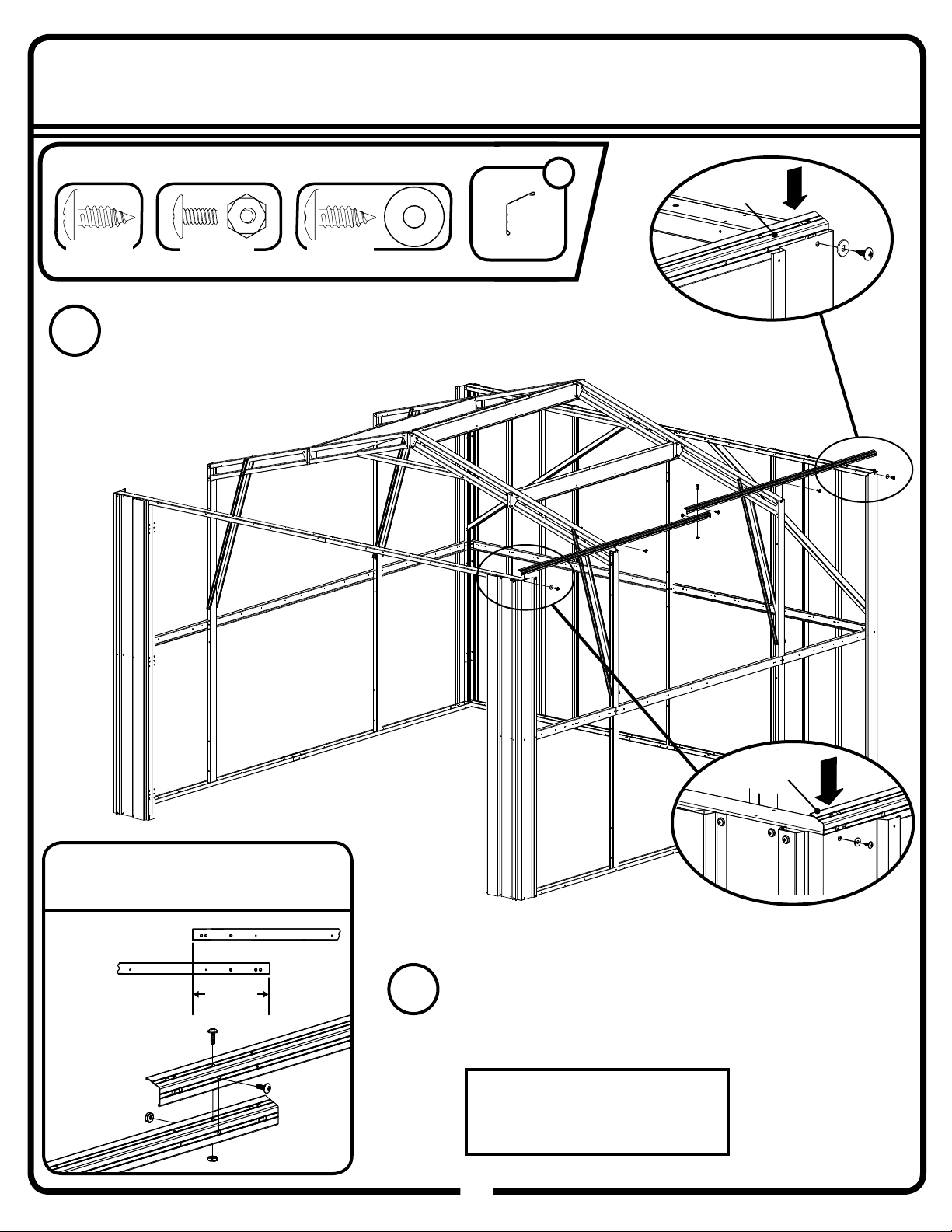

Step 7: Wall Angles

You will need for this page:

10625

LS SB LS

23H

10625

(QTY: 4+)

Starting at the front and rear of the building, attach Side Wall Angles to the front and rear wall of the building with Large Screws as shown.

(QTY: 4+)

(QTY: 4)

Side Angle

10’x10’ (3,0 m x 3,1 m) building shown.

All angles overlap by 8 1/4”

(21,0 cm)

Overlap Length

8 1/4”

21,0 cm

10625

Next, insert Large Screws where the Wall Angles meet the Trusses. Where the Wall Angles overlap, align the holes as shown to the left and insert two Small Bolts and

Nuts to secure. All Side Wall Angles overlap by 8 1/4” (21,0 cm).

Continue until Side Wall Angles are installed along both sides of the building.

Page 24

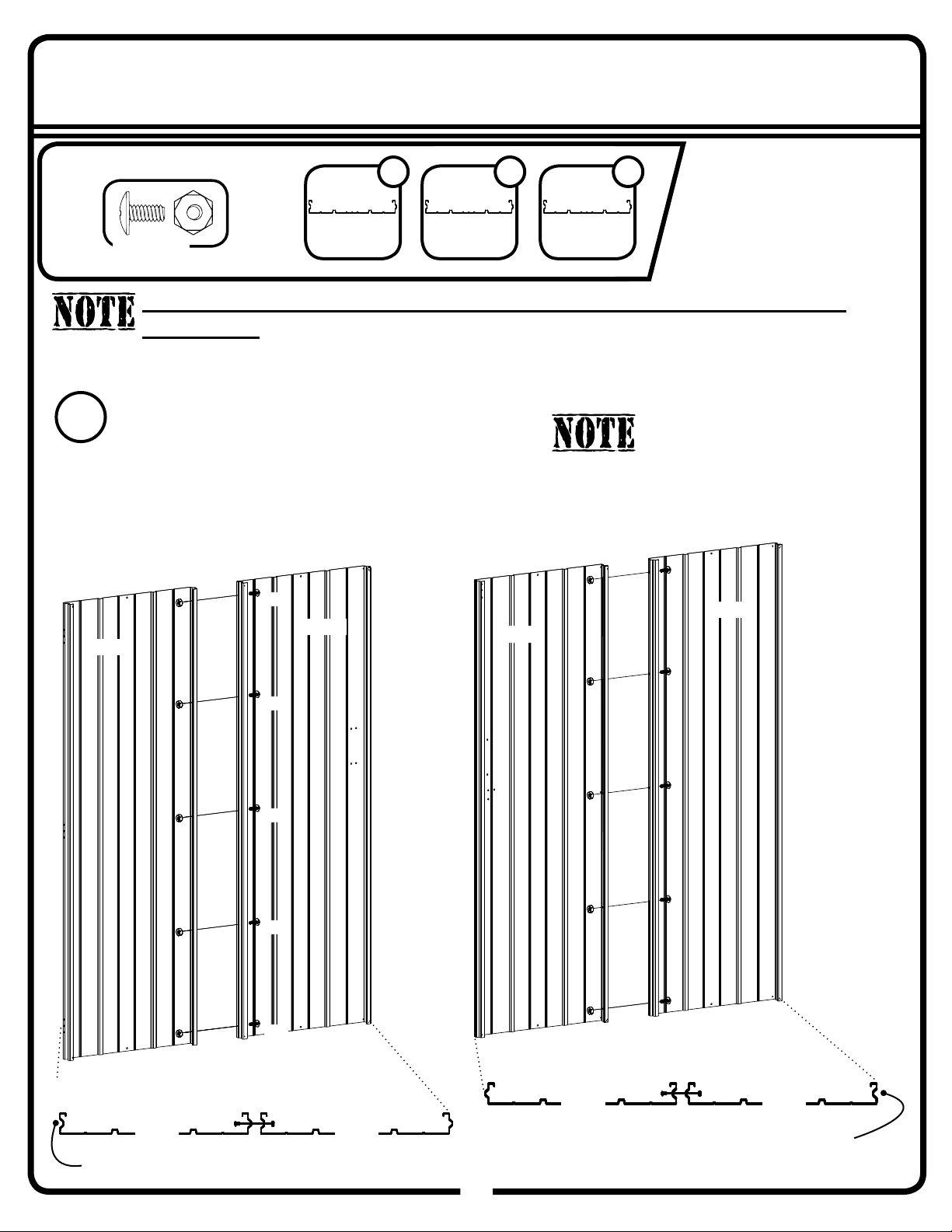

Step 8: Wall Panels

IMPORTANT:

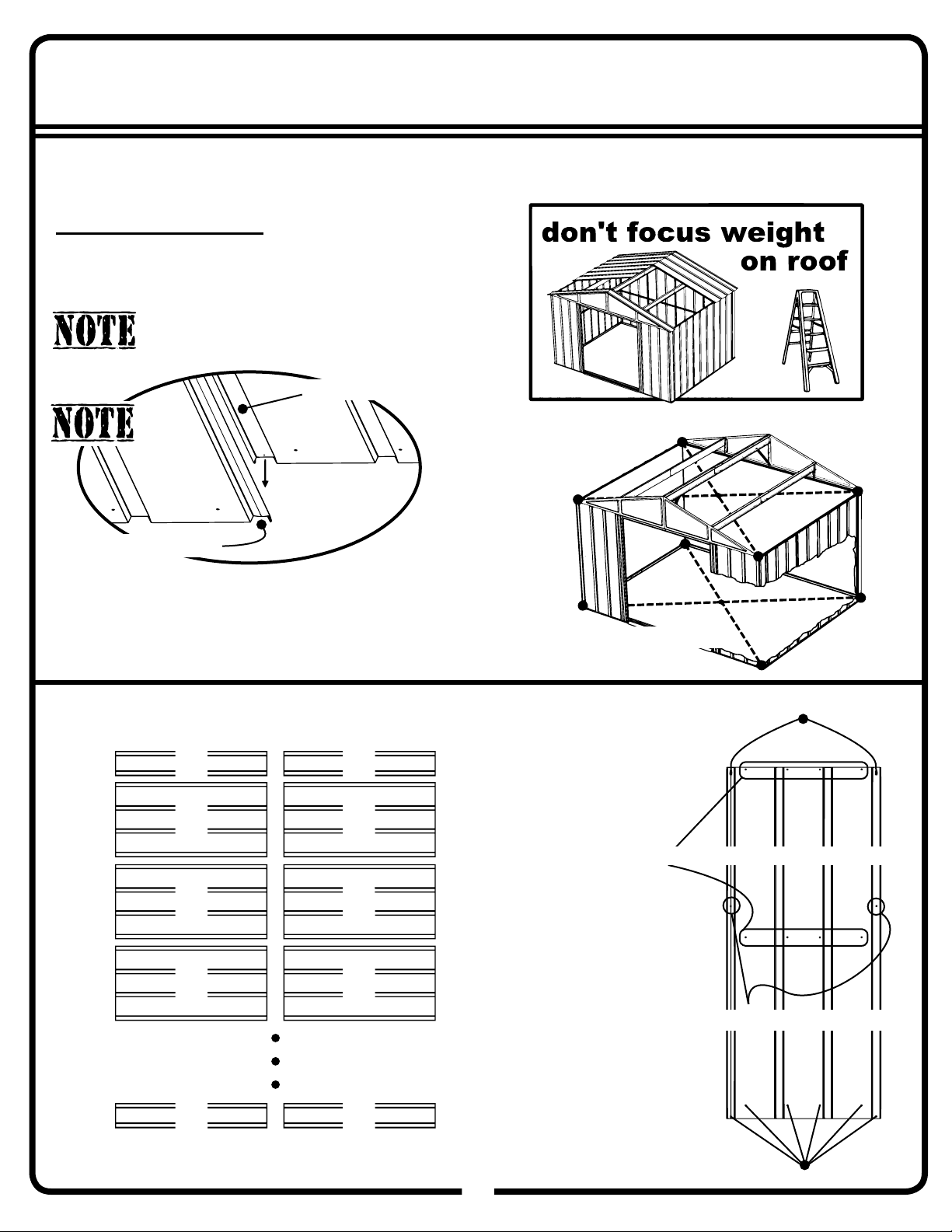

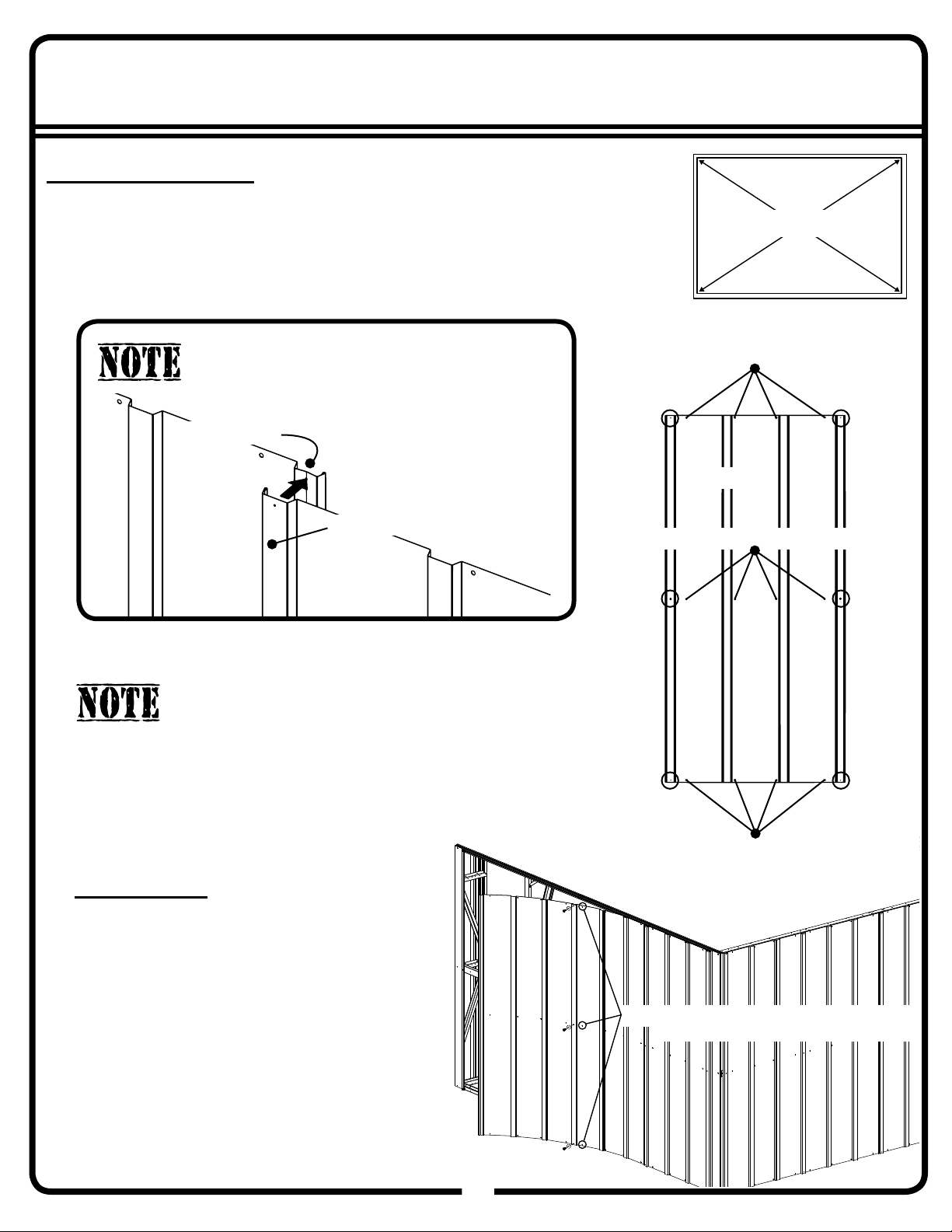

At this time, take a moment to ensure the building is level and square. Measure

diagonally across the building from opposite corners; when these measurements match, the building is square. For the remainder of assembly it will be important that the building is both level and square.

24H

EQUAL MEASUREMENTS

Whenever a crimped rib and an uncrimped rib

meet, the crimped rib should be placed UNDER

the uncrimped rib if possible. See next page.

Crimped Rib

Uncrimped Rib

Use the diagram to the right when attaching Wall Panels.

• Secure the top row to Top Frames

• Secure the middle row to Wall Channels

• Secure the lower row to Floor Frames

• Secure the circled holes to the Panel next to it

FASTEN TO TOP FRAMES

7822

FASTEN TO WALL CHANNELS

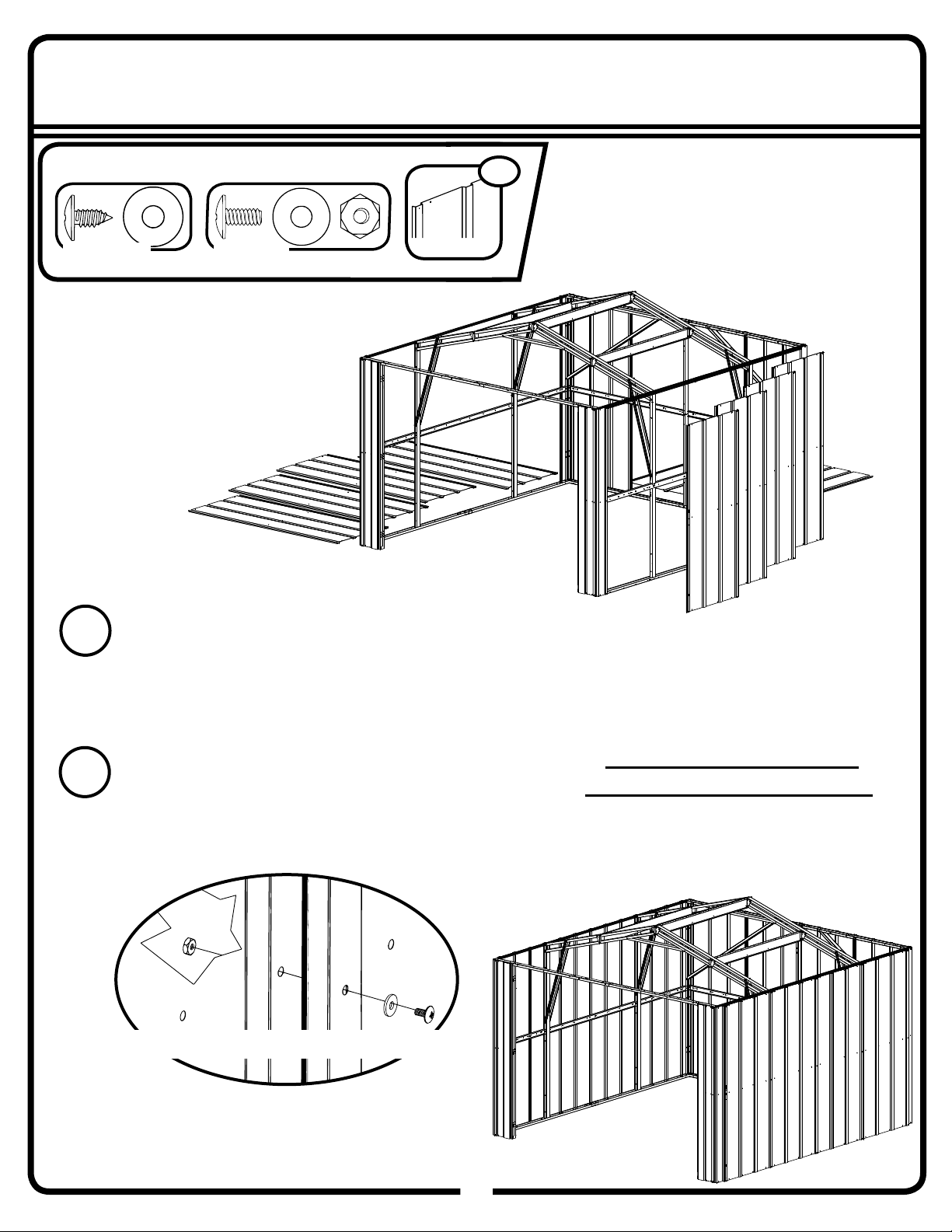

IMPORTANT: When installing the Wall

Panels over a Truss, you will need to ‘roll’ the Panels as shown to be able to attach the next Panel at the overlap. When securing the Panel to the building with Small Screws, do not insert Screws in the row of holes closest to the last rib of the Panel. Next, roll the Panel back slightly and attach the next Panel at the overlap with a Small Bolt and Nut in the center hole. Once this is done, continue securing the Panel to the building.

FASTEN TO FLOOR FRAMES

LEAVE LAST ROW OF HOLES EMPTY

UNTIL NEXT PANEL IS IN PLACE

Page 25

Step 8: Continued

25H

You will need for this page:

7822

SBSS

(QTY: 150+)

10’x10’ (3,0 m x 3,1 m) building shown.

Working one side at a time, lift the Panels into place and secure with three Small Screws in the

top of the Panel, three Small Screws in the middle of the Panel, and three Small Screws in the bottom of the Panel. Roll the Panel back as shown on the previous page and overlap the rib with the rib of the next Panel.

(QTY: 9+)

Wall Panel

10+

Secure the Panels with a Small Bolt and Nut thru the center hole at the overlap (see below). Next,

ﬁ nish securing the Panels to the building with Small Screws as shown in the diagram on the previous page. Note: When attaching to Corner Panels, use Small Screws.

Place Small Bolt thru center hole where Panels overlap.

Continue until ALL Wall

Panels have been installed.

Page 26

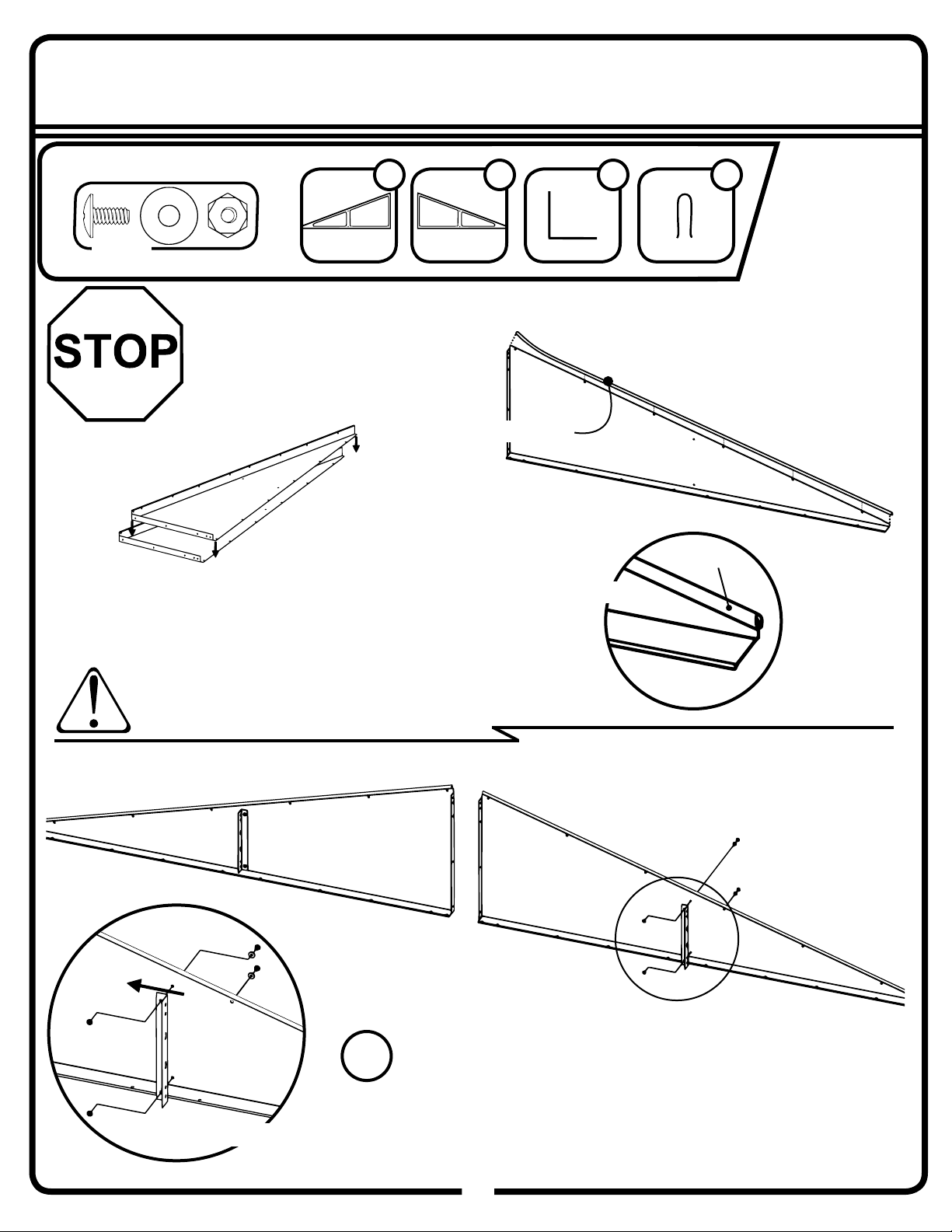

Step 9: Gables

You will need for this page:

8577

8576

6635

26H

69835

(QTY: 8)

GABLES ARE STACKED TOGETHER DURING SHIPPING AND MAY BE MISTAKEN FOR ONE GABLE! SEPARATE GABLES BEFORE CONTINUING.

Install Edge Trim to cover Gable Edge BEFORE doing ANY work with Gables. Failure to do so could result in injury.

Left Gable

Edge Trim MUST cover Gable edge.

Right Gable

Edge Trim (Plastic)

Bracket

Edge Trim

69835

8576

8577

6635

Leg of Roof Beam Bracket must face center of Gable as shown.

Install Roof Beam Brackets on all Gables using

two Small Bolts and Nuts per Bracket. Leg of Bracket must face center of Gable as shown.

Page 27

Step 9: Continued

You will need for this page:

9009

SBSS

6228

27H

(QTY: 16)

8576

Leave two holes open on each side of the Gable peak to attach Track Support.

(QTY: 2)

Gable Brace

Gable must ﬁ t UNDER Side Wall Angle at corner.

10’x10’ (3,0 m x 3,1 m) building shown.

Track Sup.

8577

Gable should be attached using the row of holes closest to the outside of the building. Do not insert screws into the two holes closest to where the Gables join. These will be used to attach the Track Support later.

through the second hole from the bottom only.

Working with one Gable at a time, attach the Gables to the top Rear Frame with Small Screws. The

To secure Gables together, position the Gable Brace as shown below and insert a single Small Bolt and Nut

Attach Gable to holes closest

to the Outside of the building.

6228

Install Track Support.

Inside

Gable

10629

Rear Wall

9009

Outside

Attach Brace with Bolt thru second hole from bottom only.

Position Track Supports as shown. Secure Track Supports to Gable using one Small Bolt and Nut.

Secure to Rear Frame using two Small

Screws.

Page 28

Step 9: Continued

28H

You will need for this page:

(QTY: 13)

10649

Leave Hole Open

10649

Seal the gap between the Gables using the Weather Stripping Tape as shown.

Secure two Front and Rear Roof Beams together with a single Bolt to form the Main Roof

Beam as shown above. The end of the Main

Roof Beam with the open hole should face the Gable.

10649

Roof Beam

10649

10’x10’ (3,0 m x 3,1 m) building shown.

Top View of Gables

Tape should wrap around

gap between Gables.

Weather Stripping Tape

Position the Front and Rear Roof Beams as shown below and attach to Gable and Truss using two Small Bolts and Nuts per side. Install

the Main Beam ﬁ rst.

Beam End Views

Tape BOTH Gable joints before installing Roof Beams.

CUT

Side of Beams with small holes must face up.

Page 29

Step 9: Continued

29H

You will need for this page:

(QTY: 2)

10’x10’ (3,0 m x 3,1 m) building shown.

Attach the Roof Beam Brace to the Track Support with one Small Bolt and Nut as shown.

9204

Beam Brace

9204

Tab end attaches to Roof Beam.

Rotate to align with Roof Beam and secure to Roof Beam with one Small

Bolt and Nut as shown. Repeat Steps 9-2 thru 9-9 to install Gables at the front of the building. The Gables in the front of the building are installed exactly as the Gables in the rear of the building.

Attach Brace to Track Supports and Main Beam.

9204

Angled end attaches to Gable.

Attach Brace to Gable then rotate to align with Roof Beam.

Repeat Steps 9-2 thru 9-9 to install front Gables.

Page 30

Roof Install Prep Page

Read thru all of Roof Assembly before beginning Step 10.

30H

IMPORTANT:

Measure the building diagonally again to make sure the building is

square. The building should be square at the base and at the top.

This will make Roof Panels ﬁ t better and holes will better align.

Be sure to carefully follow the Roof Panel Placement Order Diagram on this page.

Crimped Rib

Whenever a crimped rib and an uncrimped rib meet,

place the crimped rib UNDER the uncrimped rib.

At this time, take a moment to ensure the building is level and square.

Uncrimped Rib

The building is square when diagonal measurements are equal.

8579

7743

Roof Panel Placement Order

4 3

FASTEN TO RIDGE CAP

8578

7743

FASTEN TO ROOF BEAMS WITH SCREWS

7743

FASTEN TO NEXT PANEL WITH BOLT AND NUT

85798578

FRONT

DO NOT FASTEN AT THIS TIME

Page 31

Step 10: End Panels

31H

You will need for this page:

SBSS

(QTY: 8)

Secure the End Panel to the Main Roof Beam by placing a Small Screw in hole #1 (from the diagram below). Carefully remove the Gable

Edge Trim once the Panel is in position.

Fasten Panel to Gable by placing Small Bolts and Nuts through holes #2 - #7. Fasten the holes in order.

Secure the Panel to the outer Roof Beam by placing a Small Screw in hole #8. Repeat for other three End Panels.

FASTEN TO NEXT PANEL

LEAVE THIS HOLE OPEN

(QTY: 24)

8578

Right End

8579

Left End

An Awl may be used to help align holes that are only slightly misaligned. Take care not to bend or warp the metal, and always practice proper tool safety.

If Roof Beam holes do not line up

with Roof Panel holes, shift the

building from left to right. If this does not

help, your building may not be level. Shim the corners until holes line up.

LEAVE THIS HOLE OPEN

8578

8579

Nut

Washer

10’x10’ (3,0 m x 3,1 m) building shown.

Bolt

GABLE

Work one corner at a time. Be sure

to ﬁ nish a corner before moving on to

the next one.

LEAVE THESE HOLES OPEN

Page 32

Roof Assembly Chart

LRLRLRMLRMLRMLRMLRMLRMLRMLRMMMMMMMMMMMM

32H

10’x10’ (3,0 m x 3,1 m)

No Extension Modules.

= 4

10’x15’ (3,0 m x 4,6 m)

1 Extension Module.

= 6

10’x20’ (3,0 m x 6,1 m)

EP RP

RC - F/R RC - F/R

EP RP

RC - F/R RC - MID RC - F/R

EP RP

RP RP EP

EP = End Panel (8578 / 8579)

RP = Roof Panel (7743)

RC - F/R = Front and Rear Ridge Cap (10621)

RC - MID = Mid Ridge Cap (10680)

L = Left Roof Trim (80017)

R = Right Roof Trim (10620)

M = Mid Roof Trim (6015)

= Strip of Tape

NOTE: The symbol indicates a 2” (5,1 cm) strip of Weather Stripping Tape. Cut the number of strips indicated for your size building and set aside for later use.

RP RP EP

2 Extension Modules.

= 8

10’x25’ (3,0 m x 7,5 m)

3 Extension Modules.

= 10

10’x30’ (3,0 m x 9,0 m)

4 Extension Modules.

RC - F/R RC - F/RRC - MID RC - MID

EP RP

RC - F/R RC - F/RRC - MID RC - MID RC - MID

EP RP

RC - F/R RC - F/RRC - MID RC - MID RC - MID RC - MID

RP RP EP

= 12

EP RP

RP RP EP

FRONT REAR

Page 33

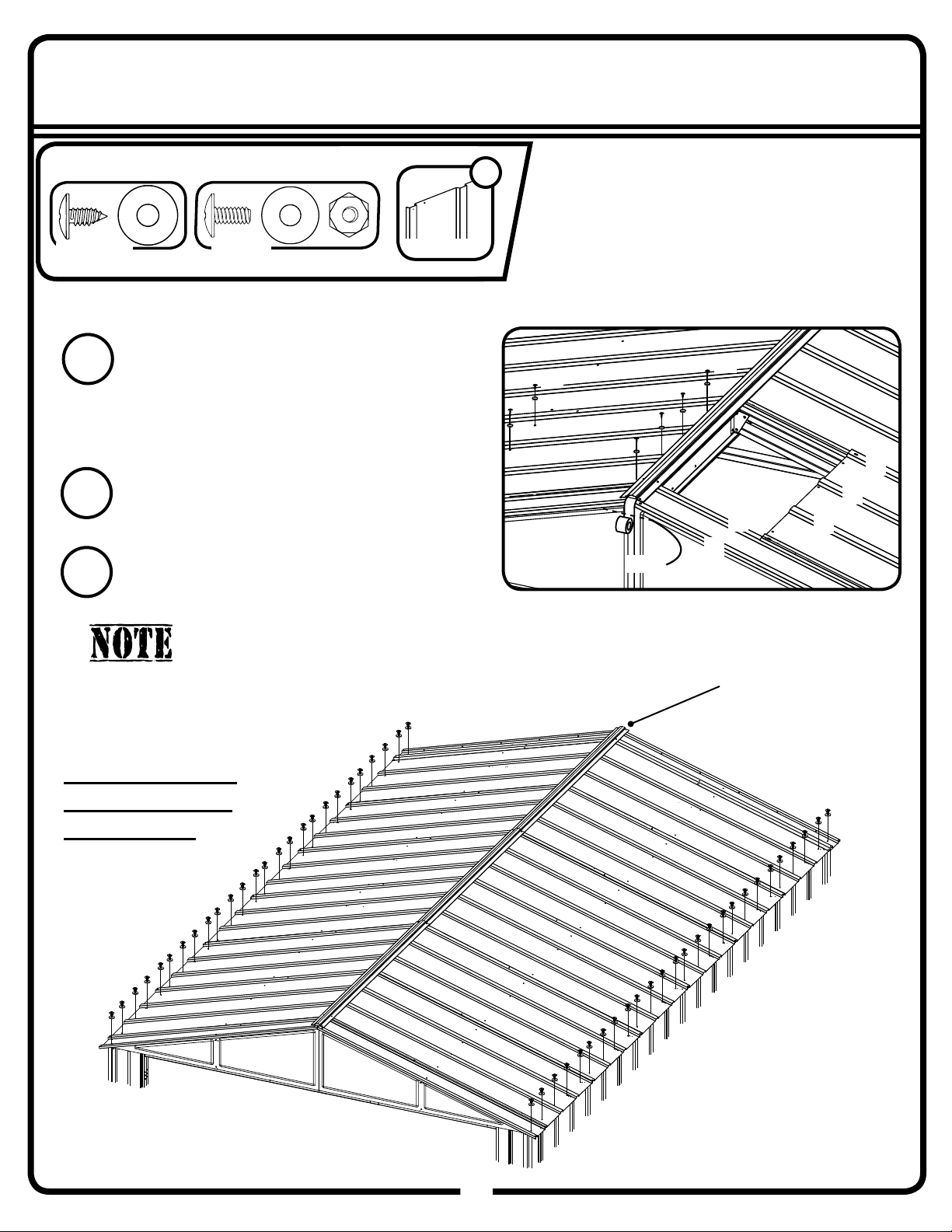

Step 11: Roof Assembly

33H

You will need for this page:

SBSS

(QTY: 48)

Begin weather stripping the roof ridge. Apply more of the Weather Stripping after each additional Panel

is installed. A strip of Weather Stripping Tape 2” (5,1 cm) long should be applied over each Bolt that is on a rib overlap and under the Ridge Cap.

Attach the ﬁ rst four Panels (#5 - #8) in the order given in the diagram on page 30. Use the Roof Panel Diagram on page 30 while assembling the roof. You

will need to ‘roll’ the Panels to secure the ribs together, just as on Wall Panels.

Secure rib #5 with two Small Bolts and Nuts as shown to the right, and then cover with two 2” (5,1 cm) strips of Weather Stripping Tape.

(QTY: 8)

7743

Roof Panel

• Starting with rib #5 below, every rib that is over a Truss should be secured with a Small Bolt and Nut, and then sealed with a strip of Tape.

Leave holes on ribs #1 and #2 open.

Seal Ridge

Install Panels #9 - #10 and seal with Weather Stripping Tape.

Attach Panels #5 - #10 according to the diagram on page 30.

Weather Stripping Tape should be applied in a continuous strip along the length of the roof.

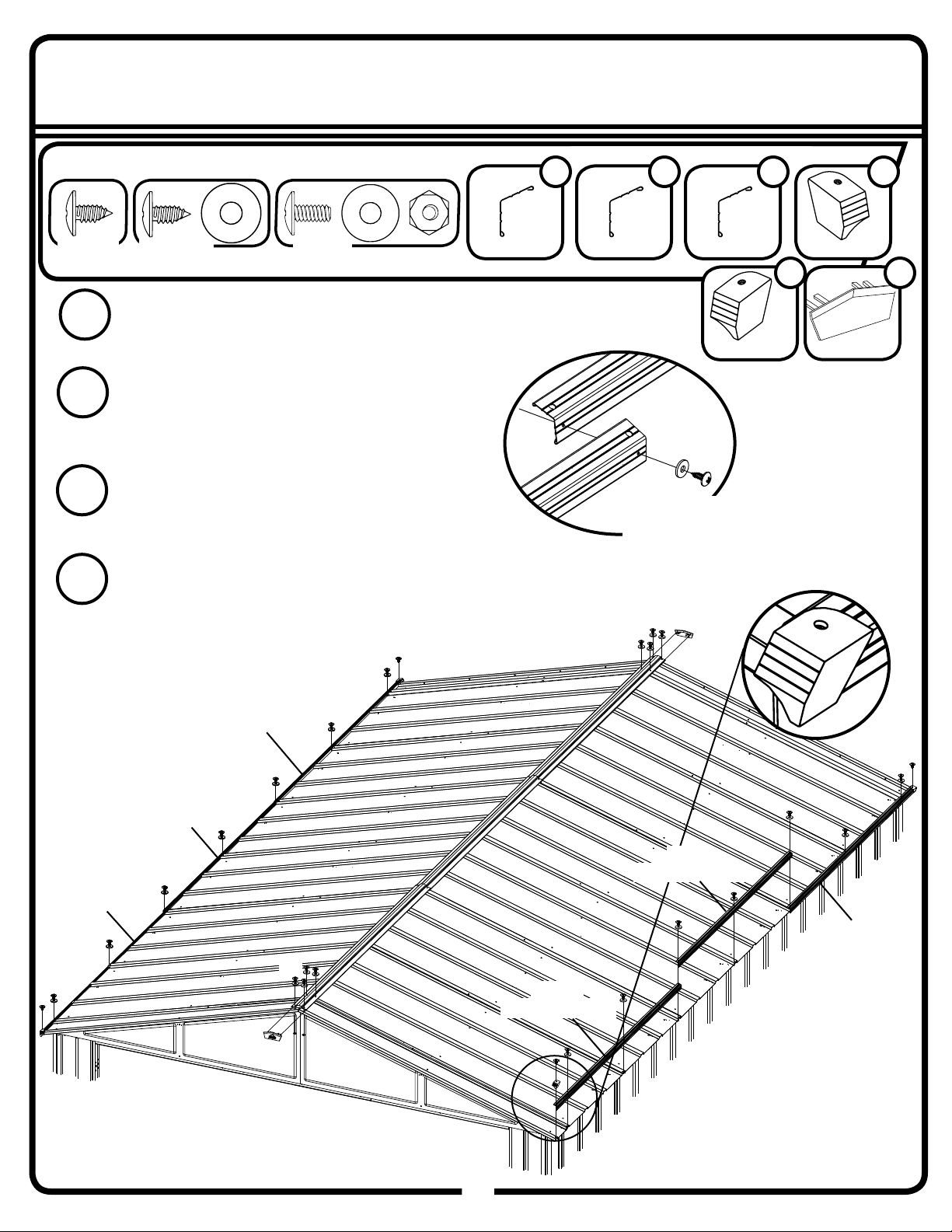

Page 34

Step 11: Continued

34H

For 10’x10’ (3,0 m x 3,1 m) ONLY.

Overlap two Front and Rear Ridge Caps as shown and secure with two Small Bolts and Nuts.

You will need:

10621

DO NOT fully tighten Ridge Cap Bolts until you

have both Ridge Cap Bolts in place. This will ease assembly. Bolts must be fully tightened before moving on to the next page.

End of Ridge Cap with four holes must

face toward the outside of the building. Do not secure at this time.

10621

Ridge Cap -

(QTY: 2)

F/R

For 10’x15’ (3,0 m x 4,6 m) or larger.

Overlap one Front and Rear Ridge Cap and one Mid Ridge Cap as shown and secure with two Small Bolts and Nuts.

You will need:

10621

10680

End of Ridge Cap with four holes must face toward the outside of the building. Do not secure at this time.

10621

(QTY: 2)

Ridge Cap -

F/R

Ridge Cap -

Mid

10680

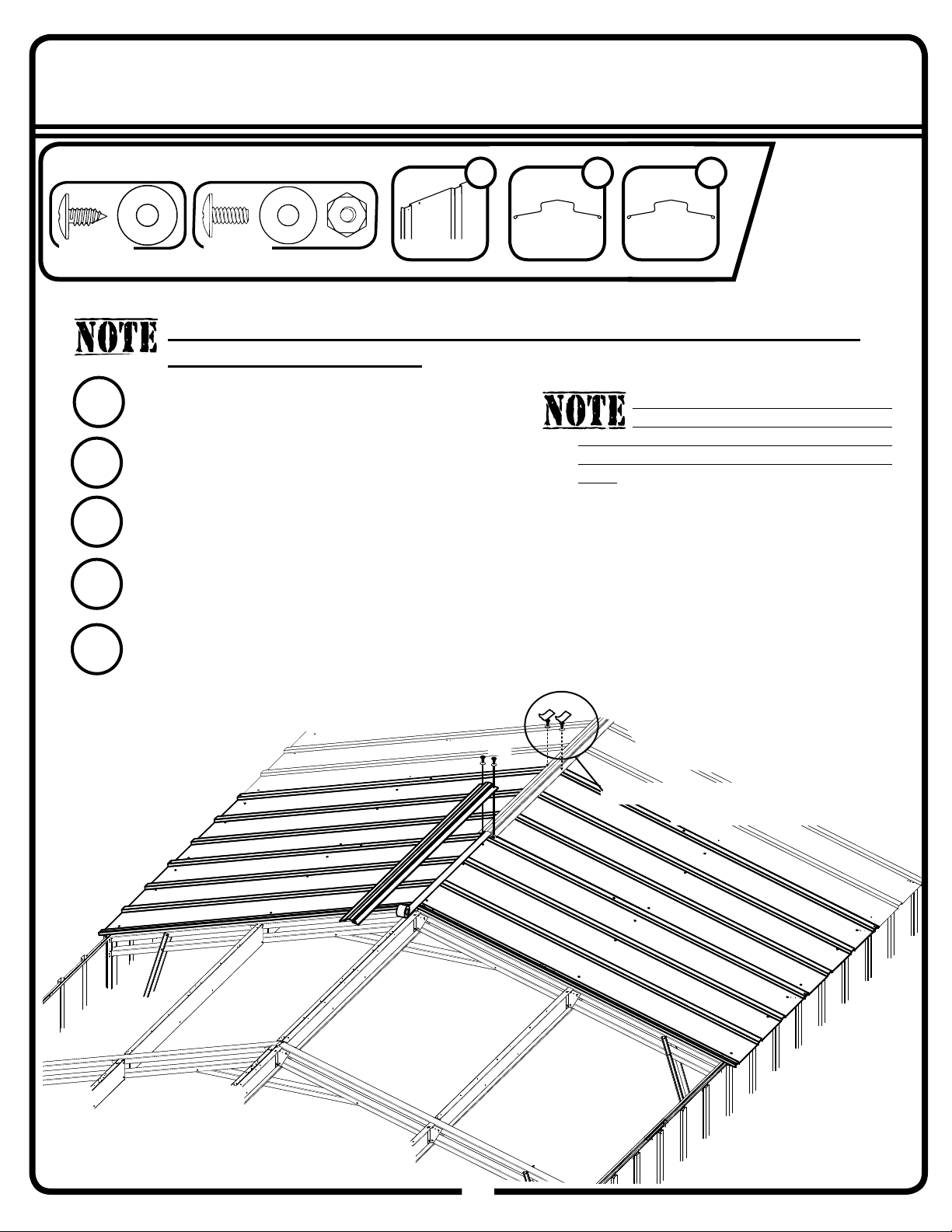

Page 35

Step 11: Continued for Extension Modules

You will need for this page:

7743

SBSS

10621

10680

35H

(QTY: 32+)

Continue to apply Weather Stripping.

(QTY: 8+)

If you are erecting a 10’x10’ (3,0 m x 3,1 m) building, skip this page and move on to page 36.

Install two more Roof Panels. Continue to apply Weather Stripping Tape as you go.

Where the last two Panels overlap over the Truss, insert two Small Bolts and Nuts and seal with two 2” (5,1 cm) strips of Tape.

Install two more Roof Panels.

Overlap the last Ridge Cap installed with the next

Ridge Cap and secure with two Small Bolts and Nuts as shown.

Repeat the steps on this page until you have only two Roof Panels remaining. Before moving on to the next page, all Ridge Caps should be in position, but the ends of the Front and Rear Ridge Caps at the front

and rear of the building should not be secured yet.

Roof Panel

Ridge Cap -

in place. This will ease assembly. Bolts must be fully tightened before moving on to the next page.

Ridge Cap -

Mid

DO NOT fully tighten Ridge Cap Bolts until you have both Ridge Cap Bolts

Place strips of Tape over Bolts to seal.

(Under Ridge Cap)

Page 36

Step 11: Continued

You will need for this page:

7743

SBSS

36H

(QTY: 52+)

Continue to apply Weather Stripping.

At this point there should be only two Roof Panels remaining. Install last two Roof Panels.

Because the last Ridge Cap is already in place and has been secured at one end, you may need to move the Ridge Cap slightly to secure the last two Panels to the Main Roof Beams.

Finish weather stripping the roof under the Ridge Cap and cut the Tape just past the end of the roof. Fold end of Tape under roof edge.

With all Roof Panels in place, secure the bottom of Roof Panels to the Side Wall Angles with Small Screws on both sides of the building.

Cap Bolts in place. This will ease assembly. Bolts must be fully tightened before moving on to the next page.

(QTY: 6)

DO NOT fully tighten Ridge Cap Bolts until you have both Ridge

Roof Panel

• Bolts under Ridge Cap pass thru slots where

the End Roof Panel is overlapped by the Panel next to it (labeled rib 5 below).

CUT

DO NOT secure ends of Ridge Caps until Peak Caps are in place.

Alternate sides while securing roof panels.

10’x15’ (3,0 m x 4,6 m) building shown.

Page 37

Step 12: Roof Trim

37H

You will need for this page:

SBSSSS

(QTY: 4)

where the Left and Right Roof Trim pieces are located.

shown to the right.

Side Roof Trim at the corner inward enough so the right and left Roof Trim Caps ﬁ t onto right and left corners.

(QTY: 16+)

Slide Peak Cap legs under Ridge Cap and secure Ridge Cap ends with four Small Bolts and Nuts on

each end as shown.

Position Left and Right Roof Trim as shown below and secure with Small Screws. Do not fasten the last Screw on each end. Pay close attention to

If you are erecting a 10’x15’ (3,0 m x 4,6 m) or

larger building, install Mid Roof Trim along the remainder of the roof edge. Roof Trim overlaps as

Position the Roof Trim Caps as shown below and secure with a Small Screw. Using your thumb

and index ﬁ nger, overbend the bottom ﬂ ange of the

(QTY: 8)

80017

Left Trim

10620

Right Trim

6015

Mid Trim

Trim Cap (L)

Trim Cap (R)

Insert a Small Screw where Roof

Trim overlaps after installing.

Roof Trim Caps are positioned as shown.

Peak Cap

Mid Roof Trim

10620

Right Roof Trim

80017

Left Roof Trim

6015

Mid Roof Trim

10620

Right Roof Trim

80017

Left Roof Trim

10’x15’ (3,0 m x 4,6 m) building shown.

Page 38

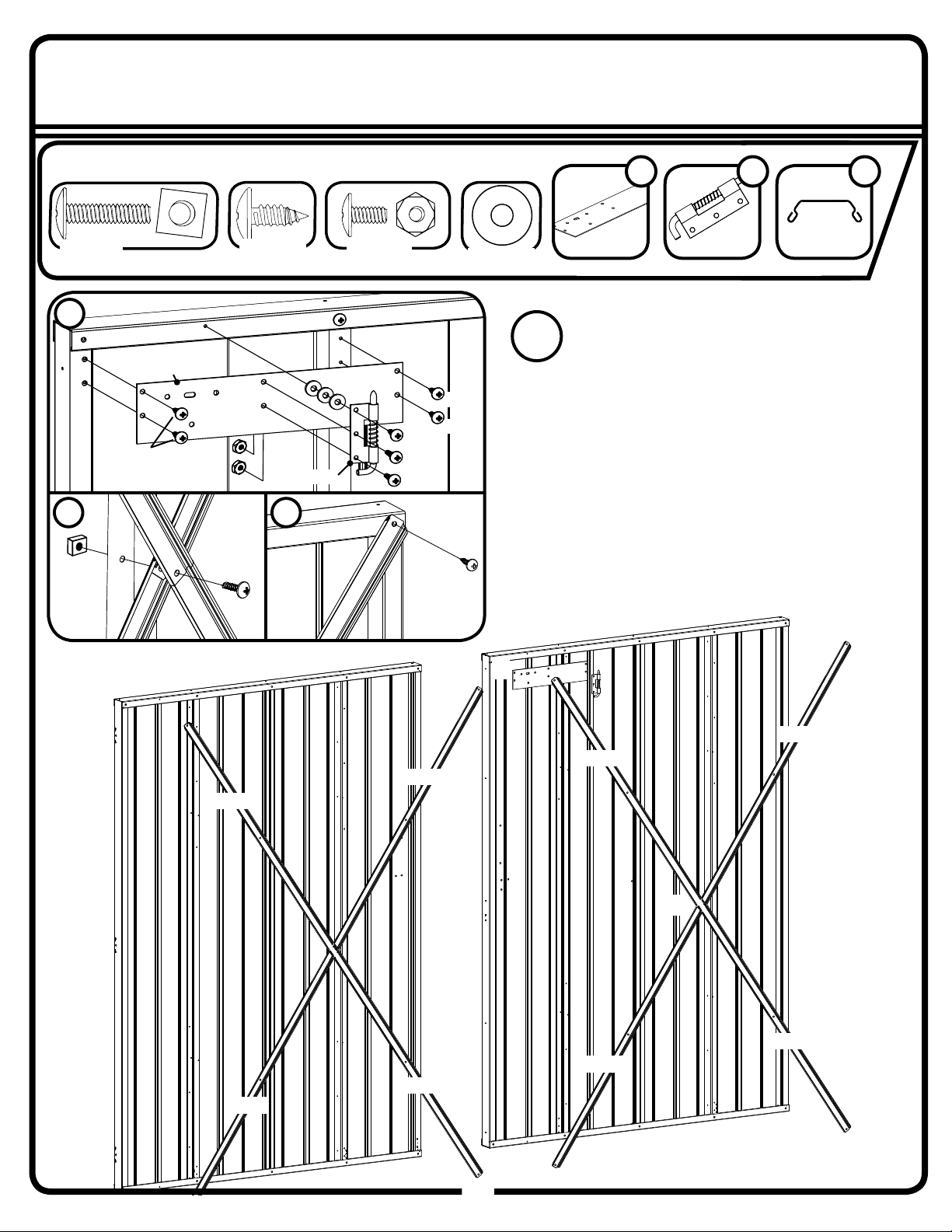

Step 13: Door Assembly

You will need for this page:

10623

10624

80051

38H

Door Panel

(QTY: 10)

(Hinge)

If you purchased a Door Kit, repeat Door Assembly process for rear of building.

Refer to page 11 for Door assembly overview.

Position Door Panels as shown and secure using Small Bolts and

Nuts. NOTE: Door Panels in the image below are shown pictured from the inside of the building. Pay close attention to how Panels are positioned. Below are end views showing Panel position.

Right Door

10624

10623

Right Door

Panel

Left Door

Panel

The best way to assemble the

Doors is on a ﬂ at, elevated

surface such as a table or workbench.

10623

80051

10623

Hinge Side

Inside

10624

END VIEW

80051

Inside

10623

Hinge Side

Page 39

Step 13: Door Assembly

You will need for this page:

[ NO HARDWARE NEEDED

FOR THIS STEP ]

10635

Horiz. Door

Brace

Brace (Hinge)

10637

Vert. Door

10678

Vert. Door

Brace (Latch)

10635

39H

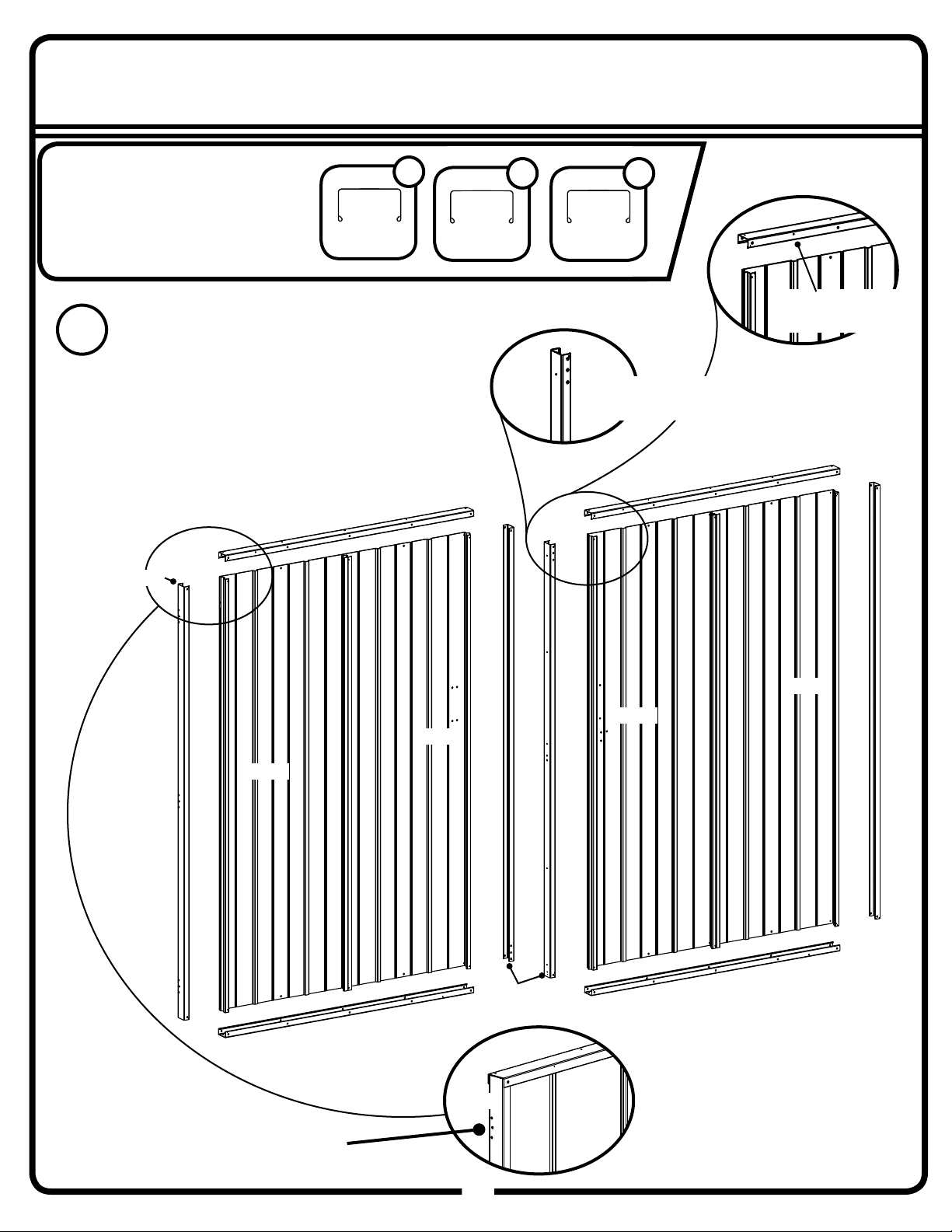

Position Horizontal Door Braces, and

Vertical Door Brace (Hinge) and Vertical Door Brace (Latch) as shown. NOTE:

Doors in the image below are shown pictured

from the inside of the building. Pay close attention

to how parts are positioned. Make sure hinge

holes in the Vertical Door Brace (Hinge) line up with hinge holes in Door Panel (Hinge).

Right Door

10635

10637

10624

10678

Three holes along

INSIDE of Door.

Left Door

80051

Extra hole along

INSIDE of Door.

10635

10637

10623

Inside

Holes in Door Brace must line up with holes in Door Panel.

10635

10637

10678

10635

Inside

Page 40

Step 13: Continued

You will need for this page:

10636

40H

(QTY: 12)

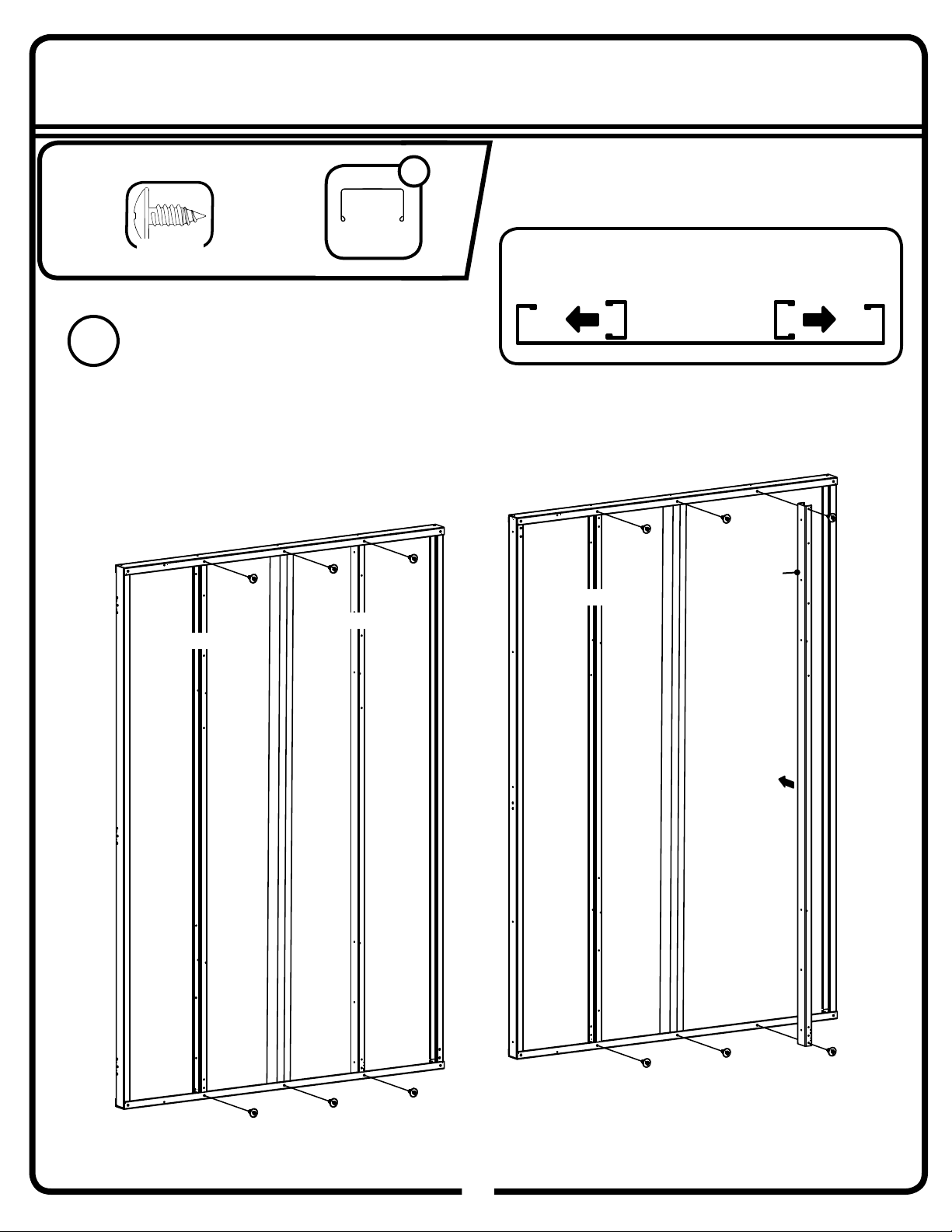

Slide Vertical Door Braces into position with ends inside Horizontal Door Braces.

Double check that the open ends of the Vertical Door Braces face the edges of the Door (see image to right) and secure with Large Screws in each Door. NOTE: Doors are shown pictured from inside building.

Right Door

10636

Vert. Door

Brace

10636

Open ends of Vertical Door Braces must face edge of Doors.

Left Door

10636

Inside

Page 41

Step 13: Continued

41H

You will need for this page:

LNB

(QTY: 2)

(QTY: 13)

10651

LNB

66781

(QTY: 2)

Plastic

Washer

(QTY: 3)

10651

Latch Plate

66781

Spring Latch

10626

Diagonal

Brace

A: Position parts as shown and secure to upper inside corner of left Door with Large

Screws. Spring Latch attaches to Latch Plate using Small Bolts and Nuts. Place three Plastic Washers behind top hole of Spring Latch

as shown; this will help alignment.

B: Where Braces overlap insert a Long Bolt through all Braces and Door Panel and secure with a Nut.

C: Secure Diagonal Braces to Doors in all corners with Large Screws.

Right Door

Left Door

10626

Inside

Page 42

Step 13: Continued

42H

You will need for this page:

10675

(QTY: 26)

Secure all Diagonal Braces to the Vertical Door Braces with Large Screws as shown.

Next, position the Cane Bolt Bracket backto-back against the Vertical Door Brace closest to the center of one Door as shown. Slide the Cane Bolt Bracket to the bottom of the Door and secure with three Large Screws. Repeat for other Door.

Align the Cane Bolt with the holes in the

Cane Bolt Bracket and Vertical Door

Brace and secure with six Large Screws as

shown. Repeat for other Door.

Cane Bolt

Bracket

66780

Cane Bolt

with thier own hardware. This hardware is not used when assembling

the building. Instead, use the

hardware indicated in each step.

BOTH DOORS

The Cane Bolt, Door Handles and Slide Bolt are pre-packaged

66780

Inside

Right Door

10675

Left Door

Latch Plates shown for alignment only, install on page 44.

10675

Inside

Page 43

Step 13: Continued

43H

You will need for this page:

(QTY: 20)

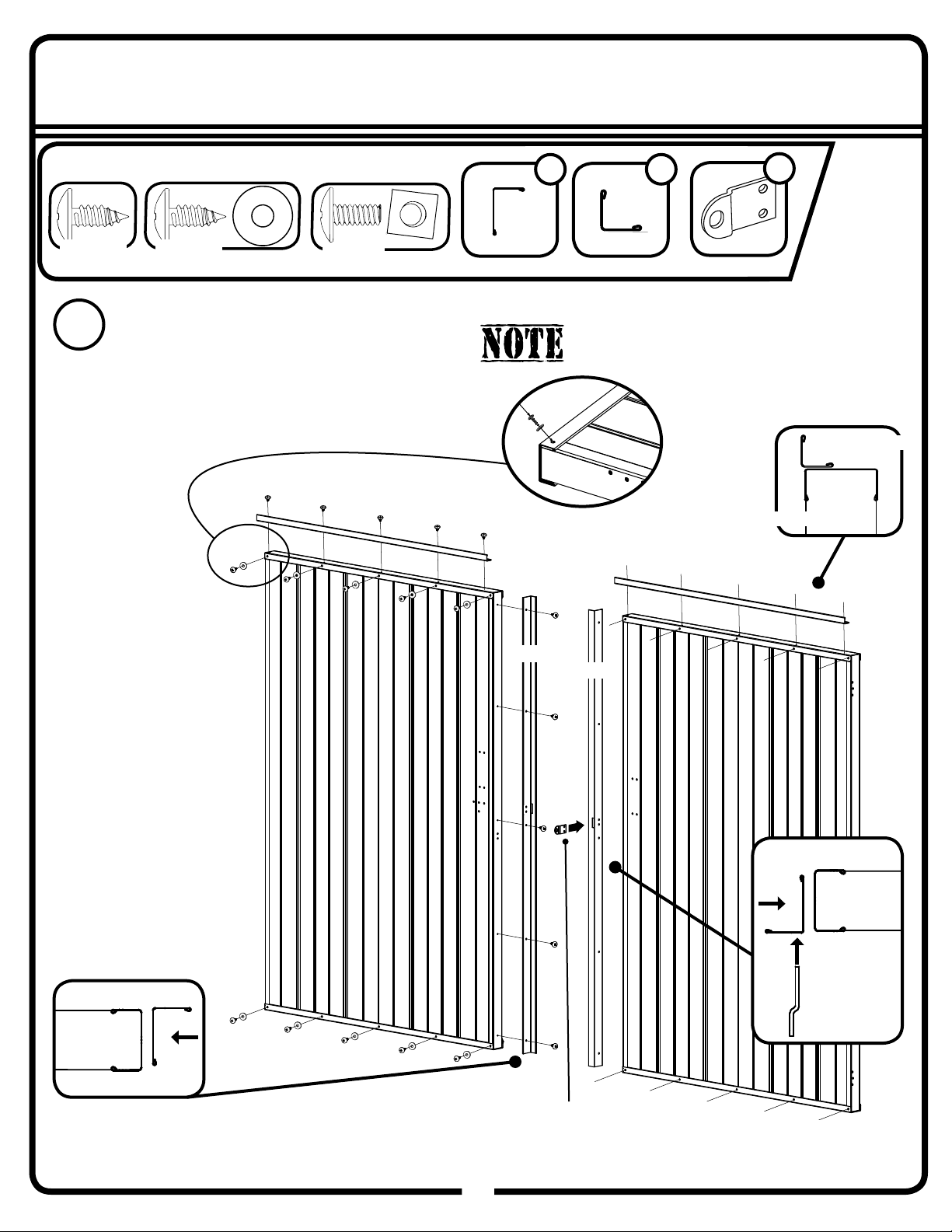

Secure the Horizontal Door Brace to the Door with Large Screws.

Position Door Trim and Astragals as shown and secure with Large Screws. Lock Eyelet slides thru Astragal on right Door and is secured with two Large Bolts and Square Nuts. Pay close attention to the position of each part.

(QTY: 20)

Left Door

(QTY: 2)

10647

10648

Astragal

10647

Top Trim

If holes do not align, insert Screw

at an angle.

Right Door

66778

Lock Eyelet

OUTSIDE

10647

INSIDE

LEFT DOOR

10648

OUTSIDE

Outside

10648

INSIDE

10648

RIGHT DOOR

OUTSIDE

66778

Outside

Page 44

Step 13: Continued

44H

You will need for this page:

66782

LB LB

(QTY: 8) (QTY: 4)

Slide Latch Plate into position on the Left Door. Next, position the Slide Bolt on the

face of the Door and secure with Large Bolts and two Square Nuts on each Bolt. Position the Door Handle on the face of the Left Door and secure with Large Bolts and Square Nuts. This completes the Left Door assembly.

Slide Latch Plate into position on the Right

Door. Next, position the Door Handle on the

face of the Door and secure with Large Bolts and Square Nuts. This completes the Right Door assembly.

Door Handle

66779

Slide Bolt

10651

Latch Plate

Instead, use the hardware indicated in this step.

Left Door

Do not use hardware supplied with Door Handle and Slide Bolt.

Right Door

Outside

Slide end of Latch Plate behind Door Brace.

Page 45

Step 13: Continued

45H

Slide Bolt may need adjustment to align properly.

You will need:

66609

(QTY: 36)

Hinge

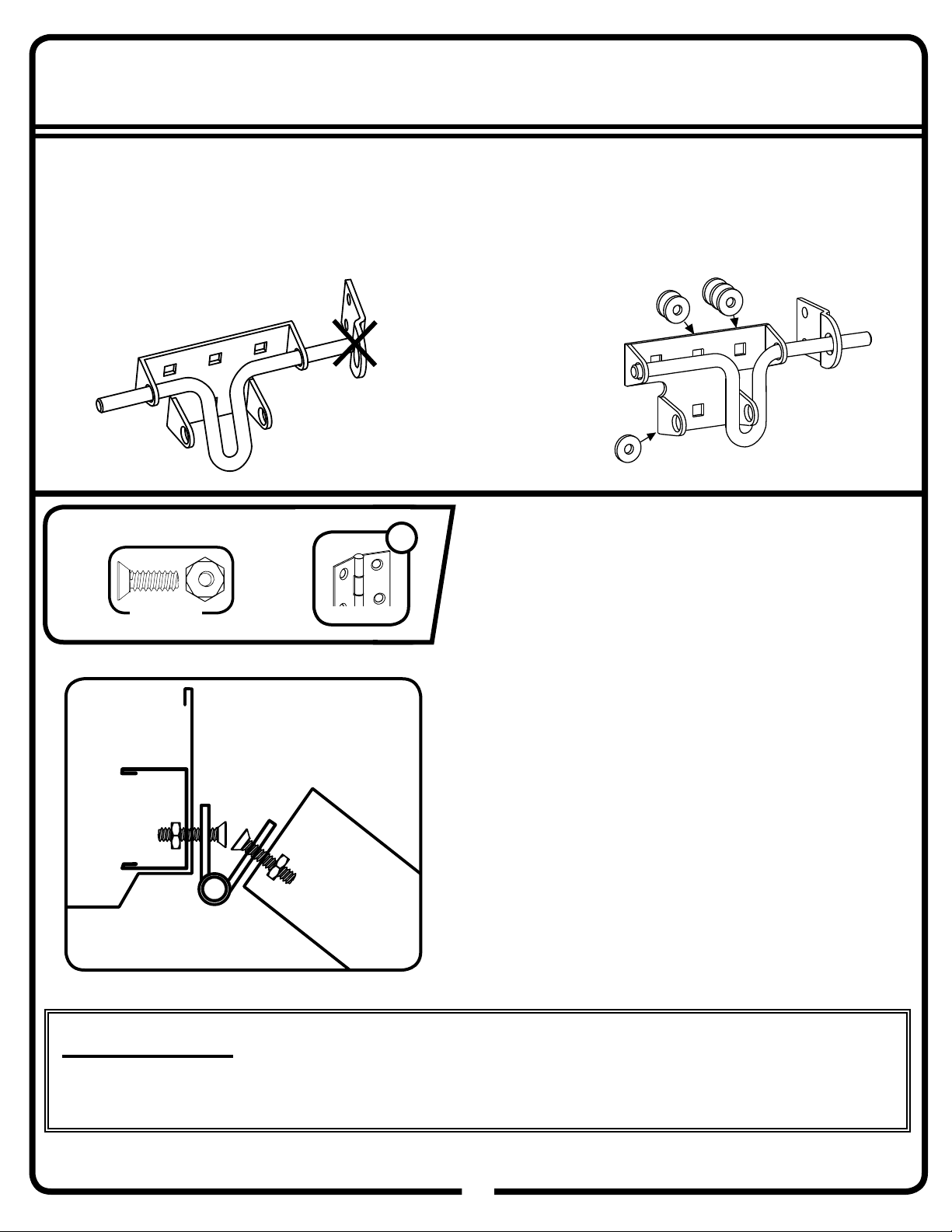

If Slide Bolt does not align properly, you may

need to insert plastic washers between the door and the Slide Bolt to ensure proper

ﬁ t. Adjust number of plastic washers until desired ﬁ t is reached.

Hanging the Doors:

After the Doors have been assembled, install hinges on one

Door using ﬂ athead Screws and Nuts. Use the image to the

left as a guide to proper hinge position. Next, position one Door in the doorway of the building and secure the hinges,

from top to bottom, to the Door Jamb, but do NOT fully tighten. With all hinges in place, hold the Door in alignment and slowly tighten the Bolts on the Door Jamb side of the hinge. Repeat to hang the other Door.

Swing the Doors carefully to check alignment. If Doors are

misaligned, slightly loosen the Bolts on the Door Jamb side of the hinge and realign the Door. Fully tighten when done.

IMPORTANT: Once the building is fully assembled, measure across the door

opening and check that it is 98 1/4” (249,6 cm). If it is not, move the front walls in or out slightly to match this dimension. This must be done BEFORE anchoring.

Page 46

ANCHORING OPTIONS...

IMPORTANT:

• Doors must hang and swing level before anchoring building.

• Anchor your building at this time. See below for details on anchoring.

• After anchoring, drill a 5/8” (1,6 cm) hole at least 2” (5,1 cm) into your base to receive the

left-side Cane Bolt and hold the Door (left side only) closed.

• Please take a moment to ensure that the building is installed in accordance with these instructions and with all applicable regulations.

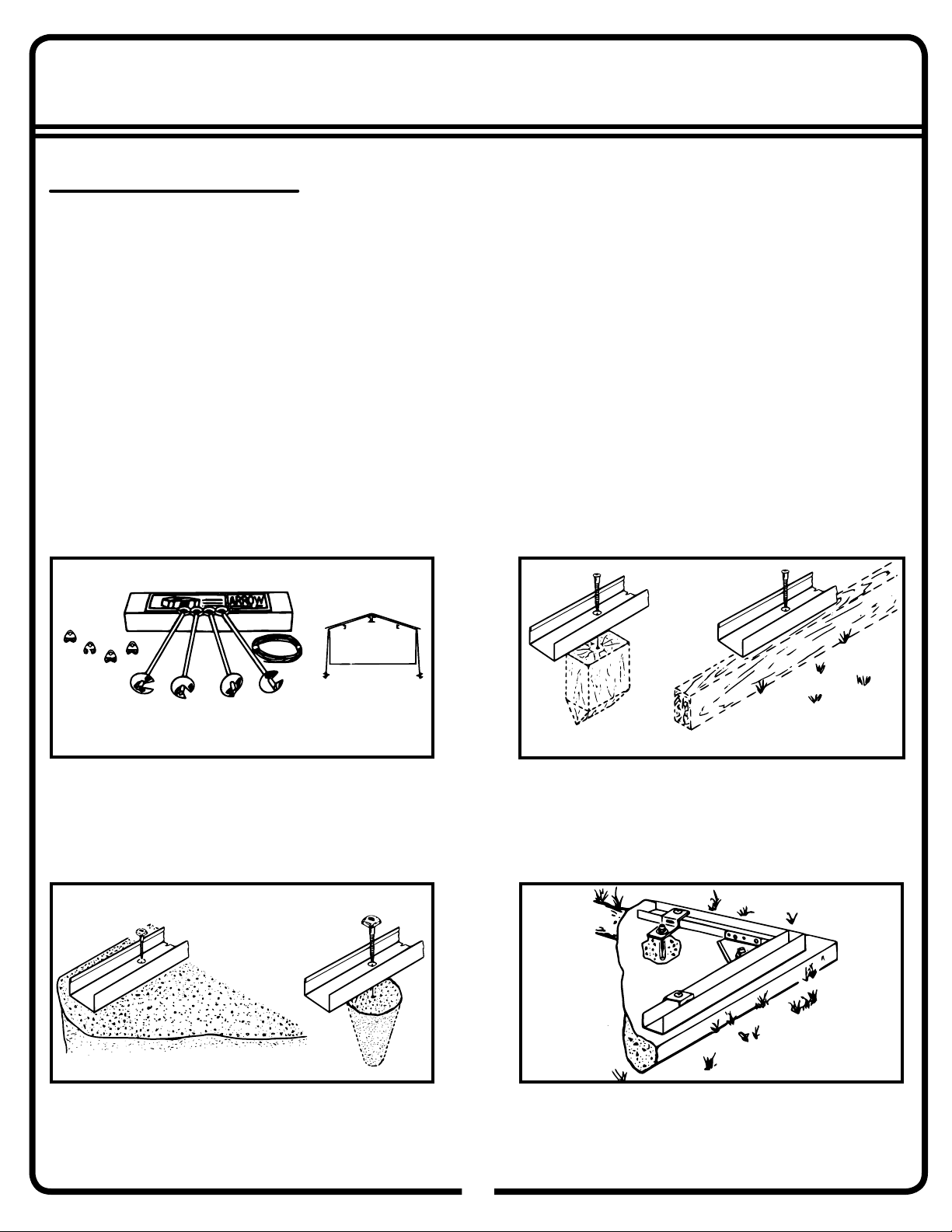

Anchoring Down The Building

The entire ﬂ oor frame MUST be securely anchored once the building is erected.

Below are recommended ways of anchoring.

46H

Arrow Anchoring Kit: (Model No. AK4 or 60298)

Recommended for use with any suggested base. Contains: 4 Anchors with Cable, Clamps and

installation instructions.

OVER THE BEAMS

AND INTO THE GROUND

Anchoring into Concrete:

1. For poured concrete slab or footing or patio blocks: Use 1/4" x 2" (6 mm x 51 mm) Lag Screws.

2. For Anchor Post of Concrete poured after building is

erected: Use 1/4" x 6" (6 mm x 152 mm) Lag Screws.

Anchoring into Wood/Post:

Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm)

dia. holes provided in the frames for proper anchoring.

1. 2.

Arrow Anchoring Kit: (Model No. AK100 or 68383)

Recommended for use with the concrete base. Contains: Corner gussets, perimeter clips, hardware,

1/4" masonry drill bit and installation instructions.

An Anchor Kit may be purchased online at www.arrowsheds.com You can also purchase one over the phone by calling 1-800-851-1085. See accessories page for details.

Page 47

44A

CARE & MAINTENANCE...

Exterior Care:

For a long lasting ﬁ nish, clean and wax the exterior surface. We recommend washing with a mild soap solution. DO NOT use power washing to clean your shed. Using a spray automotive type wax periodically on the exterior is highly

recommended if you are in a high humidity or coastal climate region.

Combustibles and corrosives must be stored in air tight containers designed for chemical and/or combustible storage. Corrosive chemicals such as fertilizers, pesticides and herbicides should be cleaned off the interior and exterior surfaces immediately. Rust caused by chemical damage is not covered by the warranty.

DO NOT STORE POOL CHEMICALS IN YOUR SHED - THIS VOIDS YOUR WARRANTY

Rust protection precautions may help to stop rust from developing, or stop it quickly as soon as it appears.

• Avoid nicking or scraping the coating surface, inside and out.

• Keep roof, base perimeter and door tracks free of debris and leaves which may accumulate and retain moisture.

These can do double damage since they give off acid as they decay.

• Touch up scrapes or nicks and any area of visible rust as soon as possible. Make sure the surface is free of moisture, oils, dirt or grime and then apply an even ﬁ lm of high quality touch-up paint.

• Various paint manufacturers provide products for rust treatment and coverage. If surface rust does appear on

your shed we recommend treating those areas as soon as possible, following the paint supplier of your choice instructions.

• Our customer service department can provide the paint tinting formula for matching the color of your shed. We also

have touch-up paint available for repairing small nicks and scratches.

Roof:

Keep the roof clear of leaves and snow. Heavy amounts of snow on the roof can damage the building making it

unsafe to enter. In snow country, Roof Strenghtening Kits are available for most Arrow Buildings for added protection

against heavy snow accumulation.

Doors:

For sliding doors, always keep door tracks clear of dirt and other debris that prevents them from sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep doors closed and locked to prevent wind

damage.

Fasteners:

Use all washers supplied to protect against weather inﬁ ltration and to protect the metal from being scratched by

the screws. Regularly check screws, bolts, nuts, etc., and retighten as necessary.

General:

• A plastic sheet (vapor barrier) placed under the entire ﬂ oor area may reduce condensation.

• Wash off inked part numbers on coated panels with soap and water.

• Silicone caulking may be used for watertight seals throughout the building.

Please note, Manufacturer cannot be held responsible for any consequences due to buildings that are not installed per these instructions, or for damage due to weather conditions or acts of God.

Keep these assembly instructions and owner’s manual for future reference.

Page 48

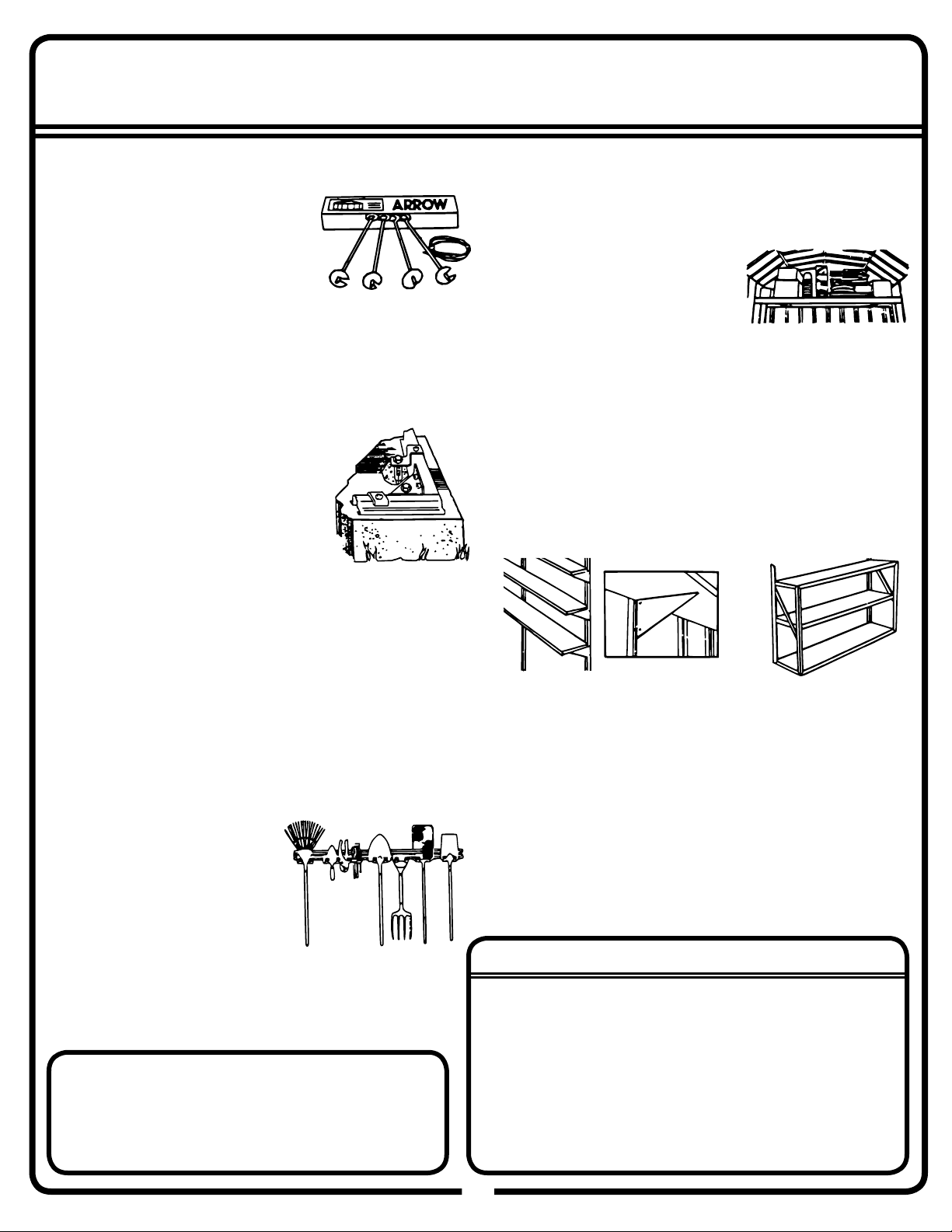

ARROW ACCESSORIES...

48H

ANCHOR KITS

Model No. AK4

Anchor Kit contains heavy-duty steel

augers, 60' (18 m) of steel cable and

4 cable clamps. No digging or concrete pouring, just insert cable under roof, over roof beams, into augers and twist augers into the ground. For buildings

larger than 10'x9' (3,0 m x 2,6 m), use 2 kits.

Model No. AK100

New concrete anchor system permits anchoring any size Arrow building directly to a concrete slab. Each kit contains heavy-duty, hot-dipped galvanized steel corner gussets and

perimeter clips which ﬁ t over the ﬂ oor

frame and lag bolt into a concrete slab.

Full assembly instructions and a 1/4"

masonry drill bit are included.

ATTIC KIT / WORKBENCH KIT

Model No. AT101

Heavy-duty galvanized steel bars that

ﬁ t all 10' (3,0 m) wide Arrow buildings.

They install quickly and easily to help organize space and create more useable space as an attic or workbench. Will hold up to 250 lbs. (113 kg) evenly distributed.

Some drilling required to ﬁ t buildings without mid-wall bracing.

SHELF UNITS

Heavy-duty, galvanized steel shelf units help organize stor-

age space. They easily mount on the wall or sit on the ﬂ oor.

Fits all Arrow buildings.*

TOOL HANGING RACK

Model No. TH100

The perfect tool organizer. Twin

25 1/2" (64,8 cm) steel channels plus ﬁ ve heavy-duty snap-in

hangers and a small tool holder for screwdrivers, pliers, etc. Holders slide along channel for fully

adjustable spacing. Great for

garage, basement, or the back of any door. Fits all Arrow storage buildings.

SPECIAL NOTICE ON DELIVERY:

If your accessory is shipped via truck line a day time phone number is required to arrange delivery. If no one

is available to sign for the delivery, you may be subject to a re-delivery charge assessed by the carrier.

Model No. SS404

• Makes 8" to 12" (20,3-30,5 cm)

wide shelves in any length.

• Brackets, braces,

hardware included. Lumber is not included.

* Some drilling required to ﬁ t buildings without mid-wall bracing.

Model No. SS900-A

• Grey color

• 3 shelves

• Holds up to 85 lbs. (38 kg)

(even weight distribution)

HOW TO ORDER

We recommend that you purchase accessory items from your local storage building dealer whenever possible; however, because the full line of accessories is not always available from all dealers, Arrow is offering them to you on a direct basis.

Purchase Online at www.arrowsheds.com

Purchase over the phone by calling 1-800-851-1085

Most major credit cards accepted. Allow 2 weeks for Delivery.

Arrow BDBL1003 Installation & Assembly

Specifications and Main Features

Frequently Asked Questions

User Manual
