Rack Systems

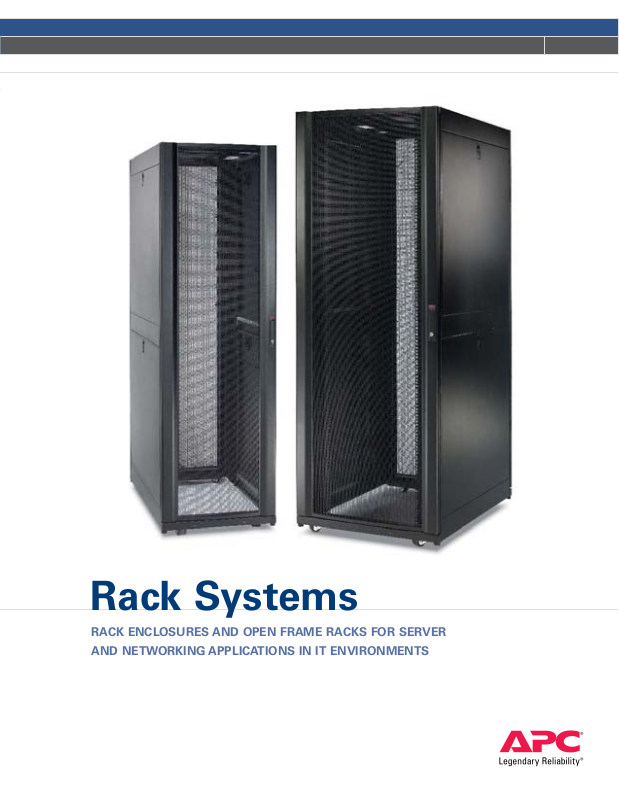

Rack enclosures and open frame racks for server and networking applications in IT environments
TABLE OF CONTENTS enclosures
NetShelter® SX |
2 |
Enclosures providing cooling, power distribution, cable management, and environmental monitoring for applications in IT environments.
NetShelter® WX |
6 |
Wall-mounted rack enclosures for networking applications in IT environments
open frame racks
NetShelter® 2 Post Rack |
7 |
2 Post racks for networking |
|
applications in IT environments |
|
|
|
NetShelter® 4 Post Rack |
7 |
4 post racks with advanced power distribution and cable management features for server, networking, and telecom applications in secure IT environments
accessories
Enclosure and Rack Accessories |
8 |
Power distribution, cooling, and cable management accessories, shelving, grounding, keyboards, keyboard drawers, LCD monitors, KVM switches, security devices, stabilization accessories required for a complete rack solution
Cooling |
8 |
Rack Power Distribution |
9 |
Cable Management |
10 |
Rack Keyboard Monitor Mouse |
11 |
Keyboards and drawers |
11 |
KVM switches |
11 |
Rack Mounting Hardware |
11 |
Rack Security Devices |
12 |
Shelving |
12 |
Stabilization |
12 |
Troughs and Ladders |
12 |
Security and Environmental |
14 |
Accessories Compatibility Chart |
16 |
“Fits Like a Glove” NetShelter® SX
Guaranteed Compatibility
Whether you are designing
a wiring closet or the largest
data center, or just looking for
the most flexible rack solution, APC NetShelter® SX rack enclosures provide a secure and ven-
dor-neutral environment for your IT equipment.
APC is committed to ensuring that your rack-mount equipment will fit into NetShelter SX enclosures. APC guarantees that all 19” EIA-310-D compliant equipment will physically fit into NetShelter SX enclosures with the mounting hardware provided by the original equipment manufacturer (OEM), APC, a third party vendor, or any combination thereof or your money back.*
X-Certified
NetShelter® SX rack enclosures and accessories are X-certified, meaning they are tested and certified for use with InfraStruXure™ architecture. InfraStruXure is on-demand architecture for power, cooling and environmental management. An effective solution to Network-critical Physical Infrastructure (NCPI), InfraStruXure is the industry’s only integrated architecture robust enough to effectively maintain highly available and manageable networks. Look for the words (X-CertifieD) and the "Fits like a glove” icon throughout this brochure to determine which racks and accessories are compatible with APC InfraStruXure architecture.
*See www.apc.com for more details.
Every product carrying this mark has been tested and certified for use with InfraStruXure™ architecture. Before you buy, check for the “X” to guarantee product compatibility.
InfraStruXure™ Supports
Dynamic Systems
Environment at Microsoft
Technology Center
“We change configurations in our data center on
a weekly basis. The InfraStruXure™ system with its ability to balance loads as we swap servers, battery modules and power modules, helps
to make these changes worry-free.”
Chuck McCann
Technical Director
Microsoft Technology Center
– Boston
Once concerned with environmental design at the room-level, consulting engineers now direct their attention to power distribution, cooling, and cable management at the rack level. The driving force behind this shift is technology compaction, as today’s IT equipment is
designed with efficient rack-mounting capabilities to maximize the utilization of valuable floor space.
The ideal rack enclosure maximizes flexibility with a progressive, non-proprietary feature-set as well as an extensive line of scalable accessory products to address
current needs and adapt to future technology trends. APC NetShelter® rack systems provide the most progressive feature-set available in a vendor-neutral rack environment while allowing the user the flexibility to quickly adapt to emerging trends. Available in a variety of heights and widths, NetShelter racks and enclosures support applications ranging from branch offices and wiring closets to enterprise data centers. With an extensive line of lead- ing-edge power distribution, cooling and cable management accessories, APC offers the most comprehensive rack solutions to protect the critical components of the IT environment.
netshelter® SX
NetShelter® SX
Enclosures providing cooling, power distribution, cable management, and environmental monitoring for applications in IT environments.
NetShelter® SX is APC’s next generation rack enclosure solution influenced by 10 years of customer feedback addressing current IT market trends for high-density server and networking applications. With a strong focus on cooling, power distribution, cable management and environmental monitoring, the NetShelter SX provides a reliable rackmounting environment for mission-critical equipment.
NetShelter® SX Product Design Benefits
Scalable Cooling Options
Enhanced door ventilation with scalable cooling options for high-density applications
Environmental & Security
Integrate environmental & security solutions for protection against physical threats
Rack Power
Distribution
Toolless 0U mounting for rack PDUs
Cable Management
Integrated features and options for horizontal and vertical routing of high-density cabling
For more information about APC’s Availability Solutions, visit www.apc.com
[fig 3a]
[fig 3b]
[fig 3c]
netshelter® SX
NetShelter® SX Features and Benefits
Compatibility
•Door ventilation exceeds 919 in2 (5933 cm2)
•Captive adjustment of Vertical Mounting Rails
[fig 3a]
•Fits-Like-A-Glove guaranteed compatibility
Safety
•Integrated grounding
•UBC Zone 4 stabilization provisions
Protection
•Lockable doors and side panels
•Door access monitoring
•Static weight load rating of 3,000 lbs
Convenience
•Toolless installation and removal of roof (fig 3b)
•Rapid adjustment of leveling feet (fig 3c)
•Toolless PDU mounting provisions
•Numbered U positions (fig 3d)
•Light-weight, half-height side panels
•Toolless cable management options
•42U models roll through 2 meter doorways
•Cable openings for overhead or underfloor applications
Serviceability
•Quick release doors
•Quick release side panels (fig 3e)
•Split rear doors
Adaptability
•Reversible doors
•Scalable cooling options
•Seamless integration of environmental monitoring devices
•External baying for easy deployment in rows (fig 3f)
Every product carrying this mark has been tested and certified for use with
InfraStruXure™ architecture. Before you buy, check
for the “X” to guarantee product compatibility.
|
|
|
|
|
[fig 3d] |
[fig 3e] |
|
[fig 3f] |
|
For more information about APC’s Availability Solutions, visit www.apc.com |
|
netshelter® SX
NetShelter® SX 42U×600mm (W) Enclosure
Black 42U×600 Enclosure:
AR3100
|
AR3100 |
Net weight |
275.20 lbs (125.09 kg) |
Net Height |
78.40 inches (1991 mm) |
Net Width |
23.62 inches (600 mm) |
Net Depth |
42.13 inches (1070 mm) |
Shipping Weight |
318.00 lbs (144.55 kg) |
Shipping Height |
83.40 inches (2118 mm) |
Shipping Width |
35.38 inches (899 mm) |
Shipping Depth |
48.00 inches (1219 mm) |
Weight Capacity (static load) |
3000 lbs (1363.6 kg) |
Weight Capacity (dynamic load) |
2250 lbs (1022.7 kg) |
NetShelter® SX 48U×600mm (W) Enclosure
Black 48U×600mm Enclosure: |
|
|
AR3107 |
AR3107 |
|
|
|
|
|
Net weight |
304.10 lbs (138.23 kg) |
|
Net Height |
88.90 inches (2258 mm) |
|
Net Width |
23.62 inches (600 mm) |
|
Net Depth |
42.13 inches (1070 mm) |
|
Shipping Weight |
346.90 lbs (157.68 kg) |
|
Shipping Height |
93.90 inches (2385 mm) |
|
Shipping Width |
35.38 inches (899 mm) |
|
Shipping Depth |
48.00 inches (1219 mm) |
|
Weight Capacity (static load) |
3000 lbs (1363.6 kg) |
|
Weight Capacity (dynamic load) |
2250 lbs (1022.7 kg) |
NetShelter SX 42U×750mm (W) Enclosure
Black wide enclosure: |
|
|
AR3150 |
AR3150 |
|
|
Net weight |
343.10 lbs (155.95 kg) |
|
Net Height |
78.40 inches (199.1 cm) |
|
Net Width |
29.53 inches (75.0 cm) |
|
Net Depth |
42.13 inches (107.0 cm) |
|
Shipping Weight |
370.00 lbs (168.18 kg) |
|
Shipping Height |
87.25 inches (221.6 cm) |
|
Shipping Width |
35.25 inches (89.5 cm) |
|
Shipping Depth |
48.00 inches (121.9 cm) |
|
Weight Capacity (static load) |
3000 lbs (1363.6 kg) |
|
Weight Capacity (dynamic load) |
2250 lbs (1022.7 kg) |
