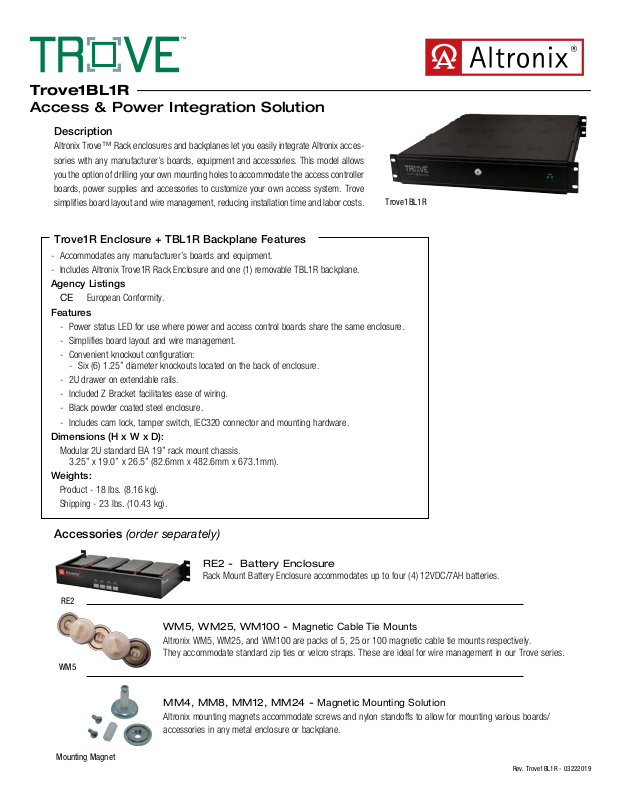

Altronix TROVE1BL1R Specsheet
Trove1BL1R
Access & Power Integration Solution
Description
Altronix Trove™ Rack enclosures and backplanes let you easily integrate Altronix accessories with any manufacturer’s boards, equipment and accessories. This model allows
you the option of drilling your own mounting holes to accommodate the access controller
boards, power supplies and accessories to customize your own access system. Trove
simplifies board layout and wire management, reducing installation time and labor costs.
Trove1R Enclosure + TBL1R Backplane Features
- Accommodates any manufacturer’s boards and equipment.
- Includes Altronix Trove1R Rack Enclosure and one (1) removable TBL1R backplane.
Agency Listings
CE European Conformity.
Features
- Power status LED for use where power and access control boards share the same enclosure.
- Simplifies board layout and wire management.
- Convenient knockout configuration:
- Six (6) 1.25” diameter knockouts located on the back of enclosure.
- 2U drawer on extendable rails.
- Included Z Bracket facilitates ease of wiring.
- Black powder coated steel enclosure.
- Includes cam lock, tamper switch, IEC320 connector and mounting hardware.
Dimensions (H x W x D):
Modular 2U standard EIA 19” rack mount chassis.
3.25” x 19.0” x 26.5” (82.6mm x 482.6mm x 673.1mm).
Weights:
Product - 18 lbs. (8.16 kg).
Shipping - 23 lbs. (10.43 kg).
Trove1BL1R
Accessories (order separately)
RE2 - Battery Enclosure
Rack Mount Battery Enclosure accommodates up to four (4) 12VDC/7AH batteries.
RE2
WM5, WM25, WM100 - Magnetic Cable Tie Mounts
Altronix WM5, WM25, and WM100 are packs of 5, 25 or 100 magnetic cable tie mounts respectively.
They accommodate standard zip ties or velcro straps. These are ideal for wire management in our Trove series.
WM5
MM4, MM8, MM12, MM24 - Magnetic Mounting Solution
Altronix mounting magnets accommodate screws and nylon standoffs to allow for mounting various boards/
accessories in any metal enclosure or backplane.
Mounting Magnet
Rev. Trove1BL1R - 03222019
Trove1BL1R
Access & Power Integration Solution
26.5”
673.1mm
2.4”
61mm
4.57”
116.1mm
1” (25.4mm)
11.175” (283.8mm)
0.55” (14mm)
R 1.27” (32.3mm)
0.1”
2.5mm
3.62”
92mm
1.5”
38.1mm
3.25”
82.3mm
19” (482.6mm)
Altronix Corporation | 140 58th St | Brooklyn, NY 11220 USA
phone: +1 718.567.8181 | fax: +1 718.567.9056 | email: info@altronix.com | www.altronix.com
