Modular Ventilation and Filtration System
“Modular Ventilation and Filtration Systems for all Chemical Safety Cabinets.”
Shown on flammable safety
cabinet; not includ ed.
Protection Against Chemical Inhalation Risks
Without Expensive Energy Consuming Ductwork
— Vent-Box
VB24
Product Overview
p:2
JUMP TO:
Features
and Callouts (p.3)
Airflow and Multiplex™
Filtration Technology (p.4)
Specifications (p.5)
Options and
Accessories (p.6)
Modular Ventilation and Filtration System
Ductless Filtration Systems
Low-profile, completely portable,
no ductwork required.
Compact size, easily positioned
on shallow safety cabinets.
Modular design permits multiple configurations.
Universal connections all ow retrofit to almost
all available flammable and safety cabinets
on the market.
Meets or Exc eeds OS HA, ANSI ,
and other International Standards.
Vent-Box VB24. Shown on optional wall mount.
APPLICATIONS
Flexible cabinet ventilation
for storage of:
• Flammable materials
• Acid / Corrosive
chemicals
• Paints
• Pesticides
• Hazardous materials
INTRODUCTION
Air Science Vent-Box™ ductless filtration
systems are designed to protect
laboratory personnel from chemical
vapors found inside of stand alone
chemical safety cabinets. The Vent-Box
serves as modular ventilation and a
filtration system for all chemical
safety cabinets.
AIR SCIENCE
MULTIPLEX FILTRATION
TECHNOLOGY SYSTEM
The Vent-Box utilizes the
exclusive Air Science
Multiplex filtration
system, a unique configuration that includes
a pre-filter and main filter
to create a chemical,
physical or combination
architecture to adsorb,
neutralize or trap the
target chemicals or
particulate. Fumes are
pulled via a flexible
hose connected to the
cabinet and clean,
filtered air is returned
to the laboratory,
eliminating the need
for external ducting
and minimizing loss of
treated, conditioned air
from the facility.
MULTIPLEX
SYSTEM FILTERS
• Pre-Filter. The electro-
static pre -filter protects
the main filters from
aerosols, dust and
particulates with filtration efficiency superior
to 95.5% down to 0.5
microns.
• Main Filter. Activated
Carbon FILTCO
sourced. A single
carbon filter containing
chemically-formulated
activated carbon granules is selected when
ordering to accommodate a specific vapor
or family of vapors.
• HEPA Filter. A selfcontained Camfil-Farr
HEPA filter is designed
to physically capture
particles larger than
0.3 microns.
™
This Product Exceeds OSHA, ANSI and Other International Standards.
Product Features
p:3
Modular Ventilation and Filtration System
PRODUCT FEATURES:
A. Filtration: Available with Multiplex filtration
technology, a unique configuration that includes
a pre-filter and main carbon filter. HEPA/ULPA filtration is also available.
B. Hose: Each unit is provided with a 1 meter
PVC or metal flex hose with smooth inner surfaces
to minimize pressure drop and friction loss.
C. No-Tools Filter Access: The filter is easy to
replace, no tools required. Simply open the easy
access lid and change the filters.
D. Multiple Connection Configurations: The
Vent-Box comes equipped with four possible intake
connections, allowing you to easily configure the
unit to meet your space requirements.
E. Exhaust Port: Slotted exhaust port allows
for an optional bolt-on ducting collar that allows
connection to existing in-house ductwork.
F. Leveling Feet: Equipped with adjustable
leveling feet that ensure solid placement on
a variet y of surfaces.
G. Control Panel: Electronic controls and displays
include switches for the blower and a low airflow
alarm.
Vent -B ox VB24.
Top View
The Vent-Box is equipped with four intake hose connections, allowing for multiple configu rations based on your space
and layout requireme nts. One inta ke hose connection is located on either side of the Vent- Box top frame, with two
connections located on the rear portion of the frame. Cover plates are available for the unused connection ports.
Side View
Air Science
®
120 6th Street • Fort Myers, FL 33907 • T/239.489.0024 • Toll Free/800.306.0656 • F/800.306.0677 • www.airscience.com
Product Filtration
p:4
Modular Ventilation and Filtration System
THE AIR SCIENCE
PERFORMANCE
ADVANTAGE
Each Air Science
Vent-Box includes
features expressed
through sound design
and certified quality
construction. Options
and accessories add
functional performance
to meet specific
applications.
• Professional Quality.
Air Science products
comply with current
technical and safety
regulations.
• Advanced Filtration.
Air Science Multiplex
filtration provides
high performance
protection.
• Industrial
Components.
The Vent-Box frame
and outer surfaces
are durable and
chemically resistant.
• Reliability.
Internal systems are
isolated from contamination, extending
product life.
AIR SCIENCE
CARBON FILTRATION
Air Science carbon
filters are based on
enhanced, activated
carbon particle formulations from naturally
occurring raw material
superior to wood or
other organic sources.
Our carbon is treated
to attain the proper
porosity and aggregate
surface area, while
reacting with several
ranges of aerosolized
chemicals moved
through the filter by an
air handling blower.
The table below
specifies the standard
formulations of carbon
available within our
Multiplex Filtration
Technology.
VENT-BOX
AIRFLOW PATTERN
Fan/Blower
Cabinet
Air Intake
Vent-Box VB24 shown with Multiplex fi ltration syste m.
The Vent-Box maintai ns a constant low veloc ity airflow through the cabinet.
Contaminated air i s pulled through the M ultiplex filtration system where activated
carbon ad sorbs che mical va pors and/or particulates if H EPA/ULPA filters are used.
Clean air is returned to the room.
Exhaust Air
Filtration
Electrostatic
Pre-Filter
Main Filters
of carbon and/or
HEPA/ULPA
FILTER SUMMARY
The Vent-Box uses energyefficient ebmpapst™ brand
centrifugal blowers for
long life and dependable
performance.
Formula Description
GP Plus! The most widely used filter in the range, primarily for solvent, organic, and alcohol removal.
ACI Plus! Designed to neutralize volatile inorganic acid vapors.
ACR Iodine and methyl iodide vapors. It is frequently used for i odination rea ctions
ACM Mercur y vapor
AMM Removes vapors from dilute ammonia solutions and to remove low molecular weight amines.
SUL Designed to remove hydroge n sulfid e and low molecular weig ht mercaptans.
CYN Removal of hydrogen cyanide. Ma ny cyanid e compo unds will evolve HCN gas
FOR Designe d to oxidize formal dehyde and glutaraldehyde fumes.
ETH Diethyl ether is adsorbed on activa ted carbon, but b ecause of its low boilin g point,
EDU Designed to handle chemicals normally used in a university level chemistry curriculum.
MIL As the name implies, this filter is designed for military applications involving war gasses.
HEPA/UPLA Powders and particulates
with lower level radioactive iodine.
which acidifies, so this filter is normally specified if working with any cyanide compound.
It is widely used in hospital pathology laboratories.
the local head adsorption can reduce the capacity of the filter. Special impregnation
allows a chemical reaction which increases the filter capacity.
This Product Exceeds OSHA, ANSI and Other International Standards.
This Product Exceeds OSHA, ANSI and Other International Standards.
Product Specifications
p:5
VENT-BOX DUCTLESS
FILTRATION SYSTEMS
FEATURES & BENEFITS
The Vent-Box modular
ventilation and filtration
system is packed
with features to make
configuration and
maintenance simple.
• The filter is easy to
replace, no tools
required. The filter
clamps tightly against
the filter gasket to
maintain a positive
seal and airtight
connection.
• Ducting configuration is simple with
locations for up
to four input hose
connections. The
Vent-Box can be
used as a ductless
setup or can be
ducted into an existing exhaust system
with the optional
ducting collar.
• The adjustable speed
controller allows you
to set the centrifugal
fan motor speed as
desired.
• Hose material options
include PVC or metal
for long lasting
durability.
• Compact size,
easily positioned
on shallow safety
cabinets.
• Modular design
permits multiple
configurations.
• Universal connections allow retrofit
to almost all available flammable
and safety cabinets
on the market.
• Meets or Exceeds
OSHA, ANSI and
other International
Standards.
Modular Ventilation and Filtration System
Modular Ventilation and Filtration System
Vent-Box VB24

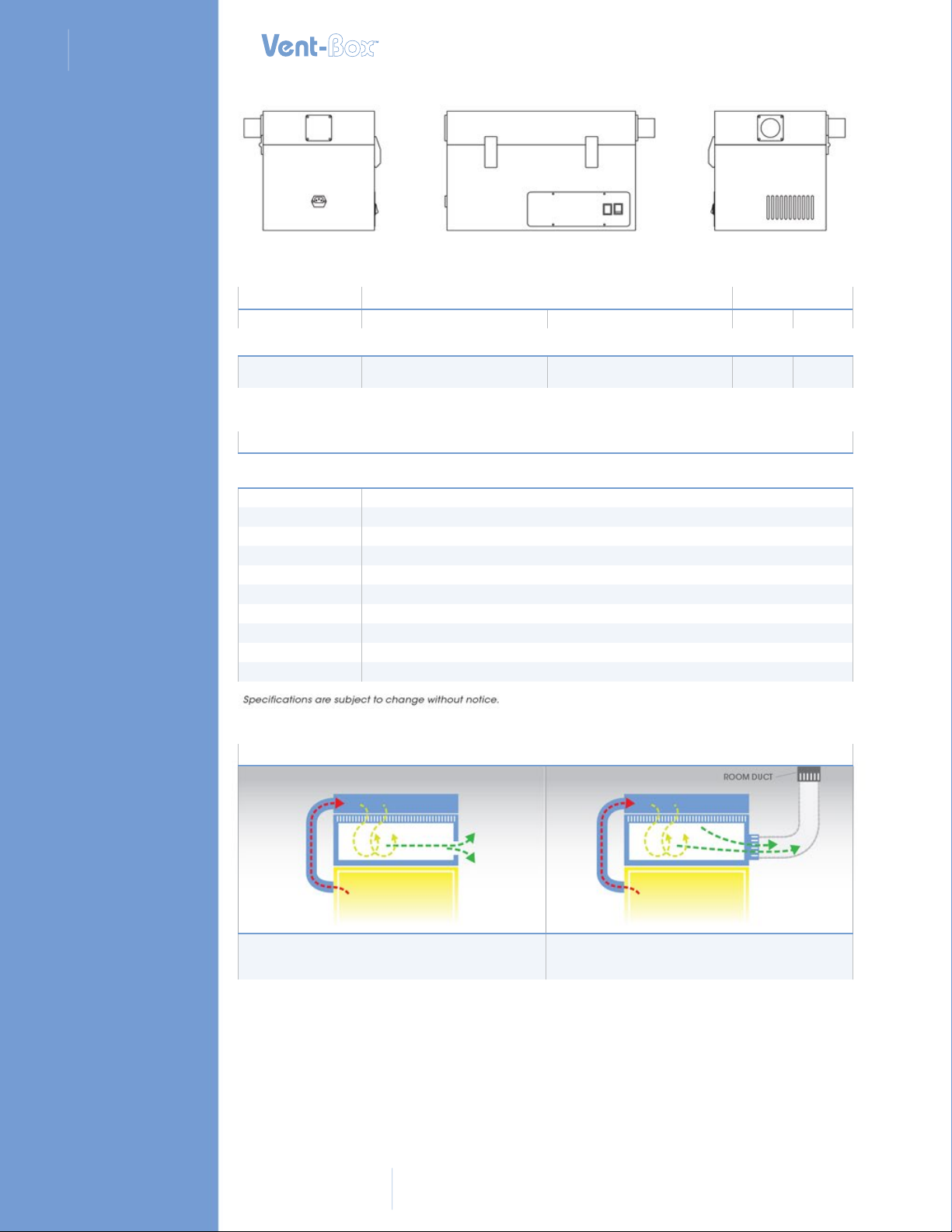

Right Side ViewLeft Side View
MODEL DIMENSIONS WEIGHT
(W x D x H) Shipping ( W x D x H) Net Ship
Vent-Box
VB24
21.25" x 12" x 13"
540 x 30 5 x 330 mm
24" x 22" x 18"
610 x 559 x 457 mm
PRODUCT SPECIFICATIONS
Vent-Box Model VB24
Filter Weight 3 lbs/1.5 kg
Prefilter Weight 1 lb/0.4 kg
Airflow 3 CFM
Noise <45 dBa
Construction White epoxy coated stee l
Electrical 120v 60hz; 220v 50hz available, speci fy when ordering
Electrical Switches Main On/Off
Monitoring Low airflow alarm, standard
Hose length 1 meter, PVC or metal, flexible
Air Sampling Port Air sampling port allows manual filter monitoring
OPERATION MODES
MO DE 1:
ductless / filtered
connection to in-house exhaust
MODE 2:
ductless / filtered with
(
lbs/Kg
32 / 14 34 / 15
)
This Product Exceeds OSHA, ANSI and Other International Standards.
Product Options
p:6
VB24
VB24- BE
Modular Ventilation and Filtration System

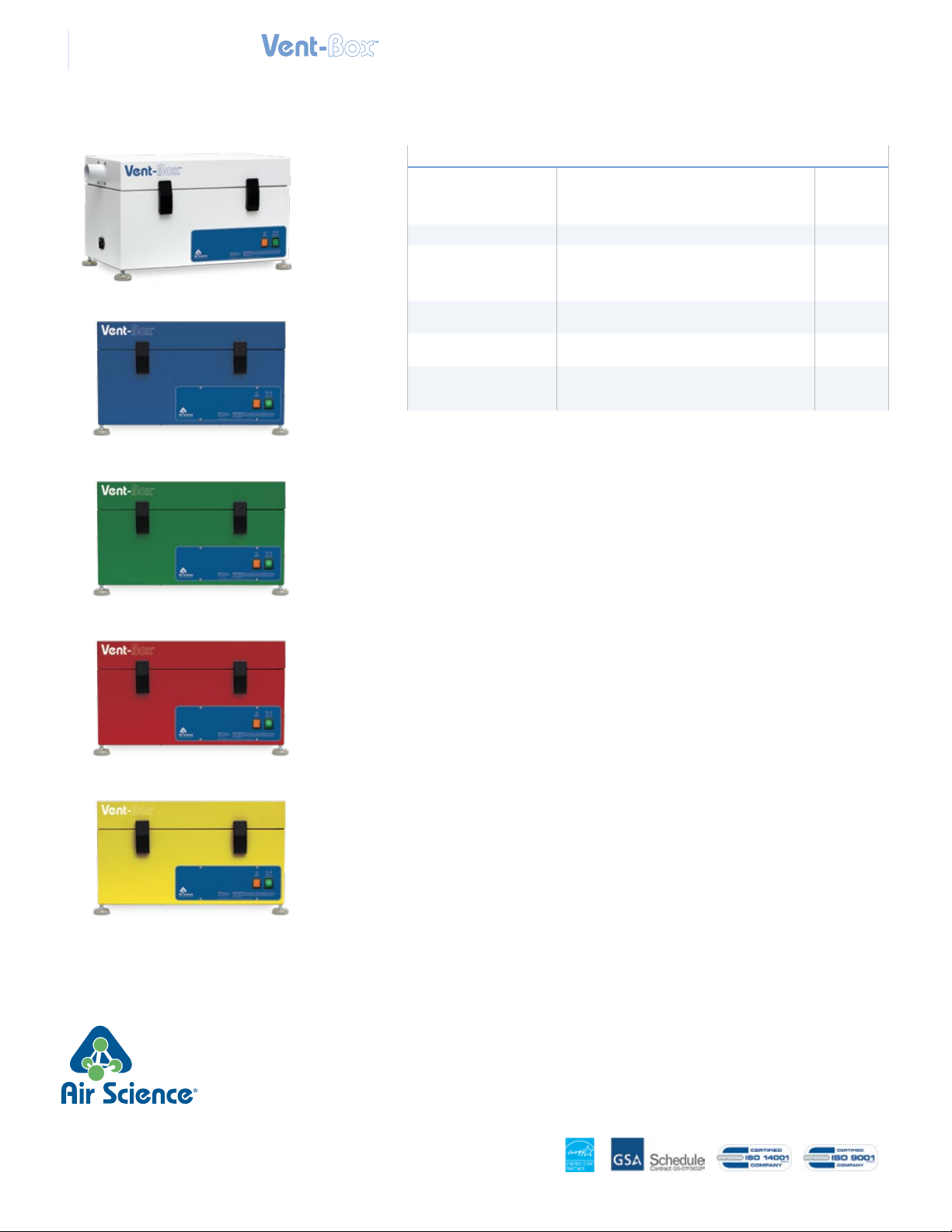

OPTIONS AND ACCESSORIES
Filter Saturation Alarm and
Electronic Hour Counter*
Polypropylene Construction Units available in all polypropylene construction. VB24-PP
Color Match Match th e color o f the Vent- Box uni t to any type of
Ducting Collar For connecting the Vent-Box to building exhaust for
Variable Speed Controller Adjustable spe ed controller to set the centrifugal fan
Wall Mount White epoxy coated stee l shelf, specifically s ized
* Factory in stalled. Specif y when orde ring.
An electronic gas sensor emits audio
and visual alerts when the main filter needs to be
changed. The option also includes an electronic
hour counter to track unit run time.
chemical storage cabinet (Blue, Green, Red, Yellow).
outside ducting.
motor speed as desired.
to hold the Vent-Box modular ventilation system.
Mounting hardware not included.
FSA
VB24-BE
VB24-GN
VB24-RD
VB24 -YW
VB24-EXH
VB24-S PDC
VB24-WM
VB24- GN
VB24- RD
VB24-YW
