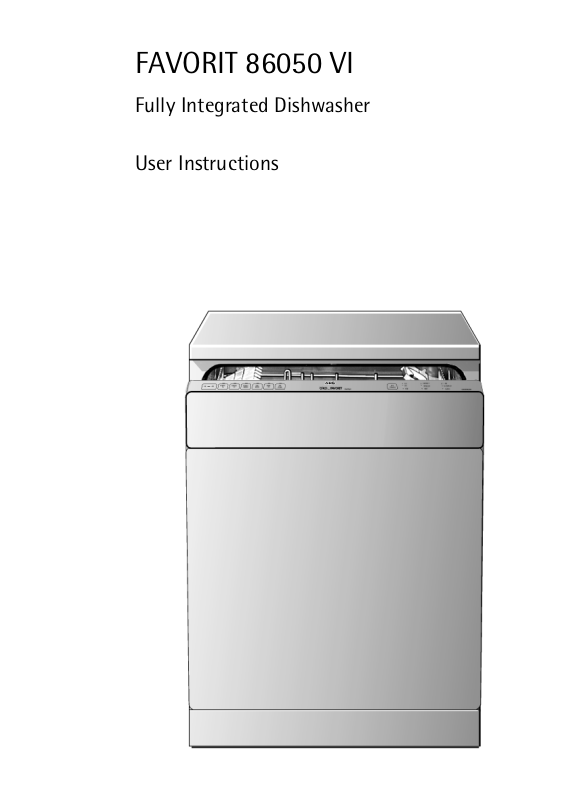

FAVORIT 86050 VI
Fully Integrated Dishwasher
User Instructions
Dear customer,
Please read these user instructions carefully.
Please observe the safety instructions on the first few pages of these user instructions! Please keep these user instructions for later reference. Pass them on to any subsequent owner of the appliance.
1 The warning triangle and/or specific words (Warning!, Caution!, Important!) are used to highlight instructions that are important for your safety or for the function of the appliance. It is imperative that these instructions are observed.
0This symbol or numbered instruction steps lead you step by step through the operation of the appliance.
3 |
Next to this symbol you receive additional information and practical |
|
tips on using the appliance. |
2 |
Tips and instructions for the economical and environmentally conscious |
|
use of the appliance are marked with a clover leaf. |
In the event of a malfunction, these operating instructions contain information on how to rectify faults yourself, see the "What to do, if..." section.
If these instructions are insufficient, please contact your AEG Service Force Centre.
In this respect please read the chapter "Service & Spare Parts".
Printed on paper manufactured with environmentally sound processes.
He who thinks ecologically acts accordingly ...
2
|
Contents |
CONTENTS |
|
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 5 |
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 5 |
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 7 |
Economical and Ecological Dishwashing . . . . . . . . . . . . . . . . . . . . . . . |
. . . 7 |
Appliance Features, Display and Control Fields . . . . . . . . . . . . . . . . |
. . . 8 |
Display and Control Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 9 |
Prior to using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 10 |
Adjusting the Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 10 |
Filling with Salt for the Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 12 |
Rinse Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 13 |
Switching Rinse Aid Supply On and Off . . . . . . . . . . . . . . . . . . . . . . |
. . . 13 |
Filling with Rinse Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 14 |
Adjusting Rinse Aid Dosing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 15 |
Switching the Acoustic Signal for the End of the |
|
Wash Programme On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 15 |
In Daily Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 16 |
Loading Cutlery and Dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 16 |
Loading Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 17 |
Loading Pans, Frying Pans and Large Plates . . . . . . . . . . . . . . . . . . . |
. . . 19 |
Loading Cups, Glasses and Coffee Services . . . . . . . . . . . . . . . . . . . . |
. . . 20 |
Adjusting the Height of the Upper Basket . . . . . . . . . . . . . . . . . . . . |
. . . 21 |
Filling with Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 22 |
Concentrated Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 23 |
Detergent tablets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 23 |
Automatic Wash Programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 23 |
Selecting the Wash Programme (Programme Table) . . . . . . . . . . . . . . . |
. . . 24 |
Start the Wash Programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 25 |
Deleting a Wash Programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 25 |
Interrupting the Wash Programme (only in emergencies) . . . . . . . |
. . . 26 |
Setting or Changing the Delay Start Timer . . . . . . . . . . . . . . . . . . . . |
. . . 26 |
Load Sensing – Sensor Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 27 |
Switching Off the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 27 |
Emptying the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 27 |
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 28 |
Cleaning the Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . 28 |
3
Contents
What to do, if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
29 |
... Warning tones indicating a fault in the dishwasher. . . . . . . . . . . . . . . . . |
30 |
...there are problems with the operation of the dishwasher. . . . . . . . . . . . |
31 |
...the wash result is not satisfactory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
31 |
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
32 |
Notes for Test Institutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
33 |
Installation and Connection Instructions . . . . . . . . . . . . . . . . |
34 |
Installing the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
34 |
Fitting the Furniture Door Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
35 |
Connecting the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
36 |
Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
36 |
Permitted water pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
36 |
Connect the inlet hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
36 |
Water drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
38 |
Leak Prevention System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
39 |
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
40 |
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
41 |
Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
42 |
Service and Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
43 |
4
Operating Instructions
OPERATING INSTRUCTIONS
1 Safety Instructions
The safety aspects of AEG electrical appliances comply with accepted technical standards and the German Appliance Safety Law. Nevertheless, as a manufacturer we consider it our obligation to make you aware of the following safety information:
Installation, Connection and Placing into Operation
•The dishwasher may only be transported upright.
•Check the dishwasher for transport damage. Do not in any circumstances connect an appliance that is damaged. In the case of damage, please contact your retailer.
•Before installing the appliance, ensure that the nominal voltage and type of supply on the rating plate match that of the supply where the appliance is to be installed. The fuse rating is also to be found on the rating plate.
•For information on how to correctly install and connect up your dishwasher, please read the “Installation“ section. Adaptors / connectors and extension cables must not be used.
Child Safety
•This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.
•Keep all packaging away from children.
•Keep all detergents in a safe place out of children’s reach.
•The water in your dishwasher is not suitable for drinking. If there are still remnants of detergent in the appliance, there is a risk of burns!
•When disposing of an old appliance, cut off the power supply cable and remove any door catches, to prevent young children being trapped inside.
General Safety
•Repairs to the dishwasher are only to be carried out by qualified service engineers. Improper repairs can give rise to significant hazards for the user. If your appliance needs repairing, please contact your local AEG Service Force Centre.
5
Operating Instructions
•Never place the dishwasher in operation if the mains cable, water inlet or drain hose is damaged; or the control panel, work top or plinth area is damaged such that the inside of the appliance is freely accessible.
•If the mains lead is damaged, or is to be replaced for a longer lead, the cable (obtainable from AEG Service Force) must be changed by a service engineer authorised by AEG.
•Never unplug the appliance by pulling on the cable, always pull the plug.
•Additions or modifications to the dishwasher are not permitted for safety reasons.
•Ensure that the door of the dishwasher is always closed when it is not being loaded or unloaded. In this way you will avoid anybody tripping over the open door and hurting themselves.
•Long bladed knives stored in an upright position are a potential hazard.
•Sharp knives and items of cutlery with sharp edges must be placed in the cutlery tray or in the upper rack.
•When finished loading or unloading, close the door as an open door can be a hazard.
Correct Use
•Only wash household dishes using the dishwasher. If the appliance is used for other purposes, or is used incorrectly, the manufacturer cannot accept any liability for any damage caused.
•Only use detergents specifically designed for use in domestic dishwashers.
•Do not put any solvents in the dishwasher. There is a risk of an explosion!
•The anti-flood system provides dependable protection against damage due to leaks. For this system to function correctly, the following preconditions must be met:
–The appliance must remain connected to the mains even when it is switched off.
–The dishwasher must be correctly installed.
–Always shut off the water supply at the tap when the dishwasher is not to be used for longer periods, e.g. when you are away on holiday.
•Do not sit or stand on the open door, the appliance may tip over.
6
Operating Instructions
•In the event of a fault, first close the tap, then switch off the appliance and unplug it from the mains. If the appliance is permanently wired to the mains: remove the fuse.
2 Disposal
Disposing of the Packaging Material
Dispose of the dishwasher packaging material correctly. All the packaging materials used are harmless to the environment and can be recycled.
• Plastic parts are marked with standard international abbreviations:
– >PE< |
for polyethylene, e.g. sheet wrapping material |
– >PS< |
for polystyrene, e.g. padding material (always CFC-free) |
– >POM< |
for polyoxymethylene, e.g. plastic clips |
•Cardboard packaging is manufactured from recycled paper and should be deposited in the waste paper collection for recycling.
Disposal of Old Appliances
When disposing of old appliances, remove the plug and ensure that any locks or catches are removed to prevent young children becoming trapped inside.
Use an authorised disposal site.
2Economical and Ecological Dishwashing
•Ensure that the water softener is correctly adjusted.
•Do not pre-rinse dishes under running water.
•If you wash a small load, the load sensor calculates the amount of water necessary and shortens the programme. It is more economical to always wash with a full load.
•Select the wash programme to suit the nature and degree of the soiling on the dishes.
•Do not use more detergent, special salt or rinse aid than is recommended in these operating instructions and by the detergent manufacturer.
•The dishwasher's interior light is always switched on as long as the door of the appliance is open. To save energy you should therefore always close the door of the dishwasher after loading or removing dishes.
7
Operating Instructions
Appliance Features, Display and Control
Fields
Top Spray Arm
Rubber Seal for Connecting the Water Feed to the Upper Spray Arm
Spray Arms
Water Hardness Switch
Container for Salt
Container for Rinse Aid
Detergent
Dispenser
Display and Control Fields |
Rating Plate Filters |
8
Operating Instructions
Display and Control Panels
|
|
Function buttons |
|
|
Display for set |
Indicators |
||||||||
|
|
|
|
|
|
|
|
|
delay start |
|
|
|
||
|
|
2 |
3 |
|
|
|
|
|
|
|
|
|||
1 |
|
|
|
|
|
|||||||||
4 |
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Control panel |
Set |
Display for the individ- |
|
delay start |
ual programme steps |
The control panel consists of the ON/OFF button 9and the programme buttons with LED displays.
Function buttons: In addition to the stated wash programme the following functions can also be set using these buttons:
Function button 1 |
Switch acoustic signal on and off |
Function button 2 |
Adjust the water softener |
Function button 3 |
Switch rinse aid supply on and off |
Function button 4 |
- is not occupied - |
|
|
Indicators have the following significance:
J |
Refill with special salt |
H |
Refill with rinse aid |
^ |
Open the tap |
|
|
9
Operating Instructions
Prior to using for the first time
Prior to using for the first time, remove all the clips with which the dish racks are secured for transport.
Then perform the following steps: 0 1. Adjust the water softener
2.Fill with Salt for the Water Softener
3.Fill with Rinse Aid
Adjusting the Water Softener
|
To prevent the build up of scale on dishes and in the dishwasher, the |
|
dishes must be washed with soft, i.e. low lime content water. For this |
|
reason the dishwasher is fitted with a water softener in which tap |
|
water from a hardness of 4 °d (German degree) is softened with the aid |
|
of special salt. |
3 |
Your local water authority can advise you on the hardness of the water |
|
in your area. |
0Adjust the water softener as stated in the table to the setting that corresponds to the hardness of the water in your area. The water softener can be set manually using the water hardness switch and also electronically using the buttons on the control panel.
|
Water Hardness |
|
Hardness Setting |
Number of |
|||
|
|
|
|
|
|
|
|
in °d1) |
|
in ppm2) |
Range |
Manual |
Electronic |
Flashes |
|
|
|
||||||
51 - 70 |
|
9,0 - 12,5 |
|
|
|
9 |
9 |
|
|
|
|
||||
43 - 50 |
|
7,6 - 8,9 |
|
|
|
8 |
8 |
37 - 42 |
|
6,5 - 7,5 |
|
IV |
1 |
7 |
7 |
29 - 36 |
|
5,1 - 6,4 |
|
|
|
6 |
6 |
23 - 28 |
|
4,0 - 5,0 |
|
|
|
5 |
5 |
19 - 22 |
|
3,3 - 3,9 |
|
III |
|
4 |
4 |
15 - 18 |
|
2,6 - 3,2 |
|
|
3* |
3 |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
11 - 14 |
|
1,9 - 2,5 |
|
II |
0* |
2 |
2 |
4 - 10 |
|
0,7 - 1,8 |
|
I/II |
1 |
1 |
|
|
|
|
|||||
|
|
|
|
|
|
0 |
|
under 4 |
|
under 0.7 |
|
I |
|
no salt |
10 |
|
|
|
|
|
|
necessary |
|
|
|
|
|
|
|
|
|
10
Operating Instructions
1)(°d) German degrees, a measure of water hardness 2)(ppm), Parts Per Million
*factory setting
Adjust the water softener to the hardness of the water in your area as stated in the table:
0 1. The dishwasher must be switched off.
2. Manual adjustment:
Open the dishwasher door.
3. Remove the lower rack from the dishwasher.
4. Turn the water hardness switch to 0 or 1.
5. Re-position the lower rack.
6. Electronic adjustment:
Simultaneously press and hold down function buttons 1 and 2.
7.Press the ON/OFF button.
The LED displays for the engaged function buttons will flash.
8.Press function button 2 again.
–The LED display for function button 2 will flash.
–The number of flashes corresponds to the hardness setting. (Exception: hardness setting 0 is indicated by 10 flashes).
–The sequence of flashes is repeated several times after a 5 second pause.
9.Pressing function button 2 increases the hardness setting by 1. (Exception: hardness setting 0 follows hardness setting 9).
10.Once the hardness setting is set correctly, press the ON/OFF switch. The hardness setting is then saved.
11
Operating Instructions
Filling with Salt for the Water Softener
1 Use only salt designed for dishwashers. Never fill the salt container with any another type of salt (e.g. culinary salt) or dishwasher detergent as this would irreparably damage the water softener.
Prior to filling with salt, please check each time that you really do have a packet of dishwasher salt in your hand.
Fill with dishwasher salt:
–Prior to using the dishwasher for the first time
–When the SALT indicator Jon the control panel is illuminated.
3 |
If the water hardness in your area is less than 4 °d, you do not need to |
||
|
use dishwasher salt. The SALT indicator Jon the control panel will |
||
|
remain illuminated. |
|
|
0 1. |
Open the door, remove the lower |
|
|
|
|
||
|
|
||
|
rack. |
SALE |
|
|
|
||
|
|
||
|
|
||
|
|
|
|
|
|
|
|
2. |
Undo the lid on the salt container by |
SALT |
|
|
|||
|
|
SALZ |
|
|
|
|
|
|
turning it anticlockwise. |
SEL |
|
|
|
|
|
3.When using for the first time: fill the salt container with water.
4.Place the funnel supplied on the con-
tainer opening.
Fill the container with salt through
the funnel; the capacity of the con-
tainer is approx. 1.0-1.5 kg depend-
ing on the grain size. Do not overfill
the salt container with salt.
3 |
The water expelled by filling the salt container with salt runs out of the |
|
salt container onto the base of the washing compartment. This is not a |
cause for concern, the water will be pumped out at the start of the next wash programme.
5.Clean any salt remnants on the container opening.
6.Turn the lid clockwise to the stop, otherwise dishwasher salt will leak into the wash water, this could lead to poor wash results. To avoid this run a rinse programme after filling the salt container with special salt. This will wash away salt water and any salt crystals that have been spilt.
3 |
Depending on the size of the salt grains, it can take several hours for |
|
the salt to dissolve in the water and the special salt indicator Jto |
extinguish. The setting of the water softener and the consumption of salt are dependent on the hardness of the local water.
12
Operating Instructions
Rinse Aid
Rinse aid ensures that dishes emerge thoroughly rinsed and spot free while glasses are clear and shining.
There are two ways to add rinse aid:
•If you use detergent that already contains rinse aid, the detergent and rinse aid are placed in the detergent container.
–In this case the rinse aid supply from the rinse aid container must be switched off to avoid double dosing.
•If you use separate detergent and rinse aid, the rinse aid is placed in the rinse aid container.
–In this case the rinse aid supply from the rinse aid container must be switched on.
–Rinse aid dosing levels need to be set.
1Only use rinse aid specifically designed for domestic dishwashers. Never fill the rinse aid container with any other substance (e.g., vinegar concentrate or dishwasher cleaning agent) as this would damage the appliance.
|
Switching Rinse Aid Supply On and Off |
|
0 1. |
The appliance must be switched off. |
|
2. |
Simultaneously press and hold down function buttons 1 and 2. |
|
3. |
Press the ON/OFF switch. |
|
|
The LED displays for the engaged function buttons will flash. |
|
4. |
Press function button 3. |
|
|
The LED display for function button 3 will flash. |
|
5. |
The display Lshows the current setting: |
|
|
|
|
|
Display Lflashes: |
Rinse aid supply switched on (factory setting) |
|
Display Ldoes not flash: |
Rinse aid supply switched off |
|
|
|
6. |
Pressing function button 3 switches the rinse aid supply on and off. |
|
7. |
Once the rinse aid supply is set correctly, press the ON/OFF switch. |
|
|
The setting for the rinse aid supply is then saved. |
|
13
Operating Instructions
Filling with Rinse Aid
If you use separate detergent and rinse aid, fill up with rinse aid:
–prior to using the dishwasher for the first time
–when the indicator His illuminated on the control panel.
The rinse aid compartment is on the inside of the dishwasher door. 0 1. Open the door.
2. Press the rinse aid compartment release button with your finger.
3.Fully open the rinse aid compartment lid.
4.Fill with rinse aid exactly up to the level marked “max”; this corresponds to a quantity of approx. 140 ml.
5.Close the lid and press until it locks
into place.
6. Wipe up any spilt rinse aid with a cloth. Otherwise too much foam will be formed during the wash.
14
Loading...
