COMPETENCE E2190-1

Built-In Electric Oven

User information

Dear Customer,

Please read these operating instructions carefully.

Above all, please observe the “safety” section on the first few pages. Please retain these operating instructions for later reference. Pass them on to any subsequent owners of the appliance.

The following symbols are used in the text:

1 Safety Instructions

Warning: Information concerning your personal safety. Important: Information on how to avoid damaging the appliance.

3 Information and practical tips

2 Environmental information

1.These numbers indicate step by step how to use the appliance.

2.

3.

These operating instructions contain information on steps you can take yourself to rectify a possible malfunction. Refer to the section “What to do if...”.

Your local AEG Service Force Centre is available to deal with technical problems (addresses and telephone numbers are listed under “Customer Service Centres”).

For additional information, also see the section “Service & Spare Parts”.

Printed on recycled paper.

Thinking ecologically means acting ecologically …

2

Contents



Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6

Description of the Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7

General Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8

Oven Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8

Oven Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9

Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10

Setting the Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10

Initial Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11

Using the Hob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12

Cooking with the Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13

Operating the Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14

Switching the Oven On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14

Oven Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15

Inserting the Shelf and Universal Baking Tray . . . . . . . . . . . . . . . . . . . . . . . .

16

Attaching/Removing the Grill Pan Handle . . . . . . . . . . . . . . . . . . . . . . . . . . .

17

Clock Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18

Switching Off the Time Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19

Usage, Tables and Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25

Boiling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25

Settings for cooking on the zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25

Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

26

Baking Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

28

Tips for Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30

Table: Desserts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

31

Roasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

32

Table: Meat, roasting, casseroles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

34

Table: Roasting, casseroles, au gratin . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

35

Grilling Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

38

Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

39

Defrosting table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

39

3

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

40

Exterior of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

40

Oven Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

40

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

40

Shelf Support Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

41

Oven Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

42

Oven Roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

43

Oven Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

44

Oven Door Glass. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

45

What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

47

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

48

Oven Interior Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

48

Regulations, Standards, Directives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

48

Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

49

Safety Instructions for the Installer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

49

Electrical Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

50

Warranty conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

56

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

58

Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

59

4

Operating Instructions

1 Safety

Electrical Safety

The appliance may only be connected by a qualified electrican / competent person.

In the event of any faults or damage to the appliance: remove fuses or switch off.

It is not permissible to clean the appliance with a steam or high pressure cleaner for safety reasons!

Repairs to the appliance may only be carried out by specialists. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. If your appliance needs repairing, please contact your local Service Force Centre or your specialist dealer.

Child Safety

• Never leave children unsupervised when the appliance is in use.

Safety whilst Using

This appliance is intended to be used for cooking, frying and baking food in the home.

Take care when connecting electric appliances to sockets nearby. Do not allow connecting leads to come into contact with hot rings or to catch beneath the hot oven door.

Warning: Risk of burns! The interior of the oven becomes hot during use.

Using ingredients containing alcohol in the oven may create an alco- hol-air mixture that is easily ignited. In this case, open the door carefully. Do not have embers, sparks or naked flames in the vicinity when opening the door.

5

To Avoid Damaging Your Appliance

Do not line your oven with aluminium foil and do not place a baking tray or dish on the oven floor, otherwise the oven enamel will be damaged by the resulting build up of heat.

Juice from fruit that drips from baking trays will leave marks that cannot be removed. For very moist cakes, use the universal baking tray.

Do not put any weight on the oven door when it is open.

Never pour water directly into the hot oven. The enamel may be damaged.

Using force, especially on the edges of the front glass panel, may break the glass.

Do not store inflammable objects in the oven. They may ignite when the oven is switched on.

Do not store moist food in the oven. The enamel may be damaged.

2 Disposal

Disposing of the packaging material

All materials used can be fully recycled.

Plastics are marked as follows:

>PE< for polyethylene, as used for the outer wrapping and the bags inside.

>PS< for polystyrene foam, e.g., as used for the padding materials. They are completely free of CFCs.

Disposal of old appliances

1 Warning: Before disposing of old appliances please make them inoperable so that they cannot be the source of danger.

To do this, disconnect the appliance from the mains supply and remove the mains lead.

To protect the environment, it is important that worn out appliances are disposed of in the correct manner.

The appliance must not be disposed of with household rubbish.

You can obtain information about collection dates or public refuse disposal sites from your local Council or Environmental Health Office.

6

Description of the Appliance

General Overview

Control panel

Door handle

Full glass door

7

Control Panel



Oven Power Indicator



Temperature Pilot Light



Clock function buttons

Temperature selector

Oven Functions

Hob Cooking Zone Control Knobs

Oven Features





Top heat and heating elements



Oven lighting

Shelf positions





Oven lighting



Fan heating element



Fan



Oven shelf runners, removable

8



Oven Accessories

Combination shelf

For dishes, cake tins, items for roasting and grilling.

Baking tray

For cakes and biscuits.

Fat tray

For roasting or for collecting fat

Grill pan with handle

Support for the grill tray as a collecting vessel for fat

Grill tray

Insert for the grill pan for grilling smaller amounts of food

9

Before using for the first time

Setting the Time

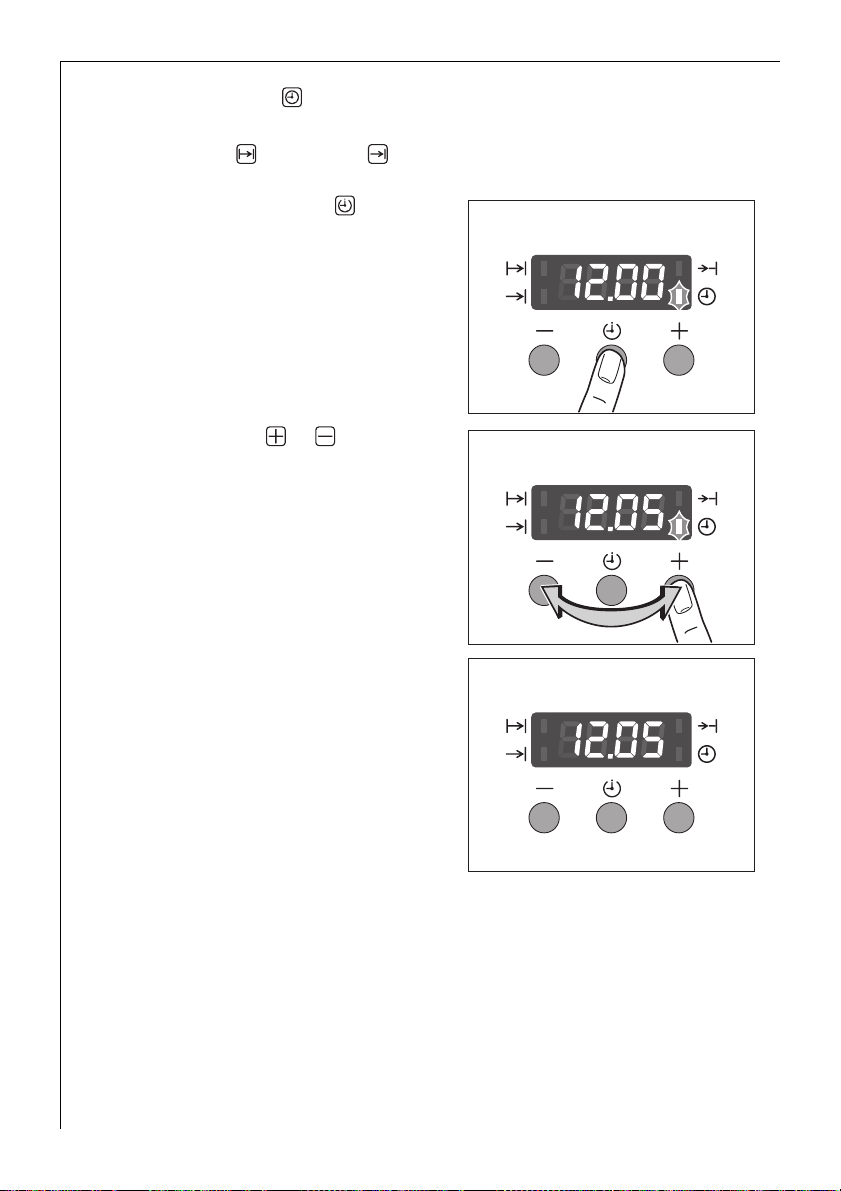

3 The oven will only function if the time is set.

The set time function indicator will flash after the appliance has been connected to the mains or following a power failure.

Use the or buttons to set the current time.

After approx. 5 seconds the function indicator will stop flashing and the clock will show the set time.

The appliance is ready for use.

10

Initial Cleaning

Before using the oven for the first time you should clean it thoroughly.

1 Caution: Do not use any caustic, abrasive cleaners! The surface could be damaged.

3 To clean any metal front panels use commercially available cleaning agents.

1.Turn the oven function switch to oven lighting .

2.Remove all accessories and the shelf support rails and wash them with warm water and washing up liquid.

3.Then wash out the oven with warm water and washing-up liquid and dry.

4.Wipe the front of the appliance with a damp cloth.

11

Using the Hob

3 Also refer to the operating instructions for your built-in hob. It contains important information on ovenware, operation, cleaning and care.

Heat settings

You may select the heat settings within the range of settings 1-9.

Intermediate positions may be selected between settings 2 and 7.

1 = lowest heat setting

9 = highest heat setting

2 Switch the cooking zone off approx. 5-10 minutes before cooking is finished to make use of the residual heat. This saves electricity.

Heat Setting Displays

front left rear left rear right front right

Control Knobs

3 The cooker has retractable control knobs.

Press the control knob to use it. The control knob will then pop up.

12

Cooking with the Zones

1.For heating up/browning, select a high heat setting.

2.As soon as steam starts to form or the oil is hot, turn back to the heat setting necessary for further cooking.

3.To stop cooking, turn back to the zero position.

13

Operating the Oven

3 The oven is equipped with retractable buttons for “Oven functions” and “Temperature selection”. To use, press the relevant button.

The button then pops out.

Switching the Oven On and Off

Oven Power Indicator

Temperature Pilot Light

Function Display





Temperature Display































































































































Oven Functions

Temperature selector

1.Turn the “oven functions” control knob to the required function.

2.Turn the “temperature selection” control knob to the required temperature.

The yellow oven power indicator will remain on while the oven is in use. The red temperature pilot light comes on while the oven is heating up.

3.To switch off the oven turn the “oven functions” control knob and the “temperature selection” control knob to the off position.

3 Cooling fan

When the oven is switched on, the fan comes on automatically to keep the surfaces of the appliance cool. When the oven is switched off, the fan continues to operate to cool the appliance down, then switches itself off.

14

Oven Functions

The oven has the following functions:

Oven lighting

With this function you can illuminate the oven interior e.g. for cleaning.

The heating element is not in use.

Fan cooking

For baking on up to three levels at the same time.

Set oven temperatures 20-40 °C lower than when using the conventional function.

The rear wall heating element is used and in addition the fan is switched on.

Defrost

To begin to thaw and to defrost such items as flan, butter, bread, fruit or other frozen foods.

For this function the fan operates without heating.

Dual grill

For grilling larger quantities of flat foods such as steaks, escalopes or fish, or for toasting.

Top heat and the grill heating element are in use.

Rotitherm

For grilling larger pieces of meat or poultry on one level. This function is suitable for soufflés and 'au gratin'.

The grill heating element and Top Heat operate alternately with the fan on.

15

AEG E2190-1 A User Manual

Inserting the Shelf and Universal Baking Tray

3 Anti-tip device

All slide-in units have a small bulge on the left and right. This bulge is an anti-tip device and must always point to the rear of the oven.

Tray or universal baking tray:

The anti-tip device must point towards the rear of the oven.

Inserting shelf:

Insert the shelf unit with both guide rails pointing upwards. The anti-tip device must point downwards and be positioned to the rear of the oven compartment.

Inserting shelf and tray:

When the shelf unit and universal baking tray are used together, carefully place the shelf anti-tip device in the bulges on the tray.

16

Attaching/Removing the Grill Pan Handle

The handle is particularly useful for removing the grill pan and tray more easily from the hot oven.

Attaching the handle

Insert the handle at an angle from above into the recess in the side of the grill pan (1) lift it gently and then lower it (2) until you hear it click into place.

1 Warning: Risk of burning! Important: Check that the handle is securely attached!

Removing the handle

Press the release button on the top of the handle (1) and lift up the handle (2) to remove it.

1 Important: Never leave the handle in the heated oven! Overheating can cause the handle to deform or break, and may cause an injury.

17

Clock Functions

Function Indicators



Time display





Function Indicators

























































































































































Button



Selector



Button





„-”

Button



„+”

Countdown

To set a countdown. A signal sounds after the time has elapsed. This function does not affect the operation of the oven.

Cook time

To set how long the oven is to be in use.

End time

To set when the oven is to switch off again.

Time

To set, change or check the time

(See also section “Before Using for the First Time”).

18

3 General information

Once a function has been selected the corresponding function indi-

cator will flash for approx. 5 seconds. During this time the required times can be set using the or button.

After the required time has been set the function indicator will flash again for approx. 5 seconds. After this the function indicator will stay on. The set time will begin to count down.

The acoustic signal can be deactivated by pressing any button.

The required oven function and temperature may be selected before or after setting the clock functions cook time and end time .

When the cooking time has expired turn the oven function switch and the temperature selection switch back to the off position.

2 Switching Off the Time Display

By switching off the time display you can save energy.

Switching off the time display

Hold down any two buttons until the display becomes dark (approx. 10 seconds).

Switching on the time display

Hold down any two buttons until the time reappears in the display (approx. 10 seconds).

3 The display can only be switched off if none of the clock functions cook time end time or countdown are in use.

19

Loading...
+ 42 hidden pages
