68000KF-BN

Ceramic glass induction hob

Installation and Operating Instructions

Dear Customer,

Please read these operating instructions carefully.

Above all, please observe the “safety” section on the first few pages. Please retain these operating instructions for later reference. Pass them on to any subsequent owners of the appliance.

The following symbols are used in the text:

1 Safety Instructions

Warning: Information concerning your personal safety. Important: Information on how to avoid damaging the appliance.

3 Information and practical tips

2 Environmental information

1.These numbers indicate step by step how to use the appliance.

2.

3.

These operating instructions contain information on steps you can take yourself to rectify a possible malfunction. Refer to the section “What to do if...”.

Your local AEG Service Force Centre is available to deal with technical problems (addresses and telephone numbers are listed under “Customer Service Centres”).

For additional information, also see the section “Service & Spare Parts”.

Printed on recycled paper.

Thinking ecologically means acting ecologically …

2

Contents



Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8

The Key Features of Your Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9

Description of the Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10

Cooking zones and control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10

The Digital Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11

Cooking Zone Safety Cut-out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12

Function and the Way the Induction Cooking Zone Works . . . . . . . . . . . . .

13

Suitable Kitchenware for Induction Cooking Zones. . . . . . . . . . . . . . . . . . . .

14

Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16

Initial Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16

Operating the hob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16

Touch Control sensor field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16

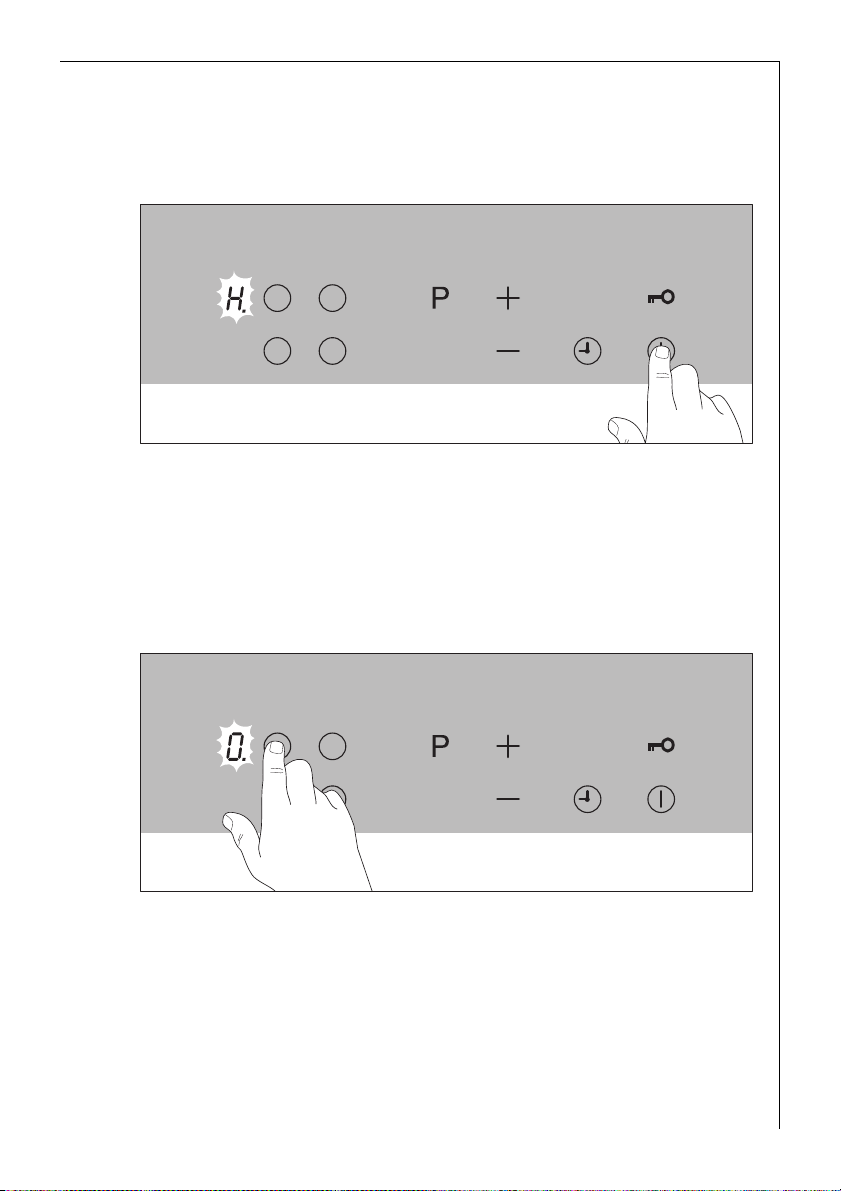

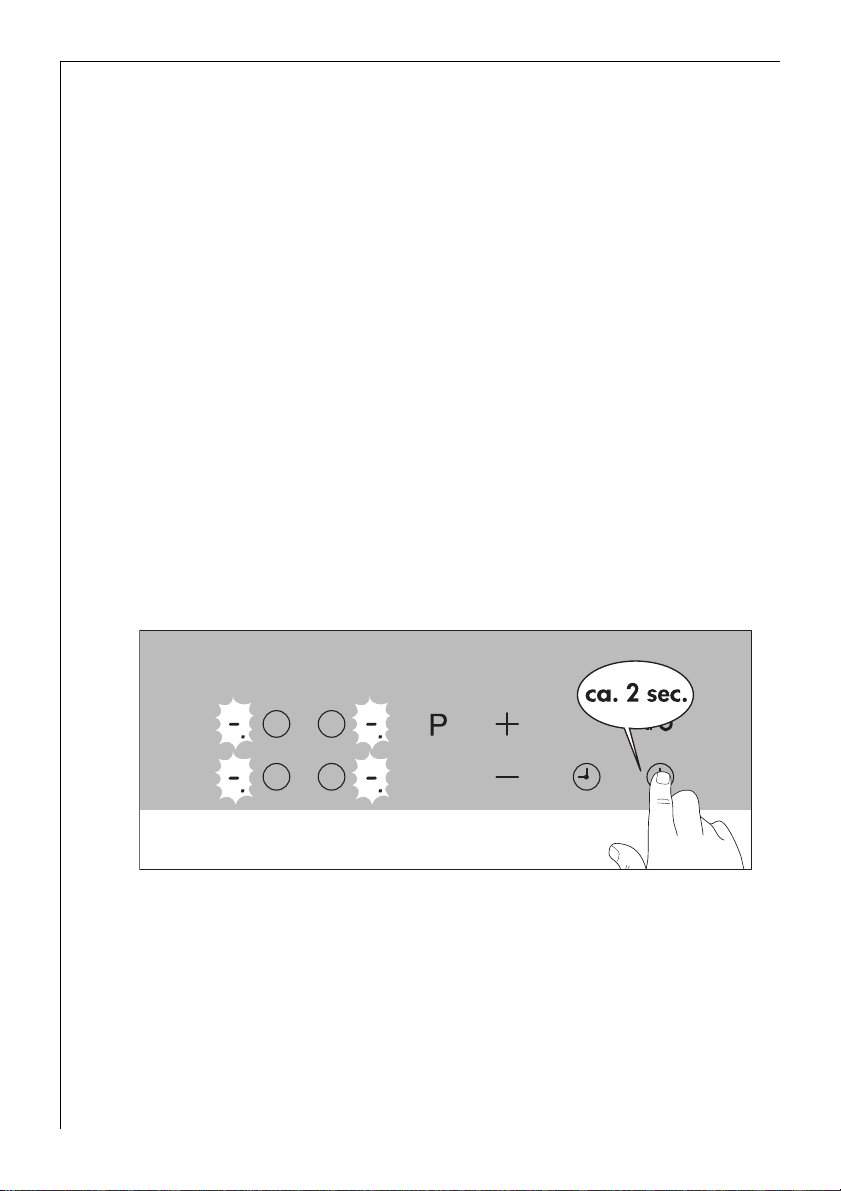

Switching on the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16

Switching Off the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17

Cooking Zone Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17

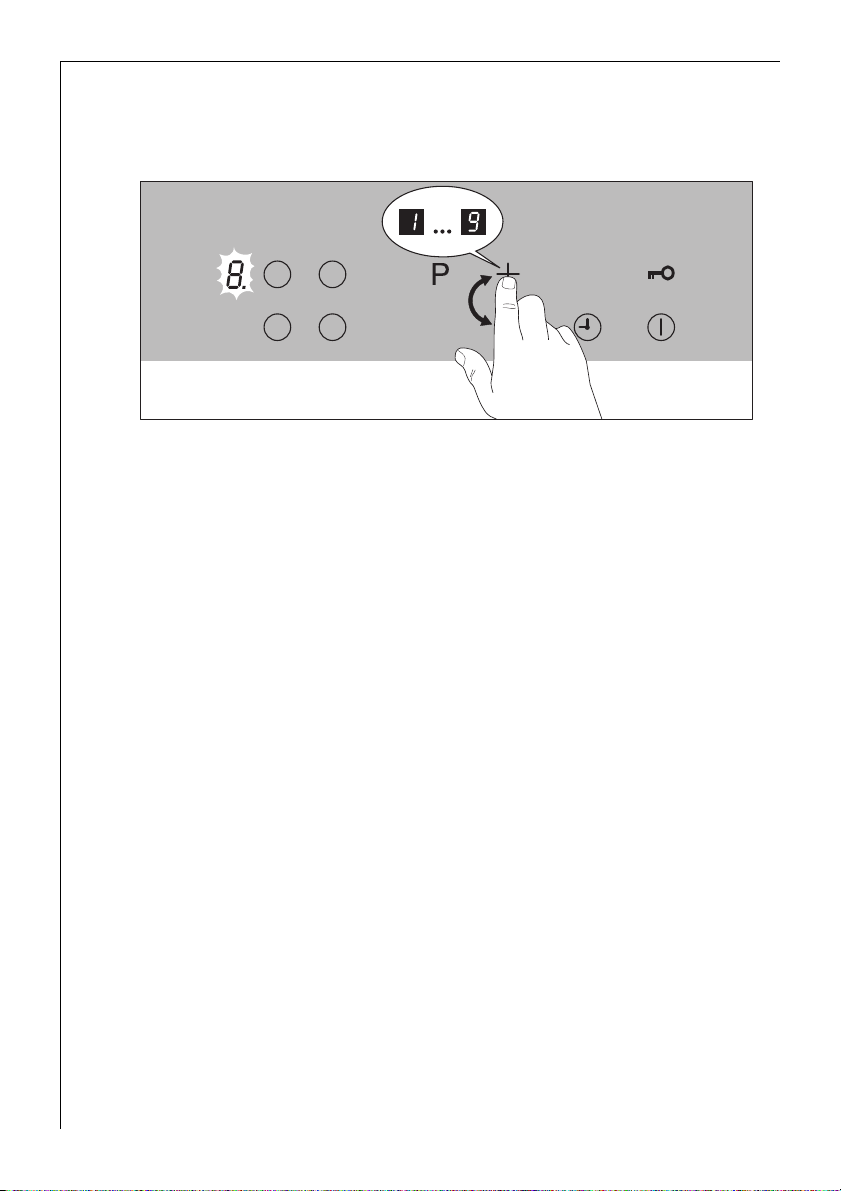

Heat Setting Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18

Activating the Power Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19

Switching off a cooking zone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

20

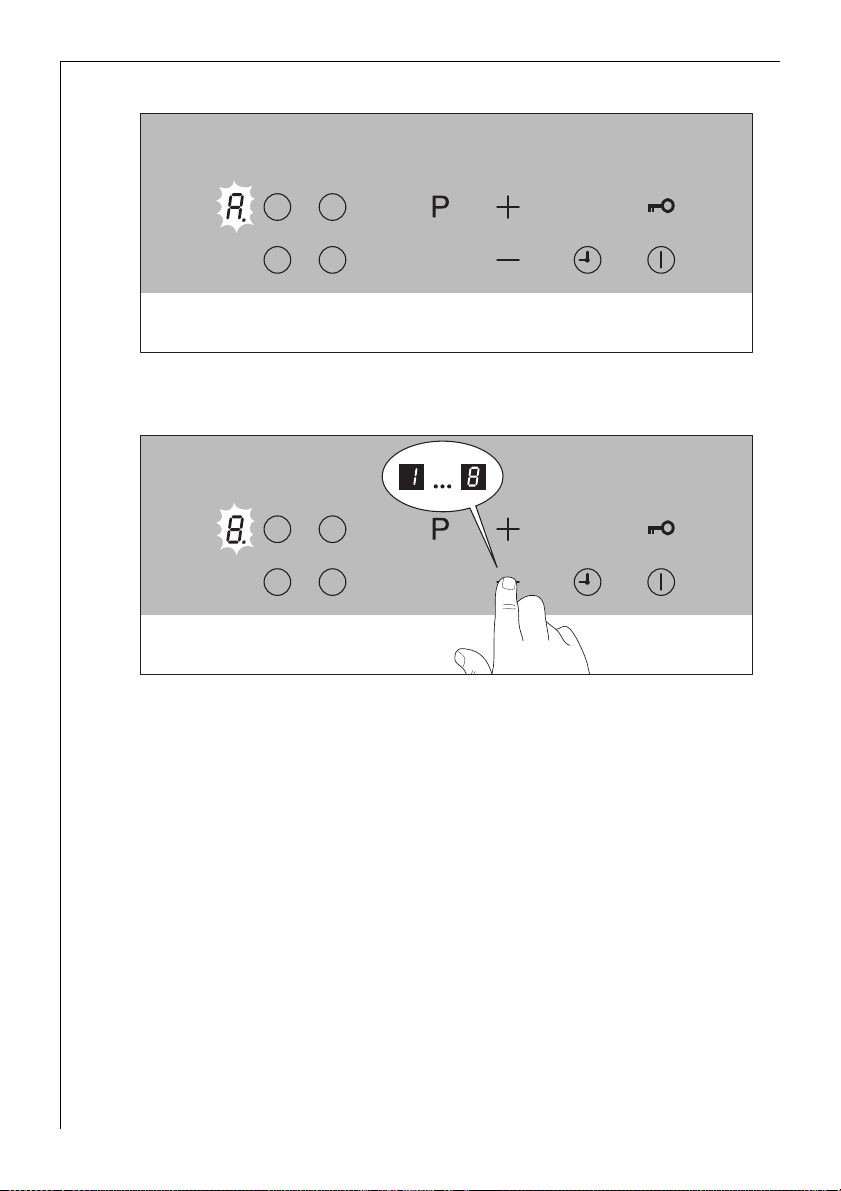

Cooking with the Automatic Heating-Up Function. . . . . . . . . . . . . . . . . . . .

21

Cooking without the Automatic Heating-Up Function . . . . . . . . . . . . . . . . .

23

Residual Heat Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23

Locking/Unlocking the Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

24

Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25

Uses, tables and tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

27

Advice on cooking with and without automatic warm up . . . . . . . . . . . . . .

27

Chart for Setting the Cooking Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

28

Chart for the Automatic Heating-Up Feature. . . . . . . . . . . . . . . . . . . . . .

29

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30

Advantages for Cleaning and Caring for the Induction Cooking Zone . . . .

30

Hob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30

What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

32

Rectifying faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

32

3

Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Regulations, Standards, Directives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Safety Instructions for the Installer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Electrical Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

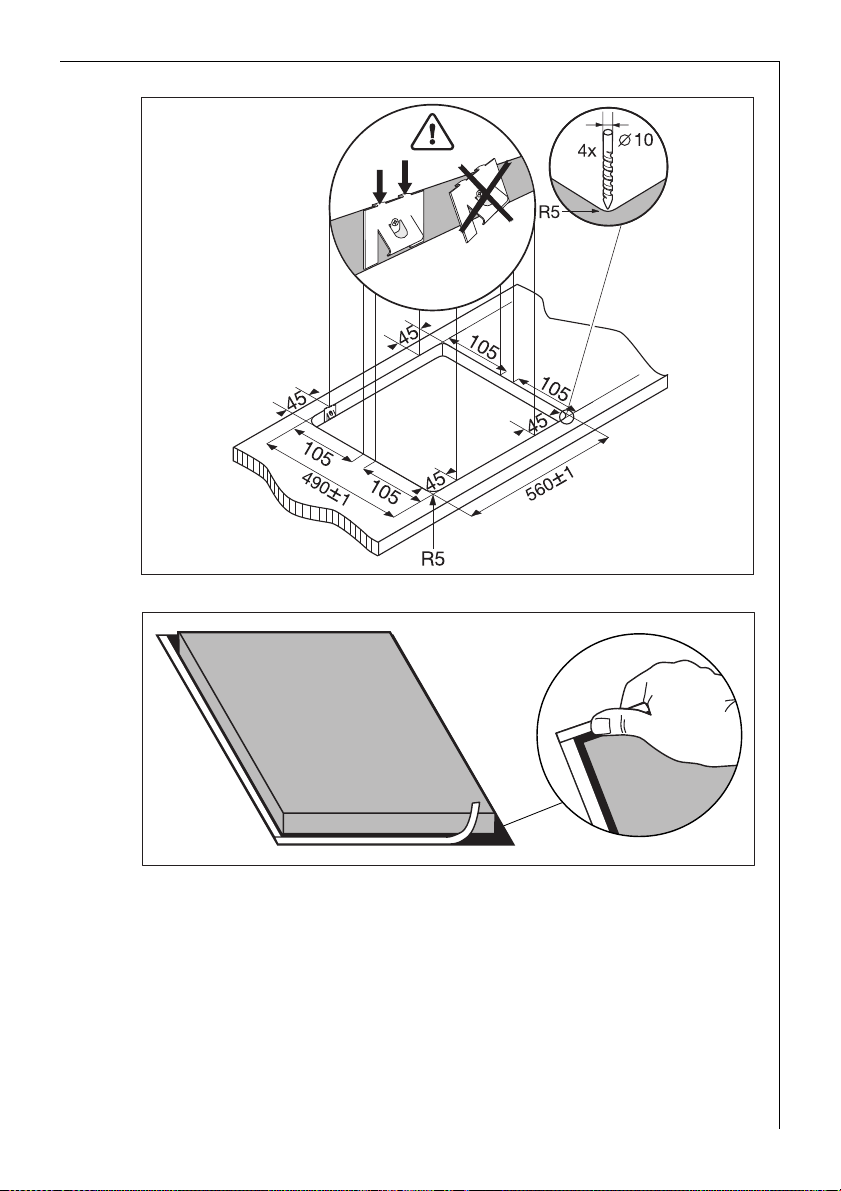

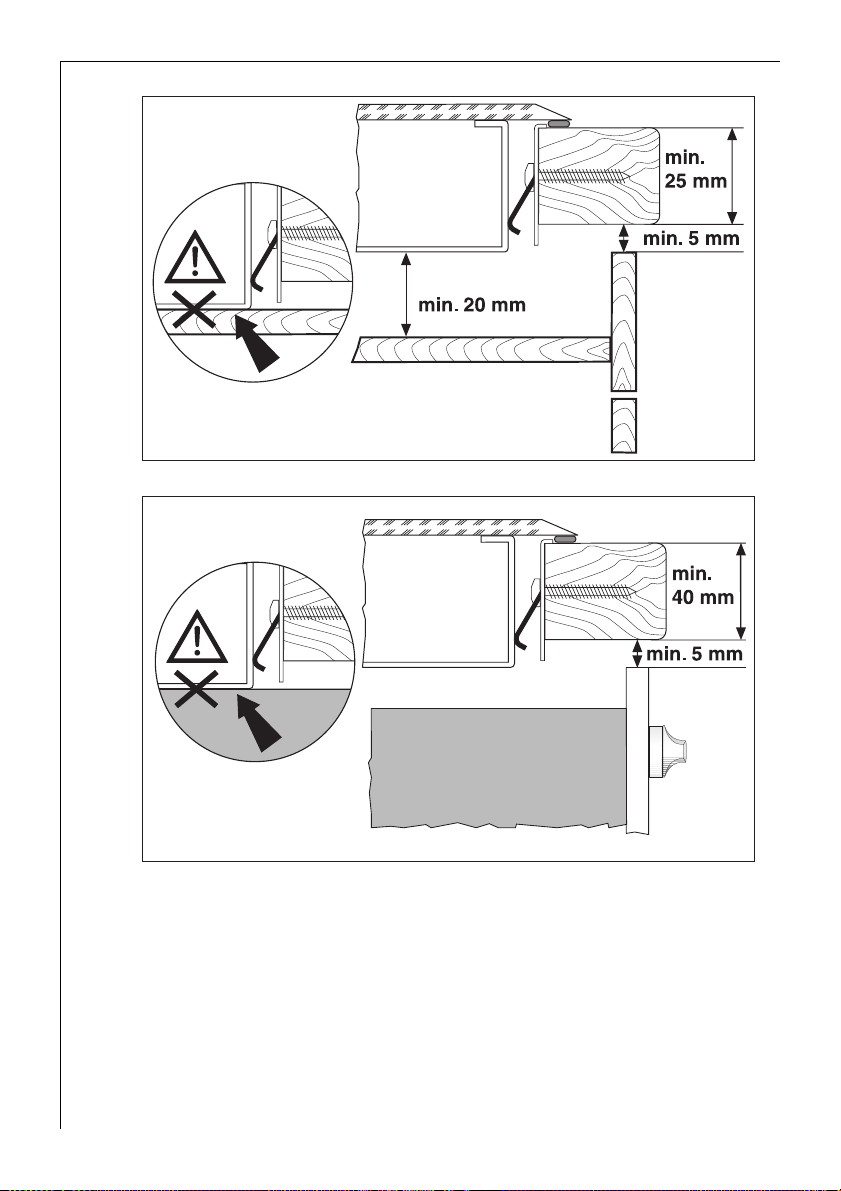

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

40

Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

4

Operating Instructions

1 Safety

The safety aspects of this appliance comply with accepted technical standards and the German Appliance Safety Law. However, as manufacturers we also believe it is our responsibility to familiarise you with the following safety instructions.

Electrical Safety

The installation and connection of the new appliance must only be carried out by qualified personnel.

Repairs to the appliance are only to be carried out by approved service engineers. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. If your appliance needs repairing, please contact your local Service Force Centre.

3 Please follow these instructions, otherwise the warranty will not cover any damage that may occur.

Flush-mounted appliances may only be operated following installation in suitable installation cabinets and workplaces which conform to the relevant standards. This ensures sufficient protection against contact for electrical units as required by the VDE [Association of German Electrical Engineers].

If your appliance malfunctions or if fractures, cracks or splits appear:

switch off all cooking zones,

disconnect the hob from the electricity supply.

Child Safety

The cooking zones will become hot when you cook. Therefore, always keep small children away from the appliance.

5

Safety During Use

This appliance may only be used for normal cooking and frying in the home. It is not designed for commercial or industrial purposes.

Do not use the hob to heat the room.

Take care when plugging electric appliances into mains sockets near the hob. Connection leads must not come into contact with the hot surface.

Overheated fats and oils catch fire quickly. You should supervise cooking when preparing foods in fat or oil (e.g. chips).

Switch off the cooking zones after use.

Special Notes on Induction Cooking Zones

Scientific studies have shown that patients who are fitted with implanted pacemakers are not normally affected or put at risk by our induction cooking zones.

The distance between the body and the cooking zone should, however, never be less than 30 cm!

Electromagnetic fields can affect electronic circuits and interfere with portable transistor radios.

Do not put magnetically rechargeable objects (e.g., credit cards, cassettes) on the ceramic glass surface while one or more induction cooking zones are in use!

Do not put any metallic objects (e.g., spoons, pan lids) on the induction surface as they can be warmed up when the induction surface is in use.

3 Some cookware can produce noises when used on induction cooking zones. This is not a fault in the hob and its function will not be impaired in any way as a result.

Safety When Cleaning

For safety reasons do not clean the appliance with a steam jet or high pressure cleaner.

Clean the hob in accordance with the maintenance and cleaning instructions in this manual.

6

How to avoid damage to the appliance

Do not use the cooking area as a worktop or storage space.

The frameless edge of the glass ceramic surface is susceptible to knocks. Please be careful when moving pots and pans around.

Do not have the cook zones on with empty pans, or with no pots or pans on them.

Ceramic glass is very tough, and impervious to sharp temperature changes, but is not unbreakable. It can be damaged if particularly hard or sharp objects fall on to it.

Do not use pots made of cast iron, or which have damaged bases with rough edges or burrs. Moving these around may cause scratches.

If sugar or a mixture containing sugar falls onto a hot cooking zone and melts, remove immediately, while still hot, using a kitchen scraper. If left to cool down, it may damage the surface when removed.

Keep objects or materials liable to melt away from the ceramic glass surface, for example, artificial materials, aluminium foil, or cooking wraps. If any other materials or foodstuffs are melting on the ceramic glass surface, these should also be cleaned away immediately, using a kitchen scraper.

7

2 Disposal

Disposing of the packaging material

All materials used can be fully recycled.

Plastics are marked as follows:

>PE< for polyethylene, as used for the outer wrapping and the bags inside.

>PS< for polystyrene foam, e.g., as used for the padding materials. They are completely free of CFCs.

Disposal of old appliances

1 Warning: Before disposing of old appliances please make them inoperable so that they cannot be the source of danger.

To do this, disconnect the appliance from the mains supply and remove the mains lead.

To protect the environment, it is important that worn out appliances are disposed of in the correct manner.

The appliance must not be disposed of with household rubbish.

You can obtain information about collection dates or public refuse disposal sites from your local Council or Environmental Health Office.

8

The Key Features of Your Appliance

Induction cooking zones: The appliance is fitted with a ceramic glass hob and induction cooking zones. Induction heats the base of the pan immediately and does not heat the ceramic glass hob first.

Sensor fields: Your appliance is operated using Touch-Control sensor fields.

Cleaning: The advantage of the ceramic glass cooking surface and the sensor fields is their accessibility for cleaning. The flat surface is easy to clean.

On/Off sensor field: In addition to the sensor field “On/Off” switch, the appliance has a separate mains switch with which the mains supply to the appliance can be completely switched on and off with one touch.

Sensor field lock: With this device the operating panel can be locked, for example as a safety precaution for children.

Control and function indicators: Digital indicators or control lamp provide information about settings made, functions activated, as well as any residual heat of the corresponding cooking zone.

Safety cut-out: A safety cut-out ensures that all cooking zones switch off automatically after a period of time if the setting has not been changed.

Power device: With this device the power for the appropriate cooking rings can be temporarily increased.

Keep warm setting: 1 is the setting for keeping foods warm.

Residual heat indicator: An h for residual heat is shown in the display if the cooking zone becomes so hot that there is a risk of burning.

Timer: All rings can be automatically switched off using the integrated timer. When the end of the cooking time has been reached, the cooking zone switches off.

9

AEG C68000KF-bn User Manual

Description of the Appliance

Cooking zones and control panel

Induction cooking zone 1800 W



Induction cooking zone 1400 W



































































































































































Induction cooking zone 2200 W with power function 3000 W

Heat setting displays

Touch-Control panel

Induction cooking zone 1800 W with power function 2300 W

Cooking zone displays



Lock with

Timer operation



control indicator









Display timer













































































































































































Timer





Cooking zone

Power zone













Mains button



selection

activation

Heat setting selec-



“On/Off”













tor + and -

















10

The Digital Displays

Digits 1 to 9 and four different letters can appear in the display.

• The digits show the heat setting selected.

1 = Lowest capacity

9 = Highest capacity p = Power level

The following letters and functions are displayed for the cooking zones:

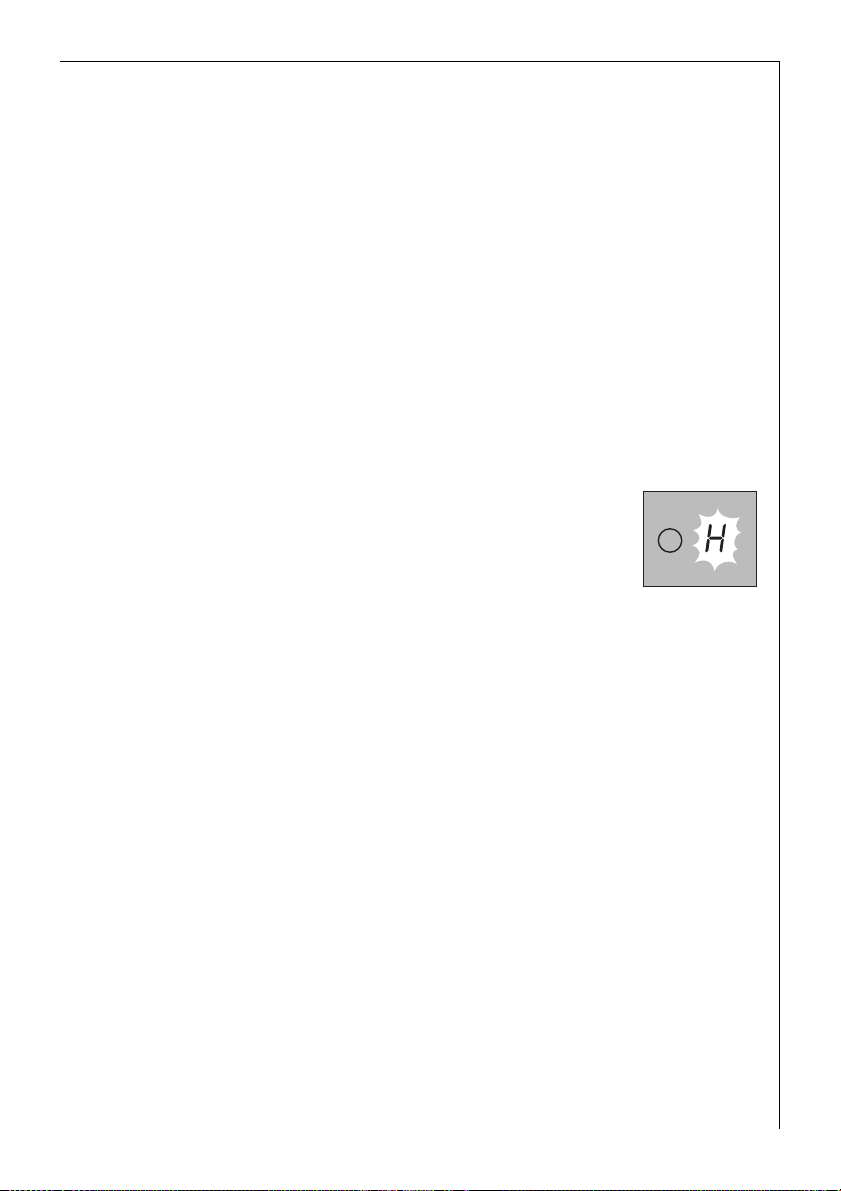

1h = Residual Heat Display

Danger! Cooking zone still hot; it extinguishes when the cooking zone has cooled down. This display appears only if the cooking zone is switched off, but the hob is still connected to the electricity supply.

a = Automatic heating-up (possible for all cooking zones)

is lit, if the cooking zone is set to automatic heating-up; (remains lit until the automatic feature switches over to the continued heat setting selected).

_ = Lights up when the automatic switch-off function has been activated (also see “What to do if ...?”).

1 f = Error display

flashes if the cooking zone is activated and

no pan is on the cooking zone or

unsuitable pots and pans are used

p = Power function

lights up when the Power function is activated.

The Power function supplies extra-high heating capacity. It can be activated for the front two cooking zones.

11

1 Cooking Zone Safety Cut-out

If one of the cooking zones is not switched off after a certain time or if the heat setting is not changed, the corresponding cooking zone switches itself off automatically.

h appears in the ring display for all rings that were switched on, and _ after they have cooled down.

The rings are switched off at:



• Heat setting

1 - 2

after 6 hours

• Heat setting

3 - 4

after 5 hours

• Heat setting

5

after 4 hours

• Heat setting

6 - 9

after 1.5 hours

3 If one or more cooking zones switch off before the times indicated see section “What to do if …”.

Cancelling the Safety Cut-out

To cancel the activated safety cut-out the appliance must be switched off and then on again using the ON/OFF I sensor field. After this the cooking zones are again ready for use.

Switching Off for Other Reasons

Liquids that boil over onto the control panel cause all cooking zones to switch off immediately.

If you place a wet cloth on the control panel it has the same effect. In both cases the appliance has to be switched on again using the mains switch I after removing the liquid or cloth.

12

Function and the Way the Induction Cooking Zone Works

A copper wire induction coil is beneath the ceramic glass cooking surface. This generates electromagnetic fields, which act directly on the base of the pots and pans and not, as with other heating up methods, first heating the ceramic glass. This means that the base of the pan is immediately heated up, which saves time and energy.

Since the heat required for cooking is generated directly in the base of the pan the cooking zone itself hardly warms up. It only receives the reflected heat from the pan base.

Note:

If there is no pot or pan on the cooking zone there is no energy transfer (heating up) and therefore gives protection against the cooking zones being switched on accidentally.

3 A cooling fan is an integral part of this hob and comes on automatically depending on the temperature of the induction cooking zone. The cooling fan works in two speed levels depending on usage. The cooling fan will continue to run for a short period after the cooking zone has been switched off.

13

Suitable Kitchenware for Induction Cooking Zones

Pots and Pans

In principle all pots and pans with magnetic bases are suitable. These are steel, steel-enamel as well as cast-iron pots and pans.

High grade steel pans with a mixed metal base (sandwich base, e.g. Tefal with an aluminium/copper base) are suitable for induction only if the manufacturer has expressly marked them as such. In that case they have a ferromagnetic percentage in the base.

If you wish to use a special type of pan (e.g. a pressure cooker, simmering pan, wok, etc.), please observe the manufacturer's instructions.

Aluminium, copper, brass, stainless steel pots and pans (unless specifically designated as suitable for induction), glass, ceramic or porcelain are not suitable for induction cooking zones. The cooking zone reacts as if it were being used without a pot or pan: Error code f.

Look for the label: Suitable for induction!

Suitability Test

If you are not sure if a pot or pan is suitable for cooking or frying on the induction cooking zone you can check this as follows:

Place a pot filled with a little water (3-5 mm filling height) on the cooking zone.

Switch the cooking zone to full power (switch setting 9).

Caution: The pan base of suitable kitchenware heats up within a few seconds!

You can also check this with a magnet. If it remains fixed to the base the pan is suitable for induction cooking zones.

Pan Size

Up to a certain limit the induction cooking zone adapts itself to the size of the pan base diameter. However, the pan base diameter must be of a minimum size, depending on the size of the cooking zone. Diameter of the cooking zone 14,5 cm:

Diameter of the pan base at least 12 cm Diameter of the cooking zone 18 cm: Diameter of the pan base at least 14,5 cm Diameter of the cooking zone 21 cm: Diameter of the pan base at least 18 cm

14
