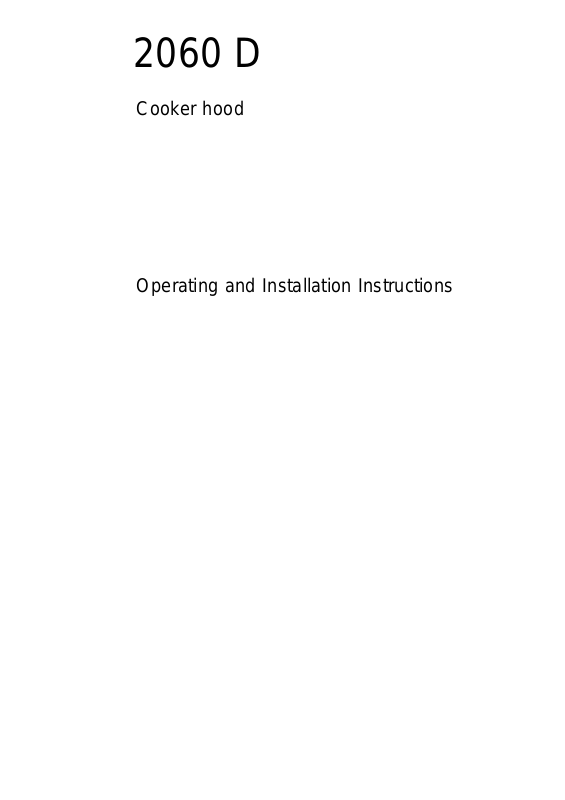

2060 D

Cooker hood

Operating and Installation Instructions

Contents

Safety warnings

3

For the User

3

For the Installer

3

Description of the Appliance

5

Extractor version

5

Filter Version

5

Control Panel

6

Maintenance and care

8

Cleaning the hood

8

Metal grease filter

8

Removing the metal grease filter

8

Charcoal filter

9

Changing the light bulb

10

What to do if

11

Service and Spare Parts

12

Guarantee Conditions

13

Technical Specifications

15

Mounting accessories included

15

Electrical connection

16

Safety warnings for the electrician

16

Wall unit mounting

17

Printed on recycled paper

AEG - putting words into action

2

Safety warnings

For the User

The cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam.

Always cover lighted elements, to prevent excess heat from damaging the appliance. In the case of oil, gas and coal fired cookers it is essential to avoid open flames.

Also, when frying, keep the deep frying pan on the cooker top/cooker under careful control.

The hot oil in the frying pan might ignite due to overheating.

The risk of self-ignition increases when the oil being used is dirty.

It is extremely important to note that overheating can cause a fire.

Never carry out any flambé cooking under the hood.

Always disconnect the unit from the power supply before carrying out any work on the hood, including replacing the light bulb (take the cartridge fuse out of the fuse holder or switch off the automatic circuit breaker).

It is very important to clean the hood and replace the filter at the recommended intervals. Failure to do so could cause grease deposits to build up, resulting in a fire hazard.

For the Installer

When used as an extractor unit, the hood must be fitted with a 150mm diameter hose.

Should there already be a pipe of diameter 125 mm that ducts to the outside through the walls or roof, it is possible to use the 150/125 mm reduction flange provided. In this case the hood will be slightly more noisy.

When installing the hood, make sure you respect the following minimum distance from the top edge of the cooking hob/ring surfaces:

electric cookers

500 mm

gas cookers

650 mm

coal and oil cookers

700 mm min.

The national standard on fuel-burning systems specifies a maximum depression of 0.04 bar in such rooms.

The air outlet must not be connected to chimney flues or combustion gas ducts. The air outlet must under no circumstances be connected to ventilation ducts for rooms in which fuel-burning appliances are installed.

3

It is advisable to apply for authorization from the relevant controlling authority when connecting the outlet to an unused chimney flue or combustion gas duct.

The air outlet installation must comply with the regulations laid down by the relevant authorities.

When the unit is used in its extractor version, a sufficiently large ventilation hole must be provided, with dimensions that are approximately the same as the outlet hole.

National and regional building regulations impose a number of restrictions on using hoods and fuel-burning appliances connected to a chimney, such as coal or oil room-heaters and gas fires, in the same room.

Hoods can only be used safely with appliances connected to a chimney if the room and/or flat (air/environment combination) is ventilated from outside using a suitable ventilation hole approximately 500-600 cm2 large to avoid the possibility of a depression being created during operation of the hood.

If you have any doubts, contact the relevant controlling authority or building inspector’s office.

Since the rule for rooms with fuel burning appliances is “outlet hole of the same size as the ventilation hole”, a hole of 500-600 cm2, which is to say a larger hole, could reduce the performance of the extractor hood.

If the hood is used in its filtering function, it will operate simply and safely in the above conditions without the need for any of the aforementioned measures.

When the hood is used in its extractor function, the following rules must be followed to obtain optimal operation:

short and straight outlet hose

keep bends in outlet hose to a minimum

never install the hoses with an acute angle, they must

always follow a gentle curve only

— keep the hose as large as possible (preferably the same diameter as the outlet hole).

Failure to observe these basic instructions will drastically reduce the performance and increase the noise levels of the extractor hood.

4

AEG C2060D-M User Manual

Description of the Appliance

The hood is supplied as an extractor unit and can also be used with a filtering function by fitting one charcoal filter.

You will need an original AEG charcoal filter for this function (Available from you local AEG Service Force Centre).

Extractor version

The air is discharged to the outside through a hose, which must be fitted to connection flange A. Fig. 1.

In order to obtain the best performance the hose should have a diameter equal to the outlet hole.

Should there already be a pipe of diameter 125 mm that ducts to the outside through the walls or roof, it is possible to use the 150/125 mm reduction flange provided. In this case the hood will be slightly

more noisy.

A

Fig. 1

Filter Version

The air is filtered through a charcoal filter and returned to the kitchen through the top grill of the outlet pipe.

You will need an original AEG charcoal filter for the filtering function.

Fix the deflector using 2 screws. Fig. 2.

Optionally, the position of the chimney elements can be changed. When using the hood in the filter version the chimney must be fixed at the top, with the air outlet grill at the side.

Fig. 2

5

Control Panel

Best results are obtained by using a low speed for normal conditions and a high speed when odours are more concentrated.

Turn the hood on a few minutes before you start cooking, you will then get an under pressure in the kitchen. The hood should be left on after cooking for about 15 minutes or until all the odours have disappeared.The control switches are located on the unit’s front panel:

A - Main switch, hood off.

B - Start and choice of motor speed 1-2-3-1-2.........

C - Indicates speed 1 (LED) and indication of the grease saturation for the filter (flashing indicator).

D - Indicates speed 2 (LED) and indication of the charcoal saturation for the filter (flashing indicator).

E - Indicates speed 3

F - Indicates Intensive speed (LED).

G - Intensive speed on/off. The Intensive speed runs for 5 minutes: If the hood is on when the Intensive speed is activated, the hood reverts to previous speed after 5 minutes.

If the hood is off when the Intensive speed is activated, the hood will be turned off after 5 minutes.

To interrupt the Intensive speed, press button A, B or G. H - Light ON/OFF

Should the hood or the controls fail to operate: disconnect the power supply for at least 5 seconds, then turn the hood back on again.

Correct ventilation

If the cooker hood is to work correctly there must be an under pressure in the kitchen. It is important to keep the kitchen windows closed and have a window in an adjacent room open.

Important

This is not applicable for recirculation. Great care must be taken if the hood is used at the same time as a burner or fireplace (e.g. gas, diesel, coal or wood heaters, water heaters, etc.), as the hood will expel air which is required by these other appliances. In this situation, ensure that a window is open. The negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

6

LED Indicator lights for veryfying the saturation of filters

This hood is supplied without a charcoal filter. If the hood is to be used in the recirculation mode with a charcoal filter, the saturation indicator must be activated as follows:

Depress and hold the A and B buttons simultaneously for 3 seconds. Initially only the LED indicator signal for the grease filter C is activated, shortly after the LED indicator for the charcoal filter D will activate, at this point the saturation detection has been enabled.

To switch off the saturation detection : depress and hold the A and B buttons for 3 seconds until the LED indicator for the active carbon filter is flashing.

Led – Indicator for grease filter C

The LED indicator for the grease filter will flash when it requires cleaning.

Follow the maintenance instructions.

Led - indicator for charcoal filter D

The LED indicator for the charcoal filter illuminates when the filter requires replacing.

This occurs after about 160 working hours from when the active carbon filter was first put into operation.

Resetting the saturation indicator

After cleaning or replacing the filter depress and hold the G and H buttons again for 3 seconds until the grease filter LED or the charcoal LED are no longer flashing.

7
