AEG BS8314001M User Manual

PRO COMBI

BS9314001

USER MANUAL

EN

2 www.aeg.com

CONTENTS

1.	SAFETY INFORMATION.................................................................................................		3
2.	SAFETY INSTRUCTIONS................................................................................................		4
3.	PRODUCT DESCRIPTION..............................................................................................		6
4.	CONTROL PANEL...........................................................................................................		8
5.	BEFORE FIRST USE.......................................................................................................		10
6.	DAILY USE......................................................................................................................		10
7.	CLOCK FUNCTIONS....................................................................................................		15
8.	AUTOMATIC PROGRAMMES......................................................................................		16
9.	USING THE ACCESSORIES..........................................................................................		17
10.		ADDITIONAL FUNCTIONS........................................................................................	19
11.		HINTS AND TIPS.........................................................................................................	21
12.		CARE AND CLEANING..............................................................................................	42
13.		TROUBLESHOOTING.................................................................................................	44

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate. Warning / Caution-Safety information

General information and tips Environmental information

Subject to change without notice.

ENGLISH 3

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

1.1Children and vulnerable people safety

•This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

•Do not let children play with the appliance.

•Keep all packaging away from children.

•Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.

•If the appliance has a child safety device, we recommend you activate it.

•Cleaning and user maintenance shall not be made by children without supervision.

•Children of less than 3 years should be kept away unless continuously supervised.

1.2General Safety

•Only a qualified person must install this appliance and replace the cable.

•Internally the appliance becomes hot when in operation. Do not touch the heating elements that are in the appliance. Always use oven gloves to remove or put in accessories or ovenware.

•Before maintenance cut the power supply.

4www.aeg.com

•Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

•Do not use a steam cleaner to clean the appliance.

•Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.

•If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

•To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.

•The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

•Only use the core temperature sensor recommended for this appliance.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

•Remove all the packaging.

•Do not install or use a damaged appliance.

•Obey the installation instruction supplied with the appliance.

•Always be careful when you move the appliance because it is heavy. Always wear safety gloves.

•Do not pull the appliance by the handle.

•Keep the minimum distance from the other appliances and units.

•Make sure that the appliance is installed below and adjacent safe structures.

•The sides of the appliance must stay adjacent to appliances or to units with the same height.

2.2 Electrical connection

WARNING!

Risk of fire and electrical shock.

•All electrical connections should be made by a qualified electrician.

•The appliance must be earthed.

•Make sure that the electrical information on the rating plate agrees with the power supply. If not contact an electrician.

•Always use a correctly installed shockproof socket.

•Do not use multi-plug adapters and extension cables.

•Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.

•Do not let mains cables to come in touch with the appliance door, specially when the door is hot.

•The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.

•Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

•If the mains socket is loose, do not connect the mains plug.

•Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

•Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

•The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

•This appliance complies with the E.E.C. Directives.

2.3 Use

WARNING!

Risk of injury, burns and electrical shock or explosion.

•Use this appliance in a household only.

•Do not change the specification of this appliance.

•Make sure that the ventilation openings are not blocked.

•Do not let the appliance stay unattended during operation.

•Deactivate the appliance after each use.

•Be careful when you open the appliance door while the appliance is in operation. Hot air can release.

•Do not operate the appliance with wet hands or when it has contact with water.

•Do not apply pressure on the open door.

•Do not use the appliance as a work surface or as a storage surface.

•Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.

ENGLISH 5

•Do not let sparks or open flames to come in contact with the appliance when you open the door.

•Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING!

Risk of damage to the appliance.

•To prevent damage or discoloration to the enamel:

–do not put ovenware or other objects in the appliance directly on the bottom.

–do not put aluminium foil directly on the bottom of the appliance.

–do not put water directly into the hot appliance.

–do not keep moist dishes and food in the appliance after you finish the cooking.

–be careful when you remove or install the accessories.

•Discoloration of the enamel has no effect on the performance of the appliance. It is not a defect in the sense of the warranty law.

•Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.

•This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

•Always cook with the oven door closed.

2.4 Steam Cooking

WARNING!

Risk of burns and damage to the appliance.

•Do not open the appliance door during steam cooking. Steam can release.

2.5 Care and cleaning

WARNING!

Risk of injury, fire, or damage to the appliance.

6www.aeg.com

•Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

•Make sure the appliance is cold. There is the risk that the glass panels can break.

•Replace immediately the door glass panels when they are damaged. Contact the Service.

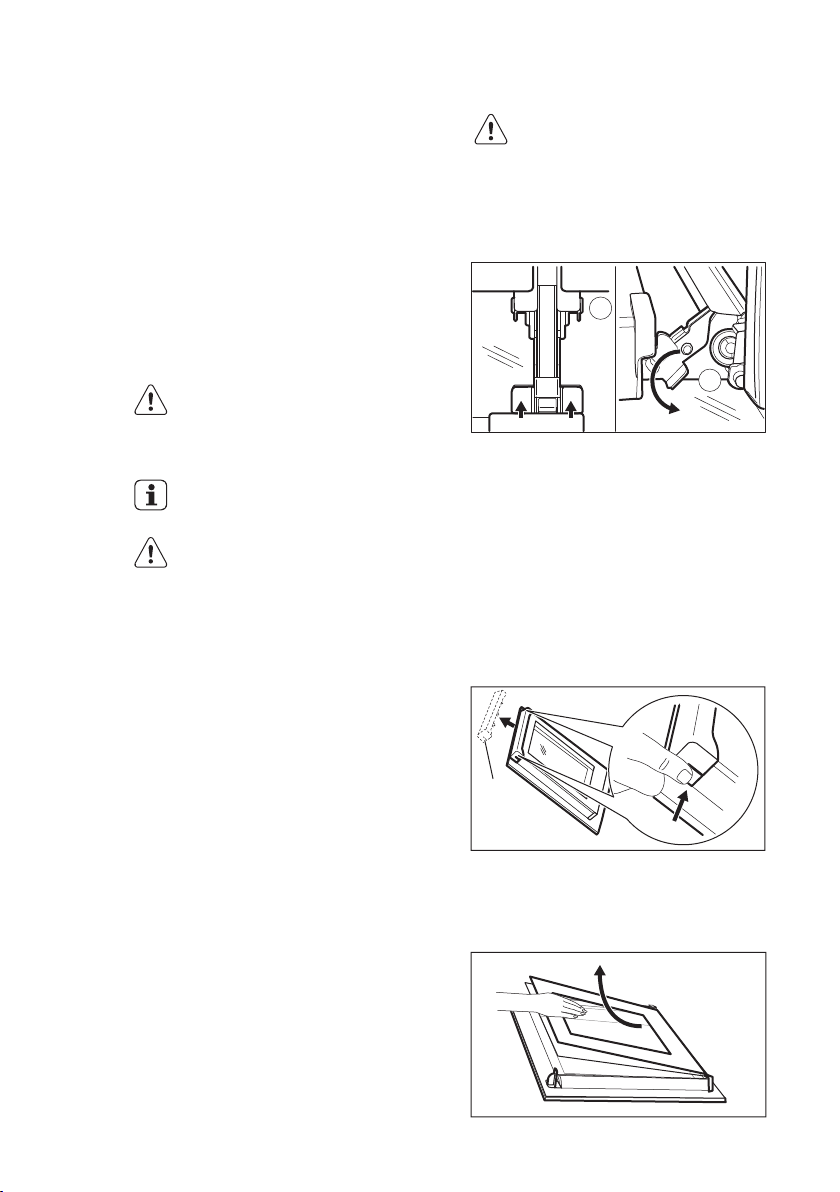

•Be careful when you remove the door from the appliance. The door is heavy!

•Clean regularly the appliance to prevent the deterioration of the surface material.

•Remaining fat or food in the appliance can cause fire.

•Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

•If you use an oven spray, obey the safety instructions on the packaging.

•Do not clean the catalytic enamel (if applicable) with any kind of detergent.

3.PRODUCT DESCRIPTION

3.1General overview

1				2				3

	4
	5
5	6

	4
10	3	7
	2
	1
		8
		9

2.6 Internal light

•The type of light bulb or halogen lamp used for this appliance is only for household appliances. Do not use it for house lighting.

WARNING!

Risk of electrical shock.

•Before replacing the lamp, disconnect the appliance from the power supply.

•Only use lamps with the same specifications.

2.7 Disposal

WARNING!

Risk of injury or suffocation.

•Disconnect the appliance from the mains supply.

•Cut off the mains cable and discard it.

•Remove the door catch to prevent children and pets to get closed in the appliance.

Control panel Electronic programmer Water drawer

Socket for the core temperature sensor

Heating element Lamp

Fan

Steam generator with cover Shelf support, removable Shelf positions

3.2 Accessories

Wire shelf

For cookware, cake tins, roasts.

Baking tray

For cakes and biscuits.

Grill- / Roasting pan

To bake and roast or as a pan to collect fat.

Trivet

For roasting and grilling.

Use the trivet only with the Grill- / Roasting pan.

ENGLISH 7

Patisserie tray

For rolls, brezels and small pastries. Suitable for steam functions. The discolouration of the surface has no effect on the functions.

Core temperature sensor

To measure how far the food is cooked.

Telescopic runners

For shelves and trays.

Steam set

One unperforated and one perforated food container.

The steam set drains the condensing water away from the food during steam cooking. Use it to prepare food that should not be in the water during the cooking (e.g. vegetables, pieces of fish,

8 www.aeg.com

chicken breast). The set is not suitable for food that needs to soak in the water (e.g. rice, polenta, pasta).

Sponge

For absorbing the remaining water from the steam generator.

4.CONTROL PANEL

4.1Electronic programmer

		1				2			3			4				5				6				7				8				9

Use the sensor fields to operate the appliance.

		Sen-	Function	Comment
		sor
		field
		-	Display	Shows the current settings of the appliance.
	1
			ON / OFF	To activate and deactivate the appliance.
	2
			OK and shuttle	To confirm the selection or setting. Rotate the shut-
	3			tle to navigate.
			Home key	To show the main menu.
	4
			Time and additionTo set different functions. When a heating function
			al functions	operates, touch the sensor field to set the timer or
				the functions: Function Lock, Favourite Programme,
	5
				Heat + Hold, Set + Go. You can also change the
				settings of the Core Temperature Sensor.
			Heating Functions	To choose a heating function, touch the sensor field
			or Assisted Cook-	once. To choose the menu: Assisted Cooking, touch
	6
			ing	it twice. To activate or deactivate the light, touch

the field for 3 seconds.

ENGLISH 9

SenFunction	Comment
sor
field

7

8

9

Temperature selecTo set the temperature or show the current tempertion ature in the appliance. Touch the field for 3 sec-

onds, to activate or deactivate the function: Fast heat up.

Minute Minder

To set the function: Minute Minder.

Favourite ProTo view your favourite programmes. gramme

4.2 Display

A			B		C			A)	Heating function
								B)	Time of day
								C)	Heat-up indicator
								D)	Temperature
								E)	Duration time or end time of a function

		E	D
Other indicators of the display:
Symbol				Function
			Minute Minder	The function operates.
			Time of day	The display shows the current time.
			Duration	The display shows the necessary time
				for cooking.
			End Time	The display shows when the cooking
				time is complete.
			Start Time	The display shows when the heating
				function must start.
			Oven Temperature	The display shows the oven tempera-
				ture.
			Time Indication	The display shows how long the heat-
				ing function operates.
			Calculation	The appliance calculates the time for
				cooking.
			Heat-up Indicator	The display shows the temperature in
				the appliance.

10 www.aeg.com

Symbol						Function
					Fast Heat Up Indicator	The function is active. It decreases the
						heat up time.
					Weight Automatic	The display shows that the automatic
						weight system is active or that weight
						can be changed.
					Heat + Hold	The function is active.

5. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

5.1 Initial Cleaning

Remove all accessories and removable shelf supports from the appliance.

Refer to "Care and cleaning" chapter.

6. DAILY USE

WARNING!

Refer to Safety chapters.

6.1 Navigating the menus

1.Activate the appliance.

2.Use the shuttle clockwise or counterclockwise to select the menu option.

Clean the appliance before first use.

5.2 First Connection

When you connect the appliance to the mains or after the power cut, you have to set the language, the display contrast, the display brightness and the time of the day.

1.Use the shuttle to set the values.

2.Press to confirm.

3.Press to move to the submenu or accept the setting.

At each point you can go back to the main menu with .

6.2 The menus in overview

Main menu

SymMenu item	Application
bol
Assisted Cooking	Contains a list of automatic cooking programmes.
Heating Functions	Contains a list of heating functions.
Steam Cleaning	Cleaning with steam.
Basic Settings	You can use it to set other settings.

							ENGLISH 11
Sym-						Menu item	Application
bol
						Favourite Programme	Contains a list of favourite cooking programmes
							created by the user.
Submenu for: Basic Settings
Sym-						Submenu	Description
bol
						Set Time of Day	Sets the current time on the clock.
						Time Indication	When ON, the display shows the current time
							when you deactivate the appliance.
						Set + Go	When ON, in the Select Options window you can
							choose the function: Set + Go.
						Heat + Hold	When ON, in the Select Options window you can
							choose the function: Heat + Hold.
						Extra Time	Activates and deactivates the time extension
							function.
						Display Contrast	Adjusts the display contrast by degrees.
						Display Brightness	Adjusts the display brightness by degrees.
						Set Language	Sets the language for the display.
						Buzzer Volume	Adjusts the volume of press-tones and signals by
							degrees.
						Key Tones	Activates and deactivates the tone of the touch
							fields. It is not possible to deactivate the tone of
							the ON / OFF touch field.
						Alarm/Error Tones	Activates and deactivates the alarm tones.
						Cleaning Assistant	Guides you through the cleaning procedure.
						Service	Shows the software version and configuration.
						Factory Settings	Resets all settings to factory settings.
6.3 Heating Functions
Heating function							Application
						Full Steam	For vegetables, fish, potatoes, rice, pasta or spe-
							cial side-dishes.

12 www.aeg.com

Heating function						Application
					Half Steam + Heat	For dishes with a high moisture content and for
						poaching fish, custard royale and terrines.
					Quarter Steam + Heat	To bake bread, roast large pieces of meat or to
						warm up chilled and frozen meals.
					ECO Steam	The ECO functions let you optimize the energy
						consumption during cooking. It is necessary to set
						the cooking time first. To get more information
						about the recommended settings, refer to the
						cooking tables with the equivalent function.
					Moist Fan Baking	To save energy when you bake and cook dry
						baked goods. Also to bake baked goods in tins
						on 1 shelf position. This function was used to de-
						fine the energy efficiency class acc. EN50304
					True Fan Cooking	To bake on up to 3 shelf positions at the same
						time and to dry food.
					Pizza Setting	To bake food on 1 shelf position for a more inten-
						sive browning and a crispy bottom.
					Slow Cooking	To prepare tender, succulent roasts.
					Conventional Cooking	To bake and roast food on 1 shelf position.
					Frozen Foods	To make your convenience food like e.g. French
						Fries, Wedges, spring rolls crispy.
					Turbo Grilling	To roast larger meat joints or poultry with bones
						on 1 shelf position. Also to make gratins and to
						brown.
					Fast Grilling	To grill flat food in large quantities and to toast
						bread.
					Grilling	To grill flat food and to toast bread.
					Keep Warm	To keep food warm.

Defrost	To defrost frozen food.

				ENGLISH 13
Heating function				Application
			Bottom Heat	To bake cakes with crispy bottom and to preserve
				food.
			Dough Proving	For controlled rising of yeast dough before bak-
				ing.
			Bread Baking	To bake bread.
			Au Gratin	For dishes such as lasagna or potato gratin. Also
				to gratinate and brown.
			Preserving	To make vegetable preserves such as pickles.
			Drying	To dry sliced fruit (e.g. apples, plums, peaches)
				and vegetables (e.g. tomatoes, zucchini, mush-
				rooms).
			Plate Warming	To preheat your plate for serving.
			Steam Regenerating	To reheat already cooked food directly on a plate.
			ECO Roasting	The ECO functions let you optimize the energy
				consumption during cooking. It is necessary to set
				the cooking time first. To get more information
				about the recommended settings, refer to the
				cooking tables with the equivalent function.

6.4 Activating a heating function

1.Activate the appliance.

2.Select the menu: Heating Functions.

3.Press to confirm.

4.Set a heating function.

5.Press to confirm.

6.Set the temperature.

7.Press to confirm.

Press once or twice to go directly to the menus: Heating Functions, Assisted Cooking.

6.5 Steam cooking

The water drawer cover is in the control panel.

WARNING!

Do not put water directly into the steam generator. Use only water. Do not use filtered (demineralised) or distilled water. Do not use other liquids. Do not put flammable or alcoholic liquids into the water drawer.

1.Press the cover of the water drawer to open it.

2.Fill the water drawer with 800 ml of water.

The water supply is sufficient for approximately 50 minutes.

3.Push the water drawer to its initial position.

4.Activate the appliance.

14www.aeg.com

5.Prepare the food in the correct cookware.

6.Select a steam heating function and the temperature.

7.If necessary, set the function

Duration or End Time . The first steam shows after approximately 2 minutes. An acoustic signal sounds when the appliance is at approximately the set temperature. The signal sounds at the end of the cooking time.

8.Deactivate the appliance.

9.Let the appliance dry fully with the door open.

10.Empty the water drawer after the steam cooking is completed.

The appliance is hot. There is a risk of burns. Be careful when you empty the water drawer.

When the steam generator is empty, an acoustic signal sounds.

When the appliance cools down, soak up all remaining water from the steam generator with the sponge. If necessary, clean the steam generator with some vinegar. Let the appliance dry fully with the door open.

6.6 Heat-up indicator

When you activate a heating function, the bar on the display comes on. The bar shows that the temperature increases.

6.7 Fast Heat Up Indicator

This function decreases the heat-up time.

To activate the function, hold for 3 seconds. The heat-up indicator alternates.

6.8 Residual heat

When you deactivate the appliance, the display shows the residual heat. You can use the heat to keep the food warm.

6.9 Energy saving

The appliance contains features which help you save energy during everyday cooking:

•Residual heat

–When the heating function or programme operates, the heating elements are deactivated 10% earlier (the lamp and fan continue to operate). For this feature to operate, the cooking time must be longer than 30 minutes or you must use the clock functions (Duration, End Time).

–When the appliance is off, you can use the heat to keep food warm. The display shows the remaining temperature.

•Cooking with the lamp off - touch

and hold for 3 seconds to deactivate the lamp during cooking.

•Eco functions - refer to "Heating Functions".

•When you use the function: Moist Fan Baking, the lamp deactivates after 30 seconds. The lamp activates

again when you touch for 3 seconds or when you open the appliance door.

•When you use the Eco functions, the lamp deactivates. The lamp activates

again when you touch for 3 seconds or when you open the appliance door.

ENGLISH 15

7.CLOCK FUNCTIONS

7.1Clock functions table

Clock function			Application
		Minute Minder	To set a countdown (max. 2 h 30 min). This
			function has no effect on the operation of the
			appliance. You can also activate it when the
			appliance is deactivated.
			Press	to activate the function. Use the
			shuttle to set the minutes and		to start.
		Duration	To set the length of an operation (max. 23 h
			59 min).
		End Time	To set the switch-off time for a heating func-
			tion (max. 23 h 59 min).

If you set the time for a clock function, the time starts to count down after 5 seconds.

If you use the clock functions: Duration, End Time, the appliance deactivates the heating elements after 90 % of the set time. The appliance uses the residual heat to continue the cooking process until the time ends (3 - 20 minutes).

7.2 Setting the clock functions

• Before you use the functions: Duration, End Time, you must set a heating function and temperature first. The appliance deactivates automatically.

•You can use the functions: Duration and End Time at the same time if you want to automatically activate and deactivate the appliance on a given time later.

•The functions: Duration and End Time do not work when you use the Core Temperature Sensor.

1.Set a heating function.

2.Press again and again until the display shows the necessary clock function and the related symbol.

3.Use the shuttle to set the necessary time.

4.Press to confirm.

When the time ends, an acoustic signal sounds. The appliance deactivates. The display shows a message.

5.Press a sensor field to stop the signal.
