Acer X233HZ0 SERVICE GUIDE

http://www.wjel.net

Acer X233HZ&X243HQ

Service Guide

1

Service Guide Version and Revision

Version Release Date Revision History Customer model TPV model

A00 Dec.-18-2008 Initial Release X233HZ&X243HQ TDRMNDD8Y1ABPN

http://www.wjel.net

2

Copyright

Copyright © 2003 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
Transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice. Acer Incorporated makes no representations or
warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties
of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is
sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer
Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any
incidental or consequential damages resulting from any defect in the software.

Intel is a registered trademark of Intel Corporation.
Pentium and Pentium II/III are trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.

Trademarks

Acer is a registered trademark of Acer Incorporated.
All other trademarks are property of their respective owners.

Conventions

The following conventions are used in this manual:

Screen messages Denotes actual messages that appear on screen.
Note Gives bits and pieces of additional information related to the current topic.
Warning Alerts you to any damage that might result from doing or not doing specific actions.
Caution Gives precautionary measures to avoid possible hardware or software problems.
Important Remind you to do specific actions relevant to the accomplishment of procedures.

http://www.wjel.net

3

Preface

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided

2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on

Before using this information and the product it supports, please read the following general information.

for Acer's "global" product offering. To better fit local market requirements and enhance product competitiveness,
your regional office may have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra
memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such
cases, please contact your regional offices or the responsible personnel/channel to provide you with further
technical details.

your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the
printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a
DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the list
provided by your regional Acer office to order FRU parts for repair and service of customer machines.

Warning: (For FCC Certified Models)

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.

2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

http://www.wjel.net

3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this

equipment. It is the responsibility of the user to correct such interference.
As ENERGY STAR
guidelines for energy efficiency.

Warning:

To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerous high voltages are present
inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.



Partner our company has determined that this product meets the ENERGY STAR

4

Precautions



Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in

a wet basement.

 Do not place the monitor on an unstable trolley, stand, or table. If the monitor falls, it can injure a person and

cause serious damage to the appliance. Use only a trolley or stand recommended by the manufacturer or sold
with the monitor. If you mount the monitor on a wall or shelf, uses a mounting kit approved by the manufacturer
and follow the kit instructions.

 Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable

operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered.
Do not place the monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near or over a radiator
or heat register. Do not place the monitor in a bookcase or cabinet unless proper ventilation is provided.

 The monitor should be operated only from the type of power source indicated on the label. If you are not sure of

the type of power supplied to your home, consult your dealer or local power company.

 The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit

only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug,
have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the
safety purpose of the grounded plug.

 Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the

monitor from damage due to power surges.

 Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
 Never push any object into the slot on the monitor cabinet. It could short circuit parts causing a fire or electric

shock. Never spill liquids on the monitor.

 Do not attempt to service the monitor yourself; opening or removing covers can expose you to dangerous

voltages and other hazards. Please refer all servicing to qualified service personnel

 To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate

configured receptacles marked between 100 - 240V AC, Min. 5A.

 The wall socket shall be installed near the equipment and shall be easily accessible.

Special Notes on LCD Monitors

The following symptoms are normal with LCD monitor and do not indicate a problem.

http://www.wjel.net

Notes

 Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and

then turn it on again to make sure the flicker disappears.

 You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
 The LCD screen has effective pixels of 99.99% or more. It may include blemishes of 0.01% or less such as a

missing pixel or a pixel lit all of the time.

 Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image,

when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image
or turning off the Power Switch for hours.

5

Table Of Contents

Chapter 1 Monitor Features ………………………………………… 7

Introduction ……………………………………… 7
Electrical Requirements ……………………………………… 8
LCD Monitor General Specification ……………………………………… 9
LCD Panel Specification ……………………………………… 10
Factory Preset Timing ……………………………………… 13
Monitor Block Diagram ……………………………………… 14
Main Board Diagram ……………………………………… 15
Software Flow chart ……………………………………… 16
Main Board Layout ……………………………………… 18
Installation ……………………………………… 19

Chapter 2 Operating Instructions ……………………………………… 21

External Controls ……………………………………… 21
Front Panel Controls ……………………………………… 21
eColor Management (OSD) ……………………………………… 22
How to Adjust a Setting ……………………………………… 23
How To Optimize The DOS-Mode ……………………………………… 27
Enter into the factory mode ……………………………………… 27

Chapter 3 Machine Disassembly ……………………………………… 28

Chapter 4 Troubleshooting ……………………………………… 31

Chapter 5 Connector Information ……………………………………… 37

Chapter 6 FRU (Field Replacement Unit) List ……………………………………… 38

Exploded Diagram ……………………………………… 38

Chapter 7 Schematic Diagram ……………………………………… 43

http://www.wjel.net

6

Monitor Features

Introduction

Scope

This short specification describes the electrical, optical and functional performance requirements for a 63.2cm (23.6”)
TFT LCD color monitor with VGA&DVI compatible interface.

Description

The LCD monitor is designed with the latest LCD technology to provide a performance oriented product with no
radiation. This will alleviate the growing health concerns. It is also a space saving design, allowing more desktop
space, and comparing to the traditional CRT monitor, it consumes less power and gets less weight in addition MTBF
target is 50k hours or more.

Chart of X233HZ&X243HQ

Chapter 1

Panel M236H1-L01 NB CMO
Signal Interface D-Sub 15pin;DVI 24pin
Sync Type Separate / Compatible
Color Temp User Adjust Support
DDC DDC2B
Speaker Yes
Headphone Jack No
Microphone Jack No
USB Hub support
Tilt / Swivel Yes /No

http://www.wjel.net

7

Electrical Requirements of X233HZ&X243HQ

Standard Test Conditions

All tests shall be performed under the following conditions, unless otherwise specified.

Warm up time ＞ 30 min.
AC supply voltage
Ambient temperature
Humidity
Display mode
e-color mode Set to “User” mode

Contrast control

Color temperature 6500°K
Brightness control The value under user mode
Analog Input signal 700 mVss
Picture position and size Factory preset value,
Viewing angle 90 ° H and V
Viewing distance 40 cm for LCD performance, 20 cm for LCD failures
Ambient illumination Dark room < 1 cd/m2

230V± 5％, 50± 3 Hz
20°C ± 5°C
65% ± 20%
1920 x 1080, 60 Hz, Pixel Clock：148.5MHZ,all white

Set to The value under user mode, which allows that the brightest
two of 32 linear distributed gray-scales (0～ 700mv) can be
distinguished.

Measurement systems

The units of measure stated in this document are listed below:
1 gamma = 1 nano tesla
1 tesla = 10,000 gauss
cm = in x 2.54
Lb = kg x 2.2
Degrees F = [°C x 1.8] + 32
Degrees C = [°F - 32]/1.8
u' = 4x/(-2x + 12y + 3)
v' = 9y/(-2x + 12y + 3)
x = (27u'/4)/[(9u'/2) - 12v' + 9]
y = (3v')/[(9u'/2) - 12v' + 9]
nits = cd/(m2) = Ft-L x 3.426
lux = foot-candle x 10.76

http://www.wjel.net

8

Set to The value under user mode, which allows that the brightest two of 32 linear

LCD Monitor General Specification

Model name X233HZ&X243HQ

Driving system TFT Color LCD

Active Display Area 525.22 (H) x 297.22(V)

Pixel pitch 0.2715(H) x 0.2715(V)

LCD Panel

Contrast Ratio 1000 : 1 (typ)

Response time 5ms(Typ.). 8ms(max)

Luminance of White 300 cd/m2(Typ.)
Separate Sync. H/V TTL

Input

Viewing angle (H)90 (V) 90(Type)

Display Colors 16.7M

Display mode 1920 x 1080 @60Hz

EPA ENERGY STAR®

Contrast control

Power Source

Environmental
Considerations

H-Frequency 30kHz – 83kHz

V-Frequency 56-75Hz

ON Mode < 65W
OFF Mode < 1W

distributed gray-scales (0～ 700mv) can be distinguished.

100 V ~ 240 V，50 ± 3Hz, 60 ± 3Hz
Operating Temp: 0° to 40°C

Storage Temp: -20° to 60°C
Operating Humidity: 15% to 90%
Storage Humidity: 15% to 90%
Operating Altitude: 12,000 feet (3,658m)

http://www.wjel.net

Storage Altitude: 40,000 feet (12,192m)

Peak surge current < 55A peak at 240 VAC and cold starting

Power line surge No advance effects (no loss of information or defect)

9

LCD Panel Specification of X233HZ&X243HQ

M236H1-L01 is a 23.6” TFT Liquid Crystal Display module with 4 CCFL Backlight unit and 30 pins 2ch-LVDS
interface. This module supports 1920 x 1080 Full HD mode and can display up to 16.7M colors. The inverter module
for Backlight is not built in.

General Specifications

Block Diagram

TFT LCD Module

http://www.wjel.net

10

Back light Unit

Electrical Characteristics

http://www.wjel.net

11

Optical Specifications

http://www.wjel.net

12

Factory Preset Timing of X233HZ&X243HQ

VESA MODES

Horizontal Vertical

Mode Resolution Total

640x480@60Hz 800 x 525 31.469 N 59.940 N 25.175

VGA

640x480@72Hz 832 x 520 37.861 N 72.809 N 31.500
800x600@56Hz 1024 x 625 35.156 N/P 56.250 N/P 36.000

SVGA

XGA

VESA

SXGA 1280x1024@60Hz 1688 x 1066

WXGA

800x600@60Hz 1056 x 628 37.879 P 60.317 P 40.000

800x600@72Hz 1040 x 666 48.077 P 72.188 P 50.000
1024x768@60Hz 1344x806 48.363 N 60.004 N 65.000
1024x768@70Hz 1328x806 56.476 N 70.069 N 75.000
1152x864@70Hz 1600 x 900 67.500 P 75.000 P 108.000
1280x960@60Hz 1800 x 1000
1280x720@60Hz 1650 x 750 44.955 P 59.940 P 74.176

1280x800@60Hz 1680 x 831 49.702 P 59.810 N 83.500
1360x768@60Hz 1792 x 795 47.712 P 60.015 P 85.500

Nominal
Frequency
+/- 0.5kHz

60.000 P 60.000 P 108.000

63.981 P 60.020 P 108.000

Sync

Polarity

Nominal

Freq.

+/- 1 Hz

Sync

Polarity

Nominal

Pixel
Clock
(MHz)

WXGA+ 1440x900@60Hz 1904 x 931 55.935 N 59.887 P 106.5

WSXGA+

UXGA

DOS 720x400@70Hz 900 x 449 31.469 N 70.087 P 28.322

VGA 640x480@67Hz 864x525 35.000 N 66.667 N 30.240

648x500@57.67 Hz 808 x 541 31.199 N 57.67 P 25.209
1024x600@60Hz 1312 x 622 37.320 N 60.000 N 48.964

1680x1050@60Hz 2240 x1089 65.290 N 59.954 P 146.250
1600x1200@60Hz 2160 x 1250
1920x1080@60Hz 2576 x 1120
1920x1080@60Hz 2200 x 1125
1920x1080@60Hz 2080 x 1111 66.587 P 69.934 N 138.500

IBM MODES

http://www.wjel.net

MAC MODES

ACER SPECIAL MODE

75.000 P 60.000 P 162.000

67.158 N 59.963 P 173.000

67.500 N 60.000 N 148.500

13

Monitor Block Diagram

The LCD MONITOR will contain a main board, a power board, a usb board and a key board which house the flat
panel control logic, brightness control logic and DDC.
The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips
each voltage.

AC-IN

100V-240V

Power Board

CCFL Drive.

Key board

Flat Panel and
CCFL backlight

DVI Signal

USB board

Main Board

D-SUB Signal

http://www.wjel.net

14

Main Board Diagram

(CN

301

)

(CN102

)

Flash Memory

SST25VF010A

(U402)

Crystal 12MHz

(X401)

Scalar IC NT68667UFG/C

(Include MCU, ADC, OSD)

D-Data
D-Clock

DVI

Connector

(U401)

Panel Interface

H sync
V sync

RGB

D-Sub

Connector

(CN101)

Key control Interface

(CN402)

http://www.wjel.net

15

Software Flow Chart

1

2

5

10

12

7

6

4

3

8

9

14

11

13

15

16

17

19

18

N

Y

N

Y

N

N

Y

N

Y

N

Y

N

http://www.wjel.net

N

Y

Y

16

Y

N

Y

Remark:

16) Display "No connection Check Signal Cable" message. And go into standby mode after the

1) MCU initializes.

2) Is the EEPROM blank?

3) Program the EEPROM by default values.

4) Get the PWM value of brightness from EEPROM.

5) Is the power key pressed?

6) Clear all global flags.

7) Are the AUTO and SELECT keys pressed?

8) Enter factory mode.

9) Save the power key status into EEPROM.
Turn on the LED and set it to green color.
Scalar initializes.

10) In standby mode?

11) Update the lifetime of back light.

12) Check the analog port, are there any signals coming?

13) Does the scalar send out an interrupt request?

14) Wake up the scalar.

15) Are there any signals coming from analog port?

message disappears.

17) Program the scalar to be able to show the coming mode.

18) Process the OSD display.

http://www.wjel.net

19) Read the keyboard. Is the power key pressed?

17

Main Board Layout

Symbol Description Symbol Description

U401 IC NT68667UFG/C QFP-128L CN402 WAFER

U703 IC LD1117DT33TR DPAK CN701 WAFER 9P RIGHT ANELE PITCH

http://www.wjel.net

U103 IC AZC099-04S SOT23-6L CN301 CONNECTOR

U104 IC AZC099-04S SOT23-6L X401 CRYSTAL 12MHz HC-49US ARG6-120

U402 SST25VF010A-33-4C-SAE CN101

U702 IC AZ1117D-1.8-E1 CN102 DVI 24PIN CONN F

18

D-SUB 15PIN VERTICAL CONN WITH
SCREW

Installation

To install the monitor to your host system, please follow the steps as given below:
Steps 1.
1-1 Connect Video Cable
a. Make sure both the monitor and computer are powered-OFF.
b. Connect the VGA video cable to the computer.
1-2 Digital Cable (Only Dual-Input Model)
a. Make sure both the monitor and computer are powered-OFF.
b. Connect one end of the 24-pin DVI cable to the back of the monitor and connect the other end to the computer’s

port.
Steps 2. Connect power cord
Connect the power cord to the monitor, then to a properly grounded AC outlet.
Steps 3. Power-ON Monitor and Computer
Power-ON the monitor first, then power-ON the computer. This sequence is very important.
Steps 4. If the monitor still does not function properly, please refer to the troubleshooting section to diagnose the

problem.

http://www.wjel.net

19

Attaching / Removing the Base

Install:
Align the release button on the bottom of the monitor with the corresponding slots on the bottom of the base.

Remove:
Depress the release button as indicated first before removing the base and follow the arrow direction to remove it.

SCREEN POSITION ADJUSTMENT

In oder to optimize the best viewing position, you can adjust the tilt of the monitor by using both of your hands to hold
the edges of the monitor as shown in the figure below. The monitor can be adjusted to 15 degrees up or 5 degrees
down as indicated by arrow below.

http://www.wjel.net

20

Operating Instructions

Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the
monitor. By changing these settings, the picture can be adjusted to your personal preferences.

• The power cord should be connected.

• Connect the video cable from the monitor to the video card.

• Press the power button to turn on the monitor position. The power indicator will light up.

Chapter 2

External Controls

Front panel controls

1.Power Switch To turn ON or OFF the power.

2.Power LED Lights up to indicate the power is turned ON.

1) When OSD menu is in active status, this button will act as

3.Empowering / Exit

4.Auto Adjust button / Exit

5.< / >

6.MENU / ENTER

http://www.wjel.net

EXIT-KEY (EXIT OSD menu).

2) When OSD menu is in off status, press this button to select
scenario mode.

1) When OSD menu is in active status, this button will act as
EXIT-KEY (EXIT OSD menu).

2)When OSD menu is in off status, press this button for 2
seconds to activate the Auto Adjustment function .The Auto
Adjustment function is used to set the Hpos, Vpos, Clock and
Focus.

3) When exit eColor OSD, it will activate the Auto Adjustment
function

Press < or > to select the desired function. Press < or > to
change the settings of the current function.

Activate OSD menu when OSD is OFF or activate/de-activate
adjustment function when OSD is ON.

21

eColor Management (OSD)

Operation instructions

Acer eColor Management
Step 1: Press “ Key” to open the Acer e-Color Management OSD and access the scenario modes

Step 2: Press “<” or “>” to select the mode
Step 3: Press “Auto Key ” to confirm the mode and run Auto Adjust

Automatic Adjustment
Step 1: Press “ Auto Key “to initial scenario mode

Step 2: Press “ Auto Key “ again to perform an Auto Adjust

Features and Benefits

http://www.wjel.net

22

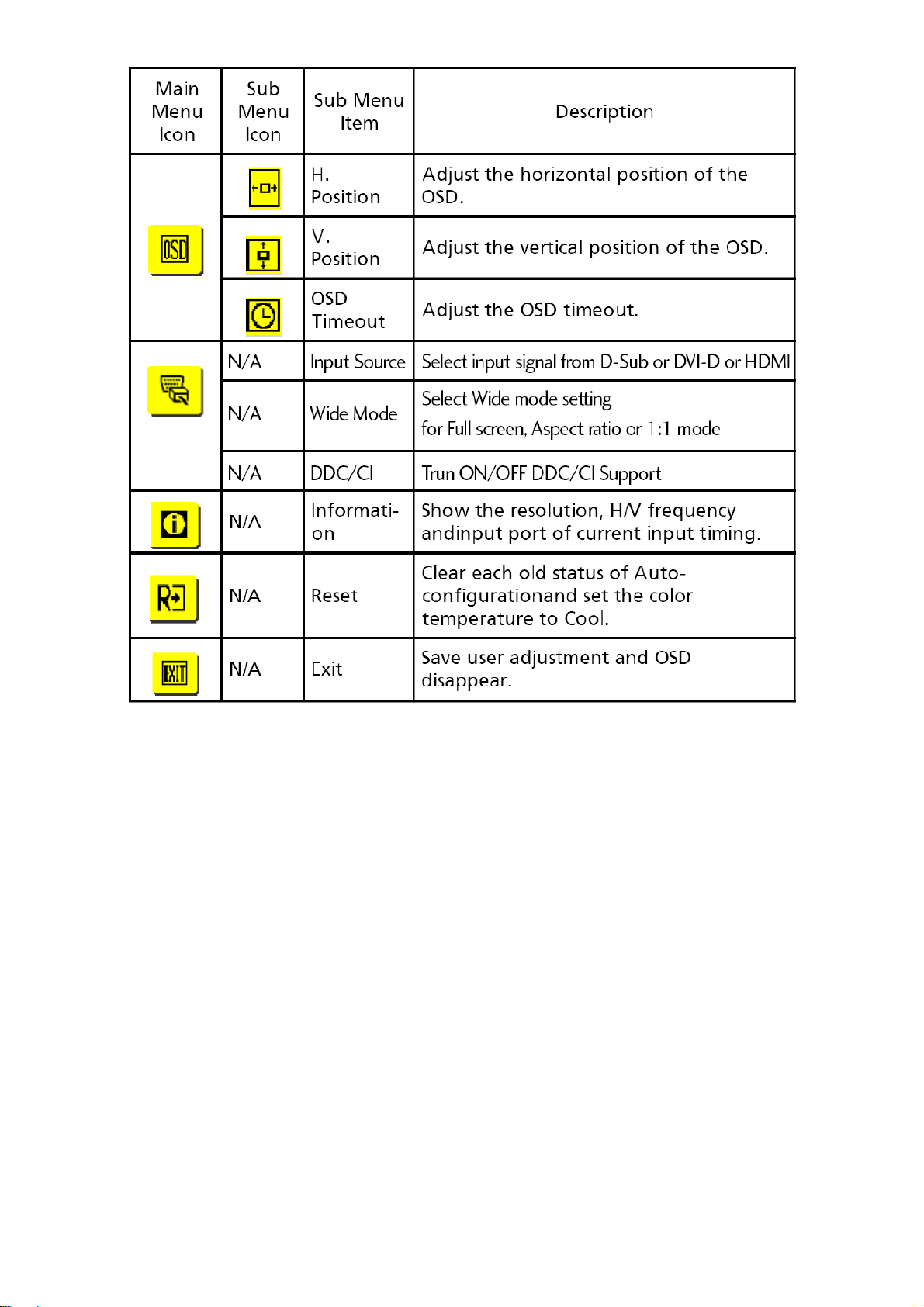

How to Adjust a Setting

1. Press the MENU-button to activate the OSD window.

2. Press < or > to select the desired function.

3. Press the MENU-button to select the function that you want to adjust.

4. Press < or > to change the settings of the current function.

5. To exit and save, select the exit function. If you want to adjust any other function, repeat steps 2-4.
P/X Series OSD behave

When user press “MENU” button on front bezel

Acer eColor Management
If selected to “Acer eColor Management” item, will appear the Acer eColor” OSD.

OSD and “ Key” locations

http://www.wjel.net

USER

23

If selected to “USER” item, will appear the Standard OSD

Adjusting the picture

The descriptions for function control LEDS

http://www.wjel.net

24

http://www.wjel.net

25

http://www.wjel.net

26

How To Optimize The DOS-Mode
Plug And Play
Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the
monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional
information about its display capabilities.

The DDC2B is a bi-directional data channel based on the I²C protocol. The host can request EDID information over
the DDC2B channel.

This monitor will appear to be non-functional if there is no video input signal. In order for this monitor to
operate properly, there must be a video input signal.

This monitor meets the Green monitor standards as set by the Video Electronics Standards Association (VESA)
and/or the United States Environmental Protection Agency (EPA) and The Swedish Confederation Employees
(NUTEK). This feature is designed to conserve electrical energy by reducing power consumption when there is no
video-input signal present. When there is no video input signals this monitor, following a time-out period, will
automatically switch to an OFF mode. This reduces the monitor's internal power supply consumption. After the video
input signal is restored, full power is restored and the display is automatically redrawn. The appearance is similar to
a "Screen Saver" feature except the display is completely off. Pressing a key on the keyboard, or clicking the mouse
restores the display.

Using the Right Power Cord

The accessory power cord for the Northern American region is the wallet plug with NEMA 5-15 style and is UL listed
and CSA labeled. The voltage rating for the power cord shall be 125 volts AC.
Supplied with units intended for connection to power outlet of personal computer: Please use a cord set consisting of
a minimum No. 18 AWG, type SJT or SVT three conductors flexible cord. One end terminates with a grounding type
attachment plug, rated 10A, 250V, and CEE-22 male configuration. The other end terminates with a molded-on type
connector body, rated 10A, 250V, having standard CEE-22 female configuration.
Please note that power supply cord needs to use VDE 0602, 0625, 0821 approval power cord in European counties.

Enter into the factory mode:

http://www.wjel.net

Turn off the power, press the “e-color” and turn the power on. The factory OSD will be at the left top of the panel.

27

Machine Disassembly

This chapter contains step-by-step procedures on how to disassemble the X233HZ&X243
HQ monitor for maintenance.

The tool for disassembly is as follows:

Chapter 3

Screwdriver,Hexagonal screwdriver, Putty knife.

Disassembly Procedure

1. Remove the hinge assembly.

2. Remove the rear cover and bezel.
The arrows in blue are the hook that we should put attention to when remove the rear cover. Use plastic

putty knife to release hooks, then you can easily remove the rear cover.

http://www.wjel.net

28

3．

Remove the lamp connectors and remove the screws to remove the panel. Put attention to the LVDS cable.

http://www.wjel.net

4. Remove the screws to remove the main board and power board.

29

5. The panel

http://www.wjel.net

30

Troubleshooting

Chapter 4

This chapter provides troubleshooting information for the X233HZ&X243HQ:

1. No Power

No power

Press power key and look if the
picture is normal

Please reinsert and make sure the
AC of 100-240 is normal

Measure U703 Pin2=3.3V,

Check if X401 oscillate waveforms are
normal

NG

OK

OK

NG

NG

Reinsert or check the
power section

Check U703, C706 and C707

Replace X401

NG

OK

Replace U401

http://www.wjel.net

31

2. No Picture (LED is orange)

No picture

The button if under
control

OK

Measure U703 Pin2=3.3V,

OK

X401 oscillate

waveform is normal

OK

NG

NG

X401 oscillate

waveform is normal

OK

Check reset circuit of
U401 is normal

OK

Replace U401

NG

Check U703, C706 and C707

Replace X401

NG

Replace X401

NG

Check Correspondent
component

Check HS/VS from
CN101 is normal

OK

NG

Check Correspondent
component

Replace U401

http://www.wjel.net

32

3. Panel Power Circuit

Check Correspondent
component.

White screen

Measure Q302 base
is low level?

OK

Check CN301 is solder
and Q302, Q301 is OK?

NG

NG

X401 oscillate
waveform is normal

OK

Check reset circuit of
U401 is normal

OK

NG

NG

Replace X401

Check Correspondent
component.

OK

Replace PANEL

Replace U401

http://www.wjel.net

33

4. Key Board

OSD is unstable or not working

Is Key Pad Board connecting normally?

Y

Is Button Switch normally?

Y

Is Key Pad Board normally?

Y

NG

Connect Key Board

NG

Replace Button Switch

NG

Replace Key Board

Check Main Board

http://www.wjel.net

34

5. Power Board

1) No power

Check AC line volt 110V or 220V

Check CN902 PIN3, 4 = 5V

NG

OK

Check the voltage of C905 (+)

OK

Check start voltage for the pin3 of IC901

OK

Check the auxiliary voltage is bigger than
11V and smaller than 25V

NG

NG

NG

Check AC input

Check bridge rectified circuit and F901 circuit

Check R904, R905 and Change IC901

OK

Check IC901 pin8 PWM wave

http://www.wjel.net

OK

Check D906/D907/D908/IC903/Q903/ZD902

NG

NG

1) Check IC901

2) Check R909/D901/C908/C907circuit

Check IC901

35

2.) No Backlight

NG

Check if the input voltage of inverter part is 16V

OK

Check ON/OFF signal

OK

Check IC801 PIN12=14.5V

OK

Check IC801 PIN5 have triangle wave

NG

NG

NG

Check adapter part

Check Interface board

Check ON/OFF circuit

OK

Check IC801 PIN9/PIN10 PWM wave

NG

OK

Check the output of PT801

http://www.wjel.net

OK

Check connecter & lamp

NG

Change IC801

Check R816/R817/R818/R819

Change PT801

36

Connector Information

D-sub connect and DVI connect:

Chapter 5

15-Pin Color Display Signal Cable

24-Pin Color Display Signal Cable

http://www.wjel.net

37

FRU (Field Replaceable Unit) List

This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of X233HZ&X243HQ. Refer
to this chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization).

NOTE: Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information

available on your regional web or channel (http://aicsl.acer.com.tw/spl/). For whatever reasons a part number
change is made, it will not be noted in the printed Service Guide. For ACER AUTHORIZED SERVICE
PROVIDERS, your Acer office may have a DIFFERENT part number code from those given in the FRU list of
this printed Service Guide. You MUST use the local FRU list provided by your regional Acer office to order
FRU parts for repair and service of customer machines.

NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on

how to dispose it properly, or follow the rules set by your regional Acer office on how to return it.

Exploded Diagram (Model: X243HQ&X233HZ)

Chapter 6

http://www.wjel.net

38

Item Description Part No.

Q`ty

1 SCERW M3X8 0Q1G130 8120 6
2 SCERW M4X8 0M1G140 8125 4
3 SCERW M4X10 0M1G1740 10120 3
4 SCERW M4X8 0Q1G 940 8120 1
5 SCERW M3X5 0M1G 130 5120 2
6 SCERW M3X6 0M1G1730 6120 6
7 RUBER FOOT 2 A12G0006 1 1
8 RUBER FOOT 1 A12G0007 1 2

9 BAES BRACKET A15G0567 101 1
10 HINGE A37G0110 1 1
11 HINGE COVER R A33G0271 RX 2L0200 1
12 HINGE COVER L A33G0271 RX 1L0200 1
13 BASE BUTTON A33G0266 RX 1L0100 1
14 BASE A34G1109 RX 1B0130 1
15 STAND REAR A34G1108 RX 1B0100 1
16 STAND FRONT A34G1107 RX 1B0100 1
17 REAR COVER A34G1106 RX 1B0100 1
18 PW-SHIELD A15G0478201 1
19 MAIN FRAME A15G0477F01101 1
20 KEY BUTTON Q33G0237 RX 1L0100 1
21 LED LENS A33G0270 1 1L0100 1
22 BEZEL A34G1105 RXA1B0130 1

http://www.wjel.net

39

Part List

Above picture show the description of the following component.

Picture Description Part No.

Main_frame_Sam

Bezel A34G1105 RXA1B0130

A15G0477F01101

Panel

750GLM236H1112N000

http://www.wjel.net

Power Board

PWPC8E41MQHA

40

Main Board CBPCRNDABQP

Key Board KEPC7QK1

Stand Front A34G1107 RX 1B0100

Base A34G1109 RX 1B0130

http://www.wjel.net

Stand Rear A34G1108 RX 1B0100

41

Hinge A37G0110 1

USB BOARD USB7QK4

http://www.wjel.net

42

Schematic Diagram

Chapter 7

Main Board

1 2

1 2

1 2

R137

4K7 1/16W 5%

FB102

BEAD

FB103

BEAD

FB101

BEAD

R108
75R 1/16W 5%

R112
75R 1/16W 5%

R116
75R 1/16W 5%

ESD_5V 5VCC

FB105

1 2

120 OHM

NC/4K7 1/16W 5%
R138
4K7 1/16W 5%

R121 NC/100R 1/16W 5%
R122 NC/100R 1/16W 5%

R105 100R 1/16W 5%

C105
5pF/50V

R109 100R 1/16W 5%

R110 470R 1/16W 5%

R111 100R 1/16W 5%

C109
5pF/50V

R114 100R 1/16W 5%

R115 100R 1/16W 5%

C113
5pF/50V

R117 100R 1/16W 5%

5V_ESD

R142

1K 1/16W 5%

5VCC

R136

U102

8

VCC

7

WP

6

SCL

5

NC / M24C02-WMN6TP

A0
A1
A2

VSS4SDA

C102

DSUB_B+

0.047uF

C106

DSUB_B-

0.047uF

C107

DSUB_SOG

1000pF
C108

DSUB_G+

0.047uF

C110

DSUB_G-

0.047uF

C111

DSUB_R+

0.047uF

C114

DSUB_R-

0.047uF

C117

0.1uF/16V

1
2
3

DDC1_SCL

DDC1_SDA

CN102

JACK

R143

4K7 1/16W 5%

100R 1/16W 5%
R101

R113
100R 1/16W 5%

VSYNC

SYNC GND

DDC SCL
DDC SDA

1/3shield
2/4shield
0/5shield
clk shield

DAT0+

DAT0-

DAT1+

DAT1-

DAT2+

DAT2-

DAT3+

DAT3-

DAT4+

DAT4-

DAT5+

DAT5-

GND26GND

25

HPD

+5V

clk+

H_Sync

R102 0R05 1/10W 5%

ESD_5V

󲌱

V_Sync

R144
4K7 1/16W 5%

DSUB_SCL

DSUB_SDA

DVI_HPD

U107

4
5
6

R106

2K2 1/16W 5%

CN101

10

15
14
13
12
11

R139 1K 1/16W 5%

U107

I/O23I/O3

GND

VDD

I/O1

I/O4

AZC099-04S

5
9
4
8
3
7
2
6
1

DB15

17 16

VGA_DET

2
1

R107
2K2 1/16W 5%

VGA_PLUG
DSUB_5V

VGA_B­VGA_B+

DVI_5V

VGA_G­VGA_G+
VGA_R­VGA_R+

DVI_DET

C115

0.1uF/16V

U105
AZC099-04S

1

I/O1

2

GND
I/O23I/O3

ZD104

RLZ5.6B

R141 1K 1/16W 5%

R120
1K 1/16W 5%

6

I/O4

5

VDD

4

http://www.wjel.net

󲌱

E5VCC

8
15
6
7
14
16

11
3
19
22

18
17
10
9
2
1
13
12
5
4
21
20
23
24

clk-

C120
NC

C103
22pF

DSUB_5V

C118
NC

U105

R103 1K 1/16W 5%
R104 1K 1/16W 5%

C104

22pF

ZD105
RLZ5.6B

DVI_SCL
DVI_SDA

R140
100R 1/16W 5%

U106
AZC099-04S

1

I/O1

I/O4

2

GND

VDD

I/O23I/O3

DSUB_SDA
DSUB_SCL

󲌱

2

VGA_G+

1

R118 100R 1/16W 5%
R119 100R 1/16W 5%

R126 10R 1/16W 5%
R127 10R 1/16W 5%
R128 10R 1/16W 5%
R129 10R 1/16W 5%
R130 10R 1/16W 5%
R131 10R 1/16W 5%

R132 10R 1/16W 5%
R134 10R 1/16W 5%

ESD_5VESD_5V

6
5
4

C119
NC

󲌱

U106

DSUB_H
DSUB_V

5V_ESD

6
5
4

C112
NC

U103

U103

I/O23I/O3
GND

VDD

I/O1

I/O4

AZC099-04S

DDC2_SCL
DDC2_SDA

HDCP_CTRL

U104

I/O1

I/O4

GND

VDD

I/O23I/O3

AZC099-04S

4
5
6

RX0P
RX0N
RX1P
RX1N
RX2P
RX2N

RXCP
RXCN

1
2

VGA_B+VGA_R+

DDC2_SCL
DDC2_SDA

RX0P
RX0N
RX1P
RX1N
RX2P
RX2N

RXCP
RXCN

󲌱

H_Sync
V_Sync

5V_ESD

U101

C101
NC

VGA_B+

VGA_B-

VGA_G+

VGA_G-

VGA_R+

VGA_R-

DVI_SCL
DVI_SDA

DDC_WP

DGND

GND POWER

43

T P V ( Top Victory Electronics Co . , Ltd. )

Date

G3108-D-X-X-1-20080519

2.0.INPUT

󲋡 󳰉 󱩑 󲋟 󲛮

Key Co mpon ent

OEM MODEL

Acer X243HQ&X233HZ

TPV MODEL

TDRMNDD8Y 1ABPN 1

PCB NAME

Sheet

of

2 5Thursday, May 22, 2008

Size
Rev

󱽥 󱞮

<󱽥󱞮>

B

CN301

PPWR_ON#

10K 1/16W 5%

R306

R307

47K 1/16W 5%

C306

0.1uF 16V

R303
10K 1/16W 5%

R304

47K 1/16W 5%

Q302

2N3904S-RTK/PS

C304
NC

3

D

C302

0.1uF/16V

C303
NC

+5V

Q301
AO3401

R305

0 OHM +-5% 1/8W

PANEL_VCC

+

C305
100uF25V

T0M

T0P

T1M

T1P

T2M

T2P

TCLK1M

TCLK1P

T3M

T3P

T4M

T4P

T5M

T5P

T6M

T6P

TCLK2M

TCLK2P

T7M

T7P

PANEL_VCC

R301
330 OHM 1/4W

C301

0.1uF/16V

30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

CONN

21

G

S

AO3401L

http://www.wjel.net

T P V ( Top Victory Electronics Co . , Ltd. )

󲋡 󳰉 󱩑 󲋟 󲛮

Key Component

Date

G3108-D-X-X-1-20080519

3.0.OUTPUT

44

OEM MODEL
TPV MODEL

PCB NAME

Sheet

Acer X243HQ&X233HZ
TDRMNDD8Y1ABPN

of

3 5Monday, May 19, 2008

Size
Rev

󱽥 󱞮

A

1

<󱽥󱞮>

CN701

5VCC

1
2
3
4
5
6
7
8
9

+5V
+5V

SM340A

D701

5VCC+5V

BKLT-VBRI
BKLT-EN

R710 NC
R703 4K7 1/16W 5%
R707 4K7 1/16W 5%

R701
NC

PANEL_ID#
Volume#
Mute

CONN

BKLT-EN

C702
NC

lock type

VCC3.3

R702
10K 1/16W 5%

Q701
2N3904S-RTK/PS

R704

4K7 1/16W 5%

on_BACKLIGHT

C701
NC

BKLT-VBRI

C703
NC

VCC3.3

C710
NC

R705
10K 1/16W 5%

1K 1/16W 5%

R706

adj_BACKLIGHT

E5VCC

5VCC

DVI_5V

2

D702
BAT54C

1

3

FB701
300 OHM

1 2

DSUB_5V

5VCC

+

C706
100uF25V

C708

0.1uF/16V

C711
NC/0.1uF/16V

3

VIN

U703

AP1117D33LA

U702
NC/AIC1117A-18PE

3

Vin

U701

VOUT

VSS

NC/AP1117E33LA

1

ADJ(GND)1VOUT2VIN

3

VCC1.8

2

Vout

+

C707

+

100uF25V

C704
NC/100uF25V

ADJ

1

2

C705
NC/0.1uF/16V

VCC3.3

C709

0.1uF/16V

T P V ( Top Victory Electronics Co . , Ltd. )

󲋡 󳰉 󱩑 󲋟 󲛮

Key Compo nent

http://www.wjel.net

45

G3108-D-X-X-X-20080519

4.0.POWER

Date

OEM MODEL
TPV MODEL
PCB NAME

Sheet

Acer X243HQ&X233HZ
TDRMNDD8Y1ABPN 1

of

4 5Thursday, May 22, 2008

Size
Rev

󱽥 󱞮

B

<󱽥󱞮>

C403

0.1uF/16V

C412

0.1uF/16V

C447

0.1uF/16V

C404

0.1uF/16V

MUTE

C422

0.1uF/16V

FB406
300OHM

C430

0.1uF/16V

VCC3.3

CN405

NC/CON N

DUBUG

FB401
300OHM

FB404
300OHM

FB407
300OHM

R407

20K OHM 1/16W

C446 0.1uF /16V

+5V

1
2
3
4

POWER_KEY#
KEY1

KEY2

LED_LF_BLUE

AVCC

C440
1uF 16V

DVDD

C410

0.1uF/16V

ADC_VAA

C439
1uF 16V

+5V

R403
10K 1/16W 5%

5V_DET

DVDD

R405 10K 1/16W 5%

TX

KEY_LEFT
KEY_RIGH T
KEY_AUTO

R436 0R05 1/16W
R437 NC
R438 NC
R439 NC
R445 0R05 1/16W
R446 0R05 1/16W

CN401 PIN1~5CN406 PIN1~5 LAY

C423

0.1uF/16V

RX2P
RX2N
RX1P
RX1N
RX0P
RX0N
RXCP
RXCN

DSUB_H
DSUB_V

DSUB_B+
DSUB_B-

DSUB_SOG
DSUB_G+
DSUB_G-

DSUB_R+
DSUB_R-

DDC1_SDA
DDC1_SCL
DDC2_SDA
DDC2_SCL

5V_DET

KEY1
KEY2

SPI_CE
SPI_SO
SPI_SI
SPI_CK
WP

VGA_DET
DVI_DET

MSDA
MSCL

TX

C420 22pF

C421 22pF

LED_ORANGE
LED_GRN/BLU E

VCC1.8

C448

0.1uF/16V

R401

AVCC

470 OHM +-1% 1/16W

R415 1K 1/16W 5%
R416 1K 1/16W 5%

R431 100R 1/16W 5%
R429 100R 1/16W 5%
R412 100R 1/16W 5%
R454 10K 1/16W 5%

X401

R462

12MHz

1M 1/16W 5%

1 2

CN401

1
2
3
4
5
6
7
8

FFC CONNECTOR

NC/2x4PI N/1.0mm

FB403

CVDDPVCC

300OHM

C442

C407

C406

0.1uF/16V

45

U401

16

REXT

4
5
7

8
10
11
13
14

41
42

19
20

21
22
23

24
25

34
35
46
47

30
33

125
126

104
105
106
107
108

48
29

49
50
31
32

1

127

128

RX2+
RX2­RX1+
RX1­RX0+
RX0­RXC+
RXC-

HSYN CI1
VSYNCI 1

BIN1+
BIN1-

SOG1I
GIN1+
GIN1-

RIN1+
RIN1-

PB7/DDC_SD A1*
PB6/DDC_SC L1*
PB5/DVI_SDA0*
PB4/DVI_SCL0*

PB3/ADC3/I NTE1
PB2/ADC2/I NTE0
PB1/ADC1
PB0/ADC0

SPI_CE
SPI_SO
SPI_SI
SPI_CLK
PD4
PD5
PD6

P35
P34
P31/TXD
P30/RXD

RSTB
OSCI

OSCO

NT68667FG

PLL_VDD

CN406
NC/CON N

http://www.wjel.net

1
2
3
4
5

C413

0.1uF/16V

0.1uF/16V

C438
1uF/16V

43

PLL_GND

52

44

CVDD

CVDD

GND

0.1uF/16V

ADC_VAA

119

115

CVDD

CVDD

DGND

GND

3

64

109

WP

AVCC

DVDD

PVCC

15

17

AVCC

AVCC

AGND

AGND

PGND

9

12

27

LED_GRN/BLU E

51

53

PVCC

DVDD

ADC_GNDA

KEY2

KEY1
POWER_KEY#
LED_ORANGE

2

90

DVDD

DVDD

DVDD

RSRA3M/T4M/RSRB0M

RSRA3P/T4P/RSR B0P

RSRA2M/T5M/GSGB0M

RSRA2P/T5P/RSGB0P

RSRA1M/T6M/RSGB0M

RSRA1P/T6P/RSBB0P

ZD403

RLZ5.6B

DGND/C GND
DGND/C GND
DGND/C GND
DGND/C GND
DGND/C GND
DGND/C GND
DGND/C GND
DGND/C GND
DGND/C GND
DGND/C GND
RSGB1M/T0M

RSGB1P/T0P
RSCLKBM/T1M
RSCLKBP/T1P

RSBB3M/T2M

RSBB3P/T2P
RSBB2M/TCLK1M
RSBB2P/TCLK1P

RSBB1M/T3M

RSBB1P/T3P

RSGA3M/TCLK2M
RSGA3P/TCLK2P

RSGA2M/T7M

RSGA2P/T7P

DGND/C GND

RSGA1P/VCKI

RSCLKAM/V7
RSCLKAP/V6

RSBA3M/V5
RSBA3P/V4
RSBA2M/V3
RSBA2P/V2
RSBA1M/V1
RSBA1P/V0

DGND/C GND

GPO2/AD0

GPO3/AD1
INT_VSO/GPO4
INT_HSO/GPO5

PWMA*/GPO7
PWMB*/GPO8

PC4/PWM1

PC3/PWM0

PC1*
PC0*

PA7/PWM9*
PA6/PWM8*
PA5/PWM7*
PA4/PWM6*

PA3/PWM5

PA1/PWM3

PA2/PWM4

PA0/PWM2

ZD401

RLZ5.6B

46

NC

NC

PC7
PC6
PC5

PC2

100
99
98
97
96
95
94
93
92
91
88
87
86
85
84
83
82
81
80
79

77
76
75
74
73
72
71
70
69
68
63
62

61
60
59
58
57
56
55
54

89
110
111
112
113
114
116
117
118

103
102
124
123
122
28
121
120

40
39
38
37
36
67
66
65

3.9K OHM 1% 1/ 16W

R444

C431

0.1uF/16V

T0M
T0P
T1M
T1P
T2M
T2P
TCLK1M
TCLK1P
T3M
T3P

T4M
T4P
T5M
T5P
T6M
T6P
TCLK2M
TCLK2P
T7M
T7P

R418 120R 1/16W 5%
R417 100R 1/16W 5%

VSO
HSO

R425 1K 1/16W 5%

R402 100R 1/16W 5%

R421 NC/120R 1/8W
R422 NC/120R 1/8W

R406 NC/ 120R 1/8W
R419 NC/120R 1/8W 5%

R420
10K 1/8W 5%

VCC3.3

R443

3.9K OHM 1% 1/ 16W

C432

C433

0.1uF/16V

0.1uF/16V

VSO
HSO

POWER_KEY#

EE_WP

LED_A

LED_ORANGE

LED_B

C434

0.1uF/16V

adj_BACKLIGHT

Volume#

on_BACKLIGHT
PANEL_ID#

DDC_WP
HDCP_CTRL

PPWR_ON#

R411

C435

10K 1/16W 5%

0.1uF/16V

T P V ( Top Vic tory Electronics C o . , Lt d. )

󲋡 󳰉 󱩑 󲋟 󲛮

G3108-D-X-X-1-20080519

Key Com pone nt

5.0.SCALER

Date

6

26

ADC_VAA

DGND/C GND

DGND/C GND

DGND/C GND

18

78

101

R409 100R 1/16W 5%

R440

4K7 1/16W 5%

EE_WP
MSCL
MSDA

LED_LF_BLUE

R408
10K 1/16W 5%

LED_A

ZD402

RLZ5.6B

0.22uF16V

R441
4K7 1/16W 5%

LED_B

DVDD

C401

0.1uF/16V

R414
10K 1/16W 5%

SPI_CE
SPI_SO

8
7
6
5

+5V

R465

R466
NC/120R 1/8W

NC/10K 1/ 16W

Q401

R467
NC/0R05 1/16W

C436

OEM MODEL
TPV MODEL
PCB NAME

Sheet

NC/2N3906S-R TK/PS

R468 NC /0R05 1/ 16W

+5V

R469

R470

0R05 1/8W

2K2 1/16W 5%

123Q402

2N3906S-RTK/PS
R471
NC

Acer X243HQ&X233HZ
TDRMNDD8Y 1ABPN C

of

5 5Thursday, May 22, 2008

U402

1

CE

2

SO

3

WP#
GND4SI

PM25LV010A

U403

NC

VCC

NC

WC

NC

SCL

VSS4SDA

M24C16

R472
120R 1/16W 5%

VCC

HOLD#

SCK

1
2
3

LED_LF_BLUE

LED_GRN/BLUE

8
7

SPI_CK

6

SPI_SI

5

DVDD

C411

0.22uF16V

CN402

1
2
3
4
5
6

CONN

7

1
2
3

CN403
NC/C ONN

C

Size
Rev

<󱽥󱞮>

󱽥󱞮

Power board

BD901

!

GBU408

3

!

2

1

!

R902

1M 1/4W 5%

!

C902

1000pF

CN901
SOCKET

GND2
GND

1
2

1

+

-

4

C904

0.22UF275V

3

L901
27mH

4

C903

0.22UF275V

1M 1/4W 5%

!

C901

1000pF

3

12

R901

2

!

1
2

GND1
GND

!

!

C905
67G 31 5Z12 115K
120 uF45 0V

C940

0.047uF

NR901
NTCR

C928

0.01uF

F901
FUSE

!

+

1500PF2KV

HS3
HEAT SINK(D906)

1
2

C938

NC

1
2
3

IC901

CT
COMP
CS

VCC

GND4OUT

LD7576

HV
NC

R904

8.2K OHM 1/4W

R905

8.2K OHM 1/4W

8
7
6
5

HS2
HEAT SINK(D908)

1
2

C918

+

470UF M 35V

L904

Coil

L903

R924
100R 1/8W 5%

C934

NC

Coil

C915

470uF/16V

+

+

L905

OEM MODEL
TPV MODEL
PCB NAME

ZD902
TZX18B

Q903

KTD1028

R946

100OHM 2W

Coil

Acer X243HQ&X233HZ

TDRMNDD8Y1ABPN 1
715G2824-1-5

Sheet

of

2 4Friday , December 05, 2008

C932

0.001uF

R943

470R 1/8W 5%

R939
1K 1/8W 5%

L906

jumpper

C930

0.1uF

R918100 OHM 1/4W

R919100 OHM 1/4W

R920100 OHM 1/4W

FB902 80OHM

1 2

C9070.1uF

D903 IN4148

R910

10R 1/4W 5%

R912
220 OHM 1/4W

C909
220pF

+16V

1500PF2KV

+

C908
22uF 50V

NC

C906

D901
FR103

Q901

STP10NK70ZFP

R938
10K 1/8W 5%

R914

CN903

1
2
3
4

CONN

HS1
HEAT SINK(Q901)

1
2

R903
100K OMH 2W +-5%

R909

3.3 OHM 1/4W

D900

FR107

C937

100pF/2KV

!

NC

0.39 OHM 2W +-5%

+5V

DIM

ON/OFF

PID

VOL

MUTE

+5V1

4

POWER X'FMR

5

6
1

3

!

C921
1000pF 250V

C900
3300pF 250V

!

T901

IC903

PC123X2YFZOF

43

C931

0.1uF

8
7

9
10

12
11

R925

1K 1/8W 5%

12

C924

0.1uF

IC904
KIA431A-AT/P

12

R926
1K 1/10W 1%

http://www.wjel.net

C912

0.001uF

D906

2

FMX-12SL

3

R935 100 OHM 1/4W
R961 100 OHM 1/4W

R962 100 OHM 1/4W

D907
31DQ06FC3

FB901
BEAD

R949 100 OHM 1/4W

R950 100 OHM 1/4W

R951 100 OHM 1/4W

2

3

SP1060

CN902

1
2
3
4
5
6
7
8

9
10
11
12
13

CONN

C917

+

470UF M 35V

1

C929

0.001uF

+

C939

1000uF/25V

C935

0.001uF

1

D908

+

C916

1000uF/25V

T P V ( Top Victory Electronics Co . , Ltd. )

Date

G2824-1-5-X-6-081125

03.POWER

󲋡 󳰉 󱩑 󲋟 󲛮

Key Co mpon ent

R940
NC

R927
10K 1/10W 1%

R930
9K1 1/10W 1%

F902

FUSE

Size
Rev

󱽥 󱞮

F903

FUSE

+5V1

Custom

ODM MODEL

+16V

+5V

47

+16V

ON/OFF

+5V

DIM
PID

100K 1/10W 1%

100K 1/10W 1%

R812

R806

R805
NC

R801
10K 1/10W 5%

C818

1.5UF/10V

R802

22R 1/8W 5%

R807
10K 1/10W 5%

C812

C806

NC

2.2uF/16V

ZD802
RLZ5.6B

1 2

5K1 1/8W 5%

R815
NC

R803

C801

0.047uF

R808

390R 1/10W 1%

C805

0.022uF

9

NDR1

10

PDR1

11

VDDA

12

TIMER

13

PWM

14

ISEN

15

SSTCMP

OVPT

16

ENA

IC801 ta9687GN-A-0-TR

R813
100K 1/10W 5%

NDR2

GNDP

PDR2

GNDA

RT1

CT

VSEN

1M 1/10W 5%

8
7
6
5
4
3
2
1

R809

ZD803
RLZ5.6B

1 2

C802

0.047uF

R810

100K 1/10W 1%

C810

0.0033uF

R817

4R7 1/8W 5%

4R7 1/8W 5%

R804

5K1 1/8W 5%

4R7 1/8W 5%

R818

4R7 1/8W 5%

Q802

2N7002 SOT-23

C808
33NF50V

R819

D801

IN4148

R816

C804

1000uF 25V
R811
82K1/10W

C809
220pF

Q805

5

G14D1

3
2
1

C815

0.1uF

3
2

C811

0.1uF

3

3

3

1

+

D806

BAV70

1

2

D807

BAV70

1

2

D808

BAV70 R840 1M 1/10W 5%

1

2

R842

10K 1/10W 5%

6

S1

D1

7

G2

D2

8

S2

D2

AO4620

Q806

5

G14D1

6

S1

D1

7

G2

D2

8

S2

D2

AO4620

R843

10K 1/10W 5%

6

POWER X'FMR

5
2

1 8

C813
NC

R844

10K 1/10W 5%

PT801

7

R828

6.2M1W

R830

6K8 1/8W 5%

R838 1M 1/10W 5%

R839 1M 1/10W 5%

R841 1M 1/10W 5%

R845

10K 1/10W 5%

C814
220pF

R836
56K 1/10W 5%

R837

6K8 1/10W 5%

LV1

LV2

LV3

LV4

C817
2PF6KV

LV1

LV2

L801

124

L802

L

124

L

LV3

C819
56pF3KV

C820
56pF3KV

3

3

C821
56pF3KV

C822
56pF3KV

CN801

1

HV

2

LV

CN802
CONN

1

HV

2

LV

CONN

LV4

CN803

1

HV

2

LV

CN804
CONN

1

HV

2

LV

CONN

3

D803
BAV99

1

2

http://www.wjel.net

Acer X243HQ&X233HZ

TDRMNDD8Y 1ABPN 1
715G2824-1-5

of

3 4Friday, December 05, 2008

Size
Rev

󱽥 󱞮

48

T P V ( Top Victory Electronics Co . , Ltd. )

󲋡 󳰉 󱩑 󲋟 󲛮

Key Co mponen t

G2824-1-5-X-6-081125

02.INVERTER

Date

OEM MODEL
TPV MODEL
PCB NAME

Sheet

Custom

ODM MODEL

+5V1

R602
10K 1/10W 5%

+5V1

C604

+

100uF/25V

C603 0.47uF/16V

C602 0.47uF/16V

CN601

PHONEJACK

Lin

4
5
3

Rin

2
1

R608
0R05 1/8W

FB602

1 2

BEAD

VOL

R604 6.2KK 1/10W 5%

R605 6.2K 1/10W 5%

R606

C610 100pF

12KOHM +-5% 1/10W

R603

10K 1/10W 5%

R607

12KOHM +-5% 1/10W

C611 100pF

C609
1uF/25V

C601 0.47uF/16V

C606 0.47uF/16V 1

R612

10R 1/10W 5%

D601

C613

IN4148 Q607

MUTE

+

100uF/25V

MMBT3906

10K 1/10W 5%

+5V1

R610

10K 1/10W 5%

R611

56K 1/10W 5%

R609

C612

0.1uF/16V

R601
10K 1/10W 5%

IC601

8

SE/BTL

7

VOLUME

6

LIN-

5

GND

4

GND

3

RIN-

2

BYPASS

1

SHUTDOWN

APA2069JITUL

LOUT-

LOUT+

ROUT+

ROUT-

C608
1uF/25V

VDD

GND
GND

VDD

2008-08-18 EE MODIFY

9
10
11
12
13
14
15
16

LOUT+
LOUT-

ROUT­ROUT+

4
3
2

CN602

CONN

HS4
HEAT SINK(IC601)

1
2

R613

1K 1/10W 5%

Q608

MMBT3904

C614

0.1uF/16V

http://www.wjel.net

T P V ( Top Victory Electronics Co . , Ltd. )

󲋡 󳰉 󱩑 󲋟 󲛮

Key Component

Date

G2824-1-5-X-6-081125

04.AUDIO

49

OEM MODEL
TPV MODEL
PCB NAME

Sheet

Acer X243HQ&X233HZ

TDRMNDD8Y1ABPN F
715G2824-1-5

of

4 4Friday, December 05, 2008

Size
Rev

󱽥 󱞮

Custom

ODM MODEL

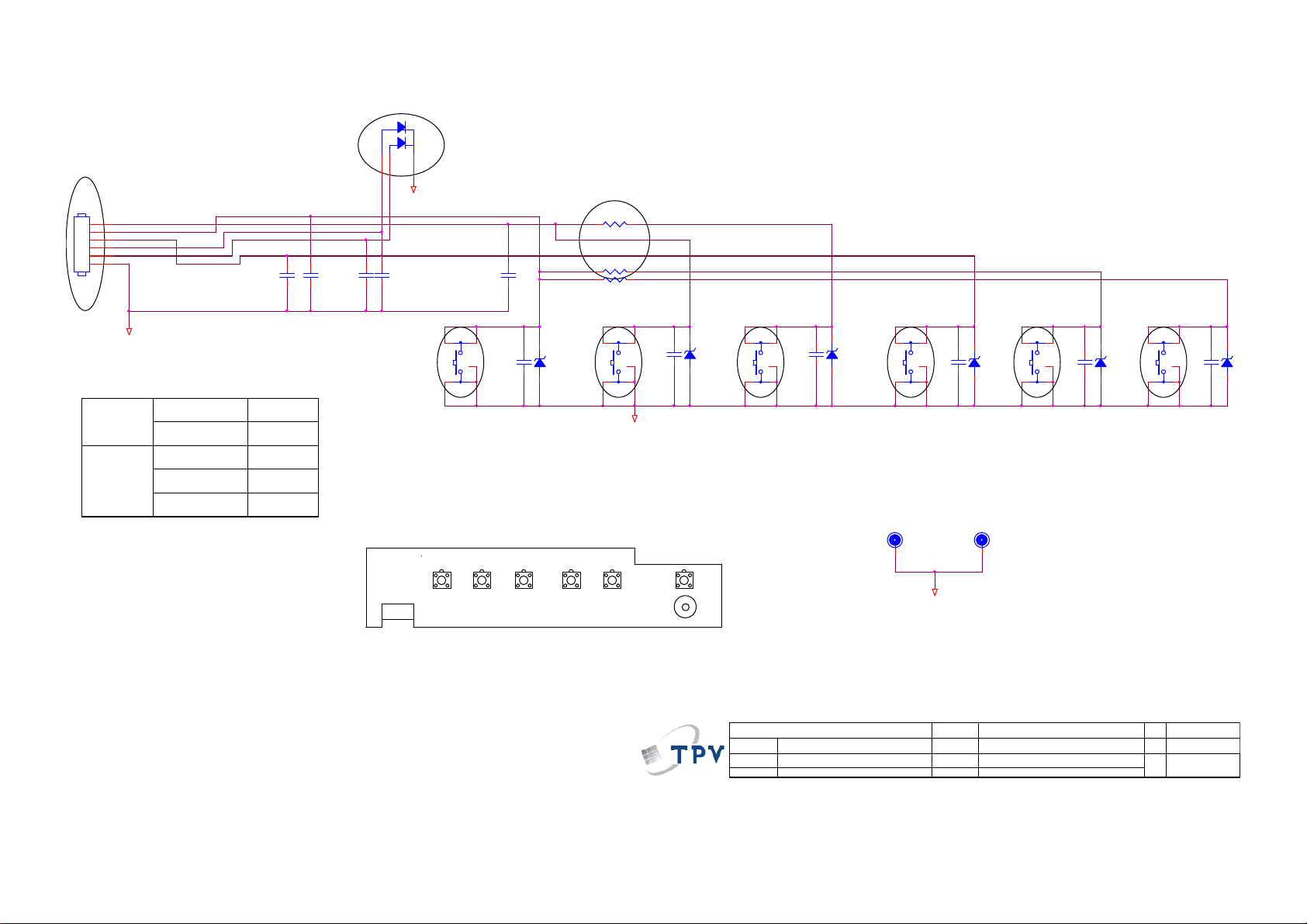

Key board

2007/5/11

LED001
LED

3

2007/5/18

c1A12A2

CN001

CONN

LBADC1

1

LBADC2

2

DC_POWERON

3

LED_GRN#

4

LED_RED#

5
6

GND

LBADC1

LBADC2

(2K)

MENU
VOL-

(GND)

(2K)

VOL+
AUTO

(1K)

ECOLOR(GND)

C001
NC

1.1V
0 V

1.1V

0.65V
0 V

C002
NC

LED_GRN#
LED_RED#

C003
NC

CONNECTOR

C004

NC

CN001

GND

SW006

SW

1 2

ECOLOR

C005

NC

5
43

change Net name
MENU--->AUTO
AUTO----MENU

2007/5/18

R002 2K OHM 1% 1/10W

R004 2K OHM 1% 1/10W
R005 1K 1/10W 1%

VOL+

ZD002UDZS5.6B

SW005

C008NC

SW

2007/5/18

1 2

5
43

GND

C010NC

GND2

POWER

1 2

ZD001UDZS5.6B

1

G

SW002

GND-EMI

5

SW

43

ECOLOR

SW003

SW

1 2

5
43

GND

ZD006UDZS5.6B

C011NC

VOL-

1 2

ZD003UDZS5.6B

C009NC

SW004

5

SW

43

MENU

ZD004UDZS5.6B

C007NC

SW001
SW

GND1

2007/5/18 2007/5/182007/5/18 2007/5/182007/5/18

1 2

GND-EMI

G

1

5
43

AUTO

ZD005UDZS5.6B

C006NC

POWERAUTO MENU VOL- VOL+

LED

<󱽥󱞮>

B

T P V ( Top Victory Electronics Co . , Ltd. )

http://www.wjel.net

󲋡 󳰉 󱩑 󲋟 󲛮

Key Co mpo nent

G2731-B-AC-X-1-070617

02.Key Board

Date

OEM MODEL
TPV MODEL
PCB NAME

Sheet

X173/X173W/X193W/P193W/X223W
ACER A
715G2731-B-AC

of

1 2Sunday, June 17, 2007

Size
Rev

󱽥 󱞮

50

Usb board

VBUS0

1uF/16V

100K 1/10W 5%

C769

/OC1

/OC2

/OC3

/OC4

R740

100K 1/10W 5%

C782

0.1uF16V

R753

100K 1/10W 5%

C798 18P 50V

R762

1M 1/10W 5%

C7102 18P 50V

R719

VCC3.3V

27

VBUS_DET

R720

100K 1/10W 5%

13

OCS1

17

OCS2

19

OCS3

21

OCS4

26

RESET

28

LOCAL_PWR/NON_REM0/SUSP_IND

11

TEST

33

XTAL1/CLKIN

12

X701

24.000MHz

32

XTAL2/CLKIN_EN

37

VSS(FLAG)

U708 USB2514-AEZG

Upstream

USBUP_DM

USBUP_DP

Downstream 1

USBDN1_DM
USBDN1_DP

PRTPWR1

Downstream 2

USBDN2_DM
USBDN2_DP

PRTPWR2

Downstream 3

USBDN3_DM
USBDN3_DP

PRTPWR3

Downstream 4

USBDN4_DM
USBDN4_DP

PRTPWR4

EEPROM/Config

SDA/SMBDATA/NON_REM1

SCL/SMBCLK/CF G_SEL0

HS_IND/CFG_SEL1

Common

VDD33CR

VDDA33/VDD 33PLL

VDDA18PLL

RBIAS

VDD33

VDDA33
VDDA33
VDDA33

VDD18

F703
PTCR

R723

R727

/OC3

DM1
DP1

DM2
DP2

3
2
1

0R05 1/10W 5%

0R05 1/10W 5%

USB5V

12

t

VBUS3A

U709 AP1510SA

VCC4OUTPUT
OCSET
EN
FB

OEM MODEL
TPV MODEL

PCB NAME

R729

0R05 1/10W 5%

L707 NC

2
3

R733

R735

L708 NC

2
3

R738

0R05 1/10W 5%

FB722
120 OHM

1 2

+

C774
100uF/16V

OUTPUT

VSS
VSS

10R 1/10W 5%

FB725

1 2

NC

0R05 1/10W 5%

23L712 NC

0R05 1/10W 5%

715G3015-C

Sheet

1
4

1 2

ZD705

EGA10603V05A1-B

1
4

1 2

ZD707

EGA10603V05A1-B

VBUS3

C775

0.1uF16V
10K 1/10W 5%

15K 1/10W 5%

D702

SM540A

5
6
7

C723

8

1000PF50V

R745

R758

1
4

R761

Acer X243HQ&X233HZ

of

2 2

1 2

ZD706

EGA10603V05A1-B

1 2

ZD708

EGA10603V05A1-B

USB5V

F704
PTCR

R724

/OC4

R728

L711
22uH

R751

1K5 1/10W 1%

1 2

EGA10603V05A1-B

ZD711

12

t

VBUS4A

R744

1 2

EGA10603V05A1-B

10

ZD712

VBUS1

9

VBUS2

C784

8K2 1/10W 1%

C797

10N 50V

CN706

657

8

5 6 7 8

1 2 3 4

123

4

FB723
120 OHM

1 2

C776

+

100uF/16V

USB5V

0.1uF16V

VBUS0

Size
Rev

󱽥 󱞮

11

12

+

C720 470uF/10V

CN704

1
2
3
4

USB CONNECTOR

VBUS4

C722

0.1uF16V

3 4

6 5

A3

C

<󱽥󱞮>

C777

0.1uF16V

12

1
4

R732

1
4

R739

C7101

0.1uF16V

VCC3.3V

C790

0.1uF16V

Power Regulator

U710 AP1117E33LA

3

VIN

C794

0.1uF16V

CN710
CONN

1 2

1 2

ZD703

EGA10603V05A1-B

EGA10603V05A1-B

NC

NC

1 2

1 2

ZD709

U711
NC/M24C02-WMN6TP

8

VCC

7

WP

6

SCL

5

SDA

2

VOUT

VSS

C796

1

0.1uF16V

12345

VBUS3

CN707 NC

65

123

4

CN708

65

123

4

ZD704

ZD710

GND

A0
A1
A2

1
2
3
4

VCC3.3V

C795

+

100uF/16V

NC

VBUS4

51

VBUS4

1
2
3
4
5

CN709

CONN

CN711

NC C ONN

5
4
3
2
1

VBUS0

VBUS3

R721

10K 1/10W 5%

/OC1

R725

15K 1/10W 5%

F702
PTCR

R722

10K 1/10W 5%

15K 1/10W 5%

+12V
+5V

USB_CTRL

R752

22K 1/10W 5%

USB5V

12

F701
PTCR

USB5V

/OC2

R726

FB724

1 2

120 OHM

FB720

t

VBUS1A

1 2

120 OHM

C772

+

100uF/16V

12

FB721

t

VBUS2A

1 2

120 OHM

C771

+

100uF/16V

Power
USB

C779

1uF/25V+C778

R767

NC/22K 1/10W

Q712

RK7002

T P V ( Top Victory Electronics Co . , Ltd. )

󲋡 󳰉 󱩑 󲋟 󲛮

G3015-C-X-X-3-080806

Key Co mpon ent

02. USB 2514

Date

Wednesday , August 06, 2008

VBUS1

C770

0.1uF16V

VBUS2

C773

0.1uF16V

C721

0.1uF16V
R743

3K9 1/10W 5%

470uF/25V

R755

10K 1/10W 5%

Q711
NC/AO4411

1

S

2

S

3

S

4

G

R747
NC/33K 1/10W 5%

Q713

NC/PMBS3904

10K 1/10W 5%

15K 1/10W 5%

C783

0.1uF16V

8

D

7

D

6

D

5

D

DM0
DP0

DM0

30

DP0

31

DM1

1

DP1

2
12

DM2

3

DP2

4
16

DM3

6

DP3

7
18

DM4

8

DP4

9
20

R750

R764

22
24
25

35

R760

23
15

5
10
29
36

14

34

NC/10K 1/10W 5%

NC/10K 1/10W 5%

R759

R756

100K 1/10W 5%

100K 1/10W 5%

12K 1/10W 5%

C791

0.1uF16V

C788

C787

0.1uF16V

0.1uF16V

C799

C7100

0.1uF16V

1uF/16V

C7103

C7104

0.1uF16V

1uF/16V

http://www.wjel.net

100uF/16V

DM3
DP3

DM4
DP4

C792

0.1uF16V

USB5V

C793

0R05 1/10W 5%

NC

R765

NC/10K 1/10W 5%

R757

100K 1/10W 5%

C789

0.1uF16V

+

R731

23L705 NC

0R05 1/10W 5%

R737

L706 NC

2
3

NC

VCC3.3V

TO Main Board
