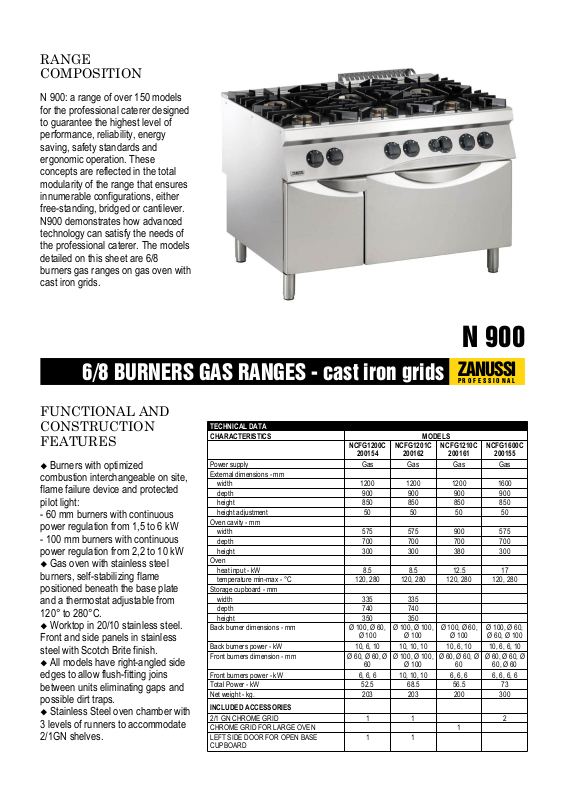

Zanussi 200161, 200154, 200162, 200155, NCFG1201C User Manual

RANGE

COMPOSITION

N 900: a range of over 150 models for the professional caterer designed to guarantee the highest level of performance, reliability, energy saving, safety standards and ergonomic operation. These concepts are reflected in the total modularity of the range that ensures innumerable configurations, either free-standing, bridged or cantilever. N900 demonstrates how advanced technology can satisfy the needs of the professional caterer. The models detailed on this sheet are 6/8 burners gas ranges on gas oven with cast iron grids.

N 900

6/8 BURNERS GAS RANGES - cast iron grids ZANUSSIP R O F E S S I O N A L

FUNCTIONAL AND CONSTRUCTION FEATURES

Burners with optimized combustion interchangeable on site, flame failure device and protected pilot light:

- 60 mm burners with continuous power regulation from 1,5 to 6 kW - 100 mm burners with continuous power regulation from 2,2 to 10 kW

Gas oven with stainless steel burners, self-stabilizing flame positioned beneath the base plate and a thermostat adjustable from 120° to 280°C.

Worktop in 20/10 stainless steel. Front and side panels in stainless steel with Scotch Brite finish.

All models have right-angled side edges to allow flush-fitting joins between units eliminating gaps and possible dirt traps.

Stainless Steel oven chamber with 3 levels of runners to accommodate 2/1GN shelves.

TECHNICAL DATA
CHARACTERISTICS		MODELS
	NCFG1200C	NCFG1201C	NCFG1210C	NCFG1600C
	200154	200162	200161	200155
Power supply	Gas	Gas	Gas	Gas
External dimensions - mm
width	1200	1200	1200	1600
depth	900	900	900	900
height	850	850	850	850
height adjustment	50	50	50	50
Oven cavity - mm
width	575	575	900	575
depth	700	700	700	700
height	300	300	380	300
Oven
heat input - kW	8.5	8.5	12.5	17
temperature min-max - °C	120, 280	120, 280	120, 280	120, 280
Storage cupboard - mm
width	335	335
depth	740	740
height	350	350
Back burner dimensions - mm	Ø 100, Ø 60,	Ø 100, Ø 100,	Ø 100, Ø 60,	Ø 100, Ø 60,
	Ø 100	Ø 100	Ø 100	Ø 60, Ø 100
Back burners power - kW	10, 6, 10	10, 10, 10	10, 6, 10	10, 6, 6, 10
Front burners dimension - mm	Ø 60, Ø 60, Ø	Ø 100, Ø 100,	Ø 60, Ø 60, Ø	Ø 60, Ø 60, Ø
	60	Ø 100	60	60, Ø 60
Front burners power - kW	6, 6, 6	10, 10, 10	6, 6, 6	6, 6, 6, 6
Total Power - kW	52.5	68.5	56.5	73
Net weight - kg.	203	203	200	300
INCLUDED ACCESSORIES
2/1 GN CHROME GRID	1	1		2
CHROME GRID FOR LARGE OVEN			1
LEFT SIDE DOOR FOR OPEN BASE	1	1
CUPBOARD
