MULTI BUILT-IN OVENS
BMS 641
BST 6
INSTRUCTION BOOKLET
FRONT PANEL
BANDEAU DE COMMANDE
SCHALTERBLENDE
BEDIENINGSPANEEL
PANEL DE MANDOS
PAINEL DE COMANDOS
1 |
2 |
3 |
4 |
°C
°C
- +
MOD. BMS 641 W - BMS 641 N - BMS 641 Y - BMS 641 A - BST 6 W - BST 6 N - BST 6 Y - BST 6 A
1 |
5 |
3 |
4 |
- +
MOD. BMS 641 X
2 |
|
|
1. ELECTRONIC PROGRAMMER |
1. ELECTRONISCHE PROGRAMMAKLOK |
|
2. OVEN TEMPERATURE LIGHT |
2. THERMOSTAATLAMPJE |
|
3. OVEN FUNCTION CONTROL KNOB |
3. FUNCTIEKNOP |
|
4. THERMOSTAT CONTROL KNOB |
4. THERMOSTAATKNOP |
|
5. OVEN FUNCTION CONTROL LIGHT |
5. KONTROLELAMPJE "OVEN IN BEDRRIJF" |
|
1. PROGRAMMATEUR ELECTRONIQUE |
1. PROGRAMADOR ELECTRÓNICO |
|
2. LAMPE TEMOIN THERMOSTAT FOUR (ROUGE) |
2. PILOTO TEMPERATURA HORNO |
|
3. BOUTON SELECTEUR (FONCTIONS) |
3. MANDO CONTROL HORNO |
|
4. BOUTON THERMOSTAT (TEMPERATURES) |
4. MANDO CONTROL TERMOSTATO |
|
5. LAMPE TEMOIN GENERALE |
5. PILOTO INDICADOR DE ENCENDIDO GENERAL |
|
1. ELEKTRONIKUHR |
1. |
PROGRAMADOR ELECTRÓNICO |
2. BACKOFENTEMPERATURANZEIGE |
2. |
INDICADOR LUMINOSO DO TERMOSTATO |
3. BACKOFENFUNKTIONSSCHALTER |
3. |
SELECTOR DAS FUNÇÕES DO FORNO |
4. TEMPERATURWÄHLER |
4. |
SELECTOR DO TERMOSTATO DO FORNO |
5. BETRIEBSKONTROLLAMPE |
5. |
INDICADOR LUMINOSO GERAL |
2
0
50
100
150
FO 0438
FO 0799 |
FO 0027 |
|
Fig. 1 Fig. 5 Fig. 9
AM
X
200
FO O781
Fig. 2 |
Fig. 6 |
Fig. 10 |
A |
|
|
U |
|
|
T |
|
|
O |
|
|
- |
+ |
|
|
FO 0336 |
FO O778 |
Fig. 3 |
Fig. 7 |
Fig. 11 |
|
|
|
|
|
|
|
FO 0350 |
|
FO 0288 |
|
|
FO 0018 |
|
|
|
|
|
|
||
Fig. 4 |
Fig. 8 |
|
|
Fig. 12 |
||
3
FO 0287
Fig. 13
MOD. |
TYPE |
PROD. NO. |
SER. NO. |
Fig. 14
FO 0292
Fig. 17
FO 0039
Fig. 18
FO 0414 |
|
FO 0986 |
|
|
|
Fig. 15 |
Fig. 19 |
|
FO 0290 |
|
FO 2159 |
|
|
|
4 |
Fig. 16 |
Fig. 20 |
ENGLISH
Important Safety Information
You MUST read these warnings carefully before installing or using the oven. If you need assistance, contact our Customer Care Department on 01635 521313
Installation
•This oven must be installed by qualified personnel to the relevant British Standards.
•This oven is heavy. Take care when moving it.
•Remove all packaging, both inside and outside the oven, before using the oven.
•Do not attempt to modify the oven in any way.
Child Safety
•This oven is designed to be operated by adults. Do not allow children to play near or with the oven.
•The oven gets hot when it is in use. Children should be kept away until it has cooled.
Maintenance and Cleaning
•Only clean this oven in accordance with the instructions.
•The oven should be kept clean at all times. A buildup of fats or other foodstuffs could result in a fire, especially in the grill pan.
•Always allow the oven to cool down and switch off the electrical supply before carrying out any cleaning or maintenance work.
Service
•This oven should only be repaired or serviced by an authorised Service Engineer and only genuine approved spare parts should be used.
During Use
•This oven is intended for domestic cooking only. It is not designed for commercial or industrial purposes.
•Never line any part of the oven with aluminium foil.
•Do not allow heatproof cooking material, e.g. roasting bags, to come into contact with oven elements.
•Never place plastic or any other material which may melt in or on the oven.
•Do not place sealed cans or aerosols inside the oven. They may explode if they are heated.
•Do not hang towels, dishcloths or clothes from the oven or its handle.
•Do not use this oven if it is in contact with water and never operate it with wet hands.
•Take great care when heating fats and oils as they will ignite if they become too hot.
•Always use oven gloves to remove and replace food in the oven.
•Ensure that all control knobs are in the OFF position when not in use.
•Do not leave cookware containing foodstuffs, e.g. fat or oil in or on the oven in case it is inadvertently switched ON.
•When using other electrical appliances, ensure the cable does not come into contact with the hot surfaces of the cooking appliance.
Environmental Information
•After installation, please dispose of the packaging with due regard to safety and the environment.
•When disposing of an old oven, make it unusable, by cutting off the cable. Remove any door catches, to prevent small children being trapped inside.
Keep this instruction book for future reference and ensure it is passed on to any new owner.
Oven Door Protection Device
(Model. BMS 641 X)
All our appliances comply with the European safety standards. Nevertheless, in order to ensure the highest safety level, and avoid little children to be exposed to the heat when the oven is operated, it is possible to fit a special ptotection device to the oven door. This device can be purchased in our Service Force Centres, specifying the relevant code (35791) and the Product No. shown on the rating plate.
5
Contents
Important safety Information Page 5
For the User
Controls |
Page |
6 |
24 hour Clock and Timer |
Page |
7 |
Before the First Use |
Page |
8 |
Using the Oven |
Page |
8 |
Using the Conventional Oven |
Page |
9 |
Cooking Chart |
Page |
10 |
Using the fan Oven |
Page |
11 |
Defrosting |
Page |
13 |
Grilling |
Page |
14 |
Cleaning the oven |
Page |
16 |
If Something Goes Wrong |
Page |
18 |
Service And Spare Parts |
Page |
19 |
Peace Of Mind for 24 Months |
Page |
19 |
For the Installer
Installation |
Page |
20 |
Electrical Connection |
Page |
20 |

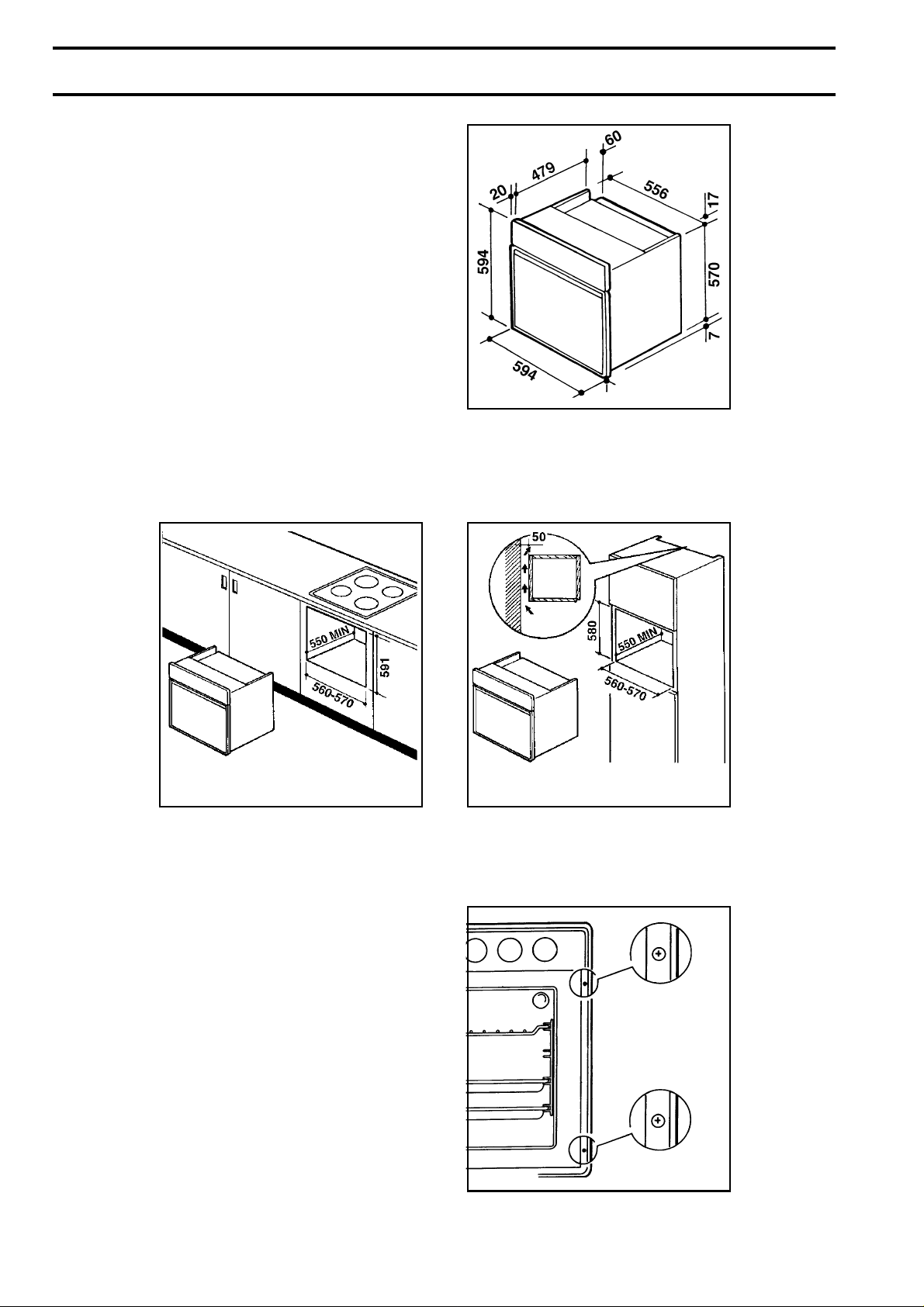

Building In |
Page |
21 |
Controls
Oven Function Control Knob
(Fig. 1 Page 3)
Oven Light - The oven light will be on without any cooking function
Defrost Setting - This setting is intended to assist in thawing of frozen food (see page 14).
Conventional cooking - The heat comes from both the top and bottom element, ensuring even heating inside the oven.
Top heating element - The heat comes from the top of the oven only.
Bottom heating element - The heat comes from the bottom of the oven only.
Fan cooking - This allows you to roast or roast and bake simoultaneously using any shelf, without flavour transference.
Inner grill element only - can be used for grilling small quantities.
Double Grill - The full grill element will be on.
Thermal Grilling - This function offers an alternative method of cooking food items, normally associated with conventional grilling. The grill element and the oven fan operate together, circulating hot air around the food.
Thermostat Control Knob
(Fig. 2 Page 3)
Turn the thermostat control knob clockwise to select temperatures between 50°C and 250°C (MAX).
24 hour Clock and Timer (Fig. 3 Page 3)
|
Minute minder |
|
Cooking duration |
|
End of cooking time |
|
Manual function |
|
Cookpot symbol - This will be displayed when a |
|
program is in operation. |
|
Auto symbol - This will be displayed when the |
A |
|
U |
oven has been programmed for automatic |
T |
|
Ooperation.
-+ Time setting knob
6
24 hour Clock and Timer
The electronic timer can indicate the time of day, operate as a minute minder and automatically operate the oven.
Before the oven can be operated, the time of day must be set on the electronic timer.
Please note that this is a 24 hour clock. For example, 2pm is shown as 14:00.
In case of loss of power, all the settings (time of day, set program or program in operation), will be cancelled. When the power is restored, the numbers on the display will flash, and the timer has to be reset.
TO SET THE |
|
TIME OF DAY |
|
Press buttons and |
|
, and at the same |
- + |
time turn the time setting |
|
knob until the correct |
|
time of day is displayed. |
|
TO SET THE TIMER TO
SWITCH OFF ONLY
This is useful if you want to begin cooking immediately but have the oven switch off automatically.
1.Set the oven function control knob and the thermostat control knob on the required settings.
2.Place food in the oven.
3.Press button
and, at the same time, turn the time setting knob until the required cooking duration is displayed.
Our diagram shows the timer set for 1 hour 10 minutes. At the end of the cooking time the oven will switch off, an alarm will sound.
To switch off the alarm press button |
. |
A
U
T
O
- +
TO SET THE |
|
MINUTE |
|
MINDER |
|
Press button and |
|
at the same time turn |
- + |
the setting time knob |
|
until the duration time |
|
is displayed (max. 23 |
|
hours, 59 minutes). |
|
Our diagram shows |
|
the timer set for 35 |
|
minutes. After a few seconds the time of day will show in the display.
To check the number of minutes remaining, press the
button. At the end of the timed period an alarm will
sound. To switch off the alarm press button |
. |
TO SET THE TIMER TO SWITCH THE OVEN ON AND OFF
1.Ensure the clock is showing the right time of day.
2.Carry out steps 1, 2 and 3 as explained in "To set the timer to switch off only".
3.Press button
and at the same time turn the time setting knob until the end cooking time is displayed.
Our diagram shows the end cooking time set for 7:35 pm.
A
U
T
O
MANUAL FUNCTION |
|
|
|
Press button to set the |
|
|
|
oven for manual function. |
- + |
TO CANCEL A PROGRAMME |
|
|
|||
|
|
1. Press button |
and, at the same time, turn the |
|
|
time setting knob until the cooking duration is set on |
|
|
|
"zero". |
|
3. If the end cooking time has been set too, press button
and at the same time turn the time setting knob until the end cooking time is set on "zero".
7
